Octafluoro-Substituted Phthalocyanines of Zinc, Cobalt, and Vanadyl: Single Crystal Structure, Spectral Study and Oriented Thin Films

by
Aleksandr Sukhikh
,
Darya Klyamer
,
Dmitry Bonegardt
and
Tamara Basova
*
Nikolaev Institute of Inorganic Chemistry SB RAS, 3 Lavrentiev Pr., 630090 Novosibirsk, Russia
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(3), 2034; https://doi.org/10.3390/ijms24032034
Submission received: 29 December 2022 / Revised: 16 January 2023 / Accepted: 17 January 2023 / Published: 19 January 2023
(This article belongs to the Special Issue Characterization of Organic and Bioorganic Nanostructures by Physical Methods)
Browse Figures
Versions Notes

Abstract

:
In this work, octafluoro-substituted phthalocyanines of zinc, vanadyl, and cobalt (MPcF8, M = Zn(II), Co(II), VO) were synthesized and studied. The structures of single crystals of the obtained phthalocyanines were determined. To visualize and compare intermolecular contacts in MPcF8, an analysis of Hirshfeld surfaces (HS) was performed. MPcF8 nanoscale thickness films were deposited by organic molecular beam deposition technique and their structure and orientation were studied using X-ray diffraction. Comparison of X-ray diffraction patterns of thin films with the calculated diffractograms showed that all three films consisted of a single crystal phase, which corresponded to a phase of single crystals. Only one strong diffraction peak corresponding to the plane (001) was observed on the diffraction pattern of each film, which indicated a strong preferred orientation with the vast majority of crystallites oriented with a (001) crystallographic plane parallel to the substrate surface. The effect of the central metals on the electronic absorption and vibrational spectra of the studied phthalocyanines as well as on the electrical conductivity of their films is also discussed.

Graphical Abstract

1. Introduction

Phthalocyanines (MPc) have been known for more than a hundred years but are still of wide interest to researchers not only as dyes and pigments but also as molecular semiconductors, catalysts, and photosensitizers. Due to the extensive π-system and the ability to form supramolecular ensembles in the form of columns of parallel packed molecules, they have a number of important and interesting properties. Today they are used in various branches of science and technology, such as chemistry [1,2], physics [3,4], and medicine [5,6,7].
An important advantage of phthalocyanines is the ability to vary their structure widely by replacing the central metal and substituents, both in the aromatic macrocycle and in axial positions. Such modification leads to a significant change in the solubility of phthalocyanine derivatives, as well as their optical, electrophysical, and catalytic properties [8,9,10,11,12]. For example, the introduction of fluorine substituents into the phthalocyanine ring leads to a decrease in their solubility in conventional organic solvents, but fluorinated phthalocyanines become capable of transferring into the gaseous phase without decomposition in a vacuum [13,14], which makes it possible to obtain their homogeneous thin films using a physical vapor deposition method. It has been shown that the introduction of fluorine substituents leads to a change in conductivity and transport properties [15]. For example, unlike ZnPc, which exhibits p-type semiconductor behavior, ZnPcF8 and ZnPcF16 are n-type semiconductors, while ZnPcF4 can demonstrate ambipolar behavior. Due to these electrical properties, fluorinated metal phthalocyanines are widely used as active layers of diodes and organic field-effect transistors (OFET) [16,17,18]. Another important area of their application is the active layers of chemical sensors for the detection of hazardous gases and substances in aquatic environments [19,20,21]. To use phthalocyanines in electronic devices, it is important to obtain thin films with a controlled structure and ordering on various surfaces. The study of the structural features of their single crystals and the packing of molecules in thin films can reveal the influence of π–π interactions and other molecular contacts on the properties of phthalocyanine-based materials. It is also worth noting that the structure and phase composition of phthalocyanine films of nanoscale thickness may differ from the structure of their single crystals and powders [22,23,24]; for this reason, special attention should be paid to the study of the structural features of thin films since they determine the electrical and sensor properties.
Among fluoro-substituted metal phthalocyanines, hexadecafluoro-substituted derivatives are the most studied. The structure of single crystals of MPcF16 (M=Cu, Co, Zn, Pd, Fe, Pb, VO) [22,25,26] and the structural features of their films [27,28] have already been reported in a number of publications. The effect of morphology and ordering in MPcF16 films on their electrical properties and OFET characteristics has also been discussed by many researchers [29,30,31]. Recently we studied structures of single crystals and thin films of a series of tetrafluoro-substituted phthalocyanines bearing F-substituents both in the peripheral (MPcF4-p, M=Co, Cu, Zn, Pd, Fe, Pb, VO) [13,32] and non-peripheral (MPcF4-np, M= Co, Cu, Zn, Pd, Fe, Pb, VO) [23,33] positions in the phthalocyanine macroring. Similar to MPcF16, MPcF4 films are also widely studied as active layers of OFETs [34] and chemical sensors [33]. It has been shown that the introduction of different numbers of F-substituents leads to alteration of the intermolecular contacts and as a result a change in the crystal structure and packing of the phthalocyanine molecules. This also affects their thermodynamic [13] and electrical [35,36] properties as well as sensor performance [28]. At the same time, octafluoro-substituted metal phthalocyanines have not been studied in detail and work on the study of the structure of their single crystals and films have been sporadic. For example, Jiang et al. [37] refined the structures of ZnPcF8 and CuPcF8 single crystals and studied charge-carrier mobility in their single crystals. The structures of anionic salts of CuPcF8 with tetrabutyl ammonium and (triphenylphosphoranylidene) ammonium were also investigated [38]. Brinkmann et al. [35] studied vapor-deposited ZnPcF8 films using UV-vis absorption spectroscopy and scanning electron microscopy and investigated change in their current during exposure to oxygen. Several works have been devoted to the study of molecule–substrate interface states in ultrathin ZnPcF8 films deposited onto single-crystal substrates using scanning tunneling microscopy and photoemission spectroscopy [39,40]. At the same time, crystals and films of other MPcF8 derivatives have not yet been studied.
To fill this gap, octafluoro-substituted phthalocyanines of zinc, vanadyl, and cobalt (MPcF8, M=Zn(II), Co(II), VO) were synthesized and studied in this work. The structures of single crystals of the obtained phthalocyanines were determined. To visualize and compare intermolecular contacts in MPcF8, an analysis of Hirshfeld surfaces (HS) was performed. MPcF8 nanoscale thickness films were deposited using the organic molecular beam deposition (OMBD) technique and their structure and orientation were studied using X-ray diffraction. The effect of the central metals on the electronic absorption and vibrational spectra of the studied phthalocyanines as well as on the electrical conductivity of their films is also discussed.

2. Results and Discussion

2.1. MPcF8 Crystal Structures

Single crystals of ZnPcF8, CoPcF8, and VOPcF8 were obtained as a result of sublimation in a vacuum (10−2 Torr). ZnPcF8 crystals form as relatively large clusters up to 1 mm in length and 60 μm in width. CoPcF8 crystals grow in the form of thin needles or long ribbons (up to 300 μm long, 30 microns wide, and less than 10 microns thick), with a tendency to bend and split into several smaller crystals. VOPcF8 crystals have the form of small (<100 μm wide and <30 μm thick) elongated hexagonal plates. All crystals have a dark purple color and a metallic luster typical of phthalocyanines. Unit cell parameters and refinement statistics for MPcF8 are given in Table 1. The main intermolecular and interatomic distances in MPcF8 are summarized in Table 2.
Figure 1 shows the molecular packing for ZnPcF8. ZnPcF8 crystallizes in a triclinic system with Z=2, which is identical to the ZnPcF8 crystal structure previously reported by Jiang et al. [37]. ZnPcF8 molecules are arranged in layers along the c axis (Figure 1a). This is typical for planar phthalocyanines, which usually crystallize in uniform stacks or in a “herringbone” pattern. The distance between layers is 3.173 Å and between the planes of adjacent molecules is 3.217 Å; the angle between the layer and the individual molecule (planes constructed through all atoms except hydrogen) is only 0.66°. When viewed along the a axis (Figure 1b), it seems that ZnPcF8 molecules form stacks, but the molecules inside the stack are staggered, so that the central metals do not lie on the same line as in other planar phthalocyanines (Figure 1c) [13].
Molecular packing diagrams for CoPcF8 are shown in Figure 2. CoPcF8 crystallizes in a triclinic system with Z=1 and is isostructural to the previously studied CuPcF8 [15,37], as well as peripherally substituted tetrafluorinated cobalt phthalocyanine (CoPcF4-p) [13] and unsubstituted α-CoPc [41].
CoPcF8 molecules are packed in uniform stacks along the a axis (Figure 2a) with a distance of 3.299 Å between adjacent molecules inside the stack and a stacking angle of 23.81° (the angle between the normal to the molecule plane and the stacking axis). For comparison, these values are 3.318Å and 24.70° in CoPcF4-p and 3.414 Å and 24.58° in α-CoPc. The molecular arrangement inside the individual stack is shown in Figure 2b.
Unlike zinc and cobalt phthalocyanines, vanadyl phthalocyanine molecules are not planar, resulting in a different packing style. For instance, the triclinic polymorph of VOPc and VOPcF4-p form molecular chains, in which one “facing up” molecule is adjacent to two “facing down” molecules. At the same time, VOPcF16 and VOPcF4-np form molecular layers, where one “facing up” molecule is adjacent to four “facing down” molecules [13,23,42]. Molecular packing diagrams for VOPcF8 are shown in Figure 3. As can be seen when viewed along the b axis, VOPcF8 molecules do not form continuous 2D layers, since the only type of interaction between molecules along the c axis is close F…F and F…H contacts (Figure 3a). Instead, VOPcF8 molecules are arranged along the a axis with alternating “up” and “down” configurations (Figure 3b,c). The gaps between the molecules in the chain are filled with two oxygen atoms belonging to molecules from two neighboring chains; the distance between these oxygen atoms is 3.300 Å. This molecular arrangement differs significantly from other fluorinated vanadyl phthalocyanines, where the gap between two molecules (chain packing) or four molecules (layered packing) is occupied by only one oxygen atom.

2.2. Hirshfeld Surface Analysis

To better analyze and visualize intermolecular interactions in MPcF8, Hirshfeld surfaces (HS) generated in CrystalExplorer 21.5 [43] and mapped with dnorm (normalized contact distance) and shape index properties, were used. Figure 4 shows HS for MPcF8 molecules mapped with the dnorm property. By default, CrystalExplorer selects an individual dnorm scale range for each Hirshfeld surface based on the minimum/maximum values for the specified surface. These values are −0.1495/1.3175 for ZnPcF8, −0.1985/1.3833 for CoPcF8, and -0.1477/1.4484 for VOPcF8, which means that the crystal structure of CoPcF8 contains stronger close contacts compared to others. Thus, an arbitrary range of −0.2−1.45 was chosen for the convenience of visual comparison between all three MPcF8 compounds. The front and back sides of the HS of ZnPcF8 have four red spots arranged in a square shape, which correspond to Cα…Cδ close contacts between neighboring molecules in the range of 3.211 Å−3.260 Å (mean value 3.235 Å). Close H…F and F…H contacts with the shortest distance of 2.354 Å are also well visualized at the edges of the molecules (Figure 4a).
Figure 4b shows only one side of CoPcF8 HS, since the crystal structure of CoPcF8 contains a single centrosymmetric molecule, which means that the front and back sides of CoPcF8 HS are identical. It contains several red spots, which correspond to various close contacts between carbon atoms of neighboring molecules in the stack. These short contacts are much less noticeable than in the case of ZnPcF8 since CoPcF8 molecules are located 0.087 Å further apart than in ZnPcF8. Instead, CoPcF8 HS is dominated by three large red spots in the center, which correspond to Co…Co close contact with a distance of 3.606 Å and two reciprocal Co…Nα close contacts (3.243 Å). The presence of these close contacts is due to the tendency of the cobalt cation to have octahedral coordination. The angle between the close Co...Nα contact and the normal to the square formed by the four Nα atoms of the CoPcF8 molecule is 174.31°, which is close to 180° for an ideal octahedron. The distance of Co-Nα in the molecule is 1.915 Å, while the distance between Co and Nα of the adjacent molecule in the stack is 3.243 Å. The side of CoPcF8 HS is characterized by four weak red dots, which correspond to four close F...H contacts of 2.440 Å. Although CoPcF8 is isostructural with CoPcF4-p [13], the contacts between the molecules in their adjacent stacks are different. There are four red spots that correspond to close contacts F…H on HS of both CoPcF4-p and CoPcF8, but these contacts in CoPcF4-p are shorter by 0.139 Å than in the case of CoPcF8.
There are two prominent red spots, which correspond to a reciprocal pair of close O…H contacts (2.409 Å), and several dull red spots, which correspond to various C…C contacts and one H…F contact (2.404 Å) on the front side of VOPcF8 HS (Figure 4c). Similar O…H close contacts were also observed in the case of the triclinic-II polymorph of VOPc (2.431 Å) [42] and VOPcF4-p (2.441 Å) [13]. The back side of VOPcF8 HS contains two clusters of red dots, which correspond to close contacts between carbon atoms in the pyrrole fragment of one molecule and carbon atoms in the benzene fragment of a neighboring one (3.204–3.293 Å, mean value 3.254 Å). Despite the large number of F-substituents, the F…H and F…F interactions are less pronounced than in VOPcF4-p [13], which is characterized by very strong F…F interactions with the closest distance between fluorine atoms of only 2.281 Å.
Figure 5 shows HS mapped with the shape index property, which is very sensitive to small changes in surface curvature, especially for flat areas with a small overall curvature. In particular, this allows for identifying weak π–π interactions between phthalocyanine molecules, which are displayed on HS in the form of pairs of blue and red triangles arranged in the form of an hourglass. Neighboring molecules are drawn on top of HS for better visualization of π–π interactions.
The front side of ZnPcF8 HS shows π–π interactions between two pairs of pyrrole moieties. The back side also has these interactions, but it is rotated by 90° relative to the front surface. This means that among four pyrrole moieties in each ZnPcF8 molecule, one fragment participates in two π–π interactions, two pyrrole fragments are involved in one π–π interaction each, and the last pyrrole fragment does not participate in any π–π interactions. The angle/distance/shift values for the π–π interactions between pyrrole fragments in ZnPcF8 are 2.603°/3.232 Å/0.777 Å and 1.219°/3.230 Å/0.786 Å.
CoPcF8 HS mapped with the shape index property has pairs of red and blue triangles in each benzene and pyrrole moiety, as well as in each of the four segments of the central macrocycle, which means that the whole CoPcF8 molecule is involved in π–π interaction with neighboring molecules in the stack. The same character of interactions is also observed in α-CoPc [41] and CoPcF4-p [13]. The angle values for π–π interactions are 0° for each fragment, while distance and shift are in the range of 3.251–3.357 Å and 1.318–1.561 Å, respectively.
The front side of the VOPcF8 HS shows the π–π interaction between benzene moieties of neighboring molecules with the angle/distance/shift values of 4.454°/3.424 Å/1.123 Å, while the back surface is characterized by π–π interactions between a benzene moiety of one molecule and a pyrrole fragment of another molecule with angle/distance/shift values of 3.995°/3.228 Å/1.068 Å.
Thus, the introduction of eight F-substituents has different effects on the phthalocyanines of various metals. In the case of CoPcF8, this effect is negligible and CoPcF8 remains isostructural with its tetrafluoro-substituted analogue CoPcF4-p [13]. However, in the case of ZnPcF8, this leads to a complete change in the packing motif from conventional stacks to 2D molecular layers formed by staggered molecular stacks, which reduces the number of π–π interactions between neighboring molecules compared to ZnPcF4-p [44]. VOPcF8 molecules are packed into interconnected molecular chains, which can be considered as a cross between the molecular chains in the triclinic polymorph of VOPc-II and 2D molecular layers in VOPcF16. Although the nature of the π–π interactions between neighboring molecules of VOPcF8 does not differ much from other fluorinated vanadyl phthalocyanines, the same cannot be said about close F...F and F...H contacts. Compared to VOPcF4-p, F...F close contacts in VOPcF8 are much less noticeable, which may lead to better crystallinity and lower micro stresses in the crystal lattice.

2.3. Vibrational Spectra of MPcF8

IR and Raman spectra of MPcF8 powders are shown in Figure 6a,b. The bands in the range from 1350 to 1620 cm−1, which are assigned mostly to C=C and C=N stretching vibrations, are similar to those of tetrafluoro-substituted derivatives [45], while there is a noticeable difference in the position and intensities of bands with a significant contribution of C-F, Cβ-Cγ-F, and Cβ-Cγ-H vibrations in the range from 900 to 1350 cm−1.
The introduction of more F-substituents into the phthalocyanine macrocycle leads also to alterations in the range of 600–900 cm−1 in both IR and Raman spectra in comparison with MPcF4 derivatives. The bands in this region corresponding mostly to M-Nα stretching vibrations and macroring deformations are mixed with C-C-H deformations and C-F stretching [45]. An increase in the number of withdrawing F-substituents and, as a consequence, a decrease in the number of C-C-H fragments leads to a change in the intensity and the form of vibrations in this region.
It is known that the range from 1350 to 1550 cm−1 in the vibrational spectra of metal phthalocyanines is considered as a “marker” of central metals. Similar to unsubstituted, tetrafluorinated, and perfluorinated MPc [45,46,47,48], MPcF8 exhibits bands dependent on central metals in this spectral region. For example, the band at 1528 cm−1 in the IR spectrum of CoPcF8 shifts to 1506 and 1492 cm−1 when passing to VOPcF8 and ZnPcF8, respectively (Figure 6a). The bands at 1434 cm−1 in the IR spectrum of CoPcF8 are also observed at lower wavenumbers in the spectra of VOPcF8 and ZnPcF8. In the Raman spectra, the band, which is most sensitive to the central metal, lies at 1542 cm−1 for CoPcF8 and shifts to 1526 cm−1 and 1510 cm−1 in the spectra of VOPcF8 and ZnPcF8, respectively (Figure 6b). According to the DFT calculations carried out in previous works [45,46,47,48], these bands are assigned to the displacements of Cα-Nβ-Cα bridges between isoindole groups in the MPc macrocycle and the change of the cavity size during the macrocycle vibration. For this reason, the shift of these bands is in good correlation with the cavity size (more precisely, with the Nα-M-Nα distance) in the phthalocyanine molecules. Indeed, similarly to other phthalocyanine derivatives, the experimental Nα-M-Nα distance in MPcF8 increases in the order of Co (3.83 Å) > VO (3.91 Å) > Zn (3.97 Å).

2.4. Study of MPcF8 Powders and Thin Films by XRD and UV-vis Spectroscopy

XRD patterns for bulk powders and as-deposited thin films of MPcF8 are shown in Figure 7. The XRD patterns of the films heated at 200 °C for 3 h in air are also given because it is known that films of some metal phthalocyanines undergo a phase transition when heated [49,50].
Polycrystalline MPcF8 powders were obtained by gradient sublimation in a vacuum. Among the three investigated phthalocyanines, only the CoPcF8 powder pattern completely coincides with the calculated one. Two small diffraction peaks with d = 13.11 Å and d = 8.317 Å on the XRD pattern of VOPcF8 powder do not coincide with the calculated powder pattern and belong to another crystalline phase of VOPcF8, which is present in an insignificant amount in the investigated powder.
ZnPcF8 powder contains two crystal phases mixed in a comparable amount. The structural data of the first phase are presented in Table 1. We also tried to isolate single crystals of the second phase of ZnPcF8 but only one small (less than 30 μm in length and 5 μm in thickness) defective needle crystal, which did not show any diffraction spots with a resolution better than 3 Å on the detector frame with a collection time of 300 s/frame, was found. For this reason, only its unit cell parameters (measured by ~100 collected reflections) were determined: a = 3.655(7) Å; b = 13.38(2) Å; c = 13.67(2) Å; α = 85.21(4)°; β = 88.52(9)°; γ = 82.36(6)°; and V = 660(3) Å3. According to the unit cell parameters, the second phase of ZnPcF8 is isostructural with CoPcF8 and CuPcF8.
A comparison of XRD patterns of thin films with the calculated diffractograms shows that all three films consist of a single crystal phase, which corresponds to the crystal structure data. Only one strong diffraction peak corresponding to the plane (001) is observed on the diffraction pattern of each film, which indicates a strong preferred orientation with the vast majority of crystallites oriented with a (001) crystallographic plane parallel to the substrate surface. Two additional weak diffraction peaks are observed on the diffractogram of the VOPcF8 film; the peak with d = 6.863 Å corresponds to the plane (002), while the peak at 3.334 Å does not exactly coincide with the plane (004), which has d = 3.432 Å. This may be due to the fact that the preferred orientation of the VOPcF8 film is not ideal, and the peak at 3.334 Å is actually a mixture of (004) and (−130) peaks, which are noticeable in the powder diffraction pattern.
Since all MPcF8 thin films have strong a preferred orientation with a known plane of preferred orientation, it is possible to calculate the angle between molecules and the substrate surface using the data on the structure of single crystals. The angle values are 70.36° for ZnPcF8, 77.17° for CoPcF8, and 86.82° for VOPcF8. The scheme of the orientation of MPcF8 molecules in the thin films relative to the substrate surface is shown in Figure 8.

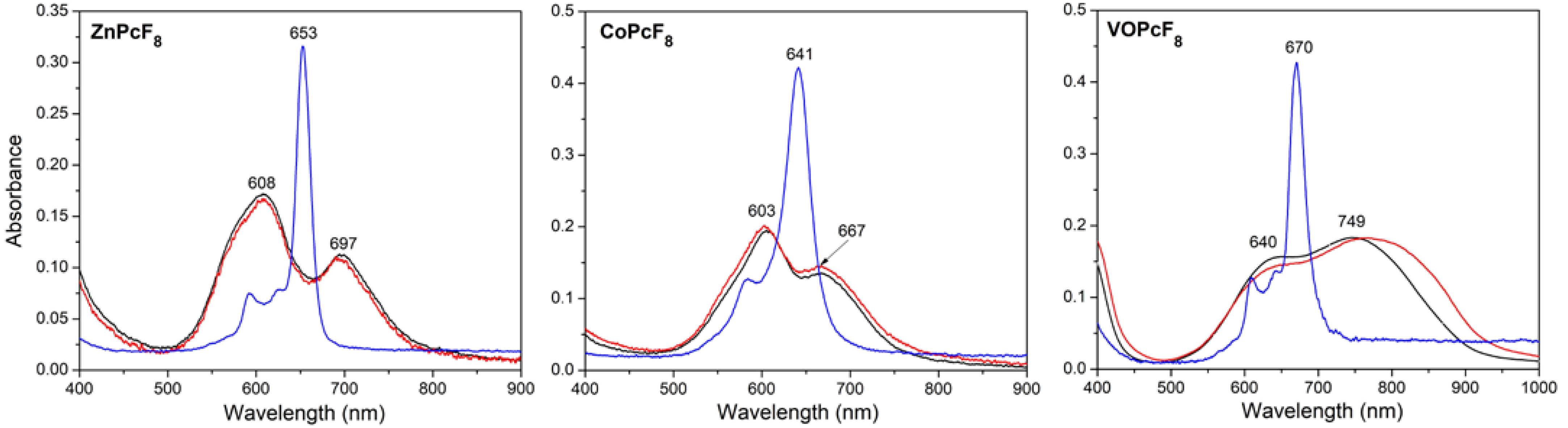

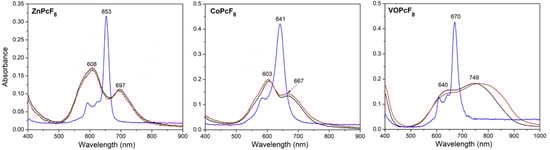

UV-vis spectra of the films are given in Figure 9 in comparison with the spectra of MPcF8 solutions in THF. All spectra contain a typical Q-band, which is attributed to the electron transitions from HOMO a1u to the LUMO eg and is very sensitive to the surrounding of an MPc molecule and intermolecular interactions [51,52].
The maxima of the Q-bands in the UV-vis spectra of CoPcF8 and ZnPcF8 solutions are located at 641 and 653 nm, respectively. The Q-band in the spectrum of a CoPcF8 film deposited on a glass slide is split into two components QI and QII with maxima at 603 and 667 nm. This spectrum is similar to those for CoPcF4 [53] and α-CoPc [54]. The Q-band splitting is due to intermolecular interaction and different arrangements of molecules relative to each other in a unit cell. According to the XRD data, CoPcF8 is isostructural with them. The UV-vis spectrum of ZnPcF8 also contains two Q-band components; however, the difference between their wavelengths is noticeably larger: QI at 608 nm and QII at 697 nm. The packing of molecules in ZnPcF8 differs from that in CoPcF8. As it was shown above, the ZnPcF8 molecules are staggered inside the stack. The UV-vis spectrum of a VOPcF8 film exhibits a broad red-shifted Q-band, which is similar to that in the spectra of non-planar VOPc and TiOPc derivatives [55] as well as VOPcF4 [23] and is a characteristic of J-aggregate formation [56].
Annealing in the air at 200 °C for 3 h had no significant effect on thin films. The observed diffraction peaks are slightly shifted to the right (interplanar values become smaller), which is caused by the release of mechanical stress in thin films. Assuming that the instrumental peak broadening is 0.05° (measured from an SRM−660a LaB6 powder sample), the size of the coherent scattering region for each film was estimated using the Scherrer equation and equal to 16.9 nm for ZnPcF8, 85 nm for CoPcF8, and 27.2 nm for VOPcF8. After annealing, these values became 16.6 nm, 73 nm, and 26.8 nm, respectively. The angles between phthalocyanine molecules (least squares plane through all atoms except hydrogen, oxygen, and vanadium) and the substrate surface, determined on the basis of the crystal structure data, were 70.36° for ZnPcF8, 75.45° for CoPcF8, and 86.82° for VOPcF8. The UV-vis spectra of CoPcF8 and ZnPcF8 films after heating also did not undergo noticeable changes. In the UV-vis spectrum of VOPcF8, the Q-band only became broader.

2.5. Study of The Conductivity of MPcF8 Films

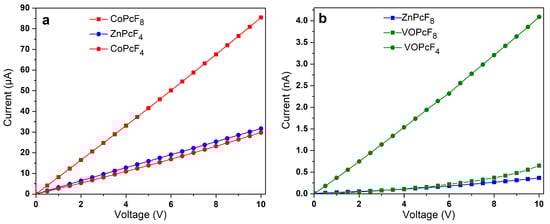

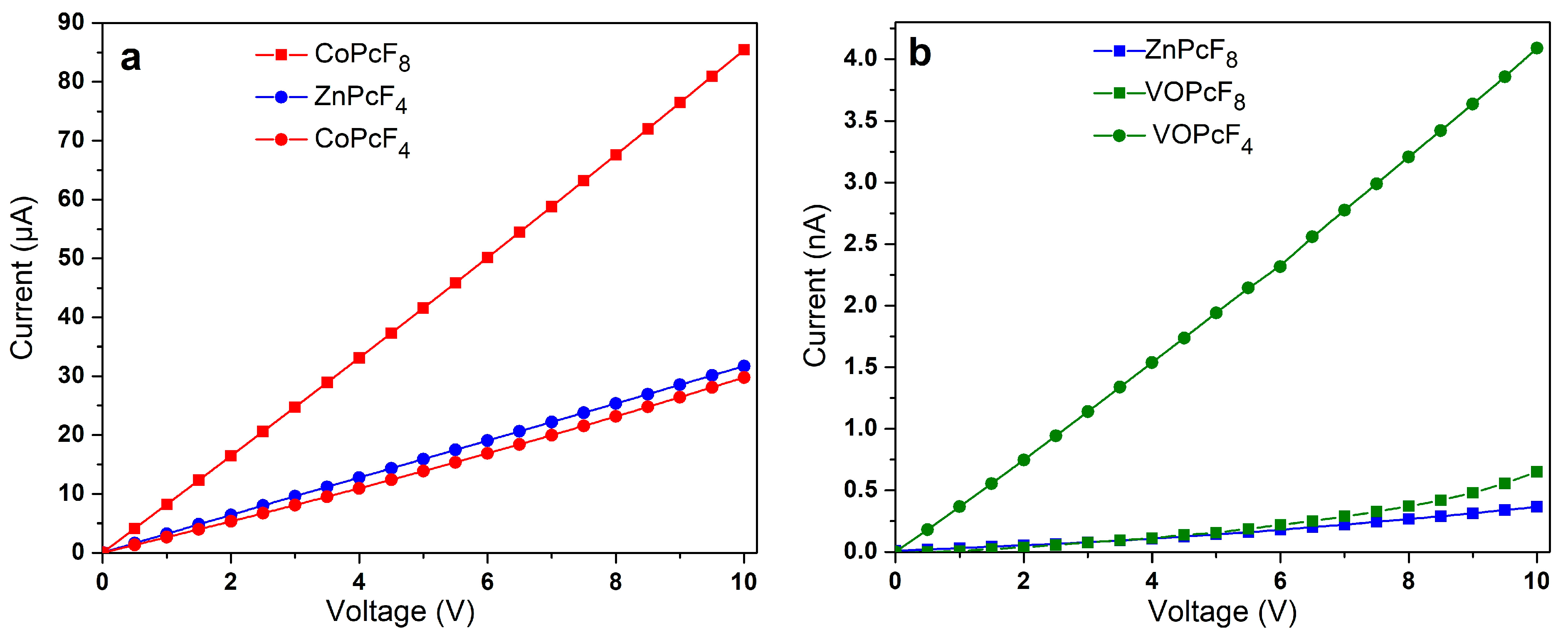

To investigate the effect of the central metal ion on conductivity, the I(V) dependencies of as-deposited MPcF8 (M=Zn(II), Co(II), VO) films were measured using a Keithley 236 electrometer (Figure 10a,b). For this purpose, the films were deposited on glass substrates with interdigitated Pt electrodes. A CoPcF8 film demonstrates ohmic conductivity in the investigated range from 0 to 10 V. The I(V) dependencies of ZnPcF8 and VOPcF8 are linear below 3 V and 2.5 V, respectively, while the shape of curves changes above these values with the slopes of a logI versus logV at about 1.3 for ZnPcF8 and 1.7 for VOPcF8. These values are below n = 2 in the dependence of I ∝ V n , which is typical for the space-charge-limited conduction (SCL) mechanism [57]. In the case of the investigated MPcF8 (M=Zn(II), Co(II), VO) films, the ohmic conduction mechanism dominated the SCL conduction. The lateral d.c. conductivity (σ//) estimated in the linear range was close for the films of ZnPcF8 (1.9·10−9 Ω−1m−1) and VOPcF8 (1.3·10−9 Ω−1m−1). The σ// of CoPcF8 was noticeably higher and equal to 6.2·10−4 Ω−1m−1. The conductivity of MPcF8 films was also compared with that of their tetrafluorinated analogues (Figure 10a,b).
The conductivity and charge-carrier mobility of polycrystalline MPc films are determined both by the packing of phthalocyanine molecules in the crystallite and by the morphology of the film. Jiang with co-authors [37,58] studied the dependence of the charge-carrier mobility in MPc single crystals on the distances between neighboring molecules along the shortest axis with the closest parallel π-stackings. It was shown that as the intermolecular distances along their shortest packing axis in unsubstituted H2Pc and MPcs decreased, the hole mobility gradually increased. This approach is reasonable in the case of isostructural phthalocyanines. CoPcF8 and ZnPcF8 investigated in this work have different structures; the distances between neighboring molecules in stacks are very close but the packing motifs are different, which leads to the different π–π interactions between neighboring molecules in the stack. It was shown above using HS analysis that in the case of ZnPcF8 only pyrrole moieties participate in one π–π interaction, while in the case of CoPcF8 the whole molecule is involved in π–π interaction with neighboring molecules in the stack (Figure 5). Such a better overlap of π-orbitals may contribute to an increase in the conductivity of CoPcF8 films. Moreover, according to the XRD analysis, there are no disordered atoms in the structure of CoPcF8, which leads to better crystallinity of the films because the fewer defects and microstresses in the crystal lattice, the better the crystallinity of the films. This fact in turn may lead to the better conductivity of CoPcF8 films. The same character of interactions as in CoPcF8 was also observed in ZnPcF4-p and CoPcF4-p [13]. The σ// values of the films of these phthalocyanines were comparable with the conductivity of CoPcF8 films and equal to 2.1·10−4 and 2.6·10−4 Ω−1m−1 for ZnPcF4-p and CoPcF4-p, respectively.
Vanadyl phthalocyanine molecules have a different packaging style due to their non-planar structure. HS of VOPcF8 (Figure 5) showed that four benzene rings of each molecule form two pairs of π–π bonds with two adjacent molecules, making molecular chains. Comparison of HS shows that VOPcF4 (2.9·10−8 Ω−1m−1) has more π–π contacts than VOPcF8, including contacts between benzene fragments and between the benzene ring and macrocycle of the adjacent molecule [13].

3. Materials and Methods

ZnPcF8, CoPcF8, and VOPcF8 were synthesized by template synthesis [59] by fusing a mixture (4:1) of difluorophthalonitrile (abcr, Karlsruhe, Germany, CAS 134450−56−9) with salts of the corresponding metals, viz., zinc acetate dihydrate (Sigma-Aldrich, Saint Louis, MO, USA, CAS 5970−45−6), CoCl2 391 (Sigma-Aldrich, Saint Louis, MO, USA, CAS 7746−79−9), or VCl3 (Sigma-Aldrich, Saint Louis, MO, USA, CAS 7718−98−1), respectively. Difluorophthalonitrile and the corresponding amount (4:1 molar ratio) of a metal salt were ground in a mortar and placed in an ampoule. The mixture was heated at 190–210 °C for several hours, then the resulting dark blue or dark green solid product was crushed and placed in a new clean ampoule for subsequent purification by sublimation. The resulting powders were purified twice by sublimation in a vacuum (10−5 Torr); the yield after sublimation was around 50%.
As a result of sublimation, single crystals of ZnPcF8, CoPcF8, and VOPcF8 were obtained.
ZnPcF8: C32H8F8N8Zn. Anal. Calc: C, 53.2; H, 1.1; N, 15.5; F, 21.1%. Found: C, 53.4; H, 1.3; N, 15.5; F, 21.0%. IR spectrum (KBr; ω, cm−1): 1618; 1603; 1489; 1465; 1339; 1281; 1204; 1178; 1140; 1086; 1026; 889; 870; 814; 746; 615; 559; 503; 441.
CoPcF8: C32H8F8N8Co. Anal. Calc: C, 53.7; H, 1.1; N, 15.7; F, 21.2%. Found: C, 53.8; H, 1.1; N, 15.9; F, 21.4%. IR spectrum (KBr; ω, cm−1): 1620; 1601; 1506; 1472; 1423; 1337; 1286; 1211; 1184; 1142; 1074; 1034; 895; 878; 818; 752; 688; 615; 567; 503; 447.
VOPcF8: C32H8F8N8VO. Anal. Calc: C, 53.1; H, 1.1; N, 15.5; F, 21.0%. Found: C, 53.3; H, 1.2; N, 15.6; F, 21.1%. IR spectrum (KBr; ω, cm−1): 1620; 1609; 1528; 1499; 1475; 1433; 1347; 1287; 1208; 1182; 1146; 1092; 1045; 930; 885; 870; 822; 750; 669; 617; 567; 511; 442.
Thin films of ZnPcF8, CoPcF8, and VOPcF8 were deposited by an OMBD technique at a residual pressure of 10−5 Torr and evaporation temperature of 450–460 °C. Glass slides were used as substrates. The films’ thicknesses were determined by the method of spectral ellipsometry using a spectroscopic ellipsometer ELLIPS 1771 SA (ISP, Novosibirsk, Russia) [60] as described in our previous work [61]; thicknesses were determined to be 85, 80, and 87 nm for ZnPcF8, CoPcF8, and VOPcF8 films, respectively.
IR and Raman spectra were recorded with a Vertex 80 FTIR spectrometer (Ettlingen, Germany) and a LabRAM Horiba single spectrometer (Montpellier, France) (488 nm line of an Ar+ laser), respectively.
Crystal structure data were obtained using a single-crystal diffractometer Bruker X8 (sealed Mo-anode tube with a graphite monochromator, 4-circle goniometer, APEX II CCD detector) and Venture single-crystal diffractometer Bruker D8 (Billerica, MA, USA) (Incoatec IμS 3.0 microfocus X-ray source with Mo-anode, 3-circle goniometer, PHOTON III C14 CPAD detector). Both diffractometers were equipped with Oxford Cryosystems Cryostream 800 (Oxford, United Kingdom) plus open-flow nitrogen coolers, which were used to maintain the sample temperature at 150(±2) K. The data acquisition strategy consisted of several ω-scans with 0.5° wide frames. The raw data frame collection, data reduction, absorption correction, and global unit cell refinement were performed in the APEX3 V2018.7–2 software package (SAINT 8.38A, SADABS−2016/2) (Madison, Wisconsin, USA) [62]. The resulting hkl datasets were processed in Olex2 v.1.5 10 (Durham, United Kingdom) [63] using SHELXT 2018/2 [64] and SHELXL 2018/3 [65] (Göttingen, Germany) for the structure solution and refinement. ZnPcF8, CoPcF8, and VOPcF8 structural data were deposited to The Cambridge Crystallographic Data Centre (CCDC) with the numbers 2177575, 2177576, and 2177577 and can be obtained from https://www.ccdc.cam.ac.uk/structures/ (accessed on 5 July 2022).
Powder and thin film diffraction patterns were obtained in the 2θ range of 3–40° using a Bruker D8 (Billerica, MA, USA) advance powder diffractometer (vertical θ-θ goniometer in the Bragg-Brentano geometry, Cu-anode sealed tube without a β-filter 40mA @ 40 kV, LYNXEYE XE-T compound silicon strip detector, motorized divergence slit), with a step of 0.01023°, an acquisition time of 2 s/step, and a fixed sample illumination area.
Electronic absorption spectra of MPcF8 solutions and films were recorded using a UV–Vis−3101PC ‘‘Shimadzu” (Kyoto, Japan) scanning spectrophotometer.
I(V) dependencies of MPcF8 films were measured using a Keithley 236 electrometer. The films were deposited onto glass slides with Pt IDE (Metrohm, DropSens, Spain, the dimension of the gaps was 10 μm; the number of digits was 125 × 2 with a digit length equal to 6760 μm).

4. Conclusions

In this work, octafluoro-substituted phthalocyanines of zinc, vanadyl, and cobalt (MPcF8, M=Zn(II), Co(II), VO) were synthesized and studied. The structures of CoPcF8 and VOPcF8 single crystals were determined for the first time. CoPcF8 crystallizes in a triclinic system with Z=1 and a space group P−1 and is isostructural to α-CoPc and previously reported CoPcF4-p and CuPcF8. VOPcF8 also crystallizes in a P−1 space group but with Z=2. Judging from the unit cell parameters, this minor phase of ZnPcF8 is isostructural to CoPcF8 and CuPcF8.
It was shown that the presence of eight peripheral F-substituents has a different effect on molecular packing and intermolecular contacts in different MPcF8. In the case of CoPcF8, no significant changes were observed compared to α-CoPc and CoPcF4-p. ZnPcF8 molecules are packed in a staggered manner, forming two-dimensional molecular layers, usually observed in non-planar phthalocyanines. The number of π–π interactions between ZnPcF8 molecules decreased compared to ZnPcF4-p. VOPcF8 molecules are packed in molecular chains that are connected to each other along the b axis. Compared to VOPcF4-p, close F…F and F…H contacts between VOPcF8 molecules are much weaker.
All three studied MPcF8 formed highly oriented single-phase thin films when deposited onto glass substrates using a PVD method. Their crystal phases correspond to the crystal structure of single crystals. The angles between the macrocycle plane and the substrate surface were 70.36° for ZnPcF8, 77.17° for CoPcF8, and 86.82° for VOPcF8.

Author Contributions

Conceptualization, D.K. and T.B.; methodology, A.S. and T.B.; software, A.S.; validation, A.S. and D.K.; formal analysis, A.S. and D.B.; investigation, A.S., D.B. and D.K.; writing—original draft preparation, A.S., D.K. and T.B.; writing—review and editing, D.K. and T.B.; visualization, A.S.; supervision, T.B.; project administration, D.K.; funding acquisition, D.K. All authors have read and agreed to the published version of the manuscript.

Funding

The study of vanadyl phthalocyanine crystals, powders and films was funded by the Russian Science Foundation, grant number 22−73−00145.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. ZnPcF8, CoPcF8, and VOPcF8 structural data can be obtained from https://www.ccdc.cam.ac.uk/structures/ (accessed on 5 July 2022) (numbers 2177575, 2177576, and 2177577).

Acknowledgments

The authors acknowledge the Ministry of Science and Higher Education of the Russian Federation (N 121031700314−5 and N 121031700313−8) for access to the center of collective use to study films of cobalt and zinc phthalocyanines.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gümrükçü Köse, G.; Karaoğlan, G.K.; Erdağ Maden, Y.; Koca, A. Novel silicon phthalocyanine photosensitizers containing carboxylic acid based axial anchoring groups: Electrochemistry, spectroelectrochemistry, and dye sensitized solar cell performance. Dyes Pigments 2022, 207, 110686. [Google Scholar] [CrossRef]
  2. Şenoğlu, S.; Özer, M.; Dumludağ, F.; Acar, N.; Salih, B.; Bekaroğlu, Ö. Synthesis, characterization, DFT study, conductivity and effects of humidity on CO2 sensing properties of the novel tetrakis-[2-(dibenzylamino)ethoxyl] substituted metallophthalocyanines. Sensors Actuators, B Chem. 2020, 310, 127860. [Google Scholar] [CrossRef]
  3. Bunin, D.A.; Martynov, A.G.; Safonova, E.A.; Tsivadze, A.Y.; Gorbunova, Y.G. Robust route toward cationic phthalocyanines through reductive amination. Dyes Pigments 2022, 207, 110768. [Google Scholar] [CrossRef]
  4. Yahya, M.; Nural, Y.; Seferoğlu, Z. Recent advances in the nonlinear optical (NLO) properties of phthalocyanines: A review. Dye. Pigment. 2022, 198, 109960. [Google Scholar] [CrossRef]
  5. Lukyanets, E.A. Phthalocyanines as Photosensitizers in the Photodynamic Therapy of Cancer. J. Porphyr. Phthalocyanines 1999, 3, 424–432. [Google Scholar] [CrossRef]
  6. de Oliveira, M.S.; Farias, E.A.d.O.; de Sousa, A.M.S.; Dionísio, N.A.; Teixeira, P.R.S.; Teixeira, A.S.; do, N.M.; da Silva, D.A.; Eiras, C. Composite films based on copper nanoparticles and nickel phthalocyanine as electrochemical sensors for serotonin detection. Surfaces and Interfaces 2021, 25, 101245. [Google Scholar] [CrossRef]
  7. Zheng, B.D.; Ye, J.; Zhang, X.Q.; Zhang, N.; Xiao, M.T. Recent advances in supramolecular activatable phthalocyanine-based photosensitizers for anti-cancer therapy. Coord. Chem. Rev. 2021, 447, 214155. [Google Scholar] [CrossRef]
  8. Szymczak, J.; Rebis, T.; Kotkowiak, M.; Wicher, B.; Sobotta, L.; Tykarska, E.; Mielcarek, J.; Kryjewski, M. Regioisomers of magnesium(II) phthalocyanine bearing menthol substituents–Synthesis, spectral, electrochemical and computational studies. Dyes Pigments 2021, 191, 109357. [Google Scholar] [CrossRef]
  9. Ivanova, V.; Klyamer, D.; Krasnov, P.; Kaya, E.N.; Kulu, I.; Tuncel Kostakoğlu, S.; Durmuş, M.; Basova, T. Hybrid materials based on pyrene-substituted metallo phthalocyanines as sensing layers for ammonia detection: Effect of the number of pyrene substituents. Sensors Actuators B Chem. 2023, 375, 132843. [Google Scholar] [CrossRef]
  10. Robin Nxele, S.; Nkhahle, R.; Nyokong, T. The composites of asymmetric Co phthalocyanines-graphitic carbon nitride quantum dots-aptamer as specific electrochemical sensors for the detection of prostate specific antigen: Effects of ring substituents. J. Electroanal. Chem. 2021, 900, 115730. [Google Scholar] [CrossRef]
  11. Chen, Y.; Yao, Q.; Qu, S.; Shi, W.; Li, H.; Chen, L. Enhanced thermoelectric performance of phthalocyanine complexes/single-walled carbon nanotube hybrids by tuning the types of metal coordination ions. Compos. Commun. 2021, 27, 100891. [Google Scholar] [CrossRef]
  12. Zeinidenov, A.K.; Aimukhanov, A.K.; Kambar, D.S.; Ilyassov, B.R.; Zavgorodniy, A.V. Effects of phthalocyanine nanostructure on photovoltaic performance of its polymer composite thin films. Mater. Chem. Phys. 2021, 267, 124680. [Google Scholar] [CrossRef]
  13. Klyamer, D.D.; Sukhikh, A.S.; Trubin, S.V.; Gromilov, S.A.; Morozova, N.B.; Basova, T.V.; Hassan, A.K. Tetrafluorosubstituted Metal Phthalocyanines: Interplay between Saturated Vapor Pressure and Crystal Structure. Cryst. Growth Des. 2020, 20, 1016–1024. [Google Scholar] [CrossRef]
  14. Basova, T.; Semyannikov, P.; Plyashkevich, V.; Hassan, A.; Igumenov, I. Volatile phthalocyanines: Vapor pressure and thermodynamics. Crit. Rev. Solid State Mater. Sci. 2009, 34, 180–189. [Google Scholar] [CrossRef]
  15. Matumoto, A.; Hoshino, N.; Akutagawa, T.; Matsuda, M. N-type semiconducting behavior of copper octafluorophthalocyanine in an organic field-effect transistor. Appl. Sci. 2017, 7, 1111. [Google Scholar] [CrossRef] [Green Version]
  16. Bao, Z.; Lovinger, A.J.; Brown, J. New air-stable n-channel organs thin film transistors. J. Am. Chem. Soc. 1998, 120, 207–208. [Google Scholar] [CrossRef]
  17. Ling, M.-M.; Bao, Z.; Erk, P. Air-stable n-channel copper hexachlorophthalocyanine for field-effect transistors. Appl. Phys. Lett. 2006, 89, 163516. [Google Scholar] [CrossRef]
  18. Lessard, B.H. The Rise of Silicon Phthalocyanine: From Organic Photovoltaics to Organic Thin Film Transistors. ACS Appl. Mater. Interfaces 2021, 13, 31321–31330. [Google Scholar] [CrossRef]
  19. Gai, S.; Wang, B.; Wang, X.; Zhang, R.; Miao, S.; Wu, Y. Ultrafast NH3 gas sensor based on phthalocyanine-optimized non-covalent hybrid of carbon nanotubes with pyrrole. Sensors Actuators B Chem. 2022, 357, 131352. [Google Scholar] [CrossRef]
  20. Carvalho da Silva, V.N.; Farias, E.A.d.O.; Araújo, A.R.; Xavier Magalhães, F.E.; Neves Fernandes, J.R.; Teles Souza, J.M.; Eiras, C.; Alves da Silva, D.; Hugo do Vale Bastos, V.; Teixeira, S.S. Rapid and selective detection of dopamine in human serum using an electrochemical sensor based on zinc oxide nanoparticles, nickel phthalocyanines, and carbon nanotubes. Biosens. Bioelectron. 2022, 210, 114211. [Google Scholar] [CrossRef]
  21. Bouvet, M.; Guillaud, G.; Leroy, A.; Maillard, A.; Spirkovitch, S.; Tournilhac, F.-G. Phthalocyanine-based field-effect transistor as ozone sensor. Sensors Actuators B Chem. 2001, 73, 63–70. [Google Scholar] [CrossRef]
  22. Sukhikh, A.S.; Klyamer, D.D.; Parkhomenko, R.G.; Krasnov, P.O.; Gromilov, S.A.; Hassan, A.K.; Basova, T.V. Effect of fluorosubstitution on the structure of single crystals, thin films and spectral properties of palladium phthalocyanines. Dye. Pigment. 2018, 149, 348–355. [Google Scholar] [CrossRef] [Green Version]
  23. Sukhikh, A.; Bonegardt, D.; Klyamer, D.; Basova, T. Effect of non-peripheral fluorosubstitution on the structure of metal phthalocyanines and their films. Dyes Pigments 2021, 192, 109442. [Google Scholar] [CrossRef]
  24. Klyamer, D.; Sukhikh, A.; Nikolaeva, N.; Morozova, N.; Basova, T. Vanadyl phthalocyanine films and their hybrid structures with Pd nanoparticles: Structure and sensing properties. Sensors 2020, 20, 1893. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Yoon, S.M.; Song, H.J.; Hwang, I.C.; Kim, K.S.; Choi, H.C. Single crystal structure of copper hexadecafluorophthalocyanine (F16CuPc) ribbon. Chem. Commun. 2010, 46, 231–233. [Google Scholar] [CrossRef] [Green Version]
  26. Jiang, H.; Ye, J.; Hu, P.; Wei, F.; Du, K.; Wang, N.; Ba, T.; Feng, S.; Kloc, C. Fluorination of metal phthalocyanines: Single-crystal growth, efficient N-channel organic field-effect transistors, and structure-property relationships. Sci. Rep. 2014, 4, 7573. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Ma, F.; Wang, S.; Li, X. Synthesis, spectral characterization of CuPcF16 and its application in organic thin film transistors using p-6p as inducing layer. J. Phys. Chem. Solids 2012, 73, 589–592. [Google Scholar] [CrossRef]
  28. Klyamer, D.; Sukhikh, A.; Gromilov, S.; Krasnov, P.; Basova, T. Fluorinated metal phthalocyanines: Interplay between fluorination degree, films orientation, and ammonia sensing properties. Sensors 2018, 18, 2141. [Google Scholar] [CrossRef] [Green Version]
  29. Dong, N.; Wu, X.-M.; Dang, H.-Q.; Liu, D.-Y.; Zhang, Q.; Wei, J.; Yin, S.-G. Improved Performance of Phthalocyanine Derivative Field-Effect Transistors by Inserting a Para-Quarterphenyl as the Inducing Layer. Chinese Phys. Lett. 2014, 31, 058501. [Google Scholar] [CrossRef]
  30. Bouvet, M.; Gaudillat, P.; Kumar, A.; Sauerwald, T.; Schüler, M.; Schütze, A.; Suisse, J.M. Revisiting the electronic properties of Molecular Semiconductor–Doped Insulator (MSDI) heterojunctions through impedance and chemosensing studies. Org. Electron. 2015, 26, 345–354. [Google Scholar] [CrossRef]
  31. Kumar, A.; Meunier-Prest, R.; Bouvet, M. Organic heterojunction devices based on phthalocyanines: A new approach to gas chemosensing. Sensors 2020, 20, 4700. [Google Scholar] [CrossRef] [PubMed]
  32. Kuprikova, N.M.; Klyamer, D.D.; Sukhikh, A.S.; Krasnov, P.O.; Mrsic, I.; Basova, T.V. Fluorosubstituted lead phthalocyanines: Crystal structure, spectral and sensing properties. Dyes Pigments 2020, 173, 107939. [Google Scholar] [CrossRef]
  33. Bonegardt, D.; Klyamer, D.; Sukhikh, A.; Krasnov, P.; Popovetskiy, P.; Basova, T. Fluorination vs. Chlorination: Effect on the Sensor Response of Tetrasubstituted Zinc Phthalocyanine Films to Ammonia. 2021, 9, 137. [Google Scholar] [CrossRef]
  34. Shao, X.; Wang, S.; Li, X.; Su, Z.; Chen, Y.; Xiao, Y. Single component p-, ambipolar and n-type OTFTs based on fluorinated copper phthalocyanines. Dyes Pigments 2016, 132, 378–386. [Google Scholar] [CrossRef]
  35. Brinkmann, H.; Kelting, C.; Makarov, S.; Tsaryova, O.; Schnurpfeil, G.; Wöhrle, D.; Schlettwein, D. Fluorinated phthalocyanines as molecular semiconductor thin films. Phys. Status Solidi Appl. Mater. Sci. 2008, 205, 409–420. [Google Scholar] [CrossRef]
  36. Peisert, H.; Knupfer, M.; Fink, J. Electronic structure of partially fluorinated copper phthalocyanine (CuPcF4) and its interface to Au(1 0 0). Surf. Sci. 2002, 515, 491–498. [Google Scholar] [CrossRef]
  37. Jiang, H.; Hu, P.; Ye, J.; Li, Y.; Li, H.; Zhang, X.; Li, R.; Dong, H.; Hu, W.; Kloc, C. Molecular Crystal Engineering: Tuning Organic Semiconductor from p-type to n-type by Adjusting Their Substitutional Symmetry. Adv. Mater. 2017, 29, 1605053. [Google Scholar] [CrossRef]
  38. Konarev, D.V.; Troyanov, S.I.; Kuzmin, A.V.; Nakano, Y.; Ishikawa, M.; Faraonov, M.A.; Khasanov, S.S.; Litvinov, A.L.; Otsuka, A.; Yamochi, H.; et al. The Salts of Copper Octafluoro- and Hexadecafluorophthalocyanines Containing [CuII(F8Pc)4–]2– Dianions and [CuF16Pc]− Monoanions. Inorg. Chem. 2017, 56, 1804–1813. [Google Scholar] [CrossRef] [Green Version]
  39. Oison, V.; Koudia, M.; Abel, M.; Porte, L. Influence of stress on hydrogen-bond formation in a halogenated phthalocyanine network. Phys. Rev. B–Condens. Matter Mater. Phys. 2007, 75, 1–6. [Google Scholar] [CrossRef]
  40. Giovanelli, L.; Bocquet, F.C.; Amsalem, P.; Lee, H.-L.; Abel, M.; Clair, S.; Koudia, M.; Faury, T.; Petaccia, L.; Topwal, D.; et al. Interpretation of valence band photoemission spectra at organic-metal interfaces. Phys. Rev. B 2013, 87, 35413. [Google Scholar] [CrossRef]
  41. Ballirano, P.; Caminiti, R.; Ercolani, C.; Maras, A.; Orrù, M.A. X-ray powder diffraction structure reinvestigation of the α and β forms of cobalt phthalocyanine and kinetics of the α → β phase transition. J. Am. Chem. Soc. 1998, 120, 12798–12807. [Google Scholar] [CrossRef]
  42. Ziolo, R.F.; Griffiths, C.H.; Troup, J.M. Crystal structure of vanadyl phthalocyanine, phase II. J. Chem. Soc. Dalt. Trans. 1980, 2300–2302. [Google Scholar] [CrossRef]
  43. Spackman, P.R.; Turner, M.J.; McKinnon, J.J.; Wolff, S.K.; Grimwood, D.J.; Jayatilaka, D.; Spackman, M.A. CrystalExplorer: A program for Hirshfeld surface analysis, visualization and quantitative analysis of molecular crystals. J. Appl. Crystallogr. 2021, 54, 1006–1011. [Google Scholar] [CrossRef] [PubMed]
  44. Klyamer, D.D.; Sukhikh, A.S.; Gromilov, S.A.; Kruchinin, V.N.; Spesivtsev, E.V.; Hassan, A.K.; Basova, T.V. Influence of fluorosubstitution on the structure of zinc phthalocyanine thin films. Macroheterocycles 2018, 11, 304–311. [Google Scholar] [CrossRef]
  45. Klyamer, D.D.; Basova, T.V.; Krasnov, P.O.; Sukhikh, A.S. Effect of fluorosubstitution and central metals on the molecular structure and vibrational spectra of metal phthalocyanines. J. Mol. Struct. 2019, 1189, 73–80. [Google Scholar] [CrossRef]
  46. Tackley, D.R.; Dent, G.; Smith, W.E. IR and Raman assignments for zinc phthalocyanine from DFT calculations. Phys. Chem. Chem. Phys. 2000, 2, 3949–3955. [Google Scholar] [CrossRef]
  47. Tackley, D.R.; Dent, G.; Smith, W.E. Phthalocyanines: Structure and vibrations. Phys. Chem. Chem. Phys. 2001, 3, 1419–1426. [Google Scholar] [CrossRef]
  48. Basova, T.V.; Kiselev, V.G.; Schuster, B.E.; Peisert, H.; Chassé, T. Experimental and theoretical investigation of vibrational spectra of copper phthalocyanine: Polarized single-crystal Raman spectra, isotope effect and DFT calculations. J. Raman Spectrosc. 2009, 40, 2080–2087. [Google Scholar] [CrossRef]
  49. Cranston, R.R.; Lessard, B.H. Metal phthalocyanines: Thin-film formation, microstructure, and physical properties. RSC Adv. 2021, 11, 21716–21737. [Google Scholar] [CrossRef]
  50. Fronk, M.; Bräuer, B.; Zahn, D.R.T.; Salvan, G. Temperature dependence of the optical anisotropy of vanadyl phthalocyanine films. Thin Solid Films 2008, 516, 7916–7920. [Google Scholar] [CrossRef]
  51. Kerp, H.R.; Westerduin, K.T.; Van Veen, A.T.; Van Faassen, E.E. Quantification and effects of molecular oxygen and water in zinc phthalocyanine layers. J. Mater. Res. 2001, 16, 503–511. [Google Scholar] [CrossRef]
  52. van Faassen, E.E.; Schlettwein, D. Energy Migratoin and Light-Induced Charge Transfer at Phthalocyanine Surfaces. In Handbook of Photochemistry and Photobiology, Vol. 3: Supramolecular Photochemistry; Nalwa, H.S., Ed.; American Scientific: Los Angeles, CA, USA, 2003; pp. 355–409. [Google Scholar]
  53. Klyamer, D.D.; Sukhikh, A.S.; Krasnov, P.O.; Gromilov, S.A.; Morozova, N.B.; Basova, T.V. Thin films of tetrafluorosubstituted cobalt phthalocyanine: Structure and sensor properties. Appl. Surf. Sci. 2016, 372, 79–86. [Google Scholar] [CrossRef]
  54. Ji, X.; Zou, T.; Gong, H.; Wu, Q.; Qiao, Z.; Wu, W.; Wang, H. Cobalt phthalocyanine nanowires: Growth, crystal structure, and optical properties. Cryst. Res. Technol. 2016, 51, 154–159. [Google Scholar] [CrossRef]
  55. Yamashita, A.; Maruno, T.; Hayashi, T. Absorption spectra of organic-molecular-beam-deposited vanadyl- and titanylphthalocyanine. J. Phys. Chem. 2002, 97, 4567–4569. [Google Scholar] [CrossRef]
  56. Zhang, X.F.; Xi, Q.; Zhao, J. Fluorescent and triplet state photoactive J-type phthalocyanine nano assemblies: Controlled formation and photosensitizing properties. J. Mater. Chem. 2010, 20, 6726–6733. [Google Scholar] [CrossRef]
  57. Chiu, F. A Review on Conduction Mechanisms in Dielectric Films. Adv. Mater. Sci. Eng. 2014, 1, 578168 . [Google Scholar] [CrossRef] [Green Version]
  58. Jiang, H.; Hu, P.; Ye, J.; Ganguly, R.; Li, Y.; Long, Y.; Fichou, D.; Hu, W.; Kloc, C. Hole Mobility Modulation in Single-Crystal Metal Phthalocyanines by Changing the Metal–π/π–π Interactions. Angew. Chemie–Int. Ed. 2018, 57, 10112–10117. [Google Scholar] [CrossRef]
  59. Stuzhin, P.A. Fluorinated phthalocyanine and their analogues. In Fluorine in Heterocyclic Chemistry: Volume 1: 5-Membered Heterocycles and Macrocycles; Nenajdenko, V., Ed.; Springer International Publishing: New York, NY, USA, 2014; Volume 1, pp. 621–681. ISBN 9783319043463. [Google Scholar]
  60. Spesivtsev, E.V.; Rykhlitskii, S.V.; Shvets, V.A. Development of methods and instruments for optical ellipsometry at the Institute of Semiconductor Physics of the Siberian Branch of the Russian Academy of Sciences. Optoelectron. Instrum. Data Process. 2011, 47, 419–425. [Google Scholar] [CrossRef]
  61. Kruchinin, V.N.; Klyamer, D.D.; Spesivtsev, E.V.; Rykhlitskii, S.V.; Basova, T.V. Optical Properties of Thin Films of Zinc Phthalocyanines Determined by Spectroscopic Ellipsometry. Opt. Spectrosc. 2018, 125, 1019–1024. [Google Scholar] [CrossRef]
  62. Bruker AXS Inc. Bruker Advanced X-ray Solutions; Bruker AXS Inc: Madison, WI, USA, 2004. [Google Scholar]
  63. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341. [Google Scholar] [CrossRef]
  64. Sheldrick, G.M. SHELXT–Integrated space-group and crystal-structure determination. Acta Crystallogr. Sect. A Found. Crystallogr. 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. C Struct. Chem. 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Ijms 24 02034 g001 550

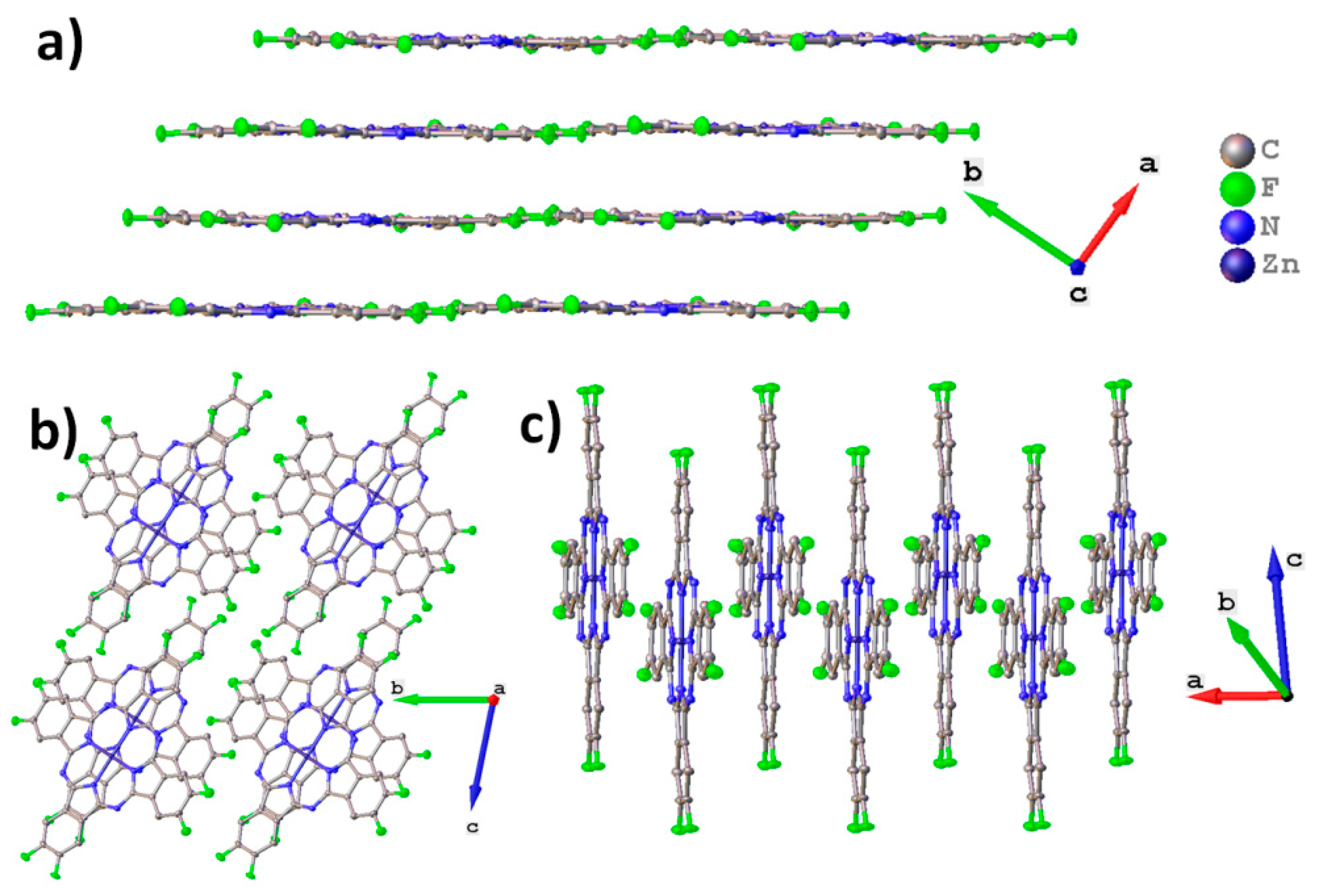

Figure 1. Molecular packing diagrams for ZnPcF8: molecular layers along the c axis (a), stacks along the a axis (b), and arrangement of molecules in an individual stack (c).
Figure 1. Molecular packing diagrams for ZnPcF8: molecular layers along the c axis (a), stacks along the a axis (b), and arrangement of molecules in an individual stack (c).
Ijms 24 02034 g001
Ijms 24 02034 g002 550

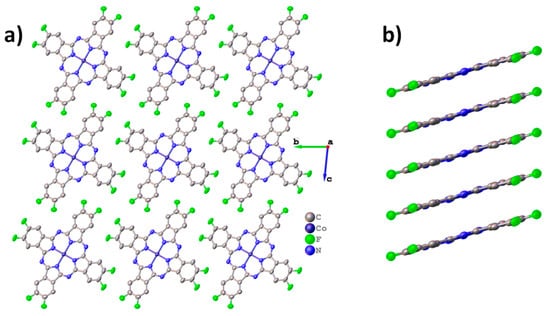

Figure 2. Molecular packing diagrams for CoPcF8: molecular stacks along the a axis (a), molecular arrangement inside the individual stack (b).
Figure 2. Molecular packing diagrams for CoPcF8: molecular stacks along the a axis (a), molecular arrangement inside the individual stack (b).
Ijms 24 02034 g002
Ijms 24 02034 g003 550

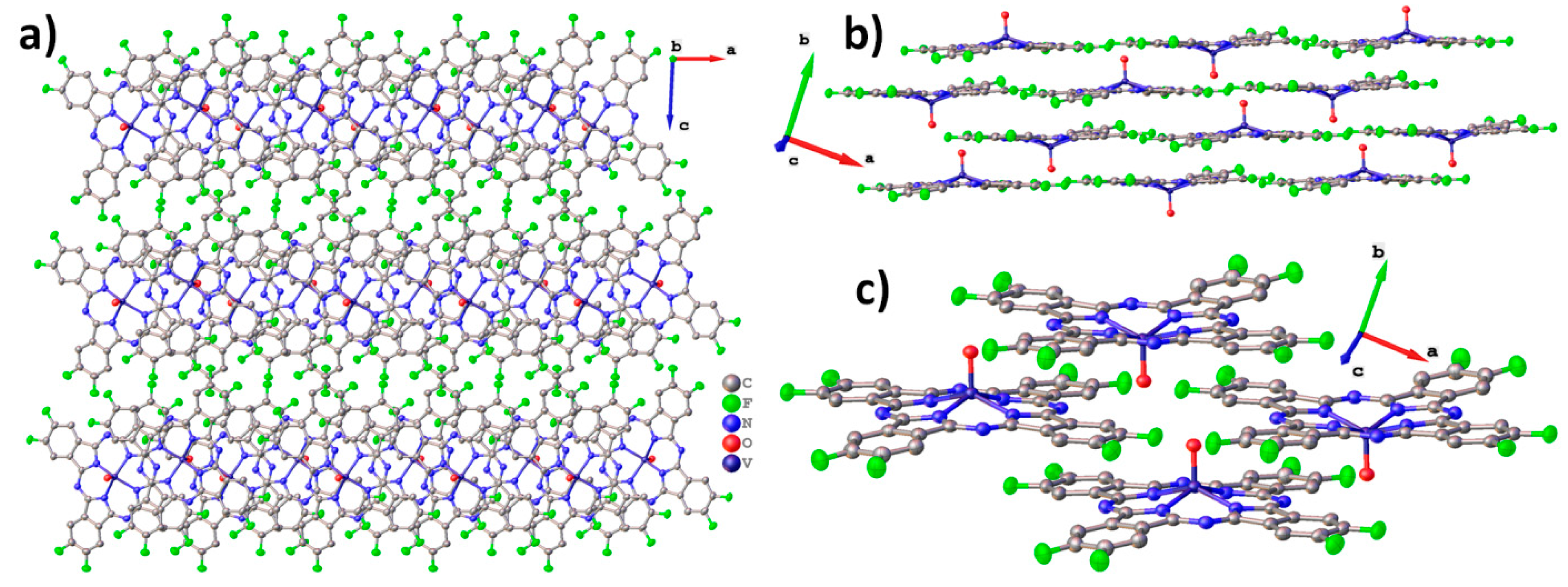

Figure 3. Molecular packing diagrams for VOPcF8: the packing motif along the a axis (a), the arrangement of molecules inside an individual layer (b), and a close-up view of the arrangement of neighboring molecules inside the layer (c).
Figure 3. Molecular packing diagrams for VOPcF8: the packing motif along the a axis (a), the arrangement of molecules inside an individual layer (b), and a close-up view of the arrangement of neighboring molecules inside the layer (c).
Ijms 24 02034 g003
Ijms 24 02034 g004 550

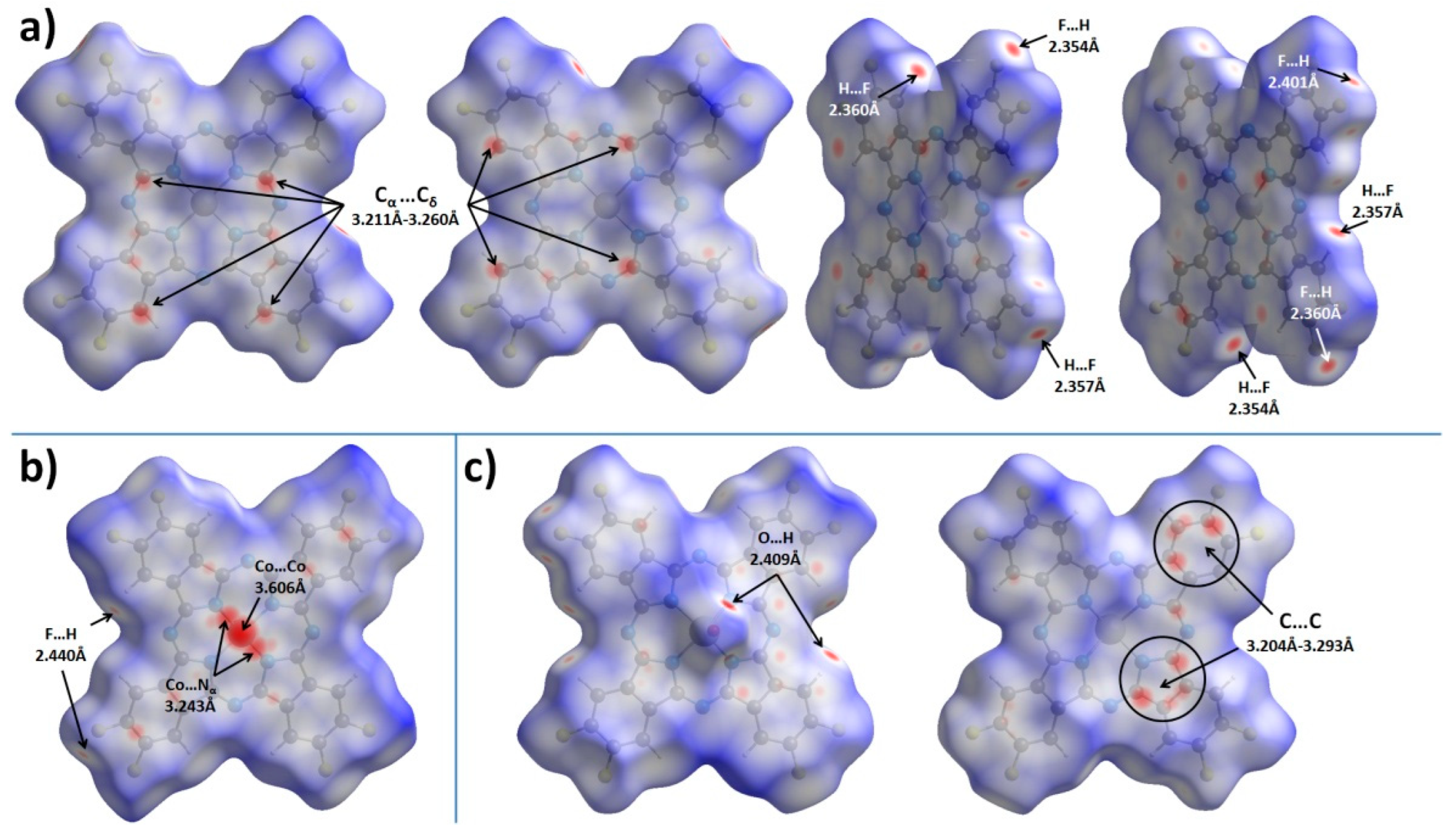

Figure 4. Hirshfeld surfaces for ZnPcF8 (a), CoPcF8 (b), and VOPcF8 (c), mapped with the dnorm property in the range of −0.2–1.45.
Figure 4. Hirshfeld surfaces for ZnPcF8 (a), CoPcF8 (b), and VOPcF8 (c), mapped with the dnorm property in the range of −0.2–1.45.
Ijms 24 02034 g004
Ijms 24 02034 g005 550

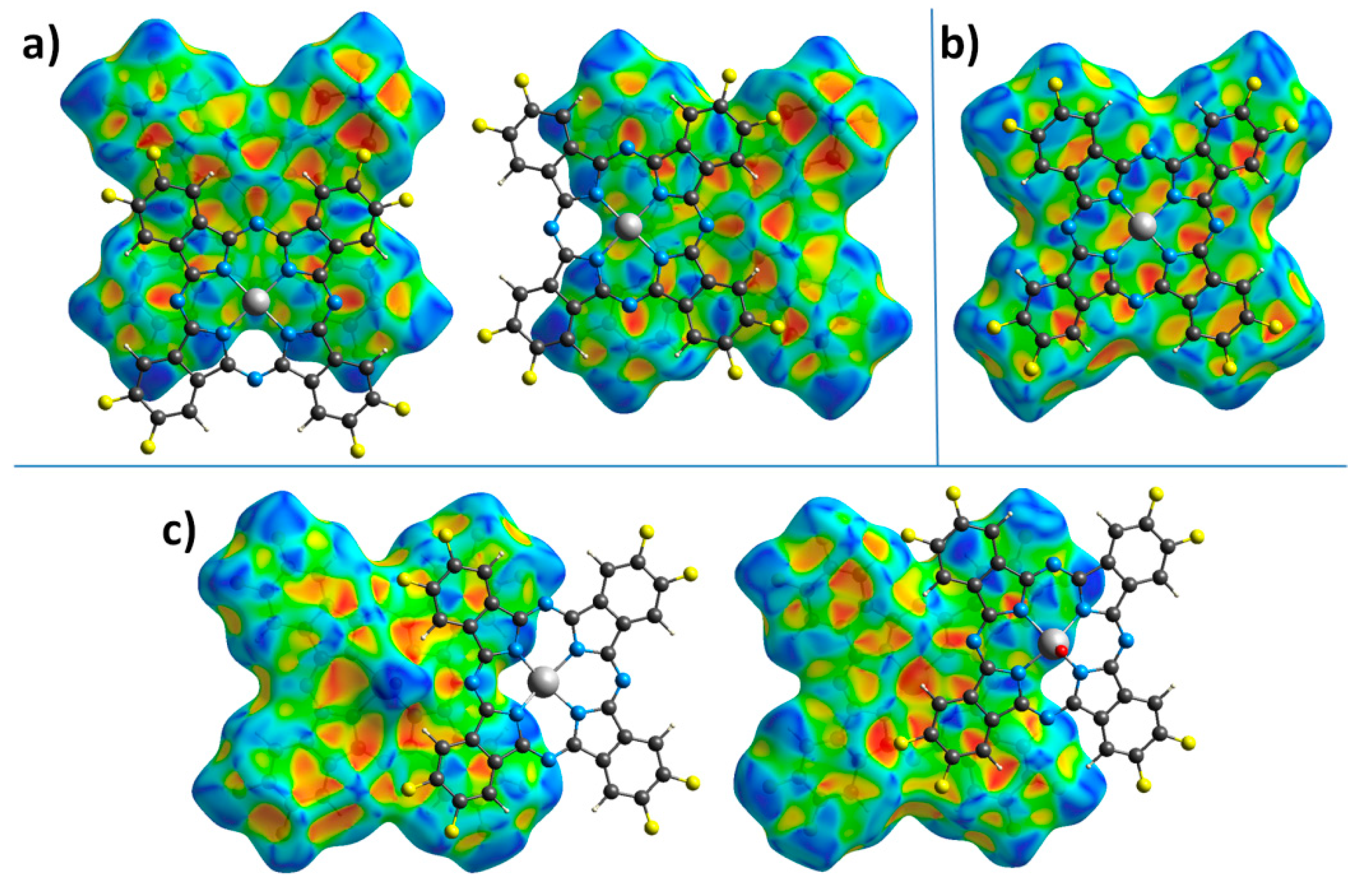

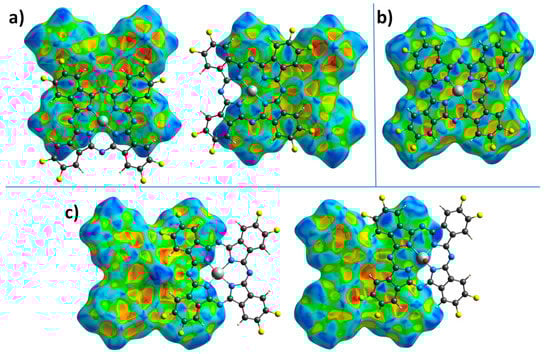

Figure 5. Hirshfeld surfaces for ZnPcF8 (a), CoPcF8 (b), and VOPcF8 (c) molecules, mapped with the shape index property.
Figure 5. Hirshfeld surfaces for ZnPcF8 (a), CoPcF8 (b), and VOPcF8 (c) molecules, mapped with the shape index property.
Ijms 24 02034 g005
Ijms 24 02034 g006 550

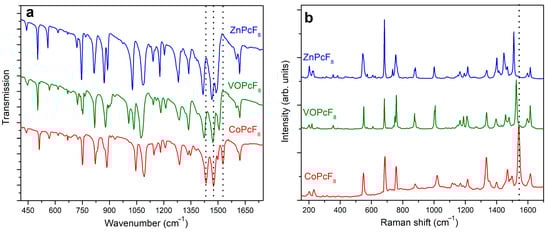

Figure 6. IR (a) and Raman (b) spectra of MPcF8 (M=Co, VO, Zn).
Figure 6. IR (a) and Raman (b) spectra of MPcF8 (M=Co, VO, Zn).
Ijms 24 02034 g006
Ijms 24 02034 g007 550

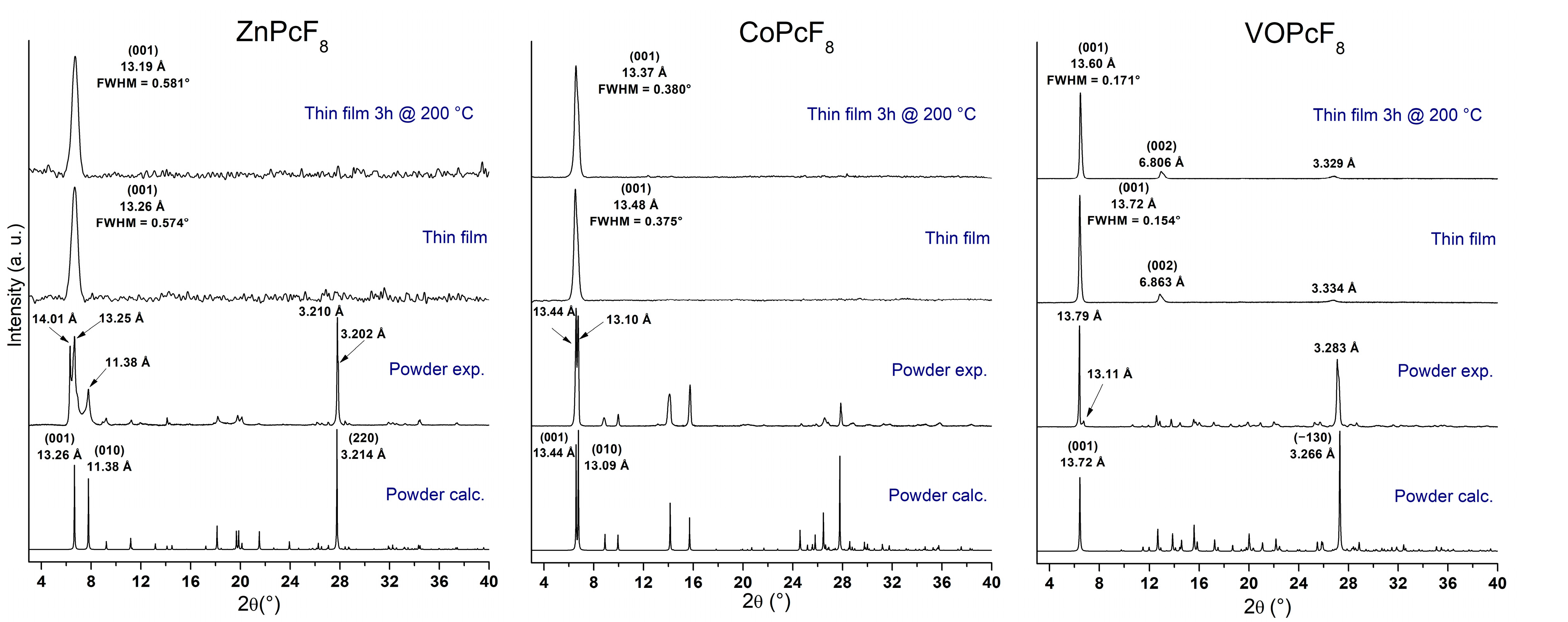

Figure 7. XRD patterns for MPcF8 powders (experimental and calculated) and thin films before and after heating for 3 h at 200 °C.
Figure 7. XRD patterns for MPcF8 powders (experimental and calculated) and thin films before and after heating for 3 h at 200 °C.
Ijms 24 02034 g007
Ijms 24 02034 g008 550
Figure 8. Orientation of ZnPcF8 (a), CoPcF8 (b), and VOPcF8 (c) molecules in the thin films relative to the substrate surface.
Figure 8. Orientation of ZnPcF8 (a), CoPcF8 (b), and VOPcF8 (c) molecules in the thin films relative to the substrate surface.
Ijms 24 02034 g008
Ijms 24 02034 g009 550
Figure 9. Optical absorption spectra of MPcF8 (M=Zn, Co, VO) solutions in THF (blue lines) and films deposited on glass slides before (black lines) and after heating at 200 °C for 3 h (red lines).
Figure 9. Optical absorption spectra of MPcF8 (M=Zn, Co, VO) solutions in THF (blue lines) and films deposited on glass slides before (black lines) and after heating at 200 °C for 3 h (red lines).
Ijms 24 02034 g009
Ijms 24 02034 g010 550
Figure 10. I(V) dependencies of CoPcF8 (a) and ZnPcF8, VOPcF8 (b) thin films in comparison with their tetrafluoro-substituted analogues CoPcF4-p, ZnPcF4-p (a) and VOPcF4-p (b).
Figure 10. I(V) dependencies of CoPcF8 (a) and ZnPcF8, VOPcF8 (b) thin films in comparison with their tetrafluoro-substituted analogues CoPcF4-p, ZnPcF4-p (a) and VOPcF4-p (b).
Ijms 24 02034 g010
Table
Table 1. Unit cell parameters and refinement statistics for MPcF8.
Table 1. Unit cell parameters and refinement statistics for MPcF8.
CompoundZnPcF8CoPcF8VOPcF8
Empirical formulaC32H8F8N8ZnC32H8F8N8CoC32H8F8N8OV
Formula weight721.83715.39723.40
Temperature/K150150150
Crystal systemtriclinictriclinictriclini
Space groupP−1P−1P−1
a/Å8.2156(5)3.6061(2)9.0821(5)
b/Å11.5255(7)13.0280(7)10.3447(5)
c/Å14.0379(8)13.4901(7)13.9293(8)
α/°78.693(2)84.097(2)98.578(2)
β/°73.840(2)89.055(2)92.165(2)
γ/°89.047(2)82.976(2)92.909(2)
Volume/Å31250.92(13)625.67(6)1291.01(12)
Z212
ρcalcg/cm31.9161.8991.861
μ/mm−11.0870.7910.492
RadiationMoKα (λ = 0.71073)MoKα (λ = 0.71073) MoKα (λ = 0.71073)
2Θ range for data collection/°3.082 to 61.0383.036 to 51.3624.594 to 56.68
Reflections collected15,790989920,656
Independent reflections7629 [Rint = 0.0271, Rsigma = 0.0399]2377 [Rint = 0.0489, Rsigma = 0.0476]6423 [Rint = 0.0375, Rsigma = 0.0443]
Data/restraints/parameters7629/0/4422377/0/2236423/0/451
Goodness-of-fit on F21.0301.0631.039
Final R indexes [I > = 2σ (I)]R1 = 0.0354, wR2 = 0.0886R1 = 0.0539, wR2 = 0.1314R1 = 0.0518, wR2 = 0.1393
Final R indexes [all data]R1 = 0.0551, wR2 = 0.0978R1 = 0.0760, wR2 = 0.1427R1 = 0.0762, wR2 = 0.1552
Largest diff. peak/hole/e Å−30.50/−0.351.05/−0.361.22/−0.39
Number in CCDC217757521775762177577
Table
Table 2. Intermolecular and interatomic distances in MPcF8.
Table 2. Intermolecular and interatomic distances in MPcF8.
DistancesZnPcF8CoPcF8VOPcF8
between layers, Å3.173N/A3.382
between molecules, Å3.2173.2993.411/3.354
dnorm (min/max), Å−0.1495/1.3175−0.1985/1.3833−0.1477/1.4484
metal…metal, Å4.8673.6065.871
C…C/C…N close contacts, Å3.211−3.260 < 3.235>3.271−3.275 < 3.273>3.204−3.352 < 3.288>
O…H close contacts, ÅN/AN/A2.409−2.505 < 2.457>
F…H close contacts, Å2.354−2.401 < 2.368>2.4402.404−2.509 < 2.451>
F…F close contacts, ÅN/AN/A2.864
π…π interactions
(angle/distance/shift)		2.603°/3.232 Å/0.777 Å
1.219°/3.230 Å/0.786 Å		0°/3.251−3.357 Å/1.318−1.561 Å4.454°/3.424 Å/1.123 Å
3.995°/3.228 Å/1.068 Å
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Sukhikh, A.; Klyamer, D.; Bonegardt, D.; Basova, T. Octafluoro-Substituted Phthalocyanines of Zinc, Cobalt, and Vanadyl: Single Crystal Structure, Spectral Study and Oriented Thin Films. Int. J. Mol. Sci. 2023, 24, 2034. https://doi.org/10.3390/ijms24032034

AMA Style

Sukhikh A, Klyamer D, Bonegardt D, Basova T. Octafluoro-Substituted Phthalocyanines of Zinc, Cobalt, and Vanadyl: Single Crystal Structure, Spectral Study and Oriented Thin Films. International Journal of Molecular Sciences. 2023; 24(3):2034. https://doi.org/10.3390/ijms24032034

Chicago/Turabian Style

Sukhikh, Aleksandr, Darya Klyamer, Dmitry Bonegardt, and Tamara Basova. 2023. "Octafluoro-Substituted Phthalocyanines of Zinc, Cobalt, and Vanadyl: Single Crystal Structure, Spectral Study and Oriented Thin Films" International Journal of Molecular Sciences 24, no. 3: 2034. https://doi.org/10.3390/ijms24032034

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
