Article

Orchestration of Intracellular Circuits by G Protein-Coupled Receptor 39 for Hepatitis B Virus Proliferation

by
Kaku Goto
*,
Hironori Nishitsuji
,
Masaya Sugiyama
,
Nao Nishida
,
Masashi Mizokami
and
Kunitada Shimotohno
Genome Medical Science Project, Research Center for Hepatitis and Immunology, National Center for Global Health and Medicine, Ichikawa, Chiba 272-8516, Japan
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2020, 21(16), 5661; https://doi.org/10.3390/ijms21165661
Submission received: 13 July 2020 / Revised: 4 August 2020 / Accepted: 5 August 2020 / Published: 7 August 2020
(This article belongs to the Section Molecular Pathology, Diagnostics, and Therapeutics)
Browse Figures
Versions Notes

Abstract

:
Hepatitis B virus (HBV), a highly persistent pathogen causing hepatocellular carcinoma (HCC), takes full advantage of host machinery, presenting therapeutic targets. Here we aimed to identify novel druggable host cellular factors using the reporter HBV we have recently generated. In an RNAi screen of G protein-coupled receptors (GPCRs), GPCR39 (GPR39) appeared as the top hit to facilitate HBV proliferation. Lentiviral overexpression of active GPR39 proteins and an agonist enhanced HBV replication and transcriptional activities of viral promoters, inducing the expression of CCAAT/enhancer binding protein (CEBP)-β (CEBPB). Meanwhile, GPR39 was uncovered to activate the heat shock response, upregulating the expression of proviral heat shock proteins (HSPs). In addition, glioma-associated oncogene homologue signaling, a recently reported target of GPR39, was suggested to inhibit HBV replication and eventually suppress expression of CEBPB and HSPs. Thus, GPR39 provirally governed intracellular circuits simultaneously affecting the carcinopathogenetic gene functions. GPR39 and the regulated signaling networks would serve as antiviral targets, and strategies with selective inhibitors of GPR39 functions can develop host-targeted antiviral therapies preventing HCC.
Keywords:
GPR39; HBV; HCC; HSP; CEBPB; GLI

1. Introduction

Hepatitis B virus (HBV) remains a major pathogen responsible for chronic liver disease and hepatocellular carcinoma (HCC) claiming 887,000 lives annually [1,2,3]. Although prophylactic vaccines and direct-acting antivirals have been developed, HBV infection remains essentially incurable because of the complex and persistent strategy of viral replication [4,5,6]. The therapeutic potential of host-targeting agents (HTAs), on the other hand, is increasingly recognized due to viral dependence on and interference with host cellular factors for the viral life cycle and also carcinopathogenesis [7,8,9,10,11].
G protein-coupled receptors (GPCRs) constitute the largest family of druggable targets accounting for 30% of drugs on the market [12,13,14,15]. They are involved in nearly all physiological processes, as well as cancer and viral replication [16], providing targets germane to HTAs against HBV and HCC [17,18]. In the exploration of GPCRs to support HBV proliferation utilizing our new reporter system [19], we here identified G protein-coupled receptor 39 (GPR39) as the top host cellular factor candidate. GPR39 has been reported to regulate gastrointestinal motility and secretion, food intake, insulin secretion, tissue repair, apoptosis and synaptic transmission [20], mediating intracellular signaling pathways [21]. Coincidentally, the dysregulation and involvement of GPR39 in the development and progression of cancer have been also observed [22,23,24,25,26]. Here we strove to find additional modes of HBV proliferation through the properties of GPR39, also investigating novel features of the receptor through HBV replication machinery. Eventually, virus–host interactions reveal GPR39-centered intracellular networks utilized by HBV.

2. Results

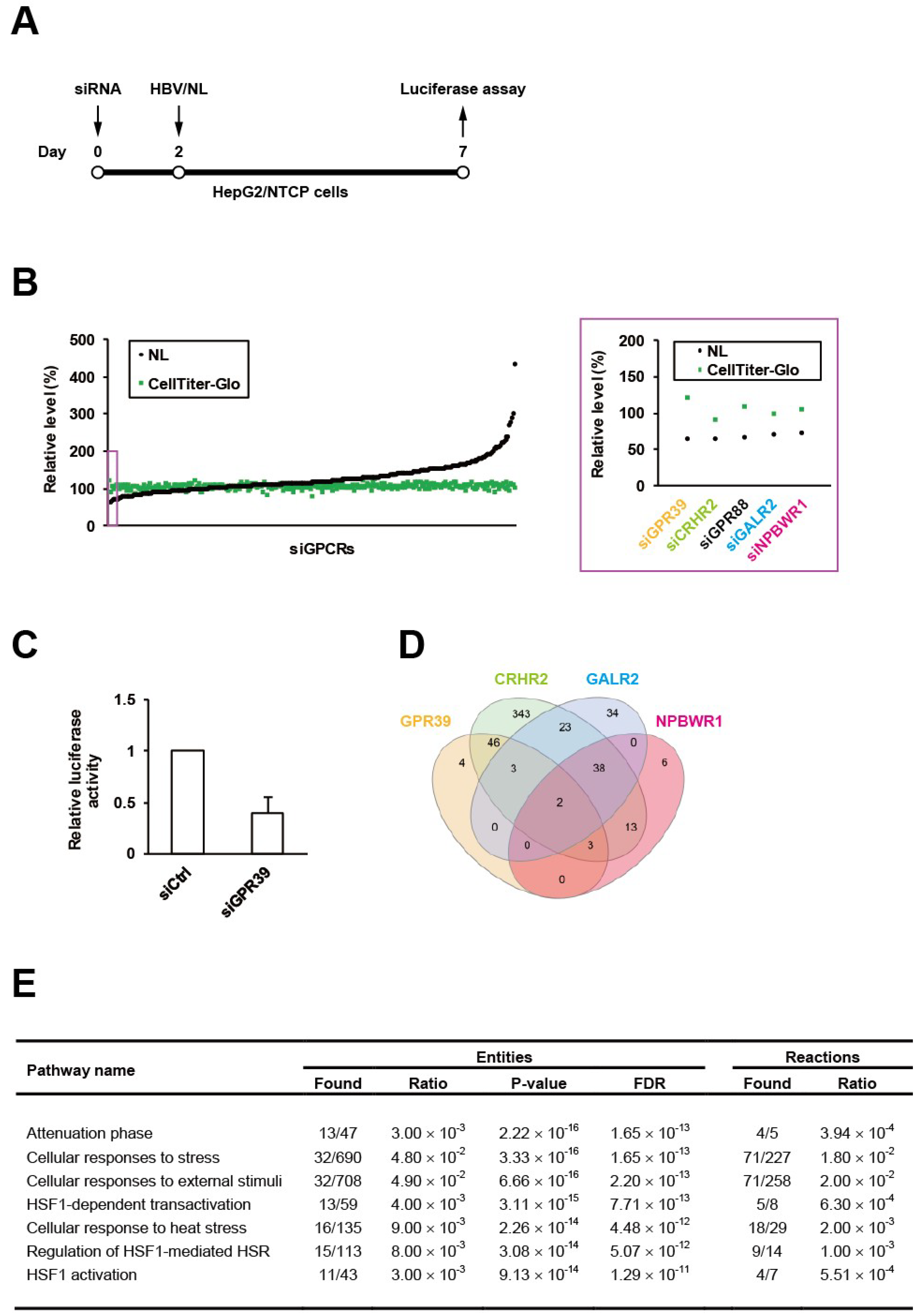

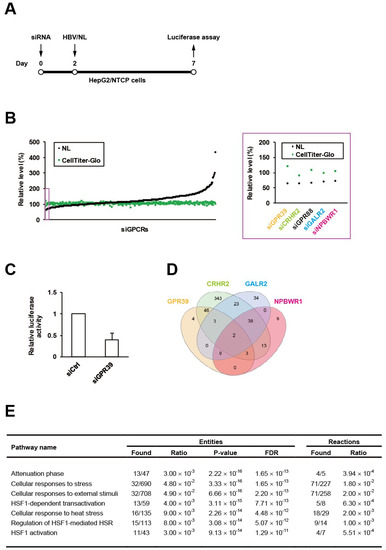

2.1. A Screen of GPCRs for HBV Replication

We have recently generated the reporter HBV carrying NanoLuc (NL), designated as HBV/NL [19], and here conducted an RNAi screen using a siRNA library for GPCRs in HepG2/NTCP cells according to our standardized protocol (Figure 1A). Among the 320 target genes, GPR39 was identified to be the top hit (Figure 1B), whose knockdown reduced the level of HBV/NL activity without affecting cell viability (Figure 1C). This was followed by the second and third hits corticotropin releasing hormone receptor 2 (CRHR2) and G protein-coupled receptor 88 (GPR88) (Figure 1B). To overview the global signaling dynamics, the downstream targets controlled by these receptors were analyzed by human GPCR network (hGPCRnet), a new web application for exploration of networks of GPCR signaling pathways [27]. The GPR39-connected genes through glycogen synthase kinase 3β (GSK3B) in hGPCRnet (Figure 1D) were shown to be primarily involved in heat shock response (HSR)-related pathways (Figure 1E) in Reactome, the database for cellular processes including signal transduction [28]. This trend was still observed (Supplementary Table S1) in the 46 genes commonly regulated by GPR39 and CRHR2 (Figure 1D) while GPR88 was not listed in hGPCRnet. The fourth and fifth hits galanin receptor 2 (GALR2) and neuropeptides B and W receptor 1 (NPBWR1) through melanocortin-4 receptor (MC4R) pertained to such independent pathways as related to microtubules (Supplementary Tables S2 and S3). Thus, the exemplary manifestation of GPCR-regulated cell circuits contributory to HBV replication represented by HSR-modulated [29] and microtubule-associated [30] networks as above underpinned the proviral impacts of GPCRs.
Here, we focused on the most robust hit GPR39, a seven-transmembrane (TM) GPCR (Supplementary Figure S1A) governing critical physiological processes encompassing lipid metabolism, glucose homeostasis and cell proliferation via multiple intracellular signaling [20], and accordingly its molecular cellular impacts on HBV replication were investigated.

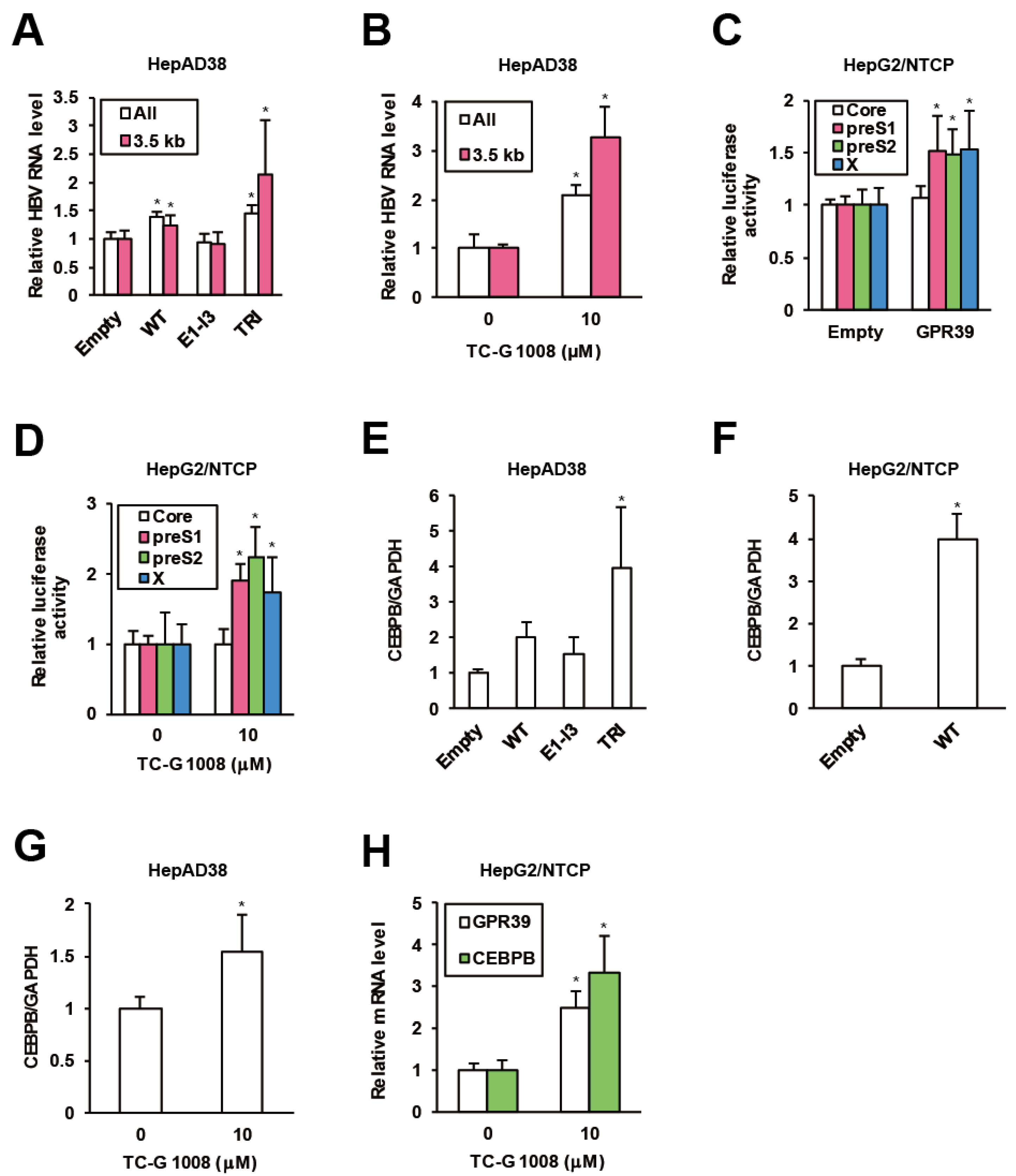

2.2. GPR39 Supports HBV Replication

To assess the impacts of GPR39 on viral replication in detail, we harnessed the HBV-replicating HepAD38 cells and lentivirally overexpressed GPR39 proteins (Supplementary Figure S1A,B). The wild-type (WT) enhanced HBV RNA levels (Figure 2A) while a C-terminally truncated mutant E1-I3 (Supplementary Figure S1A) lacking receptor-activating and G-protein-interacting domains similarly to 5TM splice protein GPR39-1b [31], did not exert the effect (Figure 2A). In contrast, the mutant TRI with point mutations at three residues, C108A, C191A and D313A (Supplementary Figure S1A) reported to confer high constitutive activities [32,33] further boosted the viral RNA levels (Figure 2A). Thus through the correlation of the receptor activity and viral RNAs, GPR39 was suggested to facilitate HBV replication. Indeed, TC-G 1008, a reported agonist [34] and expression inducer [35] of GPR39, upregulated viral RNA levels in HepAD38 cells (Figure 2B) as well as HepG2/NTCP cells infected with wild type HBV (Supplementary Figure S2A), simultaneously enhancing GPR39 expression itself (Supplementary Figure S2B).
To elucidate the mechanism of the enhancement of HBV RNA levels by GPR39, we assessed viral transcription. In HepG2/NTCP cells, GPR39 was transiently overexpressed in the presence of reporter plasmids encoding luciferase gene downstream of individual viral promoter sequences [36]. The promoter activities of PreS1, PreS2 and X were enhanced while that of pregenome/PreCore was not (Figure 2C), which was supported by knockdown of GPR39 (Supplementary Figure S2C). In parallel, the promoter activity showed a similar profile in the presence of TC-G 1008 (Figure 2D), and was confirmed to be boosted by GPR39. Hence, representative liver-enriched transcription factors reported to support HBV gene expression, such as hepatocyte nuclear factors (HNFs) and CCAAT/enhancer binding proteins (CEBPs) [37], were investigated. The overexpression of GPR39 and its active mutant significantly heightened the expression of CEBP-β (CEBPB) above all in HepAD38 cells (Figure 2E and Supplementary Figure S3A), which was confirmed in HepG2/NTCP cells (Figure 2F and Supplementary Figure S3B). TC-G 1008 likewise elevated the expression of CEBPB in both cell lines (Figure 2G,H).

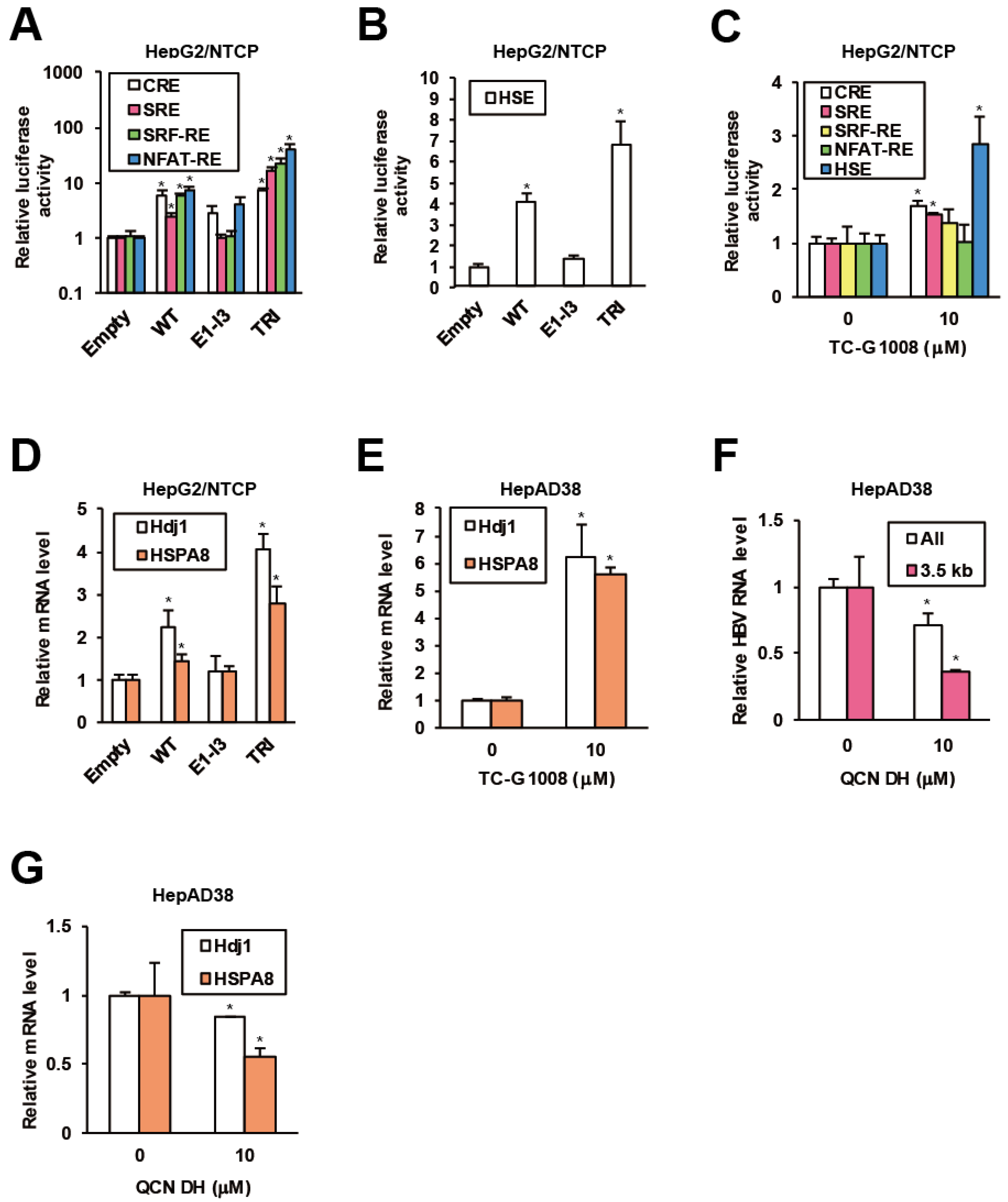

2.3. GPR39 Activates HSR

Regulatory effects of GPR39 on major GPCR signaling pathways were previously demonstrated in mouse cell lines [38,39], and accordingly we evaluated them in hepatocytes. In HepG2/NTCP cells, overexpression of the WT GPR39 accentuated G protein-mediated cascades monitored by activities of luciferase downstream of response elements such as cAMP response element (CRE), nuclear factor of activated T-cells response element (NFAT-RE), serum response element (SRE) and serum response factor response element (SRF-RE). The hyperactive mutant TRI further enhanced the effects, while the C-terminally truncated mutant E1-I3 did not (Figure 3A). Then we explored the effects of GPR39 on heat shock element (HSE) as indicated by the pathway analysis on GPR39-connected genes (Figure 1E and Supplementary Table S1), and HSE significantly responded to GPR39 overexpression (Figure 3B). This induction was also observed by the treatment with TC-G 1008 (Figure 3C). Meanwhile, the effects of the truncated mutants E2-I4, E3-I4 and E4-I4 (Supplementary Figure S1A) void of N-terminal domains were decreased in proportion to the molecular length (Supplementary Figure S3C).
Based on the indication of GPR39-stimulated HSR, involvement of HSPs in proviral network of GPR39 was strongly suggested. To test this hypothesis, the effect of lentiviral overexpression of GPR39 on the expression of HSPs as well as heat shock factors (HSFs) was examined. Of major HSPs reportedly supportive of HBV replication [40,41], DnaJ heat shock protein family (Hsp40) member B1 (Hdj1) and heat shock 70 kD protein 8 (HSPA8) demonstrated highly induced expression, particularly in the presence of TRI in HepG2/NTCP cells (Figure 3D) over the others (Supplementary Figure S3D). Also the expression of Hdj1 and HSPA8 was remarkably enhanced by TC-G 1008 in HepAD38 cells (Figure 3E and Supplementary Figure S3E), consistently indicating GPR39-modulated HSR. In addition, quercetin dihydrate (QCN DH), a reported inhibitor of HBV replication through transcriptional inhibition of HSPs [41], reduced viral RNA levels in HepAD38 cells (Figure 3F), where Hdj1 and HSPA8 were transcriptionally downregulated (Figure 3G) similarly to the other HSPs (Supplementary Figure S3F). Collectively, GPR39 was suggested to activate HSR leading to HSPs expression and viral replication.

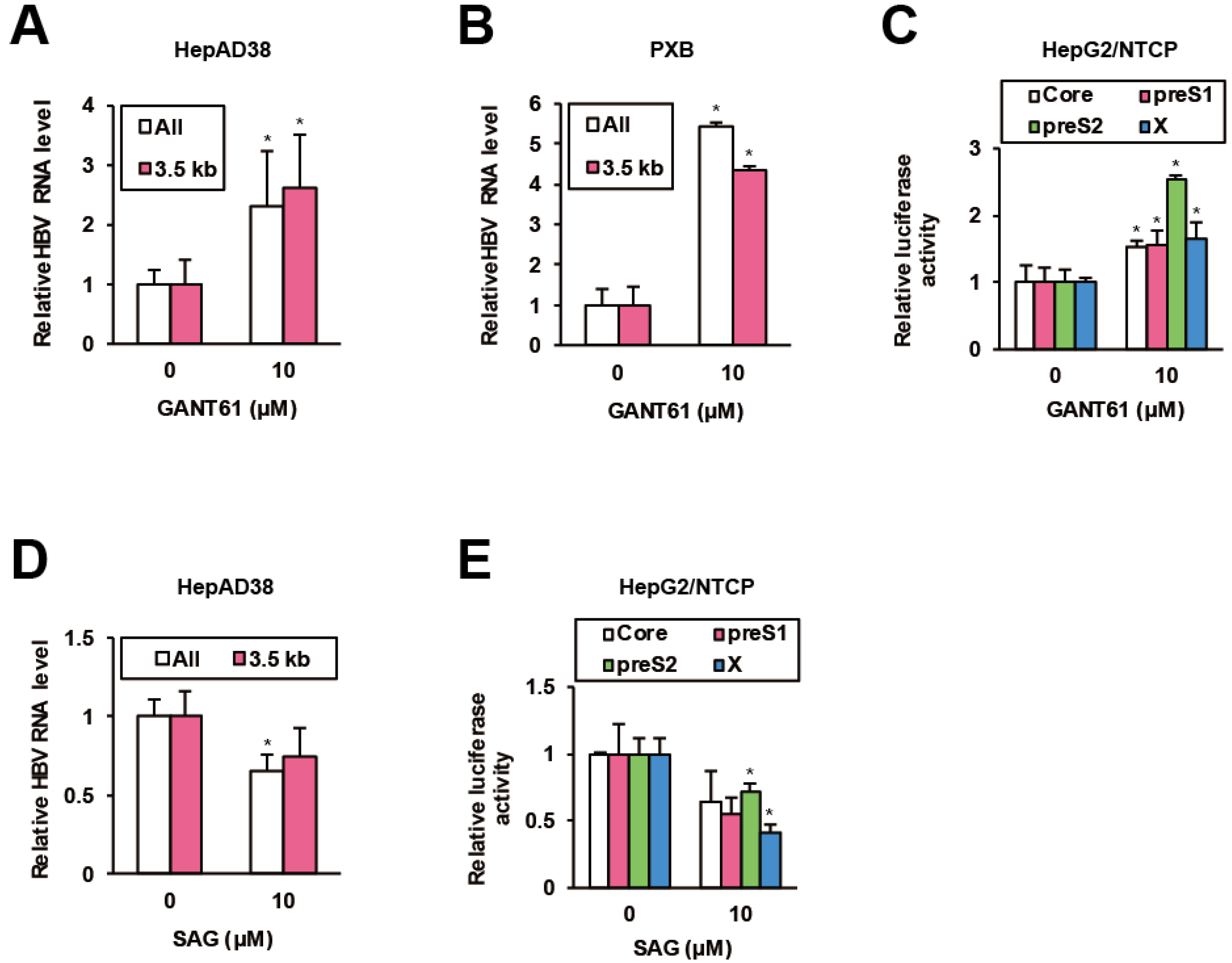

2.4. GPR39-Targeted Hedgehog (HH) Signaling against HBV Replication

A recent chemical biological study on HH inhibitors discovered that GPR39 impinges on HH signaling through glioma-associated oncogene homologue (GLI) transcription factors [42]. Hence we investigated the effects of a GLI inhibitor GANT61 [43] on HBV replication. In HepAD38 cells, GANT61 significantly elevated viral RNA levels (Figure 4A), which was confirmed in HBV-infected PXB cells (Figure 4B), human hepatocytes isolated from chimeric mice with a humanized liver [44]. Simultaneously, GANT61 stimulated viral promoter activities in HepG2/NTCP cells (Figure 4C). Conversely, smoothened (SMO) agonist (SAG), an HH signaling agonist [45], suppressed viral RNA levels in HepAD38 cells (Figure 4D) and viral promoter activities in HepG2/NTCP cells (Figure 4E). The data indicated that GPR39-targeted GLI signaling limited HBV replication.

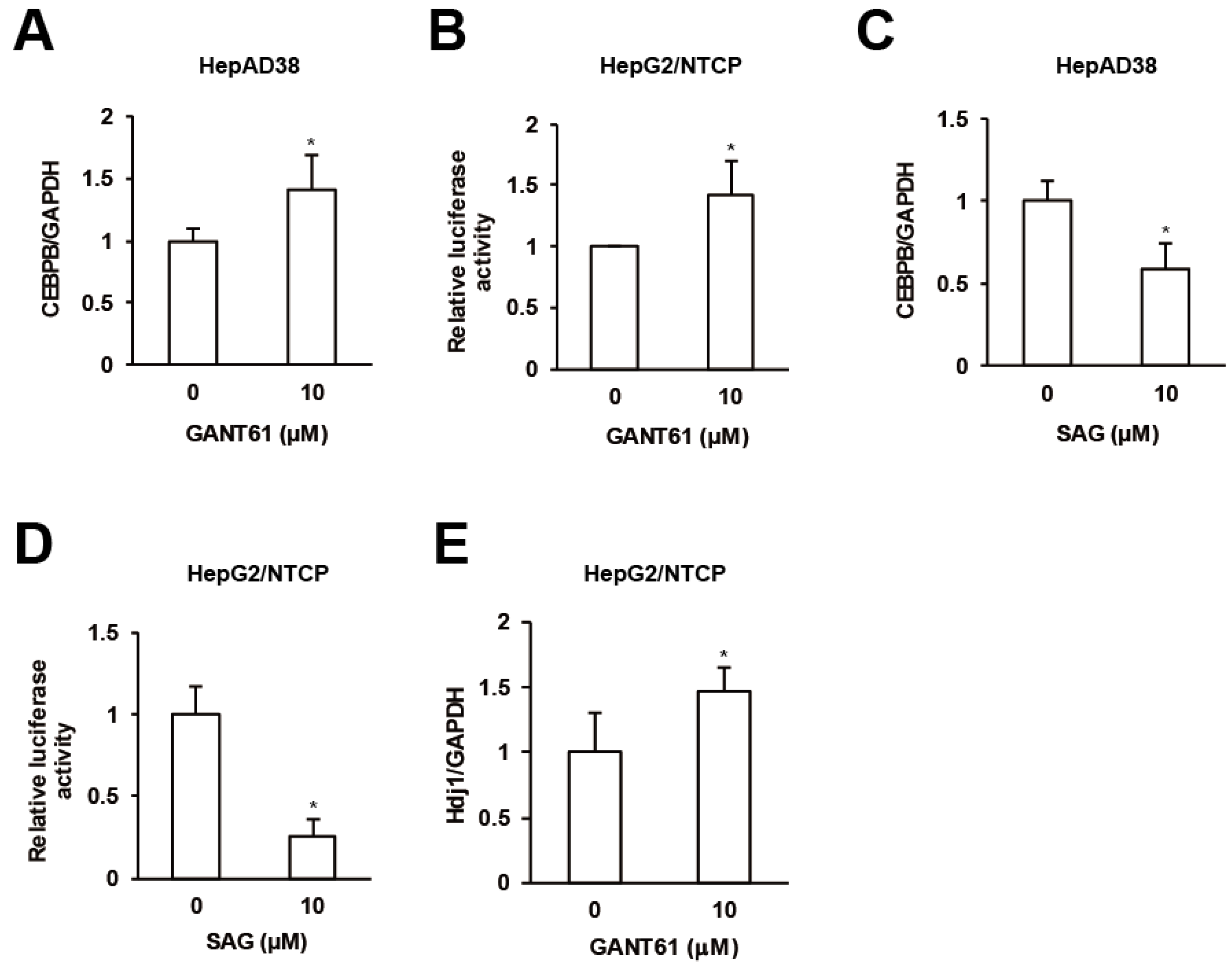

2.5. GPR39-Orchestrated Crosstalks among CEBPB, HSPs and HH Signaling for HBV

Finally we interrogated interrelations among GPR39 targets. GANT61 enhanced the expression of CEBPB in HepAD38 cells (Figure 5A) and HSR in HepG2/NTCP cells as assessed in Figure 3C (Figure 5B) in contrast to SAG (Figure 5C,D). The expression of HSPs including Hdj1 was also elevated by GANT61 in HepG2/NTCP cells (Figure 5E and Supplementary Figure S3G). The results suggested that HH signaling molecules suppressed CEBPB expression and HSR.

3. Discussion

Recent studies growingly revealed the significance of host cellular factors in the viral life cycle [46] and also carcinopathogenesis [47,48]. Exemplarily, cyclophilin (CyP) has been demonstrated to be a critical host cellular factor [49]. The CyP inhibitor CRV431 inhibited liver HBV DNA and hepatitis B surface antigen in vivo [50] and CyPA was overexpressed in HCC promoting cell cycle [51]. Our study also uncovered that GPR39 supported HBV replication concomitantly regulating host cellular signaling and networks. In fact, GPR39 was recently reported as a prognostic predictor of HCC negatively correlated with survival rates [52].
GPR39 intracellularly transmits signals to stimulate multiple response elements for downstream gene expression [53]. Based on the GPR39-enhanced HBV RNA level, CEBPB was identified to be modulated by GPR39, and at least CRE can mediate CEBPB expression as exhibited in macrophage [54,55]. HBV increases the expression of CEBPB [56] employing CRE [57], raising questions about possible engagement of GPR39. Additionally, the pathway analyses (Figure 1E) upheld by antiviral effects of HSP inhibitors (Supplementary Figure S3H) in our recent chemical screen [36] led to the discovery of GPR39-induced HSR and expression of HSPs, well-known host cellular factors for viral replication [58]. Possible GPR39-mediated regulation of GSK3B, a reported GPR39 interactor [59] would be interesting, since GSK3B is able to repress HSF1 [60]. So far a putative GPCR was required for HSR in worms [61], and molecular assessment of the GPR39-driven HSR in hepatocytes is warranted in accordance with the pathway analysis (Figure 1E and Supplementary Table S1). On the other hand, the upregulation of HBV genome RNA level by GPR39 was irrelevant to the promoter activity of pregenome/PreCore though possibly bolstered by that of HBx (Figure 2C,D) [62]. Alternatively, HSPs-facilitated reverse transcription and assembly [63,64] could lead to increase in HBV DNA through recycling and accumulation of pgRNA protected from nuclease by encapsidation. Moreover, other host cellular factors and mechanisms under the control of GPR39 could underlie the phenomenon, which needs exploring and examining in tandem with kinetic analyses of viral DNAs and proteins in detail beyond the current study. With respect to the molecular features of GPR39, the importance of the C-terminal tail in signaling was indicated by E1-I3 (Figure 3A) lacking TM6 and TM7 associated with 7TM receptor activation similarly to 5TM splice protein GPR39-1b [31], and the impacts of functional residues [32,33] were confirmed in hepatocytes. Indeed, C108A reportedly abrogated glycosylation [32] as was observed in the reduction in the posttranslational modifications of TRI (Supplementary Figure S1B), which demonstrated elevated activities reflected in signaling transduction (Figure 3A,B) as well as HBV replication (Figure 1A). In addition, we found the N-terminal domains played significant roles (Supplementary Figure S1A) in signaling [65], in agreement with the observation of the disulfide bridge between Cys11 and Cys191 maintaining the activity of GPR39 [32]. Inter- and intra-molecular interactions [66,67] are thus further indicated, warranting the exploration of additional interactors, modifications and structures of GPR39. The discovery of specific molecular sites and features for signaling would lead to biological understanding of the receptor and selective modulation of individual pathways.
CEBPB not only facilitates viral transcription [68,69] but also contributes to HCC cell proliferation and invasion [70] and predating pathogenic events subsuming inflammation, endoplasmic reticulum stress and hepatic steatosis when highly expressed [71]. Hence, the control of CEBPB would inhibit both the virus and carcinogenesis [72]. Likewise, HSPs not only expedite viral replication [40,41] but also participate in cancers including HCC [73,74]. Indeed the upregulation of HSPA8 expression was associated with vascular endothelial growth factor in HCC patients [75]. From this perspective, QCN could be fit for interventional purpose as the antiviral natural products exemplified by flavonoids and alkaloids possess anti-HCC properties [76,77]. QCN was even demonstrated to inhibit the transcriptional activity of CEBPB as well [78], and targeting GPR39-governed host cellular factors such as HSPs and CEBPB concurrently would suppress both HBV and HCC.
In turn, HH signaling, a recently reported inhibitory target of GPR39 [42], was indicated to suppress HBV replication. HH signaling has been demonstrated to play a substantial role in hepatocarcinogenesis and HCC progression [79,80,81,82]. On the other hand, AKT, an oncogenic kinase for hepatocyte survival, was activated by HBx and inhibited HBV replication, indicative of viral tactics for immune evasion and persistent production of progeny at the cost of high viral replication [83]. Conceivably, such a balancing mechanism as above via HH signaling can be inferred, and downstream molecules responsible for the inhibition of HBV, expected to be discovered in exploratory studies, would be exploited as antiviral targets.

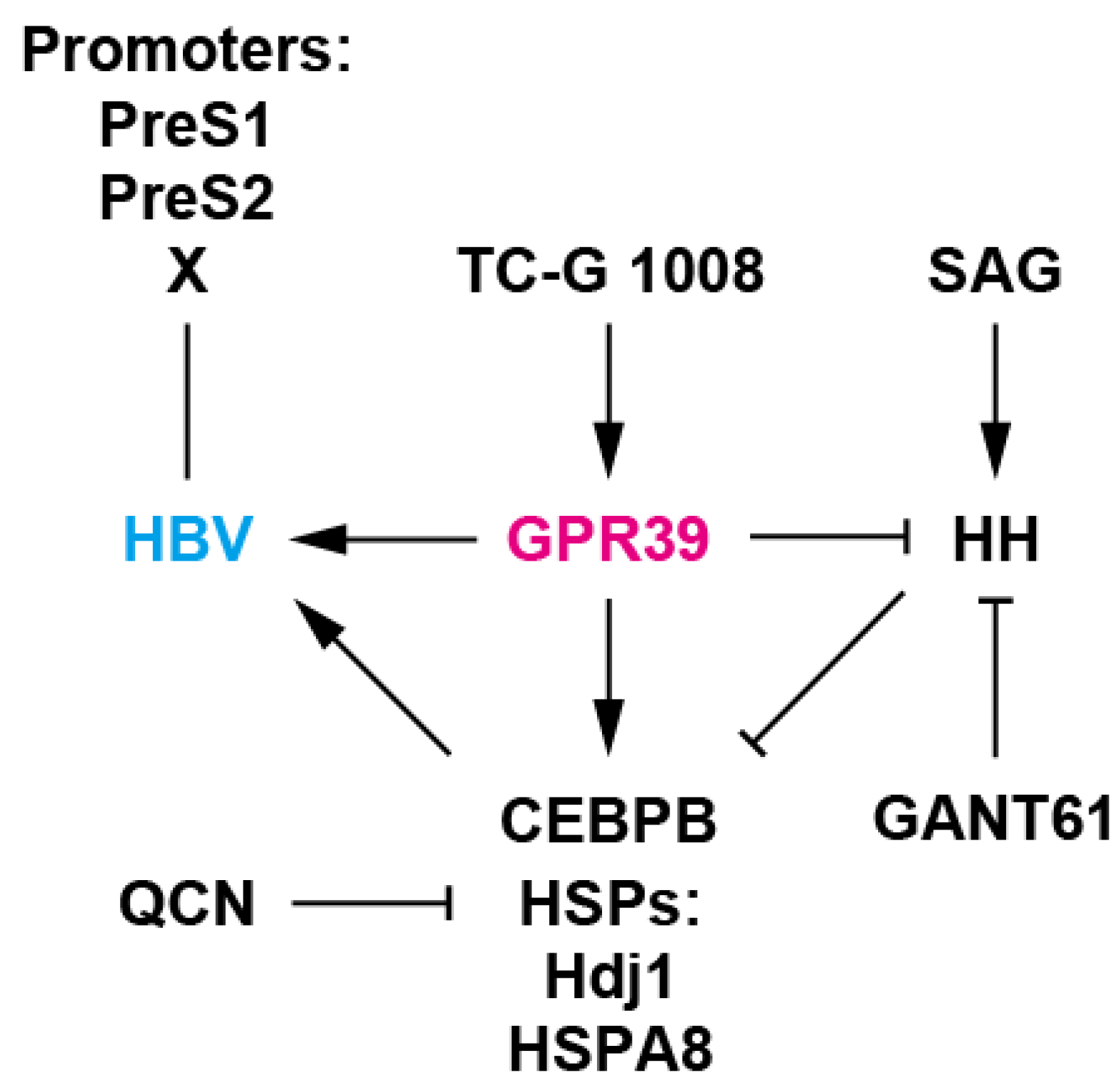

Crosstalks among the signaling and factors are also noteworthy. The GANT61-enhanced expression of CEBPB and HSPs implied their suppression by GLI, thereby explaining its antiviral effects. CEBPB is also indicated to be a transcription factor for the expression of itself [84] and GPR39 [31], thereby presumably extrapolating CEBPB autostimulation-boosted reciprocal upregulation between CEBPB and GPR39. Notably, TC-G 1008, an agonist of GPR39 [34] enhanced the expression of GPR39 (Figure 2B,H) in agreement with the observation in vivo [35]. This can be caused by CEBPB upregulated by TC-G 1008-mediated GPR39 agonism (Figure 2G,H). After all, the network is orchestrated by GPR39, a GLI repressor [43], providing the environment supportive of HBV (Figure 6). Interestingly, GPR39 is transcriptionally regulated by HNF1A and HNF4A [31,85], which are required for maintenance of hepatocyte function and HBV lifecycle [37]. Therefore, the proper control of HNFs could effectively suppress viral gene expression through intracellular environmental and transcriptional mechanisms.
Based on these findings, the modulation of GPR39 would present dually effective strategies against both HBV and HCC. However, collateral effects on HH signaling need to be averted for management of the HCC risk, and HH antagonism [86,87] could be considered simultaneously. More advanced and deepened knowledge of GPR39 encompassing its novel physiological roles and downstream effectors yet to be investigated and defined would lead to the development of functionally selective GPR39 inhibitors without off-target side effects.
The identification of GPR39 as a host cellular factor for HBV clarified new properties and orchestrated circuits of the receptor. Further analyses on GPR39 would enable greater comprehension of HBV replication/pathogenesis and GPCR signaling/networks, serving to create novel HTAs and preventive and therapeutic options for HBV infection and HCC.

4. Materials and Methods

4.1. Compounds and Cells

TC-G 1008, GANT61, SAG dihydrochloride, and QCN DH were purchased from Tocris Bioscicence (Bristol, UK), Wako Pure Chemicals (Osaka, Japan), Sigma-Aldrich (St. Louis, MO, USA), and Nacalai Tesque (Kyoto, Japan), respectively. Antibodies to FLAG and β-actin (ACTB) were purchased from Sigma-Aldrich. HepG2/NTCP and HepAD38 cells were cultured as reported previously [36]. PXB cells were purchased from Phoenix Bio (Hiroshima, Japan). All human cell lines have been authenticated using STR profiling in Jun 2019, and all experiments were performed with mycoplasma-free cells.

4.2. Plasmids

Following the amplification by the primers Nest-GPR39-F and Nest-GPR39-R, using cDNAs from Huh7 cells, coding sequences of GPR39 were amplified by the primers, EcoRI-GPR39-F and XbaI-GPR39-R, and cloned into p3xFLAG-CMV-14 (Sigma-Aldrich), generating pCMV14-GPR39-3xFL. For pCMV14-GPR39(E1-I3)-3xFL, pCMV14-GPR39(E2-I4)-3xFL, pCMV14-GPR39(E3-I4)-3xFL, and pCMV14-GPR39(E4-I4)-3xFL, primer sets EcoRI-GPR39-F plus XbaI-GPR39-I3-R, EcoRI-GPR39-E2-F plus XbaI-GPR39-R, EcoRI-GPR39-E3-F plus XbaI-GPR39-R, and EcoRI-GPR39-E4-F plus XbaI-GPR39-R were used, respectively, and pCMV14-GPR39-3xFL as templates (Supplementary Table S4). On the other hand, the primers GPR39-C108A-F and GPR39-C108A-R were used for pCMV14-GPR39(C108A)-3xFL, which served as templates for the amplification using the primers GPR39-C191A-F and GPR39-C191A-R, generating pCMV14-GPR39(C108/191A)-3xFL. Subsequently, pCMV14-GPR39(TRI)-3xFL was generated using the primers GPR39-D313A-F and GPR39-D313A-R. For pCMV14-HBx-3xFL, the primers EcoRI-HBx-F1 and XbaI-HBx-R2 were used.

4.3. GPCR Pathway Analysis

Genes connected to individual GPCRs were selected by hGPCRnet networking the receptors, transducers and effectors of GPCR signalings [27] and the Venn diagram was generated by InteractiVenn [88]. Pathways related to groups of genes were calculated by Reactome [28].

4.4. Luciferase Assay

Firefly luciferase activity was monitored by a dual-luciferase reporter assay system (Promega, Madison, WI, USA) as described previously [89]. Luciferase reporters carrying HBV promoters were generated previously [36] and pGL4.29, pGL4.30, pGL4.33, pGL4.34, pGL4.41 were purchased from Promega. The luciferase activities of the reporters were normalized to those of pRL-TK cotransfected.

4.5. Quantitative Reverse Transcription-Polymerase Chain Reaction

Relative mRNA levels and HBV RNA levels were quantified as described previously [89] using the primer sets (Supplementary Table S5), with the normalization to the level of GAPDH.

4.6. Western Blot

Total protein was resolved by SDS-PAGE and subjected to western blotting as described previously [89].

4.7. Lentivirus

Coding sequences of pCMV14-GPR39-3xFL, pCMV14-GPR39(E1-I3)-3xFL, and pCMV14-GPR39(TRI)-3xFL were amplified using primers GPR39-INF-F and GPR39-INF-R, and inserted into a multi-cloning site of pCSII-CMV-MCS. Lentiviral infection was performed as described previously [90].

4.8. RNAi

SiRNA-mediated knockdown of GPR39 in the HBV NL system was performed as described previously [19].

4.9. Statistical Analysis

The bar graphs are presented as means ± SD. T-tests were used and statistical significances with p < 0.05 to controls were indicated by asterisks.

Supplementary Materials

Supplementary Materials can be found at https://www.mdpi.com/1422-0067/21/16/5661/s1. Figure S1: GPR39 expression, Figure S2: Effects of GPR39 modulation on HBV and HSR, Figure S3: Effects of overexpression and pharmacological modulation of GPR39 on gene expression, HSR and HBV, Table S1: The top five significant pathways connected to the GPR39-GSK3B axis and CRHR2, Table S2: The top 10 significant pathways connected to GALR2, Table S3: The top 10 significant pathways connected to the NPBWR1-MC4R axis, Table S4: Primers for construction of plasmids, Table S5: Primers for qRT-PCR.

Author Contributions

Conceptualization, K.G., H.N., M.S., N.N., M.M., K.S.; methodology, K.G., H.N.; validation, K.G., H.N.; formal analysis, K.G., H.N.; investigation, K.G., H.N.; data curation, K.G., H.N.; writing—original draft preparation, K.G., K.S.; writing—review and editing, K.G., H.N., K.S.; visualization, K.G.; supervision, K.S.; funding acquisition, H.N., K.S. All authors have read and agree to the published version of the manuscript.

Funding

This work was partly supported by Grants-in-Aid for Scientific Research from the Ministry of Health, Labor, and Welfare of Japan [JPH24-006]; Grants-in-Aids for Scientific Research from the Ministry of Education, Culture, Sports, Science and Technology (MEXT) of Japan [JP22114004]; Grants-in-Aids for Scientific Research from the MEXT of Japan [JP15K19121]; and the Research Program on Hepatitis from Japan Agency for Medical Research and Development [JP17fk031010].

Acknowledgments

We thank Christoph Seeger for providing the HepAD38 cell line, and Hiroyuki Miyoshi for providing CSII-CMV-MCS, pCMV-VSV-G, pCAG-HIVgp, and pRSV-Rev.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

HBVhepatitis B virus
HCChepatocellular carcinoma
GPCRG protein-coupled receptor
HSPheat shock protein
CEBPBCCAAT/enhancer binding protein-β
HTAhost-targeting agent
GPR39G protein-coupled receptor 39
NLNanoLuc
CRHR2corticotropin releasing hormone receptor 2
GPR88G protein-coupled receptor 88
hGPCRnethuman GPCR network
GSK3Bglycogen synthase kinase 3β
HSRheat shock response
GALR2galanin receptor 2
NPBWR1neuropeptides B and W receptor 1
MC4Rmelanocortin-4 receptor
CREcAMP response element
NFAT-REnuclear factor of activated T-cells response element
SREserum response element
SRF-REserum response factor response element
HSEheat shock element
Hdj1DnaJ heat shock protein family member B1
HSPA8heat shock 70 kD protein 8
QCN DHquercetin dihydrate
HHhedgehog
GLIglioma-associated oncogene homologue
SAGsmoothened agonist
CyPcyclophilin
HSFheat shock factor
