Comparative Analysis and Expression Patterns of the PLP_deC Genes in Dendrobium officinale

by
Lei Zhang
1,2,
Chunyan Jiao
1,2,
Yunpeng Cao
3,4,
Xi Cheng
1,2,
Jian Wang
1,2,
Qing Jin
1,2,* and
Yongping Cai
1,2,*
1
School of Life Sciences, Anhui Agricultural University, Hefei 230036, China
2
Anhui Provincial Engineering Technology Reserach Center for Development & Utilization of Regional Characteristic Plants, Anhui Agricultural University, No. 130, Changjiang West Road, Hefei 230036, China
3
Key Laboratory of Cultivation and Protection for Non-Wood Forest Trees, Ministry of Education, Central South University of Forestry and Technology, Changsha 410004, China
4
Key Lab of Non-wood Forest Products of State Forestry Administration, College of Forestry, Central South University of Forestry and Technology, Changsha 410004, China
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2020, 21(1), 54; https://doi.org/10.3390/ijms21010054
Submission received: 15 November 2019 / Revised: 17 December 2019 / Accepted: 17 December 2019 / Published: 20 December 2019
(This article belongs to the Special Issue Orchid Biochemistry)
Browse Figures
Versions Notes

Abstract

:
Studies have shown that the type II pyridoxal phosphate-dependent decarboxylase (PLP_deC) genes produce secondary metabolites and flavor volatiles in plants, and TDC (tryptophan decarboxylase), a member of the PLP_deC family, plays an important role in the biosynthesis of terpenoid indole alkaloids (TIAs). In this study, we identified eight PLP_deC genes in Dendrobium officinale (D. officinale) and six in Phalaenopsis equestris (P. equestris), and their structures, physicochemical properties, response elements, evolutionary relationships, and expression patterns were preliminarily predicted and analyzed. The results showed that PLP_deC genes play important roles in D. officinale and respond to different exogenous hormone treatments; additionally, the results support the selection of appropriate candidates for further functional characterization of PLP_deC genes in D. officinale.

1. Introduction

Dendrobium officinale Kimura et Migo (also known as D. catenatum) is a perennial herb that is commonly used as a valuable Chinese herbal medicine and has a long evolutionary history among orchids. D. officinale is rich in alkaloids [1,2], and its genome, transcriptome, and metabolome indicate that D. officinale may also contain terpenoid indole alkaloids (TIAs) [3,4,5]. The common precursor of TIAs is strictosidine, which is formed by the combination of tryptamine and secologanin [6,7]. Tryptophan decarboxylase (TDC), which catalyses the formation of tryptamine, belongs to the type II pyridoxal phosphate-dependent decarboxylase (PLP_deC) family [8]. To date, the actual roles of many PLP_deCs in plants are still unknown due to a lack of relevant protein sequences and information about the biochemical properties. In particular, the role of PLP_deC in the alkaloid synthesis pathway of D. officinale has not been reported.
Pyridoxal 5′-phosphate (PLP) is the active form of vitamin B6 and is used by a variety of enzymes in all organisms [8]. Previously, we classified all PLP-dependent enzymes into at least five structural groups based on their protein structures [8,9]. Among them, the type I group is the most common and contains aminotransferases, decarboxylases, and an enzyme that catalyzes α-, β-, or γ-eliminations. Type II encodes the enzymes involved in β-elimination reactions. Type III is primarily alanine-racemase specific, while type IV enzymes typically include D-alanine aminotransferases. Type V enzymes are the most diverse, including glycogen and starch phosphorylases. One important group of PLP-dependent enzymes belongs to the PLP_deC family, which includes aromatic-L-amino acid decarboxylase (AAD), glutamic acid decarboxylase (GAD), and histidine decarboxylase (HDC) [10]. The biological functions of plant and animal AADs are closely related to their corresponding substrate selectivity and catalytic reactions; thus, some AADs, such as tyrosine decarboxylase (TYDC) and tryptophan decarboxylase (TDC), are further annotated based on their principal substrates [8,11]. These enzymes catalyze the decarboxylation of aromatic L-amino acids and are primarily involved in the synthesis of secondary metabolites in plants [12,13].
Numerous data indicate that PLP_deC exhibits tissue-specific and inducible transcript accumulation during plant development. In addition, several roles of PLP_deC in plant development have been identified. For example, TDC is a key enzyme that links primary and secondary metabolism with high substrate specificity [14,15]. In addition, the transcript levels of PLP_deC genes are affected by abscisic acid (ABA), methyl jasmonate (MeJA), salicylic acid (SA), and abiotic stress [16,17].
In 2015, Chinese scientists announced that they had completed the genome sequence of the orchid Phalaenopsis equestris [18]. D. officinale and P. equestris (Schauer) Rchb.f. are epiphytes in the family Orchidaceae. The draft of the D. officinale genome sequence was reported recently [4,19]. To further understand the PLP_deC gene family in orchids, we identified 8 and 6 PLP_deC genes from the genomes of D. officinale and P. equestris, respectively, and analyzed their phylogenetic relationships, gene structures, cis-regulatory elements, tissue expression patterns, and expression profiles under MeJA, ABA, and SA treatments. Our results may not only improve the current understanding of the evolutionary expansion, sequence conservation, and functional differentiation of PLP_deC genes but also provide in-depth basic biological information for further studies of the evolution of these genes in Orchidaceae.

2. Results

2.1. Sequence Analysis of PLP_deC Family Members

HMMER software was used to identify candidate genes in the genomes of D. officinale and P. equestris. All candidate genes were submitted to Pfam and SMART for verifying the presence of the PLP_deC domain. The sequences without the conserved domain and the redundant sequences were removed. Finally, a total of 14 PLP_deC-family sequences were obtained in D. officinale and P. equestris. The basic information of each PLP_deC was listed in Table 1. We found that in D. officinale, the molecular weights ranged from 34.48 kDa (DoGAD4) to 79.29 kDa (DoAAD2), with an average molecular weight of 57.64 kDa, and the theoretical isoelectric points ranged from 5.27 (DoHDC1) to 7.52 (DoAAD1), with an average value of 6.12. In P. equestris, the molecular weights ranged from 53.44 kDa (PeHDC1) to 57.26 kDa (PeGAD3), with an average molecular weight of 55.53 kDa, while the theoretical isoelectric points ranged from 5.53 (PeGAD1) to 8.55 (PeGAD3), with an average of 6.52. These results showed that most genes have an acidic pI. We analyzed the subcellular localization of 8 and 6 PLP_deC-family protein sequences in D. officinale and P. equestris by Target P 1.1. and the results showed the presence of a signal peptide in DoAAD1 and DoAAD3, suggesting their cellular localization in extracellular with a probability of 0.735 and 0.561, The proteins of DoHDC1, PeAAD1, PeAAD2 and PeHDC1 are possibly located in other cellular compartments, e.g. chloroplast transit peptide and mitochondrial, whereas the location of the remaining eight proteins is unknown (Table 2).

2.2. Analysis of the Gene Structures, Conserved Motifs, and Phylogenetic Relationships of PLP_deC Genes

To clarify the evolutionary relationships among the PLP_deC genes, we compared the PLP_deC proteins from Arabidopsis thaliana (A. thaliana), Oryza sativa (O. sativa), D. officinale and P. equestris. We used the maximum likelihood (ML) method to construct a phylogenetic tree using IQ-TREE software. As shown in Figure 1, the 42 PLP_deC genes could be divided into three subfamilies: GAD, HDC, and aromatic-L-AAD. The PLP_deC genes in D. officinale and P. equestris were named according to their relative homology with A. thaliana and O. sativa genes. Among them, the GAD subfamily was the largest, with 18 PLP_deC genes, and the HDC subfamily was the smallest, with 6 members.
To further analyze the gene structures and conserved motifs of the PLP_deC family members in D. officinale and P. equestris, a total of 10 motifs were identified from the amino acid sequences of the PLP_deC family members using the Multiple EM for Motif Elicitation (MEME) software (Figure 2). We checked these motifs to verify they are known domains by pfam and the motif logos were generated using online MEME program (Figure S1). Group I, which includes GAD sequences, harbors all the motifs; group II, which includes AAD sequences, harbors motifs 5, 6, 9, and 10; and group III, which includes HDC sequences, harbors motifs 4, 5, and 10. These results show that most PLP_deC genes in the same subfamily have highly similar motifs, which supports their close evolutionary relationships and the reliability of the constructed phylogenetic tree. Remarkably, motif 10 and motif 5 are present in all subfamilies, but they are not part of the PLP_deC domain. Thus, we speculate that they may perform other specific functions. In addition, we used the online Gene Structure Display Server to analyze the gene structures. The results showed that the number of exons in PLP_deC genes ranged from 2 to 14. For example, there are 3–8 exons in subfamily GAD, 2–14 exons in subfamily AAD, and 5 or 7 exons in subfamily HDC. These results indicate that the number of exons in the PLP_deC gene family has increased or decreased during evolution, providing a basis for functional differences among the homologous PLP_deC genes (Figure S2).

2.3. Analysis of Evolutionary Patterns of PLP_deC Genes

We analyzed the relationships of D. officinale and P. equestris homologous gene pairs to further analyze the evolutionary patterns of PLP_deC genes. We obtained six homologous gene pairs (PeGAD1–DoGAD1, DoGAD2–DoGAD4, PeAAD1–DoAAD3, DoAAD2–PeAAD2, PeHDC1–DoHDC1, and PeGAD2–PeGAD3) and calculated their Ka, Ks, and Ka/Ks values. The estimation of the synonymous (Ks) and nonsynonymous (Ka) nucleotide substitution rates is one of the important parameters for molecular evolutionary analyses, which are, respectively, defined as the number of synonymous substitutions per synonymous site and the number of nonsynonymous substitutions per nonsynonymous site per year or per generation. It is generally recognized that Ka/Ks > 1, Ka/Ks = 1, and Ka/Ks < 1 indicate positive, neutral, and purifying selection, respectively [20]. The experimental results showed that the Ka/Ks values of two homologous pairs (DoAAD2–PeAAD2, PeHDC1–DoHDC1) were lower than 0.3, the Ka/Ks values of the three homologous pairs (PeAAD1–DoAAD3, DoGAD2–DoGAD4, and PeGAD1–DoGAD1) were between 0.3 and 1, and the Ka/Ks value of one of the gene pairs (PeGAD2–PeGAD3) was greater than 1 (Table 3). These data indicated that most homologous PLP_deC gene pairs are subjected to purifying selection. To further understand the influence of selection on the homologous gene pairs, we performed a sliding window analysis. The grey regions shown in Figure 3 represent the conserved domains. The Ka/Ks values for the conserved domains were typically less than 1, indicating that these pairs have purifying selection. These findings suggest that purifying selection may have played a key role in the evolution of this gene family.

2.4. D. officinale PLP_deC Gene Expression in Different Tissues

To understand the gene expression pattern of the PLP_deC genes in D. officinale, we performed an overall in silico analysis of gene expression profiles in eight tissues (root, root tip, stem, leaf, sepal, column, lip, and flower bud). These PLP_deC genes exhibited distinct organ-specific expression and could be divided into three groups. As shown in Figure 4, in group A, two genes (DoAAD1 and DoAAD2) were highly expressed in the flower bud and lip columns, indicating that these PLP_deC genes may be involved in the development of these tissues. In addition, DoAAD2 had a high expression level in the sepal, indicating that DoAAD2 may be involved in sepal development. The four PLP_deC genes in group B were generally expressed in low amounts in all eight tissues. Remarkably, a homologous gene pair (DoGAD2–DoGAD4) exhibited similar patterns of expression and had relatively low transcript abundance in different tissues. In group C, DoAAD3 had low expression in all tissues. DoGAD3 had higher expression levels in the column and sepal. Overall, the PLP_deC genes with high expression levels may be involved in tissue growth and differentiation in D. officinale.

2.5. Identification of Cis-Acting Elements of PLP_deC Genes

Plant growth and development are regulated by different cis-elements in genes. Therefore, we used the PlantCARE database to identify and analyze cis-elements in the PLP_deC genes and identified three categories of cis-elements: plant growth and development, phytohormone response, and biotic and abiotic stress response. The cis-acting elements in the growth and development category included the CAT-box for meristem expression, O2-site for zein metabolic regulation, MRE and Box 4 for light response, and others. We identified 35 Box-4 motifs, which compose the largest portion of the growth and development category. All the PLP_deC genes contained Box-4 elements (Figure 5a), indicating that the expression of all these genes is closely related to light. In the phytohormone response category, TCA elements for SA response and P-boxes and TATC-boxes for gibberellic acid response were identified. Notably, TGACG motifs for MeJA response accounted for 47% of the phytohormone response category (Figure 5c), while ABRE elements for ABA response accounted for 33%. The last category was biotic and abiotic-stress-response elements, including AREs and GC motifs for anerobic response, TC-rich repeats for defence and stress response, and MBSs and LTRs for low temperature response. Our data suggested that the PLP_deC genes may respond to abiotic stresses in D. officinale.

2.6. Analysis of the Expression Patterns of PLP_deC Genes in D. officinale

In plants, many stress responses are modulated or mediated by various signaling pathways that are inseparable from gene expression and regulation [21]. To investigate the responses of the PLP_deC genes to different hormone treatments, we used qRT-PCR to analyze their expression under MeJA, ABA, and SA treatments.
In the ABA treatment, we found that DoAAD1, DoAAD2, DoAAD3, DoGAD1, DoGAD3, and DoGAD4 reached their highest expression levels after 72 hours, and DoGAD1 and DoGAD3 were strongly upregulated (by more than 110-fold and 50-fold, respectively). The expression of two PLP_deC genes (DoGAD2 and DoHDC1) peaked at 96 h, and DoGAD2 was strongly upregulated (more than 250-fold) (Figure 6). In the MeJA treatment, three PLP_deC genes (DoAAD3, DoGAD3, and DoHDC1) showed strong upregulation at 2 h (Figure 7), while five PLP_deC genes (DoAAD1, DoAAD2, DoGAD1, DoGAD2, and DoGAD4) were strongly upregulated after 4 h of treatment. In the SA treatment, the expression levels of DoAAD1, DoAAD3, DoGAD1, DoGAD2, and DoHDC1 were strongly upregulated at 2 h (Figure 8). However, DoAAD2 and DoGAD3 were strongly upregulated after treated with SA for 72 h of treatment (over 645- and 508-fold, respectively).

3. Discussion

The type II PLP_deC enzymes are an important group of carboxylases among the PLP-dependent enzymes. Many data indicate that PLP_deCs show developmental, tissue-specific, and inducible transcript accumulation during plant development [19,22]. In this paper, we identified 8 and 6 PLP_deC genes from the D. officinale and P. equestris genomes, respectively. According to the phylogenetic analysis, all the PLP_deC genes from A. thaliana, O. sativa, D. officinale, and P. equestris were clustered into GAD, AAD, and HDC subclasses based on their high sequence similarity, which is consistent with the ML tree of PLP_deC genes from the genomes of 18 species and previously published articles [17]. However, some of these genes might have evolved with different functions. For example, in tomato, SlHDC19 and SlHDC6 do not act on histidine but prefer tyrosine as their substrate [17]. Furthermore, many HDCs are biased toward serine rather than histidine based on biochemical analysis [18]. Therefore, although their sequences have high similarity, PLP_deC genes have individual substrate specificities; we should perform an in-depth biochemical characterization to understand their precise functions [23].
Gene duplication is a common phenomenon in species and contributes to the generation of biodiversity during evolution [24]. To date, the chromosome assemblies of the D. officinale and P. equestris genomes have not yet been finished [25], and thus, the homologous genes of D. officinale and P. equestris cannot yet be clearly shown on the chromosomes. Therefore, we are unable to determine the type of replication events that have occurred between these species. To further understand the evolutionary patterns of the PLP_deC genes, we calculated the Ka and Ks values of homologous gene pairs. We predicted that two gene pairs (PeGAD1–DoGAD1 and PeAAD2–AAD2) are evolved from the genome-wide duplication events shared by D. officinale and P. equestris, because their values of Ks are 0.7 to 1.1 [26]. The Ka/Ks values in this experiment were less than 1 for all the homologous gene pairs except for PeGAD2–PeGAD3, implying that these gene pairs have undergone purifying selection during evolution. In addition, we noticed four homologous gene pairs (PeGAD1–DoGAD1, PeAAD2–AAD2, PeAAD1–DoAAD3, and PeHDC1–DoHDC1) had the comparatively high Ka/Ks values (>0.5), showing that these gene pairs have undergone rapid evolutionary diversification after duplication events in the course of evolution [24].
Analysis of D. officinale PLP_deC gene expression in different tissues can help us better understand the tissue specificity of the PLP_deC genes. Therefore, expression profiles for all the PLP_deC genes were established using published RNA-sequence data. Among them, DoAAD1, DoAAD2, and DoGAD3 were highly expressed in different tissues, indicating that these PLP_deC genes play important roles during D. officinale growth and development. For example, GADs are involved in many cellular processes, including pollen-tube development in Arabidopsis and Picea wilsonii [25,27]. In this study, some cis-acting elements associated with particular tissues were identified in the PLP_deC gene promoter regions, such as the O2-site required for seed expression and the CAT-box required for meristem organization. The corresponding PLP_deC genes (such as DoAAD1 and DoAAD2) might play important role in the formation of reproductive organs.
Many studies have suggested that the expression levels of PLP_deC genes are also influenced by abiotic and biotic stresses [28,29,30]. Furthermore, plant hormones such as ABA, SA, and ethylene also modulate the expression of these genes [17,29,30]. In this study, we identified a number of cis-acting elements in the promoter regions of PLP_deC genes in both D. officinale and P. equestris, such as MBS, MRB, Box 4, and ABRE. We found that these PLP_deC genes contain at least one abiotic stress cis-element, which showed that they may contribute to biotic and abiotic stress responses. To further investigate the responses of the PLP_deC genes to different hormones, we analyzed their expression with the treatments of MeJA, ABA, and SA by qRT-PCR. We observed that the PLP_deC genes had significantly differential expression patterns under different treatments. Some of the PLP_deC genes showed strong upregulation under the treatments, indicating that these genes play key roles in the abiotic stress responses of D. officinale. For example, DoAAD2 was strongly upregulated (645-fold) after 72 h of SA treatment. Overall, we found that the PLP_deC genes of D. officinale responded to abiotic stress, such as MeJA, ABA, and SA stresses. These results provide strong evidence that the PLP_deC genes in plants are involved in abiotic stress responses.

4. Materials and Methods

4.1. Materials and Treatments

Seedlings of D. officinale were planted on Murashige and Skoog (MS) medium and placed in a tissue culture chamber at a constant temperature of 25 °C (16 h light/8 h dark) for 1 month. The tissue culture seedlings were then transferred to MS medium containing 1.0 mg/L 6-BA (biosharp, Shanghai, China), 0.1 mg/L NAA (Aladdin, Shanghai, China), and 30 g/L sucrose (Aladdin, Shanghai, China). The induced protocorms (PLBs) were supplemented with 1/2 MS liquid medium containing 0.1 mg/L α-naphthylacetic acid (NAA), 0.1 g/L whey protein hydrolysate, and 30 g/L sucrose (pH 5.8), and then cultured in darkness at 25 °C for 2 months. The PLBs were cut into 0.5 cm × 0.5 cm pellets, and 7 g of the pellet was inoculated into an Erlenmeyer flask containing 40 mL of MS medium. MeJA (100 μM methyl jasmonate; Aladdin, Shanghai, China), SA (100 μM salicylic acid; Aladdin, Shanghai, China), and ABA (100 μM abscisic acid; Aladdin, Shanghai, China) were filtered through 0.22 μm filter membrane and added to the MS medium, based on previously published articles [31]. After induction with SA and MeJA, samples were harvested at 0, 2, 4, 8, 24, 48, and 72 h. The original bulbs under ABA induction were harvested at 0, 24, 48, 72, 96, and 168 h. All samples were immediately stored at − 80°C after harvesting for RNA extraction. All results were based on three biological repeats and each biological repeat had three technical replicates. The extraction of total RNA from PLBs was carried out with Plant Total RNA Isolation Kit (Sangon Biotech, Shanghai, China) using 300 mg tissue homogenized in liquid nitrogen according to the manufacturer’s protocol, which was subsequently reverse transcribed into the first DNA strand using a One Step RT-qPCR Kit (BBI Life Science, Shanghai, China).

4.2. Screening and Identification of the PLP_deC Genes

We obtained the HMM (Hidden Markov Model) configuration file for the PLP_deC domain (Pfam00282) from Pfam (http://pfam.xfam.org/). All PLP_deC genes were then identified in the D. officinale and P. equestris genomes using HMMER software (E-value = 0.001) [32]. All candidate genes were submitted to Pfam and SMART for verifying the presence of the PLP_deC domain. The sequences that did not contain the conserved domain and the redundant sequence of the repeat were removed, and finally, the PLP_deC genes were obtained. In Table S1 are listed the sequences of the PLP_deC genes of O. sativa and A. thaliana described in previous studies (add citations) and used in the present work [17].

4.3. Sequence Attribute Analysis and Phylogenetic Tree Construction of PLP_deC Genes

To analyze the sequence attributes and characteristics of the amino acids of the PLP_deC family members, the isoelectric points (pIs) of the obtained PLP_deC amino acid sequences were determined using online analysis with the ProtParam tool (https://web.expasy.org/protparam/) [33] and subcellular localization of 8 and 6 PLP_deC-family protein sequences in D. officinale and P. equestris by Target P 1.1 (http://www.cbs.dtu.dk/ services / Target P). Properties such as molecular weight (MW) were predicted. The obtained PLP_deC protein sequences were aligned using Clustal X [34], implemented in MEGA 5.0 [35], and a maximum likelihood (ML) phylogenetic tree was generated using IQ-TREE software [36] with 1000 bootstrap replicates. The PLP_deC genes were classified according to the phylogenetic relationships. If two different species of genes are located in the phylogenetic tree at the same node and the sequence similarity is more than 80%, we consider two of these are homologous genes [37]. The conserved motifs on the orchid sequences of PLP_deC were defined by MEME (http://meme-suite.org/) using the following parameters: maximum number of motifs = 10, number of repetitions—any, and only motifs with an E-value < 0.01 were retained for further analysis. The motif logos of the PLP_deC domains were generated using online MEME program (Figure S2) [38], and GSDS was used to determine the exon–intron structure (http://gsds.cbi.pku.edu.cn /) [39].

4.4. Calculation of Ks and Ka Values of the PLP_deC Genes

The protein sequences of the gene pairs were first aligned using Clustal X 2.0, and then the multiple sequence alignments of proteins and the corresponding cDNA sequences were converted to codon alignments using PAL2NAL (http://www.bork.embl.de/pal2nal/) [40]. Finally, the resulting codon alignment was used to calculate Ks and Ka using DnaSP 5.0 (http://www.ub.edu/dnasp/) [41].

4.5. Analysis of Cis-Acting Elements of the PLP_deC Genes

A 2000 bp sequence upstream of the translation start site (ATG) of each PLP_deC gene was obtained, and an analysis of the upstream regulatory promoter elements was performed using the online tool PlantCARE (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/) [42].

4.6. Expression of the D. officinale PLP_deC Genes in Different Tissues

To obtain expression data for D. officinale, we searched the NCBI SRA database (PRJNA348403) for RNA-sequence data from different tissues [27] (Additional file: Table S2). The raw data were stripped of adapters and low-quality reads (and bases) and then rRNA and virus reads were filtered out by using Trimmomatic software with the default parameters. The clean reads were aligned to the D. officinale genome using Hisat2 [43] with the options -dta and -no-unal. The aligned outputs were converted from SAM to BAM format by using SAMtools [44]. Then, the Stringtie software was used to estimate the transcript abundances with FPKM method. The heat map of the PLP_deC genes expression profiles was obtained by TBtools software (https://github.com/CJ-Chen/TBtools/releases).

4.7. Quantitative Fluorescence Analysis of the PLP_deC Genes

We used the CFX96 TouchTM Real-Time PCR Detection System (Singapore) to perform a quantitative fluorescence analysis of the PLP_deC genes in the cDNA samples from D. officinale protocorms with three replicates. β-actin [45,46,47] was used as an internal reference, the relative expression levels of genes were calculated using the 2−ΔΔCT method [48], and the primers were designed using Primer Premier 5.0 software (Table S3). Each reaction contained the following: 8 μL of SYBR Premix Ex Taq II (2x), 2 μL of template cDNA, 1 μL of forward and reverse primers, and addition of ddH2O to a final volume of 20 μL. The reaction conditions were as follows: 95 °C for 3 min followed by 40 cycles of 95 °C for 10 s, 52 °C for 15 s, and 72 °C for 30 s.
To determine whether the differential expression was significant, the difference in the relative expression of each target gene in the different treatment groups was analyzed by Student’s t-test in SPSS 25.0 software [49].

5. Conclusions

Overall, we conducted a comprehensive analysis of PLP_deC genes in both D. officinale and P. equestris. Comparative analysis has shown that eight PLP_deC genes from D. officinale could be divided into three subfamilies: GAD, HDC, and AAD. Most genes have an acidic pI. Purifying selection may have played a key role in the evolution of this PLP_deC genes in D. officinale based on the Ka/Ks value. Among them, both DoAAD1 and DoAAD2 were highly expressed in the column, flower bud, and lip. Under three hormone treatments, MeJA, ABA, and SA, the PLP_deC genes responded to abiotic stresses. These results provide preliminary biological information for further studies of the evolution of PLP_deC genes in Orchidaceae.

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1422-0067/21/1/54/s1.

Author Contributions

Y.C. (Yongping Cai) and Q.J. conceived and designed the experiments; L.Z., C.J., Y.C. (Yunpeng Cao), X.C., and J.W. performed the experiments; L.Z. and C.J. analyzed the data; L.Z. wrote the paper. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

This work was supported by the Universities Natural Science Research Project of Anhui, China (Project number KJ2016A224), the University Synergy Innovation Program of Anhui Province (Project number GXXT-2019-043), and the Major Science and Technology Project in Anhui Province (Project number 17030701031).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ng, T.B.; Liu, J.; Wong, J.H.; Ye, X.; Sze, S.C.W.; Tong, Y.; Zhang, K.Y. Review of research on Dendrobium, a prized folk medicine. Appl. Microbiol. Biotechnol. 2012, 93, 1795–1803. [Google Scholar] [CrossRef]
  2. Zhang, J.; He, C.; Wu, K.; Teixeira da Silva, J.A.; Zeng, S.; Zhang, X.; Yu, Z.; Xia, H.; Duan, J. Transcriptome Analysis of Dendrobium officinale and its Application to the Identification of Genes Associated with Polysaccharide Synthesis. Front. Plant Sci. 2016, 7, 5. [Google Scholar] [CrossRef] [Green Version]
  3. Guo, X.; Li, Y.; Li, C.; Luo, H.; Wang, L.; Qian, J.; Luo, X.; Xiang, L.; Song, J.; Sun, C.; et al. Analysis of the Dendrobium officinale transcriptome reveals putative alkaloid biosynthetic genes and genetic markers. Gene 2013, 527, 131–138. [Google Scholar] [CrossRef]
  4. Yan, L.; Wang, X.; Liu, H.; Tian, Y.; Lian, J.; Yang, R.; Hao, S.; Wang, X.; Yang, S.; Li, Q.; et al. The Genome of Dendrobium officinale Illuminates the Biology of the Important Traditional Chinese Orchid Herb. Mol. Plant 2015, 8, 922–934. [Google Scholar] [CrossRef] [Green Version]
  5. Shen, C.; Guo, H.; Chen, H.; Shi, Y.; Meng, Y.; Lu, J.; Feng, S.; Wang, H. Identification and analysis of genes associated with the synthesis of bioactive constituents in Dendrobium officinale using RNA-Seq. Sci. Rep. 2017, 7, 187. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Zhu, X.; Zeng, X.; Sun, C.; Chen, S. Biosynthetic pathway of terpenoid indole alkaloids in Catharanthus roseus. Front. Med. 2014, 8, 285–293. [Google Scholar] [CrossRef] [PubMed]
  7. Rischer, H.; Orešič, M.; Seppänen-Laakso, T.; Katajamaa, M.; Lammertyn, F.; Ardiles-Diaz, W.; Van Montagu, M.C.; Inzé, D.; Oksman-Caldentey, K.M.; Goossens, A. Gene-to-metabolite networks for terpenoid indole alkaloid biosynthesis in Catharanthus roseus cells. Proc. Natl. Acad. Sci. USA 2006, 103, 5614–5619. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Torrens-Spence, M.P.; Liu, P.; Ding, H.; Harich, K.; Gillaspy, G.; Li, J. Biochemical Evaluation of the Decarboxylation and Decarboxylation-Deamination Activities of Plant Aromatic Amino Acid Decarboxylases. J. Biol. Chem. 2013, 288, 2376–2387. [Google Scholar] [CrossRef] [Green Version]
  9. Milano, T.; Paiardini, A.; Grgurina, I.; Pascarella, S. Type I pyridoxal 5’-phosphate dependent enzymatic domains embedded within multimodular nonribosomal peptide synthetase and polyketide synthase assembly lines. BMC Struct. Biol. 2013, 13, 26. [Google Scholar] [CrossRef] [Green Version]
  10. Percudani, R.; Peracchi, A. A genomic overview of pyridoxal-phosphate-dependent enzymes. Embo Rep. 2003, 4, 850–854. [Google Scholar] [CrossRef]
  11. Facchini, P.J.; Huber-Allanach, K.L.; Tari, L.W. ChemInform Abstract: Plant Aromatic L-AminoAcid Decarboxylases: Evolution, Biochemistry, Regulation, and Metabolic Engineering Applications. Phytochemistry 2010, 31, 121–138. [Google Scholar] [CrossRef]
  12. Lehmann, T.; Pollmann, S. Gene expression and characterization of a stress-induced tyrosine decarboxylase from Arabidopsis thaliana. FEBS Lett. 2009, 583, 1895–1900. [Google Scholar] [CrossRef] [PubMed]
  13. Noé, W.; Mollenschott, C.; Berlin, J. Tryptophan decarboxylase from Catharanthus roseus cell suspension cultures: Purification, molecular and kinetic data of the homogenous protein. Plant Mol. Biol. 1984, 3, 281–288. [Google Scholar] [CrossRef] [PubMed]
  14. Jadaun, J.S.; Sangwan, N.S.; Narnoliya, L.K.; Tripathi, S.; Sangwan, R.S. Withania coagulans tryptophan decarboxylase gene cloning, heterologous expression, and catalytic characteristics of the recombinant enzyme. Protoplasma 2016, 254, 181–192. [Google Scholar] [CrossRef] [PubMed]
  15. Goddijn, O.J.; Lohman, F.P.; de Kam, R.J.; Hoge, J.H.C. Nucleotide sequence of the tryptophan decarboxylase gene of Catharanthus roseus, and expression of tdc-gus a gene fusions in Nicotiana tabacum. Mol. Gen. Genet. MGG 1994, 242, 217–225. [Google Scholar] [CrossRef]
  16. De Luca, V.; Fernandez, J.A.; Campbell, D.; Kurz, W.G. Developmental Regulation of Enzymes of Indole Alkaloid Biosynthesis in Catharanthus roseus. Plant Physiol. 1988, 86, 447–450. [Google Scholar] [CrossRef] [Green Version]
  17. Kumar, R.; Jiwani, G.; Pareek, A.; Sravan Kumar, T.; Khurana, A.; Sharma, A.K. Evolutionary Profiling of Group II Pyridoxal-Phosphate-Dependent Decarboxylases Suggests Expansion and Functional Diversification of Histidine Decarboxylases in Tomato. Plant Genome 2016, 9. [Google Scholar] [CrossRef] [Green Version]
  18. Cai, J.; Liu, X.; Vanneste, K.; Proost, S.; Tsai, W.C.; Liu, K.W.; Chen, L.J.; He, Y.; Xu, Q.; Bian, C.; et al. The genome sequence of the orchid Phalaenopsis equestris. Nat. Genet. 2015, 47, 65–72. [Google Scholar] [CrossRef] [Green Version]
  19. Zhang, G.-Q.; Xu, Q.; Bian, C.; Tsai, W.-C.; Yeh, C.-M.; Liu, K.-W.; Yoshida, K.; Zhang, L.-S.; Chang, S.-B.; Chen, F. The Dendrobium catenatum Lindl. Genome sequence provides insights into polysaccharide synthase, floral development and adaptive evolution. Sci. Rep. 2016, 6, 19029. [Google Scholar] [CrossRef] [Green Version]
  20. Wang, D.; Zhang, S.; He, F.; Zhu, J.; Hu, S.; Yu, J. How Do Variable Substitution Rates Influence Ka and Ks Calculations? Genom. Proteom. Bioinform. 2009, 7, 42–53. [Google Scholar] [CrossRef] [Green Version]
  21. Akihiro, T.; Koike, S.; Tani, R.; Tominaga, T.; Watanabe, S.; Iijima, Y.; Aoki, K.; Shibata, D.; Ashihara, H.; Matsukura, C.; et al. Biochemical Mechanism on GABA Accumulation During Fruit Development in Tomato. Plant Cell Physiol. 2008, 49, 1378–1389. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Gutensohn, M.; Klempien, A.; Kaminaga, Y.; Nagegowda, D.A.; Negre-Zakharov, F.; Huh, J.H.; Luo, H.; Weizbauer, R.; Mengiste, T.; Tholl, D.; et al. Role of aromatic aldehyde synthase in wounding/herbivory response and flower scent production in different Arabidopsis ecotypes. Plant J. 2011, 66, 591–602. [Google Scholar] [CrossRef] [PubMed]
  23. Moore, R.C.; Purugganan, M.D. The early stages of duplicate gene evolution. Proc. Natl. Acad. Sci. USA 2003, 100, 15682–15687. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Cao, Y.; Meng, D.; Han, Y.; Chen, T.; Jiao, C.; Chen, Y.; Jin, Q.; Cai, Y. Comparative analysis of B-BOX genes and their expression pattern analysis under various treatments in Dendrobium officinale. BMC Plant Biol. 2019, 19, 245. [Google Scholar] [CrossRef]
  25. Palanivelu, R.; Brass, L.; Edlund, A.F.; Preuss, D. Pollen Tube Growth and Guidance Is Regulated by POP2, an Arabidopsis Gene that Controls GABA Levels. Cell 2003, 114, 47–59. [Google Scholar] [CrossRef] [Green Version]
  26. Zhang, G.-Q.; Liu, K.-W.; Li, Z.; Lohaus, R.; Hsiao, Y.-Y.; Niu, S.-C.; Wang, J.-Y.; Lin, Y.-C.; Xu, Q.; Chen, L.-J. The Apostasia genome and the evolution of orchids. Nature 2017, 549, 379. [Google Scholar] [CrossRef] [Green Version]
  27. Ling, Y.; Chen, T.; Jing, Y.; Fan, L.; Wan, Y.; Lin, J. γ-Aminobutyric acid (GABA) homeostasis regulates pollen germination and polarized growth inPicea wilsonii. Planta 2013, 238, 831–843. [Google Scholar] [CrossRef]
  28. Walther, D.; Brunnemann, R.; Selbig, J. The Regulatory Code for Transcriptional Response Diversity and Its Relation to Genome Structural Properties in A. thaliana. PLoS Genet. 2007, 3, e11. [Google Scholar] [CrossRef]
  29. Pan, Y.J.; Lin, Y.C.; Yu, B.F.; Zu, Y.G.; Yu, F.; Tang, Z.H. Transcriptomics comparison reveals the diversity of ethylene and methyl-jasmonate in roles of TIA metabolism in Catharanthus roseus. BMC Genom. 2018, 19, 508. [Google Scholar] [CrossRef] [Green Version]
  30. Shen, E.M.; Singh, S.K.; Ghosh, J.S.; Patra, B.; Paul, P.; Yuan, L.; Pattanaik, S. The miRNAome of Catharanthus roseus: Identification, expression analysis, and potential roles of microRNAs in regulation of terpenoid indole alkaloid biosynthesis. Sci. Rep. 2017, 7, 43027. [Google Scholar] [CrossRef] [Green Version]
  31. Wang, Y.; Hammes, F.; Duggelin, M.; Egli, T. Influence of size, shape, and flexibility on bacterial passage through micropore membrane filters. Environ. Sci. Technol. 2008, 42, 6749–6754. [Google Scholar] [CrossRef] [PubMed]
  32. Mistry, J.; Finn, R.D.; Eddy, S.R.; Bateman, A.; Punta, M. Challenges in homology search: HMMER3 and convergent evolution of coiled-coil regions. Nucleic Acids Res. 2013, 41, e121. [Google Scholar] [CrossRef] [Green Version]
  33. Gasteiger, E.; Hoogland, C.; Gattiker, A.; Duvaud, S.E.; Wilkins, M.R.; Appel, R.D.; Bairoch, A. Protein identification and analysis tools on the ExPASy server. Proteom. Protoc. Handb. 2005, 112, 571–607. [Google Scholar]
  34. Thompson, J.D.; Gibson, T.J.; Higgins, D.G. Multiple Sequence Alignment Using ClustalW and ClustalX. Curr. Protoc. Bioinform. 2003, 1, 2–3. [Google Scholar] [CrossRef] [PubMed]
  35. Tamura, K.; Peterson, D.; Peterson, N.; Stecher, G.; Nei, M.; Kumar, S. MEGA5: Molecular evolutionary genetics analysis using maximum likelihood, evolutionary distance, and maximum parsimony methods. Mol. Biol. Evol. 2011, 28, 2731–2739. [Google Scholar] [CrossRef] [Green Version]
  36. Cao, Y.; Liu, W.; Zhao, Q.; Long, H.; Li, Z.; Liu, M.; Zhou, X.; Zhang, L. Integrative analysis reveals evolutionary patterns and potential functions of SWEET transporters in Euphorbiaceae. Int. J. Biol. Macromol. 2019, 139, 1–11. [Google Scholar] [CrossRef] [PubMed]
  37. van der Heijden, R.T.; Snel, B.; van Noort, V.; Huynen, M.A. Orthology prediction at scalable resolution by phylogenetic tree analysis. BMC Bioinform. 2007, 8, 83. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Bailey, T.L.; Johnson, J.; Grant, C.E.; Noble, W.S. The MEME suite. Nucleic Acids Res. 2015, 43, W39–W49. [Google Scholar] [CrossRef] [Green Version]
  39. Hu, B.; Jin, J.; Guo, Y.A.; Zhang, H.; Luo, J.; Gao, G. GSDS 2.0: An upgraded gene feature visualization server. Bioinformatics 2014, 31, 1296. [Google Scholar] [CrossRef] [Green Version]
  40. Mikita, S.; David, T.; Peer, B. PAL2NAL: Robust conversion of protein sequence alignments into the corresponding codon alignments. Nucleic Acids Res. 2002, 34, W609–W612. [Google Scholar]
  41. Rozas, J.; Rozas, R. DnaSP, DNA sequence polymorphism: An interactive program for estimating population genetics parameters from DNA sequence data. Bioinformatics 1995, 11, 621–625. [Google Scholar] [CrossRef] [PubMed]
  42. Lescot, M. PlantCARE, a database of plant cis-acting regulatory elements and a portal to tools for in silico analysis of promoter sequences. Nucleic Acids Res. 2002, 30, 325–327. [Google Scholar] [CrossRef] [PubMed]
  43. Kim, D.; Langmead, B.; Salzberg, S.L. HISAT: A fast spliced aligner with low memory requirements. Nat. Methods 2015, 12, 357–360. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Li, H.; Handsaker, B.; Wysoker, A.; Fennell, T.; Ruan, J.; Homer, N.; Marth, G.; Abecasis, G.; Durbin, R.; 1000 genome project data processing subgroup. The sequence alignment/map (SAM) format and SAMtools. Bioinformatics 2009, 25, 2078–2079. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Pertea, M.; Kim, D.; Pertea, G.M.; Leek, J.T.; Salzberg, S.L. Transcript-level expression analysis of RNA-seq experiments with HISAT, StringTie and Ballgown. Nat. Protoc. 2016, 11, 1650–1667. [Google Scholar] [CrossRef]
  46. Wang, T.; Song, Z.; Meng, W.L.; Li, L.B. Identification, characterization, and expression of the SWEET gene family in Phalaenopsis equestris and Dendrobium officinale. Biol. Plant. 2017, 62, 24–32. [Google Scholar] [CrossRef]
  47. Fan, H.; Wu, Q.; Wang, X.; Wu, L.; Cai, Y.; Lin, Y. Molecular cloning and expression of 1-deoxy-d-xylulose-5-phosphate synthase and 1-deoxy-d-xylulose-5-phosphate reductoisomerase inDendrobium officinale. Plant Cell Tissue Organ Cult. (PCTOC) 2016, 125, 381–385. [Google Scholar] [CrossRef]
  48. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2−ΔΔCT Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
  49. Verma, J.P. Data Analysis in Management with SPSS Software; Springer: Berlin, Germany, 2013. [Google Scholar] [CrossRef]
Ijms 21 00054 g001 550

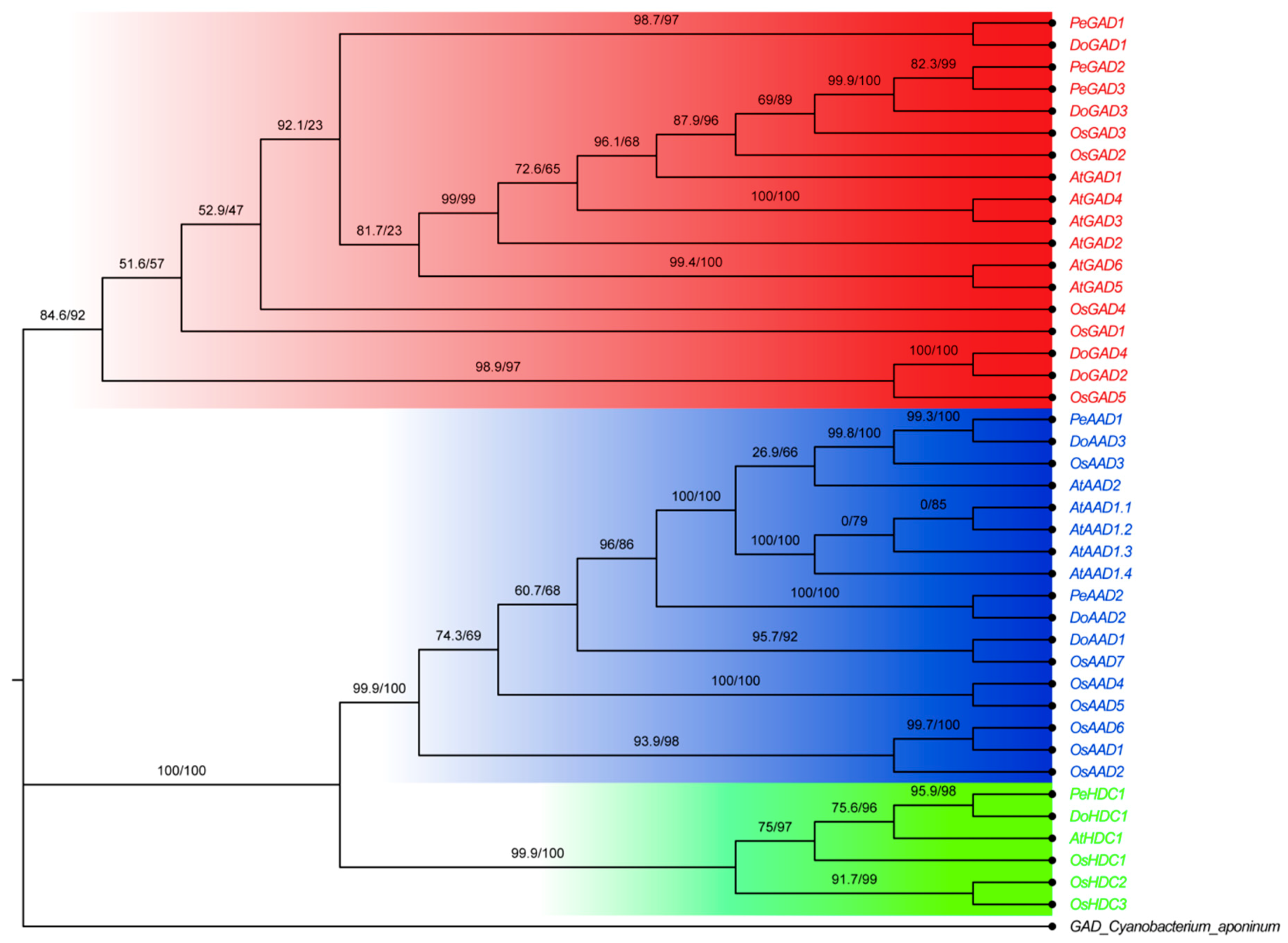

Figure 1. Phylogenetic analysis of PLP_deC genes from Dendrobium officinale, Phalaenopsis equestris, Oryza sativa, and Arabidopsis thaliana. The maximum likelihood (ML) tree was created using IQ-TREE with 8 D. officinale (Do), 6 P. equestris (Pe), 15 O. sativa (Os) and 12 A. thaliana (At) PLP_deC protein sequences. The red, green, and blue colors indicate GADs, HDCs, and AADs, respectively. Bootstrap supports are indicated at each branch.
Figure 1. Phylogenetic analysis of PLP_deC genes from Dendrobium officinale, Phalaenopsis equestris, Oryza sativa, and Arabidopsis thaliana. The maximum likelihood (ML) tree was created using IQ-TREE with 8 D. officinale (Do), 6 P. equestris (Pe), 15 O. sativa (Os) and 12 A. thaliana (At) PLP_deC protein sequences. The red, green, and blue colors indicate GADs, HDCs, and AADs, respectively. Bootstrap supports are indicated at each branch.
Ijms 21 00054 g001
Ijms 21 00054 g002 550

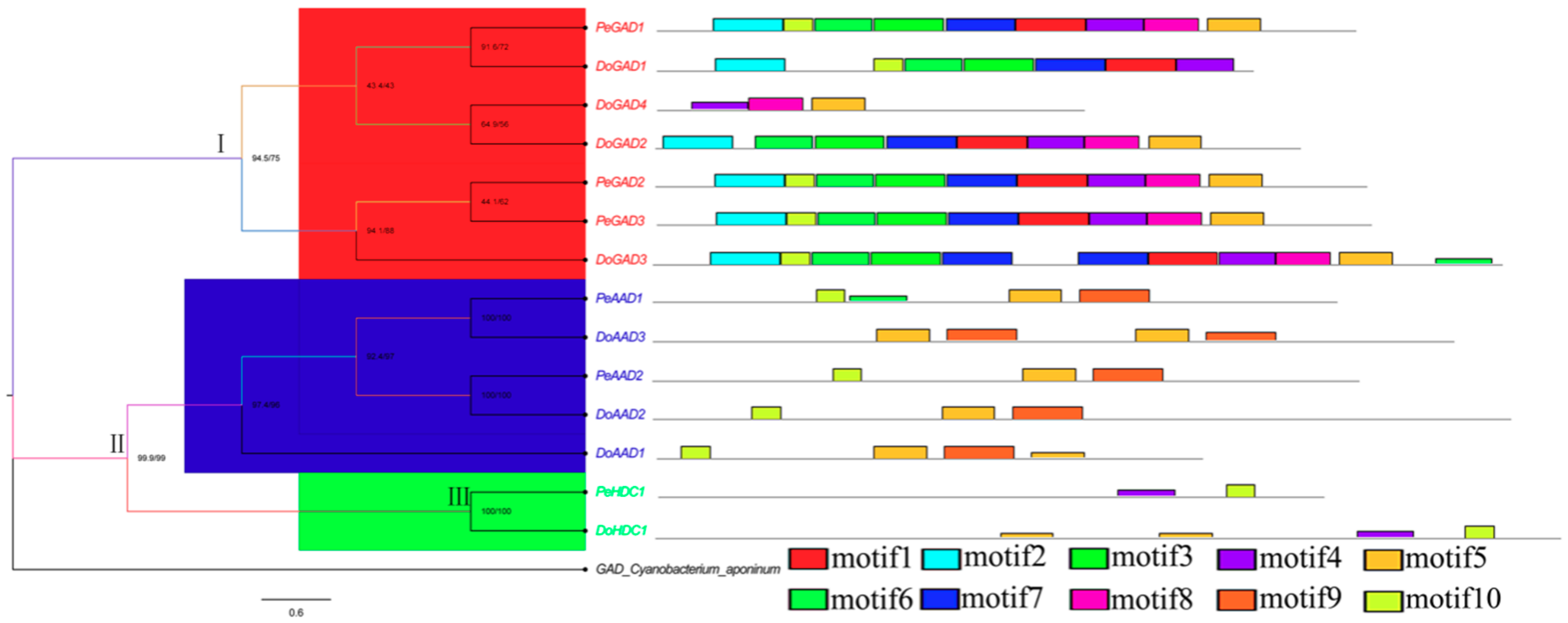

Figure 2. Distribution of 10 putative conserved motifs in PLP_deC proteins.
Figure 2. Distribution of 10 putative conserved motifs in PLP_deC proteins.
Ijms 21 00054 g002
Ijms 21 00054 g003 550

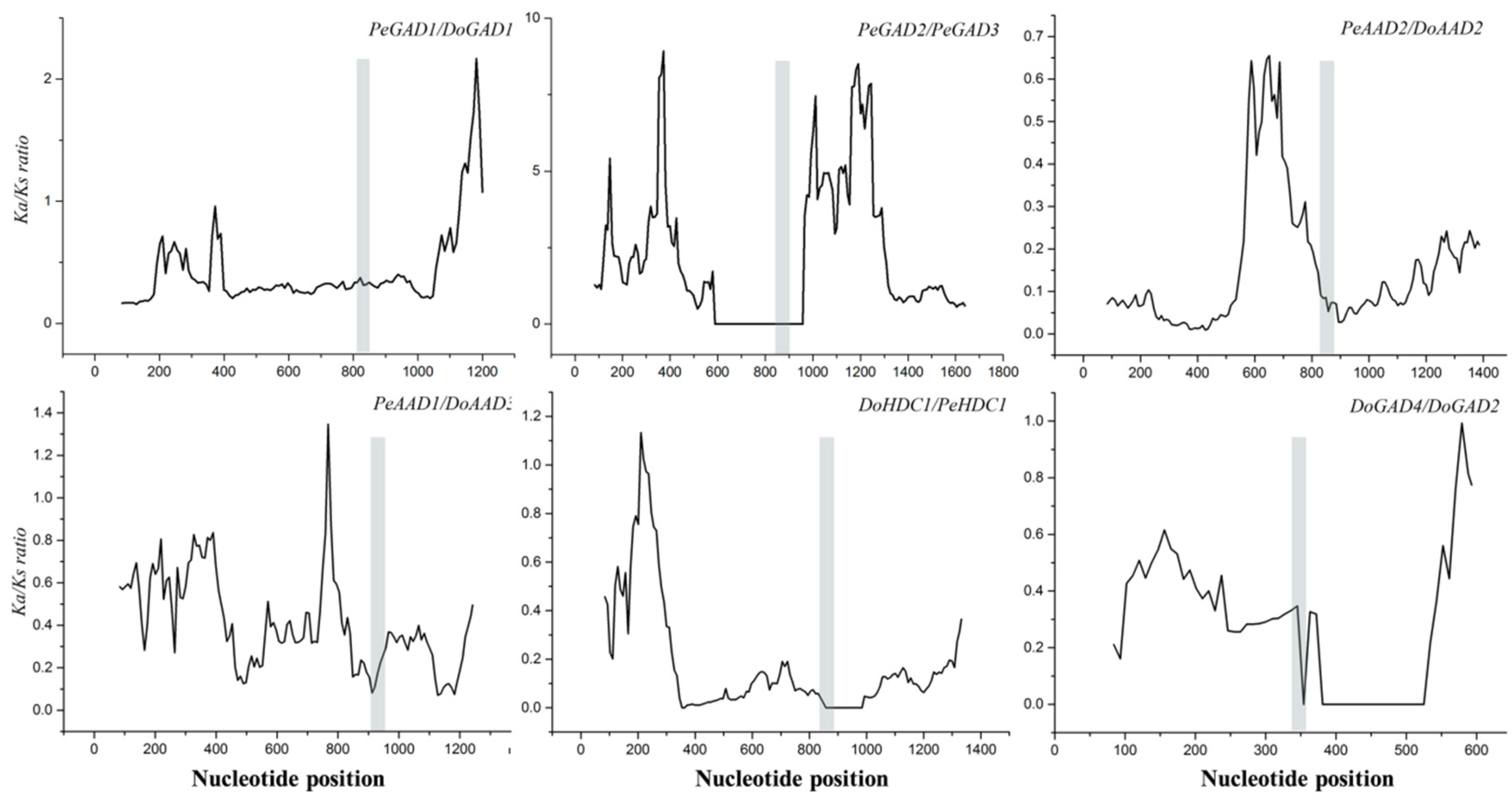

Figure 3. Sliding window analysis of Ka/Ks for each gene pair. The window size is 150 bp, and the step size is 9 bp. The grey region represents the conserved domain.
Figure 3. Sliding window analysis of Ka/Ks for each gene pair. The window size is 150 bp, and the step size is 9 bp. The grey region represents the conserved domain.
Ijms 21 00054 g003
Ijms 21 00054 g004 550

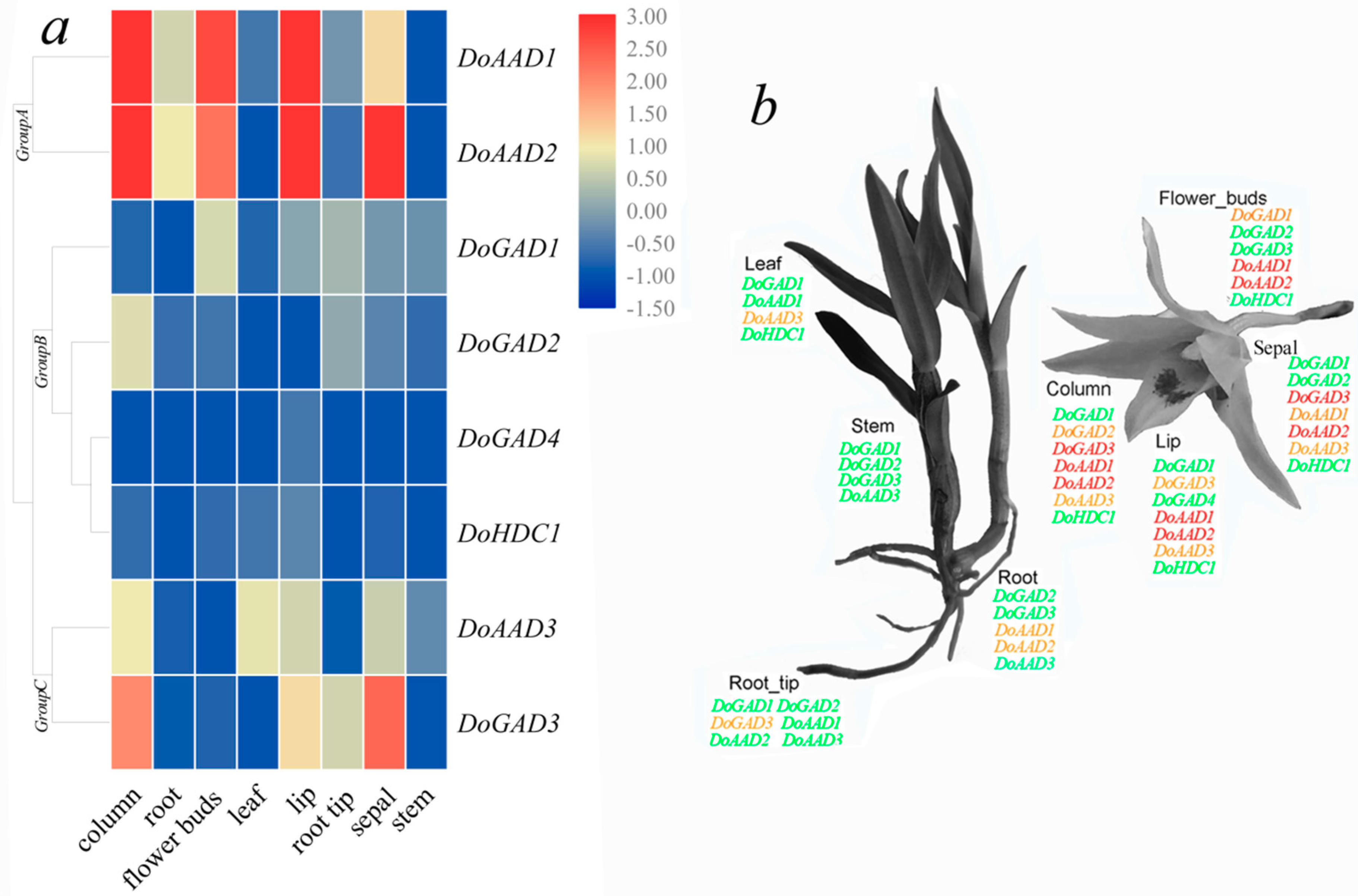

Figure 4. Expression profiles of PLP_deC genes in different tissues. (a) Heatmap of the in silico expression analysis in different tissues and organs. Blue and red indicate lower and higher transcript abundance, respectively. (b) PLP_deC genes expressed in different tissues and organs. Green, yellow, and red indicate low (0.01–0.71 FPKM), medium (1–1.71 FPKM), and high (3.42–28.4 FPKM) expression, respectively.
Figure 4. Expression profiles of PLP_deC genes in different tissues. (a) Heatmap of the in silico expression analysis in different tissues and organs. Blue and red indicate lower and higher transcript abundance, respectively. (b) PLP_deC genes expressed in different tissues and organs. Green, yellow, and red indicate low (0.01–0.71 FPKM), medium (1–1.71 FPKM), and high (3.42–28.4 FPKM) expression, respectively.
Ijms 21 00054 g004
Ijms 21 00054 g005 550

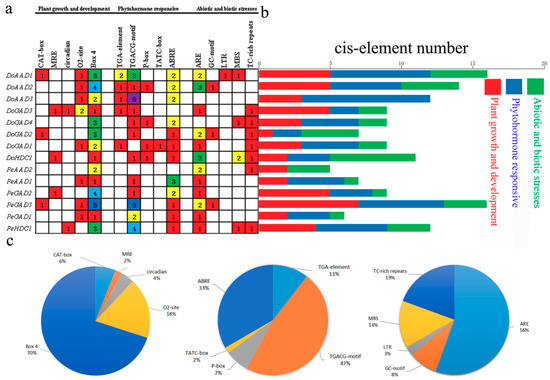

Figure 5. Numbers of cis-acting elements in all the PLP_deC genes of D. officinale and P. equestris. (a) The different colors and numbers in the grid indicate the numbers of different promoter elements in each PLP_deC gene. (b) The different colored histogram represents the numbers of cis-acting elements in the different categories. The red, blue, and green indicate plant growth and devolepment, phytohormone response, and biotic and abiotic stress, respectively. (c) The pie charts indicate the percentages of different promoter elements in the different categories.
Figure 5. Numbers of cis-acting elements in all the PLP_deC genes of D. officinale and P. equestris. (a) The different colors and numbers in the grid indicate the numbers of different promoter elements in each PLP_deC gene. (b) The different colored histogram represents the numbers of cis-acting elements in the different categories. The red, blue, and green indicate plant growth and devolepment, phytohormone response, and biotic and abiotic stress, respectively. (c) The pie charts indicate the percentages of different promoter elements in the different categories.
Ijms 21 00054 g005
Ijms 21 00054 g006 550

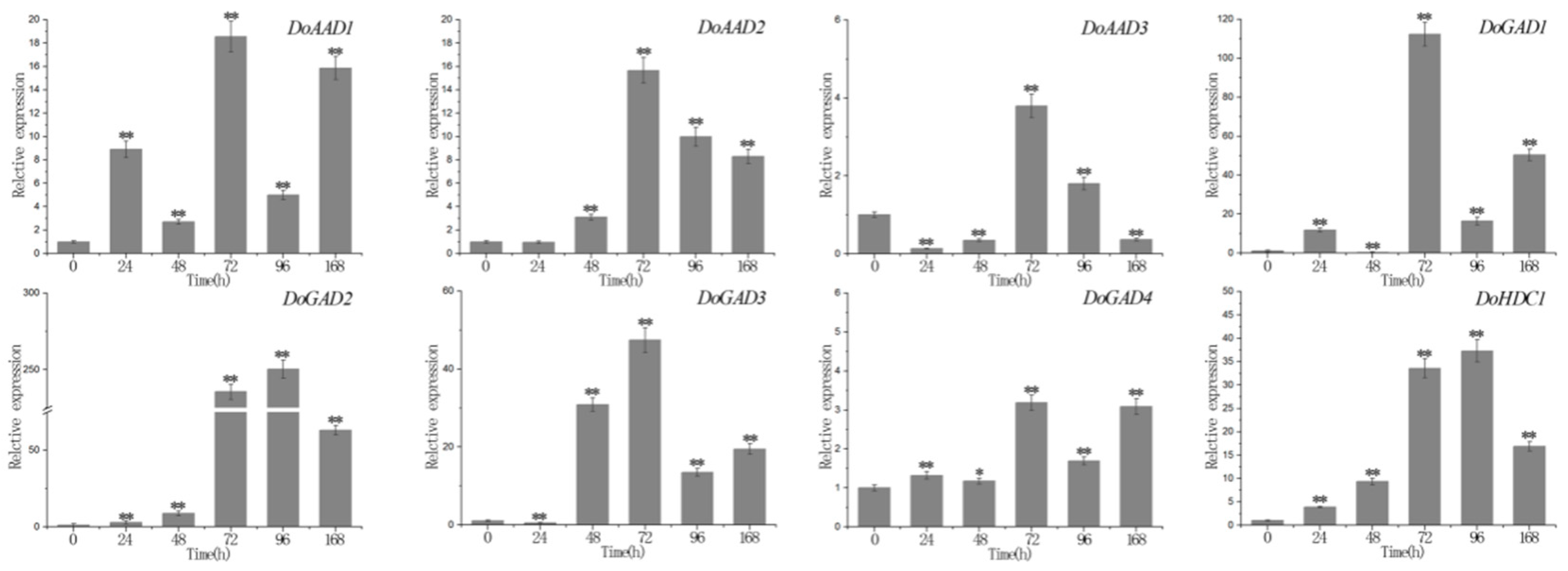

Figure 6. The expression levels of PLP_deC genes in D. officinale under abscisic acid (ABA) treatment. The x-axis represents the treatment time, and the y-axis represents the gene expression level. Error bars indicate the mean and standard deviation (SD). The asterisks indicate significant difference relative to the time 0. ** significant difference (p < 0.01), * significant difference (p < 0.05).
Figure 6. The expression levels of PLP_deC genes in D. officinale under abscisic acid (ABA) treatment. The x-axis represents the treatment time, and the y-axis represents the gene expression level. Error bars indicate the mean and standard deviation (SD). The asterisks indicate significant difference relative to the time 0. ** significant difference (p < 0.01), * significant difference (p < 0.05).
Ijms 21 00054 g006
Ijms 21 00054 g007 550

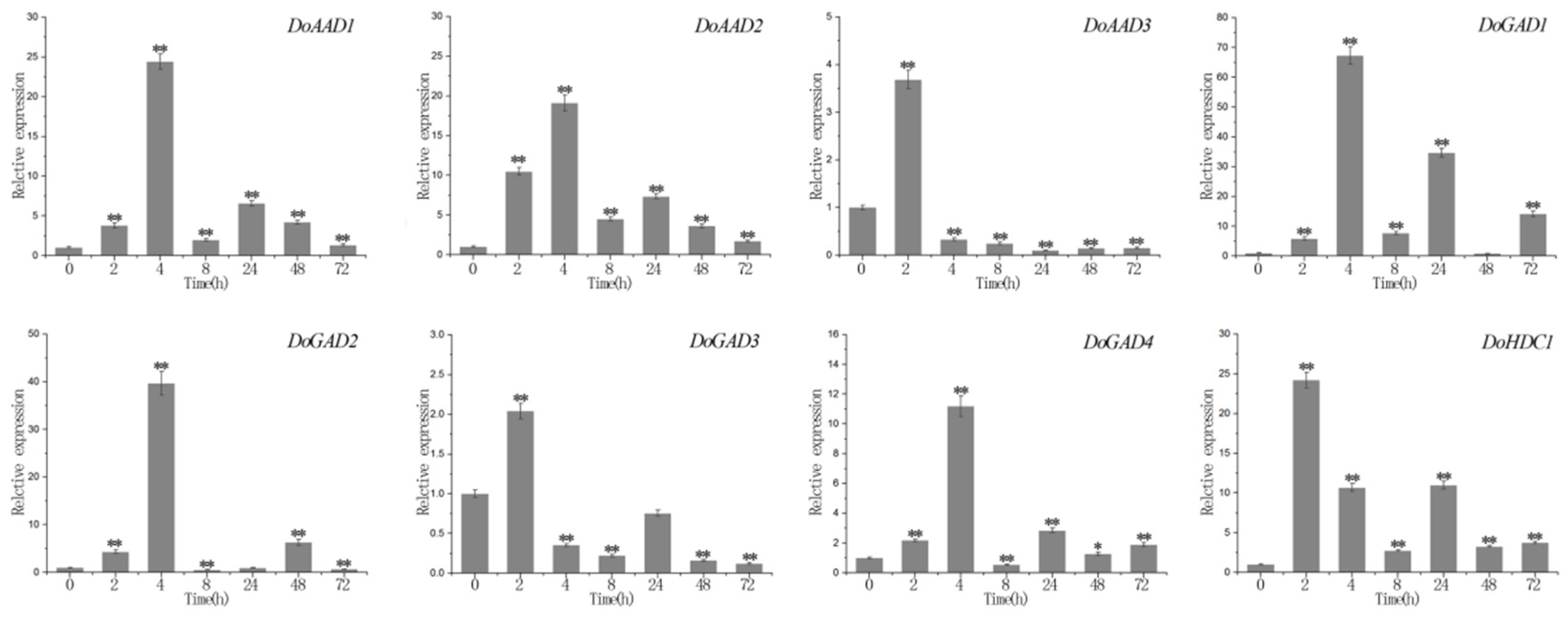

Figure 7. The expression level of PLP_deC genes in D. officinale under methyl jasmonate (MeJA) treatment stress. The x-axis represents the treatment time, and the y-axis represents the gene expression level. Error bars indicate the mean and standard deviation (SD). The asterisks indicate significant difference relative to the time 0. ** significant difference (p < 0.01), * significant difference (p < 0.05).
Figure 7. The expression level of PLP_deC genes in D. officinale under methyl jasmonate (MeJA) treatment stress. The x-axis represents the treatment time, and the y-axis represents the gene expression level. Error bars indicate the mean and standard deviation (SD). The asterisks indicate significant difference relative to the time 0. ** significant difference (p < 0.01), * significant difference (p < 0.05).
Ijms 21 00054 g007
Ijms 21 00054 g008 550

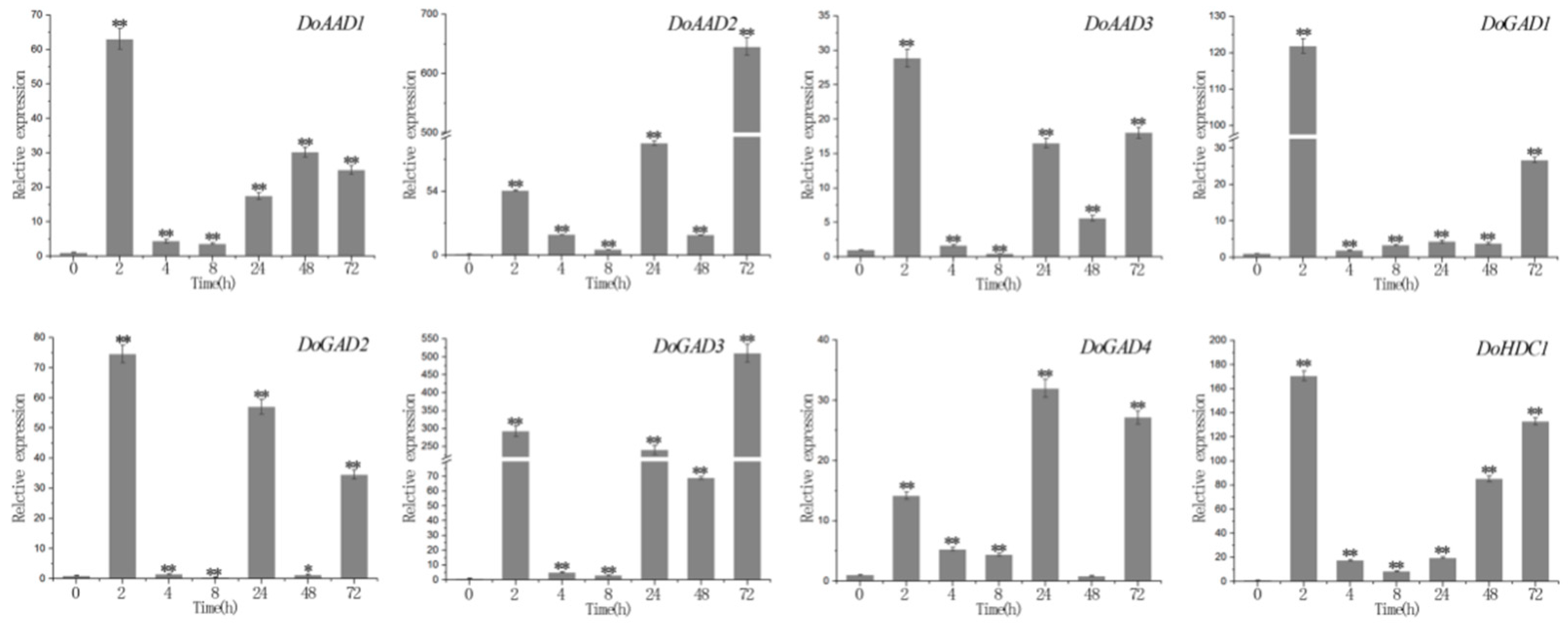

Figure 8. The expression levels of PLP_deC genes in D. officinale under salicylic acid (SA) treatment. The x-axis represents the treatment time, and the y-axis represents the gene expression level. Error bars indicate the mean and standard deviation (SD). The asterisks indicate significant difference relative to the time 0. ** significant difference (p < 0.01), * significant difference (p < 0.05).
Figure 8. The expression levels of PLP_deC genes in D. officinale under salicylic acid (SA) treatment. The x-axis represents the treatment time, and the y-axis represents the gene expression level. Error bars indicate the mean and standard deviation (SD). The asterisks indicate significant difference relative to the time 0. ** significant difference (p < 0.01), * significant difference (p < 0.05).
Ijms 21 00054 g008
Table
Table 1. Sequence analysis of pyridoxal phosphate-dependent decarboxylase (PLP_deC) family members.
Table 1. Sequence analysis of pyridoxal phosphate-dependent decarboxylase (PLP_deC) family members.
Gene NameGene IDLocationpIMW (kDa)Pyridoxal_deC Domain
PeGAD1PAXXG012610scaffold35.5355.66√
PeAAD1PAXXG064070scaffold286.4354.31√
PeAAD2PAXXG110580scaffold676.6855.69√
PeGAD2PAXXG162190scaffold1305.9656.84√
PeGAD3PAXXG162200scaffold1308.5557.26√
PeHDC1PAXXG233810scaffold2915.9653.44√
DoAAD2Dendrobium_GLEAN_10136748scaffold1666.3279.29√
DoGAD3Dendrobium_GLEAN_10126118scaffold5065.8868.10√
DoAAD3Dendrobium_GLEAN_10085660scaffold29065.8362.7√
DoGAD4Dendrobium_GLEAN_10051783scaffold65496.2834.48√
DoGAD2Dendrobium_GLEAN_10051784scaffold65496.251.98√
DoAAD1Dendrobium_GLEAN_10046548scaffold74137.5242.84√
DoHDC1Dendrobium_GLEAN_10045094scaffold75295.6773.82√
DoGAD1Dendrobium_GLEAN_10044649scaffold77385.2747.84√
Note: √ shows conserved domain of Pyridoxal_deC.
Table
Table 2. Subcellular localization of PLP_deC proteins.
Table 2. Subcellular localization of PLP_deC proteins.
Gene NameChloroplast Transit PeptideMitochondrial Targeting PeptideSignal PeptideOtherLocationReliability Class
DoAAD10.0400.0260.7350.346S4
DoAAD20.0930.2390.0290.806*3
DoAAD30.0390.1090.5610.525S5
DoGAD10.2180.2790.2030.148*5
DoGAD20.1350.0680.1800.727*3
DoGAD30.5700.1900.1060.161*4
DoGAD40.0150.2610.2290.061*5
DoHDC10.0960.1940.1340.846_2
PeAAD10.0380.2010.0910.893_2
PeAAD20.1280.0980.0880.900_2
PeGAD10.3240.1350.1100.383*5
PeGAD20.4600.1880.1340.243*4
PeGAD30.2830.5950.0560.072*4
PeHDC10.0640.1160.2190.845_2
Note: Confidence levels range from 1 to 5, and 1 shows the highest predicted reliability with difference > 0.8; 2: 0.8 > difference > 0.6; 3: 0.6 > difference > 0.4; 4: 0.4 > difference > 0.2; 5: 0.2 > difference. Location: C, M, and S, represent chloroplast, mitochondrial and extracellular, respectively. _ other location, * unknown location.
Table
Table 3. The Ka, Ks, and Ka/Ks values of gene pairs.
Table 3. The Ka, Ks, and Ka/Ks values of gene pairs.
Gene PairKaKsKa/Ks
PeGAD1DoGAD10.63140.82560.7645
DoGAD2DoGAD40.1940.370.5243
PeAAD1DoAAD30.31430.54740.5742
DoAAD2PeAAD20.11170.760.147
PeHDC1DoHDC10.16420.57260.2868
PeGAD2PeGAD30.20150.13841.4559

Share and Cite

MDPI and ACS Style

Zhang, L.; Jiao, C.; Cao, Y.; Cheng, X.; Wang, J.; Jin, Q.; Cai, Y. Comparative Analysis and Expression Patterns of the PLP_deC Genes in Dendrobium officinale. Int. J. Mol. Sci. 2020, 21, 54. https://doi.org/10.3390/ijms21010054

AMA Style

Zhang L, Jiao C, Cao Y, Cheng X, Wang J, Jin Q, Cai Y. Comparative Analysis and Expression Patterns of the PLP_deC Genes in Dendrobium officinale. International Journal of Molecular Sciences. 2020; 21(1):54. https://doi.org/10.3390/ijms21010054

Chicago/Turabian Style

Zhang, Lei, Chunyan Jiao, Yunpeng Cao, Xi Cheng, Jian Wang, Qing Jin, and Yongping Cai. 2020. "Comparative Analysis and Expression Patterns of the PLP_deC Genes in Dendrobium officinale" International Journal of Molecular Sciences 21, no. 1: 54. https://doi.org/10.3390/ijms21010054

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
