“Salicylic Acid Mutant Collection” as a Tool to Explore the Role of Salicylic Acid in Regulation of Plant Growth under a Changing Environment

Kamila Pluhařová
Hana Leontovyčová
Věra Stoudková
Romana Pospíchalová
Petr Maršík
Pavel Klouček
Anastasiia Starodubtseva
Oksana Iakovenko
Zuzana Krčková
Olga Valentová
Lenka Burketová
Martin Janda
1,2,6,* and
Tetiana Kalachova
Institute of Experimental Botany of the Czech Academy of Sciences, 16502 Prague, Czech Republic
Department of Biochemistry and Microbiology, University of Chemistry and Technology, 16628 Prague, Czech Republic
Department of Biochemistry, Faculty of Science, Charles University in Prague, 11000 Prague, Czech Republic
Department of Food Science, The Faculty of Agrobiology, Food and Natural Resources, The Czech University of Life Sciences Prague, 16500 Prague, Czech Republic
V.P. Kukhar Institute of Bioorganic Chemistry and Petrochemistry, National Academy of Sciences of Ukraine, 02094 Kyiv, Ukraine
Genetics, Faculty of Biology, Ludwig-Maximilians-University of Munich (LMU), D-82152 Martinsried, Germany
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Int. J. Mol. Sci. 2019, 20(24), 6365;
Submission received: 31 October 2019 / Revised: 12 December 2019 / Accepted: 13 December 2019 / Published: 17 December 2019
(This article belongs to the Special Issue Salicylic Acid Signalling in Plants)


The phytohormone salicylic acid (SA) has a crucial role in plant physiology. Its role is best described in the context of plant response to pathogen attack. During infection, SA is rapidly accumulated throughout the green tissues and is important for both local and systemic defences. However, some genetic/metabolic variations can also result in SA overaccumulation in plants, even in basal conditions. To date, more than forty Arabidopsis thaliana mutants have been described as having enhanced endogenous SA levels or constitutively activated SA signalling pathways. In this study, we established a collection of mutants containing different SA levels due to diverse genetic modifications and distinct gene functions. We chose prototypic SA-overaccumulators (SA-OAs), such as bon1-1, but also “non-typical” ones such as exo70b1-1; the selection of OA is accompanied by their crosses with SA-deficient lines. Here, we extensively studied the plant development and SA level/signalling under various growth conditions in soil and in vitro, and showed a strong negative correlation between rosette size, SA content and PR1/ICS1 transcript signature. SA-OAs (namely cpr5, acd6, bon1-1, fah1/fah2 and pi4kβ1β2) had bigger rosettes under high light conditions, whereas WT plants did not. Our data provide new insights clarifying a link between SA and plant behaviour under environmental stresses. The presented SA mutant collection is thus a suitable tool to shed light on the mechanisms underlying trade-offs between growth and defence in plants.

1. Introduction

Salicylic acid (SA; 2-hydroxybenzoic acid) is a plant hormone (phytohormone) which plays a role in numerous plant physiological processes. It influences plant development, seed germination [1], cell cycle [2], flowering and responses to stresses [3]. In particular, the importance of SA has been reported in various abiotic stresses: response to high and low temperatures, humidity and drought, salt and osmotic stress [4] or responses to UV light [5]. However, since the 1990s, SA research has mainly focused on its role in immunity [6,7].
The role of SA in plant responses to stresses is generally studied using two approaches: a pharmacological approach using SA treatment on plants and a genetic approach that relies on mutants with modulated endogenous SA concentrations or SA-related signalling. These mutants can be either deficient in SA accumulation, or accumulating high levels of SA (in basal conditions and/or upon stimulation). The widely used SA-deficient lines are sid2, carrying a T-DNA insertion in ISOCHORISMATE SYNTHASE 1 and thus showing lower production of SA upon pathogen attack [8]; or NahG, expressing bacterial SA hydroxylase that degrades SA to inactive catechol [9,10]. These mutants are generally more susceptible to pathogen attack, especially by biotrophs [11]. On the other hand, mutants synthesising higher basal levels of SA (SA-overaccumulating mutants; SA-OAs) tend to be more resistant to pathogens. The boom of using SA-OA mutants emerged with forward genetics approach, where EMS mutants were screened for spontaneous lesions and small sizes, which often coincided with high levels of SA and enhanced resistance to pathogens [12,13]. However, such resistance often correlates with general dwarfism [14]. This remains a critical disadvantage for potential use of SA pathway modification in agriculture, where the high yield is needed. Hence, the modulation of SA in terms of possible use in agriculture has to be carefully prepared. However, until now, the molecular mechanism of the trade-off is not fully understood yet.
The increased SA level in mutants could be triggered by distinct events (mutations). The SA-OA phenotype can be caused by gain-of-function mutation (typically activation of immune receptor) or by loss-of-function mutation (typically negative regulation of SA pathway). For example, bon1-1 shows enhanced immunity and SA levels due to the mutation in the negative regulator of SNC1. This phenotype is thus reversed by introducing an snc1-11 point mutation [15]. Particular interest has been devoted to mutants with altered phospholipid turnover/signalling and vesicular trafficking that were reported to have pleiotropic effects, often connected with SA accumulation. In particular, pi4kβ1β2 mutation in phosphatidylinositol-4-kinases β1 and β2 was recently reported as an SA overaccumulator [16,17], or exo70b1-1 [18]. fah1/fah2 is deficient in fatty acid hydroxylase genes and also showed enhanced immune responses and a modulated sphingolipid profile [19]. Further characterisation of those lines will thus help in mechanistic understanding of the connections between phospholipid metabolism, vesicular trafficking and immunity in plants.
Here, we present a collection of Arabidopsis thaliana (hereinafter Arabidopsis) mutants with SA content altered in various ways: affected immunity-related signalling, modified vesicular trafficking and a directly altered SA biosynthesis/accumulation. As controls, we included crosses of SA-OAs with SA-deficient lines. We propose this collection as a tool to investigate the role of SA in plant growth regulation and stress tolerance.

2. Results

2.1. Cultivation Conditions Influence the Phenotype of the SA Collection Mutants

Our aim was to establish a collection from available sources of Arabidopsis mutants with alterations in the SA pathway with special attention to creating a group of highly diverse SA-OA mutants, and not only prototypic SA-OA ones. Thus, we selected two SA-deficient mutants (NahG, sid2), eight known or putative SA-OA mutants (cpr5-1, acd6-1, pi4kβ1β2, fah1fah2, bon1-1, exo70B1-2, pmr4-1, edr2-6), and four “reverted” mutants: SA-OA mutants crossed with the SA-deficient ones (sid2pi4kβ1β2, NahGpi4kβ1β2, NahGedr2-6, bon1-1snc1-11) (see Table 1).
First we analysed the growth of selected mutants under long day (LD) and short day (SD) conditions. We initially focused on the 4 week old plants and analysed their rosette size and SA content (Figure 1; Supplementary Figure S1, Supplementary Table S2). Except for SA-deficient lines (NahG and sid2) and exo70B1, all others responded to LD condition with retarded growth. Due to their distinctive dwarf phenotypes (with an 85–50% reduction of rosette area compared to WT), we could clearly identify several SA-OA mutants: cpr5, pi4kβ1β2, acd6 and bon1-1 (Figure 1A,B). In SD conditions, the differences between mutants in growth were comparable to those under LD, although less important by absolute values (Figure S1A,B). In contrast, the differences in SA content were more pronounced at SD conditions. This could be due to a higher basal level of SA in the LD condition connected with a developmental stage; in LD conditions the plants started bolting at 3–3.5 weeks. In the “reverted mutants”, the SA level was decreased to the level of WT, which correlated with the WT-like rosette size (Figure 1 and Figure S1).
For better description of the effect of the growth conditions on dwarf phenotypes of SA-OAs, we focused on a subset of four mutants: WT, sid2, pi4kβ1β2 and sid2pi4kβ1β2, previously used for studies of SA-related effects [17]. We compared the growth dynamics of this subset in several cultivation conditions often used in stress-related studies: SD, LD and greenhouse (Supplementary Figure S2). The pi4kβ1β2 mutant appeared dwarfed under all conditions. Rosettes of pi4kβ1β2 were smaller than in WT during the early developmental stages (2 week old seedlings), and the difference increased with time. Notably, the smaller rosettes did not result in a delay in development, since all plants started flowering simultaneously. Unexpectedly, sid2pi4kβ1β2 grew bigger than pi4kβ1β2 under all conditions but never reached the size of WT plants. This finding was surprising considering the previously published full reversal of growth in sid2pi4kβ1β2 [25]. This finding indicates a high sensitivity of SA-related phenotypes to cultivation conditions.
Particular attention was directed to the pmr4 mutant, deficient in callose synthase CALS12 and first described as POWDERY MILDEW RESISTANT 4 [24]. Under both SD and LD, the plants appeared slightly smaller than WT; however, no increase of SA was detected (Figure 1, Supplementary Figure S1, Supplementary Table S2). To the best of our knowledge, this is the first report on the (comparative) determination of the SA content in pmr4 mutants, as the previous studies claimed a constitutively activated SA pathway based on SA-related gene transcription and resistance to pathogens [24].

2.2. SA-Related Gene Transcription Varies in Different Growth Conditions

We analysed the SA marker genes’ (PR1 and ICS1) transcription in soil-grown plants under SD and LD conditions. In most cases, the expression of the PR1 gene coincided with small rosettes and a higher level of SA (Figure 2, Supplementary Figure S3). Generally, our results confirmed those from the studies wherein the mutants were first described. Under SD conditions, the differences between mutants were more pronounced both in PR1/ICS1 transcription and in SA content. As gene transcription data were normalized to WT in both conditions, and WT at LD had almost 5 times higher SA content than in SD, that might have strongly affected basal PR1 level.
To link SA-related signatures to the physiological state of plants, we measured photosynthetic activity. As reliable parameters of photosynthetic state, we chose quantum yield of PSII photochemistry (QY) and non-photochemical quenching (NPQ) [27]. Increase of NPQ can occur as a result either of the processes that protect the leaf from damage or of the damage itself [28]. The changes in NPQ were observed in several studied mutants (Supplementary Figure S4). NPQ at steady state (NPQ_Lss) was decreased in snc1-1 compared to WT, but increased in several other mutants from the collection. These mutants were mainly “immune-related” mutants cpr5 and bon1-1 and “trafficking” mutants pi4kβ1β2 and exo70B1-1. Notably, the values were similar to those in “reverted” mutants sid2pi4kβ1β2, NahGpi4kβ1β2 and bon1-1snc1-11, suggesting SA-independent origin of NPQ_Lss increase. The SA-deficient mutants also showed slight (by 10%) increase in NPQ_Lss, indicating SA independency. Maximum quantum efficiency of PSII photochemistry (QY_max) was stable among all studied mutants. Generally, the analysis of photosynthetic parameters did not reveal any drastic differences between the selected mutants in basal conditions.

2.3. Overaccumulation of SA Increases High Light Sensitivity in In-Vitro-Grown Seedlings

To investigate the behaviour of the SA mutant collection under in vitro conditions, we switched to the in vitro setup often used for the study of developmental defects. Continuous illumination of the roots, though widely used in research, can cause diverse effects on the phenotype, including spontaneous production of reactive oxygen species [29]. To study the reliability of our collection for root phenotyping, we studied seedling growth in vitro upon different light conditions. Seedlings were grown in vertically placed Petri dishes under LD light regime and at two light intensities, 450 μE.m−2.s−1 and 170 μE.m−2.s−1. Rosette weight and primary root length were evaluated at 11 dpg (Figure 3). While the rosette weight of WT plants did not change in response to light intensity, the mutants exhibiting high changes in SA content showed more intensive growth under 450 μE.m−2.s−1 light. Interestingly, such an effect was not evident within the majority of the reverted group, except for bon1-1snc1-11. SA-deficient genotypes and pmr4-1 grew similarly at both light intensities, thus highlighting the role of SA in this effect (Figure 3A).
The growth of the primary roots was moderately inhibited by high light intensity in WT and also in both genotypes carrying the NahG transgene; however, the roots of other mutants were almost insensitive to different light conditions (Figure 3B). On the other hand, some mutants with pronounced dwarf rosette phenotypes had roots of the same size as WT plants (bon1-1, acd6). In contrast, in the pi4kβ1β2 mutants, which had both small rosettes and short roots in all studied setups, the mechanisms regulating root and rosette growth inhibition seemed to be distinct. Indeed, while the rosette sizes were particularly restored by preventing SA accumulation (sid2pi4kβ1β2, NahGpi4kβ1β2), the roots remained small, indicating the SA-independent character of the phenotype (Figure 3B). To quantify this in time-course and to further investigate the effect of light regime on root growth, we focused on the phosphatidylinositol-4-kinase- related subset (WT, sid2, pi4kβ1β2 and sid2pi4kβ1β2). First, we measured root elongation in kinetics at the light intensity corresponding to 170 μE.m−2.s−1 (Supplementary Figure S5A). The root defects caused by pi4kβ1β2 mutations appeared at the very early germination stages and this effect was enhanced in time. To confirm the light independency of the phenotype, we also analysed root length in a semi-dark setup, modified from Silva-Navas et al., 2015 [30]. The Petri dishes were placed in dark plastic covers to shadow roots (Supplementary Figure S5B). In both setups, the growth kinetics were comparable: in the dark setup, pi4kβ1β2 roots were about 3 times shorter than WT at 4 dpg, and about 5 times shorter at 8 dpg. Furthermore, sid2pi4kβ1β2 roots were about 20% longer than pi4kβ1β2 at 4 dpg and 50 % longer at 8 dpg. However, while the difference between pi4kβ1β2 and WT remained stable in the light setup (up to 6 times at 8dpg), the difference between pi4kβ1β2 and sid2pi4kβ1β2 was more pronounced, up to 30% at 4 dpg and up to 200% at 8 dpg. This confirmed the SA-dependent sensitivity to light in in vitro growth conditions, and it also means that the light regime should be seriously considered in various types of experiments, especially those connected with SA.
With the SA collection, we were able to show that the regulation of the rosettes and root size is independent: the SA content mostly influenced the aboveground plant part, while the root length corresponded to SA-independent phenotype. Indeed, while bon1-1 and pi4kβ1β2 mutants were similar in terms of rosette growth, the roots of bon1-1 were twice longer than that of pi4kβ1β2 at both light intensities (Figure 1B and Figure 3A,B).

2.4. Salicylic Acid’s Effect on the Root Growth and Shoot Growth is Distinct

To evaluate the behaviour of the presented SA collection in various growth setups, we performed a correlation analysis among all studied parameters: rosette size, SA content and expression of ICS1 and PR1 genes in soil-grown plants under two light regimes; and rosette weight and primary root length of seedlings cultivated in vitro under two light intensities. Putting together data of three biological repeats of all 15 genotypes in the collection, we quantified Pearson correlations (Figure 4).
The correlation table provided several clear outcomes: the rosette size of plants grown in soil negatively correlated with SA content accompanied with PR1/ICS1 upregulation, which has been abundantly shown in previous studies [31]. Rosette growth correlated positively in all conditions. In contrast, the root growth in in vitro conditions was SA-independent (Figure 4). Generally, the rosette growth correlated with root growth, despite the above-mentioned difference between bon1-1 and pi4kβ1β2. Interestingly, only seedlings grown under the 170 μE.m−2.s−1 intensity strongly correlated with rosette growth of soil-grown plants, suggesting that particular attention needs to be paid to light intensity while comparing data obtained in different growth conditions.

3. Discussion

SA plays a role in many fundamental processes in plants. Nowadays, it is probably the best characterised phytohormone in connection with plant immunity. A great tool which have provided insight into SA signalling pathways and their roles, especially in Arabidopsis, is SA-OA mutants. Interestingly, some of the initially described immunity-related mutants later appeared to have altered SA metabolism/signalling [31]. Changes in SA levels have a very strong impact on plant growth, and the majority of known SA-OA mutants are dwarfs. Because of their clearly distinguishable growth phenotypes, SA-OA mutants have been successfully used to find new components of plant immunity in forward genetic screening [32], in evolutionary studies [33,34] and in studies of ubiquitination cascades [35]. Growth inhibition of SA-OA has been used as a marker of an activated immune state in heat stress experiments: SA-OA mutants exhibit dwarf phenotypes under 22 °C, but have WT-like phenotype under 28 °C [36]. Although they have been studied for more than 30 years, SA-OA mutants still display many features that lack mechanistic explanation. One of them is the impact of cultivation conditions on SA-regulated growth, which has never been extensively studied.
To gain a complex understanding of the connection between growth and SA, we created a collection of 14 SA-modulated Arabidopsis mutants in a Col-0 background. We collected mutants from already published studies, including prototypic SA-deficient mutants sid2 and NahG and prototypic SA-OA mutants bon1-1, cpr5-1 and acd6-1. Additionally, we included recently described SA-OAs connected with lipid signalling, pi4kβ1β2 and fah1fah2, and mutants associated with SA signalling based on gene expression analysis and pathogen assays, edr2-6, pmr4-1, exo70b1 (Table 1). To complete the picture, we included three SA-OA “reverted lines”, in which SA-OA mutants were prevented from accumulating a high SA level by affected biosynthesis (sid2pi4kβ1β2) or accumulation (NahGpi4kβ1β2 and NahGedr2-6). All the selected mutants have been reported as having altered resistance to pathogens [31].
While analysing mutant phenotypes under various conditions, it is often difficult to distinguish between “typical” immune response and “just pleotropic” effects caused by mutation. A good example is the pi4kβ1β2 mutant with impaired vesicle trafficking, which is a ubiquitous process that affects almost everything in plant cells [22]. We studied the SA-(in) dependent effects in pi4kβ1β2, showing that resistance to adapted pathogens is strictly SA-dependent, but callose production is SA-independent [17]. By creating this type of collection, we wanted to be able to compare more mutants with modulated SA patterns under exactly the same experimental conditions. For this purpose, we started with characterisation of the plant growth under short-day (SD) and long-day (LD) conditions. In general, our data confirmed previously published data that SA-OA mutants exhibit dwarf phenotypes (Figure 1A,B and Figure S1A,B). The SA content negatively correlated with rosette size (Figure 1 and Supplementary Figure S1,S4) which has been previously shown in literature [31]. However, the SA measurement also revealed that edr2 and exo70b1 are SA-OAs only under short-day conditions and pmr4 is not SA-OA at all. This is particularly important as edr2 and pmr4 mutants have previously been described to accumulate high SA under biotic stress conditions, which thus suggests enhanced SA pathways at basal conditions as well. As expected, higher SA content in basal conditions was shown for edr2 [23], but, surprisingly, we were unable to find in the literature any SA measurement for the pmr4 mutant, although it is generally referred to as the one with constitutively induced SA pathways [24]. Again, SA marker genes are highly enhanced in pmr4 under biotic stress conditions [37]. This statement is based on PR1 gene expression, but not on SA level itself. In our setup, PR1 expression was not highly induced even in basal conditions.
First, we characterised the SA collection‘s growth, PR1/ICS1 transcription and SA content in plants cultivated in soil under LD and SD conditions (Figure 1 and Figure S1). Interestingly, in WT plants PR1 transcription was 5 times higher under LD than SD. That coincides with the fact that under LD conditions, plants tended to bolt at the age of 4 weeks. The induction of flowering is also associated with an increase in SA content and vice versa—SA treatment can trigger flowering [38]. No drastic changes in photosynthesis efficiency were detected (Supplementary Figure S3). For the full set of analysed mutants, we observed a negative correlation between rosette size and SA content under both LD and SD conditions. However, our data suggest that growth phenotype related to SA content would be better investigated under LD conditions. On the other hand, differences in SA content and gene transcription of SA marker genes were more pronounced under SD conditions. In comparison with the literature, our data showed that the mutants with modulated SA pathways were very sensitive to growth conditions. In terms of growth size, this could be clearly seen in the WT, sid2, pi4kβ1β2 and sid2pi4kβ1β2 subsets. This has been previously used to distinguish between SA-dependent and SA-independent effects of pi4kβ1β2 deficiency [17,25]. Interestingly, in Šašek et al. (2014) [25], we showed that crossing of pi4kβ1β2 with sid2 led to a fully reverted phenotype when plants were grown in soil for 4 weeks. In our current cultivation conditions, we were not able to fully revert the growth (Figure 1A). We studied this in more detail under three distinct growth conditions. Two were in climate chambers with 8 h/16 h (light/dark) (short day) or 16 h/8 h (light/dark) (long day) and one was in greenhouse conditions. In all setups, sid2pi4kβ1β2 was smaller than WT. In SD, sid2pi4kβ1β2 had a size comparable even to pi4kβ1β2 (Figure S2). The data of ICS1 expression showed that the ICS1 mutation was functional in both sid2 and sid2pi4kβ1β2 lines (Figure 2 and Figure S2). Such behaviour can affect data interpretation and highlights the importance of checking SA levels while studying pleiotropic phenotypes, especially in a newly discovered mutant lines.
Early studies of SA mutants were mostly done on the rosettes (leaves) of soil-grown plants, while in recent years, the usage of in-vitro-grown seedlings as a model system has been rapidly increasing. The induction of the SA pathway has been shown during infection with root pathogen Trichoderma [39]. The sensitivity of Arabidopsis roots to SA treatment was recently demonstrated by a proteomics and metabolomics approach using SA-altered mutants [40]. Furthermore, the role of SA in root morphogenesis was recently shown by Pasternak et al. 2019 [41]. These authors reported SA treatment to modulate root meristem patterning by affecting auxin signalling in a concentration-dependent manner. However, no mutants with modulated SA were used in the study and the usage of only a pharmacological approach often raises questions about appropriate controls. We believe that the SA collection could be a helpful tool to continue studies of hormonal cross-talk in Arabidopsis roots. Here, we showed that root growth in the SA mutant collection is highly variable (Figure 3), and is not correlated with SA levels or SA marker gene expression in the rosettes of soil-grown plants (Figure 4). A clear example is the comparison of bon1-1 phenotype (small rosette and almost WT-size roots) to pi4kβ1β2, which also had small rosettes but impaired root growth (Figure 1 and Figure 3). Our data confirmed the critical role of PI4Kβ1β2 for root growth (Figure 3) [16,25]. To precisely analyse the SA role in seedlings’ sensitivity to light, we used the subset of WT, sid2, pi4kβ1β2 and sid2pi4kβ1β2. We grew plants in a light growth setup (roots were exposed to light) and dark growth setup (roots were shadowed by placing in dark chambers). The SA-deficient mutant sid2 grew similarly to WT under dark conditions, but slower in the light setup, and both pi4kβ1β2 and sid2pi4kβ1β2 roots grow slower, while the difference between them was more pronounced in a light setup (Figure S4).
As mentioned above, SA-OA mutants are indispensable in studies of SA-related immunity. Additionally, SA’s role in biotic stress was also shown via SA-OA involvement in response to abiotic stresses. In particular, the role of SA in cold stress was shown using acd6 [21], cpr1 and pi4kβ1β2 [42]; in potassium stress by using cpr5 [43], in response to drought and ABA treatment by using cpr5 and acd6 [44,45], and in sugar sensing by using acd6 and cpr1 [46]. Here, we tested the behaviour of these mutants under distinct growth conditions and under moderate abiotic stress in vitro (distinct light intensities). Surprisingly, the SA-OA mutants cpr5, acd6, bon1-1, fah1/fah2 and pi4kβ1β2 tended to form bigger rosettes under higher light intensities, while size of the WT rosettes was not affected (Figure 3). This indicates that SA makes plant more sensitive to high light conditions. In contrast, WT root growth was inhibited by high light but the roots of the above-mentioned SA-OA mutants were not affected (Figure 3B). These findings suggest an opposite effect of light on rosette and root growth.
The trade-off between immunity and growth has been widely discussed [14,47,48,49]. Our data present a robust quantitative background for this. We have shown strong negative correlation between SA levels and PR1/ICS1 transcript signature with rosette size, but no correlation with root growth. This is important to take into account while planning phenotyping of mutants on different scales, and also confirms the suitability of putative SA-OA mutants for studies of root growth without impact of SA itself.

4. Materials and Methods

4.1. Plant Material and Growth Conditions

Arabidopsis thaliana Col-0 was used as a wild type (WT), and the collection consisted of following mutants (see Table 1): crp5 (SALK_071947), bon1-1 (SALK_123132), acd6 (SALK_059132), pi4kβ1β2 (SALK_040479/SALK_09069), fah1fah2 (SALK_094443, SALK_033090), exo70B1-1 (CS410875), edr2-6 (CS66944); NahG [9], sid2-3 (SALK_042603); bon1-1snc1-11 (SALK_047058, SALK_123132), NahGpi4kβ1β2, sid2pi4kβ1β2 [25] and NahGedr2-6 (CS66944). Prior to experiments, all seeds were propagated for one generation under the same conditions and genotyped as described in the literature (see Table 1).
Plants were grown in two main setups: in a cultivation substrate (soil) (a), and in vitro (b). For both setups, seeds were sterilized in 1.6% sodium hypochloride (30% of SAVO®, Unilever) solution with 0.02%TWEEN20 (Sigma Aldrich, St. Louis, Missouri, USA). Stratification for 2 days at 4 °C in dark conditionswas applied to break dormancy. (a) In soil: seeds were transferred to pots with substrate tablets (Jiffy, Kristiansand, Norway and grown in cultivation chambers (Snijders, Drogenbos, Belgium at 22 °C day temperature, 65–70% humidity and 16 h light/ 8 h dark (LD) or 12 h light/ 12 h dark (SD). After one week, the seedlings were replanted to one plant per pot. Four week old plants were used for analysis. (b) In vitro: seeds were germinated for 3 days in Petri dishes containing a half-strength Mirashige–Skoog medium (½ Murashige–Skoog basal salts (Duchefa), pH = 5.7) supplemented with 1% sucrose and 0.8% plant agar (Duchefa, Haarlem, Netherlands. At 4 days, seedlings were aseptically transferred to new plates and cultivated in a vertical position in cultivation chambers (Snijders) at 22 °C under long-day light conditions. After one week (11 days after germination), the Petri dishes were scanned (Epson Perfection V700 Photo, Suwa, Japanc), the root length was measured and the rosettes were cut and weighted. Root length was measured by FiJi software [50].
To investigate the effect of light on root development, the seedlings were grown under continuous exposure to light at different intensities, 450 μE.m−2.s−1 or 170 μE.m−2.s−1, or in the dark (plates were put in black chambers to shadow roots, Supplementary Figure S5B). To investigate the kinetics of root growth, the primary root length was monitored daily from 4 dpg to 8 dpg and measured using FiJi [50]. At least 10 roots were analysed for each condition.

4.2. Plant Phenotyping

Rosette size of soil-grown plants and primary root length of seedlings were measured by FiJi (area tool) [50]. Rosette weight of 11 day old seedlings was determined using analytical scales.

4.3. SA Concentration Measurements

Leaf tissue was collected from three plants (approximately 100 mg, three 6 mm discs from three leaves) in Eppendorf tubes with 1 g ceramic beads and frozen in liquid nitrogen. Hormone extraction procedure and salicylic acid content measurement were done as in [51]. Briefly, frozen samples were homogenized in tubes with silica beads using a FastPrep-24 instrument (MP Biomedicals, CA, United States) with extraction reagent methanol/water/formic acid (15:4:1, v/v/v) supplemented with stable-isotope-labelled 13C-SA internal standards. Extracts were subjected to solid phase extraction using Oasis MCX cartridges (Waters Co., Milford, MA, United States) and eluted with methanol. The eluate was evaporated to dryness and dissolved in 15% acetonitrile/water (v/v) immediately before the analysis. Quantification was performed on an Ultimate 3000 high-performance liquid chromatograph (UHPLC, Dionex; Thermo Fisher Scientific, Waltham, MA, United States) coupled to a IMPACT II Q-TOF ultra-high resolution and high-mass-accuracy mass spectrometer (HRAM-MS; Bruker Daltonik, Bremen, Germany). Separation was carried out using an Acclaim RSLC 120 C18 column (2.2 m, 2.1 × 100 mm; Thermo Fisher Scientific, Waltham, MA, United States) mobile phase consisting of 0.1% formic acid (A) and methanol (B) by gradient elution. The full-scan data were recorded in negative electrospray ionization (ESI) mode.

4.4. Gene Transcription Analysis

Total RNA was extracted as in [51]. Briefly, plant tissue was frozen in liquid nitrogen. The tissue was homogenized in plastic Eppendorf tubes with silica beads using a FastPrep-24 instrument (MP Biomedicals, USA). Total RNA was isolated using Spectrum Plant Total RNA kit (Sigma-Aldrich, St Louis, Missouri, USA) and treated with a DNA-free kit (Ambion, Austin, Texas, USA). Subsequently, 1 μg of RNA was converted into cDNA with M-MLV RNase H– Point Mutant reverse transcriptase (Promega Corp., Madison, Wisconsin, USA) and an anchored oligo dT21 primer (Metabion, Planegg, Germany). Transcription of PR-1 and ICS1 genes was determined using real-time qPCR. Gene transcription values were normalized to TIP41. The primers used are listed in the Supplementary Table S1.

4.5. Photosynthetic Parameter Analysis

Plants were put in the dark for 15 min, and then the photosynthetic parameters were measured using FluorCam Handy FC 1000-H (PSI, Drasov, Czech Republic). Images of whole plants were taken. Chlorophyll fluorescence images were analysed using FluorCam 7.0 (PSI) software. Non-photochemical quenching (NPQ) was calculated as (Fm − Fm’)/Fm’ and maximum quantum efficiency of PS II photochemistry (QY) was calculated as Fv/Fm. Fm and Fm´ are the maximal fluorescence level from the dark-adapted and light-adapted leaf, respectively, and Fv is variable fluorescence from the dark-adapted leaf [52].

4.6. Statistical Analysis

All experiments were done in three biological repetitions. For soil-grown plants, n = 24; for in vitro grown plants, n ≥ 10 for each genotype. Graphs display analysis of all values together, unless stated otherwise. Student’s t-test and one-way ANOVA with Tukey’s post hoc test were applied for the comparisons, p < 0.05. Correlation analysis was done using R software, Corrplot package [53]. Pearson coefficients were quantified, and only the values that passed the p < 0.05 threshold are displayed.

5. Conclusions

In this study, we introduced a new tool for studying the role of SA role in plants, the Arabidopsis “SA collection”. It provides a robust tool benefitting from the distinct origin of the modulated SA pathway in Arabidopsis thaliana. The effective usage of the SA collection was demonstrated by phenotyping under different growing conditions, in soil and in vitro, using several light regimes. First, our data confirmed the correlation of SA content and expression of SA-related genes in different cultivation setups. Second, we clearly showed that SA is responsible for the regulation of rosettes, but not growth. Additionally, the SA collection revealed that a high basal SA content makes rosettes more sensitive to light. Surprisingly, we reassessed that pmr4 mutant is not SA-OA under basal growing conditions. The presented SA collection is a starting point for future research trying to determine the roles of SA in response to environmental changes and to shed light on the complexity of SA-triggered signalling.

Supplementary Materials

Supplementary materials can be found at

Author Contributions

Conceptualization, M.J. and T.K.; methodology, M.J., T.K., Z.K., P.M., H.L.; formal analysis, K.P., V.S., H.L., A.S., O.I., T.K.; resources, L.B., O.V.; data curation, K.P., V.S., R.P., H.L., P.M., P.K., O.I., A.S., Z.K.; writing—original draft preparation, M.J., T.K., K.P.; writing—review and editing, M.J., T.K.; project administration, L.B.; funding acquisition, O.V., L.B. All the authors commented and approved the text.


This work was supported by Czech Science Foundation [GAČR grant no. 17-05151S]. Salicylic acid measurements were performed in the frame of METROFOOD-CZ research infrastructure project (MEYS Grant No: LM2018100) including access to its facilities. TK benefited from the Program of Postdoctoral Fellowships of the Czech Academy of Sciences [PPPLZ grant no. TK 919220]. OI received the Visegrad scholarship (2018-2019) [grant no. 51810647]. HL benefited from Charles University student grants [GAUK no. 992416 and SVV260427/2019].. The work was also supported by European Regional Development Fund, Project “Centre for Experimental Plant Biology” [grant no. CZ.02.1.01/0.0/0.0/16_019/0000738]. MJ was also supported by the European Structural and Investment Funds, OP RDE-funded project ‘CHEMFELLS4UCTP’ (No. CZ.02.2.69/0.0/0.0/17_050/0008485).


We would like to thank all colleagues who kindly provided us the seeds necessary for establishing “SA-collection”. In particular, we thank Jitka Ortmannová (exo70b1-1), Xinnian Dong (cpr5), Jian Hua (bon1; bon1/snc1-11), Ivo Feussner (fah1/fah2) and Hua Lu (acd6). We also would like to thank Andrea Kung Wai for help with English editing.

Conflicts of Interest

The authors declare that there is no conflict of interest.


SASalicylic acid
SA-OASalicylic acid overaccumulating mutants
ICS1Isochorismate synthase 1
PR1Pathogenesis related protein 1
SDShort day conditions
LDLong day conditions


  1. Rajjou, L.; Belghazi, M.; Huguet, R.; Robin, C.; Moreau, A.; Job, C.; Job, D. Proteomic Investigation of the Effect of Salicylic Acid on Arabidopsis Seed Germination and Establishment of Early Defense Mechanisms. Plant Physiol. 2006, 141, 910–923. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Vanacker, H.; Lu, H.; Rate, D.N.; Greenberg, J.T. A role for salicylic acid and NPR1 in regulating cell growth in Arabidopsis. Plant J. Cell Mol. Biol. 2001, 28, 209–216. [Google Scholar] [CrossRef] [PubMed]
  3. Martínez, C.; Pons, E.; Prats, G.; León, J. Salicylic acid regulates flowering time and links defence responses and reproductive development. Plant J. Cell Mol. Biol. 2004, 37, 209–217. [Google Scholar] [CrossRef]
  4. Jayakannan, M.; Bose, J.; Babourina, O.; Rengel, Z.; Shabala, S. Salicylic acid improves salinity tolerance in Arabidopsis by restoring membrane potential and preventing salt-induced K+ loss via a GORK channel. J. Exp. Bot. 2013, 64, 2255–2268. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Bravo, R.E.; Chen, G.; Grosser, K.; Dam, N.M.V.; Leiss, K.A.; Klinkhamer, P.G.L. Ultraviolet radiation enhances salicylic acid-mediated defense signaling and resistance to Pseudomonas syringae DC3000 in a jasmonic acid-deficient tomato mutant. Plant Signal. Behav. 2019, 14, e1581560. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Klessig, D.F.; Choi, H.W.; Dempsey, D.A. Systemic Acquired Resistance and Salicylic Acid: Past, Present, and Future. Mol. Plant Microbe Interact. MPMI 2018, 31, 871–888. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Zhang, Y.; Li, X. Salicylic acid: Biosynthesis, perception, and contributions to plant immunity. Curr. Opin. Plant Biol. 2019, 50, 29–36. [Google Scholar] [CrossRef]
  8. Wildermuth, M.C.; Dewdney, J.; Wu, G.; Ausubel, F.M. Isochorismate synthase is required to synthesize salicylic acid for plant defence. Nature 2001, 414, 562–565. [Google Scholar] [CrossRef]
  9. Delaney, T.P.; Uknes, S.; Vernooij, B.; Friedrich, L.B.; Weymann, K.; Negrotto, D.V.; Gaffney, T.; Gut-Rella, M.; Kessmann, H.; Ward, E.; et al. A central role of salicylic Acid in plant disease resistance. Science 1994, 266, 1247–1250. [Google Scholar] [CrossRef] [Green Version]
  10. Fragnière, C.; Serrano, M.; Abou-Mansour, E.; Métraux, J.P.; L’Haridon, F. Salicylic acid and its location in response to biotic and abiotic stress. FEBS Lett. 2011, 585, 1847–1852. [Google Scholar] [CrossRef] [Green Version]
  11. Glazebrook, J. Contrasting mechanisms of defense against biotrophic and necrotrophic pathogens. Annu. Rev. Phytopathol. 2005, 43, 205–227. [Google Scholar] [CrossRef] [PubMed]
  12. Canet, J.V.; Dobón, A.; Roig, A.; Tornero, P. Structure-function analysis of npr1 alleles in Arabidopsis reveals a role for its paralogs in the perception of salicylic acid. Plant Cell Environ. 2010, 33, 1911–1922. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Ding, Y.; Shaholli, D.; Mou, Z. A large-scale genetic screen for mutants with altered salicylic acid accumulation in Arabidopsis. Front. Plant Sci. 2015, 5, 763. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Rivas-San Vicente, M.; Plasencia, J. Salicylic acid beyond defence: Its role in plant growth and development. J. Exp. Bot. 2011, 62, 3321–3338. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Li, Y.; Yang, S.; Yang, H.; Hua, J. The TIR-NB-LRR Gene SNC1 Is Regulated at the Transcript Level by Multiple Factors. Mol. Plant. Microbe Interact. 2007, 20, 1449–1456. [Google Scholar] [CrossRef] [PubMed]
  16. Lin, F.; Krishnamoorthy, P.; Schubert, V.; Hause, G.; Heilmann, M.; Heilmann, I. A dual role for cell plate-associated PI4Kβ in endocytosis and phragmoplast dynamics during plant somatic cytokinesis. EMBO J. 2019, 38, e100303. [Google Scholar] [CrossRef] [PubMed]
  17. Kalachova, T.; Janda, M.; Šašek, V.; Ortmannová, J.; Nováková, P.; Dobrev, I.P.; Kravets, V.; Guivarc’h, A.; Moura, D.; Burketová, L.; et al. Identification of salicylic acid-independent responses in an Arabidopsis phosphatidylinositol 4-kinase beta double mutant. Ann. Bot. 2019. [Google Scholar] [CrossRef]
  18. Kulich, I.; Pečenková, T.; Sekereš, J.; Smetana, O.; Fendrych, M.; Foissner, I.; Höftberger, M.; Žárský, V. Arabidopsis Exocyst Subcomplex Containing Subunit EXO70B1 Is Involved in Autophagy-Related Transport to the Vacuole. Traffic 2013, 14, 1155–1165. [Google Scholar] [CrossRef] [Green Version]
  19. König, S.; Feussner, K.; Schwarz, M.; Kaever, A.; Iven, T.; Landesfeind, M.; Ternes, P.; Karlovsky, P.; Lipka, V.; Feussner, I. Arabidopsis mutants of sphingolipid fatty acid α-hydroxylases accumulate ceramides and salicylates. New Phytol. 2012, 196, 1086–1097. [Google Scholar] [CrossRef]
  20. Yoshida, S.; Ito, M.; Nishida, I.; Watanabe, A. Identification of a novel gene HYS1/CPR5 that has a repressive role in the induction of leaf senescence and pathogen-defence responses in Arabidopsis thaliana. Plant J. 2002, 29, 427–437. [Google Scholar] [CrossRef] [Green Version]
  21. Rate, D.N.; Cuenca, J.V.; Bowman, G.R.; Guttman, D.S.; Greenberg, J.T. The Gain-of-Function Arabidopsis acd6 Mutant Reveals Novel Regulation and Function of the Salicylic Acid Signaling Pathway in Controlling Cell Death, Defenses, and Cell Growth. Plant Cell 1999, 11, 1695–1708. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Preuss, M.L.; Schmitz, A.J.; Thole, J.M.; Bonner, H.K.S.; Otegui, M.S.; Nielsen, E. A role for the RabA4b effector protein PI-4Kbeta1 in polarized expansion of root hair cells in Arabidopsis thaliana. J. Cell Biol. 2006, 172, 991–998. [Google Scholar] [CrossRef] [PubMed]
  23. Vorwerk, S.; Schiff, C.; Santamaria, M.; Koh, S.; Nishimura, M.; Vogel, J.; Somerville, C.; Somerville, S. EDR2 negatively regulates salicylic acid-based defenses and cell death during powdery mildew infections of Arabidopsis thaliana. BMC Plant Biol. 2007, 7, 35. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Nishimura, M.T.; Stein, M.; Hou, B.H.; Vogel, J.P.; Edwards, H.; Somerville, S.C. Loss of a callose synthase results in salicylic acid-dependent disease resistance. Science 2003, 301, 969–972. [Google Scholar] [CrossRef] [PubMed]
  25. Šašek, V.; Janda, M.; Delage, E.; Puyaubert, J.; Guivarc’h, A.; Maseda, E.L.; Dobrev, P.I.; Caius, J.; Bóka, K.; Valentová, O.; et al. Constitutive salicylic acid accumulation in pi4kIIIβ1β2 Arabidopsis plants stunts rosette but not root growth. New Phytol. 2014, 203, 805–816. [Google Scholar] [CrossRef] [PubMed]
  26. Nawrath, C.; Métraux, J.P. Salicylic Acid Induction—Deficient Mutants of Arabidopsis Express PR-2 and PR-5 and Accumulate High Levels of Camalexin after Pathogen Inoculation. Plant Cell 1999, 11, 1393–1404. [Google Scholar]
  27. Maxwell, K.; Johnson, G.N. Chlorophyll fluorescence—A practical guide. J. Exp. Bot. 2000, 51, 659–668. [Google Scholar] [CrossRef]
  28. Hendrickson, L.; Furbank, R.T.; Chow, W.S. A Simple Alternative Approach to Assessing the Fate of Absorbed Light Energy Using Chlorophyll Fluorescence. Photosynth. Res. 2004, 82, 73. [Google Scholar] [CrossRef]
  29. Yokawa, K.; Kagenishi, T.; Kawano, T.; Mancuso, S.; Baluška, F. Illumination of Arabidopsis roots induces immediate burst of ROS production. Plant Signal. Behav. 2011, 6, 1460–1464. [Google Scholar] [CrossRef] [Green Version]
  30. Silva-Navas, J.; Moreno-Risueno, M.A.; Manzano, C.; Pallero-Baena, M.; Navarro-Neila, S.; Téllez-Robledo, B.; Garcia-Mina, J.M.; Baigorri, R.; Gallego, F.J.; Pozo, J.C. D-Root: A system for cultivating plants with the roots in darkness or under different light conditions. Plant J. 2015, 84, 244–255. [Google Scholar] [CrossRef] [Green Version]
  31. Janda, M.; Ruelland, E. Magical mystery tour: Salicylic acid signalling. Environ. Exp. Bot. 2015, 114, 117–128. [Google Scholar] [CrossRef]
  32. Nie, H.; Wu, Y.; Yao, C.; Tang, D. Suppression of edr2-mediated powdery mildew resistance, cell death and ethylene-induced senescence by mutations in ALD1 in Arabidopsis. J. Genet. Genom. Yi Chuan Xue Bao 2011, 38, 137–148. [Google Scholar] [CrossRef] [PubMed]
  33. Smith, L.M.; Bomblies, K.; Weigel, D. Complex evolutionary events at a tandem cluster of Arabidopsis thaliana genes resulting in a single-locus genetic incompatibility. PLoS Genet. 2011, 7, e1002164. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Zhu, W.; Zaidem, M.; Van de Weyer, A.L.; Gutaker, R.M.; Chae, E.; Kim, S.T.; Bemm, F.; Li, L.; Todesco, M.; Schwab, R.; et al. Modulation of ACD6 dependent hyperimmunity by natural alleles of an Arabidopsis thaliana NLR resistance gene. PLOS Genet. 2018, 14, e1007628. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Miura, K.; Lee, J.; Miura, T.; Hasegawa, P.M. SIZ1 controls cell growth and plant development in Arabidopsis through salicylic acid. Plant Cell Physiol. 2010, 51, 103–113. [Google Scholar] [CrossRef] [Green Version]
  36. Todesco, M.; Kim, S.T.; Chae, E.; Bomblies, K.; Zaidem, M.; Smith, L.M.; Weigel, D.; Laitinen, R.A.E. Activation of the Arabidopsis thaliana Immune System by Combinations of Common ACD6 Alleles. PLoS Genet. 2014, 10, e1004459. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Ellinger, D.; Naumann, M.; Falter, C.; Zwikowics, C.; Jamrow, T.; Manisseri, C.; Somerville, S.C.; Voigt, C.A. Elevated Early Callose Deposition Results in Complete Penetration Resistance to Powdery Mildew in Arabidopsis. Plant Physiol. 2013, 161, 1433–1444. [Google Scholar] [CrossRef] [Green Version]
  38. Khurana, J.P.; Cleland, C.F. Role of Salicylic Acid and Benzoic Acid in Flowering of a Photoperiod-Insensitive Strain, Lemna paucicostata LP6 1. Plant Physiol. 1992, 100, 1541–1546. [Google Scholar] [CrossRef] [Green Version]
  39. Martínez-Medina, A.; Appels, F.V.W.; van Wees, S.C.M. Impact of salicylic acid- and jasmonic acid-regulated defences on root colonization by Trichoderma harzianum T-78. Plant Signal. Behav. 2017, 12, e1345404. [Google Scholar] [CrossRef] [Green Version]
  40. Badri, D.V.; Loyola-Vargas, V.M.; Du, J.; Stermitz, F.R.; Broeckling, C.D.; Iglesias-Andreu, L.; Vivanco, J.M. Transcriptome analysis of Arabidopsis roots treated with signaling compounds: A focus on signal transduction, metabolic regulation and secretion. New Phytol. 2008, 179, 209–223. [Google Scholar] [CrossRef]
  41. Pasternak, T.; Groot, E.P.; Kazantsev, F.V.; Teale, W.; Omelyanchuk, N.; Kovrizhnykh, V.; Palme, K.; Mironova, V.V. Salicylic Acid Affects Root Meristem Patterning via Auxin Distribution in a Concentration-Dependent Manner. Plant Physiol. 2019, 180, 1725–1739. [Google Scholar] [CrossRef]
  42. Liu, P.; Xu, Z.S.; Pan-Pan, L.; Hu, D.; Chen, M.; Li, L.C.; Ma, Y.Z. A wheat PI4K gene whose product possesses threonine autophophorylation activity confers tolerance to drought and salt in Arabidopsis. J. Exp. Bot. 2013, 64, 2915–2927. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Borghi, M.; Rus, A.; Salt, D.E. Loss-of-Function of Constitutive Expresser of Pathogenesis Related Genes5 Affects Potassium Homeostasis in Arabidopsis thaliana. PLoS ONE 2011, 6, e26360. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Gao, G.; Zhang, S.; Wang, C.; Yang, X.; Wang, Y.; Su, X.; Du, J.; Yang, C. Arabidopsis CPR5 independently regulates seed germination and postgermination arrest of development through LOX pathway and ABA signaling. PLoS ONE 2011, 6, e19406. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Okuma, E.; Nozawa, R.; Murata, Y.; Miura, K. Accumulation of endogenous salicylic acid confers drought tolerance to Arabidopsis. Plant Signal. Behav. 2014, 9. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Aki, T.; Konishi, M.; Kikuchi, T.; Fujimori, T.; Yoneyama, T.; Yanagisawa, S. Distinct modulations of the hexokinase1-mediated glucose response and hexokinase1-independent processes by HYS1/CPR5 in Arabidopsis. J. Exp. Bot. 2007, 58, 3239–3248. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Miller, R.N.G.; Costa Alves, G.S.; Van Sluys, M.A. Plant immunity: Unravelling the complexity of plant responses to biotic stresses. Ann. Bot. 2017, 119, 681–687. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Wang, W.; Wang, Z.Y. At the intersection of plant growth and immunity. Cell Host Microbe 2014, 15, 400–402. [Google Scholar] [CrossRef] [Green Version]
  49. Karasov, T.L.; Chae, E.; Herman, J.J.; Bergelson, J. Mechanisms to Mitigate the Trade-Off between Growth and Defense. Plant Cell 2017, 29, 666–680. [Google Scholar] [CrossRef] [Green Version]
  50. Schindelin, J.; Arganda-Carreras, I.; Frise, E.; Kaynig, V.; Longair, M.; Pietzsch, T.; Preibisch, S.; Rueden, C.; Saalfeld, S.; Schmid, B.; et al. Fiji: An open-source platform for biological-image analysis. Nat. Methods 2012, 9, 676–682. [Google Scholar] [CrossRef] [Green Version]
  51. Kalachova, T.; Leontovyčová, H.; Iakovenko, O.; Pospíchalová, R.; Maršík, P.; Klouček, P.; Janda, M.; Valentová, O.; Kocourková, D.; Martinec, J.; et al. Interplay between phosphoinositides and actin cytoskeleton in the regulation of immunity related responses in Arabidopsis thaliana seedlings. Environ. Exp. Bot. 2019, 167, 103867. [Google Scholar]
  52. Huang, J.; Gu, M.; Lai, Z.; Fan, B.; Shi, K.; Zhou, Y.H.; Yu, J.Q.; Chen, Z. Functional Analysis of the Arabidopsis PAL Gene Family in Plant Growth, Development, and Response to Environmental Stress. Plant Physiol. 2010, 153, 1526–1538. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Simko, W. R Package “Corrplot”: Visualization of a Correlation Matrix (Version 0.84). Available online: (accessed on 2 August 2018).

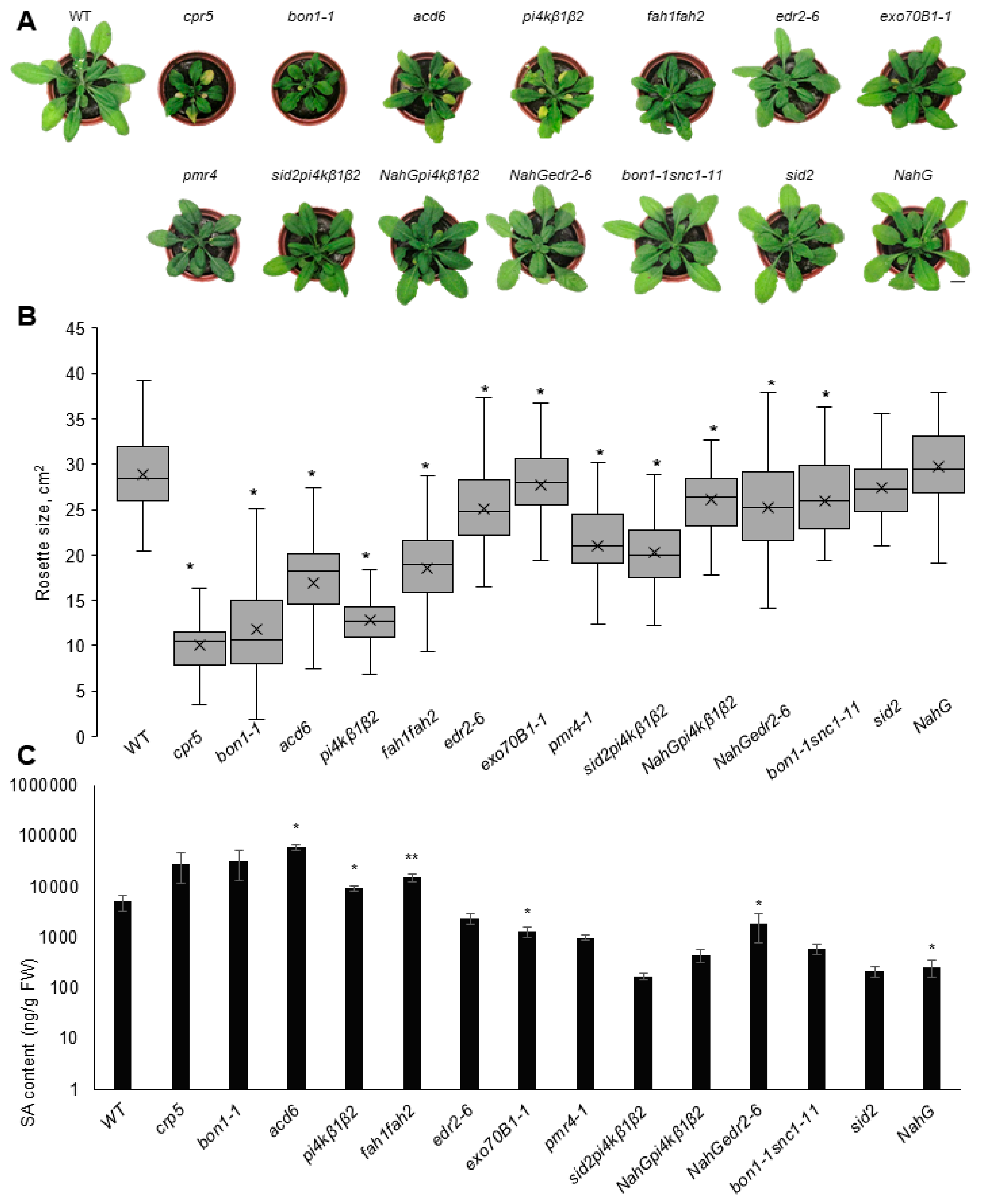

Figure 1. Rosette size and SA content of plants cultivated under long-day conditions. (A) Representative images of 4 week old plants cultivated at 22 °C, 16 h light/ 8 h dark. (B) Rosette size (area). Data are from three biological replicates, n ≥ 70. Central line of the boxplot represents the median occupancy, cross represents the mean, bottom and top edges of the box are 25 and 75% of distribution and the ends of whiskers are set at 1.5 times the interquartile range. (C) SA content in the leaves, n = 4. Data represent means + SEM, asterisks indicate variants different from WT, one-way ANOVA with Tukey’s HSD post hoc test, * p < 0.05, ** p < 0.01.
Figure 1. Rosette size and SA content of plants cultivated under long-day conditions. (A) Representative images of 4 week old plants cultivated at 22 °C, 16 h light/ 8 h dark. (B) Rosette size (area). Data are from three biological replicates, n ≥ 70. Central line of the boxplot represents the median occupancy, cross represents the mean, bottom and top edges of the box are 25 and 75% of distribution and the ends of whiskers are set at 1.5 times the interquartile range. (C) SA content in the leaves, n = 4. Data represent means + SEM, asterisks indicate variants different from WT, one-way ANOVA with Tukey’s HSD post hoc test, * p < 0.05, ** p < 0.01.
Ijms 20 06365 g001

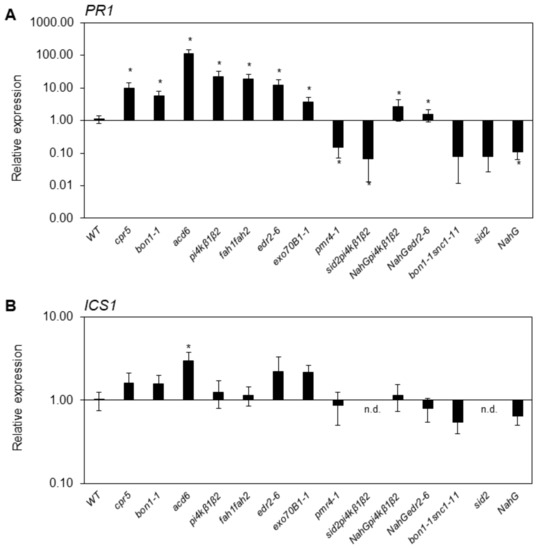

Figure 2. Transcription of ICS1 and PR1 in soil-grown plants cultivated under LD conditions. Samples were collected from four 4 week old plants. Values were normalized to WT at the respective conditions. TIP41 was used as a reference gene. Data represent means + SEM, asterisks indicate values different from WT, t-test, * p < 0.05, n = 4.
Figure 2. Transcription of ICS1 and PR1 in soil-grown plants cultivated under LD conditions. Samples were collected from four 4 week old plants. Values were normalized to WT at the respective conditions. TIP41 was used as a reference gene. Data represent means + SEM, asterisks indicate values different from WT, t-test, * p < 0.05, n = 4.
Ijms 20 06365 g002

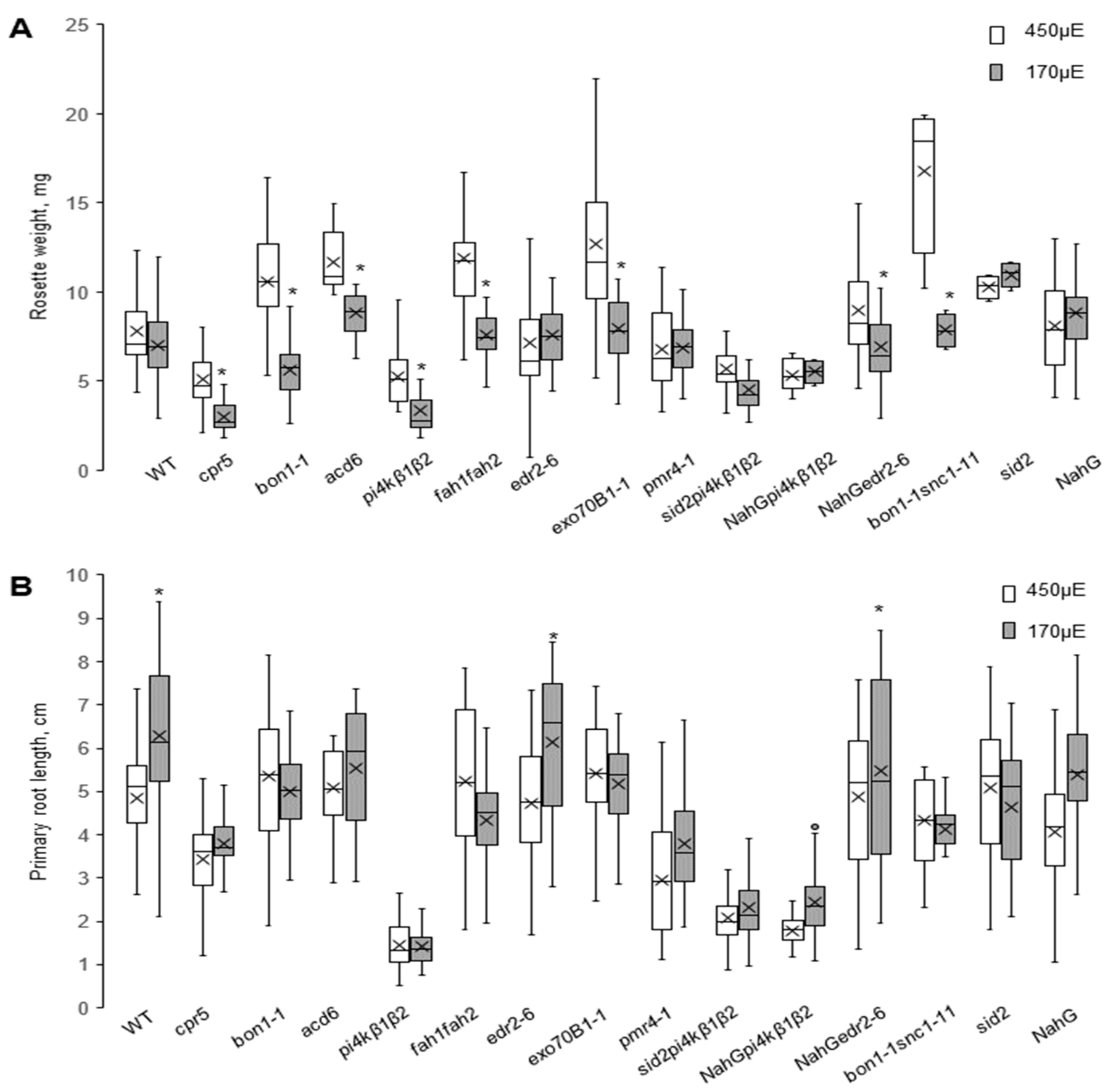

Figure 3. In vitro growth of SA collection mutants under different light intensities. Two week old seedlings were cultivated on ½ MS medium under 450 μE.m−2.s−1 or 170 μE.m−2.s−1 under 12 h light /12 h dark photoperiod. (A) Rosette weight. (B) Primary root length. Data represent four biological repetitions; at least 10 seedlings were measured for each variant in each biological repetition. Central line of the boxplot represents the median occupancy, cross represents the mean, bottom and top edges of the box are 25 and 75% of distribution and the ends of whiskers are set at 1.5 times the interquartile range, asterisks indicates variants different from those for the 450 μE.m−2.s−1 intensity the same genotype, * p < 0.01, t-test.
Figure 3. In vitro growth of SA collection mutants under different light intensities. Two week old seedlings were cultivated on ½ MS medium under 450 μE.m−2.s−1 or 170 μE.m−2.s−1 under 12 h light /12 h dark photoperiod. (A) Rosette weight. (B) Primary root length. Data represent four biological repetitions; at least 10 seedlings were measured for each variant in each biological repetition. Central line of the boxplot represents the median occupancy, cross represents the mean, bottom and top edges of the box are 25 and 75% of distribution and the ends of whiskers are set at 1.5 times the interquartile range, asterisks indicates variants different from those for the 450 μE.m−2.s−1 intensity the same genotype, * p < 0.01, t-test.
Ijms 20 06365 g003

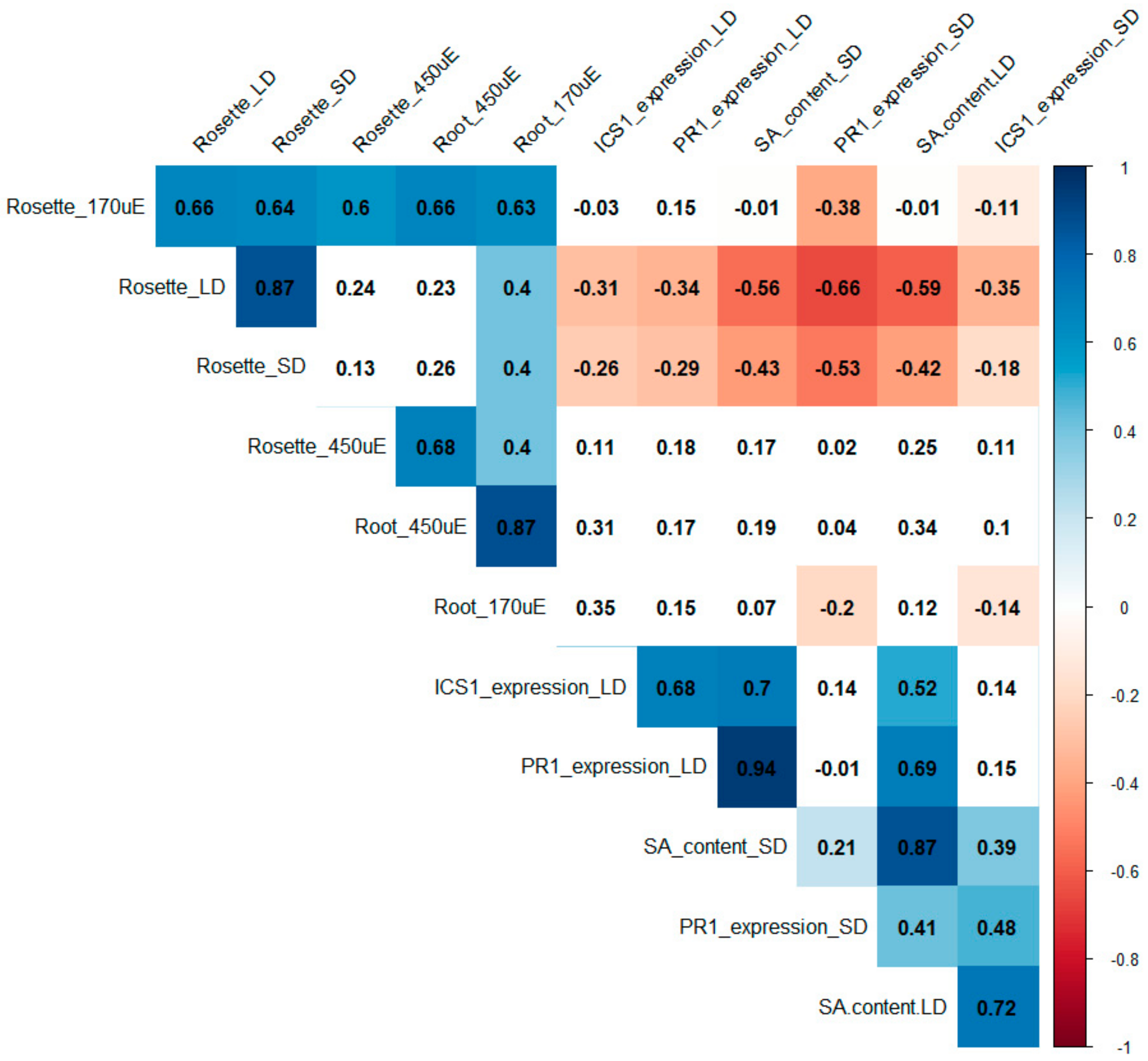

Figure 4. Correlation table of SA effects on growth. The matrix was built using the Pearson correlation for 12 parameters (rosette size, SA content and SA-related gene expression (ICS1 and PR1) for soil-grown plants under short-day (SD) and long-day (LD) conditions; and rosette weight and primary root length for in vitro grown plants grown under an LD photoperiod at 450 uE or 170 uE light intensity). Measurements were taken for 15 genotypes (listed in Table 1). Data are from three biological repetitions for each variant. Positive correlations are displayed in blue and negative correlations in red. Correlation coefficients are indicated. Only results that passed the 0.05 threshold for significance are displayed in colour.
Figure 4. Correlation table of SA effects on growth. The matrix was built using the Pearson correlation for 12 parameters (rosette size, SA content and SA-related gene expression (ICS1 and PR1) for soil-grown plants under short-day (SD) and long-day (LD) conditions; and rosette weight and primary root length for in vitro grown plants grown under an LD photoperiod at 450 uE or 170 uE light intensity). Measurements were taken for 15 genotypes (listed in Table 1). Data are from three biological repetitions for each variant. Positive correlations are displayed in blue and negative correlations in red. Correlation coefficients are indicated. Only results that passed the 0.05 threshold for significance are displayed in colour.
Ijms 20 06365 g004
Table 1. Selected Arabidopsis mutants with potentially affected salicylic acid (SA) signatures.
Table 1. Selected Arabidopsis mutants with potentially affected salicylic acid (SA) signatures.
Mutant NameTargeted GeneTargeted ProcessReference
cpr5CPR5Constitutive Expression of Pathogenesis-related genes 5Constitutive expression of pathogenesis-related genes 5Yoshida et el. 2002 [20]
bon1-1BON1BONZAI 1Negative regulator of cell death, defence responses and several R genesLi et al. 2007 [15]
acd6ACD6Accelerated Cell Death 6Dose-dependent activation of defence signalling, accelerated cell death observedRate et al. 1999 [21]
pi4kβ1β2PI4Kβ1, PI4Kβ2Phosphatidylinositol-4-kinase β1 and β2Second messenger, phosphatidyl inositol-4-phosphate productionPreuss et al.
2006 [22]
fah1fah2FAH1, FAH2Fatty acid5-hydroxylase 1 and 2Fatty acid hydroxylationKonig et al. 2012 [19]
edr2-6EDR2Enhanced Disease Resistance 2Negative regulation of cell deathVorwerk et al. 2008 [23]
exo70B1-1EXO70B1Exocyst Complex Component EXO70B1Endomembrane traffickingKulich et al. 2013 [18]
pmr4-1CALS12Callose Synthase 12Pathogen-induced callose synthesisNishimura et al. 2003 [24]
ICS1, PI4Kβ1, PI4Kβ2Isochorismate synthase 1, phosphatidylinositol-4-kinase β1 and β2SA biosynthesis, second messenger inositol-1,4,5-trisphosphate productionSasek et al. 2014 [25]
NahG, PI4Kβ1, PI4Kβ2SA hydroxylase, phosphatidylinositol-4-kinase β1 and β2SA degradation, second messenger inositol-1,4,5-trisphosphate productionSasek et al. 2014 [25]
NahG, EDR2SA hydroxylase, enhanced disease resistance 2SA degradation, negative regulation of cell deathVorwerk et al. 2008 [23]
BON1, SNC1BONZAI 1, Suppresssor npr1-1, constitutive 1bon1-1 crossed to the snc1-11, loss-of-function point mutation of the SNC1Li et al. 2007 [15]
sid2ICS1Isochorismate synthase 1SA biosynthesisWildermuth et al. 2001 [8]
NahGNahGSA hydroxylaseSA degradationNawrath and Metraux 1999 [26]
