The Chemical Composition of Essential Oils from Cinnamomum camphora and Their Insecticidal Activity against the Stored Product Pests

Beijing Key Laboratory of Traditional Chinese Medicine Protection and Utilization, Beijing Normal University, Beijing 100875, China
Analytical and Testing Center, Beijing Normal University, Beijing 100875, China
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2016, 17(11), 1836;
Submission received: 18 August 2016 / Revised: 22 September 2016 / Accepted: 31 October 2016 / Published: 4 November 2016


To investigate the chemical composition and insecticidal activity of the essential oils of certain Chinese medicinal herbs and spices, the essential oils were extracted from the stem barks, leaves, and fruits of Cinnamomum camphora (L.) Presl, which were found to possess strong fumigant toxicity against Tribolium castaneum and Lasioderma serricorne adults. The essential oils of the plants were extracted by the method of steam distillation using a Clavenger apparatus. Their composition was determined by gas chromatography/mass spectrometric (GC-MS) analyses (HP-5MS column), and their insecticidal activity was measured by seal-spaced fumigation. D-camphor (51.3%), 1,8-cineole (4.3%), and α-terpineol (3.8%), while D-camphor (28.1%), linalool (22.9%), and 1,8-cineole (5.3%) were the main constituents of its fruits. The essential oils of the C. camphora all showed fumigant and contact toxicity. Other compounds exhibited various levels of bioactivities. The results indicate that the essential oils of C. camphora and its individual compounds can be considered a natural resource for the two stored-product insect management.

1. Introduction

The red flour beetle (Tribolium castaneum Herbst) and the cigarette beetle (Lasioderma serricorne Fabricius) are worldwide pests of stored products. They are dominant populations in the stored traditional Chinese medicines insect community [1]. The principal method to control these insects is to use synthetic insecticides or fumigants, but that may cause health hazards to warm-blooded animals, pose risk of environmental pollution, and bring development of resistance by insects or pest resurgence [2]. Therefore, an increasing number of scientists have been keen on searching for active natural products to use as botanical insecticides [3,4]. Essential oils continue to be a subject of interest among the international research community, which include lipids, terpenoids, ketones, phenols, and oxygenated derivatives and have been found for their control effects [4,5,6,7,8,9].
During the screening process for new agrochemicals from Chinese medicinal materials and spices, the essential oils of Cinnamomum camphora (L.) Presl (commonly known as camphor tree, camphorwood or camphor laurel) were found to possess fumigant and contact activities against the red floor beetle and the cigarette beetle. C. camphora is a tree native to South China, Taiwan, South Japan, Korea, and Vietnam [10]. It is cultivated as an ornamental plant and as a good material for wood furniture. Additionally, as a source of camphor and camphor oil, this plant is an important source for perfume. In the medical field, this plant can be used to treat muscular strains, inflammation, and rheumatic conditions [11].
In previous research, C. camphora extracts have shown many kinds of bioactivities against T. castaneum, such as the contact activity [12,13], the fumigant activity [14], the repellent activity [12,14], as well as progeny suppression [13,14]. However, those studies only tested the bioactivities of powders/essential oils from C. camphora aerial parts and seldom mentioned the bioactive compounds from them. Moreover, although some studies have analyzed the chemical composition of the different parts from essential oils [15,16,17,18], very little work has been done on the stem barks of this plant. Some species of the Cinnamomum genus have been confirmed to have insecticidal activities on their barks [19,20], whereas there has been no report on the bioactivity of C. camphora. Particularly, we have already analyzed the essential oil of C. camphora leaves (EL, vegetative organs of this plant) and found it to possess strong bioactivities against L. serricorne in our former study [18]. At this time, we bring our attention to its protective and reproductive organs, namely barks and fruits, and we try to find other bioactive compounds from its essential oils as well.
Thus, in this work, we analyzed the chemical composition of the essential oils of stem barks (EB) for the first time and compared the chemical composition between EB, EL, and the essential oils of its fruits (EF). In addition, we investigated the fumigant and contact activities of EB, EL, and EF against T. castaneum and L. serricorne adults, and found bioactive compounds from its essential oils.

2. Results

2.1. Chemical Composition of Essential Oils

The gas chromatography/mass spectrometric (GC-MS) analysis results for the C. camphora essential oils are summarized in Table 1 and Figure A1. The yields of EB, EL, and EF were 0.42%, 1.83%, and 1.18% (v/w), respectively. The main components of EB were D-camphor (51.3%), 1,8-cineole (4.3%), α-terpineol (3.8%), and 3-methyl-2-butenoic acid, oct-3-en-2-yl ester (3.1%), while safrole (29.0%), D-camphor (28.1%), linalool (12.8%), and 1,8-cineole (5.3%) were the main constituents of EF. Twenty-seven components were identified in EB, while only 17 constituents identified in EF. Some compounds are unique in EB, such as γ-terpinen, isoterpinolene, 1,3,8-p-menthatriene, terpinen-4-ol, α-terpineol, eugenol, β-cadinene, and α-cubebene.

2.2. Insecticidal Activity

The results of fumigant assays for the essential oils against T. castaneum and L. serricorne adults are presented in Table 2. EB and EL exhibited strong fumigant toxicity with LC50 values both less than 3.2 mg/L air; meanwhile, EF also showed strong fumigant toxicity against the red flour beetle (LC50 = 8.5 mg/L air). Moreover, the essential oils showed contact activity against the two stored-product insects, and the results are presented in Table 3. EB and EL were not so effective against T. castaneum in our contact toxicity measure range, and their LD50 values could not be calculated (LD50 > 50.0 µg/adult); however, they exhibited contact toxicity against L. serricorne adults with LD50 values of 7.6 and 21.3 µg/adult, respectively. EF showed contact toxicity against T. castaneum and L. serricorne adults with LD50 values of 19.0 and 10.1 µg/adult, respectively.
The bioactivities of five major individual compounds (D-camphor, linalool, 1,8-cineole, safrole, and α-terpineol) were tested, and the results are listed in Table 2 and Table 3. As the most abundant constituents in EB (51.3%) and EL (40.5%), D-camphor showed strongest fumigant activity (LC50 < 2.3 and LC50 = 2.4 mg/L air, respectively) against T. castaneum and L. serricorne adults. It is the main contributor to the fumigant activity of EB and EL. However, D-camphor (LD50 > 50.0 µg/adult) may also have led to the low contact activity of EB and EL against T. castaneum adults. Furthermore, the five major individual compounds showed similar contact activity (LD50 = 13.4, 12.7, 14.6, 15.6, and 12.0 µg/adult) with EB, EL, and EF (LD50 = 7.6, 21.3, and 10.1 µg/adult) against L. serricorne adults.
Because we failed to test the bioactivities of safrole, we only compared the fumigant and contact results with the study with similar conditions [21,24]. As the uppermost constituent (29.0%) in EF, safrole showed weak fumigant activity against T. castaneum adults with a LC50 value of 38.3 mg/L air. However, it had the strongest contact activity (LD50 = 4.7 µg/adult) among the tested individual compounds against T. castaneum adults. Because EF had fumigant activity with LC50 values of 8.5 mg/L air, it was not safrole but D-camphor and 1,8-cineole (LC50 < 2.3 mg/L air and LC50 = 5.5 mg/L air, respectively) that were the main contributors to its fumigant activity against T. castaneum adults.

3. Discussion

There have not been any reports about EB of C. camphora, but some researchers have identified compounds in EF from different areas. The essential oil of fruits cultivated in the province of Guizhou contained D-camphor (26.1%), 1,8-cineole (19.9%), linalool (9.2%), α-terpineol (7.2%), and limonene (5.3%) [15]. The main constituents in the sample from Jiangxi were D-camphor (42.8%), 1,8-cineole (24.8%), α-terpineol (8.7%), and β-pinene (5.8%) [16]. Compared with our previous study on EL (Table 1), the EB, EL, and EF all had a large percentage of D-camphor (28.1%–51.3%) and a certain percentage of 1,8-cineole (4.4%–11.3%). EL and EF both contained linalool (12.8%–22.9%), while safrole was retrieved only in EF. The prior paper also studied the chemical composition of the twigs and seeds of C. camphora in Jiangxi [25]. The main compounds of this essential oil were eucalyptol (17.2%), camphor (13.2%), and 3,7-dimethyl-1,3,7-octatriene (11.5%), while in seeds they were eucalyptol (20.9%), methyleugenol (20.0%), linalool (14.7%), and camphor (5.5%). The content and distribution of the essential oils constituents were influenced by tissue and organ diversity and metabolic pathways in the plant.
In previous works, powders and other parts of C. camphora essential oils have been evaluated for bioactivities against agricultural as well as stored product insects [12,13,14,17,18,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39]. The selected constituents also showed bioactivities and reflected the compositional complexity in bioactivity of natural mixtures [40]. Besides these main constituents, plenty of minor components are contained in essential oils as well. The synergistic effects of these major and minor components jointly determined the bioactivity properties of essential oils. These defense systems of plants usually worked together, not as single ones. Minor constituents also enhanced the insecticidal effectiveness of the major ones [41].
On the other hand, some constituents of the essential oils of C. camphora still need safety risk assessment. As the uppermost constituent in EB and EL, the daily maximum human therapeutic dose of D-camphor is about 1.43 mg/kg. This dose is relatively safe, but still lacks information of long-term experiments [42]. Although safrole accounting for 29.0% of the EF showed obvious insecticidal activity, it is carcinogenic. Linalool, based on the volume of use (2011) from the International Fragrance Association, harmed the aquatic compartment [43,44]. Moreover, at very low doses, 1,8-cineole can be used as a flavoring and medicinal ingredient; however, in higher-than-normal doses, it is hazardous for behavior, the respiratory tract, and the nervous system [45]. Although the biological effects of the individual components of essential oils are known, the toxicokinetics and ecotoxicology of their blends and single compounds is still much more difficult to evaluate [20,46]. In general, medicinal herbs are low-risk and relatively well studied experimentally and clinically. However, no experimental data about the safety of the essential oils of the barks leaves and fruits are yet available. Further study should be focused on not only the effectiveness but also the safety of essential oils in order to manage these insects.

4. Materials and Methods

4.1. Insects

T. castaneum and L. serricorne were reared on wheat flour mixed with yeast (10:1, w/w) in dark incubators at 29 ± 1 °C and 70%–80% relative humidity. Adult insects of mixed sex, about 1 week old, were used for bioassay tests.

4.2. Plant Materials and Essential Oils Extraction

Stem barks, leaves, and fruits of C. camphora were all collected in May 2013 from Suzhou City (31.97° N and 120.49° E), Jiangsu, China. The samples were identified as Cinnamomum camphora (L.) Presl. The voucher specimens (BNU-dushushan-2013-05-25-005, BNU-dushushan-2013-05-25-006, and BNU-dushushan-2013-05-25-007) were deposited at the Herbarium (BNU) of College of Resources Science and Technology, Beijing Normal University. In this work, essential oils were extracted from barks and fruits (1 kg and 0.745 kg, respectively, of dry matter) with hydrodistillation. A modified Clevenger-type apparatus was used, and each extraction process lasted 6 hours. The essential oils were dehydrated with anhydrous sodium sulfate and stored in airtight containers in a refrigerator at 4 °C.

4.3. Chemical Components Determination

GC-MS analysis was run on an Agilent 6890 N gas chromatograph connected to an Agilent 5973 N mass selective detector. They were equipped with a gas chromatography-flame ionization detector (GC-FID) and an HP-5MS (30 m × 0.25 mm × 0.25 μm) capillary column. The essential oil samples were diluted in n-hexane to obtain a 1% solution. The injector temperature was maintained at 250 °C. The volume injected was 1 μL. The flow rate of carrier gas (helium) was 1.0 mL/min with the mass spectrum spectra scanned from 50 to 550 m/z.
The retention indices (RI) were determined from gas chromatograms using a series of n-alkanes (C5–C36) under the same operating conditions. Based on RI, the chemical constituents were identified by comparing with n-alkanes as reference. The components of oil were identified by matching their mass spectra with computer libraries, namely Wiley 275 libraries, NIST 05, and RI from other literatures [47].

4.4. Fumigant Toxicity

The individual compounds were obtained from TCI Shanghai Development Co., Ltd. (Shanghai, China) (D-camphor, 1,8-cineole) and Sigma-Aldrich Shanghai Trading Co., Ltd. (Shanghai, China) (linalool and α-terpineol). The appropriate testing concentrations were determined by range-finding studies. A serial dilution of the essential oils and compounds with five concentrations was prepared in n-hexane. The essential oils and above samples were tested with the method described by Liu and Ho [22]. Ten insects were put inside a glass vial (diameter 2.5 cm, height 5.5 cm, volume 25 mL). On the bottom of the cap, a filter paper (diameter 2 cm) was placed and treated with a 10 µL sample solution. Before placing the cap tightly on the glass vial to form a sealed chamber, the solvent evaporated for 20 s. The negative control was n-hexane. The experiments were performed with five replicates for each treatment. The packets were incubated for 24 h. After that, dead insects were counted, and SPSS V20.0 Probit analysis was used to calculate LC50 values [48].

4.5. Contact Toxicity

The essential oils and individual compounds against the two stored-product insects were measured as described by Liu and Ho [22]. Range-finding studies were run to determine the appropriate testing concentrations. A series of testing samples (five concentrations) was diluted using n-hexane for essential oils and individual compounds. The dorsal thorax of each insect was applied to 0.5 µL aliquots of the dilution. The control group was treated only with n-hexane. Ten treated insects were then transferred to each glass vial and kept in the dark incubator. Each experiment was replicated five times. After 24 h, mortality was recorded, and the LD50 values were calculated using SPSS V20.0 Probit analysis [48].

5. Conclusions

The significantly high efficacy of the essential oils of C. camphora and its individual constituents against insects in stored products demonstrated in this study may lead to the development of new natural products. Additionally, further research could concentrate more on the safety, potency, and stability of the essential oils.


This project was supported by Fundamental Research Funds for the Central Universities and National Key Research and Development Program (2016YFC0500805). The authors thank Liu Q. R. from the College of Life Sciences, Beijing Normal University, Beijing 100875, for the identification of the investigated medicinal herb.

Author Contributions

The contributions of the respective authors are as follows: Shushan Du was responsible for the experimental design; Junyu Liang and Shanshan Guo were responsible for the determination of insecticidal activity; Zhufeng Geng and Shanshan Guo performed the experiments for repellent activity; Zhufeng Geng and Wenjuan Zhang analyzed the data; Shanshan Guo wrote the whole article; Chengfang Wang and Zhiwei Deng edited and revised the manuscript. All authors read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

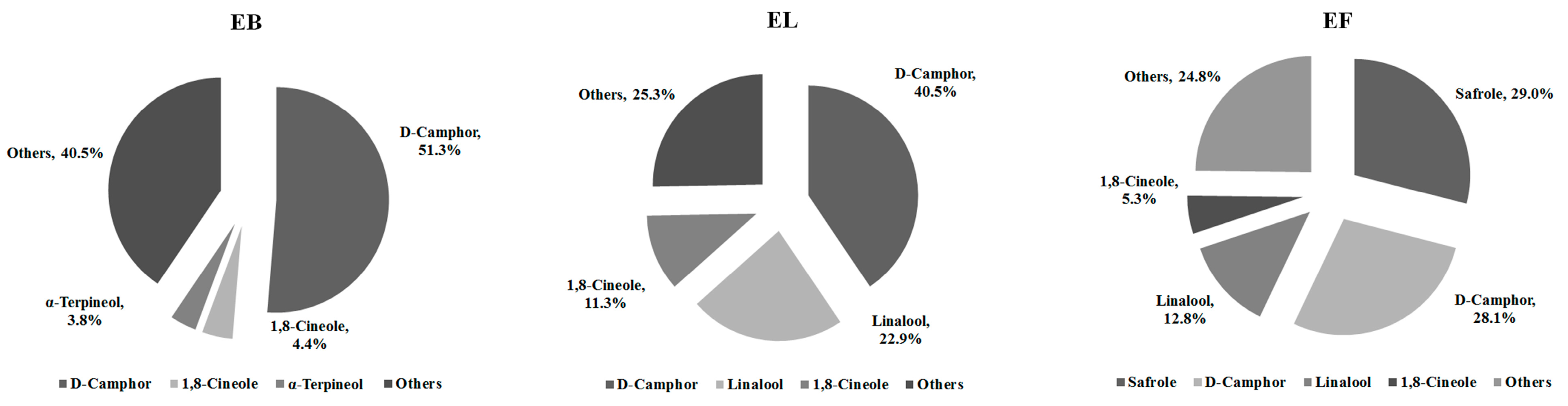

Figure A1. The major components of essential oils.
Figure A1. The major components of essential oils.
Ijms 17 01836 g001


  1. Wang, C.F.; Yang, K.; You, C.X.; Zhang, W.J.; Guo, S.S.; Geng, Z.F.; Du, S.S.; Wang, Y.Y. Chemical composition and insecticidal activity of essential oils from Zanthoxylum dissitum leaves and roots against three species of storage pests. Molecules 2015, 20, 7990–7999. [Google Scholar] [CrossRef] [PubMed]
  2. Ebadollahi, A.; Safaralizadeh, M.H.; Pourmirza, A.A.; Gheibi, S.A. Toxicity of essential oil of Agastache foeniculum (Pursh) kuntze to Oryzaephilus surinamensis L. and Lasioderma serricorne F. J. Plant Prot. Res. 2010, 50, 215–219. [Google Scholar] [CrossRef]
  3. Zettler, J.; Arthur, F.H. Chemical control of stored product insects with fumigants and residual treatments. Crop Prot. 2000, 19, 577–582. [Google Scholar] [CrossRef]
  4. Isman, M.B. Botanical insecticides, deterrents, and repellents in modern agriculture and an increasingly regulated world. Annu. Rev. Entomol. 2006, 51, 45–66. [Google Scholar] [CrossRef] [PubMed]
  5. Tripathi, P.; Dubey, N.K. Exploitation of natural products as an alternative strategy to control postharvest fungal rotting of fruit and vegetables. Postharvest Biol. Technol. 2004, 32, 235–245. [Google Scholar] [CrossRef]
  6. Burt, S. Essential oils: Their antibacterial properties and potential applications in foods—A review. Int. J. Food Microbiol. 2004, 94, 223–253. [Google Scholar] [CrossRef] [PubMed]
  7. Bakkali, F.; Averbeck, S.; Averbeck, D.; Idaomar, M. Biological effects of essential oils—A review. Food Chem. Toxicol. 2008, 46, 446–475. [Google Scholar] [CrossRef] [PubMed]
  8. Isman, M.B. Plant essential oils for pest and disease management. Crop Prot. 2000, 19, 603–608. [Google Scholar] [CrossRef]
  9. Rajendran, S.; Srianjini, V. Plant products as fumigants for stored product insects control. J. Stored Prod. Res. 2008, 44, 126–135. [Google Scholar] [CrossRef]
  10. Li, X.W.; Li, J.; van der Werff, H. Flora Reipublicae Popularis Sinicae; Science Press: Beijing, China, 1982; Volume 7, pp. 102, 167, 175. [Google Scholar]
  11. Babu, K.N.; Sajina, A.; Minoo, D.; John, C.Z.; Mini, P.M.; Tushar, K.V.; Rema, J.; Ravindran, P.N. Micropropagation of camphor tree (Cinnamomum camphora). Plant Cell Tissue Org. 2003, 74, 179–183. [Google Scholar] [CrossRef]
  12. Al-Jabr, A.M. Toxicity and repellency of seven plant essential oils to Oryzaephilus surinamensis (Coleoptera: Silvanidae) and Tribolium castaneum (Coleoptera: Tenebrioidae). Sci. J. King Faisal Univ. (Basic Appl. Sci.) 2006, 7, 49–60. [Google Scholar]
  13. Nenaah, G.E.; Ibrahim, S.I.A. Chemical composition and the insecticidal activity of certain plants applied as powders and essential oils against two stored-products coleopteran beetles. J. Pest Sci. 2011, 84, 393–402. [Google Scholar] [CrossRef]
  14. Tripathi, A.K.; Singh, A.K.; Upadhyay, S. Contact and fumigant toxicity of some common spices against the storage insects Callosobruchus maculatus (Coleoptera: Bruchidae) and Tribolium castaneum (Coleoptera: Tenebrionidae). Int. J. Trop. Insect Sci. 2009, 29, 151–157. [Google Scholar] [CrossRef]
  15. Liang, G.Y.; Qiu, D.W.; Wei, H.F.; Li, H.Y.; Zhao, S.; He, Z.Y.; Liu, N. The essential oil of the fruits from Cinnamomum camphora. J. Guiyang Coll. Tradit. Chin. Med. 1994, 16, 59–60. [Google Scholar]
  16. Li, S.L.; Luo, Y.M. The analysis of essential oil from camphor tree fruits in Jinggangshan. J. Jiangxi Univ. Tradit. Chin. Med. 2005, 17, 36–37. [Google Scholar]
  17. Liu, C.H.; Mishra, A.K.; Tan, R.X.; Tang, C.; Yang, H.; Shen, Y.F. Repellent and insecticidal activities of essential oils from Artemisia princeps and Cinnamomum camphora and their effect on Seed germination of wheat and broad bean. Bioresour. Technol. 2006, 97, 1969–1973. [Google Scholar] [CrossRef] [PubMed]
  18. Chen, H.P.; Yang, K.; You, C.X.; Lei, N.; Sun, R.Q.; Geng, Z.F.; Ma, P.; Cai, Q.; Du, S.S.; Deng, Z.W. Chemical constituents and insecticidal activities of the essential oil of Cinnamomum camphora leaves against Lasioderma serricorne. J. Chem. 2014, 2014, 1–5. [Google Scholar]
  19. Park, I.K.; Lee, H.S.; Lee, S.G.; Park, J.D.; Ahn, Y.J. Insecticidal and fumigant activities of Cinnamomum cassia bark-derived materials against Mechoris ursulus (Coleoptera: Attelabidae). J. Agric. Food Chem. 2000, 48, 2528–2531. [Google Scholar] [CrossRef] [PubMed]
  20. Yang, Y.C.; Lee, H.S.; Lee, S.H.; Clark, J.M.; Ahn, Y.J. Ovicidal and adulticidal activities of Cinnamomum zeylanicum bark essential oil compounds and related compounds against Pediculus humanus capitis (Anoplura: Pediculicidae). Int. J. Parasitol. 2005, 35, 1595–1600. [Google Scholar] [CrossRef] [PubMed]
  21. Chu, S.S.; Wang, C.F.; Du, S.S.; Liu, S.L.; Liu, Z.L. Toxicity of the essential oil of Illicium difengpi stem bark and its constituent compounds towards two grain storage insects. J. Insect Sci. 2011, 11, 1–13. [Google Scholar]
  22. Liu, Z.L.; Ho, S.H. Bioactivity of the essential oil extracted from Evodia rutaecarpa Hook f. et Thomas against the grain storage insects, Sitophilus zeamais Motsch. and Tribolium castaneum (Herbst). J. Stored Prod. Res. 1999, 35, 317–328. [Google Scholar] [CrossRef]
  23. You, C.X.; Yang, K.; Wu, Y.; Zhang, W.J.; Wang, Y.; Geng, Z.F.; Chen, H.P.; Jiang, H.Y.; Du, S.S.; Deng, Z.W.; et al. Chemical composition and insecticidal activities of the essential oil of Perilla frutescens (L.) Britt. aerial parts against two stored product insects. Eur. Food Res. Technol. 2014, 239, 481–490. [Google Scholar] [CrossRef]
  24. Du, S.S.; Yang, K.; Wang, C.F.; You, C.X.; Geng, Z.F.; Guo, S.S.; Deng, Z.W. Chemical constituents and activities of the essential oil from Myristica fragrans, against cigarette beetle Lasioderma serricorne. Chem. Biodivers. 2014, 11, 1449–1456. [Google Scholar] [CrossRef] [PubMed]
  25. Jiang, H.; Wang, J.; Song, L.; Cao, X.; Yao, X.; Tang, F.; Yue, Y.D. GC×GC-TOFMS analysis of essential oils composition from leaves, twigs and seeds of Cinnamomum camphora L. Presl and their insecticidal and repellent activities. Molecules 2016, 21, 423. [Google Scholar] [CrossRef] [PubMed]
  26. Chen, J. Repellency of an over-the-counter essential oil product in China against workers of red imported fire ants. J. Agric. Food Chem. 2009, 57, 618–622. [Google Scholar] [CrossRef] [PubMed]
  27. Hori, M.; Komatsu, H. Repellency of rosemary oil against Myzus persicae in a laboratory and in a screen house. J. Chem. Ecol. 1998, 24, 1425–1432. [Google Scholar] [CrossRef]
  28. Liu, T.; Li, W.Z.; You, X.F.; Chai, X.L.; Fu, G.X.; Yuan, G.H. Repellent and anti-settling activity of common plant-derived volatiles on Myzus persicae (sulzer). Acta Tabacaria Sin. 2013, 19, 77–84. [Google Scholar]
  29. Hori, M. Repellency of rosemary oil and its components against the onion aphid, Neotoxoptera formosana (Takahashi) (Homoptera, Aphididae). Appl. Entomol. Zool. 1997, 32, 303–310. [Google Scholar]
  30. Rozman, V.; Kalinovic, I.; Korunic, Z. Toxicity of naturally occurring compounds of Lamiaceae and Lauraceae to three stored-product insects. J. Stored Prod. Res. 2007, 43, 349–355. [Google Scholar] [CrossRef]
  31. Suthisut, D.; Fields, P.G.; Chandrapatya, A. Fumigant toxicity of essential oils from three Thai plants (Zingiberaceae) and their major compounds against Sitophilus zeamais, Tribolium castaneum and two parasitoids. J. Stored Prod. Res. 2011, 47, 222–230. [Google Scholar] [CrossRef]
  32. Suthisut, D.; Fields, P.G.; Chandrapatya, A. Contact toxicity, feeding reduction, and repellency of essential oils from three plants from the Ginger Family (Zingiberaceae) and their major components against Sitophilus zeamais and Tribolium castaneum. J. Econ. Entomol. 2011, 104, 1445–1454. [Google Scholar] [CrossRef] [PubMed]
  33. Maugh, T.H. To attract or repel, that is the question. Science 1982, 218, 278. [Google Scholar] [CrossRef] [PubMed]
  34. Scheaper, W.R. Components of oil of tansy (Tanacetum ulgare) that repel Colorado potato beetles (Leptinotarsa decemlineata). J. Nat. Prod. 1984, 47, 964–969. [Google Scholar] [CrossRef]
  35. Shaaya, E.; Ravid, U.; Paster, N.; Juven, B.; Zisman, U.; Pissarev, V. Fumigant toxicity of essential oils against four major stored-product insects. J. Chem. Ecol. 1991, 17, 499–504. [Google Scholar] [CrossRef] [PubMed]
  36. Chen, G.Q.; Feng, J.T.; Ma, Z.Q.; Zhang, X. Fumigation effect and symptom of terpinen-4-ol against several insects. J. Northwest Sci.-Tech. Univ. Agric. For. 2004, 32, 50–52. [Google Scholar]
  37. Obeng-Ofori, D.; Reichmuth, C.H. Bioactivity of eugenol, a major component of essential oil of Ocimum suave (Wild.) against four species of stored-product Coleoptera. Int. J. Pest Manag. 1997, 43, 89–94. [Google Scholar] [CrossRef]
  38. Obeng-Ofori, D.; Reichmuth, C.H.; Bekele, J.; Hassanali, A. Biological activity of 1,8-cineole, a major component of essential oil of Ocimum kenyense (Ayobangira) against stored product beetles. J. Appl. Entomol. 1997, 121, 237–243. [Google Scholar] [CrossRef]
  39. Huang, Y.; Ho, S.H.; Lee, H.C.; Yap, Y.L. Insecticidal properties of eugenol, isoeugenol and methyleugenol and their effects on nutrition of Sitophilus zeamais Motsch. (Coleoptera: Curculionidae) and Tribolium castaneum (Herbst) (Coleoptera: Tenebrionidae). J. Stored Prod. Res. 2002, 38, 403–412. [Google Scholar] [CrossRef]
  40. Nerio, L.S.; Olivero-Verbel, J.; Stashenko, E. Repellent activity of essential oils: A review. Bioresour. Technol. 2010, 101, 372–378. [Google Scholar] [CrossRef] [PubMed]
  41. Omolo, M.O.; Okinyo, D.; Ndiege, I.O.; Lwande, W.; Hassanali, A. Repellency of essential oils of some Kenyan plants against Anopheles gambiae. Phytochemistry 2004, 65, 2797–2802. [Google Scholar] [CrossRef] [PubMed]
  42. Zuccarini, P. Camphor: Risks and benefits of a widely used natural product. J. Appl. Sci. Environ. Manag. 2009, 53, 69–74. [Google Scholar] [CrossRef]
  43. Api, A.M.; Belsito, D.; Bhatia, S.; Bruze, M.; Calow, P.; Dagli, M.L.; Dekant, W.; Fryer, A.D.; Kromidas, L.; Cava, S.L.; et al. RIFM fragrance ingredient safety assessment, Linalool, CAS registry number 78-70-6. Food Chem. Toxicol. 2015, 82, S29–S38. [Google Scholar] [CrossRef] [PubMed]
  44. IFRA (International Fragrance Association). Volume of Use Survey; IFRA: Geneva, Switzerland, February 2011. [Google Scholar]
  45. Guidechem. Cineole 99% Material Safety Data Sheet. Available online: (accessed on 3 November 2016).
  46. Regnault-Roger, C.; Vincent, C.; Arnason, J.T. Essential oils in insect control: Low-risk products in a high-stakes world. Annu. Rev. Entomol. 2012, 57, 405–424. [Google Scholar] [CrossRef] [PubMed]
  47. Adams, R.P. Identification of Essential Oil Components by Gas Chromatography/Quadrupole Mass Spectroscopy; Allured: Carol Stream, IL, USA, 2001. [Google Scholar]
  48. Sakuma, M. Probit analysis of preference data. Appl. Entomol. Zool. 1998, 33, 339–347. [Google Scholar]
Table 1. Constituents identified from the essential oils of barks (EB), leaves (EL), and fruits (EF) of Cinnamomum camphora.
Table 1. Constituents identified from the essential oils of barks (EB), leaves (EL), and fruits (EF) of Cinnamomum camphora.
No.RI 1CompoundsPeak Area (%)Identified Method 3
1927Artemesia triene1.0 MS; RI
2939α-Pinene 2.1 MS; RI
3952Camphene 1.00.2MS; RI
49672-Thujene 2.00.2MS; RI
5977Sabenene 1.8 MS; RI
6979β-Pinene0.3 MS; RI
71005α-Phellandrene 0.42.6MS; RI
81011p-Mentha-2,4(8)-diene 0.40.3MS; RI
910143-Carene 0.5MS; RI
1010184-Carene0.2 MS; RI
111022o-Cymene 2.7MS; RI
121025m-Cymene 0.4 MS; RI
1310321,8-Cineole4.311.35.3MS; RI
141051α-trans-Ocimene 0.10.2MS; RI
1510552,2-Dimethylheptane 0.1 MS; RI
161056γ-Terpinen0.3 MS; RI
1710572,2,5-Trimethylhexane-3,4-dione 0.1 MS; RI
1810614,7-Dimethyl-4,4a,5,6-tetrahydrocyclopenta[c]pyran-1,3-dione 0.3 MS; RI
1910672,5,9-Trimethyldecane 0.1 MS; RI
201075Isoterpinolene0.4 MS; RI
211083Linalool 22.912.8MS; RI
221096Undecane0.2 MS; RI
2311041-Methyl-5-(1-methylvinyl)cyclohexene1.6 MS
2411081,3,8-p-Menthatriene1.1 MS; RI
2511307,7-Dimethyl-2-methylenenorbornane0.50.10.3MS; RI
261146D-Camphor51.340.528.1MS; RI
271180Terpinen-4-ol2.0 MS; RI
281182endo-Borneol 0.2 MS; RI
291193α-Terpineol3.8 MS; RI
301197p-Menth-1-en-4-ol 1.10.7MS; RI
311214p-Menth-1-en-8-ol 2.31.7MS; RI
321281B-Terpinyl acetate 1.3MS; RI
331287Safrole 29.0MS; RI
341354Elixene 0.3 MS; RI
351356Eugenol2.1 MS; RI
361379Dihydro-cis-α-copaene-8-ol1.40.60.4MS; RI
371382α-Bourbonene0.20.1 MS; RI
3814011,5-Dimethyl-8-isopropenyl-1,5-cyclodeca-diene 0.2 MS; RI
391420Caryophyllene 2.2 MS; RI
401435Bergamotene0.3 MS; RI
411439Aromadendrene0.9 MS; RI
421441γ-Patchoulene0.3 0.2MS; RI
431458γ-Elemene 1.0 MS; RI
441466α-Cubebene1.3 MS; RI
451474Germacrene D 0.9 MS; RI
461478α-Caryophyllene0.50.2 MS; RI
471485β-Selinene0.4 MS; RI
4814891,2,3,4,6,8alpha-Hexahydro-1-isopropyl-4,7-dimethylnaphthalene0.2 MS; RI
491520β-Cadinene2.0 MS; RI
501543α-Calacorene0.2 MS; RI
5115783,5-Dimethyl-4-octanone 0.1 MS; RI
521596Cadina-1(10),4-diene 0.1 MS; RI
5316343,7,11-Trimethyl-3-hydroxy-6,10-dodecadien-1-yl acetate 4.5 MS; RI
541672Oxalic acid,di(1-menthyl) ester 0.4 MS; RI
5516911,3,3-Trimethyl-2-hydroxymethyl-3,3-dimethyl-4-(3-methylbut-2-enyl)-cyclohexene2.80.1 MS; RI
5617993-Methyl-2-butenoic acid, oct-3-en-2-yl ester3.1 MS
1 Retention index (RI) relative to the homologous series of n-hexane on the HP-5 MS capillary column; 2 The results in our previous work [18]; 3 MS = mass spectrum.
Table 2. Fumigant toxicity of essential oils and individual compounds against T. castaneum (TC) and L. serricorne (LS) adults at 24 h.
Table 2. Fumigant toxicity of essential oils and individual compounds against T. castaneum (TC) and L. serricorne (LS) adults at 24 h.
InsectsSamples 5LC50 (mg/L Air)95% FLSlope ± SEChi-Squaredf
TCEB<3.2 (mortality 100% ± 0%)---23
EL<3.1 (mortality 100% ± 0%)---23
EF8.57.8–9.59.2 ± 0.112.923
D-Camphor<2.3 (mortality 87% ± 5%)---23
Linalool12.711.6–13.95.1± 0.518.423
Safrole 138.335.1–41.6-14.9-
1,8-Cineole5.54.7–6.24.0 ± 0.525.323
MeBr 21.7----
LSEB3.02.7–3.42.5 ± 0.45.523
EL 32.52.2–2.93.6 ± 0.414.423
EF<3.3 (mortality 100% ± 0%)--23
D-Camphor 32.41.9–2.72.7 ± 0.314.323
Linalool 318.012.3–22.71.8 ± 0.416.323
1,8-Cineole5.24.6–5.74.0 ± 0.516.723
α-Terpineol3.33.2–3.412.1 ± 1.519.123
Phosphine 49.23 × 10−37.13 × 10−3–11.37 × 10−32.1 ± 0.312.023
1 Date from [21]; 2 Date from [22]; 3 Date from [18]; 4 Date from [23]; 5 The mortality of the negative control was 0 for the two insects.
Table 3. Contact toxicity of essential oils and individual compounds against T. castaneum (TC) and L. serricorne (LS) adults at 24 h.
Table 3. Contact toxicity of essential oils and individual compounds against T. castaneum (TC) and L. serricorne (LS) adults at 24 h.
InsectsSamples 5LD50 (µg/Adult)95% FLSlope ± SEChi-Squaredf
TCEB>50.0 (mortality 28% ± 8%)---23
EL>50.0 (mortality 38% ± 8%)---23
EF19.017.4–20.85.5 ± 0.711.323
D-Camphor>50.0 (mortality 24% ± 5%)---23
Linalool37.331.9–42.33.3 ± 0.413.623
Safrole 14.74.0-5.2-10.4-
1,8-Cineole18.817.1–20.75.0 ± 0.516.623
α-Terpineol>50.0 (mortality 26% ± 5%)---23
Pyrethrins 20.30.2–0.3-13.123
LSEB7.64.5–9.72.5 ± 0.46.523
EL 321.319.1–23.64.2 ± 0.411.323
EF10.17.2–12.42.5 ± 0.46.723
D-Camphor13.410.4–16.11.5 ± 0.315.423
Linalool12.711.3–14.24.9 ± 0.613.123
Safrole 414.612.3–16.92.4 ± 0.312.923
1,8-Cineole15.612.9–18.03.0 ± 0.615.223
α-Terpineol12.010.4–13.43.1 ± 0.419.023
Pyrethrins 20.20.2–0.41.3 ± 0.217.423
1 Date from [24]; 2 Date from [23]; 3 Date from [18]; 4 Date from [21]; 5 The mortality of the negative control was 0 for the two insects.
