Int. J. Mol. Sci. 2015, 16(11), 26280-26290; https://doi.org/10.3390/ijms161125960

Article
Genotoxicity of Superparamagnetic Iron Oxide Nanoparticles in Granulosa Cells
1
Department of Otorhinolaryngology, Head and Neck Surgery, Section for Experimental Oncology and Nanomedicine (SEON), Else Kröner-Fresenius-Stiftung Professorship, University Hospital Erlangen, Glückstraße 10a, Erlangen 91054, Germany
2
Department of Obstetrics and Gynecology, Ludwig Maximilians University of Munich, Maistraße 11, Munich 80337, Germany
*
Author to whom correspondence should be addressed.
Academic Editor: Yuping Bao
Received: 31 August 2015 / Accepted: 15 October 2015 / Published: 3 November 2015

Abstract

:
Nanoparticles that are aimed at targeting cancer cells, but sparing healthy tissue provide an attractive platform of implementation for hyperthermia or as carriers of chemotherapeutics. According to the literature, diverse effects of nanoparticles relating to mammalian reproductive tissue are described. To address the impact of nanoparticles on cyto- and genotoxicity concerning the reproductive system, we examined the effect of superparamagnetic iron oxide nanoparticles (SPIONs) on granulosa cells, which are very important for ovarian function and female fertility. Human granulosa cells (HLG-5) were treated with SPIONs, either coated with lauric acid (SEONLA) only, or additionally with a protein corona of bovine serum albumin (BSA; SEONLA-BSA), or with dextran (SEONDEX). Both micronuclei testing and the detection of γH2A.X revealed no genotoxic effects of SEONLA-BSA, SEONDEX or SEONLA. Thus, it was demonstrated that different coatings of SPIONs improve biocompatibility, especially in terms of genotoxicity towards cells of the reproductive system.
Keywords:
superparamagnetic iron oxide nanoparticles; protein corona; cancer therapy and diagnosis; reproductive health; granulosa cells

1. Introduction

Superparamagnetic iron oxide nanoparticles (SPIONs) have been widely investigated for many years now. Due to their exceptional magnetic, electronic and optical properties, they have turned out to be promising candidates for research and future use in an industrial or clinical setting. Especially for medical and scientific applications ranging from in vitro diagnostic tests, in vivo imaging, targeted drug delivery and tissue regeneration, SPIONs are capable candidates.
In particular, SPION-based contrast enhancement in magnetic resonance imaging (MRI) [1], magnetic hyperthermia treatment [2] and magnetic drug targeting (MDT) [3,4] are of special interest in the therapy and diagnosis of cancer and other diseases [3,5]. Their incorporation into therapeutic drugs and their parallel use in imaging processes enables SPIONs to become “theranostic” agents. Additionally, the use of SPIONs in magnetic tissue engineering is a new concept in biomedicine [6].
SPIONs usually consist of iron oxide cores measuring 5–20 nm in diameter made of magnetite (Fe3O4) and its oxidized form maghemite (γ-Fe2O3). To increase their colloidal stability and biocompatibility, these iron oxide cores are coated with, e.g., long-chain fatty acids [7] or biocompatible polymers as chitosan or dextran [8]. Commercially accessible contrast agents like Sinerem, Resovist, Supravist and Ferridex have a surface coating of dextran or carboxydextran [9]. The formation of a surrounding protein corona also contributes to the stabilization and biocompatibility of iron oxide nanoparticles [10].
Because of the highly catalytic properties of nanoparticle surfaces [11,12], their coating may work as a barrier and could reduce their toxic potential. Especially for iron oxide nanoparticles, Fenton-like reactions caused by released iron ions [13] or on the nanoparticle surface have been under discussion as triggering toxic effects [14]. Here, hydroxyl radicals are generated which are highly reactive and react with almost all cellular macromolecules such as lipids, proteins, and carbohydrates. Since nanotoxicity has been identified as being a tiered process starting with oxidative stress, the oxidation of cellular components may finally result in cell death [12]. It is an important fact that oxidative stress has also been identified as causing DNA damage such as abasic DNA sites, oxidized bases along with single and double strand DNA breaks [15].
For the future translation of SPIONs from bench to bedside, it is crucial to evaluate their biocompatibility and exclude potential toxic effects. Only few studies have focused to date on the effect of nanoparticles on reproductive cells. Since iron oxide nanoparticles have previously been shown to cross the placenta and accumulate in the fetus [16], applied medical nanoparticles must be absolutely biocompatible and safe. Here, granulosa cells are used as a model system for female reproductive tissue. These cells play a key role in sustaining ovarian function, health and female fertility and, are thus closely associated with the development of the female gamete. In this study, we compare the effect of SPIONs which were coated with different surface moieties. The first two systems, SEONLA and SEONLA-BSA derive from the same coprecipitation synthesis where the particles are stabilized in situ by a double layer of lauric acid [17]. The difference is that SEONLA-BSA is additionally coated with a BSA shell, which greatly improves colloidal stability, influences biocompatibility and enhances its capacity for drug loading. In a recent, detailed study, we comprehensively characterized the properties of these two systems [10]. The third system is synthesized also by coprecipitation, but a different surface coating strategy was chosen: SEONDEX particles are directly precipitated in dextran containing iron solution. This enables narrow core size distribution and high colloidal stability by steric stabilization. These particles have also been comprehensively characterized earlier [18]. As an important aspect, we demonstrated that the appropriate coating of iron oxide nanoparticles ensures their biocompatibility.

2. Results and Discussion

2.1. Uptake of Iron Oxide Nanoparticles by Granulosa Cells

Nanoparticle-induced toxicity is highly correlated with cellular uptake. Therefore, we measured the cellular iron content on equal terms as in toxicity tests. Granulosa cells were incubated for 48 h with three different superparamagnetic iron oxide nanoparticles: SEONLA (coated with lauric acid only), SEONLA-BSA (coated with lauric acid and albumin) and SEONDEX (coated with dextran). After incubation, the cells were washed and the amount of iron was subsequently analyzed from cell lysates by microwave plasma atomic emission spectroscopy (MP-AES). Evaluation of cellular iron content indicated that SEONLA were effectively taken up by cells, whereas SEONLA-BSA were only weakly taken up and SEONDEX not at all (Figure 1). These results are in concordance with previous investigations on uptake of SEON nanoparticles by primary human umbilical vein endothelial cells (HUVEC) and by T-cells (Jurkat) [19,20]. Other groups also showed that cellular uptake efficiency of iron oxide nanoparticles is dependent on surface coating and the protein corona [21,22]. To sum up, the presence of a pre-formed albumin protein corona (SEONLA-BSA) reduces cellular uptake of the SEON particles remarkably compared to particles stabilized only by a lauric acid layer (SEONLA).

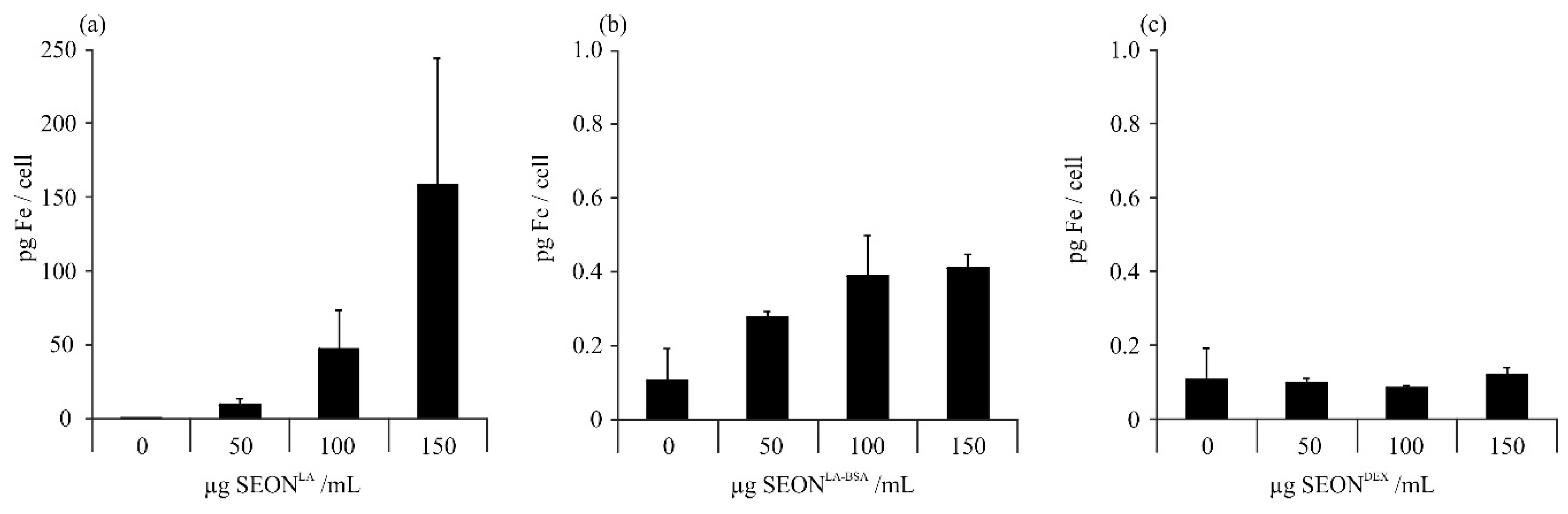

Figure 1. Uptake of SPIONs by HLG-5 cells. Cells were incubated with 50, 100 or 150 μg/mL of (a) SEONLA; (b) SEONLA-BSA; or (c) SEONDEX for 48 h. The cellular iron content was analyzed from cell lysates by microwave plasma atomic emission spectroscopy (MP-AES). The mean values of n = 3 with standard deviations are shown.
Figure 1. Uptake of SPIONs by HLG-5 cells. Cells were incubated with 50, 100 or 150 μg/mL of (a) SEONLA; (b) SEONLA-BSA; or (c) SEONDEX for 48 h. The cellular iron content was analyzed from cell lysates by microwave plasma atomic emission spectroscopy (MP-AES). The mean values of n = 3 with standard deviations are shown.
Ijms 16 25960 g001

2.2. Viability of Granulosa Cells after Incubation with SPION

Viability of HLG-5 granulosa cells was determined using flow cytometry. The cells were stained for phosphatidylserine exposure using Annexin V-Fitc (AxV) and plasma membrane integrity using propidium iodide (PI). AxV/PI data were confirmed by staining for mitochondrial membrane potential using DiIC1(5) (data not shown) according to Munoz et al. [23]. AxV/PI staining showed that SEONLA-BSA and SEONDEX did not induce any cytotoxicity up to a tested concentration of 150 μg/mL, whereas SEONLA induced cell death starting at 100 μg/mL (Figure 2). The rate of necrotic cells increased in a dose-dependent manner in SEONLA-treated cells.
Figure 2. Cell death induction in HLG-5 cells. Cells were incubated with 50, 100, 150 μg/mL SPIONs for 48 h. Etoposide-treated cells served as positive control; mock treated cells served as negative control. Cell viability was determined by AnnexinV-Fitc/propidium iodide (AxV/PI) staining. AxV-/PI- cells are considered viable, AxV+/PI- are apoptotic, and PI+ cells are necrotic. The mean values of n = 3 with standard deviations are shown.
Figure 2. Cell death induction in HLG-5 cells. Cells were incubated with 50, 100, 150 μg/mL SPIONs for 48 h. Etoposide-treated cells served as positive control; mock treated cells served as negative control. Cell viability was determined by AnnexinV-Fitc/propidium iodide (AxV/PI) staining. AxV-/PI- cells are considered viable, AxV+/PI- are apoptotic, and PI+ cells are necrotic. The mean values of n = 3 with standard deviations are shown.
Ijms 16 25960 g002
As granulosa cells do not only protect the oocyte physically, but are furthermore very important for development, toxic effects of nanoparticles on these cells might be accompanied by reduced fertility or congenital defects. Although only few studies have focused on the effect of nanoparticles on reproductive cells to date, it has been demonstrated so far that magnetic nanoparticles do not affect functionality [24], whereas ZnO and TiO2 nanoparticles may have toxic effects on male gametes depending on their concentration and composition, and can affect sperm cell functionality [25]. Concerning female gametes, quantum dots have proved to be cytotoxic, consequently negatively influencing oocyte maturation and fertilization [26].

2.3. Micronuclei Formation in Granulosa Cells after Incubation with SPION

Micronuclei tests are used in toxicological screening to identify genotoxic substances according to OECD guidelines. Micronuclei are small cytoplasmic bodies formed in anaphase of mitosis or meiosis. They contain pieces of chromosomes, resulting in a lack of DNA information in one daughter cell. In microscopy, they can be recognized as small nuclei separate from the main nucleus and are enclosed in their own nuclear membrane. An augmented frequency of micronuclei serves as a biomarker for genotoxicity [27,28].
Because of their small size some nanoparticles can easily penetrate through membranes directly to the nucleus. Here, they can interact with the DNA and thus being a potential genotoxic hazard [29]. Different concentrations (as indicated) of iron oxide nanoparticles SEONLA-BSA, SEONDEX and SEONLA were incubated with granulosa cells and analyzed for micronuclei formation after 48 h (Figure 3 and Figure 4) and 72 h (data not shown) using flow cytometry and fluorescence microscopy. Flow cytometry analysis revealed no remarkable difference in the micronuclei number of SEONDEX and SEONLA-BSA treated cells as compared to the untreated control (Figure 3). Whereas, for SEONLA induction of micronuclei was 0.12-fold higher on average compared to control. This was confirmed via fluorescence microscopy (Figure 4). Vinblastine, which causes M phase specific cell cycle arrest by disrupting microtubule association (not shown), and the topoisomerase IIα inhibitor etoposide were used as positive controls to induce micronuclei formation. So far, it is not clear whether cytotoxicity caused by high concentrations of SEONLA is a secondary effect of DNA damage and will have to be further investigated.

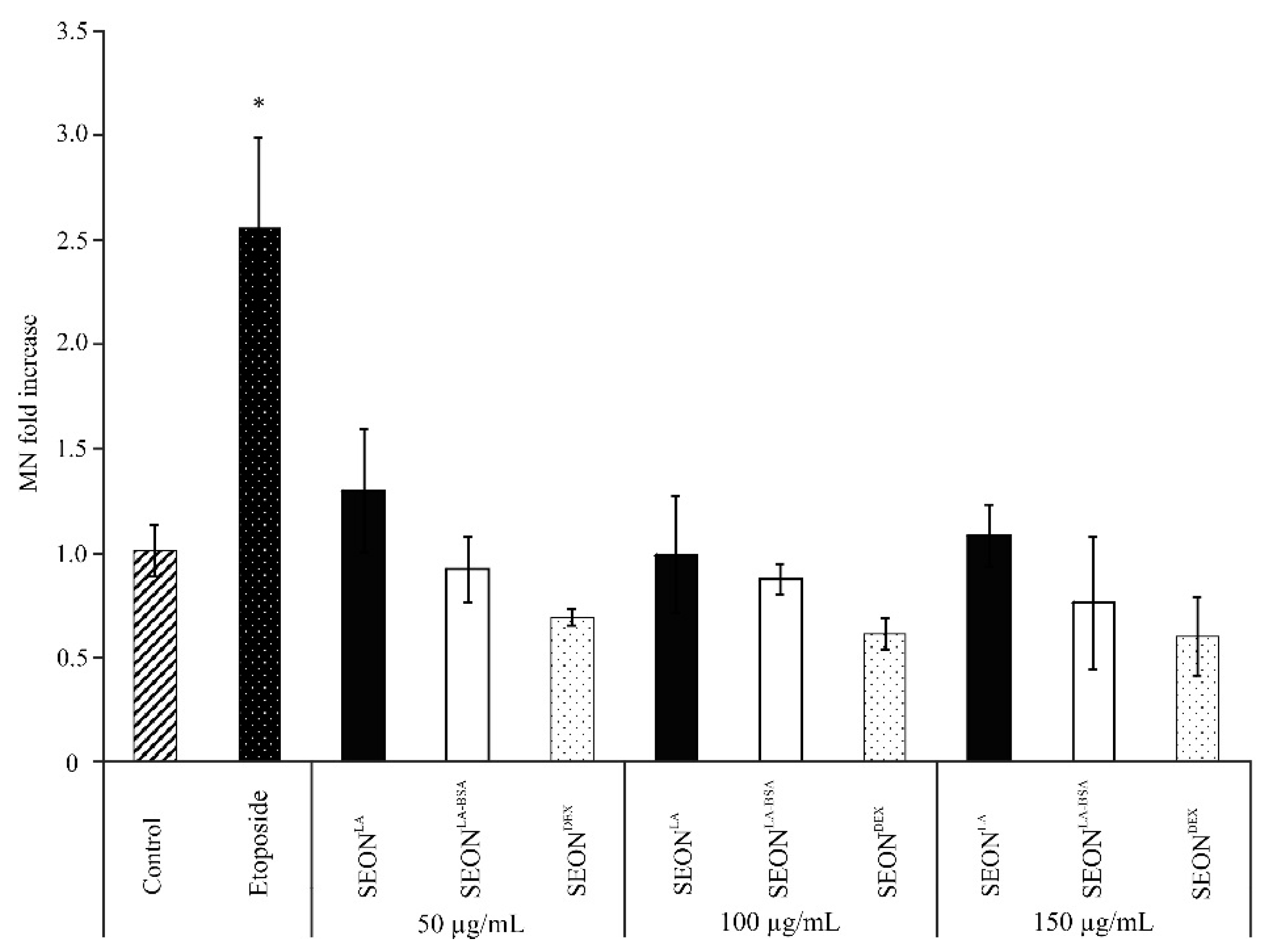

Figure 3. Flow cytometry of micronuclei in HLG-5 cells. Cells were treated with 50, 100 or 150 μg/mL iron oxide nanoparticles. Etoposide-treated cells served as positive control; mock treated cells served as negative control. After 48 h flow cytometry analysis using ethidium monoazide (EMA)/SYTOX green staining revealed no increase in micronuclei induction for SEONLA-BSA and SEONDEX compared to the control (* p < 0.01, n = 3).
Figure 3. Flow cytometry of micronuclei in HLG-5 cells. Cells were treated with 50, 100 or 150 μg/mL iron oxide nanoparticles. Etoposide-treated cells served as positive control; mock treated cells served as negative control. After 48 h flow cytometry analysis using ethidium monoazide (EMA)/SYTOX green staining revealed no increase in micronuclei induction for SEONLA-BSA and SEONDEX compared to the control (* p < 0.01, n = 3).
Ijms 16 25960 g003
Figure 4. Fluorescence microscopy of micronuclei in HLG-5 cells. HLG-5 cells were treated for 48 h with 50, 100 and 150 μg/mL SEONLA, SEONLA-BSA and SEONDEX, then DNA was stained with SYTOX green; SEONLA-BSA and SEONDEX showed no effect on cell morphology, whereas SEONLA-treated cells appeared unhealthy compared to control. Many micronuclei can be recognized in etoposide-treated cells; (scale bars = 20 μm, representative pictures are displayed; n = 3).
Figure 4. Fluorescence microscopy of micronuclei in HLG-5 cells. HLG-5 cells were treated for 48 h with 50, 100 and 150 μg/mL SEONLA, SEONLA-BSA and SEONDEX, then DNA was stained with SYTOX green; SEONLA-BSA and SEONDEX showed no effect on cell morphology, whereas SEONLA-treated cells appeared unhealthy compared to control. Many micronuclei can be recognized in etoposide-treated cells; (scale bars = 20 μm, representative pictures are displayed; n = 3).
Ijms 16 25960 g004

2.4. DNA Damage in Granulosa Cells after Incubation with SPION

Since micronuclei formation can be caused by DNA double strand breaks, this was evaluated by detection of phosphorylated H2A.X (Ser139) and ATM (Ser1981). The topoisomerase IIα inhibitor etoposide is a very effective inductor of DNA double strand breaks, and brings cells into G2/M phase cell cycle arrest [30]. Following DNA double strand breaks, cell cycle checkpoint arrest and DNA repair requires phosphorylation of histone H2A.X at serine 139 by kinases such as ataxia telangiectasia mutated (ATM). Therefore, the phosphorylation of H2A.X (γ-H2A.X) and ATM (pATM) is an important indicator of DNA damage [31].
Treatment of granulosa cells for 48 h with SEONLA , SEONLA-BSA and SEONDEX did not lead to phosphorylation of H2A.X or ATM compared to control cells, here summarized as “DNA damage” (Figure 5). This was also verified by western blot analysis (data not shown).
Different sources of DNA damage (exogen, endogen, mechanical) can cause a variety of DNA lesions and can thus induce various cellular reactions including cell cycle arrest, apoptosis and notably, DNA repair. DNA double strand breaks are supposed to be the furthermost disastrous forms of DNA destruction, conceding genomic stability. Therefore, it is very important to ensure nanoparticles safety upon DNA damage [32].

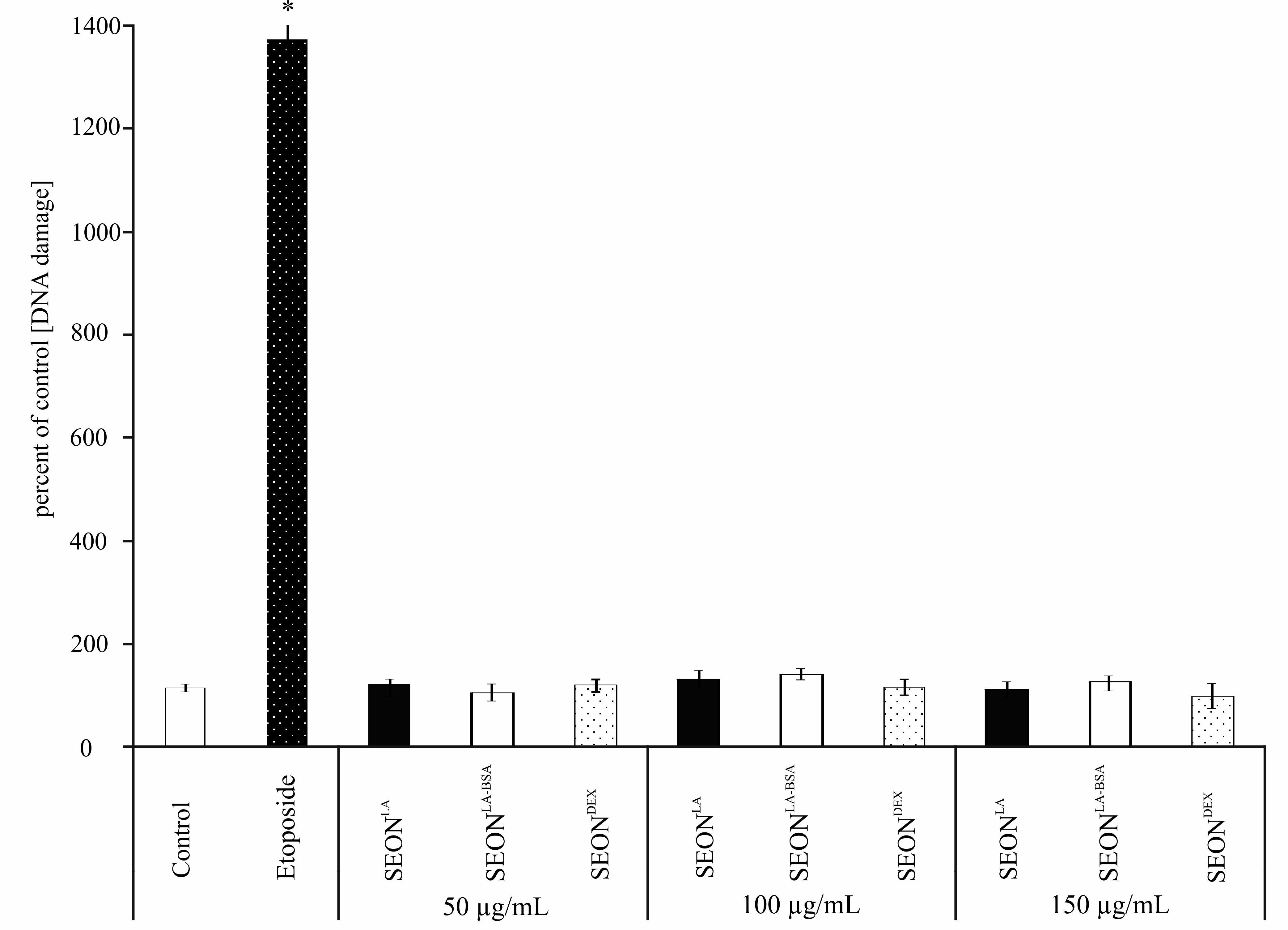

Figure 5. DNA damage (phosphorylation of H.2AX and ATM) in HLG-5 cells. Cells were incubated for 48 h with 50, 100 and 150 μg/mL SEONLA, SEONLA-BSA and SEONDEX. Mock treated cells served as negative controls; etoposide-treated cells served as positive controls (* p < 0.01, n = 3).
Figure 5. DNA damage (phosphorylation of H.2AX and ATM) in HLG-5 cells. Cells were incubated for 48 h with 50, 100 and 150 μg/mL SEONLA, SEONLA-BSA and SEONDEX. Mock treated cells served as negative controls; etoposide-treated cells served as positive controls (* p < 0.01, n = 3).
Ijms 16 25960 g005

3. Experimental Section

3.1. Nanoparticles

All iron oxide nanoparticles used were comprehensively physico-chemically characterized previously by Zaloga et al., and Unterweger et al. [10,18]. Briefly, superparamagnetic iron oxide nanoparticles (SPIONs) were synthetized by co-precipitation in aqueous media (core size 7.64 ± 1.6 nm) and subsequent in-situ coating with lauric acid (LA), resulting in SEONLA to form a stable colloid. They were then additionally coated with bovine serum albumin (BSA) by dilution in excess protein solution and following removal of the unbound protein by ultrafiltration, resulting in SEONLA-BSA [10,33]. Upon formation of a BSA protein corona the ζ potential decreased drastically, indicating the high stability of aqueous dispersions of SEONLA-BSA. As expected, the surface charge of the SEONLA-BSA particles was pH dependent, with the point of zero charge being just below pH 5 which is very consistent with the isoelectric point of BSA [10].
For the synthesis of SEONDEX, SPIONs were covered with dextran, the suspension was ultrafiltrated, and particle-bound dextran finally crosslinked [18]. In SEONDEX particles (core size 4.3 ± 0.9 nm) the dextran content during coprecipitation had an influence on the ζ potential. Formation of a stable colloid was first achieved with 2.0 g of dextran with a ζ potential of −2.0 ± 0.6 nm. SEONDEX show an agglomeration of roundish magnetite particles embedded in a polymer matrix.
Synthesized SPIONs have a spherical morphology; Table 1 provides a summary of the basic physico-chemical nanoparticle characteristics.
Table 1. Basic physico-chemical properties of SEONLA, SEONLA-BSA and SEONDEX [10,18].
Table 1. Basic physico-chemical properties of SEONLA, SEONLA-BSA and SEONDEX [10,18].
Physico-Chemical Properties of NanoparticlesSEONLASEONLA-BSASEONDEX
Core diameter (TEM) (nm) in H2O7.64 ± 1.67.64 ± 1.64.3 ± 0.9
Hydrodynamic diameter (DLS) (nm) in RPMI46.92 ± 0.161.7 ± 1.179 ± 1.3
ζ potential (mV) in RPMI−15.5 ± 0.8−12.9 ± 0.55−2.0 ± 0.6
Polydispersity index in RPMI0.331 ± 0.0190.346 ± 0.0280.304 ± 0.031

3.2. Cell Culture

Briefly, human luteinized granulosa cells, HLG-5 were collected from infertile women undergoing In Vitro Fertilization (IVF) pre-embryo transfer treatment [34]. These cells duplicate every 48 h and were maintained in DMEM complemented with 10% fetal calf serum (FCS) (both Biochrom, Berlin, Germany) under standard cell culture conditions in a humidified incubator (INCOmed, Memmert, Schwabach, Germany) at 37 °C and 5% CO2. The cells were verified to be free of mycoplasma. For the experiments, the cells were grown to a confluence of 75% and passaged twice a week using 0.25% trypsin/0.02% EDTA in PBS (PAN Biotech, Aidenbach, Germany).

3.3. Live/Dead Staining Using Flow Cytometry

HLG-5 cells were seeded at a concentration of 2 × 105 cells/ mL in 24 well plates. SEON nanoparticles (50, 100 and 150 μg/mL) were added in 0.5 mL; mock treated cells served as controls. After 24, 48, and 72 h the cells were trypsinized and resuspended in 1 mL DMEM. Fifty μL of cell solution was incubated with 250 μL of freshly prepared staining solution, containing 1 μg/mL Annexin V-Fitc (AxV-Fitc), 1 μg/mL Hoechst 33342 (Hoe), 5.1 μg/mL DiIC1(5) (Dil) (all from Life Technologies, Darmstadt, Germany) and, 20 μg/mL propidium iodide ((PI), Sigma Aldrich, Taufkirchen, Germany) in Ringer’s solution (Baxter Healthcare SA, Zurich, Switzerland) for 20 min at 4 °C [23].

3.4. Micronuclei Test

For immunofluorescence staining the culture medium was withdrawn. After a washing step with PBS (Sigma-Aldrich, St. Louis, MO, USA) and fixation with 3.7% formaldehyde (AppliChem, Darmstadt, Germay) for 30 min, cells were permeabilized for 10 min with 0.5% Triton X-100 (Sigma-Aldrich Chemie GmbH, Steinheim, Germany). Afterwards cells were incubated 30 min with RNase (10 mg/mL, Sigma-Aldrich). Staining of the nuclei was achieved with SYTOX green® for 20 min (1 μM, Life Technologies, Eugene, OR, USA). Once one step was finished, slides were washed with PBS. Mounting medium was used to mount coverslips on glass slides (Dako North America, Inc., Carpinteria, CA, USA). The examination was made with a fluorescent microscope Axio Observer Z.1 with an ApoTome (Zeiss, Jena, Germany). Counting and recording of the micronuclei was performed as stated by Tolbert et al. [35], with some alterations. Micronuclei are defined as: sphere-shaped forms with a diameter of 1/3 to 1/20 of the central nucleus, micronuclei have to be in the same focus as the nucleus, they should be completely disconnected from the main nucleus and appear with a related shape of chromatin. For each sample set, 3000 cells were scored.
For flow cytometry analysis cells were trypsinized and centrifuged at 600 g for 5 min; supernatant was discarded and cells were resuspended via moderate tapping. After adding 200 μL PBS with 2% heat-inactivated fetal bovine serum (FBS), the cells were transferred into tubes containing 100 μL nucleic acid staining solution (125 mg/mL Ethidium monoazide in PBS with 2% FBS); (EMA, Molecular Probes by Life Technologies). The tubes were cooled in an ice box and photoactiviation was performed with a light source (60 W light bulb, Osram, Munich, Germany) for 20 min and with 30 cm distance to the tubes. Following photoactivation, 800 μL of PBS with 2% FBS was supplemented and samples were transferred into 15 mL tubes with 8 mL PBS with 2% FBS. From this point samples were protected from light. After centrifugation at 600 g for 5 min, the supernatant was discharged. The cells were resuspended by moderate tapping. 1 mL lysis solution 1 (deionized water, 0.584 mg/mL NaCl, 1 mg/mL sodium citrate, 0.3 μL/mL IGEPAL (Sigma-Aldrich), 1 mg/mL RNase and 0.2 μM SYTOX green® was added slowly, the tubes were immediately vortexed for 5 s and were set aside for 1 h at room temperature. Then lysis solution 2 (deionized water, 85.6 mg/mL sucrose, 15 mg/mL citric acid, and 0.2 μM SYTOX green®) was added quickly, followed by vortexing and kept at room temperature for another 30 min. Tubes were kept at 4 °C until flow cytometric examination [36]. Tests for statistical significance were carried out using the Student’s t-test in MS-Excel (Microsoft Corporation, Redmond, WA, USA).

3.5. DNA Damage Detection

HLG-5 cells were seeded at a concentration of 2 × 105 cells/ mL in 12 well plates (TPP Techno Plastic Products, Trasadingen, Switzerland). After 24 h, different SEON nanoparticles (50, 100 and 150 μg/mL) or 10 μM positive control (etoposide) were added in 1 mL; mock treated cells served as controls. After 48 h and 72 h (data not shown) DNA double strand breaks were detected using Muse™ Multi-Color DNA Damage Kit (Merck Millipore, Darmstadt, Germany) [37] by staining 1 × 105 cells of each sample with anti-phospho-Histone H2A.X (Ser139) and anti-phospho-ATM (Ser1981) antibodies. Samples were acquired on the Muse™ Cell Analyzer (Merck Millipore). Tests for statistical significance were carried out using the Student’s t-test in MS-Excel (Microsoft Corporation).

3.6. Flow Cytometry

Flow cytometry was performed via a Gallios cytofluorometer (Beckman Coulter, Pasadena, CA, USA). Electronic compensation was used to eliminate bleed over fluorescence. The data examination was done with Kaluza software, version 1.2 (Beckman Coulter). All flow cytometry experiments were conducted in triplicate, and the results were averaged.

3.7. Microwave Plasma–Atomic Emission Spectrometer (MP-AES)

For determination of absolute cellular iron content, 2 × 106 cells were incubated with 150 μg/mL nanoparticles. After 48 h the cells were washed, cell lysates were prepared from 1 × 106 cells and analyzed via Microwave Plasma–Atomic Emission Spectrometer, MP-AES 4200 (Agilent, Santa Clara, CA, USA). The entire iron level was ascertained at an emission wavelength of 371.993 nm. For calibration external standards of iron at concentrations reaching from 0.01 to 2.5 μg/mL were utilized [38].

4. Conclusions

Little is known about the effects of nanoparticles on reproductive tissue and reproductively relevant cells. Gametes and the embryo are rather vulnerable and are therefore located in a more protected environment, but nanoparticles are most likely to cross these barriers, depending on composition, size and/or coating [39,40]. As nanoparticles are already being used in clinics or in clinical studies, they will be part of future medical applications, especially in diagnosis and therapy. Hence, it is of greatest significance to ensure the safety also of reproductive tissue. According to their field of application, e.g., contrast agents for diagnosis or as carriers of therapeutics in Magnetic Drug Targeting (MDT), these particles are coated with different materials. As we found no uptake of SEONDEX particularly in granulosa cells, they are considered to be suitable as contrast agents for magnetic resonance imaging (MRI), because they will most likely remain longer within the blood circulation. On the other hand, SEONLA-BSA with very low toxicity and low uptake can be used for MDT in cancer or atherosclerosis therapy. In this study we demonstrated, that coating of iron oxide nanoparticles is essential to ensure biocompatibility. Future studies are urgently needed to guarantee the safe design of nanoparticles, especially for cells within reproductive tissues.

Acknowledgments

This work was supported by the Bavarian State Ministry of the Environment and Consumer Protection (Germany), and by the Cluster of Excellence Engineering of Advanced Materials (EAM, Germany). We would also like to acknowledge Roman Pavlik for gaining access to the granulosa cells.

Author Contributions

Marina Pöttler, Christina Janko and Christoph Alexiou wrote the manuscript; Marina Pöttler and Andreas Staicu mainly performed the experiments; Jan Zaloga synthesized and characterized the SEONLA and SEONLA-BSA; Harald Unterweger synthesized and characterized the SEONDEX; Bianca Weigel accomplished cell culture; Eveline Schreiber performed MP-AES and Simone Hofmann, Irmi Wiest and Udo Jeschke were responsible for HLG-5 upbringing and organization.

Conflicts of Interest

The authors declare no conflict of interest.
