Vacancy Engineering of Selenium-Vacant NiCo2Se4 with Enhanced Electrochemical Performance for Supercapacitor

by
Jianjian Fu
1,2,
Lei Li
3,*,
Qian Xue
1,
Lindong Li
4,
Zhiying Guo
4,
Lanxiang Meng
1,
Changwei Lai
1 and
Yao Guo
1,*
1
Henan Joint International Research Laboratory of Nanocomposite Sensing Materials, School of Materials Science and Engineering, Anyang Institute of Technology, Anyang 455000, China
2
Key Laboratory for Special Functional Materials of Ministry of Education, Henan University, Kaifeng 475004, China
3
School of Physics and Electrical Engineering, Anyang Normal University, Anyang 455000, China
4
School of Chemical and Environmental Engineering, Anyang Institute of Technology, Anyang 455000, China
*
Authors to whom correspondence should be addressed.
Molecules 2024, 29(19), 4580; https://doi.org/10.3390/molecules29194580
Submission received: 8 August 2024 / Revised: 15 September 2024 / Accepted: 22 September 2024 / Published: 26 September 2024
(This article belongs to the Special Issue Development of Nanomaterials for Energy and Environmental Applications)
Browse Figures
Versions Notes

Abstract

:
Vacancy engineering effectively modulates the electronic properties of electrode materials, thereby improving their electrochemical performance. In this study, we prepared selenium-deficient NiCo2Se4 (Sev-NCS) using ethylene glycol as a reducing agent in NaOH alkaline environment, and investigated its potential as an electrode material for supercapacitors. Both theoretical and experimental results confirmed that the introduction of vacancies altered the morphology and electronic structure of NiCo2Se4, which in turn synergistically improved the conductivity and the diffusion capability of electrolyte ions. The optimized Sev-NCS electrode achieved an excellent specific capacitance of 2962.7 F g−1 at a current density of 1 A g−1 and superior cycling stability with a capacitance retention of 89.5% even after 10,000 cycles. Furthermore, an asymmetric device composed of the optimized Sev-NCS electrode as the positive electrode and activated carbon as the negative electrode achieved an energy density of 55.6 Wh kg−1 at a power density of 800 W kg−1. Therefore, this work offers novel insights into the role of vacancy engineering in improving the performance of transition metal compound-based electrode materials for supercapacitor.

1. Introduction

Continuous energy consumption and environmental issues have driven significant research into renewable energy and novel energy-storage devices [1,2,3]. Among these, supercapacitors have emerged as promising candidates due to their high power densities, long cycle life, and high charge/discharge rates [4,5,6]. According to their charge-storage mechanism, supercapacitors can be classified into electric double-layer capacitors (EDLCs) and Faradaic capacitors [7,8,9]. EDLC-based carbonaceous materials possess high electrical conductivity and power density. However, their inferior energy densities hamper their practical applications. In contrast, Faradaic capacitors utilizing redox-active materials provide high specific capacitance and adequate energy density owing to the redox reactions involved during the charge/discharge processes [10,11,12].
Recently, extensive efforts have been dedicated to transition-metal selenides that exhibit electrochemical properties, which are comparable to those of transition-metal oxides and sulfides [13,14,15,16]. These selenides offer improved conductivity due to their metallic characteristics. Bimetallic selenides, in particular, show high theoretical capacitance and enhanced electrochemical activity, thanks to the synergistic effects of the bonds between different metal cations [17,18]. Despite these promising properties, the gap between actual and theoretical capacities remains, primarily due to insufficient control over their microstructure. This limitation reduces the diffusion of electrolyte ions and effective surface area, thereby hindering redox reactions and overall charge storage capacity [19,20]. Therefore, optimizing electrode microstructure is critical to improving electrochemical performance.
Vacancy engineering has emerged as a promising strategy to enhance the electrochemical performance of electrode materials [21,22,23,24]. This method introduces lattice defects, distortions, and dislocations, which in turn modify the physical and chemical properties of the material. Vacancies significantly alter the electronic structure and surface characteristics of the electrode, enhancing ion diffusion and electron transfer, which boosts overall performance [25,26]. To date, various synthesis methods, including heat [27,28], plasma [21,29], and chemical reduction treatment [30,31], have been applied to create anion vacancies. However, extreme conditions could lead to excessive vacancies, disrupting the chemical composition of the electrode and the crystal structure, ultimately compromising its electrochemical performance [32]. Therefore, controlling the vacancy concentration is essential for optimal results.
In this study, a moderately green solvent, ethylene glycol (EG)/NaOH, was used as a mild reducing agent to generate adjustable anion vacancies. The optimized Se-vacant NiCo2Se4 (Sev-NCS) with controllable concentrations exhibited improved electrochemical kinetics. Additionally, the optimized electrode demonstrated an impressive specific capacitance of 2962.7 F g−1 at a current density of 1 A g−1, along with outstanding cycling stability, retaining 89.5% of its capacitance after 10,000 cycles. An asymmetric device with Sev-NCS as the positive electrode and activated carbon (AC) as the negative electrode achieved an energy density of 55.6 Wh kg−1 at a power density of 800 W kg−1. These findings highlight the potential of vacancy control in developing advanced electrode materials for energy-storage devices.

2. Results and Discussion

Figure 1 illustrates the preparation process for selenium-deficient NiCo2Se4 (Sev-NCS). First, we prepared the NiCo precursor through a conventional hydrothermal reaction method, as depicted in previous studies [33]. During this process, Ni2+ and Co2+ undergo hydrolysis and self-assemble through continuous nucleation and crystal growth. We used scanning electron microscopy (SEM) to reveal the microstructure of the sample and found that the precursor retained a flower-like structure, composed of multiple interlaced nanosheets with smooth surfaces, as shown in Figure S1. The diffraction pattern of the precursor can be well indexed to Ni(OH)2 (JCPDS 38-0715) and Co(OH)2 (JCPDS 51-1731), as shown in Figure S2. The results of XRD analysis confirmed that the crystalline phase of the precursor aligns with previously reported layered double hydroxides (LDHs) [34,35]. Next, we used Na2SeO3 as selenium source to convert the NiCo precursor into NiCo2Se4 through a secondary hydrothermal reaction. SEM analysis in Figure S3 shows that after selenization, the microstructure of NiCo2Se4 closely resembles that of the NiCo precursor. Further observations revealed that the surface of the nanosheets became rougher, confirming the occurrence of the selenization reaction. Finally, we prepared selenium-deficient NiCo2Se4 using ethylene glycol as a reducing agent in NaOH alkaline environment. Ethylene glycol, a mild reducing agent, allows for the deformation of anion vacancies without altering the crystal structure or morphology of the electrode materials [36,37].
To study the effect of the reduction reaction, we studied the effect of different concentrations of EG/NaOH solution on the morphology of the microstructure, as shown in Figure 2. After 8 h reaction (Sev-NCS-1), SEM images reveal sparse nanoparticles on the surface of the nanosheets (Figure 2a,b). After 12 h, the Sev-NCS-2 exhibited interconnected nanosheets with corrugated surfaces (Figure 2c,d). These corrugations will increase the specific surface area, provide additional redox reactions sites, and create effective pathways for electrolyte ion transport. After 16 h (Sev-NCS-3), the corrugations begin to aggregate (Figure 2e,f). When the reaction time reached ~18 h (as shown in Figure 2g,h), for the Sev-NCS-4 sample, these corrugations aggregated further, resulting in a reduction in the surface area, hindering the permeability of electrolyte ions and limiting the electrode material usage efficiency. Since Sev-NCS-2 demonstrated the best electrochemical performance, we conducted in-depth characterization studies on this sample.
The microstructure of the Sev-NCS-2 was further examined through transition electron microscopy (TEM) images (Figure 3). The low-resolution TEM images were consistent with SEM images, showing that Sev-NCS-2 had a flower-like structure and the nanosheets consisted of numerous nanopores (Figure 3a,b). The high-resolution TEM image (HR-TEM) in Figure 3c shows clear lattice fringes with d-spacing of 0.273 nm and 0.535 nm, which can be ascribed to the (111) and (200) planes of the NiCo2Se4 [38]. These results match well with the XRD data. Compared with the HRTEM of the pristine NiCo2Se4 (Figure S4), the lattice fringes in the selenium-deficient NiCo2Se4, highlighted in the red dashed region, become less defined, suggesting lower crystallinity of the selenium-deficient NiCo2Se4. This phenomenon can be attributed to the presence of vacancies causing distortions and defects within the crystal structure [26,39]. EDX demonstrated that Ni, Co, and Se elements were evenly distributed throughout the structure (Figure 3d).
Figure 4a show the XRD patterns of the NiCo2Se4 samples. After the selenide process, all the peaks can be indexed to the NiCo2Se4 (JCPDS 81-4821) [38,40]. After the vacant engineering process, these samples show similar diffraction pattern with the NiCo2Se4, suggesting no new phases were introduced. As the reductant concentration increases, the intensity of the peaks become weaker, suggesting clear reduction in crystallinity of the electrode materials [41]. In particular, these weak peaks such as (200) cannot be easily detected as the crystallinity of the material weakens. This phenomenon may be due to the disturbance of lattice structure caused by Se vacancy. In order to estimate the surface chemistry of the samples, the XPS technique was employed. Figure S5 shows the full survey of the NiCo2Se4, suggesting the presence of the Ni, Co, Se, and O elements. Table S1 shows the element content of the NiCo2Se4 and Sev-NCS-n (n = 1, 2, 3, and 4) estimated by the XPS analyses, demonstrating slight changes in elemental content after the chemical reduction process. In the high-resolution XPS spectrum of Ni 2p (Figure 4b), the Ni 2p3/2 can be deconvoluted into one spin-orbital doublets at binding energy of 852.7 and 855.3 eV, along with one shake-up satellite at 860.7 eV [42]. The Ni 2p1/2 can be fitted with one spin-orbital doublets at binding energy of 870.3 and 873.1 eV, along with one shake-up satellite at 879.5 eV [43]. The peaks with binding energy at 855.3 and 873.1 eV can be assigned to Ni3+ and peaks with binding energy at 852.7 and 870.3 eV corresponding to Ni2+. Compared to NiCo2Se4, the Ni 2p peak of the Sev-NCS-n (n = 1, 2, 3, and 4) shifted to a lower binding energy and the atomic ratio of the Ni2+/Ni3+ gradually increased with a higher concentration of EG, suggesting partial conversion of Ni3+ to Ni2+ [44]. As shown in Figure 4c, the Co 2p spectrum can be divided into two spin-orbital doublets (Co 2p1/2 and Co 2p3/2) and related satellite [45,46]. The peaks of Co 2p1/2 located 796.3 eV and Co 2p3/2 located 780.4 eV can be assigned Co2+. The peaks of Co 2p1/2 located 792.7 eV and Co 2p3/2 located 777.7 eV are the characteristic of Co3+. Similar with the Ni 2p, the peaks shift positive and the atomic ratio of the Co2+/Co3+ was gradually increase owing to the transition of the Co3+ to Co2+ [47]. In Figure 4d, the Se 3d spectrum can be deconvoluted into three peaks, in which two peaks located at 54.5 and 53.6 eV represent Se 3d3/2 and Se 3d5/2, while another peak centered at 58.5 eV reveals the presence of SeOx [42]. Based on the XPS spectra of Se 3d, it can be inferred that the binding energies of Se 3d move towards lower values with increasing EG concentration. These negative shifts are related to the generation of Se vacancy through the reduction process of the EG, owing to the generation of surface Se vacancies. These shifts are balanced by the partial conversion of Ni3+ to Ni2+, as shown in Figure 4b, facilitating electron transfer between the electrode materials [24]. As shown in Figure S6, Raman spectroscopy was also conducted to study the effect of the Se vacancy. For pristine NiCo2Se4, the peak located at 175 cm−1 is related with Ni-Se or Co-Se bonds [48]. Upon the introduction of vacancies, the peak became weaker and shifted to the right, suggesting changes in the crystal structure. As shown in Figure 4e, the electron paramagnetic resonance (EPR) analyses were performed to check the states of the unpaired electron of the NiCo2Se4 and Sev-NCS-n (n = 1, 2, 3, and 4). For pristine NiCo2Se4, there is no detectable EPR signal, suggesting the absence of selenide vacancies. After reduction, an evident symmetrical EPR signal related to selenide vacancies, with a g value of 2.003, emerged [49]. Especially, the intensity of the EPR signal increased progressively from Sev-NCS-1 to Sev-NCS-4, suggesting a rise in vacancy concentration. The generated vacancies increased lattice disorder and the number of unpaired electrons in the material [50].
N2 adsorption-desorption was performed to evaluate the BET surface area and pore size distribution of the samples (Figure 4f). A typical type-IV and the hysteresis loop at P/P0 range of 0.5~1.0 can be observed, suggesting a mesoporous structure [51]. As result, Sev-NCS-2 exhibited the highest BET surface area of 57.4 m2 g−1, compared to those of NiCo2Se4, Sev-NCS-1, Sev-NCS-3 and Sev-NCS-4, with surface areas of 43.8, 47.9, 51.6, and 50.1 m2 g−1, respectively. A higher specific surface area exposes more active sites, which enhances charge storage and redox reactions. The inset of Figure 4f shows all samples have mesopores ranging from 5 to 10 nm. Generally, the Sev-NCS-2 electrode, with a high specific surface area and a relatively large mesoporous structure, facilitates rapid ion transport at the electrode/electrolyte interface, leading to improved specific capacitance [52].
The electrochemical performance of the electrodes was evaluated in 3 M KOH electrolyte using a three-electrode system. Figure 5a shows the comparative CV curves of all the samples, highlighting obvious redox behavior with cathodic/anodic peak, which come from the reversible Faradaic redox reactions of the OH– in alkaline electrolyte, suggesting the battery-like behavior of the electrode, as shown in the equations below:
NiCo2Se4 + OH− + H2O ↔ NiSeOH + 2CoSeOH + e−
CoSe2O4 + OH− ↔ CoSeO + H2O+ e−
Notably, as the EG volume increases, the peak value and integral area of the oxidation-reduction peak in cyclic voltammetry (CV) first initially rise and then decline. The Sev-NCS-2 shows a significantly larger CV integral area compared to NiCo2Se4, Sev-NCS-1, Sev-NCS-3, and Sev-NCS-4, indicating superior electrochemical performance. CV curves under various scan rates ranging from 5 to 50 mVs−1 were recorded as shown in Figure 5b and Figure S7. Generally, the shape of the CV curves are well maintained with obvious redox peaks shifting as the scan rate increases, representing good reversibility for all the samples. To gain deeper insights into the electrochemical performance of electrode materials, the electrochemical reaction kinetics was well studied. In general, the charge storage mechanisms include diffusion-controlled and capacitance-controlled processes, which correspond to the double layer and Faradaic reaction at the electrode surface [53].
i = avb
Equation (3) describes the relationship between peak current density (i) and scan rate (v), with a and b as empirical parameters. The value of b defines the type of electrochemical reaction: b value near 0.5 indicates a diffusion-controlled reaction. While a value of 1.0 suggest a capacitance-controlled process [54,55]. As shown in Figure 5c, the b values of the NiCo2Se4, Sev-NCS-1, Sev-NCS-2, and Sev-NCS-4 electrode are 0.60, 0.61, 0.69, 0.65, and 0.63 respectively. These values indicate that both surface Faraday redox reaction and ion intercalation are involved during the charge/discharge process. Additionally, according to i = k1v + k2v0.5, (where k1 and k2 are constants at a given potential) represents the currents generated by capacitance-controlled and diffusion-controlled processes, respectively [56]. We conducted a quantitative analysis of the capacitance-controlled and diffusion-controlled contributions to the electrode performance, as shown in Figure 5d and highlighted in the dark cyan region of Figure S8. At a scan rate of 10 mV s−1, the capacitance contribution to the Sev-NCS-2 electrode was about 53.31%. The capacitance contributions for NiCo2Se4, Sev-NCS-1, Sev-NCS-3 and Sev-NCS-4 electrodes were 32.77%, 39.84%, 47.14%, and 44.00%, respectively. These results highlight the beneficial role of selenide vacancies in enhancing reaction kinetics. The improved capacitance may be attributed to the increased electrolyte contact at the electrode surface and the faster charge transfer due to Se vacancies. As shown in Figure S9, when the scanning rate is increased from 5 to 50 mV s−1, the capacitance contribution ratio of the electrode increases further verifies the rapid reaction kinetics characteristics of the electrodes.
The comparative GCD profiles of the NiCo2Se4, Sev-NCS-1, Sev-NCS-2, and Sev-NCS-4 electrode at a current density of 1 A g−1 are shown in Figure 5e. As expected, the Sev-NCS-2 possess longer charge/discharge time and higher specific capacitance, which are consistent with the CV results. The distinctive plateaus of GCD plot suggest the presence of the redox reaction during the charge/discharge process. The GCD profile for all samples at various current densities are shown in Figure 5f and Figure S10. The well-maintained shape of the GCD profiles suggests reversible electrochemical behavior of the electrodes. The decrease in specific capacitance at higher current densities is due to ineffective contact between the electrode and electrolyte. The specific capacitance at different current densities is derived from the GCD profiles, as shown in Figure 5g. As a result, the specific capacitance of the NiCo2Se4, Sev-NCS-1, Sev-NCS-2, Sev-NCS-3 and Sev-NCS-4 electrodes at current density of 1 A g−1 are 1899.2, 2305.6, 2962.7, 2725.7 and 2459.9 F g−1, respectively. With the current density to 20 A g−1, the capacitance retention of the Sev-NCS-2 are about 68.3%, which are much higher than that of 66.5% (NiCo2Se4), 67.7% (Sev-NCS-1), 66.7% (Sev-NCS-3), and 66.2% (Sev-NCS-4). As shown in Figure 5h, EIS analyses were applied to investigate the electrochemical conductivity and charge transfer kinetic of the electrode. Typically, the intercept of the plot at the x-axis corresponds with the intrinsic resistance (Rs) of the current collector and electrode materials, the resistance of the electrolyte, and the connect resistance between the electrode and electrolyte. The intersection of the semicircle with the x-axis represents charge transfer resistance (Rct). The slope of the plot are related to the ion diffusion ability [57]. As a result, the Rs and Rct of the Sev-NCS-2 are about 0.038 and 0.46 Ω, which are lower than those of counterparts, suggesting the excellent electrical conductivity of the Sev-NCS-2, the detail values are shown in Table S2. Additionally, the Sev-NCS-2 electrode shows a steeper slope in the low-frequency region compared to the others, further confirming its enhanced electrochemical performance. Cycling performance of electrodes were performed to investigate the electrochemical stability of the electrode. As shown in Figure 5i, after 10,000 repeat charge/discharge cycle at current density of 20 A g−1. The Sev-NCS-2 electrode possess a favorable cycling stability with 89.5% retention, corresponding to the NiCo2Se4 (87.22%), Sev-NCS-1 (87.2%), Sev-NCS-3 (84.02%), and Sev-NCS-4 (75%).

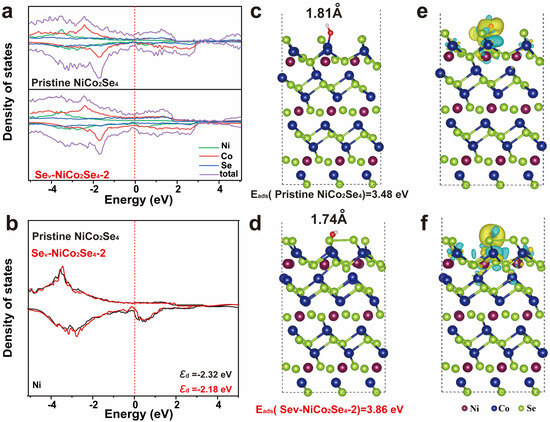

To gain more insight into the potential mechanisms of electrochemical performance in Se-vacancy NiCo2Se4, this study employed density functional theory (DFT) calculations to optimize the adsorption behavior of OH− on both pristine and Se-vacancy NiCo2Se4 (002) lattice plane. The relevant results are presented in Figure 6a. The increase in density of states near the Fermi level indicates a higher concentration or denser distribution of electronic states. This is typically associated with an enhancement of the electrical conductivity. As shown in Figure 6b, the integration of the Projected Density of States (PDOS) curves reveals that the D-band center of the Ni site in Sev-NCS-2 (εd = −2.18) is closer to the Fermi level compared to the corresponding site in NiCo2Se4 (εd = −2.32). According to the D-band center theory, the proximity of the center of the d band to the Fermi level indicates that more electrons are adsorbed. The higher the number of electrons, the better the activity of the electrode materials [58]. Therefore, we can conclude that in Sev-NCS-2, the Ni site is more likely to interact with OH− compared to the Ni site in NiCo2Se4, thereby facilitating electrochemical redox reaction. To further elucidate the impact of interfacial behavior and vacancy defects on electrochemical performance, we conducted calculations of OH- adsorption energy (Eads) and the corresponding ion diffusion barriers, as illustrated in Figure 6c,d. It is evident that the Eads value of the Sev-NCS-2 (3.86 eV) is significantly higher than that of NiCo2Se4 (3.48 eV). These results suggest that the creation of abundant vacancies, due to unsaturated dangling bonds and the removal of Se sites greatly enhances OH adsorption capacity. Correspondingly, The OH-Co bond length in Sev-Ncs-2 is approximately 1.74Å, shorter than that inNiCo2Se4 (1.81 Å), indicating stronger OH− adsorption in Sev-NCS-2. The comparison of charge density betweenNiCo2Se4 and Sev-NCS-2 further confirms the strong OH adsorption ability, as shown in Figure 6e,f. Compared to NiCo2Se4, Sev-NCS-2 shows more pronounced charge exchange between the Co nucleus and OH−, indicating enhanced electron transfer dynamics. This emphasizes the beneficial effect of introducing vacancies, aligning well with experimental findings. In summary, introducing defects alters the material’s band structure, enhancing electron transport and electrical conductivity. Additionally, defects introduce anisotropy without altering the lattice structure, creating more pathways for ion migration and promoting charge transfer. Moreover, these defects generate unsaturated bonds and new electrochemically active sites, altering electron distribution and enhancing electrochemical activity, thereby improving the material’s overall performance.
To investigate the practical application of the electrode, Sev-NCS-2//AC ACS device was constructed as depicted in Figure 7a. The electrochemical performance of the AC electrode was also conducted as shown in Figure S11. Figure S11a shows the CV curves of the AC with rectangular shape at potential window of −1~0 V under various scan rates, Figure S11b exhibit the GCD curves with triangular shape at potential window of −1~0 V under various current densities. These data suggest the EDLC properties of the AC electrode. Figure S11c shows the calculated specific capacitance of the AC. Figure S11d shows the cycling performance of the AC electrode. These results show that the AC has excellent performance and can be used as negative electrode to assemble Sev-NCS-2//AC ACS device. To achieve the optimized electrochemical performance, the mass ratio of is carefully estimated according to charge balance theory, which can be expressed q+ = q−. As shown in Figure 7b, the CV curves of the AC and Sev-NCS-2 at 30 mV s−1, it can be calculated that the mass ratio of the Sev-NCS-2 and AC is about 1:3. The CV curves of the optimized devices under various scan rate at a voltage window of 1.6V were recorded as shown in Figure 7c, the quasi-rectangular shape with reversible redox peaks suggest the combination characteristic of the EDLC and battery-like behavior of the device. With the increase of the scan rates, the shape of the CV curves are well kept, indicating good reversibility of the device. The GCD profiles under various current densities are shown in Figure 7d. The plateaus of the GCD curves represent the existence of the redox reaction, which agree well with the CV result. Subsequently, the specific capacitance of the device can be obtained according to GCD curves as shown in Figure S11. The device possesses specific capacitance of 156.3, 131.6, 109.7, 102.9, 95.8, 83.3, and 75.8 F g−1 at current density of 1, 2, 3, 4, 5, 8, and 10 A g−1, respectively. The cycling performance was conducted at current density of 8 A g−1. As revealed by the 10,000 repeated GCD process in Figure 7e, the device maintained nearly 88.7% of the initial capacitance, representing a high cycling stability. Furthermore, the device exhibited 100% coulombic efficiency after the cycling test, suggesting high electrochemical reversibility. Based on the GCD results under various current densities, the energy density and power densities of the device and the comparative reported literature presented via Ragone plots (Figure 7f). The device shows energy densities of 55.6 Wh kg−1 at a power density of 800 W kg−1 and the energy density is about 27.0 Wh kg−1 at power density of 8000 W kg−1. As shown in Table S3, these values are superior than those of other Ni-Co-Se based devices, such as NixCo1−xSe2/CNFs/CoO@CC//AC (45 Wh kg−1, 800 W kg−1) [59], (N-CQDs/Ni-Co-Se//C (41.1 Wh kg−1, 191.5 W kg−1) [60], CMTs@VGNs@(Ni, Co)Se2//AC (41.6 Wh kg−1, 750 W kg−1) [61], CF@(Ni, Co)Se2//AC (36.02 Wh kg−1, 800 W kg−1) [62], NiSe2/CoSe2/CNT-20//AC (50 Wh kg−1, 800 W kg−1) [63], Ni0.95Co2.05Se4//AC (37.22 Wh kg−1, 800 W kg−1) [64].

3. Experiment Details

3.1. Preparation of the NiCo2Se4

The NiCo2Se4 was prepared through two-step hydrothermal process, as depicted in our previous work [40]. Initially, 0.5 mmol Ni(NO3)2·6H2O and 1 mmol Co(NO3)2·6H2O were dissolved in 30 mL of deionized (DI) water and ethanol mixture solution (volume ratio of 2:1). Then, 0.75 mmol hexamethylenetetramine (HMTA) was added to obtain a pink and homogeneous solution. After magnetic stirring for 30 min, the homogeneous solution was transferred into a Teflon-lined stainless-steel autoclave and then maintained at 100 °C for 12 h. After cooling down to room temperature, the solution was washed with DI water and ethanol. The as-obtained precipitate was collected through centrifugation and dried at 60 °C overnight. After that, 50 mg of the resulted powder, 150 mg of Na2SeO3 and 5 mL of N2H4 was dissolved in 25 mL DI water, then the mixture was transferred into a Teflon-lined stainless-steel autoclave and kept at 180 °C for 8 h. After this, the final product was rinsed with DI water and ethanol, and then vacuum-dried at 60 °C overnight.

3.2. Preparation of the Defective Engineering of Sev-NCS-n (n = 1, 2, 3, and 4)

The vacancy engineering of NiCo2Se4 was prepared through reduction treatment process to create the Se vacancy. In general, the as-prepared NiCo2Se4 powders were immersed into a certain amount of 30 mL ethylene glycol (EG) and 30 mmol NaOH solution. The solution was then transferred into the Teflon-lined stainless-steel autoclave and kept at 120 °C for 8, 12, 16, 18 h, respectively. Accordingly, the resulting samples were denoted as Sev-NCS-n (n = 1, 2, 3, and 4), respectively. Subsequently, the final powders were repeatedly rinsed with DI water and ethanol, and finally the products were obtained after dried in the vacuum oven at 60 °C for 12 h.

3.3. Characterization of Materials

The crystal structure was characterized by powder X-ray diffraction pattern (XRD, Bruker, Billerica, MA, USA, Advanced D8). The morphology was collected through Field Emission scanning electron microscopy (SEM, Hitachis-4800 operate voltage ~15 kV, Tokyo, Japan) equipped with energy dispersive X-ray spectrum and transmission electron microscopy (TEM, Talos Fx200, New York, NY, USA, accelerate voltage ~200 kV) equipped with selected area electron diffraction (SAED). The chemical status was acquired by X-ray photoelectron spectroscopy (XPS, Thermofisher, Waltham, MA, USA, Escalab 250). The specific surface area and pore size distribution were collected through Nitrogen adsorption/desorption equipment (Micromeritics, Norcross, GA, USA, ASAP2460) using Brunauer–Emmett–Teller (BET) and Barrett–Joyner–Halenda (BJH) method. The unpaired electron spin states of the samples after the introduction of the vacancy were analyzed through electron paramagnetic resonance (EPR) spectrometer (Bruker EMXplus).

3.4. Theoretical Computational Details

All calculations based on first-principles were conducted utilizing density-functional-theory (DFT) as implemented in the Vienna ab initio simulation package (VASP, version 5.4.4) [65,66]. The core electron states were addressed using a plane wave projector enhanced wave (PAW) pseudo-potential [67]. The exchange-correlation effect was characterized using the conventional Perdew–Burke–Ernzerhof (PBE) [68] scheme within the framework of the generalized gradient approximation (GGA). The plane-wave energy cut-off was established at 500 eV, accompanied by a Gaussian smearing [69] width of 0.1 eV. The Monkhorst–Pack k-point grids with an interval of 0.2 Å−1, were employed for Brillouin zone sampling. A vacuum height of 15 Å along the z-axis was implemented to prevent artificial interactions from the periodic images. The self-consistent convergence tolerances for energy and force were set to be 1.0 × 10−7 eV and 0.005 eVÅ−1, respectively.
The adsorption energy can be confirmed as
Eads = Esuface + Eadsorbate − Etotal
where Esuface, Eabsorbate, and Etotal denote the total energy of surface, adsorbate, and adsorbate on surface, separately. Positive (negative) values indicate that the adsorption is an endothermic (exothermic) reaction.

3.5. Electrochemical Tests

The electrochemical properties were investigated through cyclic voltammetry (CV), galvanostatic charge/discharge (GCD), and electrochemical impedance spectroscopic (EIS) through electrochemical workstation (IVIUM) in 3 M KOH aqueous electrolyte at room temperature. The EIS tests were conducted under stable open-circuit voltage, with amplitude of 5 mV and testing frequency range of 100 kHz to 0.01 Hz. The electrochemical test includes three-electrode and two-electrode system. For the three-electrode system, the as-prepared electrode served as working electrode, the HgO electrode served as reference electrode. The Pt foil served as counter electrode. The working electrode were fabricated through mixing the active powder, black carbon, and polytetrafluoroethylene (PTFE) with a weight ratio of 8:1:1 to form a slurry. The slurry was then pasted on nickel foam current collector with area of 1 × 1 cm2 and mass loading of 3 mg cm−2 and dried at 60 °C overnight.
The specific capacitance Cs (F g–1) or specific capacity Qs (C g–1) was estimated according to the GCD curves using Equations (5) and (6):
C s = I Δ t m Δ V
Q s = I Δ t m
where I (mA), m (mg), ΔV (V), and Δt (s) signify the applied current, mass loading of active materials, potential window, and discharge time, respectively.
For the two-electrode system, the asymmetric supercapacitor (ACS) device was assembled using Sev-NCS as positive electrode, AC as negative electrode, and 3 M KOH aqueous electrolyte. Due to the different charge storage capacities of the positive and negative electrodes of asymmetrical supercapacitors, it is necessary to match the charges of the positive and negative electrodes based on the principle of charge balance equation Q+ = Q–. The mass ratio of the positive and negative electrodes was determined according to the following formula:
m+C+V+ = m−C−V−
where m+ (mg), C+ (F g−1), and V+ (V) represent the mass, specific capacitance, and potential window of the positive electrode, m− (mg), C− (F g−1), and V− (V) denote the mass, specific capacitance, and potential window of AC, respectively.
The specific capacitance (Cd, F g−1), energy density (E, W h kg−1), power density (P, W kg−1) and coulombic efficiency (η) of the ASC device were calculated using the following equations:
C d = I × Δ t M × Δ V
E = 1 2 C d Δ V 2
P = E Δ t
η = C d C c × 100 %
where I (A), Δt (s), M (g), ΔV (V), and Cc (F g−1) represent the discharge current, discharge time, total mass of active materials of the positive and negative electrodes, potential window of the device, and specific capacitance of the ACS device, respectively.

4. Conclusions

In conclusion, a series of selenium-deficient NiCo2Se4 materials were successfully synthesized using a facile hydrothermal method combined with a reduction process using ethylene glycol as a reducing agent in NaOH alkaline environment. The optimized Sev-NCS-2 exhibited remarkable electrochemical properties as a supercapacitor electrode, achieving a specific capacitance of 2962.7 F g−1 at a current density of 1 A g−1 and cycling life of (89.5% capacitance retention after 10,000 cycles). Furthermore, the asymmetric Sev-NCS-2//AC ACS device achieved an energy density of 55.6 Wh kg−1 at a power density of 800 W kg−1. Therefore, NiCo2Se4 with sufficient Se vacancies shows great potential for application in energy storage devices.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules29194580/s1. Refs. [40,59,60,61,62,63,64,70,71,72,73,74] are cited in Supplementary Materials.

Author Contributions

Methodology, C.L.; Software, Q.X., C.L. and Y.G.; Validation, Z.G. and L.M.; Formal analysis, L.L. (Lindong Li) and Z.G.; Investigation, J.F. and L.L. (Lindong Li); Resources, Y.G.; Data curation, Q.X. and L.M.; Writing—original draft, J.F.; Writing—review & editing, L.L. (Lei Li); Supervision, L.L. (Lei Li); Funding acquisition, J.F. and L.L. (Lei Li). All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the Science and Technology Project of Henan Province (No. 222102210296, 232102520022, 242102520022, 232102230008, 232102241016), Key Scientific Research Project Plan of Colleges and Universities of Henan Province (No. 24B150001, 23A480006, 22A480001), PhD Initiation Fund of the Anyang Institute of Technology (BSJ2021013), the Science and Technology Planning Project of Anyang City (No. 2022C03YZ001, 2023C01GX015), National Natural Science Foundation of China (No. 11947107). Key Laboratory of Advanced Energy Materials Design and Application of Anyang Institute of Technology (SYS202405). Research and Innovation Team of Anyang Institute of Technology (CXTD202404).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article and Supplementary Materials.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Lakshmi-Narayana, A.; Attarzadeh, N.; Shutthanandan, V.; Ramana, C.V. High-performance NiCo2O4/Graphene quantum dots for asymmetric and symmetric supercapacitors with enhanced energy efficiency. Adv. Funct. Mater. 2024, 2316379. [Google Scholar] [CrossRef]
  2. Lu, Z.; Kang, H.; Duan, Q.; Lv, C.; Liu, R.; Feng, F.; Zhao, H.J. The preparation of N, P-doped NiSe nanorod electrode materials on nickel foam using the microwave method for high-performance supercapacitors. Molecules 2024, 29, 3224. [Google Scholar] [CrossRef] [PubMed]
  3. Cai, L.; Zhang, Y.; Ma, R.; Feng, X.; Yan, L.; Jia, D.; Xu, M.; Ai, L.; Guo, N.; Wang, L.J. Nitrogen-doped hierarchical porous carbon derived from coal for high-performance supercapacitor. Molecules 2023, 28, 3660. [Google Scholar] [CrossRef] [PubMed]
  4. Mo, T.; Peng, J.; Dai, W.; Chen, M.; Presser, V.; Feng, G. Horn-like pore entrance boosts charging dynamics and charge storage of nanoporous supercapacitors. ACS Nano 2023, 17, 14974–14980. [Google Scholar] [CrossRef] [PubMed]
  5. Al-Zohbi, F.; Ghamouss, F.; Jacquemin, J.; Schmaltz, B.; Tabcheh, M.F.; Abarbri, M.; Cherry, K.; Tran-Van, F.J. Non-substituted imidazolium-based electrolytes as potential alternatives to the conventional acidic electrolytes of polyaniline-based electrode materials for supercapacitors. Molecules 2024, 29, 2569. [Google Scholar] [CrossRef] [PubMed]
  6. Hong, R.; Zhao, X.; Lu, R.; You, M.; Chen, X.; Yang, X.J. Fabrication of polypyrrole hollow nanospheres by hard-template method for supercapacitor electrode material. Molecules 2024, 29, 2331. [Google Scholar] [CrossRef]
  7. Wang, T.; Pan, R.; Martins, M.L.; Cui, J.; Huang, Z.; Thapaliya, B.P.; Do-Thanh, C.-L.; Zhou, M.; Fan, J.; Yang, Z. Machine-learning-assisted material discovery of oxygen-rich highly porous carbon active materials for aqueous supercapacitors. Nat. Commun. 2023, 14, 4607. [Google Scholar] [CrossRef]
  8. Ahmad, S.A.; Shah, M.Z.; Arif, M.; Ullah, E.; Rahman, S.; Shah, M.S.; Eldin, S.M.; Song, P.; Sajjad, M.; Shah, A. High power aqueous hybrid asymmetric supercapacitor based on zero-dimensional ZnS nanoparticles with two-dimensional nanoflakes CuSe2 nanostructures. Ceram. Int. 2023, 49, 20007–20016. [Google Scholar] [CrossRef]
  9. Akbar, H.; Ali, A.; Mohammad, S.; Anjum, F.; Ahmad, A.; Afzal, A.M.; Albaqami, M.D.; Mohammad, S.; Choi, J.R. Exploring the potential of nitrogen-doped graphene in ZnSe-TiO2 composite materials for supercapacitor electrode. Molecules 2024, 29, 2103. [Google Scholar] [CrossRef]
  10. Park, T.H.; Kim, B.; Yu, S.; Park, Y.; Oh, J.W.; Kim, T.; Kim, N.; Kim, Y.; Zhao, D.; Khan, Z.U. Ionoelastomer electrolytes for stretchable ionic thermoelectric supercapacitors. Nano Energy 2023, 114, 108643. [Google Scholar] [CrossRef]
  11. Zhu, Y.; Deebansok, S.; Deng, J.; Wang, X.; Brousse, T.; Favier, F.; Fontaine, O. Electron delocalization and electrochemical potential distribution phenomena in faradaic electrode materials for understanding electrochemical behavior. Adv. Energy Mater. 2024, 2304317. [Google Scholar] [CrossRef]
  12. Liu, Y.; Li, Y.; Liu, Z.; Feng, T.; Lin, H.; Li, G.; Wang, K.J. Uniform P-doped MnMoO4 nanosheets for enhanced asymmetric supercapacitors performance. Molecules 2024, 29, 1988. [Google Scholar] [CrossRef] [PubMed]
  13. Sukanya, R.; Karthik, R.; Hasan, M.; Breslin, C.; Shim, J.-J. Insight into the synergistic effect of 2D/2D layered metal selenides wrapped nickel boride nanoparticles based ternary heterostructure for constructing asymmetric supercapacitors with excellent energy density. Chem. Eng. J. 2023, 473, 145487. [Google Scholar] [CrossRef]
  14. Tang, G.; Liang, J.; Wu, W. Transition metal selenides for supercapacitors. Adv. Funct. Mater. 2024, 34, 2310399. [Google Scholar] [CrossRef]
  15. Ahmed, S.; Gondal, M.; Alzahrani, A.; Almessiere, M. Critical review on transition metal selenides/graphene composite as futuristic electrode material for high performance supercapacitors. J. Energy Storage 2023, 74, 109214. [Google Scholar] [CrossRef]
  16. Lu, Q.; Zhou, T.; Zi, B.; Zhao, J.; Li, D.; Chen, M.; Sun, H.; Zhang, J.; Zhang, Y.; Liu, Q. Dual supports by cation vacancies and surface optimization for CoNiSe2-based hybrid supercapacitors with high energy density. ACS Energy Lett. 2023, 8, 3420–3429. [Google Scholar] [CrossRef]
  17. Panah, T.S.; Shirvani, M.; Davarani, S.S. Bimetallic NiCo2Se4/Fe2CoSe4 chrysanthemum flowers assembled by nanosheets: An efficient electrode material for hybrid supercapacitor applications. J. Alloys Compd. 2024, 978, 173496. [Google Scholar] [CrossRef]
  18. Duan, L.; Fu, H.; Guo, H.; Sun, H.; Zhang, Q.; Xu, J.; Liu, J. Ni2CoS4@(NiCo)Se2 bimetallic selenides with core–shell heterostructure in-situ generated on Ni2CoS4 nanorods arrays for high performance supercapacitors. Appl. Surf. Sci. 2024, 648, 158966. [Google Scholar] [CrossRef]
  19. Zeshan, M.; Alharbi, F.; Alahmari, S.D.; Abdullah, M.; Al-Sehemi, A.G.; Henaish, A.; Ahmad, Z.; Waheed, M.S.; Aman, S.; Farid, H.M. Fabrication of niobium selenide-based rGO hybrid nanoparticles by hydrothermal method for supercapacitor applications. Ceram. Int. 2024, 50, 7110–7120. [Google Scholar] [CrossRef]
  20. Ali, M.; Alahmari, S.D.; Abdelmohsen, S.A.; Alanazi, M.M.; Al-Sehemi, A.G.; Abdullah, M.; Aman, S.; Farid, H.M. Fabrication of MnSe/WSe2 nanohybrid electrode prepared through hydrothermal method for supercapacitor applications. Ceram. Int. 2024, 50, 6931–6940. [Google Scholar]
  21. Zhang, Z.; Sun, S.; Xu, Z.; Yin, S. Multicomponent hybridization transition metal oxide electrode enriched with oxygen vacancy for ultralong-life supercapacitor. Small 2023, 19, 2302479. [Google Scholar] [CrossRef] [PubMed]
  22. Han, X.; Wu, C.; Wang, J.; Zhang, Y.; Zhang, K.; Gates, I.D.; Li, H.; Huang, Z.-H.; Ma, T. Deep-implanting oxygen vacancy into VOx by alkylamine intercalation for life-oriented modular pouch supercapacitors. Chem. Eng. J. 2023, 453, 139948. [Google Scholar] [CrossRef]
  23. Dai, J.; Qi, X.; Xia, L.; Xue, Q.; Luo, L.; Wang, X.; Yang, C.; Li, D.; Xie, H.; Cabot, A. Aqueous ammonium-ion supercapacitors with unprecedented energy density and stability enabled by oxygen vacancy-enriched MoO3@C. Adv. Funct. Mater. 2023, 33, 2212440. [Google Scholar] [CrossRef]
  24. He, Y.; Liu, T.; Song, J.; Wang, Y.; Zhang, Y.; Feng, J.; Meng, A.; Li, G.; Wang, L.; Zhao, J. Lithiation-induced controllable vacancy engineering for developing highly active Ni3Se2 as a high-rate and large-capacity battery-type cathode in hybrid supercapacitors. J. Energy Chem. 2023, 78, 37–46. [Google Scholar] [CrossRef]
  25. Liu, S.; Kang, L.; Zhang, J.; Jun, S.C.; Yamauchi, Y. Sodium preintercalation-induced oxygen-deficient hydrated potassium manganese oxide for high-energy flexible Mg-ion supercapacitors. NPG Asia Mater. 2023, 15, 9. [Google Scholar] [CrossRef]
  26. Yan, C.; Han, E.; Yang, X.; Hu, K.; Xu, H.; Li, Y.; He, Y.; Lu, S. Engineering sulfur vacancies on Mo-doped nickel sulfide for enhanced electrochemical energy storage. Ceram. Int. 2023, 49, 14155–14165. [Google Scholar] [CrossRef]
  27. Cao, Y.; Ruan, P.; Xue, Y.; Cao, Y.; He, H.; Qiu, W. Performance enhancement of Hf-Ta-O nanofiber based energy storage materials using oxygen-vacancy and its application for supercapacitor. J. Alloys Compd. 2023, 958, 170542. [Google Scholar] [CrossRef]
  28. Jing, F.; Ma, Z.; Wang, J.; Fan, Y.; Qin, X.; Shao, G. Oxygen vacancy inducing phase transition during charge storage in MnOx@rGO supercapacitor electrode. Chem. Eng. J. 2022, 435, 135103. [Google Scholar] [CrossRef]
  29. Li, T.; Hu, Y.; Zhang, J.; Li, H.; Fang, K.; Wang, J.; Wang, Z.; Xu, M.; Zhao, B. Doping effect and oxygen vacancy engineering in nickel-manganese layered double hydroxides for high-performance supercapacitors. Nano Energy 2024, 126, 109690. [Google Scholar] [CrossRef]
  30. Liu, L.; Lv, W.; Wang, H. Synergetic surface coating and S-rich vacancy reconstruction NiCo2S4 electrode materials for high cycle stability asymmetric supercapacitor applications. J. Energy Storage 2023, 73, 109062. [Google Scholar] [CrossRef]
  31. Guo, X.; Lin, S.; Wang, Y.; Cai, W. Novel core–shell structure composite NiCo2O4–Vo@ZIF with amorphous ZIF shell and oxygen-vacancy-rich core for asymmetric supercapacitors. Electrochim. Acta 2024, 475, 143636. [Google Scholar] [CrossRef]
  32. Liu, S.; Kang, L.; Hu, J.; Jung, E.; Henzie, J.; Alowasheeir, A.; Zhang, J.; Miao, L.; Yamauchi, Y.; Jun, S.C. Realizing superior redox kinetics of hollow bimetallic sulfide nanoarchitectures by defect-induced manipulation toward flexible solid-state supercapacitors. Small 2022, 18, 2104507. [Google Scholar] [CrossRef] [PubMed]
  33. Wang, Z.; Su, H.; Liu, F.; Chu, X.; Yan, C.; Gu, B.; Huang, H.; Yang, T.; Chen, N.; Han, Y. Establishing highly-efficient surface faradaic reaction in flower-like NiCo2O4 nano-/micro-structures for next-generation supercapacitors. Electrochim. Acta 2019, 307, 302–309. [Google Scholar] [CrossRef]
  34. Chen, C.; Liu, M.; Liu, Z.; Xie, M.; Wan, L.; Chen, J.; Zhang, Y.; Du, C.; Li, D. Design of mesoporous Ni-Co hydroxides nanosheets stabilized by BO2-for pseudocapacitors with superior performance. J. Colloid Interface Sci. 2022, 614, 66–74. [Google Scholar] [CrossRef]
  35. Wen, J.; Li, S.; Chen, T.; Yue, Y.; Liu, N.; Gao, Y.; Li, B.; Song, Z.; Xiong, L.; Chen, Z. Three-dimensional hierarchical NiCo hydroxide@Ni3S2 nanorod hybrid structure as high performance positive material for asymmetric supercapacitor. Electrochim. Acta 2016, 222, 965–975. [Google Scholar] [CrossRef]
  36. Liu, S.; Yin, Y.; Ni, D.; San Hui, K.; Ma, M.; Park, S.; Hui, K.N.; Ouyang, C.-Y.; Jun, S.C. New insight into the effect of fluorine doping and oxygen vacancies on electrochemical performance of Co2MnO4 for flexible quasi-solid-state asymmetric supercapacitors. Energy Storage Mater. 2019, 22, 384–396. [Google Scholar] [CrossRef]
  37. Cai, Z.; Bi, Y.; Hu, E.; Liu, W.; Dwarica, N.; Tian, Y.; Li, X.; Kuang, Y.; Li, Y.; Yang, X.Q. Single-crystalline ultrathin Co3O4 nanosheets with massive vacancy defects for enhanced electrocatalysis. Adv. Energy Mater. 2018, 8, 1701694. [Google Scholar] [CrossRef]
  38. Zhang, C.; Biendicho, J.J.; Zhang, T.; Du, R.; Li, J.; Yang, X.; Arbiol, J.; Zhou, Y.; Morante, J.R.; Cabot, A. Combined high catalytic activity and efficient polar tubular nanostructure in urchin-like metallic NiCo2Se4 for high-performance lithium–sulfur batteries. Adv. Funct. Mater. 2019, 29, 1903842. [Google Scholar] [CrossRef]
  39. Wei, K.; Qiu, J.; Zhao, Y.; Ma, S.; Wei, Y.; Li, H.; Zeng, C.; Cui, Y. Tunable oxygen vacancies in MoO3 lattice with improved electrochemical performance for Li-ion battery thin film cathode. Ceram. Int. 2023, 49, 21729–21736. [Google Scholar] [CrossRef]
  40. Li, L.; Guo, Y.; Li, L.; Lai, C.; Tang, Z.; Lou, X.; Ju, L.; Fu, J. Self-assembled microflower-like NiCo2X4 (X= O, S, Se) as electrodes for asymmetric supercapacitors. J. Alloys Compd. 2024, 973, 172913. [Google Scholar] [CrossRef]
  41. Gao, M.; Huang, J.; Liu, Y.; Li, X.; Wei, P.; Yang, J.; Shen, S.; Cai, K. Electrochemically finely regulated NiCo-LDH/NiCoOOH nanostructured films for supercapacitors with record high mass loading, areal capacity, and energy density. Adv. Funct. Mater. 2023, 33, 2305175. [Google Scholar] [CrossRef]
  42. Huang, Q.; Su, W.; Zhong, G.; Xu, K.; Yang, C. Bimetal heterostructure NiCo2Se4 anode confined by carbon nano boxes for ultrafast and stable potassium storage. Chem. Eng. J. 2023, 460, 141875. [Google Scholar] [CrossRef]
  43. Pan, Z.; Zhan, Y.; Yaseen, M.; Shen, P.K. Self-supported Fe, Mn-co-doped NiCo2Se4 nanorods on nickel foam for enhanced electrocatalytic performance in wide pH range. Int. J. Hydrogen Energy 2024, 63, 265–273. [Google Scholar] [CrossRef]
  44. Kang, L.; Zhang, M.; Zhang, J.; Liu, S.; Zhang, N.; Yao, W.; Ye, Y.; Luo, C.; Gong, Z.; Wang, C. Dual-defect surface engineering of bimetallic sulfide nanotubes towards flexible asymmetric solid-state supercapacitors. J. Mater. Chem. A 2020, 8, 24053–24064. [Google Scholar] [CrossRef]
  45. Rajesh, J.A.; Lee, Y.-H.; Yun, Y.-H.; Quy, V.H.V.; Kang, S.-H.; Kim, H.; Ahn, K.-S. Bifunctional NiCo2Se4 and CoNi2Se4 nanostructures: Efficient electrodes for battery-type supercapacitors and electrocatalysts for the oxygen evolution reaction. J. Ind. Eng. Chem. 2019, 79, 370–382. [Google Scholar] [CrossRef]
  46. Rathore, D.; Ghosh, S.; Chowdhury, J.; Pande, S. Fe-doped NiCo2Se4 nanorod arrays as electrocatalysts for overall electrochemical water splitting. ACS Appl. Nano Mater. 2023, 6, 3095–3110. [Google Scholar] [CrossRef]
  47. Kang, L.; Huang, C.; Zhang, J.; Zhang, M.; Zhang, N.; Liu, S.; Ye, Y.; Luo, C.; Gong, Z.; Wang, C. Effect of fluorine doping and sulfur vacancies of CuCo2S4 on its electrochemical performance in supercapacitors. Chem. Eng. J. 2020, 390, 124643. [Google Scholar] [CrossRef]
  48. Li, S.; Ruan, Y.; Xie, Q. Morphological modulation of NiCo2Se4 nanotubes through hydrothermal selenization for asymmetric supercapacitor. Electrochim. Acta 2020, 356, 136837. [Google Scholar]
  49. El Jaouhari, A.; Slassi, A.; Zhang, B.; Pershin, A.; Liu, W.; Cornil, D.; Liu, X.; Zhu, J. The role of selenium vacancies in the enhancement of electrocatalytic activity of CoNiSe2 for the oxygen evolution reaction. J. Power Sources 2021, 514, 230596. [Google Scholar] [CrossRef]
  50. Liang, J.; Li, S.; Li, F.; Zhang, L.; Jiang, Y.; Ma, H.; Cheng, K.; Qing, L. Defect engineering induces Mo-regulated Co9Se8/FeNiSe heterostructures with selenium vacancy for enhanced electrocatalytic overall water splitting in alkaline. J. Colloid Interface Sci. 2024, 655, 296–306. [Google Scholar] [CrossRef]
  51. Ranjithkumar, R.; Youk, J.H. Nitrogen-doped mesoporous carbon spheres decorated with NiCo alloy nanoparticles for high-performance electrochemical supercapacitors. J. Electroanal. Chem. 2024, 960, 118183. [Google Scholar] [CrossRef]
  52. Ikram, M.; Irshad, A.; Katubi, K.M.; Alrowaili, Z.; Al-Buriahi, M.; Warsi, M.F. Enhanced electrochemical activity of chemically engineered rGO-decorated NiO/CoFe2O4 for supercapacitor applications. Ceram. Int. 2024, 50, 19578–19591. [Google Scholar] [CrossRef]
  53. Fu, J.; Li, L.; Yun, J.M.; Lee, D.; Ryu, B.K.; Kim, K.H. Two-dimensional titanium carbide (MXene)-wrapped sisal-Like NiCo2S4 as positive electrode for High-performance hybrid pouch-type asymmetric supercapacitor. Chem. Eng. J. 2019, 375, 121939. [Google Scholar] [CrossRef]
  54. Manh, T.P.; Van, N.N.; Phung, V.B.T.; Thi, L.N.; Quy, Q.N.; Le The, S.; Tien, P.D.; Quang, D.T.; Van, T.N.; Van, N.T. One-step preparation of Ni–Co binary metal sulfides on reduced graphene oxide for all-solid-state supercapacitor devices with enhanced electrochemical performance. Ceram. Int. 2024, 50, 22757–22770. [Google Scholar] [CrossRef]
  55. Kumar, K.S.; Goud, J.P.; Roy, N.; Su, K.J.; Joo, S.W. In-situ synthesis of SnO2/CoFe2O4/Fe3O4 nanograss array composite: A redox-active electrode material for battery-type supercapacitors. Ceram. Int. 2024, 50, 20535–20546. [Google Scholar] [CrossRef]
  56. Li, Z.; Yu, J.; Hu, M.; Cai, X.; Chen, Y.; Cai, Y.; Wei, W. Construction of Zn–Co–Ni–Se nanosheet arrays on nickel foam for hybrid supercapacitors. Ceram. Int. 2021, 47, 29730–29738. [Google Scholar] [CrossRef]
  57. Yang, W.-D.; Xiang, J.; Zhao, R.-D.; Loy, S.; Li, M.-T.; Ma, D.-M.; Li, J.; Wu, F.-F. Nanoengineering of ZnCo2O4@CoMoO4 heterogeneous structures for supercapacitor and water splitting applications. Ceram. Int. 2023, 49, 4422–4434. [Google Scholar] [CrossRef]
  58. Liu, Z.; Tian, Y.; Yao, S.; Li, Y.; Fu, Y.; Zhou, Q. Interfacial interaction-induced shift of d-band center promotes photocatalytic antibiotics mineralization. Appl. Cataly. B Environ. Energy 2024, 352, 123998. [Google Scholar] [CrossRef]
  59. Sun, L.; Liu, Y.; Yan, M.; Yang, Q.; Liu, X.; Shi, W. Lewis acid etched NixCo1-xSe2 derived from ZIF-L on CoO nanowires for hybrid-supercapacitors. Chem. Eng. J. 2022, 431, 133472. [Google Scholar] [CrossRef]
  60. Lu, Z.; Hu, Z.; Xiao, L.; Xie, Y.; Li, N.; Xi, L.; Chen, W.; Xiao, J.; Zhu, Y. Battery-type Ni-Co-Se hollow microspheres cathode materials enabled by bifunctional N-doped carbon quantum dots with ultrafast electrochemical kinetics for hybrid supercapacitors. Chem. Eng. J. 2022, 450, 138347. [Google Scholar] [CrossRef]
  61. Yin, X.; Han, L.; Fu, Y.; Lu, J.; Song, Q.; Li, H. (Ni, Co)Se2 nanoparticles on vertical graphene nanosheets@carbon microtubes for high-performance solid-state asymmetric supercapacitors. J. Energy Storage 2022, 53, 105205. [Google Scholar] [CrossRef]
  62. Yang, Q.; Liu, Y.; Deng, C.; Sun, L.; Shi, W. In-situ construction of heterostructure (Ni, Co) Se2 nanoarrays derived from cone-like ZIF-L for high-performance hybrid supercapacitors. J. Colloid Interface Sci. 2022, 608, 3049–3058. [Google Scholar] [CrossRef] [PubMed]
  63. Zheng, J.; Bai, X. Preparation of Ni-Co PBA-derived beaded NiSe2/CoSe2/CNT for high-performance supercapacitors. J. Alloys Compd. 2023, 944, 169110. [Google Scholar] [CrossRef]
  64. Jiang, B.; Liu, Y.; Zhang, J.; Wang, Y.; Zhang, X.; Zhang, R.; Huang, L.-L.; Zhang, D. Synthesis of bimetallic nickel cobalt selenide particles for high-performance hybrid supercapacitors. RSC advances 2022, 12, 1471–1478. [Google Scholar] [CrossRef]
  65. Kresse, G.; Joubert, D. From ultrasoft pseudopotentials to the projector augmented-wave method. Phys. Rev. B 1999, 59, 1758. [Google Scholar] [CrossRef]
  66. Blöchl, P.E. Projector augmented-wave method. Phys. Rev. B 1994, 50, 17953. [Google Scholar] [CrossRef]
  67. Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized gradient approximation made simple. Physical review letters 1996, 77, 3865. [Google Scholar] [CrossRef]
  68. Methfessel, M.; Paxton, A. High-precision sampling for Brillouin-zone integration in metals. Phys. Rev. B 1989, 40, 3616. [Google Scholar] [CrossRef]
  69. Pack, J.D.; Monkhorst, H.J. Special points for Brillouin-zone integrations. Phys. Rev. B 1977, 16, 1748. [Google Scholar] [CrossRef]
  70. Guo, Z.; Diao, Y.; Han, X.; Liu, Z.; Ni, Y.; Zhang, L.J.C. Mesoporous NiCo2Se4 tube as an efficient electrode material with enhanced performance for asymmetric supercapacitor applications. CrystEngComm 2021, 23, 2099–2112. [Google Scholar] [CrossRef]
  71. Qu, G.; Zhang, X.; Xiang, G.; Wei, Y.; Yin, J.; Wang, Z.; Zhang, X.; Xu, X.J. ZIF-67 derived hollow Ni-Co-Se nano-polyhedrons for flexible hybrid supercapacitors with remarkable electrochemical performances. Chin. Chem. Lett. 2020, 31, 2007–2012. [Google Scholar] [CrossRef]
  72. Zhu, Y.; Huang, Z.; Hu, Z.; Xi, L.; Ji, X.; Liu, Y.J. 3D interconnected ultrathin cobalt selenide nanosheets as cathode materials for hybrid supercapacitors. Electrochim. Acta 2018, 269, 30–37. [Google Scholar] [CrossRef]
  73. Guo, K.; Cui, S.; Hou, H.; Chen, W.; Mi, L.J. Hierarchical ternary Ni–Co–Se nanowires for high-performance supercapacitor device design. Dalton Tran. 2016, 45, 19458–19465. [Google Scholar] [CrossRef] [PubMed]
  74. Ghosh, S.; Samanta, P.; Samanta, P.; Murmu, N.C.; Kuila, T.J. Investigation of electrochemical charge storage efficiency of NiCo2Se4/RGO composites derived at varied duration and its asymmetric supercapacitor device. Energy Fuels 2020, 34, 13056–13066. [Google Scholar] [CrossRef]
Molecules 29 04580 g001

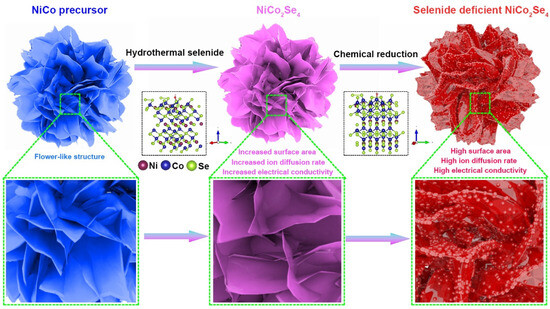

Figure 1. Schematic illustration for the synthesis of selenium-vacant NiCo2Se4.
Figure 1. Schematic illustration for the synthesis of selenium-vacant NiCo2Se4.
Molecules 29 04580 g001
Molecules 29 04580 g002

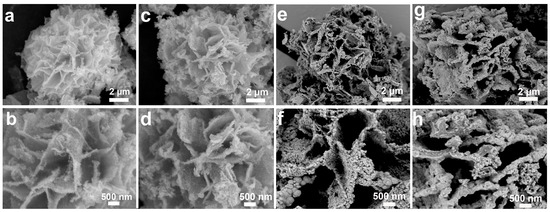

Figure 2. Low- and high-magnification SEM images of the (a,b) Sev-NCS-1, (c,d) Sev-NCS-2, (e,f) Sev-NCS-3, (g,h) Sev-NCS-4.
Figure 2. Low- and high-magnification SEM images of the (a,b) Sev-NCS-1, (c,d) Sev-NCS-2, (e,f) Sev-NCS-3, (g,h) Sev-NCS-4.
Molecules 29 04580 g002
Molecules 29 04580 g003
Figure 3. (a,b) TEM images and (c) HRTEM image of the Sev-NCS-2 (red circles is the defects). (d) Elemental mapping images of the Ni, Co, and Se elements in the Sev-NCS-2 sample.
Figure 3. (a,b) TEM images and (c) HRTEM image of the Sev-NCS-2 (red circles is the defects). (d) Elemental mapping images of the Ni, Co, and Se elements in the Sev-NCS-2 sample.
Molecules 29 04580 g003
Molecules 29 04580 g004

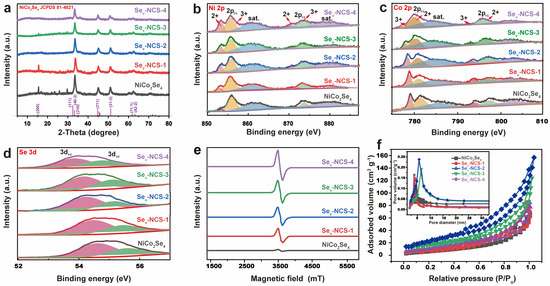

Figure 4. (a) XRD pattern and high-resolution of the (b) Ni 2p, (c) Co 2p, and (d) Se 3d XPS spectra in the NiCo2Se4 and Sev-NCS-n (n = 1, 2, 3, and 4) samples. (e) EPR curves, (f) N2 adsorption–desorption isotherm, and the inset of the (f) shows the pore size distribution results of the NiCo2Se4 and Sev-NCS-n (n = 1, 2, 3, and 4) samples.
Figure 4. (a) XRD pattern and high-resolution of the (b) Ni 2p, (c) Co 2p, and (d) Se 3d XPS spectra in the NiCo2Se4 and Sev-NCS-n (n = 1, 2, 3, and 4) samples. (e) EPR curves, (f) N2 adsorption–desorption isotherm, and the inset of the (f) shows the pore size distribution results of the NiCo2Se4 and Sev-NCS-n (n = 1, 2, 3, and 4) samples.
Molecules 29 04580 g004
Molecules 29 04580 g005

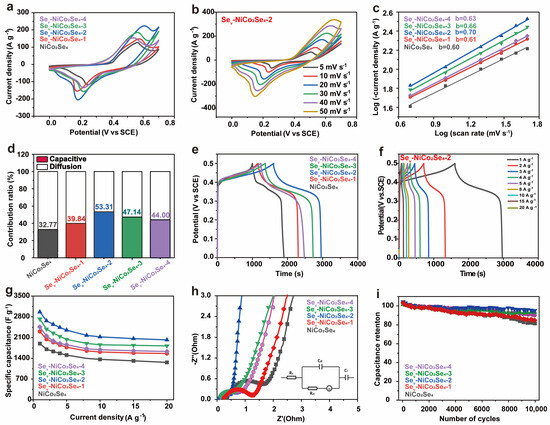

Figure 5. (a) Comparative CV curves of the NiCo2Se4 and Sev-NCS-n (n = 1, 2, 3, and 4) electrodes at a scan rate of 30 mV s−1. (b) CV curves of Sev-NCS-2 at scan rates ranging from 5 to 50 mV s−1. (c) b values determined from the plot of log(i)~log(v) for NiCo2Se4 and Sev-NCS-n (n = 1, 2, 3, and 4) electrodes. (d) Percentage contribution of the capacitive and diffusion-controlled processes of NiCo2Se4 and Sev-NCS-n (n = 1, 2, 3, and 4) at scan rate of 10 mV s−1. (e) Comparative GCD curves of NiCo2Se4 and Sev-NCS-n (n = 1, 2, 3, and 4) electrodes at a current density of 1 A g−1. (f) GCD curves of Sev-NCS-2 at current densities from 1 to 20 A g−1. (g) Comparison the specific capacities of the NiCo2Se4 and Sev-NCS-n (n = 1, 2, 3, and 4) electrodes at current density from 1 to 20 A g−1. (h) Nyquist plots of the NiCo2Se4 and Sev-NCS-n (n = 1, 2, 3, and 4) electrodes (inset is the equivalent circuit diagram). (i) Cycling performance of NiCo2Se4 and Sev-NCS-n (n = 1, 2, 3, and 4) electrodes at a current density of 15 A g−1.
Figure 5. (a) Comparative CV curves of the NiCo2Se4 and Sev-NCS-n (n = 1, 2, 3, and 4) electrodes at a scan rate of 30 mV s−1. (b) CV curves of Sev-NCS-2 at scan rates ranging from 5 to 50 mV s−1. (c) b values determined from the plot of log(i)~log(v) for NiCo2Se4 and Sev-NCS-n (n = 1, 2, 3, and 4) electrodes. (d) Percentage contribution of the capacitive and diffusion-controlled processes of NiCo2Se4 and Sev-NCS-n (n = 1, 2, 3, and 4) at scan rate of 10 mV s−1. (e) Comparative GCD curves of NiCo2Se4 and Sev-NCS-n (n = 1, 2, 3, and 4) electrodes at a current density of 1 A g−1. (f) GCD curves of Sev-NCS-2 at current densities from 1 to 20 A g−1. (g) Comparison the specific capacities of the NiCo2Se4 and Sev-NCS-n (n = 1, 2, 3, and 4) electrodes at current density from 1 to 20 A g−1. (h) Nyquist plots of the NiCo2Se4 and Sev-NCS-n (n = 1, 2, 3, and 4) electrodes (inset is the equivalent circuit diagram). (i) Cycling performance of NiCo2Se4 and Sev-NCS-n (n = 1, 2, 3, and 4) electrodes at a current density of 15 A g−1.
Molecules 29 04580 g005
Molecules 29 04580 g006
Figure 6. (a) Total densities of states and (b) the density state of the Ni atom calculated for the pristine NiCo2Se4 and Sev-NCS, the Fermi level is set to 0 eV; the side view and the Eads (OH−) value in the (100) slab of (c) pristine NiCo2Se4 and (d) Sev-NCS. The differences in charge density of the (e) NiCo2Se4 and (f) Sev-NCS. Where Ni appears in dark purple, Co in dark blue, Se in light green, O in red, and H in white.
Figure 6. (a) Total densities of states and (b) the density state of the Ni atom calculated for the pristine NiCo2Se4 and Sev-NCS, the Fermi level is set to 0 eV; the side view and the Eads (OH−) value in the (100) slab of (c) pristine NiCo2Se4 and (d) Sev-NCS. The differences in charge density of the (e) NiCo2Se4 and (f) Sev-NCS. Where Ni appears in dark purple, Co in dark blue, Se in light green, O in red, and H in white.
Molecules 29 04580 g006
Molecules 29 04580 g007
Figure 7. (a) Schematic diagram of the as-fabricated Sev-NCS-2//AC ASC device. (b) CV curves of AC and NiCo2Se4 at a scan rate of 10 mV s−1. (c) CV curves at scan rates ranging from 10–100 mV s−1. (d) GCD curves at current densities of 1~10 A g−1; (e) cycling stability and coulombic efficiency at a current density of 8 A g−1. (f) Ragone plots.
Figure 7. (a) Schematic diagram of the as-fabricated Sev-NCS-2//AC ASC device. (b) CV curves of AC and NiCo2Se4 at a scan rate of 10 mV s−1. (c) CV curves at scan rates ranging from 10–100 mV s−1. (d) GCD curves at current densities of 1~10 A g−1; (e) cycling stability and coulombic efficiency at a current density of 8 A g−1. (f) Ragone plots.
Molecules 29 04580 g007
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Fu, J.; Li, L.; Xue, Q.; Li, L.; Guo, Z.; Meng, L.; Lai, C.; Guo, Y. Vacancy Engineering of Selenium-Vacant NiCo2Se4 with Enhanced Electrochemical Performance for Supercapacitor. Molecules 2024, 29, 4580. https://doi.org/10.3390/molecules29194580

AMA Style

Fu J, Li L, Xue Q, Li L, Guo Z, Meng L, Lai C, Guo Y. Vacancy Engineering of Selenium-Vacant NiCo2Se4 with Enhanced Electrochemical Performance for Supercapacitor. Molecules. 2024; 29(19):4580. https://doi.org/10.3390/molecules29194580

Chicago/Turabian Style

Fu, Jianjian, Lei Li, Qian Xue, Lindong Li, Zhiying Guo, Lanxiang Meng, Changwei Lai, and Yao Guo. 2024. "Vacancy Engineering of Selenium-Vacant NiCo2Se4 with Enhanced Electrochemical Performance for Supercapacitor" Molecules 29, no. 19: 4580. https://doi.org/10.3390/molecules29194580

APA Style

Fu, J., Li, L., Xue, Q., Li, L., Guo, Z., Meng, L., Lai, C., & Guo, Y. (2024). Vacancy Engineering of Selenium-Vacant NiCo2Se4 with Enhanced Electrochemical Performance for Supercapacitor. Molecules, 29(19), 4580. https://doi.org/10.3390/molecules29194580

Article Metrics

Back to TopTop
