Anti-Inflammatory Effect of Xanthones from Hypericum beanii on Macrophage RAW 264.7 Cells through Reduced NO Production and TNF-α, IL-1β, IL-6, and COX-2 Expression

by
Wei Ma
†,
Fu-Cai Ren
†,
Xue-Ru Wang
and
Ning Li
*
School of Pharmacy, Anhui Medical University, No.81 Meishan Road, Shushan District, Hefei 230032, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Molecules 2024, 29(15), 3705; https://doi.org/10.3390/molecules29153705
Submission received: 27 June 2024 / Revised: 22 July 2024 / Accepted: 2 August 2024 / Published: 5 August 2024
(This article belongs to the Special Issue Isolation, Identification and Application of Biologically Active Natural Products—Second Edition)
Browse Figures
Versions Notes

Abstract

:
Hypericum beanii N. Robson, a perennial upright herb, predominantly inhabits temperate regions. This species has been utilized for the treatment of various inflammation-related diseases. One new xanthone 3,7-dihydroxy-1,6-dimethoxyxanthone (1) and twenty-three known xanthones (2–24) were isolated from the aerial parts of H. beanii. The structure of the new compound was determined based on high-resolution electrospray ionization mass spectroscopy (HR-ESIMS), nuclear magnetic resonance (NMR), Infrared Spectroscopy (IR), ultraviolet spectrophotometry (UV) spectroscopic data. The anti-inflammatory effects of all the isolates were assessed by measuring the inhibitory effect on nitric oxide (NO) production in LPS-stimulated RAW 264.7 macrophages. Compounds 3,4-dihydroxy-2-methoxyxanthone (15), 1,3,5,6-tetrahydroxyxanthone (19), and 1,3,6,7-tetrahydroxyxanthone (22) exhibited significant anti-inflammatory effects at a concentration of 10 μM with higher potency compared to the positive control quercetin. Furthermore, compounds 15, 19, and 22 reduced inducible NO synthase (iNOS), tumor necrosis factor alpha (TNF-α), interleukin-1β (IL-1β), IL-6, and cyclooxygenase 2 (COX-2) mRNA expression in the LPS-stimulated RAW 264.7 macrophages, suggesting that these compounds may mitigate the synthesis of the aforementioned molecules at the transcriptional level, provisionally confirming their anti-inflammatory efficacy.

1. Introduction

The genus Hypericum, a member of the Hypericaceae family, encompasses over 500 taxa distributed across temperate regions in the northern hemisphere and high-altitude tropical areas worldwide [1]. In southwestern China, there are approximately fifty-five species and eight subspecies of this genus. More than 20 species from Hypericum have been utilized in traditional Chinese medicine [2]. Among them, Hypericum beanii N. Robson, a perennial upright herb primarily found in temperate regions such as Kunming, Lunan, and Mengzi in Yunnan Province, China, is locally known as “Huang-hua-xiang” [3]. H. beanii has been traditionally used for its therapeutic properties including heat clearing (reducing or eliminating heat-related imbalances in the body) and detoxification effects, as well as relaxation of tendons and activation of collaterals to address various ailments, such as menstrual fever, epistaxis, jaundice due to damp-heat (a pathological condition where there is an accumulation of dampness (Shi) and heat (Re) in the body), arthralgia, myalgia, upper respiratory infections, hepatitis, nephritis, and stomatitis [4,5]. Recent reports have identified the presence of several phenolic compounds in H. beanii, including xanthones, flavones, and phloroglucinols. Among them, polycyclic polyprenylated acylphloroglucinols (PPAPs) have exhibited hepatoprotective, cytotoxic, and anti-inflammatory activities in vitro [6,7,8].
Inflammation is a defense response of living tissues to injurious stimuli and a complex biological response by the organism to remove the stimulus and then initiate the tissue healing process [9]. Macrophages play a crucial role in the response to inflammatory stimuli by secreting a series of pro-inflammatory cytokines, signaling proteins, and various other inflammatory mediators, including TNF-α, IL-1β, and IL-6 [10]. NO regulated by iNOS reacts with peroxides to promote the inflammatory processes [11]. The enzyme responsible for catalyzing the conversion of arachidonic acid into prostaglandin G2 (PGG2) and subsequently into PGH2 is known as COX, or prostaglandin-endo peroxide synthase. There are two mammalian isozymes encoded by different genes: the constitutive COX-1 and the inducible COX-2. Both enzymes are major targets of NSAIDs in pharmacology [12].
Xanthones possess a unique 9H-Xanthen-9-one scaffold, mainly found in the plants of the Gentianaceae and Hypericaceae families. Xanthones showed a variety of pharmacological activities and structural diversity. Many xanthones have been reported with potent anti-inflammatory properties [13]. In order to find more xanthone compounds with anti-inflammatory activities from the aerial parts of H. beanii, in the present study, one new xanthone (1) and twenty-three known xanthone compounds (2–24) were obtained from the aerial parts of H. beanii (Figure 1). The anti-inflammatory properties of these compounds were evaluated based on their ability to inhibit NO production in LPS-stimulated RAW 264.7 macrophages. Compounds 15, 19, and 22 exhibited significant anti-inflammatory effects. Furthermore, the anti-inflammatory activity of compounds 15, 19, and 22 was confirmed through the inhibition of pro-inflammatory mediator production and other potentially associated anti-inflammatory signaling pathways.

2. Results and Discussion

2.1. Isolation and Structural Elucidation of Compounds 1–24

Compound 1 was obtained as a yellow powder. The molecular formula was established as C15H12O6 based on the quasi-molecular ion observed at m/z 287.0561 [M − H]− (calcd 287.0561 for C15H11O6−) by HR-ESI-MS. The IR spectrum showed absorption bands at νmax 3343 and 1613 cm−1, corresponding to hydroxy groups and an aromatic conjugated carbonyl group, respectively. The 1H-NMR spectrum showed two methoxyl groups [δ 3.80 (3H, s) and 3.88 (3H, s)] and four singlet aromatic protons [δ 6.33 (1H, s), 6.37 (1H, s), 7.01 (1H, s), and 7.34 (1H, s)] (Table 1). 13C-NMR spectrum of compound 1 showed 14 carbon signals, which were sorted by HMQC techniques as two methoxyl groups, four methines, and nine carbons without hydrogens attached, including a carbon of a carbonyl group (172.7 ppm), six oxygenated sp2 carbons. The 1H and 13C NMR spectra of compound 1 were similar to compound 22 (1,3,6,7-tetrahydroxyxanthone) except two methoxyl groups of δH 3.80 (s). δH 3.88 (s), δC 55.8, and δC 56.1. The methoxy groups were connected at positions C-1 and C-6, which was confirmed by the HMBC correlations from δH 3.80 (s) to C-1, and δH 3.88 (s) to C-6, respectively (Figure 2). Thus, the structure of compound 1, 3,7-dihydroxy-1,6-dimethoxyxanthone, was assigned as shown in Figure 1.
The known compounds (2–24) were identified by comparing their experimental NMR spectral data with those in the literature. These compounds were identified as 2-hydroxyxanthone (2) [14], 3-hydroxy-2-methoxyxanthone (3) [15], 1-hydroxy-5-methoxyxanthone (4) [16], 2,5-dihydroxyxanthone (5) [17], 5-hydroxy-3-methoxyxanthone (6) [18], 1,7-dihydroxyxanthone (7) [19], 2,5-dihydroxy-1-methoxyxanthone (8) [20], 1,5-dihydroxy-2-methoxyxanthone (9) [21], 5-hydroxy-1,2-dimethoxyxanthone (10) [22], 1,3,5-trihydroxyxanthone (11) [23], 3,7-dihydroxy-1-methoxyxanthone (12) [24], 1,7-dihydroxy-4-methoxyxanthone (13) [25], 1,6-dihydroxy-7-methoxyxanthone (14) [23], 3,4-dihydroxy-2-methoxyxanthone (15) [26], 3-hydroxy-2,4-dimethoxyxanthone (16) [27], 3,5-dihydroxy-4-methoxyxanthone (17) [28], 1,3,5-trihydroxy-2-methoxyxanthone (18) [29], 1,3,5,6-tetrahydroxyxanthone (19) [30], 3,5,6-trihydroxy-1-methoxyxanthone (20) [31], 1,6-dihydroxy-3,5-dimethoxyxanthone (21) [32,33], 1,3,6,7-tetrahydroxyxanthone (22) [34], 3,6,7-trihydroxy-1-methoxyxanthone (23) [35], and 3,6-dihydroxy-1,7-dimethoxyxanthone (24) [36]. It is noteworthy that compounds 2, 4–9, 11–15, and 18–24 were reported from H. beanii for the first time.

2.2. Cell Viability

The potential cytotoxicity of compounds (1–24) on RAW 264.7 macrophage cells was evaluated through Cell Counting Kit-8 (CCK-8, Apexbio, Houston, TX, USA). The results were compared to a control group incubated with normal medium only. As depicted in Figure 3, the majority of compounds exhibited no significant cytotoxic effects at a concentration of 10 μM. Consequently, we deduced that the concentration of 10 μM for further analyses would be appropriate.

2.3. Evaluation of Anti-Inflammatory Activity of the Isolated Compounds

Previous reports have shown many models, either in vitro or in vivo, which are recruited to evaluate the anti-inflammatory properties of xanthones. A lot of xanthones with anti-inflammatory properties have been found, including simple oxygenated xanthones, xanthone glycosides, prenylated xanthones, and xanthonolignoids [13]. Nitric oxide (NO) is a short-lived molecule produced by the enzyme nitric oxide synthase (NOS) and is released by macrophages in response to pathogens. In many diseases, high levels of NO are produced due to the induction of iNOS [37]. Increased production of NO has been considered an indication of macrophage activation, making it a well-known method for investigating anti-inflammatory properties [38].
We have separated the chemical components from the aerial parts of H. beanii, in order to find more xanthone compounds with anti-inflammatory activities and to promote the reasonable use of this herb as a medicinal plant. In this study, all xanthone compounds from the aerial parts of H. beanii were tested for their inhibitory activities at 10 μM against NO production in LPS-induced RAW264.7 macrophages (Figure 4). Except for compounds 1, 11, 12, 18, 20, and 21, other components showed varying degrees of anti-inflammatory activity. Compounds 15, 19, and 22 displayed significant anti-inflammatory effects with higher potency compared to the positive control quercetin.
All the compounds 1–24 isolated from H. beanii were analogues and possessed the same xanthone skeleton with different amounts of -OCH3 and -OH groups at C-1 to C-7 positions. Compounds 1 and 22–24 have substituents in four identical positions of C-1, C-3, C-6, and C-7, but 1, 23, and 24 displayed much weaker anti-inflammatory activity than 22. Careful further molecular structure analysis allowed us to reach the preliminary deduction that the anti-inflammatory activity of compound was reduced when -OH was substituted by -OCH3 at the same position. Similar conclusions are observed between compounds 15 and 16, as well as between compounds 19 and 20, and 19 and 21. This result suggested that the number of phenolic hydroxyl groups is a key factor in the enhancement of the anti-inflammatory activity of xanthone when the number and position of substituents are exactly the same.

2.4. Effect of Compounds 15, 19, and 22 on NO Production and the mRNA Level of iNOS

As shown in Figure 5, the concentrations of NO and mRNA expression level of iNOS were higher in the LPS treatment group than in the control group, indicating an immune inflammatory reaction. And treatment with compounds 15, 19, and 22 resulted in a significantly lower NO content compared to that in LPS-treated cells. The expression level of iNOS mRNA, when treated with compounds 15, 19, and 22, showed a noticeable difference from the LPS group. It can be speculated that compounds 15, 19, and 22 inhibit NO synthase by suppressing iNOS expression, ultimately reducing NO production.
Many plants of the Hypericum genus containing xanthones as bioactive constituents have been traditionally used as anti-inflammatory agents [13,39]. Among the xanthone derivatives tested, compounds 15, 19, and 22 showed a remarkable inhibitory effect, suggesting its potential anti-inflammatory activity. Previous studies have highlighted the ability of these compounds to modulate inflammatory pathways, including the inhibition of NO production [39]. In this study, the observed inhibitory effects suggest that compounds 15, 19, and 22 may interfere with the inflammatory cascade by suppressing NO production.

2.5. Effect of Compounds 15, 19, and 22 on TNF-α, IL-1β, and IL-6

Macrophage activation can increase the production of cytokines such as TNF-α, IL-1β, and IL-6. Overproduction and release of these cytokines can disrupt the immune balance of the body, leading to an exaggerated immune response and contributing to the development of inflammatory diseases [40]. Therefore, the anti-inflammatory activity of compounds 15, 19, and 22 on TNF-α, IL-1β, and IL-6 levels was analyzed to assess their effects on the pathways involving these cytokines.
The results presented in Figure 6 show that the LPS-treated group exhibited a significant elevation in TNF-α, IL-1β, and IL-6 levels compared to the control group. However, after treatment with compounds 15, 19, and 22, concentrations of TNF-α, IL-1β, and IL-6 were reduced. We determined the effect of compounds 15, 19, and 22 on the mRNA expression of TNF-α, IL-1β, and IL-6 using qPCR. As showed in Figure 7, the mRNA expression of TNF-α, IL-1β, and IL-6 increased upon LPS treatment, following the same trend as the secretion levels of TNF-α, IL-1β, and IL-6. Conversely, following treatment with compounds 15, 19, and 22, the mRNA expression of TNF-α, IL-1β, and IL-6 in the macrophages decreased compared to the LPS-treated group, supporting our previous finding that treatment with compounds 15, 19, and 22 reduced the mRNA expression of TNF-α, IL-1β, and IL-6. Additionally, in previous studies, Cho et al. reported that mangostenone F, a natural xanthone, dose-dependently inhibited the production of NO, iNOS, and pro-inflammatory cytokines (TNF-α, IL-1β, and IL-6) in LPS-stimulated RAW264.7 cells [41]. Li et al. described that 1,3,6,7-tetrahydroxy-8-prenylxanthone was identified as a potent inhibitor of LPS-induced NO production and IL-6 secretion in RAW264.7 macrophages [42]. Jeong et al. found that cudratricusxanthone A, an isoprenylated xanthone, suppressed TNF-α and IL-1β production [43]. These results suggest that compounds 15, 19, and 22 inhibit the inflammatory activity in macrophage RAW264.7 cells via lowering the expression and secretion of the inflammatory mediators TNF-α, IL-1β, and IL-6.

2.6. Effect of Compounds 15, 19, and 22 on COX-2

Recent reports have suggested that increased levels of COX activity promote inflammatory pain [44]. To investigate the inhibitory effect of compounds 15, 19, and 22 on LPS-induced inflammatory response in RAW 264.7 macrophages, the level of COX-2 mRNA expression was determined. After treatment with LPS, the mRNA expression levels of COX-2 were significantly increased, whereas following treatment with compounds 15, 19, and 22, the mRNA expression of COX-2 significantly decreased compared to the LPS-treated group (Figure 8). Similar results were reported that suggest that ravenelin, a xanthone, suppressed iNOS and COX-2 expression in LPS-induced RAW 264.7 macrophages [45].

3. Materials and Methods

3.1. General Experimental Procedures

A Shimadzu UV-2401PC spectrophotometer was used to obtain the UV spectra. A Thermo NICOLET Is10 FT-IR spectrometer was used for IR spectroscopy with KBr pellets. The 1D and 2D NMR spectra were recorded on an Avance III-600 spectrometer with TMS as an internal standard, and chemical shifts (δ) are expressed in ppm. HR-MS was performed on an Agilent 1290 UPLC/6540 Q-TOF spectrometer (Agilent, Santa Clara, CA, USA). A JASCO J-1500 spectrometer was used to measure the ECD spectra (JASCO Corp., Japan). Sephadex LH-20 gel (25–100 μm) was obtained from Pharmacia Fine Chemical (Uppsala, Sweden), and C18 silica gel (50 μm) was procured from YMC (Osaka, Japan). Column chromatography silica gel (200–300 mesh) and thin-layer chromatography (TLC) silica gel plates were purchased from Shanghai Haohong Biomedical Technology (Shanghai, China). HPLC separations were carried out with a Thermo Scientific UltiMate3000 liquid chromatography system, and a Thermo Hypersil ODS column (ODS, 250 × 10 mm, 5 μm; Thermo, Waltham, MA, USA) was used.

3.2. Plant Material

The aerial parts of H. beanii were collected from Kunming, Yunnan Province, People’s Republic of China, in June 2019 and were authenticated by Prof. Kai-Jin Wang (Anhui University). A voucher specimen (20190630-3) was deposited at the School of Pharmacy, Anhui Medical University.

3.3. Extraction and Isolation

The dried aerial parts of H. beanii (9.5 kg) were subjected to extraction with 95% ethanol (4 × 50 L) at room temperature to obtain 680 g of crude residue. The residue was resuspended in water and subsequently extracted with petroleum ether (PE) and EtOAc. Six fractions (Fr. 1 to Fr. 6) were obtained from the EtOAc (240 g) partition by silica gel column chromatography eluting with dichloromethane (CH2Cl2)/EtOAc (from 100:1 to 1:1) and EtOAc/methyl alcohol (MeOH) (from 20:1 to 1:1). Fr. 4 (2.3 g) was fractionated by a Sephadex LH-20 column eluted with CH2Cl2/MeOH (1:1) to obtain two subfractions (Fr. 4.1 and Fr. 4.2). Fr. 4.1 (1.6 g) and Fr. 4.2 (380 mg) were separated by a Sephadex LH-20 column eluted with MeOH/H2O (from 10% to 100%) to yield Frs. 4.1.1–4.1.2, Frs. 4.2.1–4.2.3. Fr. 4.1.1 and Fr. 4.1.2 were further applied to C18 eluting with MeOH/H2O (from 10% to 100%) to yield Frs. 4.1.1.1–4.1.1.2 and Frs. 4.1.2.1–4.1.2.2. Fr. 4.1.1.1 was purified by preparative TLC (CH2Cl2/MeOH, 30:1) to produce 3 (65 mg). Fr. 4.1.1.2 was purified by CC eluting with CH2Cl2/EtOAc (80:1) to produce 6 (8 mg) and 9 (9 mg). Fr. 4.1.2.2 was further purified by preparative TLC (CH2Cl2: MeOH 30:1) to produce 7 (37 mg), 14 (4 mg), and 21 (8 mg). Frs. 4.2.1–4.2.3 were purified by preparative HPLC with MeOH/H2O (60:40) to afford 2 (Rt 23.5 min, 13.5 mg), 4 (Rt 26.2 min, 9 mg), 10 (Rt 28.2 min, 3 mg), 13 (Rt 13.8 min, 12 mg), 16 (Rt 22.5 min, 5.5 mg), and 18 (Rt 18.8 min, 6 mg). Fr.5 (8.85 g) was subjected to Sephadex LH-20 column elution with CH2Cl2/MeOH (1:1), and then separated by CC with CH2Cl2/EtOAc (20:1 to 1:1) and purified by a Sephadex LH-20 column to yield 5 (28 mg), 8 (26 mg), 11 (45 mg), and 17 (7 mg). Fr. 6 (45 g) was further applied to Sephadex LH-20 column elution with CH2Cl2/MeOH (1:1) to obtain two subfractions (Frs. 6.1–6.2). Fr. 6.1 (12 g) and Fr. 6.2 (2.03 g) were separated on a Sephadex LH-20 column eluted with MeOH to yield Frs. 6.1.1–6.1.2 and Frs. 6.2.1–6.2.2. Fr. 6.1.2 was separated by a Sephadex LH-20 column with MeOH/H2O (from 10% to 100%) to obtained Frs. 6.1.2.1–6.1.2.4. Fr. 6.1.2.1 was purified by CC with CH2Cl2/EtOAc (1:1) to produce 15 (12 mg). Fr. 6.1.2.2 and Fr. 6.1.2.3 were separated by CC with CH2Cl2/MeOH (20:1) and purified by preparative TLC (CH2Cl2/MeOH, 30:1) to produce 20 (17 mg), 23 (20 mg). Fr. 6.1.2.4 was purified by preparative HPLC with MeOH/H2O (37.5%) to afford 1 (Rt 11.9 min, 6 mg), 12 (Rt 10.8 min, 8 mg), 24 (Rt 9.8 min, 5 mg). Fr. 6.2.1 and Fr. 6.2.2 were separated by CC with CH2Cl2/MeOH (20:1) to produce 19 (5 mg), 22 (4 mg).

3.4. Spectroscopic Data

3,7-Dihydroxy-1,6-dimethoxyxanthone (1): C15H12O6, yellow powder; [α ] D 25 + 73.3 (c 0.10, MeOH); UV (MeOH) λmax (log ε) 250 (3.50), 302 (3.12), and 356 (2.88) nm; IR (KBr) vmax 3343.9, 1613.1, 1559.0, 1455.1, 1277, 1206.3, 1175.4, 1123.1, 1098.1, 1022.9, 965.2, 816.2, and 572.4 cm−1; HR-ESI-MS m/z 287.0561 [M − H]− (calcd 287.0561 for C15H11O6−); 1H NMR (600 MHz) and 13C NMR (125 MHz) data; see Table 1.

3.5. CCK-8 Assay

Cell viability was examined by the CCK-8 assay [46], and none of the test compounds exhibited cytotoxicity at their effective concentrations. Quercetin was used as a positive control.

3.6. Anti-Inflammatory Activity

The inhibitory effects of all the compounds on LPS-stimulated NO production were evaluated in RAW264.7 macrophages by Griess reaction [46]. The cells (Cell Bank of the Chinese Academy of Sciences, Shanghai, China) were cultured in DMEM (Gibco, Pleasanton, CA, USA) supplemented with 10% FBS (Rongye Biotechnology, Lanzhou, China), 100 U/mL penicillin, and 100 U/mL streptomycin (Kaiji Biotechnology, Shanghai, China), and incubated at 37 °C in a humidified atmosphere with 5% CO2. The RAW 264.7 cells were seeded on 24-well plates at 1 × 105 cells/well and incubated for 24 h. Then, they were treated with compounds and quercetin (10 μM) with LPS (1 μg/mL). After 24 h, 50 μL of cell-free supernatant was mixed with 100 μL of Griess reagent and incubated at room temperature for 5 min. The concentration of nitrite was measured at 540 nm. Sodium nitrite was used as a standard to calculate the NO concentration.

3.7. Determination of NO, TNF-α, IL-1β, and IL-6 Levels

The macrophages (1 × 105 cells/mL) were treated with different concentrations of compounds 15, 19, and 22 (0, 1.25, 2.5, 5 μM) with LPS (1 μg/mL) or DMEM. After 24 h, cell supernatants were then collected and the levels of NO, TNF-α (ABclonal Technology, Wuhan, China, Cat. NO.: RK00027), IL-1β (ABclonal technology, Cat. NO.: RK04878), and IL-6 (ABclonal technology, Cat. NO.: RK00008) were measured by Griess reagent and ELISA kits [40].

3.8. qPCR Analysis

The RAW 264.7 cells were seeded on 12-well plates at 1 × 106 cells/well and incubated for 24 h. Then, they were treated with compounds 15, 19, and 22 (0, 1.25, 2.5, 5 μM) with LPS (1 μg/mL) or DMEM [39]. After 24 h, cells were lysed to isolate total RNA. Total RNA was isolated using TRIzol reagent according to the manufacturer’s protocol for cDNA synthesis by reverse transcriptase. The cDNA encoding iNOS, TNF-α, IL-1β, IL-6, and COX-2 genes was quantified by a quantitative real-time PCR assay (qPCR) using gene-specific primers (Table 2). GAPDH was used as an internal reference.

3.9. Statistical Analysis

All the data were presented as mean ± SEM. One-way ANOVA tests were conducted using SPSS Statistics 20.0 for the comparison between treatments. A value of <0.05 was considered statistically significant.

4. Conclusions

One new xanthone (1) and twenty-three known xanthone compounds (2–24) were isolated from the aerial parts of H. beanii, and their chemical structures were elucidated through comprehensive spectroscopic analysis in conjunction with HR-ESI-MS. All xanthone compounds were tested for their inhibitory activities at 10 μM against NO production in LPS-induced RAW264.7 macrophages. Except for compounds 1, 11, 12, 18, 20, and 21, other components showed varying degrees of anti-inflammatory activity. Notably, compounds 15, 19, and 22 exhibited significant anti-inflammatory activity by inhibiting NO production in LPS-stimulated murine macrophage RAW 264.7 cells. Furthermore, compounds 15, 19, and 22 reduced iNOS, TNF-α, IL-1β, IL-6, and COX-2 mRNA expression in the LPS-stimulated RAW 264.7 macrophages. Collectively, these findings underscore the potential of xanthones as crucial anti-inflammatory constituents derived from H. beanii; this notion is further supported by the inhibitory effects observed for compounds 15, 19, and 22 on tested inflammatory mediators. These results will contribute to a more rational utilization of both H. beanii and its constituent xanthones.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules29153705/s1.

Author Contributions

W.M. carried out the plant extraction, the isolation of compounds, data analysis, and the writing of the manuscript. F.-C.R. assisted in data analysis and the writing of the manuscript. X.-R.W. assisted with bioassay. N.L. arranged design and manuscript modification. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (NO. 32270424), the Scientific Research Platform Improvement Project of Anhui Medical University (2022xkjT045), the University natural science research project of Anhui province (KJ2020A0775), and the University natural science research project of Anhui province (KJ2019A1301).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in the study are included in the article (and Supplementary Material), further inquiries can be directed to the corresponding authors.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Duan, Y.L.; Deng, Y.F.; Bu, P.F.; Guo, Y.; Shi, Z.Y.; Cao, Y.Y.; Zhang, Y.T.; Hu, H.; Qi, Z.X.; Hu, C.X.; et al. Discovery of bioactive polycyclic polyprenylated acylphloroglucinols from Hypericum wilsonii. Bioorgan. Chem. 2021, 115, 105246. [Google Scholar] [CrossRef] [PubMed]
  2. Editorial Board of Zhong Hua Ben Cao; State Administration of Traditional Chinese Medicine. Zhong Hua Ben Cao (China Herbal); Shanghai Science and Technology Press: Shanghai, China, 1999; Volume 3, pp. 586–608. [Google Scholar]
  3. Editorial Committee of Flora of China, Chinese Academy of Sciences. Hypericum L. In Flora of China; Science Press: Beijing, China, 1990; Volume 50, p. 2. Available online: https://www.iplant.cn/info/Hypericum?t=foc (accessed on 1 August 2024).
  4. Editorial Committee of Flora of China, Chinese Academy of Sciences. Hypericum beanii N. Robson. In Flora of China; Science Press: Beijing, China, 1990; Volume 50, pp. 36–37. Available online: https://www.iplant.cn/info/Hypericum%20beanii?t=foc (accessed on 1 August 2024).
  5. Yunnan Institute of Materia Medica. Yunnan Natural Medicine Atlas; Yunnan Science and Technology Press: Yunnan, China, 2003; p. 422. [Google Scholar]
  6. Chen, X.Q.; Li, Y.; Li, K.Z.; Peng, L.Y.; He, J.; Wang, K.; Pan, Z.H.; Cheng, X.; Li, M.M.; Zhao, Q.S.; et al. Spirocyclic acylphloroglucinol derivatives from Hypericum beanii. Chem. Pharm. Bull. 2011, 59, 1250–1253. [Google Scholar] [CrossRef] [PubMed]
  7. Suo, X.Y.; Liu, X.Y.; Liu, X.W.; Li, X.X.; Zhu, T.T.; Ji, T.F.; Liu, B. Four new polyprenylated acylphloroglucinol derivatives from Hypericum beanii. J. Asian Nat. Prod. Res. 2022, 24, 1008–1017. [Google Scholar] [CrossRef]
  8. Xu, W.J.; Tang, P.F.; Lu, W.J.; Zhang, Y.Q.; Wang, X.B.; Zhang, H.; Luo, J.; Kong, L.Y. Hyperberins A and B, type B polycyclic polyprenylated acylphloroglucinols with bicyclo[5.3.1]hendecane core from Hypericum beanii. Org. Lett. 2019, 21, 8558–8562. [Google Scholar] [CrossRef] [PubMed]
  9. Libby, P. Inflammatory mechanisms: The molecular basis of inflammation and disease. Nutr. Rev. 2007, 65, S140–S146. [Google Scholar] [CrossRef] [PubMed]
  10. Ahn, C.B.; Jung, W.K.; Park, S.J.; Kim, Y.T.; Kim, W.S.; Je, J.Y. Gallic Acid-g-Chitosan Modulates Inflammatory Responses in LPS-Stimulated RAW264.7 Cells Via NF-κB, AP-1, and MAPK Pathways. Inflammation 2016, 39, 366–374. [Google Scholar] [CrossRef] [PubMed]
  11. Kwon, D.H.; Cha, H.J.; Choi, E.O.; Leem, S.H.; Kim, G.Y.; Moon, S.K.; Chang, Y.C.; Yun, S.J.; Hwang, H.J.; Kim, B.W.; et al. Schisandrin A suppresses lipopolysaccharide-induced inflammation and oxidative stress in RAW 264.7 macrophages by suppressing the NF-κB, MAPKs and PI3K/Akt pathways and activating Nrf2/HO-1 signaling. Int. J. Mol. Med. 2018, 41, 264–274. [Google Scholar] [CrossRef] [PubMed]
  12. Taketo, M.M. Cyclooxygenase-2 inhibitors in tumorigenesis (part I). J. Natl. Cancer Inst. 1998, 90, 1529–1536. [Google Scholar] [CrossRef] [PubMed]
  13. Feng, Z.L.; Lu, X.Q.; Gan, L.S.; Zhang, Q.W.; Lin, L.G. Xanthones, a promising anti-inflammatory scaffold: Structure, activity, and drug likeness analysis. Molecules 2020, 25, 598. [Google Scholar] [CrossRef]
  14. Gnerre, C.; Thull, U.; Gaillard, P.; Carrupt, P.A.; Testa, B.; Fernandes, E.; Silva, F.; Pinto, M.; Pinto, M.I.; Wolfender, J.L.; et al. Natural and synthetic xanthones as monoamine oxidase inhibitors: Biologicalassay and 3D-QSAR. Helv. Chim. Acta 2001, 84, 552–570. [Google Scholar] [CrossRef]
  15. Habib, A.M.; Reddy, K.S.; McCloud, T.G.; Chang, C.J.; Cassady, J.M. New xanthones from Psorospermum febrifugum. J. Nat. Prod. 1987, 50, 141–145. [Google Scholar] [CrossRef] [PubMed]
  16. Dharmaratne, H.R.; Napagoda, M.T.; Tennakoon, S.B. Xanthones from roots of Calophyllum thwaitesii and their bioactivity. Nat. Prod. Res. 2009, 23, 539–545. [Google Scholar] [CrossRef]
  17. Cardona, M.L.; Pedro, J.R.; Seoane, E.; Vidal, R. Xanthone constituents of Hypericum canariensis. J. Nat. Prod. 1985, 48, 467–469. [Google Scholar] [CrossRef]
  18. Frédérich, M.; Kikuchi, H.; Tane, P.; Tchinda, A.T.; Lonfouo, A.H.N.; Kowa, T.K.; Wabo, H.K.; Oshima, Y. Phenolic Compounds and terpenoids from Hypericum lanceolatum. Res. Nat. Prod. 2012, 6, 94–100. [Google Scholar] [CrossRef]
  19. Lin, C.N.; Chung, M.I.; Liou, S.J.; Lee, T.H.; Wang, J.P. Synthesis and anti-inflammatory effects of xanthone derivatives. J. Pharm. Pharmacol. 1996, 48, 532–538. [Google Scholar] [CrossRef]
  20. Wang, Y.C.; Zhong, F.F.; Zhao, Y.H.; Yang, G.Z.; Chen, Y. Study on the antioxidant constituents from the barks of Garcinia xanthochymus. Nat. Prod. Res. Dev. 2008, 20, 836–838. [Google Scholar] [CrossRef]
  21. Tala, M.F.; Talontsi, F.M.; Zeng, G.Z.; Wabo, H.K.; Tan, N.H.; Spiteller, M.; Tane, P. Antimicrobial and cytotoxic constituents from native Cameroonian medicinal plant Hypericum riparium. Fitoterapia 2015, 102, 149–155. [Google Scholar] [CrossRef] [PubMed]
  22. Poobrasert, O.; Constant, H.L.; Beecher, C.W.; Farnsworth, N.R.; Kinghorn, A.D.; Pezzuto, J.M.; Cordell, G.A.; Santisuk, T.; Reutrakul, V. Xanthones from the twigs of Mammea siamensis. Phytochemistry 1998, 47, 1661–1663. [Google Scholar] [CrossRef] [PubMed]
  23. Li, Y.P.; Huang, S.T. Xanthones from Swertia nervosa and their inhibitory effects on nitric oxide production. Chem. Nat. Compd. 2020, 56, 732–735. [Google Scholar] [CrossRef]
  24. Zhang, Y.; Shi, N.F.; Xie, Z.; Zhao, Y.M.; Liang, C.H.; Deng, Y.Y.; Wang, R.; Liu, Y.P.; Fu, Y.H. Chemical constituents from stems and leaves of Cratoxylum cochinchinense and their inhibitory effects on proliferation of synoviocytes in vitro. China J. Chin. Mater. Medica 2023, 48, 5014–5023. [Google Scholar] [CrossRef]
  25. Marston, A.; Hamburger, M.; Sordat-Diserens, I.; Msonthi, J.D.; Hostettmann, K. Xanthones from Polygala nyikensis. Phytochemistry 1993, 33, 809–812. [Google Scholar] [CrossRef]
  26. Deng, J.T.; Hao, J.; Ma, Y.R.; Zhou, T.X.; Huang, H.Q. Study on chemical components of Hypericum wilsonii N. Robson. J. Yunnan Univ. Nat. Sci. Ed. 2021, 43, 369–376. [Google Scholar] [CrossRef]
  27. Cardona, M.L.; Fernández, M.I.; Pedro, J.R.; Seoane, E.; Vidal, R. Additional new xanthones and xanthonolignoids from Hypericum canariensis. J. Nat. Prod. 2004, 49, 95–100. [Google Scholar] [CrossRef]
  28. Zhang, Z.Z.; ElSohly, H.N.; Jacob, M.R.; Pasco, D.S.; Walker, L.A.; Clark, A.M. Natural products inhibiting Candida albicans secreted aspartic proteases from Tovomita krukovii. Planta. Med. 2002, 68, 49–54. [Google Scholar] [CrossRef] [PubMed]
  29. Li, Y.Z.; Li, Z.L.; Hua, H.M.; Li, Z.G.; Liu, M.S. Studies on flavonoids from stems and leaves of Calophyllum inophyllum. China J. Chin. Mater. Medica 2007, 32, 692–694. Available online: https://pubmed.ncbi.nlm.nih.gov/17608221/ (accessed on 1 August 2024).
  30. Jiang, D.J.; Hu, G.Y.; Jiang, J.L.; Xiang, H.L.; Deng, H.W.; Li, Y.J. Relationship between protective effect of xanthone on endothelial cells and endogenous nitric oxide synthase inhibitors. Bioorganic Med. Chem. 2003, 11, 5171–5177. [Google Scholar] [CrossRef]
  31. Gonda, R.; Takeda, T.; Akiyama, T. Studies on the constituents of Anaxagorea luzonensis A. GRAY II. Nat. Med. 2001, 55, 316. [Google Scholar]
  32. Ghosal, S.; Chaudhuri, R.K.; Nath, A. Chemical constituents of gentianaceae IV: New xanthones of Canscora decussata. J. Pharm. Sci. 1973, 62, 137–139. [Google Scholar] [CrossRef]
  33. Wolfender, J.L.; Hamburger, M.; Msonthi, J.D.; Hostettmann, K. Xanthones from Chironia krebsii. Phytochemistry 1991, 30, 3625–3629. [Google Scholar] [CrossRef]
  34. Wang, H.; Ye, G.; Ma, C.H.; Tang, Y.H.; Fan, M.S.; Li, Z.X.; Huang, C.G. Identification and determination of four metabolites of mangiferin in rat urine. J. Pharm. Biomed. Anal. 2007, 45, 793–798. [Google Scholar] [CrossRef]
  35. Ngouela, S.; Zelefack, F.; Lenta, B.N.; Ngouamegne, E.T.; Tchamo, D.N.; Tsamo, E.; Connolly, J.D. Xanthones and other constituents of Allanblackia monticola (Guttiferae). Nat. Prod. Res. 2005, 19, 685–688. [Google Scholar] [CrossRef]
  36. Hu, L.H.; Yip, S.C.; Sim, K.Y. Xanthones from Hypericum ascyron. Phytochemistry 1999, 52, 1371–1373. [Google Scholar] [CrossRef]
  37. Kanwar, J.R.; Kanwar, R.K.; Burrow, H.; Baratchi, S. Recent advances on the roles of NO in cancer and chronic inflammatory disorders. Curr. Med. Chem. 2009, 16, 2373–2394. [Google Scholar] [CrossRef]
  38. Khatua, S.; Simal-Gandara, J.; Acharya, K. Understanding immune-modulatory efficacy in vitro. Chem. Biol. Interact. 2022, 352, 109776. [Google Scholar] [CrossRef]
  39. Ma, W.; Ren, F.C.; Yan, X.W.; Wang, X.R.; Wu, T.N.; Li, N. Cytotoxic and anti-inflammatory constituents from roots of Hypericum beanii and the antitumor potential under the view of cancer-related inflammation. Fitoterapia 2024, 172, 105745. [Google Scholar] [CrossRef]
  40. DeRijk, R.; Michelson, D.; Karp, B.; Petrides, J.; Galliven, E.; Deuster, P.; Paciotti, G.; Gold, P.W.; Sternberg, E.M. Exercise and circadian rhythm-induced variations in plasma cortisol differentially regulate interleukin-1β (IL-1β), IL-6, and tumor necrosis factor-α (TNF-α) production in humans: High sensitivity of TNF-α and resistance of IL-6. J. Clin. Endocrinol. Metab. 1997, 82, 2182–2191. [Google Scholar] [CrossRef]
  41. Cho, B.O.; Ryu, H.W.; So, Y.; Chang, W.L.; Chang, H.J.; Hong, S.Y.; Yong, W.J.; Park, J.C.; Jeong, I.Y. Anti-inflammatory effect of mangostenone F in lipopolysaccharide-stimulated RAW264.7 macrophages by suppressing NF-κB and MAPK activation. Biomol. Ther. 2014, 22, 288–294. [Google Scholar] [CrossRef]
  42. Li, D.; Liu, Q.; Sun, W.; Chen, X.; Wang, Y.; Sun, Y.; Lin, L. 1, 3, 6, 7-Tetrahydroxy-8-prenylxanthone ameliorates inflammatory responses resulting from the paracrine interaction of adipocytes and macrophages. Br. J. Pharmacol. 2018, 175, 1590–1606. [Google Scholar] [CrossRef]
  43. Jeong, G.S.; Lee, D.S.; Kim, Y.C. Cudratricusxanthone A from Cudrania tricuspidata suppresses pro-inflammatory mediators through expression of anti-inflammatory heme oxygenase-1 in RAW264.7 macrophages. Int. Immunopharmacol. 2009, 9, 241–246. [Google Scholar] [CrossRef]
  44. Toshihiro, N.; Takahashi-Yanaga, F.; Arioka, M.; Mori, Y.; Sasaguri, T. Inhibition of GSK-3 reduces prostaglandin E2 production by decreasing the expression levels of COX-2 and mPGES-1 in monocyte/macrophage lineage cells. Biochem. Pharmacol. 2016, 116, 120–129. [Google Scholar] [CrossRef]
  45. Koopklang, K.; Choodej, S.; Hantanong, S.; Intayot, R.; Jungsuttiwong, S.; Insumran, Y.; Ngamrojanavanich, N.; Pudhom, K. Anti-inflammatory properties of oxygenated isocoumarins and xanthone from thai mangrove-associated endophytic fungus Setosphaeria rostrata. Molecules 2024, 29, 603. [Google Scholar] [CrossRef] [PubMed]
  46. Liu, Z.Z.; Ma, J.C.; Deng, P.; Ren, F.C.; Li, N. Chemical constituents of thesium chinense turcz and their in vitro antioxidant, anti-inflammatory and cytotoxic activities. Molecules 2023, 28, 2685. [Google Scholar] [CrossRef] [PubMed]
Molecules 29 03705 g001

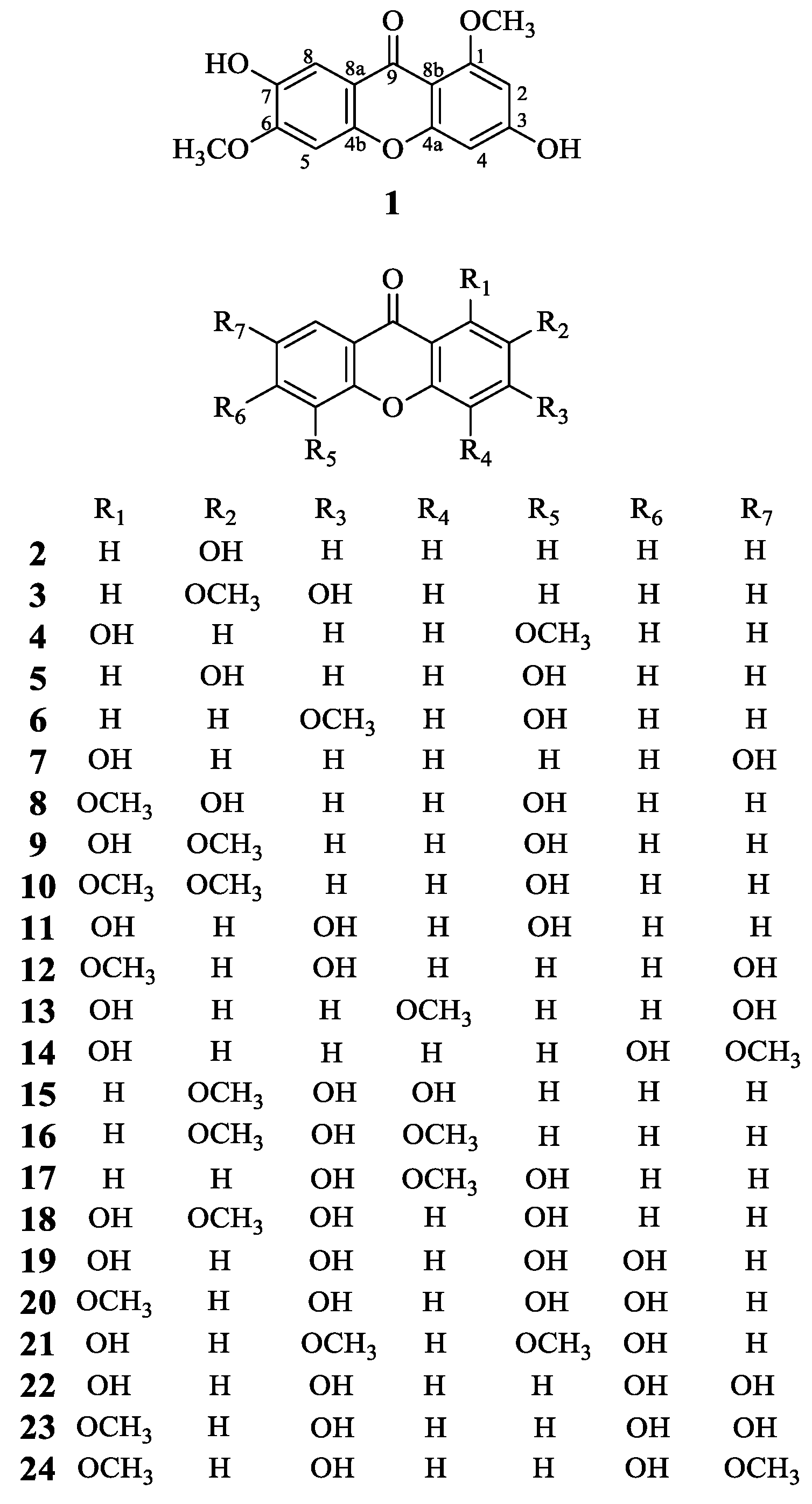

Figure 1. Structures of compounds 1–24.
Figure 1. Structures of compounds 1–24.
Molecules 29 03705 g001
Molecules 29 03705 g002

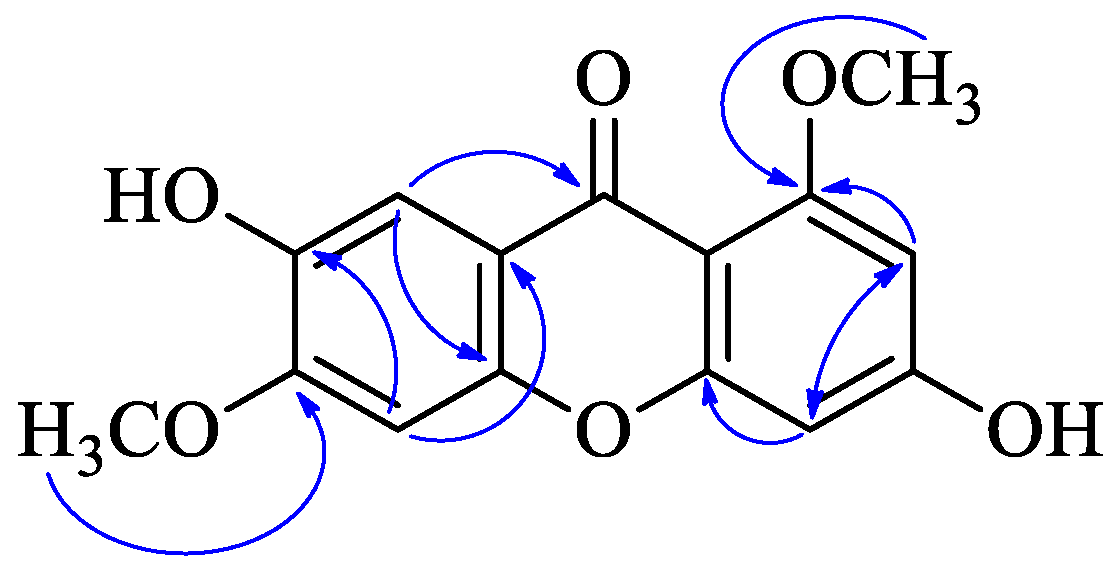

Figure 2. HMBC (Molecules 29 03705 i001) of compound 1.
Figure 2. HMBC (Molecules 29 03705 i001) of compound 1.
Molecules 29 03705 g002
Molecules 29 03705 g003

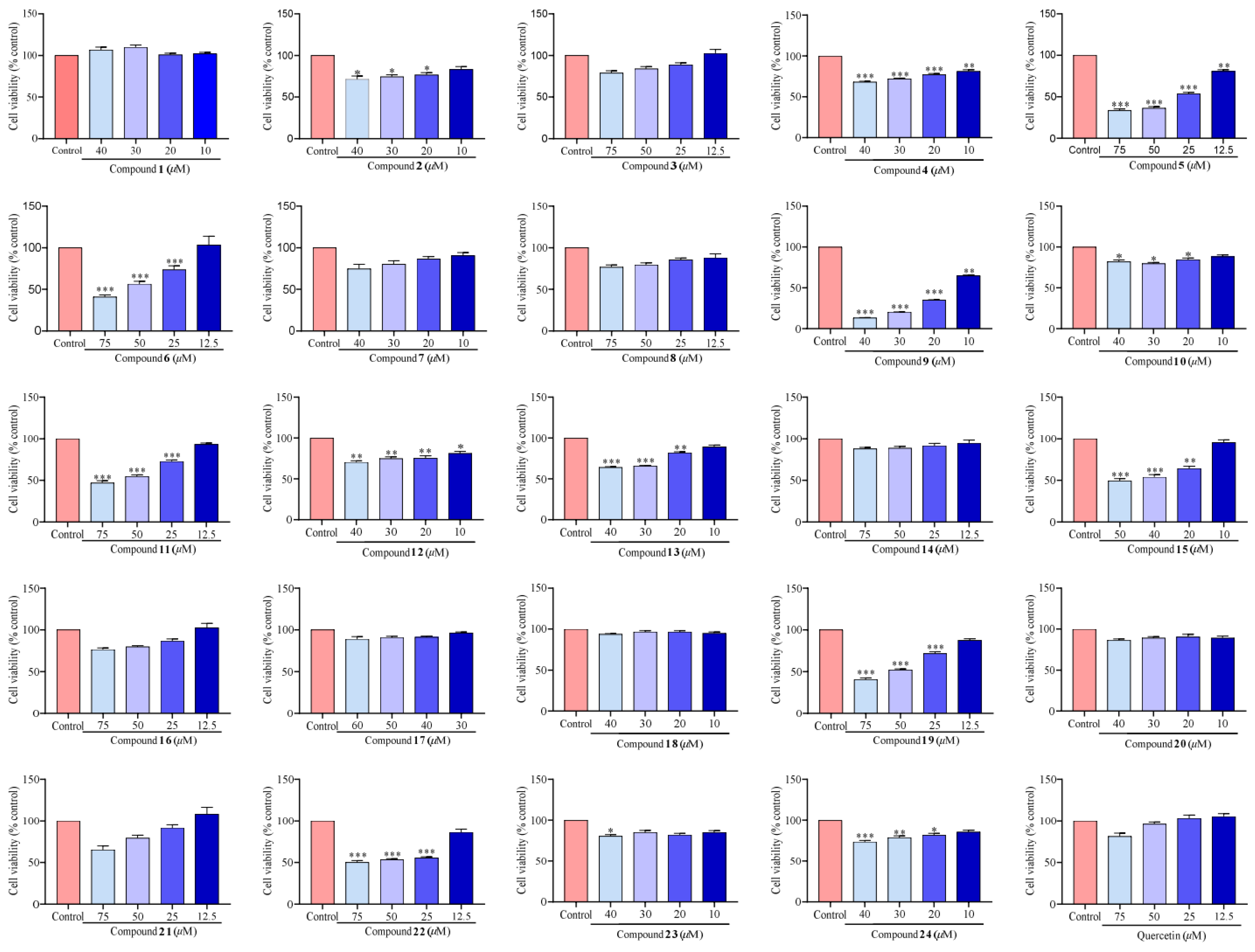

Figure 3. The cytotoxic effects of compounds (1–24) on the RAW 264.7 macrophage cells. Values are the mean ± SEM, n = 3. (Compared to the control group *** p < 0.001, ** p < 0.01, or * p < 0.05).
Figure 3. The cytotoxic effects of compounds (1–24) on the RAW 264.7 macrophage cells. Values are the mean ± SEM, n = 3. (Compared to the control group *** p < 0.001, ** p < 0.01, or * p < 0.05).
Molecules 29 03705 g003
Molecules 29 03705 g004

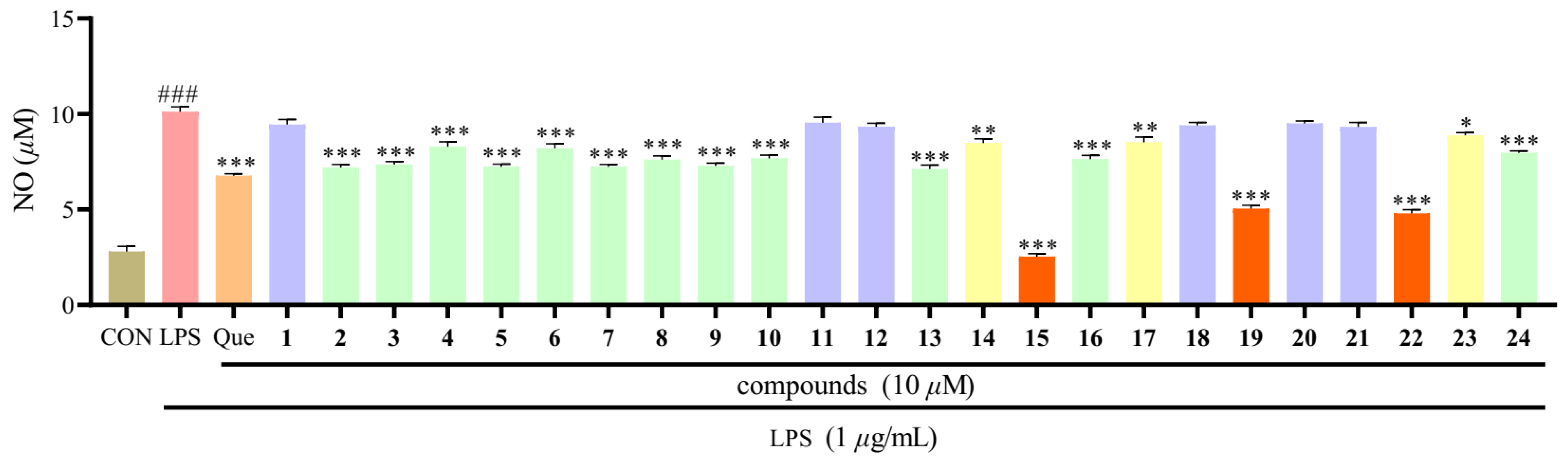

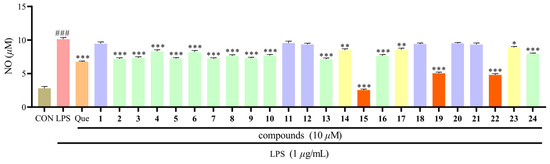

Figure 4. The inhibitory effects of 1–24 against LPS-induced NO production in RAW264.7 macrophages. Mean ± SEM of three replicates is shown. * p < 0.05, ** p < 0.01, *** p < 0.001 with the LPS group. ### p < 0.001 with the CON (control) group.
Figure 4. The inhibitory effects of 1–24 against LPS-induced NO production in RAW264.7 macrophages. Mean ± SEM of three replicates is shown. * p < 0.05, ** p < 0.01, *** p < 0.001 with the LPS group. ### p < 0.001 with the CON (control) group.
Molecules 29 03705 g004
Molecules 29 03705 g005

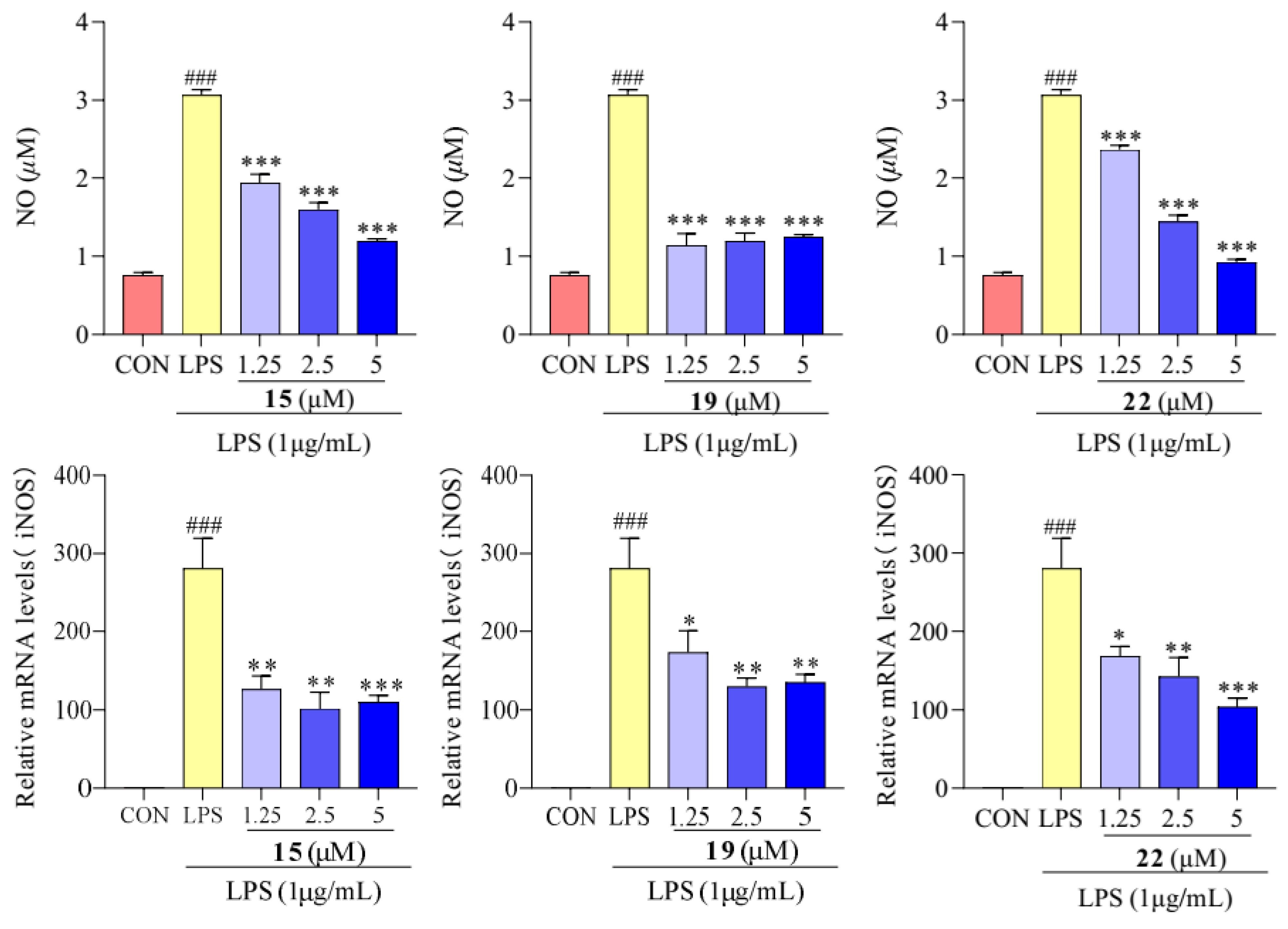

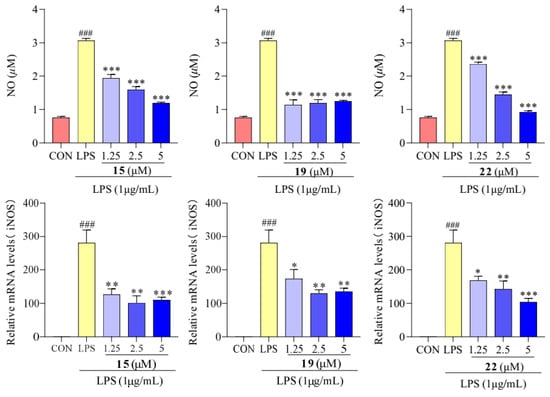

Figure 5. Concentrations of NO and mRNA expression of iNOS in RAW 264.7 cells treated with compounds 15, 19, and 22. Values are the mean ± SEM, n = 3. (Compared to the control group ### p < 0.001. Compared to the LPS group, *** p < 0.001, ** p < 0.01, or * p < 0.05).
Figure 5. Concentrations of NO and mRNA expression of iNOS in RAW 264.7 cells treated with compounds 15, 19, and 22. Values are the mean ± SEM, n = 3. (Compared to the control group ### p < 0.001. Compared to the LPS group, *** p < 0.001, ** p < 0.01, or * p < 0.05).
Molecules 29 03705 g005
Molecules 29 03705 g006

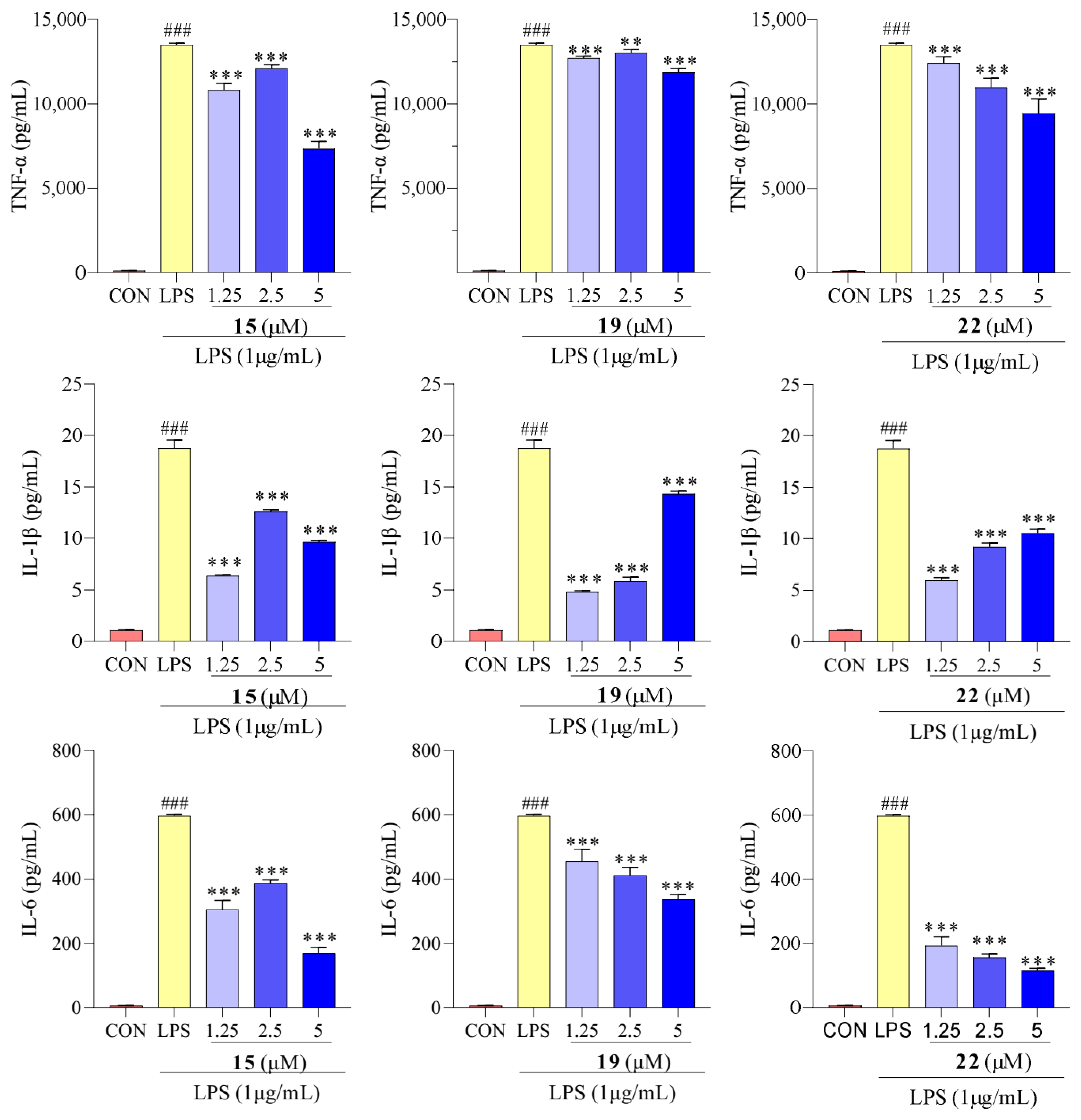

Figure 6. Concentrations of TNF-α, IL-1β, and IL-6 in RAW 264.7 cells with compounds 15, 19, and 22 treatments. Values are the mean ± SEM, n = 3. (Compared to the control group ### p < 0.001. Compared to the LPS group, *** p < 0.001, ** p < 0.01).
Figure 6. Concentrations of TNF-α, IL-1β, and IL-6 in RAW 264.7 cells with compounds 15, 19, and 22 treatments. Values are the mean ± SEM, n = 3. (Compared to the control group ### p < 0.001. Compared to the LPS group, *** p < 0.001, ** p < 0.01).
Molecules 29 03705 g006
Molecules 29 03705 g007

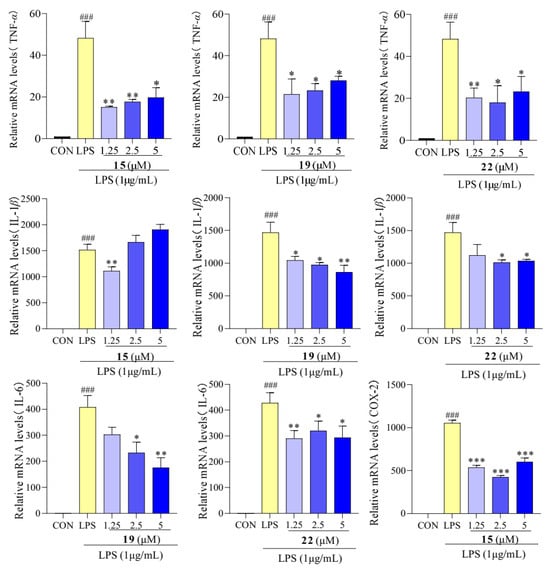

Figure 7. mRNA expression of pro-inflammatory cytokines TNF-α, IL-1β, and IL-6 in RAW 264.7 cells treated with compounds 15, 19, and 22. Values are the mean ± SEM, n = 3. (Compared to the control group ### p < 0.001. Compared to the LPS group, *** p < 0.001, ** p < 0.01, or * p < 0.05).
Figure 7. mRNA expression of pro-inflammatory cytokines TNF-α, IL-1β, and IL-6 in RAW 264.7 cells treated with compounds 15, 19, and 22. Values are the mean ± SEM, n = 3. (Compared to the control group ### p < 0.001. Compared to the LPS group, *** p < 0.001, ** p < 0.01, or * p < 0.05).
Molecules 29 03705 g007
Molecules 29 03705 g008

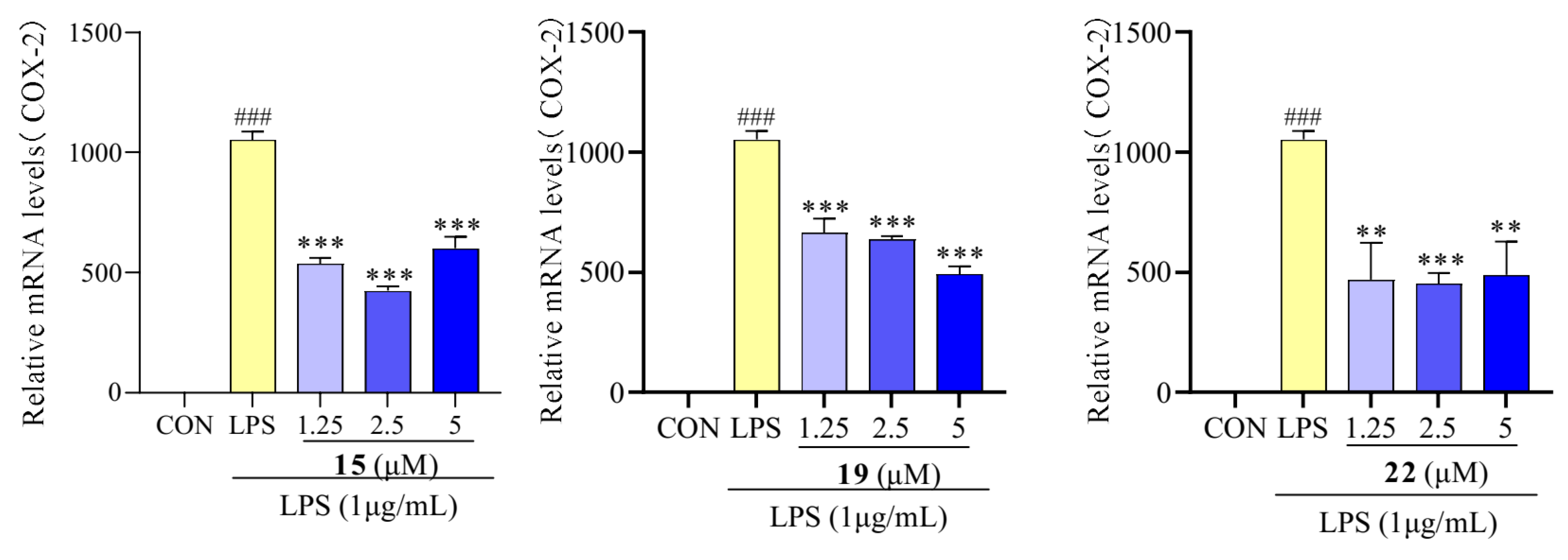

Figure 8. COX-2 mRNA expression in RAW 264.7 cells treated with compounds 15, 19, and 22. Values are the mean ± SEM, n = 3. (Compared to the control group ### p < 0.001. Compared to the LPS group, *** p < 0.001 or ** p < 0.01).
Figure 8. COX-2 mRNA expression in RAW 264.7 cells treated with compounds 15, 19, and 22. Values are the mean ± SEM, n = 3. (Compared to the control group ### p < 0.001. Compared to the LPS group, *** p < 0.001 or ** p < 0.01).
Molecules 29 03705 g008
Table 1. 1H and 13C NMR (600, 150 MHz) data of compound 1 in DMSO-d6.
Table 1. 1H and 13C NMR (600, 150 MHz) data of compound 1 in DMSO-d6.
NO1
δCδH
1161.6
294.86.33s
3163.6
495.66.37s
4a159.0
4b143.7
599.57.01s
6153.4
7149.0
8108.87.34s
8a115.4
8b104.7
9172.7
1-OCH355.83.80 (s)
6-OCH356.13.88 (s)
Table 2. Primer sequences.
Table 2. Primer sequences.
GeneNamePrimers Sequence
GAPDHForward Primer
Reverse Primer		AGGTCGTGTGAACGGATTTG
GGGGTCGTTGATGGCAACA
iNOSForward Primer
Reverse Primer		GGAGTGACGGCAAACATGACT
TCGATGCACAACTGGGTGAAC
TNF-αForward Primer
Reverse Primer		CGCTCTTCTGTCTACTGAACTTCGG
GTGGTTTGTGAGTGTGAGGGTCTG
IL-1βForward Primer
Reverse Primer		CACTACAGGCTCCGAGATGAACAAC
TGTCGTTGCTTGGTTCTCCTTGTAC
IL-6Forward Primer
Reverse Primer		CTTCTTGGGACTGATGCTGGTGAC
TCTGTTGGGAGTGGTATCCTCTGTG
COX-2Forward Primer
Reverse Primer		TCCAACACACTCTATCACTGGC
AGAAGCGTTTGCGGTACTCAT
