Enhanced Tensile Properties, Biostability, and Biocompatibility of Siloxane–Cross-Linked Polyurethane Containing Ordered Hard Segments for Durable Implant Application

by
Xiaofei Wu
†,
Hanxiao Jia
†,
Wenshuo Fu
,
Meng Li
* and
Yitong Pan
*
College of Chemistry, Chemical Engineering and Materials Science, Shandong Normal University, Jinan 250014, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Molecules 2023, 28(6), 2464; https://doi.org/10.3390/molecules28062464
Submission received: 8 February 2023 / Revised: 1 March 2023 / Accepted: 6 March 2023 / Published: 8 March 2023
(This article belongs to the Special Issue Design of Molecularly Interfaced Nanostructures for Biological, Environmental and Food Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
This work developed a series of siloxane-modified polyurethane (PU–Si) containing ordered hard segments by a facile method. The polyaddition between poly(ε-caprolactone) and excess diurethane diisocyanate was carried out to synthesize a polyurethane prepolymer with terminal isocyanate groups, which was then end-capped by 3-aminopropyl triethoxysilane to produce alkoxysilane-terminated polyurethane; the target products of PU–Si were obtained with hydrolysis and the condensation of alkoxysilane groups. The chemical structures were confirmed by FT-IR and XPS, and the effect of the siloxane content or cross-linked degree on the physicochemical properties of the PU–Si films was investigated in detail. The formation of the network structure linked by Si–O–Si bonds and interchain denser hydrogen bonds endowed PU–Si films with fine phase compatibility, low crystallinity, high thermal stability, and excellent tensile properties. Due to the high cross-linked degree and low interfacial energy, the films displayed a high surface water contact angle and low equilibrium water absorption, which resulted in slow hydrolytic degradation rates. Furthermore, the evaluation of protein adsorption and platelet adhesion on the PU–Si film surface presented high resistance to biofouling, indicating superior surface biocompatibility. Consequently, the siloxane–cross-linked polyurethane, which possessed excellent tensile properties, high biostability, and superior biocompatibility, showed great potential to be explored as biomaterials for durable implants.

1. Introduction

Polyurethane (PU), a multifunctional synthetic material, can be applied in many fields of foams, coatings, adhesives, sealants, packaging, and construction materials due to its toughness, flexibility, durability, and anti-abrasion resistance [1,2]. The distinct polarity of hard and soft segments produces microphase separation, and the hard domains serve as fillers dispersed in soft substrates and generate enhanced tensile properties to the PU materials. It is worth mentioning that the tensile properties are largely driven by the interchain hydrogen bonds formed among the hard segments. Moreover, the two-phase microstructures are similar to the cytomembrane structures, which endow PUs with good biocompatibility. By varying the species and composition of soft and hard segments, PUs with adjustable tensile properties can be used as biomaterials for the regeneration of rigid and soft tissues, such as cartilages, knee-joint meniscus, catheters, and prosthetic skins [3,4,5].
However, when PUs are used as durable implants, the adverse reaction of surface biofouling can damage the tensile properties and reduce biostability, which shortens their service life and even leads to the failure of implanted devices [6]. To repel biofouling and build a bioinert surface, many strategies have been developed to produce a polishing surface. Among them, coating and surface grafting are the popular approaches to achieving high surface biocompatibility [7,8,9]. Nevertheless, coatings adhering to the surface mainly through noncovalent interactions tend to peel off from the surface during the application process [10]. Although surface grafting can overcome the drawback of coating, the techniques, including plasma activation, strong oxidation, UV irradiation, and chemical treatment, are usually complicated and inevitably deteriorate the native properties of substrates [11,12,13]. The Hou group prepared a category of medical PUs with phosphorylcholine (PC) on the terminal of the side chain by bulk modification [14]. The PC groups possessing high mobility gathered on the surface after the material was in contact with water and produced a surface with high anti-biofouling capacity. Furthermore, the cast films exhibited excellent tensile strength (>40.8 MPa) and stretchability (>992%). For the durable implant application, it is also necessary to develop effective strategies to prepare medical PUs maintaining superior tensile properties, high biostability, and surface biocompatibility.
Polysiloxane is universally utilized for the manufacture of biomedical devices due to its high flexibility, low toxicity, and superior biostability [15,16,17]. Moreover, its low surface energy can produce good hydrophobicity and reinforce the resistance to biofouling [18]. Siloxane-based PUs combine the merits of the properties of silicone and PU, and several strategies have been developed to prepare siloxane-modified PUs [19,20,21]. Among these, the incorporation of siloxane units into the final PU as soft segments is the most useful technique. However, excessive microphase separation is often found because of high incompatibility between nonpolar siloxane and polar PU; this kind of polymer exhibits relatively poor tensile properties in most cases [22]. To overcome this drawback, alkoxysilane, which can produce hydrolysis and condensation under moisture, is used to modify PU. Recently, Teng et al. reported a PU with surface-grafting alkoxysilane that self-condensed in the existence of water to produce a covalent-bonding coating on the surface [23]. The resulting polymers possessed superior tensile properties and surface anti-biofouling capacity compared with parent PU. Although many strategies have been developed to prepare siloxane-based PU elastomers and foams with special functions, such as high elasticity, shape memory property, thermal-insulating properties, water/oil separation, and improved biocompatibility [24,25,26,27], the research on siloxane-modified PU materials is still worth investigating.
In this study, a series of siloxane–cross-linked PU containing ordered hard segments (PU–Si) was designed and prepared by a facile method. They were expected to own enhanced tensile properties, biostability, and biocompatibility for the application of durable implants. The polyaddition was first carried out between poly(ε-caprolactone) (PCL) and diurethane diisocyanate (HBH) to synthesize a prepolymer with terminal isocyanate groups (PUP–NCO), which was then end-capped by 3-aminopropyl triethoxysilane (APTS) to produce alkoxysilane-terminated polymer (PUP–SiOR); finally, the target products of PU–Si were obtained with the self-cross-linking of alkoxysilane groups under moisture. The effect of siloxane-based cross-linking on the structural and physicochemical performances of the PU–Si films was investigated. The surface anti-biofouling capacities (biocompatibility) were determined with the methods of protein adsorption and platelet adhesion.

2. Results and Discussion

2.1. Synthesis

It is known that PUs prepared with aromatic isocyanate have lower biocompatibility than those based on aliphatic isocyanates because aromatic diamines, the degradation products from the hard segments, were reported to be carcinogenic [28], although the physiological concentration of the products remained controversial [29]. However, the PUs based on aliphatic isocyanates, usually possessing poor tensile properties, were not suitable for durable implant application. The triblock aliphatic diisocyanate (HBH) with two urethane groups in its structure was successfully synthesized through an ordinary condensation between 1,4-butanediol and excess hexamethylene diisocyanate. Due to the denser hydrogen bonds among hard segments, the prepared PU based on HBH exhibited excellent tensile properties [30]. In the work, PUP–NCO was obtained through the reaction of PCL with an excess amount of HBH, and the –NCO content in the system determined with di-n-butylamine titration was used to monitor the progress of the reaction. After the –NCO groups reacted with –NH2 of APTS, the alkoxysilane groups were introduced to the chain end. The reaction endpoint was confirmed through the vanishment of the –NCO absorption in FT-IR. It is worth noting that the reaction should be performed at low temperatures because of the much higher activity of –NH2 than –OH. The content of alkoxysilane groups was easily controlled by varying the mole ratio of BHB/PCL. Due to the moisture sensitivity, a network structure linked by Si–O–Si bonds was produced through hydrolysis and the condensation of alkoxysilane groups under moisture. Since there were three alkoxysilane groups at each end, only a small amount of APTS could reach the target of cross-linking modification. In the meantime, the film materials were obtained after solvent evaporation.

2.2. FT-IR Analysis

The FT-IR spectra of PCL, HBH, APTS, and PU–Si film (taking PU–Si–III as a representative sample) are shown in Figure 1. The FT-IR spectrum of PCL (Figure 1a) exhibited strong peaks at 1720 and 1166 cm−1, which were assigned to the absorption of aliphatic esters C=O and C–O–C, respectively. The stretching vibration of -CH2- was observed at 2940 and 2862 cm−1. The weak absorption band at ~ 3513 cm−1 belonged to the terminal –OH, which vanished after the reaction with excess HBH. In the HBH spectrum (Figure 1b), the typical absorption peak of free –NCO groups was presented at 2268 cm−1. In addition, the observed peaks of –NH– (3312 cm−1), amide I (1673 cm−1), and amide II (1530 cm−1) indicated the existence of urethane groups in HBH. The absence of –NCO and –NH2 (1410 cm−1, Figure 1c) absorption peaks in the PU–Si–III spectrum (Figure 1d) demonstrated the complete reaction between PUR–NCO and APTS, and no residual APTS in the product. In addition to the absorption peaks of urethane and ester groups, an absorption band with high intensity present at 1044 cm−1 belonged to the characteristic Si–O–Si stretching vibration [31], which confirmed the network structure linked through Si–O–Si bonds.

2.3. XPS Analysis

The surface elemental content of PU–Si films was measured with XPS, and the overview and narrow charts are presented in Figure 2. From the overview XPS charts (Figure 2a), it was found that the characteristic signals of carbon (C1s), nitrogen (N1s), and oxygen (O1s) atoms arose at 529.9, 400.7, and 285.6 eV, respectively. The presence of new signals at 152.9 and 101.7 eV was respectively assigned to Si2s and Si2p [32], which manifested that the silicon element was successfully introduced to the films (PU–Si–II~–V). In addition, the intensity for Si2s and Si2p signals presented a steady increase (Figure 2b), which was in accordance with the silicon element content in the film samples. The XPS analysis provided indirect evidence for the preparation of PU–Si.

2.4. XRD Analysis

XRD was commonly used to analyze the crystallization behavior of polymer materials, and the diffractograms of PCL and PU–Si films are presented in Figure 3. All the PU–Si films showed only two blunt diffraction bands at about 21.3° and 24.3°, which corresponded to the crystalline of the PCL soft segments [33] and ordered HBH hard segments [30], respectively. It indicated that there existed crystalline regions in these films. The intensity of the diffraction bands lessened as the siloxane content increased (PU–Si–I~–V), which meant that the crystallinity of the PU–Si films progressively weakened. Especially for the PU–Si–V film that contained the highest siloxane content in the samples, the weak and broad peak implied an amorphous structure. This phenomenon was caused by the Si–O–Si cross-linked network, which deterred the orderly arrangement of the chain segments, generating a decrease in crystallinity [34].

2.5. DSC Analysis

The DSC curves and corresponding data for PU–Si films are shown in Figure 4 and Table 1, respectively. All the samples displayed similar thermal transition with glass transition temperatures (Tg) at 26.3~12.2 °C and crystallization temperature (Tc) at 76.8~42.9 °C. Only one Tg in each curve indicated that there was no obvious microphase separation [35], and the films possessed good compatibility between the phases of PU and siloxane. With the increase of siloxane content in the samples, the values of Tg and Tc decreased gradually, which were ascribed to the high freedom degree of Si–O–Si bonds [36]. Clearly, high alkoxysilane content endowed the films with high cross-linked density, which reduced molecular chain movement and weakened the crystallization ability, resulting in reduced crystallinity and fusion enthalpy (ΔHm) (Table 1) [31]. Such low Tg and ΔHm meant that the PU–Si films were in an elastomer state at room temperature and could be used in a wide temperature range.

2.6. TGA Analysis

The TGA and DTGA curves of PU–Si films are depicted in Figure 5, and the relevant data are summarized in Table 2. The films exhibited a decomposition temperature at 5% weight loss (T5%) higher than 200 °C, manifesting high thermal stability. Two degradation stages in the weight loss process were found for all the samples: the weight loss at the first stage with a maximum decomposition temperature (Tmax–1) of 263~334 °C was primarily the dissociation of urethane (C–N: 305 kJ/mol−1) and ester bonds (C–O: 326 kJ/mol−1); in the second stage, the slight weight loss with the Tmax–2 above 400 °C belonged to the dissociation of Si–O bonds (460 kJ/mol) [37]. In addition, the Tmax values increased with the increase of alkoxysilane content. The enhanced thermal stability was ascribed to the Si–O–Si cross-linked structure, which produced a strong interaction among molecular chains and improved the thermal stability. Obviously, the residue at the test endpoint was mainly SiO2, and the values of residual weight (Wr) were consistent with the alkoxysilane content in the films.

2.7. Tensile Properties

The tensile properties of the PU–Si films were acquired using their derived stress–strain curves (Figure 6), and the summary data, including ultimate tensile strength (UTS), ultimate elongation (UE), Yield modulus (YM), and fracture toughness (FT), are presented in Table 3. All the samples exhibited a yield point, meaning a transformation from elasticity to plasticity. With the increase of alkoxysilane content, the UTS and YM increased markedly, while the UE showed a reverse trend, which was mainly attributed to the increasing cross-linking degree in the films [38]. The Si–O–Si cross-linked structure endowed the films with excellent tensile properties. For example, PU–Si–III, which had a medium cross-linking degree in the film samples, displayed a UTS of 38.4 MPa, UE of 797%, YM of 50.6 MPa, and FT of 21.6 MJ/m3. Due to the multiple urethane groups in each ordered hard segment, denser hydrogen bonds were formed between the molecular chains, which was beneficial for improving their tensile properties. The UTS and UE of PU–Si films compared favorably with those of the MDI–based PU in biomedical applications, such as BiospanTM (UTS: 46 MPa; UE: 680%) and Chronoflex ARTM (UTS: 41 MPa; UE: 450%) [39]; the results indicated that the tensile properties met the requirement for durable implants.

2.8. Surface and Bulk Hydrophilicity

The surface water contact angle (WCA) and water absorption (WA) were adopted to characterize the surface and bulk hydrophilicity of the PU–Si films, respectively. From the WCA data shown in Figure 7a, it was found that, as the alkoxysilane ratio increased (PU–Si–I~–V), the WCA values increased from 80.3° to 115.3°, manifesting an obvious decline in surface wettability. The improvement of surface hydrophobicity was ascribed to the low-polarity siloxane on the film surface, which caused the reduction of surface free energy [40,41]. Generally, high surface hydrophobicity meant superior anti-biofouling capacity; thus, it was speculated that the PU–Si materials possessed better surface biocompatibility than that of the PUs.
It is well known that bulk hydrophilic ability has a crucial effect on the hydrolytic degradation rate, which is closely related to the biostability of implant devices [42]. The plotted diagrams of time-coursed WA for PU–Si–films are shown in Figure 7b. The WA increased rapidly at the preliminary stage and achieved equilibrium after 48 h. All the films exhibited low equilibrium water absorption (EWA), and the EWA values steadily decreased from 8.4% to 2.5% with the increase of alkoxysilane ratio in the films (PU–Si–I~–V). This phenomenon was elucidated by the incremental surface hydrophobicity and cross-linking degree. The surface hydrophobicity produced by siloxane segments in the polymer structures improved their water resistance and hindered water molecules from diffusing through the film. The formation of a cross-linked structure with covalent Si–O–Si bonds and noncovalent hydrogen bonds produced a denser network and effectively reduced the EWA.

2.9. In Vitro Degradation

The in vitro degradation behaviors for the PU–Si film in PBS at 37 °C were plotted and are shown in Figure 8. All the film samples showed a mass loss of less than 10% after degradation for 8 months and maintained their integrity after degradation for 20 months, indicating a slow degradation rate or high biostability. With the incremental siloxane content and cross-linked degree in the films, an obvious reduction in the degradation rate was found, which corresponded to the trend of EWA. For example, PU–Si–I, a linear chain polymer, displayed 42.5% mass loss after degradation for 20 months, and it was deduced that the sample basically lost its tensile properties. Conversely, only 11.4% mass loss for PU–Si–V, which had the maximum siloxane content and cross-linked degree, was found at the end of the measurement, and the sample seemed to retain most of its tensile properties. The degradation primarily occurred through the hydrolysis of ester bonds in PCL segments; thus, high EWA deterred the water molecules from reaching the ester bonds, generating a reduced degradation rate.
The degradation process was intuitively reflected through the surface morphologies. Figure 8b shows the SEM images of PU–Si–III film at predetermined degradation times. A smooth surface for the pristine film was observed (Figure 8b(i)). As the degradation proceeded, the surface became rougher and rougher (Figure 8b(ii,iii)), while only a slight mass was lost. After degradation for 20 months, many irregular holes appearing on the surface signified that some degradation products were dissolved in PBS (Figure 8b(iv)).

2.10. Surface Biocompatibility

The biocompatibility of the PU–Si films was assessed through the anti-biofouling ability on the surface, which was performed by protein adsorption and platelet adhesion. Figure 9a displays the adsorbed BSA on the PU–Si film surface. The unmodified sample of PU–Si–I presented a large amount of absorbed BSA (13.5 μg/cm2), meaning a relatively low ability for protein resistance. As expected, a higher protein–resistant surface was acquired after the incorporation of siloxane into the materials, and the adsorbed BSA was reduced from 8.3 μg/cm2 to 2.8 μg/cm2 with the increase of siloxane content. The Si–O–Si cross-linked network endowed the films with low interfacial energy, which effectively reduced the interactions between protein molecules and surface, producing an improvement of protein-resistant characteristics. The same phenomenon was found in siloxane–polyurethane coatings [43] and PDMS-modified polyurethane [44]. The platelet adhesion on the PU–Si film surfaces, as shown in Figure 9b, exhibited a similar trend with protein adsorption. The number of platelets adhered to the surface presented a substantial reduction as the siloxane content increased (PU–Si–I~–V), which was also attributed to the reduced interfacial energy. Furthermore, the adhered platelets maintained their pristine states, and no deformation and aggregation were found, indicating a weak interaction between platelets and the surface. All the results demonstrated that the PU–Si materials possessed superior biocompatibility and could be explored as anti-biofouling materials for biomedical applications.

3. Materials and Methods

3.1. Materials

APTS (98.5%), dibutyltindilaurate (DBTDL, 95%), and PCL (Mn: 1950 g/mol) were J&K reagents. N,N-dimethylformamide (DMF) with moisture content less than 0.1% was obtained from Macklin (Jinan, China). HBH was synthesized according to the reported method [10]. Other chemicals were of AR grade.

3.2. Preparation of PU–Si and PU–Si Films

The codes and basic compositions of PU–Si films were shown in Table 4. The experimental process of PU–Si–V was as follows: PCL (4.0 mmol) and HBH (8.0 mmol) were dissolved in DMF (0.25 g/mL). Under the protection of dry N2, a drop of catalyst was added, and the reaction was performed at 80 °C to obtain the PUP–NCO (~1.5 h). The conversion of the PUP–NCO into the PUP–SiOR was carried out by adding a DMF solution of APTS (4.0 mmol, 0.25 g/mL) at 20~25 °C by drops under mechanical stirring. After the disappearance of –NCO absorption in FT-IR, additional DMF was introduced to the system (~0.04 g/mL). The diluted solution was first placed under reduced pressure to remove the bubbles and then cast into a Teflon mold. The uniform PU–Si film (thickness: 0.28 ± 0.2 mm) was obtained by curing in the air with 50% relative humidity and solvent evaporation at 45 °C. The residual DMF was thoroughly removed by vacuum drying. Other samples were prepared using the same procedure, according to the recipes in Table 4. The preparation route for PU–Si is illustrated in Figure 10.

3.3. Characterization

FT-IR measurements were performed with a NICOLET 6700 infrared spectrometer (Thermo–Scientific, Waltham, MA, USA) in the region of 4000–400 cm−1 at 4 cm−1 resolution. X-ray photoelectron spectroscopy (XPS) tests were conducted using a Thermo ESCALAB250Xi spectrometer (Thermo–Scientific, Waltham, MA, USA) with a monochromatic Al–Kα radiation source. Thermogravimetric analysis (TGA) was acquired using a TGA 2050 analyzer (Universal, New Brunswick, NJ, USA) with a ramp of 20 °C/min under N2. Differential scanning calorimetry (DSC) was performed with a DSC2500 (TA Instruments, New Castle, DE, USA) with a temperature range of −60~150 °C, and the curves were obtained from the second heating process at a heating ramp of 10 °C/min. The patterns of X-ray diffraction (XRD) were collected with a D8 AVANCE instrument (Bruker, Rheinstetten, Germany) with the diffraction angle 2θ of 5~55°. Tensile testing was performed with an LDS–05 testing machine (Liling Instruments, Jinan, China) according to the ISO527–2 standard. Dumbbell-shaped samples with a gauge width of 5.0 mm were tested using an elongation rate of 25 mm/min. The surface static water–air contact angle was tested with a KSV CAM 200 (Helsinki, Finland) contact angle meter. Bulk hydrophilicity of the films was quantified through water absorption using a gravimetric increment method in deionized water at 37 °C. In vitro degradation was executed in phosphate buffer saline (PBS, pH 7.4) at body temperature over 20 months, and the percentages of mass loss at determined time intervals were used to analyze the degradation rate. The degraded samples were collected, freeze-dried, and observed with a scanning electron microscope (SEM, Quanta 200, FEI, Eindhoven, The Netherlands). The surface biocompatibility (anti-biofouling capacity) was evaluated with protein adsorption in bovine serum albumin (BSA) and platelet adhesion in platelet-rich plasma (PRP), according to the reported methods [45].

4. Conclusions

This work developed a kind of siloxane–cross-linked polyurethane (PU–Si) containing ordered hard segments for medical applications. The influence of the siloxane content and cross-linked degree on the physicochemical properties of PU–Si films was investigated in detail. The network structure linked by Si–O–Si bonds and interchain denser hydrogen bonds endowed the PU–Si films with fine phase compatibility, low crystallinity, high thermal stability, and excellent tensile properties. The high surface WCA contact angle and low EWA meant high surface and bulk hydrophobicity. The results of in vitro hydrolytic degradation showed that PU–Si films had high biostability, with a mass loss of less than 10% after degradation for 8 months. Furthermore, because of the low interfacial energy, the PU–Si films presented high resistance to biofouling (protein adsorption and platelet adhesion), manifesting superior biocompatibility. Consequently, the PU–Si films, which simultaneously possessed excellent tensile properties, high biostability, and superior biocompatibility, could be explored as biomaterials for durable implant application.

Author Contributions

X.W. and H.J.: formal analysis, investigation, and writing—original draft preparation; W.F.: investigation and data curation; M.L.: investigation, data curation, and writing—review and editing; and Y.P.: conceptualization, project administration, and writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Undergraduate Training Programs for Innovation and Entrepreneurship of Shandong province, China (grant number S202210445067).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors express their hearty appreciation to Zhaosheng Hou (Shandong Normal University) for his help with completing the paper.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the described compounds are available from the corresponding authors.

References

  1. Joshi, M.; Adak, B.; Butola, B.S. Polyurethane Nanocomposite Based Gas Barrier Films, Membranes and Coatings: A Review on Synthesis, Characterization and Potential Applications. Prog. Mater. Sci. 2018, 97, 230–282. [Google Scholar] [CrossRef]
  2. Akindoyo, J.O.; Beg, M.; Ghazali, S.; Islam, M.R.; Jeyaratnam, N.; Yuvaraj, A.R. Polyurethane Types, Synthesis and Applications—A Review. RSC Adv. 2016, 6, 114453–114482. [Google Scholar] [CrossRef] [Green Version]
  3. Guo, B.; Glavas, L.; Albertsson, A.C. Biodegradable and Electrically Conducting Polymers for Biomedical Applications. Prog. Polym. Sci. 2013, 38, 1263–1286. [Google Scholar] [CrossRef]
  4. Janik, H.; Marzec, M. A Review: Fabrication of Porous Polyurethane Scaffolds. Mat. Sci. Eng. C 2015, 48, 586–591. [Google Scholar] [CrossRef] [PubMed]
  5. Bi, J.; Liu, Y.; Liu, J. A Facile and Cost-Effective Method to Prepare Biodegradable Poly(Ester Urethane)s with Ordered Aliphatic Hard-Segments for Promising Medical Application as Long-Term Implants. Polymers 2022, 14, 1674. [Google Scholar] [CrossRef]
  6. Li, D.; Chen, H.; McClung, M.G.; Brash, J.L. Lysine-PEG-Modified Polyurethane as a Fibrinolytic Surface: Effect of PEG Chain Length on Protein Interactions, Platelet Interactions and Clot Lysis. Acta Biomater. 2009, 5, 1864–1871. [Google Scholar] [CrossRef] [PubMed]
  7. Liu, Y.; Liu, Z.; Gao, Y.; Gao, W.; Hou, Z.; Zhu, Y. Facile Method for Surface-Grafted Chitooligosaccharide on Medical Segmented Poly (Ester-Urethane) Film to Improve Surface Biocompatibility. Membranes 2021, 11, 37. [Google Scholar] [CrossRef]
  8. Liu, X.; Xia, Y.; Liu, L.; Zhang, D.; Hou, Z. Synthesis of a Novel Biomedical Poly(Ester Urethane) Based on Aliphatic Uniform-Size Diisocyanate and the Blood Compatibility of PEG-Grafted Surfaces. J. Biomater. Appl. 2018, 32, 1329–1342. [Google Scholar] [CrossRef]
  9. Sun, W.; Liu, W.; Wu, Z.; Chen, H. Chemical Surface Modification of Polymeric Biomaterials for Biomedical Applications. Macromol. Rapid Comm. 2020, 41, 1900430. [Google Scholar] [CrossRef]
  10. Wang, Y.; Liu, S.; Ding, K.; Zhang, Y.; Ding, X.; Mi, J. Quaternary Tannic Acid with Improved Leachability and Biocompatibility for Antibacterial Medical Thermoplastic Polyurethane Catheters. J. Mater. Chem. B 2021, 9, 4746–4762. [Google Scholar] [CrossRef]
  11. Najafabadi, S.A.A.; Keshvari, H.; Ganji, Y.; Tahriri, M.; Ashun, M. Chitosan/Heparin Surface Modified Polyacrylic Acid Grafted Polyurethane Film by Two Step Plasma Treatment. Sur. Eng. 2012, 28, 710–714. [Google Scholar] [CrossRef]
  12. Adipurnama, I.; Yang, M.C.; Ciach, T.; Butruk-Raszeja, B. Surface Modification and Endothelialization of Polyurethane for Vascular Tissue Engineering Applications: A Review. Biomater. Sci. 2017, 5, 22–37. [Google Scholar] [CrossRef] [PubMed]
  13. Nemani, S.K.; Annavarapu, R.K.; Mohammadian, B.; Raiyan, A.; Heil, J.; Haque, M.A.; Abdelaal, A.; Sojoudi, H. Surface Modification of Polymers: Methods and Applications. Adv. Mater. 2018, 5, 1801247. [Google Scholar] [CrossRef]
  14. Hou, Z.; Xu, J.; Teng, J.; Jia, Q.; Wang, X. Facile Preparation of Medical Segmented Poly(Ester-Urethane) Containing Uniformly Sized Hard Segments and Phosphorylcholine Groups for Improved Hemocompatibility. Mat. Sci. Eng. C 2020, 109, 110571. [Google Scholar] [CrossRef] [PubMed]
  15. Abbasi, F.; Mirzadeh, H.; Katbab, A.A. Modification of Polysiloxane Polymers for Biomedical Applications: A Review. Polym. Int. 2001, 50, 1279–1287. [Google Scholar] [CrossRef]
  16. Grushevenko, E.A.; Borisov, I.L.; Volkov, A.V. High-Selectivity Polysiloxane Membranes for Gases and Liquids Separation (A Review). Petrol. Chem. 2021, 61, 959–976. [Google Scholar] [CrossRef]
  17. Blanco, I. Polysiloxanes in Theranostics and Drug Delivery: A Review. Polymers 2018, 10, 755. [Google Scholar] [CrossRef] [Green Version]
  18. Lejars, M.; Margaillan, A.; Bressy, C. Fouling Release Coatings: A Nontoxic Alternative to Biocidal Antifouling Coatings. Chem. Rev. 2012, 112, 4347–4390. [Google Scholar] [CrossRef]
  19. Galhenage, T.P.; Hoffman, D.; Silbert, S.D.; Stafslien, S.J.; Daniels, J.; Miljkovic, T.; Finlay, J.A.; Franco, S.C.; Clare, A.S.; Nedved, B.T.; et al. Fouling-Release Performance of Silicone Oil-Modified Siloxane-Polyurethane Coatings. ACS Appl. Mater. Interfaces 2016, 8, 29025–29036. [Google Scholar] [CrossRef] [Green Version]
  20. Gunatillake, P.A.; Dandeniyage, L.S.; Adhikari, R.; Bown, M.; Shanks, R.; Adhikari, B. Advancements in the Development of Biostable Polyurethanes. Polym. Rev. 2019, 59, 391–417. [Google Scholar] [CrossRef]
  21. Sun, Z.; Wen, J.; Xu, C.; Wang, W.; Fan, H.; Chen, Y.; Xiang, J. Modification of Two-Package Polyurethane by Polyethersiloxanediol for Non-Polar Substrate Coating. Chem. Phys. Lett. 2021, 779, 138878. [Google Scholar] [CrossRef]
  22. Liu, J.; Pan, Z.; Gao, Y. Study on the Morphology Structure and Properties of Aqueous Polyurethane Modified by Poly(Dimethyl Siloxane). J. Appl. Polym. Sci. 2007, 105, 3037–3046. [Google Scholar]
  23. Teng, J.; Wang, X.; Xu, J.; Hu, T.; Hou, Z.; Liu, Y. Facile Method for Covalent-Bonding Coating of Crosslinked Silicone Layer onto Poly(Ester-Urethane) Surface to Improve Tensile Properties and Hemocompatibility. Prog. Org. Coat. 2021, 152, 106111. [Google Scholar] [CrossRef]
  24. Zhao, J.; Xu, R.; Luo, G.; Wu, J.; Xia, H. Self-healing poly (siloxane-urethane) elastomers with remoldability, shape memory and biocompatibility. Polym. Chem. 2016, 7, 7278–7286. [Google Scholar] [CrossRef]
  25. Verdolotti, L.; Oliviero, M.; Lavorgna, M.; Santillo, C.; Tallia, F.; Iannace, S.; Chen, S.; Jones, J.R. “Aerogel-like” polysiloxane-polyurethane hybrid foams with enhanced mechanical and thermal-insulating properties. Compos. Sci. Technol. 2021, 213, 108917. [Google Scholar] [CrossRef]
  26. Wu, F.; Pickett, K.; Panchal, A.; Liu, M.; Lvov, Y. Superhydrophobic polyurethane foam coated with polysiloxane-modified clay nanotubes for efficient and recyclable oil absorption. ACS Appl. Mater. Interfaces 2019, 11, 25445–25456. [Google Scholar] [CrossRef] [PubMed]
  27. Shan, S.; Lin, Y.; Zhang, A. Stretchable, robust and reprocessable poly (siloxane-urethanes) elastomers based on exchangeable aromatic disulfides. Polymer 2021, 221, 123588. [Google Scholar] [CrossRef]
  28. Palencia, M.; Lerma, T.A.; Arrieta, Á.A. Antibacterial and Non-Hemolytic Cationic Polyurethanes with N-Carboxymethyl-N,N,N-Triethylammonium Groups for Bacteremia-Control in Biomedical-Using Materials. Mater. Today Commun. 2020, 22, 100708. [Google Scholar] [CrossRef]
  29. Szycher, M.; Siciliano, A.A. An Assessment of 2,4 TDA Formation from Surgitek Polyurethane Foam under Simulated Physiological Conditions. J. Biomater. Appl. 1991, 5, 323–336. [Google Scholar] [CrossRef]
  30. Zhang, L.; Zhang, C.; Zhang, W.; Zhang, H.; Hou, Z. Synthesis and Properties of Biodegradable Poly(Ester-Urethane)s Based on Poly(ε-caprolactone) and Aliphatic Diurethane Diisocyanate for Long-Term Implant Application: Effect of Uniform-Size Hard Segment Content. J. Biomat. Sci. Polym. E. 2019, 30, 1212–1226. [Google Scholar] [CrossRef]
  31. Meera, K.M.S.; Sankar, R.M.; Jaisankar, S.N.; Mandal, A.B. Physicochemical Studies on Polyurethane/Siloxane Cross-Linked Films for Hydrophobic Surfaces by the Sol−Gel Process. J. Phys. Chem. B 2013, 117, 2682–2694. [Google Scholar] [CrossRef] [PubMed]
  32. Galhenage, T.P.; Webster, D.C.; Moreira, A.M.; Burgett, R.J.; Stafslien, S.J.; Vanderwal, L.; Finlay, J.A.; Franco, S.C.; Clare, A.S. Poly(Ethylene) Glycol-Modified, Amphiphilic, Siloxane–Polyurethane Coatings and Their Performance as Fouling-Release Surfaces. J. Coat. Technol. Res. 2017, 14, 307–322. [Google Scholar] [CrossRef] [Green Version]
  33. Nourmohammadi, J.; Ghaee, A.; Liavali, S.H. Preparation and Characterization of Bioactive Composite Scaffolds from Polycaprolactone Nanofibers-Chitosan-Oxidized Starch for Bone Regeneration. Carbohyd. Polym. 2016, 138, 172–179. [Google Scholar] [CrossRef] [PubMed]
  34. Nanda, A.K.; Wicks, D.A.; Madbouly, S.A.; Otaigbe, J.U. Nanostructured Polyurethane/POSS Hybrid Aqueous Dispersions Prepared by Homogeneous Solution Polymerization. Macromolecules 2006, 39, 7037–7043. [Google Scholar] [CrossRef]
  35. Yang, B.; Yin, S.; Bian, X.; Liu, C.; Liu, X.; Yan, Y.; Zhang, C.; Zhang, H.; Hou, Z. Preparation and Properties of Monomethoxyl Polyethylene Glycol Grafted O-Carboxymethyl Chitosan for Edible, Fresh-Keeping Packaging Materials. Food Packaging Shelf. 2022, 33, 100874. [Google Scholar] [CrossRef]
  36. Zhao, H.; Hao, T.H.; Hu, G.H.; Shi, D.; Huang, D.; Jiang, T.; Zhang, Q.C. Preparation and Characterization of Polyurethanes with Cross-Linked Siloxane in the Side Chain by Sol-Gel Reactions. Materials 2017, 10, 247. [Google Scholar] [CrossRef] [Green Version]
  37. Jia, R.; Hui, Z.; Huang, Z.; Liu, X.; Zhao, C.; Wang, D.; Wu, D. Synthesis and Antibacterial Investigation of Cationic Waterborne Polyurethane Containing Siloxane. New J. Chem. 2020, 44, 19759–19768. [Google Scholar] [CrossRef]
  38. Allauddin, S.; Narayan, R.; Raju, K.V.S.N. Synthesis and Properties of Alkoxysilane Castor Oil and Their Polyurethane/Urea–Silica Hybrid Coating Films. ACS Sustain. Chem. Eng. 2013, 1, 910–918. [Google Scholar] [CrossRef]
  39. Abraham, G.A.; Frontini, P.M.; Cuadrado, T.R. Molding of Biomedical Segmented Polyurethane Delamination Events and Stretching Behavior. J. Appl. Polym. Sci. 2015, 69, 2159–2167. [Google Scholar] [CrossRef]
  40. Wu, G.; Liu, D.; Chen, J.; Liu, G.; Kong, Z. Preparation and Properties of Super Hydrophobic Films from Siloxane-Modified Two-Component Waterborne Polyurethane and Hydrophobic Nano SiO2. Prog. Org. Coat. 2019, 127, 80–87. [Google Scholar] [CrossRef]
  41. Zhao, X.; Li, Y.; Li, B.; Hu, T.; Yang, Y.; Li, L.; Zhang, J. Environmentally Benign and Durable Superhydrophobic Coatings Based on SiO2 Nanoparticles and Silanes. J. Colloid Interface Sci. 2019, 542, 8–14. [Google Scholar] [CrossRef] [PubMed]
  42. Zia, K.M.; Ahmad, A.; Anjum, S.; Zuber, M.; Anjum, M.N. Synthesis and Characterization of Siloxane-Based Polyurethane Elastomers Using Hexamethylene Diisocyanate. J. Elastom. Plast. 2015, 47, 625–635. [Google Scholar] [CrossRef]
  43. Benda, J.; Stafslien, S.; Vanderwal, L.; Finlay, J.A.; Clare, A.S.; Webster, D.C. Surface Modifying Amphiphilic Additives and Their Effect on the Fouling-Release Performance of Siloxane-Polyurethane Coatings. Biofouling 2021, 37, 309–326. [Google Scholar] [CrossRef] [PubMed]
  44. Rahimi, A.; Stafslien, S.J.; Vanderwal, L.; Finlay, J.A.; Clare, A.S.; Webster, D.C. Amphiphilic Zwitterionic-PDMS-Based Surface-Modifying Additives to Tune Fouling-Release of Siloxane-Polyurethane Marine Coatings. Prog. Org. Coat. 2020, 149, 105931. [Google Scholar] [CrossRef]
  45. Shih, M.F.; Shau, M.D.; Hsieh, C.C.; Cherng, J.Y. Synthesis and Evaluation of Poly(Hexamethylene-Urethane) and PEG-Poly(Hexamethylene-Urethane) and Their Cholesteryl Oleyl Carbonate Composites for Human Blood Biocompatibility. Molecules 2011, 16, 8181–8197. [Google Scholar] [CrossRef]
Molecules 28 02464 g001 550
Figure 1. FT-IR spectra of (a) PCL, (b) HBH, (c) APTS, and (d) PU–Si–III.
Figure 1. FT-IR spectra of (a) PCL, (b) HBH, (c) APTS, and (d) PU–Si–III.
Molecules 28 02464 g001
Molecules 28 02464 g002 550
Figure 2. (a) Overview and (b) narrow XPS charts of PU–Si films.
Figure 2. (a) Overview and (b) narrow XPS charts of PU–Si films.
Molecules 28 02464 g002
Molecules 28 02464 g003 550

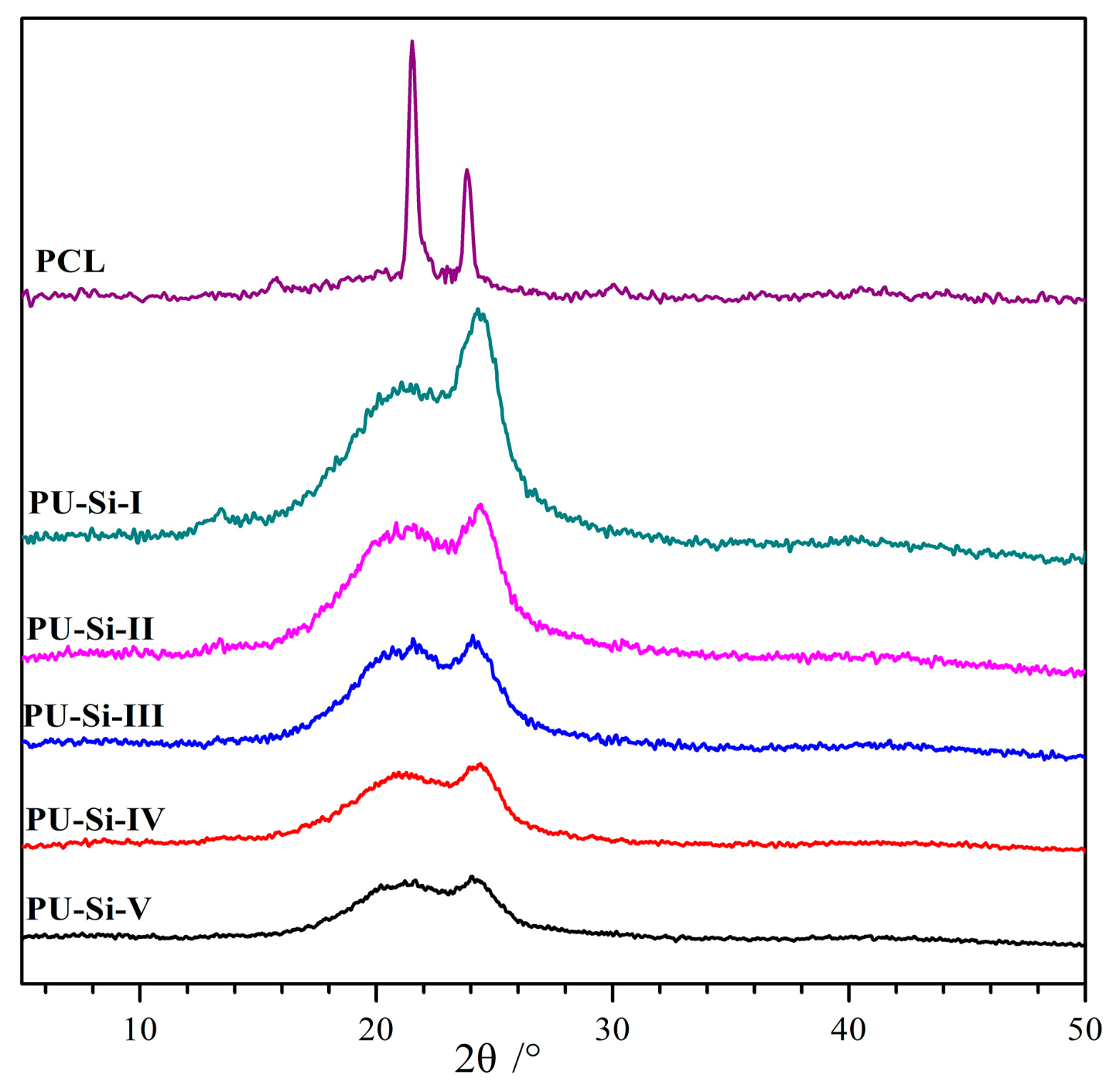

Figure 3. XRD diffractograms of PCL and PU–Si films.
Figure 3. XRD diffractograms of PCL and PU–Si films.
Molecules 28 02464 g003
Molecules 28 02464 g004 550

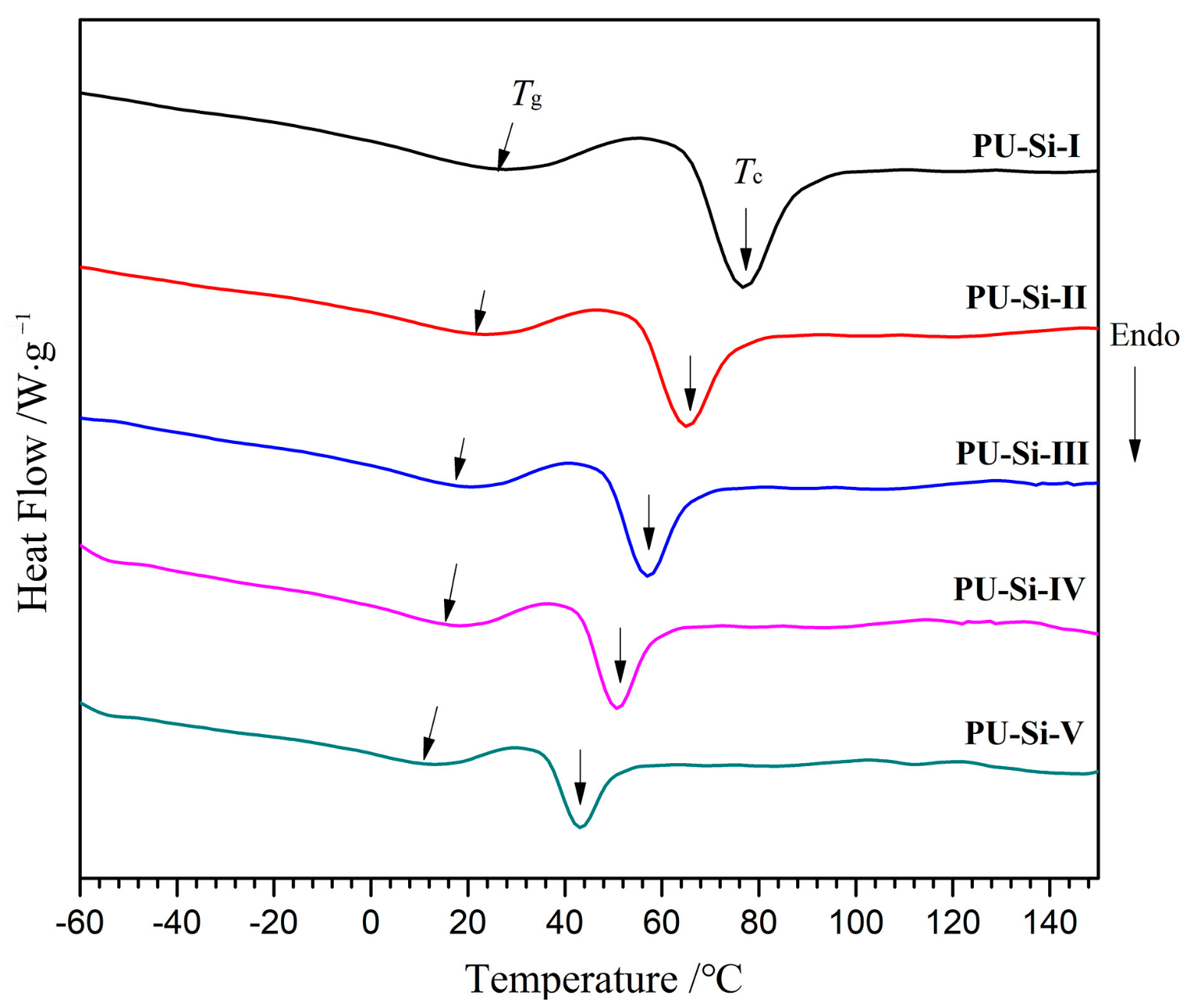

Figure 4. DSC curves of PU–Si films.
Figure 4. DSC curves of PU–Si films.
Molecules 28 02464 g004
Molecules 28 02464 g005 550

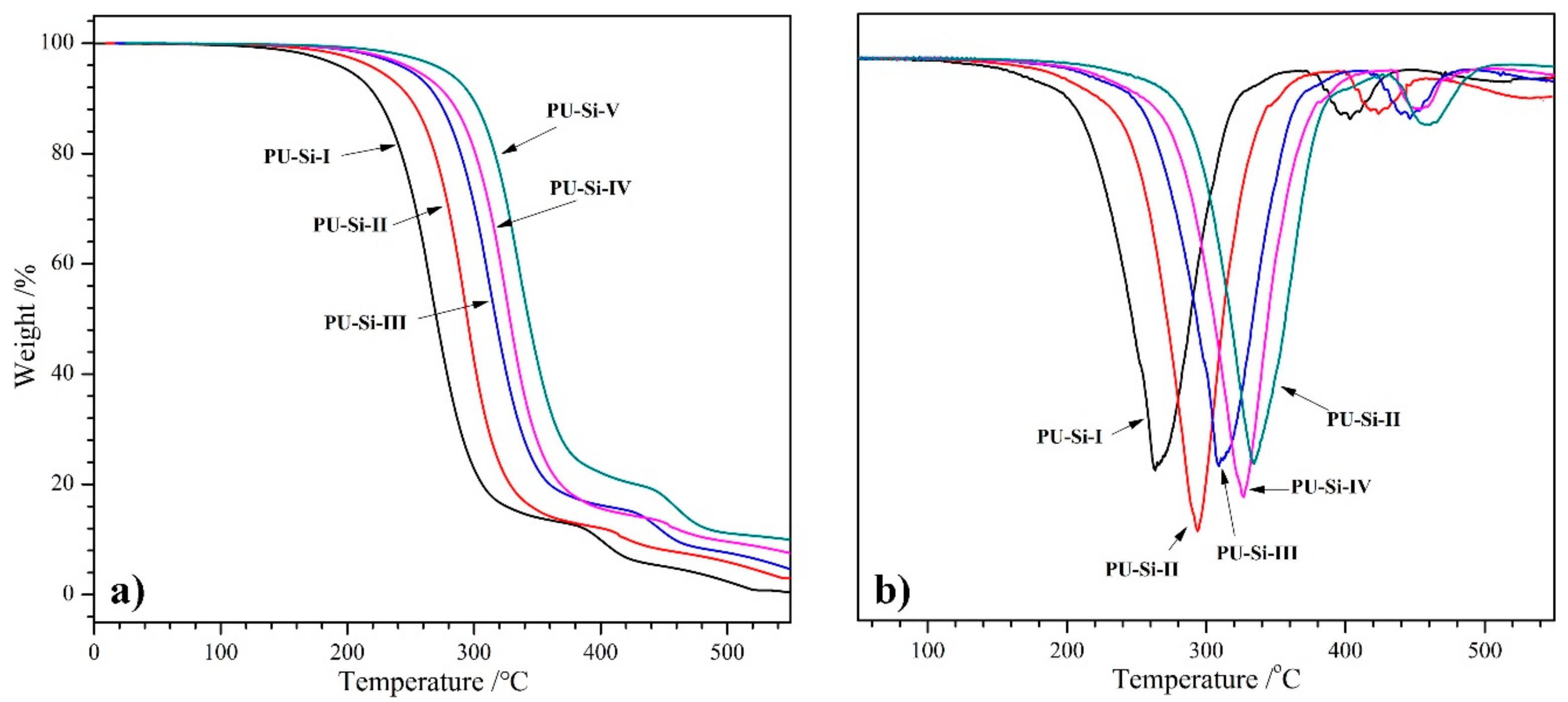

Figure 5. (a) TGA and (b) DTGA curves of PU–Si films.
Figure 5. (a) TGA and (b) DTGA curves of PU–Si films.
Molecules 28 02464 g005
Molecules 28 02464 g006 550
Figure 6. Typical stress–strain curves of PU–Si films.
Figure 6. Typical stress–strain curves of PU–Si films.
Molecules 28 02464 g006
Molecules 28 02464 g007 550

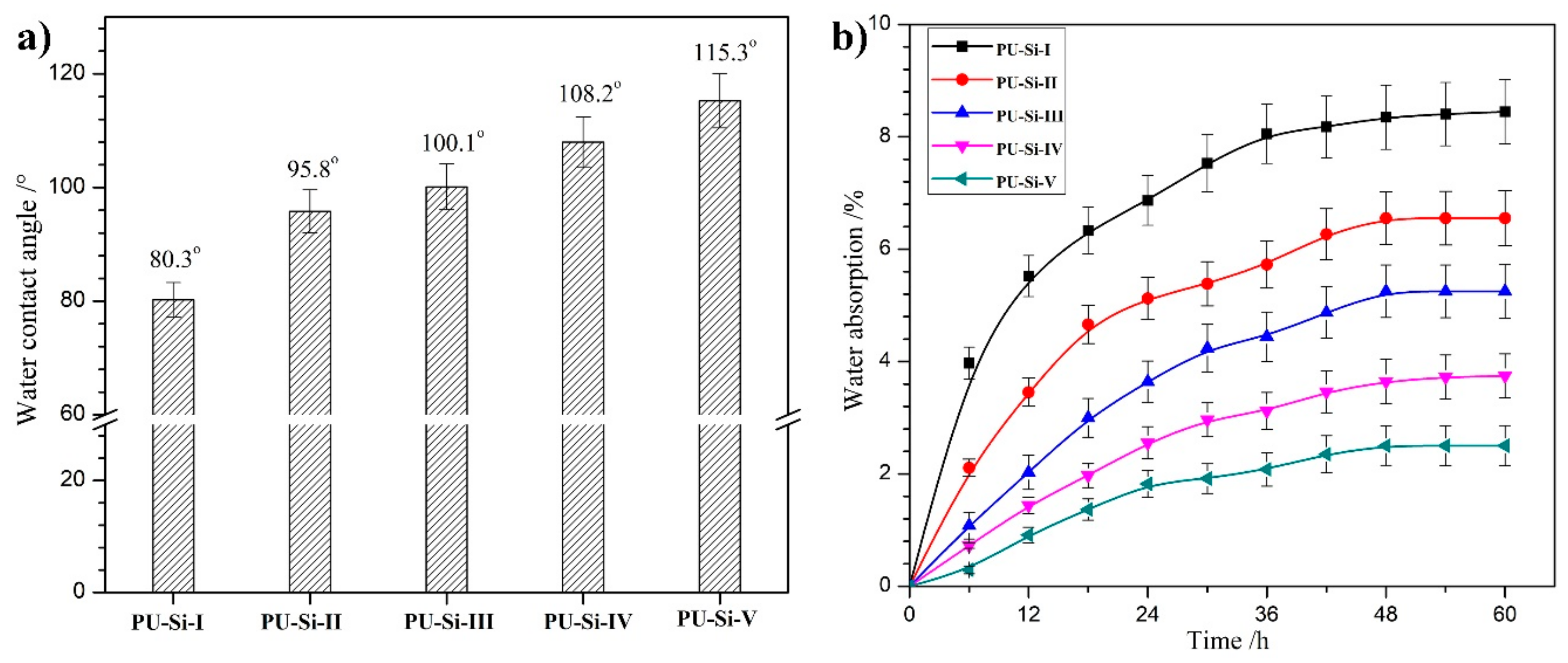

Figure 7. (a) Surface contact angle (n = 5) and (b) water absorption (n = 3) of PU–Si films.
Figure 7. (a) Surface contact angle (n = 5) and (b) water absorption (n = 3) of PU–Si films.
Molecules 28 02464 g007
Molecules 28 02464 g008 550

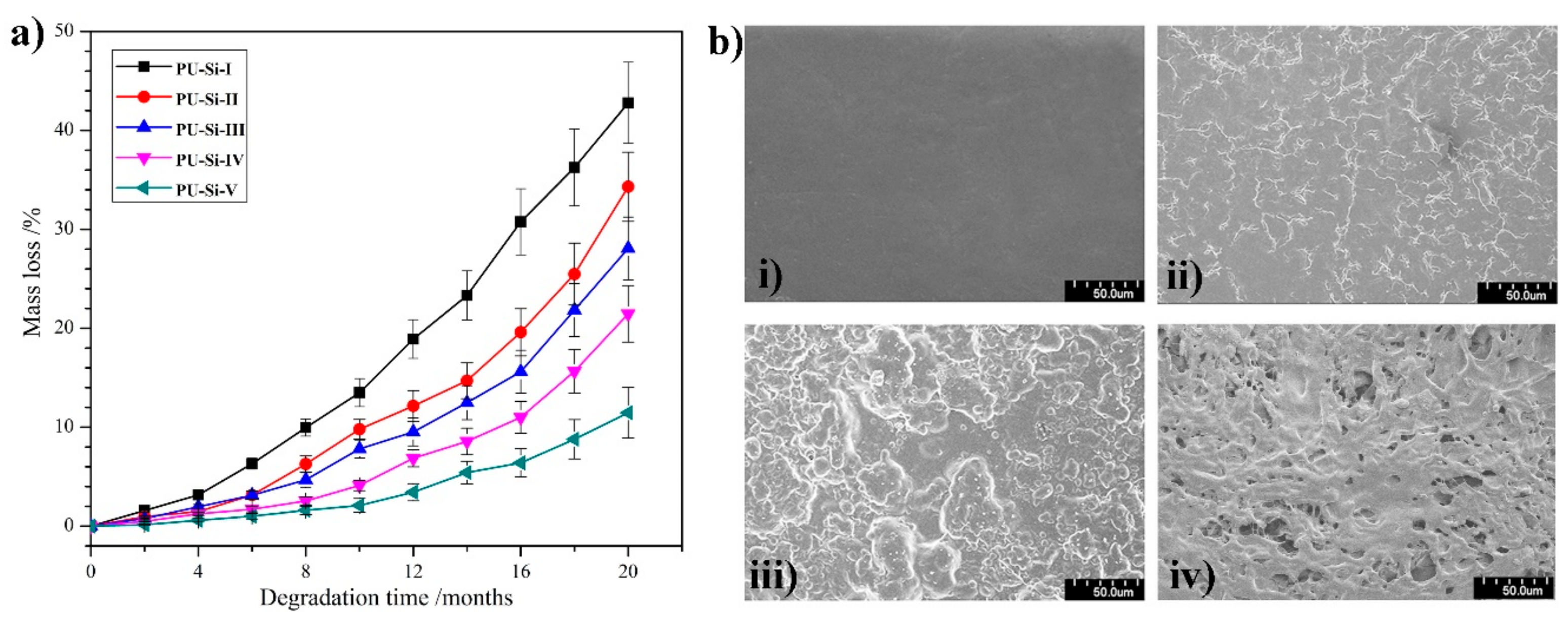

Figure 8. (a) In vitro degradation behaviors of PU–Si films (n = 3); (b) typical SEM images of PU–Si–III film after degradation for (i) 0, (ii) 8, (iii) 16, and (iv) 20 months.
Figure 8. (a) In vitro degradation behaviors of PU–Si films (n = 3); (b) typical SEM images of PU–Si–III film after degradation for (i) 0, (ii) 8, (iii) 16, and (iv) 20 months.
Molecules 28 02464 g008
Molecules 28 02464 g009 550
Figure 9. (a) BSA adsorption (n = 3) and (b) platelet adhesion on the PU–Si film surface.
Figure 9. (a) BSA adsorption (n = 3) and (b) platelet adhesion on the PU–Si film surface.
Molecules 28 02464 g009
Molecules 28 02464 g010 550

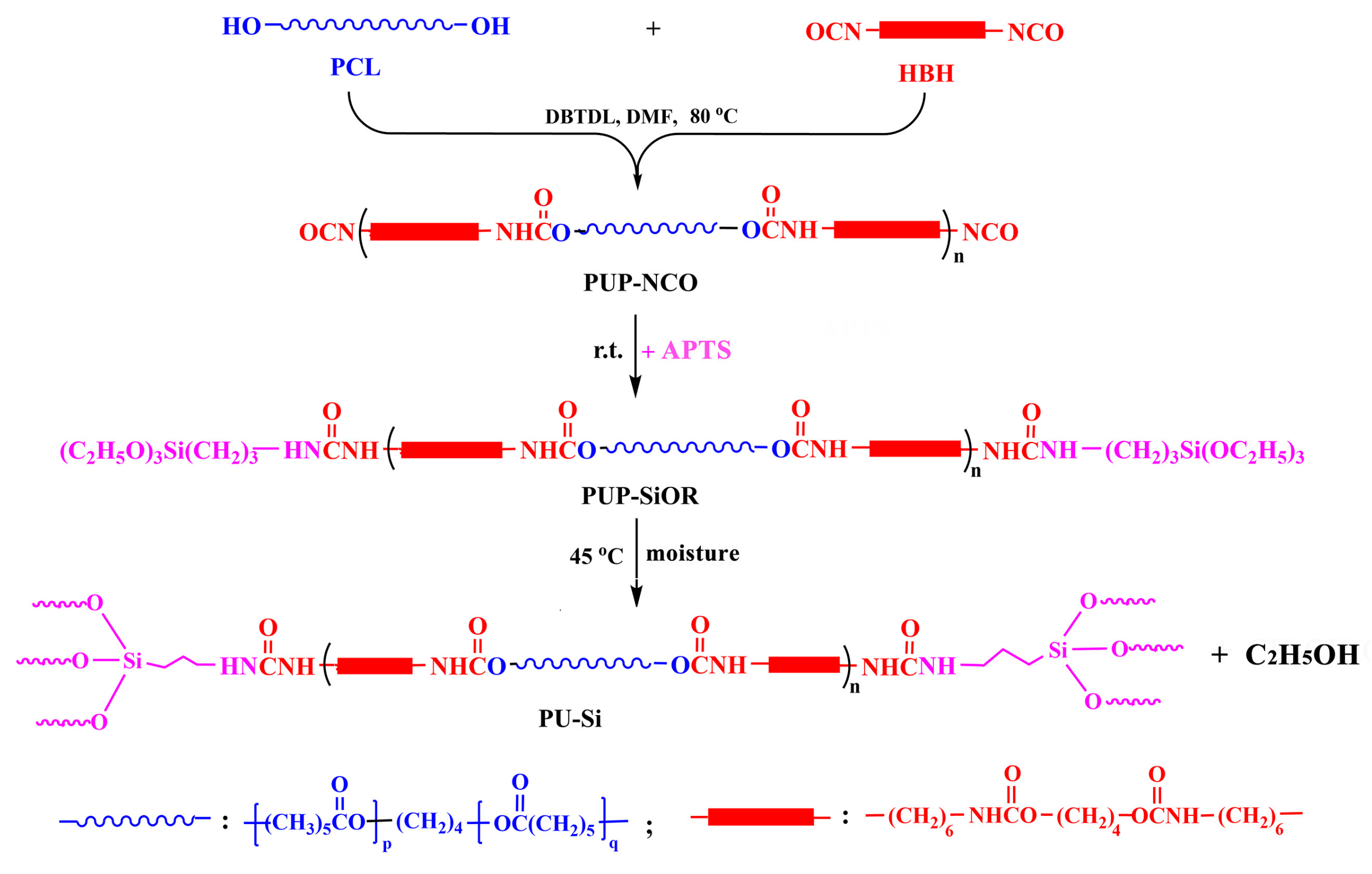

Figure 10. The preparation route of PU–Si.
Figure 10. The preparation route of PU–Si.
Molecules 28 02464 g010
Table
Table 1. Data of PU–Si films from DSC thermograms.
Table 1. Data of PU–Si films from DSC thermograms.
Film SamplesTg/°CTc/°CΔHm/J·g−1
PU–Si–I26.376.819.1
PU–Si–II22.065.315.7
PU–Si–III17.857.013.6
PU–Si–IV15.150.811.2
PU–Si–V12.242.98.9
Table
Table 2. Data of PEU–Si films from TGA and DTGA curves.
Table 2. Data of PEU–Si films from TGA and DTGA curves.
Film SamplesT5%/°CTmax–1/°CTmax–2/°CWr/%
PU–Si–I2012634040.8
PU–Si–II2262934233.1
PU–Si–III2483094464.9
PU–Si–IV2553264547.5
PU–Si–V28133446010.1
Table
Table 3. Tensile properties of PU–Si films (n = 3).
Table 3. Tensile properties of PU–Si films (n = 3).
Film SamplesUTS/MPaUE/%YM/MPaFT/MJ·m−3
PU–Si–I29.8 ± 1.91064 ± 8523.219.1
PU–Si–II33.7 ± 2.2944 ± 6841.721.2
PU–Si–III38.4 ± 2.7797 ± 5350.621.6
PU–Si–IV49.2 ± 3.3633 ± 5257.219.7
PU–Si–V54.7 ± 3.8475 ± 3170.816.9
Table
Table 4. Codes and compositions of the PU–Si films.
Table 4. Codes and compositions of the PU–Si films.
Film
samples		PCL/mmol HBH/mmolAPTS/mmolHBH
/wt%		APTS/wt%
PU–Si–I4.04.0017.50
PU–Si–II4.05.02.020.24.2
PU–Si–III4.06.04.022.47.7
PU–Si–IV4.07.06.024.210.8
PU–Si–V4.08.04.025.913.4
