Article

Surfactant Additives Containing Hydrophobic Fluorocarbon Chains and Hydrophilic Sulfonate Anion for Highly Reversible Zn Anode

by
Jinxian Huang
1,2,
Zhao Fu
1,2,
Chuan-Fu Sun
2 and
Wenzhuo Deng
2,*
1
College of Chemistry, Fuzhou University, Fuzhou 350108, China
2
CAS Key Laboratory of Design and Assembly of Functional Nanostructures, Fujian Key Laboratory of Nanomaterials, and State Key Laboratory of Structural Chemistry, Fujian Institute of Research on the Structure of Matter, Chinese Academy of Sciences, Fuzhou 350002, China
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(10), 4177; https://doi.org/10.3390/molecules28104177
Submission received: 7 April 2023 / Revised: 5 May 2023 / Accepted: 9 May 2023 / Published: 18 May 2023
(This article belongs to the Special Issue Multifunctional Metal Oxides: Synthesis and Applications)
Browse Figures
Versions Notes

Abstract

:
Aqueous zinc-ion batteries (AZIBs) show enormous potential as a large-scale energy storage technique. However, the growth of Zn dendrites and serious side reactions occurring at the Zn anode hinder the practical application of AZIBs. For the first time, we reported a fluorine-containing surfactant, i.e., potassium perfluoro-1-butanesulfonate (PPFBS), as an additive to the 2 M ZnSO4 electrolyte. Benefitting from its hydrophilic sulfonate anion and hydrophobic long fluorocarbon chain, PPFBS can promote the uniform distribution of Zn2+ flux at the anode/electrolyte interface, allowing the Zn/Zn cell to cycle for 2200 h. Furthermore, PPFBS could inhibit side reactions due to the existence of the perfluorobutyl sulfonate (C4F9SO3−) adsorption layer and the presence of C4F9SO3− in the solvation structure of Zn2+. The former can reduce the amount of H2O molecules and SO42− in contact with the Zn anode and C4F9SO3− entering the Zn2+-solvation structure by replacing SO42−. The Zn/Cu cell exhibits a superior average CE of 99.47% over 500 cycles. When coupled with the V2O5 cathode, the full cell shows impressive cycle stability. This work provides a simple, effective, and economical solution to the common issues of the Zn anode.

1. Introduction

The dwindling reserves of fossil fuels and growing environmental awareness are driving the continued research on reliable large-scale battery systems for the storage and utilization of intermittent-generated renewable energy [1,2,3,4,5]. Lithium-ion batteries (LIBs) are the most extensively studied rechargeable batteries; however, they are not suitable for large-scale energy storage due to the scarcity of lithium resources and safety concerns [6,7]. Rechargeable AZIBs have been identified as an exceptionally promising solution owing to the intrinsic properties of the metal Zn anode, including a high theoretical capacity (820 mA h g−1 and 5854 mA h cm−3), low costs, the inherent safety of the aqueous electrolytes, environmental benignity, and easy production [8,9,10,11]. Despite the multiple advantages, Zn dendrites and side reactions obstruct the practical application of AZIBs. The Zn dendrites are mainly caused by the uneven flux of Zn2+ ions, which can pierce the separator and reach the cathode, eventually causing the battery to short-circuit. Moreover, the Zn dendrite enlarges the volume of the Zn anode, which increases the sites of side reactions. These side reactions are mainly initiated by the decomposition of H2O molecules on the Zn anode surface, resulting in H2 evolution and OH− generation. The continuous accumulation of OH− at the Zn anode can induce the coalescence of Zn2+ and other electrolyte components (e.g., SO42−) to form insulating side products (e.g., Zn4SO4(OH)6·4H2O), reducing the Coulombic efficiency (CE) [12]. In addition, these insulating byproducts further impede the homogeneous Zn plating. Consequently, the homogeneous flux of Zn2+ and the elimination of side reactions are critical to achieve a long lifespan and a high CE for AZIBs.
Recently, a variety of approaches have been developed to promote uniform Zn deposition and inhibit the side reactions. Among them, interface modification [13,14,15,16,17,18], separator optimization [19,20,21,22,23,24], and substrate design [25,26,27,28] are effective ways to improve the lifespan of the battery, but the complex preparation process limits their application. Easily produced super-concentrated electrolytes [29,30,31,32,33] bearing a low water level exhibit a special Zn2+-solvation structure, favoring the uniform deposition of Zn and suppressing side reactions. However, the relatively low ionic conductivity leads to poor rate performance and the high salt concentration increases the cost. Alternatively, electrolyte additives in dilute solutions [34,35,36,37,38,39,40,41,42,43] are another feasible solution. However, there is only a narrow range of choices of electrolyte additives, and more need to be explored to further lower the cost and provide better performance.
A water-soluble fluorinated surfactant is an effective electrolyte additive, which can benefit the formation of uniform Zn2+ flux by reducing the contact angle of the Zn anode/electrolyte interface, thereby promoting smooth and dense Zn deposition. Due to the high electron affinity (328 kJ mol−1) and electronegativity (3.98) of fluorine, and the low polarizability (α = 0.557 × 10−24 cm3), the long fluorocarbon chains with more than four -CF2- groups have a good hydrophobic effect [44]. Parkin et al. showed that the addition of 10 mM perfluorooctanoic acid (PFOA) additive containing a -CF2- group in 3 M ZnSO4 electrolyte was able to inhibit the growth of Zn dendrites and improve the cycle stability of the battery [42]. However, fluorinated surfactants with seven or more -CF2- groups, such as perfluorooctane sulfonates (PFOS) and perfluorooctanoic acid (PFOA), would lead to bioaccumulation in animals and humans, causing serious health and environmental problems [44]. Guo et al. stated that adding 1 mg m L−1 sodium dodecyl benzene sulfonate (SDBS) additive containing a strongly hydrophilic -SO3 anion to 1 M Zn(SO3CF3)2 and 1 M Li(SO3CF3) electrolyte can also effectively improve the battery life [45]. Therefore, fluorinated surfactants containing a -SO3 anion and an appropriate amount of -CF2- groups may be a good choice for the large-scale energy storage of AZIBs due to their moderate surface activity, water solubility, biosafety, and environmental friendliness.
In this work, we introduced a PPFBS additive containing one -SO3 anion and four -CF2- groups into a 2 M ZnSO4 electrolyte and studied its performance in AZIBs. The results show that C4F9SO3− can be adsorbed on the Zn anode surface, reducing the contact angle between the electrolyte droplet and the Zn anode surface (83° to 59°). The hydrophobic and strongly electronegative C4F9SO3− adsorption layer on the Zn anode surface diminishes the interactions between H2O molecules and the Zn anode, thereby inhibiting side reactions. In addition, molecular dynamics (MD) simulations show that C4F9SO3− can participate in the Zn2+-solvation structure by substituting SO42− and reducing the Zn4SO4(OH)6·H2O. Furthermore, the Zn/Zn cell cycles for 2200 h at a current density of 5 mA cm−2 with a capacity of 1 mAh cm−2, and the Zn/Cu cell shows a high average CE of 99.47% over 500 cycles at a current density of 2 mA cm−2, with a capacity of 1 mAh cm−2. Finally, the cycle stability and rate performance of the Zn/V2O5 battery are both improved.

2. Results and Discussion

As a surfactant, PPFBS can reach the interface by the low energy barrier method and adsorb on the interface through intermolecular interaction. Specifically, the hydrophilic sulfonic head groups of hydrophilic surfactant PPFBS may be orientated towards the electrolyte, while the hydrophobic perfluoro butyl tail groups may be in contact with the Zn anode surface. Under the synergistic effect of these two groups, PPFBS can be separated and self-assembled near the Zn anode/electrolyte interface to form a solid and orderly arranged adsorption layer. Energy-dispersive spectroscopy (EDS) was used to confirm the adsorption of PPFBS. The carbon, fluorine, potassium, and sulfur signals on the surface of the Zn plate after immersion in a 0.125 M PPFBS solution were rinsed with flowing water and were detected and their even distribution was revealed (Figure S1). The hydrophobic C4F9SO3− adsorption layer may give rise to additional energy barriers preventing the solvent and anions from reaching the Zn anode surface. We conducted MD simulations to investigate the influence of the addition of C4F9SO3− on the coordination environment of the Zn2+ ion. Figure 1a,d show a snapshot of the MD 3D model and an enlarged view of the Zn2+-solvation structure in the two electrolytes. For the 2 M ZnSO4 electrolyte (PPFBS0 electrolyte), the first solvation shell of the Zn2+ ion is composed of one SO42− anion and five H2O molecules, whereas for the other, five H2O molecules along with one C4F9SO3− comprise the first solvation shell of Zn2+ for the 2M ZnSO4 electrolyte containing 125 mM PPFBS (PPFBS125 electrolyte). Figure 1b,e depict the corresponding radial distribution functions (RDFs) of the two electrolytes. The RDFs show a sharp peak located at around 2.06 Å for the PPFBS0 electrolyte, indicative of an averaged Zn-O (H2O) distance. Apart from the contribution of SO42−, water plays a significant role in the solvation shell. As for the PPFBS125 electrolyte, the Zn-O (C4F9SO3−) peak overlaps the Zn-O (H2O) peak, verifying the participation of C4F9SO3− in the solvation structure of Zn2+ ions. The coordination number (CN) of the two electrolytes shows the proportion of each ion in the first solvation shell of Zn2+ (Figure 1c,f). The CN results show that the average number of SO42− around each Zn2+ decreases from 0.53 to 0.50, and the number of C4F9SO3− increases from 0 to 0.03 upon the addition of 125 M PPFBS, which may help to reduce the SO42−-involved byproducts during Zn2+ deposition (Figure S2). A schematic illustration of the Zn2+-solvation structure and the corresponding deposition behavior is shown in Figure 1g,h.
Linear sweep voltammetry (LSV) was used to evaluate the effect of the PPFBS additive on the electrochemical stability of the electrolyte (Figure 2a). The starting hydrogen evolution potential of the PPFBS125 electrolyte is −0.105 V, which is lower than that of the PPFBS0 electrolyte (−0.063V), which verifies that the C4F9SO3− adsorption layer can prevent the contact between H2O molecules and the Zn anode, thereby restraining the decomposition of H2O molecules. To further study the effect of PPFBS additives on side reactions, the Zn/Cu cell was assembled and tested at a current density of 2 mA cm–2 with a capacity of 1 mA h cm–2. The Zn/Cu cell with the PPFBS0 electrolyte showed an inferior average CE of 99.22%, and the battery failed at the 124th cycle (Figure 2b,c). In the Zn/Cu cell with the PPFBS125 electrolyte, the cell achieves a longer cycle life of 500 cycles and a higher average CE of 99.47% (Figure 2b,d). The better CE performance originates from the reduction of side reactions, and the extension of the cycle life is mainly due to the PPFBS additive inhibiting the growth of Zn dendrites induced by uneven Zn deposition.
The contact angle between the electrolyte droplet and the Zn metal anode may give information on surface tension. Figure 2g displays a contact angle of 59° for the PPFBS125 electrolyte, which is significantly smaller than that of the PPFBS0 counterpart (85°), which may be the synergetic effect of the super-hydrophobic long fluorocarbon chain and the hydrophilic sulfonate anion of PPFBS. The increased wettability of the electrolyte on the Zn anode may promote the uniform distribution of the Zn2+ flux, thereby facilitating the homogeneous plating of Zn. Even Zn deposition usually means that there is a small critical Zn nucleus radius brought by a large initial nucleation overpotential. The cyclic voltammogram (CV) curves of Zn/Cu cells are used to evaluate the initial nucleation overpotential. As indicated in Figure 2e, the initial nucleation overpotential of Zn increases from 59 m V to 129 m V when the PPFBS additive is applied, which further proves the impact of PPFBS on Zn deposition. The Zn/Zn cell was used to investigate the effect of Zn deposition on battery life. The Zn/Zn cell without PPFBS additives can only cycle for 484 h at a current density of 5 mA cm−2 with a capacity of 1 mA h cm−2, while the Zn/Zn cell with 100 mM, 125 mM, and 150 mM PPFBS additives can operate for 2042 h, 2200 h, and 1872 h, respectively (Figure 2f). This performance is superior to that of most of the reported electrolyte additives (Figure 2h, details in Table S1, Supporting Information).
Scanning electron microscopy (SEM) was used to observe the morphology of the Zn electrodes after cycling. As presented in Figure 3a, the surface of the pristine Zn plate is uniform. After 300 cycles at a current density of 5 mA cm−2 and a capacity of 1 mA h cm−2, the Zn anode of the cell adopting the PPFBS125 electrolyte shows a layered and ordered structure, while the vertical Zn dendrites were detected in the cell without PPFBS additive (Figure 3b,c). The optical images of the pristine Zn plate and the Zn anode after 500 cycles in two different electrolytes were further tested (Figure S3). The optical images of the pristine Zn plate show a smooth surface. After 500 cycles at 5 mA cm−2 and 1 mA h cm−2, the optical images show that the Zn anode surface is covered with a thick layer of Zn and some byproducts in the PPFBS0 electrolyte. In the PPFBS125 electrolyte, the Zn deposition and byproduct layer on the surface of the Zn anode is significantly thinner, and its morphology is similar to that of the pristine Zn plate. This result confirms that the PPFBS electrolyte additive can promote uniform Zn deposition and hinder side reactions. To further evaluate the effect of PPFBS electrolyte additives on the growth of Zn dendrites, the top-view SEM images and cross-section SEM images of Zn anodes after 500 cycles in PPFBS0 electrolyte and PPFBS125 electrolyte were obtained (Figures S4 and S5). The top-view SEM images showed that the Zn anode surface was porous and fully covered with vertical Zn dendrites using the PPFBS0 electrolyte, while the Zn surface was flat using the PPFBS125 electrolyte. The cross-section SEM images of the Zn anode indicate that in the PPFBS0 electrolyte, the Zn anode surface is covered with sharp Zn dendrites. These Zn dendrites can not only pierce the separator and cause the short-circuit of the battery but also can fall off from the surface of the Zn anode, reduce the amount of reversible Zn2+, and rapidly decay the specific capacity of the battery [45]. In the PPFBS125 electrolyte, the surface of the Zn anode is uniform and smooth. This is consistent with the results observed in the top-view SEM images.
X-ray diffraction (XRD) was used to further assess the effect of PPFBS electrolyte additives on the morphological evolution of the Zn anode in different electrolytes (Figure 3d). After 300 cycles at 5 mA cm−2 and 1 mA h cm−2, all the XRD characteristic peaks of the Zn anode using the PPFBS125 electrolyte are attributed to Zn, indicating that no SEI films were formed on the surface of the Zn anode, and the additive is inert in the battery. In addition, apparently, the preferred orientation of the (002) crystal plane occurred during the deposition of Zn when the PPFBS125 electrolyte was applied. This phenomenon has been reported to be beneficial to the uniform plating of Zn. Archer et al. used a low lattice mismatch graphene layer to guide Zn2+ deposition along the (002) crystal plane [16], and they showed that Zn exhibited a strong tendency to deposit as platelets on the surface of the graphene layer, thus effectively impeding Zn dendrite growth and side reactions [16]. Liang et al. produced a Zn plate with preferentially exposed (002) crystal planes by the large rolling deformation method for aqueous ZIB [46]. Their results indicate that the even interfacial charge density and stronger adsorption energies in the parallel direction rather than the vertical direction of the (002) crystal plane promoted the uniform Zn deposition and inhibited the growth of Zn dendrites [46]. Moreover, owing to the strong catching ability of Zn atoms and the high free energy for hydrogen evolution of the (002) crystal plane, the side reactions are also effectively suppressed [46]. In contrast, for the battery using the PPFBS0 electrolyte, Zn is mainly plated along the (101) plane. The inclined stacking of the (101) surface is more likely to induce the vertical growth of Zn dendrites and side reactions. This result further proves that PPFBS is conducive to uniform and dense Zn deposition and the prevention of side reactions, thereby improving the cycle stability of the battery.
The V2O5 was synthesized to evaluate the effect of PPFBS additives on the electrochemical performance of cathode materials. As shown, all XRD diffraction peaks can be indexed to the standard V2O5 (PDF # 41-1426) and SEM images show that the material is nanoparticles (Figures S6 and S7). It can be seen from the EDS results that the V and O elements are evenly distributed in the sample (Figure S8). The CV curves and charge–discharge curves of Zn/V2O5 cells were further tested in two electrolytes. As shown in Figure 4a, both CV curves have two pairs of redox peaks. In addition, the charge–discharge curves display that the Zn/V2O5 cells have the same charge–discharge platform in the two electrolytes, indicating that PPFBS has no effects on the redox reaction (Figure 4b). The cycling stability of Zn/V2O5 batteries was examined at a current density of 5 A g–1 (Figure 4c,d). The capacity retention increased from 36.41% to 52.97% in 500 cycles when the 125 mM PPFBS was added. Furthermore, the rate performance of the Zn/V2O5 cells in the different electrolytes is presented in Figure 4e. The Zn/V2O5 cell using the PPFBS125 electrolyte displays specific capacities of 326.3, 299.7, 264.0, 235.1, 209.7, 184.4, and 172.2 mA h g−1 at 0.5, 1, 2, 3, 5, 8, and 10 A g−1, respectively (Figure 4e). In comparison, the PPFBS0 electrolyte has specific capacities of 329.3, 285.6, 235.0, 215.9, 193.0, 168.9, and 152.8 mA h g−1 at 0.5, 1, 2, 3, 5, 8, and 10 A g−1, respectively. Corresponding galvanostatic charge–discharge profiles are displayed in Figure S9. The improved performance because of the addition of PPFBS stems from the suppression of side reactions and dendrite growth.

3. Materials and Methods

3.1. Materials

ZnSO4⋅7H2O (AR, Sinopharm Chemical Reagent Co., Ltd., Shanghai, China), V2O5 (AR, Shanghai Macklin Biochemical Co., Ltd., Shanghai, China), potassium perfluoro-1-butanesulfonate (PPFBS, 97%, Aladdin Chemical Reagent Co., Ltd., Shanghai, China), ethylene glycol (AR, Sinopharm Chemical Reagent Co., Ltd., Shanghai, China), N-methyl-2-pyrrolidone (NMP, Aladdin, AR), polyvinylidene difluoride (PVDF, 99%, Hefei Kejing Materials Technology Co., Ltd., Hefei, China), Super-P carbon black (99.8%, Hefei Kejing Materials Technology Co., Ltd., Hefei, China). All chemicals and reagents were used directly, without further processing.

3.2. Synthesis of Electrolytes

The 2 M ZnSO4 aqueous electrolyte was prepared using ZnSO4·7H2O and deionized water based on the molar ratio. The PPFBS-containing electrolytes were synthesized by dissolving a stoichiometric concentration of PPFBS (range 100 to 150 mM) in the as-prepared ZnSO4 electrolytes.

3.3. Synthesis of V2O5 Cathode Material

First, 10 mM V2O5 was added into a solution containing 30 mL of deionized water and 20 g of ethylene glycol under vigorous stirring to obtain a uniform solution. The resulting mixture was transferred to a 100 mL autoclave, heated at 200 °C for 24 h, and then cooled to room temperature. The collected products were centrifuged, washed, and dried at 80 °C for 12 h. The obtained precipitates were annealed at 330 °C for 30 min with a heating rate of 2 °C min−1. V2O5 powders were produced after cooling to room temperature [35].

3.4. Synthesis of the V2O5 Composite Electrode

The V2O5 powder was mixed with Super-P carbon black and PVDF with a mass ratio of 70:20:10 in NMP to obtain a slurry. The as-prepared slurry was cast on carbon cloth and dried under a vacuum at 80 °C for 12 h to obtain the V2O5 electrode.

3.5. Electrochemical Evaluation

CR2032-type coin cells with different aqueous electrolytes were assembled under an ambient environment. NEWARE battery testing systems (Neware Technology Co., Ltd., Shenzhen, China) were used to conduct battery performance tests for cycle stability, and an electrochemical workstation (CHI 760D, Shanghai Chenhua Instrument Co., Ltd., Shanghai, China) was employed to analyze other electrochemical behavior, such as LSV.

3.6. Details of Molecular Dynamics (MD) Simulation

The aqueous electrolyte models were constructed with the aid of the PACKMOL program [47]. All systems were represented by cubic boxes containing 400 Zn2+ ions and corresponding species in different ratios; the original unit cell edges were fixed at 80 Å. Initial configurations were relaxed to minimize total energies and remove nonreasonable physical atom contacts prior to isothermal–isobaric (NPT) molecular dynamics (MD) computations. We employed the Monte Carlo barostat to keep the pressure at a constant value of 1 bar, and the Langevin thermostat was used to control the temperature at a level of 298.15 K. The Lorentz-Berthelot combing rules, i.e., σij = (σii + σjj)/2 and εij = (εii × εjj)/2, were applied for the non-bonded pairwise Lennard–Jones interactions. The Coulombic electrostatic interactions were calculated based on the PME method. A total run of 15 ns was performed with a time step of 1 fs. We exploited the TIP3P [48] model for water and the CHARMM [49] force field for divalent Zn2+ ions, and we took the reported force field parameters for K+ monovalent cations [50], SO42− ion [51], and C4F9SO3− ion [52]. The OpenMM 7 code [53] was adopted for all the MD runs. The trajectories were recorded at 1 frame per ps, the last 1 ns of which was processed using the MDAnalysis package [54]; information pertaining to radial distribution functions (RDFs) and coordination numbers (CN) was thus extracted.

4. Conclusions

In this work, PPFBS additive was added into the 2M ZnSO4 electrolyte to suppress side reactions and regulate Zn deposition. The formed C4F9SO3− adsorption layer separates H2O molecules and SO42− from the Zn anode, and thus inhibits the hydrogen evolution and reduces the formation of byproducts. MD simulations confirmed the presence of C4F9SO3− in the Zn2+-solvation structure. The assembled Zn/Cu cell with the C4F9SO3− bearing electrolyte exhibits a superior average CE of 99.47% over 500 cycles at 2 mA cm−2 with a capacity of 1 mAh cm−2. Moreover, the trace amount of PPFBS forms a stable, highly surface-activated adsorption layer. This adsorption layer reduces the contact angle at the interface (from 83° to 59°), which facilitates the formation of uniform Zn2+ flux and inhibits the growth of Zn dendrites. The Zn/Zn cell cycles over 2200 h at 5 mA cm−2 with a capacity of 1 mAh cm−2. After cycling, the Zn anode exhibits a preferential orientation of the (002) plane. Furthermore, PPFBS improves the cycle stability and rate performance of the Zn/V2O5 battery. This effective and low-cost PPFBS additive is expected to play a more important role in the development of better electrolyte formulas for AZIBs.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28104177/s1. Figure S1: EDS mapping spectra of Zn plate after soaking in 0.125 M PPFBS solution and rinsing with flowing water. Figure S2: (a) The average number of SO42− around each Zn2+ in the two electrolytes. (b) The average number of C4F9SO3− around each Zn2+ in PPFBS125 electrolytes. Table S1: Comparison of the electrochemical performance of electrolyte additives in Zn/Zn symmetric cells. Figure S3: (a) Optical images of the pristine Zn plate; optical images of the Zn anode surface from Zn/Zn cells using (b) PPFBS0 and (c) PPFBS125 electrolytes after 500 cycles. Figure S4: Top-view SEM images of the Zn anode surface from Zn/Zn cells using (a,b) PPFBS0 and (c,d) PPFBS125 electrolytes after 500 cycles. Figure S5: Cross-section SEM images of the Zn anode surface from Zn/Zn cells using (a) PPFBS0 and (b) PPFBS125 electrolytes after 500 cycles. Figure S6: XRD patterns of V2O5. Figure S7: SEM image of V2O5. Figure S8: EDS mapping spectra of V2O5. Figure S9: Galvanostatic charge–discharge profile under different rates using (a) PPFBS0 and (b) PPFBS125 electrolytes. References [36,37,38,42,55,56,57,58,59,60,61,62,63] are cited in Supplementary Materials.

Author Contributions

Conceptualization, J.H. and W.D.; methodology, J.H.; data curation, J.H. and Z.F.; writing—original draft preparation, J.H.; writing—review and editing, J.H., Z.F., C.-F.S. and W.D.; supervision, W.D.; funding acquisition, C.-F.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the National Natural Science Foundation of China (Grant No. 21971239), the Natural Science Foundation of Fujian Province (Grant No. 2020J06032), and the Science and Technology Key Project of Fujian Province (Grant No. 2021H0042).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are available from the authors.

References

  1. Armand, M.; Tarascon, J.M. Building better batteries. Nature 2008, 451, 652–657. [Google Scholar] [CrossRef] [PubMed]
  2. Goodenough, J.B.; Park, K.S. The Li-ion rechargeable battery: A perspective. J. Am. Chem. Soc. 2013, 135, 1167–1176. [Google Scholar] [CrossRef] [PubMed]
  3. Dunn, B.; Kamath, H.; Tarascon, J.-M. Electrical energy storage for the grid: A battery of choices. Science 2011, 334, 928–935. [Google Scholar] [CrossRef] [PubMed]
  4. Yang, X.; Deng, W.Z.; Chen, M.; Wang, Y.B.; Sun, C.F. Mass-producible, quasi-zero-strain, lattice-water-rich inorganic open-frameworks for ultrafast-charging and long-cycling zinc-ion batteries. Adv. Mater. 2020, 32, 2003592. [Google Scholar] [CrossRef]
  5. Fan, Y.; Yu, X.; Feng, Z.; Hu, M.; Zhang, Y. Synthesis of Zn2+-Pre-Intercalated V2O5 nH2O/rGO Composite with Boosted Electrochemical Properties for Aqueous Zn-Ion Batteries. Molecules 2022, 27, 5387. [Google Scholar] [CrossRef]
  6. Yuan, L.; Hao, J.; Kao, C.-C.; Wu, C.; Liu, H.-K.; Dou, S.-X.; Qiao, S.-Z. Regulation methods for the Zn/electrolyte interphase and the effectiveness evaluation in aqueous Zn-ion batteries. Energy Environ. Sci. 2021, 14, 5669–5689. [Google Scholar] [CrossRef]
  7. Zhang, S.; Fan, Q.; Liu, Y.; Xi, S.; Liu, X.; Wu, Z.; Hao, J.; Pang, W.K.; Zhou, T.; Guo, Z. Dehydration-triggered ionic channel engineering in potassium niobate for Li/K-ion storage. Adv. Mater. 2020, 32, 2000380. [Google Scholar] [CrossRef]
  8. Xu, C.; Li, B.; Du, H.; Kang, F. Energetic zinc ion chemistry: The rechargeable zinc ion battery. Angew. Chem. Int. Ed. 2012, 51, 933–935. [Google Scholar] [CrossRef]
  9. Song, M.; Tan, H.; Chao, D.; Fan, H.J. Recent advances in Zn-Ion batteries. Adv. Funct. Mater. 2018, 28, 1802564. [Google Scholar] [CrossRef]
  10. Zhou, W.; Zeng, G.; Jin, H.; Jiang, S.; Huang, M.; Zhang, C.; Chen, H. Bio-Template Synthesis of V2O3@Carbonized Dictyophora Composites for Advanced Aqueous Zinc-Ion Batteries. Molecules 2023, 28, 2147. [Google Scholar] [CrossRef]
  11. Liu, Y.; Tao, F.; Xing, Y.; Pei, Y.; Ren, F. Melamine Foam-Derived Carbon Scaffold for Dendrite-Free and Stable Zinc Metal Anode. Molecules 2023, 28, 1742. [Google Scholar] [CrossRef] [PubMed]
  12. Yi, Z.; Chen, G.; Hou, F.; Wang, L.; Liang, J. Strategies for the stabilization of zn metal anodes for zn-ion batteries. Adv. Energy Mater. 2021, 11, 2003065. [Google Scholar] [CrossRef]
  13. Yang, H.; Chang, Z.; Qiao, Y.; Deng, H.; Mu, X.; He, P.; Zhou, H. Constructing a super-saturated electrolyte front surface for stable rechargeable aqueous zinc batteries. Angew. Chem. Int. Ed. 2020, 59, 9377–9381. [Google Scholar] [CrossRef] [PubMed]
  14. Cui, Y.; Zhao, Q.; Wu, X.; Chen, X.; Yang, J.; Wang, Y.; Qin, R.; Ding, S.; Song, Y.; Wu, J.; et al. An interface-bridged organic-inorganic layer that suppresses dendrite formation and side reactions for ultra-long-life aqueous zinc metal anodes. Angew. Chem. Int. Ed. 2020, 59, 16594–16601. [Google Scholar] [CrossRef] [PubMed]
  15. Jiao, Y.; Li, F.; Jin, X.; Lei, Q.; Li, L.; Wang, L.; Ye, T.; He, E.; Wang, J.; Chen, H.; et al. Engineering polymer glue towards 90% zinc utilization for 1000 hours to make high-performance Zn-ion batteries. Adv. Funct. Mater. 2021, 31, 2107652. [Google Scholar] [CrossRef]
  16. Zheng, J.; Zhao, Q.; Tang, T.; Yin, J.; Quilty, C.D.; Renderos, G.D.; Liu, X.; Deng, Y.; Wang, L.; Bock, D.C.; et al. Reversible epitaxial electrodeposition of metals in battery anodes. Science 2019, 366, 645–648. [Google Scholar] [CrossRef]
  17. Ma, L.; Li, Q.; Ying, Y.; Ma, F.; Chen, S.; Li, Y.; Huang, H.; Zhi, C. Toward practical high-areal-capacity aqueous zinc-metal batteries: Quantifying hydrogen evolution and a solid-ion conductor for stable zinc anodes. Adv. Mater. 2021, 33, 2007406. [Google Scholar] [CrossRef]
  18. Zhao, Z.; Wang, R.; Peng, C.; Chen, W.; Wu, T.; Hu, B.; Weng, W.; Yao, Y.; Zeng, J.; Chen, Z.; et al. Horizontally arranged zinc platelet electrodeposits modulated by fluorinated covalent organic framework film for high-rate and durable aqueous zinc ion batteries. Nat. Commun. 2021, 12, 6606. [Google Scholar] [CrossRef]
  19. Cao, J.; Zhang, D.; Gu, C.; Wang, X.; Wang, S.; Zhang, X.; Qin, J.; Wu, Z.-S. Manipulating crystallographic orientation of zinc deposition for dendrite-free zinc ion batteries. Adv. Energy Mater. 2021, 11, 2101299. [Google Scholar] [CrossRef]
  20. Fang, Y.; Xie, X.; Zhang, B.; Chai, Y.; Lu, B.; Liu, M.; Zhou, J.; Liang, S. Regulating zinc deposition behaviors by the conditioner of pan separator for zinc-ion batteries. Adv. Funct. Mater. 2022, 32, 2109671. [Google Scholar] [CrossRef]
  21. Zhang, X.; Li, J.; Qi, K.; Yang, Y.; Liu, D.; Wang, T.; Liang, S.; Lu, B.; Zhu, Y.; Zhou, J. An ion-sieving janus separator toward planar electrodeposition for deeply rechargeable Zn-metal anodes. Adv. Mater. 2022, 34, 2205175. [Google Scholar] [CrossRef] [PubMed]
  22. Zhang, Y.; Li, X.; Fan, L.; Shuai, Y.; Zhang, N. Ultrathin and super-tough membrane for anti-dendrite separator in aqueous zinc-ion batteries. Cell Rep. Phys. Sci. 2022, 3, 100824. [Google Scholar] [CrossRef]
  23. Zhu, J.; Bie, Z.; Cai, X.; Jiao, Z.; Wang, Z.; Tao, J.; Song, W.; Fan, H.J. A molecular-sieve electrolyte membrane enables separator-free zinc batteries with ultralong cycle life. Adv. Mater. 2022, 34, 2207209. [Google Scholar] [CrossRef]
  24. Luo, Y.; Yang, Y.; Tao, Y.; Huang, D.; Huang, B.; Chen, H. Directing the preferred crystal orientation by a cellulose acetate/graphene oxide composite separator for dendrite-free Zn-metal anodes. ACS Appl. Mater. Interfaces 2021, 4, 14599–14607. [Google Scholar] [CrossRef]
  25. Parker, J.F.; Chervin, C.N.; Pala, I.R.; Machler, M.; Burz, M.F.; Long, J.W.; Rolison, D.R. Rechargeable nickel-3D zinc batteries: An energy-dense, safer alternative to lithium-ion. Science 2017, 356, 414–417. [Google Scholar] [CrossRef]
  26. Ko, J.S.; Geltmacher, A.B.; Hopkins, B.J.; Rolison, D.R.; Long, J.W.; Parker, J.F. Robust 3D Zn sponges enable high-power, energy-dense alkaline batteries. ACS Appl. Mater. Interfaces 2019, 2, 212–216. [Google Scholar]
  27. Guo, W.; Cong, Z.; Guo, Z.; Chang, C.; Liang, X.; Liu, Y.; Hu, W.; Pu, X. Dendrite-free Zn anode with dual channel 3D porous frameworks for rechargeable Zn batteries. Energy Storage Mater. 2020, 30, 104–112. [Google Scholar] [CrossRef]
  28. Wang, S.-B.; Ran, Q.; Yao, R.-Q.; Shi, H.; Wen, Z.; Zhao, M.; Lang, X.-Y.; Jiang, Q. Lamella-nanostructured eutectic zinc-aluminum alloys as reversible and dendrite-free anodes for aqueous rechargeable batteries. Nat. Commun. 2020, 11, 1634. [Google Scholar] [CrossRef]
  29. Zhang, C.; Holoubek, J.; Wu, X.; Daniyar, A.; Zhu, L.; Chen, C.; Leonard, D.P.; Rodriguez-Perez, I.A.; Jiang, J.-X.; Fang, C.; et al. A ZnCl2 water-in-salt electrolyte for a reversible Zn metal anode. Chem. Commun. 2018, 54, 14097–14099. [Google Scholar] [CrossRef]
  30. Ni, Q.; Jiang, H.; Sandstrom, S.; Bai, Y.; Ren, H.; Wu, X.; Guo, Q.; Yu, D.; Wu, C.; Ji, X. A Na3V2(PO4)2O1.6F1.4 cathode of Zn-ion battery enabled by a water-in-bisalt electrolyte. Adv. Funct. Mater. 2020, 30, 2003511. [Google Scholar] [CrossRef]
  31. Zhang, H.; Liu, X.; Qin, B.; Passerini, S. Electrochemical intercalation of anions in graphite for high-voltage aqueous zinc battery. J. Power Sources 2020, 449, 227594. [Google Scholar] [CrossRef]
  32. Song, X.; He, H.; Aboonasr Shiraz, M.H.; Zhu, H.; Khosrozadeh, A.; Liu, J. Enhanced reversibility and electrochemical window of Zn-ion batteries with an acetonitrile/water-in-salt electrolyte. Chem. Commun. 2021, 57, 1246–1249. [Google Scholar] [CrossRef] [PubMed]
  33. Wang, F.; Borodin, O.; Gao, T.; Fan, X.; Sun, W.; Han, F.; Faraone, A.; Dura, J.A.; Xu, K.; Wang, C. Highly reversible zinc metal anode for aqueous batteries. Nat. Mater. 2018, 17, 543–549. [Google Scholar] [CrossRef] [PubMed]
  34. Zhang, S.-J.; Hao, J.; Luo, D.; Zhang, P.-F.; Zhang, B.; Davey, K.; Lin, Z.; Qiao, S.-Z. Dual-function electrolyte additive for highly reversible Zn anode. Adv. Energy Mater. 2021, 11, 2102010. [Google Scholar] [CrossRef]
  35. Wei, T.; Peng, Y.; Mo, L.e.; Chen, S.; Ghadari, R.; Li, Z.; Hu, L. Modulated bonding interaction in propanediol electrolytes toward stable aqueous zinc-ion batteries. Sci. China Mater. 2022, 65, 1156–1164. [Google Scholar] [CrossRef]
  36. Li, T.C.; Lim, Y.; Li, X.L.; Luo, S.; Lin, C.; Fang, D.; Xia, S.; Wang, Y.; Yang, H.Y. A universal additive strategy to reshape electrolyte solvation structure toward reversible Zn storage. Adv. Energy Mater. 2022, 12, 2103231. [Google Scholar] [CrossRef]
  37. Zhou, M.; Chen, H.; Chen, Z.; Hu, Z.; Wang, N.; Jin, Y.; Yu, X.; Meng, H. Nonionic surfactant coconut diethanol amide inhibits the growth of zinc dendrites for more stable zinc-ion batteries. ACS Appl. Mater. Interfaces 2022, 5, 7590–7599. [Google Scholar] [CrossRef]
  38. Cao, H.; Huang, X.; Liu, Y.; Hu, Q.; Zheng, Q.; Huo, Y.; Xie, F.; Zhao, J.; Lin, D. An efficient electrolyte additive of tetramethylammonium sulfate hydrate for Dendritic-Free zinc anode for aqueous Zinc-ion batteries. J. Colloid Interface Sci. 2022, 627, 367–374. [Google Scholar] [CrossRef]
  39. Bayaguud, A.; Luo, X.; Fu, Y.; Zhu, C. Cationic surfactant-type electrolyte additive enables three-dimensional dendrite-free zinc anode for stable zinc-ion batteries. ACS Energy Lett. 2020, 5, 3012–3020. [Google Scholar] [CrossRef]
  40. Xi, M.; Liu, Z.; Ding, J.; Cheng, W.; Jia, D.; Lin, H. Saccharin anion acts as a “traffic assistant” of Zn2+ to achieve a long-life and dendritic-free zinc plate anode. ACS Appl. Mater. Interfaces 2021, 13, 29631–29640. [Google Scholar] [CrossRef]
  41. Zhang, L.; Miao, L.; Xin, W.; Peng, H.; Yan, Z.; Zhu, Z. Engineering zincophilic sites on Zn surface via plant extract additives for dendrite-free Zn anode. Energy Storage Mater. 2022, 44, 408–415. [Google Scholar] [CrossRef]
  42. Zhao, F.; Jing, Z.; Guo, X.; Li, J.; Dong, H.; Tan, Y.; Liu, L.; Zhou, Y.; Owen, R.; Shearing, P.R.; et al. Trace amounts of fluorinated surfactant additives enable high performance zinc-ion batteries. Energy Storage Mater. 2022, 53, 638–645. [Google Scholar] [CrossRef]
  43. Wang, M.; Wu, X.; Yang, D.; Zhao, H.; He, L.; Su, J.; Zhang, X.; Yin, X.; Zhao, K.; Wang, Y.; et al. A colloidal aqueous electrolyte modulated by oleic acid for durable zinc metal anode. Chem. Eng.J. 2023, 451, 138589. [Google Scholar] [CrossRef]
  44. Krafft, M.P.; Riess, J.G. Selected physicochemical aspects of poly- and perfluoroalkylated substances relevant to performance, environment and sustainability: Part one. Chemosphere 2015, 129, 4–19. [Google Scholar] [CrossRef]
  45. Hao, J.; Long, J.; Li, B.; Li, X.; Zhang, S.; Yang, F.; Zeng, X.; Yang, Z.; Pang, W.K.; Guo, Z. Toward high-performance hybrid Zn-based batteries via deeply understanding their mechanism and using electrolyte additive. Adv. Funct. Mater. 2019, 29, 1903605. [Google Scholar] [CrossRef]
  46. Zhou, M.; Guo, S.; Li, J.; Luo, X.; Liu, Z.; Zhang, T.; Cao, X.; Long, M.; Lu, B.; Pan, A.; et al. Surface-preferred crystal plane for a stable and reversible zinc anode. Adv. Mater. 2021, 33, 2100187. [Google Scholar] [CrossRef]
  47. Martinez, L.; Andrade, R.; Birgin, E.G.; Martinez, J.M. Packmol: A package for building initial configurations for molecular dynamics simulations. J. Comput. Chem. 2009, 30, 2157–2164. [Google Scholar] [CrossRef]
  48. Jorgensen, W.L.; Chandrasekhar, J.; Madura, J.D.; Impey, R.W.; Klein, M.L. Comparison of simple potential functions for simulating liquid water. J. Chem. Phys. 1983, 79, 926–935. [Google Scholar] [CrossRef]
  49. Stote, R.H.; Karplus, M. Zinc binding in proteins and solution: A simple but accurate nonbonded representation. Proteins 1995, 23, 12–31. [Google Scholar] [CrossRef]
  50. Mamatkulov, S.; Schwierz, N. Force fields for monovalent and divalent metal cations in TIP3P water based on thermodynamic and kinetic properties. J. Chem. Phys. 2018, 148, 074504. [Google Scholar] [CrossRef]
  51. Williams, C.D.; Burton, N.A.; Travis, K.P.; Harding, J.H. The development of a classical force field to determine the selectivity of an aqueous Fe3+-EDA complex for TcO4- and SO42-. J. Chem. Theory Comput. 2014, 10, 3345–3353. [Google Scholar] [CrossRef] [PubMed]
  52. Lee, S.U.; Jung, J.; Han, Y.K. Molecular dynamics study of the ionic conductivity of 1-n-butyl-3-methylimidazolium salts as ionic liquids. Chem. Phys. Lett. 2005, 406, 332–340. [Google Scholar] [CrossRef]
  53. Eastman, P.; Swails, J.; Chodera, J.D.; McGibbon, R.T.; Zhao, Y.; Beauchamp, K.A.; Wang, L.-P.; Simmonett, A.C.; Harrigan, M.P.; Stern, C.D.; et al. OpenMM 7: Rapid development of high performance algorithms for molecular dynamics. PLoS Comput. Biol. 2017, 13, e1005659. [Google Scholar] [CrossRef] [PubMed]
  54. Michaud-Agrawal, N.; Denning, E.J.; Woolf, T.B.; Beckstein, O. MDAnalysis: A toolkit for the analysis of molecular dynamics simulations. J. Comput. Chem. 2011, 32, 2319–2327. [Google Scholar] [CrossRef] [PubMed]
  55. Yao, R.; Qian, L.; Sui, Y.; Zhao, G.; Guo, R.; Hu, S.; Liu, P.; Zhu, H.; Wang, F.; Zhi, C.; et al. A versatile cation additive enabled highly reversible zinc metal anode. Adv. Mater. 2022, 12, 2102780. [Google Scholar] [CrossRef]
  56. Tian, H.; Yang, J.-L.; Deng, Y.; Tang, W.; Liu, R.; Xu, C.; Han, P.; Fan, H.J. Steel anti-corrosion strategy enables long-cycle Zn anode. Adv. Energy Mater. 2022, 13, 2202603. [Google Scholar] [CrossRef]
  57. Wang, H.; Ye, W.; Yin, B.; Wang, K.; Riaz, M.S.; Xie, B.-B.; Zhong, Y.; Hu, Y. Modulating cation migration and deposition with xylitol additive and oriented reconstruction of hydrogen bonds for stable zinc anodes. Angew. Chem. Int. Ed. 2023, 135, e202218872. [Google Scholar]
  58. Liu, Y.; Hu, J.; Lu, Q.; Hantusch, M.; Zhang, H.; Qu, Z.; Tang, H.; Dong, H.; Schmidt, O.G.; Holze, R.; et al. Highly enhanced reversibility of a Zn anode by in-situ texturing. Energy Storage Mater. 2022, 47, 98–104. [Google Scholar] [CrossRef]
  59. Chen, Z.; Chen, H.; Che, Y.; Cheng, L.; Zhang, H.; Chen, J.; Xie, F.; Wang, N.; Jin, Y.; Meng, H. Arginine cations inhibiting charge accumulation of dendrites and boosting Zn metal reversibility in aqueous rechargeable batteries. ACS Sustain. Chem. Eng. 2021, 9, 6855–6863. [Google Scholar] [CrossRef]
  60. Li, D.; Cao, L.; Deng, T.; Liu, S.; Wang, C. Design of a solid electrolyte interphase for aqueous Zn batteries. Angew. Chem. Int. Ed. 2021, 60, 13035–13041. [Google Scholar] [CrossRef]
  61. Zhang, W.; Dong, M.; Jiang, K.; Yang, D.; Tan, X.; Zhai, S.; Feng, R.; Chen, N.; King, G.; Zhang, H.; et al. Self-repairing interphase reconstructed in each cycle for highly reversible aqueous zinc batteries. Nat. Commun. 2022, 13, 5348. [Google Scholar] [CrossRef] [PubMed]
  62. Hao, J.; Yuan, L.; Zhu, Y.; Jaroniec, M.; Qiao, S.-Z. Triple-function electrolyte regulation toward advanced aqueous Zn-ion batteries. Adv. Mater. 2022, 34, 2206963. [Google Scholar] [CrossRef] [PubMed]
  63. Wu, H.; Yan, W.; Xing, Y.; Li, L.; Liu, J.; Li, L.; Huang, P.; Lai, C.; Wang, C.; Chen, W.; et al. Tailoring the interfacial electric field using silicon nanoparticles for stable zinc-ion batteries. Adv. Funct. Mater. 2023, 23, 2213882. [Google Scholar] [CrossRef]
Molecules 28 04177 g001 550

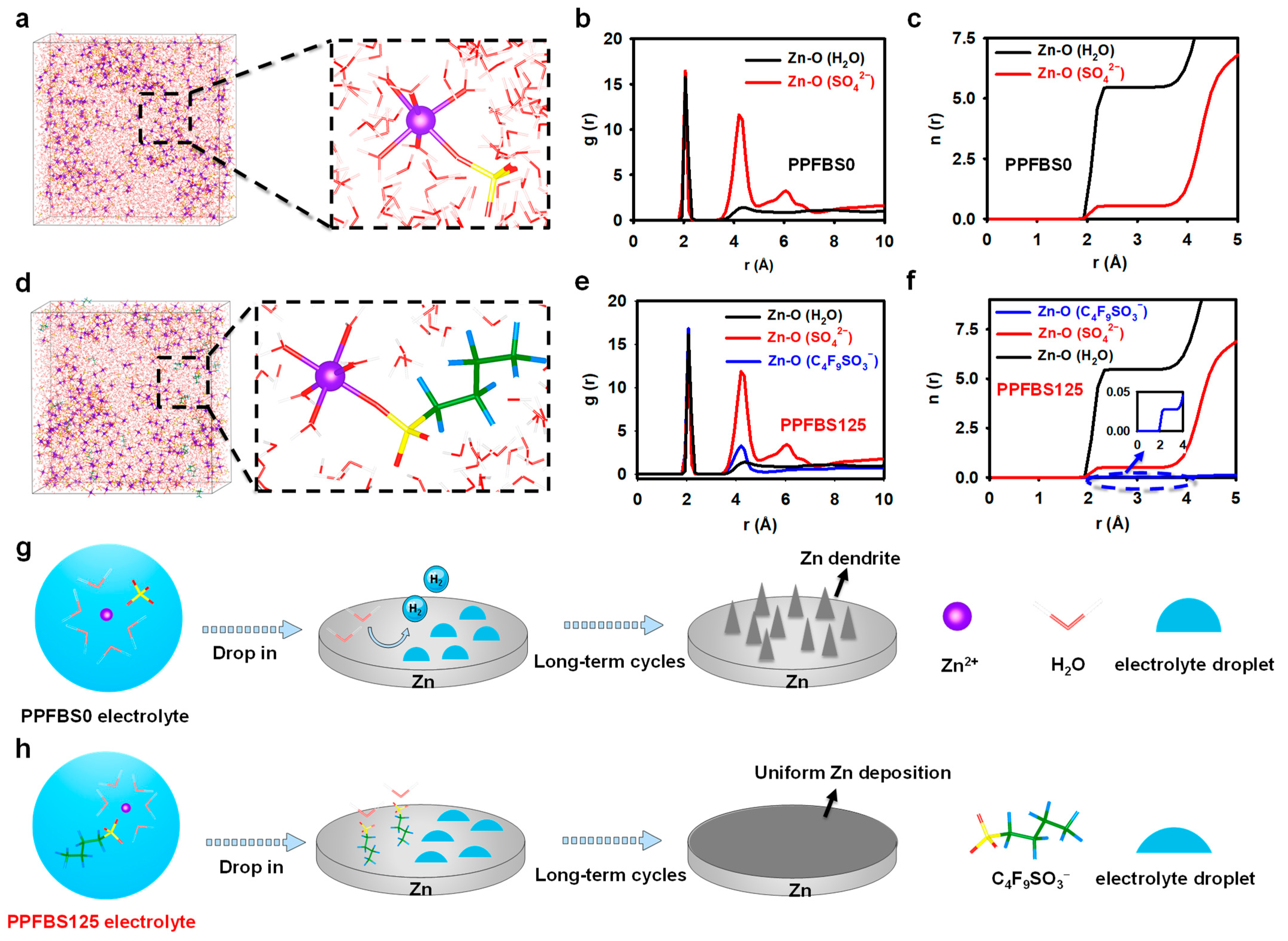

Figure 1. Snapshots of the molecular dynamics (MD) simulation models and an enlarged view of the Zn2+-solvation structure in the electrolytes with (a) PPFBS0 and (d) PPFBS125 electrolytes; radial distribution functions (RDFs) obtained from MD simulations for (b) PPFBS0 and (e) PPFBS125 electrolytes; coordination number (CN) obtained from MD simulations for (c) PPFBS0 and (f) PPFBS125 electrolytes; schematic illustration of the Zn2+-solvation structure and corresponding deposition behavior in the electrolytes with (g) PPFBS0 and (h) PPFBS125 electrolytes.
Figure 1. Snapshots of the molecular dynamics (MD) simulation models and an enlarged view of the Zn2+-solvation structure in the electrolytes with (a) PPFBS0 and (d) PPFBS125 electrolytes; radial distribution functions (RDFs) obtained from MD simulations for (b) PPFBS0 and (e) PPFBS125 electrolytes; coordination number (CN) obtained from MD simulations for (c) PPFBS0 and (f) PPFBS125 electrolytes; schematic illustration of the Zn2+-solvation structure and corresponding deposition behavior in the electrolytes with (g) PPFBS0 and (h) PPFBS125 electrolytes.
Molecules 28 04177 g001
Molecules 28 04177 g002 550

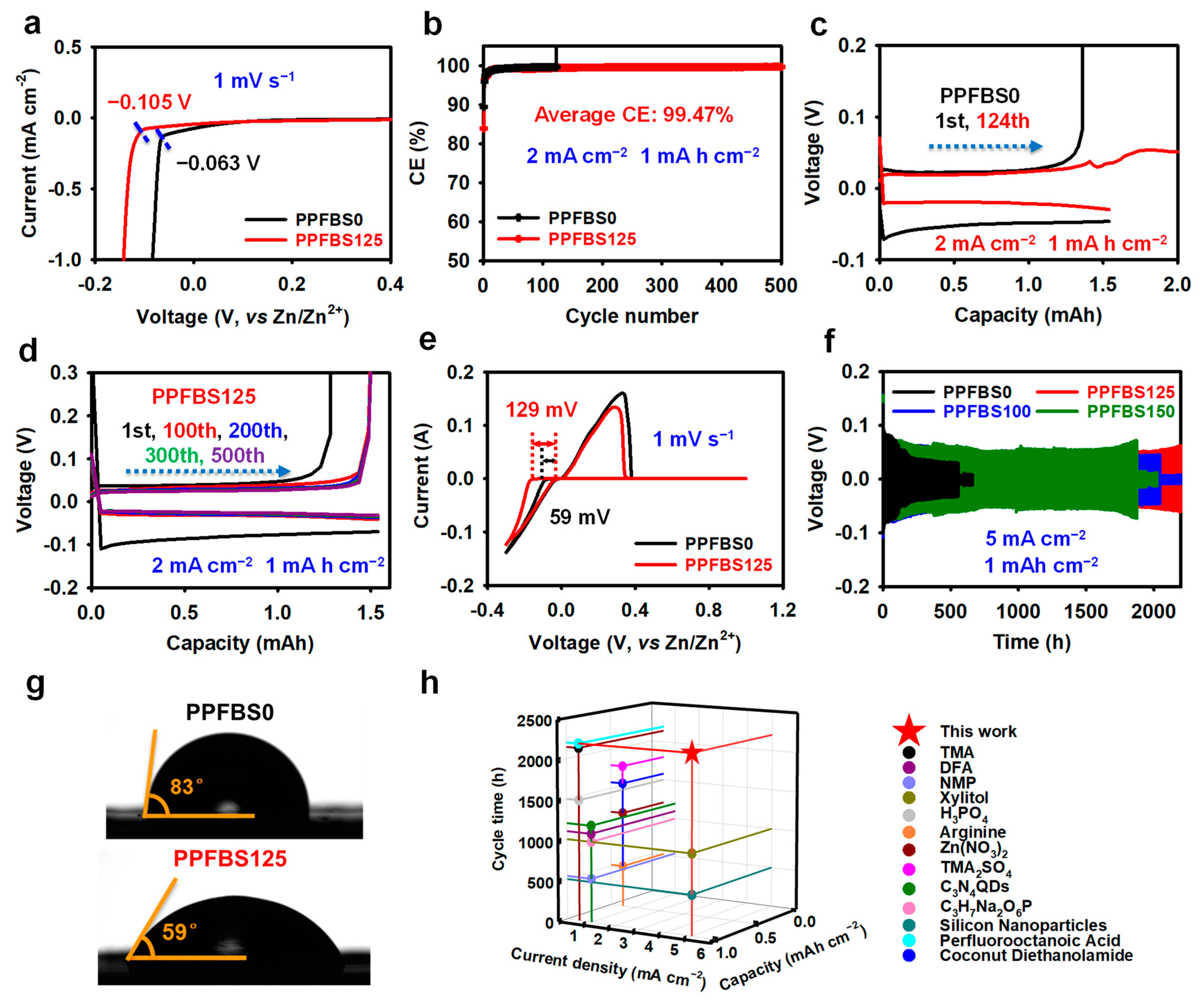

Figure 2. (a) Linear sweep voltammetry (LSV) characterization in the different electrolytes; (b) Coulombic efficiency (CE) of Zn/Cu cells in the different electrolytes; voltage profiles of Zn/Cu cells using (c) PPFBS0 and (d) PPFBS125 electrolytes at various cycles; (e) cyclic voltammogram (CV) profiles of Zn/Cu cells in the different electrolytes; (f) cycling stability of Zn/Zn cells in the various electrolytes; (g) the contact angle on Zn substrates using different electrolytes; (h) comparison of the electrochemical performance of electrolyte additives in Zn/Zn cells.
