Article

Self-Assembly of Discrete Porphyrin/Calix[4]tube Complexes Promoted by Potassium Ion Encapsulation

by
Massimiliano Gaeta
1,
Elisabetta Rodolico
1,
Maria E. Fragalà
1,
Andrea Pappalardo
1,
Ilenia Pisagatti
2,
Giuseppe Gattuso
2,
Anna Notti
2,*,
Melchiorre F. Parisi
2,*,
Roberto Purrello
1,* and
Alessandro D’Urso
1,*
1
Dipartimento di Scienze Chimiche, Università degli Studi di Catania, Viale A. Doria 6, 95125 Catania, Italy
2
Dipartimento di Scienze Chimiche, Biologiche, Farmaceutiche ed Ambientali, Università degli Studi di Messina, Viale F. Stagno d’Alcontres, 31, 98166 Messina, Italy
*
Authors to whom correspondence should be addressed.
Molecules 2021, 26(3), 704; https://doi.org/10.3390/molecules26030704
Submission received: 17 October 2020 / Revised: 14 January 2021 / Accepted: 23 January 2021 / Published: 29 January 2021
(This article belongs to the Special Issue Calixarene Complexes: Synthesis, Properties and Applications)
Browse Figures
Versions Notes

Abstract

:
The pivotal role played by potassium ions in the noncovalent synthesis of discrete porphyrin-calixarene nanostructures has been examined. The flattened-cone conformation adopted by the two cavities of octa-cationic calix[4]tube C4T was found to prevent the formation of complexes with well-defined stoichiometry between this novel water-soluble calixarene and the tetra-anionic phenylsulfonate porphyrin CuTPPS. Conversely, preorganization of C4T into a C4v-symmetrical scaffold, triggered by potassium ion encapsulation (C4T@K+), allowed us to carry out an efficient hierarchical self-assembly process leading to 2D and 3D nanostructures. The stepwise formation of discrete CuTPPS/C4T@K+ noncovalent assemblies, containing up to 33 molecular elements, was conveniently monitored by UV/vis spectroscopy by following the absorbance of the porphyrin Soret band.

Graphical Abstract

1. Introduction

Porphyrins, owing to their redox [1,2] and opto-electronic properties [3,4,5], relative ease of derivatization [6] and propensity to self-organize in architectures of different size and topology [7,8,9], are very attractive building blocks for the synthesis of functional nanomaterials useful for light harvesting [10,11], sensing [12], catalysis [13], imaging [14] and photodynamic therapy [15] applications. Rods [16,17,18], wires [19,20,21], tubes [22], sheets [23], spheres [24] and rings [25] are examples of porphyrin-based nanostructure motifs reported to date.
In aqueous solution, however, one of the main obstacles to the development of discrete nanostructures is created by the pronounced tendency of porphyrins to spontaneously self-aggregate (via π–π stacking interactions), precluding the formation of arrays of well-defined shape and size. To overcome this, early endeavors have mainly focused on targeted covalent derivatizations or the formation of coordination bonds [26]. More recently, the rational design of porphyrin-based supramolecular assemblies has been successfully carried out in the presence of templating agents such as: polyelectrolites [27,28], peptides [29], inorganic molecules bearing metal-coordination centers [30,31,32,33] and macrocyclic compounds [34,35,36], by taking advantage of single or multiple metal coordination, hydrogen bonding, π–π stacking, electrostatic and hydrophobic interactions.
Multi-charged water-soluble calix[n]arenes [37,38,39,40], because of their remarkable affinity towards charge- and shape-complementary substrates [41,42,43,44], have been successfully employed as templating agents for the assembly of hybrid porphyrin-calixarene nanostructures in aqueous media [45,46] and in the solid state [47,48,49,50]. We have shown that both anionic [51] and cationic [52] calix[4]arenes quantitatively interact with oppositely charged porphyrins, under rigid hierarchical rules, providing assemblies with predictable sequence and stoichiometry. By replacing the calixarene framework with ditopic or tritopic bis- [53] or tris-calixarene [54] scaffolds we were able to control the dimensionality of the assembly, hierarchically forming 2D and 3D noncovalent architectures of considerable size. We were also able to induce chirality in some of these multi-component assemblies by using appropriate enantiopure agents [52,54,55]. The self-assembly in aqueous solution is mainly driven by electrostatic interactions between differently charged components as well as solvophobic effects and other noncovalent weak forces, all of which ultimately contribute to the thermodynamic stability of the species formed. The stability and kinetic inertness of these multicomponent assemblies have been assessed by light scattering, diffusion NMR studies [56] and a number of single-crystal XRD analyses [51,56].
As a follow up to these studies, to test the limits of the noncovalent approach to the synthesis of porphyrin-calixarene nanostructures we have synthesized a water-soluble congener of the known p-tert-butylcalix[4]tube 1 (Scheme 1), first reported by Beer and coworkers [57], and now wish to report the profound effect played by a single potassium ion on the overall self-assembly process carried out in water in the presence of copper(II) meso-tetrakis-(4-sulfonatophenyl)porphyrin tetrasodium salt (CuTPPS). Unlike CT4 (Scheme 1), the corresponding potassium complex (C4T@K+), because of the preorganization of its cavities and the rigidity of its ditopic tubular structure, is able to promote the noncovalent assembly of discrete porphyrin/calixtube nanostructures with a stoichiometry as high as 17:16.

2. Results and Discussion

Octa-amino calix[4]tube C4T was synthesized in overall 70% yield from p-tert-butylcalix[4]tube 1 [57] by exhaustive nitration followed by reduction of the resultant nitro derivative 2 (Scheme 1).
Analogously to the parent p-tert-butylated derivative 1 [57] and a number of other calix[4]tubes [58,59,60,61,62], the two cavities of octa-amino calix[4]tube C4T adopt a preferential flattened-cone conformation (C2v symmetry) in solution (DMF-d7, 298 K). Consistent with this, the 1H NMR spectrum displays pairs of equally intense broad singlets for the ArH, OCH2 and NH2 groups and a single AX-system for the ArCH2Ar bridging moieties (Figure 1a). Signal doubling is also seen in the 13C NMR spectrum of C4T.
To assess the ability of calixtube C4T to act as a templating agent for the noncovalent synthesis of porphyrin-based supramolecular architectures, a 2.0 µM aqueous solution (pH = 3.0 [63]) of C4T was titrated with increasing aliquots of an aqueous solution of copper(II) meso-tetrakis-(4-sulfonatophenyl)porphyrin tetrasodium salt (CuTPPS). Earlier studies carried out on several water-soluble calix[4]arenes [51,52], bis-calix[4]arenes [52,55] and tris-calix[4]arenes [54], and a number of metallo-porphyrins (Chart 1), had shown that the formation of discrete calixarene/porphyrin assemblies proceeds in a step-wise hierarchical fashion [64] with the display of clear-cut spectral changes (absorption or emission). More specifically, the formation of any complex/assembly of well-defined stoichiometry is always pinpointed by a specific break-point on a diagram where the absorbance values of the porphyrin Soret band are plotted vs. the [porphyrin] × 4/[calixarene] ratio (vide infra). That is, an experimental data point of the titration curve where the slope variation is larger than 10%. Different slopes indicate the presence in solution of discrete assemblies, each of these characterized by a different molar extinction coefficient. In other words, the presence of break-points confirms that the species formed are not in equilibrium with each other, otherwise a straight line would only be observed over the entire course of a titration experiment.
In the case of the ditopic calix[4]tube C4T and the tetratopic porphyrin CuTPPS, however, no such trend was observed (Figure 2), despite the fact that the absorption data collected over the course of the titration displayed—with respect to the blank experiment carried out in the absence of C4T—hypochromicity and a broadening of the CuTPPS Soret band and, therefore, a clear indication of porphyrin–calixtube interactions (Figures S2 and S3, see the Supplementary Materials). The porphyrin–calix[4]tube assembly process was best analyzed by plotting the CuTPPS absorbance values at 412 nm vs. the [CuTPPS] × 4/[C4T] ratio. The trace joining the experimental data-points (Figure 2, trace b) is straight (i.e., no detectable break-points) up to the equivalence ([CuTPPS] = [C4T] = 2 µM) and then its slope becomes steeper upon further addition of CuTPPS (up to a 3 µM total concentration). This absorbance trend is consistent with an initial formation of CuTPPS/C4T complexes with a 1:1 stoichiometry, followed by a marked hyperchromic effect due to the absorbance of the porphyrin molecules present in excess in solution; the slope of the second segment of trace b approaches the one observed in CuTPPS solutions of increasing concentration (Figure 2, trace a). One possible explanation for this unexpected lack of stoichiometric complementarity between this oppositely charged pair is that the C4T cavities are forced to adopt a flattened-cone conformation by the four ethylene linkages (see above), resulting in poor preorganization. These structural features, because of steric hindrance and weaker electrostatic interactions, prevent the simultaneous binding of four calix[4]tube molecules to a single porphyrin and, as a result, the formation of a stable CuTPPS/C4T complex with a 1:4 stoichiometry and a cruciform structure (vide infra).
Given the known proclivity of p-tert-butylcalix[4]tube 1 to encapsulate potassium ions within the cryptand-like binding site, provided by the four dioxyethylene bridges, Beer’s findings [57,58] were exploited to “freeze” the cavities of the octa-amino calix[4]tube into a more favorable cone conformation. Accordingly, stirring of C4T in DMF in the presence of a large excess of KI, afforded the corresponding C4T@K+ potassium complex (Figure 1b).
To test whether the potassium complex of calix[4]tube C4T was able to promote supramolecular assembly as a result of its cavities being preorganized in a C4v-symmetry, the templating-agent potentials of C4T@K+ were reassessed under the conditions described earlier. The UV/vis titration was similarly carried out by adding increasing amounts of CuTPPS to a solution of C4T@K+ (2 µM) in water at pH = 3.0 [63]. As seen above, the spectra acquired in the course of the titration, showed that the absorbance of the porphyrin Soret band broadens and undergoes a hypochromic effect (Figure S4). However, compared with the CuTPPS/C4T system (Figure 2, trace b), in this case, the assembly process proceeds under stoichiometric control up to a [CuTPPS] = 4 µM, as unambiguously proven by the presence of several break-points coinciding with CuTPPS/C4T@K+ complexes of precise stoichiometry (i.e., 1:4-, 2:4-, 3:4-, 4:4-, 5:4-, 6:4-, 7:4- and 8:4-(CuTPPS/C4T@K+); see Figure 2, trace c). As the titration proceeds and further aliquots of porphyrin are added to the solution (i.e., for [CuTPPS] > 4 µM), the absorbance sharply increases and the related slope is seen to closely match the one detected for CuTPPS on its own (Figure 2, compare traces a with the last segment of trace c). These findings indicate that the excess porphyrin molecules now present in solution are no longer interacting with the supramolecular complex. As for the largest species obtained under these conditions, the absorption data of Figure 2 (trace c) suggests the formation of an 8:4-(CuTPPS/C4T@K+) supramolecular structure, similar to those observed elsewhere by single-crystal X-ray analysis [48,49,50,51], likely obtained as a result of the stacking of three additional porphyrin molecules above and/or below the plane containing the parent 5:4-(CuTPPS/C4T@K+) assembly [65], the latter having radially grown around the central CuTPPS unit in a step-wise and hierarchical fashion. Compared to the case analyzed at the beginning, where the two C2v-symmetrical cavities of C4T were seen to prevent efficient porphyrin binding, the result observed in the presence of the ditopic C4v-arranged C4T@K+ calixtube complex is quite dramatic in terms of stoichiometric control of the assembly process.
Similar to the case of bis-calix[4]arene BC4 (Chart 1, [53]), the 5:4-(CuTPPS/C4T@K+) assembly is a “fork-point” precursor, key to the subsequent 2D or 3D syntheses of larger porphyrin/calixtube supramolecular architectures (Figure 3).
Addition of porphyrins leads to the above-mentioned 8:4-(CuTPPS/C4T@K+) species, where the extra CuTPPS molecules are stacked above and/or below the planar 5:4-(CuTPPS/C4T@K+) assembly (second section of trace b), whereas an increase in the calixtube concentration (in a parallel titration experiment) from 2 to 8 µM prompts a planar growth of the assembly, yielding the 5:16-(CuTPPS/C4T@K+) species (Figure 3). As expected, given the absence of ‘free’ porphyrin molecules in solution, the formation of the latter proceeds with no variations in the absorbance at 412 nm, (blue arrow close to trace c in Figure 3, see also Figure S5). On the other hand, once the 5:16-(CuTPPS/C4T@K+) species has formed, a total of twelve cavities of calix[4]tube become available. As a result, upon subsequent increase of the CuTPPS concentration from 2.5 to 8.5 µM the solution undergoes—with respect to the blank, see trace a—a noticeable hypochromic effect (Figure 3, blue and red segments of trace c) which is consistent with the formation of an assembly with a 13:16 CuTPPS/C4T@K+ stoichiometry (Figure 3, red arrow close to trace c). In agreement with the even larger hypochromicity observed in the green segment of trace c (Figure 3), the formation of a new discrete species (i.e., 17:16-(CuTPPS/C4T@K+) is finally observed. This latter is probably formed by further piling of four CuTPPS molecules above and/or below the planar 13:16-(CuTPPS/C4T@K+) assembly. After reaching the 17:16 molar ratio the titration experiment was halted because of an incipient precipitate formation in solution.

3. Materials and Methods

3.1. General

Commercial reagent grade chemicals were used as received without any further purification. Solvents were dried by standard methods. Melting points were determined on a Kofler hot stage apparatus and are uncorrected. 1H and 13C NMR spectra were acquired at 25 °C in DMF-d7, at 500 and 125 MHz respectively. Chemical shifts are reported in ppm and are referenced to the solvent residual peak (δH = 2.75 ppm and δC = 29.8 ppm). The ESI-MS spectrum of C4T@K+ (dissolved in H2O at pH = 3.0) was recorded on an ES-MS Thermo-Finnigan LCQ-DECA instrument (positive ion mode) using a low declustering potential. UV/vis measurements were carried out at room temperature on a JASCO V-530 spectrophotometer. Quartz cuvettes with 1 cm path-length were used for all measurements. Routinely, 3 to 5 different solutions were used for each determination.
p-tert-Butylcalix[4]tube 1 was prepared according to a known literature procedure [57]. Copper(II) meso-tetrakis-(4-sulfonatophenyl)porphyrin tetrasodium salt (CuTPPS) was synthesized from the corresponding metal oxides (CuO) by heterogeneous metal-insertion in water, according to a previously reported procedure [65].
CuTPPS, C4T and C4T@K+ stock solutions (about 4 × 10−4, 3.2 × 10−4 and 5.4 × 10−4 M, respectively) were prepared in ultrapure water obtained from Elga Veolia Purelab flex and their concentrations were calculated spectrophotometrically (UV/vis in H2O) by looking at the maximum intensity of the porphyrin Soret band λmax(ε) = 412 nm (416,000 M−1 cm−1). CuTPPS/C4T@K+ assemblies were obtained at room temperature by adding increasing aliquots of CuTPPS (so that the concentration of the porphyrin in the titrating solution was 0.25 µM higher after each addition) to a 2 µM aqueous solution (pH = 3.0) of the C4T@K+ complex, up to desired molar ratio [CuTPPS]/[C4T@K+]. In water, under acidic conditions (pH = 3.0), the octa-amino calix[4]tube C4T is converted to its fully protonated octa-ammonium form(see Figure S1).

3.2. Syntheses of Calix[4]tube C4T and the Potassium Inclusion Complex C4T@K+

3.2.1. Octa-Nitro Calix[4]tube 2

Fuming HNO3 (4.5 mL) was slowly added to a cooled (T = −15 °C) solution of p-tert-butylcalix[4]tube 1 (630 mg, 0.45 mmol) in CHCl3 (180 mL) and AcOH (13.5 mL) and the mixture was then left to stir vigorously at room temperature. Addition of the same amounts of AcOH and HNO3 was repeated after 24 and 48 h. After 72 h, the solvent was evaporated under vacuum and the resulting residue was triturated with CH3OH (30 mL). Several recrystallizations from DMF of the solid thus obtained yielded derivative 2 as an off-white powder (554 mg, 94%). M.p. > 230 °C. 1H NMR (DMF-d7) δ 8.62 (s, ArH, 8H), 7.64 (s, ArH, 8H), 5.51 (s, OCH2, 8H), 4.85 and 4.03 (AX system, J = 13.6 Hz, ArCH2Ar, 16H), 4.84 (s, OCH2, 8H) ppm. 13C NMR (DMF-d7) δ 164.1, 162.1, 143.7, 143.1, 125.8, 124.5, 73.8, 73.4, 31.6 ppm. Anal. Calcd for C64H48N8O24: C, 58.54; H, 3.68; N, 8.53. Found: C, 58.23; H, 3.92; N, 8.37.

3.2.2. Octa-Amino Calix[4]tube C4T

A suspension of 2 (100 mg, 0.076 mmol) and Raney/Nickel in DMF (50 mL) was stirred under H2 (1 atm) at room temperature for 24 h. The catalyst was filtered off and the eluate was evaporated to dryness under vacuum to provide a residue that upon treatment with MeOH gave C4T as a brown powder that was collected by suction filtration (61 mg, 75%). M.p. > 230 °C. 1H NMR (DMF-d7): δ 6.45 (br s, ArH, 8H), 6.03 (br s, ArH, 8H), 5.06 (br s, OCH2, 8H), 4.51 and 3.02 (AX system, J = 12.3 Hz, ArCH2Ar, 16 H), 4.47 (br s, NH2, 8H), 4.23 (br s, OCH2, 8H), 4.04 (br s, NH2, 8H) ppm. 13C NMR (DMF-d7): δ 150.6, 148.5, 143.3, 142.7, 135.9, 133.0, 115.07, 114.96, 73.7, 32.6 ppm. Anal. Calcd for C64H64N8O8: C, 71.62; H, 6.01, N, 10.44. Found: C, 71.31; H, 6.23; N, 10.29.

3.2.3. Formation of the C4T@K+ Complex

A suspension of C4T (10 mg, 9 µmol) and KI (100 mg, 600 µmol) in dry DMF (30, mL) was kept under vigorous stirring at room temperature for 12 h. Excess of the inorganic salt was removed by suction filtration and the organic eluate was concentrated to dryness under vacuum to afford C4T@K+ as a solid residue. 1H NMR (DMF-d7): δ 6.60 (s, ArH, 16H), 4.63 and 3.26 (AX system, J = 13.8 Hz, ArCH2Ar, 16H), 4.53 (br s, OCH2, 16H), 4.48 (br s, NH2, 16H) ppm; ESI(+)-MS: m/z 287 ([M + K + 4H + Cl]4+, 17%).

4. Conclusions

Our findings show how minute structural modifications, of no apparent significance, may dramatically change the overall outcome of a self-assembly process, by either preventing or promoting the association of complex supramolecular nanostructures. Here, a single potassium ion is seen to produce an allosteric effect which triggers the subsequent noncovalent assembly of octa-cationic calix[4]tube C4T and the complementary tetra-anionic metallo-porphyrin CuTPPS. K+ binds to the cryptand-like binding site, formed by the four dioxoethylene bridging moieties of the calix[4]tube and, by acting as an “effector”, promotes the conformational change of its two cavities from C2v to C4v. As a result, C4T@K+ is then able to act as an efficient templating agent, providing a variety of 2D and 3D CuTPPS/C4T@K+ assemblies of predictable sequence, topology and stoichiometry. The noncovalent synthesis of these species follows a strict hierarchical pattern which can, in principle, be exploited to introduce a given property (e.g., chirality [52]) at a specific location in the assembly so as to modulate the reactivity of the entire nanostructure.
We are currently investigating the ability of other ionic and neutral species to act as effectors of discrete noncovalent porphyrin-calixarene functional materials.

Supplementary Materials

The following are available online, UV/Vis titration spectra, NMR and MS spectra.

Author Contributions

Conceptualization, A.D., R.P., A.N. and M.F.P.; methodology, A.D., R.P. and A.N.; validation, M.G., E.R., A.P. and A.N.; formal analysis, A.D., M.G. and G.G.; investigation, E.R., M.G. and I.P.; resources, A.D., M.F.P., G.G. and M.E.F.; data curation, E.R., M.G. and AN.; writing—original draft preparation, M.G., A.D. and A.N.; writing—review and editing, M.F.P. and R.P.; visualization, A.D. and M.F.P.; supervision, A.D., R.P., A.N. and M.F.P.; project administration, A.D.; funding acquisition, A.D., M.F.P., G.G. and A.P. All authors have read and agreed to the published version of the manuscript.

Funding

Università degli Studi di Catania, Dipartimento di Scienze Chimiche (programma ricerca di ateneo UNICT 2016–18 linea 1 and linea 2 and programma ricerca di ateneo UNICT 2020–22 linea 2); Università degli Studi di Messina, Dipartimento di Scienze Chimiche, Biologiche, Farmaceutiche ed Ambientali (FFABR_UniME_2019 project) and Ministero dell’Università e della Ricerca (MUR), PRIN projects 2017YJMPZN-005 and 20179BJNA2.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not available.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds 2 and C4T are available from the authors.

References and Notes

  1. Bhyrappa, P.; Sankar, M.; Varghese, B. Mixed substituted porphyrins: Structural and electrochemical redox properties. Inorg. Chem. 2006, 45, 4136–4149. [Google Scholar] [CrossRef] [PubMed]
  2. Fonda, H.N.; Gilbert, J.V.; Cormier, R.A.; Sprague, J.R.; Kamioka, K.; Connolly, J.S. Spectroscopic, photophysical, and redox properties of some meso-substituted free-base porphyrins. J. Phys. Chem. 1993, 97, 7024–7033. [Google Scholar] [CrossRef]
  3. Yella, A.; Lee, H.W.; Tsao, H.N.; Yi, C.; Chandiran, A.K.; Nazeeruddin, M.K.; Diau, E.W.G.; Yeh, C.Y.; Zakeeruddin, S.M.; Grätzel, M. Porphyrin-sensitized solar cells with cobalt (II/III)-based redox electrolyte exceed 12 percent efficiency. Science 2011, 334, 629–634. [Google Scholar] [CrossRef]
  4. Jurow, M.; Schuckman, A.E.; Batteas, J.D.; Drain, C.M. Porphyrins as molecular electronic components of functional devices. Coord. Chem. Rev. 2010, 254, 2297–2310. [Google Scholar] [CrossRef] [Green Version]
  5. Scandola, F.; Chiorboli, C.; Prodi, A.; Iengo, E.; Alessio, E. Photophysical properties of metal-mediated assemblies of porphyrins. Coord. Chem. Rev. 2006, 250, 1471–1496. [Google Scholar] [CrossRef]
  6. Hiroto, S.; Miyake, Y.; Shinokubo, H. Synthesis and functionalization of porphyrins through organometallic methodologies. Chem. Rev. 2017, 117, 2910–3043. [Google Scholar] [CrossRef]
  7. Beletskaya, I.; Tyurin, V.S.; Tsivadze, A.Y.; Guilard, R.; Stern, C. Supramolecular chemistry of metalloporphyrins. Chem. Rev. 2009, 109, 1659–1713. [Google Scholar]
  8. Drain, C.M.; Varotto, A.; Radivojevic, I. Self-organized porphyrinic materials. Chem. Rev. 2009, 109, 1630–1658. [Google Scholar]
  9. Medforth, C.J.; Wang, Z.; Martin, E.M.; Song, Y.; Jacobsen, J.L.; Shelnutt, J.A. Self-assembled porphyrin nanostructures. Chem. Commun. 2009, 47, 7261–7277. [Google Scholar] [CrossRef]
  10. Otsuki, J. Supramolecular approach towards light-harvesting materials based on porphyrins and chlorophylls. J. Mater. Chem. A 2018, 6, 6710–6753. [Google Scholar] [CrossRef]
  11. Balaban, T.S. Tailoring porphyrins and chlorins for self-assembly in biomimetic artificial antenna systems. Acc. Chem. Res. 2005, 38, 612–623. [Google Scholar] [CrossRef] [PubMed]
  12. Paolesse, R.; Nardis, S.; Monti, D.; Stefanelli, M.; Di Natale, C. Porphyrinoids for chemical sensor applications. Chem. Rev. 2017, 117, 2517–2583. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Wang, H.; Song, Y.; Medforth, C.J.; Shelnutt, J.A. Interfacial synthesis of dendritic platinum nanoshells templated on benzene nanodroplets stabilized in water by a photocatalytic lipoporphyrin. J. Am. Chem. Soc. 2006, 128, 9284–9285. [Google Scholar] [CrossRef] [PubMed]
  14. Rabiee, N.; Yaraki, M.T.; Garakani, S.M.; Garakani, S.M.; Ahmadi, S.; Lajevardi, A.; Bagherzadeh, M.; Rabiee, M.; Tayebi, L.; Tahriri, M.; et al. Recent advances in porphyrin-based nanocomposites for effective targeted imaging and therapy. Biomaterials 2020, 232, 119707. [Google Scholar]
  15. Tian, J.; Huang, B.; Nawaz, M.H.; Zhang, W. Recent advances of multi-dimensional porphyrin-based functional materials in photodynamic therapy. Coord. Chem. Rev. 2020, 420, 213410. [Google Scholar] [CrossRef]
  16. Doan, S.C.; Shanmugham, S.; Aston, D.E.; McHale, J.L. Counterion Dependent Dye Aggregates: Nanorods and nanorings of tetra(p-carboxyphenyl)porphyrin. J. Am. Chem. Soc. 2005, 127, 5885–5892. [Google Scholar] [CrossRef]
  17. Schwab, A.D.; Smith, D.E.; Rich, C.S.; Young, E.R.; Smith, W.F.; de Paula, J.C. Porphyrin nanorods. J. Phys. Chem. B 2003, 107, 11339–11345. [Google Scholar] [CrossRef]
  18. Guo, P.; Chen, P.; Liu, M. One-dimensional porphyrin nanoassemblies assisted via graphene oxide: Sheetlike functional surfactant and enhanced photocatalytic behaviors. ACS Appl. Mater. Interfaces 2013, 5, 5336–5345. [Google Scholar] [CrossRef]
  19. Koepf, M.; Conradt, J.; Szmytkowski, J.; Wytko, J.A.; Allouche, L.; Kalt, H.; Balaban, T.S.; Weiss, J. Highly linear self-assembled porphyrin wires. Inorg. Chem. 2011, 50, 6073–6082. [Google Scholar] [CrossRef]
  20. Fathalla, M.; Neuberger, A.; Li, S.-C.; Schmehl, R.; Diebold, U.; Jayawickramarajah, J. Straightforward self-assembly of porphyrin nanowires in water: Harnessing adamantane/cyclodextrin interactions. J. Am. Chem. Soc. 2010, 132, 9966–9967. [Google Scholar] [CrossRef]
  21. Lee, S.J.; Hupp, J.T.; Nguyen, S.T. Growth of narrowly dispersed porphyrin nanowires and their hierarchical assembly into macroscopic columns. J. Am. Chem. Soc. 2008, 130, 9632–9633. [Google Scholar] [CrossRef]
  22. Wang, Z.; Medforth, C.J.; Shelnutt, J.A. Porphyrin nanotubes by ionic self-assembly. J. Am. Chem. Soc. 2004, 126, 15954–15955. [Google Scholar] [CrossRef] [PubMed]
  23. Wang, Z.; Li, Z.; Medforth, C.J.; Shelnutt, J.A. Self-assembly and self-metallization of porphyrin nanosheets. J. Am. Chem. Soc. 2007, 129, 2440–2441. [Google Scholar] [CrossRef]
  24. Zhang, H.; Zhang, B.; Zhu, M.; Grayson, S.M.; Schmehl, R.; Jayawickramarajah, J. Water-soluble porphyrin nanospheres: Enhanced photo-physical properties achieved via cyclodextrin driven double self-inclusion. Chem. Commun. 2014, 50, 4853–4855. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Aratani, N.; Kim, D.; Osuka, A. Discrete cyclic porphyrin arrays as artificial light-harvesting antenna. Acc. Chem. Res. 2009, 42, 1922–1934. [Google Scholar] [CrossRef] [PubMed]
  26. Imamura, T.; Fukushima, K. Self-assembly of metallopyridylporphyrin oligomers. Coord. Chem. Rev. 2000, 198, 133–156. [Google Scholar] [CrossRef]
  27. Frühbeißer, S.; Gröhn, F. Catalytic activity of macroion–porphyrin nanoassemblies. J. Am. Chem. Soc. 2012, 134, 14267–14270. [Google Scholar] [CrossRef]
  28. Onouchi, H.; Miyagawa, T.; Morino, K.; Yashima, E. Assisted formation of chiral porphyrin homoaggregates by an induced helical poly(phenylacetylene) template and their chiral memory. Angew. Chem. 2006, 45, 2381–2384. [Google Scholar] [CrossRef]
  29. Liu, K.; Xing, R.; Chen, C.; Shen, G.; Yan, L.; Zou, Q.; Ma, G.; Mçhwald, H.; Yan, X. Peptide-induced hierarchical long-range order and photocatalytic activity of porphyrin assemblies. Angew. Chem. 2015, 54, 500–505. [Google Scholar] [CrossRef]
  30. Oliveras-González, C.; Di Meo, F.; González-Campo, A.; Beljonne, D.; Norman, P.; Simón-Sorbed, M.; Linares, M.; Amabilino, D.B. Bottom-up hierarchical self-assembly of chiral porphyrins through coordination and hydrogen bonds. J. Am. Chem. Soc. 2015, 137, 15795–15808. [Google Scholar] [CrossRef]
  31. Boccalon, M.; Iengo, E.; Tecilla, P. Metal-organic transmembrane anopores. J. Am. Chem. Soc. 2012, 134, 20310–20313. [Google Scholar] [CrossRef] [PubMed]
  32. Ono, K.; Yoshizawa, M.; Kato, T.; Watanabe, K.; Fujita, M. Porphine dimeric assemblies in organic-pillared coordination cages. Angew. Chem. 2007, 46, 1803–1806. [Google Scholar] [CrossRef] [PubMed]
  33. Fujita, N.; Biradha, K.; Fujita, M.; Sakamoto, S.; Yamaguchi, K. A Porphyrin prism: Structural switching triggered by guest inclusion. Angew. Chem. 2001, 40, 1718–1721. [Google Scholar] [CrossRef]
  34. Sasaki, K.; Nakagawa, H.; Zhang, X.; Sakurai, S.; Kano, K.; Kuroda, Y. Construction of porphyrin–cyclodextrin self-assembly with molecular wedge. Chem. Commun. 2004, 4, 408–409. [Google Scholar] [CrossRef] [PubMed]
  35. Kano, K.; Nishiyabu, R.; Asada, T.; Kuroda, Y. Static and dynamic behavior of 2:1 inclusion complexes of cyclodextrins and charged porphyrins in aqueous organic media. J. Am. Chem. Soc. 2002, 124, 9937–9944. [Google Scholar] [CrossRef]
  36. Feiters, M.C.; Fyfe, M.C.T.; Martínez-Díaz, M.-V.; Menzer, S.; Nolte, R.J.M.; Stoddart, J.F.; van Ken, P.J.M.; Williams, D.J. A supramolecular analog of the photosynthetic special pair. J. Am. Chem. Soc. 1997, 119, 8119–8120. [Google Scholar] [CrossRef] [Green Version]
  37. Tian, H.-W.; Liu, Y.-C.; Guo, D.-S. Assembling features of calixarene-based amphiphiles and supra-amphiphiles. Mater. Chem. Front. 2020, 4, 46–98. [Google Scholar] [CrossRef]
  38. Pisagatti, I.; Barbera, L.; Gattuso, G.; Parisi, M.F.; Geremia, S.; Hickey, N.; Notti, A. Guest-length driven high fidelity self-sorting in supramolecular capsule formation of calix[5]arenes in water. Org. Chem. Front. 2019, 6, 3804–3809. [Google Scholar] [CrossRef]
  39. Giuliani, M.; Morbioli, I.; Sansone, F.; Casnati, A. Moulding calixarenes for biomacromolecule targeting. Chem. Commun. 2015, 51, 14140–14159. [Google Scholar] [CrossRef]
  40. Arena, G.; Pappalardo, A.; Pappalardo, S.; Gattuso, G.; Notti, A.; Parisi, M.F.; Pisagatti, I.; Sgarlata, C. Complexation of biologically active amines by a water-soluble calix[5]arene. J. Therm. Anal. Calorim. 2015, 121, 1073–1079. [Google Scholar]
  41. Pisagatti, I.; Barbera, L.; Gattuso, G.; Villari, V.; Micali, N.; Fazio, E.; Neri, F.; Parisi, M.F.; Notti, A. Tuning the aggregation of an amphiphilic anionic calix[5]arene by selective host-guest interactions with bola-type dications. New J. Chem. 2019, 43, 7936–7940. [Google Scholar] [CrossRef]
  42. Manganaro, N.; Lando, G.; Gargiulli, C.; Pisagatti, I.; Notti, A.; Pappalardo, S.; Parisi, M.F.; Gattuso, G. Unique binding behavior of water-soluble polycationic oxacalix[4]arene tweezers towards the paraquat dication. Chem. Commun. 2015, 51, 12657–12660. [Google Scholar] [CrossRef] [PubMed]
  43. Guo, D.-S.; Liu, Y. Supramolecular chemistry of p-sulfonatocalix[n]arenes and its biological applications. Acc. Chem. Res. 2014, 47, 1925–1934. [Google Scholar] [CrossRef]
  44. Gattuso, G.; Notti, A.; Pappalardo, S.; Parisi, M.F.; Pisagatti, I.; Patanè, S. Encapsulation of monoamine neurotransmitters and trace amines by amphiphilic anionic calix[5]arene micelles. New J. Chem. 2014, 38, 5983–5990. [Google Scholar] [CrossRef]
  45. D’Urso, A.; Fragalà, M.E.; Purrello, R. From self-assembly to noncovalent synthesis of programmable porphyrins’ arrays in aqueous solution. Chem. Commun. 2012, 48, 8165–8176. [Google Scholar] [CrossRef]
  46. Guo, D.-S.; Chen, K.; Zhang, H.-Q.; Liu, Y. Nano-supramolecular assemblies constructed from water-soluble bis(calix[5]arenes) with porphyrins and their photoinduced electron transfer properties. Chem. Asian J. 2009, 4, 436–445. [Google Scholar] [CrossRef]
  47. Alex, J.M.; McArdle, P.; Crowley, P.B. Supramolecular stacking in a high Z′ calix[8]arene-porphyrin assembly. CrystEngComm 2020, 22, 14–17. [Google Scholar] [CrossRef]
  48. Brancatelli, G.; De Zorzi, R.; Hickey, N.; Siega, P.; Zingone, G.; Geremia, S. New multicomponent porous architecture of self-assembled porphyrins/calixarenes driven by nickel ions. Cryst. Growth Des. 2012, 12, 5111–5117. [Google Scholar] [CrossRef]
  49. De Zorzi, R.; Guidolin, N.; Randaccio, L.; Geremia, S. A bifunctionalized porous material containing discrete assemblies of copper-porphyrins and calixarenes metallated by ion diffusion. CrystEngComm 2010, 12, 4056–4058. [Google Scholar] [CrossRef]
  50. De Zorzi, R.; Guidolin, N.; Randaccio, L.; Purrello, R.; Geremia, S. Nanoporous crystals of calixarene/porphyrin supramolecular complex functionalized by diffusion and coordination of metal ions. J. Am. Chem. Soc. 2009, 131, 2487–2489. [Google Scholar] [CrossRef]
  51. Di Costanzo, L.; Geremia, S.; Randaccio, L.; Purrello, R.; Lauceri, R.; Sciotto, D.; Gulino, F.G.; Pavone, V. Calixarene-porphyrin supramolecular complexes: pH-tuning of the complex stoichiometry. Angew. Chem. 2001, 40, 4245–4247. [Google Scholar] [CrossRef]
  52. D’Urso, A.; Nicotra, P.F.; Centonze, G.; Fragalà, M.E.; Gattuso, G.; Notti, A.; Pappalardo, A.; Pappalardo, S.; Parisi, M.F.; Purrello, R. Induction of chirality in porphyrin-(bis)calixarene assemblies: A mixed covalent-non-covalent vs a fully non-covalent approach. Chem. Commun. 2012, 48, 4046–4048. [Google Scholar] [CrossRef] [PubMed]
  53. D’Urso, A.; Cristaldi, D.A.; Fragalà, M.E.; Gattuso, G.; Pappalardo, A.; Villari, V.; Micali, N.; Pappalardo, S.; Parisi, M.F.; Purrello, R. Sequence, stoichiometry, and dimensionality control in porphyrin/biscalix[4]arene self-assemblies in aqueous. Chem. Eur. J. 2010, 16, 10439–10446. [Google Scholar] [PubMed]
  54. D’Urso, A.; Marino, N.; Gaeta, M.; Rizzo, M.S.; Cristaldi, D.A.; Fragalà, M.E.; Pappalardo, S.; Gattuso, G.; Notti, A.; Parisi, M.F.; et al. Porphyrin stacks as an efficient molecular glue to induce chirality in hetero-component calixarene-porphyrin assemblies. New J. Chem. 2017, 41, 8078–8083. [Google Scholar] [CrossRef]
  55. Gaeta, M.; Sortino, G.; Randazzo, R.; Pisagatti, I.; Notti, A.; Fragalà, M.E.; Parisi, M.F.; D’Urso, A.; Purrello, R. Long-range chiral induction by a fully noncovalent approach in supramolecular porphyrin–calixarene assemblies. Chem. Eur. J. 2020, 26, 3515–3518. [Google Scholar] [CrossRef]
  56. Gulino, F.G.; Lauceri, R.; Frish, L.; Evan-Salem, T.; Cohen, Y.; De Zorzi, R.; Geremia, S.; Di Costanzo, L.; Randaccio, L.; Sciotto, D.; et al. Noncovalent synthesis in aqueous solution and spectroscopic characterization of multi-porphyrin complexes. Chem. Eur. J. 2006, 12, 2722–2729. [Google Scholar] [CrossRef]
  57. Schmitt, P.; Beer, P.D.; Drew, M.G.B.; Sheen, P.D. Calix[4]tube: A tubular receptor with remarkable potassium ion selectivity. Angew. Chem. 1997, 36, 1840–1842. [Google Scholar] [CrossRef]
  58. Matthews, S.E.; Schmitt, P.; Felix, V.; Drew, M.G.B.; Beer, P.D. Calix[4]tubes: A new class of potassium-selective ionophore. J. Am. Chem. Soc. 2002, 124, 1341–1353. [Google Scholar] [CrossRef]
  59. Buhdka, J.; Lhotak, P.; Stibor, I.; Michlova, V.J.; Sykova, J.; Cisarova, I. A biscalix[4]arene-based ditopic hard/soft receptor for K+/Ag+complexation. Tetrahedron Lett. 2002, 43, 2857–2861. [Google Scholar] [CrossRef]
  60. Matthews, S.E.; Felix, V.; Drew, M.G.B.; Beer, P.D. Halo-derivatised calix[4]tubes. Org. Biomol. Chem. 2003, 1, 1232–1239. [Google Scholar] [CrossRef]
  61. Puchnin, K.; Zaikin, P.; Cheshkov, D.; Vatsouro, I.; Kovalev, V. Calix[4]tubes: An approach to functionalization. Chem. Eur. J. 2012, 18, 10954–10968. [Google Scholar] [CrossRef] [PubMed]
  62. Puchnin, K.; Cheshkov, D.; Zaikin, P.; Vatsouro, I.; Kovalev, V. Tuning conformations of calix[4]tubes by weak intramolecular interactions. New J. Chem. 2013, 37, 416–424. [Google Scholar] [CrossRef]
  63. The pH of the solution was adjusted to 3.0, by dropwise addition of an aqueous 0.5 M HCl solution, to ensure protonation of the eight amino groups of C4T or C4T@K+ and ultimately solubility in water.
  64. Moschetto, G.; Lauceri, R.; Gulino, F.G.; Sciotto, D.; Purrello, R. Non-Covalent synthesis in aqueous solution of discrete multi-porphyrin aggregates with programmable stoichiometry and sequence. J. Am. Chem. Soc. 2002, 124, 14536–14537. [Google Scholar] [PubMed]
  65. Herrmann, O.; Mehdi, S.H.; Corsini, A. Heterogeneous metal-insertion: A novel reaction with porphyrins. Can. J. Chem. 2006, 56, 1084–1087. [Google Scholar] [CrossRef]
Molecules 26 00704 sch001 550

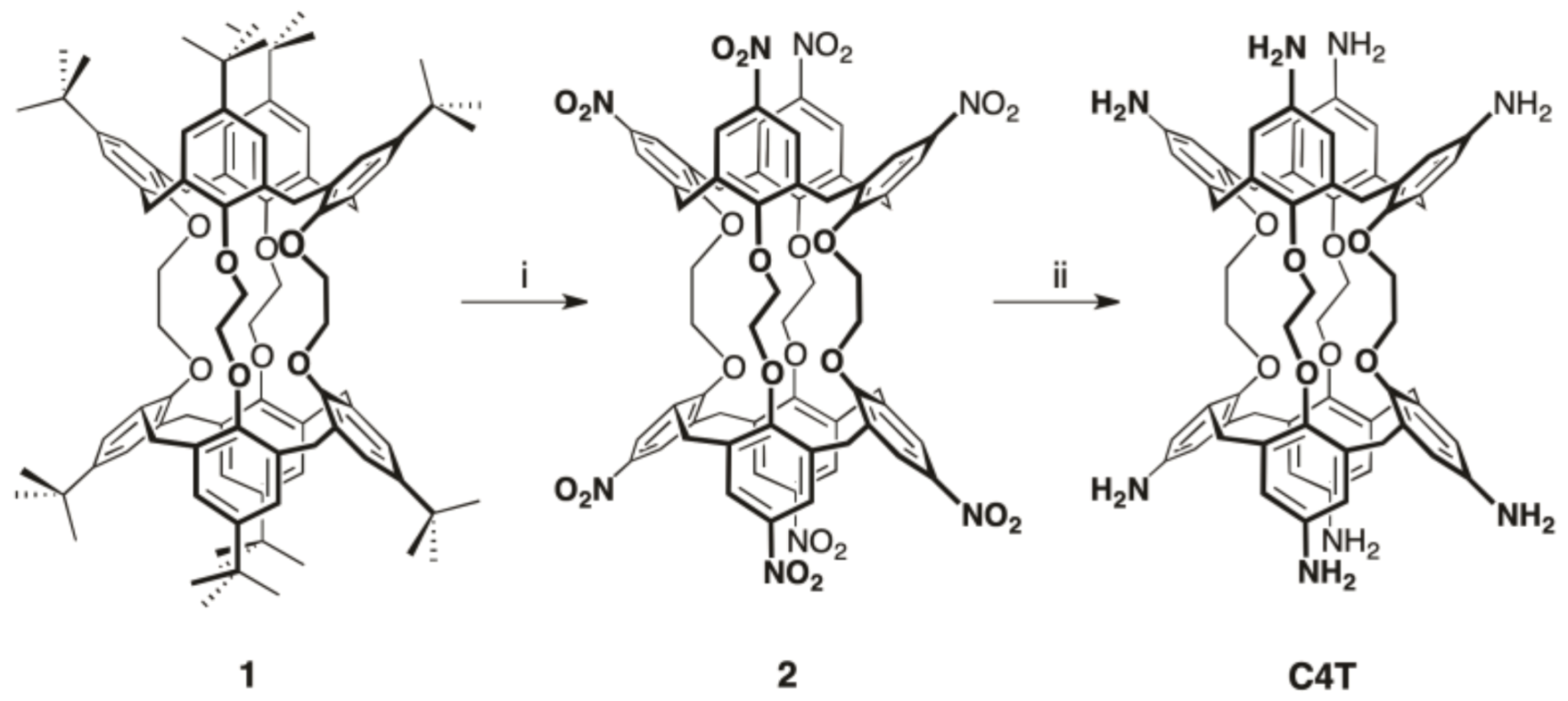

Scheme 1. The synthesis of the octa-amino calix[4]tube C4T. Reaction conditions: (i) HNO3, CHCl3/AcOH, r.t., 72 h; (ii) H2, Raney/Ni, DMF, r.t., 24 h.
Scheme 1. The synthesis of the octa-amino calix[4]tube C4T. Reaction conditions: (i) HNO3, CHCl3/AcOH, r.t., 72 h; (ii) H2, Raney/Ni, DMF, r.t., 24 h.
Molecules 26 00704 sch001
Molecules 26 00704 g001 550

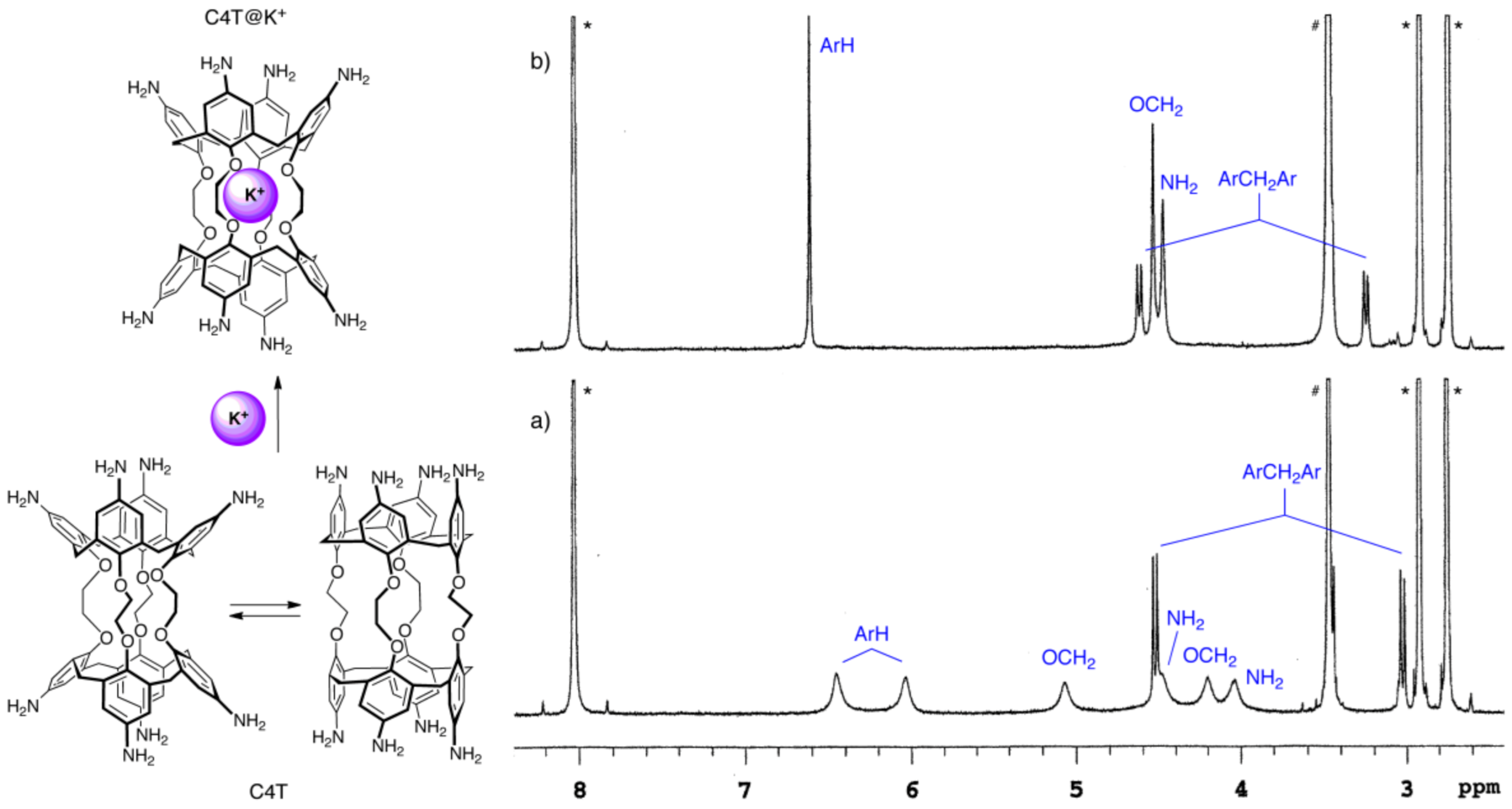

Figure 1. 1H NMR (DMF-d7, 298 K) of: (a) octa-amino calix[4]tube C4T; (b) the potassium complex of the octa-amino calix[4]tube C4T@K+. The hashtag and the asterisks indicate the H2O and the residual solvent peaks, respectively.
Figure 1. 1H NMR (DMF-d7, 298 K) of: (a) octa-amino calix[4]tube C4T; (b) the potassium complex of the octa-amino calix[4]tube C4T@K+. The hashtag and the asterisks indicate the H2O and the residual solvent peaks, respectively.
Molecules 26 00704 g001
Molecules 26 00704 ch001 550

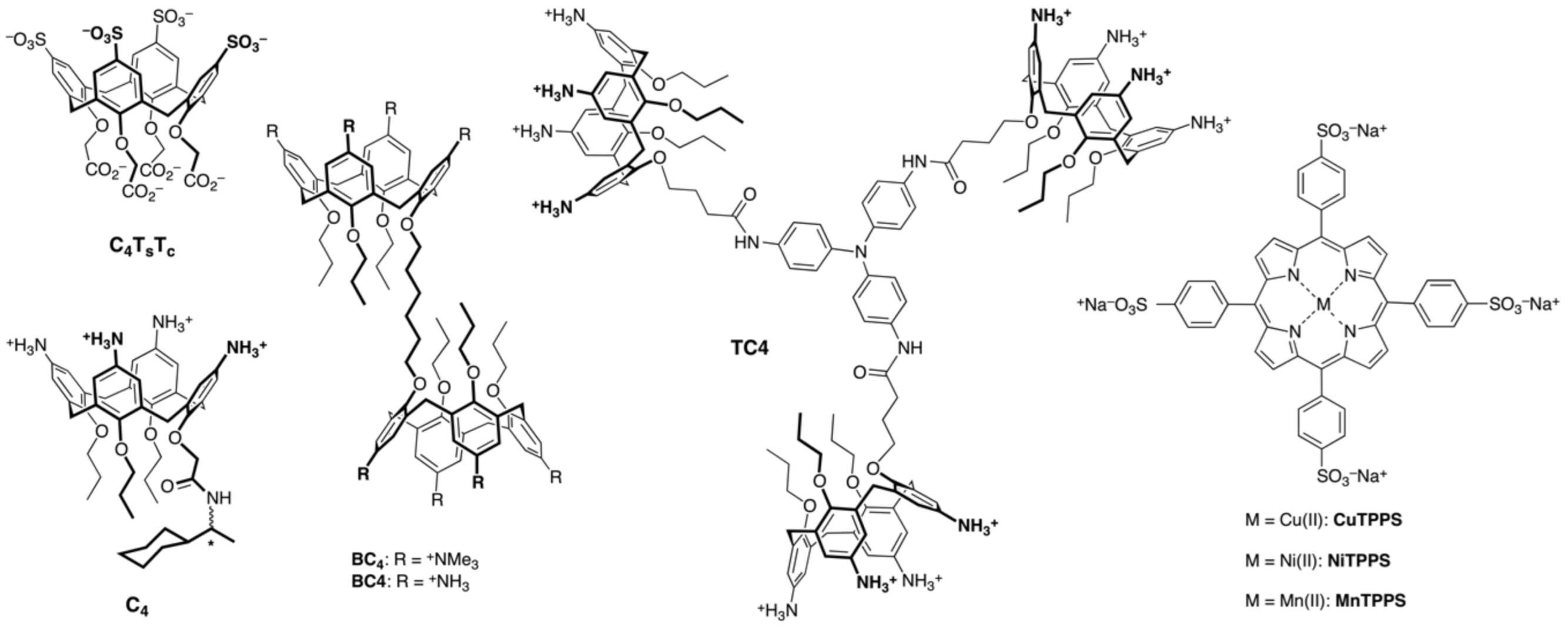

Chart 1. Calix[4]arene derivatives and metallo-porphyrins used in previous studies [51,52,53,54,55].
Chart 1. Calix[4]arene derivatives and metallo-porphyrins used in previous studies [51,52,53,54,55].
Molecules 26 00704 ch001
Molecules 26 00704 g002 550

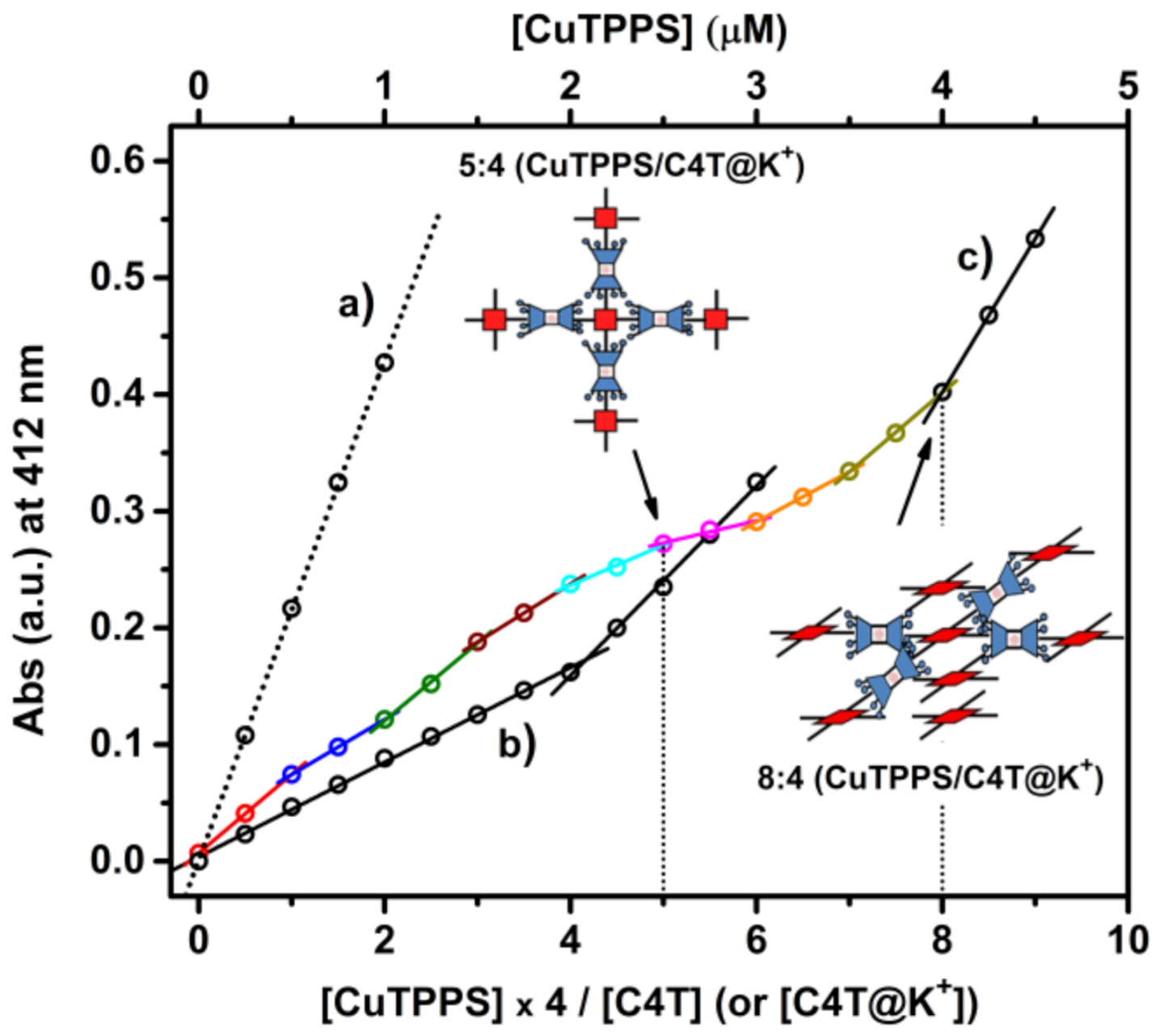

Figure 2. Variation in the absorbance of the CuTPPS Soret band (λmax = 412 nm) observed upon: (i) increase of the porphyrin concentration in water (dotted black trace labelled as (a)); (ii) portion-wise addition of CuTPPS to a 2 μM aqueous solution of calix[4]tube C4T at pH = 3.0 (solid black trace labelled as (b)); (iii) portion-wise addition of CuTPPS to a 2 μM aqueous solution of C4T@K+ at pH = 3.0 (multicolored trace labelled as (c)).
Figure 2. Variation in the absorbance of the CuTPPS Soret band (λmax = 412 nm) observed upon: (i) increase of the porphyrin concentration in water (dotted black trace labelled as (a)); (ii) portion-wise addition of CuTPPS to a 2 μM aqueous solution of calix[4]tube C4T at pH = 3.0 (solid black trace labelled as (b)); (iii) portion-wise addition of CuTPPS to a 2 μM aqueous solution of C4T@K+ at pH = 3.0 (multicolored trace labelled as (c)).
Molecules 26 00704 g002
Molecules 26 00704 g003 550

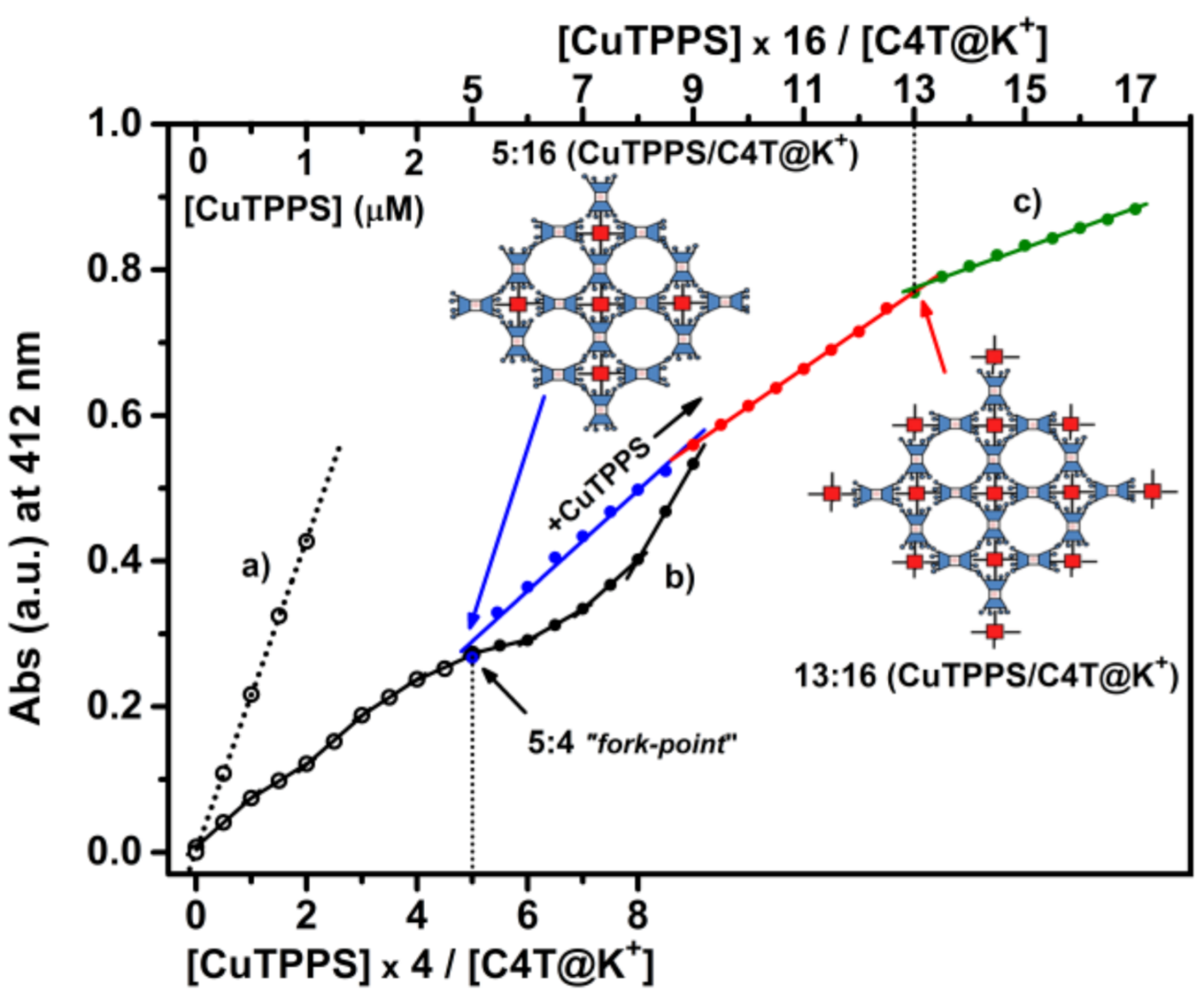

Figure 3. Variation in the absorbance of the CuTPPS Soret band (λmax = 412 nm) observed upon: (i) increase of the porphyrin concentration in water (dotted black trace labelled as (a)); (ii) portion-wise addition of CuTPPS to a 2 μM aqueous solution of C4T@K+ at pH 3.0 (solid black trace labelled as (b)); (iii) initial portion-wise addition of CuTPPS to a 2 μM aqueous solution of C4T@K+ at pH 3.0 up to the formation of the 5:4-(CuTPPS/C4T@K+) assembly (see the black arrow of trace (b)), followed by portion-wise addition of C4T@K+ (up to a final [C4T@K+] = 8 μM) to form the 5:16-(CuTPPS/C4T@K+) assembly (see the blue arrow of trace (c)) and then final increment of the CuTPPS concentration from 2.5 to 8.5 μM to yield the 17:16-(CuTPPS/C4T@K+) assembly (multicolored portion of trace (c)).
Figure 3. Variation in the absorbance of the CuTPPS Soret band (λmax = 412 nm) observed upon: (i) increase of the porphyrin concentration in water (dotted black trace labelled as (a)); (ii) portion-wise addition of CuTPPS to a 2 μM aqueous solution of C4T@K+ at pH 3.0 (solid black trace labelled as (b)); (iii) initial portion-wise addition of CuTPPS to a 2 μM aqueous solution of C4T@K+ at pH 3.0 up to the formation of the 5:4-(CuTPPS/C4T@K+) assembly (see the black arrow of trace (b)), followed by portion-wise addition of C4T@K+ (up to a final [C4T@K+] = 8 μM) to form the 5:16-(CuTPPS/C4T@K+) assembly (see the blue arrow of trace (c)) and then final increment of the CuTPPS concentration from 2.5 to 8.5 μM to yield the 17:16-(CuTPPS/C4T@K+) assembly (multicolored portion of trace (c)).
Molecules 26 00704 g003
