Hydrolysis and Enantiodiscrimination of (R)- and (S)-Oxazepam Hemisuccinate by Methylated β-Cyclodextrins: An NMR Investigation

Abstract

Partially and exhaustively methylated β-cyclodextrins [(2-methyl)-β-CD (MCD), heptakis-(2,6-di-O-methyl)-β-CD (DIMEB), and heptakis-(2,3,6-tri-O-methyl)-β-CD (TRIMEB)] have been compared in the hydrolysis and enantiodiscrimination of benzodiazepine derivative (R)- or (S)-oxazepam hemisuccinate (OXEMIS), using nuclear magnetic resonance (NMR) spectroscopy as an investigation tool. After 6 h, MCD induced an 11% hydrolysis of OXEMIS, remarkably lower in comparison with underivatized β-CD (48%), whereas no hydrolysis was detected in the presence of DIMEB or TRIMEB after 24 h. DIMEB showed greater ability to differentiate OXEMIS enantiomers in comparison to TRIMEB, by contrast MCD did not produce any splitting of racemic OXEMIS resonances. Both enantiomers of OXEMIS underwent deep inclusion of their phenyl pendant into cyclodextrins cavities from their wider rims, but tighter complexes were formed by DIMEB with respect to TRIMEB.

1. Introduction

Benzodiazepines (BDZs) are a class of psychopharmaceuticals employed as sedatives, anxiolytics, hypnotic, and anticonvulsants with less collateral effects than barbiturate. The main biological mechanism of BDZs involves a positive allosteric modulation of GABA_A receptors located in the brain, enhancing the effect of γ-aminobutyric acid neurotransmitter, and hence reducing the excitability of neurons [1].

The skeletal core of BDZs is composed of a benzene ring fused with a 1,4-diazepine (or a 1,5-diazepine) and decorated with different substituents and/or additional heteroaromatic rings (examples of BDZs are given in Figure 1a). Despite BDZs have the same biological target, the variety of their chemical structures reflects the diverse pharmacokinetics (short-, intermediate-, and long-acting drugs), which can be addressed for the treatment of different medical conditions [2].

Among commonly used BDZs, Oxazepam (OX, Figure 1b), which has been prescribed for curing insomnia and anxiety arising from alcohol withdrawal syndrome, is a chiral BDZ with an asymmetric center at C₃-OH, but it is commercialized as a racemic mixture. However, some studies have reported a different activity of (S)-OX with respect to (R)-OX, with the former from 100- to 200-fold more affine to the binding site in comparison with the latter one [3]. Therefore, administering low amounts of the more active stereoisomer can be the way to reduce unwanted side effects. Moreover, there are evidence that hepatic glucuronidation (main route of human clearance) produces enriched (S)/(R)-OX-glucuronide diastereomeric ratios, as found in human plasma and urinary excretions [4,5]. This metabolic difference is not common to all BDZs [6]. The stereoselectivity of glucuronosyltransferase isoenzymes can be also interfered by other administered drugs [7].

Attempts of separation of BDZs enantiomers are made difficult by the occurrence of racemization equilibria in enantioseparation conditions (aqueous medium). The inversion of the chiral center occurs very rapidly in vitro but the situation might be different in vivo, since the strong stereospecific binding to human serum albumin can be involved [8]. Recently, four different mechanisms of racemization of Oxazepam have been proposed and compared with a DFT approach, denoting the ring-chain tautomerization as the best fitting mechanism of the experimental data available [9].

To avoid rapid racemization of BDZs during separation processes, the synthesis of their stereochemically stable and more soluble ester derivatives has been proposed [10,11]. Interestingly, conjugation of oxazepam hemisuccinate (OXEMIS, Figure 1c) with dopamine improved the neurotransmitter delivery into the brain and enhanced GABAergic transmission [12]. Enantioseparation of BDZs hemisuccinates was achieved by using cyclodextrins (CDs)-based chromatographic column for HPLC [13]. As a matter of fact, interaction at the apolar cavity of cyclodextrins constitutes a privileged interaction mechanism with several kinds of substrates leading to the inclusion of their apolar moieties [14,15,16,17,18]. Moreover, being cyclodextrins chiral, the formation of diastereomeric inclusion complexes produces potentially differentiable signals for the two included enantiomers by chromatographic [19,20,21,22,23,24,25] and/or spectroscopic techniques [24,25,26,27,28]. Commonly, inclusion does not involve polar pendants of enantiomeric substrates which may protrude from the large and small rims of the cyclodextrins and interact with cyclodextrin hydroxyl functions incurring into hydrolytic processes, which have been reported for ester compounds [29,30,31].

In consideration of above premises, we focused our attention on partially and exhaustively methylated β-cyclodextrins [(2-methyl)-β-CD (MCD), heptakis-(2,6-di-O-methyl)-β-CD (DIMEB), and heptakis-(2,3,6-tri-O-methyl)-β-CD (TRIMEB)] to be compared to native β-CD with regard to the ability to differentiate OXEMIS enantiomers and propensity to hydrolyze their ester function. Both aspects were investigated by nuclear magnetic resonance (NMR) spectroscopy. As a matter of fact, CDs are very popular chiral solvating agents (CSAs) for NMR, which have been employed to differentiate NMR signals of several classes of enantiomeric substrates [26,27,28]. Furthermore, quantitative response of NMR makes this technique very appealing both for the determination of enantiomeric excesses and for the detection and quantification of degradation products. Finally, enormous potentialities of NMR in the field of investigations of complexation phenomena have been exploited to investigate the interaction mechanisms involving the cyclodextrin-based chiral auxiliaries and enantiomeric OXEMIS at a molecular level and, hence, ultimately, the chiral discrimination processes.

2. Results and Discussion

2.1. OXEMIS Characterization

¹H NMR spectrum of OXEMIS (1 mM, Figure 2a) showed three sets of signals. The aromatic protons resonances between 7.1 and 7.6 ppm were easily distinguished on the basis of multiplicity, while H₃ was the only isolated singlet clearly observable at 5.89 ppm. Methylene group adjacent to the chiral center at C₃ (CH_2b, 2.73 ppm) was differentiated from CH_2a (2.43 ppm) on the basis of the ROE effect produced at the frequency of H₃ (Figure S1a, Supplementary Material). The dependence of ¹H NMR chemical shifts of OXEMIS on concentration witnessed the presence of self-association processes (Figure 2a,b), which could in principle play a relevant role in the hetero-complexation behavior.

Low solubility of OXEMIS allowed to investigate only the 13.7 mM to 0.3 mM concentration gradient, inside which the greatest chemical shift variations (Δδ = δ_{[13.7 mM]} − δ_{[0.3 mM]}) were detected for H₃/H₉ (≈−27 Hz) and H₆/H₈ (≈−12 Hz) (Figure S2, Supplementary Material). Protons of the lateral chain (CH_2a/CH_2b) were affected to a less extent. Interestingly, every proton underwent low-frequency shifts with concentration increasing, hinting a π-π stacking-like self-association of OXEMIS, which was witnessed by the nature of dipolar correlations detected in the 2D ROESY map (Figure S1b, Supplementary Material). As a matter of fact, H₃ produced unexpected ROEs at the frequencies of H₁₀/H₁₁ (C-ring) and H₆/H₉ (B-ring). A representation of self-associated OXEMIS is shown in Figure 3.

An attempt to calculate self-association constant (K_a), based on the non-linear fitting of dilution data, failed due to the fact that limited solubility of OXEMIS did not allow to explore a sufficiently wide range of concentrations. Indeed, an almost linear dependence of δ_obs on concentration was found (Figure S3a, Supplementary Material), leading to great errors in K_a determination. On the other hand, a quite small K_a was calculated in CDCl₃ (K_a = 5.1 ± 0.2 M⁻¹) where a wider range of concentrations could be explored (0.5 to 132 mM), as shown in Figure S3b, Supplementary Material. It is noteworthy that, based on such K value, the molar fraction of dimer was less than 3%, and hence negligible, in the concentration conditions (6 mM) we employed for the investigation of OXEMIS complexation by cyclodextrins.

2.2. CDs Characterization

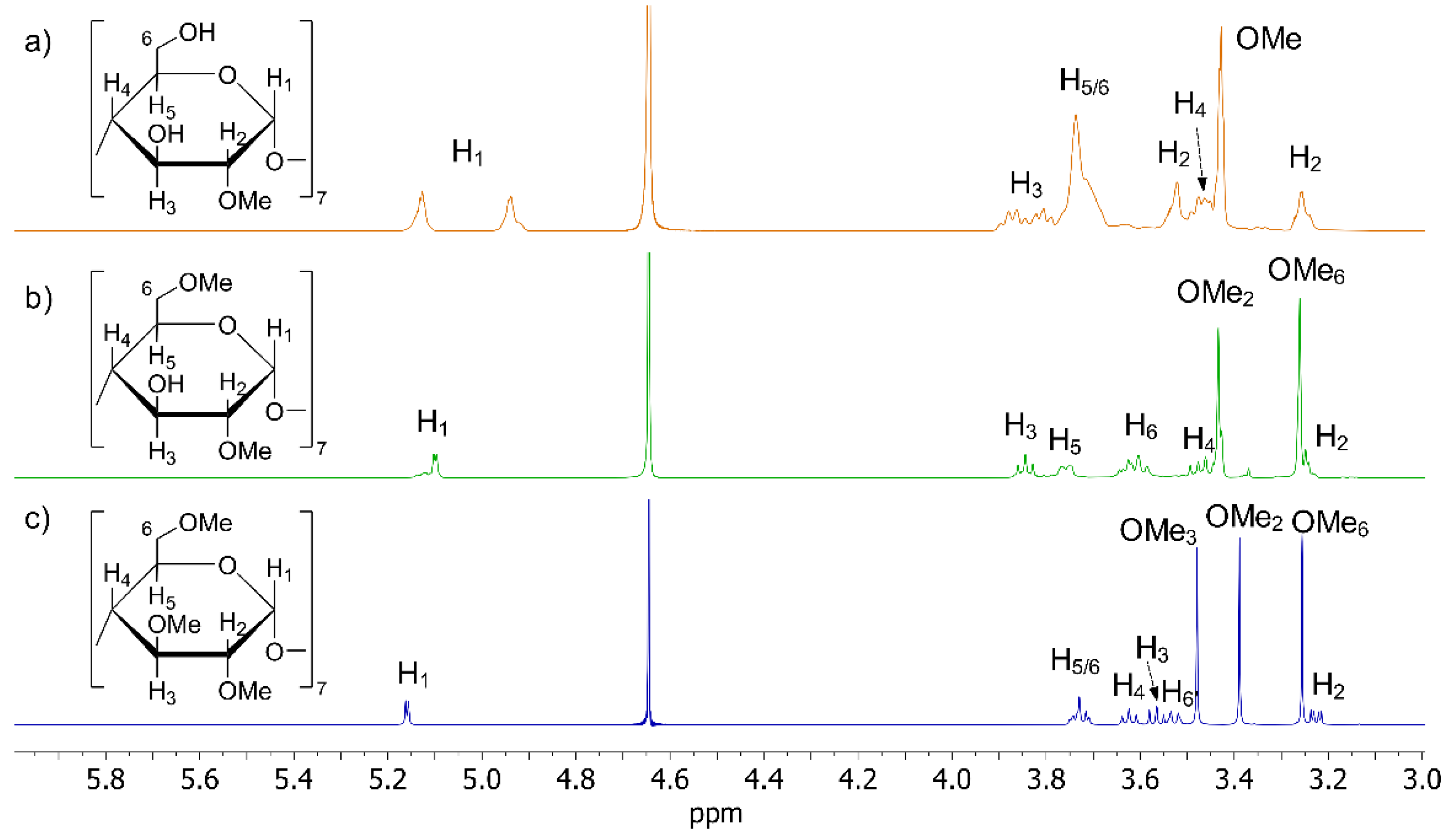

The three cyclodextrins candidates for OXEMIS enantiodiscrimination were MCD, DIMEB, and TRIMEB (¹H NMR spectra shown in Figure 4a–c).

MCD is a cyclodextrin derivatized at OH₂, with a substitution degree of 3.5, as carefully determined in the ¹H NMR spectrum by comparing the integrated areas of the anomeric protons resonances between 5.3 to 4.9 ppm and the superimposed proton signals of ring and methoxy groups in the spectral region 4.0 to 3.2 ppm. Two kinds of anomeric protons were distinguished, which originated by non-methylated (4.94 ppm) and methylated (5.13 ppm) glucopyranose units. As a matter of fact, selective perturbation at the frequency of 5.13 ppm resulted in the expected ROE effect at the frequency of the methoxy group (see [32] for a detailed characterization of MCD).

In the ¹H NMR spectrum of DIMEB (Figure 4b), two singlets attributable to methoxy groups were clearly identified at 3.44 ppm and 3.27 ppm. Comparison of chemical shifts of DIMEB and native β-CD (

Table 1. ¹H NMR (600 MHz, 12 mM, K₂HPO₄/D₂O 50 mM, 25 °C) chemical shifts (ppm) of β-CD, MCD, DIMEB, and TRIMEB protons.

	β-CD	MCD 1	DIMEB	TRIMEB
H1	4.94	4.94/5.13	5.11	5.16
H2	3.52	3.53/3.26	3.26	3.22
H3	3.84	3.81/3.88	3.85	3.56
H4	3.46	3.45/3.48	3.47	3.62
H5	3.74	3.73/3.70	3.77	3.74
H6/6′	3.75	3.74/3.74	3.63	3.53/3.72
OMe2	-	3.44	3.44	3.39
OMe3	-	-	3.27	3.48
OMe6	-	-	-	3.25

¹ Chemical shifts relative to non-methylated and 2-methylated MCD glucopyranose units, both present in MCD.

) showed that major differences between their chemical shifts were found for H₁, H₂, and H₆ protons, as expected for a 2,6-disubstitution. Perturbation at the frequency of anomeric proton H₁ at 5.11 ppm produced ROE at 3.44 ppm, which was attributed to OMe₂ (Figure S4, Supplementary Material), thus allowing to attribute OMe₆ at 3.27 ppm. The ratio between integrated areas of H₁ and ring protons (including methoxy signals) confirmed the presence of two methoxy groups per glucopyranose unit of DIMEB (DS ≈ 14). Remaining ring protons were assigned (Table 1) by 1D ROESY, 2D COSY, and 2D HSQC experiments (Figures S5–S7, Supplementary Material).

TRIMEB produced a single set of well-resolved signals (Figure 4c), resonances of which were attributed (Table 1) by comparing scalar and dipolar interactions detected by 1D ROESY, 2D COSY, and 2D HSQC experiments (Figures S8–S10, Supplementary Material).

2.3. OXEMIS Hydrolysis by Cyclodextrins

The chemical stability of OXEMIS over time was compared as pure compound and in the presence of 2 equivalents of each cyclodextrin, in buffered solutions (K₂HPO₄/D₂O, 50 mM). OXEMIS hydrolyzation was followed directly in the NMR tube (T = 25 °C) and in static conditions. The resonance of CH_2a group located on hemisuccinic chain was selected for monitoring the process. The parent cyclodextrin β-CD was included for comparison as well. Less than 1% of hydrolysis product (OX) was detected after 6 h in the case of pure OXEMIS, whereas a rapid hydrolyzation was detected in the presence of β-CD, with an exponential decay during the very first points of the kinetic (first 2 h, Figure 5). Hydrolysis was observed even in the presence of MCD, but with a remarkably slower rate (Figure 5). As an example, after 6 h, the concentration of hydrolysis product in presence of β-CD was five-fold (48%) than that detected in the presence of MCD (11%).

Therefore, the hydrolysis of OXEMIS is correlated with the availability of free reactive -OH groups in the cyclodextrin, able to establish hydrogen bonds, probably with the hemisuccinic pendant. Accordingly, DIMEB and TRIMEB did not produce hydrolysis within the 24 h, pointing out the relevance of the interaction of hemisuccinic chain with the hydroxyls at the C₂ and C₆ sites.

2.4. OXEMIS Enantiodiscrimination

When MCD was added to pure rac-OXEMIS, only variations in chemical shifts were detected without signal splitting (Figure 6a,b,

Table 2. ¹H NMR (600 MHz, K₂HPO₄/D₂O 50 mM, 25 °C) chemical shifts (ppm) of pure OXEMIS (6 mM) and complexation shifts (Δδ = δ_mixture − δ_pure, ppm) of OXEMIS in mixture with 2-equivalents of MCD, DIMEB, and TRIMEB.

			OXEMIS/MCD	OXEMIS/DIMEB		OXEMIS/TRIMEB
Ring		δ	Δδ	Δδ(S)	Δδ(R)	Δδ(S)	Δδ(R)
A	H3	5.89	−0.06	−0.03	−0.03	−0.05	−0.04
B	H6	7.25	−0.16	−0.18	−0.19	−0.04	−0.06
B	H8	7.54	0.02	0.06	0.03	0.00	0.00
B	H9	7.20	0.05	0.10	0.09	0.01	0.02
C	H10	7.40	−0.03	0.06	−0.04	0.05	0.01
C	H11	7.37	−0.05	−0.13	−0.08	0.02	0.01
C	H12	7.49	0.01	0.01	−0.01	−0.01	−0.01
-	CH2a	2.43	−0.01	−0.03	−0.01	−0.01	0.00
-	CH2b	2.73	0.05	0.11	0.06	−0.01	−0.01

). Hence, a complexation occurred which did not produce chiral discrimination.

By contrast, DIMEB produced complexation shifts (Δδ = δ_mixture − δ_pure) along with enantiodifferentiation of several OXEMIS protons (Figure 6a,c,d). In particular, significant complexation shifts were measured for H₆, H₉, H₁₀, and H₁₁ (0.04 to 0.19 ppm, Table 2). Major non-equivalences (ΔΔδ = |Δδ_(S) − Δδ_(R)|) were detected (Table 2) for the protons belonging to ring C and for the methylene group CH_2b near to the ester moiety. Interestingly, (S)-enantiomer protons were more affected by the presence of DIMEB, being its complexation shifts greater than those of (R)-enantiomer, with the sole exception of proton H₆. It is noteworthy that, in each case, internal protons of DIMEB were more affected by the presence of OXEMIS than external ones were (

Table 3. ¹H NMR (600 MHz, K₂HPO₄/D₂O 50 mM, 25 °C) complexation shifts (Δδ = δ_mixture − δ_pure, ppm) of cyclodextrin protons (12 mM) in the presence of OXEMIS (6 mM).

	DIMEB/OXEMIS		TRIMEB/OXEMIS
Proton	Δδ(S)	Δδ(R)	Δδ(S)	Δδ(R)
H1	−0.02	−0.02	−0.01	−0.01
H2	−0.03	0.00	−0.01	−0.01
H3	−0.09	−0.07	−0.02	−0.01
H4	−0.03	−0.01	−0.01	−0.01
H5	−0.16	−0.09	−0.03	−0.01
H6/6′	−0.02	−0.06	0.00	0.00
OMe2	0.00	0.00	−0.01	−0.01
OMe3	−0.01	−0.01	−0.03	−0.03
OMe6	-	-	0.00	0.00

), as a clear indication of the occurrence of inclusion phenomena.

In presence of TRIMEB, smaller complexation shifts and non-equivalences were detected (Table 2). In particular, methylene protons of the hemisuccinate fragment were almost unaffected by TRIMEB (Δδ = 0.00 to 0.01 ppm, Table 2). Correspondingly, small complexation shifts were also measured for TRIMEB protons (Table 3, Figure S11 in Supplementary Material), with the internal ones more affected, in particular in the mixture containing the (S)-enantiomer.

2.5. OXEMIS/CD Interaction Mechanism

To give a better understanding of the origin of chiral discrimination process of OXEMIS due to its interaction with DIMEB and TRIMEB, stoichiometries and association constants of the diastereomeric complexes were determined in mixtures containing each cyclodextrin and OXEMIS enantiomer. By using the Job method [33], both OXEMIS/DIMEB and OXEMIS/TRIMEB complexes showed 1-to-1 interaction stoichiometries for both the guest enantiomers (Figure S12, Supplementary Material). Association constants (K_a) of the diastereomeric complexes were calculated by using the Foster-Fyfe method [34] in solutions containing a fixed amount of OXEMIS and increasing amounts of the cyclodextrin (Figure S13, Supplementary Material). (S)-OXEMIS formed a tighter complex with DIMEB with respect to (R)-OXEMIS (K_a = 930 ± 38 M⁻¹ vs. 137 ± 11 M⁻¹, respectively), whereas association constants for TRIMEB were significantly lower for both enantiomers (K_a = 40.5 ± 3.0 M⁻¹ for (S)-OXEMIS vs. 2.5 ± 0.9 M⁻¹ for (R)-OXEMIS).

The interaction stereochemistry was investigated by 1D and 2D ROESY analyses. As shown in Figure 7a, intermolecular ROEs were detected between internal protons of DIMEB and phenyl C-ring protons along with H₆ and H₃ of (S)-OXEMIS. In particular, H₃ protons of DIMEB (located on the internal wider rim) produced the most intense cross-peak on H₁₀ and significant dipolar interactions with H₆ and H₃ protons of (S)-OXEMIS. By contrast, H₅ protons of DIMEB (on the internal narrower rim) gave the main ROEs with H₁₁ and H₁₀ of phenyl C-ring. Such proximity constraints support a deep inclusion of phenyl C-ring of (S)-OXEMIS from the wider cavity of DIMEB, according to the most relevant complexation shifts measured for (S)-OXEMIS protons (phenyl C-ring, H₆ and CH_2b) and for internal protons (Δδ_H5 > Δδ_H3) of DIMEB (Table 2 and Table 3).

In the mixture (R)-OXEMIS/DIMEB analogous ROEs between internal protons of DIMEB and H₁₀/H₁₁ (phenyl C-ring), H₆ and H₃ of (R)-OXEMIS were detected (Figure 7b), but with lower intensities.

The analysis of (S)-OXEMIS/TRIMEB and (R)-OXEMIS/TRIMEB mixtures showed ROE patterns for phenyl C-ring similar to those observed in the presence of DIMEB (Figure 7), confirming the inclusion of ring C from the wider rim of TRIMEB. However, H₆ and H₃ protons of OXEMIS did not give ROE effects with internal protons of TRIMEB and H₁₂ proton of phenyl C-ring was in spatial proximity of H₅ protons of TRIMEB, in according to a less deep inclusion of the guest with respect to DIMEB complexes.

The relative magnitude of ROE effects for the two enantiomers in presence of DIMEB or TRIMEB well reflects the strength of OXEMIS/cyclodextrin interaction as quantified by association constants determination.

3. Materials and Methods

3.1. Materials

Heptakis-(2,6-di-O-methyl)-β-CD (DIMEB, 98%) and K₂HPO₄, β-Cyclodextrin (β-CD), heptakis-(2,3,6-tri-O-methyl)-β-CD (TRIMEB, 98%) were purchased from Sigma-Aldrich (St. Louis, MO, USA). Deuterated water (D₂O) and deuterated chloroform (CDCl₃) were purchased from Deutero GmbH (Kastellaun, Germany). Oxazepam (7-chloro-3-hydroxy-5-phenyl-1,3-dihydro-2H-1,4-benzodiazepin-2-one, OX) was kindly donated by Profarmaco Spa (Milan, Italy). Racemic hemisuccinate half-ester of Oxazepam was prepared by acylation with succinic anhydride in presence of pyridine according to [13]. The pure enantiomers of OX (enantiomeric excess (e.e.) >98%, determined by HPLC on β-cyclodextrin-based CSP—Cyclobond I) were obtained by fractional crystallization (acetone/water 100:1) of diastereomeric salts with (−)-(1R,2S)-ephedrine.

3.2. NMR Experiments

NMR measurements were performed on Varian INOVA600 spectrometer (Varian Inc., Palo Alto, CA, USA) operating at 600 MHz for ¹H, equipped with Varian temperature control unit (25 ± 0.1 °C). 2D NMR spectra were obtained by using standard sequences. Spectral width used was the minimum required in both dimensions. 2D gCOSY (gradient correlated spectroscopy) spectra were recorded in the absolute mode acquiring 8 scans with a 1 s relaxation delay between acquisitions and 4K data points for each of 200 FIDs. 2D TOCSY (total correlation spectroscopy) spectra were recorded acquiring 8 scans with a 1 s relaxation delay, 200 increments, 4K data points, and a mixing time of 120 ms. 1D ROESY (rotating-frame Overhauser enhancement spectroscopy) spectra were recorded with a mixing time of 0.3 s, a delay of 1 s, and 1024 scans. 2D ROESY map was recorded with mixing time of 0.3 s and 32 scans. gHSQC (gradient Heteronuclear Single Quantum Coherence) spectra were obtained with 1.2 s relaxation delay and 16 scans for each of the 128 increments.

3.3. NMR Samples Preparation for Stoichiometries and Association Constants

The NMR samples for stoichiometries determination were prepared by mixing different volumes of stock solutions of each component (8 mM) to a prefixed volume directly into the NMR tube.

The NMR samples for the determination of association constants of the diastereomeric complexes formed by (S)- and (R)-OXEMIS with DIMEB or TRIMEB were prepared at constant concentration of OXEMIS (0.2 mM) and CD/OXEMIS ratio ranging from 1 to 200.

4. Conclusions

Among methylated cyclodextrins, DIMEB was the more suited both to interact with the two enantiomers of OXEMIS and differentiate them, without hydrolysis of the hemisuccinic arm. Phenyl ring C of OXEMIS well fits in the cavity sizes both of DIMEB and TRIMEB, but enhanced stabilization of the two enantiomers inside the cavity of DIMEB is correlated to the presence of residual underivatized OH functions, probably due to their hydrogen bond interactions with the hemisuccinate pendant protruding from the cyclodextrin cavity. Degradation processes are mainly due to the presence of hydroxyl groups at C₂ and C₆, as found in the case of MCD and native β-CD, with a particular relevance of C₂-hydroxyls.
