Synthesis of Natural (−)-Antrocin and Its Enantiomer via Stereoselective Aldol Reaction
Previous Article in Journal
Encapsulation of Variabilin in Stearic Acid Solid Lipid Nanoparticles Enhances Its Anticancer Activity in Vitro
Previous Article in Special Issue
The Influence of Ionic Liquids on the Effectiveness of Analytical Methods Used in the Monitoring of Human and Veterinary Pharmaceuticals in Biological and Environmental Samples—Trends and Perspectives

Molecules 2020, 25(4), 834;

Constructed Wetland Revealed Efficient Sulfamethoxazole Removal but Enhanced the Spread of Antibiotic Resistance Genes
Jiangsu Key Laboratory of Atmospheric Environment Monitoring and Pollution Control (AEMPC), Collaborative Innovation Center of Atmospheric Environment and Equipment Technology (CIC-AEET), Nanjing University of Information Science &Technology, Nanjing 210044, China
School of Environment, Nanjing Normal University, Jiangsu Engineering Lab of Water and Soil Eco-remediation, Wenyuan Road 1, Nanjing 210023, China
School of Civil Engineering and Architecture, East China Jiaotong University, Nanchang 330013, China
College of Environment and Safety Engineering, Qingdao University of Science and Technology, Qingdao 266042, China
School of Civil Engineering, Southeast University, Nanjing 210096, China
Authors to whom correspondence should be addressed.
Academic Editor: Derek J. McPhee
Received: 6 January 2020 / Accepted: 11 February 2020 / Published: 14 February 2020


Constructed wetlands (CWs) could achieve high removal efficiency of antibiotics, but probably stimulate the spread of antibiotic resistance genes (ARGs). In this study, four CWs were established to treat synthetic wastewater containing sulfamethoxazole (SMX). SMX elimination efficiencies, SMX degradation mechanisms, dynamic fates of ARGs, and bacterial communities were evaluated during the treatment period (360 day). Throughout the whole study, the concentration of SMX in the effluent gradually increased (p < 0.05), but in general, the removal efficiency of SMX remained at a very high level (>98%). In addition, the concentration of SMX in the bottom layer was higher compared with that in the surface layer. The main byproducts of SMX degradation were found to be 4-amino benzene sulfinic acid, 3-amino-5-methylisoxazole, benzenethiol, and 3-hydroxybutan-1-aminium. Temporally speaking, an obvious increase of sul genes was observed, along with the increase of SMX concentration in the bottom and middle layers of CWs. Spatially speaking, the concentration of sul genes increased from the surface layer to the bottom layer.
sulfamethoxazole; antibiotic resistance genes; sul genes; bacterial community; constructed wetlands

1. Introduction

In recent years, antibiotics have been extensively used as livestock food additives and to fight infections in animal husbandry [1,2]. The overuse of antibiotics results in their continuous release into the environment in China. Additionally, previous investigations have indicated that antibiotics in animal waste could not be entirely removed using traditional lagoon treatment and in wastewater treatment plants (WWTPs) [3]. As a result, antibiotics were widely detected in wastewater, surface water, and groundwater [4,5].
The wide presence of antibiotics in the environment could cause concern because it not only causes serious toxic effects on organisms, but also promotes the spread of antibiotic-resistant genes (ARGs) [6], even with low concentrations in the environment [7,8]. ARGs could be spread through horizontal gene transfer (HGT) and vertical gene transfer (VGT), and in many cases, could be maintained in microbial populations, even without selection pressure from antibiotics [9,10,11]. HGT is a major pathway for the transfer of ARGs, including conjugative transposons, integrons, insertion sequences, and plasmids [11,12]. ARGs have often been detected as part of antibiotic resistance super integrons. Therefore, one antibiotic may coselect resistance to other antibiotics when applying multiple antibiotics [13]. Even if antibiotic-resistant bacteria were damaged or killed, ARGs could still be released to the environment and then transformed into other bacteria [14,15]. Previous studies have revealed the high relative abundances of ARGs in wastewater lagoons and municipal wastewater, even after treatment [16,17,18]. In recent years, ARGs were regarded as fast-growing potential pollution because of the extensive application of antibiotics in the livestock industry [19,20,21]. Hence, effective treatment processes for antibiotic removal could also prevent the spread of ARGs.
Constructed wetlands (CWs) are designed and constructed exploiting natural processes to treat rural wastewater [22,23]. The advantages of CWs mainly lie in high purification removal, relatively low construction and maintenance costs, reduced energy consumption, convenient operation, and broad application prospects in developing countries or rural areas [24,25]. Recently, CWs were used to remove antibiotics from agricultural and municipal wastewater via natural processes involving plants, soil/sediment, and microorganisms [21,26,27]. CWs have been shown to be more efficient in the removal of antibiotics and ARGs than conventional wastewater treatment systems [16,28]. Liu et al. (2013) [28] found that the total absolute abundances of tetracycline resistance (tet) genes and the 16S rRNA were reduced by 50% from swine wastewater using CWs. Huang et al. (2015) [16] reported that the absolute abundances of the ARGs were greatly reduced, with their log units ranging from 0.26 to 3.3. However, previous studies of ARG reduction have always focused on their elimination, rather than the induction of ARGs along with antibiotics removal by CWs. CWs could also be a significant source of ARGs, and may enhance their spread. Therefore, exploring the induction of ARGs in CWs would greatly assist in evaluating their environmental risks.
Sulfamethoxazole (SMX) is a synthetic antibiotic within the sulfonamide antibiotic family, and is largely consumed in the livestock husbandry [29,30]. Sul genes (sulI and sulII) were chosen as the representatives of ARGs for their frequent use [17,31,32,33]. In this study, four CWs were established to treat a synthetic wastewater containing SMX for 360 day. The objectives of this study were: (1) to investigate the elimination efficiencies and products of SMX, (2) to explore the development of sul genes in the reactors, (3) to assess the risks of ARGs in effluent, and (3) the bacterial community during the treatment process.

2. Results and Discussion

2.1. SMX Removal Efficiency

The concentrations of SMX in the effluent, bottom layer, and surface layer of CWs at five sampling points are shown in Figure 1. The concentrations of SMX in the effluent ranged 0.051–0.214, 0.047–0.274, 0.0584–0.342, and 0.098–0.574 μg L−1 in CW1, CW2, CW3, and CW4. CW4 fed with 200 μg L−1 SMX exhibited significantly higher concentrations of SMX in the effluent than CW1 fed with 20 μg L−1 (p < 0.05). On D360, the SMX concentrations in the effluent were 0.214, 0.185, 0.342, and 0.574 μg L−1 with influent SMX concentration of 20, 50, 100, and 200 μg L−1, respectively. Temporally speaking, the SMX concentrations in effluent gradually increased during the study (p < 0.05). In the effluent of CW3, SMX concentrations were 0.0584, 0.142, 0.198, 0.247, and 0.342 on D30, D60, D120, D240, and D360, respectively. Notably, excellent removal efficiencies (>98%) for SMX were obtained using CWs, even when the influent SMX concentration was as high as 200 μg L−1.
SMX has been reported to be easily biodegradable, especially under anaerobic conditions in the CWs [25]. In the present study, it was noteworthy that the removal efficiencies of antibiotics by different CWs were even better than conventional WWTPs [34]. As demonstrated by previous experiments, biodegradation, absorption, hydrolysis, and photodecomposition played significant roles in the removal of antibiotics in the solid and aqueous phases in CWs [34,35,36].
Previous reports also showed that the adsorption process only accounted for a minor percentage of the total removal in CWs [12].
The SMX concentrations of the bottom layer ranged 4.256–8.620, 14.213–19.281, 8.546–17.322, and 36.564–47.684 μg Kg−1 in CW1, CW2, CW3, and CW4. The SMX concentrations of the surface layer ranged 0.239–0.852, 0.327–2.652, 2.526–4.365, and 4.531–9.829 μg Kg−1 in CW1, CW2, CW3, and CW4, respectively. The difference of SMX concentration between the bottom and surface layers was affected by the influent SMX concentration. This was probably because the relatively high Kd values prompted SMX to be adsorbed in the substrates of CWs [37]. However, the SMX concentrations in the layers did not significantly increase during the treatment (p > 0.05). This result was probably due to the fact that other physicochemical and biological processes occurred jointly or separately after SMX adsorption in substrate [16]. Clearly, the concentration of SMX in the bottom layer was higher compared with that in surface layer. This was not surprising, because that the bottom layer was faced with a higher concentration of SMX due to the vertical up-influent.

2.2. SMX Degradation Products

LC-MS/MS was employed to identify the degradation products in order to clarify the degradation pathway of SMX (C10H11N3O3S, m/z 252.0450). According to the detected mass/charge ratios under positive mode, several potential metabolites were identified, including 4-amino benzene sulfinic acid (C6H7NO2S, m/z 158.0123), 3-amino-5-methylisoxazole (3A5MI, C4H6N2O, m/z 99.5315), benzenethiol (C6H6S, m/z 111.0496), and 3-hydroxybutan-1-aminium (C4H11NO, m/z 90.5263) (Figure 2). A previous report indicated that the removal of antibiotics was mainly caused by adsorption rather than degradation in wastewater treatment plants [38]. However, in this study, it was found that the products of SMX may be transformed by bacterial communities. A previous study also found 4-amino benzene sulfinic acid and 3A5MI during the degradation of SMX [39]. During the degradation process, SMX was initially hydrolyzed into 4-amino benzene sulfinic acid and 3A5MI; then, 4-amino benzene sulfinic acid was further transformed into benzenethiol, which was finally degraded to generate methane or carbon dioxide. During the transformation of 3A5MI to 3-hydroxybutan-1-aminium, the isoxazole ring was opened and its nitrogen atom was removed. Since 3-hydroxybutan-1-aminium has a chain structure, it can be easily mineralized into methane by microbes under anoxic conditions [40].

2.3. Sul Genes in the Effluent and Media

In order to analyze the changes of corresponding target genes, the relative abundances of sul genes were analyzed during the treatment process. The distributions of two sul (sulI and sulII) in the CWs are shown in Figure 3. The relative abundances of sul genes showed an obvious increase with the increase of SMX concentrations in the bottom and middle layers. In wastewater treatment installations, the abundances of ARGs were not only determined by their abundances, but were also affected by the concentrations of antibiotics in the influent [6]. Since synthetic wastewater was used in this study, the abundances of sul genes in the influent may be ignored. In addition, the sul genes were not found in CW0. Therefore, most of the target genes were induced by the antibiotics in the influent. Further, bacteria would also gain the corresponding ARGs via VGT and HGT [10].
Notably, the concentration of sul genes in the bottom layer was higher than that in the middle layer, with the surface layer containing the least (Figure 3). A similar result was obtained in a previous study, which found that the level of ARGs was high in CWs [28]. This observation was mainly influenced by the level of SMX sources and oxygen transport capacity in the bottom layer [28]. Clearly the concentration of SMX in the bottom layer was the highest, followed by the middle and surface layers (Figure 1). The fate of ARGs in the different layers of CWs was mainly attributable to the accumulation of SMX in the substrate. Interestingly, the relative abundances of sul genes in the CWs were in the order of sulII > sulI (Figure 3). This was not surprising, because the different fates of sul genes in CWs were mainly caused by their specific mechanisms [6]. The sulI gene was generally found to be associated with other ARGs in class 1 integrons, while sulII was usually located on small nonconjugative plasmids, or generally located on large transmissible multi-resistance [41]. Therefore, the persistence of sulII genes might be attributed to the successive pressure exerted by antimicrobial agents that were transferred via HGT and VGT between pathogens, nonpathogens, and even distantly related organisms [31,41].
ARGs, as a major source of pollution, may be spread in bioreactors [42]. The relative abundances of corresponding sul genes in effluent have been reported (Figure 4). The CWs, indicating the rate of spread for sul genes, were probably caused by antibiotics. This was comparable to previous reports in which similar abundances of ARGs were observed in the effluent of CWs [21]. In addition, the relative abundance of most sul genes was enhanced with higher concentrations of SMX; sul genes were not detected in the effluent of CW0. The relative abundance of sul genes exhibited an increase, which tended to be stable among the treatment duration. Meanwhile, the relative abundances of sul genes in the effluent were in the order of sulII > sulI. In a word, vertical up-CWs may be a good choice for application as an effective SMX removal method, but the fate of ARGs remains to be further studied in practical applications.

2.4. Composition of Bacterial Communities

The microbial community was evaluated in terms of abundance and bacterial structure in response to the different treatments in CWs [43]. There were 30 dominant genera in the phylum level for the bottom layers, occupying > 94.90% of sequences (Figure 5). Twenty genera were identified while 10 remained unknown by taxonomy assignment. OD1 (49.32%), Proteobacteria (44.59%), Proteobacteria (31.36%), and Proteobacteria (54.53%) had the maximum amounts of dominant phylum and high relative abundances of detection in CW1, CW2, CW3, and CW4, respectively, followed by Chloroflexi, Bacteroidetes, and Acidobacteria. Previous studies reported that proteobacteria is responsible for the degradation of refractory organic [44]. In addition, Proteobacteria (12.79%), Bacteroidetes, Acidobacteria, and Planctomycetes increased after the SMX treatment process. Because of potential coselection on SMX, the accumulation of antibiotics in substrates may also contribute to the enhancement of some dominant bacteria. Our result was similar to that in a previous report, i.e., that Proteobacteria occupied the string majority in antibiotic-correlated bacteria, followed by Bacteroidetes and Actinobacteria [45]. Some specific bacteria in CWs, like Nitrospirae, are well-known to be involved in nitrification and ammonia oxidization [46]. In accordance with our result, Nitrospirae was a dominant phylum, with a relative abundance of up to 4.45%.
To assess the variation of dominant bacteria after CW treatment, five samples could be divided into three clusters according to the bacterial composition and relative abundance. Cluster I comprised the original sample, cluster II included the CW1 and CW2 samples, and cluster III comprised all of the remaining samples (CW3 and CW4). Previous study has shown that no significant difference was observed in terms of bacterial abundance, richness, or diversity among different treatments of antibiotics [43]. However, in this experiment, the bacterial communities and their relative abundance were influenced by the SMX content of the influent. Therefore, the phenomenon suggested that the original bacterial structure had to adapt to the variation of different SMX concentration conditions, appearing to change over the 360 days of the experiment period.

3. Materials and Methods

3.1. Reactor Configuration

Four CWs were set up with 65 cm in height and 35 cm in diameter with the temperature maintained at 26 ± 3 °C and a relative humidity of 55–65%. The CWs were filled with siliceous gravel and sand (siliceous gravel: sand volume ratio = 1:1; siliceous gravel was 4–7 mm and sand was 5–8 mm in diameter). Phragmites australis were transplanted into the top layer. The synthetic wastewater was fed into four CWs from the bottom inlet by peristaltic pump with a hydraulic loading rate of 5 cm d−1. The synthetic wastewater was prepared with tap water containing chemical oxygen demand (500 mg L−1), ammonia nitrogen (40 mg L−1), total nitrogen (150 mg L−1), and total phosphorus (20 mg L−1). Then, 0, 20, 50, 100, and 200 μg L−1 of SMX were spiked into synthetic wastewater for CW0, CW1, CW2, CW3, and CW4, respectively.

3.2. SMX Detection

First, 1000 mL of effluent was collected at days 30, 60, 120, 240, and 360, to measure the SMX concentrations. Then, 200 g wetland media was collected from the bottom, middle, and surface layers on day 360. Both water samples and wetland media were taken in triplicate. Water samples were filtered through 0.45 µm fiber filters [16]. Wetland media were extracted by solid-phase extraction (Waters, Millford, MA, USA) [47]. Liquid chromatography-mass spectrometry (LC-MS/MS, Thermo Scientific Q Exactive Hybrid Quadrupole-Orbitrap; Thermo Fisher Scientific, Waltham, MA, USA) was used to analyze the concentrations of SMX in water and wetland media. The mobile phase was composed of pure 30% acetonitrile and 70% water solution (v/v) [39]. Hypersil GOLD C18 column (Acquity UPLC BEH C18; 100 mm × 2.1 mm, 3 μm) was used in this study. The capillary voltage was 3.8 (±) kV, the collision energy was 8 eV, and the capillary temperature was set to 350 °C. SMX products were detected by the LC-MS/MS in positive mode [16].

3.3. DNA Extraction and ARG Analysis

Genomic DNA was extracted from effluents (200 mL) and wetland media (5 g) using a DNA extraction kit (MoBio, Carlsbad, CA, USA) at each sampling point in Section 2.2. The DNA concentrations were tested using ND-1000 NanoDrop spectrophotometer (Thermo Fisher Scientific, Wilmington, DE, USA). The 16S rRNA gene and two sul genes (sulI and sulII) were quantified by a Real-Time PCR System (CFX96, Bio-Rad). The reaction was 25 μL on 96-well plates (Bio-Rad, Shanghai) containing 12.5 μL SYBR Green qPCR mix (Bio-Rad, Shanghai), 0.5 μL of each forward and reverse primers (Bio-Rad, Shanghai), 1 μL DNA templates, and 10.5 μL ddH2O [48]. PCR protocol and primer sequences of sul genes were based on previous studies [49,50].

3.4. High-Throughput Sequencing

Wetland media (5 g) were collected at the bottom layer to analyze microbial community. The V4 region of the bacteria 16S rRNA gene was amplified by PCR (5′-GTGCCAGCMGCCGCGGTAA-3′, 5′-GGACTACHVGGGTWTCTAAT-3′) according to previous reports [51,52]. Each PCR reaction was performed with 50 μL mixture containing 35 ng template DNA, 4 μL PCR Primer Cocktail (5 μM, Qiagen, Valencia, CA, USA), 25 μL PCR Master Mix (Qiagen), and ddH2O [53]. Illumina MiSeq platform was employed to purify and pool amplicons in equimolar amounts and paired-end sequenced (2 × 250) [51,54]. Data were analyzed with Microsoft Excel 2010, and statistical analyses were conducted by SPSS ver. 19.0.

4. Conclusions

This study clearly demonstrated that excellent SMX removal efficiency among different SMX concentrations was obtained during the treatment in the CWs. The concentration of SMX in the bottom layer was higher compared with that in the surface layer. Good removal efficiencies for SMX were observed using the systems. A degradation mechanism of SMX was proposed. The relative abundances of sul genes showed an obvious increase with the increase of SMX content in the bottom and middle layers. The concentration of sul genes in the bottom layer was shown to be higher than that in the middle layer; the surface layer presented the lowest concentration. The relative abundance of sul genes exhibited an increase, which tended to be stable among the treatment duration. Proteobacteria was the dominant phylum in the CWs.

Author Contributions

Methodology, Y.-X.L.; validation, J.-J.Z. and S.L.; investigation, S.Z.; writing—original draft preparation, S.Z.; writing—review and editing, H.-L.S.; funding acquisition, H.-L.S. and X.-L.Y. All authors have read and agreed to the published version of the manuscript.


This research was funded by National Key Research and Development Program of China (2019YFD1100205), National Major Science and Technology Projects of China (2017ZX07202004), and the National Natural Science Foundation of China (41571476).


Hai-Liang Song would like to acknowledge the Qing Lan Project of Jiangsu Province.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Hou, J.; Wan, W.N.; Mao, D.Q.; Wang, C.; Mu, Q.H.; Qin, S.Y.; Luo, Y. Occurrence and distribution of sulfonamides, tetracyclines, quinolones, macrolides, and nitrofurans in livestock manure and amended soils of Northern China. Environ. Sci. Pollut. Res. 2015, 22, 4545–4554. [Google Scholar] [CrossRef] [PubMed]
  2. Zhou, L.J.; Ying, G.G.; Zhang, R.Q.; Liu, S.; Lai, H.J.; Chen, Z.F.; Yang, B.; Zhao, J.L. Use patterns, excretion masses and contamination profiles of antibiotics in a typical swine farm, south China. Environ. Sci. Proc. Imp. 2013, 15, 802–813. [Google Scholar] [CrossRef] [PubMed]
  3. Adegoke, A.A.; Faleye, C.A.; Singh, G.; Stenström, A.T. Antibiotic Resistant Superbugs: Assessment of the Interrelationship of Occurrence in Clinical Settings and Environmental Niches. Molecules 2017, 22, 29. [Google Scholar] [CrossRef] [PubMed]
  4. Pham, T.D.; Vu, T.N.; Nguyen, H.L.; Le, P.H.P.; Hoang, T.S. Adsorptive removal of antibiotic ciprofloxacin from aqueous solution using protein-modified nanosilica. Polymers 2020, 12, 57. [Google Scholar] [CrossRef] [PubMed]
  5. Manyi-Loh, C.; Mamphweli, S.; Meyer, E.; Okoh, A. Antibiotic Use in Agriculture and Its Consequential Resistance in Environmental Sources: Potential Public Health Implications. Molecules 2018, 23, 795. [Google Scholar] [CrossRef] [PubMed]
  6. McKinney, C.W.; Loftin, K.A.; Meyer, M.T.; Davis, J.G.; Pruden, A. Tet and sul antibiotic resistance genes in livestock lagoons of various operation type, configuration, and antibiotic occurrence. Environ. Sci. Technol. 2010, 44, 6102–6109. [Google Scholar] [CrossRef] [PubMed]
  7. Storteboom, H.; Arabi, M.; Davis, J.G.; Crimi, B.; Pruden, A. Identification of antibiotic-resistance-gene molecular signatures suitable as tracers of pristine river, urban, and agricultural sources. Environ. Sci. Technol. 2010, 44, 1947–1953. [Google Scholar] [CrossRef]
  8. Ogawara, H. Comparison of Antibiotic Resistance Mechanisms in Antibiotic-Producing and Pathogenic Bacteria. Molecules 2019, 24, 3430. [Google Scholar] [CrossRef]
  9. Yuan, H.; Miller, J.H.; Abu-Reesh, I.M.; Pruden, A.; He, Z. Effects of electron acceptors on removal of antibiotic resistant Escherichia coli, resistance genes and class 1 integrons under anaerobic conditions. Sci. Total Environ. 2016, 569, 1587–1594. [Google Scholar] [CrossRef]
  10. Kim, S.; Yun, Z.; Ha, U.H.; Lee, S.; Park, H.; Kwon, E.E.; Cho, Y.; Choung, S.; Oh, J.; Medriano, C.A.; et al. Transfer of antibiotic resistance plasmids in pure and activated sludge cultures in the presence of environmentally representative micro-contaminant concentrations. Sci. Total Environ. 2014, 468–469, 813–820. [Google Scholar] [CrossRef]
  11. Guo, J.H.; Li, J.; Chen, H.; Bond, P.L.; Yuan, Z.G. Metagenomic analysis reveals wastewater treatment plants as hotspots of antibiotic resistance genes and mobile genetic elements. Water Res. 2017, 123, 468–478. [Google Scholar] [CrossRef] [PubMed]
  12. Chen, J.; Ying, G.G.; Wei, X.D.; Liu, Y.S.; Liu, S.S.; Hu, L.X.; He, L.Y.; Chen, Z.F.; Chen, F.R.; Yang, Y.Q. Removal of antibiotics and antibiotic resistance genes from domestic sewage by constructed wetlands: Effect of flow configuration and plant species. Sci. Total Environ. 2016, 571, 974–982. [Google Scholar] [CrossRef] [PubMed]
  13. Beekmann, S.E.; Heilmann, K.P.; Richter, S.S.; García-de-Lomas, J.; Doern, G.V.; Group, G.S. Antimicrobial resistance in Streptococcus pneumoniae, Haemophilus influenzae, Moraxella catarrhalis and group A β-haemolytic streptococci in 2002–2003: Results of the multinational GRASP Surveillance Program. Int. J. Antimicrob. Agents 2005, 25, 148–156. [Google Scholar] [CrossRef] [PubMed]
  14. Penesyan, A.; Gillings, M.; Paulsen, I. Antibiotic Discovery: Combatting Bacterial Resistance in Cells and in Biofilm Communities. Molecules 2015, 20, 5286–5298. [Google Scholar] [CrossRef] [PubMed]
  15. Chang, P.H.; Juhrend, B.; Olson, T.M.; Marrs, C.F.; Wigginton, K.R. Degradation of extracellular antibiotic resistance genes with UV254 treatment. Environ. Sci. Technol. 2017, 51, 6185–6192. [Google Scholar] [CrossRef] [PubMed]
  16. Huang, X.; Liu, C.; Li, K.; Su, J.; Zhu, G.; Liu, L. Performance of vertical up-flow constructed wetlands on swine wastewater containing tetracyclines and tet genes. Water Res. 2015, 70, 109–117. [Google Scholar] [CrossRef]
  17. Naquin, A.; Shrestha, A.; Sherpa, M.; Nathaniel, R.; Boopathy, R. Presence of antibiotic resistance genes in a sewage treatment plant in Thibodaux, Louisiana, USA. Bioresour. Technol. 2015, 188, 79–83. [Google Scholar] [CrossRef]
  18. Gao, P.; Munir, M.; Xagoraraki, I. Correlation of tetracycline and sulfonamide antibiotics with corresponding resistance genes and resistant bacteria in a conventional municipal wastewater treatment plant. Sci. Total Environ. 2012, 421–422, 173–183. [Google Scholar] [CrossRef]
  19. Zhang, S.; Song, H.-L.; Yang, X.-L.; Yang, Y.-L.; Yang, K.-Y.; Wang, X.-Y. Fate of tetracycline and sulfamethoxazole and their corresponding resistance genes in microbial fuel cell coupled constructed wetlands. RSC Adv. 2016, 6, 95999–96005. [Google Scholar] [CrossRef]
  20. Rosendahl, I.; Siemens, J.; Groeneweg, J.; Linzbach, E.; Laabs, V.; Herrmann, C.; Vereecken, H.; Amelung, W. Dissipation and sequestration of the veterinary antibiotic sulfadiazine and its metabolites under field conditions. Environ. Sci. Technol. 2011, 45, 5216–5222. [Google Scholar] [CrossRef]
  21. Liu, L.; Liu, C.; Zheng, J.; Huang, X.; Wang, Z.; Liu, Y.; Zhu, G. Elimination of veterinary antibiotics and antibiotic resistance genes from swine wastewater in the vertical flow constructed wetlands. Chemosphere 2013, 91, 1088–1093. [Google Scholar] [CrossRef] [PubMed]
  22. Hussain, S.A.; Prasher, S.O.; Patel, R.M. Removal of ionophoric antibiotics in free water surface constructed wetlands. Ecol. Eng. 2012, 41, 13–21. [Google Scholar] [CrossRef]
  23. Almeida, C.M.R.; Santos, F.; Ferreira, A.C.F.; Lourinha, I.; Basto, M.C.P.; Mucha, A.P. Can veterinary antibiotics affect constructed wetlands performance during treatment of livestock wastewater? Ecol. Eng. 2017, 102, 583–588. [Google Scholar] [CrossRef]
  24. Huang, X.; Zheng, J.; Liu, C.; Liu, L.; Liu, Y.; Fan, H. Removal of antibiotics and resistance genes from swine wastewater using vertical flow constructed wetlands: Effect of hydraulic flow direction and substrate type. Chem. Eng. J. 2017, 308, 692–699. [Google Scholar] [CrossRef]
  25. Chen, J.; Liu, Y.S.; Su, H.C.; Ying, G.G.; Liu, F.; Liu, S.S.; He, L.Y.; Chen, Z.F.; Yang, Y.Q.; Chen, F.R. Removal of antibiotics and antibiotic resistance genes in rural wastewater by an integrated constructed wetland. Environ. Sci. Pollut. Res. 2015, 22, 1794–1803. [Google Scholar] [CrossRef]
  26. Fang, H.S.; Zhang, Q.; Nie, X.P.; Chen, B.W.; Xiao, Y.D.; Zhou, Q.B.; Liao, W.; Liang, X.M. Occurrence and elimination of antibiotic resistance genes in a long-term operation integrated surface flow constructed wetland. Chemosphere 2017, 173, 99–106. [Google Scholar] [CrossRef]
  27. Almeida, C.M.R.; Santos, F.; Ferreira, A.C.F.; Gomes, C.R.; Basto, M.C.P.; Mucha, A.P. Constructed wetlands for the removal of metals from livestock wastewater—Can the presence of veterinary antibiotics affect removals? Ecotox. Environ. Saf. 2017, 137, 143–148. [Google Scholar] [CrossRef]
  28. Liu, L.; Liu, Y.H.; Wang, Z.; Liu, C.X.; Huang, X.; Zhu, G.F. Behavior of tetracycline and sulfamethazine with corresponding resistance genes from swine wastewater in pilot-scale constructed wetlands. J. Hazard. Mater. 2014, 278, 304–310. [Google Scholar] [CrossRef]
  29. Cetecioglu, Z.; Ince, B.; Orhon, D.; Ince, O. Anaerobic sulfamethoxazole degradation is driven by homoacetogenesis coupled with hydrogenotrophic methanogenesis. Water Res. 2016, 90, 79–89. [Google Scholar] [CrossRef]
  30. Soares, S.F.; Fernandes, T.; Trindade, T.; Daniel-da-Silva, A.L. Trimethyl Chitosan/Siloxane-Hybrid Coated Fe3O4 Nanoparticles for the Uptake of Sulfamethoxazole from Water. Molecules 2019, 24, 1958. [Google Scholar] [CrossRef]
  31. Barkovskii, A.L.; Bridges, C. Persistence and Profiles of Tetracycline Resistance Genes in Swine Farms and Impact of Operational Practices on Their Occurrence in Farms’ Vicinities. Water Air Soil Pollut. 2011, 223, 49–62. [Google Scholar] [CrossRef]
  32. Dan, A.; Yang, Y.; Dai, Y.N.; Chen, C.X.; Wang, S.Y.; Tao, R. Removal and factors influencing removal of sulfonamides and trimethoprim from domestic sewage in constructed wetlands. Bioresour. Technol. 2013, 146, 363–370. [Google Scholar] [CrossRef] [PubMed]
  33. Yi, X.Z.; Tran, N.H.; Yin, T.R.; He, Y.L.; Gin, K.Y.H. Removal of selected PPCPs, EDCs, and antibiotic resistance genes in landfill leachate by a full-scale constructed wetlands system. Water Res. 2017, 121, 46–60. [Google Scholar] [CrossRef] [PubMed]
  34. Xu, J.; Xu, Y.; Wang, H.; Guo, C.; Qiu, H.; He, Y.; Zhang, Y.; Li, X.; Meng, W. Occurrence of antibiotics and antibiotic resistance genes in a sewage treatment plant and its effluent-receiving river. Chemosphere 2015, 119, 1379–1385. [Google Scholar] [CrossRef]
  35. Dordio, A.V.; Carvalho, A.J. Organic xenobiotics removal in constructed wetlands, with emphasis on the importance of the support matrix. J. Hazard. Mater. 2013, 252–253, 272–292. [Google Scholar] [CrossRef]
  36. Hijosa-Valsero, M.; Fink, G.; Schlusener, M.P.; Sidrach-Cardona, R.; Martin-Villacorta, J.; Ternes, T.; Becares, E. Removal of antibiotics from urban wastewater by constructed wetland optimization. Chemosphere 2011, 83, 713–719. [Google Scholar] [CrossRef]
  37. Gong, W.; Liu, X.; He, H.; Wang, L.; Dai, G. Quantitatively modeling soil-water distribution coefficients of three antibiotics using soil physicochemical properties. Chemosphere 2012, 89, 825–831. [Google Scholar] [CrossRef]
  38. Müller, E.; Schüssler, W.; Horn, H.; Lemmer, H. Aerobic biodegradation of the sulfonamide antibiotic sulfamethoxazole by activated sludge applied as co-substrate and sole carbon and nitrogen source. Chemosphere 2013, 92, 969–978. [Google Scholar] [CrossRef]
  39. Wang, L.; Liu, Y.; Ma, J.; Zhao, F. Rapid degradation of sulphamethoxazole and the further transformation of 3-amino-5-methylisoxazole in a microbial fuel cell. Water Res. 2016, 88, 322–328. [Google Scholar] [CrossRef]
  40. Wang, L.; Wu, Y.C.; Zheng, Y.; Liu, L.D.; Zhao, F. Efficient degradation of sulfamethoxazole and the response of microbial communities in microbial fuel cells. RSC Adv. 2015, 5, 56430–56437. [Google Scholar] [CrossRef]
  41. Antunes, P.; Machado, J.; Sousa, J.C.; Peixe, L. Dissemination of sulfonamide resistance genes (sul1, sul2, and sul3) in Portuguese Salmonella enterica strains and relation with integrons. Antimicrob. Agents Chemother. 2005, 49, 836–839. [Google Scholar] [CrossRef] [PubMed]
  42. Nolvak, H.; Truu, M.; Tiirik, K.; Oopkaup, K.; Sildvee, T.; Kaasik, A.; Mander, U.; Truu, J. Dynamics of antibiotic resistance genes and their relationships with system treatment efficiency in a horizontal subsurface flow constructed wetland. Sci. Total Environ. 2013, 461–462, 636–644. [Google Scholar] [CrossRef] [PubMed]
  43. Fernandes, J.P.; Almeida, C.M.R.; Pereira, A.C.; Ribeiro, I.L.; Reis, I.; Carvalho, P.; Basto, M.C.P.; Mucha, A.P. Microbial community dynamics associated with veterinary antibiotics removal in constructed wetlands microcosms. Bioresour. Technol. 2015, 182, 26–33. [Google Scholar] [CrossRef] [PubMed]
  44. Cao, X.; Wang, H.; Zhang, S.; Nishimura, O.; Li, X. Azo dye degradation pathway and bacterial community structure in biofilm electrode reactors. Chemosphere 2018, 208, 219–225. [Google Scholar] [CrossRef]
  45. Huang, X.; Zheng, J.L.; Liu, C.X.; Liu, L.; Liu, Y.H.; Fan, H.Y.; Zhang, T.F. Performance and bacterial community dynamics of vertical flow constructed wetlands during the treatment of antibiotics-enriched swine wastewater. Chem. Eng. J. 2017, 316, 727–735. [Google Scholar] [CrossRef]
  46. Arroyo, P.; Saenz de Miera, L.E.; Ansola, G. Influence of environmental variables on the structure and composition of soil bacterial communities in natural and constructed wetlands. Sci. Total Environ. 2015, 506–507, 380–390. [Google Scholar] [CrossRef]
  47. Srinivasan, P.; Sarmah, A.K. Dissipation of sulfamethoxazole in pasture soils as affected by soil and environmental factors. Sci. Total Environ. 2014, 479, 284–291. [Google Scholar] [CrossRef]
  48. Wu, D.; Huang, Z.T.; Yang, K.; Graham, D.; Xie, B. Relationships between Antibiotics and Antibiotic Resistance Gene Levels in Municipal Solid Waste Leachates in Shanghai, China. Environ. Sci. Technol. 2015, 49, 4122–4128. [Google Scholar] [CrossRef]
  49. Rodriguez-Mozaz, S.; Chamorro, S.; Marti, E.; Huerta, B.; Gros, M.; Sanchez-Melsio, A.; Borrego, C.M.; Barcelo, D.; Balcazar, J.L. Occurrence of antibiotics and antibiotic resistance genes in hospital and urban wastewaters and their impact on the receiving river. Water Res. 2015, 69, 234–242. [Google Scholar] [CrossRef]
  50. Pruden, A.; Pei, R.; Storteboom, H.; Carlson, K.H. Antibiotic Resistance Genes as Emerging Contaminants: Studies in Northern Colorado†. Environ. Sci. Technol. 2006, 40, 7445–7450. [Google Scholar] [CrossRef]
  51. Wang, W.; Cao, J.; Yang, F.; Wang, X.L.; Zheng, S.S.; Sharshov, K.; Li, L.X. High-throughput sequencing reveals the core gut microbiome of Bar-headed goose (Anser indicus) in different wintering areas in Tibet. MicrobiologyOpen 2016, 5, 287–295. [Google Scholar] [CrossRef] [PubMed]
  52. Bokulich, N.A.; Subramanian, S.; Faith, J.J.; Gevers, D.; Gordon, J.I.; Knight, R.; Mills, D.A.; Caporaso, J.G. Quality-filtering vastly improves diversity estimates from Illumina amplicon sequencing. Nat. Methods 2013, 10, 57–59. [Google Scholar] [CrossRef] [PubMed]
  53. Zhang, Y.J.; Zhu, H.; Szewzyk, U.; Geissen, S.U. Enhanced removal of sulfamethoxazole with manganese-adapted aerobic biomass. Int. Biodeterior. Biodegrad. 2017, 116, 171–174. [Google Scholar] [CrossRef]
  54. Mikkelson, K.M.; Lozupone, C.A.; Sharp, J.O. Altered edaphic parameters couple to shifts in terrestrial bacterial community structure associated with insect-induced tree mortality. Soil Biol. Biochem. 2016, 95, 19–29. [Google Scholar] [CrossRef]
Sample Availability: Not available.

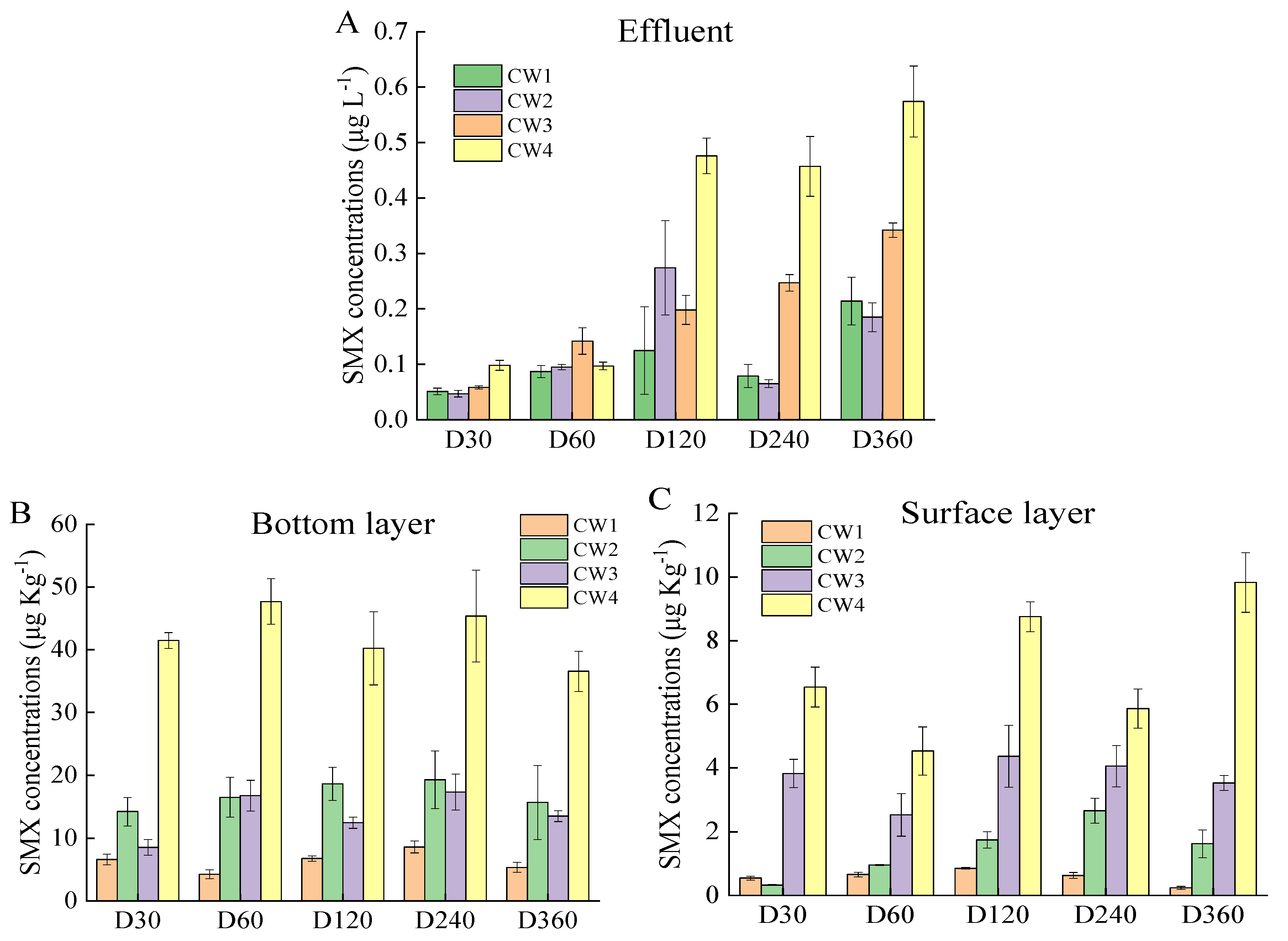

Figure 1. Concentrations of SMX (mean ± SD, n = 3) in the effluent water and layers. (A) concentration of SMX in the effluent; (B) concentration of SMX in the bottom layer; (C) concentration of SMX in the surface layer.
Figure 1. Concentrations of SMX (mean ± SD, n = 3) in the effluent water and layers. (A) concentration of SMX in the effluent; (B) concentration of SMX in the bottom layer; (C) concentration of SMX in the surface layer.
Molecules 25 00834 g001

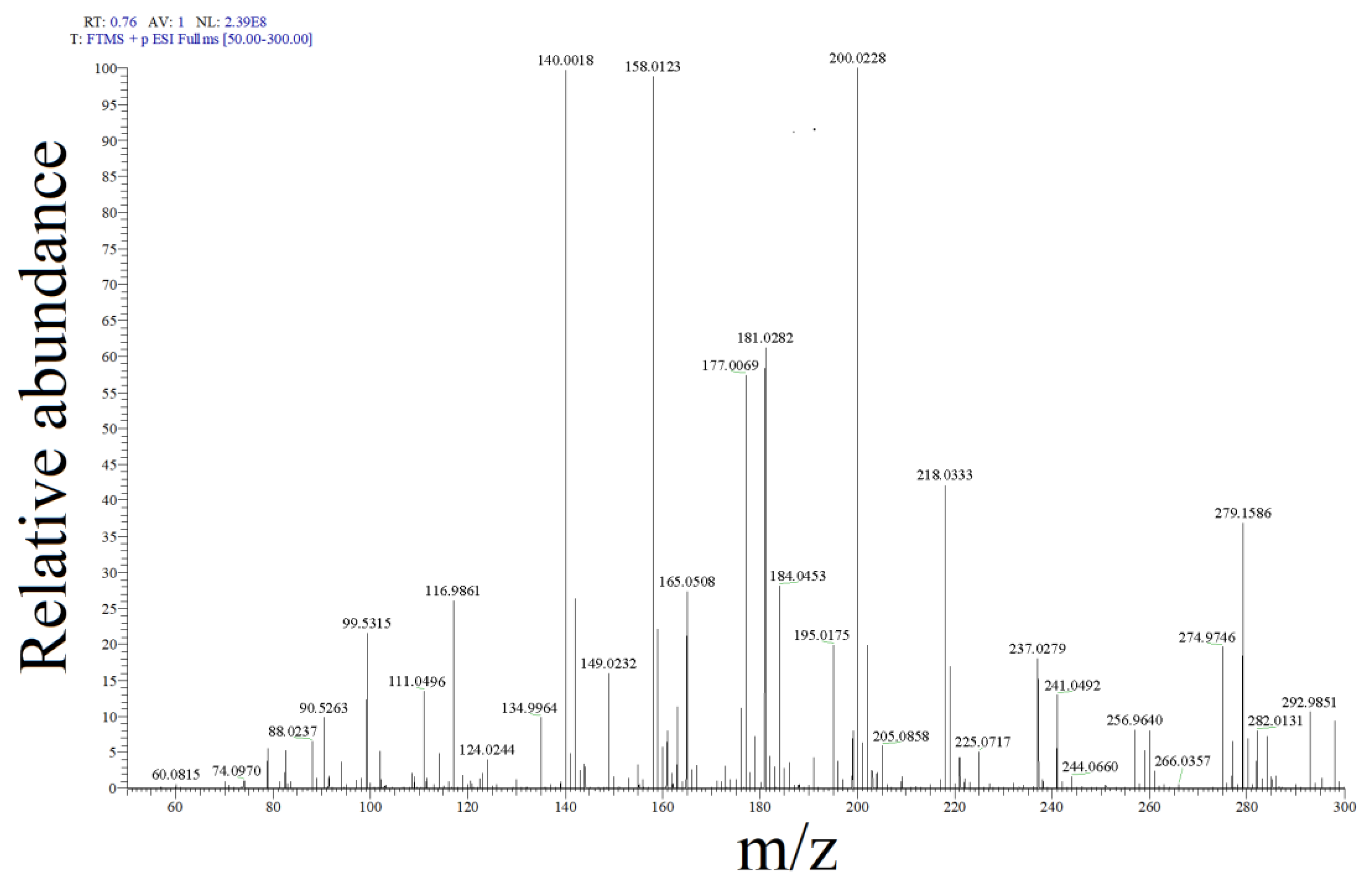

Figure 2. Q-Exactive spectrum degradation products of SMX.
Figure 2. Q-Exactive spectrum degradation products of SMX.
Molecules 25 00834 g002

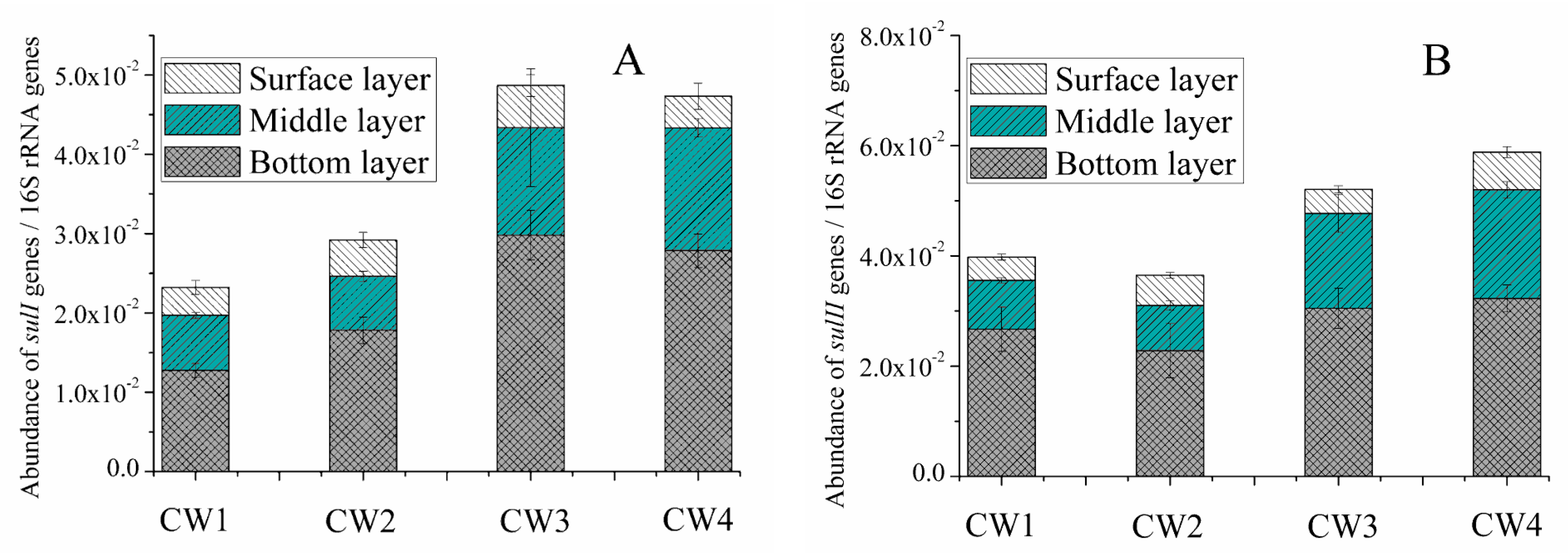

Figure 3. Sul genes (sulI and sulII) normalized to 16S rRNA genes in the layers (bottom layer, middle layer and surface layer) of CW1, CW2, CW3, and CW4, respectively (mean ± SD, n = 3). (A) sulI genes; (B) sulII genes.
Figure 3. Sul genes (sulI and sulII) normalized to 16S rRNA genes in the layers (bottom layer, middle layer and surface layer) of CW1, CW2, CW3, and CW4, respectively (mean ± SD, n = 3). (A) sulI genes; (B) sulII genes.
Molecules 25 00834 g003

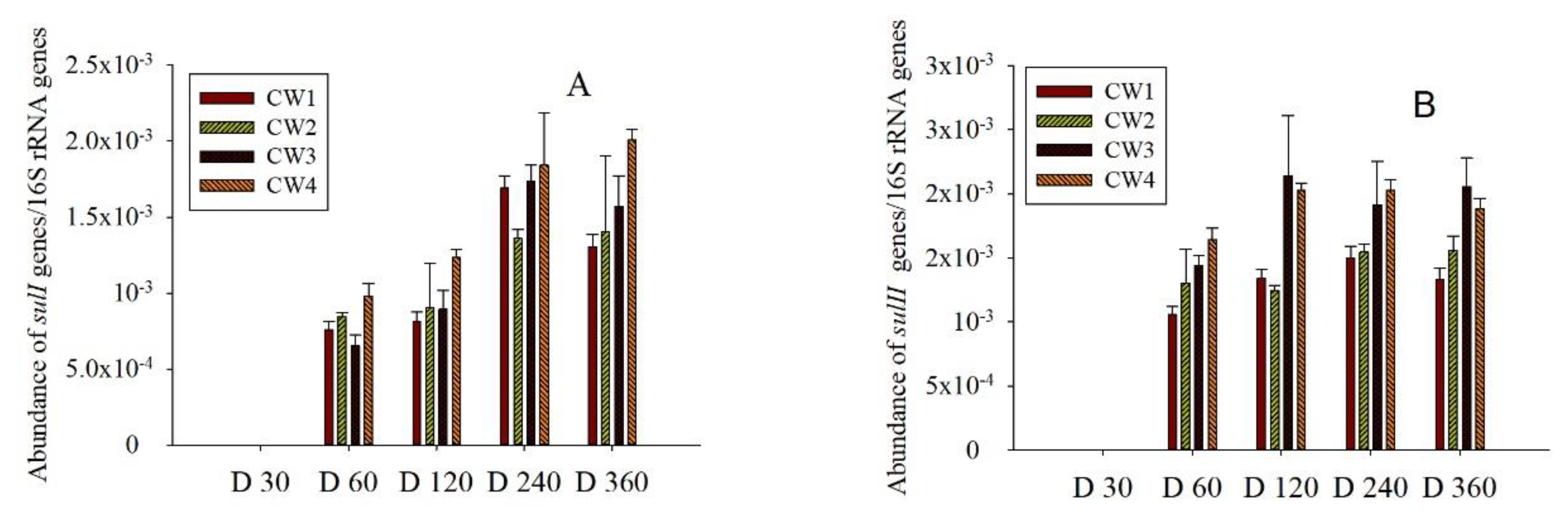

Figure 4. Sul genes (sulI and sulII) normalized to 16S rRNA genes in the effluent of CW1, CW2, CW3, and CW4, respectively (mean ± SD, n = 3). (A) sulI genes; (B) sulII genes.
Figure 4. Sul genes (sulI and sulII) normalized to 16S rRNA genes in the effluent of CW1, CW2, CW3, and CW4, respectively (mean ± SD, n = 3). (A) sulI genes; (B) sulII genes.
Molecules 25 00834 g004

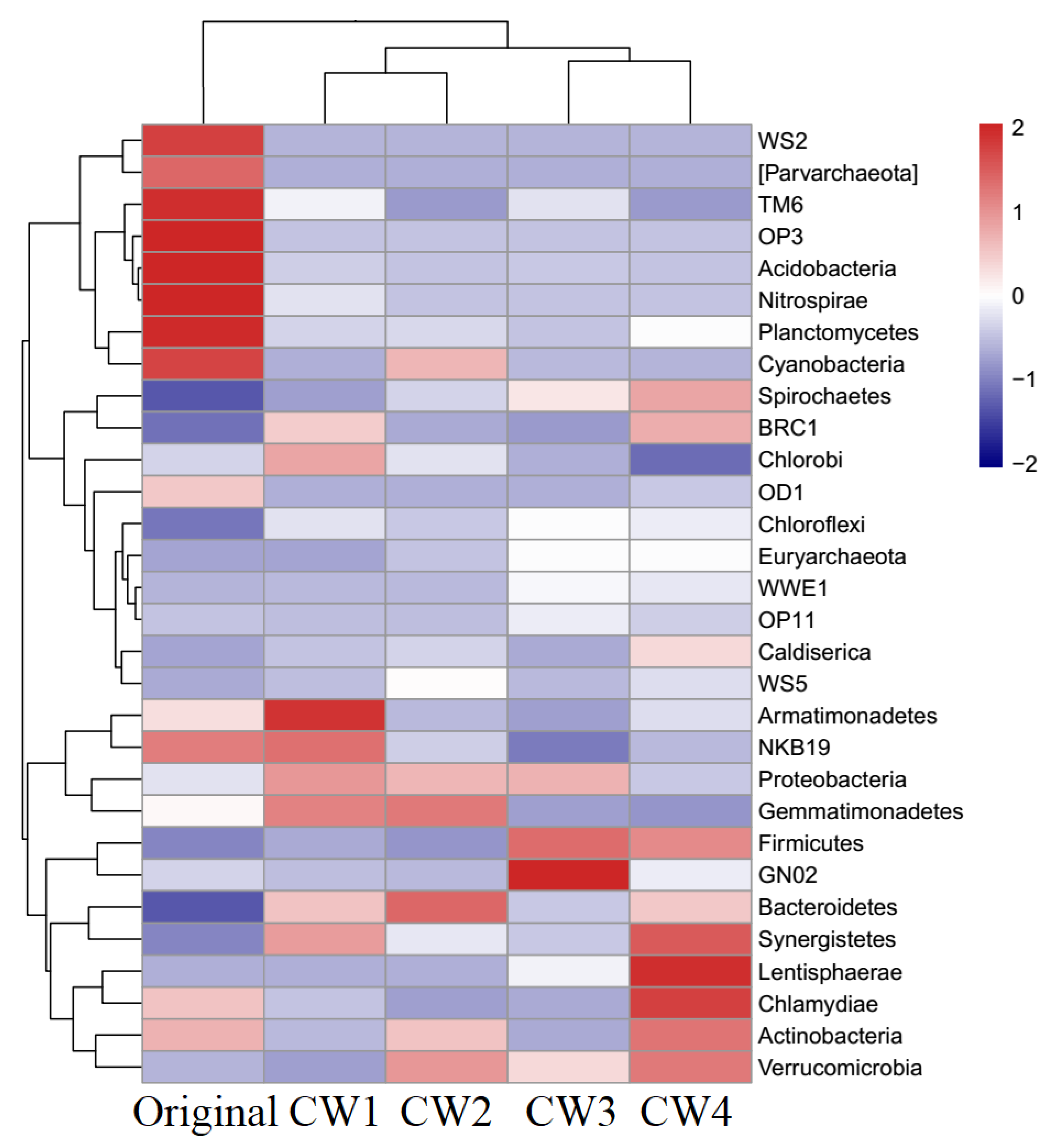

Figure 5. Heat map of bacterial populations in phylum level: Sample names were listed on the x-axis, and genus names were listed on the y-axis.
Figure 5. Heat map of bacterial populations in phylum level: Sample names were listed on the x-axis, and genus names were listed on the y-axis.
Molecules 25 00834 g005
