Organic Acids and Polyphenols Determination in Polish Wines by Ultrasound-Assisted Solvent Extraction of Porous Membrane-Packed Liquid Samples

Department of Chemistry, Bromatology, Faculty of Exact and Natural Sciences, National University of Mar del Plata, 3350 Funes Street, Mar del Plata, Buenos Aires 7600, Argentina
Department of Analytical Chemistry, Faculty of Chemistry, Gdańsk University of Technology, 11/12 Narutowicza Street, 80-233 Gdańsk, Poland
Authors to whom correspondence should be addressed.
Molecules 2019, 24(23), 4376;
Received: 28 October 2019 / Revised: 25 November 2019 / Accepted: 27 November 2019 / Published: 29 November 2019
(This article belongs to the Special Issue Trends in Environmental Analytical Chemistry)


In the near future, Poland is going to have more and more favorable conditions for viticulture. Organic acids and polyphenols are among the most commonly analyzed compounds due to their beneficial properties for human health and their importance in the winemaking process. In this work, a new technique involving ultrasound-assisted solvent extraction of porous membrane-packed liquid samples (UASE-PMLS) was for the first time described and applied for real samples. The methodology based on UASE-PMLS for organic acids and polyphenols in wine samples was optimized and validated. Using the new technique coupled to GC–MS, organic acids and polyphenols were evaluated in Polish wine samples. Extraction solvent, extraction temperature, derivatization time and sample pH were optimized. Chemometric tools were used for data treatment. Good linearity was obtained for the concentration ranges evaluated with r values between 0.9852 and 0.9993. All parameters of method validation (intra- and inter-day precision and matrix effect) were over 80% with coefficient of variation (CV) up to 17%. Recovery was between (92.0 ± 8.5)% and (113 ± 16)%. Finally, green assessment was evaluated using Analytical Eco-Scale and Green Analytical Procedure Index (GAPI). The UASE-PMLS is characterized by many advantages, e.g., the extraction process is fast and easy coupled to GC–MS. Regarding other extraction techniques, the amount of used solvent is minimum, and no waste is generated. Therefore, it is an environmentally friendly technique.

Graphical Abstract

1. Introduction

Nowadays, there is an increasing interest in grapevines and winemaking technologies in Poland. This is influenced by appearance of new vine assortments composed of hybrid varieties, which are suitable for the Polish climate. As the climate is changing due to global warming, and Poland is going to have more and more favorable conditions for viticulture, winery started to be perceived as a new source of income in Polish agriculture. Furthermore, there is an increased consumer awareness regarding the dietetic and healthy potential properties of wine, which also significantly influence the increased interest in wine [1]. Polish wines have their own specific characteristics. Due to their geographical location they are described as cold-climate wines, which give the perception of delicacy and refinement when consumed. Greater acidity gives freshness to this type of wine [1].
The composition of wine is characterized, mainly, by the content of a complex mixture of compounds at varietal concentrations. Organic acids are important for the wine stability and for their contribution to the organoleptic characteristics (flavor, color, and aroma) of wines. Organic acids are strongly connected to the aroma and taste of wine [2]. Therefore, their analysis in wines is required for the quality control as well as to check the evolution of acidity during the different stages of winemaking (starting from grape juices, continuing to the alcoholic fermentation, malolactic fermentation (depending of the style of wine), and wine stabilization processes), since important changes in wine can be detected by alterations in the acid content. During the malolactic fermentation, lactic acid and carbon dioxide are formed, due to the bioconversion of malic acid. This process improves the biological stability of the red wine and prevents the malic acid from being used by other microorganisms in bottled wine [3].
Regarding the bioactive capacity of organic acids, little is known about their beneficial effects on human health. Moreover, there is a lack of knowledge regarding the beneficial effects of the consumption of foods rich in these compounds, with the exception of ascorbic acid, which has a high antioxidant power [4]. However, there are more and more studies examining the organic acids’ characteristics, searching for positive effects of given compounds on the human body [5,6,7].
Polyphenols are one of the most abundant group of compounds present in grapes and thus in wines. Some of them, known as anthocyanins, are coloring substances. They are responsible for the red and blue color of red grapes and transfer their dark color to the red wine. In addition, tannins give soft astringency or roughness to the taste. This sensation can be perceived when chewing grape skins and drinking red wines, due to tannins passing from the skins to the wine during the winemaking process. In addition, there are also polyphenols that provide aromas and flavors to red wines [8]. White wines typically do not have polyphenols present in such large quantities as red wine, and the antioxidant activity is also subsequently lower. This is due to the fact that white wines are usually made from the free running juice, without grape mash, having no contact with the grape skins. However, also for white grape varieties and wines, phenolic content is relevant. In fact, various modes of fermentation with skins have made their way into mainstream white winemaking for obtaining wines with interesting and distinct wine types. It is also known that the presence of skins during fermentation brings greater extraction of polyphenols in white wine; therefore, the study of these phenolic parameters presents a great importance as it contributes to the evaluation and application of new techniques of white wine production [5,6,7,8].
Since polyphenols are crucial for human health maintenance as well as playing an important role in the food quality assessment, their identification, determination, and quantification are essential aspects of modern analytical chemistry. More and more often, scientists are trying to develop better and better analytical procedures to determine polyphenols in different matrices [9,10].
Concerns and potential risks regarding the use of synthetic chemical antimicrobials and antioxidants have renewed the interests of consumers to use natural and safe alternatives [11]. Therefore, it is important to monitor the content of organic acids and polyphenols in wine samples, not only from the food (mainly wine) quality control point of view but also due to their beneficial potential properties to human health during light to moderate wine consumption.
During the ripening of grapes, sugar and flavonoids are accumulated, the content of organic acids decreases, and the concentration of volatile substances changes [12,13]. Apparently, a greater number of volatile compounds exist pre-veraison than post-veraison, as recorded for Riesling and Cabernet Sauvignon grapes, that also recorded differences (esters and aldehydes were the major class of compounds from Riesling grapes and alcohols for Cabernet Sauvignon) at veraison [12,13].
The composition of wine constituents, from a chemistry point of view, is a crucial aspect for the wine industry. Individual acids and oenological variables are as important as the sugar–acid balance in wine; therefore, detailed evaluation of all compounds present in wine is essential.
Wines consist of a diverse group of low- and high-molecular-weight compounds, including amino acids, organic acids, polyphenols, and carbohydrates, which makes the analysis a highly challenging task. Analysis of Polish wines has been reported since 2010. Wines of different regions of Poland have been analyzed, applying many varied techniques and determining diverse analytes, such as multiresidue pesticides [14,15], polyphenols [16,17], metals [18], and biogenic amines [19,20].
The use of microextraction techniques has had a very important boom in recent years. Techniques such as solid phase microextraction (SPME) with direct immersion (DI) [21], head-space (HS) [22] or fiber derivatization (FD) [23] modes, liquid phase microextraction (LPME) [24], dispersive liquid–liquid microextraction (DLLME) [25] are being accepted due to their low consumption of solvents and reagents and because they are considered environmentally friendly. In addition, these techniques could be easily coupled to gas chromatography (GC) and high-performance liquid chromatography (HPLC) [26].
Different microextraction techniques were used in the extraction and determination of different compounds in wine samples: Solid phase extraction (SPE) for resveratrol and other polyphenols [27], HS-SPME for wine esters [28], DLLME-GC for volatile phenols [29], and DLLME-HPLC for phenolic compounds [25]. In addition, ion pair dispersive liquid–liquid microextraction based on the solidification of a floating organic droplet (IP-DLLME-SFO) for phenolics acids [30]; SPME-FD for polyphenols [23]; and quick, easy, cheap, effective, rugged, and safe (QuEChERS) for multiclass polyphenols [31] are among the most important.
Porous membrane protected microsolid phase extraction (µ-SPE) was described by Basheer and co-workers in 2006. From that moment, more and more applications of this technique have been reported in different matrices and for different analytes. Among the evaluated performances, different groups of investigation assessed changes in type of sorbent, extraction conditions, and kind of analyzed samples [32,33,34,35,36].
A modification of µ-SPE was proposed by Sajid et al. (2019) who used the extraction devices filled with solid sample, instead of a sorbent material, reducing the steps involved in the process [37]. As an extension of those method criteria, a new technique involving ultrasound-assisted solvent extraction of porous membrane-packed liquid samples (UASE-PMLS) was optimized and validated in the presented work. Using the extraction device filled with liquid samples, extraction process is clean, fast, and easy to couple to GC–MS. Regarding other extraction techniques, the amount of solvent used is minimized and no waste is generated. Likewise, organic acids and polyphenols were evaluated in Polish wine samples by UASE-PMLS. Finally, to assess the green character of this new extraction technique, Analytical Eco-Scale and Green Analytical Procedure Index (GAPI) were used.

2. Results and Discussion

2.1. Optimization of an Ultrasound-Assisted Solvent Extraction of Porous Membrane-Packed Liquid Samples

Extraction solvent, extraction temperature, derivatization time, and sample pH were optimized. Since all of the evaluated factors were independent from each other on the obtained response and did not present interaction effects, they were performed as one variable at the time.
Behavior of compounds in each type of presented solvent significantly differed. Peak signal of some compounds showed bigger standard deviation in respect of other compounds in ethyl acetate (EtAc). Lactic and gallic acid showed this conduct. In addition, in ACN, some peaks in the chromatogram presented ghost peaks at different retention times. From six organic acids and nine polyphenols, all organic acids and seven polyphenols were successfully extracted with a good response in the EtAc/dichloromethane (DCM) (1:1) mix solvents (Figure 1A). Hence, the mixture of these low-polarity solvents was chosen for future experiments.
Regarding boiling points of the solvents used in the mixture (39.6 °C and 77.1 °C for DCM and EtAc, respectively), there was not much margin of proof without observing their transformation to the gas state and a scarce extraction of the analytes of interest. Therefore, the extraction process without additional temperature, with 25 °C and 40 °C in the ultrasonic bath, was evaluated, waiting for the temperature to cooperate with the flow of the analytes towards the extraction solvent. Without temperature, the maximum responses were obtained in four out of six organic acids and in eight out of nine polyphenols, while lactic acid, fumaric acid, and catechin showed their maximum signal with 25 °C applied. Thus, the following performances were realized without temperature application. This behavior could be observed because when temperature is applied to the extraction process, the solvent molecules compete between transformations to the gas state or analytes extraction.
Additionally, three times intervals of derivatization process were proposed. First, 15 min with the mixture of derivatizing agent and extraction solvent together; secondly, 15 min only with a derivatizing agent and another 15 min after adding the extraction solvent; and, finally, 30 min with derivatizing agent and 15 min additional after adding the extraction solvent to reconstitute the resulting derivatized compounds. The general trend observed was that at longer derivatization times, better responses were observed in most of the compounds (Figure 1B).
Although application of longer time could be observed a signal of greater intensity, the observed responses are not proportional to the times applied, so it can be assumed that longer time will not increase the responses significantly. In addition, too much time in the derivatization process would discriminate the application of this method for the routine work.
To understand the behavior of the analytes of interest, evaluation of different pH (1.30; 3.45; 4.80; 6.00) in the sample wine was also performed. Different behavior of examined compounds could be observed; the organic acid group is favored in strongly acidic medium (1.30) while the polyphenols group is benefited at less acidic medium pH 3.45. For this reason, it was a compromise to choose the pH 3.45 for the polyphenols analysis and acidic medium (pH 1.30) for the organic acids analysis in wine samples.

2.2. Method Validation

Selectivity was determined by the analysis of standard solutions, optimizing the conditions of separation and determination of the analytes of interest. Figure 2 shows a chromatogram with the determined 15 compounds. It can be seen that the compounds of interest were separated well, and the developed method could be used for the routine analysis of organic acids and polyphenols in wines.
Good linearity was obtained for the concentration ranges evaluated with r coefficient values between 0.9852 and 0.9993. Exact concentrations were expressed in the linear range, which corresponds to the calculation from the preparation of the standard solutions by weighing. Information about linear range, correlation coefficients, limit of detection (LOD), and limit of quantification (LOQ) is shown in Table 1. All parameters of method validation (intra- and inter-day precision and ME) were over 80% with coefficient of variation (CV) up to 17%. Recovery was between (92.0 ± 8.5)% and (113 ± 16)%. Results for each compound are shown in Table 2.

2.3. Quantification of Organic Acids and Polyphenols in Polish Wines

Fourteen out of 15 compounds were present in the wine samples (Table 3 and Table 4). Pterostilbene was not detectable and ferulic acid was not quantifiable in all samples. In red wines, succinic acid showed the maximum concentrations among organic acids. However, citric acid was the one registered at the lowest concentration (fumaric acid was not quantifiable in red wines). Among the polyphenols, (+)-Catechin was present at maximum level (>6000 mg/L) and sinapic acid at the minimum one.
In both rosé and white wines, L-Malic acid was the most abundant acid as predicted, while fumaric acid appeared at the lowest concentration level. In terms of polyphenols, the highest concentrations were noted for (+)-Catechin and caffeic acid in rosé and white samples, respectively. Sinapic acid was not quantifiable in white wines. The range of polyphenol concentrations (up to 40 µg/mL) was several orders of magnitude lower than organic acids (up to 4000 µg/mL), except for the (+)-Catechin in red wine.
Data were explored using a principal component analysis (PCA), in order to investigate if it was possible to distinguish between white and red wine samples (rosé samples were not considered due to the too low number of samples). For this, PCA was performed with the entire data matrix from the information contained in the chromatograms (Rt and m/z ions). The PCA score graph resulting from the first and fourth major components (PC1 and PC4) is shown in Figure 3. Although there is an overlapping area of red (red diamonds) and white wine samples (green squares), a group of red and white wine samples are also observed, respectively, indicating that the discrimination between white and red wine samples was possible in principle. Samples that did not allow the best separation between red and white samples are the triplicate of 2W sample, in which organic acid concentrations were more similar to red wines than white wines. With the idea of obtaining a better classification of the wine samples, a linear discriminant analysis (LDA) was carried out in the next step.
In this case, rosé samples could not be used in the classification by LDA as the number of samples (three) was fewer than the number of variables (six for organic acids and seven for polyphenols). For the construction of the LDA graphs, the mean values of each compounds in the wine samples were used. Considering the analysis both in terms of organic acids and polyphenols, the discrimination between groups of samples was successful.
Regarding to organic acids, sample 2W differs in L-Malic and citric acids concentrations, being at a similar level to red wine samples (results similar to PCA). Despite that, a 95% percentage of classification could be observed. Regarding polyphenols, correct classification concerning white and red wines was 100%. This classification was achieved using the following seven variables: Protocatechuic acid, p-coumaric acid, gallic acid, caffeic acid, sinapic acid, resveratrol, and (+)-Catechin. This analysis presents evidence that the LDA tool allowed the determination of the variables with greater discriminant capacity.
With regard to polyphenols found in Polish wine, Raczkowska et al. (2012) [16] reported higher catechin and epicatechin concentrations and lower levels of resveratrol (<5 mg/L), results in line with those obtained in this work.
Concerning organic acids, similarly to the published results of Dobrowolska-Iwanek et al. (2014) [38], malic acid concentration in the examined white wines was higher than in the red wine. Malolactic fermentation and natural acid content of white grapes could explain these differences, while lactic acid showed an opposite behavior. There was significantly more lactic acid in red wines than in white wines. However, tartaric acid was detected at lower concentrations and with statistical differences between red and white wine samples (p = 0.017). These differences could correspond to the original concentrations of tartaric acid in the grapes used from the wines production.
If the results are compared with wines of different countries [2,39,40,41,42,43], one can observe high variances both for organic acids and for polyphenols. If the different grapes are grown in the countries characterized by different weather conditions, soil characteristics, and also viticultural practices, and the modifications in winemaking procedures are considered, these may be expected results. It would be unusual to expect a very strict concordance between the results obtained by other authors and those reported in the work developed here, since there are many variable conditions: Climate, vineyard, and chemical composition of the grape and soil; harvest; as well as the different winemaking techniques. The procedures with regard to isolation, maceration, and fermentation have an influence on the quality and composition of the final product, which may even differ from one batch to another [38].

2.4. Green Evaluation Assessment

With the growth of greener ideas, innovations in the minimization of techniques and reduction of solvent consumption and waste generation are taking place. Moreover, fewer and fewer derivatization processes are used. There is a general tendency to find appropriate techniques to determine analytes of interest without resorting to these processes that usually use large organic molecules as derivatizing agents. In this case, the derivation process could not be avoided. However, working with small volumes of reagents, only a few µL of these not so desired compounds was used. For this reason, both the technique applied here and some others reported in literature for organic acids and polyphenols determination were evaluated with available green assessment tools: Analytical Eco-Scale and GAPI index.
Based on the penalty points (PP) calculated for each procedure for organic acids determination (Table 5), one can notice that the highest score is achieved by procedure 2 (score: 94) based on water capillary ion analyzer. This signals that the following technique is the greenest in terms of being environmentally friendly, while just behind it, procedure 1 (this work) and procedure 4 are placed, with gathered scores of 88 and 87, respectively. Procedure 4 used electrospray ionization mass spectrometry (ESI-MS) while procedure 1 was based on GC–MS. The least green method, with a score of only 77, is procedure 3, where HPLC-UV was used.
In order to evaluate the greener conditions in polyphenols determination, Analytical Eco-Scale was also used (Table 5). In this case, one can observe the use of complex extraction techniques (liquid–liquid extraction (LLE) and microextraction by packed sorbent (MEPS)) and organic solvents (ACN or pyridine) were the more dangerous characteristics of these methods, obtaining low scores (all scores <90). Among the compared methods, procedure 1 (this work) presented the highest score (score: 88). Procedures 5 and 6 presented similar scores (83 and 84, respectively) and the least green method is procedure 7, which used LLE, an extraction technique that generates a high amount of waste and pyridine, a high toxic organic solvent, resulting in a score of 79.
Finally, GAPI tool [49] was applied to corroborate the amount of penalty points obtained. With this new tool, other variables that are included in the process are taken into account and are sometimes ignored in evaluations such as sample collection, preservation, transport, and storage; sample preparation; reagents, and compounds used; and instrumentation. In addition, the GAPI pictogram added a mark to identify if the method is for quantification or not. Figure 4 shows pictograms of GAPI index for all discussed procedures used in Analytical Eco-Scale evaluation.
It is easily visible that procedure 4 has the lowest and the least hazardous solvent and reagent used, which acts on its favor, placing given analytical practice before procedure 2 (best in Analytical Eco-Scale assessment).
Regarding the polyphenols, the red center represents the complex process due to extraction techniques (required in the most evaluated methods). To the naked eye, procedure 5 is the greenest among the evaluated methods, despite not having obtained the highest score on Analytical Eco-Scale.

3. Materials and Methods

3.1. Reagents

Lactic acid, succinic acid, fumaric acid, L-Malic acid, citric acid, tartaric acid, gallic acid, protocatechuic acid, caffeic acid, sinapic acid and (+)-Catechin were purchased from Sigma-Aldrich (St. Louis, MO, USA). The 3-methylbenzoic acid (internal standard, IS) was acquired from Sigma-Aldrich (St. Louis, MO, USA). p-Coumaric acid and ferulic acid were delivered from Fluka (Honeywell International Inc., North Carolina, USA). Resveratrol and pterostilbene were obtained from Extrasynthese (Extrasynthese, Genay, France). N,O-bis(trimethylsilyl)trifluoroacetamide (BSTFA) with 1% Trimethyl chlorosilane (TMCS) as derivatizing agent and HPLC-grade solvents (acetonitrile (ACN), dichloromethane (DCM), ethyl acetate (EtAc) and methanol) were delivered from Sigma-Aldrich (St.Louis, MO, USA). Polypropylene (PP) flat membrane sheet (Type PP 1E (R/P), pore size: 0.1 μm, wall thickness: 100 μm) was obtained from GVS Filter Technology (Roma, Italy).

3.2. GC–MS Conditions

Analyses were performed using a 7890A GC System (Agilent Technologies, Santa Clara, CA, USA) coupled to an Electron Ionization (EI) ion source and a 5975C single quadrupole MS (Agilent Technologies). A robotic autosampler and a split/splitless injection port were used. Injection port temperature was kept at 250 °C until the end of analysis. The separation of analytes was carried out on a Phenomenex ZB-5 MS capillary column (30 m × 0.25 mm internal diameter, and 0.25 μm film thickness, Shim-pol, Izabelin, Poland) with helium at a purity of 99.999% as the carrier gas in a constant flow of 1 mL/min. The methodology was based on a combination of parameters reported by Jurado Sanchez et al. (2011) [2] and Viñas et al. (2009) [23] with slight modifications. The oven temperature was programmed at 70 °C for 1 min, then increased to 280 °C at 10 °C/min and kept for 5 min. Total time was 27 min. The temperatures of the MS transfer line, ion source, and detector were set at 300, 230 and 150 °C, respectively. The MS was operated in positive mode (electron energy 70 eV). Full-scan acquisition was performed with the mass detection range set at m/z 40–600 to determine retention times of analytes, optimize oven temperature gradient, and to observe characteristic mass fragments for each compound. Data acquisition and analysis were executed by G1701EA GC/MDS Chemstation (version E.02.02.1431) (Agilent Technologies). For the identification and quantification of the analytes, single-ion monitoring (SIM) mode was used, with the ions listed in Table 6.

3.3. Wine Samples

Twenty-three bottles of wines from different regions of Poland were purchased in the Polish wine shop (Table 7). The wine bottles were protected from light and in consistent temperature (20 °C). The bottles of wine were opened a while before the analysis. Red wine (10 bottles), white wine (10 bottles) and rosé wine (three bottles) were analyzed.

3.4. Analytical Procedures and Statistical Analysis

3.4.1. Extraction and Derivatization Procedure

The extraction devices were made according to Basheer et al. (2007) [33]. One end of the membrane was kept open for filling of adsorbent and sample. A total of 60 mg of MgSO4 (support of liquid sample) and 25 μL of sample (spiked with standards of organic acids (OAs) and polyphenols or real sample wine) was filled, and the remaining end was heat-sealed (Figure 5). The dimensions of the extraction device were 1 cm × 1 cm. The extraction device was placed in a 4 mL glass vial with cap, and extraction solvent was added (1 mL to obtain the membrane completely submerged). The vial was immersed in an ultrasound bath and exposed for 25 min, allowing the extraction process to occur, according to Sajid et al. (2019) [37], at the optimal temperature. Then, the extraction device was removed from the vial with tweezers and discarded, and a stream of nitrogen was used to dry the extract. At that point, derivatization agent (N,O-bis(trimethylsilyl)trifluoroacetamide (BSTFA) with 1% trimethyl chlorosilane (TMCS)) was added (30 µL), and the vial was vortexed for 30 s and heated for 30 min (at 35 °C) to allow the derivatization process to occur. Then, an extraction solvent (170 μL) was added into the vial to reconstitute the derivatized analytes, and then they were heated for 15 min more at the same temperature. The subsequent solution was transferred to 200 μL insert placed in autosampler vials, and 2 μL aliquot was injected into GC–MS system for analysis. The optimization experiments and wine samples analysis were realized by triplicate. Efficiency extraction parameters were evaluated and optimized, including extraction solvent, extraction temperature, derivatization time, and sample pH. A comparison of chromatographic responses was used to evaluate the extraction efficiency.

3.4.2. Quality Control (QC) Sample and Calibration Solutions

Analytes stock solution was prepared in methanol by diluting of analytical standards to reach a concentration of 1000 µg/mL. Then, the subsequent dilutions were prepared with MilliQ water (18.2 MΩ·cm). The stock solution of the IS was prepared also in methanol at a concentration of 100 μg/mL.
The standard solutions (n = 3) were prepared at approximately concentrations of 0.05, 0.1, 0.5, 1, 2.5, 5, 10, 15, 25, 50, 75, 100, and 150 µg/mL due to the wide levels found in wine samples. The concentration of the 3-methylbenzoic acid (IS) in each solution was maintained at 1 µg/mL. Calibration curves for organic acid were prepared at pH 1.30 and the polyphenols ones at pH 3.45.
Precision (intra- and inter-day) was evaluated with a QC sample at 10 µg/mL, prepared from the stock solution of analytes and the appropriate volume of IS followed by extraction procedure and GC–MS analysis (intra-day with n = 7 and inter-day with n = 5).
Spiked wine samples were prepared with 5 and 10 µg/mL for polyphenols (except gallic acid) and 15 and 20 µg/mL for organic acids and gallic acid to evaluate recovery. Recovery was expressed as % R ± U%R (k = 2).
Matrix effect (ME) was performed in red, white, and rosé wine with spike samples with 5 µg/mL and expressed like accuracy (precision); precision calculated as coefficient of variation (CV).

3.4.3. Method Validation

Standard validation parameters such as linearity, selectivity, sensitivity, limit of detection (LOD), limit of quantification (LOQ), and repeatability were evaluated. In addition, the recovery was calculated.
LOD was evaluated based on the regression parameters of the weighted calibration curves and was calculated using the following formula: LOD = 3.3 · Sb/a, where Sb is the standard deviation of the intercept and a is the slope of the calibration curve with the three lowest concentrations. LOQ was calculated as three times LOD.

3.4.4. Statistical Analysis

Evaluation of the dataset of method validation was performed using the Excel files provided by Konieczka and Namiesnik (2018) [50]. Data from chromatograms were processed using MZmine and Matlab® for the construction of principal component analysis (PCA). Linear discriminant analysis (LDA) was performed using The Unscrambler X.

4. Conclusions

Applying ultrasound-assisted solvent extraction of porous membrane-packed samples in liquid samples was a unique challenge due to a lack of previous reports in the scientific collected works. In this case, the use of sorbent (MgSO4) worked only like a support of liquid sample, but not like analytes sorbent. Analytes of interest passed through the membrane to extraction solvent, without another additional desorption step. Potential matrix interferences were retained inside the membrane. In addition, this method did not need a pre-conditioned treatment for the extraction device.
Among the most outstanding advantages from the different authors and proved in this work, the easiness in the extraction (due to the combination of cleanliness and concentration in one step), the miniaturization of the process, the minimization of the use of organic solvents (unwanted in the current analytical laboratories), and hence, limitation of generation of waste, stand out. In addition, the reduction of matrix effects was observed in complex samples, the application of the devices to semi-solid samples and, above all, the low cost involved in the process. Regarding the validation parameters, linearity, CV, and LODs of UASE-PMLS were acceptable and comparable with other techniques like SPE [34], SPME [32], and DLLME [51], among others. In addition, the recoveries were satisfactory. The main limitations of freshly developed extraction technique are related to the membrane bag, which cannot be reused as well as there is a risk of breakage during the extraction process.
Finally, the application to real samples was successful in all cases. The Analytical Eco-Scale and GAPI evaluations showed satisfactory results and underline its green performance, which means that the given technique can be considered environmentally friendly. Moreover, the developed extraction technique is a new tool that is expected to be explored for the determination of different analytes in diverse matrices, such as environmental and food samples, among others.

Author Contributions

The manuscript was written through contributions of all authors. All authors have given approval to the final version of the manuscript. Conceptualization, A.D.R., J.P.-W. and M.F.; methodology, J.P.-W.; software, A.D.R.; validation, A.D.R.; formal analysis, A.D.R.; investigation, J.P.-W.; resources, J.P.-W.; data curation, A.D.R.; writing—original draft preparation, A.D.R. and M.F.; writing—review and editing, J.P.-W. and P.K.; visualization, A.D.R.; supervision, J.P.-W. and P.K.; project administration, J.P.-W.; funding acquisition, J.P.-W. and P.K.


This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Tarko, T.; Duda-Chodak, A.; Sroka, P.; Satora, P.; Jurasz, E. Polish wines: Characteristics of cool-climate wines. J. Food Compos. Anal. 2010, 23, 463–468. [Google Scholar] [CrossRef]
  2. Jurado-Sánchez, B.; Ballesteros, E.; Gallego, M. Gas chromatographic determination of 29 organic acids in foodstuffs after continuous solid-phase extraction. Talanta 2011, 84, 924–930. [Google Scholar] [CrossRef]
  3. Sumby, K.M.; Grbin, P.R.; Jiranek, V. Implications of new research and technologies for malolactic fermentation in wine. Appl. Microbiol. Biotechnol. 2014, 98, 8111–8132. [Google Scholar] [CrossRef] [PubMed]
  4. Iqbal, K.; Khan, A.; Ali, M.M.; Khattak, K. Biological Significance of Ascorbic Acid (Vitamin C) in Human Health—A Review. Pak. J. Nutr. 2004, 3, 5–13. [Google Scholar]
  5. Bortz, J.D.; Kirschner, M.I. A1 Methods and Compositions for Enhancing Iron Absorption Patent Application Publication Pub. No. US 2016/0022631, 28 June 2016. [Google Scholar]
  6. Nagai, R.; Nagai, M.; Shimasaki, S.; Baynes, J.W.; Fujiwara, Y. Biochemical and Biophysical Research Communications Citric acid inhibits development of cataracts, proteinuria and ketosis in streptozotocin (type 1) diabetic rats. Biochem. Biophys. Res. Commun. 2010, 393, 118–122. [Google Scholar] [CrossRef] [PubMed]
  7. Marunaka, Y. The Proposal of Molecular Mechanisms of Weak Organic Acids Intake-Induced Improvement of Insulin Resistance in Diabetes Mellitus via Elevation of Interstitial Fluid pH. Int. J. Mol. Sci. 2018, 19, 3244. [Google Scholar] [CrossRef]
  8. Tomás- Barberán, F.A. Los polifenoles de los alimentos y la salud. Aliment. Nutr. Y Salud 2003, 10, 41–53. [Google Scholar]
  9. Galarce-Bustos, O.; Novoa, L.; Pavon-Perez, J.; Henriquez-Aedo, K.; Aranda, M. Chemometric Optimization of QuEChERS Extraction Method for Polyphenol Determination in Beers by Liquid Chromatography with Ultraviolet Detection. Food Anal. Methods 2019, 12, 448–457. [Google Scholar] [CrossRef]
  10. Caprioli, G.; Boarelli, M.C.; Ricciutelli, M.; Sagratini, G.; Fiorini, D. Micro-scaled Quantitative Method to Analyze Olive Oil Polyphenols. Food Anal. Methods 2019, 12, 1133–1139. [Google Scholar] [CrossRef]
  11. Perumalla, A.V.S.; Hettiarachchy, N.S. Green tea and grape seed extracts—Potential applications in food safety and quality. Food Res. Int. 2011, 44, 827–839. [Google Scholar] [CrossRef]
  12. Ferrandino, A.; Carlomagno, A.; Baldassarre, S.; Schubert, A. Varietal and pre-fermentative volatiles during ripening of Vitis vinifera cv Nebbiolo berries from three growing areas. Food Chem. 2012, 135, 2340–2349. [Google Scholar] [CrossRef] [PubMed]
  13. Liang, Z.; Sang, M.; Fan, P.; Wu, B.; Wang, L.; Duan, W.; Li, S. Changes of Polyphenols, Sugars, and Organic Acid in 5 Vitis Genotypes during Berry Ripening. J. Food Sci. 2011, 76, 1231–1238. [Google Scholar] [CrossRef] [PubMed]
  14. Walorczyk, S.; Drozdzynski, D.; Gnusowski, B. Multiresidue determination of 160 pesticides in wines employing mixed-mode dispersive-solid phase extraction and gas chromatography—tandem mass spectrometry. Talanta 2011, 85, 1856–1870. [Google Scholar] [CrossRef] [PubMed]
  15. Tuzimski, T. Determination of pesticides in wines samples by HPLC-DAD and HPTLC-DAD. J. Liq. Chromatogr. Relat. Technol. 2012, 35, 1415–1428. [Google Scholar] [CrossRef]
  16. Raczkowska, J.; Mielcarz, G.; Howard, A.; Raczkowski, M. UPLC and Spectrophotometric Analysis of Polyphenols in Wines Available in the Polish Market. Int. J. Food Prop. 2011, 14, 514–522. [Google Scholar] [CrossRef]
  17. Adamski, J.; Kochana, J.; Nowak, P.; Parczewski, A. On the electrochemical biosensing of phenolic compounds in wines. J. Food Compos. Anal. 2016, 46, 1–6. [Google Scholar] [CrossRef]
  18. Plotka-Wasylka, J.; Rutkowska, M.; Cieslik, B.; Tyburcy, A.; Namieśnik, J. Determination of Selected Metals in Fruit Wines by Spectroscopic Techniques. J. Anal. Methods Chem. 2017, 2017, 5283917. [Google Scholar] [CrossRef]
  19. Plotka-Wasylka, J.; Namiesnik, J.; Klodzinska, E. Determination of Biogenic Amines in Wine using Micellar Electrokinetic Chromatography. J. Res. Anal. 2017, 3, 62–66. [Google Scholar]
  20. Piasta, A.M.; Jastrzebska, A.; Krzeminski, M.P.; Muziol, T.M.; Szlyk, E. New procedure of selected biogenic amines determination in wine samples by HPLC. Anal. Chim. Acta 2014, 834, 58–66. [Google Scholar] [CrossRef]
  21. Papageorgiou, M.; Lambropoulou, D.; Morrison, C.; Namiesnik, J.; Plotka-Wasylka, J. Direct solid phase microextraction combined with gas chromatography—Mass spectrometry for the determination of biogenic amines in wine. Talanta 2018, 183, 276–282. [Google Scholar] [CrossRef]
  22. Barros, P.E.; Moreira, N.; Pereira, E.G.; Gomes Ferreira Leite, S.; Moraes Rezende, C.; Guedes de Pinho, P. Development and validation of automatic HS-SPME with a gas chromatography-ion trap/mass spectrometry method for analysis of volatiles in wines. Talanta 2012, 101, 177–186. [Google Scholar] [CrossRef] [PubMed]
  23. Viñas, P.; Campillo, N.; Martínez-Castillo, N.; Hernández-Córdoba, M. Solid-phase microextraction on-fiber derivatization for the analysis of some polyphenols in wine and grapes using gas chromatography-mass spectrometry. J. Chromatogr. A 2009, 1216, 1279–1284. [Google Scholar] [CrossRef] [PubMed]
  24. Sajid, M.; Płotka-Wasylka, J. Combined extraction and microextraction techniques: Recent trends and future perspectives. Trends Anal. Chem. 2018, 103, 74–86. [Google Scholar] [CrossRef]
  25. Yang, P.; Li, H.; Wang, H.; Han, F.; Jing, S.; Yuan, C.; Guo, A.; Zhang, Y.; Xu, Z. Dispersive Liquid-Liquid Microextraction Method for HPLC Determination of Phenolic Compounds in Wine. Food Anal. Methods 2017, 10, 2383–2397. [Google Scholar] [CrossRef]
  26. Sun, S.Y.; Jiang, W.G.; Zhao, Y.P. Comparison of aromatic and phenolic compounds in cherry wines with different cherry cultivars by HS-SPME-GC-MS and HPLC. Int. J. Food Sci. Technol. 2012, 47, 100–106. [Google Scholar] [CrossRef]
  27. Hashim, S.N.N.S.; Schwarz, L.J.; Boysen, R.I.; Yang, Y.; Danylec, B.; Hearn, M.T.W. Rapid solid-phase extraction and analysis of resveratrol and other polyphenols in red wine. J. Chromatogr. A 2013, 1313, 284–290. [Google Scholar] [CrossRef]
  28. Antalick, G.; Perello, M.; Revel, G. De Development, validation and application of a specific method for the quantitative determination of wine esters by headspace-solid-phase microextraction-gas chromatography—Mass spectrometry. Food Chem. 2010, 121, 1236–1245. [Google Scholar] [CrossRef]
  29. Fariña, L.; Boido, E.; Carrau, F.; Dellacassa, E. Determination of volatile phenols in red wines by dispersive liquid—Liquid microextraction and gas chromatography—Mass spectrometry detection. J. Chromatogr. A 2007, 1157, 46–50. [Google Scholar] [CrossRef]
  30. Li, J.; Jia, S.; Jun, S.; Ji, S.; Won, S.; Lee, J. Ion-pair dispersive liquid—Liquid microextraction solidification of floating organic droplets method for the rapid and sensitive detection of phenolic acids in wine samples using liquid chromatography combined with a core—Shell particle column. J. Food Compos. Anal. 2016, 45, 73–79. [Google Scholar] [CrossRef]
  31. Fontana, A.R.; Bottini, R. High-throughput method based on quick, easy, cheap, effective, rugged and safe followed by liquid chromatography-multi-wavelength detection for the quantification of multiclass polyphenols in wines. J. Chromatogr. A 2014, 1342, 44–53. [Google Scholar] [CrossRef]
  32. Basheer, C.; Alnedhary, A.A.; Rao, B.S.M.; Valliyaveettil, S.; Lee, H.K. Development and Application of Porous Membrane-Protected Carbon Nanotube Micro-Solid-Phase Extraction Combined with Gas Chromatography/Mass Spectrometry. Anal. Chem. 2006, 78, 2853–2858. [Google Scholar] [CrossRef] [PubMed]
  33. Basheer, C.; Chong, H.G.; Hii, T.M.; Lee, H.K. Application of Porous Membrane-Protected Micro-Solid-Phase Extraction Combined with HPLC for the Analysis of Acidic Drugs in Wastewater. Anal. Chem. 2007, 79, 6845–6850. [Google Scholar] [CrossRef] [PubMed]
  34. Basheer, C.; Wong, W.; Makahleh, A.; Tameem, A.A.; Salhin, A.; Saad, B.; Lee, H.K. Hydrazone-based ligands for micro-solid phase extraction-high performance liquid chromatographic determination of biogenic amines in orange juice. J. Chromatogr. A 2011, 1218, 4332–4339. [Google Scholar] [CrossRef] [PubMed]
  35. Lashgari, M.; Basheer, C.; Lee, H.K. Application of surfactant-templated ordered mesoporous material as sorbent in micro-solid phase extraction followed by liquid chromatography—Triple quadrupole mass spectrometry for determination of perfluorinated carboxylic acids in aqueous. Talanta 2015, 141, 200–206. [Google Scholar] [CrossRef]
  36. Sajid, M.; Basheer, C.; Narasimhan, K.; Choolani, M.; Lee, H.K. Application of microwave-assisted micro-solid-phase extraction for determination of parabens in human ovarian cancer tissues. J. Chromatogr. B 2015, 1000, 192–198. [Google Scholar] [CrossRef]
  37. Sajid, M.; Wozniak, M.K.; Plotka-Wasylka, J. Ultrasound-assisted solvent extraction of porous membrane packed solid samples: A new approach for extraction of target analytes from solid samples. Microchem. J. 2019, 144, 117–123. [Google Scholar] [CrossRef]
  38. Dobrowolska-Iwanek, J.; Gąstoł, M.; Wanat, A.; Krośniak, M.; Jancik, M.; Zagrodzki, P. Wine of Cool-climate Areas in South Poland. S. Afr. J. Enol. Vitic. 2014, 35, 1–9. [Google Scholar] [CrossRef]
  39. Ohira, S.; Kuhara, K.; Shigetomi, A.; Yamasaki, T.; Kodama, Y.; Dasguota, P.K.; Toda, K. On-line electrodialytic matrix isolation for chromatographic determination of organic acids in wine. J. Chromatogr. A 2014, 1372, 18–24. [Google Scholar] [CrossRef][Green Version]
  40. Zeravik, J.; Fohlerova, Z.; Milovanovic, M.; Kubesa, O.; Zeisbergerova, M.; Lacina, K.; Petrovic, A.; Glatz, Z.; Skladal, P. Various instrumental approaches for determination of organic acids in wines. Food Chem. 2016, 194, 432–440. [Google Scholar] [CrossRef]
  41. Minuti, L.; Pellegrino, R.M.; Tesei, I. Simple extraction method and gas chromatography—Mass spectrometry in the selective ion monitoring mode for the determination of phenols in wine. J. Chromatogr. A 2006, 1114, 263–268. [Google Scholar] [CrossRef]
  42. Anli, R.E.; Vural, N.; Kizile, E. An alternative method for the determination of some of the antioxidant phenolics in varietal Turkish red wines. J. Inst. Brew. 2008, 114, 239–245. [Google Scholar] [CrossRef]
  43. Šeruga, M.; Novak, I.; Jakobek, L. Determination of polyphenols content and antioxidant activity of some red wines by differential pulse voltammetry, HPLC and spectrophotometric methods. Food Chem. 2011, 124, 1208–1216. [Google Scholar] [CrossRef]
  44. Mato, I.; Suarez-Luque, S.; Huidoro, J.F. Simple determination of main organic acids in grape juice and wine by using capillary zone electrophoresis with direct UV detection. Food Chem. 2007, 102, 104–112. [Google Scholar] [CrossRef]
  45. Cunha, S.C.; Fernandes, J.O.; Faria, M.A.; Ferreira, I.M.P.L.V.O.; Ferreira, M.A. Quantification of Organic Acids in grape musts and Port Wines. CYTA J. Food 2002, 3, 212–216. [Google Scholar]
  46. do Nascimento Silva, F.L.; Schmidt, E.M.; Messias, C.L.; Nogueira Eberlin, M.; Sawaya Frankland, H.A.C. Quantitation of organic acids in wine and grapes by direct infusion electrospray ionization mass spectrometry. Anal. Methods 2015, 7, 53–62. [Google Scholar] [CrossRef][Green Version]
  47. Bai, S.; Cui, C.; Liu, J.; Li, P.; Li, Q.; Bi, K. Quantification of polyphenol composition and multiple statistical analyses of biological activity in Portuguese red wines. Eur. Food Res. Technol. 2018, 244, 2007–2017. [Google Scholar] [CrossRef]
  48. Gonçalves, J.; Mendes, B.; Silva, C.L.; Câmara, J.S. Development of a novel microextraction by packed sorbent-based approach followed by ultrahigh pressure liquid chromatography as a powerful technique for quantification phenolic constituents of biological interest in wines. J. Chromatogr. A 2012, 1229, 13–23. [Google Scholar] [CrossRef]
  49. Plotka-Wasylka, J. A new tool for the evaluation of the analytical procedure: Green Analytical Procedure Index. Talanta 2018, 181, 204–209. [Google Scholar] [CrossRef]
  50. Konieczka, P.; Namieśnik, J. Quality Assurance and Quality Control in the Analytical Chemical Laboratory. A Practical Approach, 2nd ed.; CRC Press Taylor & Francis Group: Boca Raton, FL, USA, 2018; ISBN 9781138196728. [Google Scholar]
  51. Sajid, M.; Basheer, C.; Alsharaa, A.; Narasimhan, K.; Buhmeida, A.; Qahtani, M.; Al-ahwal, M.S. Development of natural sorbent based micro-solid-phase extraction for determination of phthalate esters in milk samples. Anal. Chim. Acta 2016, 924, 35–44. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds are available from the authors.

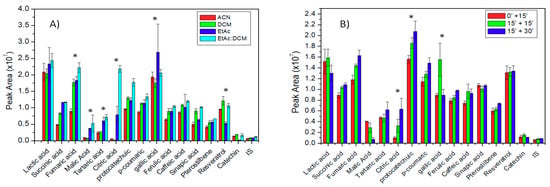

Figure 1. (A) Comparison of chromatographic responses in different extraction solvents. Error bars represent ±SD (n = 3). (B) Comparison of chromatographic responses at different derivatization times. Error bars represent ±SD (n = 3). The means differences are statistically significant (p < 0.05). (*): statistically different.
Figure 1. (A) Comparison of chromatographic responses in different extraction solvents. Error bars represent ±SD (n = 3). (B) Comparison of chromatographic responses at different derivatization times. Error bars represent ±SD (n = 3). The means differences are statistically significant (p < 0.05). (*): statistically different.
Molecules 24 04376 g001

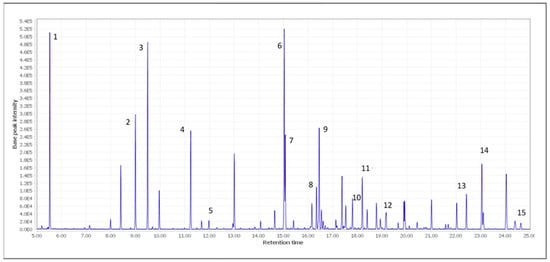

Figure 2. Chromatogram with identified compounds from standard solutions. 1. Lactic acid. 2. Succinic acid. 3. Fumaric acid. 4. L-Malic acid. 5. Tartaric acid. 6. Citric acid. 7. Protocatechuic acid. 8. p-Coumaric acid. 9. Gallic acid. 10. Ferulic acid. 11. Caffeic acid. 12. Sinapic acid. 13. Pterostilbene. 14. Resveratrol. 15. (+)-Catechin.
Figure 2. Chromatogram with identified compounds from standard solutions. 1. Lactic acid. 2. Succinic acid. 3. Fumaric acid. 4. L-Malic acid. 5. Tartaric acid. 6. Citric acid. 7. Protocatechuic acid. 8. p-Coumaric acid. 9. Gallic acid. 10. Ferulic acid. 11. Caffeic acid. 12. Sinapic acid. 13. Pterostilbene. 14. Resveratrol. 15. (+)-Catechin.
Molecules 24 04376 g002

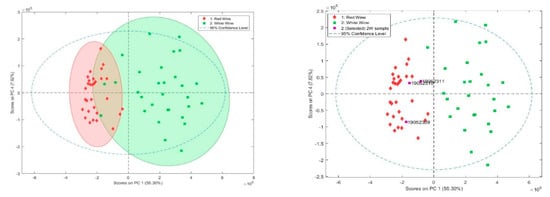

Figure 3. Principal component analysis (PCA) scores of the variables with PC1 and PC4 based on organic acids and polyphenols (retention times and m/z ions).
Figure 3. Principal component analysis (PCA) scores of the variables with PC1 and PC4 based on organic acids and polyphenols (retention times and m/z ions).
Molecules 24 04376 g003

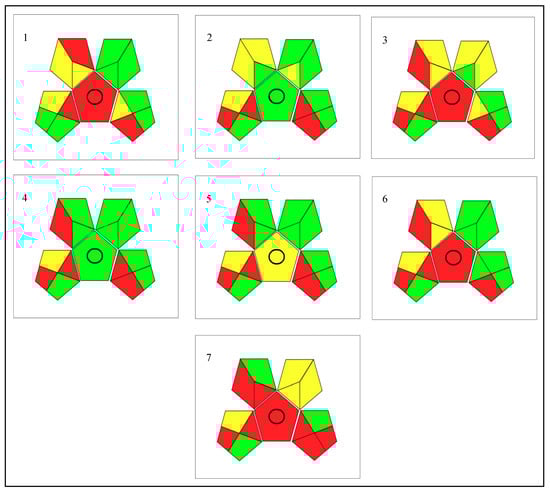

Figure 4. Assessment of the green profile of evaluated procedures for organic acid (2–4) and polyphenols (5–7) determination using Green Analytical Procedure Index (GAPI) tool. Procedure 1 is the one performed in this work.
Figure 4. Assessment of the green profile of evaluated procedures for organic acid (2–4) and polyphenols (5–7) determination using Green Analytical Procedure Index (GAPI) tool. Procedure 1 is the one performed in this work.
Molecules 24 04376 g004

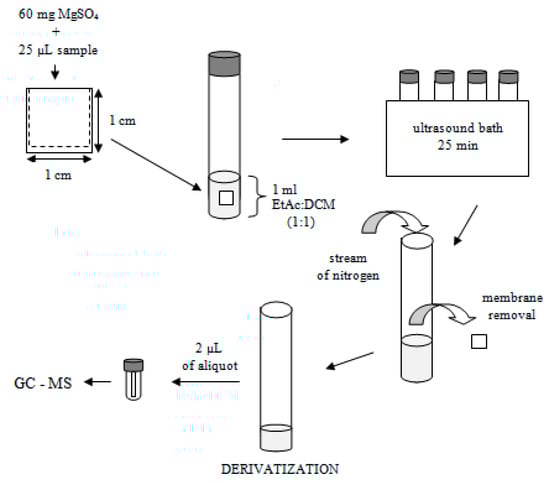

Figure 5. Scheme of the extraction procedure.
Figure 5. Scheme of the extraction procedure.
Molecules 24 04376 g005
Table 1. Quantification and calibration information for organic acids and polyphenols.
Table 1. Quantification and calibration information for organic acids and polyphenols.
CompoundsLinear Range (µg/mL)rLOD (µg/mL)LOQ (µg/mL)
Lactic acid11–950.99273.611
Fumaric acid0.83–30.630.99910.280.83
Succinic acid5.6–25.40.99651.95.6
L-Malic acid2.2–26.10.98820.752.2
Tartaric acid25.13–150.750.99075.917
Citric acid24–147.80.98528.224
Protocatechuic acid1.1–320.99930.361.1
p-Coumaric acid0.81–33.50.99810.270.81
Gallic acid0.047–23.630.99150.0160.047
Ferulic acid1.0–32.50.99790.351.0
Caffeic acid3.7–82.50.99921.23.7
Sinapic acid0.95–300.99910.320.95
LOD, limit of detection; LOQ, limit of quantification; r, correlation coefficient.
Table 2. Information about method validation and recovery for organic acids and polyphenols in Polish wines.
Table 2. Information about method validation and recovery for organic acids and polyphenols in Polish wines.
CompoundsInter-day precision
Accuracy (precision*)
(n = 5) (c = 10 µg/mL)
Intra-day precision
Accuracy (precision*)
(n = 7)
(c = 10 µg/mL)
Accuracy (precision*) (n = 3)
(c = 5 µg/mL)
Day 1Day 2Day 3(c = µg/mL)%R ± U%R(k = 2)
(n = 5)
Lactic acid95 (17)101 (15)102.8 (3.7)99.7 (1.3)15111 ± 1899.7 (9.3)116.9 (8.0)100.6 (1.4)
20 109 ± 16
Fumaric acid103 (12)98.4 (9.5)101 (13)109.1 (6.5)15104 ± 2299.5 (2.6)92.2 (1.2)102.7 (4.8)
20 92.0 ± 8.5
Succinic acid108.0 (9.4)109.9 (2.6)106 (12)96.3 (4.9)15 105 ± 1594 (13)94.9 (8.5)98.7 (2.6)
20103.0 ± 7.8
L- Malic acid87.5 (6.3)95 (15)92.3 (6.9)91.0 (5.5)1599.0 ± 4.4102.2 (6.0)103.26 (0.41)99 (11)
20101.2 ± 8.9
Tartaric acid110 (14)104 (16)100.4 (8.2)105.6 (1.2)15102.6 ± 5.787.0 (9.6)102.8 (6.0)95.1 (6.7)
20113 ± 16
Citric acid95 (13)83 (15)94.8 (9.8)102.1 (7.7)1598.6 ± 3.8110.7 (7.3)107.4 (6.5)111.9 (8.8)
2098.5 ± 3.1
Protocatechuic acid111.2 (7.7)100.2 (6.4)101 (12)98.9 (7.2)5108 ± 15107.7 (9.1)112 (12)108.7 (7.2)
1098.5 ± 3.6
p-Coumaric acid99.2 (8.2)94.5 (6.1)95.6 (9.0)103.4 (7.0)596 ± 1596.0 (5.0)107.9 (7.5)90.3 (3.4)
1096 ± 12
Gallic acid109.5 (2.9)102.5 (8.5)99 (11)104.2 (4.6)1594.5 ± 7.898.77 (6.8)84.9 (2.2)103.2 (4.3)
2098.7 ± 4.7
Ferulic acid93.1 (7.8)91.3 (7.6)92 (10)99.4 (6.6)5103 ± 18103.4 (6.9)98.4 (2.6)99.5 (2.2)
10102 ± 10
Caffeic acid94.9 (8.1)100 (13)117 (16)95.0 (7.3)5101 ± 13101.4 (3.6)104.09 (0.58)99.2 (2.5)
1093.7 ± 7.6
Sinapic acid103 (14)99 (12)109 (13)104.9 (9.8)5106 ± 17106.5 (4.1)105.4 (8.5)103.58 (0.29)
10103 ± 12
Pterostilbene103.9 (3.9)110 (13)112.8 (9.2)100.7 (9.0)5102.3 ± 2.9102.2 (5.0)100.9 (2.0)96.9 (3.0)
10110 ± 11
Resveratrol102 (12)96 (15)98.9 (8.5)105.0 (7.5)599 ± 16114.7 (7.9)99.6 (3.0)96 (11)
10106 ± 13
(+)-Catechin98.0 (2.8)107.9 (1.2)106.5 (7.8)108.3 (6.8)595 ± 11106.5 (2.3)95.1 (4.8)103.4 (7.2)
1097 ± 12
* precision expressed as coefficient of variation (CV%).
Table 3. Concentration of polyphenols (µg/mL) in wine samples (n = 3) determined with the use of UAPM-LS GC–MS.
Table 3. Concentration of polyphenols (µg/mL) in wine samples (n = 3) determined with the use of UAPM-LS GC–MS.
SampleProtocatechuic Acidp-Coumaric AcidGallic AcidFerulic AcidCaffeic AcidSinapic AcidPterostilbeneResveratrol(+)-Catechin
1R1.830 ± 0.0277.82 ± 0.102.360 ± 0.077<LOQ25.18 ± 0.20<LOQ<LOD2.880 ± 0.036454 ± 112
2R2.50 ± 0.1010.62 ± 0.332.210 ± 0.081<LOQ15.41 ± 0.33<LOQ<LOD2.460 ± 0.019336 ± 61
3R5.22 ± 0.452.990 ± 0.0702.49 ± 0.51<LOQ9.14 ± 0.41<LOQ<LOD2.960 ± 0.074383 ± 36
4R6.75 ± 0.7211.65 ± 0.814.97 ± 0.91<LOQ21.03 ± 2.110.960 ± 0.035<LOD2.980 ± 0.060965 ± 349
5R2.48 ± 0.334.39 ± 0.612.51 ± 0.20<LOQ12.1 ± 1.4<LOQ<LOD2.330 ± 0.05266.9 ± 7.3
6R<LOQ12.33 ± 0.672.72 ± 0.16<LOQ25.3 ± 2.3<LOQ<LOD2.540 ± 0.045140 ± 19
7R<LOQ7.15 ± 0.796.59 ± 0.97<LOQ30.7 ± 3.0<LOQ<LOD5.09 ± 0.236226 ± 243
8R5.26 ± 0.1210.87 ± 0.536.11 ± 0.41<LOQ8.36 ± 0.410.96 ± 0.41<LOD4.0 ± 0.142860 ± 116
9R2.24 ± 0.177.12 ± 0.311.02000 ± 0.00051<LOQ14.3 ± 2.6<LOQ<LOD2.280 ± 0.06110.4 ± 2.9
10R<LOQ12.4 ±1.10.86 ± 0.51<LOQ10.2 ± 1.30.950 ± 0.041<LOD4.70 ± 0.545525 ± 994
1Ro<LOQ<LOQ0.100 ± 0.012<LOQ6.52 ± 0.37<LOQ<LOD2.320 ± 0.099<LOQ
2Ro2.37 ± 0.8522.3 ± 3.81.18 ± 0.42<LOQ13.6 ± 3.21.03 ± 0.13<LOD2.290 ± 0.05638 ± 13
3Ro<LOQ<LOQ0.1200 ± 0.0006<LOQ5.49 ± 0.77<LOQ<LOD2.210 ± 0.013<LOQ
1W<LOQ1.110 ± 0.0590.240 ± 0.014<LOQ8.88 ± 0.22<LOQ<LOD2.2700 ± 0.0046119 ± 12
2W<LOQ0.800 ± 0.0520.190 ± 0.016<LOQ8.31 ± 0.15<LOQ<LOD2.250 ± 0.02141.9 ± 1.4
3W<LOQ0.94 ± 0.250.320 ± 0.051<LOQ6.17 ± 0.26<LOQ<LOD2.270 ± 0.02516.8 ± 4.7
4W<LOQ2.23 ± 0.330.470 ± 0.040<LOQ7.570 ± 0.040<LOQ<LOD2.380 ± 0.02934.9 ± 2.7
5W<LOQ0.9100 ± 0.00910.610 ± 0.093<LOQ7.69 ± 0.60<LOQ<LOD2.360 ± 0.02129.6 ± 1.5
6W<LOQ<LOQ0.1200 ± 0.0072<LOQ5.78 ± 0.33<LOQ<LOD2.2400 ± 0.004234.2 ± 6.4
7W1.34 ± 0.211.23 ± 0.230.210 ± 0.013<LOQ6.33 ± 0.26<LOQ<LOD2.510 ± 0.025110 ± 28
8W<LOQ<LOQ0.09 ± 0.10<LOQ4.4500 ± 0.0048<LOQ<LOD2.2000 ± 0.0096<LOQ
9W<LOQ1.1200 ± 0.00540.250 ± 0.020<LOQ5.27 ± 0.17<LOQ<LOD2.250 ± 0.02015 ± 11
10W<LOQ2.220 ± 0.0420.300 ± 0.051<LOQ6.22 ± 0.12<LOQ<LOD2.3100 ± 0.004329.9 ± 1.6
Table 4. Concentration of organic acids (µg/mL) in wine samples (n = 3) determined with the use of UAPM-LS-GC–MS.
Table 4. Concentration of organic acids (µg/mL) in wine samples (n = 3) determined with the use of UAPM-LS-GC–MS.
SampleLactic AcidSuccinic AcidFumaric AcidL-Malic AcidTartaric AcidCitric Acid
1R260.7 ± 4.5259.3 ± 4.8<LOQ23.5 ± 1.858.9 ± 1.3<LOQ
2R340 ± 13457 ± 11<LOQ117 ± 1046.8 ± 3.5<LOQ
3R299 ± 18456 ± 28<LOQ54.2 ± 3.644.8 ± 3.426.8 ± 3.4
4R316 ± 37465 ± 51<LOQ571 ± 6248.5 ± 2.054 ± 17
5R306 ± 23466 ± 52<LOQ37.9 ± 4.865.0 ± 4.9<LOQ
6R316.0 ± 8.9388 ± 28<LOQ31.1 ± 6.239.3 ± 2.8<LOQ
7R356.2 ± 1.9351 ± 19<LOQ115 ± 2939.9 ± 2.9<LOQ
8R333.3 ± 5.1355.3 ± 2.4<LOQ217.7 ± 7.241.5 ± 1.632.9 ± 5.0
9R310 ± 16401.7 ± 1.4<LOQ20.9 ± 4.046.8 ± 4.5<LOQ
10R439 ± 60370.7 ± 4.4<LOQ23.3 ± 3.243.3 ± 6.3<LOQ
1Ro125.6 ± 7.8338 ± 34<LOQ867 ± 10444.2 ± 4.1163.33 ± 0.72
2Ro221 ± 11950 ± 2871.38 ± 0.512185 ± 59378.9 ± 7.9371 ± 51
3Ro320 ± 34248 ± 13<LOQ205.7 ± 5.535.5 ± 1.5187.6 ± 1.0
1W45.2 ± 1.0256 ± 12<LOQ870 ± 6576 ± 11163 ± 12
2W328 ± 12316 ± 31<LOQ175.4 ± 4.933.2 ± 2.3<LOQ
3W117.0 ± 3.9310.9 ± 4.72.060 ± 0.087901.7 ± 4.434.2 ± 2.9206.2 ± 1.9
4W53.9 ± 7.8272 ± 291.55 ± 0.131081 ± 17540.47 ± 0.80222 ± 34
5W79.6 ± 4.5474 ± 163.10 ± 0.111421 ± 3435.2 ± 1.3329 ± 11
6W60.5 ± 2.9253 ± 18<LOQ921 ± 6242.6 ± 2.4172.6 ± 3.9
7W99 ± 10576 ± 341.47 ± 0.191158 ± 8547.86 ± 0.51312 ± 19
8W75.9 ± 1.4226 ± 19<LOQ1027 ± 6133.1 ± 1.8172 ± 22
9W226 ± 16338 ± 452.77 ± 0.361661 ± 24737.5 ± 2.6297 ± 33
10W315 ± 19385 ± 131.67 ± 0.111640 ± 8734.5 ± 1.1322 ± 35
Table 5. Calculated penalty points (PPs) for evaluated analytical procedures for organic acids (2–4) and polyphenols (5–7) determination in wine.
Table 5. Calculated penalty points (PPs) for evaluated analytical procedures for organic acids (2–4) and polyphenols (5–7) determination in wine.
Procedure 1 (This Work)Procedure 2 [44]Procedure 3 [45]Procedure 4 [46]Procedure 5 [47]Procedure 6 [48]Procedure 7 [41]
MgSO40NaH2PO40benzylmalonic acid (IS)1Methanol3Formic acid2MeOH3Phenanthrene1
EtAc1Na2HPO40O-(4-nitrobenzyl)-N,N’-diisopropylisourea2Water0Acetonitrile6Formic acid22,3-benzophenanthrene3
DCM1Tetradecyltrimethyl ammonium hydroxide2Dioxane6Ammonium hydroxide6MeOH3Acetic acid2BSTFA + 1% TMCS2
MeOH3CaCl20Acetonitrile6 Water0Ethanol absolute3Pyridine3
BSTFA + 1% TMCS2Water0Water0 NaOH2EtAc1
3-methylbenzoic acid (IS)0 Water0
Ʃ 7 Ʃ 2 Ʃ 15 Ʃ 9 Ʃ 11 Ʃ 12 Ʃ 10
GC–MS2Water Capillary Ion Analyzer2Heater2ESI-MS2Filtration0MEPS2LLE2
Ultrasound bath1Occupational hazard0HPLC-UV2Occupational hazard0UFLC-MS/MS2UHPLC-PDA0GC–MS2
Occupational hazard0Waste1Occupational hazard0Waste1Occupational hazard0Occupational hazard0Occupational hazard1
Waste1 Waste3 Waste3Waste1Waste5
Ʃ 5 Ʃ 4 Ʃ 8 Ʃ 4 Ʃ 6 Ʃ 4 Ʃ 11
Total PPs: 12 Total PPs: 6 Total PPs: 23 Total PPs: 13 Total PPs: 17 Total PPs: 16 Total PPs: 21
Score: 88 Score: 94 Score: 77 Score: 87 Score: 83 Score: 84 Score: 79
Table 6. List of determined compounds, their retention times, and selected ions for single-ion monitoring (SIM) mode.
Table 6. List of determined compounds, their retention times, and selected ions for single-ion monitoring (SIM) mode.
Labeled PeaksCompoundRt [min]Quantitative IonQualitative Ions
1Lactic acid5.50147117, 191
2Succinic acid9.0114775, 148
3Fumaric acid9.50245147, 246
4L-Malic acid11.2473147, 233
5Tartaric acid11.9873147, 292
6Citric acid15.04273147, 347
7Protocatechuic acid15.08193355, 370
8p-Coumaric acid16.35293219, 308
9Gallic acid16.45281282, 458
10Ferulic acid17.80338308, 323
11Caffeic acid18.20219396, 397
12Sinapic acid19.16368353, 338
13Pterostilbene22.42328327, 329
14Resveratrol23.05444445, 446
15(+)-Catechin24.63368355, 369
16IS9.55193119, 149
Table 7. Wine sample characteristics.
Table 7. Wine sample characteristics.
LabelVineyardYearType of WineOrigin% AlcoholGrape Type Sugar Content
1RHOPLE Winnica Poraj Paczkow2015RedPaczkow11.0Regentdry
2RWinnica Chodorowa2017RedGrybów12.0Regentdry
3RDom Bliskowice2014RedBliskowice12.1Rondodry
4RWinnica Witanowice2013RedWitanowice12.5Regentdry
5RAdoria Vineyards2017RedZachowice13.5Dornfelderdry
6RWinnica Chodorowa2017RedGrybów11.0Rondodry
7RAdoria Vineyards2017RedZachowice13.5Pinot Noirdry
8RWinnica Turnau2016RedBanie13.0Rondo/Regentdry
9RHOPLE Winnica Poraj Paczkow2015RedPaczków11.5Rondodry
10RWinnica Golesz2016RedJasło12.5Mix of three grapesdry
1WWinnica Solaris2016WhiteOpole Lubelskie12.0Johanniterdry
2WAdoria Vineyards2017WhiteZachowice12.0Rieslingsemi-dry
3WWinnica Saint Vincent2016WhiteBorów Wielki12.0Pinot Gris, Riesling, Muscat Ottonel, Gewurztraminersemi-dry
4WWinnica Srebrna Gora2017WhiteKraków12.0Seyval Blanc, Hibernal, Johanniter, Solarissemi-dry
5WWinnica Saint Vincent2016WhiteBorów Wielki13.0Pinot Grissemi-dry
6WWinnica Solaris2016WhiteOpole Lubelskie12.5Solarissweet
7WWinnica Witanowice2014WhiteWitanowice12.0Biancadry
8WWinnica Turnau2017WhiteBanie12.5Solarisdry
9WWinnica Golesz2017WhiteJasło12.0Mix of grapessemi-sweet
10WWinnica Golesz2015WhiteJaslo11.5Mix of eight grapesdry
1RoWinnica Srebrna Gora2014RoséKrakow10.5Zweigletsemi-dry
2RoWinnica De Sas2015RoséKrosnice10.5Regentdry
3RoWinnica Golesz2016RoséJaslo11.5Mix of three grapesdry

Share and Cite

MDPI and ACS Style

Robles, A.D.; Fabjanowicz, M.; Płotka-Wasylka, J.; Konieczka, P. Organic Acids and Polyphenols Determination in Polish Wines by Ultrasound-Assisted Solvent Extraction of Porous Membrane-Packed Liquid Samples. Molecules 2019, 24, 4376.

AMA Style

Robles AD, Fabjanowicz M, Płotka-Wasylka J, Konieczka P. Organic Acids and Polyphenols Determination in Polish Wines by Ultrasound-Assisted Solvent Extraction of Porous Membrane-Packed Liquid Samples. Molecules. 2019; 24(23):4376.

Chicago/Turabian Style

Robles, Alicia D., Magdalena Fabjanowicz, Justyna Płotka-Wasylka, and Piotr Konieczka. 2019. "Organic Acids and Polyphenols Determination in Polish Wines by Ultrasound-Assisted Solvent Extraction of Porous Membrane-Packed Liquid Samples" Molecules 24, no. 23: 4376.

Article Metrics

Back to TopTop
