Review

Chemistry of Bridged Lactams: Recent Developments

by
Roman Szostak
1 and
Michal Szostak
2,*
1
Department of Chemistry, Wroclaw University, F. Joliot-Curie 14, 50-383 Wroclaw, Poland
2
Department of Chemistry, Rutgers University, 73 Warren Street, Newark, NJ 07102, USA
*
Author to whom correspondence should be addressed.
Molecules 2019, 24(2), 274; https://doi.org/10.3390/molecules24020274
Submission received: 28 December 2018 / Revised: 9 January 2019 / Accepted: 10 January 2019 / Published: 12 January 2019
(This article belongs to the Special Issue Amide Bond Activation)
Browse Figures
Versions Notes

Abstract

Bridged lactams represent the most effective and wide-ranging method of constraining the amide bond in a non-planar conformation. A previous comprehensive review on this topic was published in 2013 (Chem. Rev. 2013, 113, 5701–5765). In the present review, which is published as a part of the Special Issue on Amide Bond Activation, we present an overview of the recent developments in the field of bridged lactams that have taken place in the last five years and present a critical assessment of the current status of bridged lactams in synthetic and physical organic chemistry. This review covers the period from 2014 until the end of 2018 and is intended as an update to Chem. Rev. 2013, 113, 5701–5765. In addition to bridged lactams, the review covers recent advances in the chemistry of bridged sultams, bridged enamines and related non-planar structures.

Graphical Abstract

1. Introduction

The amide bond is arguably the most important linkage in chemistry and biology [1]. Typical amide bonds are planar as a result of amidic resonance (nN → π*C=O conjugation, 15–20 kcal/mol) (Figure 1A) [2].
The redesign of the amide bond geometry through structural and electronic changes of substituents comprising the amide bond has had a profound impact on the physico-chemical properties of amides [3,4,5,6]. The alteration of the amide bond geometry generally leads to a reversal of traditional properties of amides, such as lower barrier to cis-trans rotation, increased length of the N-C(O) bond, favored protonation at the nitrogen atom, and increased reactivity in nucleophilic addition and hydrolysis [3,4,5,6]. The geometric and structural changes of the amide bond are an established technique to affect properties of amide bonds in biology and medicinal chemistry [7,8,9,10], while recent advances in selective metal insertion into the amide bond driven by its distortion represent a thriving and general concept in organic synthesis [11,12]. In general, amide bond distortion can be achieved by four methods (Figure 1B): (1) steric restriction, (2) steric repulsion, (3) conformation effects, and (4) electronic effects. Out of these methods, the most effective one by far is steric restriction. Typically, steric restriction involves constraining the amide bond in a rigid bicyclic ring system with a nitrogen atom positioned at a bridgehead position. This allows one to constrain the typical planar amide bond in a non-planar conformation with the magnitude of distortion principally controlled by the type of ring system (Figure 2). To date, bridged lactams represent the only method that has allowed for a substantial distortion, exceeding 60% of the maximum theoretical value of the amide bond [3,4,5,6,11,12].
Amide bond distortion is measured by Winkler-Dunitz parameters: τ (twist angle), χΝ (pyramidalization at N) and χC (pyramidalization at C) [13] as well as by changes in N–C(O) and C=O bond lengths (Figure 2A). Amide bond distortion leads to a change of thermodynamic N-/O-protonation aptitude, which is a key effect that controls the reactivity of non-planar amide bonds (Figure 2B) [11]. The properties of amide bonds in bridged lactams are further amplified by a type of bridged lactam scaffold (Figure 2C). In general, bridged lactams are classified into amides in which the N–C(O) bond is placed on a one-carbon bridge or on a larger bridge, with the former enjoying additional stabilization through transannular scaffolding effects.
In this review, published as a part of the Special Issue on Amide Bond Activation, we present an overview of the recent developments in the field of bridged lactams and present a critical assessment of the current status of bridged lactams. This review covers the period from 2014 until the end of 2018 and is intended as an update to the previous comprehensive review on topic, Chem. Rev. 2013, 113, 5701–5765 [3]. In addition to bridged lactams, the review covers recent advances in the chemistry of bridged sultams, bridged enamines and related non-planar structures. For additional coverage, the reader is referred to previous reviews on bridged lactams [4,5,6]. It is our hope that the review will serve as a useful reference for chemists involved in various aspects of activating the amide bond and stimulate further research in this area.

2. Synthesis, Properties and Reactivity of Bridged Lactams

Recent advances in the field of bridged lactams include: (1) identification of the additive Winkler-Dunitz parameter, (2) synthesis of extremely twisted non-stabilized amides, (3) synthesis of novel bridged lactams, and (4) new examples of reactivity of non-planar amides.
In 2015, we have identified the additive Winkler-Dunitz distortion parameter (Στ + χN), sum of twist and pyramidalization at nitrogen angles, as a more accurate prediction of the structural and energetic properties of non-planar amides than either twist or pyramidalization alone (Figure 3 and Figure 4) [14,15]. A computational study to determine the effect of amide distortion on N-/O-protonation using a set of lactams comprehensively covering the entire distortion range (Figure 3) revealed a linear correlation between the composite Winkler-Dunitz parameter (Στ + χN) and N-/O-protonation aptitude (Figure 4) [14]. Our subsequent study demonstrated that the additive Winkler-Dunitz parameter (Στ + χN) gives linear correlations vs. structural and other energetic parameters (resonance energies, atomic charges, frontier molecular orbitals, infrared frequencies) [15].
Since (1) amide bond distortion typically hinges upon both twist and pyramidalization, and (2) the additive Winkler-Dunitz parameter gives a more accurate prediction of geometric changes of the amide bond, this parameter should be routinely reported to describe structural variations of all non-planar amide bonds. Recently, we have utilized the additive Winkler-Dunitz parameter (Στ + χN) to determine the origin of high twist and N-/O-protonation aptitude of Tröger’s base twisted amides (Figure 5) [19]. Perhaps surprisingly, we found that although Tröger’s base twisted bis-amides are among the most twisted amides synthesized and structurally-characterized to date (vide infra), these amides are less effective in probing N-protonation than less twisted in this series 1-azabicyclo [3.3.1] nonan-2-one derivatives.
In 2016, the extremely twisted 7-hypoquinuclidonium tetrafluoroborate was reported by Stoltz and co-workers (Figure 6) [20]. The group has impressively exploited the intramolecular Aubé-Schmidt reaction to access the [2.2.1] bridged scaffold. This unconventional amide bond forming strategy represents a general approach to this and another extremely twisted amide, 2-quinuclidonium tetrafluoroborate (see Figure 6, box) [21], in the absence of nucleophiles that would likely decompose both compounds. It should be noted that the target twisted amide was isolated as a HBF4 salt or BF3 complex. The latter compound was fully characterized by X-ray crystallography, revealing one of the most twisted amide bonds isolated to date (τ = 90.0°, χN = 69.8°; N–C(O) = 1.526 Å, C=O = 1.186 Å).
It is now well-established that N-coordination of the amide bond increases twist and pyramidalization (vide infra). Thus, with the exception of a structurally-unique 1-adamantan-2-one derivatives (see below), there are no examples of unconstrained structurally-characterized amides with a combined Winkler-Dunitz parameter (Στ + χN) exceeding 100° in the neutral form.
In 2016, the synthesis of another extremely twisted amide was reported by Komarov, Kirby et al. (Figure 7) [22]. These researchers achieved the synthesis of the parent 1-aza-2-adamantanone via a route consisting of thermal amidation of the N-Boc protected amino acid. Previous calculations showed a significant stabilizing effect of the methyl groups in the trimethyl twisted amide derivative (see Figure 7, box) [23]. The parent 1-aza-2-adamantanone was fully characterized after protonation as HBF4 salt (τ = 88.1°, χN = 58.0°; N-C = 1.508 Å, C=O = 1.186 Å). Furthermore, the authors obtained the X-ray structure of the α-monomethylated 1-aza-2-adamantanone in a neutral form (τ = 90.0°, χN = 61.8°; N-C = 1.448 Å, C=O = 1.201 Å). Similar to the [2.2.1] amide synthesized by the Stoltz group (cf. [2.2.2] amide), the parent 1-aza-2-adamantanone was found to be more reactive in reactions with nucleophiles than the previous “most twisted amide” 3,5,7-trimethyl-1-azaadamantan-2-one [24].
In 2017, Greenberg and co-workers reported an interesting study of a silicon-containing twisted amide in a [3.3.3] scaffold (Figure 8) [25]. Heteroatom-containing derivatives of bridged lactams have received considerable attention as a means of facilitating the synthesis and tuning properties of the twisted amide bond. Through computations, the authors demonstrated that the nitrogen atom in 1-methyl-4-silatranone would be more similar to a lactam rather than a silatrane with a long intramolecular N-Si bond (N-Si = 2.902 Å vs. 1-methylsilatrane, N-Si = 2.466 Å). Although the attempted synthesis via condensation of (HOCH2CH2)2N(COCH2OH) with various silanes was unsuccessful, the study lays a foundation for the synthesis of silicon-containing twisted amides.
In 2016, we reported the first examples of structurally-characterized N-alkylated bridged lactams (Figure 9) [26]. N-Alkylation significantly increased amide bond distortion (τ = 44.0°, χN = 58.3°; N-C = 1.554 Å, C=O = 1.192 Å). Furthermore, we demonstrated that N-coordination activated the twisted amide bond towards σ N–C bond activation by Pd-catalyzed hydrogenation.
Transition-metal-free σ N-C bond activation in bridged lactams was reported by our group in 2017 (Figure 10) [27]. Facile assembly of the twisted amide scaffold by intramolecular Heck reaction, followed by N-alkylation and selective σ bond cleavage established a “sew-and-cut” approach to complex isoquinoline-2-ones by a formal di-functionalization of the N-C amide bond. The reactivity was correlated with amide bond twist in that less distorted amides were found unreactive. Given the utility of mild difunctionalization methods in organic synthesis, twisted lactams are attractive intermediates for the synthesis of nitrogen-containing heterocycles by this approach.
In 2018, Marsden, Nelson and co-workers reported the synthesis of a set of bridged lactams with [3.3.1] and [4.3.1] scaffolds as part of their research on fragment-based drug discovery (Figure 11) [28]. This approach nicely utilizes the presence of an additional heteroatom in the twisted amide structure to facilitate the synthesis of starting materials. The cyclization was carried out according to the established lactamization protocol mediated by Bu2SnO [29]. Due to the unique shape diversity, bridged lactams hold a significant potential as unexplored scaffolds in drug discovery.

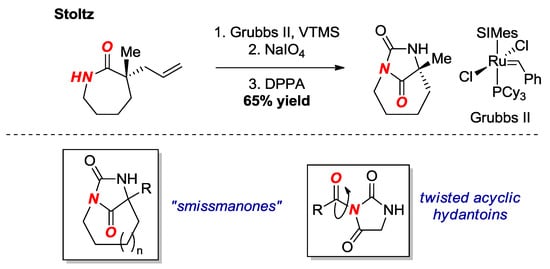

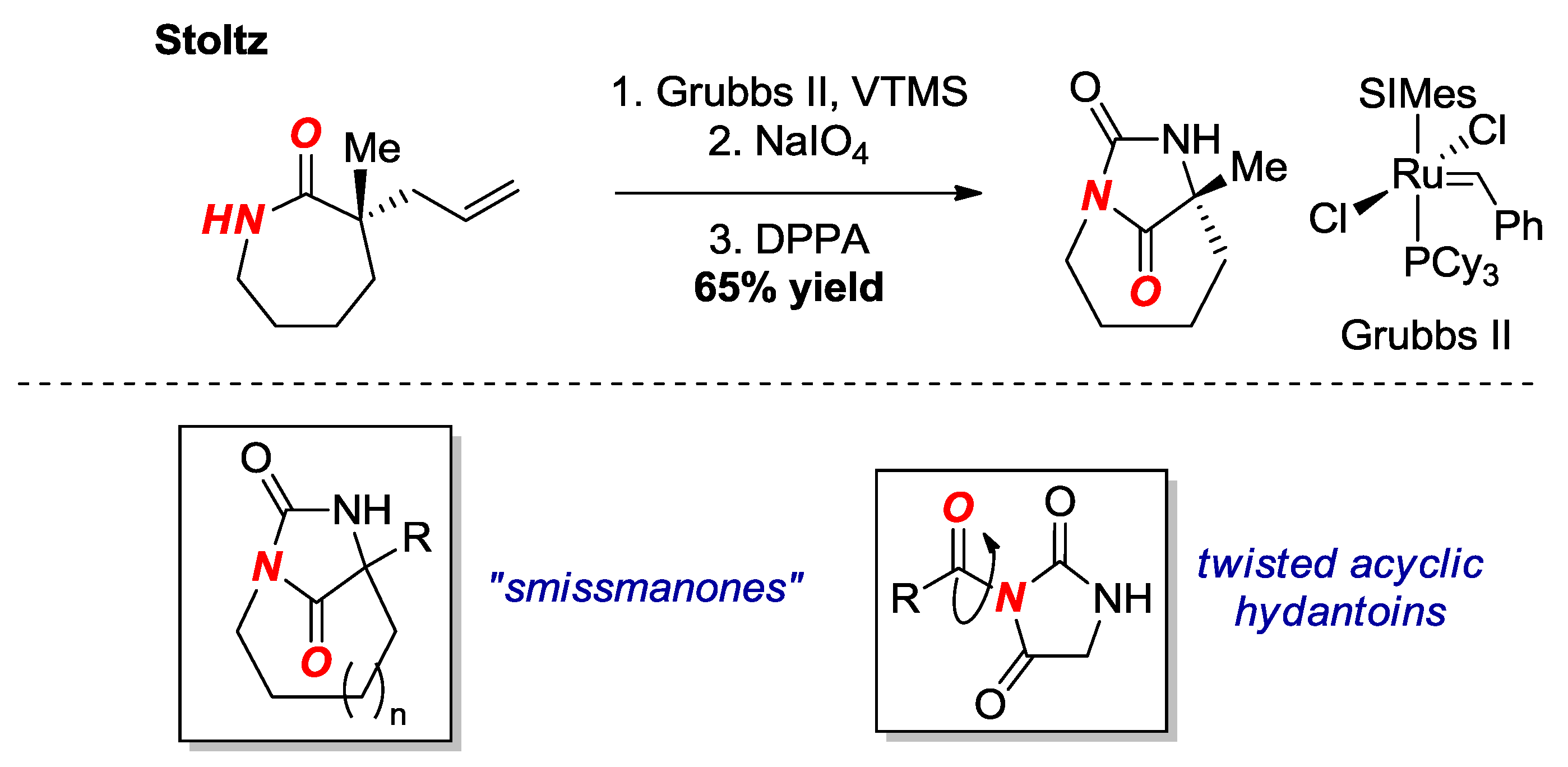

In 2017, Stoltz and co-workers reported the synthesis of a bridged hydantoin by asymmetric α-allylation, Ru-catalyzed olefin isomerization, oxidative cleavage, Curtius rearrangement and N-cyclization onto the isocyanate (Figure 12) [30]. The cyclization is performed by the same mechanism as reported previously by Brouillette [31]; however, the method avoids the use of toxic lead acetate. The bridged hydantoin was fully characterized by X-ray crystallography (τ = 36.4°, χN = 50.2°; N-C(O) = 1.404 Å; C=O = 1.210 Å). This research illustrates one of the few methods for the synthesis of an enantioenriched twisted amide bond.
Bridged hydantoins of this type were originally proposed by Smissman as potential anticonvulsants (Figure 12, box) [32]. Our group has recently reported the structural characterization of related acyclic twisted N-acyl-hydantoins (Figure 12, box) [33].

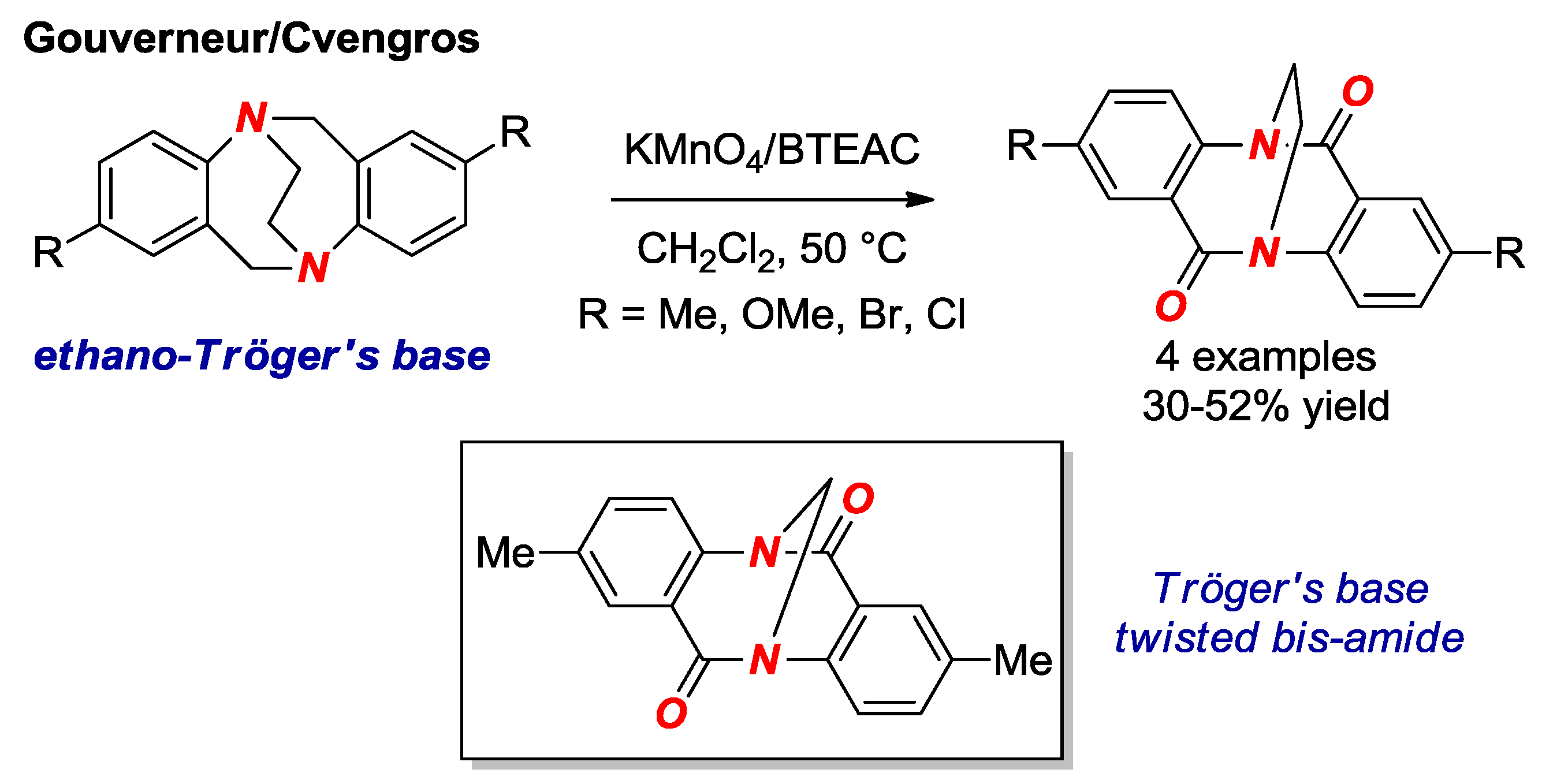

In 2017, Gouverneur, Cvengros and co-workers reported the synthesis of ethano Tröger’s base twisted bis-amides (Figure 13) [34]. Their approach involves one-step oxidation of the ethano-Tröger’s base precursors under the conditions reported earlier by Wärnmark (Figure 13, box) [35]. The ethano Tröger’s base twisted bis-amide is significantly twisted (τ = 29.8°, χN = 45.5°; N–C(O) = 1.401 Å, C=O = 1.215 Å). The advantage of this method is rapid access to a twisted amide bond; however, our study suggests that the presence of the fused aromatic ring is detrimental to the N-protonation reactivity in this class of twisted amides [19].

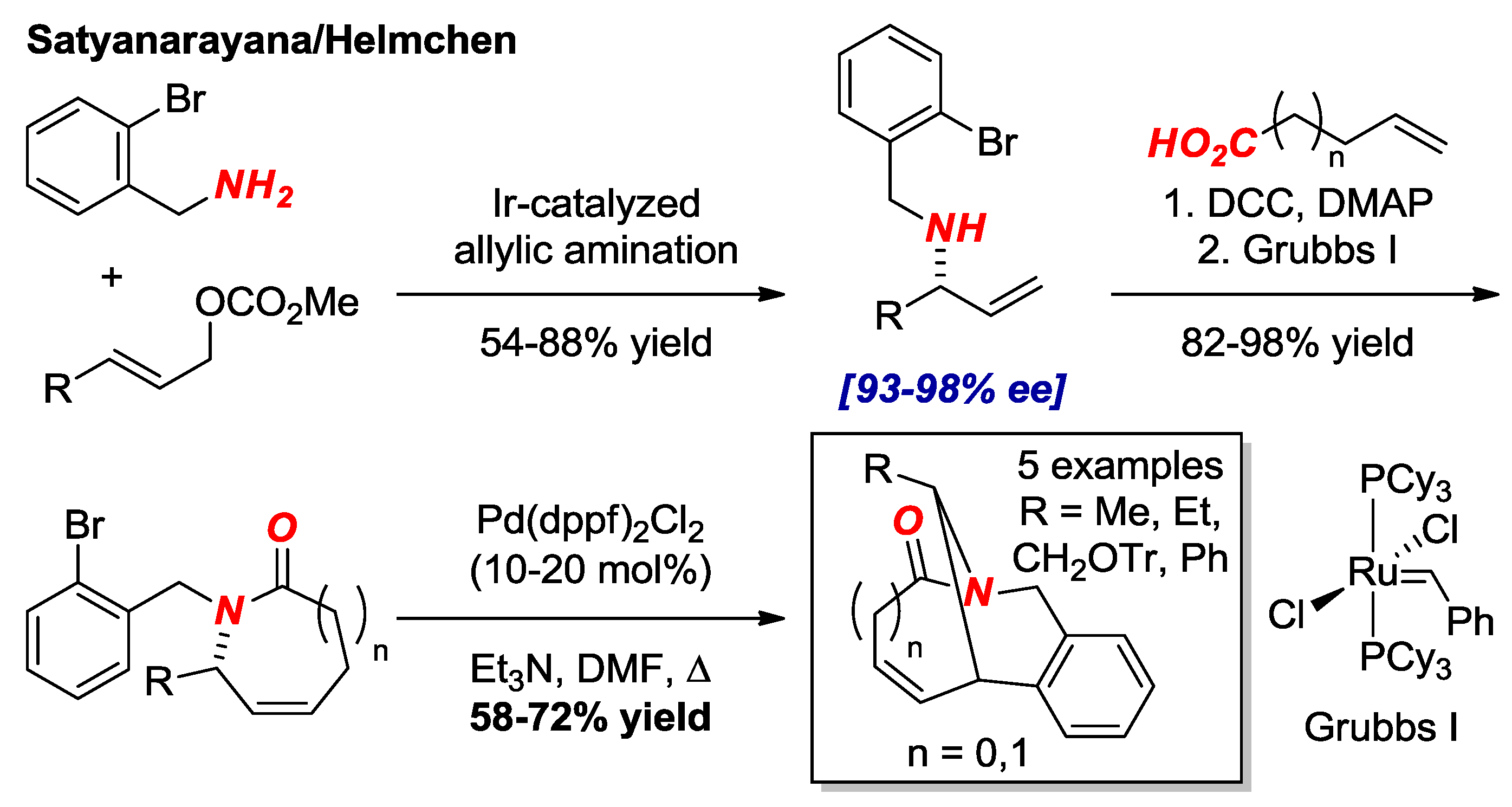

Satyanarayana and Helmchen reported asymmetric synthesis of bridged lactams in [3.3.1] and [4.3.1] scaffolds using Ir-catalyzed allylic amination as an enantioselectivity determining key step (Figure 14) [36]. With allylic amines in hand, the synthesis was completed by well-established amidation/Heck cyclization sequence. The structure of one of the lactams in the [3.3.1] series was confirmed by X-ray crystallography (τ = 30.8°, χN = 52.7°; N–C(O) = 1.393 Å, C=O = 1.218 Å).
An inventive strategy for the synthesis of bridged lactams in the [5.3.1] and larger scaffolds was reported by Liu and co-workers (Figure 15) [37]. The authors developed a new process for radical aryl migration with chirality transfer to form macrocyclic ketones. As an application of this method, they subjected several azido-ketones to the transannular Aubé-Schmidt rearrangement, resulting in the formation of bridged lactams in 40–63% yields. Nevertheless, bridged lactams with the overall sum of carbon atoms forming the bridged structure of ten or more, are similar in properties to planar amides.

3. Bridged Sultams

Bridged sultams (bridged sulfonamides) have attracted significant attention due to a wide range of biological activities of the sulfonamide bond [38]. In contrast to bridged lactams, constraining a sulfonamide bond in rigid bicyclic ring systems is easily possible due to the lack of Nlp to SO2 conjugation (Nlp = nitrogen lone pair) [39]. Such bridged sultams are not hyper-reactive to hydrolysis and besides applications in medicinal chemistry have been used as template in stereoselective synthesis enabled by rapid scission of the N-SO2 bond [3].

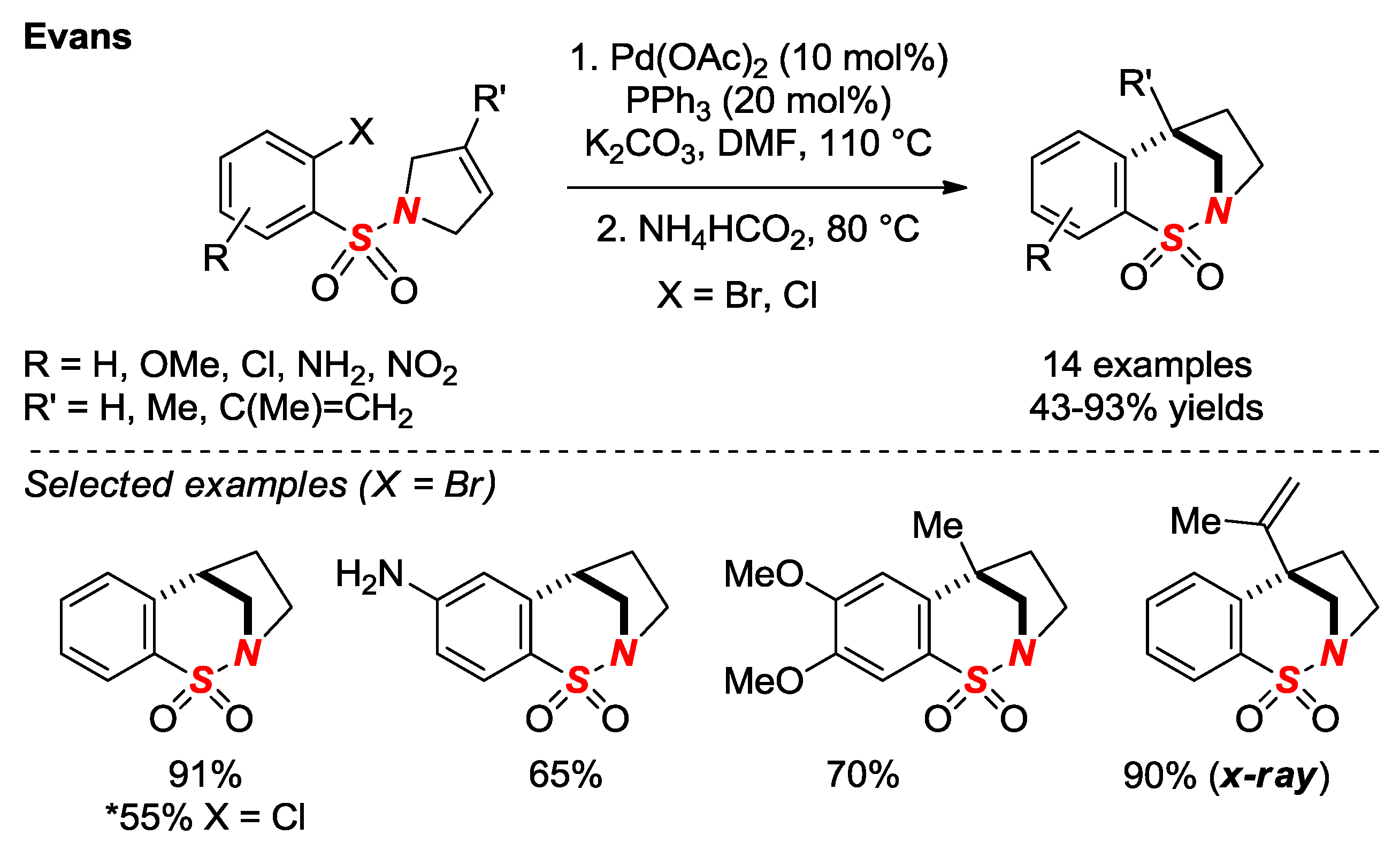

In 2017, Evans and co-workers in the continuation of their studies on bridged sultams reported an improved method for the synthesis of saturated sultams via intramolecular reductive Heck reaction (Figure 16) [40]. The use of a single Pd catalyst and a broad substrate scope are noteworthy features of this method. One of the saturated sultams in a [3.2.1] scaffold was characterized by X-ray crystallography (θ = 328.7; N-S = 1.643). The same group reported a bromonium-triggered 1,2-Wagner-Meerwein rearrangement of benzofused bridged sultams (not shown) [41].

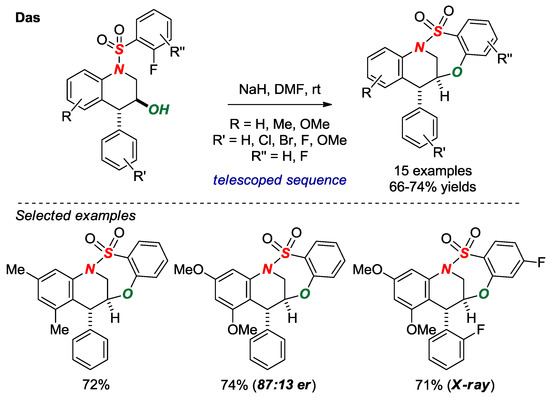

In 2017, Das and co-workers nicely exploited intramolecular SNAr-type cyclization to form bridged benzothiaoxazepine-1,1-dioxides in a [4.3.1] scaffold (Figure 17) [42]. An advantage of this method is a rapid, telescoped, three-step synthesis of bridged sultams from the corresponding N-aryl-2-fluorobenzenesulfonamides and trans-2,3-epoxy cinnamyl tosylates. One of the sultams was fully characterized by X-ray crystallography (θ = 342.0; N-S = 1.668). The authors have also developed an enantioselective variant by using a chiral trans-2,3-epoxy cinnamyl alcohol.
One example of an “apex-type” bridged sultam in a [3.2.1] scaffold was reported by Sokolov and co-workers (Figure 18) [43]. The X-ray structure demonstrated significant pyramidalization of the nitrogen atom (θ = 325.5; N–S = 1.668).

4. Application in Natural Product Synthesis

Bridged lactams continue to serve as useful intermediates in the total synthesis of natural products [3]. In general, recent applications hinge upon the increased electrophilicity of the carbonyl group and increased nucleophilicity of the nitrogen atom of the amide bond rendered possible by geometric distortion.

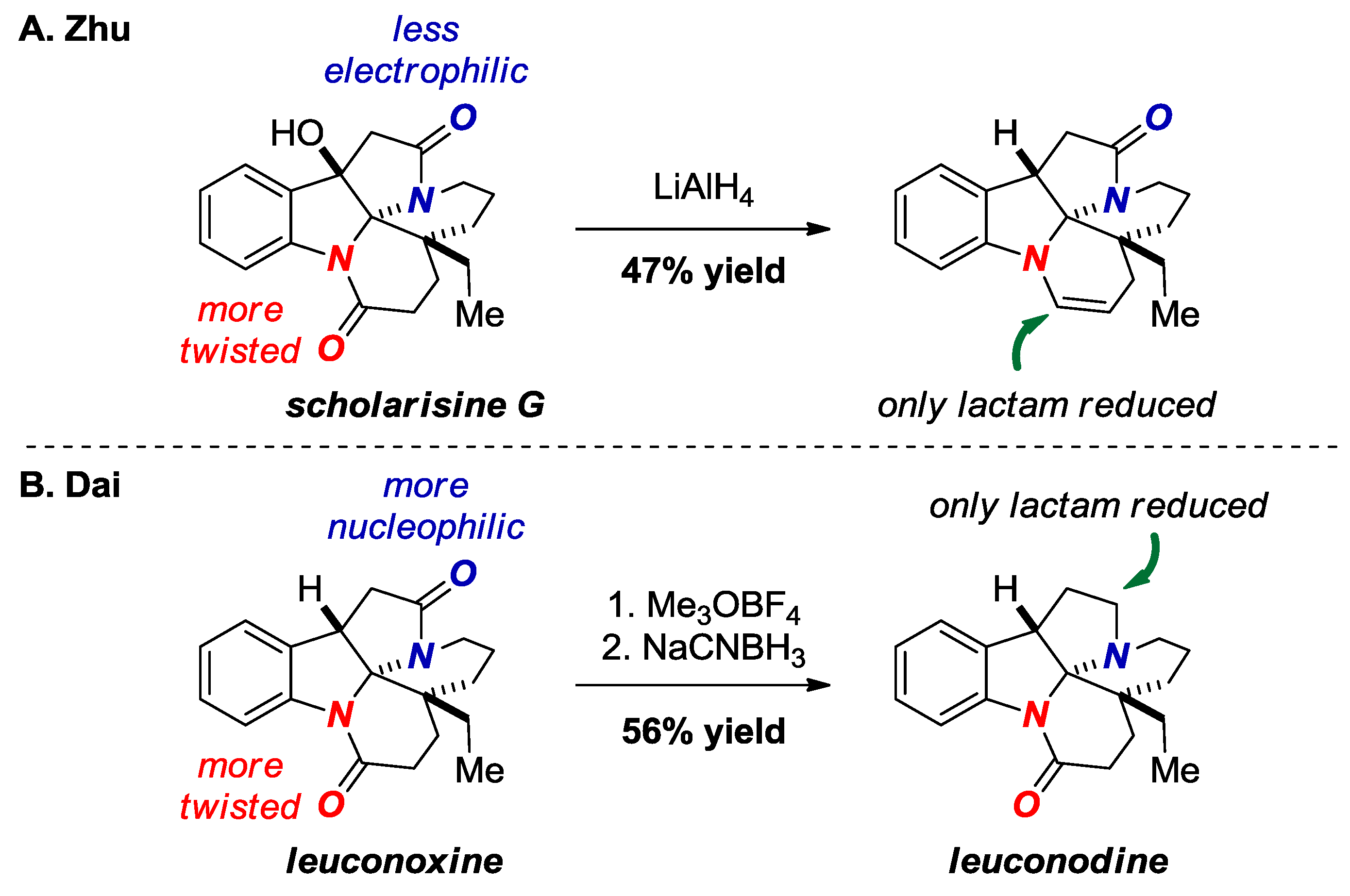

In 2015, Zhu and co-workers reported selective reduction of the more twisted amide bond in scholarisine G (Figure 19A) [44]. The enamine was obtained after dehydration of the intermediate hemiaminal. The X-ray structure of scholarisine G showed a significantly distorted N-aryl amide bond (τ = 21.9°, χN = 32.0°; N-C(O) = 1.373 Å, C=O = 1.223 Å) vs. the aliphatic amide bond (τ = 2.9°, χN = 19.9°; N-C(O) = 1.352 Å, C=O = 1.227 Å). It is also possible that the selective reduction in this case can be explained by the exclusive stability of the five-membered ring lactams and by the fact that the six-membered lactam is an anilide. In contrast, Dai exploited the higher basicity of the oxygen atom in the aliphatic amide bond in a structurally-related leuconoxine to selectively maneuver reduction of the more electron-rich amide bond through electrophilic pathway (Figure 19B) [45].

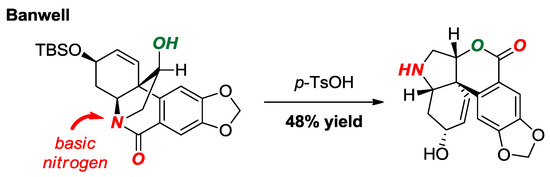

A total synthesis of 3-O-demethylmacronine, an Amaryllidaceae alkaloid, utilizing a lactam-to-lactone rearrangement of a twisted amide was reported by Banwell and co-workers (Figure 20) [46]. This elegant method capitalized on the high basicity of the twisted amide nitrogen atom to form the acylium ion, which underwent trapping with a pendant hydroxyl group under mild conditions.

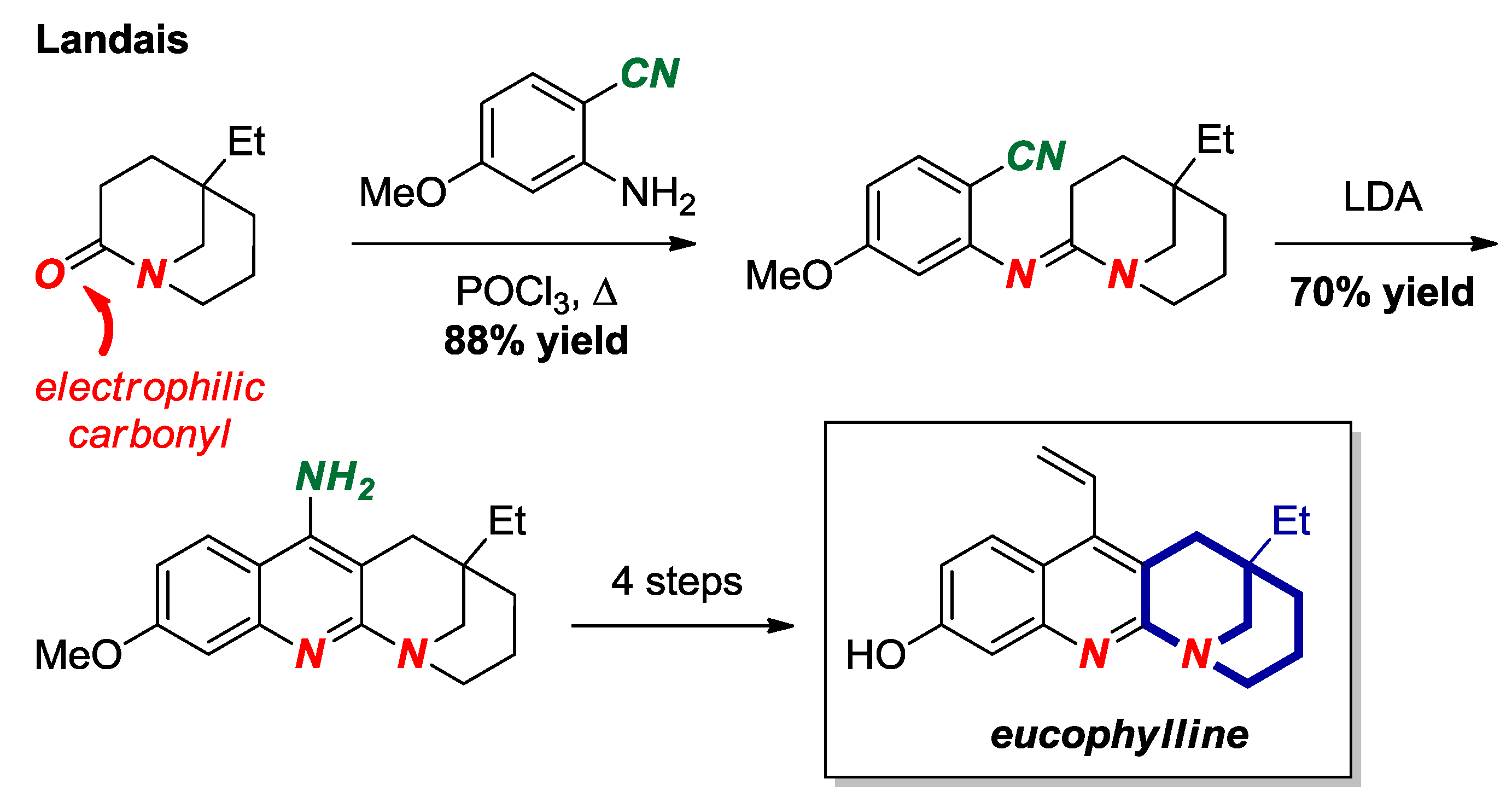

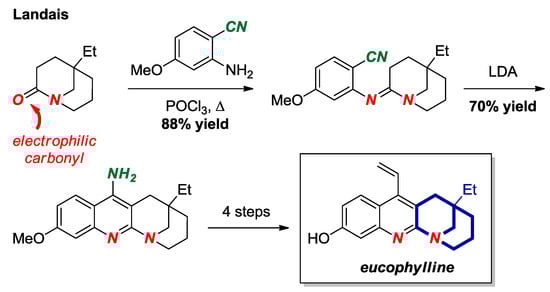

Landais and co-workers reported a total synthesis of eucophylline, a dimeric terpene indole alkaloid, taking advantage of a high electrophilicity of the carbonyl group in a [3.3.1] bridged lactam scaffold (Figure 21) [47]. Bridged lactams are known to readily condense with amines to form amidines. In this approach, condensation of the twisted amide bond with aniline afforded a bridged amidine, which provided the key disconnection to the eucophylline core.

5. Miscellaneous Examples

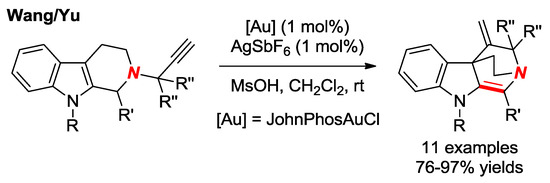

In 2015, Wang, Yu and co-workers reported the synthesis of bridged enamines via Au-catalyzed spiro-cyclization of 2-propargyl-β-tetrahydrocarbolines (Figure 22) [48]. In these heterocycles, the resonance interaction between Nlp and π electrons of the double bond is inhibited, resulting in a nucleophilic nitrogen atom.

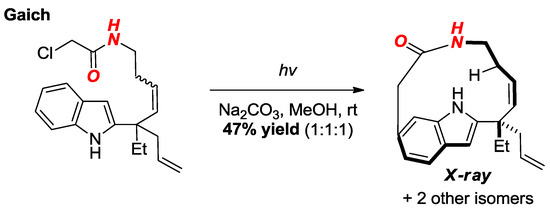

In their studies on the Witkop cyclization, Gaich and co-workers reported the synthesis of macrocyclic amides supported by the indole ring (Figure 23) [49]. The structure of one of the amides was confirmed by X-ray crystallography and showed a significantly distorted amide bond (τ = 32.3°, χN = 0.0°; N–C(O) = 1.353 Å, C=O = 1.227 Å).

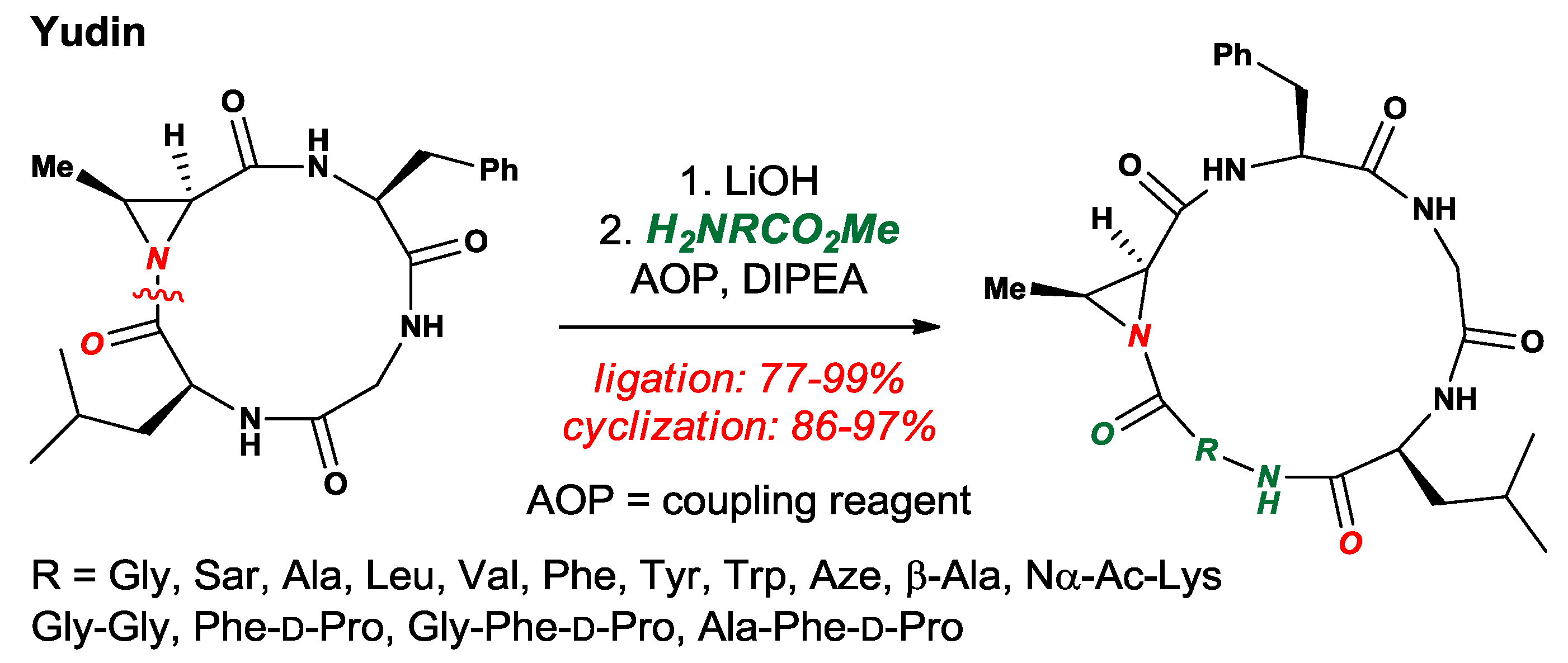

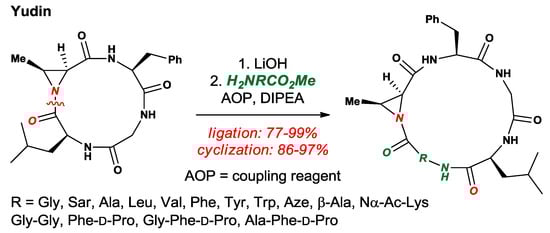

Yudin and co-workers developed several elegant methods for site-specific incorporation of amino acids [50], peptide sequencing [51] and conformational control [52] of cyclic peptides based on the twisted amide electrophilic sites (Figure 24). In their approach, the integration of a highly strained and N-pyramidalized aziridinyl ring allows for selective N–C(O) cleavage and amino acid incorporation, while the strained aziridinyl ring provides a handle for further functionalization by aziridine-ring opening with nucleophiles.
Several additional studies on non-planar amides have been reported. Computational studies on ion-pair interactions in Kirby’s amide HBF4 salts [53] and N-protonation of twisted amides by HF and HCl [54] were reported by Panday. Mykhailiuk and co-workers reported selective σ N-C bond scission in strained acyclic amides [55]. Stereoselective C-O bond cleavage in pyramidalized diketopiperazines induced by amide bond distortion was reported by Jahn and co-workers [56]. Intramolecular hydrogen bonding to electron-deficient oxygen in N-pyramidalized bicyclic amides was reported by Otani, Ohwada and co-workers [57]. Excellent reviews on the role of amide bond activation in biological molecules [58], amidicity [59], and heteroatom substitution at amide nitrogen [60] have been published. Additional studies on the properties of amides have been reported [61,62]. Recent relevant studies on acyclic non-planar amides should also be noted [11,12,63,64,65,66].

6. Conclusions

In summary, we have reviewed recent advances in the area of bridged lactams. This field continues to provide the most effective and wide-ranging method to achieve non-planarity of the amide bond. The main progress in the last five years includes: (1) identification of the additive Winkler-Dunitz parameter as a straightforward and accurate descriptor of the structural and energetic properties of the non-planar amide bond, and (2) the synthesis of extremely twisted bridged lactams in both quinuclidone and adamantanone series. Recently reported examples of novel bridged lactam scaffolds, divergent N–C cleavage reactivity and applications in the total synthesis of natural products are also worth noting.
Despite the considerable progress that has been made, the area is far from being mature. The recent remarkable progress in the chemistry of acyclic twisted amides has underlined the benefits of using conformational restriction (i.e., bridged lactams) to achieve non-planarity, but also brought to light the deficiencies of bridged lactams, and non-planar amide bonds in general. Most important is that except for the structurally-limited 1-aza-2-adamantanones there is a complete lack of isolated and fully characterized unhindered bridged lactams with a combined Winkler-Dunitz parameter (Στ + χN) exceeding 100° in the neutral form (or in other words merely 60% of the maximum theoretical distortion). It is beyond belief that the area has progressed so little since the first conception of a bridged lactam bond by Lukeš in 1938.
Further, very little is known about the stability of bridged lactams and, by extension, of non-planar amides. It is now safe to assume that a range of distortion of (Στ + χN) ca. 70–80° gives isolable lactams. However, this stability range has only been tested in a very limited set of lactams.
Even less is known about the generality of amide bond distortion, properties and structures across different sets of non-planar amides. This research is hindered by the very few types of non-planar bridged lactams that have been described to date. The recent example of Tröger’s base twisted amides is as a good case in point [19]. Despite significant amide bond distortion, these lactams do not protonate readily as a consequence of Nlp conjugation onto the aromatic ring.
Another issue involves the reactivity of non-planar amides. Almost all research thus far has focused on simple hydrolytic stability and nucleophilic addition studies. At present, only one type of potentially very synthetically appealing metal-catalyzed σ N-C bond activation has been reported, and the mechanism of this transformation is unknown.
The importance of the amide bond and the continuous role of twisted amides in chemistry and biology have served as a powerful stimulus for fundamental research on bridged lactams. Given the obvious possibilities for applications of non-planar amide bonds, future studies are expected to have a broad impact beyond this important research area.

Author Contributions

The manuscript was written through the contributions of all authors.

Funding

Rutgers University, the NSF (CAREER CHE-1650766) and the Wroclaw Center for Networking and Supercomputing are gratefully acknowledged for support of our research program.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Greenberg, A.; Breneman, C.M.; Liebman, J.F. The Amide Linkage: Structural Significance in Chemistry, Biochemistry, and Materials Science; Wiley: New York, NY, USA, 2000. [Google Scholar]
  2. Pauling, L. The Nature of the Chemical Bond; Oxford University Press: London, UK, 1940. [Google Scholar]
  3. Szostak, M.; Aubé, J. Chemistry of Bridged Lactams and Related Heterocycles. Chem. Rev. 2013, 113, 5701–5765. [Google Scholar] [CrossRef] [PubMed]
  4. Szostak, M.; Aubé, J. Medium-Bridged Lactams: A New Class of Non-Planar Amides. Org. Biomol. Chem. 2011, 9, 27–35. [Google Scholar] [CrossRef] [PubMed]
  5. Lease, T.G.; Shea, K.J. A Compilation and Analysis of Structural Data of Distorted Bridgehead Olefins and Amides. In Advances in Theoretically Interesting Molecules; JAI Press Inc.: Greenwich, CT, USA, 1992. [Google Scholar]
  6. Hall, H.K., Jr.; El-Shekeil, A. Anti-Bredt bridgehead nitrogen compounds in ring-opening polymerization. Chem. Rev. 1983, 83, 549–555. [Google Scholar]
  7. Poland, B.W.; Xu, M.Q.; Quiocho, F.A. Structural Insights into the Protein Splicing Mechanism of PI-SceI. J. Biol. Chem. 2000, 275, 16408–16413. [Google Scholar] [CrossRef] [PubMed]
  8. Romanelli, A.; Shekhtman, A.; Cowburn, D.; Muir, T.W. Semisynthesis of a segmental isotopically labeled protein splicing precursor: NMR evidence for an unusual peptide bond at the N-extein–intein junction. Proc. Natl. Acad. Sci. USA 2004, 101, 6397–6402. [Google Scholar] [CrossRef] [PubMed]
  9. Shemella, P.; Pereira, B.; Zhang, Y.M.; Van Roey, P.; Belfort, G.; Garde, S.; Nayak, S.K. Mechanism for Intein C-Terminal Cleavage: A Proposal from Quantum Mechanical Calculations. Biophys. J. 2007, 92, 847–853. [Google Scholar] [CrossRef] [PubMed]
  10. Lizak, C.; Gerber, S.; Michaud, G.; Schubert, M.; Fan, Y.Y.; Bucher, M.; Darbare, T.; Aebi, M.; Reymond, J.L.; Locher, K.P. Unexpected reactivity and mechanism of carboxamide activation in bacterial N-linked protein glycosylation. Nat. Commun. 2013, 4, 2627. [Google Scholar] [CrossRef] [PubMed]
  11. Pace, V.; Holzer, W.; Meng, G.; Shi, S.; Lalancette, R.; Szostak, R.; Szostak, M. Structures of Highly Twisted Amides Relevant to Amide N–C Cross-Coupling: Evidence for Ground-State Amide Destabilization. Chem. Eur. J. 2016, 22, 14494–14498. [Google Scholar] [CrossRef] [PubMed]
  12. Shi, S.; Nolan, S.P.; Szostak, M. Well-Defined Palladium(II)-NHC (NHC = N-Heterocyclic Carbene) Precatalysts for Cross-Coupling Reactions of Amides and Esters by Selective Acyl CO–X (X = N, O) Cleavage. Acc. Chem. Res. 2018, 51, 2589–2599. [Google Scholar] [CrossRef] [PubMed]
  13. Winkler, F.K.; Dunitz, J.D. The non-planar amide group. J. Mol. Biol. 1971, 59, 169–182. [Google Scholar] [CrossRef]
  14. Szostak, R.; Aubé, J.; Szostak, M. An Efficient Computational Model to Predict Protonation at the Amide Nitrogen and Reactivity along the C–N Rotational Pathway. Chem. Commun. 2015, 51, 6395–6398. [Google Scholar] [CrossRef] [PubMed]
  15. Szostak, R.; Aubé, J.; Szostak, M. Determination of Structures and Energetics of Small- and Medium-Sized One-Carbon Bridged Twisted Amides using ab Initio Molecular Orbital Methods. Implications for Amidic Resonance along the C–N Rotational Pathway. J. Org. Chem. 2015, 80, 7905–7927. [Google Scholar] [CrossRef] [PubMed]
  16. Greenberg, A.; Venanzi, C.A. Structures and energetics of two bridgehead lactams and their N- and O-protonated forms: An ab initio molecular orbital study. J. Am. Chem. Soc. 1993, 115, 6951–6957. [Google Scholar] [CrossRef]
  17. Greenberg, A.; Moore, D.T.; DuBois, T.D. Small and Medium-Sized Bridgehead Bicyclic Lactams: A Systematic ab Initio Molecular Orbital Study. J. Am. Chem. Soc. 1996, 118, 8658–8668. [Google Scholar] [CrossRef]
  18. Morgan, J.; Greenberg, A. Novel bridgehead bicyclic lactams: Molecules predicted to have O-protonated and N-protonated tautomers of comparable stability; hyperstable lactams and their O-protonated tautomers. J. Chem. Thermodyn. 2014, 73, 206–212. [Google Scholar] [CrossRef]
  19. Szostak, R.; Szostak, M. Tröger’s Base Twisted Amides: High Amide Bond Twist and N-/O-Protonation Aptitude. J. Org. Chem. 2019, in press. [Google Scholar] [CrossRef] [PubMed]
  20. Liniger, M.; VanderVelde, D.G.; Takase, M.K.; Shahgholi, M.; Stoltz, B.M. Total Synthesis and Characterization of 7-Hypoquinuclidonium Tetrafluoroborate and 7-Hypoquinuclidone BF3 Complex. J. Am. Chem. Soc. 2016, 138, 969–974. [Google Scholar] [CrossRef] [PubMed]
  21. Tani, K.; Stoltz, B.M. Synthesis and structural analysis of 2-quinuclidonium tetrafluoroborate. Nature 2006, 441, 731–734. [Google Scholar] [CrossRef] [PubMed]
  22. Komarov, I.V.; Yanik, S.; Ishchenko, A.Y.; Davies, J.E.; Goodman, J.M.; Kirby, A.J. The Most Reactive Amide As a Transition-State Mimic For cis–trans Interconversion. J. Am. Chem. Soc. 2015, 137, 926–930. [Google Scholar] [CrossRef]
  23. Morgan, K.M.; Rawlins, M.L.; Montgomery, M.N. Influence of methyl substituents on the stability of 1-aza-2-adamantanone, Kirby’s most twisted amide. J. Phys. Org. Chem. 2005, 18, 310–314. [Google Scholar] [CrossRef]
  24. Kirby, A.J.; Komarov, I.V.; Wothers, P.D.; Feeder, N. The Most Twisted Amide: Structure and Reactions. Angew. Chem. Int. Ed. 1998, 37, 785–786. [Google Scholar] [CrossRef]
  25. Morgan, J.P.; Weaver-Guevara, H.M.; Fitzgerald, R.W.; Dunlap-Smith, A.; Greenberg, A. Ab initio computational study of 1-methyl-4-silatranone and attempts at its conventional synthesis. Struct. Chem. 2017, 28, 327–331. [Google Scholar] [CrossRef]
  26. Hu, F.; Lalancette, R.; Szostak, M. Structural Characterization of N-Alkylated Twisted Amides: Consequences for Amide Bond Resonance and N–C Cleavage. Angew. Chem. Int. Ed. 2016, 55, 5062–5066. [Google Scholar] [CrossRef] [PubMed]
  27. Hu, F.; Nareddy, P.; Lalancette, R.; Jordan, F.; Szostak, M. σ N−C Bond Difunctionalization in Bridged Twisted Amides: Sew-and-Cut Activation Approach to Functionalized Isoquinolines. Org. Lett. 2017, 19, 2386–2389. [Google Scholar] [CrossRef] [PubMed]
  28. Hassan, H.; Marsden, S.P.; Nelson, A. Design and synthesis of a fragment set based on twisted bicyclic lactams. Bioorg. Med. Chem. 2018, 26, 3030–3033. [Google Scholar] [CrossRef] [PubMed]
  29. Steliou, K.; Poupart, M.A. Reagents for organic synthesis. Part 3. Tin-mediated esterification in macrolide synthesis. J. Am. Chem. Soc. 1983, 105, 7130–7138. [Google Scholar] [CrossRef]
  30. Liniger, M.; Liu, Y.; Stoltz, B. Sequential Ruthenium Catalysis for Olefin Isomerization and Oxidation: Application to the Synthesis of Unusual Amino Acids. J. Am. Chem. Soc. 2017, 139, 13944–13949. [Google Scholar] [CrossRef]
  31. Brouillette, W.J.; Jestkov, V.P.; Brown, M.L.; Akhtar, M.S.; DeLorey, T.M.; Brown, G.B. Bicyclic Hydantoins with a Bridgehead Nitrogen. Comparison of Anticonvulsant Activities with Binding to the Neuronal Voltage-Dependent Sodium Channel. J. Med. Chem. 1994, 37, 3289–3293. [Google Scholar] [CrossRef]
  32. Smissman, E.E.; Matuszak, A.J.; Corder, C.N. Reduction of Barbiturates Under Hydroboration Conditions. J. Pharm. Sci. 1964, 53, 1541–1542. [Google Scholar] [CrossRef]
  33. Szostak, R.; Liu, C.; Lalancette, R.; Szostak, M. Twisted N-Acyl-hydantoins: Rotationally Inverted Urea-Imides of Relevance in N–C(O) Cross-Coupling. J. Org. Chem. 2018, 83, 14676–14682. [Google Scholar] [CrossRef]
  34. Pereira, R.; Pfeifer, L.; Fournier, J.; Gouverneur, V.; Cvengroš, J. Twisting the ethano-Tröger’s base: The bisamide. Org. Biomol. Chem. 2017, 15, 628–633. [Google Scholar] [CrossRef] [PubMed]
  35. Artacho, J.; Ascic, E.; Rantanen, T.; Karlsson, J.; Wallentin, C.J.; Wang, R.; Wendt, O.F.; Harmata, M.; Snieckus, V.; Wärnmark, K. Twisted Amide Analogues of Tröger’s Base. Chem. Eur. J. 2012, 18, 1038–1042. [Google Scholar] [CrossRef] [PubMed]
  36. Satyanarayana, G.; Helmchen, G. Enantioselective Syntheses of Bicyclic Lactams Based on Iridium-Catalyzed Asymmetric Allylic Substitution and Heck Cyclization. Eur. J. Org. Chem. 2014, 2242–2252. [Google Scholar] [CrossRef]
  37. Li, L.; Li, Z.L.; Wang, F.L.; Guo, Z.; Cheng, Y.F.; Wang, N.; Dong, X.W.; Fang, C.; Liu, J.; Hou, C.; et al. Radical aryl migration enables diversity-oriented synthesis of structurally diverse medium/macro- or bridged-rings. Nat. Commun. 2016, 7, 13852. [Google Scholar] [CrossRef] [PubMed]
  38. Drews, J. Drug Discovery: A Historical Perspective. Science 2000, 287, 1960–1964. [Google Scholar] [CrossRef] [PubMed]
  39. Paquette, L.A.; Leit, S.M. The First Examples of Bridgehead Bicyclic Sultams. J. Am. Chem. Soc. 1999, 121, 8126–8127. [Google Scholar] [CrossRef]
  40. Khalifa, A.; Conway, L.; Geoghegan, K.; Evans, P. Ammonium formate-based one-pot reductive Heck reactions for the construction of cyclic sulfonamides. Tetrahedron Lett. 2017, 58, 4559–4562. [Google Scholar] [CrossRef]
  41. Geoghegan, K.; Smullen, S.; Evans, P. Halonium Ion Triggered Rearrangement of Unsaturated Benzo- Annulated Bi- and Tricyclic Sulfonamides. J. Org. Chem. 2013, 78, 10443–10451. [Google Scholar] [CrossRef]
  42. Borgohain, H.; Devi, R.; Dheer, D.; Borah, B.J.; Shankar, R.; Das, S.K. Synthesis of Tetrahydroquinoline-Embedded Bridged Benzothiaoxazepine-1,1-dioxides. Eur. J. Org. Chem. 2017, 6671–6679. [Google Scholar] [CrossRef]
  43. Grosheva, D.S.; Rassadin, V.A.; Sokolov, V.V. A Route to Benzo-Annelated δ-Sultams through Michael Cyclization. Eur. J. Org. Chem. 2015, 2015, 1355–1363. [Google Scholar] [CrossRef]
  44. Xu, Z.; Wang, Q.; Zhu, J. Total Syntheses of (−)-Mersicarpine, (−)-Scholarisine G, (+)-Melodinine E, (−)-Leuconoxine, (−)-Leuconolam, (−)-Leuconodine A, (+)-Leuconodine F, and (−)-Leuconodine C: Self-Induced Diastereomeric Anisochronism (SIDA) Phenomenon for Scholarisine G and Leuconodines A and C. J. Am. Chem. Soc. 2015, 137, 6712–6724. [Google Scholar] [PubMed]
  45. Yang, Y.; Bai, Y.; Sun, S.; Dai, M. Biosynthetically Inspired Divergent Approach to Monoterpene Indole Alkaloids: Total Synthesis of Mersicarpine, Leuconodines B and D, Leuconoxine, Melodinine E, Leuconolam, and Rhazinilam. Org. Lett. 2014, 16, 6216–6219. [Google Scholar] [CrossRef] [PubMed]
  46. Ma, X.; Gao, N.; Banwell, M.G.; Carr, P.D.; Willis, A.C. A Total Synthesis of (±)-3-O-Demethylmacronine through Rearrangement of a Precursor Embodying the Haemanthidine Alkaloid Framework. J. Org. Chem. 2017, 82, 4336–4341. [Google Scholar] [CrossRef] [PubMed]
  47. Hassan, H.; Mohammed, S.; Robert, F.; Landais, Y. Total Synthesis of (±)-Eucophylline. A Free-Radical Approach to the Synthesis of the Azabicyclo[3.3.1]nonane Skeleton. Org. Lett. 2015, 17, 4518–4521. [Google Scholar] [PubMed]
  48. Zhang, L.; Wang, Y.; Yao, Z.J.; Wang, S.; Yu, Z.X. Kinetic or Dynamic Control on a Bifurcating Potential Energy Surface? An Experimental and DFT Study of Gold-Catalyzed Ring Expansion and Spirocyclization of 2-Propargyl-β-tetrahydrocarbolines. J. Am. Chem. Soc. 2015, 137, 13290–13300. [Google Scholar] [CrossRef] [PubMed]
  49. Pfaffenbach, M.; Roller, A.; Gaich, T. Synthesis of Indolophanes by Photochemical Macrocyclization. Chem. Eur. J. 2016, 22, 8444–8447. [Google Scholar] [CrossRef]
  50. White, C.J.; Hickey, J.L.; Scully, C.C.G.; Yudin, A.K. Site-Specific Integration of Amino Acid Fragments into Cyclic Peptides. J. Am. Chem. Soc. 2014, 136, 3728–3731. [Google Scholar] [CrossRef]
  51. Zaretsky, S.; Rai, V.; Gish, G.; Forbes, M.W.; Kofler, M.; Yu, J.C.Y.; Tan, J.; Hickey, J.L.; Pawson, T.; Yudin, A.K. Twisted amide electrophiles enable cyclic peptide sequencing. Org. Biomol. Chem. 2015, 13, 7384–7388. [Google Scholar] [CrossRef]
  52. Chung, B.K.W.; White, C.J.; Scully, C.C.G.; Yudin, A.K. The reactivity and conformational control of cyclic tetrapeptides derived from aziridine-containing amino acids. Chem. Sci. 2016, 7, 6662–6668. [Google Scholar] [CrossRef]
  53. Pandey, K.K. Theoretical insights into structure, bonding, reactivity and importance of ion-pair interactions in Kirby’s tetrafluoroboric acid salts of twisted amides. RSC Adv. 2015, 5, 105668–105677. [Google Scholar] [CrossRef]
  54. Pandey, K.K. Does hydrohalic acid HX (X = F, Cl) form true N-protonated twisted amide salts? Effects of anions on the ion-pair interactions and on the amide moiety in N-protonated tricyclic twisted amide salts. New J. Chem. 2016, 40, 7831–7839. [Google Scholar] [CrossRef]
  55. Artamonov, O.S.; Slobodyanyuk, E.Y.; Volochnyuk, D.M.; Komarov, I.V.; Tolmachev, A.A.; Mykhailiuk, P.K. Synthesis of Trifluoromethyl-Substituted 3-Azabicyclo[n.1.0]alkanes: Advanced Building Blocks for Drug Discovery. Eur. J. Org. Chem. 2014, 46, 3592–3598. [Google Scholar] [CrossRef]
  56. Amatov, T.; Jangra, H.; Pohl, R.; Cisařová, I.; Zipse, H.; Jahn, U. Unique Stereoselective Homolytic C-O Bond Activation in Diketopiperazine-Derived Alkoxyamines by Adjacent Amide Pyramidalization. Chem. Eur. J. 2018, 24, 15336–15345. [Google Scholar] [CrossRef]
  57. Wang, S.; Taniguchi, T.; Monde, K.; Kawahata, M.; Yamaguchi, K.; Otani, Y.; Ohwada, T. Hydrogen bonding to carbonyl oxygen of nitrogen-pyramidalized amide—Detection of pyramidalization direction preference by vibrational circular dichroism spectroscopy. Chem. Commun. 2016, 52, 4018–4021. [Google Scholar] [CrossRef]
  58. Mahesh, S.; Tang, K.C.; Raj, M. Amide Bond Activation of Biological Molecules. Molecules 2018, 23, 2615. [Google Scholar] [CrossRef] [PubMed]
  59. Kovács, E.; Rózsa, B.; Csomos, A.; Csizmadia, I.G.; Mucsi, Z. Amide Activation in Ground and Excited States. Molecules 2018, 23, 2859. [Google Scholar] [CrossRef] [PubMed]
  60. Glover, S.A.; Rosser, A.A. Heteroatom Substitution at Amide Nitrogen—Resonance Reduction and HERON Reactions of Anomeric Amides. Molecules 2018, 23, 2834. [Google Scholar] [CrossRef]
  61. Morgan, K.M.; Ashline, D.J.; Morgan, J.P.; Greenberg, A. Electrospray Ionization (ESI) Fragmentations and Dimethyldioxirane Reactivities of Three Diverse Lactams Having Full, Half, and Zero Resonance Energies. J. Org. Chem. 2014, 79, 517–528. [Google Scholar] [CrossRef]
  62. Glover, S.A.; Rosser, A.A. HERON reactions of anomeric amides: Understanding the driving force. J. Phys. Org. Chem. 2015, 28, 215–222. [Google Scholar] [CrossRef]
  63. Szostak, R.; Shi, S.; Meng, G.; Lalancette, R.; Szostak, M. Ground-State Distortion in N-Acyl-tert-butyl-carbamates (Boc) and N-Acyl-tosylamides (Ts): Twisted Amides of Relevance to Amide N–C Cross-Coupling. J. Org. Chem. 2016, 81, 8091–8094. [Google Scholar] [CrossRef]
  64. Meng, G.; Shi, S.; Lalancette, R.; Szostak, R.; Szostak, M. Reversible Twisting of Primary Amides via Ground State N–C(O) Destabilization: Highly Twisted Rotationally Inverted Acyclic Amides. J. Am. Chem. Soc. 2018, 140, 727–734. [Google Scholar] [CrossRef] [PubMed]
  65. Szostak, R.; Szostak, M. N-Acyl-Glutarimides: Resonance and Proton Affinities of Rotationally-Inverted Twisted Amides Relevant to N−C(O) Cross-Coupling. Org. Lett. 2018, 20, 1342–1345. [Google Scholar] [CrossRef] [PubMed]
  66. Liu, C.; Shi, S.; Liu, Y.; Liu, R.; Lalancette, R.; Szostak, R.; Szostak, M. The Most Twisted Acyclic Amides: Structures and Reactivity. Org. Lett. 2018, 20, 7771–7774. [Google Scholar] [CrossRef] [PubMed]
Molecules 24 00274 g001

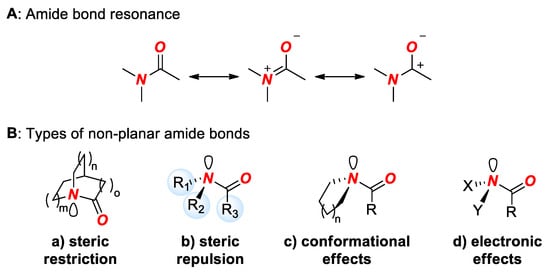

Figure 1. (A) Amide Bond Resonance. (B) Types of Distorted Amide Bonds.
Figure 1. (A) Amide Bond Resonance. (B) Types of Distorted Amide Bonds.
Molecules 24 00274 g001
Molecules 24 00274 g002

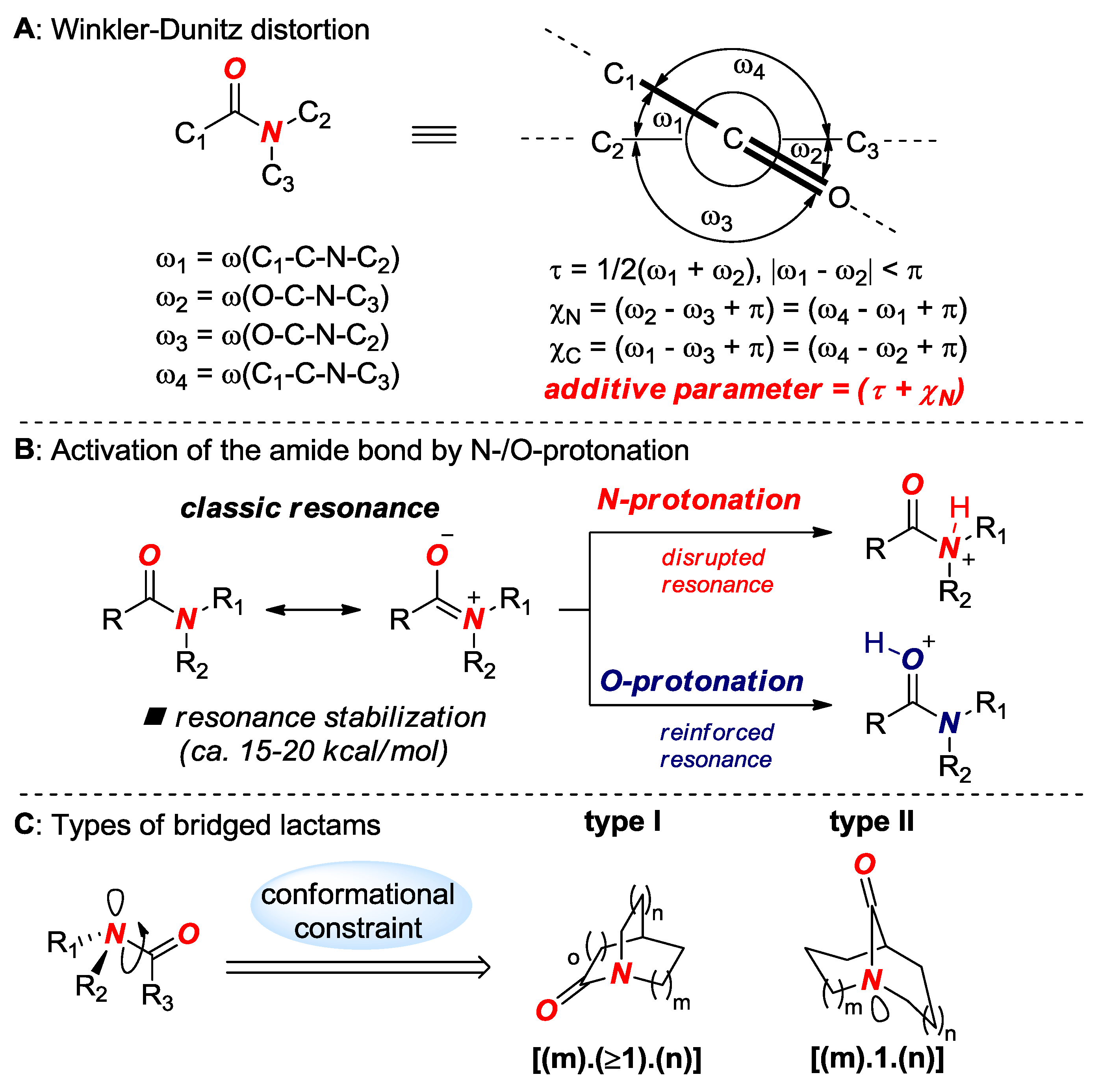

Figure 2. (A) Winkler-Dunitz Distortion. (B) Activation of the Amide Bond by N-/O-Protonation. (C) Types of Bridged Lactams.
Figure 2. (A) Winkler-Dunitz Distortion. (B) Activation of the Amide Bond by N-/O-Protonation. (C) Types of Bridged Lactams.
Molecules 24 00274 g002
Molecules 24 00274 g003

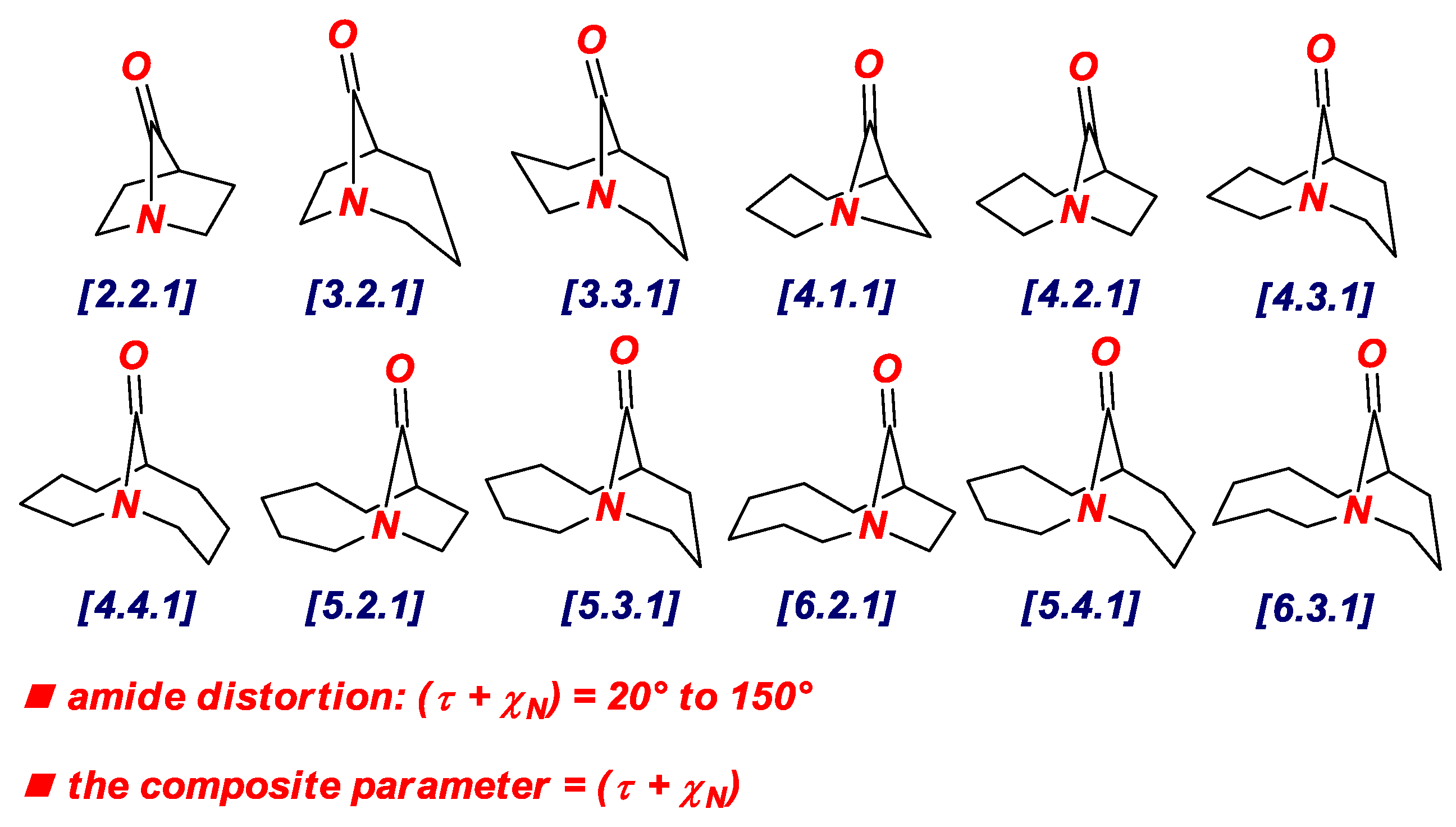

Figure 3. Additive Winkler-Dunitz Distortion Parameter: Sum of Twist Angle and Nitrogen Pyramidalization (Στ + χN).
Figure 3. Additive Winkler-Dunitz Distortion Parameter: Sum of Twist Angle and Nitrogen Pyramidalization (Στ + χN).
Molecules 24 00274 g003
Molecules 24 00274 g004

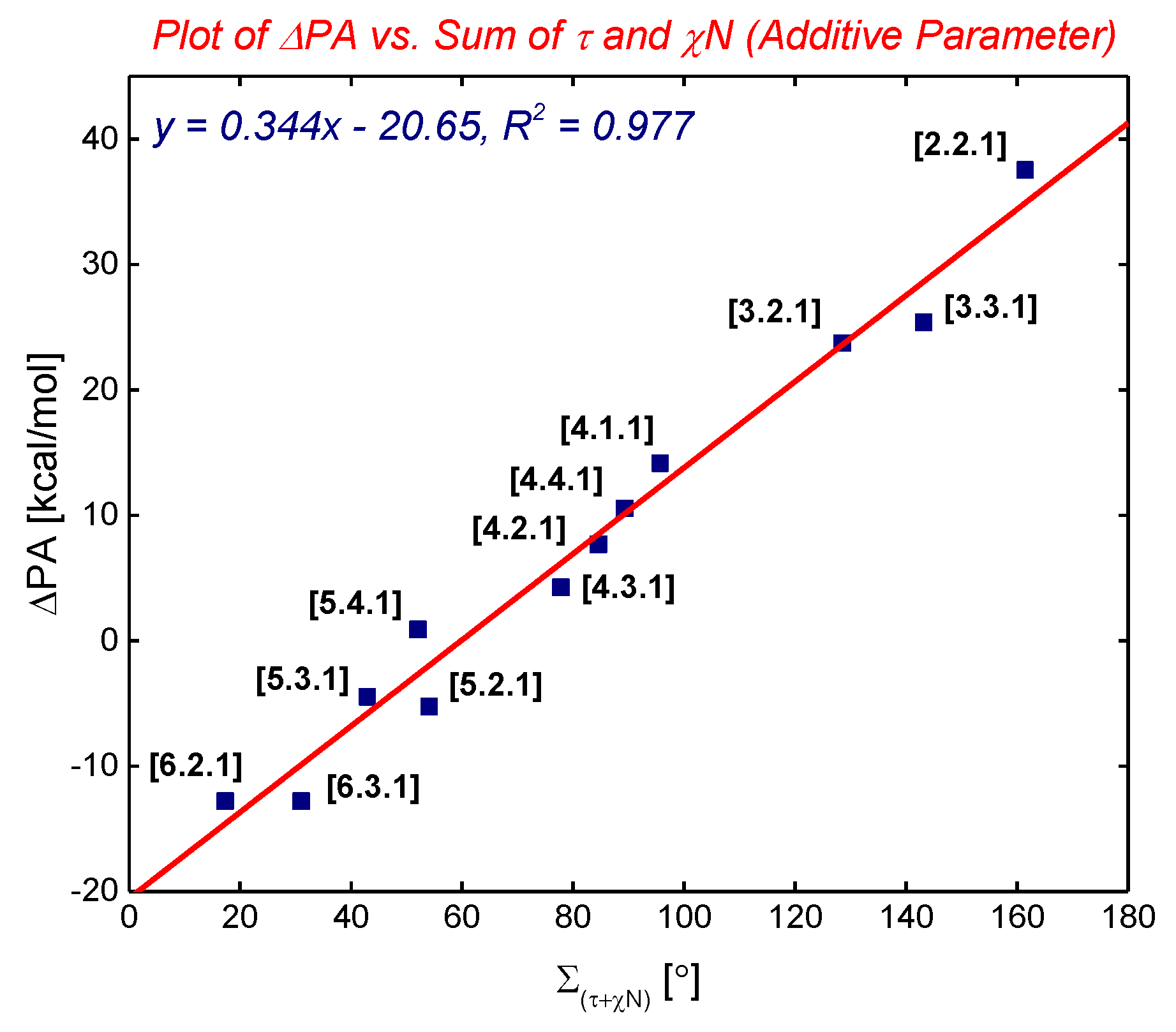

Figure 4. Plot of ΔPA (PA = Experimental Protonation Affinity) to the Sum of Twist and Pyramidalization at Nitrogen Angles (Additive Winkler-Dunitz Parameter: Στ + χN). Note that (Στ + χN) gives linear correlations vs. structural and other energetic parameters. See [15]. Also note comprehensive studies [16,17,18].
Figure 4. Plot of ΔPA (PA = Experimental Protonation Affinity) to the Sum of Twist and Pyramidalization at Nitrogen Angles (Additive Winkler-Dunitz Parameter: Στ + χN). Note that (Στ + χN) gives linear correlations vs. structural and other energetic parameters. See [15]. Also note comprehensive studies [16,17,18].
Molecules 24 00274 g004
Molecules 24 00274 g005

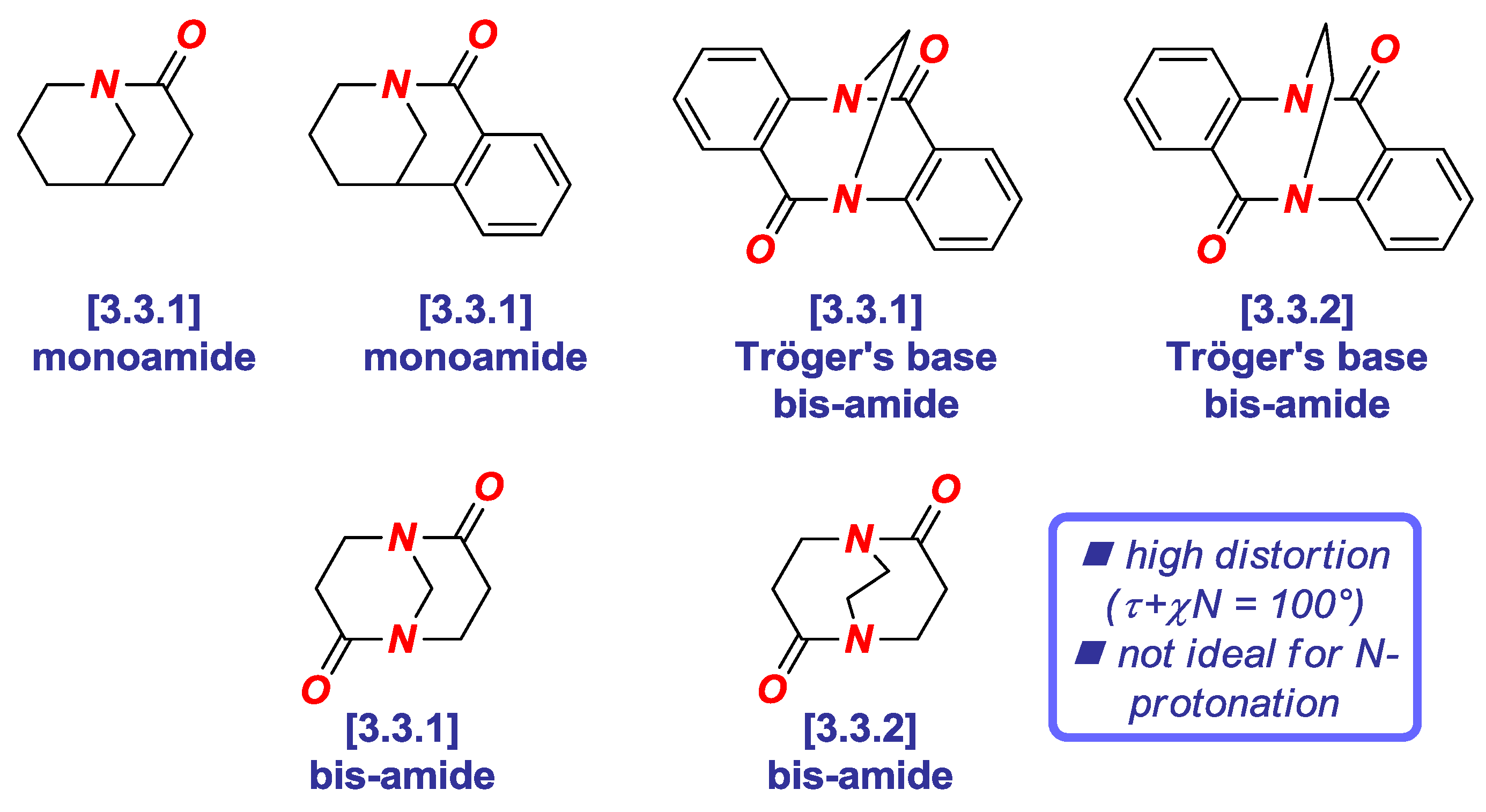

Figure 5. Additive Winkler-Dunitz Distortion Parameter in Tröger’s Base Twisted Amides.
Figure 5. Additive Winkler-Dunitz Distortion Parameter in Tröger’s Base Twisted Amides.
Molecules 24 00274 g005
Molecules 24 00274 g006

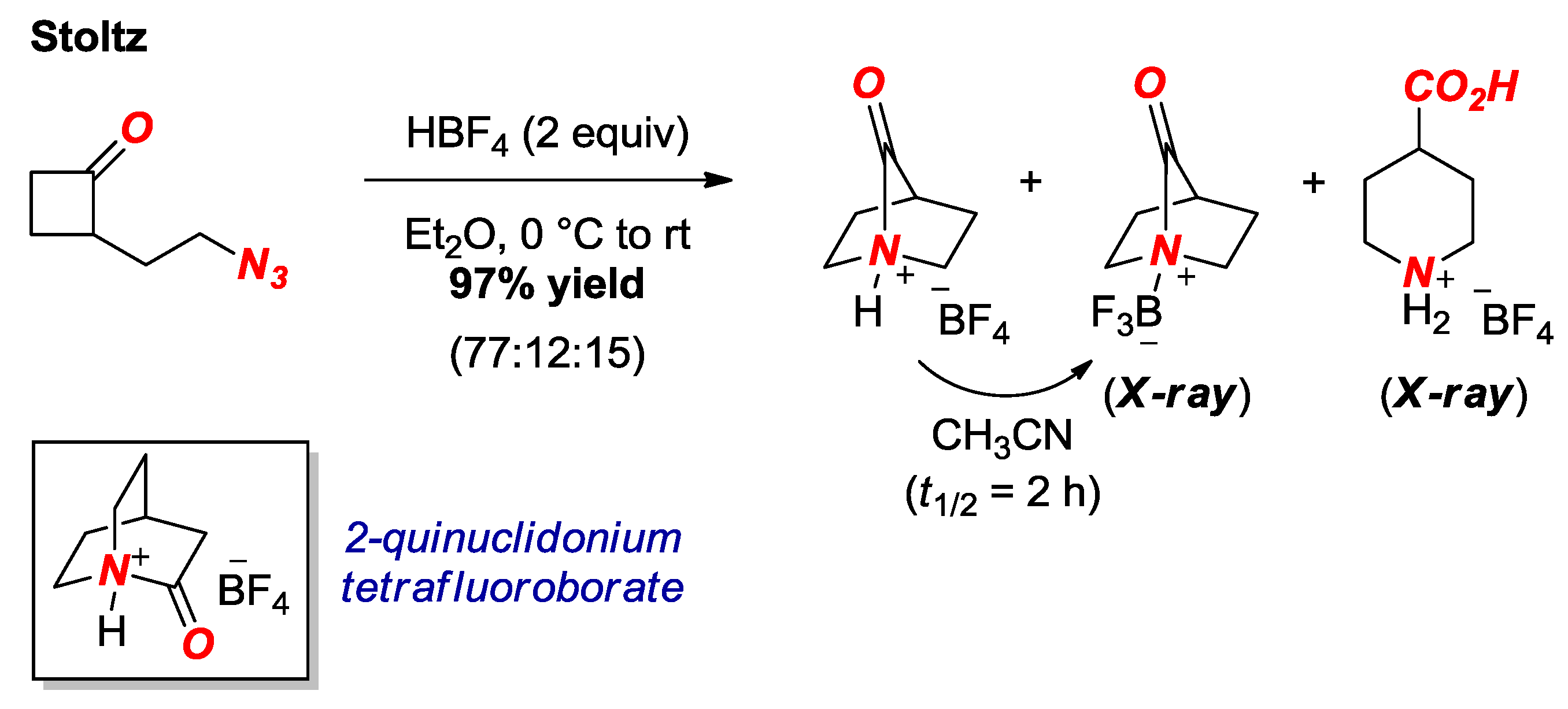

Figure 6. Synthesis of 7-Hypoquinuclidonium Tetrafluoroborate.
Figure 6. Synthesis of 7-Hypoquinuclidonium Tetrafluoroborate.
Molecules 24 00274 g006
Molecules 24 00274 g007

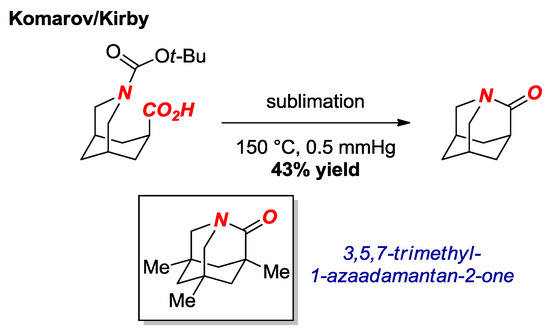

Figure 7. Synthesis of Parent 1-Azaadamantan-2-one.
Figure 7. Synthesis of Parent 1-Azaadamantan-2-one.
Molecules 24 00274 g007
Molecules 24 00274 g008
Figure 8. Computational Study of 1-Methyl-4-Silatranone.
Figure 8. Computational Study of 1-Methyl-4-Silatranone.
Molecules 24 00274 g008
Molecules 24 00274 g009
Figure 9. N-Alkylation of Bridged Lactams as a Trigger for σ N-C Bond Activation.
Figure 9. N-Alkylation of Bridged Lactams as a Trigger for σ N-C Bond Activation.
Molecules 24 00274 g009
Molecules 24 00274 g010

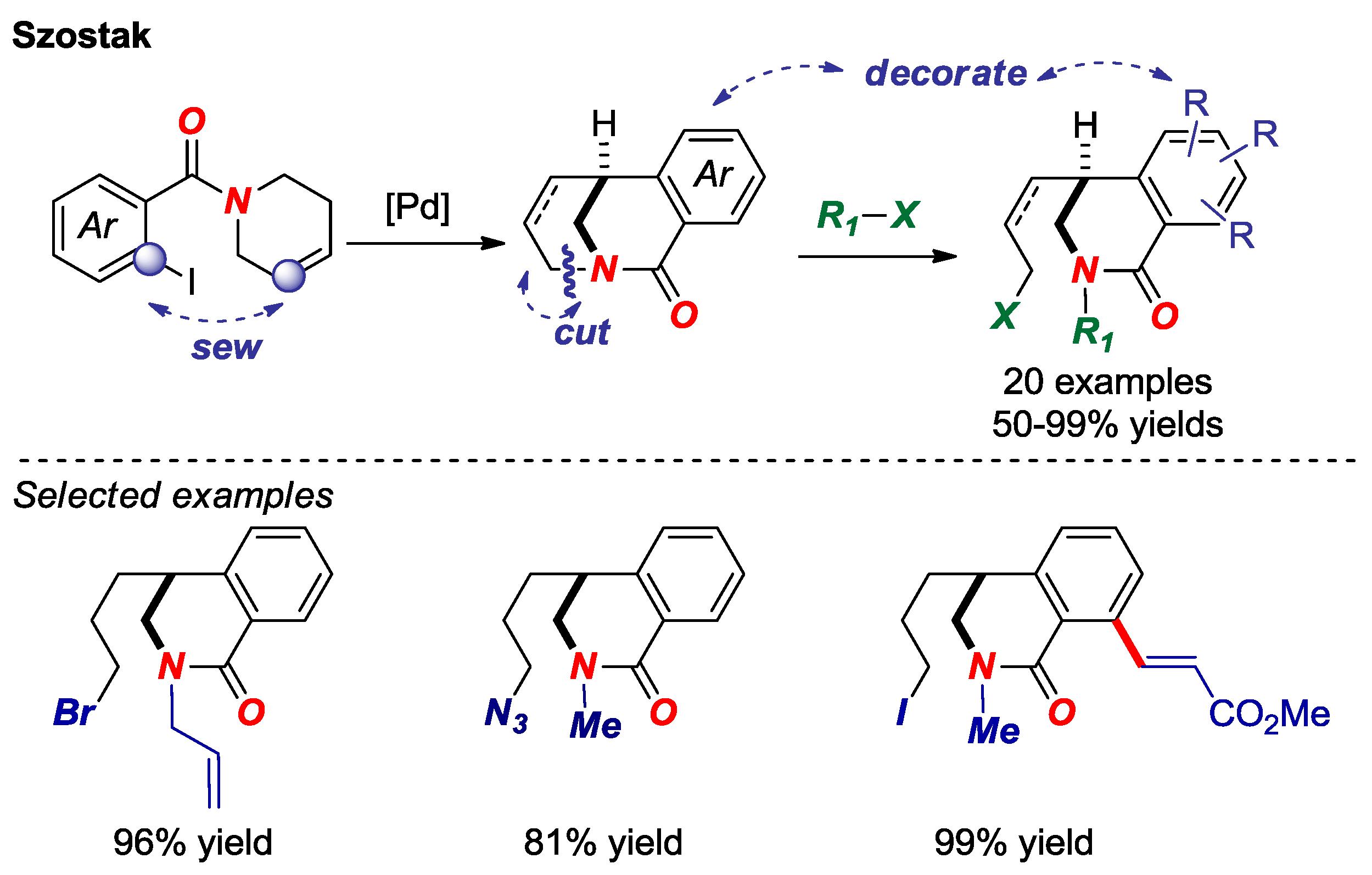

Figure 10. Sew-And-Cut of Bridged Lactams by a Transition-Metal-Free σ N–C Bond Activation.
Figure 10. Sew-And-Cut of Bridged Lactams by a Transition-Metal-Free σ N–C Bond Activation.
Molecules 24 00274 g010
Molecules 24 00274 g011

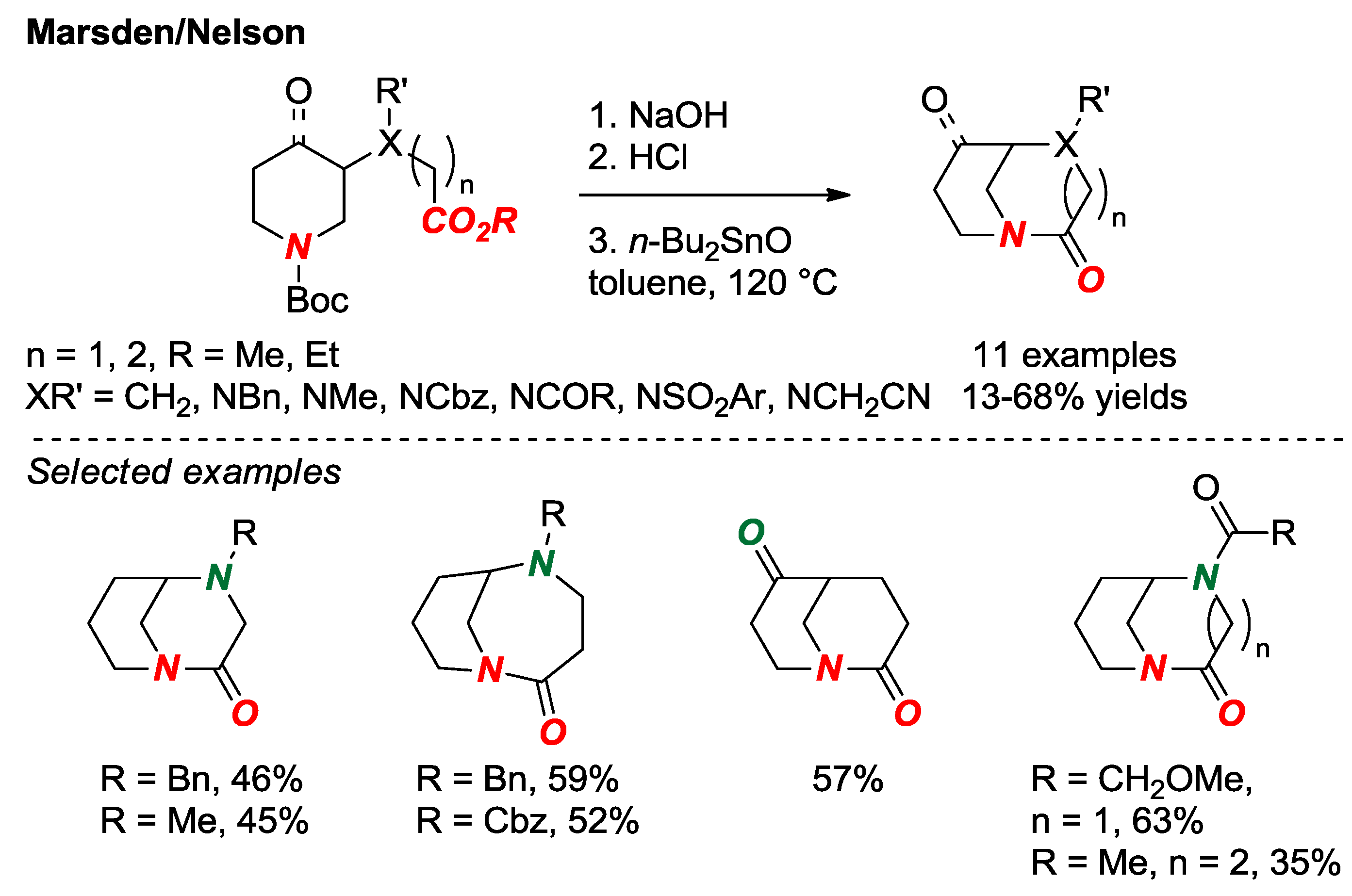

Figure 11. Fragment-Based Drug Discovery using Bridged Lactams.
Figure 11. Fragment-Based Drug Discovery using Bridged Lactams.
Molecules 24 00274 g011
Molecules 24 00274 g012
Figure 12. Synthesis of a Bridged Hydantoin. VTMS = Vinyloxytrimethylsilane. DPPA = diphenyl phosphoryl azide. SIMes = 1,3-Bis(2,4,6-trimethylphenyl)-2-imidazolidinylidene.
Figure 12. Synthesis of a Bridged Hydantoin. VTMS = Vinyloxytrimethylsilane. DPPA = diphenyl phosphoryl azide. SIMes = 1,3-Bis(2,4,6-trimethylphenyl)-2-imidazolidinylidene.
Molecules 24 00274 g012
Molecules 24 00274 g013
Figure 13. Synthesis of Ethano Tröger’s Base Twisted Amides. BTEAC = Benzyltriethylammonium Chloride.
Figure 13. Synthesis of Ethano Tröger’s Base Twisted Amides. BTEAC = Benzyltriethylammonium Chloride.
Molecules 24 00274 g013
Molecules 24 00274 g014
Figure 14. Enantioselective Synthesis of Bridged Lactams by Allylic Amination.
Figure 14. Enantioselective Synthesis of Bridged Lactams by Allylic Amination.
Molecules 24 00274 g014
Molecules 24 00274 g015

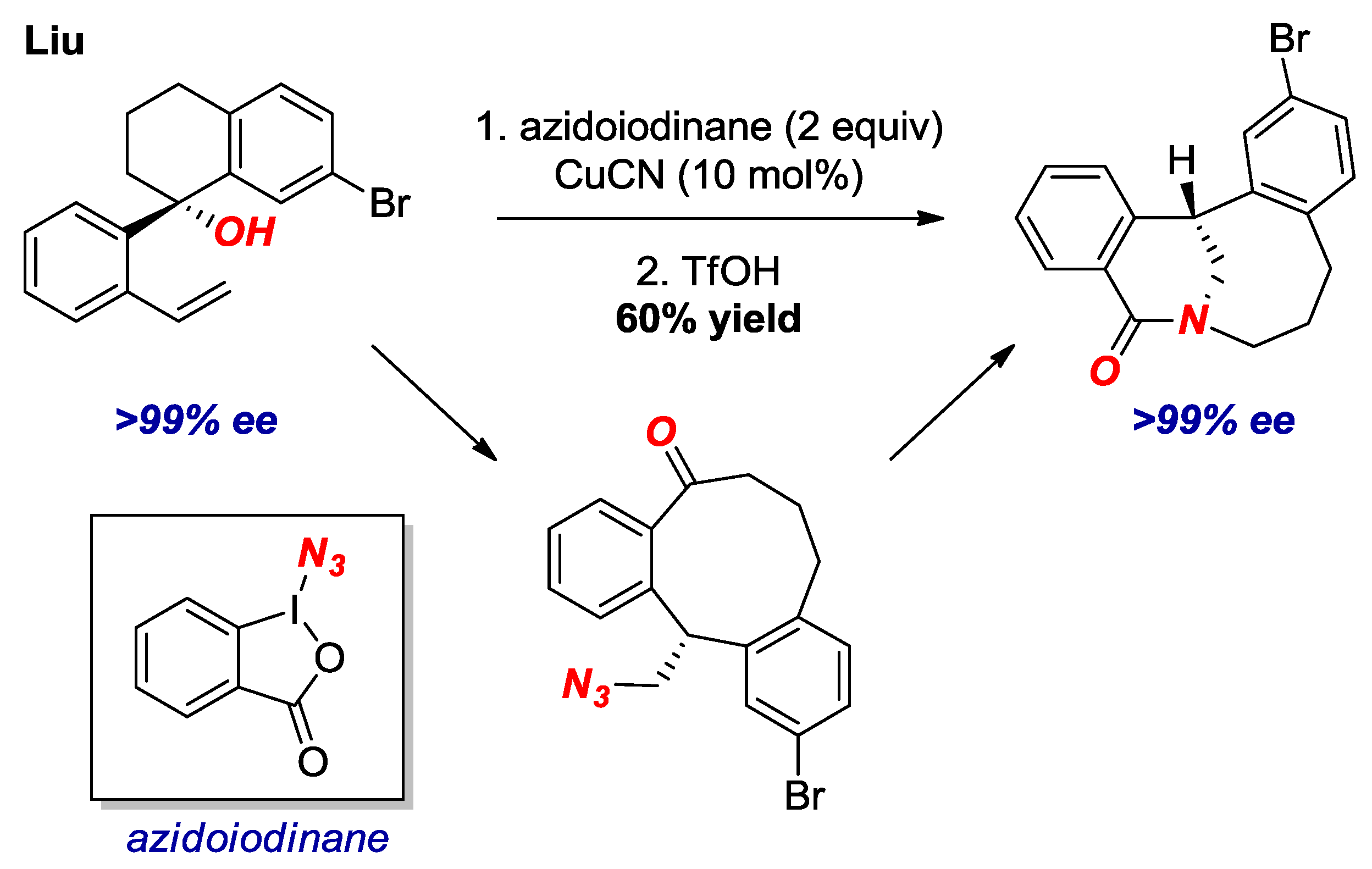

Figure 15. Enantioselective Synthesis of Bridged Lactams by Radical Aryl Migration.
Figure 15. Enantioselective Synthesis of Bridged Lactams by Radical Aryl Migration.
Molecules 24 00274 g015
Molecules 24 00274 g016
Figure 16. Synthesis of Saturated Bridged Sultams via Intramolecular Heck Reaction/Reduction.
Figure 16. Synthesis of Saturated Bridged Sultams via Intramolecular Heck Reaction/Reduction.
Molecules 24 00274 g016
Molecules 24 00274 g017
Figure 17. Synthesis of Bridged Benzothiaoxazepine-1,1-dioxides via SNAr Cyclization.
Figure 17. Synthesis of Bridged Benzothiaoxazepine-1,1-dioxides via SNAr Cyclization.
Molecules 24 00274 g017
Molecules 24 00274 g018

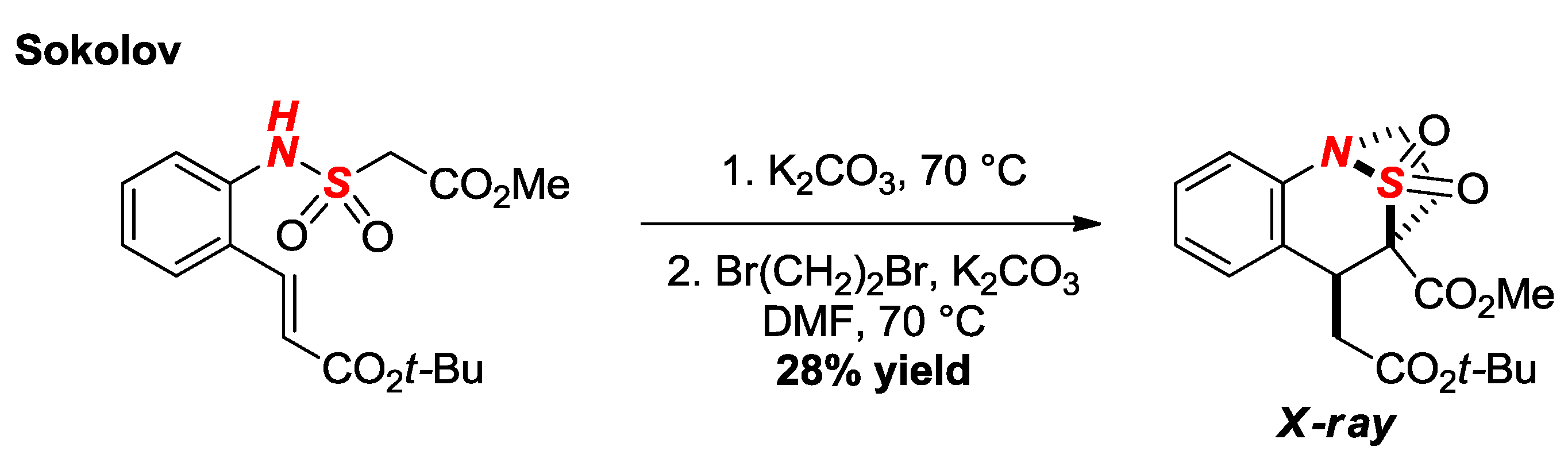

Figure 18. Synthesis of an Apex Bridged Sultam via 1,4-Addition.
Figure 18. Synthesis of an Apex Bridged Sultam via 1,4-Addition.
Molecules 24 00274 g018
Molecules 24 00274 g019
Figure 19. Reduction of a Bridged Lactam in Scholarisine G (A) and Leuconoxine Alkaloids (B).
Figure 19. Reduction of a Bridged Lactam in Scholarisine G (A) and Leuconoxine Alkaloids (B).
Molecules 24 00274 g019
Molecules 24 00274 g020
Figure 20. Lactam-to-Lactone Rearrangement of a Bridged Lactam in Haemanthidine Alkaloids.
Figure 20. Lactam-to-Lactone Rearrangement of a Bridged Lactam in Haemanthidine Alkaloids.
Molecules 24 00274 g020
Molecules 24 00274 g021
Figure 21. Bridged Amidine from a [3.3.1] Bridged Lactam in the Synthesis of Eucophylline.
Figure 21. Bridged Amidine from a [3.3.1] Bridged Lactam in the Synthesis of Eucophylline.
Molecules 24 00274 g021
Molecules 24 00274 g022
Figure 22. Synthesis of Bridged Enamines via Gold-Catalyzed Spriocyclization.
Figure 22. Synthesis of Bridged Enamines via Gold-Catalyzed Spriocyclization.
Molecules 24 00274 g022
Molecules 24 00274 g023
Figure 23. Synthesis of a Macrocyclic Lactam via Witkop Cyclization.
Figure 23. Synthesis of a Macrocyclic Lactam via Witkop Cyclization.
Molecules 24 00274 g023
Molecules 24 00274 g024
Figure 24. Cyclic Twisted Amide-Containing Tetrapeptides.
Figure 24. Cyclic Twisted Amide-Containing Tetrapeptides.
Molecules 24 00274 g024

Share and Cite

MDPI and ACS Style

Szostak, R.; Szostak, M. Chemistry of Bridged Lactams: Recent Developments. Molecules 2019, 24, 274. https://doi.org/10.3390/molecules24020274

AMA Style

Szostak R, Szostak M. Chemistry of Bridged Lactams: Recent Developments. Molecules. 2019; 24(2):274. https://doi.org/10.3390/molecules24020274

Chicago/Turabian Style

Szostak, Roman, and Michal Szostak. 2019. "Chemistry of Bridged Lactams: Recent Developments" Molecules 24, no. 2: 274. https://doi.org/10.3390/molecules24020274

APA Style

Szostak, R., & Szostak, M. (2019). Chemistry of Bridged Lactams: Recent Developments. Molecules, 24(2), 274. https://doi.org/10.3390/molecules24020274

Article Metrics

Back to TopTop
