Molecules 2018, 23(3), 639; doi:10.3390/molecules23030639

Communication
Prenylated Polyphenols from Broussonetia kazinoki as Inhibitors of Nitric Oxide Production
1,†
,
2,†
and
1,*
1
College of Pharmacy and Research Center for Cell Fate Control, Sookmyung Women’s University, Seoul 04310, Korea
2
School of Industrial Bio-Pharmaceutical Science, Semyung University, Jecheon, Chungbuk 27136, Korea
*
Correspondence: ryuha@sookmyung.ac.kr; Tel.: +82-2-710-9568
These authors contributed equally to this work.
Received: 20 February 2018 / Accepted: 9 March 2018 / Published: 12 March 2018

Abstract

:
Excessive nitric oxide (NO) production by macrophages has been involved in inflammatory diseases. Seven polyphenols (17) were isolated from Broussonetia kazinoki (B. kazinoki) and investigated as potential inhibitors of NO overproduction in lipopolysaccharide (LPS)-activated RAW 264.7 cells. Among them, four prenylated polyphenols (24 and 6) with a catechol moiety efficiently suppressed the LPS-induced high level of NO with IC50 values of less than 6 µM. The compounds 24 and 6 also attenuated protein and mRNA levels of inducible nitric oxide synthase (iNOS). Moreover, they suppressed the nuclear factor κB (NF-κB) activity by inhibiting the degradation of inhibitory-κB-α (I-κB-α) and the translocation of NF-κB into the nucleus in LPS-activated macrophages. Taken together, these findings suggest that polyphenols from B. kazinoki might be beneficial for treatment of inflammatory diseases.
Keywords:
Broussonetia kazinoki; prenylated polyphenols; nitric oxide; inducible nitric oxide synthase; nuclear factor κB

1. Introduction

Broussonetia kazinoki (B. kazinoki), called as paper mulberry, has been used as a diuretic, a tonic, and a suppressant of edema in Chinses folk medicine. B. kazinoki has been reported to have various biological activities including anti-atopic dermatitis [1], anticancer [2], anti-inflammation [3], and depigmenting effects [4]. We have reported several prenylated polyphenols from B. kazinoki such as phytoestrogen [5], Fyn kinase inhibitors [6], ERK inhibitors [7], AMPK activators [8], and stimulators of myoblast differentiation [9]. In addition, kazinol B, a prenylated flavan with a dimethyl pyrane ring, was reported as an inhibitor of nitric oxide production without clarification of the molecular mechanism [3]. Nitric oxide (NO) is an unstable gas synthesized from an l-arginine substrate via catalytic reaction by nitric oxide synthase (NOS) [10]. The inducible NOS (iNOS) is primarily found in macrophages and induced by lipopolysaccharide (LPS) or cytokines to produce a high level of NO as a pro-inflammatory mediator [11]. A large amount of NO reacts with superoxide anion (O2•−) to generate peroxynitrite (ONOO), an extremely reactive nitrogen species [12]. Consequently, the NO/iNOS pathway has been involved in inflammatory condition such as atherosclerosis [13], allergic pulmonary inflammation [14], diabetes [15], Alzheimer’s disease [16], and cancer [17]. Therefore, the inhibition of excessive NO production can be a critical strategy for the treatment of inflammatory diseases. This study shows that the bioactive polyphenols from B. kazinoki extract have a suppressive effect on NO production in LPS-activated macrophages and reveal the working mechanism for these polyphenols’ activities.

2. Results and Discussion

In our effort to search for the plant-derived inhibitors of NO production, we observed the EtOAc soluble layer of Broussonetia kazinoki extract exerted potent inhibitory activity of NO production in LPS-activated macrophages. Activity-guided separations from B. kazinoki yielded seven polyphenols (17) whose chemical structures were elucidated as tupichinol C (1) [18], kazinol U (2) [5], kazinol A (3) [19], kazinol I (4) [20], broussonin A (5) [21], kazinol C (6) [20], and kazinol D (7) [20] (Figure 1) by analyzing the spectroscopic materials and verified by comparison with previously described data.
These seven polyphenols (17) demonstrated a concentration-dependent inhibition of NO production in LPS-stimulated RAW 264.7 macrophages (0–20 µM). Their IC50 values are presented in Table 1.
Compounds 17 concentration-dependently inhibited the LPS-induced NO production (IC50 = 4.2 ~ >20 µM) and the activity was affected by their chemical structures. IC50 values of the prenylated Compounds 24, 6, and 7 were less than 10 µM, while those of the non-prenylated Compounds 1 and 5 were 16.9 and higher than 20 µM, respectively. These findings are in agreement with the previously reported result that prenylated polyphenols, compared with non-prenylated polyphenols, showed higher potency in antioxidant and cyto-protective activity against oxidative stress [6]. These might come from the increased hydrophobicity and cell permeability of prenylated compounds [6]. Among prenylated polyphenols, Compounds 24 and 6 showed a more potent inhibition of NO production (IC50 values: 4.2~5.3 µM) than Compound 7 (IC50 value: 8.0 µM). Compounds 24 and 6 have a catechol moiety in prenylated aromatic rings, while Compound 7 has a dimethyl dihydropyrane ring that was formed by an oxidative cyclization of one prenyl chain with the hydroxyl group of Compound 6. Based on these observations, we postulated that prenyl groups and a catechol moiety in an aromatic ring are favorable structures for the inhibitory activity of NO production. Next, we investigated protein levels of iNOS by Western blot analysis to disclose the underlying mechanism of Compounds 24 and 6 for the inhibition of LPS-induced NO production. As shown in Figure 2a, they (10 µM) suppressed the LPS-activated iNOS protein expression in RAW 264.7 cells. Curcumin was used as a positive control for the level of iNOS expression. The inhibitory effect of Compound 3 on iNOS protein expression was similar with that of curcumin, while other compounds were weaker than curcumin. Furthermore, they attenuated the levels of iNOS mRNA in LPS-activated RAW 264.7 cells (Figure 2b). These results reveal that Compounds 24 and 6 suppress the LPS-activated iNOS expression at the transcriptional level.
Since iNOS gene expression is mainly regulated at the transcriptional level by nuclear factor κB (NF-κB) [22], we examined the transcriptional activity of NF-κB using T-RAW 264.7 macrophage cells, which were stably transfected RAW 264.7 cells with NF-κB-SEAP-NPT reporter construct [23]. SEAP activity was increased by LPS treatment, which means the activation of NF-κB in stimulated macrophages (Figure 3a). Compounds 24 and 6 downregulated the LPS-induced NF-κB activation in T-RAW 264.7 cells. This result suggests that Compounds 24 and 6 suppressed NF-κB activation in LPS-stimulated T-RAW 264.7 cells. In addition, NF-κB, a pivotal regulator in the inflammatory response, is present in the cytoplasm as an inert dimer (the p50 and p65 subunits), complexed with an inhibitory protein I-κB-α in a normal condition. Via pro-inflammatory stimuli, phosphorylation of I-κB-α occurs, and phosphorylated I-κB-α is quickly degraded by the proteasome, leading to the dissociation of NF-κB from I-κB-α and translocation of NF-κB (p50/p65 dimer) into the nucleus [24]. The active NF-κB binds to the specific DNA sequence of target gene and regulates the transcription of inflammatory genes including iNOS. Herein, we investigated whether Compounds 24 and 6 affect the degradation of I-κB-α in cytoplasm and the translocation of NF-κB into the nucleus. Compounds 24 and 6 decreased the cytoplasmic I-κB-α degradation and suppressed the level of nuclear p65 in LPS-activated macrophages (Figure 3b). These observations indicate that these prenylated polyphenols (24 and 6) stabilized I-κB-α and prevented the nuclear translocation of the p65 subunit of NF-κB.

3. Materials and Methods

3.1. Plant Material, Extraction, Isolation, and Sample Preparation

The air-dried root bark of Broussonetia kazinoki (0.6 kg), collected from Goesan, Chungbuk province, Korea in 2014 (voucher specimen no. SPH 1401), was extracted for 24 h at room temperature with 2 L of ethanol. The extract (51 g) was suspended in water and successively partitioned with n-hexane, EtOAc, CHCl3, and BuOH. The EtOAc soluble layer (31 g) was subjected to silica gel column chromatography eluting with n-hexane/acetone (20:1→1:10) to collect 11 fractions. Fraction 5 was separated on silica gel using n-hexane/EtOAc gradient system (20:1→1:3) to yield eleven subfractions. Subfraction 5.7 was chromatographed on an RP-C18 column with elution system of MeOH/water (50%→100%), and then it’s Subfraction 5.7.4 was re-chromatographed on an RP-C18 column with MeOH/water gradient elution (50%→100%) to yield kazinol D (7, 60 mg). Fraction 6 was chromatographed on a silica gel column with n-hexane/acetone (40:1→1:1) to yield six subfractions. Subfraction 6.4 was further chromatographed on a silica gel column using n-hexane/EtOAc (20:1→2:1) to afford kazinol A (3, 23 mg) and Subfraction 6.6 was chromatographed on an RP-C18 column with elution system of MeOH/water (30%→100%) to afford kazinol I (4, 79.8 mg). Fraction 7 was further chromatographed with a silica gel column with CHCl3/MeOH (100:1→1:1) to afford six subfractions. Fraction 7.3 was chromatographed on an RP-C18 column with MeOH/water (40%→100%) to yield broussonin A (5, 17 mg), tupichinol C (1, 7 mg), and kazinol C (6, 260 mg). Fraction 8 was chromatographed on an RP-C18 column with MeOH/water (30%→100%) to afford kazinol U (2, 139 mg). Test materials were dissolved in dimethyl sulfoxide (DMSO), and the final concentration of DMSO in cell culture media was less than 0.1%, which does not affect the cell viability or other cellular functions.

3.2. Cell Culture

A murine macrophage cell line, RAW 264.7 cells (ATCC, Rockville, MD, USA) were cultured in DMEM containing 10% FBS, 100 units/mL penicillin, and 100 µg/mL streptomycin (Life Technologies, Frederick, MD, USA). Cells were incubated at 37 °C with 5% CO2 in a humidified atmosphere.

3.3. Measurement of Nitric Oxide Production and Cell Viability

RAW 264.7 cells (1 × 105 cells/48 well plate) were treated with or without compounds in presence of LPS (1 µg/mL) for 20 h. NO was measured by detecting the accumulated nitrite by the Griess method. Briefly, aliquots (100 µL) of culture media were mixed with 150 µL of Griess reagent (1% sulfanilamide, 0.1% naphthylethylene diamine in 2.5% phosphoric acid solution) and then waited at room temperature for 10 min in a 96-well microplate. Absorbance was detected at 540 nm by using a microplate reader (Molecular Devices, Sunnyvale, CA, USA). The concentration of NO was assessed by the sodium nitrite standard curve. To evaluate cell viability, cells were plated at a density of 1 × 103 cells/well in a 96-well plate. The cells were incubated with LPS (1 µg/mL) in the presence of Compounds 24 and 6 (10–20 µM). After 20 h, cells were treated with 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT, 5 mg/mL) for 4 h and then added the DMSO to solubilize the formazan. Absorbance was read at 540 nm by using a microplate reader (Figure S1).

3.4. Western Blot Analysis

RAW 264.7 cells (5 × 105 cells/60 mm dish) were treated with or without test compounds in the presence of LPS (1 μg/mL). After 20 h treatment, cells were lysed with cell lysis buffer (Cell Signaling Technologies, Beverly, MA, USA) and centrifuged at 4 °C. Supernatants were subjected to the quantitation of protein concentrations by the Bradford method. For preparation of cytosol and nuclear extracts, cells were treated with test compounds for 30 min prior to stimulation with 1 μg/mL LPS. Following 15 min treatment of LPS, cells were collected using NE-PER nuclear and cytoplasmic extraction reagents according to the manufacturer’s instructions (Pierce Biotechnology, Rockford, IL, USA). The lysates were resolved by SDS-PAGE and transferred to a PVDF membrane. The membrane was incubated with 5% nonfat milk for 1 h and then incubated with the primary antibody overnight at 4 °C. For immunoblot analysis, antibodies against iNOS, I-κB-α, and p65 were obtained from BD Biosciences (Franklin Lakes, NJ, USA) and Santa Cruz Biotechnology (Rockford, IL, USA), respectively. After incubation with the secondary antibody for 1 h at room temperature, bands were detected by VersaDoc 3000 (Bio-Rad, Hercules, CA, USA) with ECL reagents (GE Health Care Life Sciences, Marlborough, MA, USA).

3.5. Reverse Transcription and Polymerase Chain Reaction (RT-PCR) Analysis

RAW 264.7 cells (5 × 105 cells/60 mm dish) were stimulated for 6 h with or without test compounds in the presence of LPS (1 μg/mL). Total RNA was extracted by TRIzol (Life technologies, Frederick, MD, USA) according to the manufacturer’s instructions and then reverse transcribed into cDNA using reverse transcriptase (Life Technologies, Frederick, MD, USA) and random hexamer (Cosmo, Seoul, Korea). Then, prepared aliquots of cDNA were amplified using a recombinant Taq polymerase (Promega, Madison, WI, USA) and primers for iNOS and β-actin to detect gene expression of iNOS and β-actin.

3.6. Measurement of NF-κB Activity

NF-κB transcriptional activity was assessed using the stably transfected RAW 264.7 cells with pNF-κB-SEAP-NPT (T-RAW 264.7 cells were kindly gifted by Professor Yeong Shik Kim, Seoul National University, Seoul, Korea) as described previously, with some modifications [23]. Briefly, T-RAW 264.7 cells were plated on a 24-well plate overnight. Test compounds were added to cells 30 min before the treatment with LPS (1 µg/mL). After 6 h of incubation, aliquots of culture medium were heated at 65 °C for 6 min, and the activity of SEAP (secretory alkaline phosphatase) was then evaluated. The transcriptional activity was presented as relative fluorescence units (RFUs).

3.7. Statistical Analysis

The values express mean ± S.D. of three experiments, and statistical analysis was carried out with a one-way ANOVA and Student’s t-test. A p-value of <0.05 was considered significantly different.

4. Conclusions

Our results indicate that seven polyphenols (1–7) from B. kazinoki inhibited NO production in LPS-stimulated RAW 264.7 cells. Four prenylated polyphenols (2–4 and 6) with a catechol moiety in an aromatic ring potently suppressed NO production, iNOS protein/mRNA expression, and NF-κB activity. They also suppressed the degradation of I-κB-α and the nuclear translocation of NF-κB in LPS-stimulated RAW 264.7 macrophages. The active compounds, kazinol U (2), kazinol A (3), kazinol I (4), and kazinol C (6), from B. kazinoki have potential for use in the treatment of diseases concomitant with NO overproduction.

Supplementary Materials

The supplementary materials are available online.

Acknowledgments

This study was supported by the National Research Foundation of Korea (NRF) grant funded by the Korea government (No. 2011-0030074 and No. 2010-0009582).

Author Contributions

Da Yeon Lee performed the experiments; Hwa Jin Lee analyzed the data and prepared the manuscript; Jae-Ha Ryu designed the entire experiments, analyzed the data, and wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lee, J.K.; Ha, H.; Lee, H.Y.; Park, S.J.; Jeong, S.L.; Choi, Y.J.; Shin, H.K. Inhibitory effects of heartwood extracts of Broussonetia kazinoki Sieb on the development of atopic dermatitis in NC/Nga mice. Biosci. Biotechnol. Biochem. 2010, 74, 1802–1806. [Google Scholar] [CrossRef] [PubMed]
  2. Kim, H.S.; Lim, J.; Lee, D.Y.; Ryu, J.H.; Lim, J.S. Kazinol C from Broussonetia kazinoki activates AMP-activated protein kinase to induce antitumorigenic effects in HT-29 colon cancer cells. Oncol. Rep. 2015, 33, 223–229. [Google Scholar] [CrossRef] [PubMed]
  3. Ryu, J.H.; Ahn, H.; Lee, H.J. Inhibition of nitric oxide production on LPS-activated macrophages by kazinol B from Broussonetia kazinoki. Fitoterapia 2003, 74, 350–354. [Google Scholar] [CrossRef]
  4. Baek, Y.S.; Ryu, Y.B.; Curtis-Long, M.J.; Ha, T.J.; Rengasamy, R.; Yang, M.S.; Park, K.H. Tyrosinase inhibitory effects of 1,3-diphenylpropanes from Broussonetia kazinoki. Bioorg. Med. Chem. 2009, 17, 35–41. [Google Scholar] [CrossRef] [PubMed]
  5. Lee, D.Y.; Kim, D.H.; Lee, H.J.; Lee, Y.; Ryu, K.H.; Jung, B.I.; Song, Y.S.; Ryu, J.H. New estrogenic compounds isolated from Broussonetia kazinoki. Bioorg. Med. Chem. Lett. 2010, 20, 3764–3767. [Google Scholar] [CrossRef] [PubMed]
  6. Kim, A.Y.; Lee, C.G.; Lee, D.Y.; Li, H.; Jeon, R.; Ryu, J.H.; Kim, S.G. Enhanced antioxidant effect of prenylated polyphenols as Fyn inhibitor. Free Radic. Biol. Med. 2012, 53, 1198–1208. [Google Scholar] [CrossRef] [PubMed]
  7. Jung, Y.C.; Han, S.; Hua, L.; Ahn, Y.H.; Cho, H.; Lee, C.J.; Lee, H.; Cho, Y.Y.; Ryu, J.H.; Jeon, R.; et al. Kazinol-E is a specific inhibitor of ERK that suppresses the enrichment of a breast cancer stem-like cell population. Biochem. Biophys. Res. Commun. 2016, 470, 294–299. [Google Scholar] [CrossRef] [PubMed]
  8. Lee, H.; Li, H.; Jeong, J.H.; Noh, M.; Ryu, J.H. Kazinol B from Broussonetia kazinoki improves insulin sensitivity via Akt and AMPK activation in 3T3-L1 adipocytes. Fitoterapia 2016, 112, 90–96. [Google Scholar] [CrossRef] [PubMed]
  9. Hwang, J.; Lee, S.J.; Yoo, M.; Go, G.Y.; Lee, D.Y.; Kim, Y.K.; Seo, D.W.; Kang, J.S.; Ryu, J.H.; Bae, G.U. Kazinol-P from Broussonetia kazinoki enhances skeletal muscle differentiation via p38MAPK and MyoD. Biochem. Biophys. Res. Commun. 2015, 456, 471–475. [Google Scholar] [CrossRef] [PubMed]
  10. Porasuphatana, S.; Tsai, P.; Rosen, G.M. The generation of free radicals by nitric oxide synthase. Comp. Biochem. Physiol. C Toxicol. Pharmacol. 2003, 134, 281–289. [Google Scholar] [CrossRef]
  11. Aktan, F. iNOS-mediated nitric oxide production and its regulation. Life Sci. 2004, 75, 639–653. [Google Scholar] [CrossRef] [PubMed]
  12. Korhonen, R.; Lahti, A.; Kankaanranta, H.; Moilanen, E. Nitric oxide production and signaling in inflammation. Curr. Drug Targets Inflamm. Allergy 2005, 4, 471–479. [Google Scholar] [CrossRef] [PubMed]
  13. Dusting, G.J. Nitric oxide in coronary artery disease: Roles in atherosclerosis, myocardial reperfusion and heart failure. EXS 1996, 76, 33–55. [Google Scholar] [PubMed]
  14. Prado, C.M.; Yano, L.; Rocha, G.; Starling, C.M.; Capelozzi, V.L.; Leick-Maldonado, E.A.; Martins Mde, A.; Tiberio, I.F. Effects of inducible nitric oxide synthase inhibition in bronchial vascular remodeling-induced by chronic allergic pulmonary inflammation. Exp. Lung Res. 2011, 37, 259–268. [Google Scholar] [CrossRef] [PubMed]
  15. McDaniel, M.L.; Kwon, G.; Hill, J.R.; Marshall, C.A.; Corbett, J.A. Cytokines and nitric oxide in islet inflammation and diabetes. Proc. Soc. Exp. Biol. Med. 1996, 211, 24–32. [Google Scholar] [CrossRef] [PubMed]
  16. Haas, J.; Storch-Hagenlocher, B.; Biessmann, A.; Wildemann, B. Inducible nitric oxide synthase and argininosuccinate synthetase: Co-induction in brain tissue of patients with Alzheimer’s dementia and following stimulation with beta-amyloid 1–42 in vitro. Neurosci. Lett. 2002, 322, 121–125. [Google Scholar] [CrossRef]
  17. Puglisi, M.A.; Cenciarelli, C.; Tesori, V.; Cappellari, M.; Martini, M.; Di Francesco, A.M.; Giorda, E.; Carsetti, R.; Ricci-Vitiani, L.; Gasbarrini, A. High nitric oxide production, secondary to inducible nitric oxide synthase expression, is essential for regulation of the tumour-initiating properties of colon cancer stem cells. J. Pathol. 2015, 236, 479–490. [Google Scholar] [CrossRef] [PubMed]
  18. Pan, W.B.; Chang, F.R.; Wei, L.M.; Wu, Y.C. New flavans, spirostanol sapogenins, and a pregnane genin from Tupistra chinensis and their cytotoxicity. J. Nat. Prod. 2003, 66, 161–168. [Google Scholar] [CrossRef] [PubMed]
  19. Ikuta, J.; Hano, Y.; Nomura, T. Compounds of Broussonetia papyrifera (L.) Vent. 2. Structures of two isoprenylated flavans, Kazinol A and B. Heterocycles 1985, 23, 2835–2842. [Google Scholar]
  20. Ikuta, J.; Hano, Y.; Nomura, T.; Kawakami, Y.; Sato, T. Compounds of Broussonetia kazinoki SIEB. I. Structures of two new isoprenylated flavans and five new isoprenylated 1,3-diphenylpropane derivatives. Chem. Pharm. Bull. 1986, 34, 1968–1979. [Google Scholar]
  21. Bae, G.; Yu, J.R.; Lee, J.; Chang, J.; Seo, E.K. Identification of nyasol and structurally related compounds as the active principles from Anemarrhena asphodeloides against respiratory syncytial virus (RSV). Chem. Biodivers. 2007, 4, 2231–2235. [Google Scholar] [CrossRef] [PubMed]
  22. Nam, N.H. Naturally occurring NF-kappaB inhibitors. Mini Rev. Med. Chem. 2006, 6, 945–951. [Google Scholar] [CrossRef] [PubMed]
  23. Moon, K.Y.; Ahn, K.S.; Lee, J.; Kim, Y.S. Kojic acid, a potential inhibitor of NF-kappaB activation in transfectant human HaCaT and SCC-13 cells. Arch. Pharm. Res. 2001, 24, 307–311. [Google Scholar] [CrossRef] [PubMed]
  24. Pande, V.; Ramos, M.J. NF-kappaB in human disease: Current inhibitors and prospects for de novo structure based design of inhibitors. Curr. Med. Chem. 2005, 12, 357–374. [Google Scholar] [CrossRef] [PubMed]
  • Sample Availability: Samples of the compounds are not available from the authors.

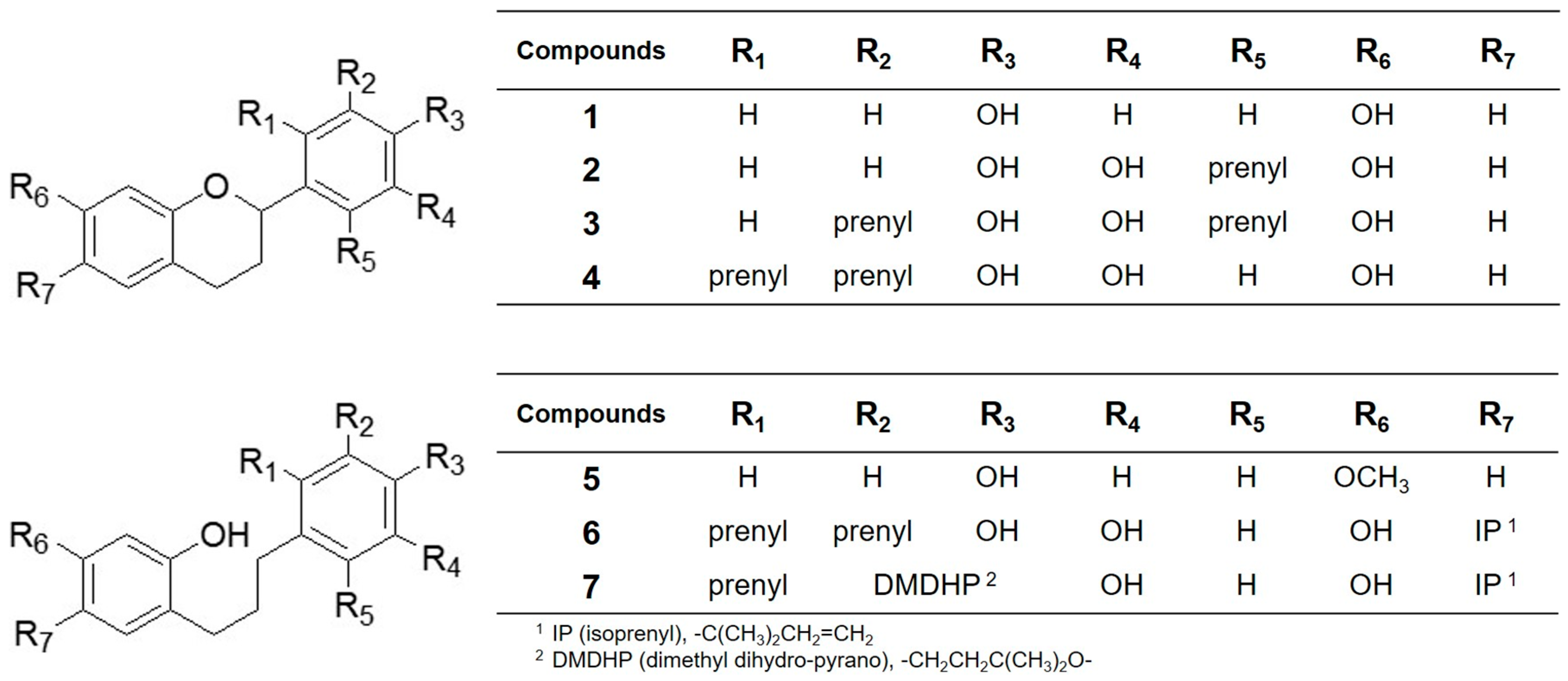

Figure 1. The chemical structures of Compounds 17 isolated from Broussonetia kazinoki.
Figure 1. The chemical structures of Compounds 17 isolated from Broussonetia kazinoki.
Molecules 23 00639 g001

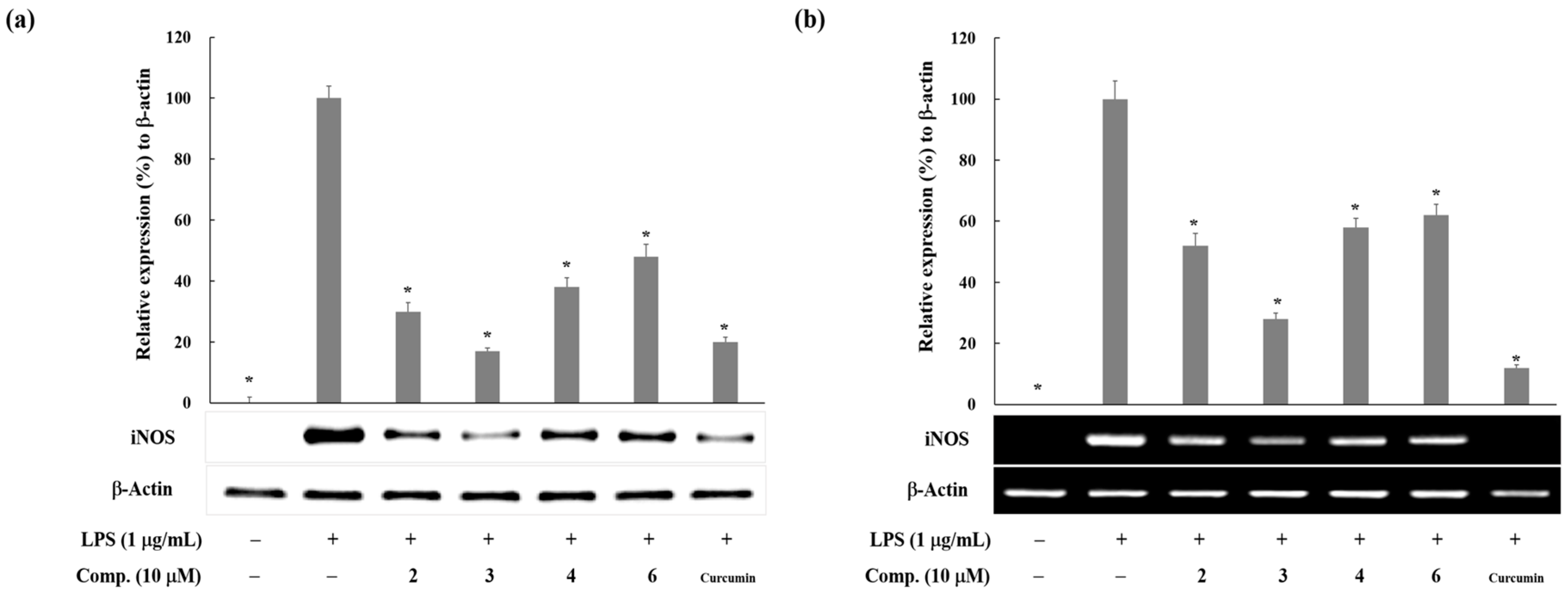

Figure 2. The inhibitory effects of Compounds 24 and 6 from B. kazinoki on LPS-induced iNOS expressions. (a) Effect of Compounds 24 and 6 on iNOS protein levels in LPS-activated RAW 264.7 cells. iNOS and β-actin protein levels were determined by Western blotting. The relative intensity of iNOS to β-actin bands was measured by densitometry. The values express the means ± S.D. of three experiments. * p < 0.05; (b) Effect of Compounds 24 and 6 on iNOS mRNA levels in LPS-activated RAW 264.7 cells. The mRNA levels of iNOS and β-actin were determined by RT-PCR. The relative intensity of iNOS to β-actin bands was measured by densitometry. The values express the means ± S.D. of three experiments. * p < 0.05. Curcumin was used as the positive control. Images are the representative of three independent experiments with similar results.
Figure 2. The inhibitory effects of Compounds 24 and 6 from B. kazinoki on LPS-induced iNOS expressions. (a) Effect of Compounds 24 and 6 on iNOS protein levels in LPS-activated RAW 264.7 cells. iNOS and β-actin protein levels were determined by Western blotting. The relative intensity of iNOS to β-actin bands was measured by densitometry. The values express the means ± S.D. of three experiments. * p < 0.05; (b) Effect of Compounds 24 and 6 on iNOS mRNA levels in LPS-activated RAW 264.7 cells. The mRNA levels of iNOS and β-actin were determined by RT-PCR. The relative intensity of iNOS to β-actin bands was measured by densitometry. The values express the means ± S.D. of three experiments. * p < 0.05. Curcumin was used as the positive control. Images are the representative of three independent experiments with similar results.
Molecules 23 00639 g002

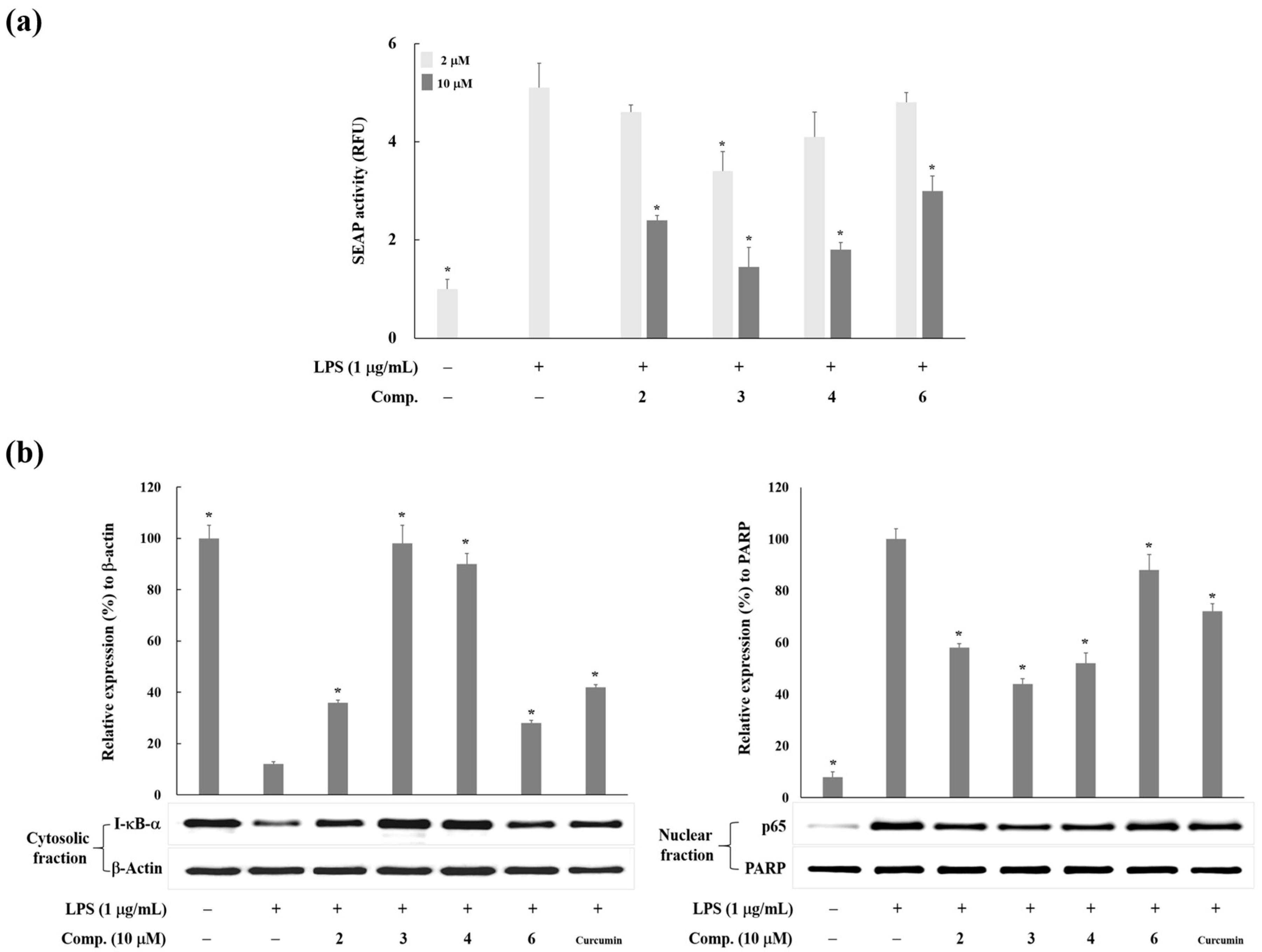

Figure 3. The inhibitory effects of Compounds 24 and 6 from B. kazinoki on LPS-induced NF-κB activity and nuclear accumulation. (a) Effect of Compounds 24 and 6 on LPS-induced NF-κB transcriptional activation in stably transfected RAW 264.7 cells with pNF-κB-SEAP-NPT (T-RAW 264.7 cells). Cells were pretreated with Compounds 24 and 6 for 30 min prior to LPS treatment (1 µg/mL) for 6 h. Aliquots of culture medium were analyzed for the measurement of secretory alkaline phosphatase (SEAP) activity. The values present as means ± S.D. of three independent experiments. * p < 0.05; (b) The effect of Compounds 24 and 6 on the degradation of I-κB-α and the accumulation of p65 in nuclei in LPS-stimulated macrophages. RAW 264.7 cells were pretreated with compounds for 30 min prior to LPS treatment (1 µg/mL) for 15 min. Cytosolic and nuclear extracts were prepared for the Western blotting of I-κB-α and p65, respectively. The relative intensities of I-κB-α to β-actin and p65 to PARP bands were measured by densitometry. The values express the means ± S.D. of three experiments. * p < 0.05. Curcumin was used as the positive control. Images are the representative of three independent experiments with similar results.
Figure 3. The inhibitory effects of Compounds 24 and 6 from B. kazinoki on LPS-induced NF-κB activity and nuclear accumulation. (a) Effect of Compounds 24 and 6 on LPS-induced NF-κB transcriptional activation in stably transfected RAW 264.7 cells with pNF-κB-SEAP-NPT (T-RAW 264.7 cells). Cells were pretreated with Compounds 24 and 6 for 30 min prior to LPS treatment (1 µg/mL) for 6 h. Aliquots of culture medium were analyzed for the measurement of secretory alkaline phosphatase (SEAP) activity. The values present as means ± S.D. of three independent experiments. * p < 0.05; (b) The effect of Compounds 24 and 6 on the degradation of I-κB-α and the accumulation of p65 in nuclei in LPS-stimulated macrophages. RAW 264.7 cells were pretreated with compounds for 30 min prior to LPS treatment (1 µg/mL) for 15 min. Cytosolic and nuclear extracts were prepared for the Western blotting of I-κB-α and p65, respectively. The relative intensities of I-κB-α to β-actin and p65 to PARP bands were measured by densitometry. The values express the means ± S.D. of three experiments. * p < 0.05. Curcumin was used as the positive control. Images are the representative of three independent experiments with similar results.
Molecules 23 00639 g003
Table 1. The suppressive effect of Compounds 17 from B. kazinoki on NO production in LPS-activated RAW 264.7 macrophages.
Table 1. The suppressive effect of Compounds 17 from B. kazinoki on NO production in LPS-activated RAW 264.7 macrophages.
CompoundsIC50 (µM) 1
1>20
25.2 ± 0.2
34.2 ± 0.2
45.3 ± 0.4
516.9 ± 1.1
65.0 ± 0.4
78.0 ± 0.5
1 IC50, 50% inhibitory concentration. The values are means ± S.D. of three experiments.
