Article

Covalent Porphyrin Hybrids Linked with Dipyrrin, Bidipyrrin or Thiacorrole

by
Renbao He
,
Huan Yue
and
Jiahui Kong
*
Zhejiang Yongtai Technology Co. Ltd., Taizhou 317016, China
*
Author to whom correspondence should be addressed.
Molecules 2017, 22(9), 1400; https://doi.org/10.3390/molecules22091400
Submission received: 3 August 2017 / Revised: 19 August 2017 / Accepted: 20 August 2017 / Published: 23 August 2017
(This article belongs to the Collection Heterocyclic Compounds)
Browse Figures
Versions Notes

Abstract

Novel meso-meso directly linked porphyrin hybrids were successfully targeted and synthesized, with porphyrin units linked with dipyrrin, bidipyrrin or thiacorrole, expanding the ranges of dipyrrin derivatives and showing diverse metal coordinations and further influencing the chemical shift of pyrrole units. The porphyrinyl dipyrrin nickel complex 3 was successfully obtained in a high yield by the oxidation of porphyrinyl dipyrromethane 2 and subsequent coordination. Further oxidative coupling reactions of 3 afforded por-bidipyrrin-por hybrid 4. Interestingly, an unexpected methoxy por-bidipyrrin-por hybrid 6 was generated by treating 4 with FeCl3 in CH2Cl2/MeOH and subsequent coordination. In addition to open chain hybrids, an aromatic scaffold hybrid por-thiacorrole-por 8 was synthesized by treating porphyrinyl dibromo-dipyrrin nickel complex 7 with Na2S·9H2O. A series of porphyrin hybrids offers a new approach for π-conjugated molecules.

Graphical Abstract

1. Introduction

In recent years, molecules with highly extended π-conjugation have attracted much attention, owing to their excellent properties in organic semiconductor devices, near-infra-red (NIR) dyes and non-linear optical materials [1,2,3,4]. In this regard, dipyrrin, containing conjugated pyrrole units, has been used extensively for synthesis of π-conjugated molecules and fluorescent or colorimetric ion probes [5,6,7,8,9,10,11,12]. Based on dipyrrin, bidipyrrin, which represents a class of bile pigments with two dipyrrin units linked directly by α-carbons, further extends the π-conjugation, and has been extensively researched with regard to catalysis, magnetism and optics [13,14,15,16]. Moreover, covalently linked dipyrrins or bidipyrrins demonstrate a novel approach to obtaining more highly conjugated or more structurally interesting molecules [17,18,19].
On the other hand, porphyrin, a highly conjugated tetrapyrrolic compound, plays an important role in π-extended dyes [20,21,22,23,24]. Various porphyrin types have been explored, including two-dimensionally expanded porphyrin sheets, donor-acceptor type and electron-deficient type (Scheme 1) [25,26,27,28,29]. π-conjugated porphyrins contain multiple porphyrin units linked in various linking fashions, such as meso-meso, β-β, and β-β triply-linked methods [22,30,31,32,33,34]. Among these conjugated porphyrins, meso-meso linked porphyrin hybrids with a short center-to-center distance are extremely important, because they are favorable for achieving rapid energy-transfer [35,36]. Additionally, covalently linked multiporphyrin hybrids have different photodynamic and electrochemical properties depending on the type of linkages. For example, the Osuka group has successfully constructed meso-meso linked porphyrin arrays with excellent photophysical properties using a unique oxidation method [37]. Corrole, a ring contracted porphyrinoid, has one peripheral meso carbon less and one inner NH more, compared with porphyrin, which presents different properties for stabilizing higher oxidation states of metals, and a different coordination chemistry. When corrole and porphyrin are linked by the meso-meso method, the hybrids demonstrate novel properties with higher quantum yield and longer life time [38,39]. Moreover, hexaphyrin, an expanded porphyrin type, shows a larger π-conjugation and intra-annular cavity. The meso-meso linked porphyrin-hexaphyrin-porphyrin hybrid revealed a distorted conformation and adopted an Möbius aromatic twisted structure for the [28-π] hexaphyrin moiety in solution [40,41].
Furthermore, when porphyrin and dipyrrin or bidipyrrin are covalently linked, the new dyes simultaneously show the rigid and planar properties of porphyrin unit and the coordination and flexible properties of the dipyrrin or bidipyrrin unit [42,43]. On the other hand, apart from the above-mentioned hybrids, thiacorrole [44], a meso-modified porphyrin analogue with heteroatom directly on the π-conjugation circuit, could potentially be introduced into the porphyrin hybrids; this hybrid remains unexplored. The new hybrids could possibly present interesting coordination or magnetism properties related to different units. In spite of rich examples of porphyrin hybrids, to the best of our knowledge, the study of porphyrin dipyrrin, bidipyrrin or thiacorrole hybrids is still rare. Therefore, there is plenty of room for improvement in synthetic routes to the development of new porphyrin hybrids. Moreover, the new hybrids would demonstrate different metal distances and metal coordination environments, and the different environments would effectively influence properties of pyrrole units in the middle part of the hybrids. In the present work, we report the first synthesis of meso-meso directly linked por-dipyrrin-por, por-bidipyrrin-por and por-thiacor-por hybrids, and further investigate the spectroscopic properties of these hybrids.

2. Results and Discussion

A synthetic route for porphyrin-dipyrrin-porphyrin (por-dipyrrin-por) hybrid was achieved by following the method illustrated in Scheme 2. meso-Porphyrinyl dipyrromethane 2 was prepared by TFA-catalyzed condensation of meso-formylated Ni(II) porphyrin 1 with excess pyrrole in a 65% yield. After dipyrromethane 2 was oxidized with 2,3-dichloro-5,6-dicyano-1,4-benzoquinone(DDQ) in THF, and reacted with NiCl2·6H2O, the porphyrinyl dipyrrin nickel complex (por-dipyrrin-por) 3 was obtained in a good yield. The molecular mass of the triad, detected by HRMS, was fully consistent with calculated value: m/z [M + H]+ = 1825.7453 (calcd. for 1825.7428). The 1H-NMR spectrum of 3 in CDCl3 revealed that as the result of the electron withdrawing and paramagnetism effect of nickel metal and deshielding influences of aromatic circulation of the two near porphyrin cycle, the broad signals for four pyrrolic α-CHs and pyrrolic β-CHs in dipyrrin units were downfielded and observed at 13.96 ppm and 9.89 ppm, respectively (Figure 1). Because of the effect of nickel metal, the remaining α positions of pyrroles become more reactive, and could potentially be oxidized to form a new C-C bond. Consistent with this, when complex 3 was reacted with DDQ in reflux toluene, the dipyrrin units were successfully linked with a new C-C bond to afford a novel por-bidipyrrin-por hybrid 4 in a 59% yield. HRMS of 4 lied in m/z [M + H]+ = 1823.7160, which is consistent with calcd. result (calcd. for 1823.7272). The 1H-NMR spectrum of 4 in CDCl3 confirmed the structure with the disappearance of the downfield broad signal at 13.96 ppm, and the pyrroles CHs appeared at 5.9–6.7 ppm. It is worth noting that, compared with hybrid 3, the α-CHs of 4 was significantly upfielded owing to the C-C bond, which is consistent with the reported results [13,14,15,16]. More solid structural evidence for 3 and 4 came from the single crystal X-ray diffraction analyses (Figure 2 and Figure 3), which revealed that the NiII ion of complex 3 is coordinated with two dipyrrin chelates in a pseudo-tetrahedral environment, as expected for such compound. However, the NiII ion adopted a distorted square planar environment for complex 4, as the result of the repulsion between the two remaining α-CHs.
On the other hand, hybrid 4 demonstrates the porphyrin linked by an opened tetrapyrrolic complex. We wanted to explore the possibility to further synthesizing hybrids linked by macrocyclic frameworks. Considering that there are α positions remaining in 4, it is possible to form further conjugated frameworks, when exposed to some oxidants. Interestingly, when 4 was treated with FeCl3 in CH2Cl2/MeOH, a new product (5) was detected (Scheme 3). Unfortunately, compound 5 was unstable. We used Ni(OAc)2·2H2O to coordinate with 5 to afford complex 6. The 1H-NMR spectrum of 6 revealed that the signal of methoxy groups appeared at 3.69 ppm, indicating no expected ring-closure products. Compared with 4, the β-CHs of the bidipyrrin unit in 6 were slightly upfielded, which may be ascribed to the electron-donating effect of the methoxy groups.
In addition to the open chain units, it is interesting to investigate porphyrin hybrids linked with aromatic scaffolds. The synthetic protocol of por-thiacorrole-por hybrids was illustrated in Scheme 4. Consecutive treatment of porphyrinyldipyrromethane 2 with NBS, DDQ and NiCl2·6H2O gave the bis(dibromodipyrrin)Ni(II) complex 7 in a high yield (by TLC). Unfortunately, complex 7 was unexpectedly unstable, and was able to be decomposed when exposed to the air. We found that the 10-thiacorrole 8 was obtained by treatment of complex 8 with sodium sulfide hydrate in DMF at 65 °C in an excellent yield. The 1H-NMR spectrum of hybrid 8 revealed that the β-CHs in porphyrin units lay in the range of 8.4–9.4 ppm, and the meso-CHs lay at 10.0 ppm, which is consistent with porphyrin properties. Interestingly, the β-CHs of the 10-thiacorrole unit lay in the range of 7.6–8.4 ppm, slightly downfielded compared with 4, which is related to the aromatic scaffold.
The absorption spectra of porphyrin hybrid compounds are shown in Figure 4. Porphyrin-dipyrrin complex 3 shows a sharp Soret peak at 410 nm and weak peak at 530 nm, which is similar to the spectra addition of porphyrin and dipyrrin, indicating less electron transfer between porphyrin and dipyrrin unit. This phenomenon could be ascribed to the approximately vertical dihedral angle between two units in the crystal. Compared with 3, por-bidipyrrin-por hybrid 4 presents a similar S band at 410 nm, shoulder peaks around 544 nm and a bathochromic-shift peak at 880 nm, which may be related to the conjugated bidipyrrin unit in the NIR component. Methoxy hybrid 6 shows a similar S bond with 4, with a slight hypochromatic shifted Q bond at 860 nm. Porphyrin-dibromodipyrrin complex 7 shows an analogous spectrum to 3, owing to their similar structures. In contrast to the open chain hybrids, compound 8 shows a subdued but broad S band at 410 nm, slightly red-shifted shoulder peaks at 540 nm and a broad Q band at 690 nm, which could be related to the thiacorrole unit.

3. Materials and Synthesis

3.1. Materials and Instrumentation

All the reactions were performed in oven-dried reaction vessels under N2. Commercially available solvents and reagents were used without further purification unless otherwise mentioned. Thin-layer chromatography (TLC) was carried out on aluminum sheets coated with silica gel 60 F254 (MERCK, Darmstadt, Germany). 1H-NMR spectra were obtained using a Bruker (Karlsruhe, Germany) AM 400 spectrometer, and chemical shifts were reported relative to CDCl3 (δ = 7.26) in ppm. 13C-NMR spectra were recorded at 100 MHz (Bruker AM 400) and chemical shifts were reported relative to CDCl3 (δ = 77.00) in ppm. HRMS were performed using a Waters LCT Premier XE spectrometer (Milford, MA, USA). UV-Vis absorption spectra were recorded on a Varian Cary 100 spectrophotometer and fluorescence spectra were recorded on a Varian Cary Eclipse (Anaheim, CA, USA) fluorescence spectrophotometer.

3.2. Crystallography

X-ray analyses were performed on a SMART APEX equipped with CCD detector (Bruker, Karlsruhe, Germany) using MoKα (graphite, monochromated, λ = 0.71069 Å) radiation and CuKα (graphite, monochromated, λ = 1.54178 Å) radiation. The structure was solved by the direct method of SHELXS-97 and refined using the SHELXL-97 program. The positional parameters and thermal parameters of non-hydrogen atoms were refined anisotropically on F2 by the full-matrix least-squares method. Hydrogen atoms were placed at calculated positions and refined riding on their corresponding carbon atoms (Table 1). Single crystals of 3 and 4 were obtained by the slow recrystallization from solutions in dichloromethane/methanol.

3.3. Syntheses

3.3.1. Synthesis of 2

Trifluoroacetic acid (0.25 mL, 2.6 mmol) was added to a solution of NiII (10,20-di(3,5-di-tert-butylphenyl))-5-formyl porphyrin (2.0 g, 2.6 mmol) and pyrrole (36 mL, 0.52 mol) and stirred for 2 h at room temperature under nitrogen. After neutralization with 1 N NaOH aq. (3.0 mL), the solution was extracted with CH2Cl2, dried over anhydrous Na2SO4 and evaporated in vacuo. Unreacted pyrrole was distilled under vacuum and the residue was purified by silica-gel column chromatography with a mixture of CH2Cl2 and n-hexane (v/v = 1/1) as an eluent. Recrystallization from CH2Cl2/MeOH gave red solid 2 (1.4 g, 65% yield).
1H-NMR (400 MHz, CDCl3) δ 9.71 (s, 1H), 9.20 (d, J = 5.2 Hz, 2H), 9.08 (d, J = 4.8 Hz, 2H), 8.88 (d, J = 4.8 Hz, 2H), 8.78 (d, J = 5.2 Hz, 2H), 8.11 (s, 2H), 7.83 (d, J = 1.8 Hz, 4H), 7.77 (s, 1H), 7.74 (t, J = 1.8 Hz, 2H), 6.62 (dd, J = 4.2, 2.6 Hz, 2H), 6.32 (d, J = 3.6 Hz, 2H), 6.24 (dd, J = 6.0, 2.8 Hz, 2H), 1.49 (s, 37H). 13C-NMR (100 MHz, CDCl3) δ 149.05, 142.63, 142.33, 142.01, 141.74, 139.44, 135.16, 133.64, 132.93, 132.29, 130.27, 128.60, 121.26, 119.54, 116.99, 108.54, 107.34, 104.56, 43.45, 34.98, 31.67. HRMS [M + H]+ m/z = 887.4242, calcd. for C57H61N6Ni = 887.4311.

3.3.2. Synthesis of 3

A solution of 2 (1.0 g, 1.12 mmol) in THF (250 mL) was treated with DDQ (280 mg, 1.24 mmol) at room temperature. After 50 min, 1 mL of Et3N were added. A methanolic solution containing NiCl2·6H2O (2.0 g in 30 mL) was then added to the reaction mixture. The reaction proceeded for an additional 45 min, after which the TLC indicated no uncoordinated dipyrromethene. The reaction mixture was washed with water, dried over anhydrous Na2SO4 and evaporated in vacuo. The residue was purified by silica-gel column chromatography with CH2Cl2 as an eluent. Recrystallization from CH2Cl2/MeOH gave the deep red solid 3 (810 mg, 79% yield).
1H-NMR (400 MHz, CDCl3) δ 14.12 (s, 4H), 9.90 (s, 2H), 9.87 (s, 4H), 9.18 (d, J = 4.8 Hz, 4H), 8.98 (d, J = 4.8 Hz, 4H), 8.84 (dd, J = 11.8, 4.4 Hz, 8H), 7.96 (m, 8H), 7.80 (s, 4H), 6.24 (d, J = 2.8 Hz, 4H), 1.55 (s, 72H). 13C-NMR (100 MHz, CDCl3) δ 150.00, 148.98, 143.41, 142.74, 142.51, 142.13, 139.88, 132.93, 132.66, 131.96, 128.84, 121.20, 120.29, 110.24, 105.52, 35.03, 31.71. HRMS [M + H]+ m/z = 1825.7453, calcd. for C114H114N12Ni3 = 1825.7428.

3.3.3. Synthesis of 4

A solution of 3 (1.1 g, 0.63 mmol) in toluene (150 mL) was treated with DDQ (0.21 g, 0.91 mmol) and heated at reflux for 12 h. After removal of the solvent, the residue was separated by silica gel column chromatography using CH2Cl2/hexane = 1/2 (v/v) to afford 4 as a deep brown solid (650 mg, 59% yield).
1H-NMR (400 MHz, CDCl3) δ 9.92 (s, 2H), 9.18 (dd, J = 6.0, 5.0 Hz, 8H), 8.96 (d, J = 4.8 Hz, 4H), 8.89 (d, J = 4.8 Hz, 4H), 7.94 (m, 8H), 7.78 (m, 4H), 6.50 (d, J = 4.4 Hz, 2H), 6.32 (s, 2H), 6.27 (s, 2H), 6.21 (s, 2H), 6.00 (d, J = 4.4 Hz, 2H), 1.52 (s, 72H). 13C-NMR (100 MHz, CDCl3) δ 161.76, 153.19, 149.07, 144.82, 143.53, 143.28, 142.95, 142.64, 141.95, 140.97, 139.96, 133.11, 132.78, 132.22, 128.91, 121.31, 120.49, 116.16, 111.46, 105.59, 35.10, 31.79. HRMS [M + H]+ m/z = 1823.7160, calcd. for C114H113N12Ni3 = 1823.7272.

3.3.4. Synthesis of 5

A methanol solution (30 mL) of FeCl3 (50 mg, 0.32 mmol) was added to a solution of 4 (110 mg, 0.06 mmol) in CH2Cl2 (100 mL). After stirring for 4 h, the reaction mixture was washed with water. The organic phase was dried over sodium sulfate, filtered, and concentrated under reduced pressure. The crude product (5) was used for the next reaction without purification.

3.3.5. Synthesis of 6

An ethanol (20 mL) solution of Ni(OAc)2·2H2O (100 mg, 0.44 mmol) was added to a toluene (70 mL) solution of 5 (110 mg, 0.06 mmol). The mixture was stirred at 70 °C for 4 h. After evaporation under vacuum, the residue was separated by silica gel column chromatography using CH2Cl2/hexane (1/2, v/v) to afford complex 6 (86 mg, 72%) as a dark red solid.
1H-NMR (400 MHz, CDCl3) δ 10.02 (d, J = 4.8 Hz, 2H), 9.87 (s, 2H), 9.19–9.13 (m, 4H), 9.09 (d, J = 4.8 Hz, 2H), 9.00–8.91 (m, 6H), 8.82 (d, J = 4.8 Hz, 2H), 7.92 (m, 12H), 5.87 (d, J = 4.0 Hz, 2H), 5.60 (d, J = 4.8 Hz, 2H), 5.44–5.32 (m, 4H), 3.68 (s, 6H), 1.57 (s, 72H). 13C-NMR (100 MHz, CDCl3) δ 177.37, 150.50, 149.01, 143.57, 142.82, 142.47, 142.24, 140.53, 139.86, 138.03, 133.03, 132.58, 132.43, 131.64, 128.78, 127.84, 121.28, 120.05, 112.47, 111.31, 105.39, 103.84, 35.11, 31.81. HRMS [M + H]+ m/z = 1883.7591, calcd. for C116H117N12Ni3O2 = 1883.7483.

3.3.6. Synthesis of 7

A solution of 2 (1.0 g, 1.12 mmol) in dry THF (250 mL) was cooled to −78 °C and NBS (400 mg, 2.24 mmol) and added in two portions over 1 h. A THF solution of DDQ (280 mg, 1.24 mmol) was added dropwise over 10 min. The reaction mixture was warmed to room temperature. After 50 min, 1 mL of Et3N was added. A methanolic solution containing NiCl2·6H2O (2.0 g in 30 mL) was then added to the reaction mixture. The reaction proceeded for an additional 45 min. The reaction mixture was washed with water, dried over anhydrous Na2SO4, and evaporated in vacuo. The residue was purified by fast silica-gel column chromatography with CH2Cl2 as an eluent to give the deep red solid 7 (810 mg, 79% yield). The crude product was immediately used for the next reaction. HRMS m/z = 2137.3844, calcd. for C114H111Br4N12Ni3 = 2137.3849.

3.3.7. Synthesis of 8

A Schlenk tube containing 7 (122.2 mg, 50 mmol) and Na2S·9H2O (24.0 mg, 0.10 mmol) was evacuated and then refilled with N2. Dry DMF (15 mL) was added, and mixturewas stirred at 65 °C for 5 h in oil bath. After cooling the reaction mixture to RT, The reaction mixture was washed with water, dried over anhydrous Na2SO4, and evaporated in vacuo. The mixture was purified by silica-gel column chromatography (CH2Cl2/hexane) to give 8 (12.6 mg, 20.7 mmol) in a 41% yield as black solid.
1H-NMR (400 MHz, CDCl3) δ 10.00 (s, 2H), 9.25 (d, J = 4.8 Hz, 4H), 9.01 (d, J = 4.7 Hz, 4H), 8.75 (d, J = 4.9 Hz, 4H), 8.45 (d, J = 4.9 Hz, 4H), 8.35 (d, J = 4.5 Hz, 2H), 8.31 (d, J = 4.7 Hz, 2H), 7.97 (s, 8H), 7.87 (d, J = 4.7 Hz, 2H), 7.73 (t, J = 1.7 Hz, 4H), 7.63 (d, J = 4.5 Hz, 2H), 1.48 (s, 72H).13C-NMR (100 MHz, CDCl3) δ 148.94, 145.47, 143.59, 142.74, 139.98, 139.51, 133.23, 132.71, 132.11, 130.72, 128.84, 121.65, 121.18, 120.76, 119.01, 105.50, 34.98, 31.66. HRMS [M + H]+ m/z = 1853.6588, calcd. for C114H111N12Ni3S = 1853.6836.

4. Conclusions

In summary, we have successfully prepared a series of porphyrin hybrids with variously coordinated nickel metal. By oxidizing meso-Porphyrinyldipyrromethene 2 using DDQ in THF and subsequent coordination, por-dipyrrin-por hybrid 3 was obtained in a high yield. The further oxidization of 3 afforded the por-bidipyrrin-por hybrid 4. Unexpectedly, treating 4 with FeCl3 in CH2Cl2/MeOH and subsequent coordination generated methoxy-substituted por-bidipyrrin-por hybrid 6. Fortunately, by treating dibromo por-dipyrrin-por hybrid 7 with Na2S·9H2O, the expected por-thiacorrole-por hybrid 8 was successfully synthesized. In conclusion, meso-meso linked porphyrin hybrids play an important role in photoelectric or magnetic materials. Various linking methods were proven to be effective approaches for functional porphyrin materials. The further properties of these hybrids will be the main objective of our future work.

Supplementary Materials

Supplementary materials are available online.

Author Contributions

R.H. and J.K. conceived and designed the experiments; R.H. performed the experiments; H.Y. and J.K. analyzed the data; H.Y. contributed reagents/materials/analysis tools; J.H. wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Maruccio, G.; Cingolani, R.; Rinaldi, R. Projecting the nanoworld: Concepts, results and perspectives of molecular electronics. J. Mater. Chem. 2004, 14, 542–554. [Google Scholar] [CrossRef] [Scilit]
  2. Fabian, J.; Nakazumi, H.; Matsuoka, M. Near-infrared absorbing dyes. Chem. Rev. 1992, 92, 1197–1226. [Google Scholar] [CrossRef] [Scilit]
  3. Nalwa, H.S. Organic Materials for Third-Order Nonlinear Optics. Adv. Mater. 1993, 5, 341–358. [Google Scholar] [CrossRef] [Scilit]
  4. Marrocchi, A.; Facchetti, A.; Lanari, D.; Petrucci, C.; Vaccaro, L. Current methodologies for a sustainable approach to π-conjugated organic semiconductors. Energy Environ. Sci. 2016, 9, 763–786. [Google Scholar] [CrossRef] [Scilit]
  5. Ding, Y.B.; Tang, Y.Y.; Xie, Y.S. Fluorescent and colorimetric ion probes based on conjugated oligopyrroles. Chem. Soc. Rev. 2015, 44, 1101–1112. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  6. Ding, Y.B.; Zhu, W.H.; Xie, Y.S. Development of Ion Chemosensors Based on Porphyrin Analogues. Chem. Rev. 2017, 177, 2203–2256. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  7. Ding, Y.B.; Li, T.; Zhu, W.H. Highly selective colorimetric sensing of cyanide based on formation of dipyrrin adducts. Org. Biomol. Chem. 2012, 10, 4201–4207. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  8. Ding, Y.B.; Xie, Y.S.; Li, X.; Hill, J.P.; Zhang, W.B.; Zhu, W.H. Selective and sensitive “turn-on” fluorescent Zn2+ sensors based on di-and tripyrrins with readily modulated emission wavelengths. Chem. Commun. 2011, 47, 5431–5433. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  9. Wang, Q.G.; Xie, Y.S.; Ding, Y.B.; Zhu, W.H. Colorimetric fluoride sensors based on deprotonation of pyrrole–hemiquinone compounds. Chem. Commun. 2010, 46, 3669–3671. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  10. Saito, S.; Osuka, A. Expanded porphyrins: Intriguing structures, electronic properties, and reactivities. Angew. Chem. Int. Ed. 2011, 50, 4342–4373. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  11. Stepien, M.; Sprutta, N.; Latos-Grazynski, L. Figure eights, Möbius bands, and more: Conformation and aromaticity of porphyrinoids. Angew. Chem. Int. Ed. 2011, 50, 4288–4340. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  12. Roznyatovskiy, V.V.; Lee, C.H.; Sessler, J.L. π-Extended isomeric and expanded porphyrins. Chem. Soc. Rev. 2013, 42, 1921–1933. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  13. Gill, H.S.; Finger, I.; Božidarević, S.F.; Scott, M.J. Preparation of α, β-unsubstituted meso-arylbidipyrrins via metal-templated, oxidative coupling of dipyrrins. New J. Chem. 2005, 29, 68–71. [Google Scholar] [CrossRef] [Scilit]
  14. Hashimoto, T.; Nishimura, T.; Lim, J.M.; Kim, D.; Maeda, H. Formation of Metal-Assisted Stable Double Helices in Dimers of Cyclic Bis-Tetrapyrroles that Exhibit Spring-Like Motion. Chem. Eur. J. 2010, 16, 11653–11661. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  15. Ruffin, H.; Baudron, A.S.; Salazar-Mendoza, D.; Hosseini, W. A Silver Bite: Crystalline Heterometallic Architectures Based on Ag–π Interactions with a Bis-Dipyrrin Zinc Helicate. Chem. Eur. J. 2014, 20, 2449–2453. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  16. Baudron, S.A.; Ruffn, H.; Hosseini, M.W. On Zn(ii) 2,2′-bisdipyrrin circular helicates. Chem. Commun. 2015, 51, 5906–5909. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  17. Lakshmi, V.; Lee, W.-Z.; Ravikanth, M. Synthesis, structure and spectral and electrochemical properties of 3-pyrrolyl BODIPY-metal dipyrrin complexes. Dalton Trans. 2014, 43, 16006–16014. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  18. Sakamoto, R.; Iwashima, T.; Tsuchiya, M.; Toyoda, R.; Matsuoka, R.; Kögel, J.F.; Kusaka, S.; Hoshiko, K.; Yagi, T.; Nagayama, T.; et al. New aspects in bis and tris(dipyrrinato) metal complexes: Bright luminescence, self-assembled nanoarchitectures, and materials applications. J. Mater. Chem. A 2015, 3, 15357–15371. [Google Scholar] [CrossRef] [Scilit]
  19. Gadekar, S.C.; Reddy, B.K.; Panchal, S.P.; Anand, V.G. Metal assisted cyclomerization of benzodipyrrins into expanded norroles, aza-heptalene and acyclic dimmers. Chem. Commun. 2016, 52, 4565–4568. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  20. Lewtak, J.P.; Gryko, D.T. Synthesis of π-extended porphyrins via intramolecular oxidative coupling. Chem. Commun. 2012, 48, 10069–10086. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  21. Senge, M.O.; Fazekas, M.E.; Notaras, G.A.; Blau, W.J.; Zawadzka, M.; Locos, O.B.; Ni Mhuircheartaigh, E.M. Nonlinear optical properties of porphyrins. Adv. Mater. 2007, 19, 2737–2774. [Google Scholar] [CrossRef] [Scilit]
  22. Pawlicki, M.; Collins, H.A.; Denning, R.G.; Anderson, H.L. Two-Photon Absorption and the Design of Two-Photon Dyes. Angew. Chem. Int. Ed. 2009, 48, 3244–3266. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  23. Davis, N.K.S.; Thompson, A.L.; Anderson, H.L. A Porphyrin Fused to Four Anthracenes. J. Am. Chem. Soc. 2011, 133, 30–31. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  24. Hoffmann, M.; Wilson, C.J.; Odell, B.; Anderson, P. Template-Directed Synthesis of a π-Conjugated Porphyrin Nanoring. Angew. Chem. Int. Ed. 2007, 46, 3122–3125. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  25. Nakamura, Y.; Jang, S.Y.; Tanaka, T.; Aratani, N.; Lim, J.M.; Kim, K.S.; Kim, D.; Osuka, A. Two-Dimensionally Extended Porphyrin Tapes: Synthesis and Shape-Dependent Two-Photon Absorption Properties. Chem. Eur. J. 2008, 14, 8279–8289. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  26. Nakamura, Y.; Aratani, N.; Shinokubo, H.; Takagi, A.; Kawai, T.; Matsumoto, T.; Yoon, Z.S.; Kim, D.Y.; Ahn, T.K.; Kim, D.; et al. A directly fused tetrameric porphyrin sheet and its anomalous electronic properties that arise from the planar cyclooctatetraene core. J. Am. Chem. Soc. 2006, 128, 4119–4127. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  27. Tanaka, T.; Lee, B.S.; Aratani, N.; Yoon, M.-C.; Kim, D.; Osukaet, A. Synthesis and properties of hybrid porphyrin tapes. Chem. Eur. J. 2011, 17, 14400–14412. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  28. Mori, H.; Tanaka, T.; Lee, B.S.; Kim, P.; Kim, D.; Osuka, A. An Electron-Deficient Porphyrin Tape. Chem. Asian J. 2012, 7, 1811–1816. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  29. Bonifazi, D.; Scholl, M.; Song, F.Y.; Echegoyen, L.E.; Accorsi, G.; Armaroli, N.; Diederich, F. Exceptional redox and photophysical properties of a triply fused diporphyrin–C60 conjugate: Novel scaffolds for multicharge storage in molecular scale electronics. Angew. Chem. Int. Ed. 2003, 115, 5116–5120. [Google Scholar] [CrossRef] [Scilit]
  30. Kim, D.; Osuka, A. Directly linked porphyrin arrays with tunable excitonic interactions. Acc. Chem. Res. 2004, 37, 735–745. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  31. Aratani, N.; Kim, D.; Osuka, A. π-Conjugation Enlargement toward the Creation of Multi-Porphyrinic Systems with Large Two-Photon Absorption Properties. Chem. Asian J. 2009, 4, 1172–1182. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  32. Mori, H.; Tanaka, T.; Osuka, A. Fused porphyrinoids as promising near-infrared absorbing dyes. J. Mater. Chem. C 2013, 1, 2500–2519. [Google Scholar] [CrossRef] [Scilit]
  33. Tanaka, T.; Osuka, A. Conjugated porphyrin arrays: Synthesis, properties and applications for functional materials. Chem. Soc. Rev. 2015, 44, 943–969. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  34. Davis, N.K.S.; Thompson, A.L.; Anderson, H.L. Bis-anthracene fused porphyrins: Synthesis, crystal structure, and near-IR absorption. Org. Lett. 2010, 12, 2124–2127. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  35. Lindsey, J.S.; Prathapan, S.; Johnson, T.E.; Wagner, R.W. Porphyrin building blocks for modular construction of bioorganic model systems. Tetrahedron 1994, 50, 8941–8968. [Google Scholar] [CrossRef] [Scilit]
  36. Maruyama, K.; Kawabata, S. Synthesis and characterization of polyyne porphyrins. Bull. Chem. Soc. Jpn. 1990, 63, 170–175. [Google Scholar] [CrossRef] [Scilit]
  37. Tsuda, A.; Osuka, A. Fully conjugated porphyrin tapes with electronic absorption bands that reach into infrared. Science 2001, 293, 79–82. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  38. Chen, C.; Zhu, Y.-Z.; Fan, Q.-J.; Song, H.-B.; Zheng, J.-Y. Crystal Structure, and Spectroscopic Properties of Meso–Meso-Linked Porphyrin–Corrole Hybrids. Chem. Lett. 2013, 42, 936–938. [Google Scholar] [CrossRef] [Scilit]
  39. Murugavel, M.; Reddy, R.; Sankar, J. A new meso–meso directly-linked corrole–porphyrin–corrole hybrid: Synthesis and photophysical properties. RSC Adv. 2014, 4, 13669–13672. [Google Scholar] [CrossRef] [Scilit]
  40. Mori, H.; Tanaka, T.; Lee, S; Osuka, A.; Lim, J.M.; Kim, D.; Osuka, A. meso–meso Linked Porphyrin–[26]Hexaphyrin–Porphyrin Hybrid Arrays and Their Triply Linked Tapes Exhibiting Strong Absorption Bands in the NIR Region. J. Am. Chem. Soc. 2015, 137, 2097–2106. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  41. Tanaka, T.; Aratani, N.; Lim, J.M.; Osuka, A.; Kim, K.S.; Kim, D.; Osuka, A. Porphyrin–hexaphyrin hybrid tapes. Chem. Sci. 2011, 2, 1414–1418. [Google Scholar] [CrossRef] [Scilit]
  42. Li, F.R.; Yang, S.I.; Ciringh, Y.Z.; Seth, J.; Martin, C.H.; Singh, D.L.; Kim, D.; Birge, R.R.; Bocian, D.F.; Holten, D.; et al. Design, synthesis, and photodynamics of light-harvesting arrays comprised of a porphyrin and one, two, or eight boron-dipyrrin accessory pigments. J. Am. Chem. Soc. 1998, 120, 10001–10007. [Google Scholar] [CrossRef] [Scilit]
  43. Lee, C.Y.; Jang, J.K.; Kim, C.H.; Jung, J.; Park, B.K.; Park, J.; Choi, W.; Han, Y.K.; Joo, T.; Park, J.T.; et al. Remarkably efficient photocurrent generation based on a [60]fullerene–triosmium cluster/Zn–porphyrin/boron–dipyrrin triad SAM. Chem. Eur. J. 2010, 16, 5586–5599. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  44. Kamiya, H.; Kondo, T.; Sakida, T.; Yamaguchi, S.; Shinokubo, H. meso-Thiaporphyrinoids Revisited: Missing of Sulfur by Small Metals. Chem. Eur. J. 2012, 18, 16129–16135. [Google Scholar] [CrossRef] [Scilit] [PubMed]
Sample Availability: Samples of the compounds are not available from the authors
Molecules 22 01400 sch001
Scheme 1. Porphyrin dimer and hybrids linked in various fashions.
Scheme 1. Porphyrin dimer and hybrids linked in various fashions.
Molecules 22 01400 sch001
Molecules 22 01400 sch002
Scheme 2. Synthesis of porphyrin dipyrrin hybrid 3 and bidipyrrin hybrid 4. Reaction conditions: (a) excess pyrrole, TFA; (b) DDQ, Et3N, NiCl2·6H2O, CH2Cl2/MeOH; (c) DDQ, toluene, reflux.
Scheme 2. Synthesis of porphyrin dipyrrin hybrid 3 and bidipyrrin hybrid 4. Reaction conditions: (a) excess pyrrole, TFA; (b) DDQ, Et3N, NiCl2·6H2O, CH2Cl2/MeOH; (c) DDQ, toluene, reflux.
Molecules 22 01400 sch002
Molecules 22 01400 g001

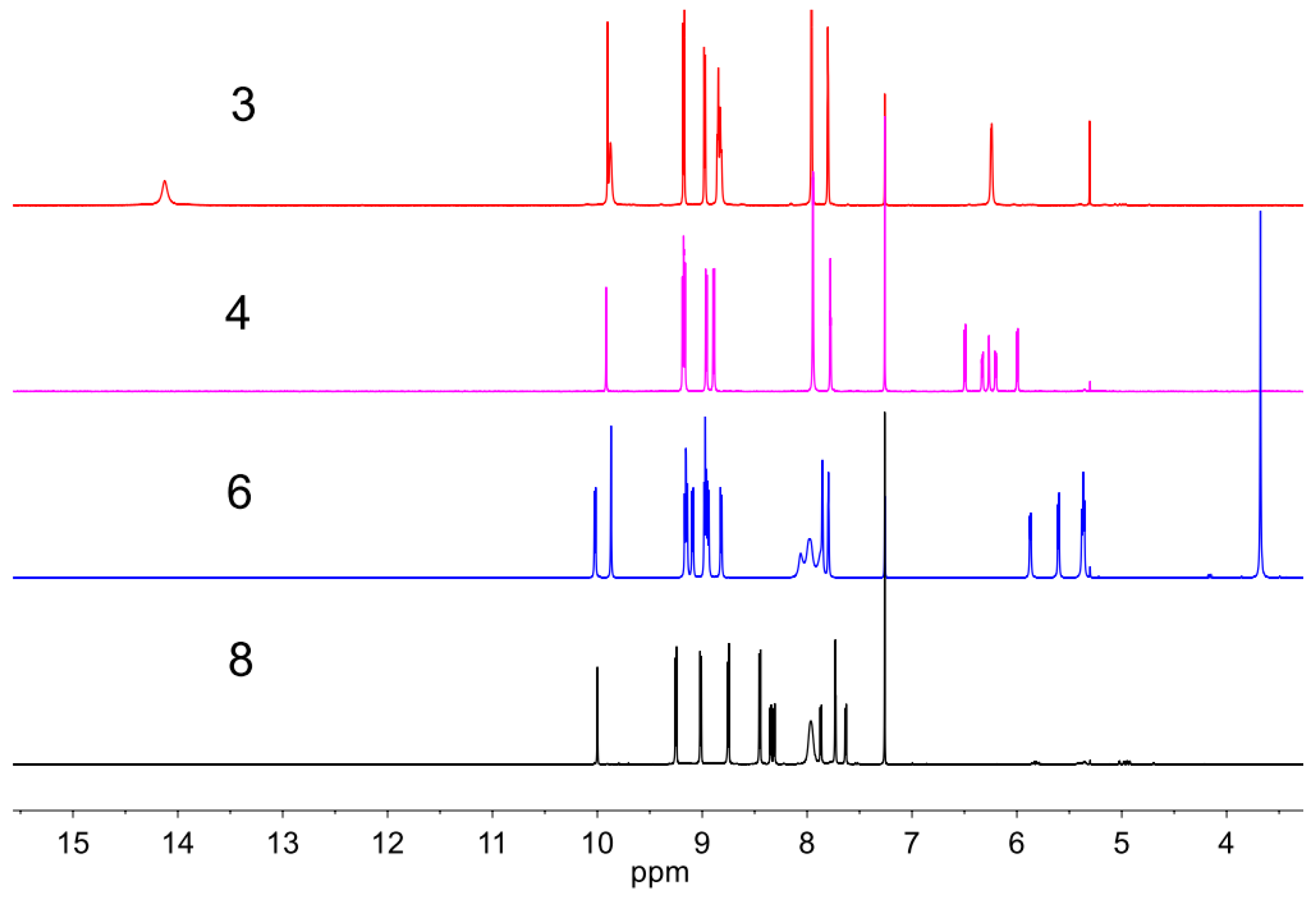

Figure 1. The aromatic regions 1H-NMR of porphyrin hybrids 3, 4, 6 and 8.
Figure 1. The aromatic regions 1H-NMR of porphyrin hybrids 3, 4, 6 and 8.
Molecules 22 01400 g001
Molecules 22 01400 g002

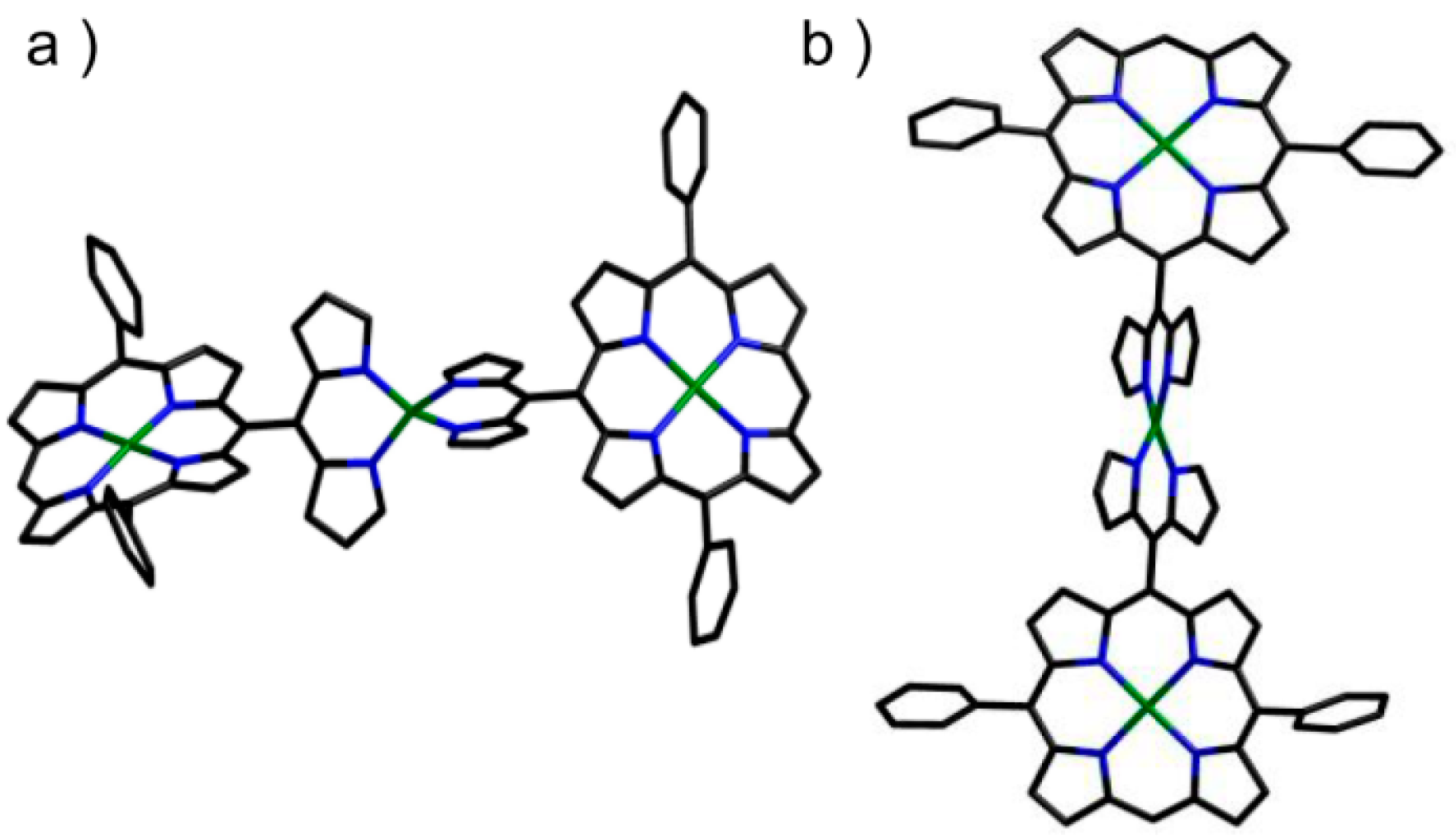

Figure 2. X-ray crystal structures of 3. Solvent molecules, tert-butyl groups and hydrogen atoms were omitted for clarity (a) top view; (b) side view.
Figure 2. X-ray crystal structures of 3. Solvent molecules, tert-butyl groups and hydrogen atoms were omitted for clarity (a) top view; (b) side view.
Molecules 22 01400 g002
Molecules 22 01400 sch003
Scheme 3. Synthesis of substituted porphyrin bidipyrrin hybrid 6. Reaction conditions: (a) FeCl3, CH2Cl2/MeOH; (b) Ni(OAc)2·2H2O, CH2Cl2/MeOH.
Scheme 3. Synthesis of substituted porphyrin bidipyrrin hybrid 6. Reaction conditions: (a) FeCl3, CH2Cl2/MeOH; (b) Ni(OAc)2·2H2O, CH2Cl2/MeOH.
Molecules 22 01400 sch003
Molecules 22 01400 sch004

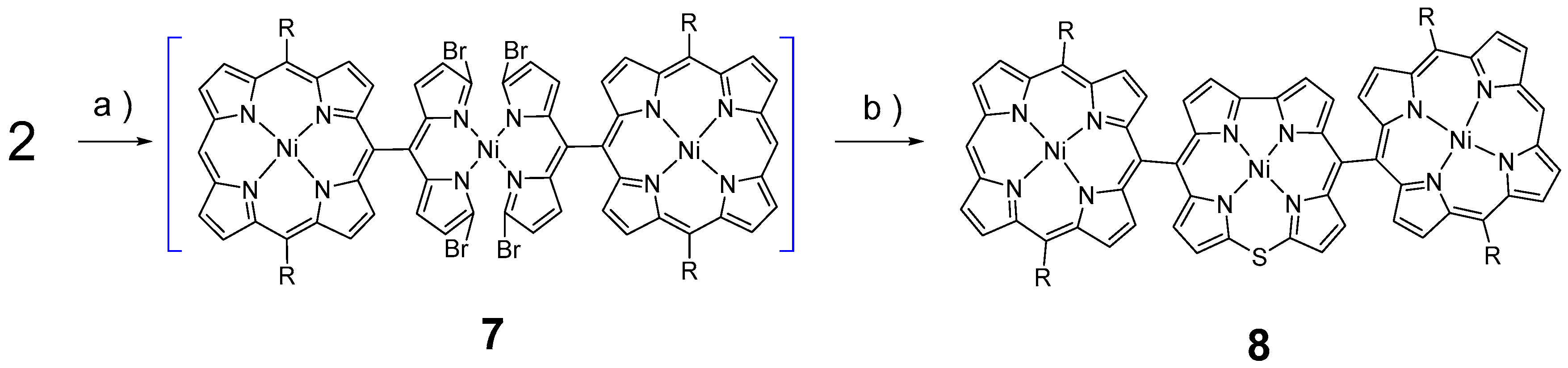

Scheme 4. Synthesis of porphyrin thiacorrole hybrid 8. Reaction conditions: (a) (i) NBS, −78 °C; (ii) DDQ; (iii) NiCl2·6H2O, THF/MeOH; (b) Na2S·9H2O, DMF.
Scheme 4. Synthesis of porphyrin thiacorrole hybrid 8. Reaction conditions: (a) (i) NBS, −78 °C; (ii) DDQ; (iii) NiCl2·6H2O, THF/MeOH; (b) Na2S·9H2O, DMF.
Molecules 22 01400 sch004
Molecules 22 01400 g003
Figure 3. X-ray crystal structures of 4. Solvent molecules, tert-butyl groups and hydrogen atoms were omitted for clarity (a) top view; (b) side view.
Figure 3. X-ray crystal structures of 4. Solvent molecules, tert-butyl groups and hydrogen atoms were omitted for clarity (a) top view; (b) side view.
Molecules 22 01400 g003
Molecules 22 01400 g004

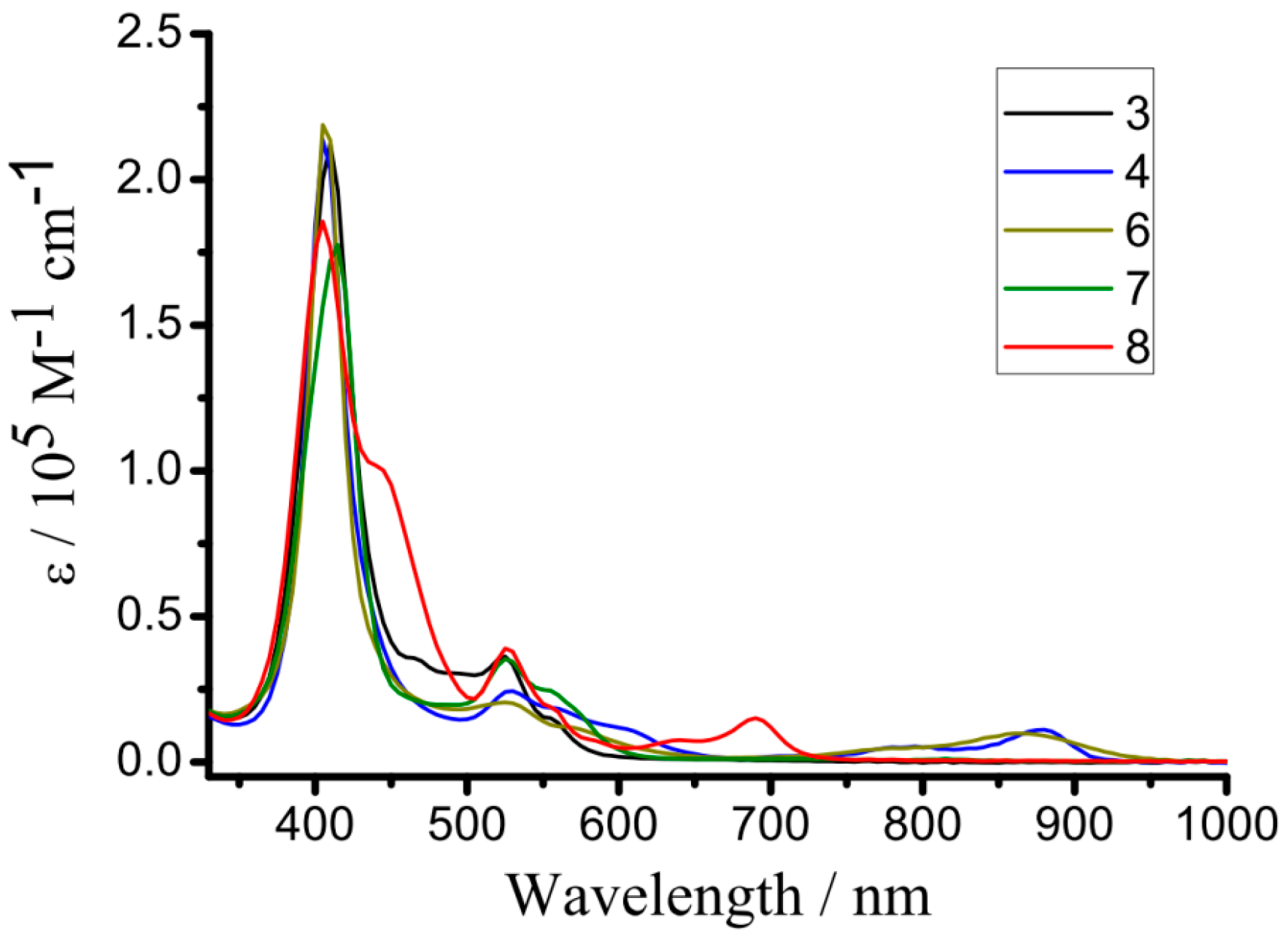

Figure 4. The absorption spectra of 3, 4, 6, 7 and 8 in CH2Cl2.
Figure 4. The absorption spectra of 3, 4, 6, 7 and 8 in CH2Cl2.
Molecules 22 01400 g004
Table 1. Crystallographic data and structure refinement summary for the compounds.
Table 1. Crystallographic data and structure refinement summary for the compounds.
34
C114H114N12Ni3C114H112N12Ni3
Mr = 1828.30Mr = 1826.29
OrthorhombiTriclinic
C222(1)P-1
a = 33.100(3)a = 19.6380(18)
b = 24.600(2)b = 20.1721(19)
c = 15.4400(14)c = 27.330(3)
α = 90.00°α = 73.257(2)°
β = 90.00°β = 78.750(3)°
γ = 90.00°γ = 67.5910(10)°
V = 12572.3(19) Å3V = 9540.1(15) Å3
Z = 4Z = 3
R1 = 0.1257R1 = 0.1264
wR2 = 0.2693wR2 = 0.2897
GOF = 1.038GOF = 1.084
CCDC 1550953 (3) and 1550954 (4) contain the supplementary crystallographic data for this paper. These data can be obtained free of charge from The Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/data_request/cif.
