Open AccessArticle

Rhinacanthus nasutus Protects Cultured Neuronal Cells against Hypoxia Induced Cell Death

Department of Clinical Chemistry, Faculty of Allied Health Sciences, Chulalongkorn University, 154 Rama I Rd, Pathumwan, Bangkok 10330, Thailand
*
Author to whom correspondence should be addressed.
Molecules 2011, 16(8), 6322-6338; https://doi.org/10.3390/molecules16086322
Received: 20 July 2011 / Accepted: 21 July 2011 / Published: 26 July 2011
(This article belongs to the Section Medicinal Chemistry)

Abstract

Rhinacanthus nasutus (L.) Kurz (Acanthaceae) is an herb native to Thailand and Southeast Asia, known for its antioxidant properties. Hypoxia leads to an increase in reactive oxygen species in cells and is a leading cause of neuronal damage. Cell death caused by hypoxia has been linked with a number of neurodegenerative diseases including some forms of dementia and stroke, as well as the build up of reactive oxygen species which can lead to diseases such as Huntington’s disease, Parkinson’s disease and Alzeheimer’s disease. In this study we used an airtight culture container and the Mitsubishi Gas Company anaeropack along with the MTT assay, LDH assay and the trypan blue exlusion assay to show that 1 and 10 µg mL−1 root extract of R. nasutus is able to significantly prevent the death of HT-22 cells subjected to hypoxic conditions, and 0.1 to 10 µg mL−1 had no toxic effect on HT-22 under normal conditions, whereas 100 µg mL−1 reduced HT-22 cell proliferation. We also used H2DCFDA staining to show R. nasutus can reduce reactive oxygen species production in HT-22 cells.
Keywords: Rhinacanthus nasutas; hypoxia; anaeropack; HT-22; antioxidant Rhinacanthus nasutas; hypoxia; anaeropack; HT-22; antioxidant

1. Introduction

Brain ischemia/reperfusion injury is a leading cause in neuronal cell death [1]. Neuronal death is partly a result of cell damage resulting from oxidative stress caused by an increase in reactive oxygen species (ROS) after reperfusion. Oxidative stress causes the oxidation of cellular proteins, lipids and DNA, which leads to cell death [2,3,4,5,6]. ROS have been shown to be linked with a number of neurological disorders including Huntington’s disease, Parkinson’s disease, Alzheimer’s disease [7], and stroke [8]. The brain and central nervous system are particularly sensitive to ROS damage due to their high oxygen turnover [9]. The hippocampus is thought to be one of the most vulnerable regions to neuronal cell loss due to hypoxia/ischemia and seizures [10]. Neurogenesis in the hippocampus has been shown to be important in depression [11], furthermore stress has been shown to reduce hippocampal volume and various antidepressants have been shown to increase hippocampal volume in a number of species [12,13,14].
Rhinacanthus nasutus (L.) Kurz (Acanthaceae), known commonly in English as Snake Jasmine due to the shape of its flowers and the traditional use of the root against snake venoms, is a medicinal plant found in Thailand and through out Southeast Asia, which can be drank as a tea or made into a balm and is traditionally used to treat a range of disorders including ringworm and inflammatory disorders. It has been shown to have anti-tumour properties [15,16,17] and have anti-retroviral activity [18,19]. The immunological properties of R. nasutus have been demonstrated, with R. nasutus increasing the proliferation of peripheral blood mononuclear cells, and increased PHA stimulated IL-2 and LPS stimulated TNF-α [20]. R. nasutus has previously been shown to protect skin cells against INF-γ and TNF-α induced apoptosis, potentially through an antioxidant mechanism [21], furthermore other studies have shown R. nasutus to have free radical savaging capabilities [22] and nitric oxide (NO) modulating activities when added to mouse macrophages in conjunction with LPS [23]. NO is a widely distributed signaling molecule, able to modulate a number of neurotransmitter molecule system(s) it is implicated with neurotoxicity associated with neurodegenerative diseases and stroke. NO inhibitors have been shown to have antidepressant like effects in mice subjected to the forced swim test (FST) [24].
R. nasutus root extract was shown to have a hepatoprotective effect in rats treated with aflatoxin B1. Aflatoxin B1 causes its hepatotoxic effects in liver cells by oxidative stress, which causes damage to DNA, proteins and lipids. It has been suggested that R. nasutus affords the hepatocyte protection through an antioxidant mechanism [25].
R. nasutus extracts have been analyzed and the main active compounds identified as naphthoquinones such as rhinacanthin-C, rhinacanthin-D, rhinacanthin-N, rhinacanthin-Q, rhina-canthone and lignans [22,26]. Other investigations have shown that R. nasutus contains a selection of flavonoids, benzenoids, coumarin, anthraquinone, quinone, glycosides, carbohydrate, triterpenes, sterols, anthraquinones, dehydroalapachone, p-hydroxybenzaldehyde, methyl vanillate, syring-aldehyde, lupeol, wogonin, oroxylin A, (+)-praeruptorin and allantoin [22,27,28,29,30].
From the evidence presented in previous studies R. nasutus’ effects are potentially a result of its antioxidant activity. Antioxidants can be split into three modes of action (prevention, interception and repair) and R. nasutus could be acting through any of these [31]. Prevention of free radicals involves enzymes such as superoxide dismutase (SOD), which catalyses the superoxide to H2O2 which is in turn broken down to water [31]. Control of gene expression of enzymes such as nitric oxide synthase (NOS) or cyclooxygenase (COX) also regulates reactive oxygen species production [32]. Interception of free radicals includes free radical scavenging [31], a number of studies have implicated the importance of total phenolic content with antioxidant activity [33,34]. Repair consists of enzymes, which can repair the damaged caused by reactive oxygen species [31]. As well as damage to proteins and lipids, ROS result in damage DNA, which can lead to mutations resulting in loss of control of tumour suppressor or oncogenic genes, or lead to cell death. Cells have enzymes that can repair DNA damage, however, it the damage is beyond repair apoptosis pathways are activated.
Having reviewed the previous studies of R. nasutus with its antioxidant effects in liver and immune cells, and ROS modulating effects in immune cells, this study aimed to investigate the effects of R. nasutus in neuron cells, in particular whether it could protect hippocampus cells against hypoxia-induced cell death. HT-22 cells were chosen as a model system to analyze the neruoprotective actions of R. nasutus as this cell line ahs been used by a number of other studies to show neuroprotective properties against oxidative stress [35] with other herbal extracts [36,37,38], and the cell line has previously been used in hypoxia re-oxygenation experiments [1,38,39,40].

2. Results and Discussion

R. nasutus (100 µg mL−1) significantly decreased the proliferation of HT-22 cells (one-way ANOVA P value = 0.0001), whereas at concentrations below 100 µg mL−1 there appeared to be no effect on cell growth (Figure 1). This increase in cell death of HT-22 cells when treated with 100 µg mL−1 is likely to be to an increased concentration of rhinacanthin C, which is found in the root of R. nasutus and has known antiproliferative effects [16,41,42]. Previous studies had showed that ethanol extracts of R. nasutus root resulted in IC50 values of 567 ± 135 and 373 ± 65.4 µg mL−1 in PC3 and T24 tumour cell cultures respectively [41] and methanol extracts resulted in IC50 values of between 3.9 and 40 µg mL−1 in KB, Hep-2, MCF-7, HeLa, SiHa, C32, LLC, Colon-26 and P-388 cells [42]. The authors also suggest that rhinacanthin C has a reduced effect against non-cancer cell lines.
Figure 1. The effect of R. nasutus in HT-22 cells measured using the MTT assay. ** ANOVA Dunnett’s multiple comparison Post hoc test compared to control P < 0.01. n = 6.
Figure 1. The effect of R. nasutus in HT-22 cells measured using the MTT assay. ** ANOVA Dunnett’s multiple comparison Post hoc test compared to control P < 0.01. n = 6.
Molecules 16 06322 g001

The Protective Effect of R. nasutus against Cell Death Induced by Hypoxia and Reoxygenation

Hypoxia followed by reoxygenation treatment of neuron cells results in cell death, a process which is thought to be apoptosis [43]. The cell death is triggered by the build up of ROS [6] causing damage to lipids [3], proteins [44] and DNA [2]. A number of previous studies have shown that antioxidants can protect cells from death caused by hypoxia and reoxygenation [6,45,46,47,48]. We therefore tested R. nasutus to see if it could protect HT-22 cell against cell death caused by hypoxia and reoxygenation (Figure 2).

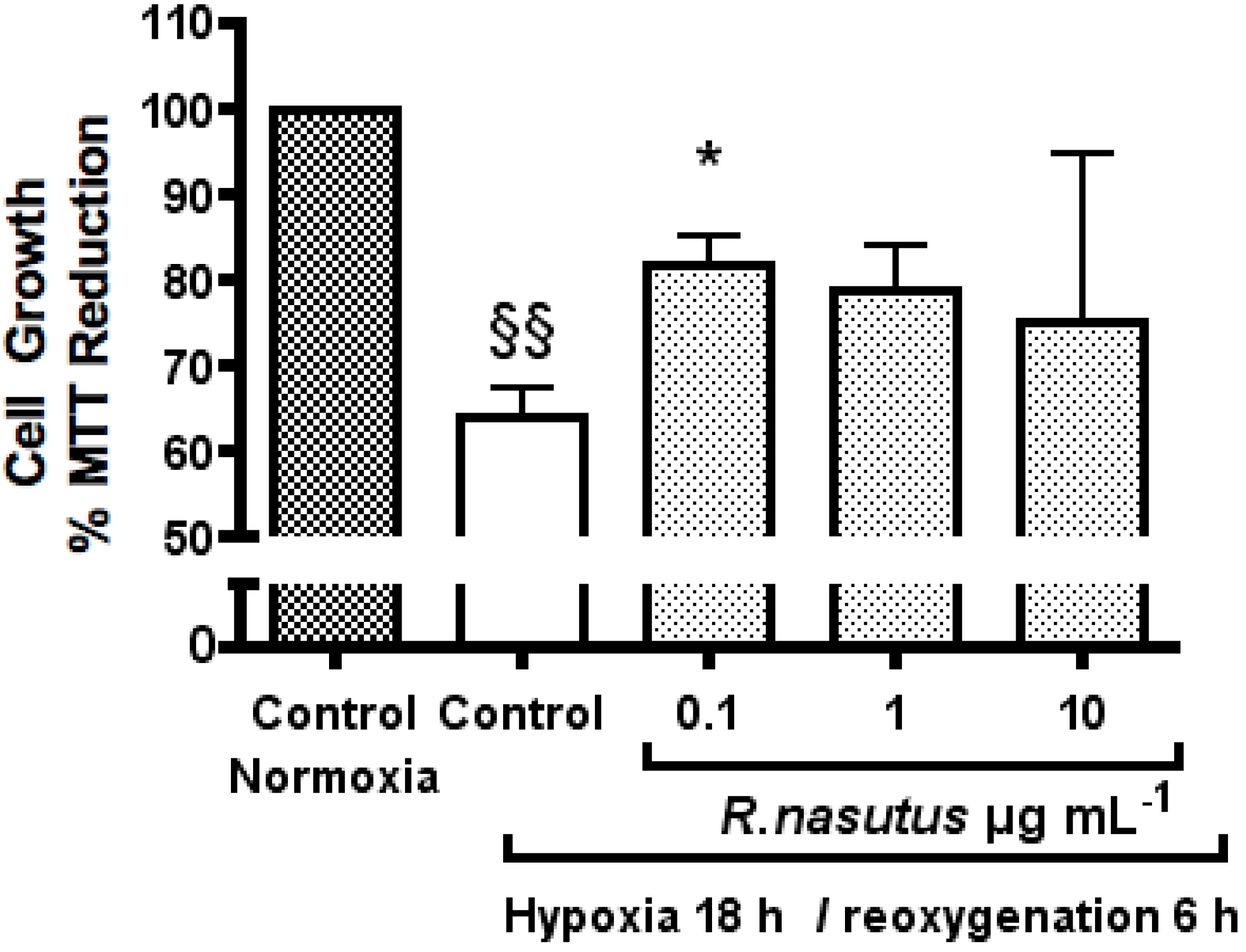

Figure 2. The Protective effect of R. nasutus against cell death induced by 18-hours hypoxia and 6-hours reoxygenation, measured using MTT assay. §§ One-way ANOVA Dunnett’s multiple comparison Post hoc test normoxia control vs. hypoxia control P < 0.01 n = 6. * ANOVA Dunnett’s multiple comparison Post hoc test compared to hypoxia control P < 0.05.
Figure 2. The Protective effect of R. nasutus against cell death induced by 18-hours hypoxia and 6-hours reoxygenation, measured using MTT assay. §§ One-way ANOVA Dunnett’s multiple comparison Post hoc test normoxia control vs. hypoxia control P < 0.01 n = 6. * ANOVA Dunnett’s multiple comparison Post hoc test compared to hypoxia control P < 0.05.
Molecules 16 06322 g002
HT-22 cells subjected to 18-hours of hypoxia followed by 6-hours reoxygenation showed a statistically significant 35% decrease in proliferation (one-way ANOVA Dunnett’s multiple comparison post hoc P value < 0.01) measured using the MTT assay, compared to the normoxia control cells. The cells subjected to hypoxia, which were also treated with R. nasutus (0.1 µg mL−1) showed a statistically significant, 25% increase compared to the hypoxia control cells (one way ANOVA Dunnett’s multiple comparison post hoc P values < 0.05 and < 0.01 respectively). HT-22 cells subjected to hypoxic conditions and 1 µg mL−1 and 10 µg mL−1 R. nasutus did not show a statistically significant increase compared to the hypoxia control cells in the MTT assay.
Since the MTT assay measures the metabolism of the MTT reagent into the formazan product and does not directly measure the number of alive or dead cells, the effects of hypoxia/reoxygenation on HT-22 cells were measured using the trypan blue exclusion assay. Living cells are able to exclude trypan blue, whereas dead cells retain the dye. HT-22 cells were subjected to hypoxia and reoxygenation, with or without R. nasutus treatement, and the percentage of surviving cells calculated by staining the cells with trypan blue and visualizing using a low power objective. The percentage of surviving cells is shown in Figure 3, as mean ± SEM cell survival of three independent experiments.
HT-22 cells subjected to 18-hours of hypoxia followed by 6-hours of reoxygenation showed a significant 37% decrease in cell survival compared to HT-22 cells in normoxic conditions (one-way ANOVA Dunnett’s multiple comparison post hoc test P > 0.01). The decrease in cell survival as a result of to 18-hours of hypoxia followed by 6-hours of reoxygenation was reversed by R. nasutus at concentrations of 1 µg mL−1 and 10 µg mL−1, with a significant increase in cell survival of 24% and 32% respectively over the hypoxia control (one-way ANOVA Dunnett’s multiple comparison post hoc test P > 0.01). The EC50 value % cell survival after 18-hours of hypoxia and 6 h of reoxygenation was 0.76 µg mL−1 (95% CI 0.24 to 2.3 µg mL−1).
Figure 3. The protective effect of 24 h pretretment with R. nasutus against cell death caused by 18-hours hypoxia and 6-hours reoxygenation, measured using the Trypan blue exclusion assay. §§ One-way ANOVA Dunnett’s multiple comparison post hoc test normoxia control vs. hypoxia control P < 0.01. ** One-way ANOVA Dunnett’s multiple comparison post hoc test R. nasutus treated cells vs. hypoxia control P < 0.01 n = 3.
Figure 3. The protective effect of 24 h pretretment with R. nasutus against cell death caused by 18-hours hypoxia and 6-hours reoxygenation, measured using the Trypan blue exclusion assay. §§ One-way ANOVA Dunnett’s multiple comparison post hoc test normoxia control vs. hypoxia control P < 0.01. ** One-way ANOVA Dunnett’s multiple comparison post hoc test R. nasutus treated cells vs. hypoxia control P < 0.01 n = 3.
Molecules 16 06322 g003
In order to see if the 24-hour pretreatment with R. nasutus is required for protection against hypoxia and reoxygenation induced cell death, HT-22 cells were treated with R. nasutus immediately before being subjected to hypoxic conditions. The cell survival of HT-22 cells was measured with the trypan blue exclusion assay the data shows the mean ± SEM of 3 independent experiments and is shown in Figure 4.
HT-22 cells subjected to hypoxic conditions resulted in a 43% decrease in cell survival compared to HT-22 cells attained in normoxic conditions (one-way ANOVA Dunnett’s multiple comparison post hoc test P < 0.01). As with the 24-hour pretreatment experiment, when HT-22 cells were treated with 10 µg mL−1 R. nasutus the decrease in cell survival caused by hypoxia and reoxygenation was reduced by 32% (one-way ANOVA Dunnett’s multiple comparison post hoc test P < 0.01). However, unlike the 24-hour pretreatment experiment, treatment with 1 µg mL−1 R. nasutus failed to protect the HT-22 cells against death caused by hypoxia and reoxgention. The EC50 value for % cell survival of HT-22 cells after 18-hours of hypoxia and 6 hours of reoxygenation (without the 24-hour pretreatment) was 4.6 µg mL (95% CI 1.3 to 15.5 µg mL−1). The data suggests that the 24-hour pretreatment is not necessary for protection against hypoxia and reoxygenation induced cell death at 10 µg mL−1, however, there is no protection provided at lower concentrations of R. nasutus extract, and the EC50 is increased 10-fold, when the R. nasutus treatment is directly before the hypoxic conditions are introduced. This suggests that time is required for the active agents to either be taken up by the cells, or that time is required to activate pathways, down stream of which result in the protective effects seen in the data above.

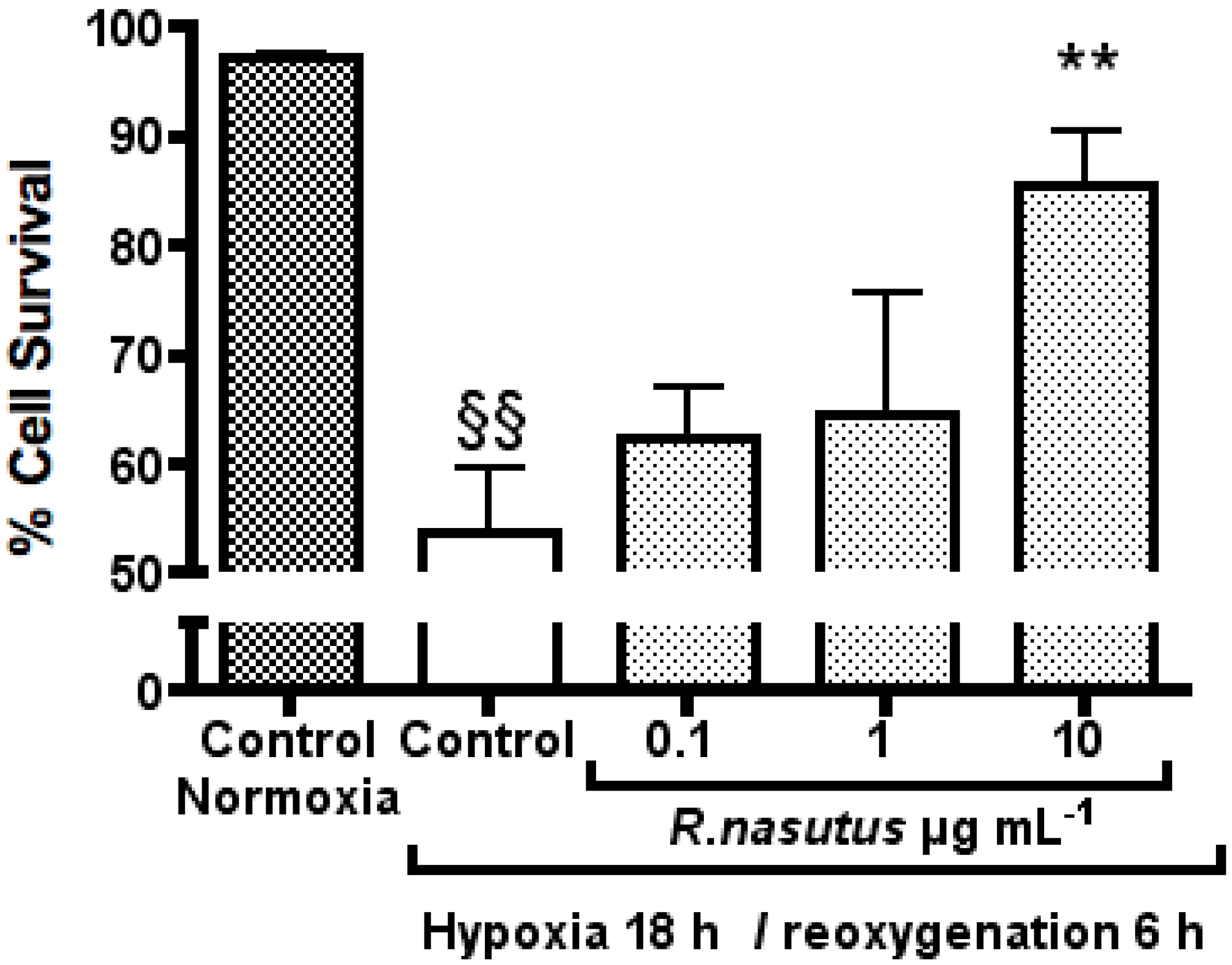

Figure 4. The protective effect of R. nasutus against against cell death caused by 18-hours hypoxia and 6-hours reoxygenation when added immediately before hypoxic condtions. Measured using the trypan blue exclusion assay. §§ One-way ANOVA Dunnett’s multiple comparison post hoc test normoxia control vs. hypoxia control P < 0.01. ** One-way ANOVA Dunnett’s multiple comparison post hoc test R. nasutus treated cells vs. hypoxia control P value < 0.01 n = 3.
Figure 4. The protective effect of R. nasutus against against cell death caused by 18-hours hypoxia and 6-hours reoxygenation when added immediately before hypoxic condtions. Measured using the trypan blue exclusion assay. §§ One-way ANOVA Dunnett’s multiple comparison post hoc test normoxia control vs. hypoxia control P < 0.01. ** One-way ANOVA Dunnett’s multiple comparison post hoc test R. nasutus treated cells vs. hypoxia control P value < 0.01 n = 3.
Molecules 16 06322 g004
The effects of hypoxia and reoxygenation on HT-22 cells were visualized using phase contrast microscopy. Representative images of three independent experiments can be seen in Figure 5. The change in cell morphology can be seen in Figure 5b, where the cells have been subjected to hypoxia and reoxygenation. The cells appear round and shriveled, having lost their elongated neuron shape after hypoxia and reoxygenation, where as the cells that have been pretreated for 24-hours with 10 and 1 µg mL−1 R. nasutus have maintained their shape.
Treatment with 10 µg mL−1 R. nasutus directly before the induction of hypoxic conditions maintains the HT-22 cells morphology compared to the normoxia control cells, whereas treatment with 1 µg mL−1 R. nasutus directly before induction of hypoxic conditions resulted in cell morphology more like that seen with the hypoxia control cells, with a more round shriveled cell shape. This parallels the trypan blue exculusion data in Figure 2 and Figure 3, where pretreatment for 24-hours was 10 times more effective at preventing cell death caused by hypoxia and reoxygenation.
It can also be seen from the images that the number of cells is greatly reduced after subjecting the HT-22 cells to hypoxia and reoxygenation. It is possible that the trypan blue exclusion assay is overestimating the number of surviving cells since the dead cells could have been washed away (despite care being taken to avoid this), and that cells in the early stages of dying are still able to exclude trypan blue. Therefore, to examine the extent of damage to HT-22 cells caused by hypoxia and reoxygenation the LDH release assay was preformed. When cells are damaged they release LDH into the culture media, which can be detected using the LDH cytotoxicity assay kit (Promaga). The mean ± SEM % maximum LDH release from three independent experiments is shown in Figure 6.
Figure 5. The protective effects of R. nautus against cell death caused by 18-hour hypoxia and 6-hours reoxygenation. HT-22 Cell cultured in 6 well culture plates at a density of 105 cells per well and photographed using a soligor microscope adaptor tube for Canon A650 with the Austria micros microscope 10 × objective and 6 × zoom on the camera. (A). HT-22 cells subjected to normoxic conditions cells; (B). Untreated HT-22 cells subjected to hypoxia 18-hours, reoxygenation 6-hours; (C). HT-22 cells pre treated with 10 µg mL−1 R. nasutus subjected to 18-hours of hypoxia and 6-hours of reoxygenation; (D). HT-22 Cells pretreated with 1 µg mL−1 R. nasutus subjected to 18-hours of hypoxia and 6-hours of reoxygenation; (E). HT-22 cells treated with 10 µg mL−1 R. nasutus at the time of being subjected to 18-hours of hypoxia and 6-hours of reoxygenation; (F). HT-22 cells treated with 1 µg mL−1 R. nasutus at the time of being subjected to 18-hours of hypoxia and 6-hours of reoxygenation.
Figure 5. The protective effects of R. nautus against cell death caused by 18-hour hypoxia and 6-hours reoxygenation. HT-22 Cell cultured in 6 well culture plates at a density of 105 cells per well and photographed using a soligor microscope adaptor tube for Canon A650 with the Austria micros microscope 10 × objective and 6 × zoom on the camera. (A). HT-22 cells subjected to normoxic conditions cells; (B). Untreated HT-22 cells subjected to hypoxia 18-hours, reoxygenation 6-hours; (C). HT-22 cells pre treated with 10 µg mL−1 R. nasutus subjected to 18-hours of hypoxia and 6-hours of reoxygenation; (D). HT-22 Cells pretreated with 1 µg mL−1 R. nasutus subjected to 18-hours of hypoxia and 6-hours of reoxygenation; (E). HT-22 cells treated with 10 µg mL−1 R. nasutus at the time of being subjected to 18-hours of hypoxia and 6-hours of reoxygenation; (F). HT-22 cells treated with 1 µg mL−1 R. nasutus at the time of being subjected to 18-hours of hypoxia and 6-hours of reoxygenation.
Molecules 16 06322 g005

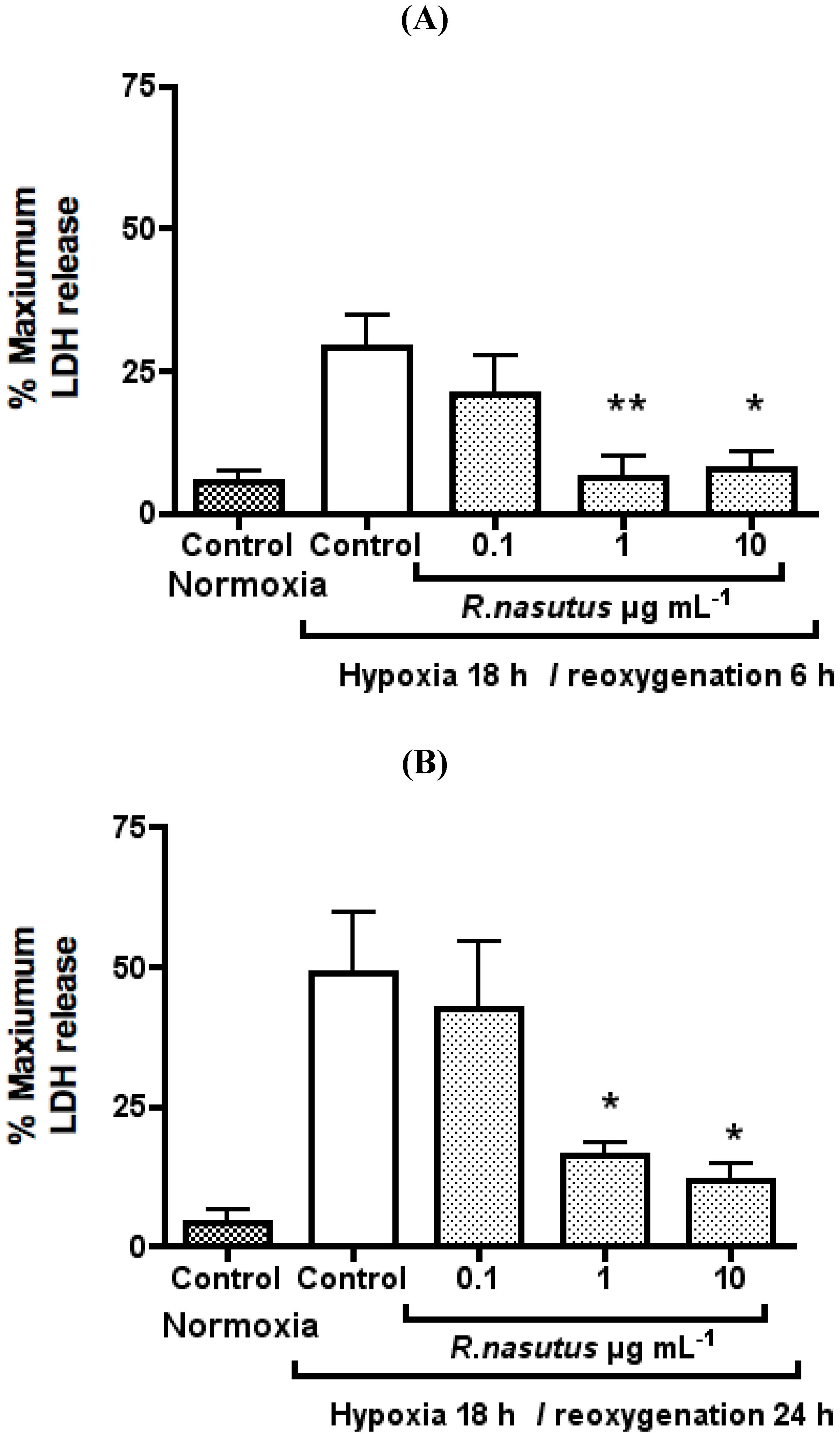

Figure 6. LDH release from HT-22 resulting from being subjected to 18 hours of hypoxia and 6-hours of reoxygenation (A) (n = 5) or 24-hours rexoygenation (B) (n = 3) * ANOVA Dunnett’s post hoc test P < 0.05. ** ANOVA Dunnett’s post hoc test P < 0.01.
Figure 6. LDH release from HT-22 resulting from being subjected to 18 hours of hypoxia and 6-hours of reoxygenation (A) (n = 5) or 24-hours rexoygenation (B) (n = 3) * ANOVA Dunnett’s post hoc test P < 0.05. ** ANOVA Dunnett’s post hoc test P < 0.01.
Molecules 16 06322 g006
Subjecting HT-22 cells to hypoxia for 18-hours followed by 6-hours of reoxygenation resulted in a 23.6 ± 5.8% increase in LDH release, furthermore extending the reoxygenation time resulted in a 44.8 ± 13.0% increase in LDH release. This increase in LDH release, caused by hypoxia (18-hours) and reoxygenation (6-hours), could be inhibited dose dependently by R. nasutus ethanol extract with an EC50 of 0.13 µg mL−1 (95% CI 0.02 to 0.97 µg mL−1). The LDH release after 24 h was dose dependently reduced with an EC50 of 0.34 µg mL−1 (95% CI 0.05 to 2.4 µg mL−1).
LDH is released from injured or dying cells is a measure of the damage caused to the cells, and we have shown that R. nasutus significantly reduces LDH release from HT-22 cells after 18-hours of hypoxia and reoxygenation of 6-or 24-hours. This added to the trypan blue data, where R. nasutus significantly increased cell viability, the MTT data, where R. nasutus increased cell growth in cells subjected to hypoxia, and the micrograph images obtained of cells maintaining their morphology when treated with R. nasutus and subjected to hypoxia, leads us to suggest that R. nasutus has a cytoprotective effect in HT-22 cells.
Given that the hypoxia is thought to cause cell death mainly through an increase in oxidative stress [49,50,51], and that the extract of R. nasutus has previously been shown to have antioxidant properties, it is likely that the neuroprotective effects against hypoxia induced cell death of R. nasutus is the result of an antioxidant mechanism, this was tested using the H2DCFDA assay (Figure 7).

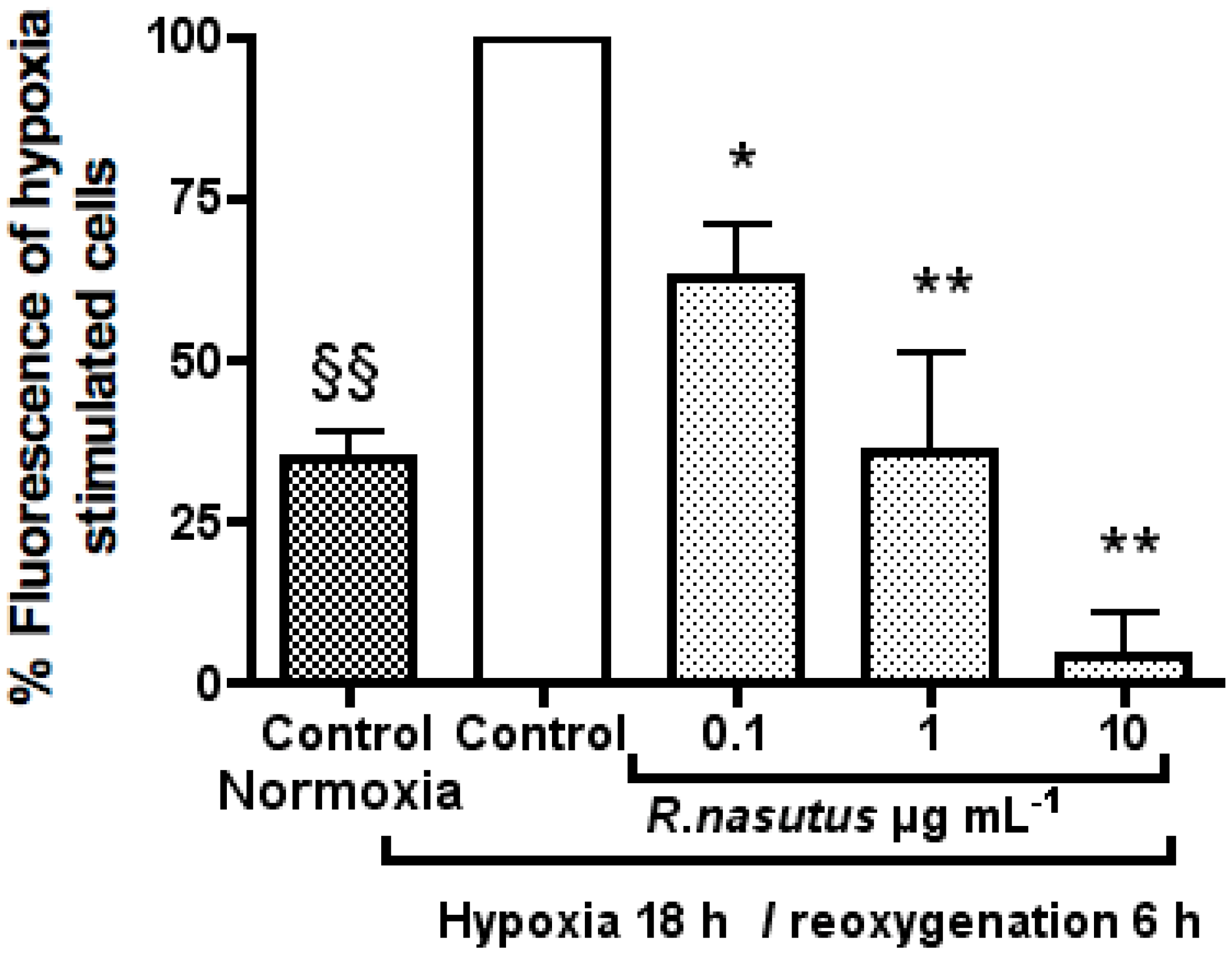

Figure 7. Carboxy-H2-DCFDA assay. HT-22 cells were cultured in 96 well plates at 104 per well and treated with R. nasutus root ethanol extract (0.1–10 µg mL−1) over night before staining for reactive oxygen species with carboxy-H2-DCFDA, and the emission read at 521 nm after excitation at 494 nm. The data was normalized to the % fluorescence of the untreated hypoxia cells. * ANOVA Dunnett’s post hoc test P < 0.05. ** ANOVA Dunnett’s post hoc test P < 0.01. §§ ANOVA Dunnett’s post hoc normoxia control vs. hypoxia control test P < 0.01.
Figure 7. Carboxy-H2-DCFDA assay. HT-22 cells were cultured in 96 well plates at 104 per well and treated with R. nasutus root ethanol extract (0.1–10 µg mL−1) over night before staining for reactive oxygen species with carboxy-H2-DCFDA, and the emission read at 521 nm after excitation at 494 nm. The data was normalized to the % fluorescence of the untreated hypoxia cells. * ANOVA Dunnett’s post hoc test P < 0.05. ** ANOVA Dunnett’s post hoc test P < 0.01. §§ ANOVA Dunnett’s post hoc normoxia control vs. hypoxia control test P < 0.01.
Molecules 16 06322 g007
Treatment of HT-22 cells with R. nasutus extract at 0.1 1 and 10 µg mL−1 resulted in a significant reduction of ROS build up in the cells after subjecting the cells to hypoxic conditions followed by reoxygenation with an EC50 of 0.12 µg mL−1 (95% CI 0.031 to 0.46 µg mL−1). Furthermore treatment with 10 µg mL−1 reduced ROS levels to below basal levels. This strongly suggests that R. nasutus is causing its protective effects against cell death caused by hypoxia/reoxygenation through an antioxidant mechanism.

3. Experimental

3.1. Cell Culture

Cells were incubated at 37 °C in a humidified 5% CO2 atmosphere. HT-22, a kind gift from David Schubert at the Salk Institute (San Diego, CA, USA), cells were maintained in Dulbecco’s Modified Eagle Medium (DMEM; Invitrogen, Carlsbad, CA, USA) supplemented with 10% foetal bovine serum and antibiotics (penicillin and streptomycin).

3.2. Plant Material

Rhinacanthus nasutus (L.) Kurz was collected from the Princess Maha Chakri Sirindhorn Herbal Garden (Rayong Province, Thailand) in March 2010, and authenticated by Thaweesakdi Boonkerd (Department of Botany, Faculty of Science, Chulalongkorn University, Thailand). The voucher specimen [013416 (BCU)] was deposited at the Professor Kasin Suvatabhandhu Herbarium, Department of Botany, Faculty of Science, Chulalongkorn University, Thailand. R. nasutus root was dried and ground into a fine powder before extraction in ethanol. The supernatant was subsequently filtered and the ethanol evaporated using a rotating evaporator at (60 °C). The resulting product was resuspended in DMSO at a concentration of 100 mg mL−1.

3.3. Hypoxia and Reoxygenation

Hypoxic conditions were achieved using the anaeropack method described and validated for use as a model for hypoxia and reoxygenation in cultured cells by Kamiya et al. [5]. This method has been used successfully to achieve hypoxia/reoxygenation induced cell death in various cell lines including, U373MG cells [52], cultured hepatocytes [5] and primary hepatocytes [53,54], as well as HT-22 cells [1] which are used in this study.
Briefly, HT-22 cells were plated in 6 well plates or 96 well plates. The cells were with the specified drug for 24-hours before the media was replaced with glucose free DMEM or treated at the time of changing to glucose free media, the plates were then placed inside a sealed air tight container which contains a compartment for water to maintain a humidified atmosphere, along with an anaeropack (Mitsubishi Gas Company, Tokyo, Japan) shown in Figure 8. The anaeropack contains a gas-controlling reagent, resulting in a hypoxic atmosphere. The main ingredient of the gas-controlling reagent is sodium ascorbate, which absorbs oxygen, and generates carbon dioxide. The pack also contains another reagent used as a carbon dioxide scavenger, resulting in an approximate 5% CO2 and less than 0.1% O2 atmosphere with in 3 h of induction of hypoxia [5]. The conditions inside the sealed container were monitored using an indictor tab (Figure 8b and Figure 9) which changes colour depending on the presence or absence of oxygen, when the oxygen levels are less that 0.1% the strip is pink, and turns blue at levels above 0.5% oxygen.
The cells were maintained in hypoxic conditions at 37 °C for 18-hours, after which the plates were removed from the sealed container and the media replaced with glucose containing DMEM (in some experiments the cells were treated after the hypoxia conditions, but before the reoxygenation in high glucose DMEM). The cells were incubated for 6 h at 37 °C in a humidified 5% CO2 atmosphere before the MTT, trypan blue exclusion, LDH or H2DCFDA assays were carried out.
Figure 8. (A) Equipment used to generate hypoxic conditions. These include airtight lockable container with compartments for water, the anearopack and culture plates, the anaeropack from Mitsubishish Gas Company and a 96 well tissue culture plate; (B) Oxygen indicator tab in side airtight container with cells.
Figure 8. (A) Equipment used to generate hypoxic conditions. These include airtight lockable container with compartments for water, the anearopack and culture plates, the anaeropack from Mitsubishish Gas Company and a 96 well tissue culture plate; (B) Oxygen indicator tab in side airtight container with cells.
Molecules 16 06322 g008

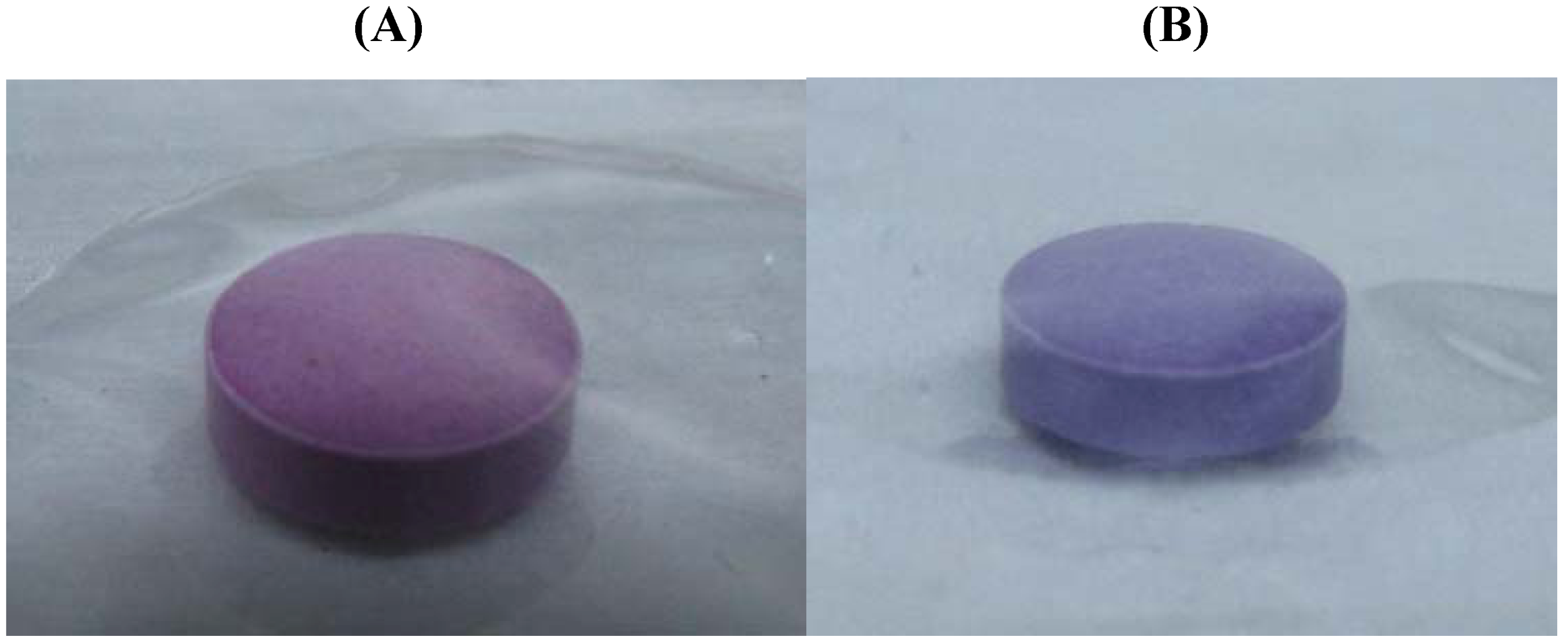

Figure 9. (A) Oxygen indicator tab in hypoxic conditions; (B) Oxygen indicator tab in normoxic conditions.
Figure 9. (A) Oxygen indicator tab in hypoxic conditions; (B) Oxygen indicator tab in normoxic conditions.
Molecules 16 06322 g009

3.4. MTT Assay

Cells were cultured in 96 well plates in 100 µL of culture media and allowed to adhere over night. The following day cells were treated as specified with 100 µL of 2× concentration drug, and incubated 37 °C in a humidified 5% CO2 atmosphere for the specified amount of time before the MTT assay was carried out. MTT reagent was purchased from Merck (Hohenbrunn, Germany) and dissolved in sterile PBS at a stock concentration of 12 mM (5 mg mL−1). The stock MTT (20 µL) was added to the well resulting in a final concentration of 1 mM (0.45 mg mL−1) MTT in each well. The plate was then returned to the incubator at 37 °C in a humidified 5% CO2 atmosphere for four hours. After this incubation period the media was carefully removed, and the formazan crystals solublised in 100 µL of DMSO and mixed by pipetting up and down. The absorbance of each sample was measured at 550 nm using a microplate reader. MTT reduction measured at 550 nm was converted to percentage Cell growth was determined using the following formula:
% Cell growth = [(Abs 550 nm of treated group − blank)/(Abs 550 nm of control − blank)] *100

3.5. Trypan Blue Exclusion assay

HT-22 cells were plated in 6 well culture plates at a density of 1 × 104 cells per well and allowed to adhere over night, in a volume of 2 mL of DMEM containing 10% FBS. The following day cells were treated with, R. nasutas extract (0.1 µg mL−1, 1 µg mL−1 or 10 µg mL−1). The cells were then returned to the 37 °C in a humidified 5% CO2 incubator for 24-hours, before the media was changed and hypoxic conditions were achieved (in some experiments the cells were treated immediately before hypoxia or at reoxygention as specified). The media was then removed, and the cells stained with 0.2% trypan blue in phosphate buffered saline PBS for 3 min. The excess trypan blue was removed and replaced with PBS to prevent the cells from drying out. The cells were then viewed under 20 times objective, and the percentage of living cells counted by a 2nd individual who had no prior knowledge of the treatments, over 5 randomly selected, non-over lapping fields of view. Trypan blue is not excluded by dead or dying cells, therefore the blue cells are counted as dead and non-blue counted as alive. The data was represented as % surviving cells.

3.6. LDH Assay

The LDH assay kit was purchased from Promaga, and the assay was carried out according to the manufacturer’s instructions. Briefly, HT-22 cells were seeded in 96 well plates at a density of 104 cells per well overnight before treatment, and exposure to hypoxia and reoxygenation. After the specified treatment and time the plates were spun at 1,500 rpm, before media (50 µL) was removed from the well and transferred to a new microtitre plate, to which the assay substrate mix (50 µL) from the kit was added. To obtain the maximum LDH release for HT-22 cells a set of control cells were lysed 30 min prior to the assay and the supernatant treated in the same was at the test wells. The microtitre plate was incubated in the dark for 30 min at room temperature before adding the stop solution from the kit (50 µL). The absorbance at 490 nm was then measured using a microplate reader.

3.7. H2DCFDA Assay

HT-22 cells were seeded at 104 cells per well over night in 96 well plates with opaque side walls, followed by treatment with R. nasutus and subjection to hypoxia and reoxygenation. After treatment, hypoxia, and reoxygenation the cells were loaded with 10 µM H2DCFDA in prewarmed HBSS. The cells were then incubated in the dark for 30 min at 37 °C in a humidified 5% CO2 atmosphere. The wells were then washed three times with warm HBSS and the fluorescence measured (excitation 494 nm and emission 521 nm). The data was then normalized to the hypoxia control for each experiment.

3.8. Statistical Analysis

Statistical analysis was preformed using GraphPad Prizm for Mac version 4.0. MTT data was normalized to control values of 100% and represented as mean ± SEM. One-way ANOVA was applied, with Dunnett’s multiple comparison post hoc test.

4. Conclusions

In summary we report that R. nasutus root extract at concentrations between 0.1 and 10 µg mL−1 has a protective effect in HT-22 cells subjected to hypoxia and reoxygenation (measured using MTT, trypan blue exclusion and LDH release assays), We also report that R. nasutus is anti-proliferative at higher concentrations in HT-22 cells (as measured by the MTT assay). The protective effect observed between 0.1 and 10 µg mL−1 R. nasutus is likely to be acting through an antioxidant mechanism, as we have shown that R. nasutus can significantly reduce oxygen radical buildup in HT-22 cells. What remains to be seen is how R. nasutus causes the antioxidant effects, whether directly or through the activation of antioxidant pathways, and further work is continuing in our lab to identify the active compounds found in R. nasutus root ethanol extract, which may then help identify the mechanism behind the antioxidant activity.

Acknowledgments

This work was supported by the Higher Education Research Promotion and National Research University Project of Thailand, Office of the Higher Education Commission (AS562A) and the Chulalongkorn University Centenary Academic Development Project. James M. Brimson received the postdoctoral fellowship from the Ratchadapiseksomphot Endowment Fund, Chulalongkorn University. We acknowledge Varaporn Rakkhithawatthana for her excellent technical assistance with the experiments, and David Schubert for kindly providing our laboratory with the HT-22 cell line.

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Shimada, S.; Hirabayashi, M.; Ishige, K.; Kosuge, Y.; Kihara, T.; Ito, Y. Activation of dopamine D4 receptors is protective against hypoxia/reoxygenation-induced cell death in HT22 cells. J. Pharmacol. Sci. 2010, 114, 217–224. [Google Scholar]
  2. Hartman, P.; Ponder, R.; Lo, H.H.; Ishii, N. Mitochondrial oxidative stress can lead to nuclear hypermutability. Mech. Ageing Dev. 2004, 125, 417–420. [Google Scholar]
  3. Jefferson, J.A.; Simoni, J.; Escudero, E.; Hurtado, M.E.; Swenson, E.R.; Wesson, D.E.; Schreiner, G.F.; Schoene, R.B.; Johnson, R.J.; Hurtado, A. Increased oxidative stress following acute and chronic high altitude exposure. High Alt. Med. Biol. 2004, 5, 61–69. [Google Scholar]
  4. Jin, D.Q.; Lim, C.S.; Hwang, J.K.; Ha, I.; Han, J.S. Anti-oxidant and anti-inflammatory activities of macelignan in murine hippocampal cell line and primary culture of rat microglial cells. Biochem. Biophys. Res. Commun. 2005, 331, 1264–1269. [Google Scholar]
  5. Kamiya, T.; Kwon, A.H.; Kanemaki, T.; Matsui, Y.; Uetsuji, S.; Okumura, T.; Kamiyama, Y. A simplified model of hypoxic injury in primary cultured rat hepatocytes. In Vitro Cell. Dev. Biol. Anim. 1998, 34, 131–137. [Google Scholar] [CrossRef]
  6. Luo, H.; Huang, J.; Liao, W.G.; Huang, Q.Y.; Gao, Y.Q. The antioxidant effects of garlic saponins protect PC12 cells from hypoxia-induced damage. Br. J. Nutr. 2010, 105, 1164–1172. [Google Scholar]
  7. Cumming, R.C.; Schubert, D. Amyloid-beta induces disulfide bonding and aggregation of GAPDH in Alzheimer's disease. FASEB J. 2005, 19, 2060–2062. [Google Scholar]
  8. Coyle, J.T.; Puttfarcken, P. Oxidative stress, glutamate, and neurodegenerative disorders. Science 1993, 262, 689–695. [Google Scholar]
  9. Floyd, R.A.; Hensley, K. Oxidative stress in brain aging. Implications for therapeutics of neurodegenerative diseases. Neurobiol. Aging 2002, 23, 795–807. [Google Scholar] [CrossRef]
  10. Sapolsky, R.M. The possibility of neurotoxicity in the hippocampus in major depression: A primer on neuron death. Biol. Psychiatry 2000, 48, 755–765. [Google Scholar] [CrossRef]
  11. Sahay, A.; Hen, R. Adult hippocampal neurogenesis in depression. Nat. Neurosci. 2007, 10, 1110–1115. [Google Scholar] [CrossRef]
  12. Eriksson, P.S.; Perfilieva, E.; Bjork-Eriksson, T.; Alborn, A.M.; Nordborg, C.; Peterson, D.A.; Gage, F.H. Neurogenesis in the adult human hippocampus. Nat. Med. 1998, 4, 1313–1317. [Google Scholar]
  13. Dranovsky, A.; Hen, R. Hippocampal neurogenesis: Regulation by stress and antidepressants. Biol. Psychiatry 2006, 59, 1136–1143. [Google Scholar] [CrossRef]
  14. Charney, D.S.; Manji, H.K. Life stress, genes, and depression: Multiple pathways lead to increased risk and new opportunities for intervention. Sci. STKE 2004, 2004, re5. [Google Scholar] [CrossRef]
  15. Siripong, P.; Yahuafai, J.; Shimizu, K.; Ichikawa, K.; Yonezawa, S.; Asai, T.; Kanokmedakul, K.; Ruchirawat, S.; Oku, N. Induction of apoptosis in tumor cells by three naphthoquinone esters isolated from Thai medicinal plant: Rhinacanthus nasutus KURZ. Biol. Pharm. Bull. 2006, 29, 2070–2076. [Google Scholar] [CrossRef]
  16. Siripong, P.; Yahuafai, J.; Shimizu, K.; Ichikawa, K.; Yonezawa, S.; Asai, T.; Kanokmedakul, K.; Ruchirawat, S.; Oku, N. Antitumor activity of liposomal naphthoquinone esters isolated from Thai medicinal plant: Rhinacanthus nasutus KURZ. Biol. Pharm. Bull. 2006, 29, 2279–2283. [Google Scholar] [CrossRef]
  17. Thirumurugan, R.S.; Kavimani, S.; Srivastava, R.S. Antitumour activity of rhinacanthone against Dalton's ascitic lymphoma. Biol. Pharm. Bull. 2000, 23, 1438–1440. [Google Scholar] [CrossRef]
  18. Blignaut, E.; Patton, L.L.; Nittayananta, W.; Ramirez-Amador, V.; Ranganathan, K.; Chattopadhyay, A. (A3) HIV Phenotypes, oral lesions, and management of HIV-related disease. Adv. Dent. Res. 2006, 19, 122–129. [Google Scholar] [CrossRef]
  19. Sendl, A.; Chen, J.L.; Jolad, S.D.; Stoddart, C.; Rozhon, E.; Kernan, M.; Nanakorn, W.; Balick, M. Two new naphthoquinones with antiviral activity from Rhinacanthus nasutus. J. Nat. Prod. 1996, 59, 808–811. [Google Scholar] [CrossRef]
  20. Punturee, K.; Wild, C.P.; Kasinrerk, W.; Vinitketkumnuen, U. Immunomodulatory activities of Centella asiatica and Rhinacanthus nasutus extracts. Asian Pac. J. Cancer Prev. 2005, 6, 396–400. [Google Scholar]
  21. Thongrakard, V.; Tencomnao, T. Modulatory effects of Thai medicinal plant extract on proinflammatory cytokines-induced apoptosis in human keratinocyte HaCaT cells. African J. Biotechnol. 2010, 9, 4999–5003. [Google Scholar]
  22. Upendra, R.M.; Sreenivasulu, M; Chengaiah, B.; Ravikrishna, D.; Jaganmohan, R.K.; Sangeetha, K.; Chetty, C.M. Rhinacanthus nasutus (LINN.) kurz: A comprahensive review. Int. J. Pharm. Res. Dev. 2010, 2. article no.-7. [Google Scholar]
  23. Punturee, K.; Wild, C.P.; Vinitketkumneun, U. Thai medicinal plants modulate nitric oxide and tumor necrosis factor-alpha in J774.2 mouse macrophages. J. Ethnopharmacol. 2004, 95, 183–189. [Google Scholar] [CrossRef]
  24. Dhir, A.; Kulkarni, S.K. Nitric oxide and major depression. Nitric Oxide 2011, 24, 125–131. [Google Scholar] [CrossRef]
  25. Shyamal, S.; Latha, P.G.; Suja, S.R.; Shine, V.J.; Anuja, G.I.; Sini, S.; Pradeep, S.; Shikha, P.; Rajasekharan, S. Hepatoprotective effect of three herbal extracts on aflatoxin B1-intoxicated rat liver. Singapore Med. J. 2010, 51, 326–331. [Google Scholar]
  26. Kodama, O.; Ichikawa, H.; Akatsuka, T.; Santisopasri, V.; Kato, A.; Hayashi, Y. Isolation and identification of an antifungal naphthopyran derivative from Rhinacanthus nasutus. J. Nat. Prod. 1993, 56, 292–294. [Google Scholar] [CrossRef]
  27. Wu, T.-S.; Tien, H.-J.; Yeh, M.-Y.; Lee, K.-H. solation and cytotoxicity of rhinacanthin-A and -B, two; naphthoquinones, from Rhinacanthus nasutus. Phytochemistry 1988, 27, 3787–3788. [Google Scholar]
  28. Wu, T.-S.; Yang, C.-C.; Wu, P.-L.; Liu, L.-K. A quinol and steroids from the leaves and stems of Rhinacanthus nasutu. Phytochemistry 1995, 40, 1247–1249. [Google Scholar] [CrossRef]
  29. Wu, T.S.; Hsu, H.C.; Wu, P.L.; Leu, Y.L.; Chan, Y.Y.; Chern, C.Y.; Yeh, M.Y.; Tien, H.J. Naphthoquinone esters from the root of Rhinacanthus nasutus. Chem. Pharm. Bull. (Tokyo) 1998, 46, 413–418. [Google Scholar] [CrossRef]
  30. Nirmaladevi, R.; Padma, P.R.; Kavitha, D. Analysis of the methanolic extract of the leaves of Rhinacanthus nasutus. J. Med. Plant Res. 2010, 4, 1554–1560. [Google Scholar]
  31. Devasagayam, T.P.; Tilak, J.C.; Boloor, K.K.; Sane, K.S.; Ghaskadbi, S.S.; Lele, R.D. Free radicals and antioxidants in human health: current status and future prospects. J. Assoc. Phys. India 2004, 52, 794–804. [Google Scholar]
  32. Tetsuka, T.; Baier, L.D.; Morrison, A.R. Antioxidants inhibit interleukin-1-induced cyclooxygenase and nitric-oxide synthase expression in rat mesangial cells. Evidence for post-transcriptional regulation. J. Biol. Chem. 1996, 271, 11689–11693. [Google Scholar] [CrossRef]
  33. Ivanova, D.; Gerova, D.; Chervenkov, T.; Yankova, T. Polyphenols and antioxidant capacity of Bulgarian medicinal plants. J. Ethnopharmacol. 2005, 96, 145–150. [Google Scholar] [CrossRef]
  34. Kaur, C.; Kapoor, H.C. Anti-oxidant activity and total phenolic content of some Asian vegetables. Int. J. Food Sci. Technol. 2002, 37, 153–161. [Google Scholar] [CrossRef]
  35. Kimura, Y.; Dargusch, R.; Schubert, D.; Kimura, H. Hydrogen sulfide protects HT22 neuronal cells from oxidative stress. Antioxid. Redox. Signal. 2006, 8, 661–670. [Google Scholar]
  36. Suh, H.W.; Kang, S.; Kwon, K.S. Curcumin attenuates glutamate-induced HT22 cell death by suppressing MAP kinase signaling. Mol. Cell. Biochem. 2007, 298, 187–194. [Google Scholar] [CrossRef]
  37. Sucontphunt, A.; De-Eknamkul, W.; Nimmannit, U.; Dan Dimitrijevich, S.; Gracy, R.W. Protection of HT22 neuronal cells against glutamate toxicity mediated by the antioxidant activity of Pueraria candollei var. mirifica extracts. J. Nat. Med. 2011, 65, 1–8. [Google Scholar] [CrossRef]
  38. Jamarkattel-Pandit, N.; Pandit, N.R.; Kim, M.Y.; Park, S.H.; Kim, K.S.; Choi, H.; Kim, H.; Bu, Y. Neuroprotective effect of defatted sesame seeds extract against in vitro and in vivo ischemic neuronal damage. Planta Med. 2010, 76, 20–26. [Google Scholar] [CrossRef]
  39. Nath, R.; Probert, A., Jr.; McGinnis, K.M.; Wang, K.K. Evidence for activation of caspase-3-like protease in excitotoxin- and hypoxia/hypoglycemia-injured neurons. J. Neurochem. 1998, 71, 186–195. [Google Scholar]
  40. Krishnamurthy, R.G.; Senut, M.C.; Zemke, D.; Min, J.; Frenkel, M.B.; Greenberg, E.J.; Yu, S.W.; Ahn, N.; Goudreau, J.; Kassab, M.; et al. Asiatic acid, a pentacyclic triterpene from Centella asiatica, is neuroprotective in a mouse model of focal cerebral ischemia. J. Neurosci. Res. 2009, 87, 2541–2550. [Google Scholar] [CrossRef]
  41. Gotoh, A.; Sakaeda, T.; Kimura, T.; Shirakawa, T.; Wada, Y.; Wada, A.; Kimachi, T.; Takemoto, Y.; Iida, A.; Iwakawa, S.; et al. Antiproliferative activity of Rhinacanthus nasutus (L.) Kurz extracts and the active moiety, Rhinacanthin C. Biol. Pharm. Bull. 2004, 27, 1070–1074. [Google Scholar]
  42. Siripong, P.; Kanokmedakul, K.; Piyaviriyagul, S.; Yahusfai, J.; Chanpai, R.; Ruchirawat, S.; Oku, N. Antiproliferative naphthoquinone esters from Rhinacanthus nasutus Kurz. roots on various cancer cells. J. Trad. Med. 2006, 23, 166–172. [Google Scholar]
  43. Tamatani, M.; Mitsuda, N.; Matsuzaki, H.; Okado, H.; Miyake, S.; Vitek, M.P.; Yamaguchi, A.; Tohyama, M. A pathway of neuronal apoptosis induced by hypoxia/reoxygenation: Roles of nuclear factor-kappaB and Bcl-2. J. Neurochem. 2000, 75, 683–693. [Google Scholar]
  44. Gonzalez, G.; Celedon, G.; Sandoval, M.; Gonzalez, G.E.; Ferrer, V.; Astete, R.; Behn, C. Hypobaric hypoxia-reoxygenation diminishes band 3 protein functions in human erythrocytes. Pflugers Arch. 2002, 445, 337–341. [Google Scholar]
  45. Ye, R.; Li, N.; Han, J.; Kong, X.; Cao, R.; Rao, Z.; Zhao, G. Neuroprotective effects of ginsenoside Rd against oxygen-glucose deprivation in cultured hippocampal neurons. Neurosci. Res. 2009, 64, 306–310. [Google Scholar] [CrossRef]
  46. Zhang, Y.; Feustel, P.J.; Kimelberg, H.K. Neuroprotection by pyrroloquinoline quinone (PQQ) in reversible middle cerebral artery occlusion in the adult rat. Brain Res. 1094, 200–206. [Google Scholar]
  47. Mandel, S.; Amit, T.; Reznichenko, L.; Weinreb, O.; Youdim, M.B. Green tea catechins as brain-permeable, natural iron chelators-antioxidants for the treatment of neurodegenerative disorders. Mol. Nutr. Food Res. 2006, 50, 229–234. [Google Scholar]
  48. Rawal, A.K.; Muddeshwar, M.G.; Biswas, S.K. Rubia cordifolia, Fagonia cretica linn and Tinospora cordifolia exert neuroprotection by modulating the antioxidant system in rat hippocampal slices subjected to oxygen glucose deprivation. BMC Complement. Altern. Med. 2004, 4, 11. [Google Scholar] [CrossRef][Green Version]
  49. Medling, B.D.; Bueno, R.; Chambers, C.; Neumeister, M.W. The effect of vitamin E succinate on ischemia reperfusion injury. Hand (NY) 2009. [Google Scholar] [CrossRef]
  50. Hashimoto, T.; Yonetani, M.; Nakamura, H. Selective brain hypothermia protects against hypoxic-ischemic injury in newborn rats by reducing hydroxyl radical production. Kobe J. Med. Sci. 2003, 49, 83–91. [Google Scholar]
  51. Dhar-Mascareno, M.; Carcamo, J.M.; Golde, D.W. Hypoxia-reoxygenation-induced mitochondrial damage and apoptosis in human endothelial cells are inhibited by vitamin C. Free Radic. Biol. Med. 2005, 38, 1311–1322. [Google Scholar] [CrossRef]
  52. Katoh, C.; Osanai, T.; Tomita, H.; Okumura, K. Brain natriuretic peptide is released from human astrocytoma cell line U373MG under hypoxia: A possible role in anti-apoptosis. J. Endocrinol. 2011, 208, 51–57. [Google Scholar]
  53. Abe, T.; Unno, M.; Takeuchi, H.; Kakita, T.; Katayose, Y.; Rikiyama, T.; Morikawa, T.; Suzuki, M.; Matsuno, S. A new free radical scavenger, edaravone, ameliorates oxidative liver damage due to ischemia-reperfusion in vitro and in vivo. J. Gastrointest. Surg. 2004, 8, 604–615. [Google Scholar] [CrossRef]
  54. Kaibori, M.; Inoue, T.; Tu, W.; Oda, M.; Kwon, A.H.; Kamiyama, Y.; Okumura, T. FK506, but not cyclosporin A, prevents mitochondrial dysfunction during hypoxia in rat hepatocyte. Life Sci. 2001, 69, 17–26. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of the R. nasutus extract are available from the authors.
