Anaerobic Digestion for Producing Renewable Energy—The Evolution of This Technology in a New Uncertain Scenario
Abstract
:1. Introduction
2. The Effect of Substrate Composition and Digestion Performance
3. Co-Digestion to Increase Reactor Productivity
Organic Substrate | Specific Production Potential (M3 CH4/Kg VS) 1 | Reference |
---|---|---|
Livestock manure | ||
Pig manure | 0.30–0.50 | [96,97,98,99,100,101] |
Poultry manure | 0.03–0.11 | [90,96,100,101] |
Cattle manure | 0.11–0.54 | [102,103] |
Organic industrial waste | ||
Slaughterhouse waste | 0.20–0.80 | [104,105] |
Brewery waste | 0.3–0.51 | [106,107] |
Sewage sludge (SS) and co-substrate | ||
SS | 0.22–0.45 | [35,108,109] |
SS + grease | 0.4–0.8 | [108,110] |
SS + glycerol | 0.2–0.4 | [111,112] |
SS + food wastes | 0.4–0.6 | [86,113] |
Energy crops | ||
Corn stover | 0.30–0.40 | [97,114] |
Sunflower | 0.20–0.40 | [115,116] |
Rapeseed | 0.25 | [97] |
Wheat straw (steam explosion pre-treatment) | 0.25–0.35 | [117,118] |
Rice straw | 0.26 | [119] |
Grass: Napier grass, Canary grass, King grass | 0.15–0.60 | [120,121,122] |
Microalgae and cyanobacteria biomass | ||
Microalgae Chlorella sp. | 0.23–026 | [99,123] |
Microalgae Nannochloropsis oculata | 0.3–0.35 | [124] |
Manure + Arthrospira platensis | 0.48 | [125] |
4. Technical and Economic Feasibility of Anaerobic Digestion Plants
Substrates | Selling Prices | Digester | Costs (EUR) Millions | Reference |
---|---|---|---|---|
Dairy cow farm Input: 29,200 t/year Plant treating manure + sheep dung | Electricity: EUR 0.10/kWh Liquid fertilizer: EUR 120/t | 2713 m3 | 0.77 | [146] |
2400 beef cattle and glycerine + biomass as co-substrate | Credit claims. Electricity: EUR 0.012/kWh Solid by-product: EUR 28.8/t Liquid by-product: EUR 2.15/t | 2 digesters 3670 m3 each | 2.55 | [147] |
8000 t/year Dairy manure, corn stalk, tomato residues | Electricity: EUR 0.13/kWh Heat: EUR 0.0326/kWh Bio-methane: 44/m3 | 1000 m3, wet digestion 250 m3, solid digestion | 0.4–0.5 | [148] |
Two-phase olive oil mill pomace and pig slurry 7500 t/year and 2450 m3/year of wastewaters + pig slurry 9000 t/year | Electricity: EUR 0.13/kWh Heat: EUR 0.036/kWh Waste management savings: EUR 5/t Compost: EUR 70/t Olive stones: EUR 80/t | Plant size to digest 8750 t/year. | 0.6–1.1 | [149] |
Small-scale digestion plants Herd size: 50–250 adult caws) | Electricity: EUR 0.158/kWh Heat: EUR 0.295/kWh District heating selling thermal energy price: EUR 0.03/kWh | Based on installed CHP engine power (kWe): 17–55 | 0.29–0.52 | [150] |

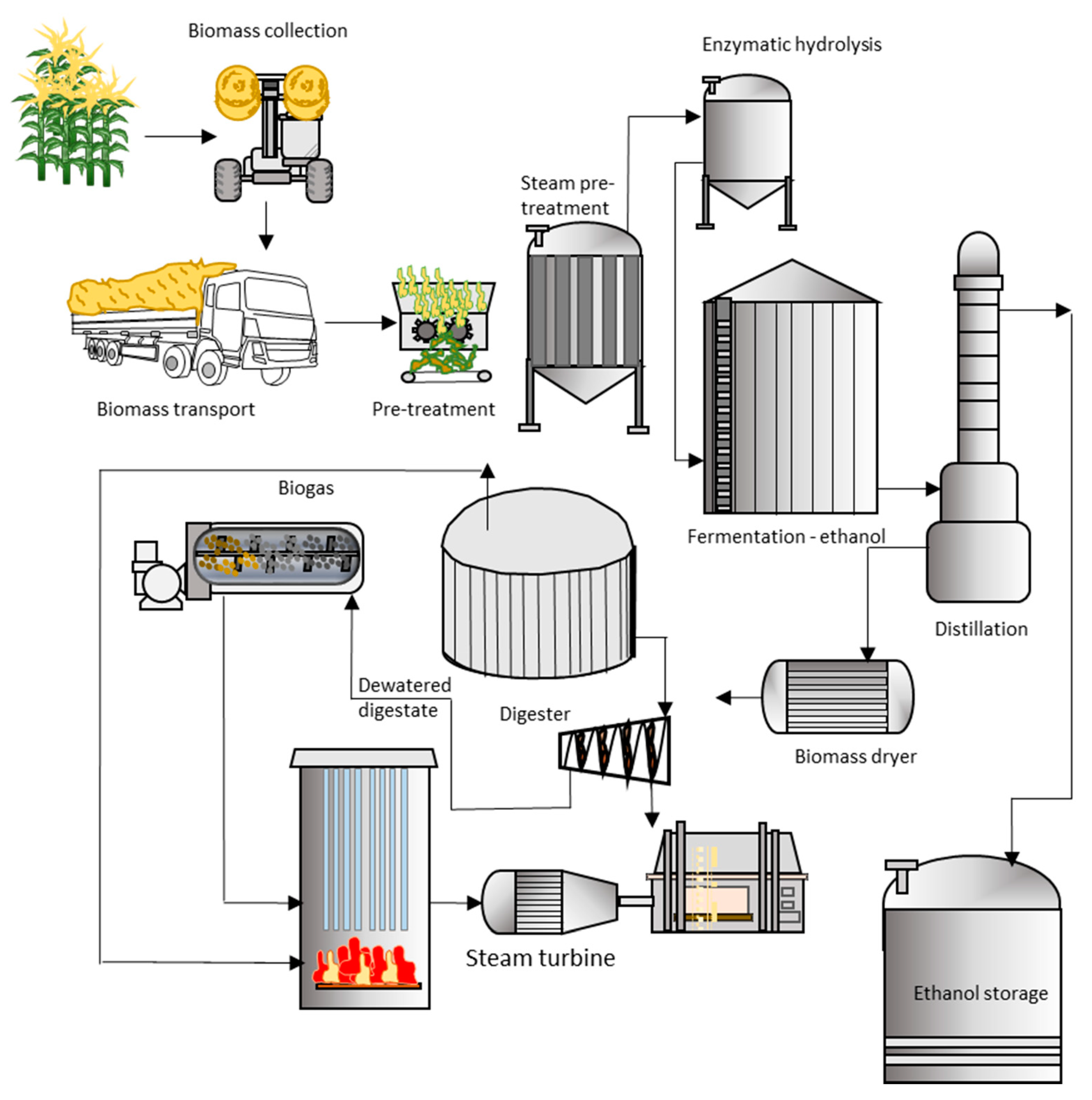

5. Integrating Anaerobic Digestion into a Green Energy Producing System
Substrates | Conversion Processes | Products | Reference |
---|---|---|---|
Jerusalem artichoke (Helianthus tuberosus L.) | Extraction | Sugars, succinic acid, Rubisco fraction, proteins | [172] |
Invasive brown algae (Sargassum muticum) | Drying, extraction, fractionation | Fucoxanthin and hydrolysis liqueur | [184] |
Food waste | Black soldier fly (BSF) (Hermetia illucen) | High-value insect products: protein, lipids, chitin and frass | [185] |
Sugar beet | Ethanol fermentation + continuous fermentation with Bacillus coagulans | Ethanol and lactic acid | [186] |
Grape wine waste | Extraction + hydrolysis + fermentation | Lactic acid, tartaric acid, protein-rich fungal biomass, tannins, polyphenols | [187] |
Sugarcane distillery (bagasse) and straw | Fermentation + gasification + Fischer–Tropsch synthesis | Ethanol, diesel, jet fuel, gasoline, electricity | [188] |
Citrus wastes | Pectin extraction anaerobic digestion | Mucic acid production and biogas | [189] |
Agricultural and livestock wastes | Fermentation + anaerobic digestion | Biogas, electricity, ethanol, butanol, acetate, propionic, lactic acid | [4] |
Switchgrass (Panicum virgatum) | Ethanol fermentation + anaerobic digestion + extraction + thermal process | Ethanol, biogas, electricity, phenol | [190] |
Sugarcane bagasse (Saccharum officinarum) | Enzymatic hydrolysis, fermentation + anaerobic digestion + combustion | Ethanol, biogas, heat | [191] |
Meat processing wastes | Hydrolysis − esterification + anaerobic digestion + hydrothermal liquefaction | Biodiesel, biogas, biochar, bio-oil | [192] |
Wheat straw Animal bedding | Pre-treatment + hydrolysis + fermentation + anaerobic digestion | Ethanol, biogas, energy | [193] |
6. Conclusions
