The vertical-takeoff–horizontal-landing (VTHL) two-stage-to-orbit (TSTO) system is a kind of novel launch vehicle in which a reusable first stage can take off vertically like a rocket and land horizontally like an airplane. The advantage of the VTHL TSTO vehicle is that the launch costs can be reduced significantly due to its reusable first stage. This paper presents an application of multidisciplinary analysis optimization on preliminary sizing in conceptual design of the VTHL TSTO vehicle. The VTHL TSTO concept is evaluated by multidisciplinary analysis, including geometry, propulsion, aerodynamics, mass, trajectory, and static stability. The preliminary sizing of the VTHL TSTO vehicle is formulated as a multidisciplinary optimization problem. The focus of this paper is to investigate the impacts of the first-stage reusability and propellant selection on the staging altitude and velocity, size, and mass of the VTHL TSTO vehicles. The observations from the results show that the velocity and altitude of the optimal staging point are determined mainly by the reusability of the first stage, which in turn affects the size and mass of the upper stage and the first stage. The first stage powered by hydrocarbon fuel has a lower dry mass compared with that powered by liquid hydrogen. Full article

In this work, a vertical landing mechanism of a reusable launch vehicle (RLV) is investigated using a flexible–rigid coupled dynamics model. The presented model takes into account the four-legged landing mechanism and the main body cabin. Flexibilities of the main components in the vertical landing mechanism are considered. The hydro-pneumatic spring force and thrust aftereffect caused by the sequential deactivation of the engine are introduced separately. Several simulation cases are selected to analyze the loads acting on the landing mechanism and the dynamics behavior of the whole RLV system. Simulation results show that considering flexibility in the landing mechanism is critical for dynamics analysis under various initial conditions. The adopted RLV design is capable of achieving stable landings under specified initial velocity and attitude conditions, demonstrating its feasibility for engineering applications. Moreover, the hydro-pneumatic spring plays a crucial role in absorbing the impact of the initial landing leg, ensuring a smoother landing experience and minimizing potential damage to the vehicle. Full article

In recent years, advanced nozzle concepts have attracted interest because of advancements in their technology readiness level and studies on applications to vertical take-off and landing reusable launch vehicles. This is ascribable to their intrinsic altitude compensation properties, which could mitigate the additional propellant cost resulting from the vertical landing manoeuvres based on retro-propulsion. Experimental and numerical campaigns at the Technical University of Dresden test the performance of annular-aerospike, dual-bell, and expansion-deflection nozzles compared with conventional bell-shaped nozzles in various subsonic counter-flow regimes and atmospheric conditions. The methods of investigation and a detailed description of the experimental and numerical results are reported. More specifically, the study offers a comparison between advanced and conventional nozzles, with a focus on nozzle performance through experiments and aerodynamic performance and retro-flow interaction through simulations. The flow topology that is established within the area of interaction between nozzle jets and counter-flows is detailed, with the advantages and limitations of each advanced nozzle in terms of adaptive performance. The numerical simulations confirm that advanced nozzles achieve altitude compensation in retro-flow configurations. Moreover, the distance obtained from the models for jet penetration into subsonic counter-flows is compatible with empirical formulations available in the literature. Full article

This paper investigates the coupling of successive convex optimization guidance with robust structured $H_{\infty }$ control for the descent and precise landing of Reusable Launch Vehicles (RLVs). More particularly, this Guidance and Control (G&C) system is foreseen to be integrated into a nonlinear six-degree-of-freedom RLV controlled dynamics simulator which covers the aerodynamic and powered descent phase until vertical landing of a first-stage rocket equipped with a thrust vector control system and steerable planar fins. A cost function strategy analysis is performed to find out the most efficient one to be implemented in closed-loop with the robust control system and the vehicle flight mechanics involved. In addition, the controller synthesis via structured $H_{\infty }$ is thoroughly described. The latter are built at different points of the descent trajectory using Proportional-Integral-Derivative (PID)-like structures with feedback on the attitude angles, rates, and lateral body velocities. The architecture is verified through linear analyses as well as nonlinear cases with the aforementioned simulator, and the G&C approach is validated by comparing the performance and robustness with a baseline system in nominal conditions as well as in the presence of perturbations. The overall results show that the proposed G&C system represents a relevant candidate for realistic descent flight and precise landing phase for reusable launchers. Full article

Reusable rockets must rely on well-designed Guidance, Navigation and Control (GNC) algorithms. Because they are tested and verified in closed-loop, high-fidelity simulators, emphasizing the strategy to achieve such advanced models is of paramount importance. A wide spectrum of complex dynamic behaviors and their cross-couplings must be captured to achieve sufficiently representative simulations, hence a better assessment of the GNC performance and robustness. This paper focuses on of the main aspects related to the physical (acausal) modeling of reusable rockets, and the integration of these models into a suitable simulation framework oriented towards GNC Validation and Verification (V&V). Firstly, the modeling challenges and the need for physical multibody models are explained. Then, the Vertical Landing Vehicles Library (VLVLib), a Modelica-based library for the physical modeling and simulation of reusable rocket dynamics, is introduced. The VLVLib is built on specific principles that enable quick adaptations to vehicle changes and the introduction of new features during the design process, thereby enhancing project efficiency and reducing costs. Throughout the paper, we explain how these features allow for the rapid development of complex vehicle simulation models by adjusting the selected dynamic effects or changing their fidelity levels. Since the GNC algorithms are normally tested in Simulink^®, we show how simulation models with a desired fidelity level can be developed, embedded and simulated within the Simulink^® environment. Secondly, this work details the modeling aspects of four relevant vehicle dynamics: propellant sloshing, Thrust Vector Control (TVC), landing legs deployment and touchdown. The CALLISTO reusable rocket is taken as study case: representative simulation results are shown and analyzed to highlight the impact of the higher-fidelity models in comparison with a rigid-body model assumption. Full article

This paper focuses on the mission analysis of the return trajectory of a Vertical Landing Reusable Launch Vehicle, both for Return-to-Launch-Site (RTLS) and DownRange Landing (DRL) recovery strategies. The main objective is to assess the mission performance of propellant-optimal re-entry and landing trajectories from the Main Engine Cut-Off (MECO) while considering propellant budget and peak entry conditions constraints. As a result, performance envelopes and feasibility regions are built to comprehensively assess the required propellant and compare recovery strategies across a broad spectrum of MECO conditions. The results show that the DRL strategy achieves higher efficiency concerning the propellant consumption and a larger robustness regarding the dispersed MECO conditions. Full article

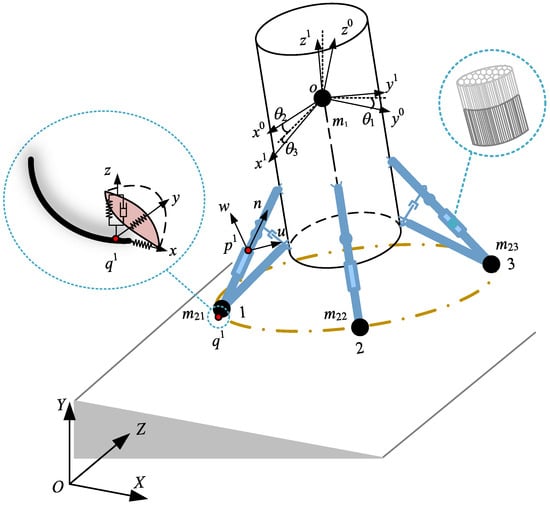

In order to investigate the landing process of a vertical landing reusable vehicle, a dynamic model with a complex nonlinear dissipative element is established based on the discrete impulse step approach, which includes a three-dimensional multi-impact model considering friction and material compliance, and a multistage aluminum honeycomb theoretical model. The normal two-stiffness spring model is adopted in the foot–ground impact model, two motion patterns (stick and slip) are considered on the tangential plane and the structural changes caused by buffering behavior are included, and the energy conversion during the impact follows the law of conservation of energy. The state transition method is used to solve the dynamic stability convergence problem of the vehicle under the coupling effect of impact and buffering deformation in the primary impulse space. Landing experiments on a scaled physical reusable vehicle prototype are conducted to demonstrate that the theoretical results exhibit good agreement with the experimental data. Full article

This paper presents a novel predefined-time nonsingular tracking control system for a vertical-takeoff horizontal-landing (VTHL) reusable launch vehicle (RLV) in the face of parameter uncertainties, model couplings and external disturbances. Firstly, this paper proposes a novel predefined-time prescribed performance function (PTPPF) with desired steady-state and transient performance. The convergence time of PTPPF from the transient state to the steady state can be flexibly adjusted by changing one parameter. Moreover, the decreasing rate of PTPPF in the transient phase can also be adjusted by changing one parameter on the premise of not changing the convergence time of PPF to reach steady state. A novel predefined-time terminal sliding mode surface (SMS) is designed to avoid the singularity, and the attitude tracking errors on SMS are predefined-time stable. By utilizing PTPPF and error transformation, this paper designs a novel nonsingular sliding mode controller to guarantee the attitudes of RLV with desired tracking performance. Without using piecewise functions, the phenomenon of singularity can be avoided. The Lyapunov method is used to verify the stability of the controller. Lastly, a numerical simulation is presented to validate the efficiency of the proposed controller. Full article
