Search Results (12)

MgO–C refractory materials were developed by incorporating different ratios of alumina/titania nano-additives which were synthesized chemically. Their physical and mechanical properties, oxidation resistance, slag wettability, bulk density, apparent porosity, cold crushing strength, oxidation index, and closed porosity were tested, evaluated, and compared using conventional techniques as well as X-ray micro-computed tomography (µCT). This investigation indicated a slight degradation of physical properties and mechanical strengthening which was stronger for samples with increased alumina content. Oxidation and corrosion extent were tested both with X-ray tomography and conventional methods. The first method allowed for the calculation of the oxidation index, the detection of closed porosity, and an improved analysis of the internal corrosion, avoiding the sectioning of the materials. This result confirms the supremacy of the first technique. On the contrary, although conventional methods such as the Archimedes procedure cannot detect close porosity, they provide more accurate measurements of the physical properties of refractories. This study shows that conventional methods exhibit superiority in investigations of the pore structures of refractories for pore sizes in the range 1–2 μm, while the use of the μCT system is limited for pore sizes equal to or larger than 20 μm. Full article

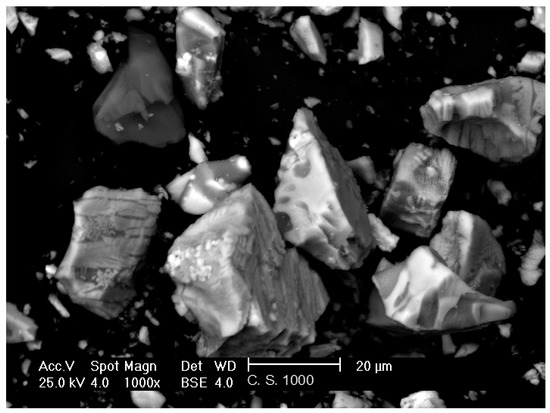

Semisteel is the byproduct of the titania slag smelting process of ilmenite concentrate with an electric furnace. To enhance the added value of semisteel, a centrifugal granulation–water curtain process was adopted to manufacture iron powders. The oxidation characteristics of granulated powders were analyzed by thermogravimetry (TG), X-ray diffraction (XRD), and scanning electron microscopy (SEM). To obtain iron powders with high purity, the isothermal oxidation kinetics of pure iron powders under vapor atmosphere were studied. TG measurements of pure iron powders were conducted at 1073 K, 1173 K, and 1273 K using a humidity generating instrument and a thermal analyzer. The results indicate that the oxidation rate increases with the increasing temperature and decreasing powder size. The entire isothermal oxidation process of iron powders with different sizes (0.3 mm < d₁ < 0.35 mm, 0.4 mm < d₂ < 0.45 mm, and 0.5 mm < d₃ < 0.55 mm) comprises two stages. The first oxidation stage is controlled by chemical reaction; the second oxidation stage is controlled by both internal diffusion and chemical reaction. The activation energies and oxidation reaction rate equations of iron powders at different stages are calculated. Full article

HIsmelt is well suited for smelting vanadium–titanium magnetite due to its flexibility in feedstock selection and tolerance to high viscosity slag, compared with the blast furnace. In this work, the effect of smelting time on the distribution behavior and recovery rates of vanadium and titanium in HIsmelt smelting of vanadium–titanium magnetite was investigated by experiment for the first time. The relationship between slag viscosity and temperature at different smelting times was further revealed by thermodynamic calculations. The experimental results show that extending the smelting time increases the FeO content in the slag, the L_V rose from 0.66 to 5.02, the L_Ti declined from 206.90 to 114.86, the shorter smelting time is favorable for increasing the recovery ratio of vanadium and titanium in metal and slag. In addition, slag viscosity decreases with increasing smelting time. The precipitation of high melting point titania spinel and CaTiO₃ phases is responsible for the significant increase in slag viscosity at 1300 °C. Full article

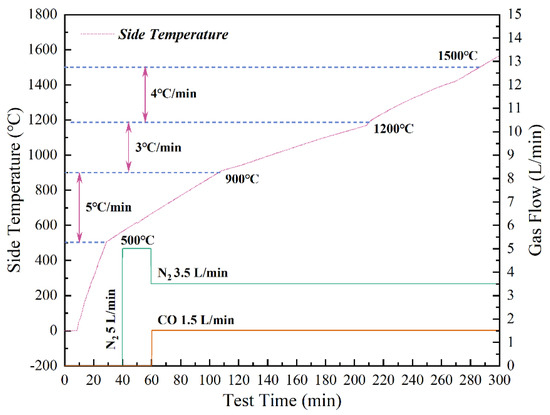

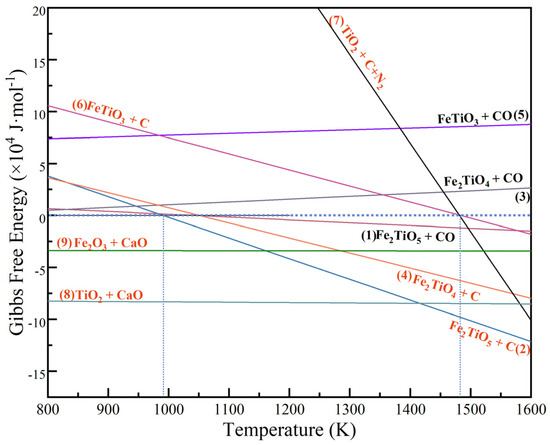

The influences of heating pattern and sodium carbonate addition on the carbothermic reduction of ilmenite concentrate have been experimentally studied. The experiments were carried out using isothermal–gradient temperature technique between 1000 °C and 1500 °C with different temperature profiles for a total reduction time between 110 and 160 min. The sodium carbonate was varied between 0 to 60 wt%. It was found that the temperature profile and sodium carbonate addition play an important role on the separation between metallic iron granule and titania rich slag. The optimum condition was achieved at initial and final reduction temperatures of 1300 °C and 1500 °C, respectively, with sodium carbonate addition of 30 wt%. At the optimum condition, the iron recovery was 97.1% and the solidified slag contained titanium pentoxide (Ti₃O₅), anatase (TiO₂), and sodium titanium dioxide. Full article

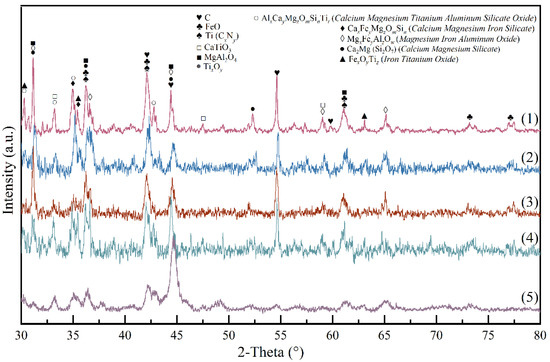

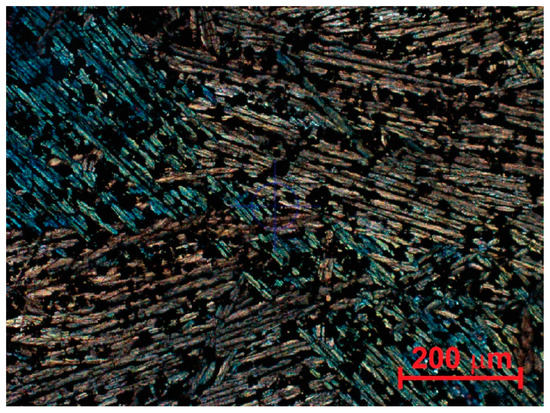

The upgradation of the ilmenite ore, using a pyrometallurgy method, is performed using a carbothermic reduction of the ilmenite. A high titania slag is obtained which is used as a feedstock for the TiO₂ pigment production. The slag is cooled after tapping in big molds and can take ten days to cool. This cooling method has remained the same since the inception of ilmenite smelting and recently rapid cooling through granulation has been utilized. The work presented in this paper focuses on the microstructural study of the slags that were prepared using different techniques and cooled at different cooling rates. Various analytical techniques, such as X-ray powder diffraction (XRD), scanning electron microscopy (SEM), inductively coupled plasma-optical emission spectroscopy (ICP-OES), and X-ray photoelectron spectroscopy (XPS) were used to exhibit the similarity of these synthetic slags to the properties of high titania ilmenite slag. The slag consisted mostly of pseudo-brookite phase with a M₃O₅ stoichiometry and smaller amounts of silicate and rutile phase. A glassy phase of silica was observed and most of the impurities were found to be present in the silicate phase. These silica phases were observed to be separate from the pseudo-brookite phase and along the phase boundaries. Micro-cracking of the slag surface, which is the characteristic of the M₃O₅ phase formed in the ilmenite slag, were observed under the SEM analysis. The XPS analysis revealed that faster cooling does result in lower amount of oxidation but the difference in the TiO₂ and Ti₂O₃ composition can have larger impact on oxidation than the cooling speed. Full article

The production of ferroalloys and alloys like ferronickel, ferrochromium, ferromanganese, silicomanganese, ferrosilicon and silicon is commonly carried out in submerged arc furnaces. Submerged arc furnaces are also used to upgrade ilmenite by producing pig iron and a titania-rich slag. Metal containing resources are smelted in this furnace type using fossil carbon as a reducing agent, which is responsible for a large amount of direct CO₂ emissions in those processes. Instead, renewable bio-based carbon could be a viable direct replacement of fossil carbon currently investigated by research institutions and companies to lower the CO₂ footprint of produced alloys. A second option could be the usage of hydrogen. However, hydrogen has the disadvantages that current production facilities relying on solid reducing agents need to be adjusted. Furthermore, hydrogen reduction of ignoble metals like chromium, manganese and silicon is only possible at very low H₂O/H₂ partial pressure ratios. The present article is a comprehensive review of the research carried out regarding the utilization of bio-based carbon for the processing of the mentioned products. Starting with the potential impact of the ferroalloy industry on greenhouse gas emissions, followed by a general description of bio-based reducing agents and unit operations covered by this review, each following chapter presents current research carried out to produce each metal. Most studies focused on pre-reduction or solid-state reduction except the silicon industry, which instead had a strong focus on smelting up to an industrial-scale and the design of bio-based carbon for submerged arc furnace processes. Those results might be transferable to other submerged arc furnace processes as well and could help to accelerate research to produce other metals. Deviations between the amount of research and scale of tests for the same unit operation but different metal resources were identified and closer cooperation could be helpful to transfer knowledge from one area to another. Life cycle assessment to produce ferronickel and silicon already revealed the potential of bio-based reducing agents in terms of greenhouse gas emissions, but was not carried out for other metals until now. Full article

Heavy mineral sands are the source of various commodities such as white titanium dioxide pigment and titanium metal. The three case studies in this paper show the value of X-ray diffraction (XRD) and statistical methods such as data clustering for process optimization and quality control during heavy mineral processing. The potential of XRD as an automatable, reliable tool, useful in the characterization of heavy mineral concentrates, product streams and titania slag is demonstrated. The recent development of ultra-high-speed X-ray detectors and automated quantification allows for ‘on the fly’ quantitative X-ray diffraction analysis and truly interactive process control, especially in the sector of heavy mineral concentration and processing. Apart from the information about the composition of a raw ore, heavy mineral concentrate and the various product streams or titania slag, this paper provides useful information by the quantitative determination of the crystalline phases and the amorphous content. The analysis of the phases can help to optimize the concentration of ores and reduction of ilmenite concentrate. Traditionally, quality control of heavy mineral concentrates and titania slag relies mainly on elemental, chemical, gravimetrical, and magnetic analysis. Since the efficiency of concentration of minerals in the different product streams and reduction depends on the content of the different minerals, and for the latter on the titanium and iron phases such as ilmenite FeTiO₃, rutile TiO₂, anatase TiO_2, or the various titanium oxides with different oxidation stages, fast and direct analysis of the phases is required. Full article

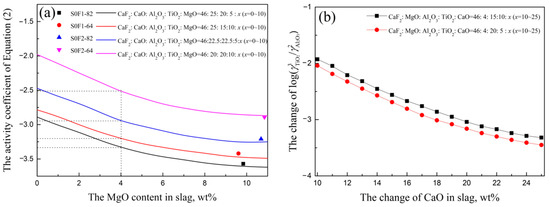

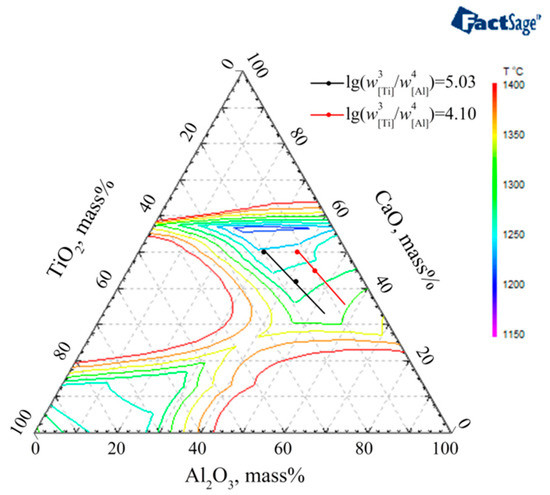

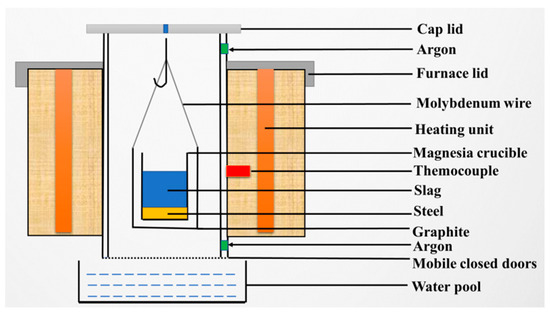

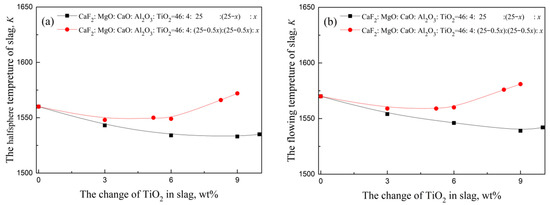

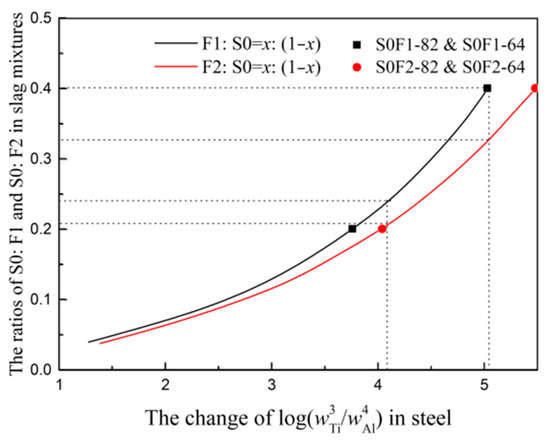

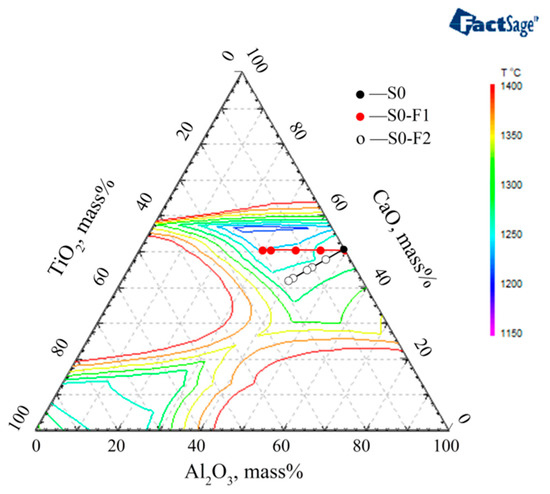

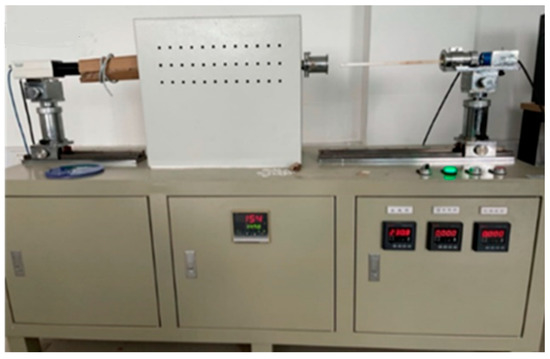

During the process of electroslag remelting (ESR) of steel containing titanium and aluminum, the activity ratio between titania and alumina in CaF₂-CaO-MgO-Al₂O₃-TiO₂ slag must be fixed in order to guarantee the titanium and aluminum contents in the ESR ingots. Under the condition of fixed activity ratio between titania and alumina in the slag, the melting temperature of slag should be investigated to improve the surface quality of ESR ingots. Therefore, this paper focuses on finding a kind of slag with low melting temperature that can be used for producing steel containing titanium. In the current study, the thermodynamic equilibrium of 3[Ti] + 2(Al₂O₃) = 4[Al] + 3(TiO₂) between SUS321 steel and the two slag systems (CaF₂:MgO:CaO:Al₂O₃:TiO₂ = 46:4:25:(25 − x):x and CaF₂:MgO:CaO:Al₂O₃:TiO₂ = 46:4:(25 − 0.5 x):(25 − 0.5 x):x) are studied in an electrical resistance furnace based on Factsage software. After obtaining the equilibrium slag with fixed activity ratio between titania and alumina, the melting temperatures of the two slag systems are studied using slag melting experimental measurements and phase diagrams. The results show that the slag systems CaF₂:MgO:CaO:Al₂O₃:TiO₂ = 46:4:25:(25 − x):x, which consists of pre-melted slag S0 (CaF₂:MgO:CaO:Al₂O₃ = 46:4:25:25) and pre-melted slag F1 (CaF₂:MgO:CaO:TiO₂ = 46:4:25:25), can not only control the aluminum and titanium contents in steel, but also have the desired low melting temperature property. Full article

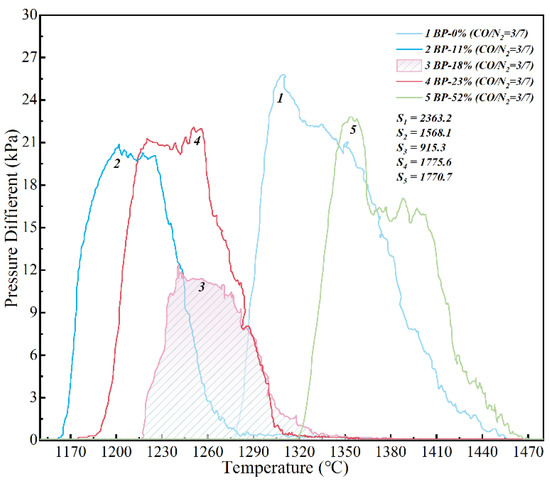

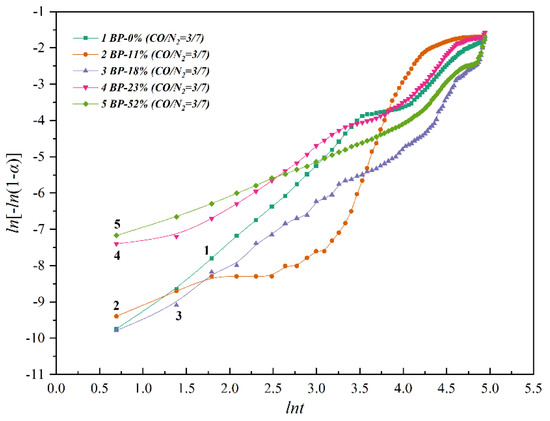

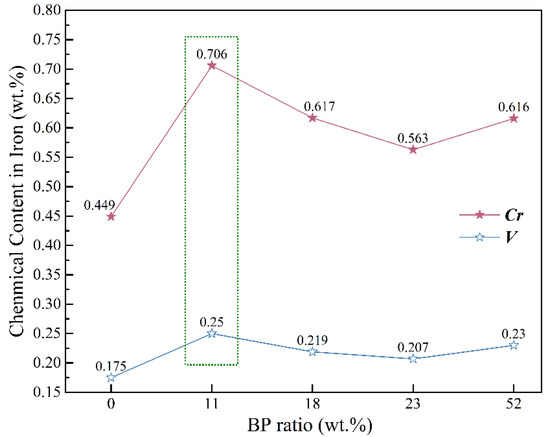

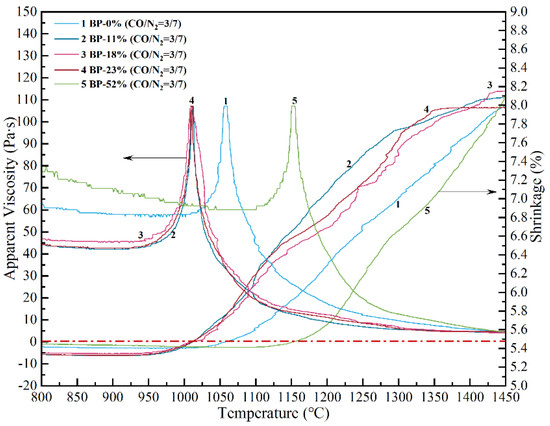

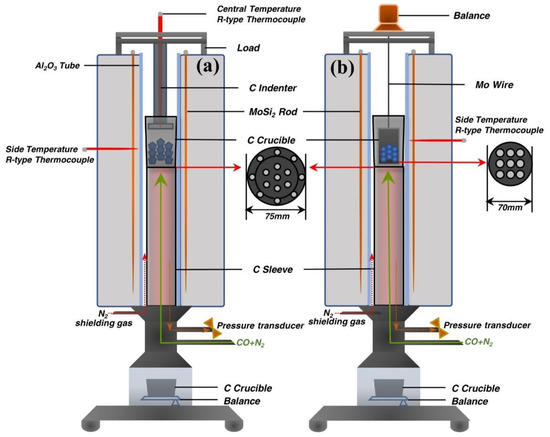

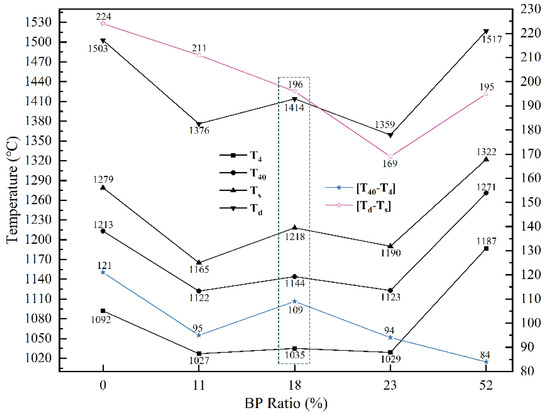

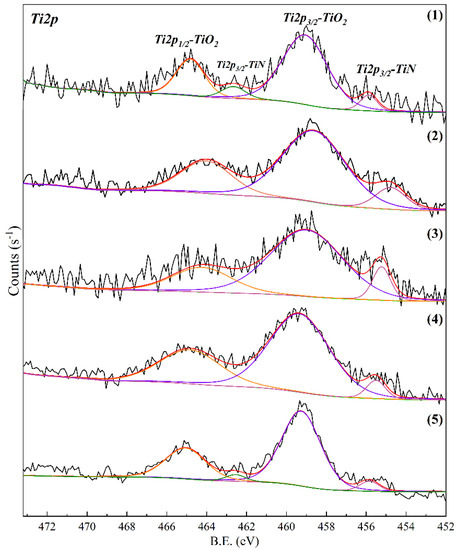

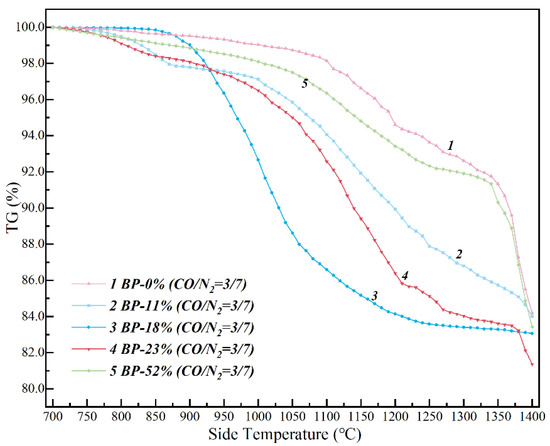

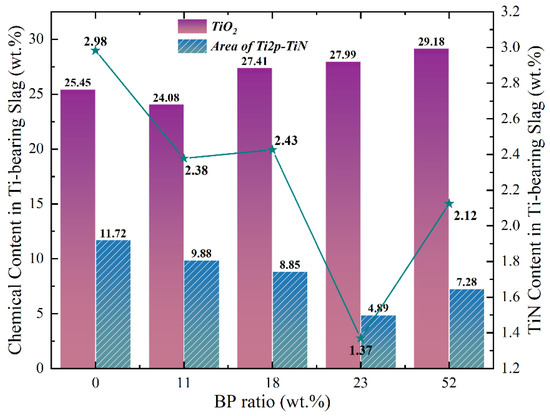

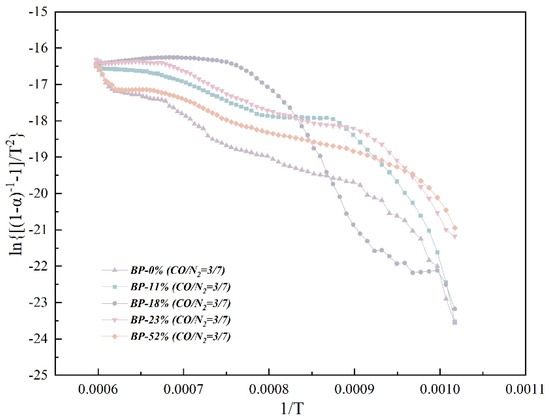

The effects of high-basicity pellet on smelting chromium-bearing vanadia-titania magnetite are investigated via thermodynamic smelting and non-isothermal kinetics experiments. The thermodynamic results indicated that the high-basicity pellet significantly affects and ameliorates the softening-melting-dripping behaviors during the smelting process. As the high-basicity pellet ratio increased from 0 wt.% to 52 wt.%, the range of softening temperature [T₄₀–T₄] decreased from 121 °C to 84 °C and the melting-dripping temperature [T_d–T_s] decreased from 224 °C to 169 °C. Moreover, the apparent activation energy of non-isothermal kinetics also decreased from 99.91 kJ·mol⁻¹ to 66.74 kJ·mol⁻¹. Additionally, the reaction mechanism of high-basicity pellet on smelting chromium-bearing vanadia-titania magnetite was investigated via thermodynamic calculations of Gibbs free energy and characterizations of the titanium slag. Therefore, combined with the lowest permeability index, the fastest non-isothermal reduction rate, the highest recovery of valuable elements and the minimum content of titanium carbonitride, the preferable high-basicity pellet ratio was considered to be 11~23 wt.%. Full article

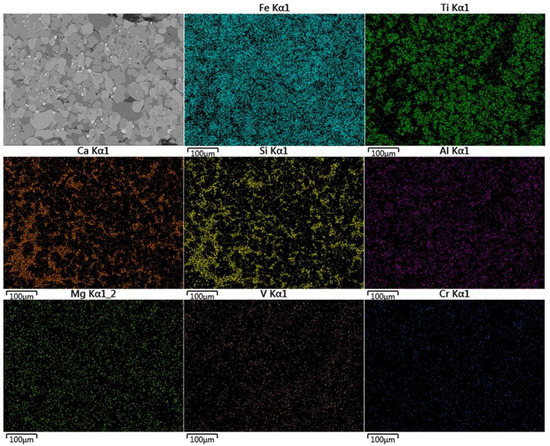

The loss of permeability affects the reduction of the ferrous burden in the cohesive zone of a blast furnace (BF). Vanadia–titania magnetite (VTM) burden of various chemical compositions have different metallurgical properties. The reduction and softening-melting-dripping properties of different kinds of VTM were investigated. The results showed that the core of sinter or pellet is indirectly reduced to wustite and (Fe,Ti)O_x, and the periphery contains interlinked metallic iron and CaSiO₃ in the cohesive zone. Wustite and (Fe,Ti)O_x are directly reduced in the melting-dripping zone. The aggregate (Fe, V, Cr) present in the non-dripping causes a loss of valuable components. With the increase in TiO₂ content, the substrate phase of molten slag changes from melilite to titanaugite, and the mass of dripping decreases gradually. In addition, the permeability index S increased and the melting zone widened, which indicates that the increase in TiO₂ content negatively affected the melting-dripping performance. The mass of the dripping is directly proportional to the pellet ratio. Considering the adverse effect of TiO₂ on softening-melting-dripping properties, it is recommended that high TiO₂ VTM is smelted while mixed with ordinary ores or with an increased pellet ratio in the burden structure. Full article

A high titania slag that is used as a feedstock for TiO₂ manufacturing is obtained by ilmenite smelting (FeO.TiO₂). The composition of the slag obtained by smelting is dependent on the composition of the mineral used for slag preparation, i.e., ilmenite in our study. At the laboratory scale, ilmenite slags are mostly obtained by using ilmenite as the raw material. An easy and simple way would be to prepare the synthetic slag using the individual components and heating them to high temperature in a furnace. The titania slag has a high oxidizing nature and requires an inert atmosphere to prevent oxidation of the slag as well as the molybdenum crucible. This paper describes the preparation of synthetic ilmenite slag using an induction furnace and the study of the composition and the phases formed in the slag. X-ray powder diffraction (XRD), scanning electron microscopy (SEM), and inductively coupled plasma-optical emission spectroscopy (ICP-OES) were used as analytical techniques for studying the slag. A comparison between obtained synthetic slag and industrial ilmenite slag was performed to test the possibility of preparing slags in the laboratory as per the required composition. The slags show similar phase formation as obtained in industrial ilmenite slags, which means that the synthetic slags are identical to the industrial slags. Full article

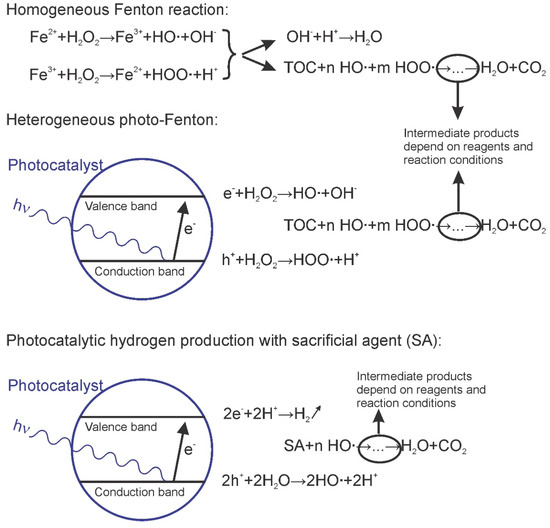

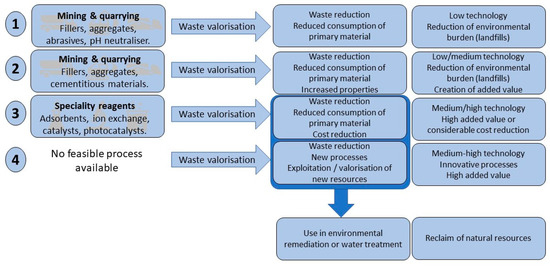

Metallurgical slags are a mass-produced industrial solid waste, often destined to landfills; the volumes disposed represent an environmental burden. Over the last three decades, applications have been found for these wastes, mainly as a low-cost additive in building materials. More recently, their unique chemical properties have attracted attention to produce high-added-value materials for environmental applications, to be used as adsorbents, catalysts, or a source of reactive species in environmental engineering. Such uses can be classified as a function of the added value generated, technological complexity, and environmental impact. This review will focus specifically on the modification and use of slags for catalysis, photocatalysis, and photocatalytic production of hydrogen, which have received relatively little attention in literature. A summary will be presented about the general requirements for using unmodified slags as well as slag processed under alkaline or acidic conditions for advanced oxidation processes. Then, an overview will be given of the use of slags as photocatalysts in water treatment, organized according to the origin of the product (steel, copper, magnesium, ferromanganese), as well as emerging reports on the photocatalytic production of hydrogen, in contrast to the use of highly specific titania-based products developed for the same purpose. Full article
