Soybean plants cultivated using mulched drip irrigation planting technology have the following characteristics during the harvest period: green stems and leaves, and a high straw/grain ratio. Moreover, the threshing device of a soybean combine harvester is difficult to adapt to, resulting in an increase in the accumulation and unevenness of the threshed mixture. This leads to an increase in impurity content and the loss rate. We conducted a single-factor experiment on a self-developed longitudinal/axial-flow soybean threshing and separation test bench, employing drum speed, feeding rate, and threshing clearance as experimental factors. The influence of the soybean threshing and separation device’s working parameters on the distribution and uniformity of the threshed mixture in the axial and radial directions of the drum was explored through experiments. The results showed that the mass of the threshed mixture and soybean seeds showed a trend of first rapidly increasing and then slowly decreasing in the axial direction of the drum. Additionally, the mass showed a distribution feature of large values on both sides and small values in the middle in the radial direction. A lower drum speed, greater threshing clearance, and a smaller feeding rate make the radial distribution of a threshed mixture more uniform. Based on the combination of the crushing rate and unthreshed rate, the optimal working parameter combination was determined to be as follows: a drum speed of 500 r/min, a feeding rate of 6 kg/s, and a threshing clearance of 25 mm. The findings of this research offer valuable insights for the structural optimization and design enhancement of threshing and cleaning mechanisms within soybean combine harvesters. Full article

In order to determine the distribution pattern of the threshed mixture in the double longitudinal axial flow threshing device, single-factor experiments were conducted on the self-developed experimental platform for the double longitudinal axis threshing device. The experimental factors included drum speed, threshing clearance, and feed rate. The variations in the distribution of the threshed material along the axial and radial directions were examined. The results indicate that the mixed material after threshing exhibits uneven distribution both axially and radially. Along the axial direction, the mass of corn kernels initially increases and then decreases and is predominantly distributed in the front one-third section of the drum. Meanwhile, the mass of corn cobs continuously increases. In the radial direction, the mass of corn kernels and cobs is higher in the middle and on both sides, with the corn kernels being most concentrated in the middle and the corn cobs mostly on the sides. Combining the corn kernel breakage rate and the unthreshed rate, the optimal operating conditions were determined as follows: a drum speed of 400 r/min, a concave clearance of 50 mm, and a feed rate of 16 kg/s. Full article

A cost-effective harvesting method and equipment for small-scale farms is essential to ensure the viability and sustainability of their operations. This study aims to retrofit and test a pull-type combine harvester for effective and efficient operations in small grains. A 1960s-era functional combine harvester was retrofitted with a stripper header rotor in place of the sickle bar cutting system to increase the harvesting capacity. Preliminary field testing found that the original header auger and feeder house could not handle the changed crop composition at an increased capacity and did not properly convey the grain from the auger to the feeder house and onto the threshing system. Therefore, redesign modifications were conducted for the auger and feeder house to help increase the efficiency and capacity required to use the stripper header. Various design concepts were proposed, analyzed, and prototyped in this study. The machine performance of the material-conveying efficiency of the wheat-material-other-than-grain mixture was evaluated at various material throughput rates. The results showed that the auger shim and feeder house paddle redesign increased the efficiency from 80.68% to 98.56%, as compared to the original machine configuration. The cost-effective and high-performance pull-type combine harvester proposed in this study has a high potential in solving the bottleneck problem of local production of small grains by small-scale farming operations. Full article

The distribution of the threshed mixture is the link between the threshing and cleaning process during corn harvesting. Uneven distribution leads to a local accumulation of the mixture in the cleaning, resulting in high impurity and loss rate. Existing studies rarely concern the distribution of the corn threshed mixture. To address this problem, the distribution experiment was conducted in a self-made corn longitudinal axial threshing system to explore the distribution pattern, and both the particle size distribution and weight distribution of components (corn kernel, corn cob, and corn husk) were analyzed in this study. The results showed that the drum speed and concave clearance has a significant effect on particle size. Moreover, the impurities (corn cob, corn husk) increase with the drum speed. The weight distribution has an obvious uneven trend. In the axial weight distribution, corn kernels increased initially and decreased afterwards, while corn cobs and corn husks constantly increased. In the radial weight distribution, corn kernels and corn cobs were greater on both sides and less in the middle; corn husks had a clear left posterior accumulation. The increase in drum speed and feed rate and the decrease in concave clearance aggravated the inhomogeneity of the weight distribution. By analyzing the distribution characteristics, the drum speed of 400 r/min, concave clearance of 40 mm, and feed rate of 7 kg/s were confirmed to be optimal operating parameters. Under these conditions, the accumulation of the threshed mixture was weakened, which provided a satisfactory base for the subsequent cleaning. This study could provide a data support for the improvement of the threshing system. Additionally, this study is believed to have the potential to be used for the structural design of the cleaning system to reduce mixture accumulation and improve the cleaning performance. Full article

Among food crops, rice has the largest planting area, the highest yield per unit area and the largest total yield in China. However, cleaning performance is reduced by the high moisture content of rice during the harvesting process. In order to decrease the adhesion among wet rice threshed mixtures and improve the cleaning performance, the method of hot airflow cleaning was proposed. Firstly, the fluidization characteristics of wet sticky rice under the action of hot air were compared with those of dry particles. In this work, the minimum suspension velocity and the fastest suspension time were used and quantified to characterize the fluidization characteristics. It was found that the minimum suspension velocity and the fastest suspension time of the wet rice threshed mixture are both higher than those of dry particles due to the liquid bridge force. Moreover, the dispersion degree of the wet rice threshed mixture can be improved by the hot airflow due to the decrease in the surface water content of impurities. Secondly, the influence of the temperature and vibration frequency in the air-and-screen cleaning device on the dispersion characteristics of the wet rice threshed mixture were investigated. The accumulation mass was measured to quantify the dispersion degree. It was found that the increase in vibration frequency has little effect on the dispersion of the wet rice threshed mixture. The accumulation mass on the front of the sieve decreases slightly with the increase in the gas temperature range from ambient temperature to 30 °C. Then, the dispersion degree increases rapidly when the temperature exceeds 40 °C. The dispersion effect is the best when the temperature is 50 °C and the vibration frequency is 5 Hz. These results provide a basis for the cleaning of the wet rice threshed mixture in a combine harvester. Full article

S concentric threshing device can improve rice crop separation and transportation capabilities. As one of the main factors affecting the threshing performance of rice combine harvesters, the threshing gap can influence the grain unthreshed rate and the grain damage rate directly. However, the clearance between any threshing cylinder tooth and the concave grid is constant for the traditional threshing device, named the single threshing gap in this paper, resulting in a consistently high total loss rate (the sum of unthreshed and damaged grains). Therefore, multi-threshing gaps are proposed in this paper for the concentric threshing device to solve the above problem. To compare the threshing performance between the single threshing gap and the multi-threshing gaps, the movement process of rice mixture (grain, short straw, and long straw) was simulated using the discrete element method (DEM). The simulation results showed that the separation and transportation abilities of the multi-threshing gaps were not decreased, but the distribution of threshed output mixture was more even for the multi-threshing gaps. Furthermore, a field experiment was also carried out on a combine harvester to compare the total loss rate. The experiment results showed that the total loss rate of the concentric threshing device with multi-threshing gaps was reduced by 0.0593%, which was 5.77% less than the total loss rate of the concentric threshing device with a single threshing gap. Full article

The threshing of frozen corn is accompanied by breakage and adherence, which influence the cleaning performance when the corn-cleaning mixture is separated and cleaned. In order to reduce the impurity ratio and loss ratio during frozen corn cleaning and provide theoretical support for frozen corn combine harvesting, this study employed a self-made air-screen cleaning system with adjustable parameters. The optimal process parameters of frozen corn cleaning were determined by using the response surface method (RSM). The influences of the fan speed (FS), vibrational frequency (VF), and screen opening (SO) on the cleaning performance were explored. The results showed that all three process parameters had significant effects on the impurity ratio (IR) and loss ratio (LR). The fan speed had the most significant impact. The cleaning performance was optimal when the fan speed was 102.7 rad/s, the vibration frequency was 6.42 Hz, and the screen opening was 21.9 mm, corresponding to a 0.80% impurity ratio and a 0.61% loss ratio. The predicted values of the regression models were consistent with the experimental results with a relative error of less than 5%. The reliability and accuracy of regression models were established and confirmed. Full article

To determine the distribution pattern of the threshing and separating device, the simulation experiment on the distribution pattern of our self-designed drum-shape bar-tooth longitudinal axial flow threshing and separating device was carried out with the help of the EDEM software, by which the axial and radial distribution curve of the threshed mixture along the cylinder was acquired. The three-dimensional distribution of the mass of the threshed mixture was drawn by using the Matlab software, and the bench test was carried out on the self-built small-scale longitudinal axial flow threshing cylinder performance test platform, which was consistent with the simulation conditions. The results showed that the axial and radial distribution of the threshed mixture was uneven, and the axial distribution of the threshed mixture decreased gradually, which was mainly distributed in the first third section of the cylinder. The distribution of the threshed mixture along the radial area of the cylinder was gradually decreasing at first and then increasing, i.e., the total mass of the threshed mixture on the left and right sides was higher than that of the middle area, which was basically consistent with the simulation results. The research can provide reference for the optimization of structural parameters of threshing and separating device and cleaning system. Full article

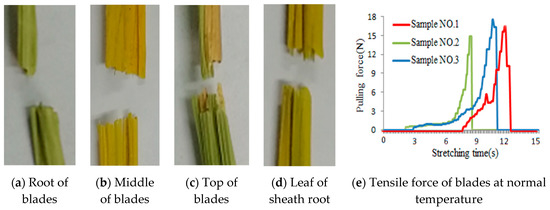

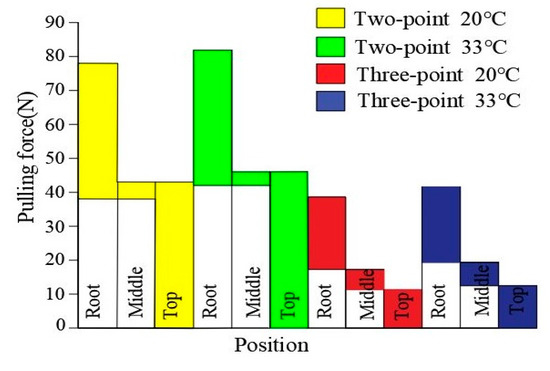

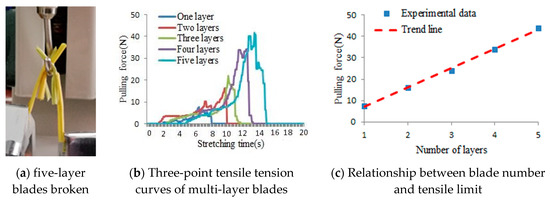

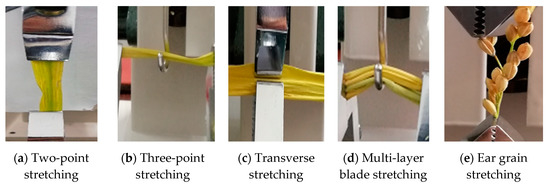

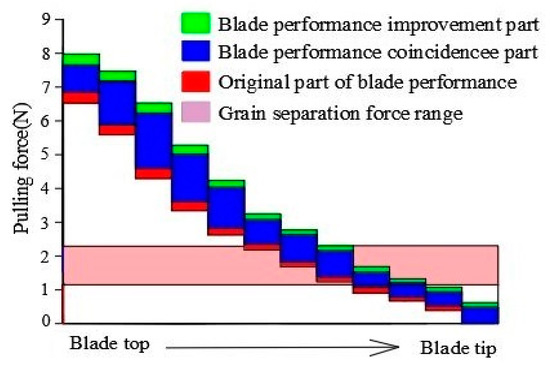

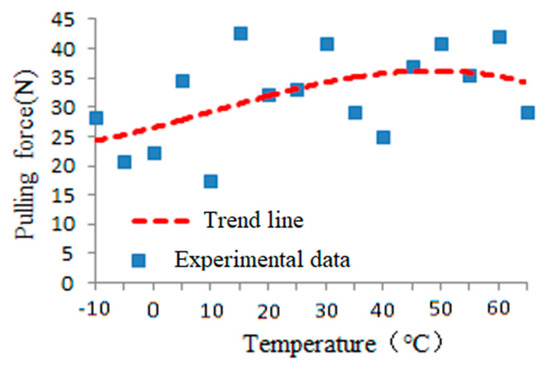

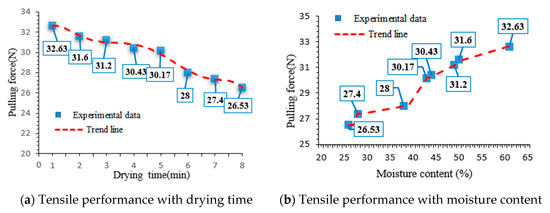

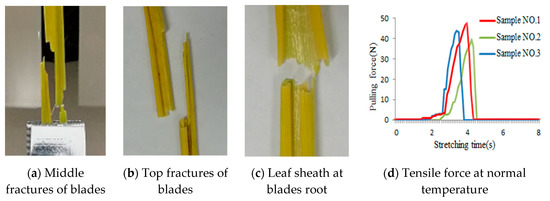

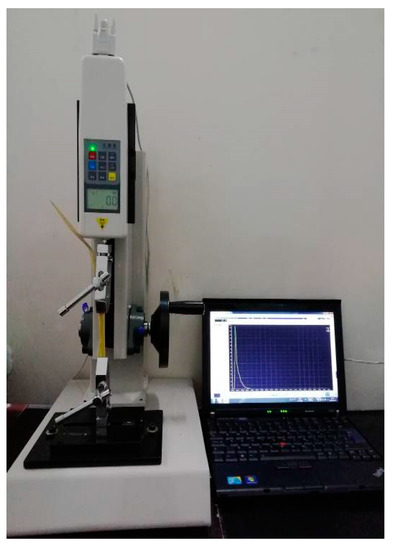

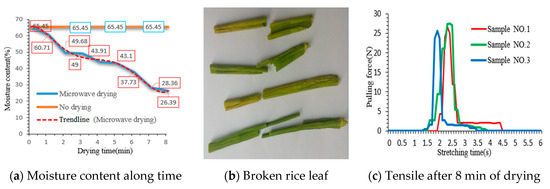

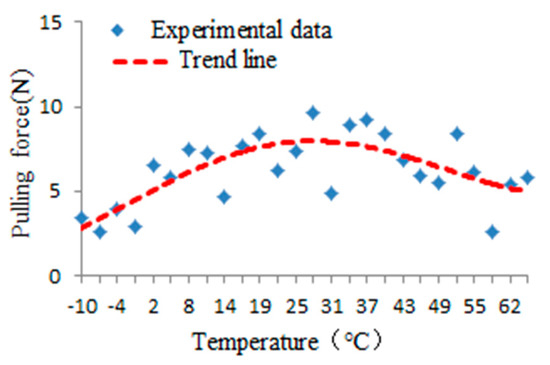

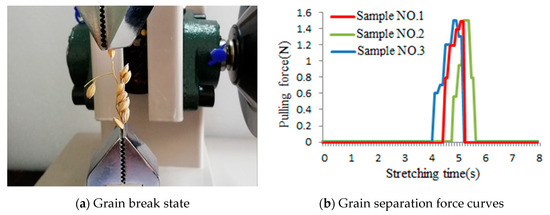

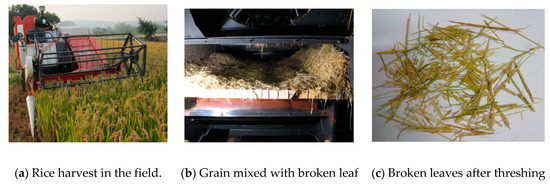

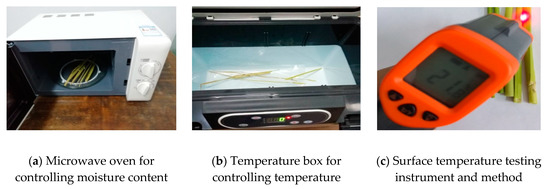

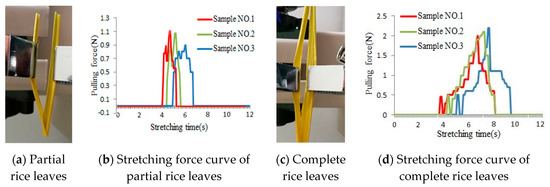

Leaf fragments and grain mixture produced by rice threshing with a combine harvester seriously affects the subsequent grain cleaning efficiency. In this paper, rice leaf breaking force was tested at different temperatures and moisture contents to analyze the influence of temperature on the tensile properties of rice leaves. The overlapping regions of rice leaf breaking force and grain separation force at different temperatures were obtained. Based on the rice leaf breaking force, the effect of the temperature change on rice leaf with different moisture content was analyzed. The results showed that tensile strength of rice leaf decreased first, then increased and finally decreased from rice sheath to the top. The tensile breaking force of the leaf sheath was about 75 N (N is Newton, 1 N = 1 kg·m/s²). The tensile fracture resistance of rice leaf was shown to weaken with the increase of temperature. The influence of the moisture content on the mechanical properties of rice leaf during the process of temperature change was small. At 30 to 35 °C, the blade was the strongest tensile fracture resistance, which was the lowest probability of fracture under the same stress condition. At this time, the rice grain separation force has the least coincidence with the rice leaf resistance to breakage. According to the breaking force of different blade layers, the number of blade layers has a significant linear relationship with its tensile limit. Therefore, the overall fracture resistance of the multilayer blade can be improved by controlling the temperature and moisture content. Full article
