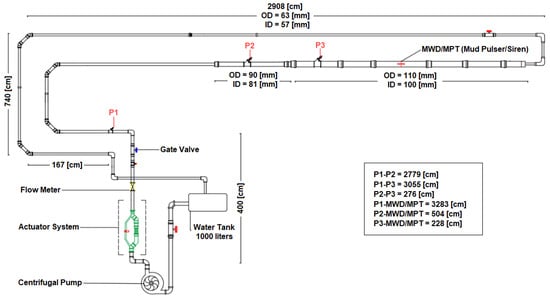

This research-related study examines the relevance of mud pulse telemetry (MPT) systems and their intersection with drilling performance, focusing on data transmission signal propagation performance and overall operation under different drilling parameters conditions, with an additional focus on drilling fluid flow rate and downhole pressure conditions. The novelty of this study lies in the investigation of adjustments to drilling operating parameters that could potentially improve the transmission of telemetry signals during drilling, in real time, without requiring mechanical or functional modifications to the MPT system itself. Improvements on transmission performance in situations where the data rate may be limited are also addressed, presenting an alternative through possible propagation velocity improvements to counterbalance it. A detailed chronological technical scientific literature review details important parts on analyses of pressure pulse propagation velocities focused on data transmission. A systematic experimental approach was developed and put into practice to evaluate the MPT systems in regard to tendencies on transmission performances, emphasizing pressure pulse propagation velocity. The laboratory-scale experiments were conducted at the Institute of Drilling Engineering and Fluid Mining (IBF) from the Technical University Bergakademie Freiberg (TUBAF), namely the Flow-loop Research Facility, to assess the impact of fluid flow rate (and subsequent pressure) on data transmission efficiency. Experimental results demonstrate that increasing the flow rate significantly speeds up signal propagation. In the performed experiments, for the mud siren configuration, increasing the flow rate from 15 to 25 [m

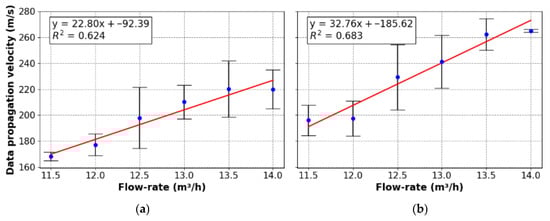

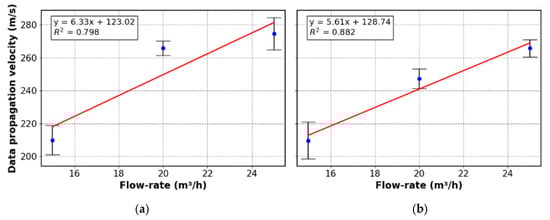

3/h] improved the data transmission performance by approximately, at minimum, 18%, while for the positive mud pulse system, an increase in flow rate from 11.5 to 14 [m

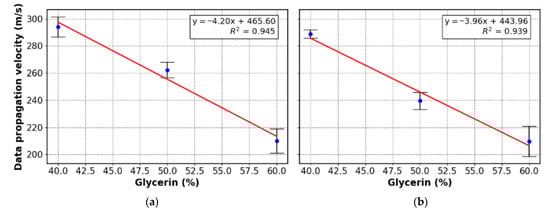

3/h] resulted in a propagation velocity rise of about 19%. The results also showed that higher concentrations of glycerin in the working fluid reduced the propagation velocity, confirming the influence of the fluid’s rheological properties on telemetry performance. At the end, in the presented case study, for 6 [bps] data rate configurations and for a transmission of a 40-bit string, it was demonstrated that the propagation time from downhole to the surface could potentially represent approximately 40% of the total time demanded for transmitting the desired information (generation plus propagation time). It was verified that an increment of 0.02208 [m
3/s] (350 [gpm]) could lead to shortening eventual surveying procedures by 1–2 [s], and that it could equally represent 1.137 [bps]. This is a relevant outcome, since, without any physical or functional alteration to the MPT system, one could have the data transmission performance improved, an approach not yet analyzed in the literature nor at the industrial park. These results, added to the detailed literature investigation and interaction with field personnel, indicate that the drilling fluid flow rate is a critical operational parameter affecting both the telemetry signal transmission speed and the overall drilling efficiency. Increasing the flow rate can reduce survey transmission time and decrease operational exposure to drilling hazards, such as drill string sticking. The results provide quantitative information applicable in optimizing measurement-drilling telemetry and help support the development of integrated drilling optimization strategies that balance drilling performance with real-time data transmission assurance in deep drilling operations.
