Search Results (10)

Alkali-activated cementitious materials are environmentally friendly alternatives to traditional cement. The structure of their core product, sodium aluminosilicate hydrate (N-A-S-H) gel, is regulated by the silicon-to-aluminum (Si/Al) ratio; however, the atomic-scale mechanism underlying this influence remains unclear. Integrating reactive force field molecular dynamics simulations and experiments, this study systematically reveals the regulation mechanism of the Si/Al ratio (1.0–2.0) on the microstructure and macroscopic properties of N-A-S-H gels. Starting from well-defined PS and PSS oligomers, the simulation results demonstrate that the Si/Al ratio governs the polymerization pathway, aluminum coordination environment (especially the content of pentacoordinate aluminum), and evolution of nanoporosity. When the Si/Al ratio is approximately 1.8, the system exhibits the highest silicate polymerization degree, lowest nanoporosity, and densest three-dimensional (3D) network structure; deviation from this ratio leads to structural degradation due to charge imbalance or excessive polymerization. These computational findings are validated by experiments on fly ash-based geopolymers: the material achieves the highest compressive strength at a Si/Al ratio of 1.8. The consistency between simulations and experiments collectively reveals a cross-scale action mechanism: the Si/Al ratio determines the macroscopic mechanical properties by regulating the nanoscale packing density and defect distribution of the gel. This study provides critical atomic-scale insights for the rational design of high-performance geopolymers. Full article

The degradation of concrete and reinforced concrete structures is a significant technical and economic challenge, requiring continuous repair and rehabilitation throughout their service life. Geopolymers (GPs), known for their high mechanical strength, low shrinkage, and durability, are being increasingly considered as alternatives to traditional repair materials. However, there is currently a lack of understanding regarding the interface bond properties between new geopolymer layers and old concrete substrates. In this paper, using advanced computational techniques, including quantum mechanical calculations and stochastic modeling, we explored the adsorption behavior and interaction mechanism of aluminosilicate oligomers with different Si/Al ratios forming the geopolymer gel structure and calcium silicate hydrate as the substrate at the interface bond region. We analyzed the electron density distributions of the highest occupied and lowest unoccupied molecular orbitals, examined the reactivity indices based on electron density functional theory, performed Mulliken charge population analysis, and evaluated global reactivity descriptors for the considered oligomers. The results elucidate the mechanisms of local and global reactivity of the oligomers, the equilibrium low-energy configurations of the oligomer structures adsorbed on the surface of C-(A)-S-H(I) (100), and their adsorption energies. These findings contribute to a better understanding of the adhesion properties of geopolymers and their potential as effective repair materials. Full article

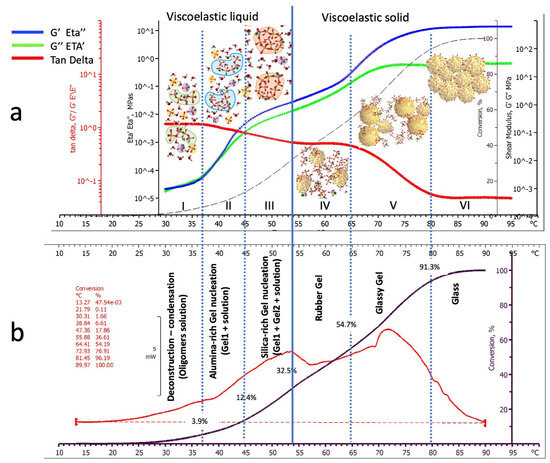

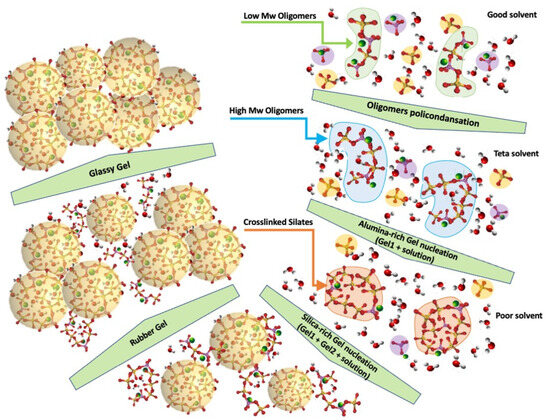

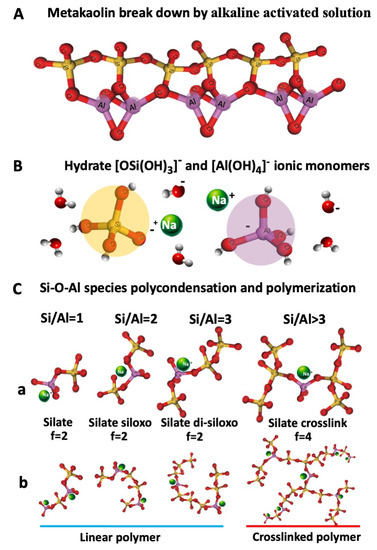

Alkaline sodium hydroxide/sodium silicate-activating high-purity metakaolin geopolymerization is described in terms of metakaolin deconstruction in tetrahedral hydrate silicate [O[Si(OH)₃]]⁻ and aluminate [Al(OH)₄]⁻ ionic precursors followed by their reassembling in linear and branched sialates monomers that randomly copolymerize into an irregular crosslinked aluminosilicate network. The novelty of the approach resides in the concurrent thermo-calorimetric (differential scanning calorimetry, DSC) and rheological (dynamic mechanical analysis, DMA) characterizations of the liquid slurry during the transformation into a gel and a structural glassy solid. Tests were run either in temperature scan (1 °C/min) or isothermal (20 °C, 30 °C, 40 °C) cure conditions. A Gaussian functions deconvolution method has been applied to the DSC multi-peak thermograms to separate the kinetic contributions of the oligomer’s concurrent reactions. DSC thermograms of all tested materials are well-fitted by a combination of three overlapping Gaussian curves that are associated with the initial linear low-molecular-weight (Mw) oligomers (P1) formation, oligomers branching into alumina-rich and silica-rich gels (P2), and inter- and intra-molecular crosslinking (P3). The loss factor has been used to define viscoelastic behavioral zones for each DMA rheo-thermogram operated in the same DSC thermal conditions. Macromolecular evolution and viscoelastic properties have been obtained by pairing the deconvoluted DSC thermograms with the viscoelastic behavioral zones of the DMA rheo-thermograms. Two main chemorheological behaviors have been identified relative to pre- and post-gelation separation of the viscoelastic liquid from the viscoelastic solid. Each comprises three behavioral zones, accounting for the concurrently occurring linear and branching oligomerization, aluminate-rich and silica-rich gel nucleations, crosslinking, and vitrification. A “rubbery plateau” in the loss factor path, observed for all the testing conditions, identifies a large behavioral transition zone dividing the incipient gelling liquid slurry from the material hard setting and vitrification. Full article

This study was intended to exploit the possibility of using the quick gelation of alcogel that is induced by adding catalytic imidazole into a silicate-oligomer-based solution. For this purpose, the experimental viability of the direct observation of the gelation behavior was actually examined. The silicate oligomer, derived from tetraethyl orthosilicate hydrolyzed under an acidic condition (pH ~ 5), was used as the quickly gelling mother solution. The capability of the oligomer solution to form a non-flowable matter in only a few seconds when triggered by the addition of the catalytic solution of imidazole is promising, for example, for stabilizing a sandy ground surface, due to its simplicity. From the practical viewpoint, how long the gelation could take (=gel time) is a crucial parameter when the choice of an appropriate gelling chemical species needs to be made. Thus, this study focused its interest on as simple an experimental method as possible for evaluating the gel time of the gelling systems that actually underwent instantaneous gelation. The silicate oligomer solution was an appropriate material both in its quick gelling behavior and environmental friendliness. For such quick gelation, rheological approaches are not applicable for detecting the boundary in the mechanical properties that delineate the regime of “gel”. In this study, instead, direct observation was employed to capture the short interval during which the gelation was completed. The silicate-oligomer-based gelling solution was observed to lose its flowability within only 0.2 s, as it was seen to come off the bottom of the shaken cylinder at 5 Hz. For a more quantitative estimation, the same gelling solution was observed by high-speed motion picture. The high-speed motion picture could clearly capture the instantaneous gelation as a sudden arrest of the flow. The sub-millisecond direct observation of the gelation behavior revealed that the timescale of the instantaneous termination of the flow was as quick as 1 ms in order of magnitude. Such instantaneous gelation in the sub-millisecond-order timescale could not be forecasted from the observable megascopic gelation, which appeared to last from 10² ms to 10³ ms in our naked-eye observation. The noteworthy gap between the timescale of the naked-eye-observed gelation and that of the true gel time at a localized spot determined by the high-speed motion picture should be noted to avoid excess agitation, which can result in total collapse into gel fragments of the just solidifying or already solidified gel under strong deformational influence by mechanical agitation, for example. Full article

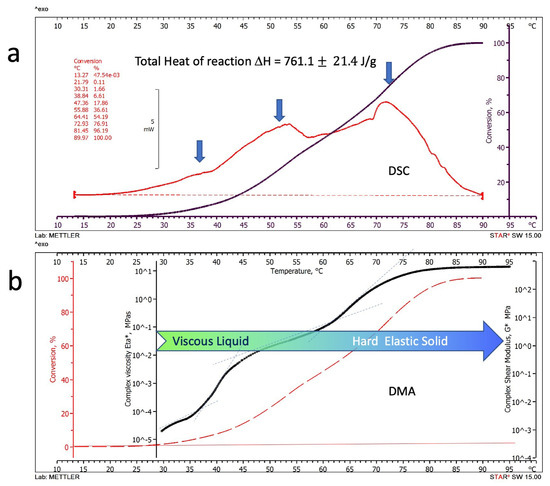

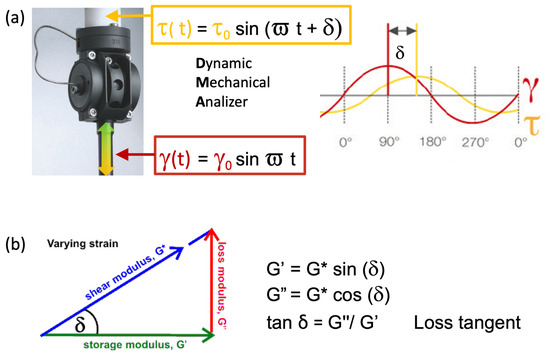

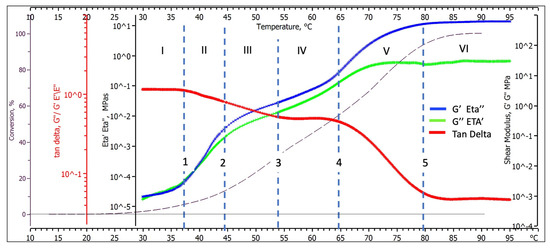

Although geopolymers, as structural materials, should have superior engineering properties than traditional cementitious materials, they often need to improve their final characteristics’ reproducibility due to the need for more control of the complex silico-aluminate decomposition and polymerisation stages. Thermosetting of a reactive geopolymeric paste involves tetrahedral Silicate and Aluminate precursor condensation into polyfunctional oligomers of progressively higher molecular weight, transforming the initial liquid into a gel and a structural solid. Viscosity and gelation control become particularly critical when the geopolymer is processed with 3D printing additive technology. Its physical state modification kinetics should match the flow and setting characteristics required by the deposition process. The reaction kinetics and the elastic and viscous characteristics preceding gelation and hardening have been investigated for an alkali-activated Metakaolin/Sodium Silicate-Sodium Hydroxide paste with a Si/Al ratio > 3. A chemoreological approach has been extended to these inorganic polymerisable systems, as already utilised for organic thermosetting polymers. Differential scanning calorimetry and Oscillatory DMA were carried out to monitor the advancement of the polymerisation reaction and the associated variations of the rheological viscoelastic properties. Dynamic thermal scans were run at 1 °C/min and a frequency of 10 Hz for the dynamic mechanical tests. The observed kinetics of polymerisation and variations of the elastic and viscous components of the complex viscosities and shear moduli are described in terms of polycondensation of linear and branched chains of oligomeric macromolecules of increasing complexity and molecular weight up to gelation (Gel1) and cross-linking of the gelled macrostructure (Gel2) and final glassy state. Geopolymerization can be allocated into two main behavioural zones: a viscoelastic liquid paste below 32.5% of reaction advancement and a viscoelastic solid above. Initial complex viscosities range from 2.3 ± 0.9  × 10⁻⁵ MPa_*s to 6.8 ± 0.9  × 10⁻² in the liquid-like state and from 1.9 ± 0.1 MPa to 9.6 ± 2.1 × 10² MPa in the solid-like state. Full article

Mesoporous bioactive glass is a promising biomaterial for bone tissue engineering due to its good biocompatibility and bioactivity. In this work, we synthesized a hierarchically porous bioactive glass (HPBG) using polyelectrolyte-surfactant mesomorphous complex as template. Through the interaction with silicate oligomers, calcium and phosphorus sources were successfully introduced into the synthesis of hierarchically porous silica, and HPBG with ordered mesoporous and nanoporous structures was obtained. The morphology, pore structure and particle size of HPBG can be controlled by adding block copolymer as co-template or adjusting the synthesis parameters. The ability to induce hydroxyapatite deposition in simulated body fluids (SBF) demonstrated the good in vitro bioactivity of HPBG. Overall, this work provides a general method for the synthesis of hierarchically porous bioactive glasses. Full article

This research investigates the preparation and characterization of new organic–inorganic geopolymeric foams obtained by simultaneously reacting coal fly ash and an alkali silicate solution with polysiloxane oligomers. Foaming was realized in situ using Si⁰ as a blowing agent. Samples with density ranging from 0.3 to 0.7 g/cm³ that show good mechanical properties (with compressive strength up to ≈5 MPa for a density of 0.7 g/cm³) along with thermal performances (λ = 0.145 ± 0.001 W/m·K for the foamed sample with density 0.330 g/cm³) comparable to commercial lightweight materials used in the field of thermal insulation were prepared. Since these foams were obtained by valorizing waste byproducts, they could be considered as low environmental impact materials and, hence, with promising perspectives towards the circular economy. Full article

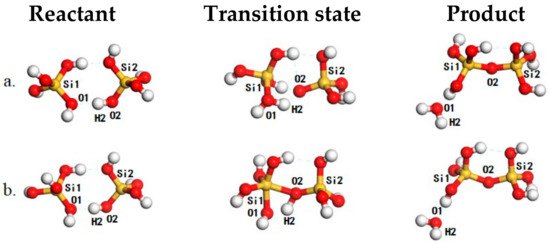

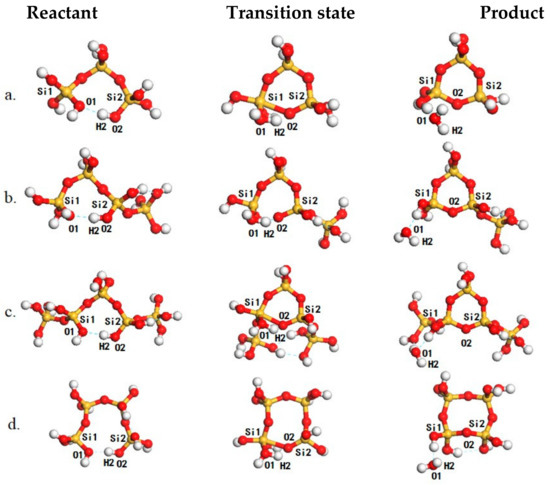

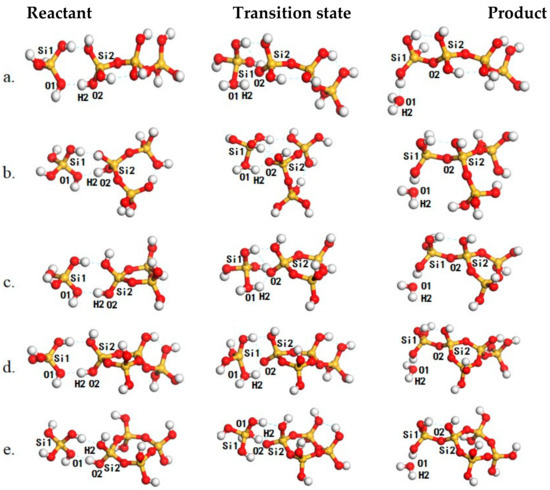

Crystallite aluminosilicates are inorganic microporous materials with well-defined pore-size and pore-structures, and have important industrial applications, including gas adsorption and separation, catalysis, etc. Crystallite aluminosilicates are commonly synthesized via hydrothermal processes, where the oligomerization of silicic acids is crucial. The mechanisms for the oligomerization of poly-silicic acids in neutral aqueous solution were systematically investigated by extensive first-principles-based calculations. We showed that oligomerization of poly-silicic acid molecules proceeds through the lateral attacking and simultaneously proton transfer from the approaching molecule for the formation of a 5-coordinated Si species as the transition state, resulting in the ejection of a water molecule from the formed poly-silicic acid. The barriers for this mechanism are in general more plausible than the conventional direct attacking of poly-silicic acid with reaction barriers in the range of 150–160 kJ/mol. The formation of linear or branched poly-silicic acids by intermolecular oligomerization is only slightly more plausible than the formation of cyclic poly-silicic acids via intramolecular oligomerization according to the reaction barriers (124.2–133.0 vs. 130.6–144.9 kJ/mol). The potential contributions of oligomer structures, such as the length of the linear oligomers, ring distortions and neighboring linear branches, etc., to the oligomerization were also investigated but found negligible. According to the small differences among the reaction barriers, we proposed that kinetic selectivity of the poly-silicic acids condensation would be weak in neutral aqueous solution and the formation of zeolite-like structures would be thermodynamics driven. Full article

Identification and isolation of secondary building units (SBUs) from synthesis media of zeolites still represent a challenging task for chemists. The cage structure anion Si₁₂O₃₀¹²⁻ known as the double six-ring (D6R) was synthesized from α-cyclodextrin (α-CD) mediated alkaline silicate solutions and conditions of its stability and reactivity in aqueous solution were studied by using nuclear magnetic resonance (NMR) spectroscopy. A single crystal X-ray diffraction (XRD) analysis revealed a novel polymorph of the hybrid complex K₁₂Si₁₂O₃₀·2α-CD·nD₂O (n ≈ 30–40), which crystallizes in the orthorhombic C222₁ space group symmetry with a = 14.841(4) Å, b = 25.855(6) Å, and c = 41.91(1) Å. The supramolecular adduct of the silicate anion sandwiched by two α-CDs forms a perfect symmetry matching the H-bonding donor-acceptor system between the organic macrocycle and the D6R unit. The driving force of such a hybrid assembly has found to be strongly dependent on the nature of the cation present as large alkali counter ions (K⁺, Rb⁺ and Cs⁺), which stabilize the D6R structure acting as templates. Lastly, we provided the first ²⁹Si MAS NMR measurement of ³Q Si in an isolated D6R unit that allows the verification of the linear correlation between the chemical shift and <SiOSi> bond angle for ³Q Si species in DnR cages (n = 3, 4, 6). Full article

The dynamic behavior of tetrapropylammonium (TPA) cations in the clear precursor sols for silicalite synthesis has been investigated by ¹H diffusion ordered spectroscopy (DOSY), T₁, T₂, and T_1ρ ¹H relaxation, as well as ¹H→¹³C cross polarization (CP) nuclear magnetic resonance. The DOSY NMR experiments showed the presence of strong solute–solvent interactions in concentrated sols, which are decreasing upon dilution. Similarities in dependence of diffusion coefficients with fractional power of the viscosity constant observed for nanoparticles, TPA cations and water led to the conclusion that they aggregate as anisotropic silicate-TPA particles. Relaxation studies as well as ¹H→¹³C CP experiments provide information on dynamic properties of ethanol, water and TPA cations, which are function of silicate aggregates. The general tendency showed that the presence of silicate as oligomers and particles decreases the relaxation times, in particular T₂ and T_1ρH, as a consequence of involvement of these latter in ion-pairing interactions with water-solvated TPA molecules slowing down their mobility. Furthermore, from the ¹H→¹³C CP dynamics curve profiles a change in the CP transfer regime was observed from fast (T_CH << T_1ρH) for solutions without silicates to moderate (T_CH~T_1ρH) when silicates are interacting with the TPA cations that may reflect the occlusion of TPA into flexible silicate hydrate aggregates. Full article
