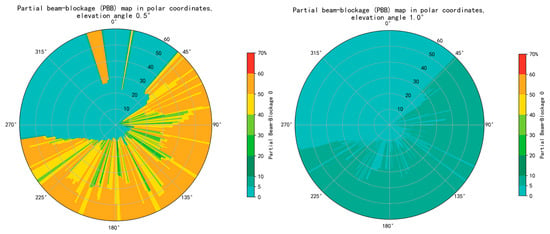

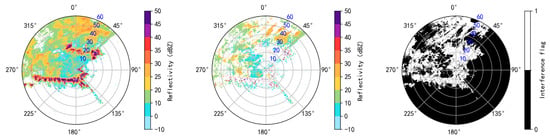

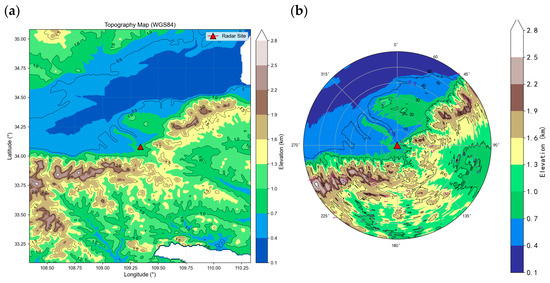

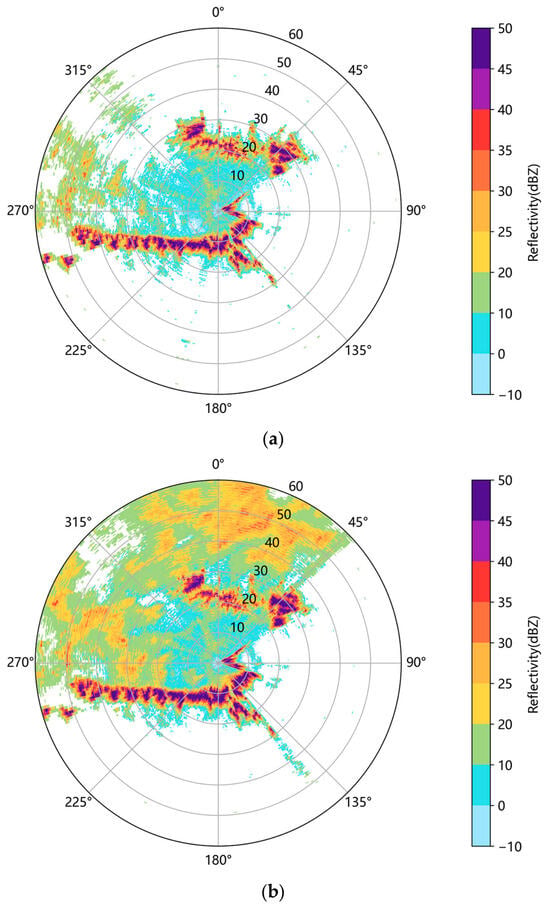

X-band rainfall radar systems offer advantages such as high spatial resolution, flexible deployment options, and strong near-surface detection capabilities. However, due to the short electromagnetic wavelength in this band, the radar base data are highly susceptible to multiple coupled factors—including clutter from mountain vegetation, tall buildings, and other terrain features; electromagnetic interference from surrounding radio-frequency equipment; beam obstruction caused by complex topography; and attenuation of rainfall intensity along the precipitation path—resulting in pronounced distortion of raw echoes. This distortion significantly hinders the accuracy of quantitative precipitation estimation in mountainous regions and makes it difficult to meet the operational requirements for precise mountain torrent early warning systems. To address the problem, this study utilizes real-time observational data from field deployments of X-band rainfall radars in mountainous regions to construct a comprehensive, progressive quality control system comprising: refined removal of terrain clutter; electromagnetic interference pre-suppression; dynamic beam obstruction correction; and adaptive rainfall intensity attenuation correction. The terrain clutter suppression algorithm is optimized in this study, and an adaptive beam-blockage compensation algorithm based on the terrain-blockage fraction is further adopted. However, beam-blockage correction exhibits limited improvement in this case, which is likely attributed to the complementary observational coverage provided by higher-elevation radar scans. The echo-missing regions are dynamically corrected according to the terrain-blockage coverage ratio at different elevation angles and azimuths to realize differentiated compensation corresponding to blockage severity so as to effectively restore the true echo intensity obscured by terrain. Furthermore, considering the prominent rain-induced attenuation of radar electromagnetic waves along the propagation path, a dynamic attenuation correction scheme based on path-integrated reflectivity is introduced. The precipitation attenuation coefficient is dynamically calculated point by point from the variation characteristics of real-time echo intensity along the beam path to compensate echo loss, which addresses the limitation that fixed correction parameters cannot adapt to attenuation differences under variable rainfall intensities. Based on the Z-R power-law relationship, the radar echo-derived rainfall is inverted, using hourly measurements from dense ground-based rain gauges as the reference values, and precision is verified using the MB and RMSE—industry-standard meteorological evaluation metrics. Experimental results demonstrate that clutter suppression dominates RMSE reduction (7.37 to 1.91 mm/h). Beam blockage correction shows negligible impacts on RMSE and MB. Attenuation correction delivers marginal MB improvement (−0.52 to −0.51 mm/h) with no measurable RMSE response. After full-chain quality-control optimization, the aggregate RMSE between radar-derived rainfall and gauge observations is 1.91 mm h

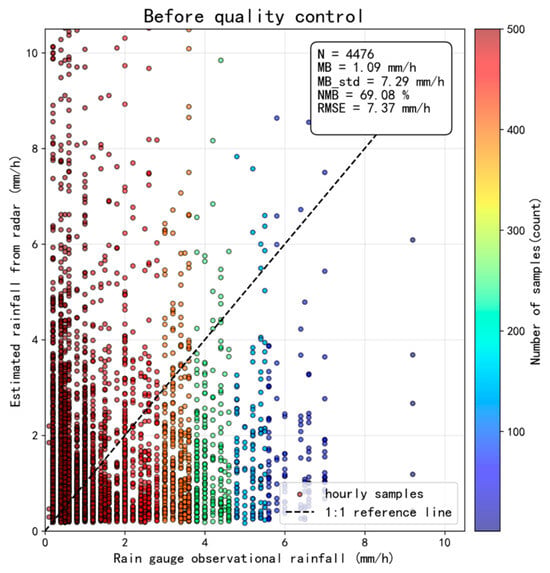

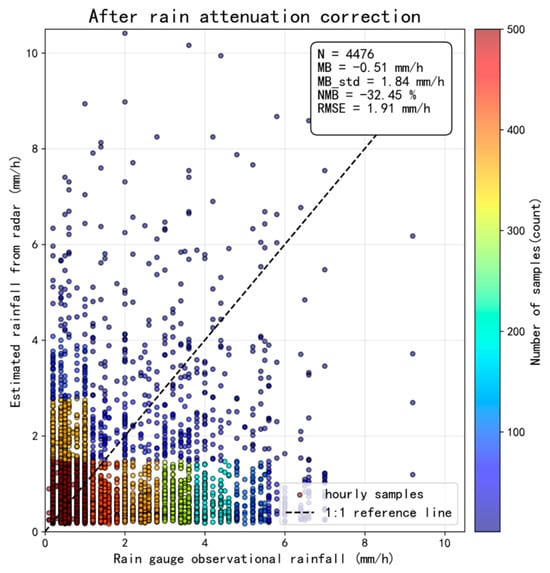

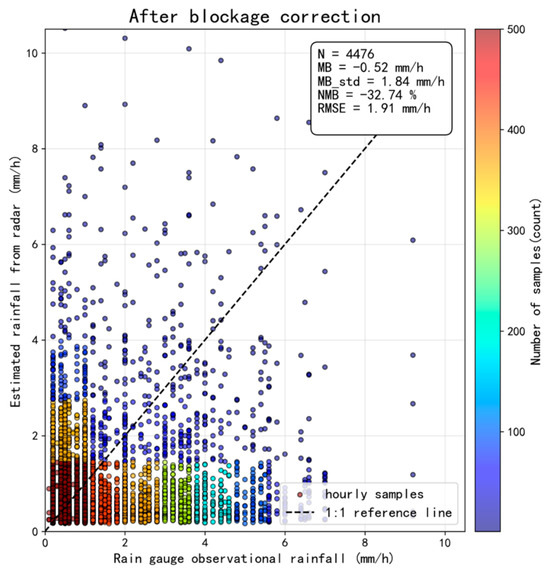

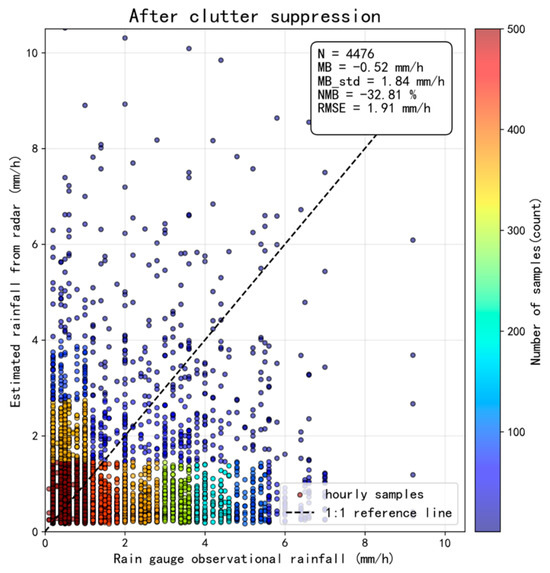

−1, representing an approximately 74% reduction compared with the raw dataset (from 7.37 to 1.91 mm h
−1). Elevated RMSE values of 4.2–5.0 mm h
−1 are observed for rainfall intensities between 5 and 10 mm h
−1. In addition, the discrepancy between radar and gauge estimates grows as rainfall intensity increases. As the distance between radar and rain gauge increases, radar QPE systematically underestimates light precipitation, while persistent underestimation occurs across all ranges for heavy rainfall. This study enhances the differentiated quality control framework for X-band radar systems in complex mountainous regions, effectively improves the observation quality of radar-derived base data, and provides data support and technical references for dynamic monitoring of flash floods in mountainous river basins.
