To reduce the weight of prefabricated cap beams, a new type of hybrid pier with a steel cap beam and single concrete column with an innovative flange–rebar–ultra-high-performance concrete (UHPC) connection structure is proposed in this paper. Focusing on the static performance of hybrid piers, a specimen with a geometric similarity ratio of 1:4 was fabricated for testing. The results showed that the ultimate load-bearing capacity reached 960 kN, and the failure mode was characterized by an obvious overall vertical displacement of 70.2 mm at the cantilever end, accompanied by local buckling in the webs between transversal diaphragms and ribs. Due to the varying-thickness design, longitudinal strains were comparable between the middle section (thin plates) and the root section (thick plates) of the cantilever beam, showing a trend of an initial increase followed by a decrease from the end of the cantilever beam to the road centerline. Meanwhile, the cross-sections of the connection joint and concrete column transformed from overall compression to eccentric compression during the test. At the ultimate state, their steel structures remained elastic, with no obvious damage in the concrete or UHPC, verifying good load-bearing capacity. Furthermore, the finite element analysis showed the new connection joint and construction method of hinged-to-rigid could reduce the column top concrete compressive stress by 18–54%, tensile stress by 11–68%, and steel cap beam Mises stress by 10%. Finally, based on the experimental and numerical studies, the safety reserve coefficient of the new hybrid pier was over 2.7. Full article

Prefabricated cantilever systems (PCSs) are essential for mountainous road infrastructure, yet their structural behavior under traffic loads remains insufficiently studied. This study innovatively integrates scaled experiments, finite element simulations, and field test data to develop and validate a full-scale PCS model under extreme traffic conditions. The results reveal that the beam–column junction is highly vulnerable to stress concentrations, risking concrete cracking. To address this, a novel prestressed reinforcement design is proposed, optimizing rebar placement to reduce local stresses and enhance structural integrity. Ultimate load analysis confirms that prestressing improves stiffness, load resistance, and ductility. This study provides a systematic framework for PCS optimization, promoting its application in complex engineering environments. Full article

The design and production of prefabricated buildings pose challenges in achieving standardization, limiting their extensive adoption. In order to address issues of prefabricated components, such as the low reusability of design knowledge, limited standardization, and design disconnection, this paper adopted the prefabricated cantilevered structure components as the research object. It employs knowledge-based engineering (KBE) theory and secondary split modularization approach in conjunction with Revit secondary development technology to establish a modular design system. The system formalizes complex design knowledge into concise user interfaces and a logically clear programming language, ensuring the design system’s ease of use and accessibility. To validate the authenticity and applicability of the modular design system developed in this paper, a comparison is made between the traditional modeling tool and modular modeling tool. Through empirical analysis, the result indicates that the new tool proposed in this paper can enhance the efficiency of design professionals by 72.92%. Among these, the tool meets the modeling and design requirements of 96.1% of the prefabricated components in the project, making it highly suitable for the modeling and design process of the vast majority of prefabricated components. Therefore, this design approach, which integrates KBE and three-dimensional geometric technology, makes the modular design of prefabricated cantilevered structural components feasible, providing a reference for future research in the design of other prefabricated components. Full article

The bridge of Shanghai Metro Line 10 over Metro Line 6 is a U-shaped concrete single-box double-cell concrete box beam continuous bridge. A novel method is applied to construct the asymmetric cantilever prefabricated and assembled continuous bridge due to the limited construction space and the complex environment. Four mechanical state control methods are applied during the T-shape structure construction process: tensioning pre-stressed steel strand, jacking by the axial force servo system, adjusting the leg reaction force, and setting the auxiliary leg. Auxiliary measures such as the compressive column, side-span counterweight, and temporary pre-stressing are also taken into consideration. The finite element method simulations are performed to measure effects of the four control methods during the construction process. The front leg force of the bridge erection machine and the deflection of the bridge are then monitored. It was deduced that the simulated and measured values of the cantilever T-shape structure are controlled within the limit range during the construction process. Full article

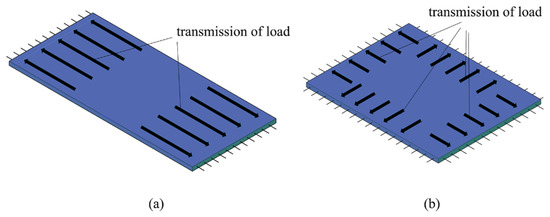

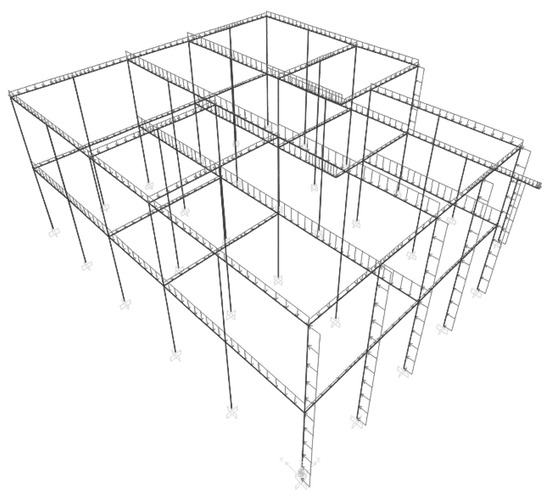

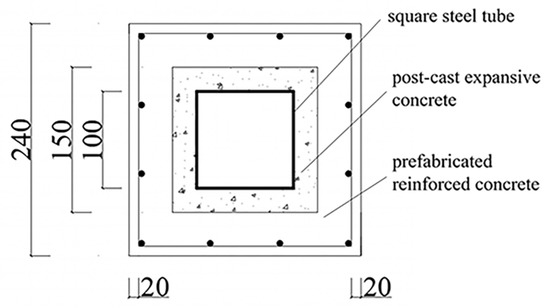

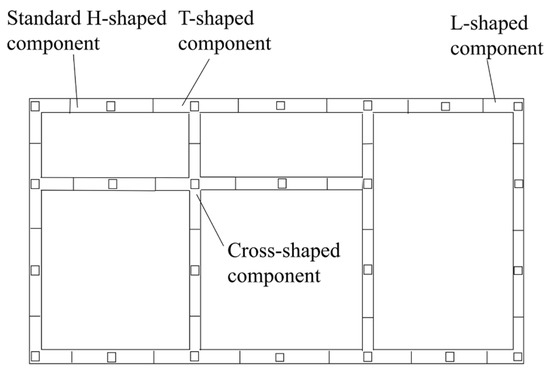

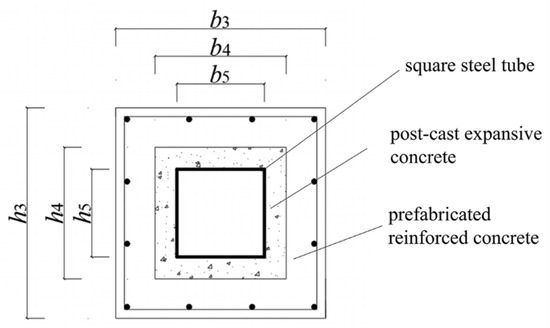

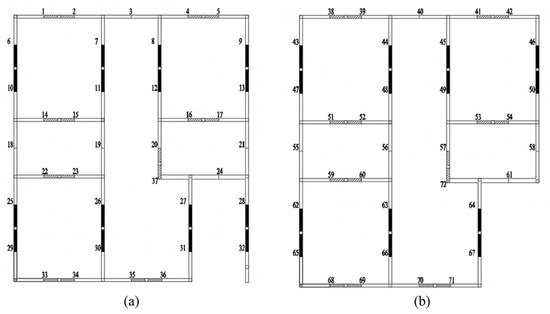

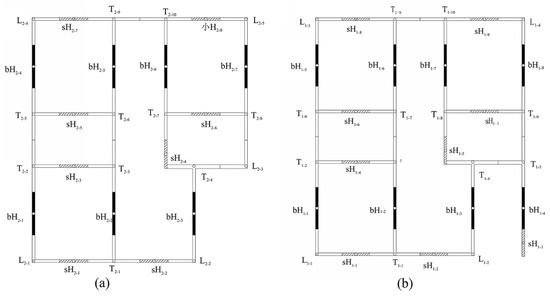

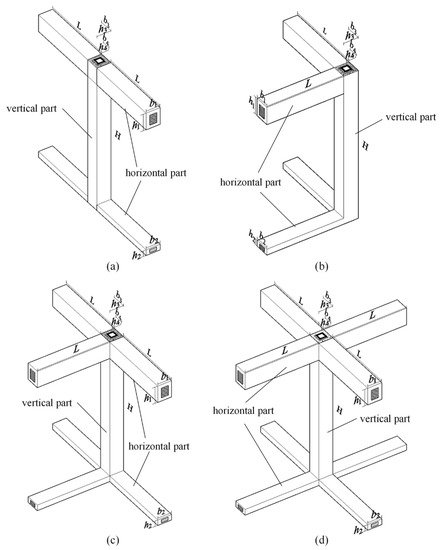

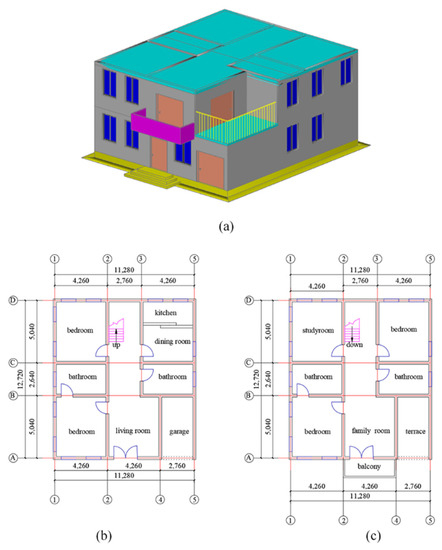

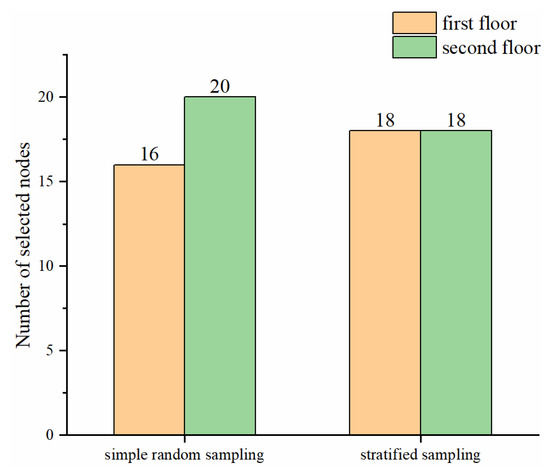

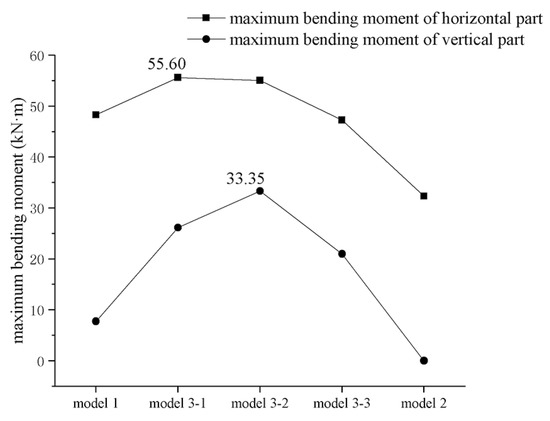

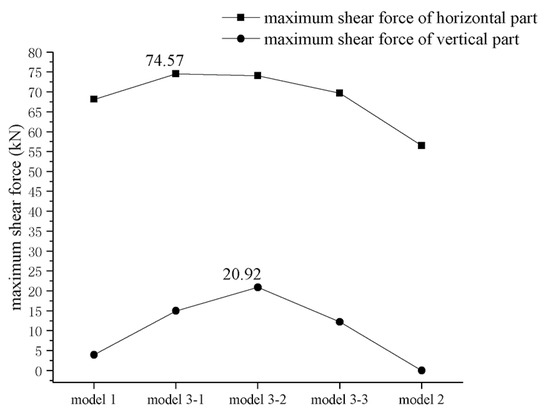

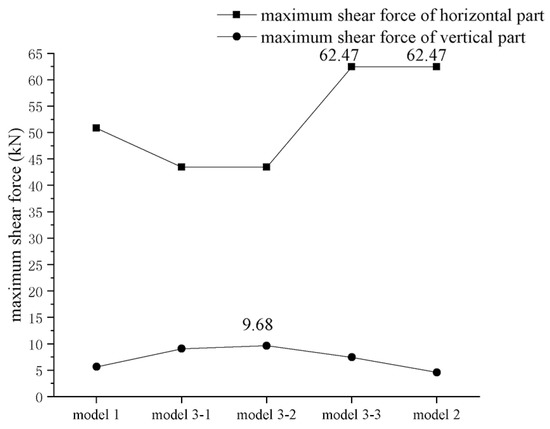

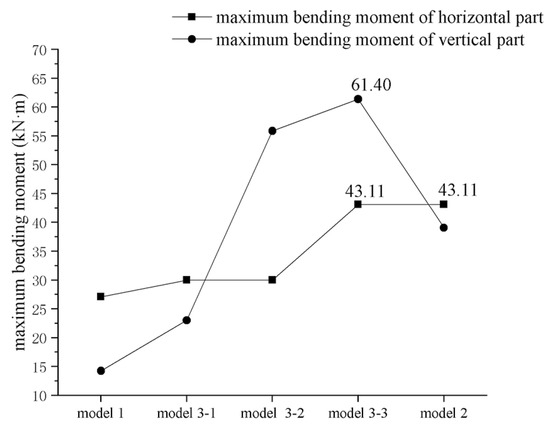

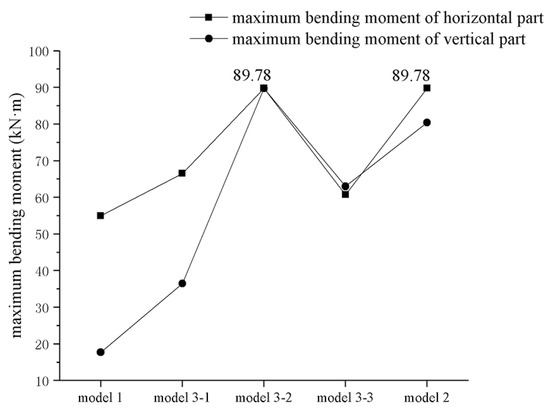

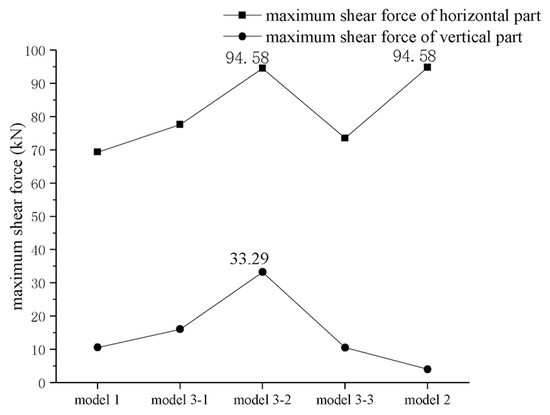

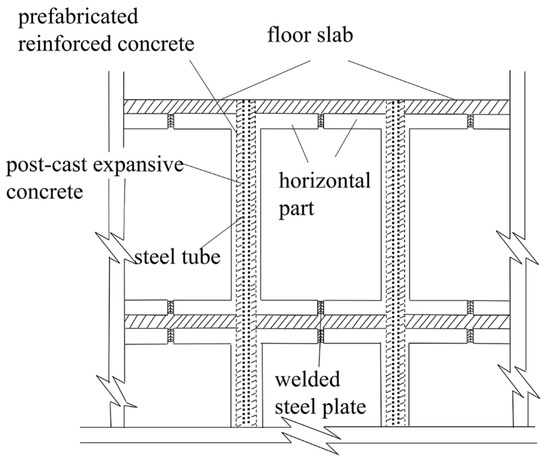

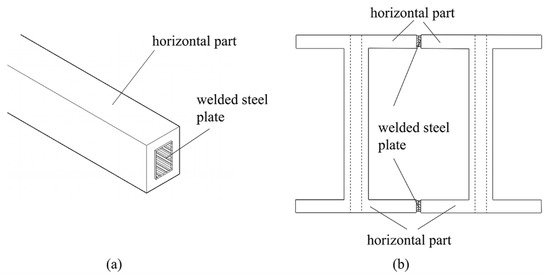

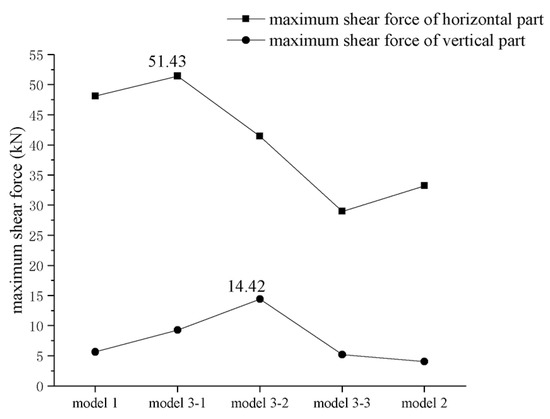

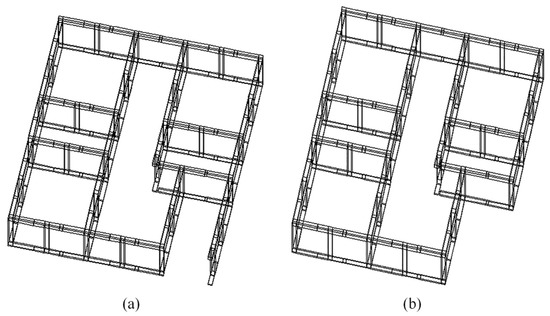

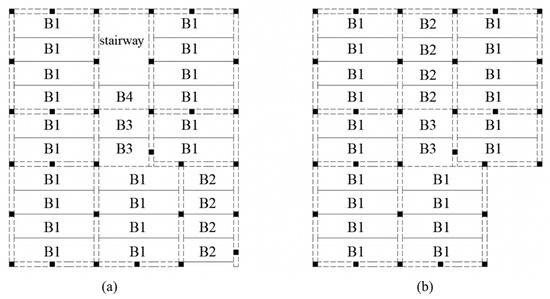

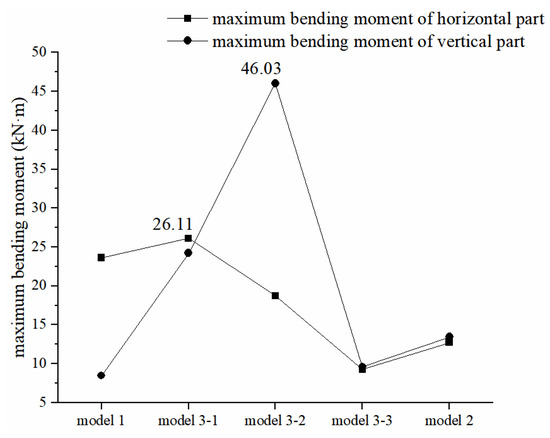

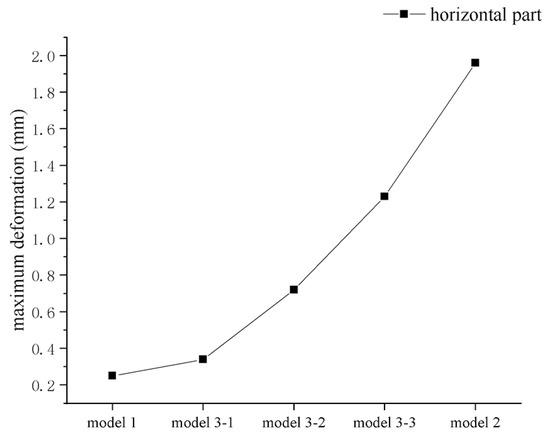

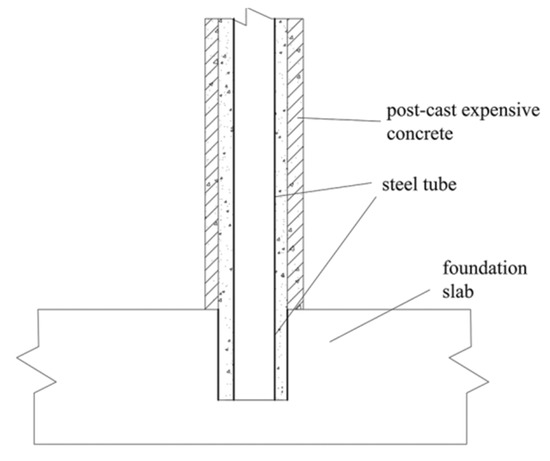

To reduce the impact of poor field connection on structural safety in prefabricated concrete structures, a new kind of prefabricated reinforced concrete structure—an FTPC (fault-tolerant prefabricated concrete) structure based on the fault-tolerant design concept—was proposed and studied in this paper. The horizontal load-bearing units of an FTPC structure are fully prefabricated or semi-prefabricated slabs. The vertical load-bearing units are formed by four types of prefabricated cantilever components. Prefabricated cantilever components are horizontally connected by welded connection and vertically connected by a specific connection method using steel tubes and cast-in-place concrete. A mathematical sampling method can be used to select several welded connection nodes as disconnected nodes to consider the actual weld quality. Enveloping design can be carried out to obtain the final design results of each cantilever component, which can realize the fault-tolerant design and better ensure the structure safety. Finite element analysis was carried out for a two-story villa as an example to verify the feasibility and rationality of an FTPC structure. Study results show that an FTPC structure can meet the requirements of safety and applicability. Moreover, it has the advantages of a flexible arrangement of load-bearing components, a clear force transmission mechanism, and a moderate component volume. Full article
