Search Results (11)

The mineral processing of a low-grade tungsten-molybdenum ore (LGTMO) was investigated to assess the potential of recovering molybdenum (Mo) and tungsten (W). Techniques such as Polarizing Microscope (PM), Scanning Electron Microscopy-Energy Dispersive Spectroscopy (SEM-EDS), Mineral Liberation Analysis (MLA), and Advanced Mineral Identification and Characterization System (AMICS) were employed. The recoverable metals in the ore are Mo (0.158% ± 0.03%) and W (0.076% ± 0.02%). Mo exists in two forms: 63.30% as molybdenite and 36.7% as powellite (CaMo_xW_1−xO₄). W is present as 75.26% scheelite and 24.74% powellite. The complete dissociation rates of molybdenite and scheelite-powellite are 27.14% and 88.87%, respectively. Particles of scheelite-powellite with a diameter less than 10 µm account for 34.61%, while molybdenite particles with a diameter below 10 µm make up 72.73%. Scheelite-powellite is mainly associated with olivine and dolomite, while molybdenite is mainly associated with pyroxene, calcite, and hornblende. Based on the process mineralogy, the mineralogical factors influencing the flotation recovery of molybdenite and scheelite-powellite were analyzed. Finally, a complete hydrometallurgical leaching test was carried out. The optimal experimental conditions are as follows: liquid-solid ratio of 6 mL/g, KMnO₄ concentration of 0.015 mol/L, Na₂CO₃ concentration of 0.12 mol/L, NaHCO₃ concentration of 0.024 mol/L, leaching time of 4 h, and leaching temperature of 85 °C. Under these conditions, the leaching efficiencies of Mo and W reach 79.23% and 41.41%, respectively. This study presents a novel approach for the recovery of refractory W and Mo resources in LGTMO while simultaneously providing a theoretical basis for the high-efficiency utilization of these resources. Full article

This paper reports a method for the fabrication of mineral-like SrMoO₄ ceramics with a powellite structure, which is promising for the immobilization of the high-energy ⁹⁰Sr radioisotope. The reported method is based on the solid-phase “in situ” interaction between SrO and MoO₃ oxides initiated under spark plasma sintering (SPS) conditions. Dilatometry, XRD, SEM, and EDX methods were used to investigate the consolidation dynamics, phase formation, and structural changes in the reactive powder blend and sintered ceramics. The temperature conditions for SrMoO₄ formation under SPS were determined, yielding ceramics with a relative density of 84.0–96.3%, Vickers microhardness of 157–295 HV, and compressive strength of 54–331 MPa. Ceramic samples demonstrate a low Sr leaching rate of 10⁻⁶ g/cm²·day, indicating a rather high hydrolytic stability and meeting the requirements of GOST R 50926-96 imposed on solid radioactive wastes. The results presented here show a wide range of prospects for the application of ceramic matrixes with the mineral-like composition studied here to radioactive waste processing and radioisotope manufacturing. Full article

Two new isostructural minerals udinaite and arsenudinaite with the end-member formulae NaMg₄(VO₄)₃ and NaMg₄(AsO₄)₃, respectively, are found in the Arsenatnaya fumarole, Tolbachik volcano, Kamchatka, Russia. They are associated with one another and anhydrite, diopside, hematite, schäferite, berzeliite, svabite, calciojohillerite, tilasite, reznitskyite, ludwigite, rhabdoborite-group borates, forsterite, magnesioferrite, fluorapatite, pliniusite, and powellite. Both minerals occur as equant tetragonal prismatic–dipyramidal crystals up to 0.15 mm, aggregates up to 1 cm and interrupted crusts up to 2 × 2 cm². Udinaite and arsenudinaite, visually indistinguishable from one another, are transparent, beige or brownish-yellowish, with vitreous lustre. Both minerals are optically uniaxial (–); ω = 1.785/1.777 and ε = 1.830/1.820, D_calc. = 3.613/3.816 g·cm⁻³ (udinaite/arsenudinaite). The empirical formulae are: udinaite: (Na_0.55Ca_0.16)_Σ0.71(Mg_4.04Mn_0.02Fe_0.01)_Σ4.07(V_1.63As_1.05P_0.28Si_0.03S_0.01)_Σ3.00O₁₂; arsenudinaite: (Na_0.57Ca_0.13)_Σ0.70(Mg_4.01Mn_0.01Fe_0.01)_Σ4.03(As_2.07V_0.84P_0.10Si_0.01S_0.01)_Σ3.03O₁₂. Both minerals are tetragonal, I-42d, Z = 4, a = 6.8011(2)/6.8022(1), c = 19.1839(12)/19.1843(6) Å, and V = 887.35(7)/887.66(4) ų, R₁ = 0.0287/0.0119 (udinaite/arsenudinaite). Their crystal structure consists of the helical chains of edge-sharing MgO₆ octahedra and isolated TO₄ tetrahedra, forming a heteropolyhedral pseudo-framework with Na cations located in cavities. Both minerals are isostructural to jeffbenite. Udinaite and arsenudinaite form an isomorphous series in which the contents of T constituents vary within (in apfu): V_1.6–0.1As_2.8–1.0P_0.4–0.0. Full article

The Shangfanggou Mo–Fe deposit is a typical and giant porphyry–skarn deposit located in the East Qinling–Dabie molybdenum (Mo) polymetallic metallogenic belt in the southern margin of the North China Block. In this paper, three-dimensional (3D) multi-parameter geological modeling and microanalysis are used to discuss the mineralization and oxidation transformation process of molybdenite during the supergene stage. Meanwhile, from macro to micro, the temporal–spatial–genetic correlation and exploration constraints are also established by 3D geological modeling of industrial Mo orebodies and Mo oxide orebodies. SEM-EDS and EPMA-aided analyses indicate the oxidation products of molybdenite are dominated by tungsten–powellite at the supergene stage. Thus, a series of oxidation processes from molybdenite to tungsten–powellite are obtained after the precipitation of molybdenite; eventually, a special genetic model of the Shangfanggou high oxidation rate Mo deposit is formed. Oxygen fugacity reduction and an acid environment play an important part in the precipitation of molybdenite: (1) During the oxidation process, molybdenite is first oxidized to a MoO₂·SO₄ complex ion and then reacts with a carbonate solution to precipitate powethite, in which W and Mo elements can be substituted by complete isomorphism, forming a unique secondary oxide orebody dominated by tungsten–powellite. (2) Under hydrothermal action, Mo⁴⁺ can be oxidized to jordisite in the strong acid reduction environment at low temperature and room temperature during the hydrothermal mineralization stage. Ilsemannite is the oxidation product, which can be further oxidized to molybdite. Full article

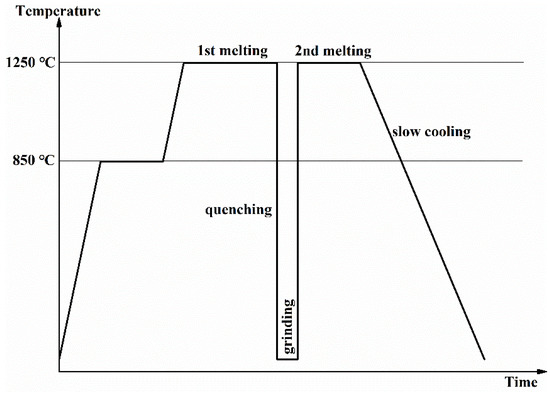

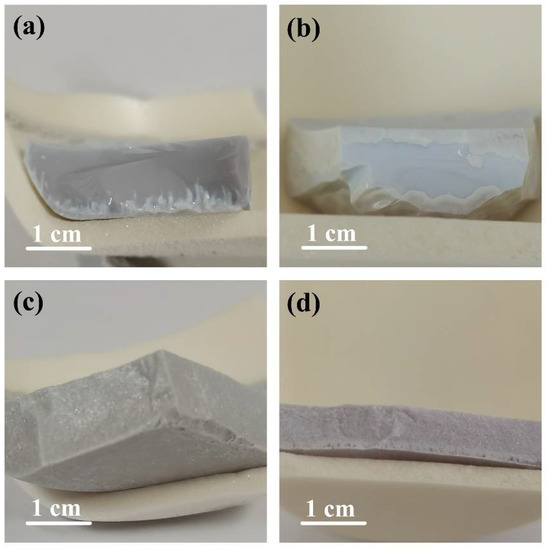

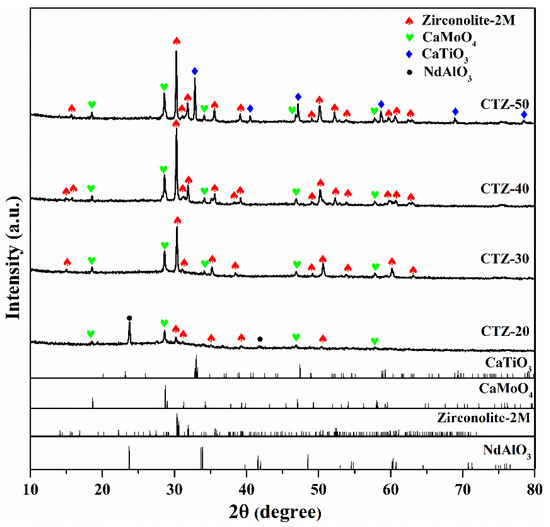

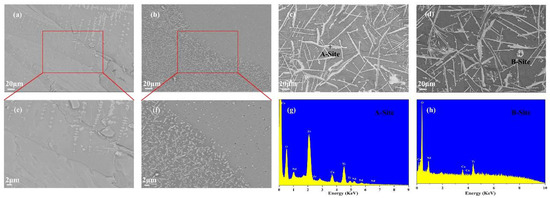

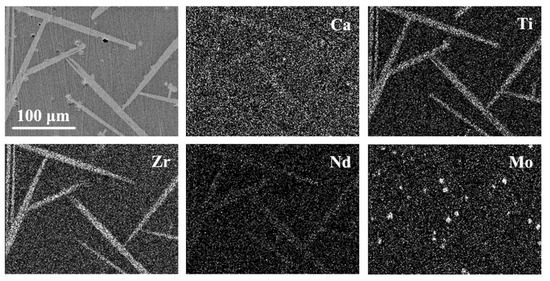

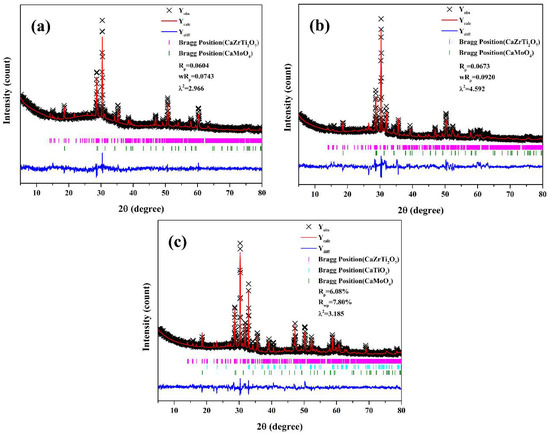

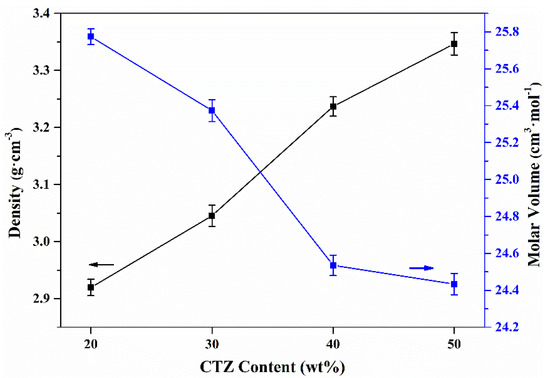

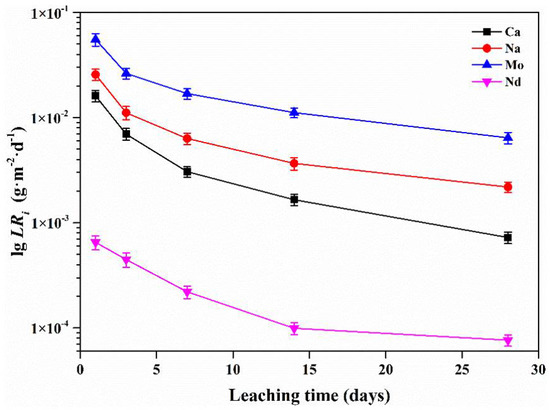

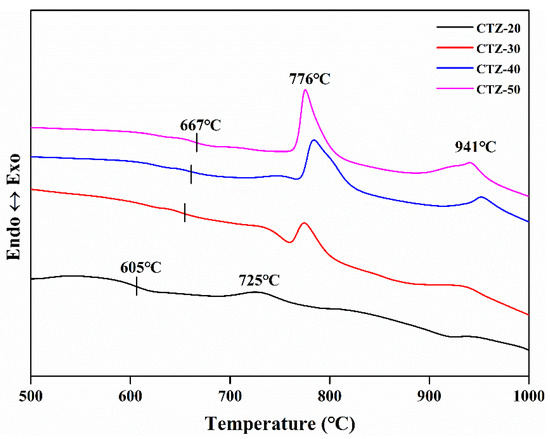

In order to increase the loading of rare earth- and molybdenum-rich high-level waste in the waste forms, zirconolite- and powellite-based multi-phase borosilicate glass-ceramics were synthesized via an in-situ heat treatment method. The effects of the CTZ (CaO, TiO₂ and ZrO₂) content on the crystallization, microstructure and aqueous durability of the multi-phase borosilicate glass-ceramics were studied. The results indicate that the increase of CTZ content can promote crystallization. The glass-ceramics presented even structures when the CTZ content was ≥ 40 wt%. For the glass-ceramic with 40 wt% CTZ, only zirconolite and powellite crystals were detected and powellite crystals were mainly distributed around zirconolite, whereas for the glass-ceramics with 50 wt% CTZ, perovskite was detected. Furthermore, the leaching rates of Na, Ca, Mo and Nd were in the ×10⁻³, ×10⁻⁴, ×10⁻³ and ×10⁻⁵ g·m⁻²·d·⁻¹ orders of magnitude on the 28th leaching day, respectively. Full article

A new mineral, dioskouriite, CaCu₄Cl₆(OH)₄∙4H₂O, represented by two polytypes, monoclinic (2M) and orthorhombic (2O), which occur together, was found in moderately hot zones of two active fumaroles, Glavnaya Tenoritovaya and Arsenatnaya, at the Second scoria cone of the Northern Breakthrough of the Great Tolbachik Fissure Eruption, Tolbachik volcano, Kamchatka, Russia. Dioskouriite seems to be a product of the interactions involving high-temperature sublimate minerals, fumarolic gas and atmospheric water vapor at temperatures not higher than 150 °C. It is associated with avdoninite, belloite, chlorothionite, eriochalcite, sylvite, halite, carnallite, mitscherlichite, chrysothallite, sanguite, romanorlovite, feodosiyite, mellizinkalite, flinteite, kainite, gypsum, sellaite and earlier hematite, tenorite and chalcocyanite in Glavnaya Tenoritovaya and with avdoninite and earlier hematite, tenorite, fluorophlogopite, diopside, clinoenstatite, sanidine, halite, aphthitalite-group sulfates, anhydrite, pseudobrookite, powellite and baryte in Arsenatnaya. Dioskouriite forms tabular, lamellar or flattened prismatic, typically sword-like crystals up to 0.01 mm × 0.04 mm × 0.1 mm combined in groups or crusts up to 1 × 2 mm² in area. The mineral is transparent, bright green with vitreous luster. It is brittle; cleavage is distinct. The Mohs hardness is ca. 3. D_meas is 2.75(1) and D_calc is 2.765 for dioskouriite-2O and 2.820 g cm⁻³ for dioskouriite-2M. Dioskouriite-2O is optically biaxial (+), α = 1.695(4), β = 1.715(8), γ = 1.750(6) and 2V_meas. = 70(10)°. The Raman spectrum is reported. The chemical composition (wt%, electron microprobe data, H₂O calculated by total difference; dioskouriite-2O/dioskouriite-2M) is: K₂O 0.03/0.21; MgO 0.08/0.47; CaO 8.99/8.60; CuO 49.24/49.06; Cl 32.53/32.66; H₂O(calc.) 16.48/16.38; -O=Cl −7.35/−7.38; total 100/100. The empirical formulae based on 14 O + Cl apfu are: dioskouriite-2O: Ca_1.04(Cu_4.02Mg_0.01)_Σ4.03[Cl_5.96(OH)_3.90O_0.14]_Σ10∙4H₂O; dioskouriite-2M: (Ca_1.00K_0.03)_Σ4.03(Cu_4.01Mg_0.08)_Σ4.09[Cl_5.99(OH)_3.83O_0.18]_Σ10∙4H₂O. Dioskouriite-2M has the space group P2₁/c, a = 7.2792(8), b = 10.3000(7), c = 20.758(2) Å, β = 100.238(11)°, V = 1531.6(2) ų and Z = 4; dioskouriite-2O: P2₁2₁2₁, a = 7.3193(7), b = 10.3710(10), c = 20.560(3) Å, V = 1560.6(3) ų and Z = 4. The crystal structure (solved from single-crystal XRD data, R = 0.104 and 0.081 for dioskouriite-2M and -2O, respectively) is unique. The structures of both polytypes are based upon identical BAB layers parallel to (001) and composed from Cu²⁺-centered polyhedra. The core of each layer is formed by a sheet A of edge-sharing mixed-ligand octahedra centered by Cu(1), Cu(2), Cu(3), Cu(5) and Cu(6) atoms, whereas distorted Cu(4)(OH)₂Cl₃ tetragonal pyramids are attached to the A sheet on both sides, along with the Ca(OH)₂(H₂O)₄Cl₂ eight-cornered polyhedra, which provide the linkage of the two adjacent layers via long Ca−Cl bonds. The Cu(4) and Ca polyhedra form the B sheet. The difference between the 2M and 2O polytypes arises as a result of different stacking of layers along the c axis. The cation array of the layer corresponds to the capped kagomé lattice that is also observed in several other natural Cu hydroxychlorides: atacamite, clinoatacamite, bobkingite and avdoninite. The mineral is named after Dioskouri, the famous inseparable twin brothers of ancient Greek mythology, Castor and Polydeuces, the same in face but different in exercises and achievements; the name is given in allusion to the existence of two polytypes that are indistinguishable in appearance but different in symmetry, unit cell configuration and XRD pattern. Full article

The Sangdong W (tungsten)-deposit is known as one of the world’s largest W-deposits, a magmatic–hydrothermal ore deposit including both skarn and hydrothermal alteration zones. The strata-bound characteristic of the deposit resulted in three major orebodies (hanging wall, main, footwall). The main ore mineral is a scheelite (CaWO₄)–powellite (CaMoO₄) solid solution. We examined the fluid evolution and scheelite formation process of the quartz–scheelite veins of the ore deposit, based on the microtextures and geochemical characteristics of the scheelite. After the initial magmatic–hydrothermal fluid release from the granitic body, prograde skarn is formed. In the later prograde stage, secondary fluid rises and precipitates stage I scheelite. Well-developed oscillatory zoning with the highest Mo content indicates continuous fluid infiltration under an open system. Pressure rises as mineralization occurs, generating the pressure release of the retrograde fluid. Fluid migrates downward by the gravitational backflow mechanism, forming stage II to IV scheelites. Dented oscillatory zoning of stage II scheelite is strong evidence of this pressure release. Stage III and IV scheelite do not show specific internal structures with pure scheelite composition. Retrograde scheelites are formed by fractional crystallization under a closed system. The observation of systematical fractional crystallization in the quartz–scheelite vein system is a meaningful result of our research. The geochemical characteristics and microtextural evidence imprinted in scheelites from each stage provide crucial evidence for the understanding of sequential scheelite mineralization of the quartz–scheelite vein system of the Sangdong W-deposit. Full article

The flotation beneficiation of powellite from dolomite was achieved with a new reagent system that consists of a mixed collector of sodium oleate (NaOl) and benzohydroxamic acid (BHA) and a depressant sodium hexametaphosphate (SHMP). The interaction mechanism of the reagent regime with minerals was studied using zeta potential and X-ray photoelectron spectroscopy (XPS) detection together with crystal chemistry and interaction energy analysis. The matching features of O–O distance in BHA with that in saline minerals and active site density/activity were used as methods to explain the reagent/mineral interaction. The results of microflotation finally established the new reagent regime at pH 8–12: 2.5 × 10⁻⁴ M SHMP, 2 × 10⁻⁴ M mixed collector containing 1.5 × 10⁻⁴ M NaOl and 0.5 × 10⁻⁴ M BHA. SHMP selectively depresses the adsorption of NaOl and BHA onto dolomite but minimally affects the adsorption of NaOl and BHA on the powellite surface. Full article

Flood basalts of the Deccan Volcanic Province erupted between about 67.5 to 60.5 Ma ago and reached a thickness of up to 3500 m. The main part consists of compound and simple lava flows with a tholeiitic composition erupted within 500,000 years at about 65 Ma. Within the compound lava flows, vesicles and cavities are frequent. They are filled by secondary minerals partly of well development and large size. This study presents data on the secondary mineralization including detailed field descriptions, optical, cathodoluminescence and SEM microscopy, X-ray diffractometry, fluid inclusions, C and O isotope analyses, and Rb-Sr and K-Ar geochronology. The investigations indicate a multistage precipitation sequence with three main stages. During stage I clay minerals and subsurface filamentous fabrics (SFFs), of probably biogenic origin, formed after the lava flows cooled down near to the Earth’s surface. In stage II, first an assemblage of calcite (I) and zeolite (I) (including mordenite, heulandite, and stilbite) as well as plagioclase was overgrown by chalcedony, and finally a second calcite (II) and zeolite (II) generation developed by burial metamorphism by subsequent lava flows. Stage III is characterized by precipitation of a third calcite (III) generation together with powellite and apophyllite from late hydrothermal fluids. Rb-Sr and K-Ar ages of apophyllite indicate a large time span for stage III. Apophyllite formed within different time intervals from the Paleogene to the early Miocene even within individual lava flows at certain localities. From the Savda/Jalgaon quarry complex, ages cluster at 44–48 Ma and 25–28 Ma, whereas those from the Nashik area are 55–58 Ma and 21–23 Ma, respectively. Full article

Scheelite (CaWO₄) and powellite (CaMoO₄) are isostructural minerals considered as a non-ideal solid solution series. Micron- to nanoscale investigation of a specimen of skarnoid from Zhibula, Gangdese Belt, Tibet, China, was carried out to assess the identity of the phases within a broad scheelite-powellite (Sch-Pow) compositional range, and to place additional constraints on redox changes during ore formation. An electron probe microanalysis shows that Mo-rich domains within complex oscillatory-zoned single crystals, and as thin sliver-like domains, have a compositional range from 20 mol.% to 80 mol.% Pow. These occur within a matrix of unzoned, close-to-end-member scheelite aggregates (87 mol.%–95 mol.% Sch). Laser-ablation inductively coupled plasma mass spectrometry spot analysis and element mapping reveal systematic partitioning behaviour of trace elements in skarn minerals (grossular₅₀, diopside₈₀, anorthite, and retrograde clinozoisite) and scheelite-powellite aggregates. The Mo-rich domains feature higher concentrations of As, Nb, and light rare earth elements LREE, whereas W-rich domains are comparatively enriched in Y and Sr. Transmission electron microscopy (TEM) was carried out on focused-ion-beam-prepared foils extracted in situ from domains with oscillatory zoning occurring as slivers of 20 mol.%–40 mol.% Pow and 48 mol.%–80 mol.% Pow composition within an unzoned low-Mo matrix (20 mol.% Pow). Electron diffractions, high-angular annular dark field (HAADF) scanning-TEM (STEM) imaging, and energy-dispersive spectroscopy STEM mapping show chemical oscillatory zoning with interfaces that have continuity in crystal orientation throughout each defined structure, zoned grain or sliver. Non-linear thermodynamics likely govern the patterning and presence of compositionally and texturally distinct domains, in agreement with a non-ideal solid solution. We show that the sharpest compositional contrasts are also recognisable by variation in growth direction. Atomic-scale resolution imaging and STEM simulation confirm the presence of scheelite-powellite within the analysed range (20 mol.%–80 mol.% Pow). Xenotime-(Y) inclusions occur as nm-wide needles with epitaxial orientation to the host scheelite-powellite matrix throughout both types of patterns, but no discrete Mo- or W-bearing inclusions are observed. The observed geochemical and petrographic features can be reconciled with a redox model involving prograde deposition of a scheelite+molybdenite assemblage (reduced), followed by interaction with low-T fluids, leading to molybdenite dissolution and reprecipitation of Mo as powellite-rich domains (retrograde stage, oxidised). The observation of nanoscale inclusions of xenotime-(Y) within scheelite carries implications for the meaningful interpretation of petrogenesis based on rare earth element (REE) concentrations and fractionation patterns. This research demonstrates that HAADF-STEM is a versatile technique to address issues of solid solution and compositional heterogeneity. Full article

Molybdenum is an essential element for life, with growing production due to a constantly expanding variety of industrial applications. The potentially harmful effects of Mo on the environment, and on human and ecosystem health, require knowledge of Mo behavior in mining-affected environments. Mo is usually present in trace amounts in ore deposits, but mining exploitation can lead to wastes with very high Mo concentrations (up to 4000 mg/kg Mo for tailings), as well as soil, sediments and water contamination in surrounding areas. In mine wastes, molybdenum is liberated from sulfide mineral oxidation and can be sorbed onto secondary Fe(III)-minerals surfaces (jarosite, schwertmannite, ferrihydrite) at moderately acidic waters, or taken up in secondary minerals such as powellite and wulfenite at neutral to alkaline pH. To date, no Mo-metabolising bacteria have been isolated from mine wastes. However, laboratory and in-situ experiments in other types of contaminated land have suggested that several Mo-reducing and -oxidising bacteria may be involved in the cycling of Mo in and from mine wastes, with good potential for bioremediation. Overall, a general lack of data is highlighted, emphasizing the need for further research on the contamination, geochemistry, bio-availability and microbial cycling of Mo in mining-affected environments to improve environmental management and remediation actions. Full article
