Search Results (6)

This manuscript evaluated the performance of silanes in cementitious matrices in the partial replacement of superplasticizers by silanes. For this, pastes with a water/cement ratio of 0.186 were produced and the superplasticizer admixture based on polycarboxylate esters was partially substituted by three types of silanes—vinyltriethoxysilane silanes (VTES), n-(2-aminoethyl)-3-aminopropyltrimethoxysilane (AEAPTMS), and methacryloxypropyltrimethox-ysilane (MCPTMS)—in two substitutions levels (20% and 40%), and then tested in Portland cement pastes. Specific gravity, trapped air, mini-slump, and hydration kinetics (evaluated by isothermal calorimetry up to 48 h) of the pastes were determined in the fresh state. Thus, in the hardened state, the compressive and flexural strength tests (7 and 28 days), specific gravity, and absorption by immersion of the pastes were carried out. The results showed that the substitution of 20% and 40% of VTES and AEAPTMS considerably reduced the workability and increased the air content of the pastes in comparison to the reference sample. In contrast, the incorporation of 20% and 40% of MCPTMS did not significantly affect these properties. The presence of silane, for all analyzed samples, had a delaying effect on the hydration process: the maximum delay verified had a hydration peak in approximately 36 h for the 40% MCPTMS sample and the minimum delay verified had a hydration peak in approximately 11 h for the 20% VTES sample. The replacement of 20% and 40% by any of the silanes progressively reduced the flexural strength at both 7 and 28 days. In the compressive strength, as well as in the tensile strength in flexion, there was a decrease in the results when compared to the reference, except for the MCPTMS, at 7 and 28 days. In immersion absorption, all samples showed high percentages of absorption and void index when compared to the reference. Full article

One common method of estimating e_max and e_min for mixtures of sand and silt requires that the values of several empirical constants be determined. These empirical constants are the filling coefficients, a, and embedment coefficients, b, which can be determined either via lab testing or correlations. The study reported here developed simple correlations for estimating the filling and embedment coefficients using readily obtained laboratory data. These models were found to be excellent in producing filling and embedment coefficients that accurately predicted values of the index void ratios for sand and silt mixtures, with most R² values being 0.94 or greater. Full article

The analysis of sands, and the foundation systems with which they interact, are largely dependent on macroscale behavioral parameters that represent the aggregated response of several microscale characteristics. This research paper examines the influence of surface texture, or smoothness, on the behavior of sands. The challenge of estimating or measuring smoothness, due to its microscale feature domain, is addressed through an examination of six artificially graded sand specimens. These specimens are evaluated both visually and numerically to characterize their surface smoothness. The first approach described is a simple visual method that uses a smoothness scale consistent with those of roundness and sphericity. This method, which can be performed with a tool as simple as a hand lens, evaluates a group of representative particles collectively. The second approach is also a visual evaluation, but it utilizes images obtained via scanning electronic microscopy, traditional optical microscopy, and newer low-cost digital microscopes that can be rapidly connected to a smartphone or laptop. To validate these visual estimates, a novel third approach is introduced. This approach is a more objective numerical analysis measurement technique that enables rapid and economic quantification of smoothness. This technique may assist both practitioners and academics in their understanding of the macroscale response of coarse-grained soils. In addition to the visual methods, this research also conducted several laboratory index tests to observe the mechanical behavior of the specimens, considering their particle shape and surface smoothness properties. The results indicate that angular sands have greater minimum and maximum void ratios, a larger difference between the minimum and maximum void ratios, greater critical state friction angles, and greater flow rates through an orifice of fixed size. When adjusted for surface smoothness using the proposed approach, the behavior of the sands—particularly the limit void ratio results—appears to be more predictable in some cases. These results provide additional evidence of particle smoothness contributing to the strength behavior of sand, which may be particularly useful in the domains of slope stability, land reclamation, soil–structure interaction, and soil dynamics. Full article

High calcium waste dust from asphalt concrete manufacturing was utilized to stabilize low-quality lateritic soil as a subbase course material in road structures. Asphalt waste dust up to 30 percent by weight (wt%) was incorporated into the solely lateritic soil and the mixture of lateritic soil containing 5 wt% Portland cement. The asphalt waste dust was successfully used as a subbase course material in road structures according to the standard specifications of pavement materials issued by the Thailand Department of Highways. The minimum 20 wt% asphalt waste dust induced a sufficiently high California bearing ratio, optimized plastic index, liquid limit, and swelling index of soil above the minimum standard requirements for a subbase course material. The fine particles of asphalt waste dust showed filler-like properties to reduce the voids and generated a very dense surface in the stabilized lateritic soil samples. With the small content of cement mixes, a decrease in the calcite phase in the soil stabilized with asphalt waste dust indicated a partial promotion of CaCO₃ from the asphalt waste dust in the cement hydration reaction. The very high strength (CBR > 250%) of these stabilized soil samples approached the standard for base course material (CBR ≥ 80%), which was beyond the expectation for the subbase material (CBR ≥ 25%). Thus, recycling-waste dust from asphalt concrete manufacturing can be used as an effectively sustainable subbase course and base course materials in further generation for road construction purposes. Full article

In South Korea, Honam High-Speed Railway has a relatively large residual settlement issue and high fines content has been pointed out as one of the causes. Design guidelines regulate not to use soils containing fines content higher than 25%. However, there is no background information on the effect of fines content on settlement. Therefore, this paper aims to investigate compressional behavior according to fines content using sand and kaolinite. Oedometer test results showed that the compression index is lowest with fines content of 15% to 20% at which the mixture produced maximum density. The optimum fines content for inducing low settlement would be 15% to 20% for the sand–kaolinite mixture. Transition fines content (TFC), which shows sand-like to claylike behavior, was observed to have between 21% and 26% of fines content. Critical fines content (fcrit) where a minimum void ratio occurs was estimated as 21.67%. These behavioral changes appear when fines content is greater than the optimum fines content. SEM also shows that the kaolinite particles were overlapped, creating flat surfaces with a fines content higher than 30%, and showing clay-like behavior. Based on the analysis results, engineers can simply identify the behavior of embankment materials to ensure optimum fines content and consequently minimize long-term settlement potential. Full article

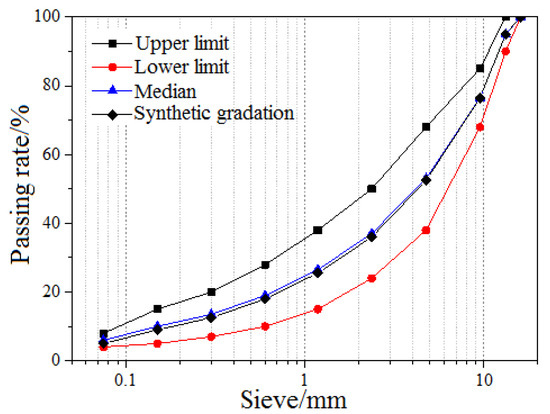

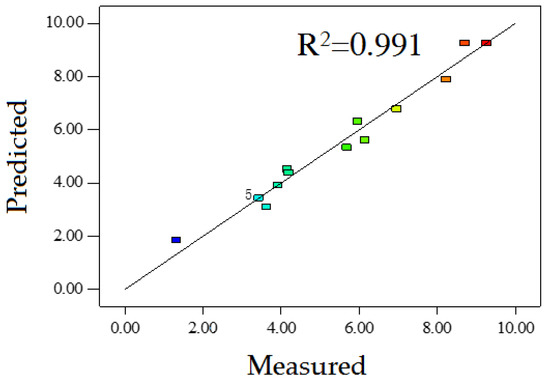

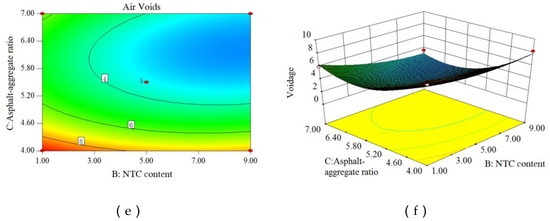

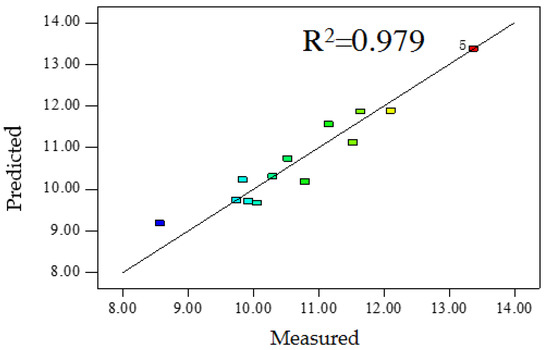

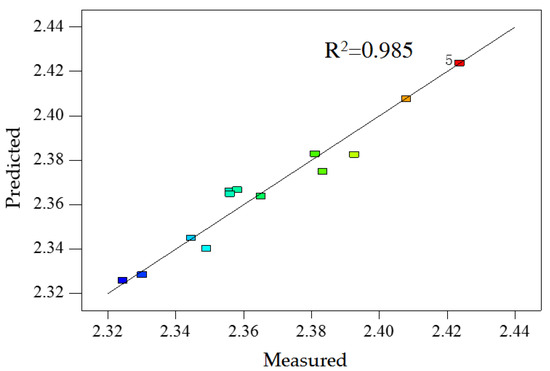

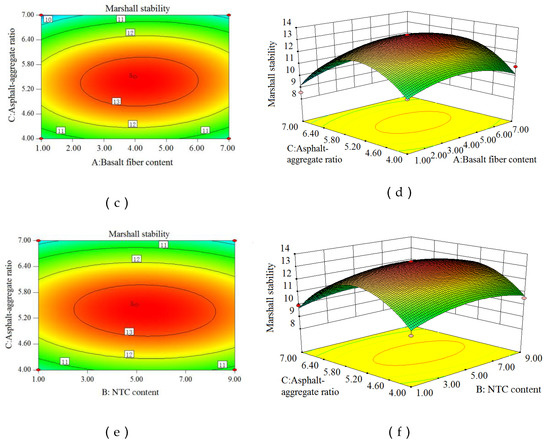

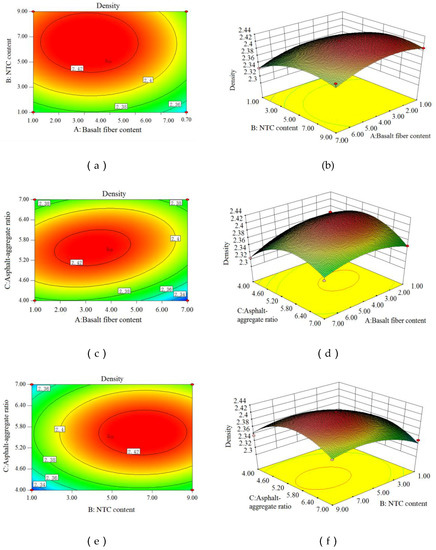

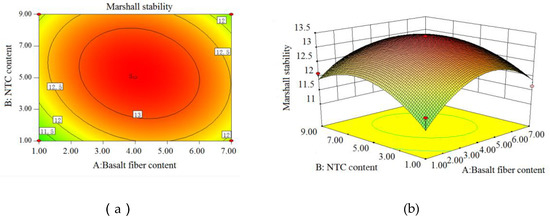

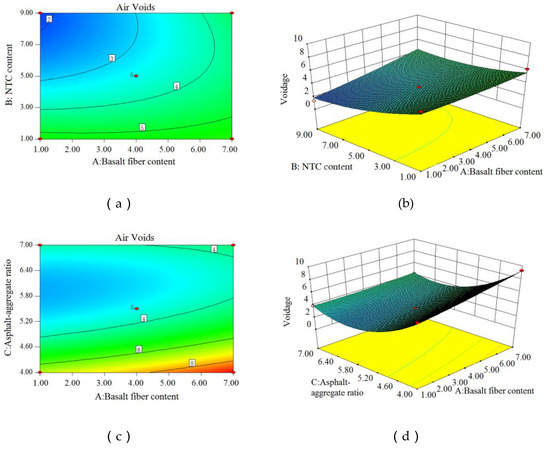

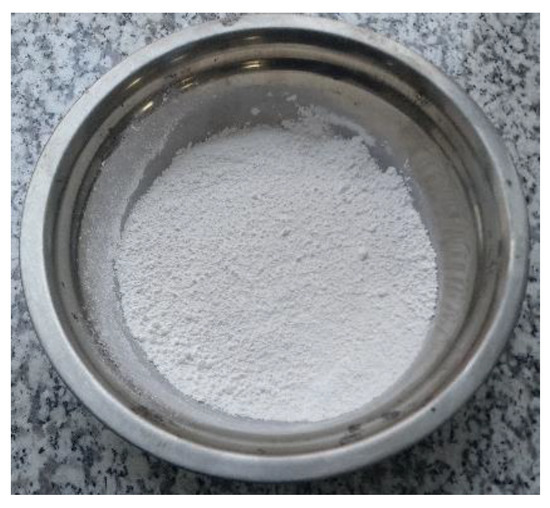

This research optimizes the mix ratio of nano-TiO₂/CaCO₃ (NTC)-basalt fiber (BF) composite modified asphalt mixture. Based on the Box–Behnken method and the response surface method, a three-factor and three-level test was designed. The input indicators were the asphalt–aggregate ratio, NTC content, and BF content. The output indicators were the density, air voids, Marshall stability, flow value, voids in mineral aggregate (VMA), and voids filled with asphalt (VFA) values of the asphalt mixture. The response surface model was established according to the test response index value. Then, the function was fitted through multiple regression equations and multivariate analysis of variance was performed. Finally, according to the specification requirements and engineering needs, the selected conditions of each response value were determined to optimize the asphalt–aggregate ratio and the contents of NTC and BF, and the predicted values were verified through the measured data. The test results show that the optimal contents of NTC and BF and the optimal asphalt–aggregate ratio were 5.1%, 3.9%, and 5.67%, respectively. By comparing the measured Marshall test index value with the predicted value, the minimum relative error was 0.096% and the maximum error was 6.960%. The results show that response surface methodology can be used to optimize the mix ratio of composite modified asphalt mixtures. Full article
