Search Results (8)

In the presented research work, 3D materials were fabricated by additive moulding by means of extrusion of a mixture of high filled polymers and nanopowders of Ti-Al intermetallides with subsequent sintering at 1100 ± 20 °C, 1200 ± 20 °C and 1250 ± 20 °C (MEAM-HP process). Nanopowders of Ti-Al intermetallides were obtained by the electrical explosion of intertwined aluminium and titanium wires. It was found that the structure of the materials comprises an AlTi matrix with Ti₂AlN MAX-phase particles distributed within it, surrounded by a composite layer of Ti₃Al-Ti₂AlN. Sintering temperature increases led to changes in the concentration of TiAl, Ti₃Al and Ti₂AlN phases in the samples. Besides that, aluminium oxide particles were discovered in the structure of the materials. It was found that as the sintering temperature was increased from 1100 ± 20 °C to 1250 ± 20 °C, the average microhardness of the samples increased from 193 to 690 HV_0.1. Full article

The article investigates the effect of temperature and annealing time on the surface quality of WNLV nitrided steel used for the production of dies for extrusion of aluminum alloys. Eight annealing variants were tested, differing in the total annealing time at temperatures of 460 °C and 590 °C. The results show the effect of the annealing time on the width of the diffusion layer, which increased with the increasing length of the annealing time. The hardness decreased as the annealing time increased. It was found that annealing of the steel causes its oxidation. The oxide layer formed consisted of two layers, more specifically, an Fe₂O₃ oxide layer and a lower Fe₃O₄ oxide layer adhering to the steel surface. The surface of sections pressed on oxidized matrices was tested. The roughness of the surface of the oxide layers was also tested. The research revealed that an increase in the surface roughness of the oxides deposited on the matrices causes an increase in the roughness of the extruded sections. These results can potentially be used to improve the efficiency of the extrusion process and the quality of the extruded sections. Full article

The low-density polyethylene (LDPE)/aluminium mix obtained after the recovery of cellulose from multilayer aseptic packaging used in the food and beverage industry is generally destined for energy recovery. In this work we propose it as a matrix for value-added composite materials. A commercially available material (EcoAllene) obtained from multilayer packaging recycling was reinforced with short natural basalt fibres up to 30 wt.% by twin screw extrusion, aiming at improving the mechanical profile of such material and widening its applications. Thermal characterizations by thermogravimetric analysis and differential scanning calorimetry showed that the material is indeed a complex mixture of LDPE, HDPE, PP, and aluminium. Basalt fibres did not modify the melting and crystallization profile as well as the global degradation behaviour. Composites were then subjected to tensile, bending, Charpy impact tests and the fracture surfaces were investigated by scanning electron microscopy. Results highlighted a beneficial effect of basalt fibres to stiffness and strength in both loading conditions, with improvements by 107% and 162% for tensile and bending strength, respectively, which were linked also to a 45% enhancement of impact strength. This increased mechanical performance is promising for their use in automotive interiors and outdoor decking applications. Full article

When extruding the casted rods from EN AW 2011 aluminium alloys, not only their homogenized structure, but also their extrudable properties were significantly influenced by the hardness of the alloy. In this study, the object of investigations was the EN AW 2011 aluminium alloy, and the effect of homogenisation time on hardness was investigated. First, homogenisation was carried out at 520 °C for different times, imitating industrial conditions. After homogenisation, the samples were analysed by hardness measurements and further characterised by microscopy and image analysis to verify the influence of homogenisation on the resulting microstructural constituents. In addition, non-equilibrium solidification was simulated using the program Thermo-Calc and phase formation during solidification was investigated. The homogenisation process enabled more rounded shape of the Al₂Cu eutectic phase, equilibrium formation of the phases, and the precipitation in the matrix, leading to a significant increase in the hardness of the EN AW 2011 aluminium alloy. The experimental data revealed a suitable homogenisation time of 4–6 h at a temperature of 520 °C, enabling optimal extrusion properties. Full article

The design of aluminium–graphite metal matrix composites (MMCs) with advanced mechanical properties and high corrosion resistance is in demand for aerospace, transportation, and industrial applications. Breakthroughs in this field are limited due to the tendency of aluminium–graphite MMCs to corrode. In the present research, aluminium-based MMCs were produced by a relatively novel combined two-staged method. Multiwall carbon nanotubes (MWCNTs) were added into molten Al1070 and processed by high-pressure die casting followed by cyclic extrusion. For the composites produced by this method, it was previously demonstrated that mechanical properties are improved in comparison with pure aluminium alloys. In the current study, the manufactured Al–MWCNT composites were investigated by electrochemical tests (such as open circuit potential), potentiodynamic tests, linear polarization tests, and electrochemical impedance spectra to understand the corrosion resistance of the obtained composite material. The experimental testing of the corrosion resistance of Al–MWCNT MMCs showed that due to the advantages of the fabrication method, the addition of CNTs to aluminium does not cause a radical decrease of corrosion resistance. Full article

Metal–matrix composites (MMC) of aluminium alloy 7075 (AA7075) containing 1 wt.% and 0.5 wt.% multiwall carbon nanotubes (MWCNTs) were developed by powder metallurgy, using a high energy ball milling (HEBM) process for dispersion of the MWCNTs. The powder of the AA7075-MWCNT obtained was characterized by X-ray diffraction (XRD) and scanning electron microscopy (SEM). The microstructural changes produced during the milling process, such as the modification of the crystallite size, as well as the micro-deformation of the matrix crystal lattice, were determined using the Scherrer formula. After consolidation into a strip shape using the hot powder extrusion (HPE) process at 500 °C, no porosity was detected and a fine homogeneous dispersion of the reinforcement into the matrix was obtained. After performing a 0.2 HV test and tensile tests in the extruded profiles of both composites, a better combination of properties was found in samples of AA7075-0.5 wt.% MWCNT, with the increase in measured ductility being especially remarkable. Full article

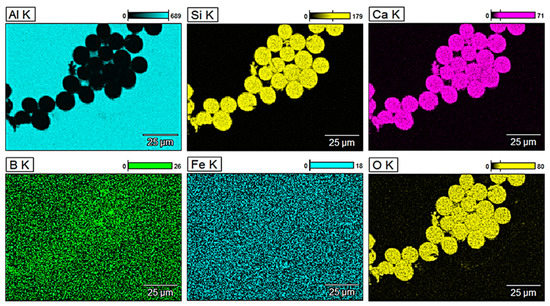

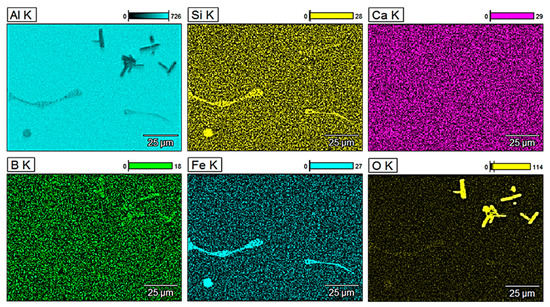

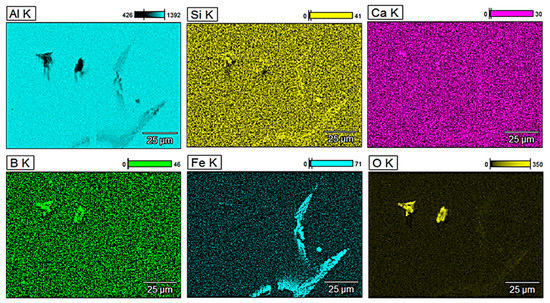

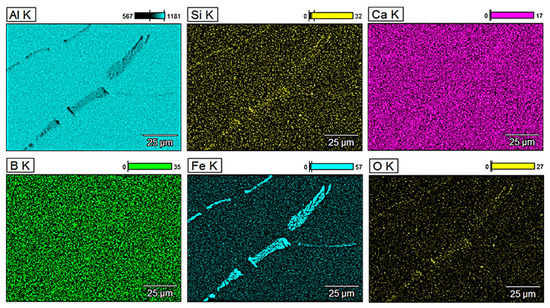

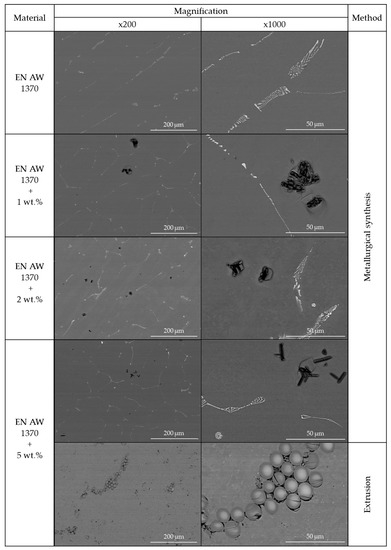

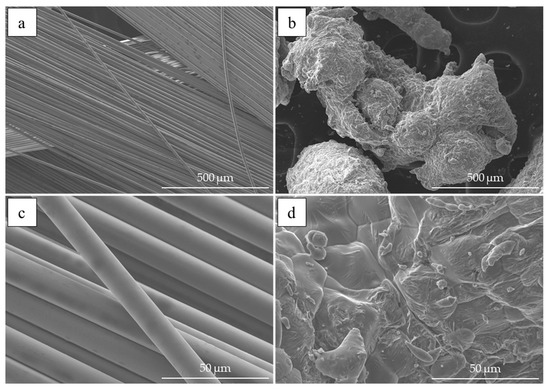

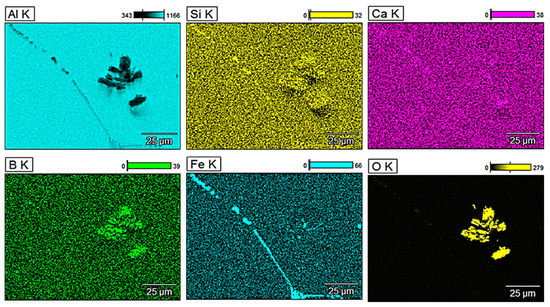

Continuous pressure put on researchers all over the world these days to design materials of improved properties create opportunities to study new methods of production in conjunction with entirely new and innovative materials such as alloys or composites. The authors in the current research manufactured aluminium reinforced with glass fibre (GF) using metallurgical synthesis, which is an unconventional and not sufficiently studied method of production. The composites with 1, 2 and 5 wt.% of glass fibre were produced with additional material obtained using consolidation of aluminium powder in extrusion process as reference material with 5 wt.% of glass fibre. All the materials were subjected to series of tests in order to determine their microstructure, density, electrical properties, hardness and susceptibility to plastic working in the compression test. It was found that glass fibre during metallurgical synthesis of aluminium composite partially melted and thus did not reinforce the material as well as during extrusion, which has been observed not only in the scanning electron microscope (SEM) and energy-dispersive X-ray (EDX) analysis but also in the analysis of macroscopic physical and mechanical properties. Based on the analysed samples, it may be stated that electrical conductivity of the samples obtained via metallurgical synthesis is higher than might be estimated on the basis of the rule of mixtures and glass fibre content and concerning the sample with 5 wt.% of GF is higher (32.1 MS/m) than of the reference material obtained in extrusion process (30.6 MS/m). Similar situation has been observed in terms of hardness of the tested samples where a minor increase in hardness was noticeable as the amount of glass fibre increased in the composites obtained by metallurgical synthesis. It is believed to be related to the melting of glass fibre, which reduced the volume fraction of GF containing mainly silicon oxides and their diffusion into the aluminium matrix, thus causing solid solution strengthening. Full article

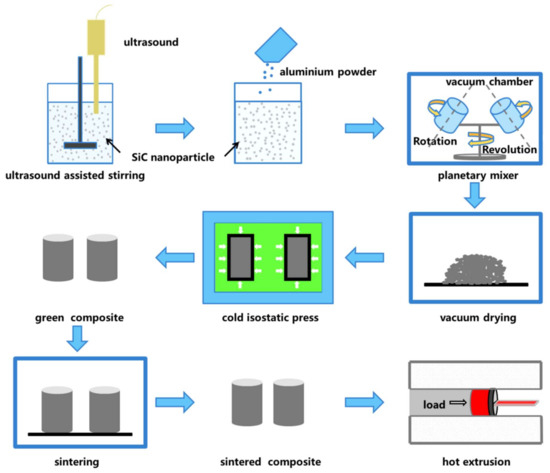

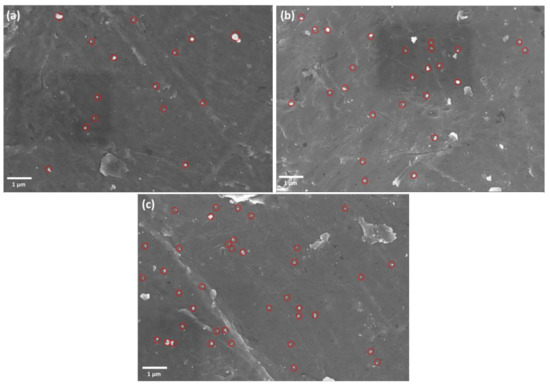

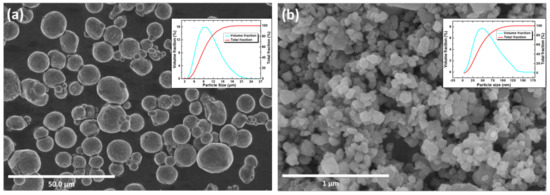

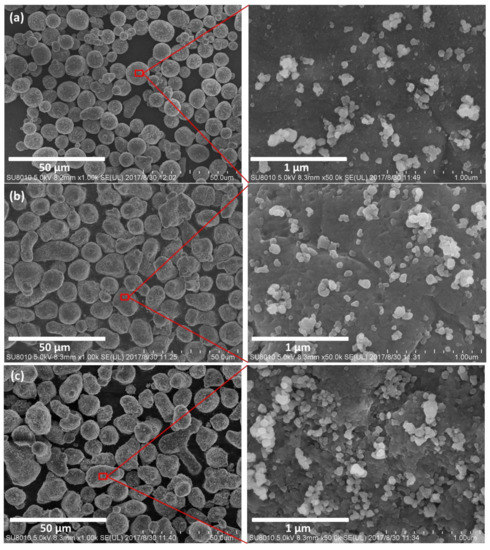

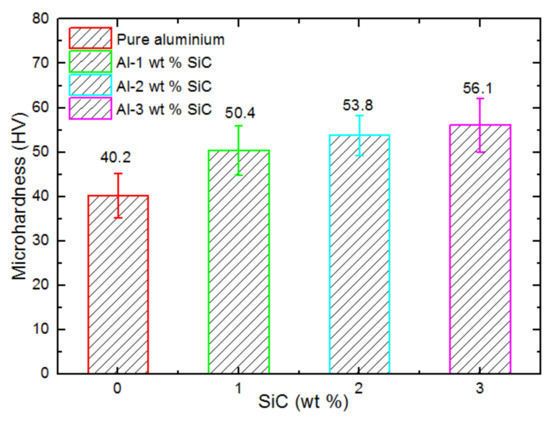

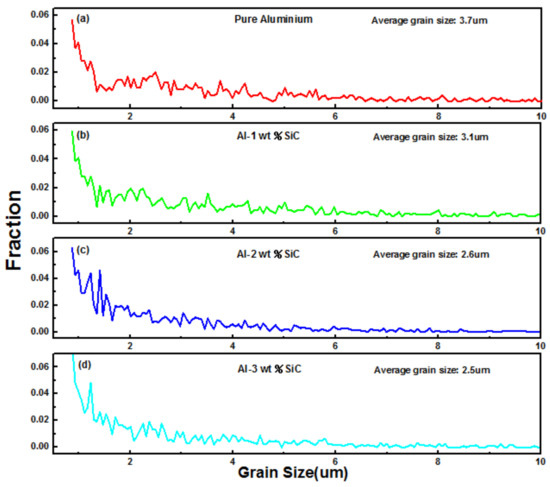

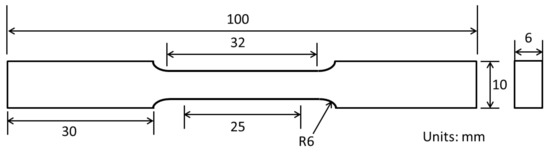

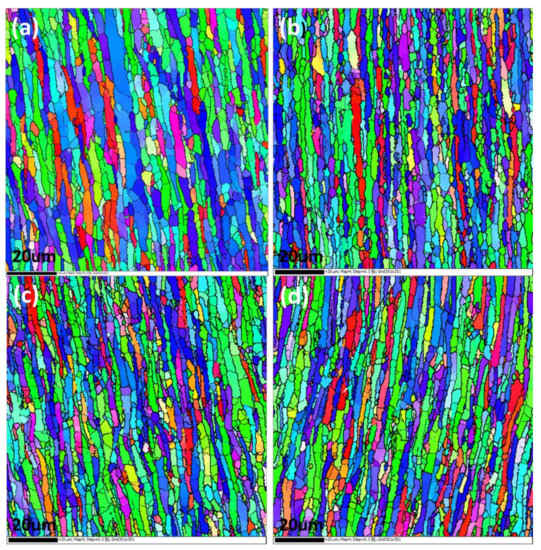

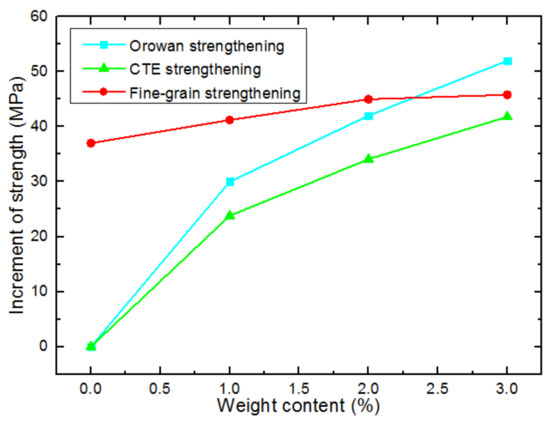

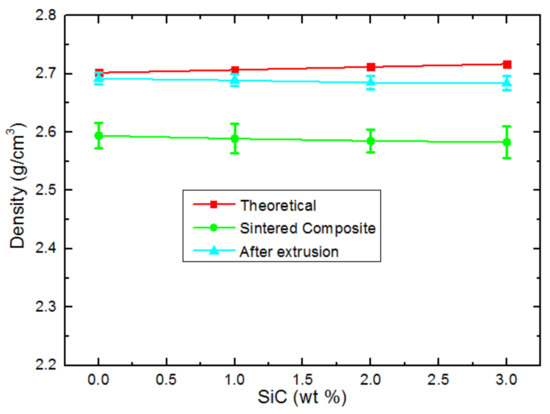

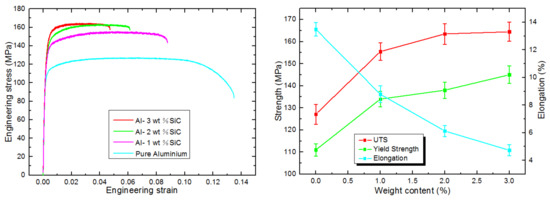

Ceramic nanoparticle-reinforced aluminium metal matrix composites (AMMCs) have superior mechanical properties compared with matrix alloys, exhibiting great potential in structural applications in industries such as the aerospace and automotive sectors. This research proposes a new method for distributing SiC nanoparticles in an aluminium matrix alloy by powder metallurgy. The mixing of aluminium powder and SiC nanoparticles was processed by a two-step procedure, which included ultrasound-assisted stirring and planetary agitation. After that, the mixing powder was subjected to compaction, sintering and extrusion. A blank sample and three composite sheets containing 1, 2 and 3 wt % SiC nanoparticles were prepared and the mechanical properties were investigated by micro-hardness and tensile tests. A scanning electron microscope (SEM) and electron back-scattered diffraction (EBSD) were used for microstructural analysis of the composite. Experimental results revealed that by adding 1, 2, 3 wt % SiC nanoparticles, hardness was increased by 26%, 34.5%, 40.0% and tensile strength was increased by 22.3%, 28.6% and 29.3%, respectively. The grain size of the aluminium matrix decreased with the addition of SiC nanoparticles. Moreover, a decrease of elongation was observed with the increasing weight fraction of SiC. Full article
