Search Results (7)

There is a growing trend in incorporating biomass-based engineered nanomaterials into food products to enhance their quality and functionality. The zeta potential, droplet size, microstructure, and content of free fatty acid (FFA) release were determined to investigate the influence of a plant-derived particle stabilizer, i.e., lignin-containing cellulose nanofibrils (LCNFs). Remarkable differences were observed during digestion stages, which were found to be correlated with the concentrations of LCNFs. The gradual FFA release in the small intestine stage from LCNF-coated lipid droplets was monitored over time, with a final lowest release of FFAs amounting to 26.3% in the emulsion containing 20.0% (v/v) of the dispersed phase stabilized by 3 mg/mL of LCNFs. This release can be attributed to the physical barrier at lipid droplet surfaces and the network effect created by the free LCNFs in the continuous phase. This work provides a foundation for the potential application of nature-derived LCNF materials in reducing fat absorbance. Full article

Lignin-containing cellulose nanofibrils (LCNFs) are mainly produced commercially from treated wood pulp, which can decrease some of the carbon-negative benefits of utilizing biomass feedstock. In this work, LCNFs are prepared from non-wood feedstocks, including agricultural residues such as hemp, wheat straw, and flax. These feedstocks allowed for the preparation of LCNFs with a variety of properties, including tailored hydrophobicity. The feedstocks and their subsequent LCNFs are extensively characterized to determine the roles that feedstocks play on the morphology and properties of their resultant LCNFs. The LCNFs were then incorporated into paper handsheets to study their usefulness in papermaking applications, which indicated good potential for the use of wheat straw LCNFs as a surface additive to improve the oil resistance coating. Full article

Lignin-containing cellulose nanofibrils (LCNFs) have emerged as a new class of nanocelluloses where the presence of residual lignin is expected to impart additional attributes such as hydrophobicity or UV-absorption. In the present work, LCNFs with a lignin content between 7 and 15 wt% were prepared via a TEMPO-mediated oxidation as chemical pretreatment followed by high-pressure homogenization. The impact of the carboxyl content (CC) on the properties of the resulting LCNF gel, in terms of lignin content, colloidal properties, morphology, crystallinity, and thermal stability, were investigated. It was found that lignin content was significantly decreased at increasing CC. In addition, CC had a positive effect on colloidal stability and water contact angle, as well as resulting in smaller fibrils. This lower size, together with the lower lignin content, resulted in a slightly lower thermal stability. The reinforcing potential of the LCNFs when incorporated into a ductile polymer matrix was also explored by preparing nanocomposite films with different LCNF contents that were mechanically tested under linear and non-linear regimes by dynamic mechanical analysis (DMA) and tensile tests. For comparison purposes, the reinforcing effect of the LCNFs with lignin-free CNFs was also reported based on literature data. It was found that lignin hinders the network-forming capacity of LCNFs, as literature data shows a higher reinforcing potential of lignin-free CNFs. Nonetheless, the tensile strength of the acrylic matrix was enhanced by 10-fold at 10 wt% of LCNF content. Full article

New methods of oil-water separation are needed as industrialization has increased the prevalence of oil-water mixtures on Earth. As an abundant and renewable resource with high oxygen and grease barrier properties, mechanically refined cellulose nanofibrils (CNFs) may have promising applications for oil-water separations. The unbleached form of these nanofibrils, lignin-containing CNFs (LCNFs), have also been found to display extraordinary barrier properties and are more environmentally friendly and cost-effective than CNFs. Herein, both wet and dry LCNF-modified filter papers have been developed by coating commercial filter paper with an LCNF suspension utilizing vacuum filtration. The LCNF-modified filters were tested for effectiveness in separating oil-water emulsions, and a positive relationship was discovered between a filter’s LCNF coat weight and its oil collection capabilities. The filtration time was also analyzed for various coat weights, revealing a trend of high flux for low LCNF coat weights giving-way-to predictions of a coat weight upper limit. Additionally, it was found that wet filters tend to have higher flux values and oil separation efficiency values than dry filters of the same LCNF coat weight. Results confirm that the addition of LCNF to commercial filter papers has the potential to be used in oil-water separation. Full article

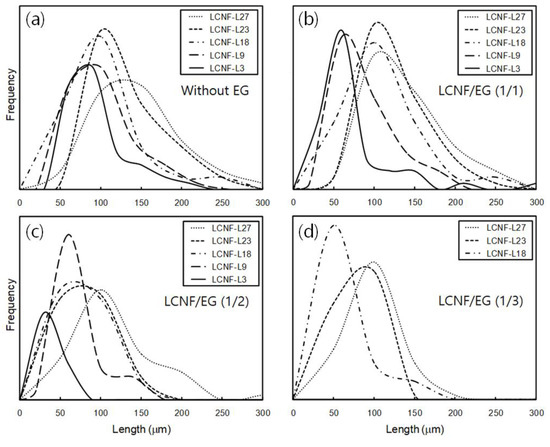

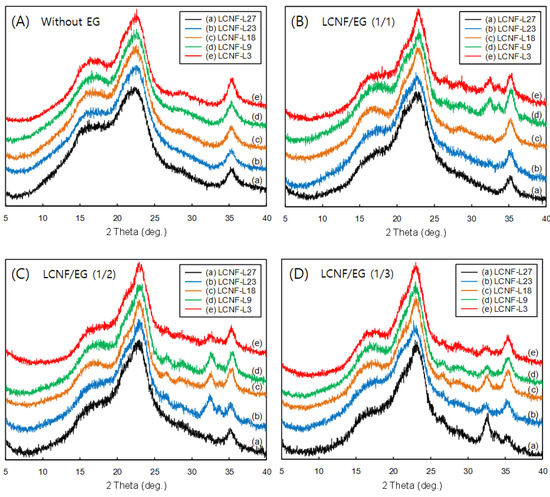

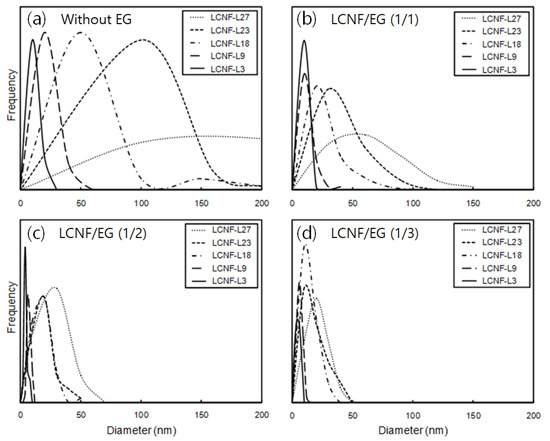

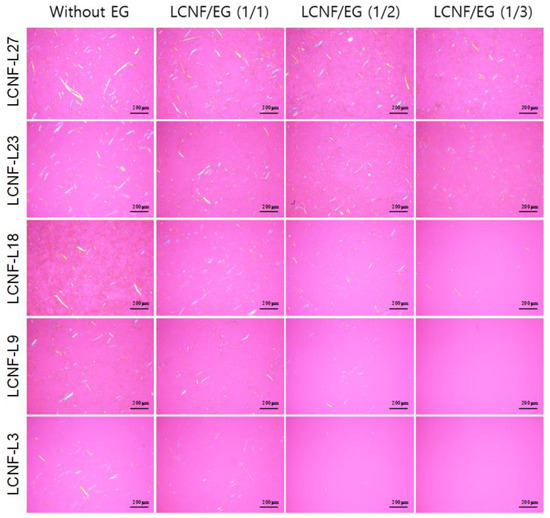

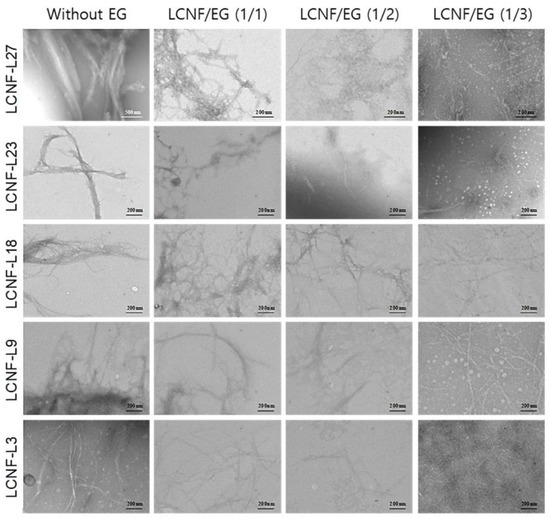

Changes in the dimensions of lignocellulose nanofibrils (LCNFs) with different lignin contents from betung bamboo (Dendrocalamus asper) by enzymatic hydrolysis using endoglucanase (EG) were investigated. Lignin contents were adjusted from 3% to 27% by NaClO₂/acetic acid treatment, and LCNFs were prepared using a wet disk-mill (WDM). The dimensions of the LCNFs significantly decreased with decreasing lignin content and increasing EG addition. With increasing EG content, the average diameter of the LCNFs significantly decreased, even though they contained parts of hemicellulose and lignin. The crystal structure showed the typical cellulose I structure in all samples, but the intensity of the diffraction peak slightly changed depending on the lignin and EG contents. The crystallinity index (CrI) values of the LCNFs increased a maximum of 23.8% (LCNF-L27) under increasing EG addition, regardless of the lignin content. With the EG addition of three times the LCNF amount, LCNF-L3 showed the highest CrI value (59.1%). By controlling the composition and structure of LCNFs, it is expected that the wide range of properties of these materials can extend the property range available for existing materials. Full article

Environmental and health concerns are driving the need for new materials in food packaging to replace poly- or perfluorinated compounds, aluminum layers, and petroleum-based polymers. Cellulose nanofibrils (CNF) have been shown by a number of groups to form excellent barrier layers to oxygen and grease. However, the influence of lignin-containing cellulose nanofibrils (LCNF) on film barrier properties has not been well reported. Herein, thin films (16 g/m²) from LCNF and CNF were formed on paper substrates through a filtration technique that should mimic the addition of material at the wet end of a paper machine. Surface, barrier and mechanical attributes of these samples were characterized. The analysis on the surface free energy and water contact angle pointed to the positive role of lignin distribution in inducing a certain degree of water repellency. The observed oxygen transmission rate (OTR) and water vapor permeability (WVP) values of LCNF-coated samples were nearly similar to those with CNF. However, the presence of lignin improved the oil proof performance; these layered designs exhibited an excellent resistance to grease (kit No. 12). The attained papers with LCNF coat were formed into bowl-like containers using metal molds and a facile oven drying protocol to evaluate their resistance to oil penetration over a longer period. The results confirmed the capability of LCNF layer in holding commercially available cooking oils with no evidence of leakage for over five months. Also, an improvement in the tensile strength and elongation at break was observed in the studied papers. Overall, the proposed packaging material possesses viable architecture and can be considered as a fully wood-based alternative for the current fluorocarbon systems. Full article

Poly(lactic acid) (PLA)/lignin-containing cellulose nanofibrils (L-CNFs) composite films with different lignin contents were produced bythe solution casting method. The effect of the lignin content on the mechanical, thermal, and crystallinity properties, and PLA/LCNFs interfacial adhesion wereinvestigated by tensile tests, thermogravimetric analysis, differential scanning calorimetry (DSC), dynamic mechanical analysis, Fourier transform infrared spectroscopy (FTIR), and scanning electron microscopy (SEM). The tensile strength and modulus of the PLA/9-LCNFs (9 wt % lignin LCNFs) composites are 37% and 61% higher than those of pure PLA, respectively. The glass transition temperature (T_g) decreases from 61.2 for pure PLA to 52.6 °C for the PLA/14-LCNFs (14 wt % lignin LCNFs) composite, and the composites have higher thermal stability below 380 °C than pure PLA. The DSC results indicate that the LCNFs, containing different lignin contents, act as a nucleating agent to increase the degree of crystallinity of PLA. The effect of the LCNFs lignin content on the PLA/LCNFs compatibility/adhesion was confirmed by the FTIR, SEM, and T_g results. Increasing the LCNFs lignin content increases the storage modulus of the PLA/LCNFs composites to a maximum for the PLA/9-LCNFs composite. This study shows that the lignin content has a considerable effect on the strength and flexibility of PLA/LCNFs composites. Full article
