Search Results (49)

This study evaluates the effects of three mechanical pre-treatment methods on S235JRG2 steel sheets: blasting with a synthetic corundum (F40), blasting with steel shot (S170), and grinding with synthetic corundum (P40). Untreated samples served as a reference. The analysis of mechanical pre-treatments focused on surface integrity, including measurements of surface roughness parameters Ra and Rz (ISO 21920-2) and subsurface microhardness (ISO 6507-1). Zinc coatings were assessed through mechanical testing (cupping test, ISO 1520) and corrosion testing in a neutral salt spray environment (ISO 9227), with results evaluated using digital image analysis. Experimental findings indicate that electroplated zinc deposition rates are influenced by surface roughness, while subsurface microhardness has no significant effect. In contrast, for hot-dip galvanizing, both parameters impact the process. The mechanical properties of electroplated zinc coatings are further affected by steel surface integrity, whereas hot-dip zinc coatings are primarily governed by intermetallic phase formation, making the influence of steel surface integrity statistically negligible. Corrosion testing revealed that blasting with a synthetic corundum is particularly unsuitable, as it leads to numerous inhomogeneities in both coating types, accelerating corrosion degradation. Full article

Surface quality control of hot-dip galvanized sheets is a critical research topic in the metallurgical industry. Zinc dross, the most common surface defect in the hot-dip galvanizing process, significantly affects the sheet’s service performance. In this manuscript, a novel magnetic flux leakage (MFL) detection method was proposed to detect zinc dross defects on the surface of hot-dip galvanized steel sheets. Instead of using exciting coils in traditional methods, a tiny permanent magnet with a millimeter magnitude was employed to reduce the size and weight of the equipment. Additionally, a high-precision tunnel magnetoresistance (TMR) sensor with a sensitivity of 300 mV/V/Oe was selected to achieve higher detection accuracy. The experimental setup was established, and the x-axis direction (sample movement direction) was determined as the best measurement axis by vector analysis through experiments and numerical simulation. The detection results indicate that this novel MFL detection method could detect industrial zinc dross with an equivalent size of 400 μm, with high signal repeatability and signal-to-noise ratio. In the range of 0–1200 mm/s, the detection speed has almost no effect on the measurement signal, which indicates that this novel method has higher adaptability to various conditions. The multi-path scanning method with a single probe was used to simulate the array measurement to detect a rectangular area of 30 × 60 mm. Ten zinc dross defects were detected across eight measurement paths with 4 mm intervals, and the positions of these zinc dross defects were successfully reconstructed. The research results indicate that this novel MFL detection method is simple and feasible. Furthermore, the implementation of array measurements provides valuable guidance for subsequent in-depth research and potential industrial applications in the future. Full article

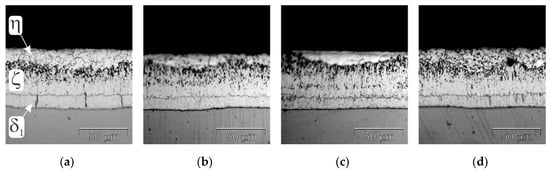

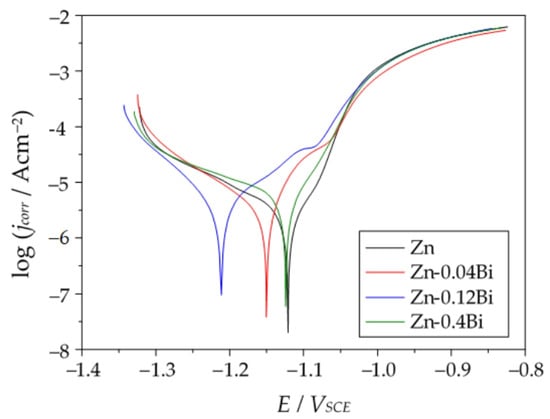

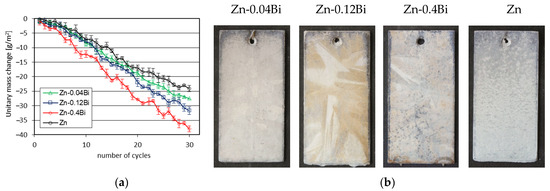

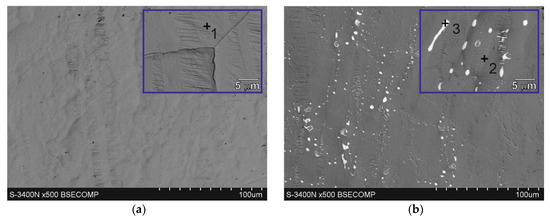

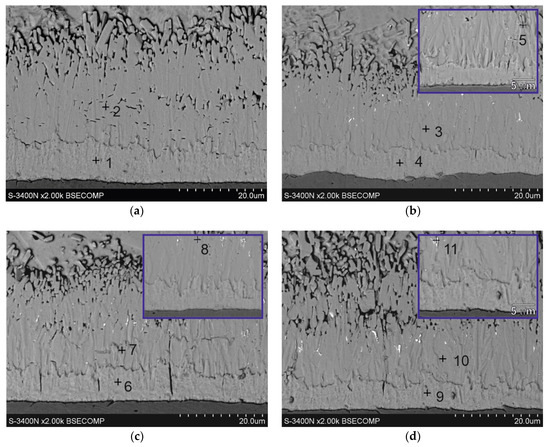

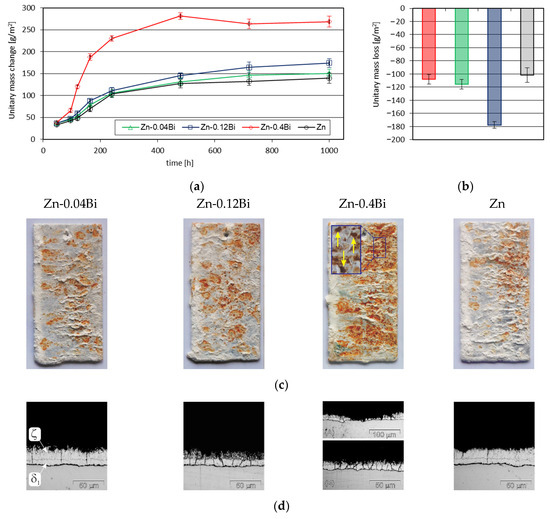

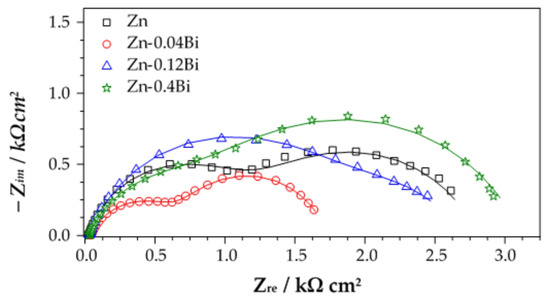

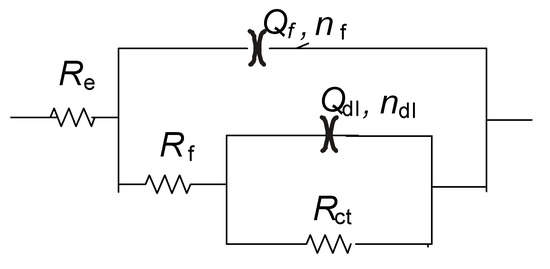

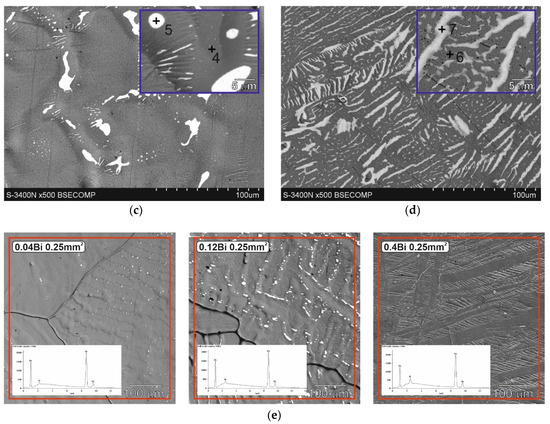

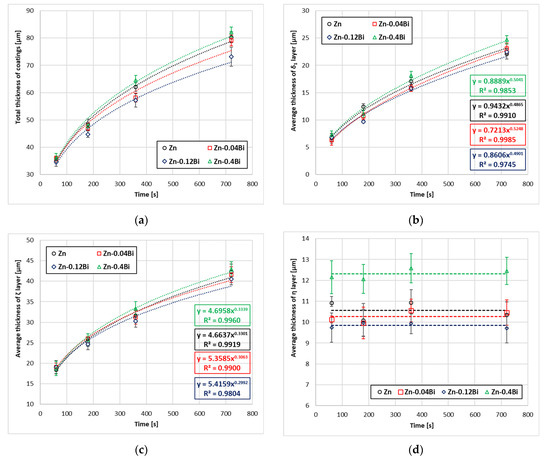

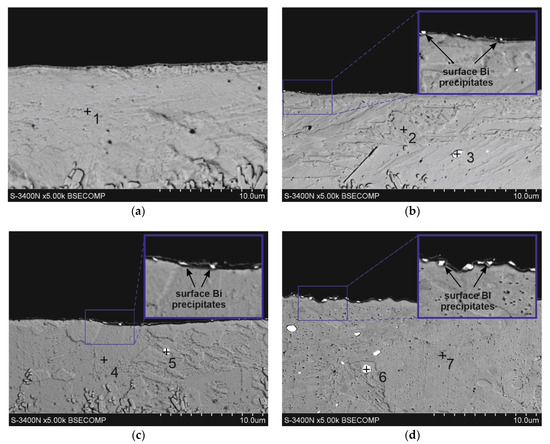

This paper presents the results of studies on the growth kinetics, microstructure (SEM/EDS) and corrosion behavior of coatings obtained by hot-dip galvanizing process in baths containing Bi additive. The coatings for testing were produced on low-silicon steel in a Zn bath containing 0.04, 0.12 and 0.4 wt.% Bi. The corrosion resistance of the coatings was determined comparatively in standard Neutral Salt Spray Tests (NSST) (ISO 9227) and sulfur dioxide test (SDT) in a humid atmosphere (ISO 22479). Potentiodynamic tests and electrochemical impedance spectroscopy measurements were conducted. It was found that the addition of 0.04 and 0.12 wt.% Bi reduces the total thickness of the coatings and the thickness of intermetallic layers, while the content of 0.4 wt.% Bi in the bath increases the thickness of the layers forming the coating. Direct corrosion tests (NSST and SDT) and electrochemical tests showed that the addition of Bi to the zinc bath reduces the corrosion resistance of the coatings. The corrosion resistance of the coatings decreases with increasing Bi concentration in the zinc bath. In the microstructure of the coatings, it was found that Bi precipitates mainly on the surface of the coating, but also on the cross-section of the outer layer and ζ intermetallic layer. Bi precipitates, due to their cathodic nature, affect the reduction of the corrosion resistance of the coatings with the increase of their content in the bath. Full article

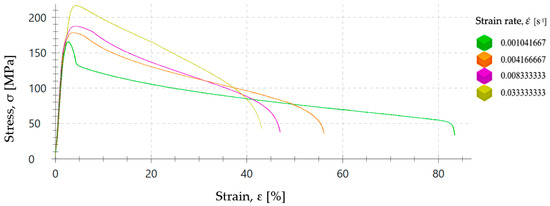

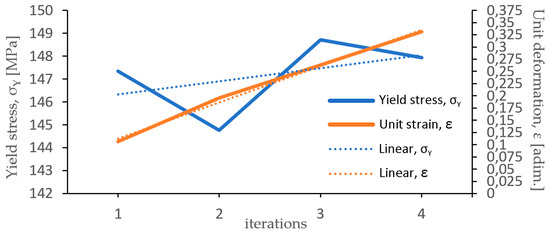

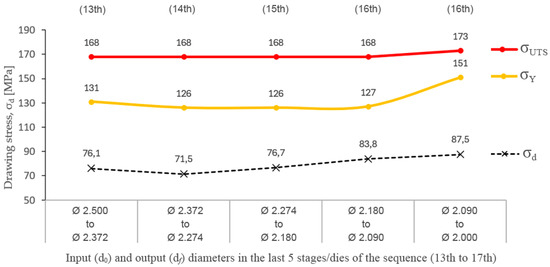

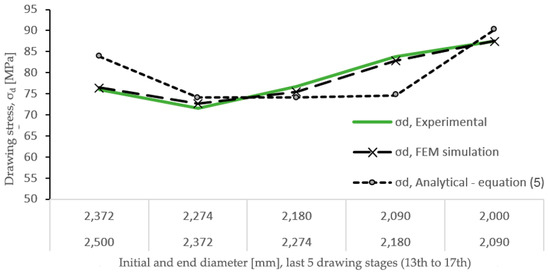

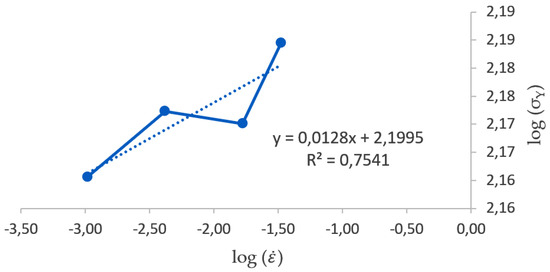

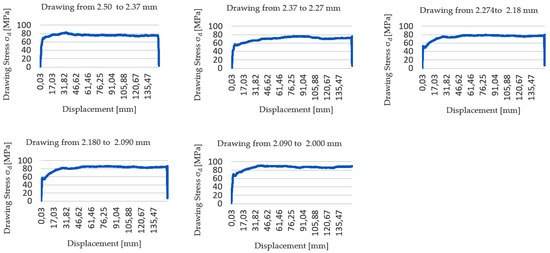

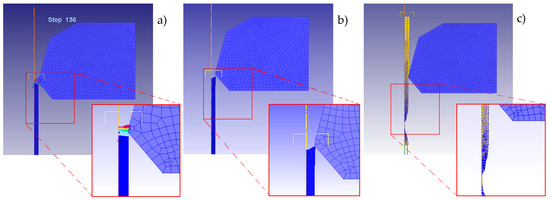

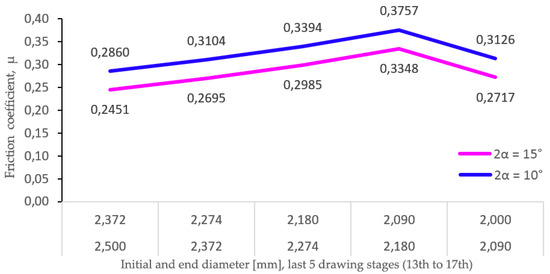

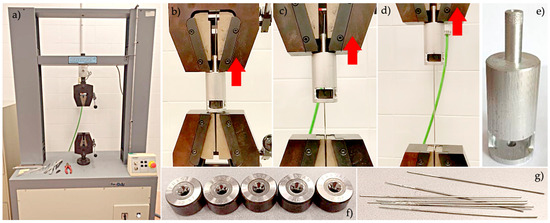

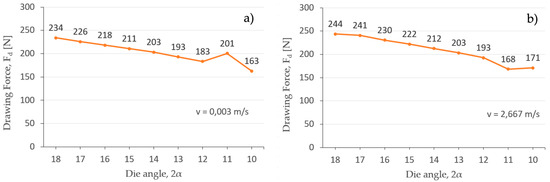

Metallization, a process for applying anti-corrosion coatings, has advantages over hot-dip galvanizing, such as reduced thermal stress and the ability to work “in situ”. This process consists of the projection of a protective metal as coating from a wire as application material, and this wire is obtained by multi-stage wiredrawing. For the metallization process, a zinc–aluminum alloy wire obtained by this process is used. This industrial process requires multiple stages/dies of diameter reduction, and determining the optimal sequence is complex. Thus, this work focuses on developing models with the aim of designing and optimizing the wiredrawing process of zinc–aluminum (ZnAl) alloys, specifically ZnAl15%, used for anti-corrosion applications. Both analytical models and numerical models based on the finite element method (FEM) and implemented by computer-aided engineering (CAE) software Deform 2D/3D v.12, enabled the prediction of the drawing stress and drawing force in each drawing stage, producing values consistent with experimental measurements. Key findings include the modeling of the material behavior when ZnAl15% wires were subjected to the tensile test at different speeds, with strain rate sensitivity coefficient m = 0.0128, demonstrating that this type of alloy is especially sensitive to the strain rate. In addition, the optimal friction coefficient (µ) for the drawing process of this material was experimentally identified as µ = 0.28, the ideal drawing die angle was determined to be 2α = 10°, and the alloy’s deformability limit has been established by a reduction ratio r ≤ 22.5%, which indicates good plastic deformation capacity. The experimental results confirmed that the development of the proposed models can be feasible to facilitate the design and optimization of industrial processes, improving the efficiency and quality of ZnAl15% alloy wire production. Full article

This article presents the results of research on the growth kinetics, microstructure (SEM/EDS/XRD), and corrosion behavior of Zn-5Al coatings obtained using a high-temperature hot dip process on B500B reinforcing steel. The corrosion resistance of the coatings was determined using the neutral salt spray (NSS) test (EN ISO 9227). Based on chemical composition tests in micro-areas (EDS) and phase composition tests (XRD), corrosion products formed on the coating surface after exposure to a corrosive environment containing chlorides were identified. In the outer layer of the coating, areas rich in Zn and Al were found, which were solid solutions of Al in Zn (α), while the diffusion layer was formed by a layer of Fe(Al,Zn)₃ intermetallics. The growth kinetics of the coatings indicate the sequential growth of the diffusion layer, controlled by diffusion in the initial phase of growth, and the formation of a periodic layered structure with a longer immersion time. The NSS test showed an improved corrosion resistance of reinforcing bars with Zn-5Al coatings compared to a conventional hot-dip-galvanized zinc coating. The increase in corrosion resistance was caused by the formation of beneficial corrosion products: layered double hydroxides (LDH) based on Zn²⁺ and Al³⁺ cations and Cl⁻ anions and simonkolleite—Zn₅(OH)₈Cl₂·H₂O. Full article

This article presents the improved properties of GI (hot-dip galvanized) steel plates in combination with a special permanent surface treatment. The substrate used was hot-dip galvanized deep-drawn steel sheets of grade DX56D + Z. Subsequently, various surface treatments were applied to their surface. The coefficient of friction of the metal sheets without surface treatment, with a temporary surface treatment called passivation, and a thin organic coating (TOC) based on hydroxyl resins dissolved in water, Ti and Cr³⁺ were determined by a cup test. The surface quality and corrosion resistance of all tested samples were also determined by exposing them for up to 288 h in an atmosphere of neutral salt spray. The surface microgeometry parameters Ra, RPc and Rz(I), which have a significant influence on the pressing process itself, were also determined. The TOC deposited on the Zn substrate was the only one to exhibit excellent lubrication and anticorrosion properties, resulting in the lowest surface microgeometry values owing to the uniform and continuous layer of the thin organic coating compared to the GI substrate and passivation surface treatment, respectively. Full article

Traditional methods for assessing the cleanliness of liquid metal are characterized by prolonged detection times, delays, and susceptibility to variations in sampling conditions. To address these limitations, an online cleanliness-analyzing system grounded in the method of the electrical sensing zone has been developed. This system facilitates real-time, in situ, and quantitative analysis of inclusion size and amount in liquid metal. Comprising pneumatic, embedded, and host computer modules, the system supports the continuous, online evaluation of metal cleanliness across various metallurgical processes in high-temperature environments. Tests conducted with gallium liquid at 90 °C and aluminum melt at 800 °C have validated the system’s ability to precisely and quantitatively detect inclusions in molten metal in real time. The detection procedure is stable and reliable, offering immediate data feedback that effectively captures fluctuations in inclusion amount, thereby meeting the metallurgical industry’s demand for real-time analyzing and control of inclusion cleanliness in liquid metal. Additionally, the system was used to analyze inclusion size distribution during the hot-dip galvanizing process. At a zinc melt temperature of 500 °C, it achieved a detection limit of 21 μm, simultaneously providing real-time data on the size and amount distribution of inclusions. This represents a novel strategy for the online monitoring and quality control of zinc slag throughout the hot-dip galvanizing process. Full article

The corrosion of steel materials has become a global issue, causing significant socio-economic losses and safety concerns. Hot-dip galvanizing is currently one of the most widely used steel anti-corrosion processes. With the rapid advancement of science and technology and emerging industries, the performance of pure galvanized products struggles to meet the demands of practical applications in various environments. Consequently, researchers have begun introducing various metals into the zinc solution to form high-performance alloy coatings. This article primarily explains the process flow of hot-dip galvanizing and the impact of metal elements such as Al, Mg, Sn, and Bi on the coating, as well as outlining the major issues currently faced by the hot-dip galvanizing process. The objective is to offer a more comprehensive introduction to those new to the field of hot-dip galvanizing and to provide theoretical insights for addressing production issues. Full article

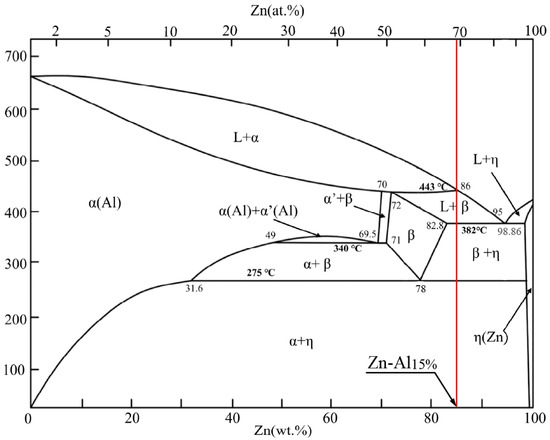

The liquid phase projection diagram, three-dimensional phase diagram, and vertical section diagram of the Zn–x%Al–x%Mg alloy system was calculated using the phase diagram calculation software Pandat. Simultaneously making full use of the self-developed hot-dip galvanizing process simulation machine by China Steel Research produced a 75%Zn–19%Al–6%Mg coating. A method combining phase diagram calculations and experimental verification was used to investigate the equilibrium phases and solidification process of the alloy. The microstructure of the 75%Zn–19%Al–6%Mg coating was studied using scanning electron microscopy and energy dispersive spectrometry. The results indicate that the coating structure consists of primary Al dendrite phase, MgZn₂ inter-metallic compound and Zn-rich phase. There is no ternary eutectic structure in the coating structure. Al dendrites grow on the surface of the coating, while there are no Al dendrites on the cross-section. The experimental results strongly concur with the calculated results from the Pandat phase diagram. The solidification sequence of the 75%Zn–19%Al–6%Mg coating is L→L + Al→L + Al + MgZn₂→Al + MgZn₂ + Zn. The phase diagram guides industrial production significantly, avoiding the waste of transitional materials and zinc caused by small scale trial and error experiments, thus reducing unnecessary production costs. The factory can select a reasonable coating composition designing scheme in the phase diagram, based on the performance requirements of customers for the coating. Full article

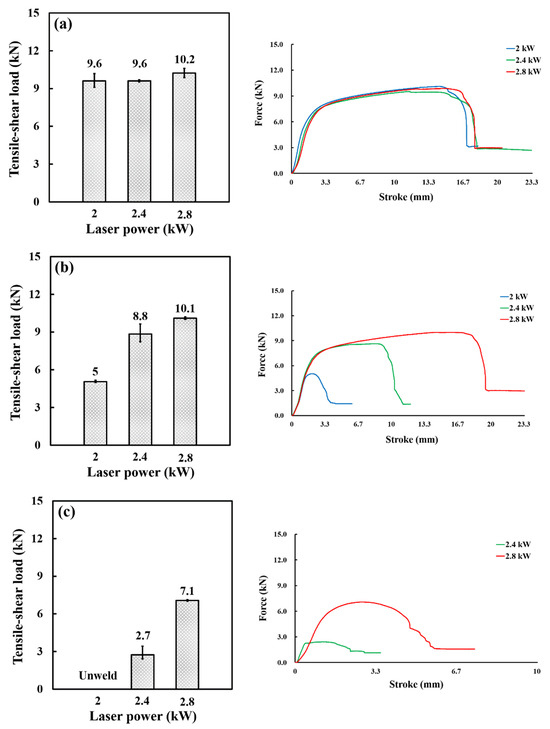

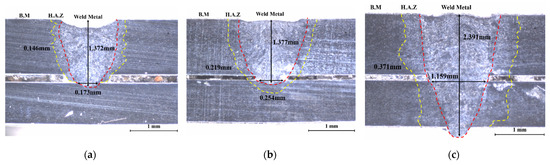

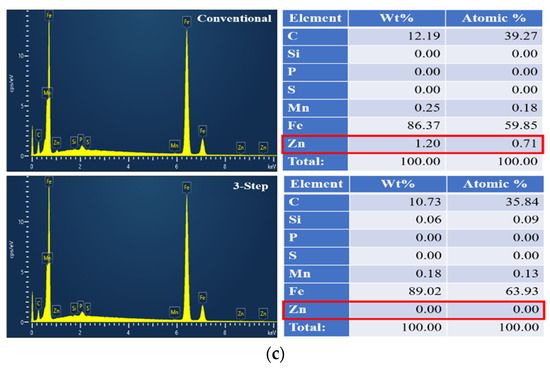

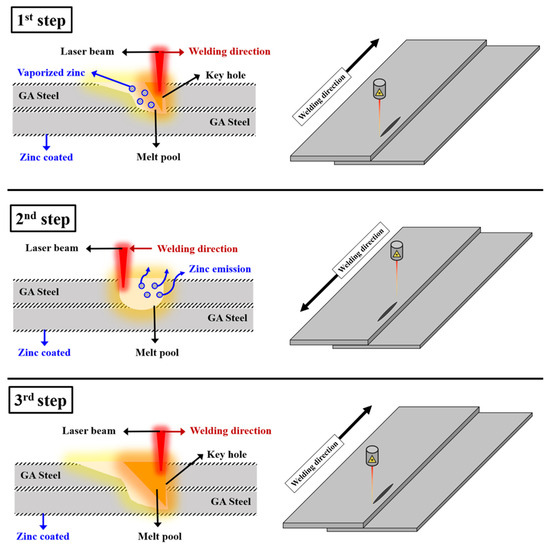

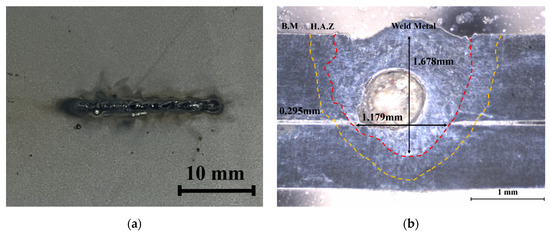

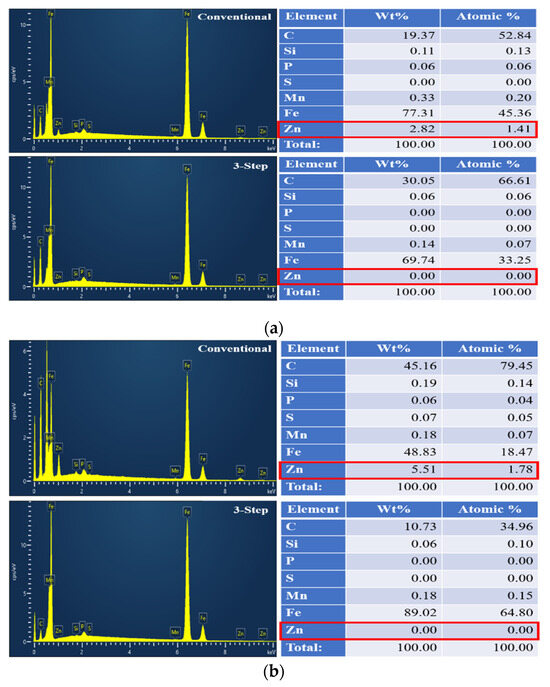

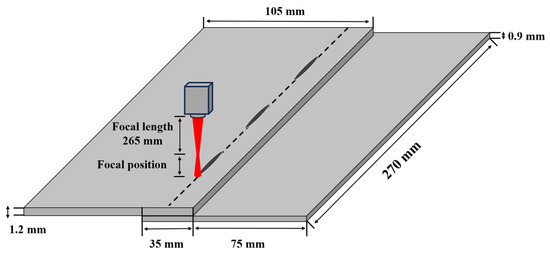

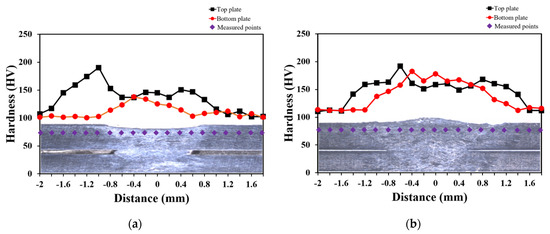

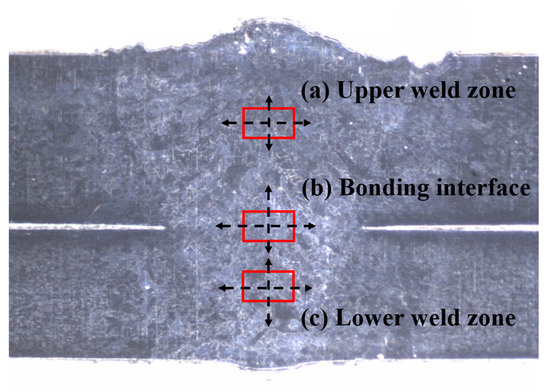

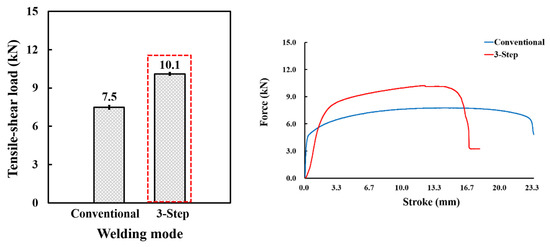

Recently, for the high performance of automobiles, the application ratio of zinc-coated steel sheets with excellent corrosion resistance has been increasing. However, it is difficult to achieve sound welds, as porosities form from zinc during welding. In this study, a laser welding process, with the addition of a pretreatment step to conventional laser welding, was devised to improve weld quality by eliminating pores caused by zinc in the welds. Laser welding was performed on the overlapping joint of hot-dip galvanized steel sheets (SGARC 340, Hyundai Steel., Suncheon-Si, Jeollanam-do, Republic of Korea), with a thickness of 1.2 mm in the upper sheet and 0.9 mm in the lower sheet, and the welding characteristics were investigated by varying the laser power and focal position. Compared to conventional laser welding, the three-step laser stitch welding process significantly reduced the degree of spatter generation and welding defects. Additionally, it increased the tensile–shear load by approximately 37%. Moreover, the reduction in the zinc component of the three-step laser stitch welds was confirmed through SEM-EDS analysis. These findings contribute valuable information for securing high-quality welding joints and effectively addressing zinc-coated steel sheet welding quality issues in the automotive and industrial sectors. Full article

Alloy coatings protect steel from corrosion in various applications. We investigated the effects of Si addition on the microstructure, electrochemical behavior, and corrosion resistance of steel sheets coated with a hot-dip Zn–Mg–Al–Si alloy using a batch-type galvanization process. Microstructural analysis revealed that the Zn–Al–Mg alloy coating layer contained a significant amount of Fe that diffused from the substrate, leading to delamination due to the formation of brittle Fe–Zn intermetallic compounds. However, the introduction of Si resulted in the formation of a stable Fe₂Al₃Si inhibition layer at the substrate–coating interface; this layer prevented interdiffusion of Fe as well as enhanced the coating adhesion. Additionally, the formation of acicular Mg₂Si phases on the coating surface improved the surface roughness. As the Si content increased, the corrosion resistance of the coating improved. Specifically, the Zn–Al–Mg coating layer with 0.5 wt.% Si exhibited excellent anti-corrosion performance, without red rust formation on its surface even after 2600 h, during a salt spray test. Full article

During hot-dip galvanization, wastes such as bottom dross, zinc ash, spent pre-treatment solutions, and galvanizing flue dust (GFD) are generated. In scientific publications, research devoted to GFD waste recycling is absent, and companies generating this waste require a solution to this complex problem. GFD is often landfilled in hazardous waste landfills. However, it is possible to process this waste hydrometallurgically, where GFD is first leached, the solution is refined, and finally, zinc metal is obtained by electrowinning. During specific environmentally friendly leaching, not all solid GFD is dissolved, and the aim of this study is to process the remaining solid GFD residue. The analysis shows that the GFD residue material mainly contains zinc (42.46%) in the form of oxides, but there is also a small amount of polluting elements such as Al, Fe, and Pb. This study examines the leaching of the samples in HCl and H₂SO₄ under different conditions with the aim of obtaining a solution with a high concentration and high leaching efficiency of zinc. The L/S ratio of 3, 4 M H₂SO_4, and ambient temperature proved to be optimal for the leaching of the GFD residue, where 96.24% of zinc was leached out, which represents a zinc concentration of 136.532 g/L. Full article

Hot-dip galvanized components offer a great potential for corrosion protection of up to 100 years, while laser beam welding in vacuum (LaVa) has the advantage of high penetration depths Combined, this process chain can be economically used in steel construction of bridges, wind turbines, or other steel constructions. Therefore, investigations of butt joint welding of galvanized 20 mm thick S355M steel plates using LaVa were carried out. The butt joints were prepared under different cutting edges such as flame-cut, sawn, and milled edges, and they were studied with and without the zinc layer in the joint gap. For this purpose, the laser parameters such as the beam power, welding speed, focus position, and working pressure all varied, as did the oscillation parameters. The welds performed using an infinity oscillation with an amplitude of 5 mm represented a pore-free weld up to a zinc layer thickness of 400 µm in the joint gap. The seam undercut increased with increasing the zinc layer thickness in the joint gap, which can be explained by the evaporating zinc and consequently the missing material, since no filler material was used. The joint welds with zinc only on the sheet surface achieved a sufficient weld quality without pores. Full article

The elimination and retrieval of slag produced during the hot-dip galvanizing process are crucial in reducing plating defects and enhancing economic efficiency. Hot-dip galvanizing slag can be separated and purified efficiently by using graphite carbon felt filtration in a supergravity field. The effects of the gravity coefficient (G), separation temperature (T), and separation time (t) on the separation efficiency were investigated. Under the optimal conditions as G = 300, T = 460 °C, and t = 120 s, these conditions yielded filtered zinc with 0.022 wt% Fe and 1.097 wt% Al. The separation efficiencies achieved were 87% for the acquisition ratio of filtered zinc (A_Zn), 93.67% for the recovery ratio of zinc (R_Zn), and 96.01% for the loss ratio of iron (L_Fe). Based on these laboratory findings, an amplified centrifugal separation apparatus was conceptually designed for future online separation and recycle of zinc slag on an engineering scale. The filtered zinc obtained from this apparatus contained 0.027 wt% Fe and 1.844 wt% Al, while the recovery ratio of zinc (R_Zn) and the loss ratio of iron (L_Fe) achieved 85.97% and 95.47%, respectively. Full article

Hot-dip aluminum alloy is widely used in the engineering fields. However, during the aluminum plating process, Fe inevitably enters and reaches a saturation state, which has a significant impact on the corrosion resistance and microstructure of the coating. Currently, adding Si during the hot-dip aluminum process can effectively improve the quality of the coating and inhibit the Fe-Al reaction. To understand the effect of Si content on the microstructure and electrochemical performance of Al-xSi-3.5Fe coating alloys, the microstructure and post-corrosion morphology of the alloys were analyzed using SEM (Scanning Electron Microscope) and XRD (X-ray Diffraction). Through electrochemical tests and complete immersion corrosion experiments, the corrosion resistance of the coating alloys in 3.5 wt.% NaCl was tested and analyzed. The results show that the Al-3.5Fe coating alloy mainly comprises α-Al, Al₃Fe, and Al₆Fe. With the increase in Si addition, the iron-rich phase changes from Al₃Fe and Al₆Fe to Al₈Fe₂Si. When the Si content reaches 4 wt.%, the iron-rich phase is Al₉Fe₂Si₂, and the excess Si forms the eutectic Si phase with the aluminum matrix. Through SKPFM (Scanning Kelvin Probe Force Microscopy) testing, it was determined that the electrode potentials of the alloy phases Al₃Fe, Al₆Fe, Al₈Fe₂Si, Al₉Fe₂Si₂, and eutectic Si phase were higher than that of α-Al, acting as cathode phases to the micro-galvanic cell with the aluminum matrix, and the corrosion form of alloys was mainly galvanic corrosion. With the addition of silicon, the electrode potential of the alloy increased first and then decreased, and the corrosion resistance results were synchronous with it. When the Si content is 10 wt.%, the alloy has the lowest electrode potential and the highest electrochemical activity. Full article
