Search Results (41)

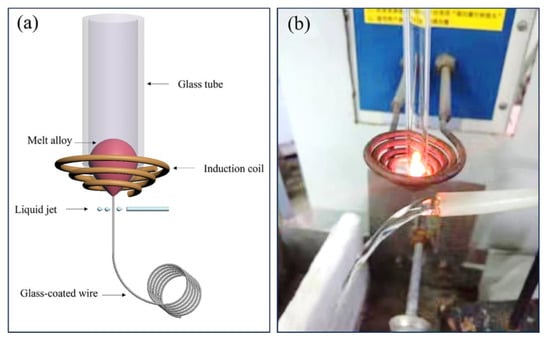

This review article provides an in-depth analysis of recent advancements in the fabrication, structural characterization, and magnetic properties of Heusler alloy glass-coated microwires, focusing on Co₂FeSi alloys. These microwires exhibit unique thermal stability, high Curie temperatures, and tunable magnetic properties, making them suitable for a wide range of applications in spintronics, magnetic sensing, and biomedical engineering. The review emphasizes the influence of geometric parameters, annealing conditions, and compositional variations on the microstructure and magnetic behavior of these materials. Detailed discussions on the Taylor–Ulitovsky fabrication technique, X-ray diffraction (XRD) analysis, and scanning electron microscopy (SEM) provide insights into the structural properties of the microwires. The magnetic properties, including room-temperature behavior, temperature dependence, and the effects of annealing, are thoroughly examined. The potential applications of these microwires in advanced spintronic devices, magnetic sensors, and biomedical technologies are explored. The review concludes with future research directions, highlighting the potential for further advancements in the field of Heusler alloy microwires. Full article

We studied the influence of annealing on the magnetic properties and microstructure of ultrathin (metallic nucleus diameter ≈ 5 μm, total diameter ≈ 19 μm) Heusler-type NiMnGa glass-coated microwires prepared using the Taylor–Ulitovsky method. The as-prepared NiMnGa microwires exhibit unexpectedly strong magnetic anisotropy, characterized by a coercivity exceeding 3 kOe at room temperature. Furthermore, their Curie temperature (T_c) lies above room temperature. Additionally, a spontaneous exchange bias of approximately 120 Oe is observed in the as-prepared sample at 100 K. Annealing the microwires leads to a decrease in coercivity, spontaneous exchange bias, and T_c values. Notably, the annealing process shifts the T_c of the samples closer to room temperature, making them more suitable for magnetic solid-state refrigeration applications. Moreover, the hysteresis observed in the temperature dependence of magnetization for the samples annealed for 1 h and 2 h, along with the magnetic softening observed at around 260 K, is attributed to a first-order phase transformation. The observed changes are discussed in the context of internal stress relaxation after annealing, the nanocrystalline structure of both the as-prepared and annealed samples, the recrystallization process, and the magnetic ordering of phases identified in the as-prepared sample and those appearing during recrystallization. The glass coating on microwires offers benefits like better flexibility and resistance to damage and corrosion. However, it is important to recognize that this coating can substantially alter the microwires’ magnetic characteristics. Consequently, precise control over the annealing process is vital to obtain the specific martensitic transformation needed. Full article

In this paper, the impact of annealing at different temperatures (973 K, 1073 K, and 1123 K for 1 h) on the magnetic and microstructural properties of MnFePSi-based glass-coated microwires is studied. Annealing significantly influences the magnetic and microstructural properties of Mn–Fe–P–Si glass-coated microwires. XRD analysis reveals that increasing the annealing temperature leads to a notable increase in the Fe₂P phase content, reaching a maximum at 1123 K, while simultaneously reducing the presence of secondary phases observed in the as-prepared sample. The reduction in secondary phases in Mn–Fe–P–Si-based microwires, grain size, and internal stress relaxation have a profound impact on their magnetic behavior. High coercivity values are observed in both the as-prepared and annealed samples. However, annealing at higher temperatures (1073 K and 1123 K) results in a significant reduction in coercivity, decreasing from 1200 Oe for the sample annealed at 973 K to 300 Oe and 150 Oe, respectively. In addition, the sample annealed at 1123 K for 1 h shows a notable paramagnetic behavior for loops measured from 200 K to 300 K. Meanwhile, the other samples show ferromagnetic behavior for all measured temperatures from 5 to 300 K. This study highlights the significant potential for tailoring and modifying various magnetic properties of Mn–Fe–P–Si glass-coated microwires, including metamagnetic phase transitions, magnetic behavior, and the control of magnetic response (hardness/softness). Such tailored properties make Mn–Fe–P–Si glass-coated microwires promising candidates for a wide range of applications. Full article

We provide new experimental studies of the temperature dependence of the giant magnetoimpedance (GMI) effect and hysteresis loops of Fe-rich and Co-rich amorphous microwires with rather different room temperature magnetic properties and GMI effect features. We observed a remarkable modification of hysteresis loops and magnetic field dependence of the GMI ratio upon heating in both of the studied samples. We observed a noticeable improvement in the GMI ratio and a change in hysteresis loops from rectangular to inclined upon heating in Fe-rich microwire. However, the opposite trend was observed in Co-rich microwire, in which, upon heating, the shape of the hysteresis loop changed from linear to rectangular. Generally, the evolution of the shape of the hysteresis loops during heating correlates with the modification of the dependencies of the GMI ratio ΔZ/Z on the magnetic field. For Co-rich microwire, the double-peak magnetic field dependence changed to single-peak, while for Fe-rich microwire, the opposite tendency was observed. The origin of the observed temperature dependences of the hysteresis loop and the GMI effect is discussed, considering internal stresses’ relaxation during heating, the temperature dependencies of the magnetostriction coefficient, and internal stresses, as well as the Hopkinson effect. Full article

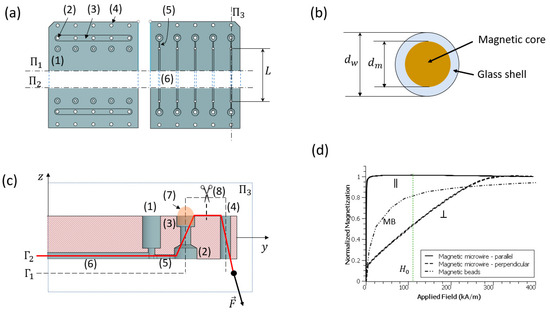

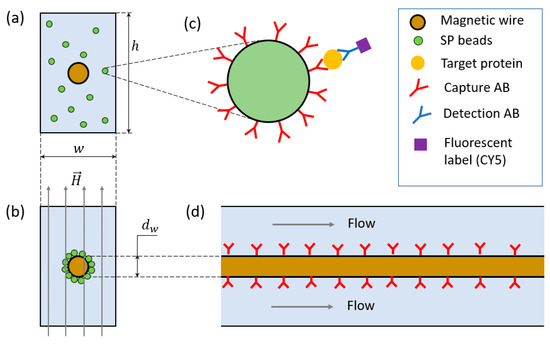

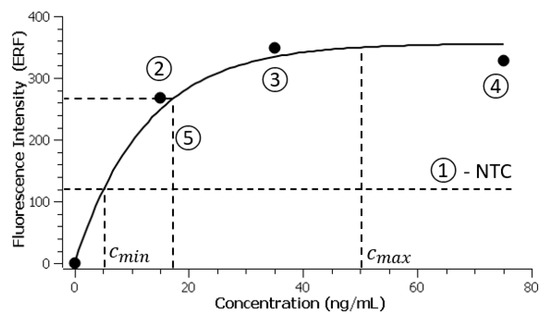

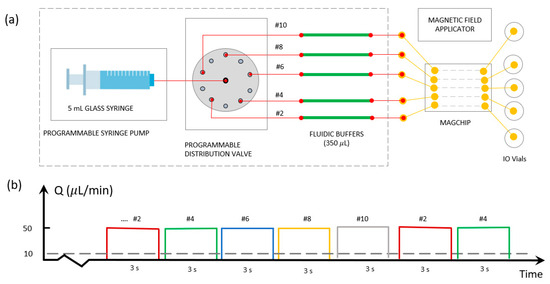

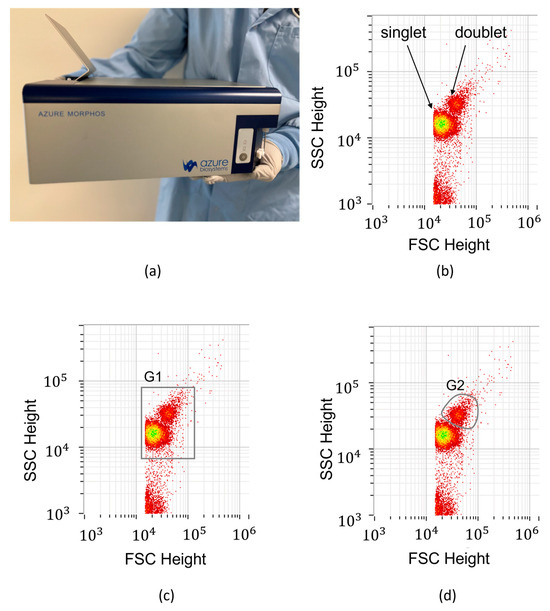

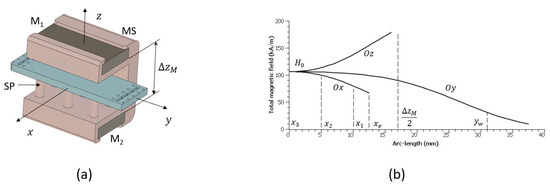

A novel approach to protein quantification utilizing a microfluidic platform activated by a magnetic assembly of functionalized magnetic beads around soft magnetic capture centers is presented. Functionalized magnetic beads, known for their high surface area and facile manipulation under external magnetic fields, are injected inside microfluidic channels and immobilized magnetically on the surface of glass-coated soft magnetic microwires placed along the symmetry axis of these channels. A fluorescent (Cy5) immunomagnetic sandwich ELISA is then performed by sequentially flowing the sample and all necessary reagents in the microfluidic channels. Direct protein quantification is performed by magnetically releasing the beads from the microwire and evaluating their fluorescence intensity with the help of a miniature (microfluidic-based) flow cytometer. Measurements of ICAM-1 protein concentration in human blood plasma samples confirm the feasibility of the approach through extensive performance benchmarking. The automation and multiplexing capabilities of the proposed platform further demonstrate its potential for protein quantification in point-of-care settings using microfluidics and miniature flow cytometry instruments. Full article

Glass-coated microwires exhibiting magnetic bistability have garnered significant attention as promising wireless sensing elements, primarily due to their rapid magnetization switching capabilities. These microwires consist of a metallic core with diameter d, encased in a glass coating, with a total diameter D. In this study, we investigated how the dimensions of both components and their ratio (d/D) influence the magnetization reversal behavior of Fe-based microwires. While previous studies have focused on either d or d/D individually, our research uniquely considered the combined effect of both parameters to provide a comprehensive understanding of their impact on magnetic properties. The metallic core diameter d varied from 10 to 19 µm and the d/D ratio was in the range of 0.48–0.68. To assess the magnetic properties of these microwires, including the shape of the hysteresis loop, coercivity, remanent magnetization, and the critical length of bistability, we employed vibrating sample magnetometry in conjunction with FORC-analysis. Additionally, to determine the critical length of bistability, magnetic measurements were conducted on microwires with various lengths, ranging from 1.5 cm down to 0.05 cm. Our findings reveal that coercivity is primarily dependent on the d/D parameter. These observations are effectively explained through an analysis that considers the competition between magnetostatic and magnetoelastic anisotropy energies. This comprehensive study paves the way for the tailored design of glass-coated microwires for diverse wireless sensing applications. Full article

pH regulation in human biofluids is a crucial step for disease diagnosis and health monitoring. Traditional pH sensors are limited by their bulky size in wearable systems, and fragile glass tips require frequent calibration, thus limiting their use in continuous monitoring. Flexible sensors, particularly those utilizing microwires and thread-based substrates, present advantages for small sample analysis, including natural breathability and suitability for bandage or textile integration. This study examines iridium oxide and silver–silver chloride coated on thin gold wires, fabricated using sol–gel and dip-coating processes known for their simplicity. The flexible microwires demonstrated promising pH performance from a study of their pH characteristics, sensitivity, hysteresis, and potential drift. Electrodes tested in microwells allowed for small sample volumes and localized pH measurement in a controlled environment. Additional integration into fabrics for sweat sensing in wearables highlighted their potential for continuous, real-time health monitoring applications. Full article

We have prepared NiMnGa glass-coated microwires with different geometrical aspect ratios, ρ = d_metal/D_total (d_metal—diameter of metallic nucleus, and D_total—total diameter). The structure and magnetic properties are investigated in a wide range of temperatures and magnetic fields. The XRD analysis illustrates stable microstructure in the range of ρ from 0.25 to 0.60. The estimations of average grain size and crystalline phase content evidence a remarkable variation as the ρ-ratio sweeps from 0.25 to 0.60. Thus, the microwires with the lowest aspect ratio, i.e., ρ = 0.25, show the smallest average grain size and the highest crystalline phase content. This change in the microstructural properties correlates with dramatic changes in the magnetic properties. Hence, the sample with the lowest ρ-ratio exhibits an extremely high value of the coercivity, H_c, compared to the value for the sample with the largest ρ-ratio (2989 Oe and 10 Oe, respectively, i.e., almost 300 times higher). In addition, a similar trend is observed for the spontaneous exchange bias phenomena, with an exchange bias field, H_ex, of 120 Oe for the sample with ρ = 0.25 compared to a H_ex = 12.5 Oe for the sample with ρ = 0.60. However, the thermomagnetic curves (field-cooled—FC and field-heating—FH) show similar magnetic behavior for all the samples. Meanwhile, FC and FH curves measured at low magnetic fields show negative values for ρ = 0.25, whereas positive values are found for the other samples. The obtained results illustrate the substantial effect of the internal stresses on microstructure and magnetic properties, which leads to magnetic hardening of samples with low aspect ratio. Full article

We provide comparative studies of the structural, morphological, microstructural, and magnetic properties of MnFePSi-glass-coated microwires (MnFePSi-GCMWs) and bulk MnFePSi at different temperatures and magnetic fields. The structure of MnFePSi GCMWs prepared by the Taylor–Ulitovsky method consists of the main Fe₂P phase and secondary impurities phases of Mn₅Si₃ and Fe₃Si, as confirmed by XRD analysis. Additionally, a notable reduction in the average grain size from 24 µm for the bulk sample to 36 nm for the glass-coated microwire sample is observed. The analysis of magnetic properties of MnFePSi-glass-coated microwires shows different magnetic behavior as compared to the bulk MnFePSi. High coercivity (450 Oe) and remanence (0.32) are observed for MnFePSi-GCMWs compared to low coercivity and remanent magnetization observed for bulk MnFePSi alloy. In addition, large irreversibility at low temperatures is observed in the thermal dependence of magnetization of microwires. Meanwhile, the bulk sample shows regular ferromagnetic behavior, where the field cooling and field heating magnetic curves show a monotonic increase by decreasing the temperature. The notable separation between field cooling and field heating curves of MnFePSi-GCMWs is seen for the applied field at 1 kOe. Also, the M/M_5K vs. T for MNFePSi-GCMWs shows a notable sensitivity at a low magnetic field compared to a very noisy magnetic signal for bulk alloy. The common features for both MnFePSi samples are high Curie temperatures above 400 K. From the experimental results, we can deduce the substantial effect of drawing and quenching involved in the preparation of glass-coated MnFePSi microwires in modification of the microstructure and magnetic properties as compared to the same bulk alloy. The provided studies prove the suitability of the Taylor–Ulitovsky method for the preparation of MnFePSi-glass-coated microwires. Full article

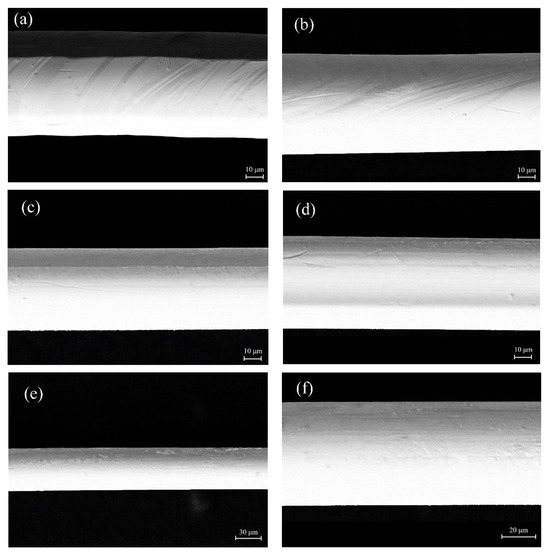

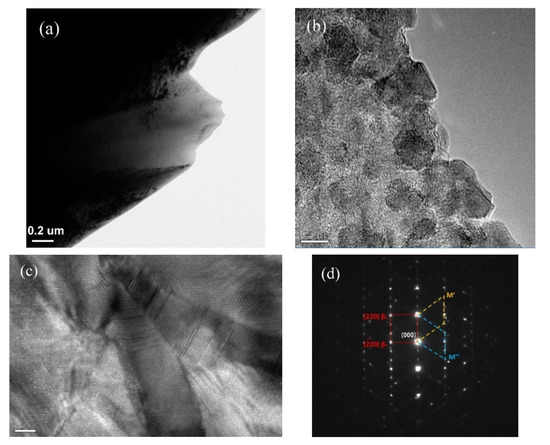

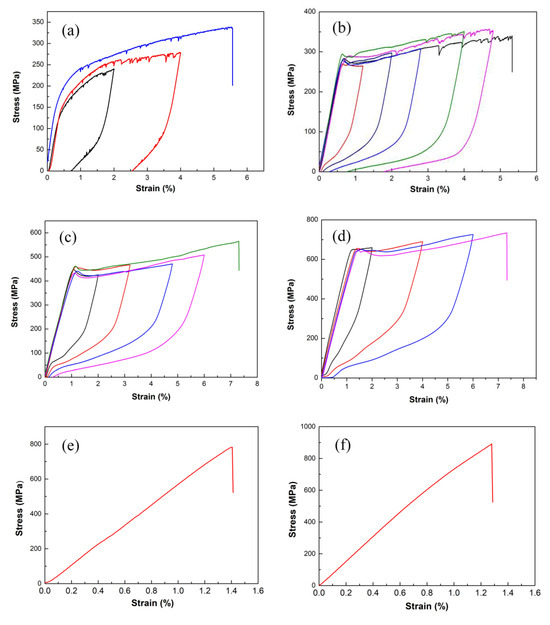

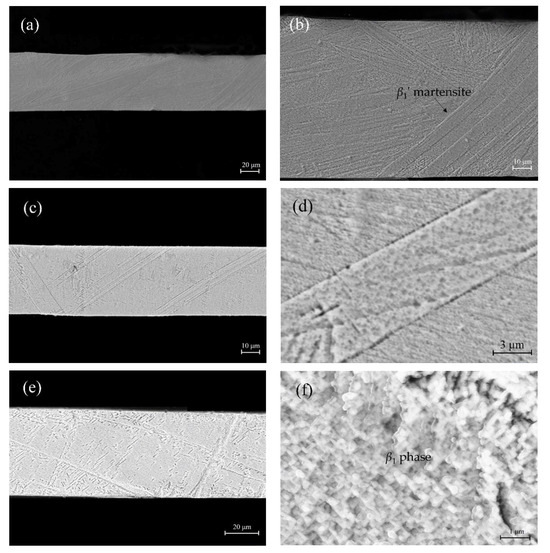

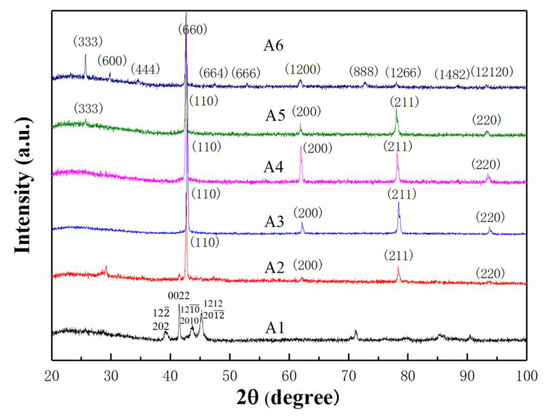

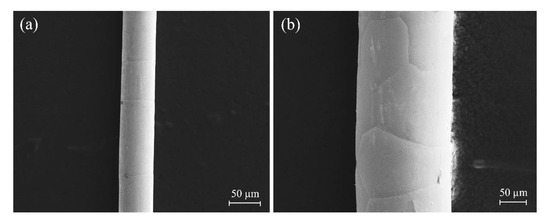

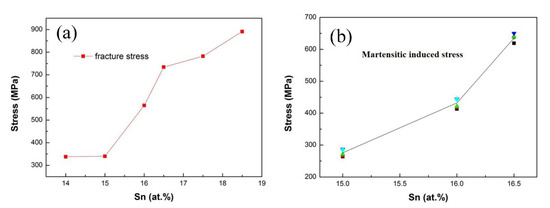

Cu–Sn shape-memory microw ires were fabricated by a glass-coated melt spinning method. Effects of Sn content on the microstructure and mechanical properties of microwires were investigated. The phase transforms from martensite to austenite with an increase in Sn from 14.0 atomic percent (at.%) to 16.5 at.%. When the Sn content exceeds 16.5 at.%, a highly ordered intermetallic phase, δ, formed. The fracture stress (σ_f) and the critical stress for martensitic transformation (σ_Ms) increases with an increase in Sn content. The mechanical properties as well as the superelasticity were greatly improved by a high cooling rate in the glass-coated melt spinning method. A bamboo-grained structure was formed in the Cu–Sn microwire with a Sn content of 16 at.% by annealing at 750 °C for 5 h before quenching in water. The results indicate that two opposite strategies of refining the grain size to the micrometer level, or increasing the grain size to a one dimensional size of specimen, e.g., the diameter of the wire, are both effective in improving the superelasticity of the Cu–Sn alloy. Full article

We studied Ni₂FeSi-, Co₂FeSi-, and Co₂MnSi-based full-Heusler alloy glass-coated microwires with the same geometric parameters, i.e., fixed nucleus and total diameters, prepared using the Taylor–Ulitovsky method. The fabrication of X₂YZ (X = Co and Ni, Y = Fe and Mn, and Z = Si)-based glass-coated microwires with fixed geometric parameters is quite challenging due to the different sample preparation conditions. The XRD analysis showed a nanocrystalline microstructure for all the samples. The space groups Fm3¯m (FCC) and Im3¯m (BCC) with disordered B2 and A2 types are observed for Ni₂FeSi and Co₂FeSi, respectively. Meanwhile, a well-defined, ordered L2₁ type was observed for Co₂MnSi GCMWs. The change in the positions of Ni, Co and Mn, Fe in X₂YSi resulted in a variation in the lattice cell parameters and average grain size of the sample. The room-temperature magnetic behavior showed a dramatic change depending on the chemical composition, where Ni₂FeSi MWs showed the highest coercivity (H_c) compared to Co₂FeSi and Co₂MnSi MWs. The H_c value of Ni₂FeSi MWs was 16 times higher than that of Co₂MnSi MWs and 3 times higher than that of Co₂FeSi MWs. Meanwhile, the highest reduced remanence was reported for Co₂FeSi MWs (Mr = 0.92), being about 0.82 and 0.22 for Ni₂FeSi and Co₂MnSi MWs, respectively. From the analysis of the temperature dependence of the magnetic properties (H_c and M_r) of X₂YZ MWs, we deduced that the H_c showed a stable tendency for Co₂MnSi and Co₂FeSi MWs. Meanwhile, two flipped points were observed for Ni₂FeSi MWs, where the behavior of H_c changed with temperature. For M_r, a monotonic increase on decreasing the temperature was observed for Co₂FeSi and Ni₂FeSi MWs, and it remained roughly stable for Co₂MnSi MWs. The thermomagnetic curves at low magnetic field showed irreversible magnetic behavior for Co₂MnSi and Co₂FeSi MWs and regular ferromagnetic behavior for Ni₂FeSi MWs. The current result illustrates the ability to tailor the structure and magnetic behavior of X₂YZ MWs at fixed geometric parameters. Additionally, a different behavior was revealed in X₂YZ MWs depending on the degree of ordering and element distribution. The tunability of the magnetic properties of X₂YZ MWs makes them suitable for sensing applications. Full article

We studied the magnetostriction coefficients, λ_s, Curie temperature, T_c, and their dependence on annealing conditions in Fe₄₇Ni₂₇Si₁₁B₁₃C₂ and Co₆₇Fe_3.9Ni₁.₅B₁₁.₅Si_14.5Mo_1.6 amorphous glass-coated microwires with rather different character of hysteresis loops. A positive λ_s ≈ 20 × 10⁻⁶ is observed in as-prepared Fe₄₇Ni₂₇Si₁₁B₁₃C_2, while low and negative λ_s ≈ −0.3 × 10⁻⁶ is obtained for Co₆₇Fe_3.9Ni₁.₅B₁₁.₅Si_14.5Mo_1.6 microwire. Annealing affects the magnetostriction coefficients and Curie temperatures, T_c, of both Fe₄₇Ni₂₇Si₁₁B₁₃C₂ and Co₆₇Fe_3.9Ni₁.₅B₁₁.₅Si_14.5Mo_1.6 glass-coated microwires in a similar way. Observed dependencies of hysteresis loops, λ_s and T_c on annealing conditions are discussed in terms of superposition of internal stresses relaxation and structural relaxation of studied microwires. We observed linear λ_s dependence on applied stress, σ, in both studied microwires. A decrease in the magnetostriction coefficient upon applied stress is observed for Co-rich microwires with low and negative magnetostriction coefficient. On the contrary, for Fe-Ni-rich microwires with a positive magnetostriction coefficient, an increase in the magnetostriction coefficient with applied stress is observed. The observed results are discussed considering the internal stresses relaxation and short range atomic rearrangements induced by annealing on hysteresis loops, magnetostriction coefficients and Curie temperatures of studied microwires. Full article

This present study illustrates the strong effect of geometrical parameters on the magneto-structural properties of Co₂MnSi glass-coated microwires prepared using the Taylor–Ulitovsky method. Thus, there are three samples with different geometrical aspect ratios (ρ). The XRD analysis shows a significant change by modifying the aspect ratio; for ρ = 0.42, the main peak with miller indices (220) is recognized as an A2-type disordered cubic structure. For the sample with ρ = 0.46, mixed L2₁ and B2 cubic structures are observed. Meanwhile, in the sample with a low aspect ratio, ρ = 0.30, the perfect L2₁ ordered cubic structure is attained. Magnetic characterization has been carried out at a wide range of temperatures and magnetic fields. A significant increase in coercivity and normalized reduced remanence by decreasing the aspect ratio is detected. The change in the magnetic properties is attributed to the modification in the microstructure, which is induced during the fabrication process. Such a dependence on the microstructure and magnetic properties on the ρ-ratio can be associated either with the internal stress distribution and magnitude or with different quenching rates of microwires with different aspect ratios. The current findings demonstrate the tunability of the microstructure and magnetic properties of Co₂MnSi-glass-coated microwires simply via a small modification in the geometric properties during the manufacturing process and without excreting any additional post-processing. The variation in the geometric parameters of Co₂MnSi glass-coated microwires allows us to tune the magnetic properties and structure, which is essentially advantageous for sensing device development. Full article

In this article, we study the effect of annealing temperature and applied stress on the magnetic properties of ${\mathrm{Fe}}_{71.80}{\mathrm{B}}_{13.27}{\mathrm{Si}}_{11.02}{\mathrm{Nb}}_{2.99}{\mathrm{Ni}}_{0.92}$ and ${\mathrm{Co}}_{65.34}{\mathrm{Si}}_{12.00}{\mathrm{B}}_{10.20}{\mathrm{Cr}}_{8.48}{\mathrm{Fe}}_{3.90}{\mathrm{Mo}}_{0.08}$ microwires. An anomalous behavior of the coercive field is observed while applying stress, indicating nontrivial changes in the microwire magnetic anisotropy. The effect of applied stimuli on the magnetic anisotropy and magnetostriction constant in both microwires is also discussed. Full article

As-prepared Fe-rich microwires with perfectly rectangular hysteresis loops present magnetization reversal through fast domain wall propagation, while the giant magnetoimpedance (GMI) effect in Fe-rich microwires is rather low. However, the lower cost of Fe-rich microwires makes them attractive for magnetic sensors applications. We studied the effect of conventional (furnace) annealing and Joule heating on magnetic-propertied domain wall (DW) dynamics and the GMI effect in two Fe microwires with different geometries. We observed that magnetic softness, GMI effect and domain wall (DW) dynamics can be substantially improved by appropriate annealing. Observed experimental results are discussed considering the counterbalance between the internal stresses relaxation and induced magnetic anisotropy associated with the presence of an Oersted magnetic field during Joule heating. Full article
