Search Results (18)

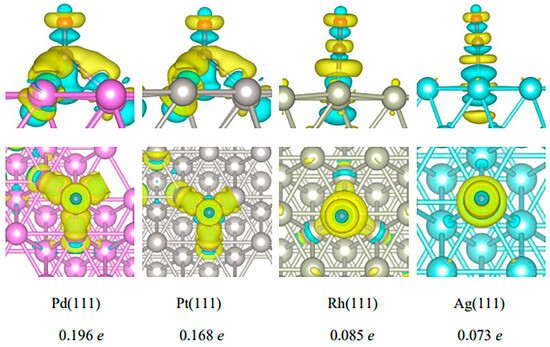

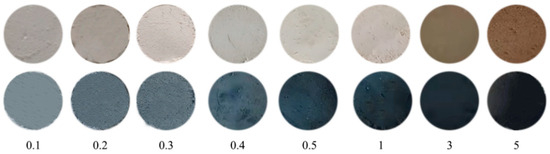

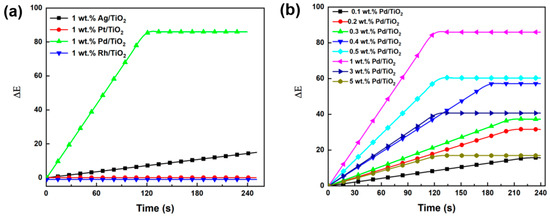

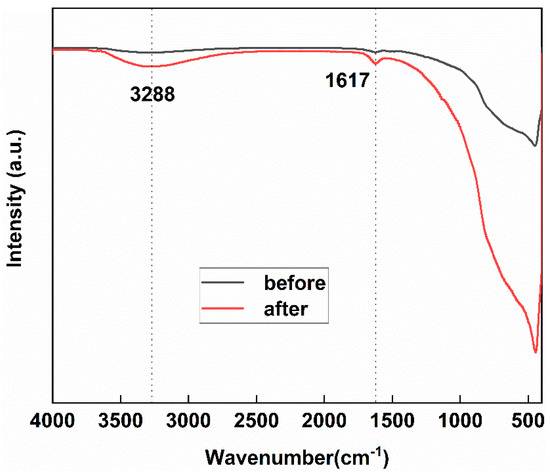

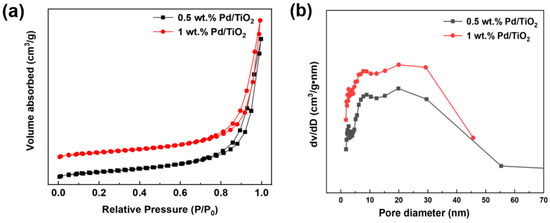

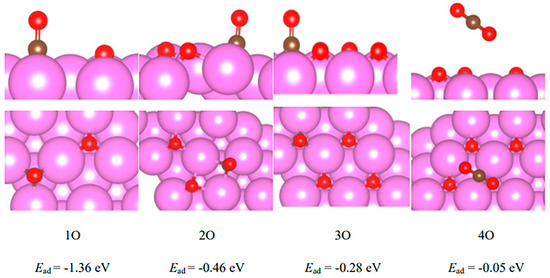

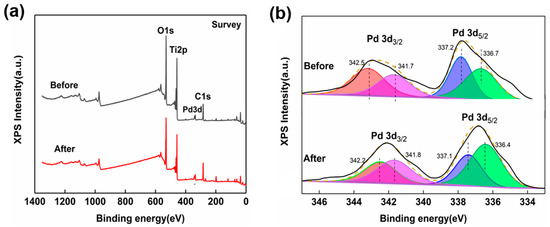

As a widely used support, TiO₂ has often been combined with Pd to form highly sensitive gas-chromic materials. Herein, we prepared a series of Pd/TiO₂ catalysts with different Pd content (from 0.1 to 5 wt.%) by the impregnation method for their utilization in fast room-temperature CO detection. The detection was simply based on visible color change when the Pd/TiO₂ was exposed to CO. The sample with 1 wt.% Pd/TiO₂ presented an excellent CO gasochromic character, associated with a maximum chromatic aberration value of 90 before and after CO exposure. Systematic catalyst characterizations of XPS, FT-IR, CO-TPD, and N₂ adsorption–desorption and density functional theory calculations for the CO adsorption and charge transfer over the Pd and PdO surfaces were further carried out. It was found that the interaction between CO and the Pd surface was strong, associated with a large adsorption energy of −1.99 eV and charge transfer of 0.196 e. The color change was caused by a reduction in Pd²⁺ to metallic Pd⁰ over the Pd/TiO₂ surface after CO exposure. Full article

WO₃ and silicone rubber (SR)-based gasochromic composites were fabricated to detect hydrogen leaks at room temperature. WO₃ rod-like nanostructures were uniformly distributed in the SR matrix, with a particle size of 60–100 nm. The hydrogen permeability of these composites reached 1.77 cm³·cm/cm²·s·cm_Hg. At a 10% hydrogen concentration, the visible light reflectance of the composite decreased 49% during about 40 s, with a color change rate of 6.4% s⁻¹. Moreover, the composite detected hydrogen concentrations as low as 0.1%. And a color scale was obtained for easily assessing hydrogen concentrations in the environment based on the color of composites. Finally, the composite materials as disposable sensors underwent testing at several Sinopec hydrogen refueling stations. Full article

Volatile organic compounds (VOCs), often invisible but potentially harmful, are prevalent in industrial and laboratory settings, posing health risks. Detecting VOCs in real-time with high sensitivity and low detection limits is crucial for human health and safety. The optical sensor, utilizing the gasochromic properties of sensing materials, offers a promising way of achieving rapid responses in ambient environments. In this study, we investigated the heterostructure of SnO₂/WO₃ nanoparticles and employed it as the primary detection component. Using the electrospinning technique, we fabricated a sensing fiber containing Ag NPs, poly(methyl methacrylate) (PMMA), and SnO₂/WO₃ (PMMA-Ag-SnO₂/WO₃) for acetone vapor detection. Following activation via UV/ozone treatment, we observed charge migration between WO₃ and SnO₂, resulting in a substantial generation of superoxide radicals on SnO₂ nanoparticles. This phenomenon facilitates structural deformation of the fiber and alters the oxidation state of tungsten ions, ultimately leading to a significant change in extinction when exposed to acetone vapor. As a result, PMMA-Ag-SnO₂/WO₃ fiber achieves a detection limit of 100 ppm and a response time of 1.0 min for acetone detection. These findings represent an advancement in the development of sensitive and selective VOC sensing devices. Full article

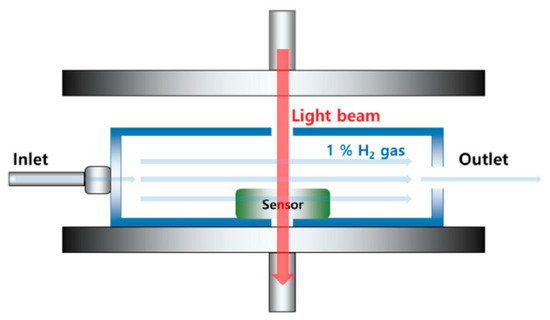

The gasochromism of WO₃, wherein the color of the material changes according to the reaction of gas, can immediately allow for the determination of the presence of hydrogen by the naked eye. We have also developed a hybrid hydrogen sensor for WO₃, a metal oxide, that can simultaneously utilize its gasochromic response and resistance to hydrogen. Because the proposed sensor has a transparent electrode on a glass substrate, it is a structure that can not only reveal the change in resistance but also more clearly illustrate the gasochromic response. A hybrid sensing demonstration in a hydrogen leak environment was successfully performed to verify a sensor that was capable of utilizing the resistive and gasochromic response of WO₃. Full article

Hydrogen gas sensors have recently attracted increased interest due to the explosive nature of H₂ and its strategic importance in the sustainable global energy system. In this paper, the tungsten oxide thin films deposited by innovative gas impulse magnetron sputtering have been investigated in terms of their response to H₂. It was found that the most favourable annealing temperature in terms of sensor response value, as well as response and recovery times, was achieved at 673 K. This annealing process caused a change in the WO₃ cross-section morphology from a featureless and homogenous form to a rather columnar one, but still maintaining the same surface homogeneity. In addition to that, the full-phase transition from an amorphous to nanocrystalline form occurred with a crystallite size of 23 nm. It was found that the sensor response to only 25 ppm of H₂ was equal to 6.3, which is one of the best results presented in the literature so far of WO₃ optical gas sensors based on a gasochromic effect. Moreover, the results of the gasochromic effect were correlated with the changes in the extinction coefficient and the concentration of the free charge carriers, which is also a novel approach to the understanding of the gasochromic phenomenon. Full article

A facade can control interaction between the building and the environment. Advancements in control technologies and material science give the opportunity of using smart windows in a high-performance facade to improve the building’s energy performance and users’ comfort. This study aims to propose practical recommendations for smart windows’ implementation over various climate zones across the world. To follow this aim, 54 studies published from 2013 to 2022 collected from architecture, engineering, and material science databases and have been reviewed, and seven types of smart windows including electrochromic, photovoltachromic, gasochromic, thermochromic, photochromic, hydrochromic, and Low-E have been identified. Moreover, the thermal properties and visual features of smart coatings used in the windows and their impacts on energy efficiency and users’ comfort were recognized. Then, a comparative study was conducted to identify and propose the most efficient coating utilized in the structure of smart windows across different climate zones. Full article

The bifunctionality of chromism-integrated sensors and devices has been highlighted because of their reversibility, fast response, and visual indication. For example, one of the representative chromism electrochromic materials exhibits optical modulation under ion insertion/extraction by applying a potential. This operation mechanism can be integrated with various sensors (pressure, strain, biomolecules, gas, etc.) and devices (energy conversion/storage systems) as visual indicators for user-friendly operation. In this review, recent advances in the field of chromism-integrated systems for visual indicators are categorized for various chromism-integrated sensors and devices. This review can provide insights for researchers working on chromism, sensors, or devices. The integrated chromic devices are evaluated in terms of coloration-bleach operation, cycling stability, and coloration efficiency. In addition, the existing challenges and prospects for chromism-integrated sensors and devices are summarized for further research. Full article

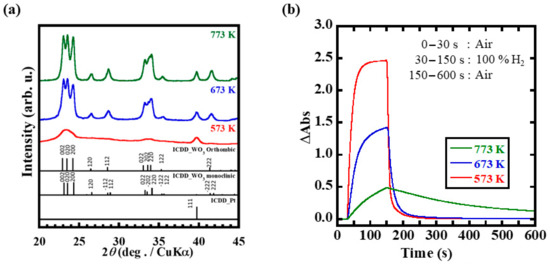

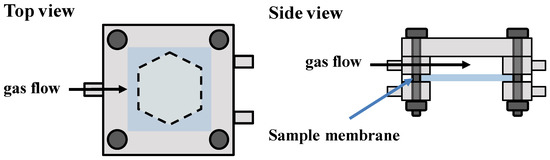

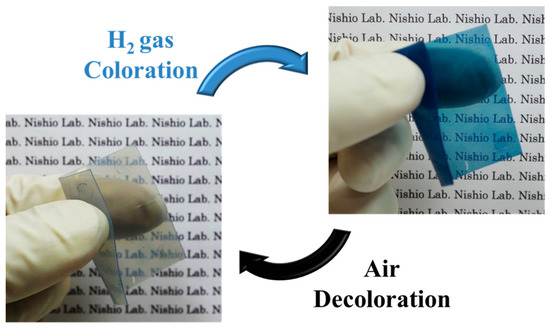

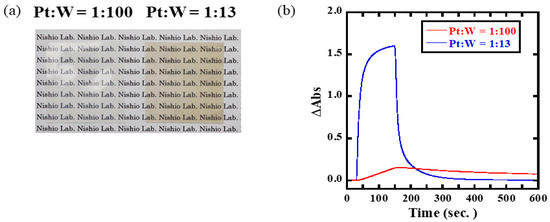

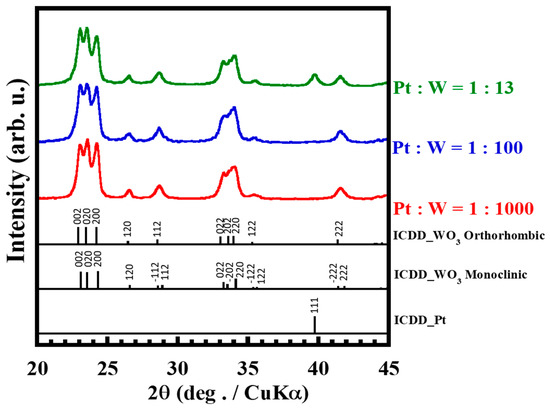

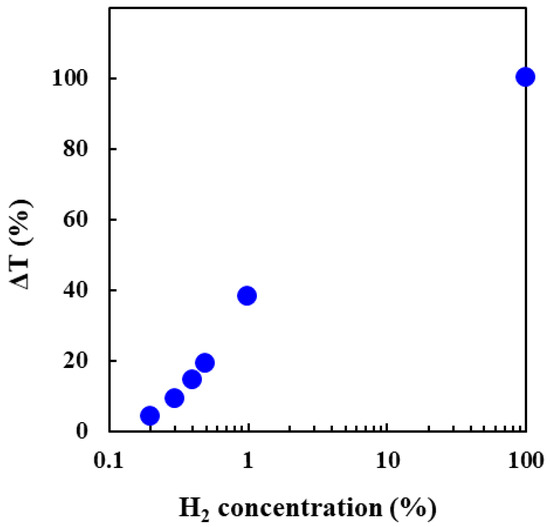

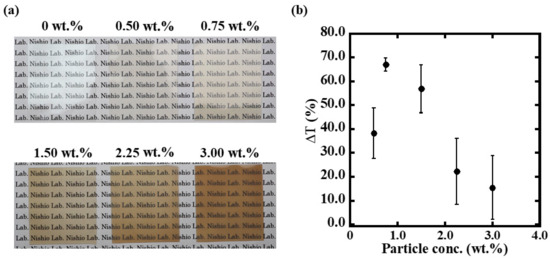

Hydrogen gas is a promising, clean, and highly efficient energy source. However, to use combustible H₂ gas safety, high-performance and safe gas leakage sensors are required. In this study, transparent and flexible platinum-catalyst-loaded tungsten trioxide (Pt/WO₃) nanoparticle-dispersed membranes were prepared as H₂ gas leakage sensors. The nanoparticle-dispersed membrane with a Pt:W compositional ratio of 1:13 was transparent and exhibited a sufficient color change in response to H₂ gas. The membrane containing 0.75 wt.% of Pt/WO₃ nanoparticles exhibited high transparency over a wide wavelength range and the largest transmittance change in response to H₂ gas among the others. The heat treatment of the particles at 573 K provided sufficient crystallinity and an accessible area for a gasochromic reaction, resulting in a rapid and sensitive response to the presence of H₂ gas. The lower limit of detection of the optimized Pt/WO₃ nanoparticle-dispersed membrane by naked eye was 0.4%, which was one-tenth of the minimum explosive concentration. This novel membrane was transparent as well as flexible and exhibited a clear and rapid color response to H₂. Therefore, it is an ideal candidate sensor for the safe and easy detection of H₂ gas leakage. Full article

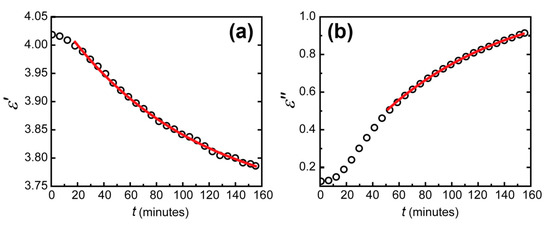

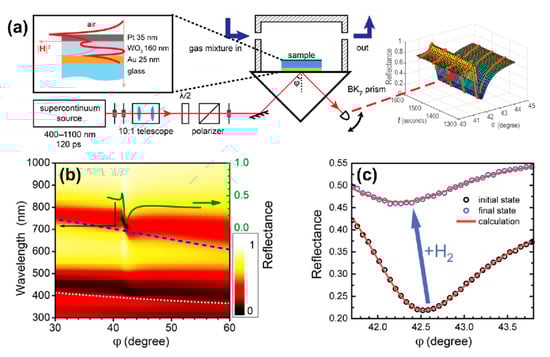

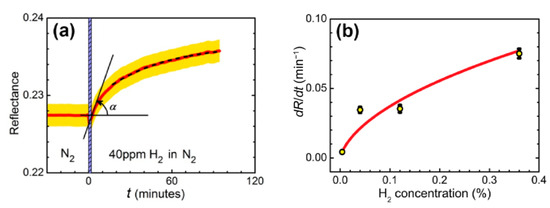

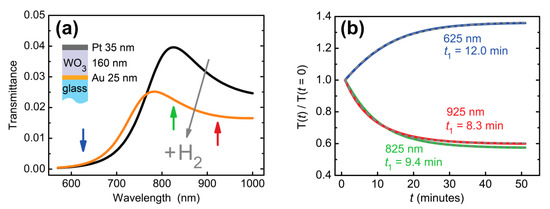

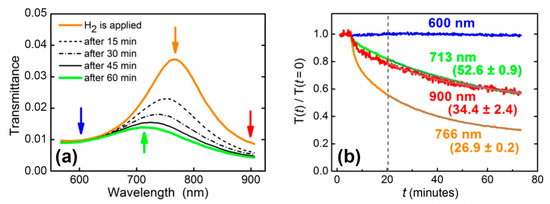

We propose a method for determining complex dielectric permittivity dynamics in the gasochromic oxides in the course of their interaction with a gas as well as for estimating the diffusion coefficient into a gasochromic oxide layer. The method is based on analysis of a time evolution of reflection spectra measured in the Kretschmann configuration. The method is demonstrated with a hydrogen-sensitive trilayer including an Au plasmonic film, WO₃ gasochromic oxide layer, and Pt catalyst. Angular dependences of the reflectance as well as transmission spectra of the trilayer were measured in series at a constant flow of gas mixtures with hydrogen concentrations in a range of 0–0.36%, and a detection limit below 40 ppm (0.004%) of H₂ was demonstrated. Response times to hydrogen were found in different ways. We show that the dielectric permittivity dynamics of WO₃ must be retrieved in order to correctly evaluate the response time, whereas a direct evaluation from intensity changes for chosen wavelengths may have a high discrepancy. The proposed method gives insight into the optical properties dynamics for sensing elements based on gasochromic nanostructures. Full article

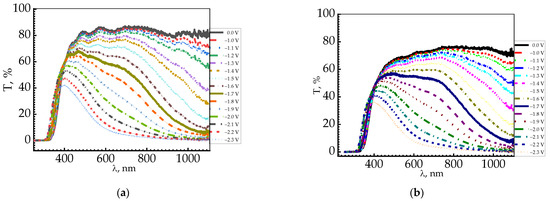

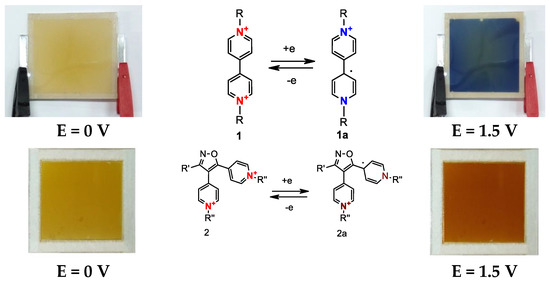

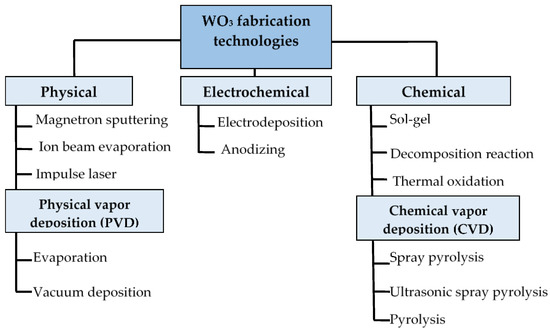

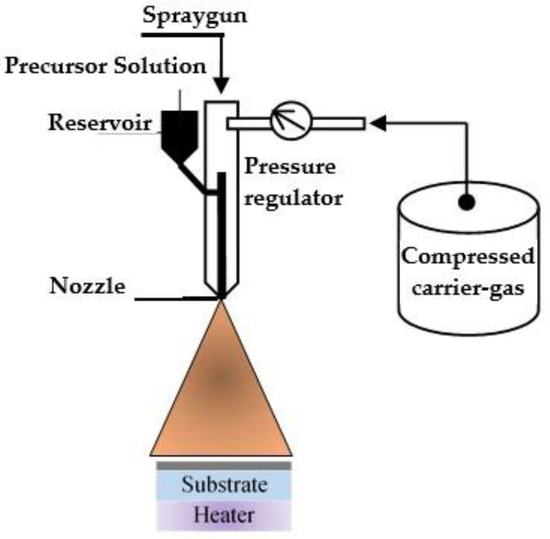

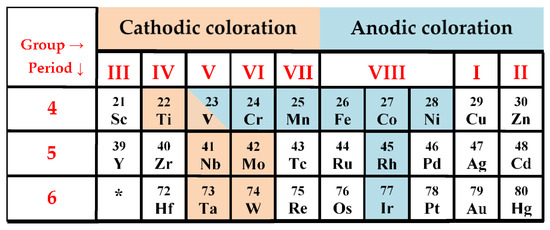

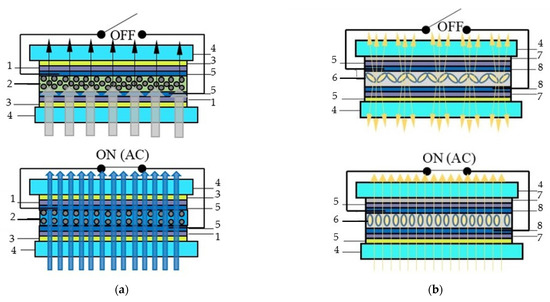

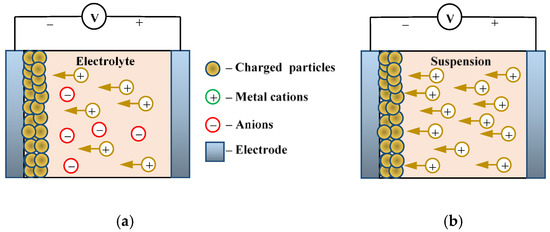

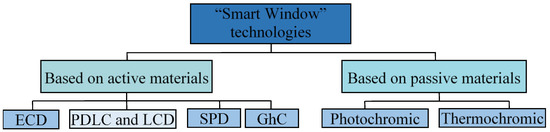

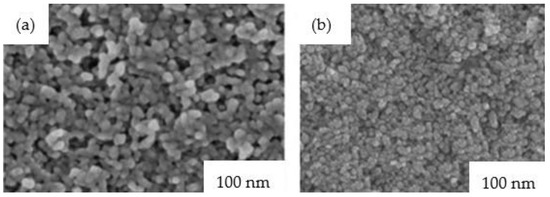

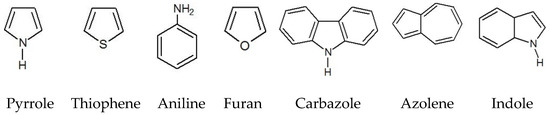

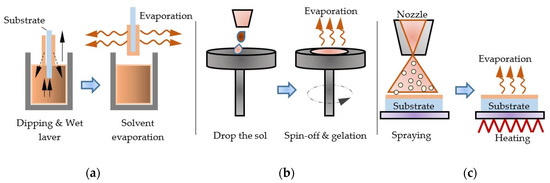

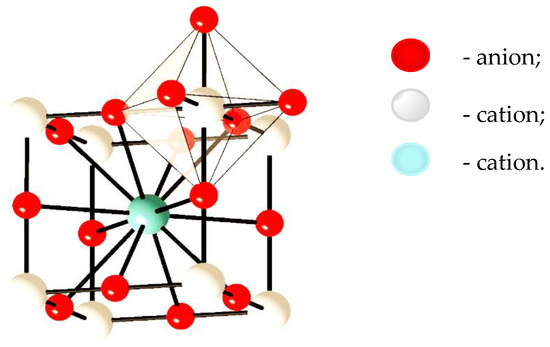

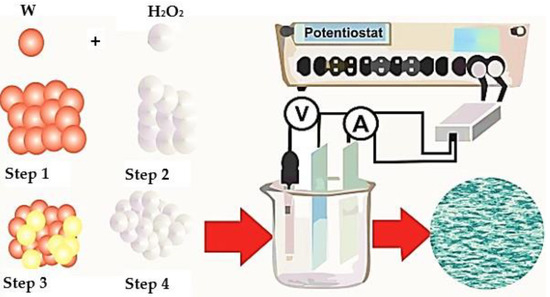

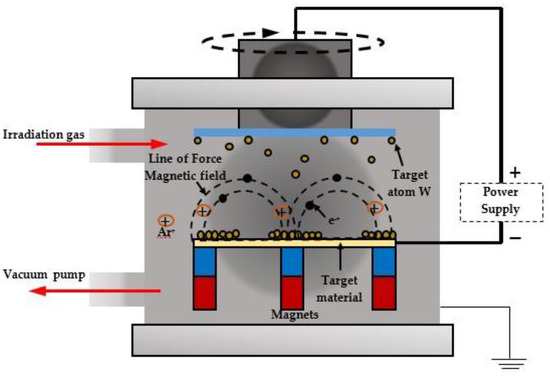

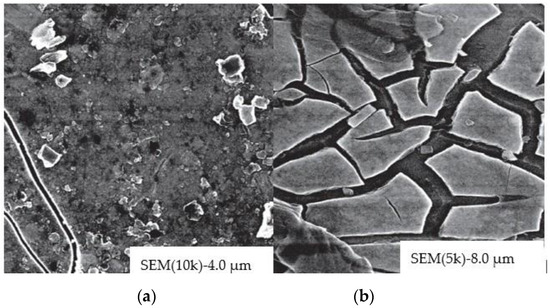

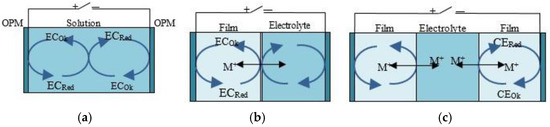

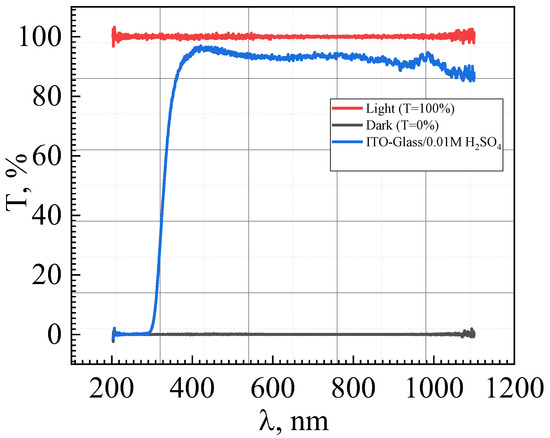

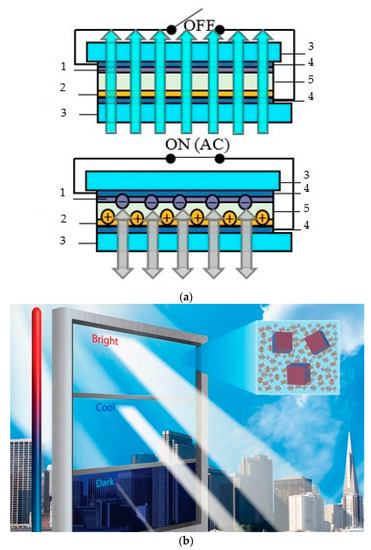

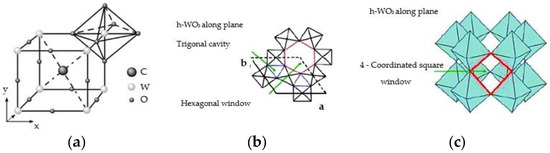

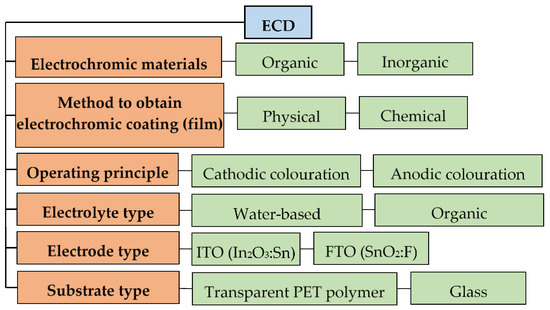

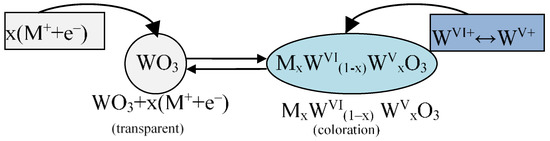

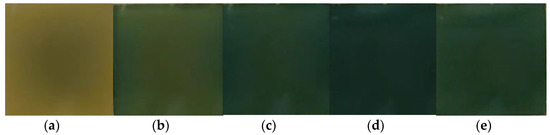

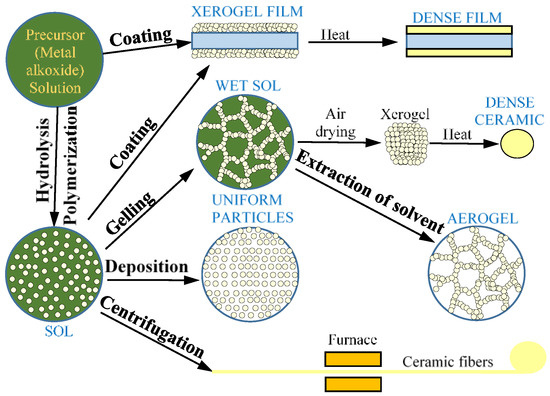

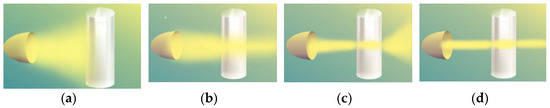

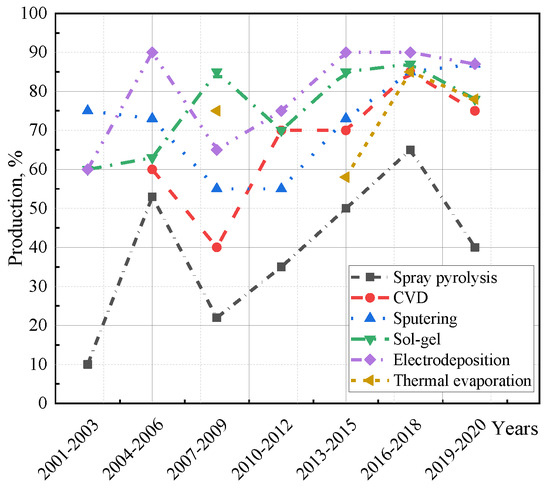

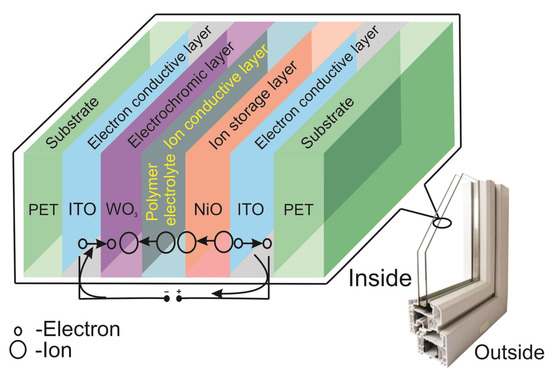

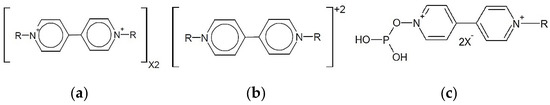

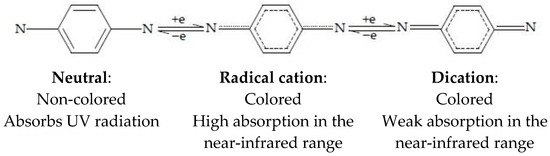

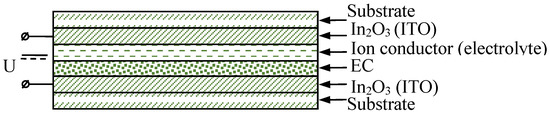

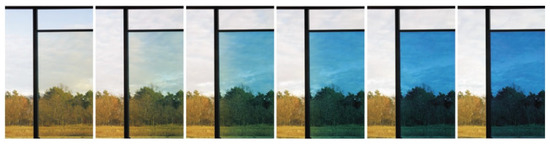

Exactly 50 years ago, the first article on electrochromism was published. Today electrochromic materials are highly popular in various devices. Interest in nanostructured electrochromic and nanocomposite organic/inorganic nanostructured electrochromic materials has increased in the last decade. These materials can enhance the electrochemical and electrochromic properties of devices related to them. This article describes electrochromic materials, proposes their classification and systematization for organic inorganic and nanostructured electrochromic materials, identifies their advantages and shortcomings, analyzes current tendencies in the development of nanomaterials used in electrochromic coatings (films) and their practical use in various optical devices for protection from light radiation, in particular, their use as light filters and light modulators for optoelectronic devices, as well as methods for their preparation. The modern technologies of “Smart Windows”, which are based on chromogenic materials and liquid crystals, are analyzed, and their advantages and disadvantages are also given. Various types of chromogenic materials are presented, examples of which include photochromic, thermochromic and gasochromic materials, as well as the main physical effects affecting changes in their optical properties. Additionally, this study describes electrochromic technologies based on WO₃ films prepared by different methods, such as electrochemical deposition, magnetron sputtering, spray pyrolysis, sol–gel, etc. An example of an electrochromic “Smart Window” based on WO₃ is shown in the article. A modern analysis of electrochromic devices based on nanostructured materials used in various applications is presented. The paper discusses the causes of internal and external size effects in the process of modifying WO₃ electrochromic films using nanomaterials, in particular, GO/rGO nanomaterials. Full article

In this paper, WO₃-Pd₂Pt-Pt nanocomposite films were deposited on a single mode fiber as the hydrogen sensing material, which changes its reflectivity under different hydrogen concentration. The reflectivity variation was probed and converted to an electric signal by a pair of balanced InGaAs photoelectric detectors. In addition, the performance of the WO₃-Pd₂Pt-Pt composite film was investigated under different optical powers, and the irrigating power was optimized at 5 mW. With the irrigation of this optical power, the hydrogen sensitive film exhibits quick response toward 100 ppm hydrogen in air atmosphere at a room temperature of 25 °C. The experimental results demonstrate a high resolution at 5 parts per million (ppm) within a wide range from 100 to 5000 ppm in air. This simple and compact sensing system can detect hydrogen concentrations far below the explosion limit and provide early alert for hydrogen leakage, showing great potential in hydrogen-related applications. Full article

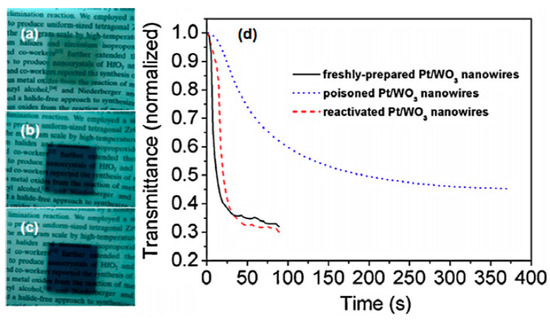

Along with the development of hydrogen as a sustainable energy carrier, it is imperative to develop very rapid and sensitive hydrogen leaks sensors due to the highly explosive and flammable character of this gas. For this purpose, palladium-based materials are being widely investigated by research teams because of the high affinity between this metal and hydrogen. Furthermore, nanostructured palladium may provide improved sensing performances compared to the use of bulk palladium. This arises from a higher effective surface available for interaction of palladium with the hydrogen gas molecules. Several works taking advantage of palladium nanostructures properties for hydrogen sensing applications have been published. This paper reviews the recent advances reported in the literature in this scope. The electrical and optical detection techniques, most common ones, are investigated and less common techniques such as gasochromic and surface wave acoustic sensors are also addressed. Here, the sensor performances are mostly evaluated by considering their response time and limit of detection. Full article

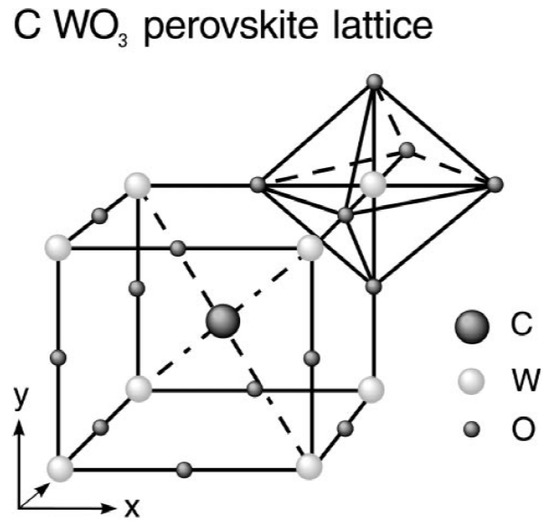

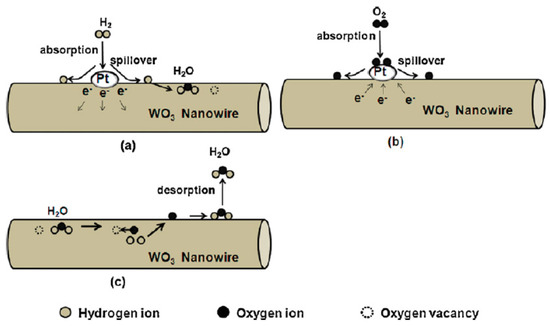

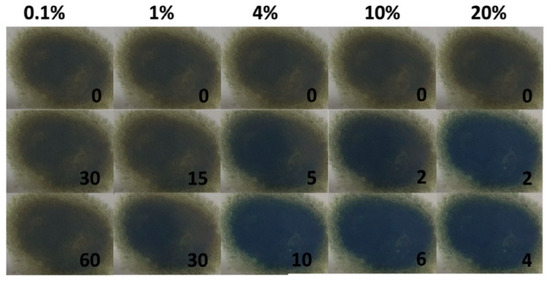

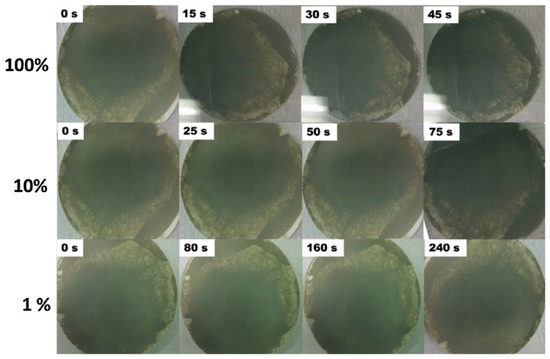

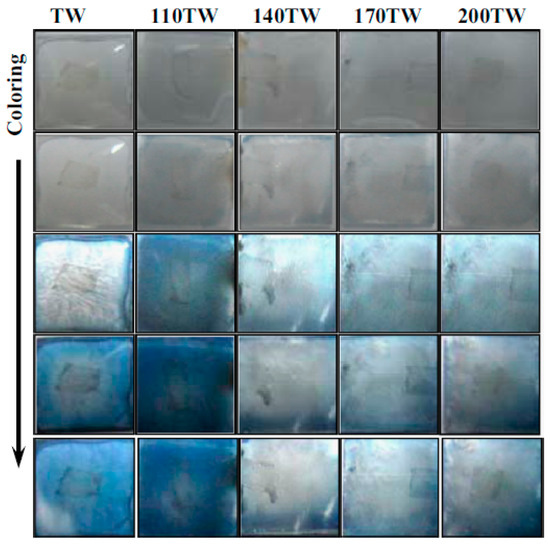

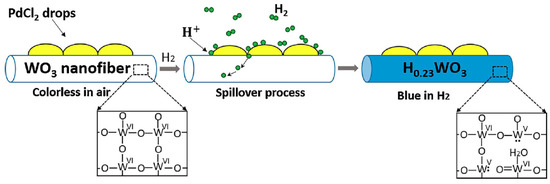

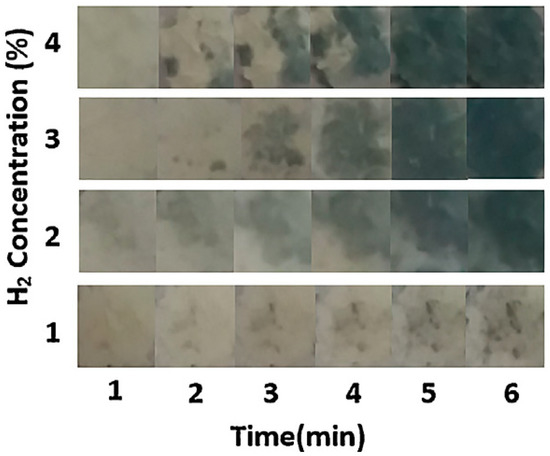

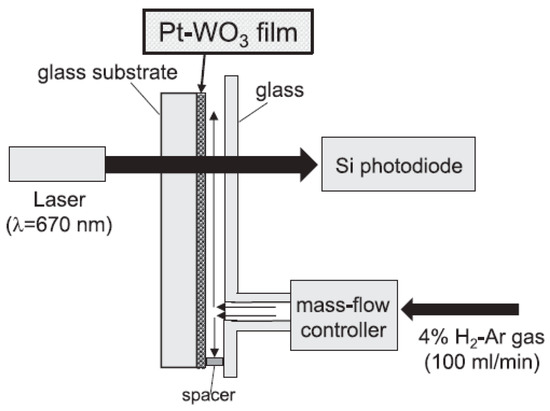

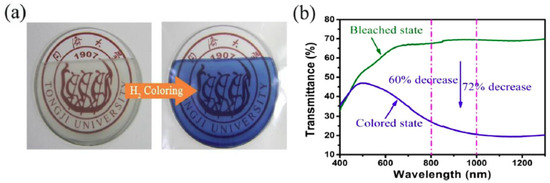

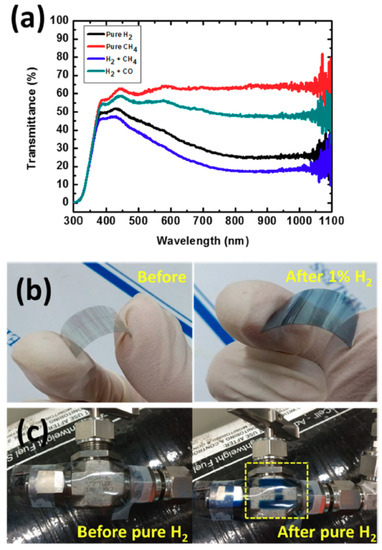

Hydrogen is one of the most important gases that can potentially replace fossil fuels in the future. Nevertheless, it is highly explosive, and its leakage should be detected by reliable gas sensors for safe operation during storage and usage. Most hydrogen gas sensors operate at high temperatures, which introduces the risk of hydrogen explosion. Gasochromic WO₃ sensors work based on changes in their optical properties and color variation when exposed to hydrogen gas. They can work at low or room temperatures and, therefore, are good candidates for the detection of hydrogen leakage with low risk of explosion. Once their morphology and chemical composition are carefully designed, they can be used for the realization of sensitive, selective, low-cost, and flexible hydrogen sensors. In this review, for the first time, we discuss different aspects of gasochromic WO₃ gas sensor-based hydrogen detection. Pristine, heterojunction, and noble metal-decorated WO₃ nanostructures are discussed for the detection of hydrogen gas in terms of changes in their optical properties or visible color. This review is expected to provide a good background for research work in the field of gas sensors. Full article

We present our investigation on the gasochromic reaction of E141 (ii) towards the toxic gas nitrogen dioxide (NO2). E141 (ii) is a chlorophyllin-based food additive, typically used as green coloring for nearly all kinds of sweets. In this presentation we show an alternative approach for using E141 (ii) as optical gas indicator. All solid samples are prepared by multi-layer screen printing on different substrates like paper and PE-foil. Gas measurements are performed using an UV/Vis spectrometer. The influence of the substrate and according layer thickness is shown. Full article

A silicon microring-resonator (MRR) hydrogen sensor which utilizes platinum-loaded tungsten oxide (Pt/WO₃) thin film was fabricated and evaluated. The uniform film was deposited on MRR portion by using sol-gel technique. By the exposure to pure hydrogen gas, the sensor devise showed the large resonant wavelength shift at room temperature. It is suggested that the change in the optical properties of hydrogen sensitive layer results in this response. Full article
