Search Results (11)

This work studied the effect of self-protective paste nitriding (SPN) and ion plasma nitriding (IPN) on the surface chemistry, microstructure, and nanohardness of AISI 304 and 316L stainless steels, with both treated at 440 °C for 5 h. Surface modifications analyzed using SEM and nanoindentation revealed distinct outcomes. SPN induced an oxynitriding effect due to the oxidation properties of the pastes, forming Fe₃O₄ and Fe_xC phases, while IPN produced an expanded austenite layer. Both methods enhanced surface nanohardness, but SPN showed superior results. For 316L SS, SPN increased nanohardness by 367.81% (6.83 GPa) compared to a 133.5% increase (3.41 GPa) with IPN. For 304 SS, SPN improved nanohardness by 26% (2.23 GPa), whereas IPN reduced it by 48% (0.92 GPa). These findings highlight SPN’s potential as an effective anti-wear treatment, particularly for 316L SS. The SPN process utilized a eutectic mixture of sodium cyanate and sodium carbonate, while IPN employed a N₂:H₂ (1:1) gas mixture. SEM analyses confirmed the formation of γ-Fe(N) phases, indicating dispersed iron nitrides (FeN, Fe₃N, Fe₄N). SPN’s simultaneous oxidation and nitrocarburization led to an oxide layer above the nitride diffusion layer, enhancing mechanical properties through iron oxides (Fe₃O₄) and carbides (Fe_xC). Comparative analysis showed that AISI 316L exhibited better performance than AISI 304, underscoring SPN’s effectiveness for surface modification. Full article

Recent technological development of utilizing an active screen made of solid carbon for plasma-assisted thermochemical diffusion treatments opens up new possibilities for control over the in situ generated treatment environment to guarantee reproducible treatment conditions and material responses. Until now, the investigations of active-screen plasma nitrocarburizing (ASPNC) using an active screen manufactured from solid carbon focused on the influence of a single treatment parameter variation on the material response. In this systematic study, experiments were conducted to vary the H₂-N₂ feed-gas composition while varying the bias plasma power. The experiments served to better understand a simultaneous variation in the mentioned parameters on the resulting treatment environment and material response during ASPNC of AISI 316L austenitic stainless steel. Therefore, nitriding and carburizing effects in the expanded austenite layer can be obtained. It is shown that an increased nitriding effect, i.e., nitrogen diffusion depth and content, was achieved in case of biased conditions and for H₂-N₂ feed-gas compositions with higher N₂ amounts. On the contrary, an increased carburizing effect, i.e., carbon diffusion depth and content, was achieved in nonbiased conditions, independent from the H₂-N₂ feed-gas composition. Full article

The corrosion resistance of Cr-containing alloy parts made by additive manufacturing can be significantly improved by a post-treatment of gas-phase-based infusion of concentrated interstitial solute (carbon and nitrogen). We demonstrate this universal approach for the example of low-temperature nitrocarburization by solid-reagent pyrolysis applied to Alloy 22 (UNS N06022) parts made by laser powderbed fusion. We show that the post-treatment improves the crevice-corrosion resistance of these parts, as well as the corrosion resistance of corresponding parts made from wrought Alloy 22 to surpass the maximum crevice corrosion test temperature specified in ASTM G48-D, whereas non-treated samples typically fail well below. Similarly, cyclic potentiodynamic polarization testing (ASTM G61-86) demonstrates that the post-treatment makes the additively manufactured alloy and the wrought alloy more corrosion-resistant than the non-treated wrought alloy. Full article

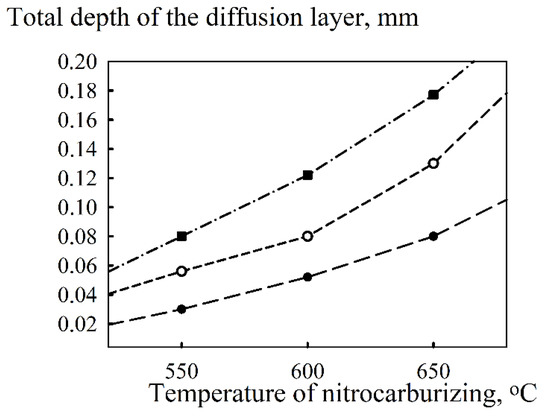

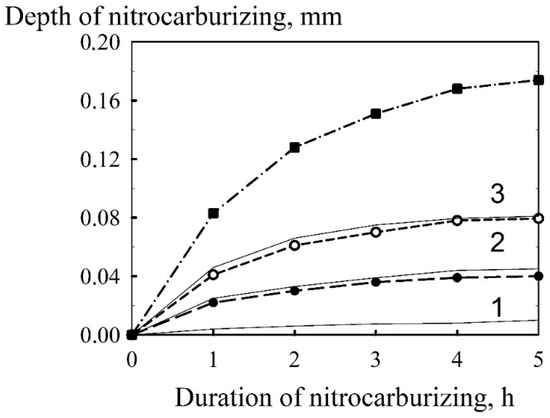

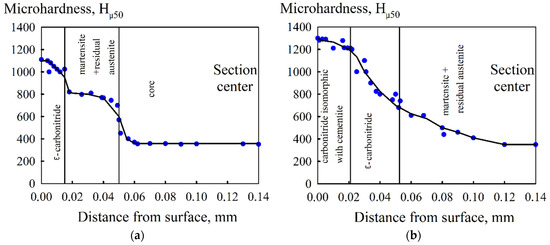

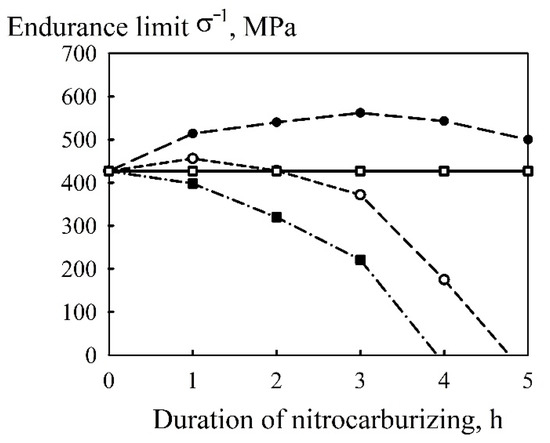

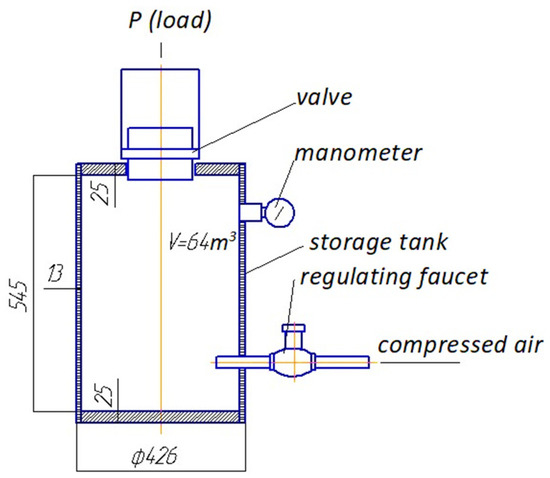

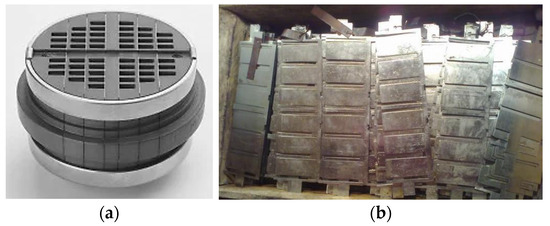

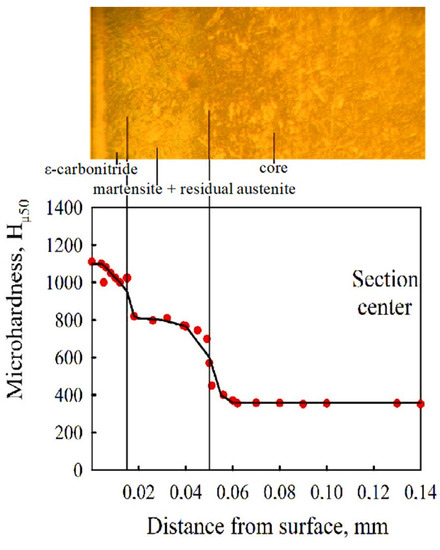

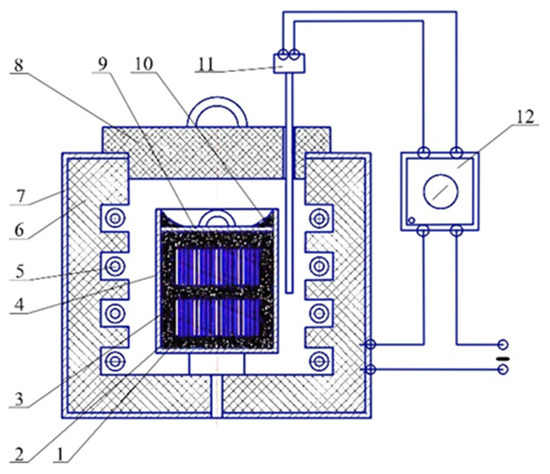

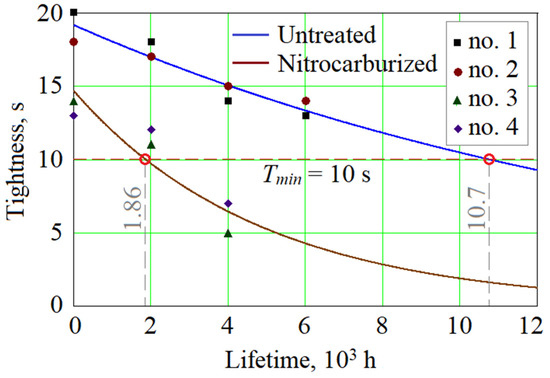

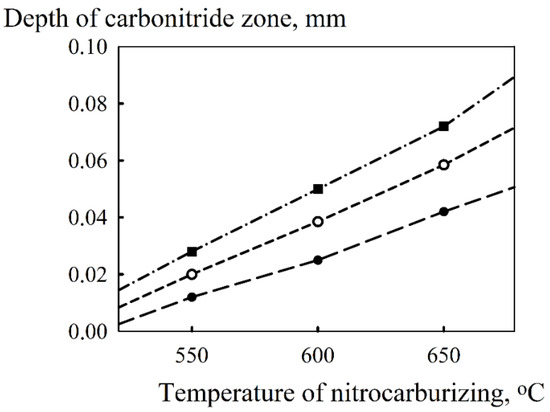

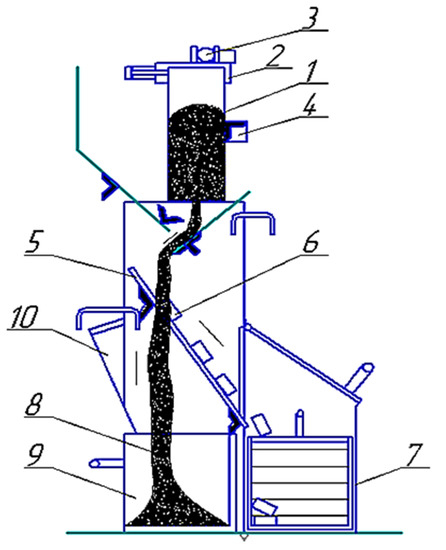

One of the urgent problems in reciprocating machinery is ensuring the functional properties of direct-flow valves. Coatings of these parts should increase energy efficiency, reduce compressed gas temperature, and increase compressor performance. In this article, the effect of nitrocarburizing in pastes on increasing the performance and resource of such valves was studied. The primary research methods were metallographic and electron-metallographic research of the surface layer structure of steel 60Si2Cr. Comparison with similar characteristics obtained for stainless steel 09Cr15Ni8Al was also performed. As a result, it was determined that nitrocarburizing of carbon spring steel 60Si2Cr leads to a greater depth of the diffusion layer than nitrocarburizing of alloyed chromium-nickel steel 09Cr15Ni8Al. Simultaneously, the diffusion layers of both types of steel are almost the same. Simultaneously, the increase in the endurance limit of 60Si2Cr steel during nitrocarburizing is about 1.3 times compared to untreated material. Finally, the predictive maintenance showed that the evaluated lifetime of nitrocarburized valves increases by 5.7 times compared with untreated valves. Full article

Austenitic steels are characterized by their outstanding corrosion resistance. They are therefore suitable for a wide range of surface protection requirements. The application potential of these stainless steels is often limited by their poor wear resistance. In the field of wrought alloys, interstitial surface hardening has become established for simultaneously acting surface stresses. This approach also offers great potential for improvement in the field of coating technology. The hardening of powder feedstock materials promises an advantage in the treatment of large components and also as a repair technology. In this work, the surface hardening of AISI 316L powder and its processing by thermal spraying is presented. A partial formation of the metastable expanded austenitic phase was observed for the powder particles by low-temperature gas nitrocarburizing. The successful deposition was demonstrated by cold gas spraying. The amount of expanded austenitic phase within the coating structure strongly depends on the processing conditions. Microstructure, corrosion and wear behavior were studied. Process diagnostic methods were used to validate the results. Full article

For rapid surface engineering of Cr-containing alloys by low-temperature nitrocarburization, we introduce a process based on pyrolysis of solid reagents, e.g., urea, performed in an evacuated closed vessel. Upon heating to temperatures high enough for rapid diffusion of interstitial solute, but low enough to avoid second-phase precipitation, the reagent is pyrolyzed to a gas atmosphere containing molecules that (i) activate the alloy surface by stripping away the passivating Cr${}_2$O${}_3$-rich surface film (diffusion barrier) and (ii) rapidly infuse carbon and nitrogen into the alloy. We demonstrate quantitatively that this method can generate a subsurface zone with concentrated carbon and nitrogen comparable to what can be accomplished by established (e.g., gas-phase- or plasma-based) methods, but with significantly reduced processing time. As another important difference to established gas-phase processing, the interaction of gas molecules with the alloy surface can have auto-catalytic effects by altering the gas composition in a way that accelerates solute infusion by providing a high activity of HNCO. The new method lends itself to rapid experimentation with a minimum of laboratory equipment. Full article

The effect of a controlled oxygen admixture to a plasma nitrocarburizing process using active screen technology and an active screen made of carbon was investigated to control the carburizing potential within the plasma-assisted process. Laser absorption spectroscopy was used to determine the resulting process gas composition at different levels of oxygen admixture using O₂ and CO₂, respectively, as well as the long-term trends of the concentration of major reaction products over the duration of a material treatment of ARMCO^® iron. The short-term studies of the resulting process gas composition, as a function of oxygen addition to the process feed gases N₂ and H_2, showed that a stepwise increase in oxygen addition led to the formation of oxygen-containing species, such as CO, CO₂, and H₂O, and to a significant decrease in the concentrations of hydrocarbons and HCN. Despite increased oxygen concentration within the process gas, no oxygen enrichment was observed in the compound layer of ARMCO^® iron; however, the diffusion depth of nitrogen and carbon increased significantly. Increasing the local nitrogen concentration changed the stoichiometry of the ε-Fe₃(N,C)_1+x phase in the compound layer and opens up additional degrees of freedom for improved process control. Full article

Active screen plasma nitrocarburizing (ASPNC) increases the surface hardness and lifetime of austenitic stainless steel without deteriorating its corrosion resistance. Using an active screen made of carbon opens up new technological possibilities that have not been exploited to date. In this study, the effect of screen power variation without bias application on resulting concentrations of process gas species and surface modification of AISI 316L steel was studied. The concentrations of gas species (e.g., HCN, NH₃, CH₄, C₂H₂) were measured as functions of the active screen power and the feed gas composition at constant temperature using in situ infrared laser absorption spectroscopy. At constant precursor gas composition, the decrease in active screen power led to a decrease in both the concentrations of the detected molecules and the diffusion depths of nitrogen and carbon. Depending on the gas mixture, a threshold of the active screen power was found above which no changes in the expanded austenite layer thickness were measured. The use of a heating independent of the screen power offers an additional parameter for optimizing the ASPNC process in addition to changes in the feed gas composition and the bias power. In this way, an advanced process control can be established. Full article

The demand for high-strength components for commercial vehicles has recently increased. Conventional gas nitrocarburizing has been used to increase strength and productivity of the crankshaft. A potential-controlled nitriding process was recently developed to control the crystal structure of the nitride compound layer. It has been found that this treatment improves the bending fatigue strength compared with conventional treatment, and has the potential to cope with the increase in crankshaft strength. However, the effect of torsional fatigue strength has not been studied. Therefore, in this study, the influence of the crystal structure of the nitride compound layer on torsional fatigue strength was investigated. Two kinds of test specimens with different crystal structures of the compound layer were prepared using gas nitriding treatment with controlled nitriding potential for an alloy steel bar (JIS-SCM435). Torsional fatigue tests were carried out using these test specimens. Although the compound layer of these test specimens had different crystal structures, the hardness distribution and residual stress distribution on the diffusion layer were almost the same. The relationship between stress amplitude and number of cycles to failure (S-N curve) showed that the torsional fatigue limits of the specimens were almost the same. This indicates that the crystal structure of the nitride compound layer did not affect the torsional fatigue limits, because the origin of the torsional fatigue failure is inside the specimen. Full article

A role of oxi-nitrocarburizing technique for low-carbon steel was intensively evaluated as a means of reducing the problem of corrosion in gas nitrocarburizing, which is a vital disadvantage of gas nitrocarburizing. Oxi-nitrocarburizing was carried out by a two-step process: Gas nitrocarburizing at 560 °C and oxidation. In order to characterize two different methods of oxi-nitrocarburizing, oxidation was performed under two different conditions: Air and steam as oxygen sources. To analyze the microstructural, physical, and chemical properties of the thin oxide layer and nitride layer, which are the surface hardened layers formed on low-carbon steel by oxi-nitrocarburizing, several methods, such as electron probe microanalysis (EPMA), electron backscattered diffraction (EBSD), scanning electron microscopy (SEM), nanoindentation tests, and potentiodynamic polarization tests were applied. The results indicated that the EPMA and EBSD methods are powerful techniques for the analysis of microstructure, such as phase analysis and metallic element distribution in the oxide layer of magnetite and compound layer of ε-phase and γ′-phase, for oxi-nitrocarburized low-carbon steel. Additionally, the nanohardness using the nanoindentation test and corrosion resistance using the potentiodynamic polarization test for the oxi-nitrocarburized specimens are useful methods to understand the mechanical and corrosion properties of the surface hardened layer. Full article

A solution-hardening of AISI 316L stainless-steel powder was conducted. The expansion of the crystal lattice and a strong increase in the nanoindentation hardness confirm the successful diffusion of carbon and nitrogen in the interstices. A multiphase state of the powder feedstock with phase fractions of the metastable S-phase (expanded austenite) mainly at the particle’s edge, and the initial austenitic phase within the core was found. Thermal spraying using high velocity oxy-fuel (HVOF) and atmospheric plasma spraying (APS) prove the sufficient thermal stability of the Sphase. Microstructural investigations of the HVOF coating reveal the ductility of the S-phase layer, while the higher heat load within the APS cause diffusion processes with the initial austenitic phase. The lattice expansion and the nanoindentation hardness decrease during thermal spraying. However, the absence of precipitates ensures the sufficient heat stability of the metastable S-phase. Even though further efforts are required for the thermochemical treatment of powder feedstock, the results confirm the feasibility of the novel powder treatment approach. Full article
