Search Results (9)

Textile composites are predestined for crash-loaded lightweight structures due to their adjustable energy absorption capacity, but they can exhibit different types of defects that occur during production (voids) and in operation (fatigue). The influence of such defects, especially the interaction of several defect types on the strain-rate-dependent material behaviour, is still insufficiently researched and can represent a safety risk. Therefore, this paper presents a phenomenological model that can be used to mathematically describe the strain-rate-dependent stress-strain behaviour of nominally defect-free and defect-affected textile composites. An adjunctive damage model in the sense of continuum damage mechanics is introduced, which also considers the interaction of both defect types for the first time. For the model validation, extensive experimental tests on glass fibre non-crimp fabrics reinforced epoxy (GF-NCF/EP) composites are performed. The focus is put on the influence of voids and fatigue-related pre-damage under subsequent tensile loading at strain rates up to 40 s${}^{-1}$. The theoretical studies show a good coincidence with the experimental results. The novel model provides a method for the efficient generation of material maps for numerical highly dynamic crash and impact analyses for defect-free and defective textile composites. As a result, a flexible and practice-oriented model approach is available, which makes a significant contribution to an improved understanding of materials and enables a future defect-tolerant design of textile composites. Full article

In the whole lifetime of structures, fatigue damage accumulation will exist in the shear connector of steel–concrete composite beams. It is essential to determine the residual mechanical properties of shear connectors under long-term fatigue loads, e.g., the vehicle load on bridges. In this regard, a shear-strength degradation model is proposed for shear connectors. The Bayes theorem is used to develop posterior estimates of the unknown parameters in the degradation model based on the collected pushout test data of pre-damaged stud connectors caused by high-cycle fatigue loads. In addition, according to the proposed shear-strength degradation model, the service reliability assessment is performed with a composite bridge beam. The results indicate that (1) There is a large diversion in the traditional strength degradation model under the action of fatigue cumulative damage. More importantly, this proposed physics-based degradation model can effectively reduce uncertainty. (2) The effects of steel type and test specimen size can be well considered in the proposed shear-strength degradation model, which is beneficial for improving the reliability of risk assessment for fatigued bridges. Full article

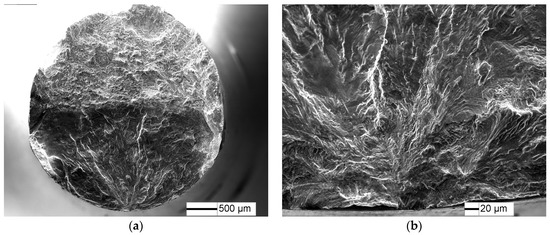

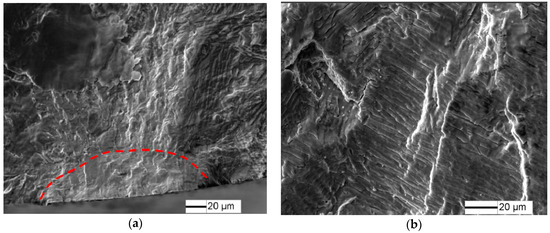

The effect of low cycle fatigue (LCF) predamage with no precracks on very high cycle fatigue (VHCF) properties, and crack initiation characteristics for TC21 titanium alloy, was investigated. The results showed that LCF predamage with less than 5% of fatigue life had little influence on fatigue limit, but reduced its fatigue life. Fatigue cracks were initiated on the surface of the specimen at high stress amplitude, whereas fatigue cracks were initiated on the subsurface of the specimens at low stress amplitude. Based on Lemaitre damage theory, a very high/low cycle combined fatigue damage model was established to analyze the fatigue damage process, which was consistent with the experimental data. It was indicated that 5% LCF predamage value was the equivalent damage value, which was close to the critical value of VHCF crack initiation. The fatigue crack initiation of the specimens with LCF predamage less than 5% took up the major components of fatigue life. Full article

Mechanical properties, including the fatigue behavior of metals, are usually determined from damage-free specimens, but it is not well known how these properties change with respect to prior damages; hence, the present work aims to understand the remaining mechanical properties of low carbon alloy steel Q345q with pre-damages. Low-cycle fatigue tests on the damage free specimens, tensile tests on the low-cycle fatigue damaged specimens, and fatigue tests on the plastic deformed specimens were carried out, respectively. The low-cycle fatigue life prediction formula was proposed. The influences of different kinds of pre-damages on the residual mechanical properties were analyzed. Results show that the stable hysteretic loops in the low-cycle fatigue tests are well-stacked. The material illustrates Masing behavior, and it has a good energy dissipation capacity. The ductility of the low-cycle fatigue-damaged materials decreases significantly in comparison with the undamaged ones. The low-cycle fatigue lives of Q345q steel are almost unaffected, so long as the pre-applied tensile strain is lower than 10%. Full article

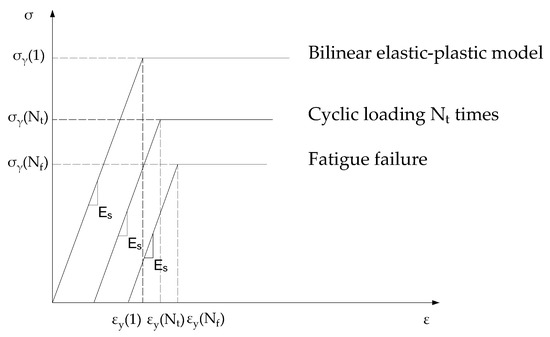

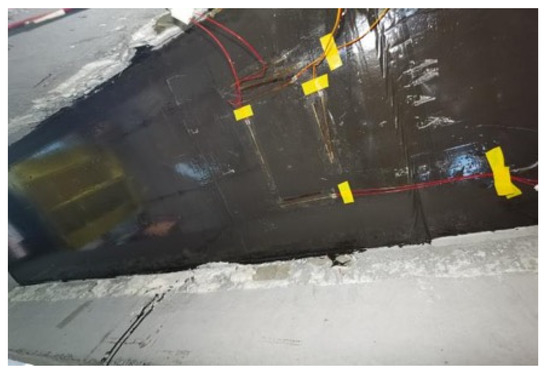

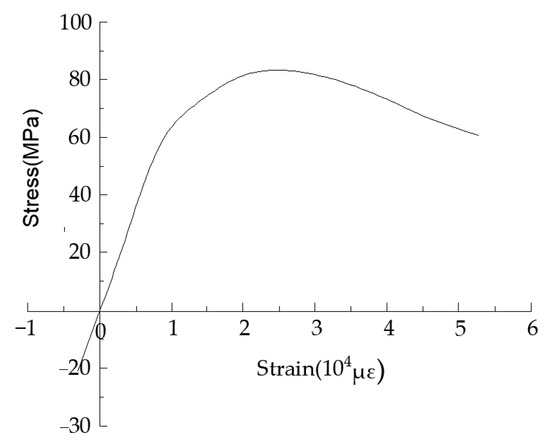

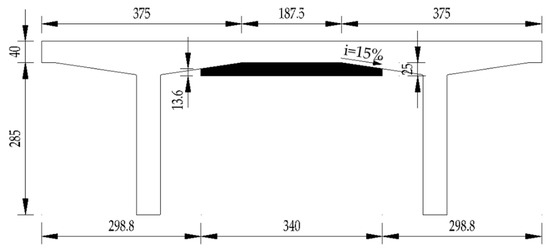

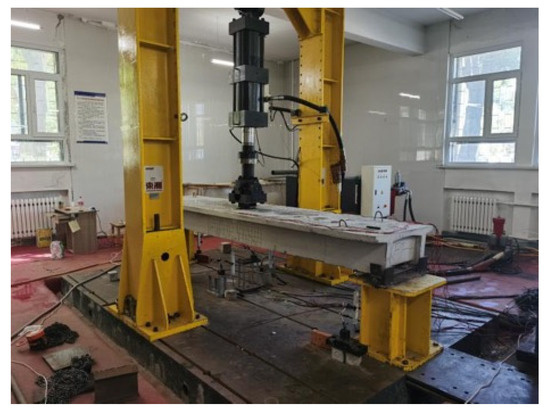

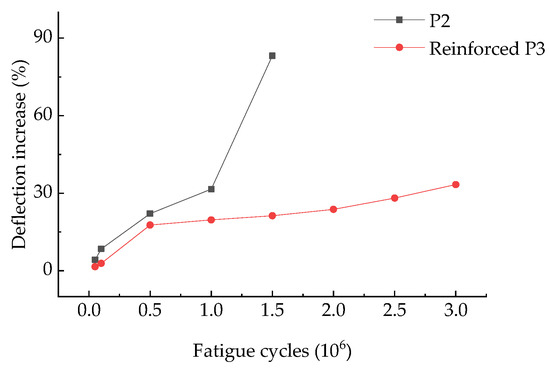

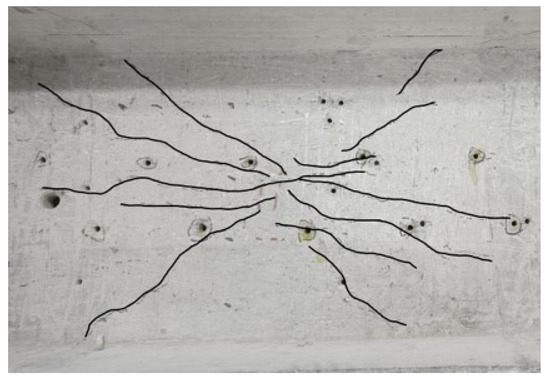

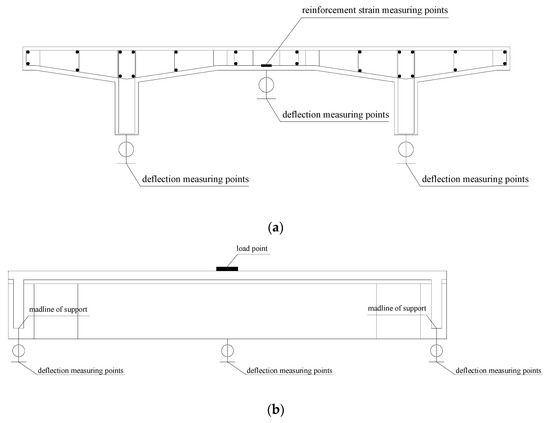

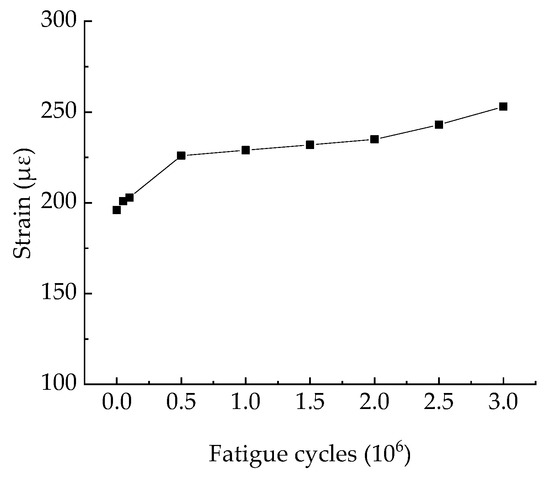

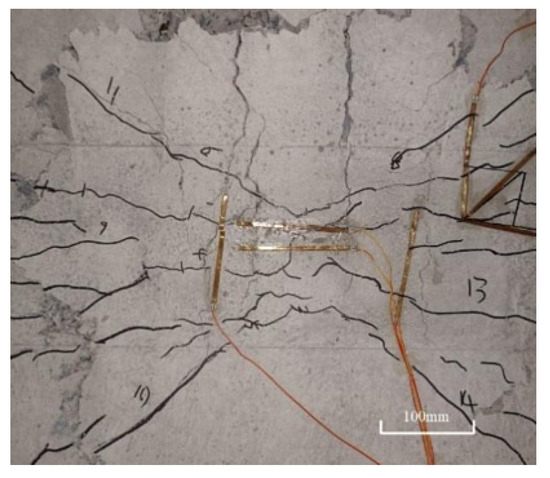

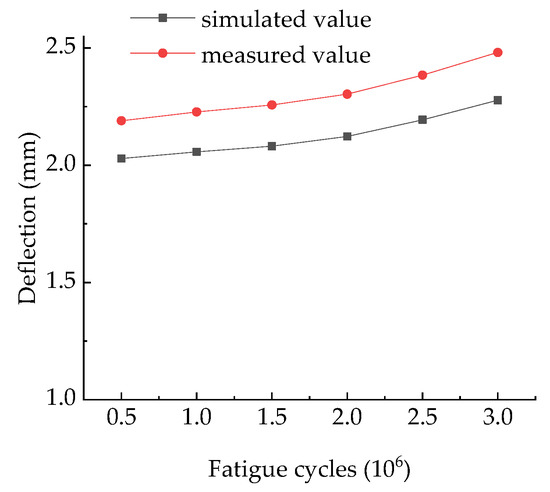

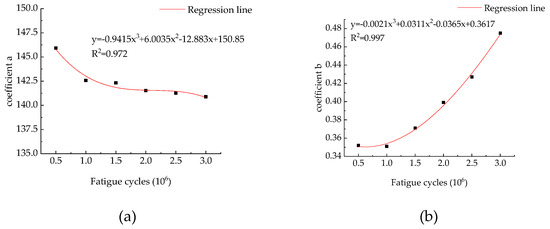

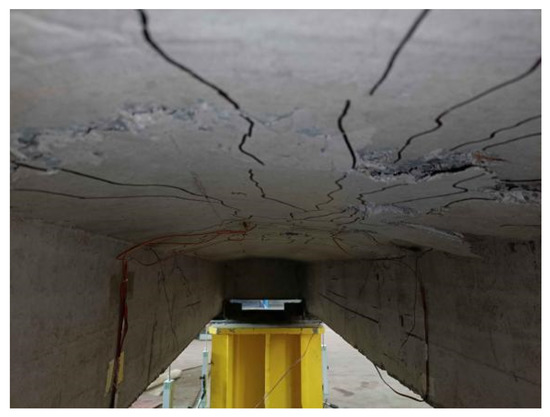

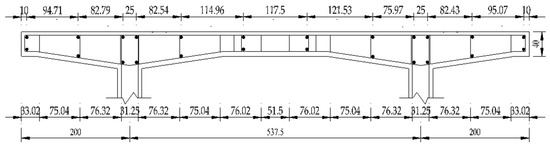

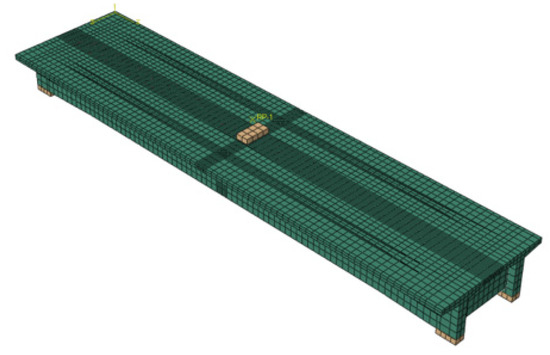

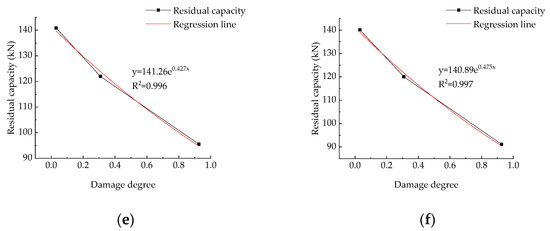

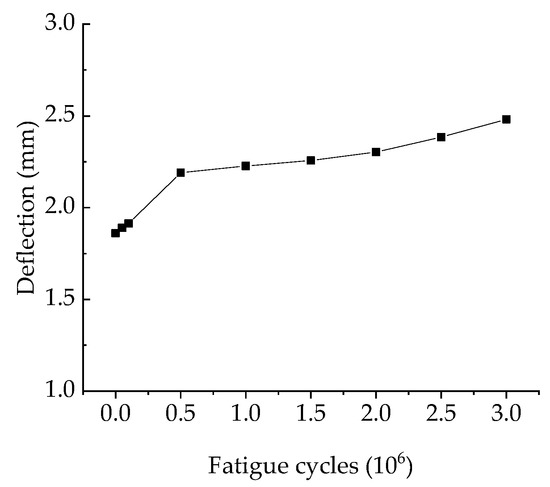

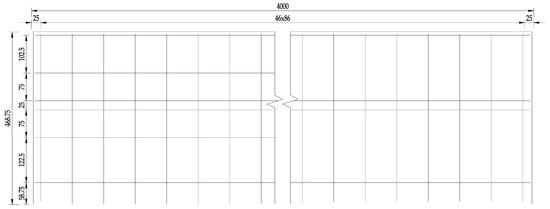

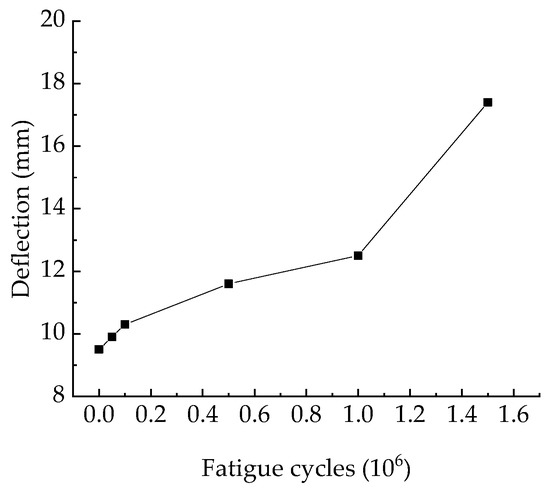

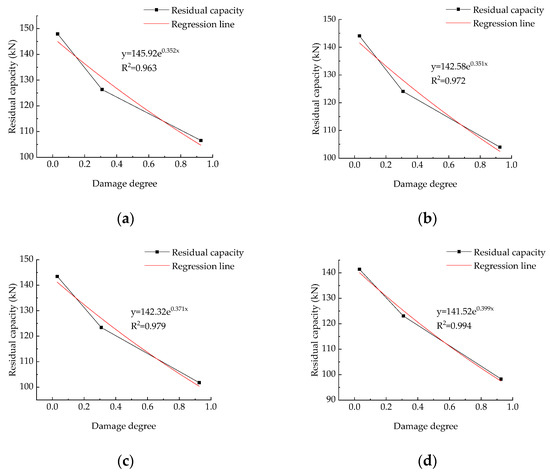

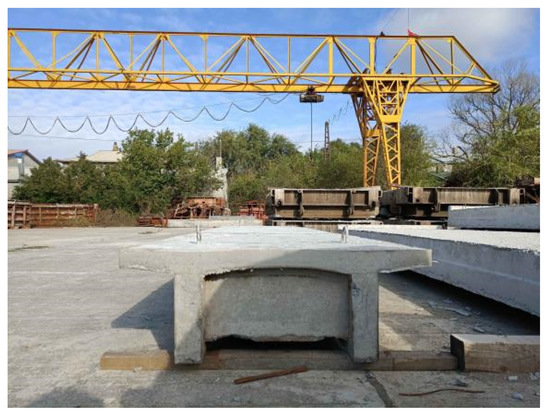

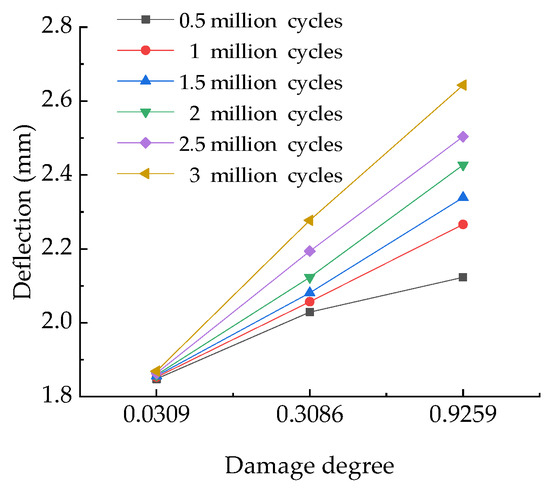

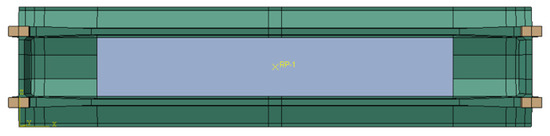

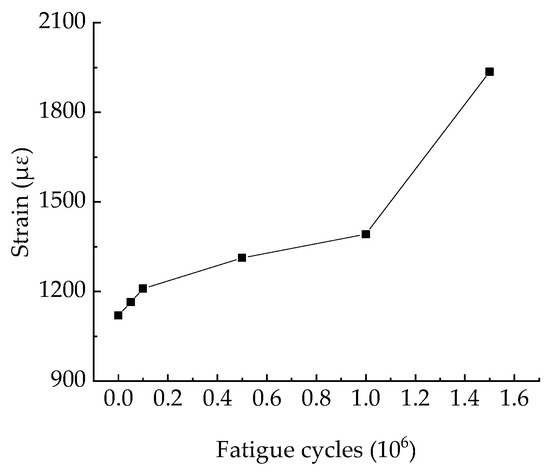

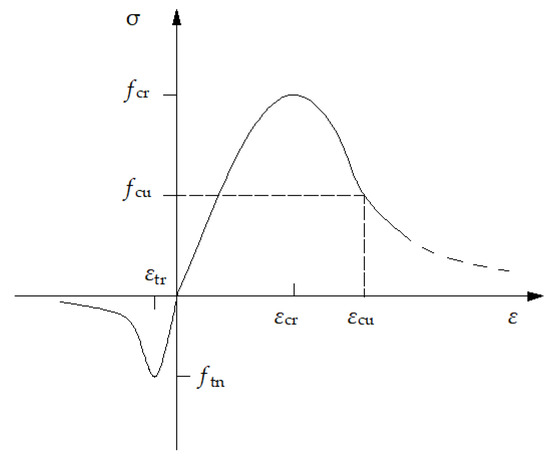

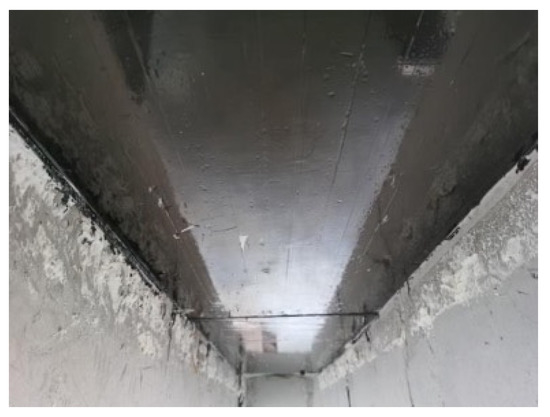

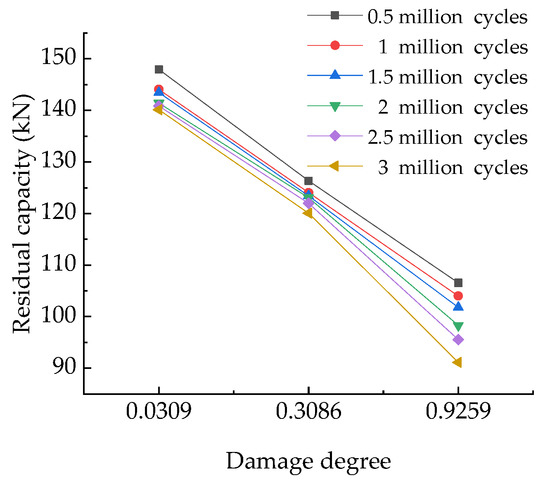

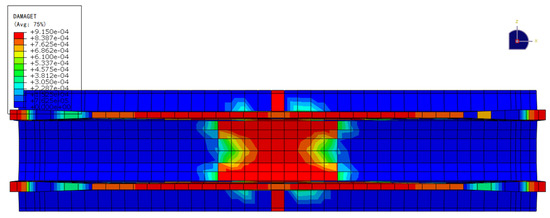

In this paper, the rib beam bridge slabs were taken as the research object. Static load and fatigue tests were carried out on the benchmark bridge slabs to determine the ultimate load capacity and fatigue life of the bridge slabs. Then, the bridge slab was pre-damaged and reinforced with polyurethane concrete. A fatigue test was carried out on the reinforced bridge slab to study the fatigue performance. Based on the damage theory, the fatigue damage reinforcement finite element models of the bridge slabs under different damage degrees were established. The fatigue performance of the reinforced bridge slabs was systematically studied. The results show that the fatigue damage of the reinforced bridge slab developed in stages. Compared to the unreinforced bridge slab, the fatigue damage of the reinforced bridge slab was significantly reduced at each stage. According to the least square method and numerical analysis results, a residual-bearing-capacity model including damage degree and fatigue cycles of the reinforced bridge slabs is proposed, which can be used as a reference in bridge slab reinforcement design. Full article

An investigation on the White Etching Crack (WEC) phenomenon as a severe damage mode in bearing applications led to the observation that in a latent pre-damage state period, visible alterations appear on the surface of the raceway. A detailed inspection of the microstructure underneath the alterations reveals the existence of plenty of nano-sized pores in a depth range of 80 µm to 200 µm. The depth of the maximum Hertzian stress is calculated to be at 127 µm subsurface. The present study investigates the effect of these nanopores on the fatigue crack initiation in SAE 52100 martensitic hardened bearing steel. In this sense, two micro-models by means of the Finite Element Method (FEM) are developed for both a sample with and a sample without pores. The number of cycles required for the crack initiation for both samples is calculated, using the physical-based Tanaka–Mura model. It is shown that pores reduce the number of cycles in bearing application to come to an earlier transition from microstructural short cracks (MSC) to long crack (LC) propagation significantly. Full article

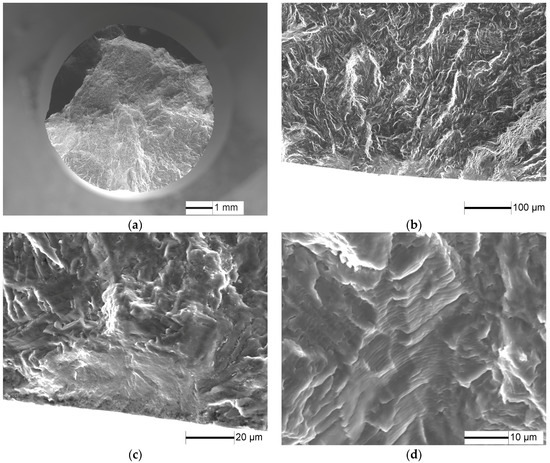

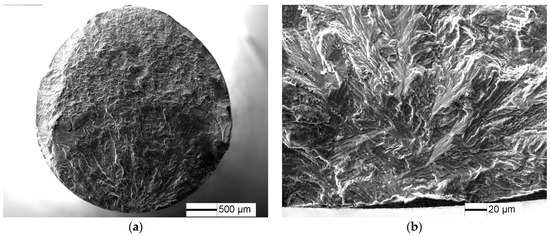

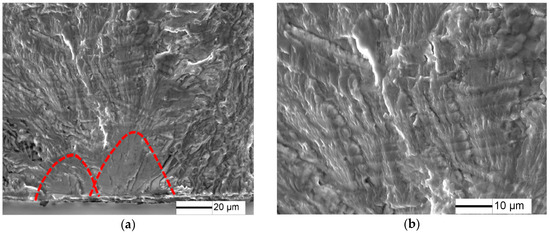

The fatigue behaviors of metals are different under different in-service environment and loading conditions. This study was devoted to investigating the combined effects of high and low cycle fatigue loads on the performance of the low alloy steel Q345. Three kinds of experiments were carried out, including the pure high cycle fatigue (HCF) tests, the pure low cycle fatigue (LCF) tests, and the combined high and low cycle fatigue (HLCF) tests. The prediction formulae were proposed for the combined high and low cycle fatigue failure. Scanning electron microscopy (SEM) and stereo microscope were used to analyze the microstructure and fracture morphology due to different fatigue loads. Case study on the combined high and low cycle fatigue damage of a steel arch bridge was carried out based on the FE method and the proposed formula. The results show that the LCF life decreases evidently due to the prior HCF damages. The HLCF fracture surface is relatively flat near the crack initiation side, and rugged at the other half part. The fatigue damages at the bridge joints increase significantly with consideration of the pre-fatigue damages caused by traffic load. In the 100th anniversary of service, the fatigue damage index without considering the HCF pre-damage is only about 50% of the coupled damage value. Full article

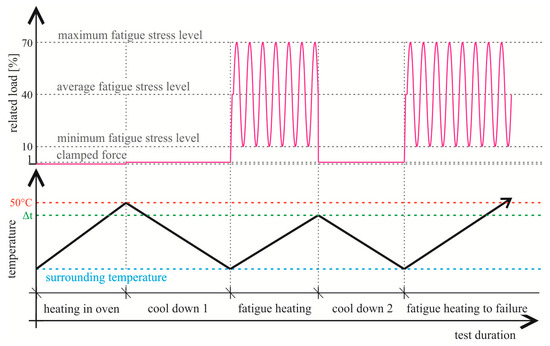

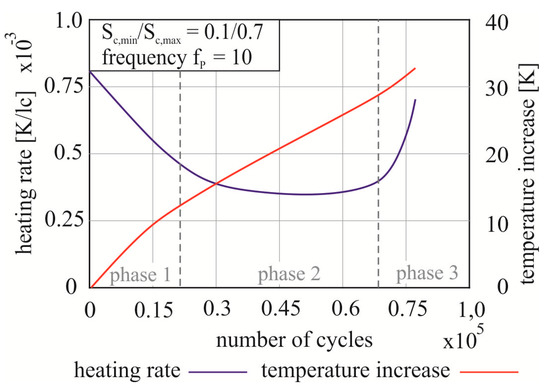

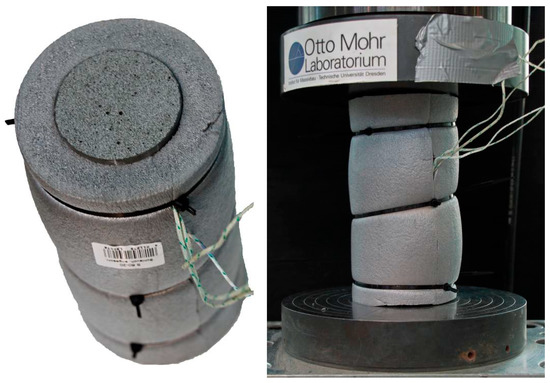

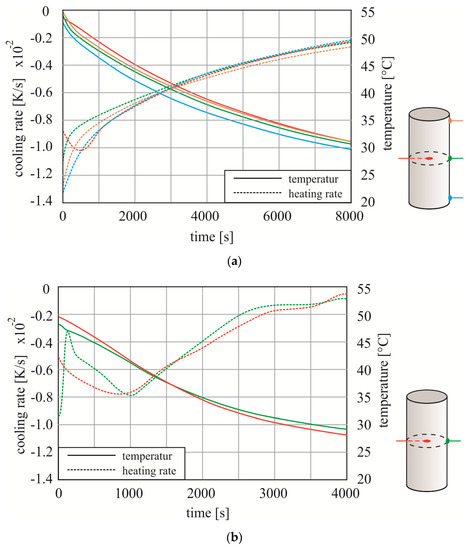

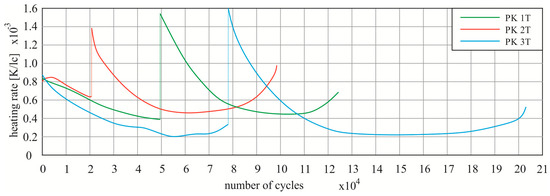

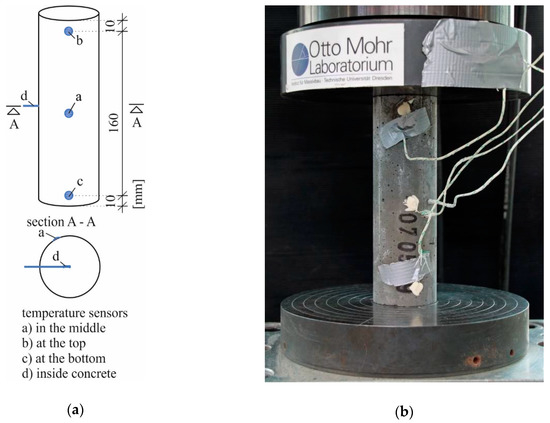

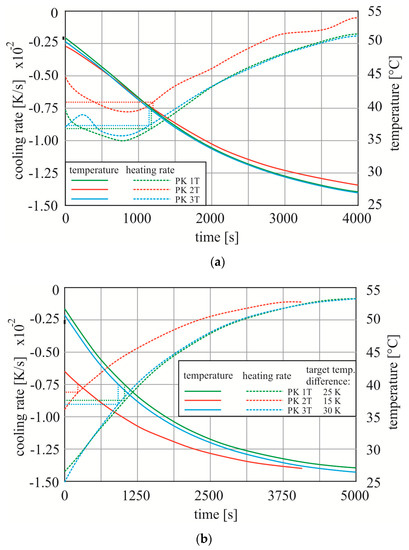

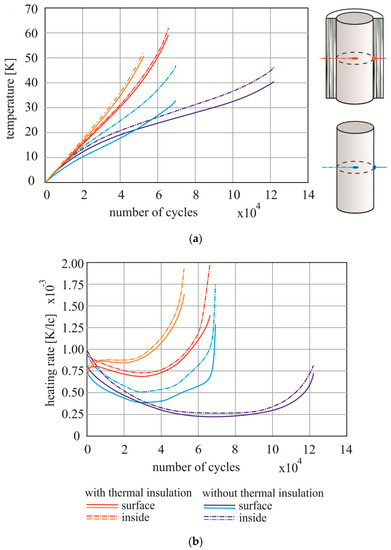

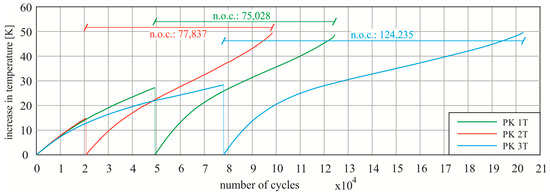

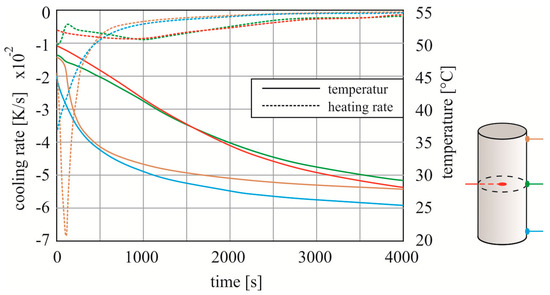

Smarter, more filigree, and resource-saving buildings are the aim of developments in the construction industry. In reinforced concrete construction, ultra-high strength concretes have been developed to achieve these goals. Due to their use and requirements, these highly pressure-resistant materials are increasingly exposed to cyclically occurring and high-frequency loads. Examples of this are applications in long-span bridges or wind turbines. Research into the fatigue behaviour of the new construction material is therefore very important for the standardization and practical introduction of the high performance material. In this article, we want to investigate the heating process of ultra-high performance concrete (UHPC) under fatigue stress in more detail. In previous investigations in this project, an influence of the heating on the fatigue strength could be determined. A systematic parameter study has defined decisive load configurations for a maximum heating process. The aim is now to better understand the heating process. For this purpose, the temperature generation rate and the temperature release, which probably influences the overall temperature development, are investigated. A test program with eight experiments gives information about the temperature release during the experiment and the heating rate with and without pre-damage in the sample. In addition, the causes of failure caused by temperature are investigated with additional insulated tests. The results are presented, discussed, and conclusions are drawn in the article. For instance, fatigue damage affects the rate of temperature increase, but not the thermal conductivity of the material. In the different configurations, the test specimens essentially overlap at the maximum temperature reached in the inner test specimen. In addition to the assumed influence of the temperature gradients in the cross section as a cause of premature failure due to additional constraint stresses, the maximum temperature in particular turns out to be decisive, independent of the gradient. Full article

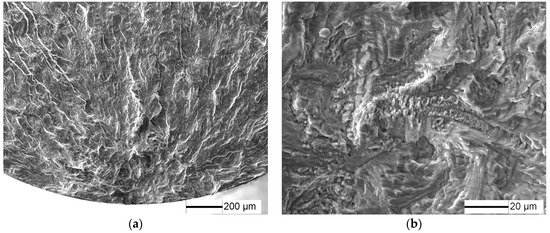

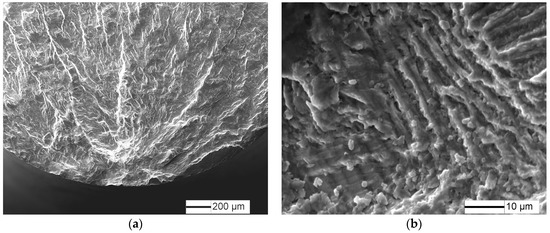

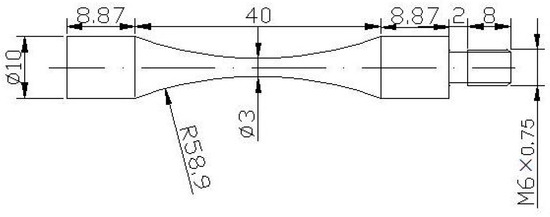

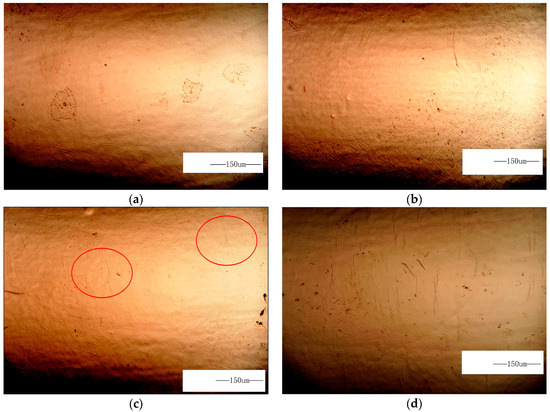

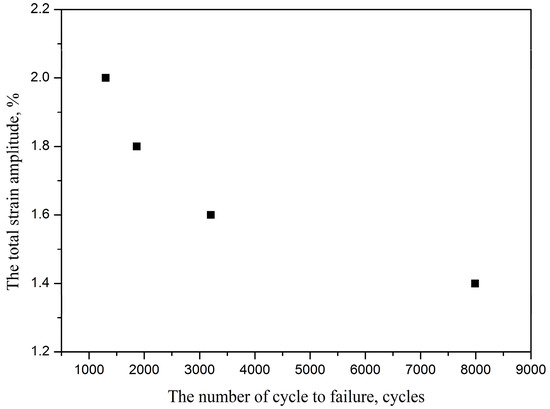

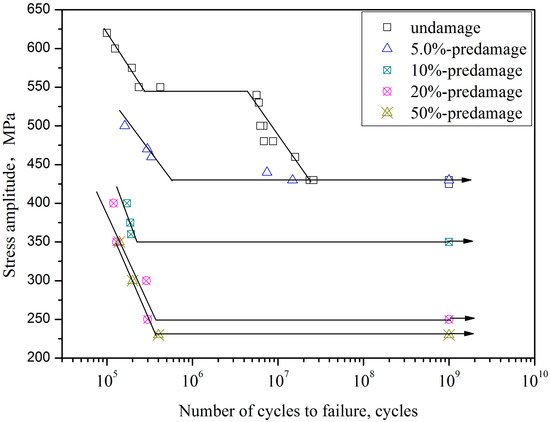

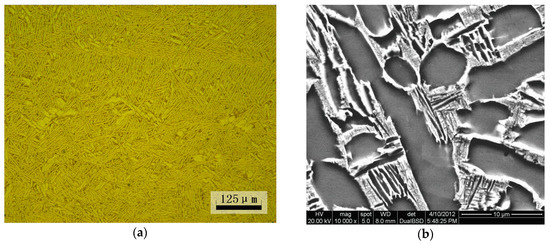

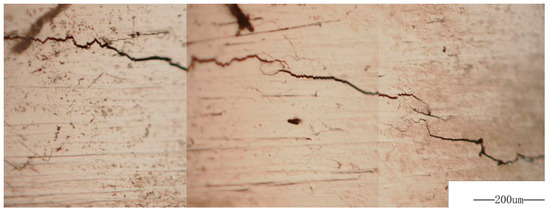

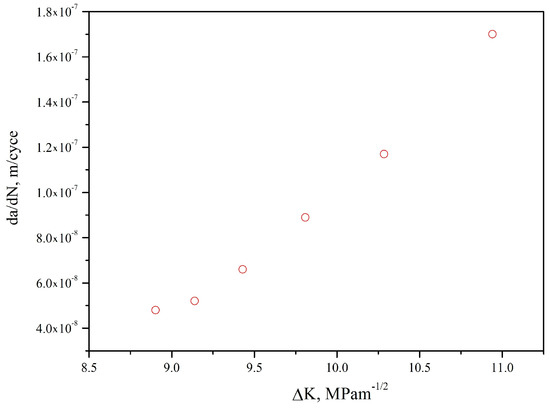

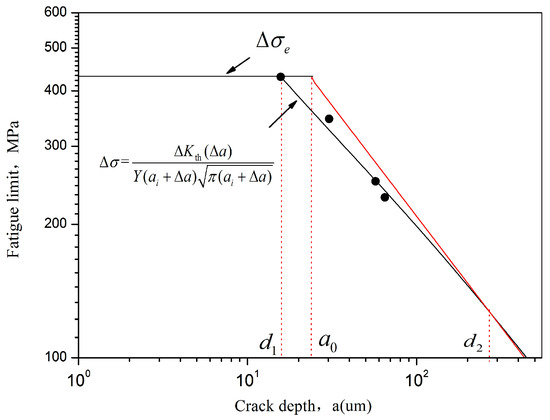

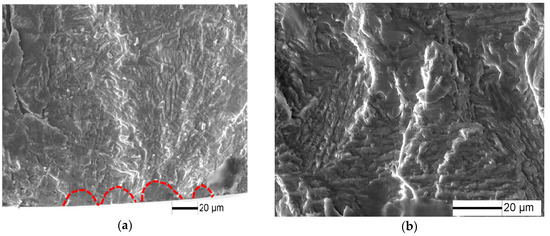

The effect of low cycle fatigue (LCF) predamage on the subsequent very high cycle fatigue (VHCF) behavior is investigated in TC21 titanium alloy. LCF predamage is applied under 1.8% strain amplitude up to various fractions of the expected life and subsequent VHCF properties are determined using ultrasonic fatigue tests. Results show that 5% of predamage insignificantly affects the VHCF limit due to the absence of precrack, but decreases the subsequent fatigue crack initiation life estimated by the Pairs law. Precracks introduced by 10% and 20% of predamage significantly reduce the subsequent VHCF limits. The crack initiation site shifts from subsurface-induced fracture for undamaged and 5% predamaged specimens to surface precrack for 10% and 20% predamaged specimens in very high cycle region. Furthermore, the predicted fatigue limits based on the El Haddad modified model for the predamaged specimens agree with the experimental results. Full article
