Search Results (12)

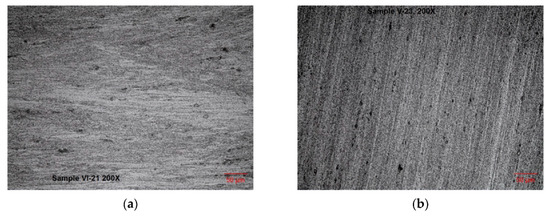

Fly ash (FA) is a low-cost industrial waste material mostly composed of oxides. These small, hard particles can be used as reinforcements in composite production. In this study, an A356.0 aluminum alloy reinforced with 4 wt.% FA was synthesized by compo casting and subsequently subjected to multiple passes of equal channel angular extrusion (ECAE) to investigate the influence of intense plastic deformation on the composite hardness and microstructure. Microstructure analysis was performed on an optical microscope and by computer tomography (CT). The as-cast alloy contains a relatively homogeneous microstructure with minor FA agglomerations and very low porosity. The severe plastic deformation induced by ECAE results in a directed structure and additional integration of FA into the matrix with the disappearance of pores. Vickers hardness measurement of aluminum/fly ash (Al/FA) composite was carried out with different indentation loads: 0.196 N (HV0.02), 0.490 N (HV0.05), 0.981 N (HV0.1), and 1.960 N (HV0.2). The results showed that hardness increases after each ECAE pass because of microstructure changes. Already after the first pass, a significant increase in hardness is achieved, ranging from 27% (HV0.05) to 62% (HV0.2). A Meyer’s index (n) value greater than 2 indicates that the hardness of single and double extruded composite depends on the indentation load. Extruded samples show a hardness enhancement with increasing applied load, so the examined composite exhibits a reverse indentation size effect (RISE). Full article

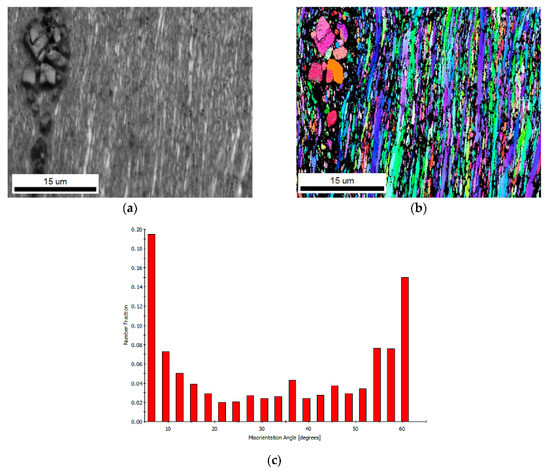

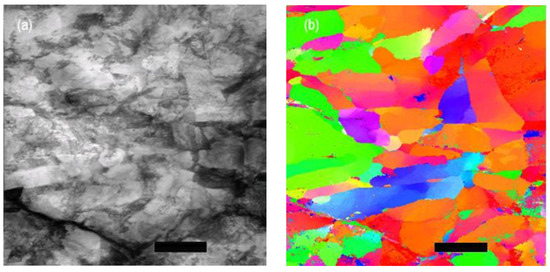

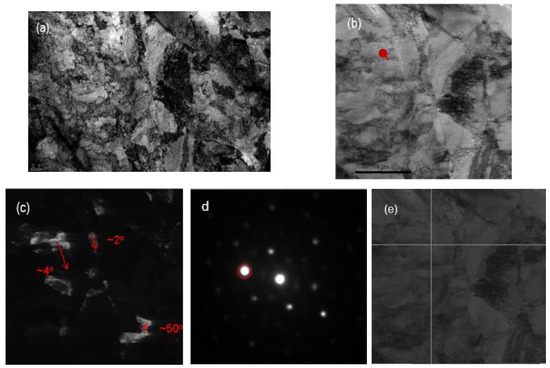

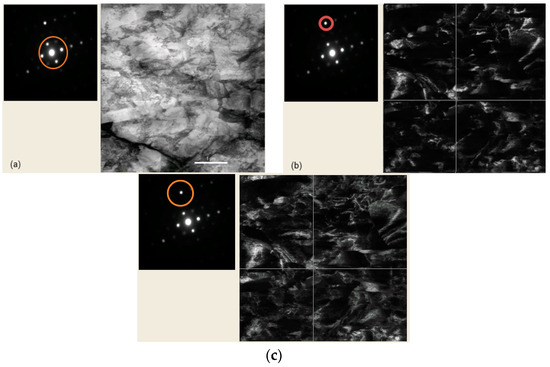

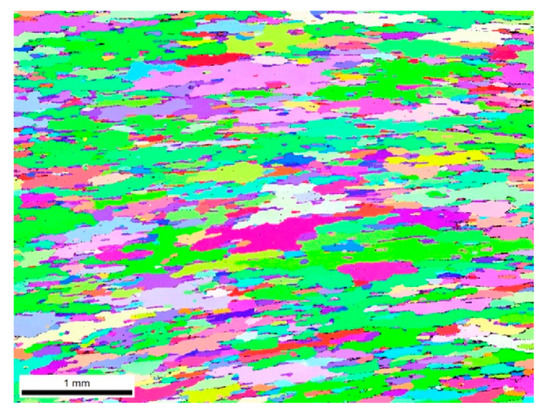

Materials produced through equal channel angular extrusion (ECAE) may offer enhanced mechanical properties over classic thermomechanical processing like extrusion or rolling. Conventional techniques such as electron backscatter diffraction (EBSD) may be insufficient to properly characterize the microstructure of these materials. Darkfield (DF) transmission electron microscopy (TEM), on the other hand, may lead to erroneous conclusions with respect to grain size. In this work, zirconium was submitted to ECAE deformation through four passes in the Bc route at 350 °C. The microstructure was evaluated through FEG-SEM/EBSD (field emission gun–scanning electron microscopy), DF TEM, and ACOM/TEM (automated crystal orientation mapping in TEM). EBSD revealed that the microstructure was heterogeneous with a few large grains surrounded by a fine submicrometric structure, which was only partially resolved through this technique. The fine structure was, however, described through ACOM/TEM. DF TEM was revealed to be somewhat unreliable when the same region was evaluated through ACOM/TEM. Therefore, a combination of techniques seems to be required for proper characterization. Full article

Equal channel angular extrusion (ECAE) is a solid-state extrusion process for modifying microstructures via severe plastic deformation without modifying the specimen cross section. In this study, changes in the microstructure and mechanical properties of polypropylene resulting from extrusion orientation route A (no rotation between extrusions) and extrusion orientation route C (a rotation of 180° between extrusions) are investigated using a 90° die-angle tooling outfitted with back pressure. Important differences are reported for the ECAE-induced deformation behavior between the two processing routes. A focus is made on the occurrence of heterogeneous plastic deformations (periodic shear banding and warping) for both routes and the control and inhibition of the plastic instabilities via regulated back pressure and ram velocity. Wide-angle X-ray scattering is carried out to characterize the structural evolution as a function of the processing conditions including route, extrusion velocity and BP application. The mechanical properties of the specimens machined from the ECAE pieces are examined under different loading paths including uniaxial tension/compression and simple shear. Full-field displacements converted to volumetric strains revealed the profound impacts of the processing route on the deformation mechanisms during tensile deformation. Full article

The effect of severe plastic deformation by the conforming process of equal channel angular extrusion (ECAE-Conform) followed by cold rolling on the microstructures developed in a Cu-0.1Cr-0.1Zr alloy was investigated. Following the ECAE-Conform of 1 to 8 passes (corresponding strains were 0.8 to 6.4) cold rolling to a total strain of 4 was accompanied by substantial grain refinement and strengthening. An average grain size tended to approach 160 nm with an increase in the rolling reduction. An increase in the ECAE-Conform strain promoted the grain refinement during subsequent cold rolling. The fraction of the ultrafine grains with a size of 160 nm after cold rolling to a strain of 4 increased from 0.12 to 0.52 as the number of ECAE-Conform passes increased from 1 to 8. Correspondingly, the yield strength increased above 550 MPa. The strengthening could be expressed by a Hall–Petch type relationship with a grain size strengthening factor of 0.11 MPa m^0.5. Full article

This paper presents an analysis of the test and simulation of the equal channel angular extrusion (ECAE) of a commercial Al 6061-T6 alloy previously extruded. Special emphasis is given to the analysis and comparison of the simulated values and distribution of equivalent plastic strain with those calculated with analytical models across the height of the middle section of the deformed billet. The results reveal the limitations of the analytical models when the effects of the inner die corner and curvature of the outer wall on the material response during the test are considered for the ECAE device used in this work. Specifically, in the simulations performed in this work, the plastic deformation zone, far from being uniform, extends along with the height of the billet where, in particular, near the inner wall over the inlet and outlet channels, even in the central region of the billet, the equivalent plastic strain is not homogeneous or discontinuous, varying mainly due to the effect of the curvature of the outer channel. Full article

The deformation structures formed in an Al-0.1Mg single-phase aluminium alloy have been studied during plane strain compression (PSC) down to liquid nitrogen temperature, following prior equal channel angular extrusion (ECAE) to a strain of ten. Under constant deformation conditions a steady state was approached irrespective of the temperature, where the rate of grain refinement stagnated and a minimum grain size was reached which could not be further reduced. A 98% reduction at 77 K (−196 °C) only transformed the ECAE processed submicron grain structure into a microstructure with thin ribbon grains, where a nanoscale high angle boundary (HAB) spacing was only approached in the sheet normal direction. It is shown that the minimum grain size achievable in severe deformation processing is controlled by a balance between the rate of compression of the HAB structure and dynamic recovery. The required boundary migration rate to maintain a constant boundary spacing is found far higher than can be justified from conventional diffusion-controlled grain growth and at low temperatures, a constant boundary spacing can only be maintained by invoking an athermal mechanism and is considered to be dominated by the operation of grain boundary dislocations. Full article

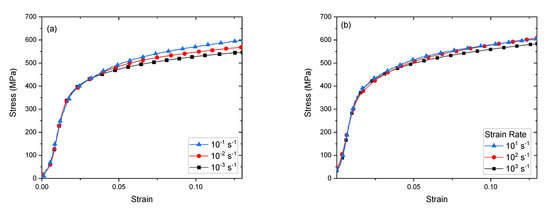

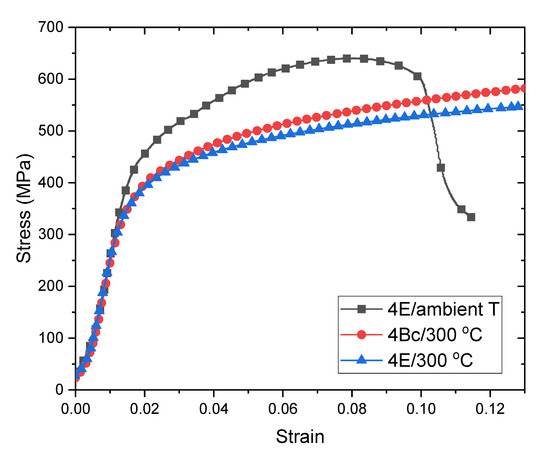

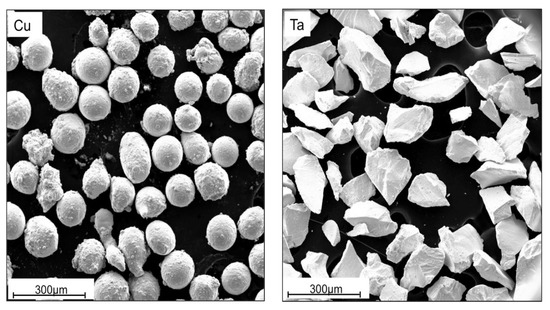

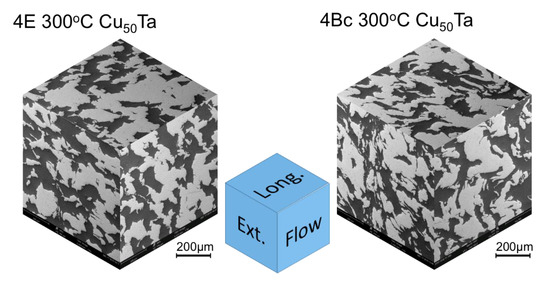

We investigated the effectiveness of severe plastic deformation by equal channel angular extrusion (ECAE) for consolidation of metal powders into metal matrix composites. Equal volumes of copper (Cu) and tantalum (Ta) powders were consolidated at ambient temperature via different ECAE routes. Composites processed by ECAE routes 4E and 4Bc were also processed at 300 °C. The resulting materials were characterized by scanning electron microscopy (SEM) and compression testing. Processing by route 4Bc at 300 °C resulted in the highest compressive strength, lowest anisotropy, and least strain rate sensitivity. We conclude that the superior properties achieved by this route arise from mechanical bonding due to interlocking Cu and Ta phases as well as enhanced metallurgical bonds from contact of pristine metal surfaces when the material is sheared along orthogonal planes. Full article

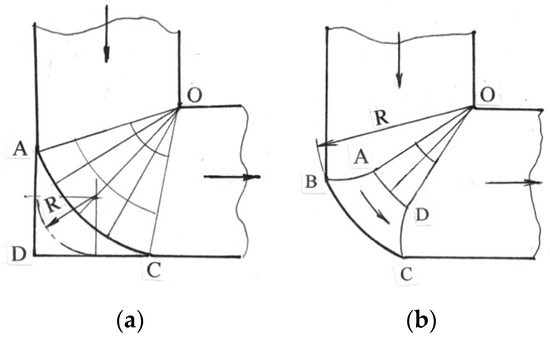

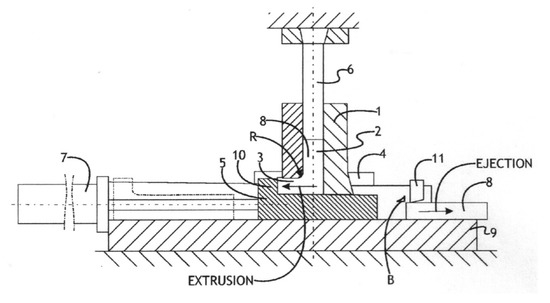

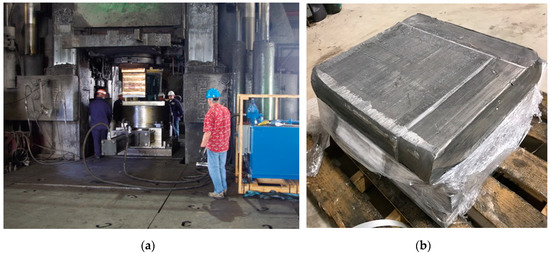

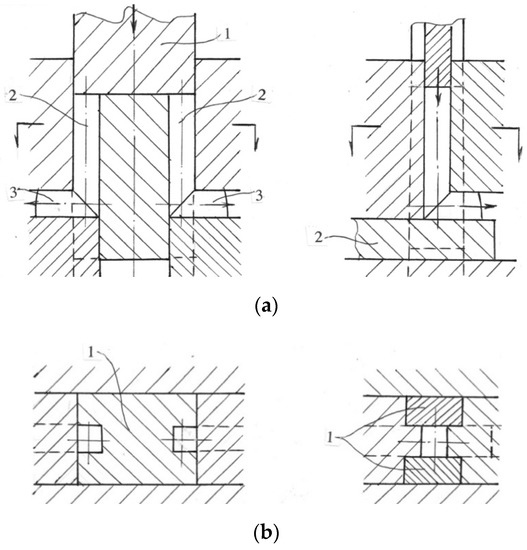

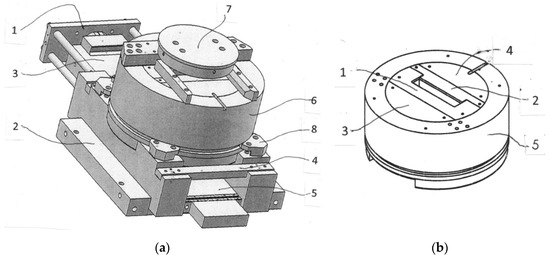

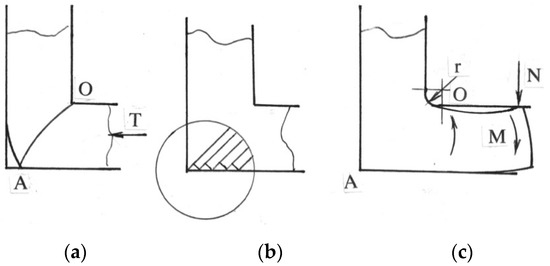

This paper presents a state-of-the-art and a retrospective view of the critical stages in the evolution of equal-channel angular extrusion (ECAE) from the original idea to a cost-effective industrial technology. These stages include optimization of the structure modification and material processing, development of the special tools, process commercialization, and a large-scale validation of the semi-continuous ECAE at the industrial floor. All aspects are extensively summarized, based on the author’s experience in the field, which spans almost half of a century. Special attention is paid to the processing of large batch billets. Practical examples illustrate industrial applications of ECAE. The scope for future development is also discussed. Full article

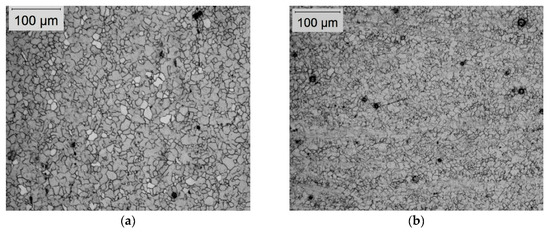

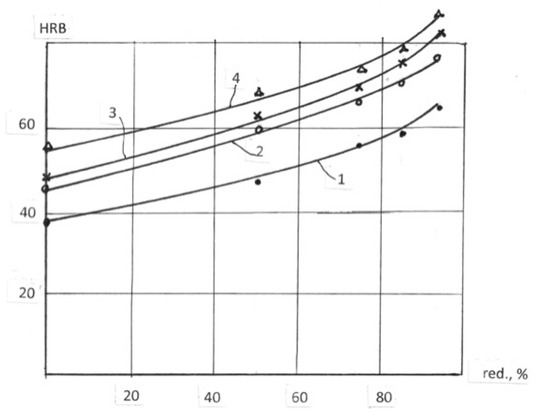

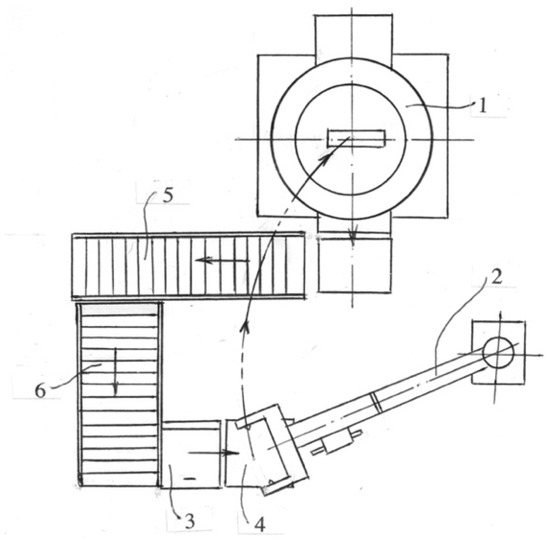

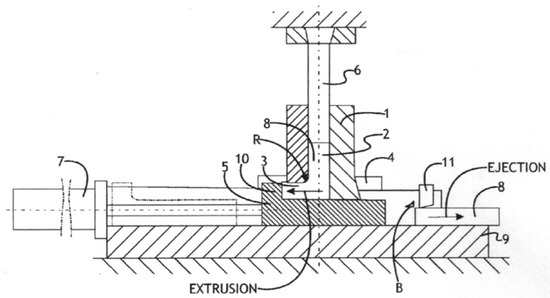

This paper describes a new modification of equal-channel angular extrusion for the “pass-by-pass” semi-continuous (sc-ECAE) processing of lightweight alloys. Sc-ECAE leads to a multifold increase in productivity and decrease in costs, providing a technical basis for the commercialization of severe plastic deformation (SPD) on a large scale with massive volume production. The evolution of the structure and properties are analyzed for an aluminum alloy (AA) 5083 and a magnesium alloy AZ31 as model materials representing, respectively, the structural refinement under severe plastic deformation (SPD) via strain-induced formation of new grain boundaries and via dynamic recrystallization. For the first alloy, the microstructure after sc-ECAE is formed via ultrafine sub-grains, which are further transformed into sub-micrometer grains during post-ECAE rolling. The preliminary solution treatment of AA5083 is an important stabilizing factor for the achievement of high mechanical properties. For the second alloy, optimized sc-ECAE results in a remarkable structural refinement, and a good balance of properties is obtained with a low number of passes. However, additional rolling in the latter case leads to a degradation of the structure and properties. Full article

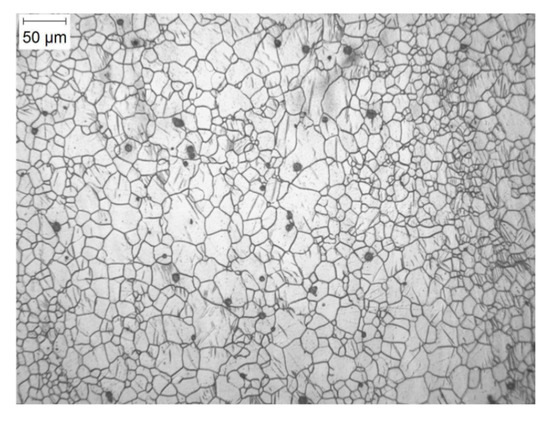

Mg-5wt.% Sn alloy is often used in portable electronic devices and automobiles. In this study, mechanical properties of Mg-5wt.% Sn alloy processed by Equal Channel Angular Extrusion (ECAE) were characterized. More precisely, its hardness and wear behavior were measured using Vickers hardness test and a pin-on-disc wear test. The microstructures of ECAE-processed Mg-Sn alloys were investigated by scanning electron microscope and X-ray diffraction. ECAE process refined the grain sizes of the Mg-Sn alloy from 117.6 μm (as-cast) to 88.0 μm (one pass), 49.5 μm (two passes) and 24.4 μm (four passes), respectively. Meanwhile, the hardness of the alloy improved significantly. The maximum wear resistance achieved in the present work was around 73.77 m/mm³, which was obtained from the Mg-Sn alloy treated with a one-pass ECAE process with a grain size of 88.0 μm. The wear resistance improvement was caused by the grain size refinement and the precipitate of the second phase, Mg₂Sn against the oxidation of the processed alloy. The as-cast Mg-Sn alloy with the larger grain size, i.e., 117.6 μm, underwent wear mechanisms, mainly adhesive wear and abrasive wear. In ECAE-processed Mg-Sn alloy, high internal energy occurred due to the high dislocation density and the stress field produced by the plastic deformation, which led to an increased oxidation rate of the processed alloy during sliding. Therefore, the oxidative wear and a three-body abrasive wear in which the oxide debris acted as the three-body abrasive components became the dominant factors in the wear behavior, and as a result, reduced the wear resistance in the multi-pass ECAE-processed alloy. Full article

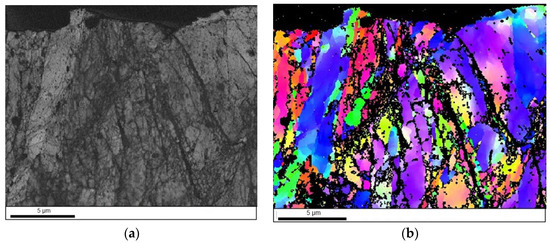

Based on electron backscattered diffraction analysis and transmission electron microscopy observation, the mechanism of inhomogeneous grain refinement in a NiTiFe shape memory alloy (SMA) subjected to single-pass equal-channel angular extrusion (ECAE) was investigated. The results show that refined grains are mainly nucleated near grain boundaries and a small fraction of them emerges in the grain interior. The size of refined grains increases as deformation temperature increases, which indicates that a higher deformation temperature is adverse to grain refinement in the ECAE of NiTiFe SMAs. It is the accumulation and rearrangement of geometrically necessary dislocations as plastic strain increases that leads to the transition of lower angle subgrain boundaries, and finally higher angle subgrain boundaries are induced and finer grains are formed. Due to the limitation of slip systems, the mechanism of grain refinement in a NiTiFe SMA subjected to ECAE is different from that in face-centered cubic and body-centered cubic crystals. Dislocation cells and shear bands are two transition microstructures of grain refinement in the ECAE of NiTiFe SMAs. The nucleation of fine grains mainly occurs along shear bands or grain boundaries, which leads to the inhomogeneity of grain refinement. Full article

An investigation has been carried out into the microstructures developed during the early stages of equal channel angular extrusion (ECAE) in a polycrystalline single-phase Al-0.13Mg alloy, with emphasis on the substructural alignment with respect to the die geometry and the crystallographic slip systems, which is essentially related to the grain refinement and texture development during deformation. The material was processed by ECAE at room temperature to three passes, via a 90° die. Microstructures were examined and characterized by EBSD. It was found that dislocation cell bands and microshear bands were respectively the most characteristic deformation structures of the first and second pass ECAE. Both formed across the whole specimen and to align approximately with the die shear plane, regardless of the orientation of individual grains. This confirmed that substructural alignment was in response to the direction of the maximum resolved shear stress rather than to the crystallographic slip systems. However, a significant fraction of material developed preferred orientations during deformation that allowed the coincidence between the crystallographic slip systems and the simple shear geometry to occur, which governed texture development in the material. The third pass deformation was characterized with the formation of a fibre structure with a significant fraction of high angle boundaries, being aligned at an angle to the extrusion direction, which was determined by the total shear strain applied. Full article
