Search Results (10)

Microstructural, mechanical and qualitative phase identification of durable mullite-based ceramics obtained by utilization of waste clay–diatomite has been studied. Mullite-based ceramics were fabricated using waste clay–diatomite from the Baroševac open-cast coal mine, Kolubara (Serbia). The raw material consists mainly of SiO₂ (70.5 wt%) and a moderately high content of Al₂O₃ (13.8 wt%). In order to achieve the stoichiometric mullite composition (3Al₂O₃-2SiO₂), the raw material was mixed with an appropriate amount of Al(NO₃)₃·9H₂O. After preparing the precursor powder, the green compacts were sintered at 1300, 1400 and 1500 °C for 2 h. During the process, rod-shaped mullite grains were formed, measuring approximately 5 µm in length and a diameter of 500 nm (aspect ratio 10:1). The microstructure of the sample sintered at 1500 °C resulted in a well-developed, porous, nest-like morphology. According to the X-ray diffraction analysis, the sample at 1400 °C consisted of mullite, cristobalite and corundum phases, while the sample sintered at 1500 °C contained mullite (63.24 wt%) and an amorphous phase that reached 36.7 wt%. Both samples exhibited exceptional compressive strength—up to 188 MPa at 1400 °C. However, the decrease in compressive strength to 136 MPa at 1500 °C is attributed to changes in the phase composition, the disappearance of the corundum phase and alterations in the microstructure. This occurred despite an increase in bulk density to 2.36 g/cm³ (approximately 82% of theoretical density) and a complete reduction in open porosity. The residual glassy phase (36.7 wt% at 1500 °C) is probably the key factor influencing the mechanical properties at room temperature in these ceramics produced from waste clay–diatomite. However, the excellent mechanical stability of the samples sintered at 1400 and 1500 °C, achieved without binders or additives and using mined diatomaceous earth, supports further research into mullite-based insulating materials. Mullite-based materials obtained from mining waste might be successfully used in the field of energy-efficient refractory materials and thermal insulators. for high-temperature applications Full article

A white encrustation of the Cotswold Weir wall in the lower reaches of the Condamine River, a tributary of the Murray–Darling River system in semi-arid Australia, was investigated following community concern that it indicated health risks from an unknown substance in the water resulting from mining and agricultural enterprises in the catchment. The vitreous white surface consisted of closely packed frustules of diatoms, observed by scanning electron microscopy, with an underlying layer of clay particles and dried filamentous green algae. Pennate diatoms identified in the white encrustation were the benthic species Nitzschia palea (predominant), Eolimna subminiscula, Craticula aff. cuspidata, Navicula viridula var. rostellata, and Luticola mutica. The centric diatom species Melosira varians was also present as filamentous chains of cylindrical frustules among the aggregated pennate diatom frustules. The encrustation was the remains of a periphyton (biofilm) of diatoms and green algae that had developed during protracted stream flow over the weir wall following record flooding. A dry period had resulted in the death of the diatoms and exposure of their aggregated siliceous frustules as a vitreous white coating. All diatom species identified are considered tolerant of eutrophic and mildly saline conditions. Chemical analyses of water from the Cotswold Weir, compared to long-term records, revealed higher salinity, with changes from March when the river was flowing to September when the white coating was noted, in electrical conductivity (299 to 461 µS/cm), and in sodium (26 to 43 mg/L) and chloride (26 to 75 mg/L) concentrations, respectively. Total nitrogen (0.82 to 1.6 mg/L) and total phosphorus (0.24 to 0.094 mg/L) were at mesotrophic and eutrophic concentrations, respectively, together with substantial dissolved silica concentrations (18 to 11 mg/L). Atomic ratios for total nitrogen/total phosphorus (7.6 to 37.6), nitrate-nitrogen/orthophosphate-phosphorus (2.3 to 274), and dissolved silica–silicon:orthophosphate-phosphorus (81.7 to 749) probably favoured diatoms over other photoautotrophs. While the diatomaceous encrustation indicated no health risks from the weir water, continued watch is required to avoid eutrophication and salinization of the river. Full article

The southern island of the Philippines is abundant in silicate minerals, including the province of Lanao del Norte. However, some of these resources in the region are untapped for use as raw materials in the production of various ceramic products for industrial, pharmaceutical, and nanotechnology applications. These could include tiles, sanitary ware, dinnerware, insulating bricks, porcelain, membranes and coatings. Some of the explored minerals are the red clay in the municipality of Linamon, diatomaceous earth in Kapatagan and black cinder in Salvador. It is the aim of this study that these minerals are evaluated in terms of their physical and chemical properties so that these will be used for optimum application. The properties that were determined were their specific gravities, raw and fired surface colors, Atterberg limits, particle size distribution, thermal properties, morphologies and mineralogical compositions. Pellets were formed for each raw material and fired at two temperature levels 1000 °C and 1200 °C to evaluate their physical properties. Linamon red clay has a 38.88% cumulative passing size of 150 µm, and the black cinder of Salvador and diatomaceous earth of Kapatagan have cumulative passing sizes of 96.53% and 60.12% at 150-micron sieve, respectively. The common mineral contents of the three samples are montmorillonite, quartz and andesine. Black cinder fired at 1200 °C has the darkest shade of red with a greasy quasi-submetallic luster. It attained the highest fusion coverage on the platform among the three materials, which makes it a potential supplement or replacement for feldspar in clay-based triaxial materials for ceramic production. The diatomaceous earth has the potential to be a secondary clay content source and a good source of flux for a certain temperature range. Both the red clay and diatomaceous earth were classified as plastic materials that are suitable for brick production, and the red clay is also feasible for pottery production. These are a few of the features of the clay minerals in the region that present suitable properties for application as raw materials in the production of ceramic tiles and hollow ceramic products. Full article

The presence of diatoms in diatomaceous soil gives it geotechnical properties that are unusual compared with common clays. The most typical physical property of diatomaceous soil is its abnormally high Atterberg limits compared to fine-grained soil without diatoms. For diatomaceous soil, the Atterberg limits are associated with many factors, such as diatom content, diatom crushing degree, etc. In the study reported here, it was ascertained that more diatoms lead to higher plastic and liquid limits. Once the diatoms are crushed, the plastic and liquid limits decrease. The pore fluid salt concentration barely influenced the Atterberg limits of diatomaceous soil. Additionally, the porous diatom microstructure and trimodal pore size distribution of diatomaceous soil were investigated via scanning electron microscopy, transmission electron microscopy, and mercury intrusion porosimetry. The underlying mechanism of abnormally high liquid and plastic limits of diatomaceous soil is revealed as the water stored in the special diatom microstructure. However, water in diatoms has no contribution to plasticity. Also discussed is the applicability of the current soil classification systems for diatomaceous soil. The findings of this study can help for a better understanding of Atterberg limits of diatomaceous soil and provide suggestions for the classification of diatomaceous soil. Full article

In this study, the potential use of waste diatomaceous earth from the production of diatomaceous earth for filtration purposes, as an alternative raw material for foam glass production, was explored. The chemical and mineralogical composition and the high temperature behavior of waste diatomite were studied to assess its suitability for foam glass production. Glass-ceramic foams were prepared using NaOH solution as a foaming agent, via a hydrate mechanism. The influence of different pretreatments and firing temperatures on the foam’s structure, bulk density and compressive strength was investigated. High temperature behavior was studied using TG/DTA analysis and high temperature microscopy. Phase composition was studied using X-ray diffraction analysis. Glass-ceramic foam samples of a high porosity comparable to conventional foam glass products were fabricated. The pretreatment temperature, foaming temperature and sintering holding time were found to have a significant influence on foam properties. With increased pretreatment temperature, pyrogenic carbon from the thermal decomposition of organic matter contained in the raw material acted as an additional foaming agent and remained partially unoxidized in prepared foams. The bulk densities of prepared samples ranged from 150 kg/m³ to 510 kg/m³ and their compressive strengths were between 140 and 1270 kPa. Full article

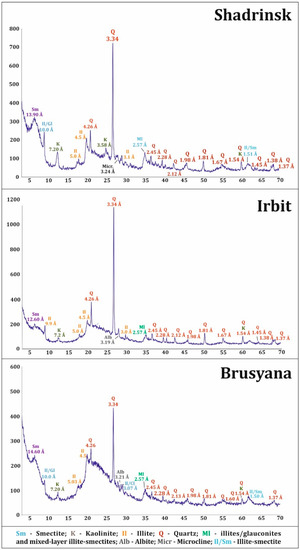

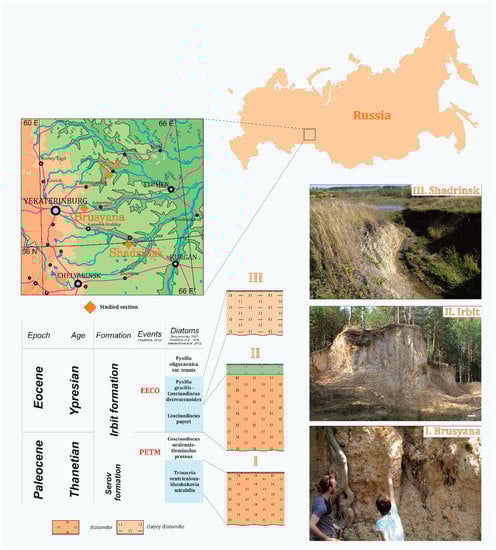

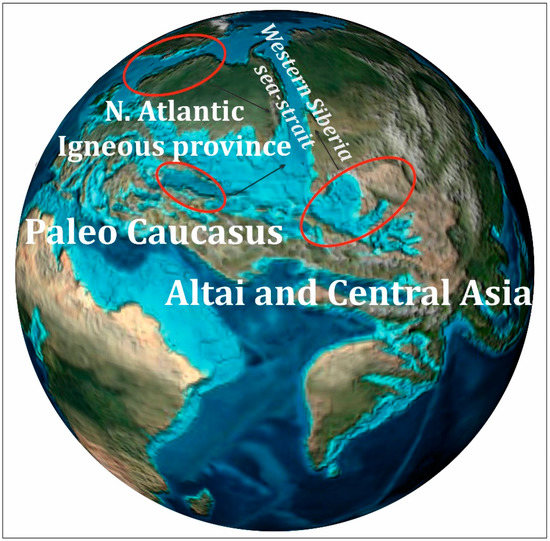

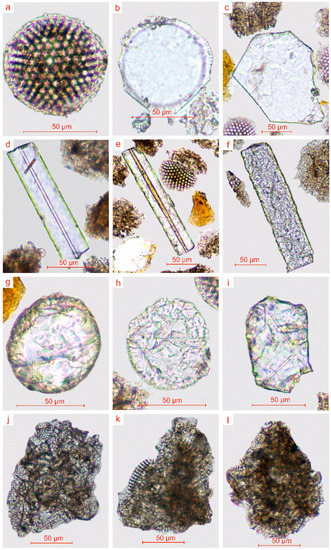

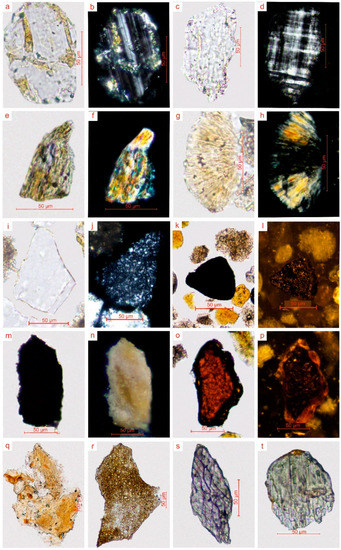

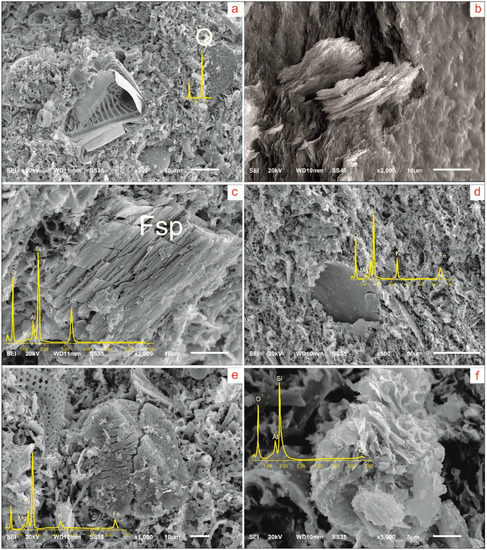

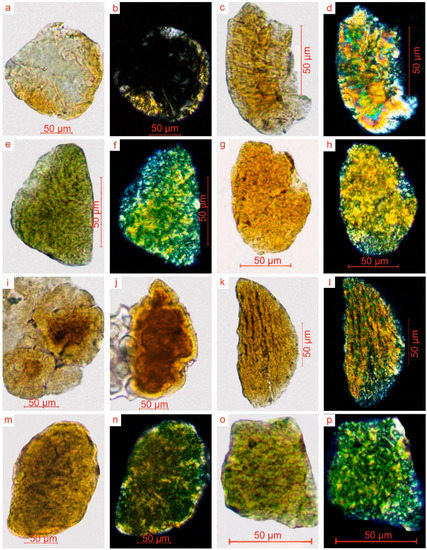

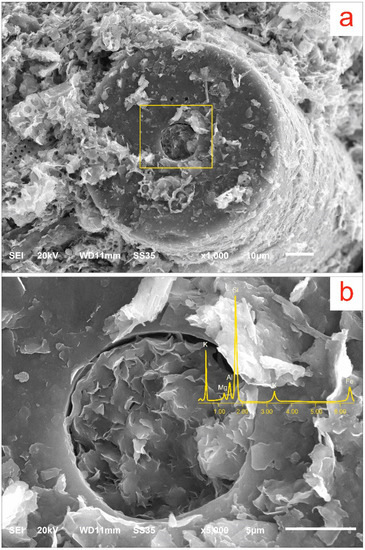

The paper presents the results of a study on clay minerals and detrital material of biosiliceous rocks (Paleocene–Eocene) from three sections in the Transuralian region. The authigenic processes in sediments resulted in the formation of dioctahedral clay minerals (illite, smectite) and insignificant amounts of sulfide phases (pyrite, hydrotroillite). Detrital minerals from the studied diatomites and diatomaceous clays often have a subangular and semi-rounded habit that is evidence of a low degree alteration of the sedimentary material in the provenance areas. The high degree of preservation of the bioclastic debris and the transformation of the limited volcanogenic substratum in clay minerals apparently was possible by initial burial diagenesis. The morphology of kaolinite and illite suggests that these mineral formations were caused by diagenesis with feldspars and smectites as a substrate for their formation. The smectite zone of weathering crust that developed on the adjacent land could have also served as a significant source of smectites entering the sea basin. The association with smectite in aggregates of mixed clayey composition indicates a sequential smectite-to-illite reaction via mixed-layered minerals. Such minerals as amphiboles, pyroxenes, and olivines, semi-stable to transportation and genetically associated with ultramafic rocks, form a significant part of the clastic fraction of the rock, indicating the proximity of provenance areas. This is the evident reason that the provenance areas made of mafic and ultramafic rocks played an essential role. Full article

The mining industry of Poland is based mostly on coal and copper ores. Strict carbon emissions and the depletion of deposits will slowly phase out coal. Therefore, metallic ores and other mineral raw materials will dominate the extractive industry of Poland. Current measured resources of the largest deposits of halloysite and diatomaceous earth in Poland are over 0.5 Mt and 10 Mt, respectively. Halloysite and diatomaceous earth samples from halloysite Dunino deposits and Jawornik diatomaceous earth deposits (composed mostly of diatomaceous skeletons (frustules)) were subjected to mineralogical analysis, scanning electron microscopy/energy-dispersive X-ray spectroscopy (SEM-EDS) nanostructural, chemical, elemental, and mineral content analysis. Both these minerals have similar properties, i.e., sorption capacity and cation exchange capacity, and are used mostly for the same purposes, e.g., adsorbents, filler material, and filtration. Samples of Dunino halloysite consist of minerals such as halloysite, kaolinite, hematite, magnetite, quartz, magnesioferrite, rutile, ilmenite, geikielite, goyazite, gorceixite, and crandallite, with little impurities in the form of iron oxides. Occasionally, halloysite nanoplates (HNP) nanotubes (HNT) were found. Diatomaceous earth is composed mainly of silica-containing phases (quartz, opal) and clay minerals (illite and kaolinite). The frustules of diatoms are mostly centric (discoid) and have radius values of approximately 50–60 μm. Large resources of these minerals could be used in the future either for manufacturing composite materials or highly advanced adsorbents. Full article

Environmental contamination by toxic heavy metals is a serious worldwide phenomenon. Thus, their removal is a crucial issue. In this study, we found an efficient adsorbent to remove Cu²⁺ and Ni²⁺ from aqueous solution using two materials. Chemical modification was used to obtain palygorskite clay from diatomite. The adsorbents were characterized using X-ray florescence, Fourier transform infrared spectroscopy and X-ray diffraction. The effects of contact time, initial concentration, temperature and pH on the adsorption process were investigated. Our results showed that the (%) of maximum adsorption capacity of diatomite was 78.44% for Cu²⁺ at pH 4 and 77.3% for Ni²⁺ at pH 7, while the (%) of the maximum adsorption on palygorskite reached 91% for Cu²⁺ and 87.05% for Ni²⁺, in the same condition. The results indicate that the pseudo-second-order model can describe the adsorption process. Furthermore, the adsorption isotherms could be adopted by the Langmuir and the Freundlich models with good correlation coefficient (R²). Thus, our results showed that palygorskite prepared from Tunisian diatomite is a good adsorbent for the removal of heavy metals from water. Full article

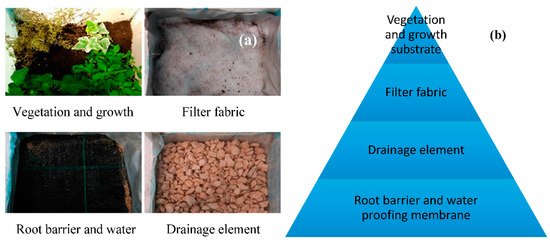

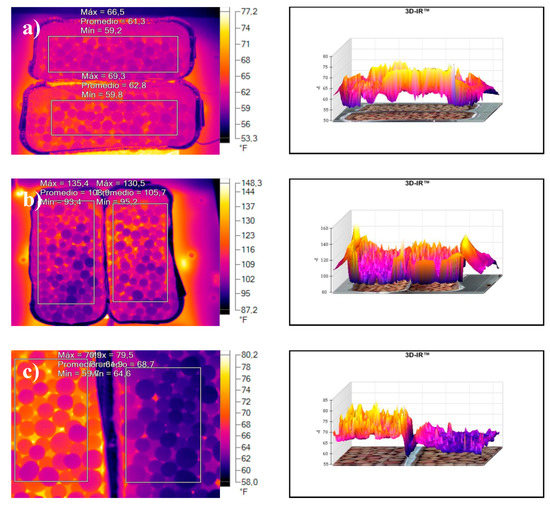

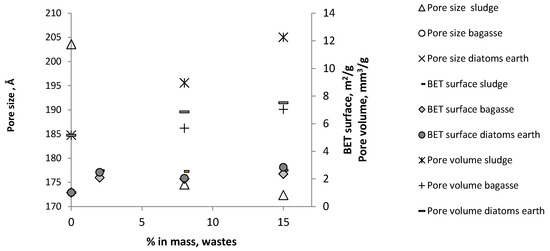

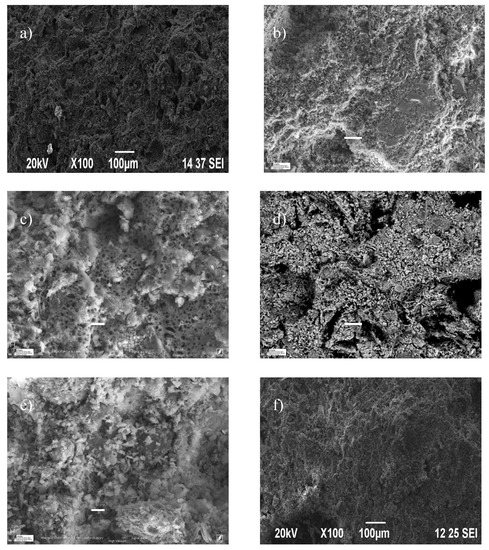

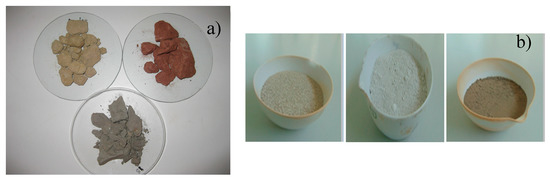

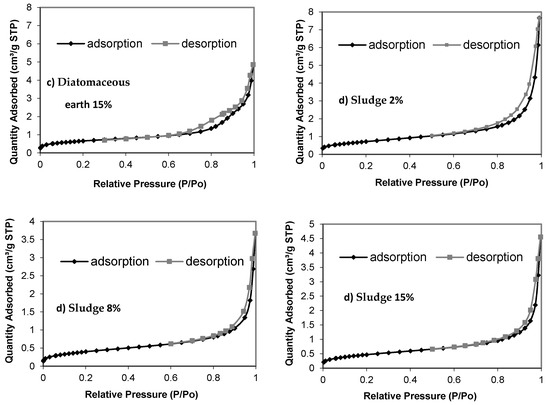

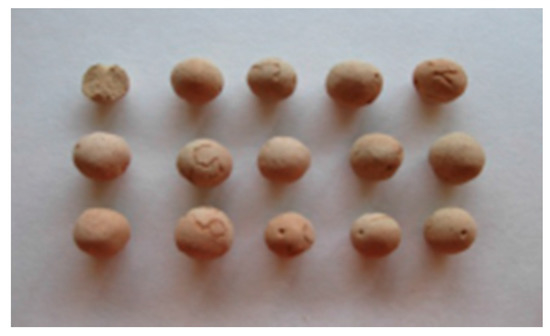

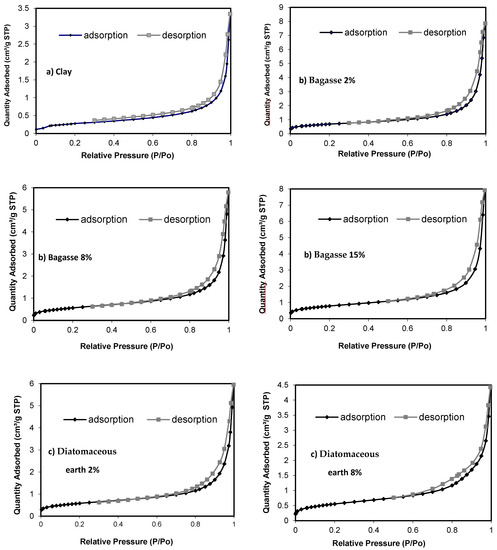

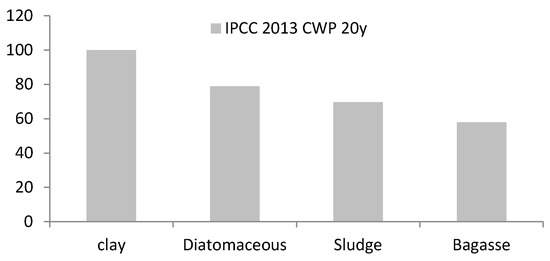

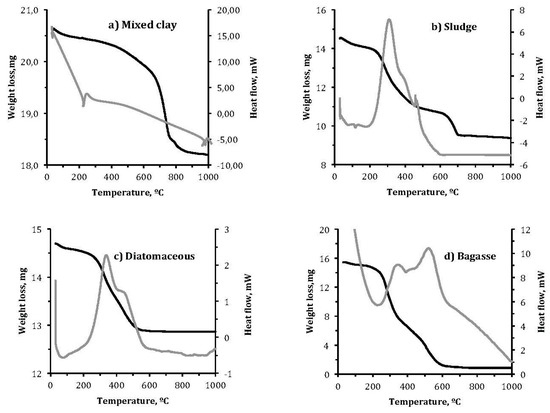

This study investigates the effects of sieved wastes generated from the brewing industry on lightweight aggregates manufactured with clay. Sludge from a wastewater treatment plant, bagasse and diatomaceous earth were used to obtain the samples. These wastes are usually dumped in landfills, but the current increase in restrictions on dumping and interest in improving the environment make our proposal for gaining value from these wastes a significant contribution. Laboratory tests show that the new aggregate has low bulk density and increased water absorption and porosity. The thermographic camera results provide evidence that new aggregates have significant insulating properties and are suitable for use on green roofs. Full article

This study investigates the geomechanical, hydraulic and thermal characteristics of natural sandy sediments collected during the Ulleung Basin gas hydrate expedition 2, East Sea, offshore Korea. The studied sediment formation is considered as a potential target reservoir for natural gas production. The sediments contained silt, clay and sand fractions of 21%, 1.3% and 77.7%, respectively, as well as diatomaceous minerals with internal pores. The peak friction angle and critical state (or residual state) friction angle under drained conditions were ~26° and ~22°, respectively. There was minimal or no apparent cohesion intercept. Stress- and strain-dependent elastic moduli, such as tangential modulus and secant modulus, were identified. The sediment stiffness increased with increasing confining stress, but degraded with increasing strain regime. Variations in water permeability with water saturation were obtained by fitting experimental matric suction-water saturation data to the Maulem-van Genuchen model. A significant reduction in thermal conductivity (from ~1.4–1.6 to ~0.5–0.7 W·m⁻¹·K⁻¹) was observed when water saturation decreased from 100% to ~10%–20%. In addition, the electrical resistance increased quasi-linearly with decreasing water saturation. The geomechanical, hydraulic and thermal properties of the hydrate-free sediments reported herein can be used as the baseline when predicting properties and behavior of the sediments containing hydrates, and when the hydrates dissociate during gas production. The variations in thermal and hydraulic properties with changing water and gas saturation can be used to assess gas production rates from hydrate-bearing deposits. In addition, while depressurization of hydrate-bearing sediments inevitably causes deformation of sediments under drained conditions, the obtained strength and stiffness properties and stress-strain responses of the sedimentary formation under drained loading conditions can be effectively used to assess sediment responses to depressurization to ensure safe gas production operations in this potential target reservoir. Full article
