Search Results (7)

This study examines the impact of sodium citrate and a plasticizing additive, along with their sequential introduction into a cement slurry or concrete mix, on the heat evolution of the cement slurry, the microstructure, phase composition of the cement paste, and the compressive strength of fine-grained concrete. The binder used in this research was a blended binder consisting of 90% Portland cement and 10% calcium aluminate cement. This type of binder is characterized by an increased heat evolution and accelerated setting time. The addition of sodium citrate at 5% of the binder mass alters the phase composition of newly formed compounds by increasing the quantity of AFt and AFm phases. The presence of sodium citrate significantly delays the hydration process of tricalcium silicate by a factor of 3.3. Initially, it accelerates belite hydration by 31.6%, but subsequently slows it down, with a retardation of 43.4% observed at 28 days. During the hardening process, the hydration of tricalcium aluminate and tetracalcium aluminoferrite is accelerated throughout the hardening process, with the maximum acceleration occurring within the first 24 h. During the first 24 h of hydration, the dissolution rates of tricalcium aluminate and tetracalcium aluminoferrite were 40.7% and 75% faster, respectively. Sodium citrate enhances heat evolution during the initial 24 h by up to 4.3 times and reduces the induction period by up to 5 times. Furthermore, sodium citrate promotes early strength development during the initial curing period, enhancing compressive strength by up to 6.4 times compared to the reference composition. Full article

In order to increase the utilization rate of stainless steel slag, reduce storage needs, and mitigate environmental impacts, this study replaces a portion of limestone with varying amounts of stainless steel slag in the calcination of Portland cement clinker. The study primarily examines the influence of stainless steel slag on the phase composition, microstructure, compressive strength, and free calcium oxide (ƒ-CaO) content of Portland cement clinker. The results show the following: (1) Using stainless steel slag to calcine Portland cement clinker can lower the calcination temperature, reducing industrial production costs and energy consumption. (2) With an increase in the amount of stainless steel slag, the dicalcium silicate (C₂S) and tricalcium silicate (C₃S) phases in Portland cement clinker initially increase and then decrease; the C₃S crystals gradually transform into continuous hexagonal plate-shaped distributions, while the tricalcium aluminate (C₃A) and tetracalcium aluminoferrite (C₄AF) crystal structures become denser. When the stainless steel slag content is 15%, the dicalcium silicate and tricalcium silicate phases are at their peak; the C₃S crystals are continuously distributed with a relatively dense structure, and C₃A and C₄AF crystals melt and sinter together, becoming distributed around C₃S. (3) As stainless steel slag content increases, the compressive strength of Portland cement clinker at 3 days, 7 days, and 28 days increases and then decreases, while ƒ-CaO content decreases and then increases. When the stainless steel slag content is 15%, the compressive strength at 28 days is at its highest, 64.4 MPa, with the lowest ƒ-CaO content, 0.78%. The test results provide a basis for the utilization of stainless steel slag in the calcination of Portland cement clinker. Full article

Regenerated magnesia-calcium brick samples with different aluminium oxide (Al₂O₃) contents were prepared using spent magnesia-calcium bricks and fused magnesia as the main raw materials and Al₂O₃ powders as the additive. The phase compositions, microstructures, room temperature, hot flexural strength, and kiln coating adherence of the regenerated samples were investigated. This indicates that the Al₂O₃ content increased, mainly resulting in the content of tetracalcium aluminoferrite (C₄AF) and tricalcium aluminate (C₃A) increasing in the regenerated samples. The bulk density, room temperature flexural strength, and kiln coating adherence all increased, whereas the hot flexural strength and corrosion resistance to cement clinker both deteriorated with an increase in the Al₂O₃ content. This was because, on the one hand, the low melting point phases of C₄AF and C₃A improved the sinterability of the regenerated samples during the burning stage, and on the other hand, they melted or existed in the liquid phase at the experimental temperature, which degraded the hot flexural strength and corrosion resistance but enhanced the kiln coating adherence as the wettability of the liquid phase. The content of Al₂O₃ in the regenerated magnesia-calcium brick should not be higher than 1.1 wt.%, considering its comprehensive performance for cement rotary kiln. Full article

The presented work concerns the study of the changes in the phase composition of calcium aluminoferrites which depend on the synthesis conditions and the selection of the Al₂O₃/Fe₂O₃ molar ratio (A/F). The A/F molar ratio extends beyond the limiting composition of C₆A₂F (6CaO·2Al₂O₃·Fe₂O) towards phases richer in Al₂O₃. An increase in the A/F ratio above unity favours the formation of other crystalline phases such as C₁₂A₇ and C₃A, in addition to calcium aluminoferrite. Slow cooling of melts characterised by an A/F ratio below 0.58, results in the formation of a single calcium aluminoferrite phase. Above this ratio, the presence of varying contents of C₁₂A₇ and C₃A phases was found. The process of rapid cooling of the melts with an A/F molar ratio approaching the value of four favours the formation of a single phase with variable chemical composition. Generally, an increase in the A/F ratio above the value of four generates the formation of a calcium aluminoferrite amorphous phase. The rapidly cooled samples with compositions of C_22.19A_10.94F and C_14.61A_6.29F were fully amorphous. Additionally, this study shows that as the A/F molar ratio of the melts decreases, the elemental cell volume of the calcium aluminoferrites decreases. Full article

In this study, we investigated a mechanism of carbonation reaction by CO₂ capture through synthesis of ternary (CaO-Al₂O₃-Fe₂O₃) compounds. As for the composition of the sintered calcium aluminum ferrite (SCAF), the proportions of CF-based product and CA-based product were high, at 87.3% and 64.6%, at sintering temperatures of 1000 °C and 1100 °C, respectively. In addition, in the process of both dry and wet carbonation, the carbonation reaction occurred in the synthetic SCAF regardless of the sintering temperature conditions. In particular, in the carbonation with the wet method, CAH and CAFH, which are hydrates, were produced in up to 1 h of the reaction time with CO₂, but from 3 h of reaction time, carbo compounds such as calcium carbo aluminate and calcium carbo alumino-ferrite compounds were produced. That is, with increasing reaction time, the carbo reaction becomes more active in the process. Therefore, SCAF synthesized in this study easily produced carbo compounds through carbonation reactions and formed carbonates by reaction with CO₂. Thus, it is expected that the compounds can be effectively utilized as an excellent material for CO₂ capture capable of CO₂ absorption and fixation. Full article

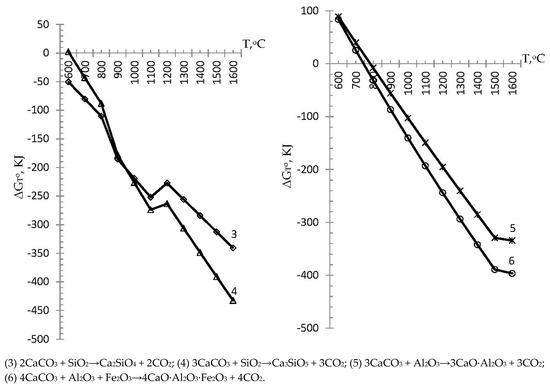

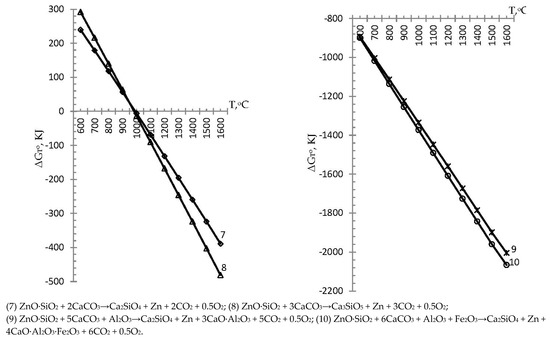

This paper presents studies on the processing of enrichment tailings as a component of a raw mixture in order to obtain cement clinker, with simultaneous distillation of zinc. Thermodynamic studies were carried out in the temperature range of 600–1600 °C using the software application “HSC Chemistry 6” developed by the metallurgical company Outokumpu (Finland). As a result of the conducted studies, we found that zinc contributes to the intensification of mineral formation of cement clinker. In particular, it was found that the formation of belite is possible in the temperature range from 990.7 to 1500 °C with Gibbs energy values of −0.01 and −323.8 kJ (which is better than the standard process by −11.4 kJ), respectively; the formation of alite is possible in the temperature range from 982.9 to 1500 °C with Gibbs energy values of −0.05 and −402.1 kJ (better than the standard process by −11.4 kJ), respectively; the formation of tricalcium aluminate is thermodynamically possible in the temperature range from 600 °C at ΔG_T^o = −893.8 kJ to 1500 °C at ΔG_T^o = −1899.3 kJ (better than the standard process by −1570.1 kJ), respectively; and the formation of four calcium aluminoferrite is possible in the temperature range from 600 °C at ΔG_T^o = −898.9 kJ to 1500 °C at ΔG_T^o = −1959.3 kJ (better than the standard process by −1570.2 kJ), respectively, with simultaneous distillation of zinc into a gaseous state for its further capture. Full article

The purpose of our paper is to assess the reuse potential of the steel mill scale for sustainable industrial applications. We have presented the experimental procedures for chemical and mineralogical characterizations. According to the results of the elementary chemical analysis, the steel mill scale contains the following predominant chemical elements: iron, aluminum, silicon, and magnesium. Due to its high iron content, the steel mill scale can be reused as a source of raw material in the sustainable steelmaking industry. The mineralogical phases identified in the steel mill scale are: wüstite (FeO), hematite (Fe₂O₃), magnetite (Fe₃O₄), silica (quartz) (SiO₂), magnesioferitte (MgFe₂O₄), and aluminum oxide (corundum) (Al₂O₃). Silica, alumina, and hematite are the main compounds of the cement and contribute to the formation of the: dicalcium silicate (2CaO·SiO₂), tricalcium silicate (3CaO·SiO₂), tricalcium aluminate (3CaO·Al₂O₃), and tetra—calcium aluminoferrite (4CaO·Al₂O₃·Fe₂O₃). The results of the paper are promising and encourage the future research for establishing the optimal percentage for the reuse of the steel mill scale in the composition of concrete. Full article
