As the demand for digital storage capacity continues to grow, bit-patterned magnetic recording (BPMR) has emerged as a promising technology to overcome the superparamagnetic limit of conventional recording methods. Nevertheless, the extremely close spacing of magnetic islands in BPMR can result in significant signal corruption, particularly due to inter-track interference. This paper presents robust signal-processing schemes for a two-reader, three-track detection system in a staggered BPMR configuration to address these challenges. The first proposed method employs a sum-soft-information technique, which combines log-likelihood ratios from two detectors to maximize mutual information. This approach significantly improves the reliability of middle-track detection. We also propose the inter-track interference subtraction technique, in which the highly reliable data recovered from the middle track are used to reconstruct the interference signal, which is then subtracted from the upper and lower tracks using an optimized weighting factor. Simulation results at an areal density of 3.0 Tb/in² demonstrate that an optimized weighting factor of 1.78 effectively cancels interference. Moreover, the results indicate that our proposed scheme achieves a bit-error rate (BER) comparable to that of the three-reader, one-track detection BPMR systems. Furthermore, our method also demonstrates a lower BER for both adjacent tracks when compared to the conventional single-reader, two-track reading system, even in the presence of 10% media noise. Full article

The rapid increase in global data generation has intensified the demand for magnetic storage systems with substantially higher areal density. Double-layer bit-patterned media recording (DLBPMR), which integrates the benefits of bit-patterned media recording (BPMR) and double-layer magnetic recording (DLMR), provides a promising pathway by combining nanoscale patterned islands with multilayer recording structures. However, severe two-dimensional intersymbol interference (ISI) within each layer, together with interlayer interference (ILI) between stacked layers, continues to present significant challenges for reliable data detection. To address these issues, this work investigates and advances the structure of DLMR to improve signal separation and recovery. In particular, we emphasize that detection plays a crucial role in mitigating both ISI and ILI. Accordingly, we propose a maximum a posteriori (MAP) detection scheme derived for a newly developed generalized two-layer partial-response (PR) model that accurately characterizes intra-layer ISI and cross-layer interference coupling. A parallel detection architecture is designed and employed for the upper and lower layers of the DLMR system, enabling the exchange of extrinsic information and enhancing MAP detection performance. Simulation results demonstrate that the proposed PR modeling and MAP-based detection framework achieves significant bit error rate (BER) improvements over existing detection methods, highlighting its strong potential for next-generation ultra-high-density DLBPMR systems. Full article

To meet the growing demand for higher storage capacities, bit-patterned magnetic recording (BPMR) has emerged as a leading solution for achieving ultra-high user densities (UDs). However, BPMR systems are significantly impacted by two-dimensional (2D) interferences, specifically inter-symbol interference (ISI) and inter-track interference (ITI), which can degrade the quality of the readback signal. This paper introduces a rate-4/5 constructive ITI (CITI) modulation scheme, combined with a Tabu search (TS)-based error correction algorithm, to address the limitations of conventional CITI modulation codes. In the original encoding scheme, some codewords still contain forbidden patterns within their borders. The TS algorithm enhances the performance of the outermost tracks by refining unreliable bits identified through a distance-based reliability metric, which differs from earlier TS-based detectors that were directly used for multi-track detection. A proposed soft-information adjuster is then used to correct the poor reliability of soft information, resulting in improved soft-information reliability and decoding performance. A modified TS detector is also proposed, where the single-bit criterion for selecting the number of input bits is adopted, to improve neighbor selection and better align with the signal characteristics of the inner tracks. Simulation results show that the proposed system can achieve up to 2.7 dB and 4.0 dB improvements in bit error rate (BER) at a user density (UD) of 2.4 Terabits per square inch, compared to conventional uncoded and coded systems, respectively, while also reducing computational complexity. Furthermore, the results also imply that when the recording systems must operate under fluctuations in the size and position of the bit-island, our proposed system can provide superior performance. Full article

Because so much information is currently being shared online, there has been a sharp rise in the need for data storage devices over the past ten years. The main storage option is the hard disk drive (HDD), which is less expensive than some other types of data storage. Physical constraints, such as the superparamagnetic limit, are difficult to overcome using existing HDD technology. Consequently, bit-patterned magnetic recording (BPMR) has emerged as a potential solution, offering higher areal densities whilst maintaining thermal stability. Nevertheless, BPMR poses new challenges, such as inter-symbol interference and inter-track interference. Consequently, a number of approaches, such as staggered island layouts and array-reader magnetic recording, have been proposed to overcome these issues. However, this article proposes a three-reader one-track detection method to enhance data retrieval in a staggered BPMR system. Leveraging three-track reading for one-track detection, we obtain three readback signals that function as mutual data sequences. This substantially enhances the detection process in one-dimensional partial-response maximum-likelihood channels. Next, using these mutual data sequences, four novel techniques are presented to enhance bit-error rate (BER) performance and detection accuracy: hard-information flipping, maximum soft-information finding, bit-summation detection, and multilayer perceptron (MLP). This study shows that these proposed techniques can provide better BER performance compared with conventional methods and that the MLP is the most effective technique in enhancing system performance. Full article

With its high area density, bit-patterned media recording (BPMR) is emerging as a leading technology for next-generation storage systems. However, as area density increases, magnetic islands are positioned closer together, causing significant two-dimensional (2D) interference. To address this, detection methods are used to interpret the received signal and mitigate 2D interference. Recently, the maximum a posteriori (MAP) detection algorithm has shown promise in improving BPMR performance, though it requires extrinsic information to effectively reduce interference. In this paper, to solve the 2D interference and improve the performance of BPMR systems, a model using low-density parity-check (LDPC) coding was introduced to supply the MAP detector with the needed extrinsic information, enhancing detection in a joint decoding model we call MAP–LDPC. Additionally, leveraging similarities between LDPC codes and graph neural networks (GNNs), we replace the traditional sum–product algorithm in LDPC decoding with a GNN, creating a new model, MAP–GNN. The simulation results demonstrate that MAP–GNN achieves superior performance, particularly when using the deep learning-based GNN approach over conventional techniques. Full article

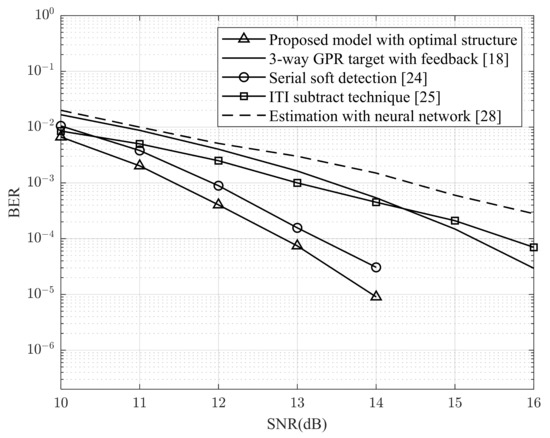

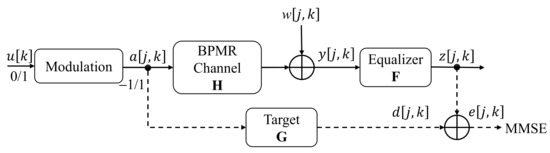

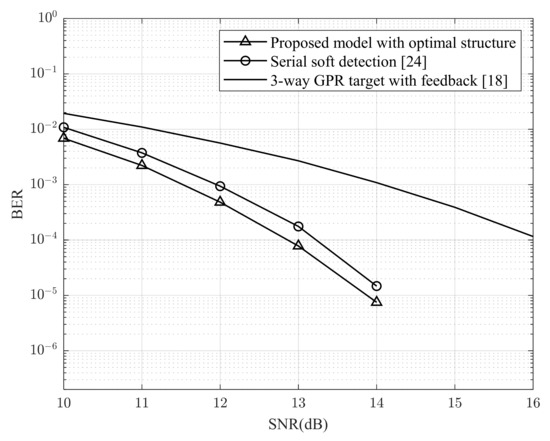

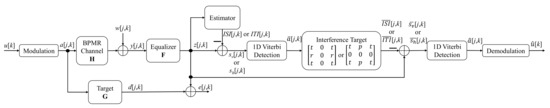

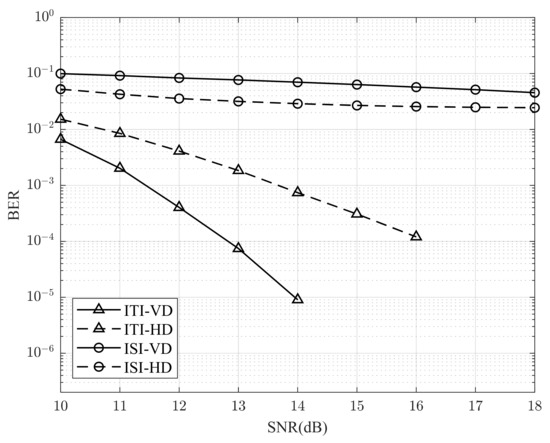

Bit-patterned media recording (BPMR) is proposed as a candidate for future magnetic data storage to overcome superparamagnetism. The distance between magnetic islands in BPMR must be reduced to increase the areal density (AD). As magnetic islands become closer, two-dimensional (2D) interference is increased, including intersymbol interference (ISI) based on the down-track direction and intertrack interference (ITI) from the cross-track direction. We propose an estimator to predict interference from neighboring (upper and lower) tracks. This estimator exploits the 2D Viterbi algorithm (VA) with reduced states. We removed the interference from the neighboring track and applied a simple 1D VA to detect the received signal. The simulation results show that our model performs better than previously proposed models. Full article

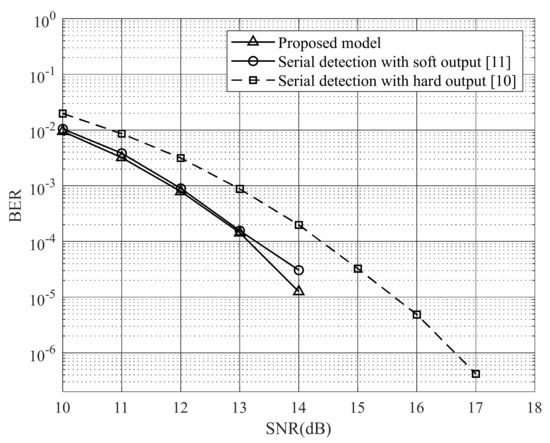

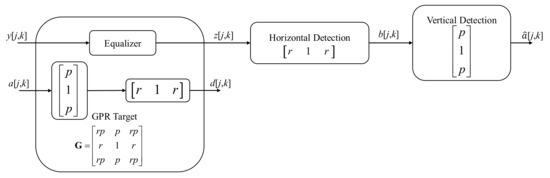

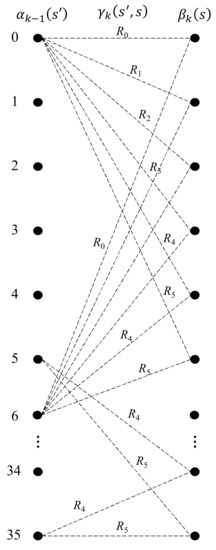

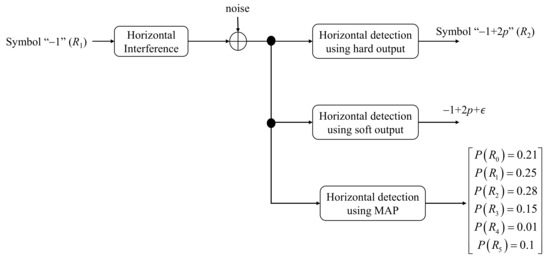

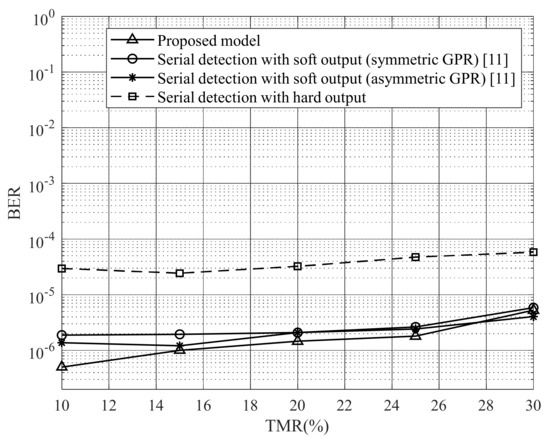

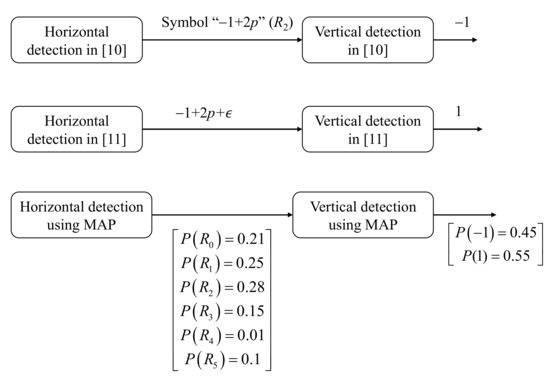

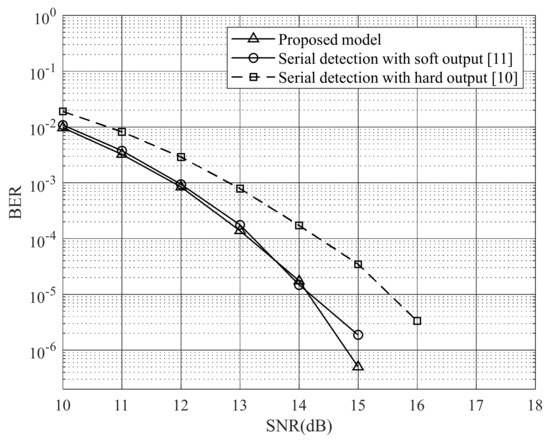

Bit-patterned media recording (BPMR) is a promising technology for increasing the areal density (AD) of magnetic data storage systems. In BPMR, the non-magnetic zone is reduced to increase AD, which causes serious problems such as two-dimensional (2D) interference and track mis-registration (TMR). Therefore, in previous studies, a serial detection, which exploits the Viterbi algorithm (VA), was proposed to combat 2D interference. Because the VA lacks prior information from the inner detector to the outer detector, in this study, we use the maximum a posteriori (MAP) algorithm to supply prior information from the inner detector to the outer detector. Simulation results show that the proposed model can improve the bit error ratio (BER) performance of serial detection, especially in cases where the BPMR suffers from TMR effects. Full article

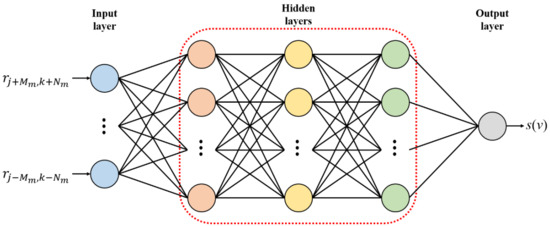

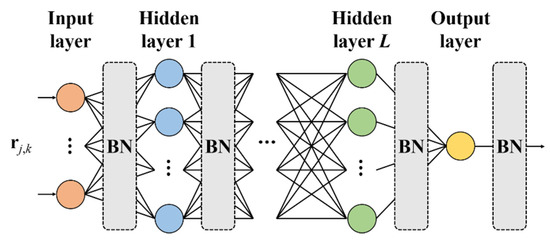

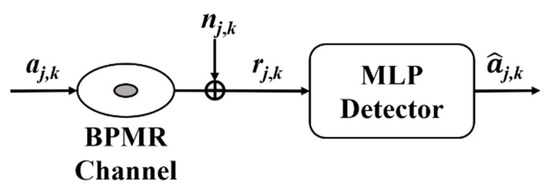

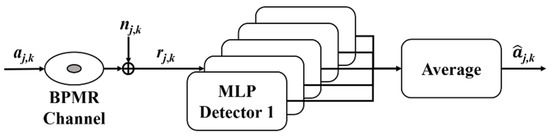

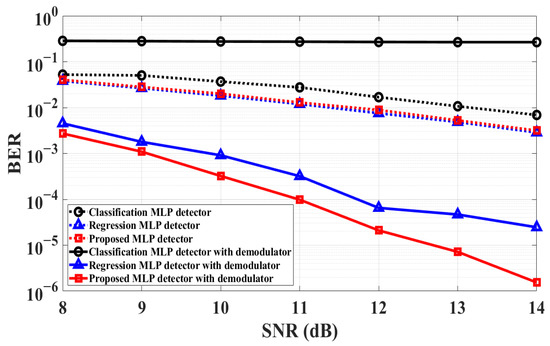

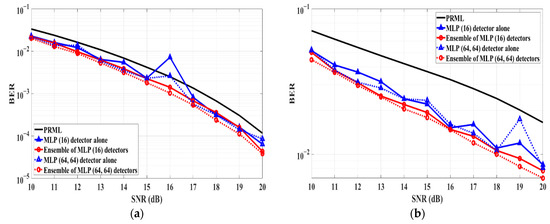

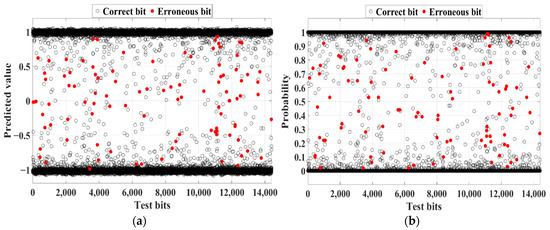

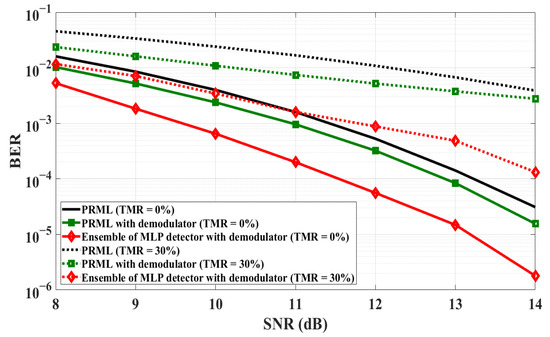

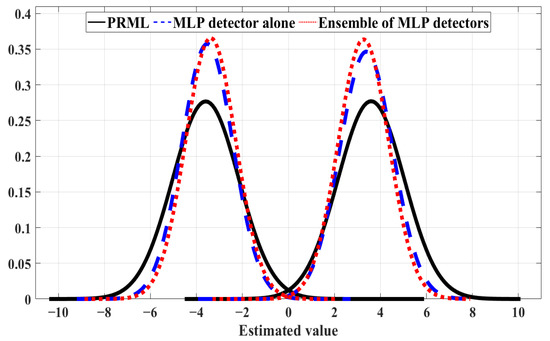

As conventional data storage systems are faced with critical problems such as the superparamagnetic limit, bit-patterned media recording (BPMR) has received significant attention as a promising next-generation magnetic data storage system. However, the reduced spacing between islands at increased areal density causes severe intersymbol and intertrack interference, which degrade BPMR system performance. In this study, we introduce a soft-output detector using multi-layer perceptron to predict reliable information. A received signal is equalized and detected by the MLP detector. The MLP detector provides a well-estimated value by using the binary-cross entropy function as a loss function and the identity function as an activation function for the output layer of the MLP detector. This study investigates the received probability distributions out of the detectors and compares the performance of various versions against a conventional detector. Compared with the conventional detection, the proposed MLP detectors provide a small variance and better BER performance than the conventional detection. Simulations of MLP designs show an advantage over conventional detection. Moreover, the proposed MLP detectors with the demodulator exhibit better BER performance than the conventional detector with the demodulator. Full article

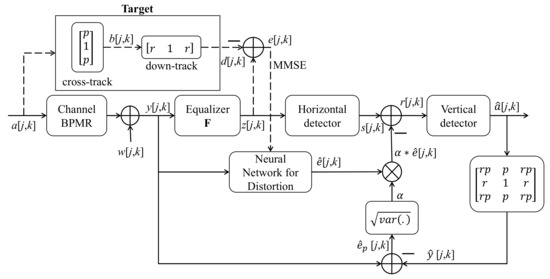

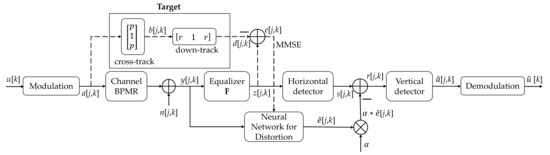

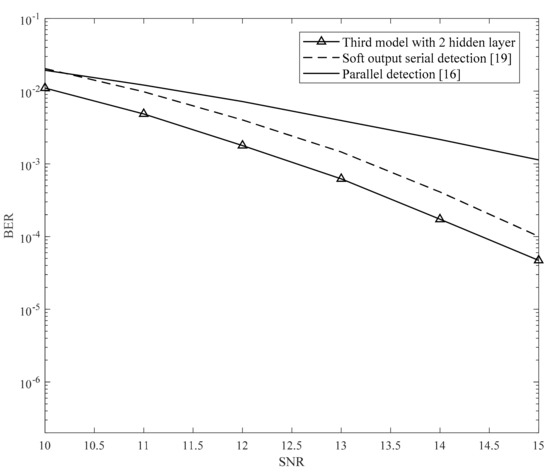

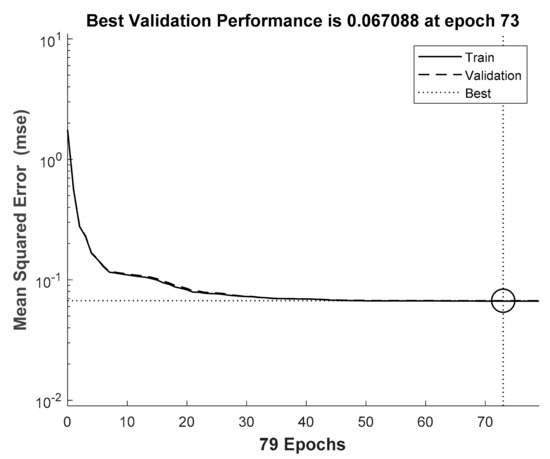

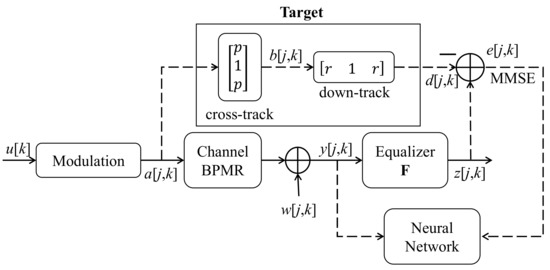

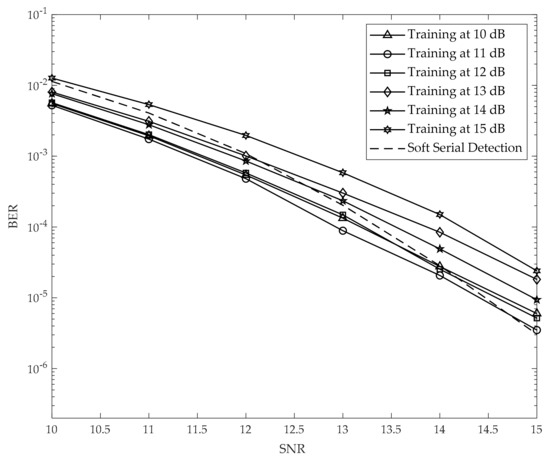

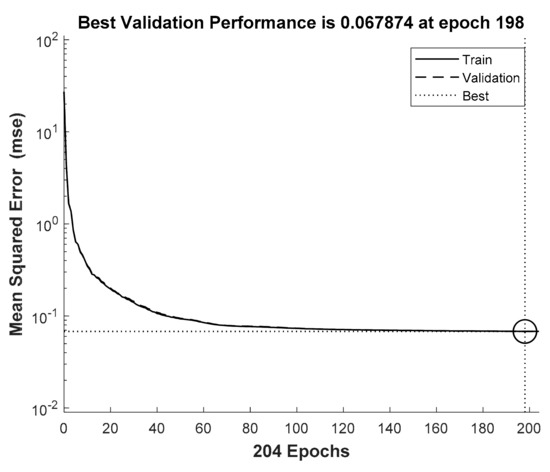

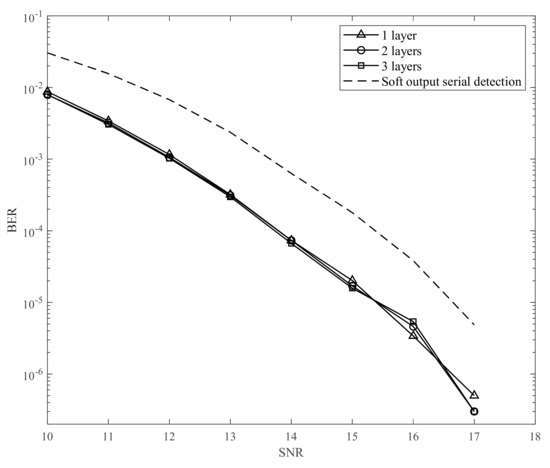

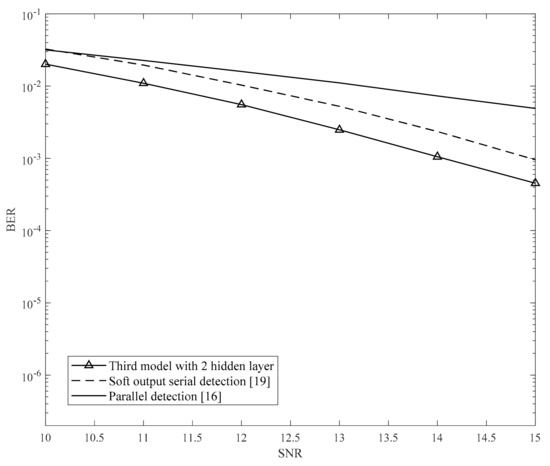

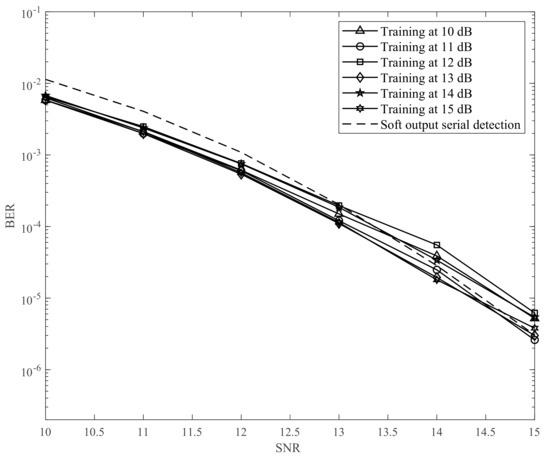

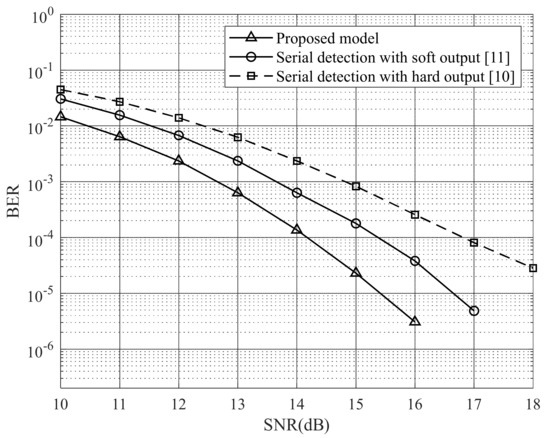

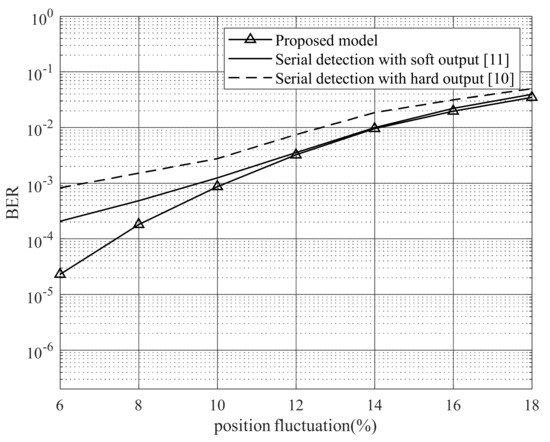

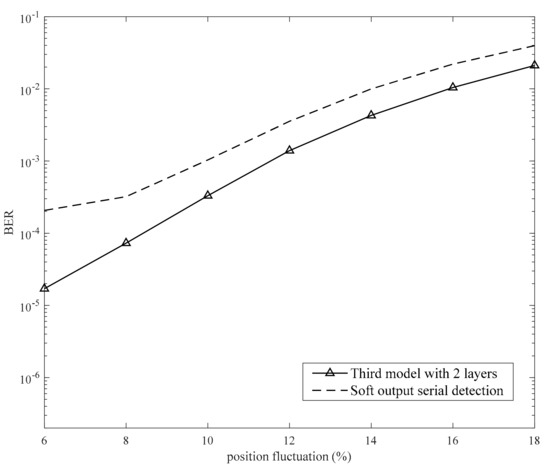

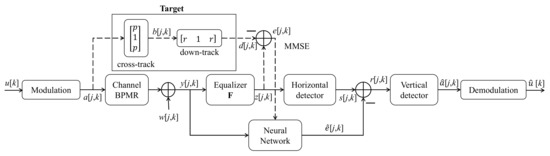

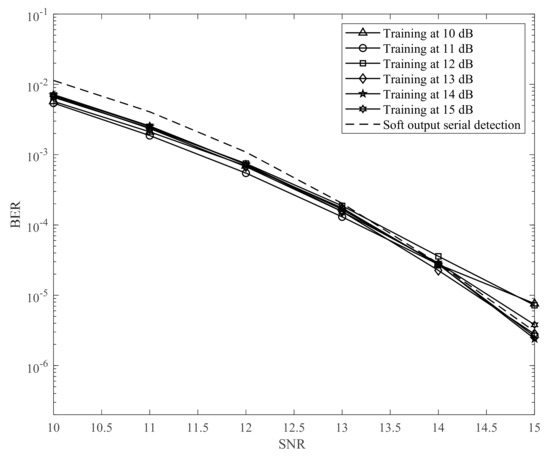

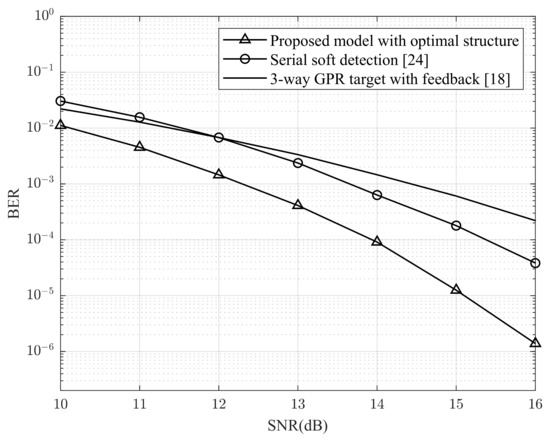

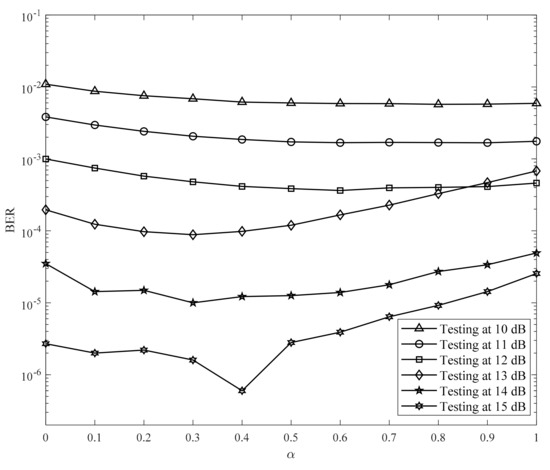

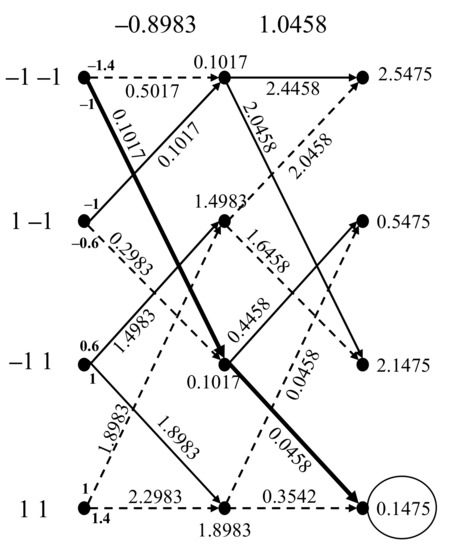

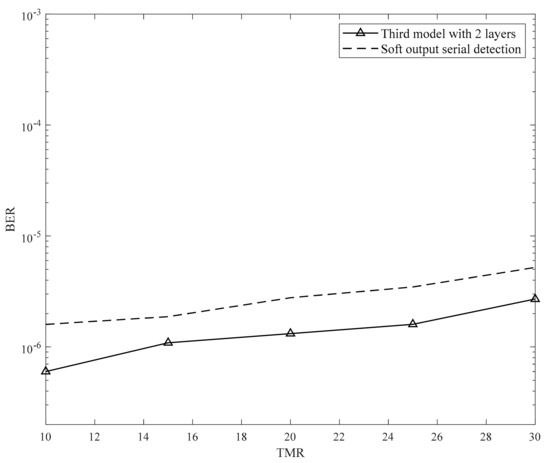

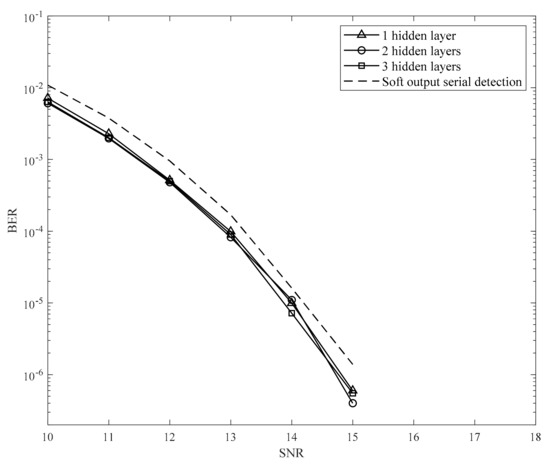

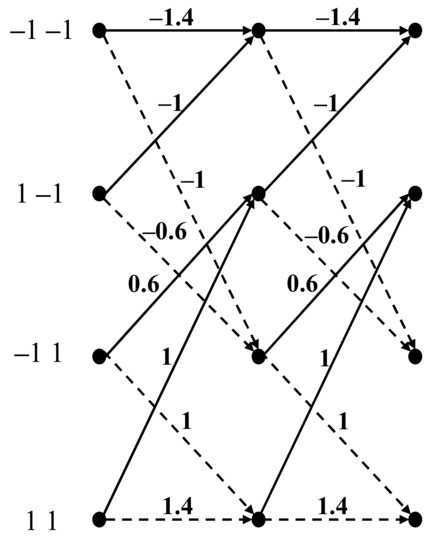

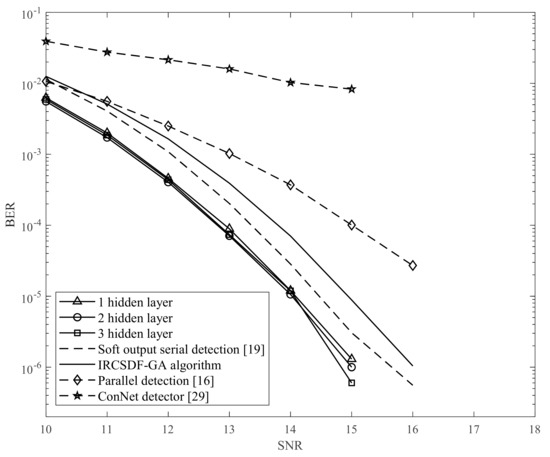

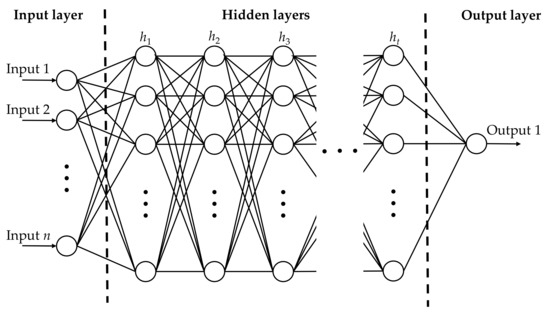

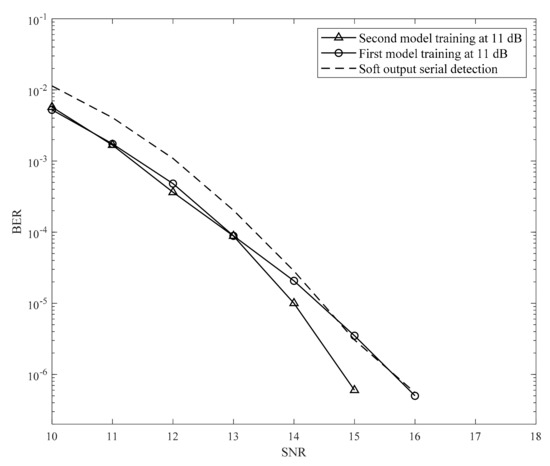

Ultra-high density data storage has gained high significance given the increasing amounts of data; many technologies have been proposed to achieve a high density. Among them, bit-pattern media recording (BPMR) is a promising technology. In BPMR systems, data are stored on magnetic islands. Therefore, high densities can be achieved by reducing the distance between the magnetic islands. Because of the closeness between the magnetic islands, the readback signal is distorted by two-dimensional (2D) interference, which includes the intersymbol interference according to the down-track direction and the intertrack interference according to the cross-track direction. A simple and effective serial detection algorithm was recently proposed to mitigate the 2D interference. However, serial detection utilizes the hard output in inner detection, and this degrades the serial detection performance. To resolve this problem, a subsequent study used feedback to estimate the noise and used this noise signal to create a soft output for inner detection. Following up, in this paper we propose a model that utilizes a neural network for noise prediction. The proposed neural network-based model and the model with the feedback line were compared in terms of bit error rate (BER). The results show that the proposed model achieves a gain of approximately 1 dB at a BER of 10⁻⁶. Full article

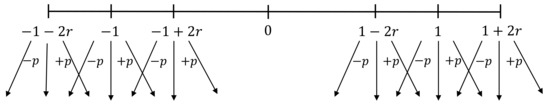

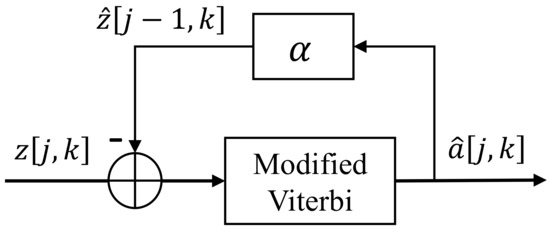

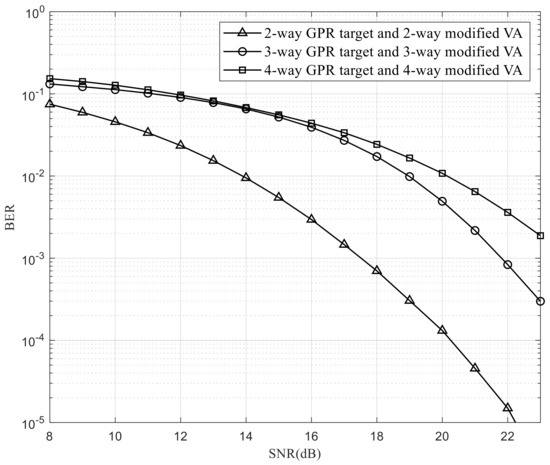

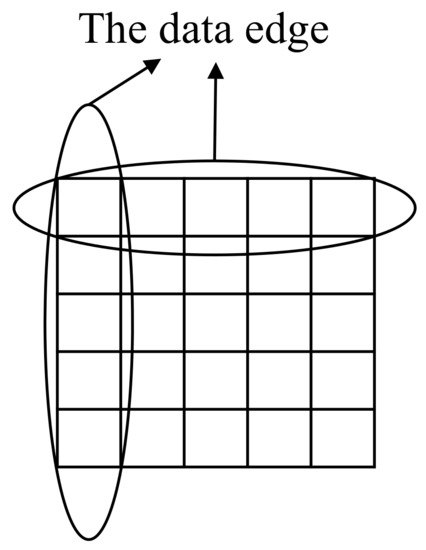

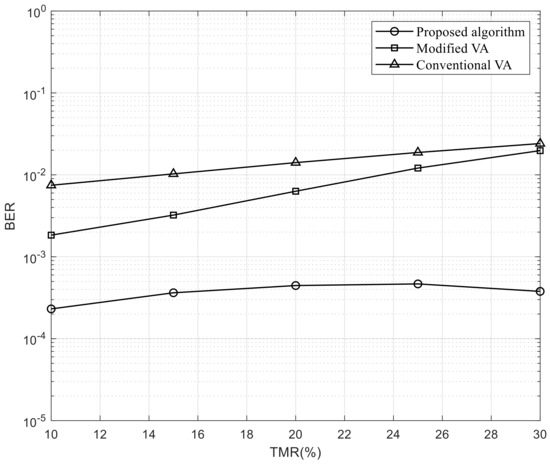

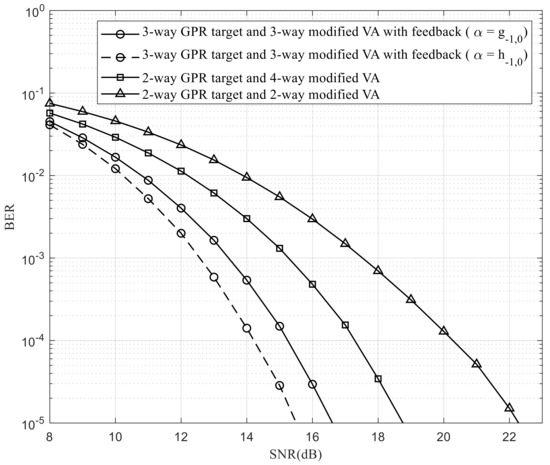

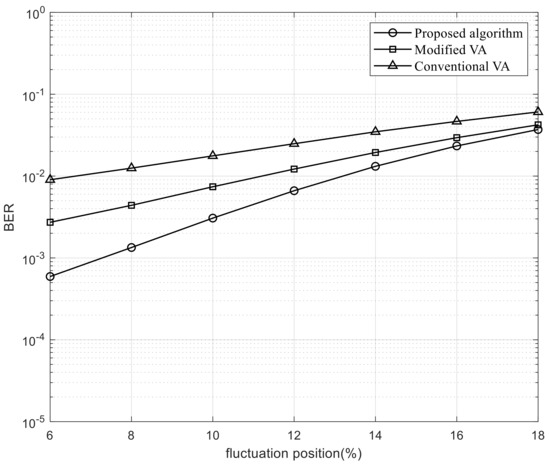

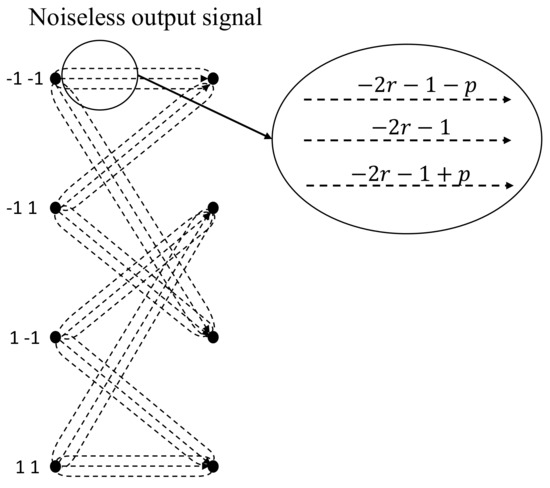

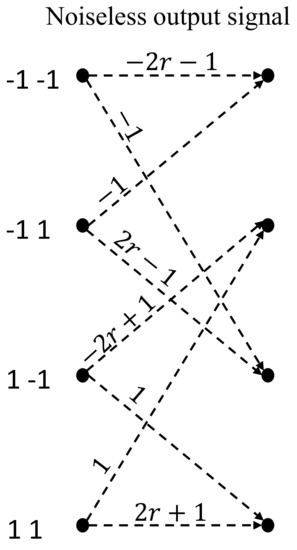

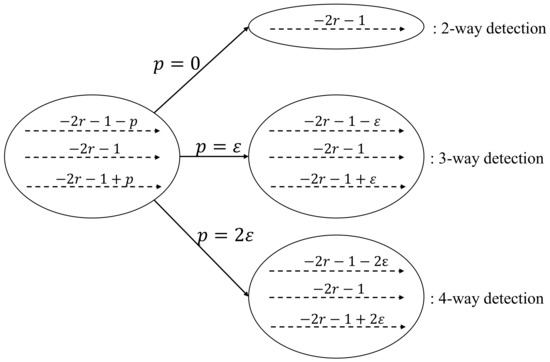

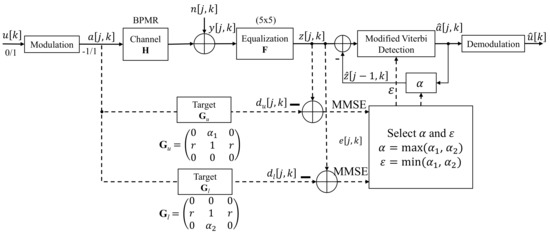

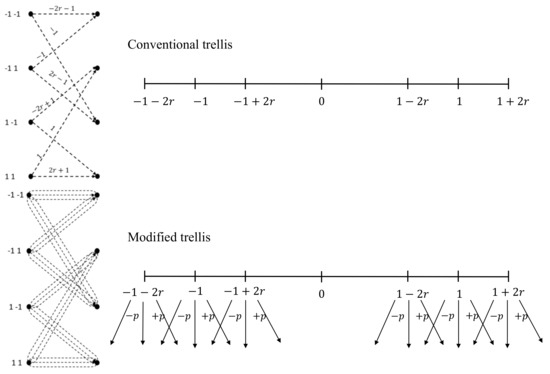

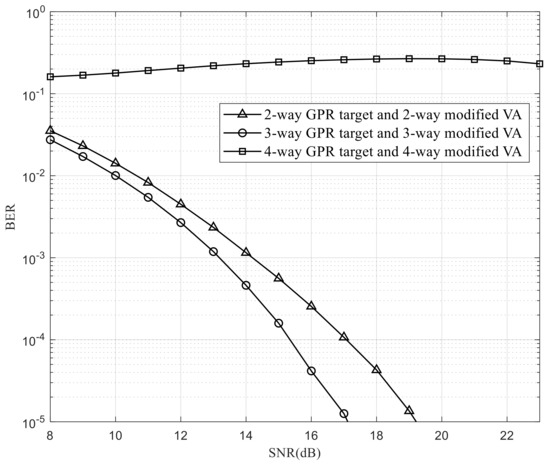

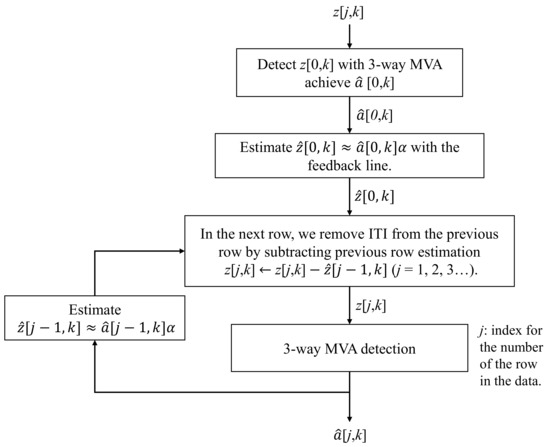

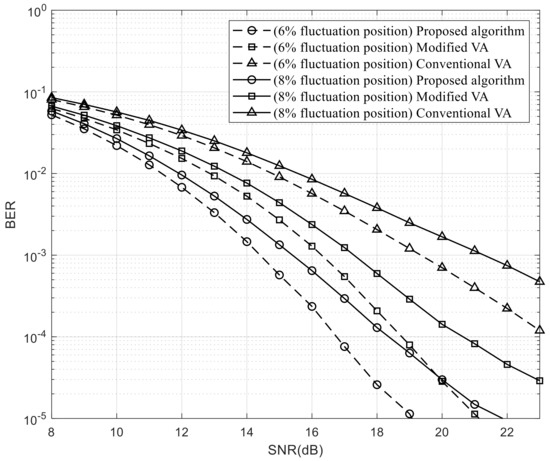

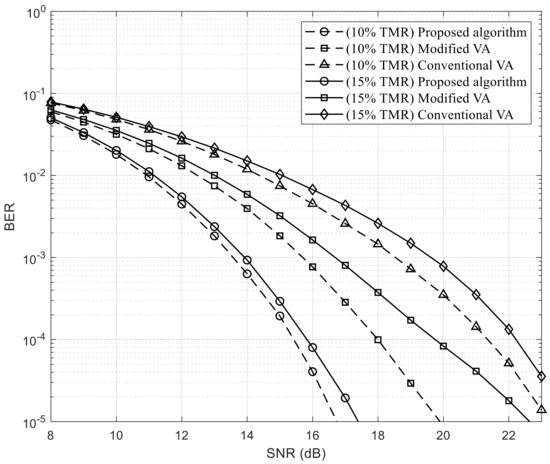

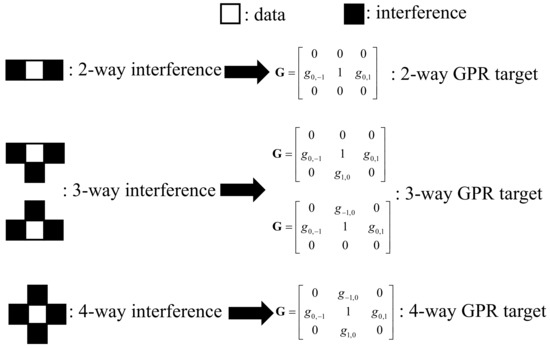

The ever-increasing demand for data in recent times has led to the emergence of big data and cloud data. The growth in these fields has necessitated that data be centrally stored in data centers. To meet the need for large-scale storage systems at data centers, innovative technology such as bit-pattern media recording (BPMR) has been developed. With BPMR technology, we are able to achieve significant improvements in high areal density (AD) of magnetic data storage systems. However, two-dimensional (2D) interference is a common issue faced with high AD. Intersymbol interference and intertrack interference occur when the distance between the islands is decreased in the down-track and cross-track, respectively. 2D interference adversely affects the performance of BPMR. In this paper, we propose an improved modified Viterbi algorithm (MVA) exploiting a feedback and a new 2D three-way form of a generalized partial response (GPR) target. The proposed MVA with feedback is superior to the previous MVA by eliminating intertrack interference (ITI) more effectively. With the three-way GPR target, the proposed algorithm achieves more stable performance compared to the previous detection algorithms for the track misregistration effect. Full article

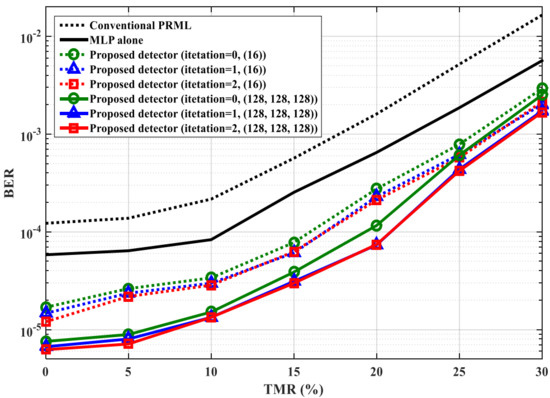

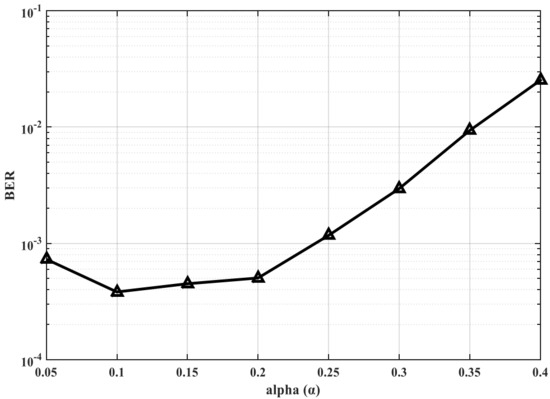

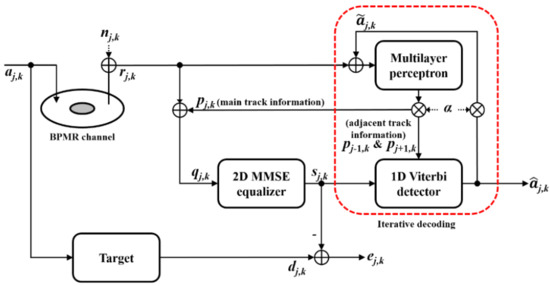

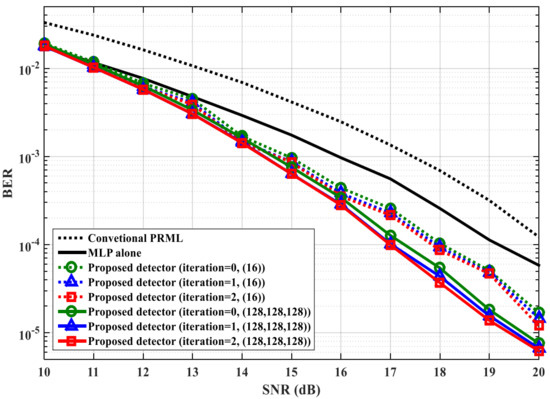

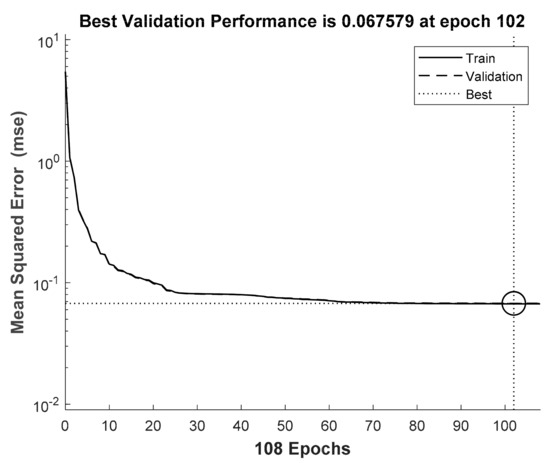

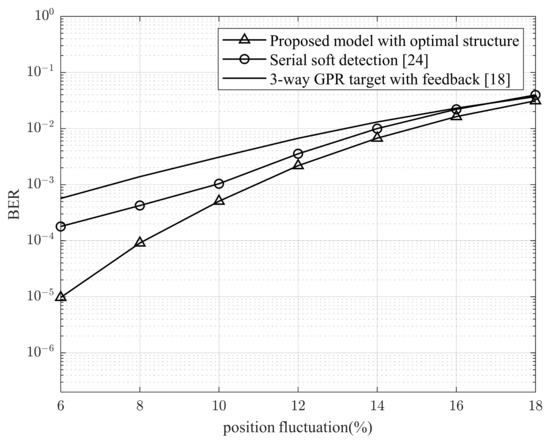

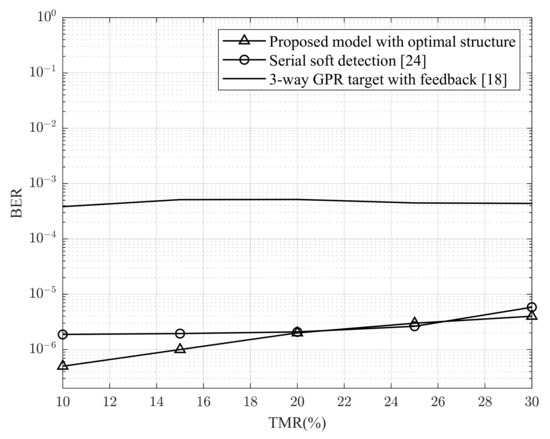

Because of the physical and engineering problems of conventional magnetic data storage systems, bit-patterned media recording (BPMR) is expected to be a promising technology for extending the storage density to beyond 1 Tb /in². To increase the storage density in BPMR systems, the separation between islands in both down- and cross-track directions must be reduced; this reduction results in two-dimensional interference from neighboring symbols in those directions, which is a major performance degradation factor in BPMR. Herein, we propose an iterative signal detection scheme between a Viterbi detector and a multilayer perceptron to improve the performance of a BPMR system. In the proposed signal detection scheme, we use the modified output of a multilayer perceptron as a priori information to improve equalization and extrinsic information to decrease the effect of intertrack interference. Full article

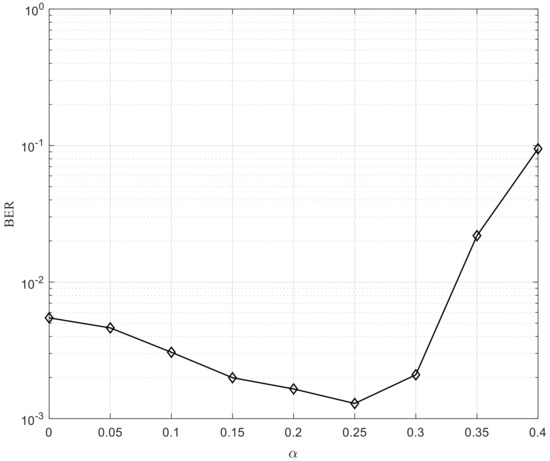

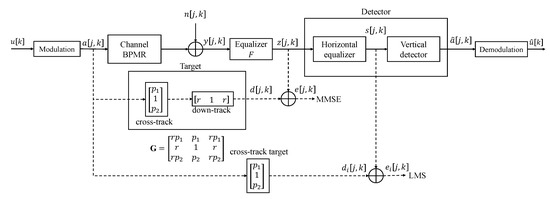

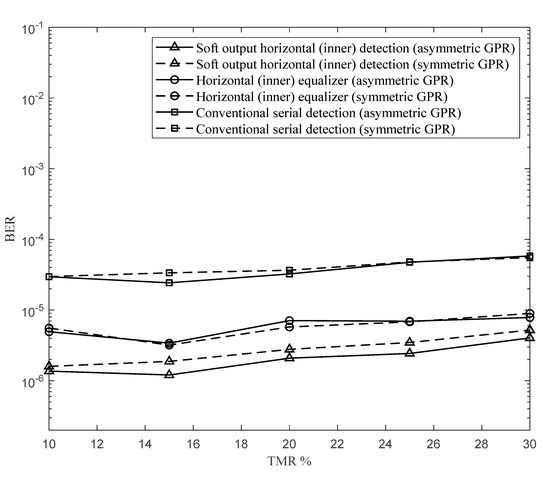

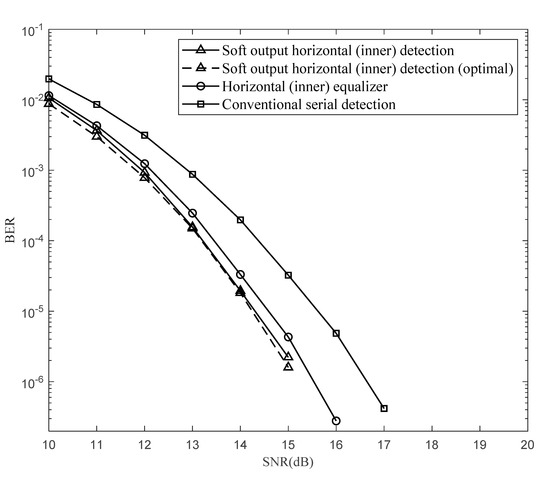

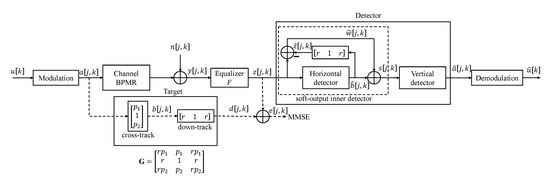

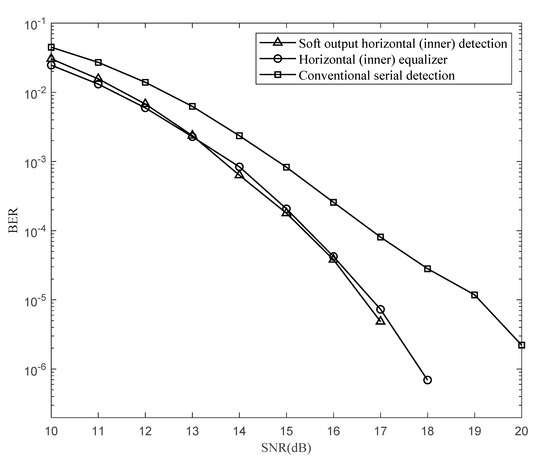

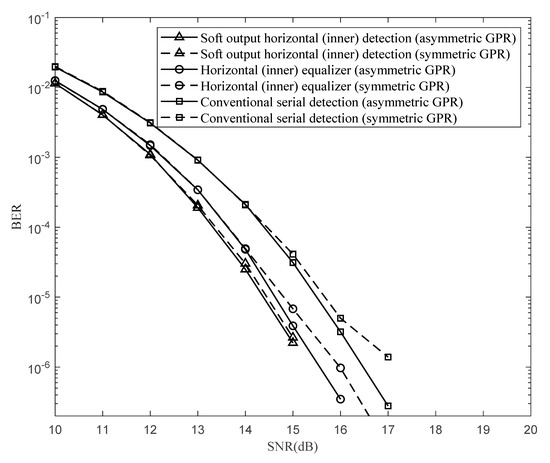

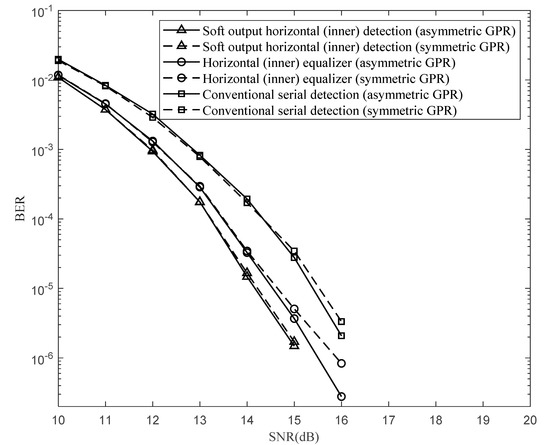

With the development of 5G technology, programs are gradually moving to cloud services. This leads to an increasing demand for storage. In the field of high-density data storage, bit-pattern media recording (BPMR) is considered a promising approach, as it can expand the data density to 4 Tb/in². However, in high-density BPMR, bits or magnetic islands are very close to each other, leading to significant intertrack interference (ITI) from the cross-track direction and intersymbol interference (ISI) from the down-track direction. To minimize two-dimensional interference, including ITI and ISI, the serial detector method has been highly effective. However, in this method, the signal at the output of the first decoder is still a hard output. Therefore, we suggest methods to convert the output of the first detector into a soft output. Additionally, we have developed a new form of generalized partial response target to overcome the track mis-registration. The results show that our proposed methods apparently improve bit error rate performance. Full article

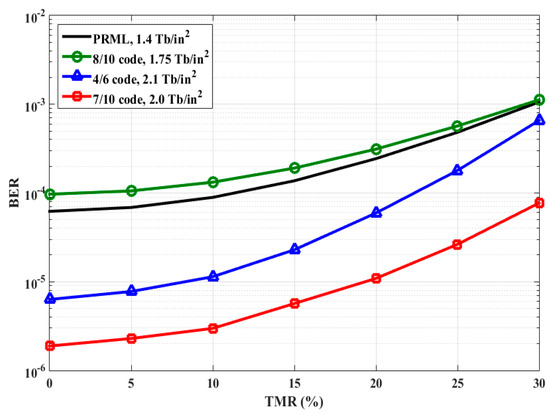

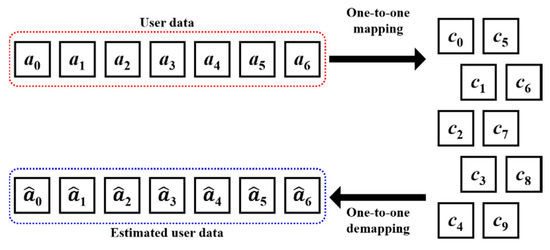

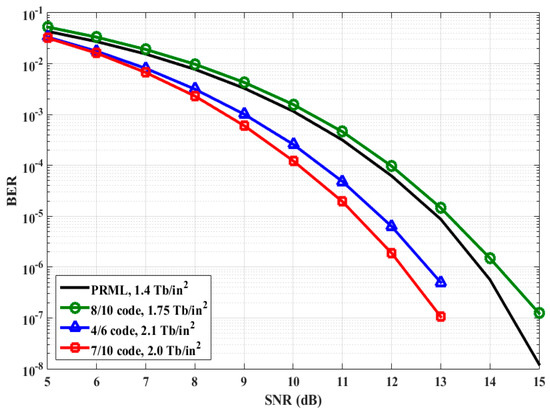

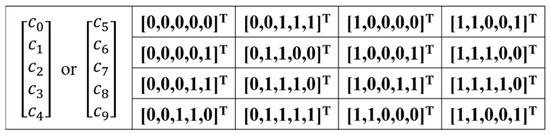

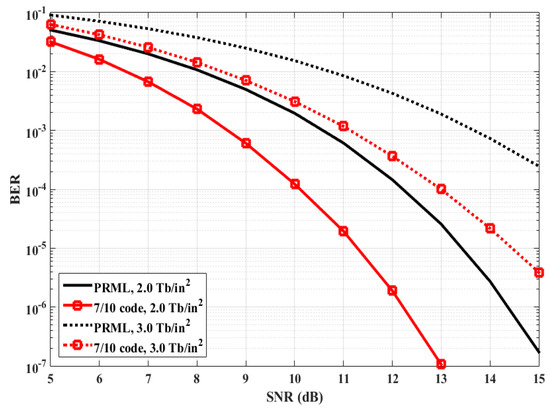

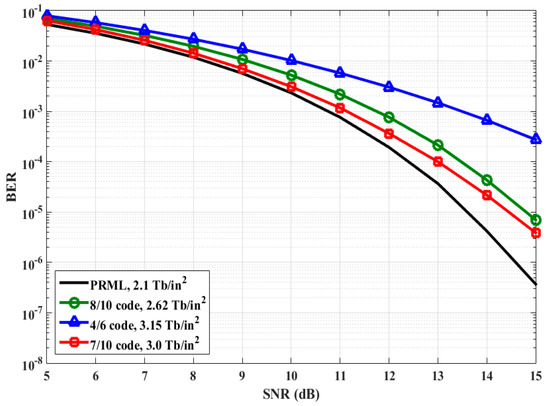

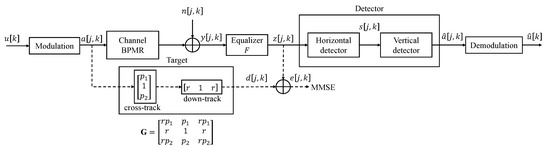

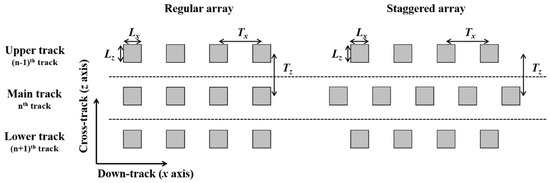

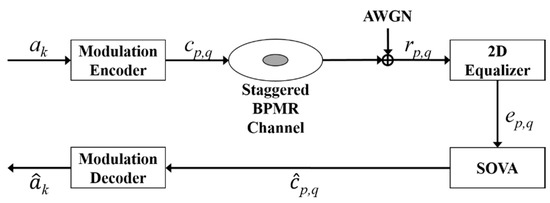

A bit-patterned media recording (BPMR) system is a type of ultrahigh-capacity magnetic storage system that can extend to an areal density of 1 terabit per square inch or higher. However, because the space between islands in the down- and cross-track directions is reduced to extend the areal density, the effect of two-dimensional interference is increased. However, using a staggered array, which is one of the possible island distributions for BPMR, helps to decrease intertrack interference. A 7/10 modulation code for a staggered BPMR is proposed to avoid the effect of two-dimensional interference and provide distance among nonidentical codewords for improving the correcting capability. Full article
