A thermodynamic analysis of a compact hydrogen generation system for mobile fuel cell applications is presented. The system consists of a miniature autothermal steam reformer (ATR) and a water–gas shift (WGS) reactor, designed to produce hydrogen from hydrocarbon fuels for a 1 kW proton exchange membrane (PEM) fuel cell. Methane is used as the model fuel, and the study focuses on optimizing feed compositions and operational conditions to maximize hydrogen yield and purity. Feed compositions and operational conditions are optimized. In total, 0.7 Nm³ h⁻¹ H₂ is generated from 0.25 Nm³ h⁻¹ CH₄ with properly adjusted steam and air feeding. Issues with product purity and start-up procedures have been identified and discussed, along with feasible solutions. The system is suitable for remote and mobile applications. Full article

A new type of compact, portable fixed-bed reactor integrated with a heat transfer system was developed for the removal of volatile and flammable air pollutants such as lean methane and volatile organic compounds (VOCs). The reactor may operate in catalytic or thermal combustion conditions with the purpose of achieving autothermal processes with the possibility of energy recovery. An excess heat recovery point was designed behind the reactor bed at the place where the gas temperature is the highest to enable its usage. The mathematical model is presented together with a number of simulation calculations performed for the assessment of the developed reactor. The case study in this paper was for catalytic methane oxidation at a temperature of 400 °C, a methane concentration between 0.1% and 2% by weight, a gas flow rate of 1 m³/s STP, and a heat exchange surface for the assumed plate exchanger from 10 to 200 m². The calculations show that the thickness of the insulation is of little importance for the operation of the equipment, and a sufficient thickness was about 20–50 mm. The optimal area for the considered case is 80–100 m². It was found that recovery of thermal energy is possible only for higher methane concentrations, above 0.3% by weight. Using an appropriate surface for the exchanger, it is possible to recover even 50% of the combustion enthalpy at a methane concentration of 0.45% by weight. For an exchanger area below 50 m², the recoverable energy drops rapidly. It was found that the exchanger area is the most important equipment parameter under consideration. Full article

In this paper, we analyze the autothermal reforming (ATR) of methane through Gibbs energy minimization and entropy maximization methods to analyze isothermic and adiabatic systems, respectively. The software GAMS^® 23.9 and the CONOPT3 solver were used to conduct the simulations and thermodynamic analyses in order to determine the equilibrium compositions and equilibrium temperatures of this system. Simulations were performed covering different pressures in the range of 1 to 10 atm, temperatures between 873 and 1073 K, steam/methane ratio was varied in the range of 1.0/1.0 and 2.0/1.0 and oxygen/methane ratios in the feed stream, in the range of 0.5/1.0 to 2.0/1.0. The effect of using pure oxygen or air as oxidizer agent to perform the reaction was also studied. The simulations were carried out in order to maintain the same molar proportions of oxygen as in the simulated cases considering pure oxygen in the reactor feed. The results showed that the formation of hydrogen and synthesis gas increased with temperature, average composition of 71.9% and 56.0% using air and O₂, respectively. These results are observed at low molar oxygen ratios (O₂/CH₄ = 0.5) in the feed. Higher pressures reduced the production of hydrogen and synthesis gas produced during ATR of methane. In general, reductions on the order of 19.7% using O₂ and 14.0% using air were observed. It was also verified that the process has autothermicity in all conditions tested and the use of air in relation to pure oxygen favored the compounds of interest, mainly in conditions of higher pressure (10 atm). The mean reductions with increasing temperature in the percentage increase of H₂ and syngas using air under 1.5 and 10 atm, at the different O₂/CH₄ ratios, were 5.3%, 13.8% and 16.5%, respectively. In the same order, these values with the increase of oxygen were 3.6%, 6.4% and 9.1%. The better conditions for the reaction include high temperatures, low pressures and low O₂/CH₄ ratios, a region in which there is no swelling in terms of the oxygen source used. In addition, with the introduction of air, the final temperature of the system was reduced by 5%, which can help to reduce the negative impacts of high temperatures in reactors during ATR reactions. Full article

The interest in Gas-to-Liquid technology (GTL) is growing worldwide because it involves a two-step indirect conversion of natural gas to higher hydrocarbons ranging from Liquefied Petroleum Gas (LPG) to paraffin wax. GTL makes it possible to obtain clean diesel, naphtha, lubes, olefins, and other industrially important organics from natural gas. This article is a brief review discussing the state-of-the-art of GTL, including the basics of syngas manufacturing as a source for Fischer-Tropsch synthesis (FTS), hydrocarbons synthesis (Fischer-Tropsch process), and product upgrading. Each one is analyzed, and the main characteristics of traditional and catalysts technologies are presented. For syngas generation, steam methane reforming, partial oxidation, two-step reforming, and autothermal reforming of methane are discussed. For Fischer–Tropsch, we highlight the role of catalysis and selectivity to high molecular weight hydrocarbons. Also, new reactors technologies, such as microreactors, are presented. The GTL technology still faces several challenges; the biggest is obtaining the right H₂:CO ratio when using a low steam-to-carbon ratio. Despite the great understanding of the carbon formation mechanism, little has been made in developing newer catalysts. Since 60–70% of a GTL plant cost is for syngas production, it needs more attention, particularly for developing the catalytic partial oxidation process (CPO), given that modern CPO processes using a ceramic membrane reactor reduce the plant’s capital cost. Improving the membrane’s mechanical, thermal, and chemical stability can commercialize the process. Catalytic challenges accompanying the FTS need attention to enhance the selectivity to produce high-octane gasoline, lower the production cost, develop new reactor systems, and enhance the selectivity to produce high molecular weight hydrocarbons. Catalytically, more attention should be given to the generation of a convenient catalyst layer and the coating process for a given configuration. Full article

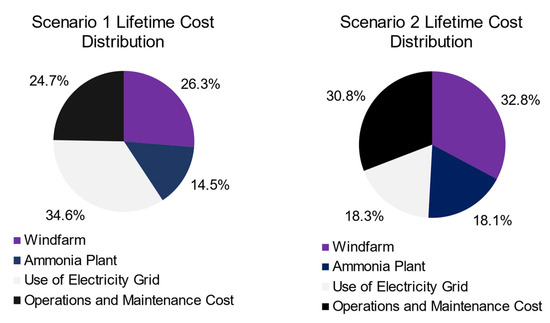

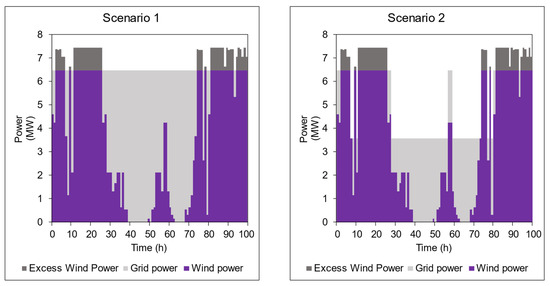

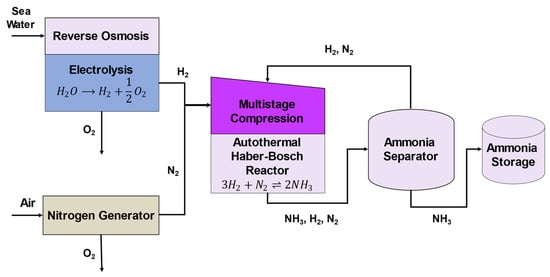

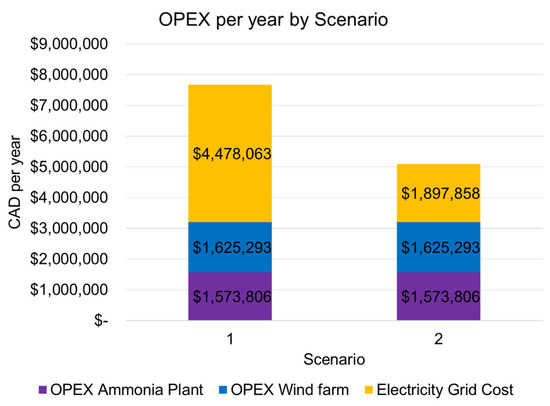

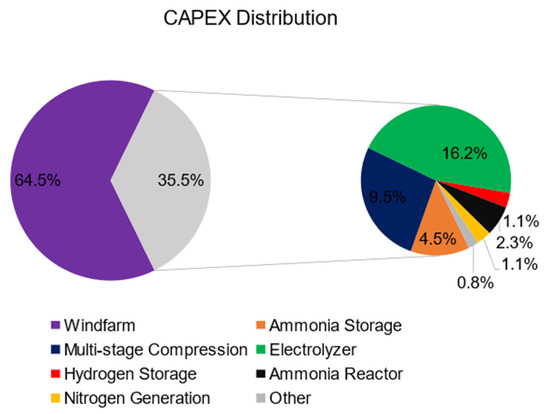

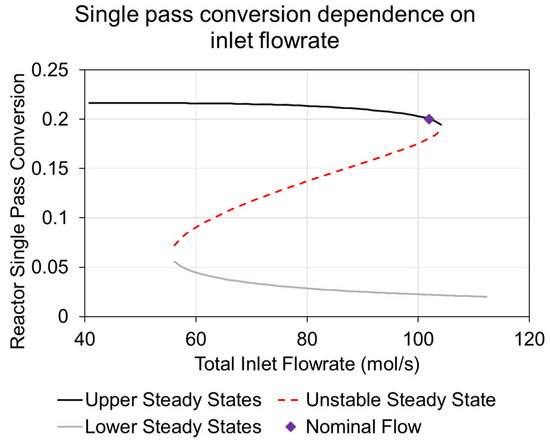

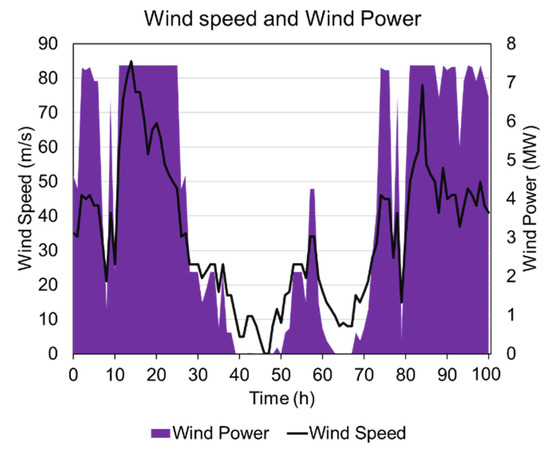

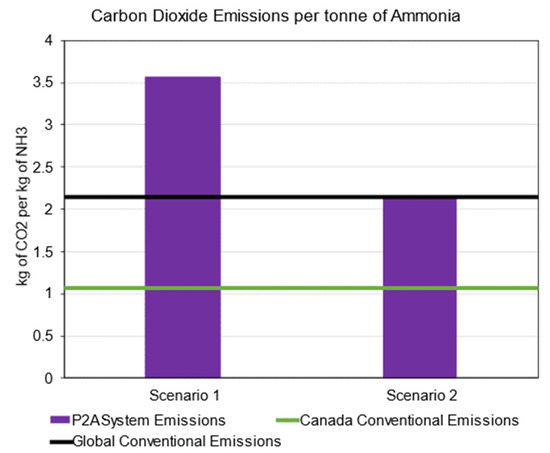

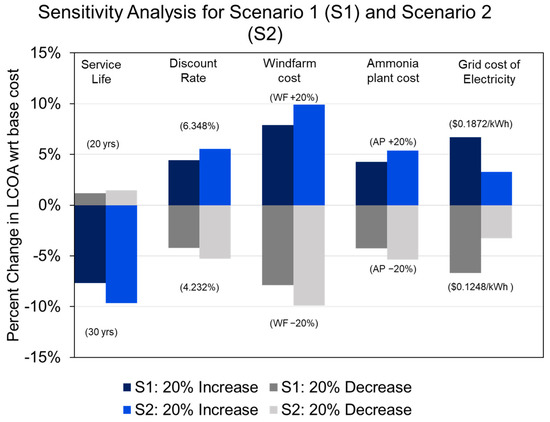

Green ammonia has potential as a zero-emissions energy vector in applications such as energy storage, transmission and distribution, and zero-emissions transportation. Renewable energy such as offshore wind energy has been proposed to power its production. This paper designed and analyzed an on-land small-scale power-to-ammonia (P2A) production system with a target nominal output of 15 tonnes of ammonia per day, which will use an 8 MW offshore turbine system off the coast of Nova Scotia, Canada as the main power source. The P2A system consists of a reverse osmosis system, a proton exchange membrane (PEM) electrolyser, a hydrogen storage tank, a nitrogen generator, a set of compressors and heat exchangers, an autothermal Haber-Bosch reactor, and an ammonia storage tank. The system uses an electrical grid as a back-up for when the wind energy is insufficient as the process assumes a steady state. Two scenarios were analyzed with Scenario 1 producing a steady state of 15 tonnes of ammonia per day, and Scenario 2 being one that switched production rates whenever wind speeds were low to 55% the nominal capacity. The results show that the grid connected P2A system has significant emissions for both scenarios, which is larger than the traditional fossil-fuel based ammonia production, when using the grid in provinces like Nova Scotia, even if it is just a back-up during low wind power generation. The levelized cost of ammonia (LCOA) was calculated to be at least 2323 CAD tonne⁻¹ for both scenarios which is not cost competitive in this small production scale. Scaling up the whole system, reducing the reliance on the electricity grid, increasing service life, and decreasing windfarm costs could reduce the LCOA and make this P2A process more cost competitive. Full article

A complete fuel cell-based auxiliary power unit in the 7.5 kW_e power class utilizing diesel fuel was developed in accordance with the power density and start-up targets defined by the U.S. Department of Energy. The system includes a highly-integrated fuel processor with multifunctional reactors to facilitate autothermal reforming, the water-gas shift reaction, and catalytic combustion. It was designed with the help of process analyses, on the basis of which two commercial, high-temperature PEFC stacks and balance of plant components were selected. The complete system was packaged, which resulted in a volume of 187.5 l. After achieving a stable and reproducible stack performance based on a modified break-in procedure, a maximum power of 3.3 kW_e was demonstrated in a single stack. Despite the strong deviation from design points resulting from a malfunctioning stack, all system functions could be validated. By scaling-up the performance of the functioning stack to the level of two stacks, a power density of 35 W_e l⁻¹ could be estimated, which is close to the 40 W_e l⁻¹ target. Furthermore, the start-up time could be reduced to less than 22 min, which exceeds the 30 min target. These results may bring diesel-based fuel cell auxiliary power units a step closer to use in real applications, which is supported by the demonstrated indicators. Full article

The integration of membranes inside a catalytic reactor is an intensification strategy to combine separation and reaction steps in one single physical unit. In this case, a selective removal or addition of a reactant or product will occur, which can circumvent thermodynamic equilibrium and drive the system performance towards a higher product selectivity. In the case of an inorganic membrane reactor, a membrane separation is coupled with a reaction system (e.g., steam reforming, autothermal reforming, etc.), while in a membrane bioreactor a biological treatment is combined with a separation through the membranes. The objective of this article is to review the latest developments in membrane reactors in both inorganic and membrane bioreactors, followed by a report on new trends, applications, and future perspectives. Full article

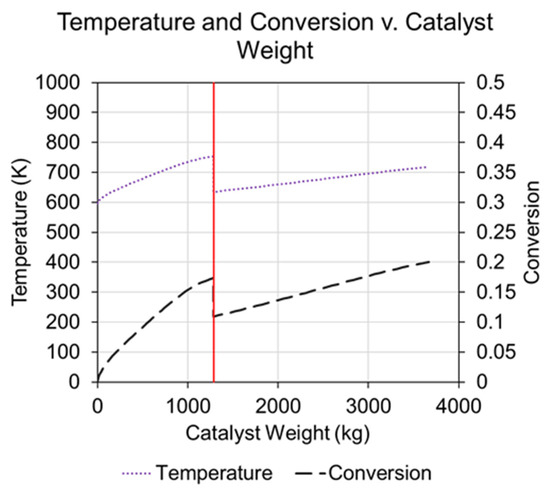

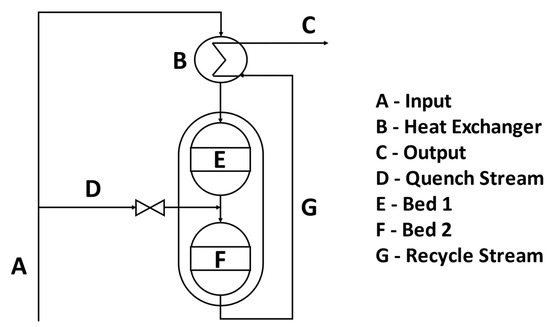

The power-to-ammonia process requires flexible operation due to intermittent renewable energy supply. In this work, we analyse three-bed autothermal reactor systems for design and off-design performance for power-to-ammonia application. The five reactor systems differ in terms of inter-stage cooling methods, i.e., direct cooling by quenching (2Q), combination of indirect and direct cooling (HQ and QH) and indirect cooling (2H) with variations. At optimum nominal operation conditions, the inter-stage indirect cooling (2H) reactor systems result in the highest NH₃ production. For off-design performance analysis, NH₃ production is minimised or maximised by varying one of the following process variables at a time: inert gas, feed flow rate or H₂-to-N₂ ratio. For each variation, the effect on H₂ intake, recycle stream load and recycle-to-feed ratio is also analysed. Among the three process variables, the H₂-to-N₂ ratio provided ca. 70% lower NH₃ production and 70% lower H₂ intake than at nominal operation for all five reactor systems. Operation of autothermal reactor systems at significantly lower H₂ intake makes them reliable for power-to-ammonia application; as during energy outage period, shutdown can be delayed. Full article

This work investigates the environmental and economic performances of a membrane reactor for hydrogen production from raw biogas. Potential benefits of the innovative technology are compared against reference hydrogen production processes based on steam (or autothermal) reforming, water gas shift reactors and a pressure swing adsorption unit. Both biogas produced by landfill and anaerobic digestion are considered to evaluate the impact of biogas composition. Starting from the thermodynamic results, the environmental analysis is carried out using environmental Life cycle assessment (LCA). Results show that the adoption of the membrane reactor increases the system efficiency by more than 20 percentage points with respect to the reference cases. LCA analysis shows that the innovative BIONICO system performs better than reference systems when biogas becomes a limiting factor for hydrogen production to satisfy market demand, as a higher biogas conversion efficiency can potentially substitute more hydrogen produced by fossil fuels (natural gas). However, when biogas is not a limiting factor for hydrogen production, the innovative system can perform either similar or worse than reference systems, as in this case impacts are largely dominated by grid electric energy demand and component use rather than conversion efficiency. Focusing on the economic results, hydrogen production cost shows lower value with respect to the reference cases (4 €/kg_H2 vs 4.2 €/kg_H2) at the same hydrogen delivery pressure of 20 bar. Between landfill and anaerobic digestion cases, the latter has the lower costs as a consequence of the higher methane content. Full article

This paper discusses the techno-economic assessment of hydrogen production from biogas with conventional systems. The work is part of the European project BIONICO, whose purpose is to develop and test a membrane reactor (MR) for hydrogen production from biogas. Within the BIONICO project, steam reforming (SR) and autothermal reforming (ATR), have been identified as well-known technologies for hydrogen production from biogas. Two biogases were examined: one produced by landfill and the other one by anaerobic digester. The purification unit required in the conventional plants has been studied and modeled in detail, using Aspen Adsorption. A pressure swing adsorption system (PSA) with two and four beds and a vacuum PSA (VPSA) made of four beds are compared. VPSA operates at sub-atmospheric pressure, thus increasing the recovery: results of the simulations show that the performances strongly depend on the design choices and on the gas feeding the purification unit. The best purity and recovery values were obtained with the VPSA system, which achieves a recovery between 50% and 60% at a vacuum pressure of 0.1 bar and a hydrogen purity of 99.999%. The SR and ATR plants were designed in Aspen Plus, integrating the studied VPSA model, and analyzing the behavior of the systems at the variation of the pressure and the type of input biogas. The SR system achieves a maximum efficiency, calculated on the LHV, of 52% at 12 bar, while the ATR of 28% at 18 bar. The economic analysis determined a hydrogen production cost of around 5 €/kg of hydrogen for the SR case. Full article

This paper reports the findings of a FP7/FCH JU project (ReforCELL) that developed materials (catalysts and membranes) and an advance autothermal membrane reformer for a micro Combined Heat and Power (CHP) system of 5 kWel based on a polymer electrolyte membrane fuel cell (PEMFC). In this project, an active, stable and selective catalyst was developed for the reactions of interest and its production was scaled up to kg scale (TRL5 (TRL: Technology Readiness Level)). Simultaneously, new membranes for gas separation were developed. In particular, dense supported thin palladium-based membranes were developed for hydrogen separation from reactive mixtures. These membranes were successfully scaled up to TRL4 and used in lab-scale reactors for fluidized bed steam methane reforming (SMR) and autothermal reforming (ATR) and in a prototype reactor for ATR. Suitable sealing techniques able to integrate the different membranes in lab-scale and prototype reactors were also developed. The project also addressed the design and optimization of the subcomponents (BoP) for the integration of the membrane reformer to the fuel cell system. Full article

This paper reports the findings of a FP7 project (DEMCAMER) that developed materials (catalysts and membranes) and new processes for four industrially relevant reaction processes. In this project, active, stable, and selective catalysts were developed for the reaction systems of interest and their production scaled up to kg scale (TRL5 (TRL: Technology Readiness Level)). Simultaneously, new membranes for gas separation were developed; in particular, dense supported thin palladium-based membranes for hydrogen separation from reactive mixtures. These membranes were successfully scaled up to TRL4 and used in various lab-scale reactors for water gas shift (WGS), using both packed bed and fluidized bed reactors, and Fischer-Tropsch (FTS) using packed bed reactors and in prototype reactors for WGS and FTS. Mixed ionic-electronic conducting membranes in capillary form were also developed for high temperature oxygen separation from air. These membranes can be used for both Autothermal Reforming (ATR) and Oxidative Coupling of Methane (OCM) reaction systems to increase the efficiency and the yield of the processes. The production of these membranes was scaled up to TRL3–4. The project also developed adequate sealing techniques to be able to integrate the different membranes in lab-scale and prototype reactors. Full article

Tar formation is the main bottleneck for biomass gasification technology. A novel rotary kiln type biomass gasification process was proposed. The concept design was based on air staging and process separation. This concept was demonstrated on a pilot scale rotary kiln reactor under ambient pressure and autothermic conditions. The pilot scale gasifier was divided into three different reaction regions, which were oxidative degradation, partial oxidation and char gasification. A series of tests was conducted to investigate the effect of key parameters. The results indicate that under optimum operating conditions, a fuel gas with high heat value of about 5500 kJ/Nm³ and gas production rate of 2.32 Nm³/kg could be produced. Tar concentration in the fuel gas could be reduced to 108 mg/Nm³ (at the gasifier outlet) and 38 mg/Nm³ (after gas conditioning). The cold gas efficiency and carbon conversion rate reached 75% and 78%, respectively. The performance of this gasification system shows considerable potential for implementation in distributed electricity and heat supply projects. Full article

The integration of mixed ionic electronic conducting (MIEC) membranes for air separation in a small-to-medium scale unit for H₂ production (in the range of 650–850 Nm³/h) via auto-thermal reforming of methane has been investigated in the present study. Membranes based on mixed ionic electronic conducting oxides such as Ba_0.5Sr_0.5Co_0.8Fe_0.2O_3-δ (BSCF) give sufficiently high oxygen fluxes at temperatures above 800 °C with high purity (higher than 99%). Experimental results of membrane permeation tests are presented and used for the reactor design with a detailed reactor model. The assessment of the H₂ plant has been carried out for different operating conditions and reactor geometry and an energy analysis has been carried out with the flowsheeting software Aspen Plus, including also the turbomachines required for a proper thermal integration. A micro-gas turbine is integrated in the system in order to supply part of the electricity required in the system. The analysis of the system shows that the reforming efficiency is in the range of 62%–70% in the case where the temperature at the auto-thermal reforming membrane reactor (ATR-MR) is equal to 900 °C. When the electric consumption and the thermal export are included the efficiency of the plant approaches 74%–78%. The design of the reactor has been carried out using a reactor model linked to the Aspen flowsheet and the results show that with a larger reactor volume the performance of the system can be improved, especially because of the reduced electric consumption. From this analysis it has been found that for a production of about 790 Nm³/h pure H₂, a reactor with a diameter of 1 m and length of 1.8 m with about 1500 membranes of 2 cm diameter is required. Full article
