Search Results (17)

Wood is easily affected by decay fungi, mildew fungi, insects, water, UV, and other factors when used outdoors. In particular, mildew on the surface of wood negatively affects the appearance and practical use of wood or wood-based engineered products. In recent years, as a class of popular crystalline materials, metal–organic frameworks (MOFs) have been widely applied in electrochemistry, adsorption, anti-mildew efforts, and other areas. In this study, we first grew a Co-based metal–organic framework (Co-MOF) in situ on a wood surface and subsequently converted the Co-MOF in situ into a cobalt–nickel double hydroxide layer, which formed micro- and nanohierarchical composite structures on the wood surface. The low surface energy of the CoNi-DH@wood was further modified via impregnation with sodium laurate to obtain the superhydrophobic wood (CoNi-DH-La@wood). We characterized the microstructure, chemical composition, water contact angle, and anti-mold properties of the CoNi-DH-La@wood using SEM, XRD, XPS, water contact angle tests, and anti-fungal tests. The SEM, XRD, and XPS results confirmed that the metal–organic framework was coated on the wood surface, with the long-chain sodium laurate grafted onto it. The CoNi-DH-La@wood had a water contact angle of 151°, demonstrating excellent self-cleaning ability. In addition, the fabricated superhydrophobic balsa wood exhibited excellent chemical and environment stability. Lastly, the CoNi-DH-La@wood exhibited excellent anti-mildew properties in a 30-day anti-mildew test because the superhydrophobic coating was successfully coated on the wood surface. In summary, this work presents an attractive strategy for obtaining wood with superhydrophobic properties at room temperature, thereby endowing the wood or wood-based engineered products with excellent anti-mildew properties. Full article

The enhancement of the physical and mechanical properties and the anti-mildew performance of wood–plastic composites are of great significance for broadening their application field. In this research, bamboo fibers underwent treatments with safe, environmentally friendly bio-enzymes. Subsequently, a bamboo–plastic composite (BPC) was developed using the modified bamboo fibers and polyethylene. The effects of biological enzymatic treatments on the surface free energy, the chemical composition of the bamboo fibers, water resistance, thermal stability, bending performance, impact performance, and anti-mildew performance of the BPC samples were analyzed. This study revealed that treating bamboo powder with bio-enzymes (xylanase, lipase, laccase, pectinase, hemicellulase, or amylase) decreased the surface free energy and the polar components of the bamboo fibers while improving the surface O/C atomic ratio of the bamboo fibers. These enzyme treatments enhanced the water resistance, bending performance, and anti-mildew performance of the BPC samples. However, on the whole, the thermal stability of the composites decreased. Particularly, after hemicellulase treatment, the composites had the lowest water absorption, reflecting a decrease of 68.25% compared to the control group. With xylanase modification, the 24 h water absorption thickness swelling rate of the composites was the lowest, reflecting a decrease of 71.27% compared to the control group. After pectinase modification, the static bending strength and elastic modulus of the prepared composites were the highest, with an increase of 15.45% and 13.31%, respectively, compared to the unmodified group. After xylanase modification, the composites exhibited the best anti-mildew effect, with an anti-mold effectiveness of 74.67%. In conclusion, bio-enzyme treatments can enhance the physical and mechanical properties and anti-mildew performance of BPCs. This research provides a theoretical foundation for the preparation of high-performance wood–plastic composites. Full article

Given the increasingly prominent contradiction between the supply of and demand for wood, the abundant resource of bamboo can be a good substitute. Bamboo scrimber can effectively improve the utilization rate of bamboo and has good mechanical properties. However, bamboo scrimber has the problem of poor mildew resistance, and does not meet the requirements for outdoor applications. In this study, in order to further improve the mildew resistance and mechanical properties of bamboo scrimber, alkali treatment was used to remove some nutrients from the bamboo bundles and change the pH of the bamboo scrimber. The results showed that nutrients such as hemicellulose, lignin, starch, and sugar were notably removed from bamboo bundles, and the pH of bamboo was slightly alkaline. The anti-mildew effect was significantly enhanced, which could allow use in outdoor environments, and the mechanical properties and dimensional stability were also improved. Among them, TB6 bamboo scrimber showed comprehensively excellent properties. The infection time in the laboratory mildew test increased from 3 days to more than 30 days, and the infection time in the outdoor mildew resistance test increased from 1 week to more than 8 weeks; the static bending intensity of TB6 increased by 62.6% to 150 MPa, and the bending modulus increased by 71.7% to 14.2 GPa; the change rate of water absorption thickness was reduced to 0.58%. This modification method effectively improved the mildew resistance of bamboo scrimber, while maintaining high mechanical strength, and provides a new method for the outdoor application of bamboo scrimber. Full article

The development of the bamboo industry has been hindered by environmental issues caused by the application of bamboo preservatives. Chinese herbal phenolic compounds have been shown to possess broad-spectrum, potent antimildew properties, making them promising candidates for the development of new bamboo mildew inhibitors. In this study, we investigated the antimildew properties of three phenolic compounds, eugenol, carvacrol, and paeonol, against common mildews in bamboo materials using the Oxford cup method and the double-dilution method. Scanning electron microscopy (SEM) and transmission electron microscopy (TEM) were used to analyze the antimildew mechanism and its effects on mildew cell morphology. Our results showed that carvacrol exhibited the strongest antimildew activity, with minimum inhibitory concentration (MIC) and minimum fungicidal concentration (MFC) values of 1.56 mg/mL and 1.76 mg/mL, respectively, followed by eugenol and paeonol. At a concentration of 25 mg/mL, eugenol and carvacrol had an inhibitory rate of over 50% against various mildews. Different concentrations of the three compounds significantly disrupted the morphology and structural integrity of mildew hyphae, with the extent of damage increasing with concentration and treatment duration. In the sliced bamboo mildew prevention experiment, carvacrol at a concentration of 29.25 mg/mL was found to be highly effective against all tested mildews. Our study provides new insights and a theoretical basis for the development of eco-friendly bamboo mildew inhibitors based on plant phenolic compounds. Full article

In order to improve the outdoor exposure performance of laminated bamboo, boric acid/borax and UV absorbents, including triazole (UV1130), nano–TiO₂, and nano–SiO₂, were used to modify waterborne polyurethane (WPU) coatings, respectively. The physical and chemical properties of the coatings with and without modification were evaluated by adhesion strength, contact angle, wear, and temperature-resistance experiments. The antimildew properties of the coatings were evaluated by the bacteriostatic zone method, and the pyrolysis characteristics were investigated through TG–FTIR analysis. The results showed that, when compared with the unmodified WPU coating, the coatings with different modifications had stronger wear resistance; the mass loss of the best C4 coating was only 0.0078 g, which was 0.0203 g less than that of the unmodified C0 coating. However, when compared to the unmodified coating, the wettability of the modified coating increased to different degrees, and the contact angle of the C4 coating with the most obvious effect was only 36.50°. During the curing process of the modified coatings, the UV absorbents and boric acid/borax would interact with the C–N, C–O, and C=O bonds in the coating and change the molecular structure of the WPU. The thermal stability of the coatings with different modifications was enhanced. The best result, a 76.27% weight loss, was observed in the modified coating with boric acid/borax and 1.0% nano–TiO₂. Different modified coatings had a certain degree of control effect on Aspergillus Niger, and the reason for this was considered the combined effect of boric acid/borax and UV absorbents. Full article

Bamboo, as a potential alternative to biomass materials, has gained more attention from the bamboo manufacturing industry in China. However, the drawbacks, such as the dimensional instability, and low antifungal and hydrophilic properties of bamboo, inhibit its application and shorten its service life. The objective of this work was to analyze the change in chemical components and fungal resistance of moso bamboo with heat treatment. For this objective, moso bamboo specimens were thermally modified in an oven at different temperatures for a fixed duration. The results showed that the parenchymal cells distorted and deformed in comparison to the control after thermal modification. After thermal modification in an oven, the crystallinity index increased from 39% to 53%. Owing to the thermal modification, the hemicellulose and cellulose relative content decreased, as confirmed by FTIR and XPS analysis. Thus, the dimensional stability and antifungal properties of the thermally modified bamboo specimens improved. Full article

With natural texture and high performance, bamboo scrimber is one of the artificial lignocellulosic composites widely used in construction, furniture and other structural applications. However, it is vulnerable to the actions of water, ultraviolet radiation and fungus, which affect its durability, especially in the open. Here, bamboo was treated with superheated steam in an attempt to improve the durability of bamboo scrimbers. The chemical composition, mechanical properties, dimensional stability, aging resistance, decay resistance and anti-mildew properties were investigated at different temperatures (160~200 °C). After superheated steam treatment, the relative contents of holocellulose and α-cellulose in bamboo decreased. The bending strength and short-beam shearing strength slightly decreased as the temperature was raised while the modulus was essentially retained. The aging resistance in terms of thickness swelling rate (≤9.38%) was substantially improved. The decay resistance reached to the level of Grade I and can be dramatically enhanced by elevating temperature. The anti-mildew properties were also improved. To take together, superheated steam treatment remarkably improves the resistance of bamboo scrimbers to water, ultraviolet radiation, rot fungi and mildew with some concomitant reduction in mechanical properties. The results will permit outdoor construction using bamboo scrimbers more resistant to environmental damage. Full article

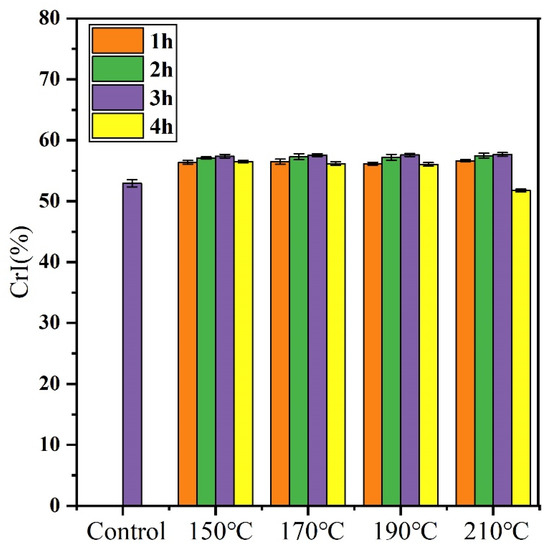

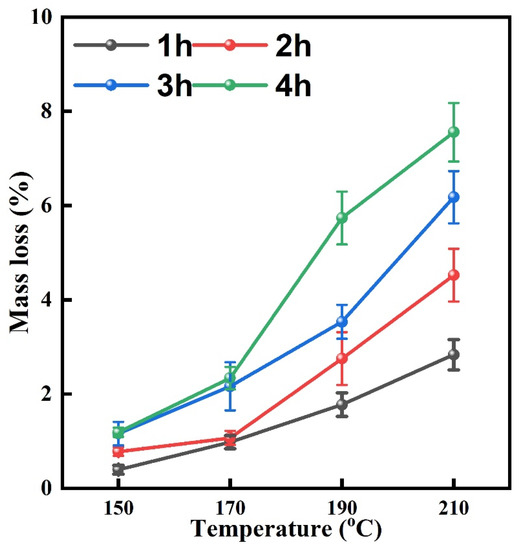

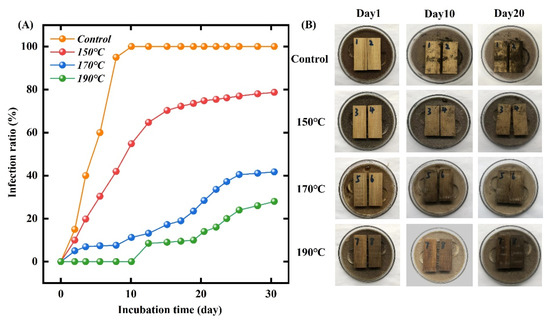

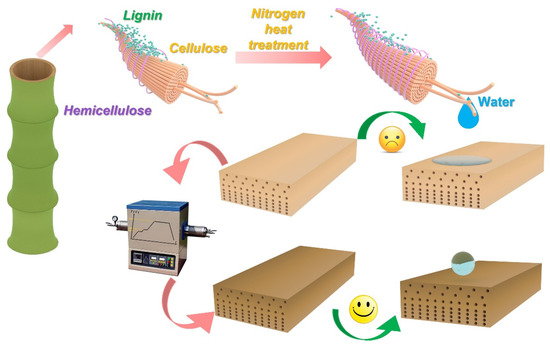

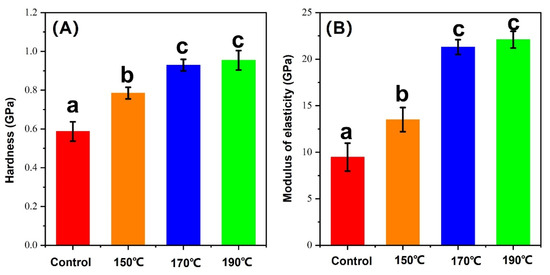

Nitrogen is generally used as a protective gas to provide an oxygen-free environment for the heat treatment of biomaterials. In order to indicate the effect of nitrogen heat treatment of bamboo, the changes in terms of the chemical composition, chemical functional groups, cellulose crystallinity index, surface color, micro-mechanics and anti-mildew properties of bamboo, and the interaction relationship among the properties, were analyzed. The mass loss ratio of treated bamboo samples increased significantly during the process of thermal modification. In detail, the hemicellulose exhibited a decreasing tendency from 23.7% to 16.6%, while the lignin content presented an increasing tendency. The decreased hemicellulose and cellulose contents are a benefit to enhancing lignin content and crystallinity degree, thus increasing the modulus of elasticity and hardness of treated bamboo cell walls. The obtained bamboo sample treated at 190 °C/3 h displayed the best micro-mechanical properties. It presented a maximum modulus of elasticity of 22.1 GPa and a hardness of 0.97 GPa. Meanwhile, the lignin and cellulose content was proven to increase in the bamboo surface in chemical composition analysis, resulting in lower free-hydroxyl groups on the bamboo surface. Thus, the contact angle value of bamboo increased. Furthermore, nitrogen thermal modification positively contributed to the mildew resistance of bamboo specimens. Full article

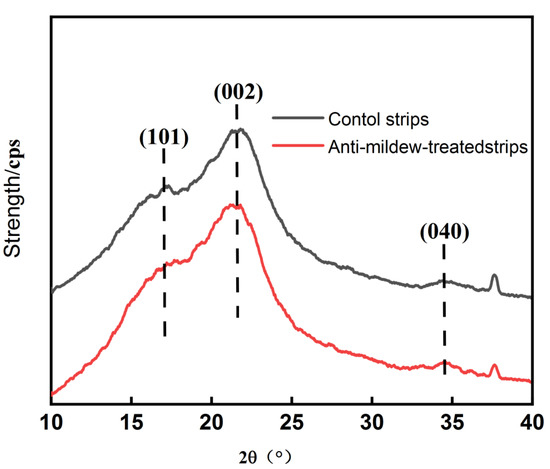

In order to reduce the oxidative degradation of citral, our research group modified citral with the natural antioxidant from tea polyphenols and applied it to bamboo processing to enhance the anti-mold effect of bamboo, but its application to the bamboo treatment process and the anti-mold effect is still not clear. For this reason, in this paper, the tea polyphenol-modified citral anti-mildew treatment of bamboo as well as the anti-mildew properties of bamboo were explored using the orthogonal testing method and a UV-vis spectrophotometer. The results showed that when the concentration of tea polyphenol-modified citral reached 175 mg mL⁻¹ and above, the efficacy of the anti-mildew treated bamboo against common molds reached 100%; the improved anti-mildew treatment process parameters for bamboo were as follows: impregnation pressure 0.6 MPa, impregnation time 150 min, and tea polyphenol-modified citral concentration 200 mg mL⁻¹. Following the tea polyphenol-modified citral anti-mildew treatment of bamboo, not only did it improve the anti-mildew properties of the bamboo materials, but it also added a fresh lemon fragrance without altering the original colour, microstructure, and chemical properties of the bamboo materials. Full article

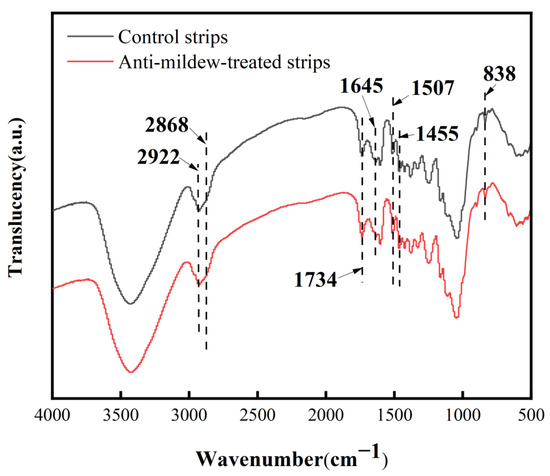

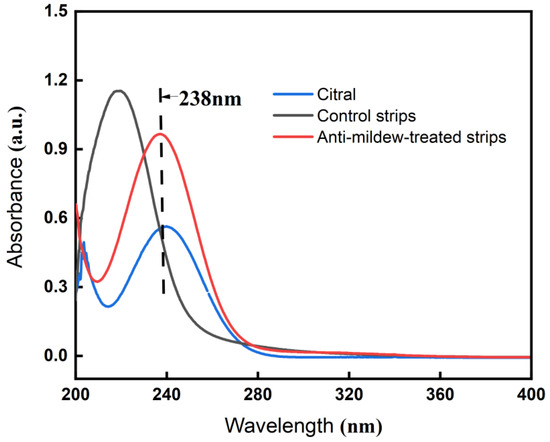

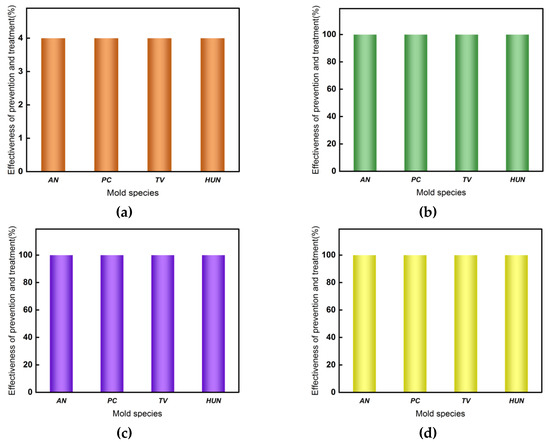

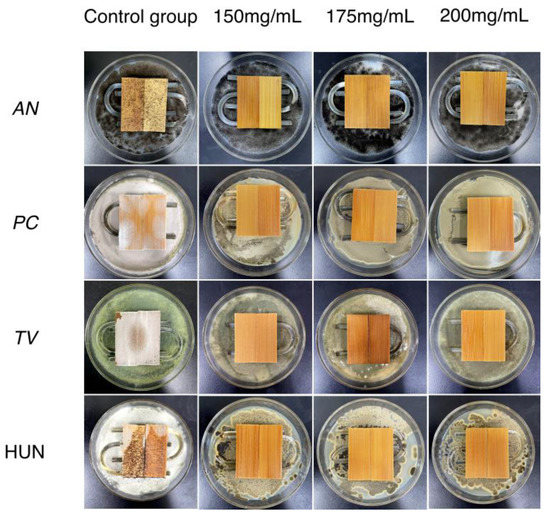

To reduce the amount of citral used without reducing the antimildew performance of bamboo, the citral compound preparation process, the distribution of the compound in bamboo, and its antimildew performance were investigated using the Oxford cup method, Fourier-transform infrared spectroscopy, and ultraviolet spectrophotometry. The results revealed that the combination of citral with cinnamaldehyde or thymol may lead to partial chemical reactions, which may change the chemical structure of citral and affect its bacteriostatic properties. The bacteriostatic properties of the citraldehyde thymol compound against common molds of bamboo were considerably superior to those of the citral cinnamaldehyde compound. The limonaldehyde thymol compound showed a low distribution trend outside and vice versa inside in the treated bamboo. The citral thymol compound exhibited good antimildew performance at a concentration of 200 mg/mL. The citral thymol compound could reduce the amount of citral by approximately 67 mg/mL without reducing the antimildew performance of bamboo. Full article

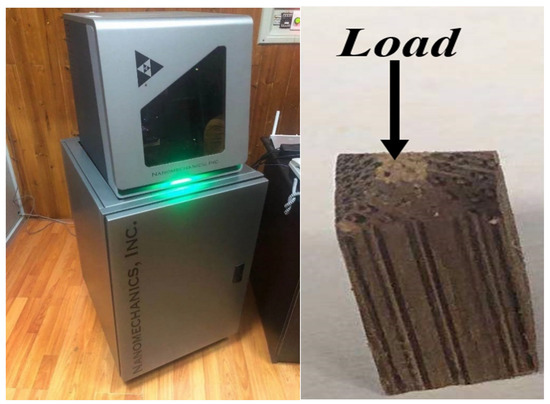

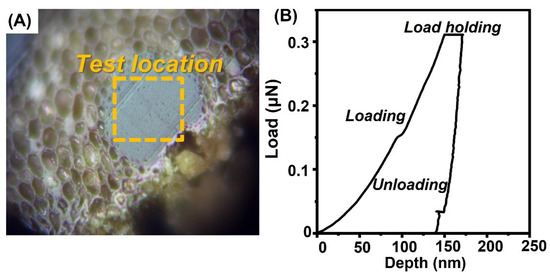

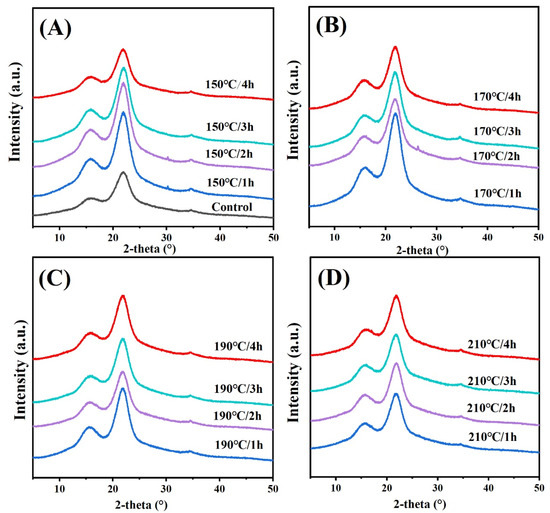

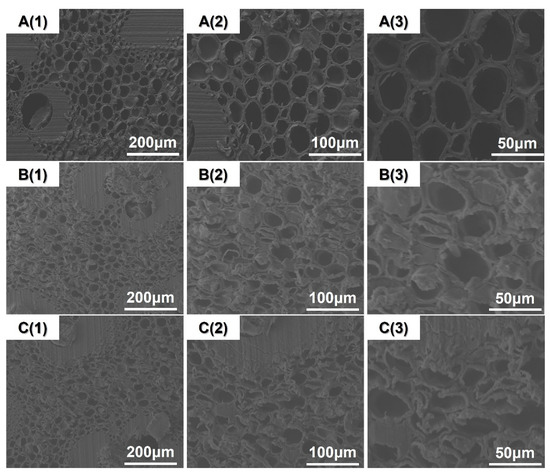

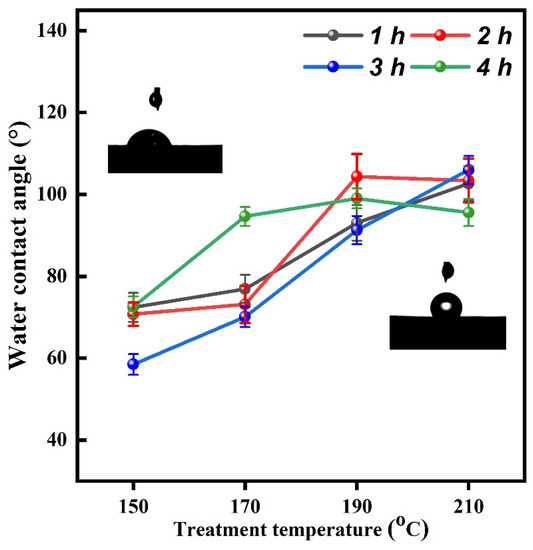

By promoting greenhouse gas sequestration, bamboo and bamboo-based products can improve carbon storage, and thus help decrease greenhouses gas emission through replacing traditional products like concrete, steel, and alloy. Thermal modification is a useful way to effectively enhance the dimensional stability and mold-resistance property of bamboo and bamboo-based products compared with chemical treatment. This work investigates the change in anti-mildew properties, micro-structure, and chemical composition of bamboo after heat treatment. Saturated steam heat treatment was applied for this project. SEM results showed that the structural damage of parenchyma cells resulted in the separation of thin-walled cells and vascular bundles. Thus, the original regular structure of bamboo, characterized by plump and intact cells, changed markedly. After thermal modification, bamboo samples exhibited improved dimensional stability and anti-fungal properties due to the decrement of hemicellulose and cellulose. The hardness and MOE of the modified bamboo were 0.75 and 20.6 GPa, respectively. Full article

To reduce the oxidative degradation of citral and improve its antimildew performance, citral was modified with natural antioxidants such as tea polyphenols, ascorbic acid, and theaflavin in the present study. Additionally, the effects of these natural antioxidants on the citral degradation rate and DPPH radical-scavenging rate, as well as the effectiveness of antioxidant-modified citral in the antimildew treatment of bamboo were investigated. Ascorbic acid, theaflavin, and tea polyphenols improved the antioxidant performance of citral to some extent, and the tea polyphenols exhibited the best antioxidant performance. When the amount of tea polyphenols added to citral reached 1.0%, the oxidative degradation of citral was effectively prevented. Compared with citral, tea-polyphenol-modified citral could reduce the efficacy of the bamboo antimildew treatment against all four mildews and the effectiveness of the antimildew treatment reached 100%. Citral modification with antioxidants reduced the amount of citral required in the treatment, thereby reducing the treatment cost for bamboo mildew. Full article

Bamboo is one of the most promising biomass materials in the world. However, the poor anti-mildew property and poor dimensional stability limits its outdoor applications. Current scholars focus on the modification of bamboo through heat treatment. Arc-shaped bamboo sheets are new bamboo products for special decoration in daily life. In this paper, we reported pressure-steam heat treatment and explored the effect of pressure-steam on the micro-structure, crystallinity index, anti-mildew, chemical composition, physical properties, and mechanical properties of bamboo via X-ray diffractometer (XRD), scanning electron microscopy (SEM), Fourier-transform infrared (FTIR), wet chemistry method and nanoindentation (NI). Herein, saturated-steam heat treatment was applied for modified moso bamboo for enhancing the anti-mildew properties and mechanical properties of moso bamboo. Results showed that with the introduction of saturated steam, the content of hemicellulose and cellulose decreased, while the lignin-relative content increased significantly. The anti-mildew property of moso bamboo was enhanced due to the decomposition of polysaccharide. Last, the modulus of elasticity and hardness of treated moso bamboo cell walls were enhanced after saturated-steam heat treatment. For example, the MOE of the treated moso bamboo cell wall increased from 12.7 GPa to 15.7 GPa. This heat treatment strategy can enhance the anti-mildew property of moso bamboo and can gain more attention from entrepreneurs and scholars. Full article

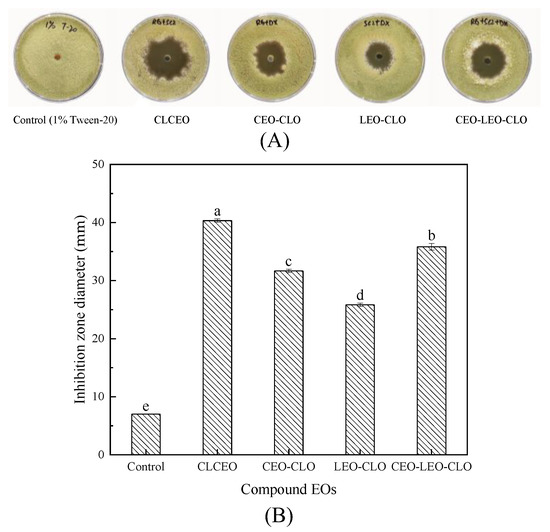

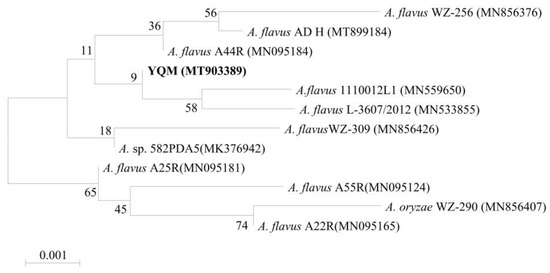

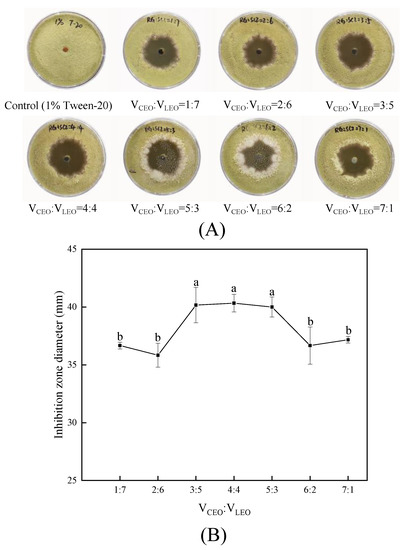

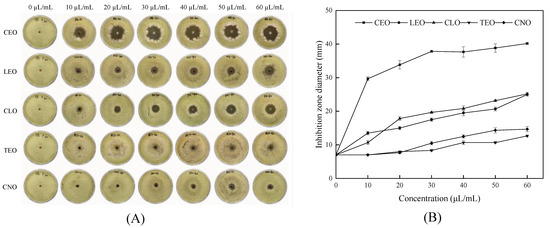

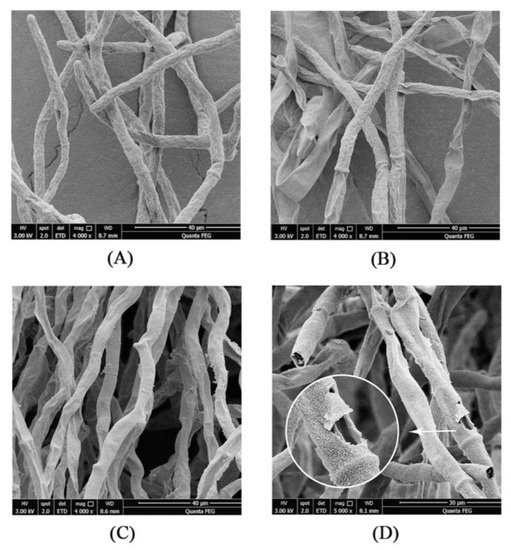

The antifungal activity of cinnamon (Cinnamomum cassia Presl), litsea [Litsea cubeba (Lour.) Pers.], clove (Syzygium aromaticum L.), thyme (Thymus mongolicus Ronn.) and citronella (Cymbopogon winterianus Jowitt) essential oils (EOs) against the dominant fungi isolated from moldy peanuts was investigated in this research. Firstly, strain YQM was isolated and identified by morphological characterization and 18S rRNA gene sequence analysis to be Aspergillus flavus (A. flavus). Next, antifungal effects of single or mixed EOs on strain YQM were evaluated by the inhibition zone test. The cinnamon-litsea combined essential oil (CLCEO, V_{cinnamon oil}:V_{litsea oil} = 3:5) displayed the best antifungal effect on strain YQM. The chemical composition of CLCEO was identified and quantified by gas chromatograph-mass spectrometry (GC-MS), and results revealed that the major components of CLCEO were cinnamaldehyde and citral. Finally, the effect of EOs on the microstructure of strain YQM mycelia was observed under scanning electron microscope (SEM). The mycelia exposed to cinnamon essential oil (CEO) and litsea essential oil (LEO) were partly deformed and collapsed, while the mycelia treated with CLCEO were seriously damaged and the deformation phenomena such as shrinking, shriveling and sinking occurred. Therefore, CLCEO has great potential for using as anti-mildew agents during peanut storage. Full article

Benzyl ammonium chloride (BAC) is a broad-spectrum bactericide, but vulnerable to leaching by water. In this paper, halloysite nanotubes (HNT) and montmorillonite (MMT) were used as drug carriers to load BAC, in order to achieve good anti-mildew activity and long-term sustained release properties. The HNT and MMT nano-composites were characterized by transmission electron microscope (TEM), Fourier transform infrared spectroscopy (FT-IR), X-ray diffraction (XRD), thermogravimetric analysis (TGA), and nitrogen adsorption/desorption. XRD results showed that BAC intercalated the interlayer of MMT, and expanded the interlayer spacing from 1.15 nm to 1.75 nm. Pore analysis showed that BAC decreased the cavity of halloysite nanotubes to a certain extent, which indicated that BAC loaded inside the lumen of HNT successfully. TG analysis showed that the loading capacity of MMT to BAC was higher than HNT. The accelerated-release experiments revealed both two clays have significant sustained-release effects on BAC, and the releasing rate of HNT was relatively lower. Both HNT and MMT have promising application prospects as sustained-release carriers. The inhibition test showed that BAC in nano-clay has good anti-mildew resistance performance. Full article
