Search Results (16)

Etching methods of aluminum foils used in electrolytic capacitors are selected based on the operating voltages, with DC and AC etching typically used for the anode foils of high- and low-voltage capacitors, respectively. The initial pits continue to grow and eventually form tunnels or cubic pits by DC or AC etching, respectively. This paper describes the pit formation and growth process, focusing on the involvement of passive film inside the pit and facet dissolution. In particular, it is found that high-purity aluminum foil containing Ti promotes the formation of passive film (etch film) inside pits during the cathodic half cycle of AC etching, and Cu promotes facet dissolution. These behaviors significantly affect the surface area expansion by electrolytic etching. In addition, the effects of crystal orientation, surface defects associated with oxide film crystallization, and a trace element, Pb, as factors affecting the pit initiation sites will be discussed. Full article

The article focuses on devising solutions for monitoring the condition of the filter capacitors of DC-DC converters. The article introduces two novel DC-DC buck converter designs that monitor the equivalent series resistance (ESR) and the capacitance of capacitors using a parameter observer (PO) and simple variable electrical networks (VEN). For the first scheme, the PO processes in real time the voltage at the capacitor terminals during a discharge-charge cycle. For the second scheme, the filtering is performed with two or more capacitors in parallel, and the PO processes the voltage at the terminals of each capacitor during two discharge processes without interrupting the filtering operation of the converter. The paper presents the principles and theoretical support on which the two schemes of DC-DC buck converters are based, design details regarding PO and VEN, as well as experiments performed with each of the schemes. In the experimental schemes, the PO is implemented with a microcontroller, and the parameters of some aluminum electrolytic filter capacitors are calculated in a real-time manner of about $40 \mathrm{m}\mathrm{s}$. The calculation accuracy of the equivalent capacity is very good. Regarding the calculation accuracy of the ESR, it is shown that it depends on the fulfillment of certain ratios between the VEN resistances, on the one hand, as well as between them and the ESR, on the other hand. Full article

Power converters (PCs) are vital elements of critical applications, making their reliable operation crucial. Enhancing PCs’ reliability can be achieved by adding intelligence to the system, enabling it to predict failures and generate early warnings before a failure occurs. In this context, intelligence is integrated into the system through preventive diagnostic algorithms (PDAs) that assess the converter condition. This article introduces a PDA designed to determine the optimal replacement timing for aluminum electrolytic capacitors (AECs) within power converters. AECs, in addition to being a fundamental component of PCs, also represent the most vulnerable element of the PCs’ power section. The aging of AECs is characterized by a decrease in capacitance (C) and an increase in the equivalent series resistance (ESR). Therefore, ESR and C serve as key indicators for assessing the AECs’ health status. One of the most critical functional requirements for designing a PDA is its accuracy, which can be significantly affected by transients. The solution proposed in this paper is resilient to transients, overcoming a common problem in implementing AECs’ PDAs. The proposed algorithm employs discrete wavelet transform (DWT) to extract the converter signal modes. Subsequently, key characteristics of these modes are extracted, enabling the calculation of both ESR and C. Finally, by using the estimated ESR and C values, two fault indicators can be obtained that are resilient to transients. Employing a Kalman filter reduces noise and ensures the indicators’ resilience to transients, making them highly effective for evaluating the AECs’ health status. The proposed PDA was validated through multiple computer simulations conducted in MATLAB/Simulink for a three-phase interleaved boost converter (3ϕIBC), which includes a proportional-integral (PI) controller with anti-windup capability. Full article

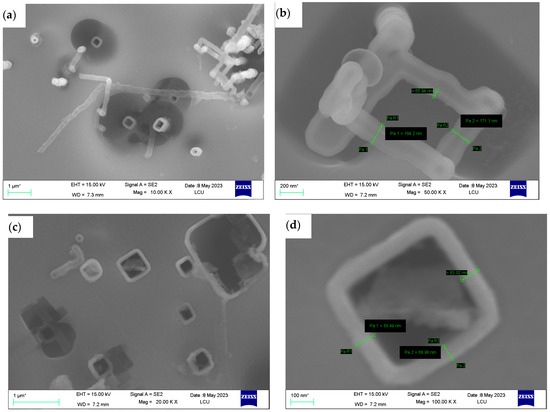

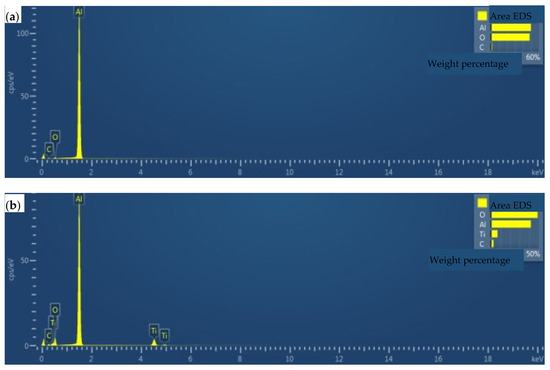

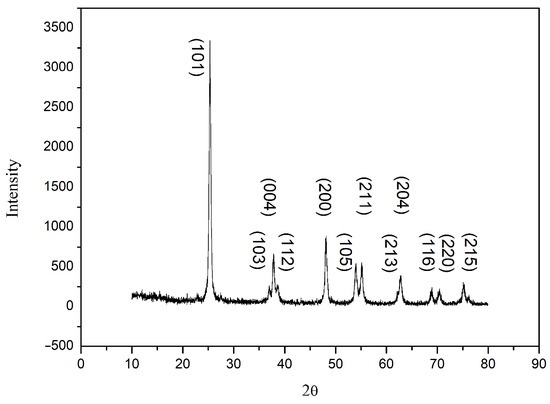

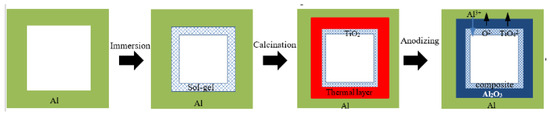

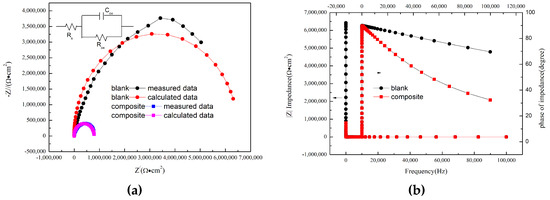

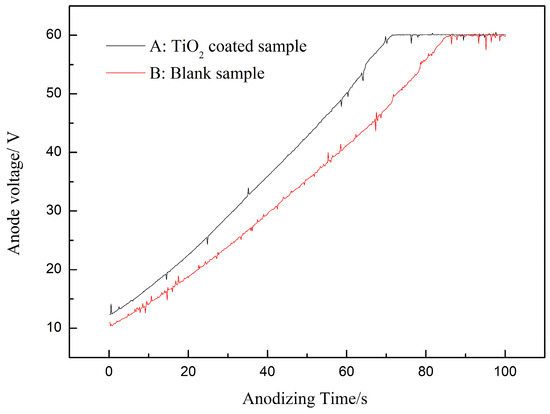

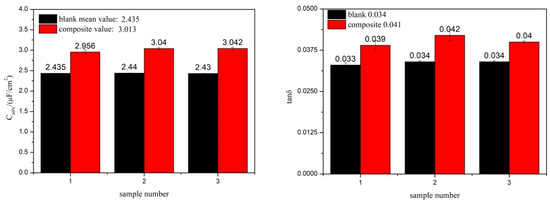

This research article aims to improve the specific capacitance of DC-etched Al foil for Al electrolytic capacitors by forming an Al₂O₃-TiO₂ composite anodic oxide film. DC-etched Al foils for aluminum electrolytic capacitors were immersed in a TiO₂ precursor sol, followed by calcination and anodizing to manufacture a TiO₂-Al₂O₃ composite anodic oxide film. TiO₂ precursor sol–gel particles after calcination were analyzed by XRD. During anodization, the anode potential with time was measured by a digital meter. A scanning electron microscope, electrochemical impedance measurements, and a general digital LCR meter were adopted to explore the microstructure and property of the anodic oxide films. The specific capacitance for the TiO₂-Al₂O₃ composite anodic oxide film and a pure Al anodic one is 3.013 μF/cm² and 2.435 μF/cm² at C_60V, respectively. The thickness is 87.26 nm for the former and 177.65 nm for the latter. The results show that the TiO₂-Al₂O₃ composite anodic oxide film is about 51% thinner than the single Al anodic film, accounting for a large improvement in specific capacitance. The formation efficiency of the pretreated sample is much higher than that of the blank sample, owing to the pre-deposited TiO₂ layer and thermal Al oxide layer. However, the composite anodic oxide film’s specific resistance was reduced and its dielectric loss was also aggravated, resulting from the doping-introduced structural defects. Full article

This paper presents capacitor dimensioning to increase a system’s power density while the converter performance for the delta-connected cascaded H-bridge (CHB) active power filter (APF) is not impaired. After comparing aluminum electrolytic capacitors with film capacitors, this paper proposes capacitance design requirements for film capacitors. With the help of trigonometric transformation for periodic time-varying variables, including capacitor voltages and branch voltages, the capacitance design requirements can be represented as positive univariate polynomials, the coefficients of which are with regard to the capacitance value. The optimization solver SeDuMi is then applied to determine whether a capacitance value is feasible by checking the positiveness of the polynomials. This research has very appealing theoretical and practical properties: the time-domain analysis capability for periodic variables is improved, therefore, enabling a fast computation and a broad application. Both the simulations and experimental results validate the proposed strategy. Compared with the previous work, the proposed method can result in a lower capacitance value without degrading the performance, which is beneficial for a low-cost and low-volume system. Full article

AC-etched aluminum foils for an Al electrolytic capacitor were covered with a TiO₂ film by a sol–gel coating and then anodized to 25 V in an ammonium adipate solution. The structure, properties, and performance of the anodic oxide films were examined by transmission electron microscopy (TEM), scanning electron microscopy (SEM), electrochemical impedance measurements (EIS), a general digital LCR meter, a TV characteristic tester, and multicycle pulse charging–discharging. It was found that the anodizing of aluminum coated with TiO₂ films led to the formation of Al-Ti composite anodic oxide films, which consist of an outer Al-Ti composite oxide layer and an inner Al₂O₃ layer on the metal substrate. The capacitance (C_25V) of the anodic oxide films formed on specimens with a TiO₂ coating was about 10% larger than without a TiO₂ coating. The specific resistance (R_ox) of the Al-Ti composite film measured by EIS was lower than the blank one, accounting for a greater increase in the rise time (T_r) and a slight reduction in the withstand voltage (V_t). After hydration and a multicycle pulse charging–discharging destructive test, the Al-Ti composite anodic oxide film maintained the same good, comprehensive dielectric properties and performance as the blank one, thereby proving to be promising for acting as dielectric layers. Full article

Due to their substantial energy density and economical pricing, switching-mode power supplies (SMPSs) often utilize electrolytic capacitors. However, their ability to function at low temperatures is essential for dependable operation in several sectors, including telecommunications, automotive, and aerospace. This study includes an experimental evaluation of how well standard SMPS electrolytic capacitors operate at low temperatures. This paper investigates the suitability of standard electrolytic capacitors used in switched-mode power supplies (SMPSs) for low-temperature applications. The experimental evaluation exposed the capacitors to temperatures ranging from −5 °C to −40 °C, assessing capacitance (Cp), impedance (Z), dissipation factor (DF), and equivalent series resistance (ESR) at each temperature. The capacitor’s time-domain electrical signals were analyzed using the Pearson correlation coefficient to extract discriminative features. These features were input into an artificial neural network (ANN) for training and testing. The results indicated a significant impact of low temperatures on capacitor performance. Capacitance decreased with lower temperatures, while the ESR and leakage current increased, affecting stability and efficiency. Impedance was a valuable diagnostic tool for identifying potential capacitor failure, showing a 98.44% accuracy drop at −5 °C and 88.75% at the peak temperature, indicating proximity to the manufacturer’s specified limit. The study suggests further research and development to improve the performance of electrolytic capacitors in SMPS systems under cold conditions, aiming to boost efficiency and reliability. Full article

In recent years, significant technological advances have emerged in renewable power generation systems (RPGS), making them more economical and competitive. On the other hand, for the RPGS to achieve the highest level of performance possible, it is important to ensure the healthy operation of their main building blocks. Power electronic converters (PEC), which are one of the main building blocks of RPGS, have some vulnerable components, such as capacitors, which are responsible for more than a quarter of the failures in these converters. Therefore, it is of paramount importance that the design of fault diagnosis techniques (FDT) assess the capacitor’s state of health so that it is possible to implement predictive and preventive maintenance plans in order to reduce unexpected stoppage of these systems. One of the most commonly used capacitors in power converters is the aluminum electrolytic capacitor (AEC) whose aging manifests itself through an increase in its equivalent series resistance (ESR). Several advanced intelligent techniques have been proposed for assessing AEC health status, many of which require the use of a current sensor in the capacitor branch. However, the introduction of a current sensor in the capacitor branch imposes practical restrictions; in addition, it introduces unwanted resistive and inductive effects. This paper presents an FDT based on the random forest classifier (RFC), which triggers an alert mechanism when the DC-link AEC reaches its ESR threshold value. The great advantage of the proposed solution is that it is non-invasive; therefore, it is not necessary to introduce any sensor inside the converter. The validation of the proposed FDT will be carried out using several computer simulations carried out in Matlab/Simulink. Full article

A novel annealing process of controlled heating rate is used to produce severe cold-formed aluminum plates, which are processed into aluminum foil and mainly used for high-voltage electrolytic capacitor anodes. The experiment in this study focused on various aspects such as microstructure, recrystallization behavior, grain size, and grain boundary characteristics. The results revealed a comprehensive influence of cold-rolled reduction rate, annealing temperature, and heating rate on recrystallization behavior and grain boundary characteristics during the annealing process. The heating rate applied plays a crucial role in controlling the recrystallization process and the subsequent grain growth, which ultimately determines whether or not the grains will become larger. In addition, as the annealing temperature rises, the recrystallized fraction increases and the grains size decreases; conversely, the recrystallized fraction decreases as the heating rate increases. When the annealing temperature remains constant, the recrystallization fraction increases with a greater deformation degree. Once complete recrystallization occurs, the grain will undergo secondary growth and may even subsequently become coarser. If the deformation degree and annealing temperature remain constant, the increased heating rate will result in a lower recrystallization fraction. This is due to the inhibition of recrystallization, and most of the aluminum sheet even remains in a deformed state before recrystallization. This kind of microstructure evolution, grain characteristic revelation, and recrystallization behavior regulation can provide effective help for enterprise engineers and technicians to guide the production of capacitor aluminum foil to a certain extent, so as to improve the quality of aluminum foil and increase the electric storage performance. Full article

It is expected that ionic liquids will be used in the future as electrolytes for electric double layer capacitors, but currently microencapsulation with a conductive or porous shell is required for their fabrication. Here, we succeeded in fabricating a transparently gelled ionic liquid trapped in hemispherical silicone microcup structures just by observing with a scanning electron microscope (SEM), which allows the microencapsulation process to be eliminated and electrical contacts to be formed directly. To see the gelation, small amounts of ionic liquid were exposed to the SEM electron beam on flat aluminum, silicon, silica glass, and silicone rubber. The ionic liquid gelled on all the plates, and a color change to brown was observed on all the plates except for silicone rubber. This change might be caused by reflected and/or secondary electrons from the plates producing isolated carbon. Silicone rubber could remove the isolated carbon due to the large amount of oxygen inside it. Fourier transform infrared spectroscopy revealed that the gelled ionic liquid included a large amount of the original ionic liquid. Moreover, the transparent, flat gelled ionic liquid could also be made into three-layer structures on silicone rubber. Consequently, the present transparent gelation is suitable for silicone rubber-based microdevices. Full article

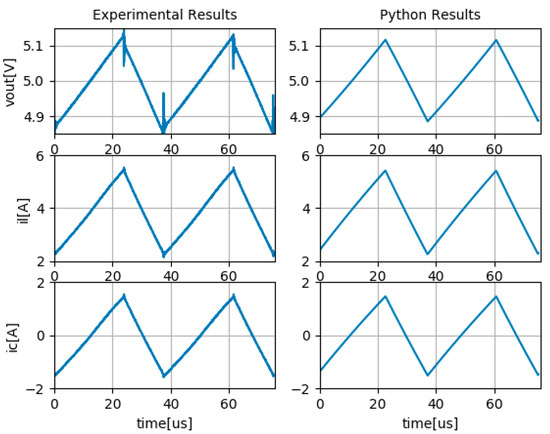

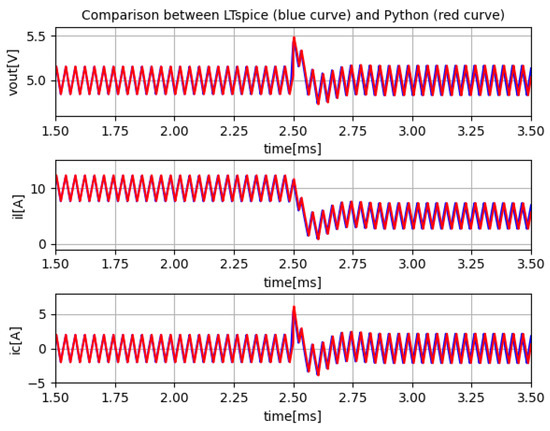

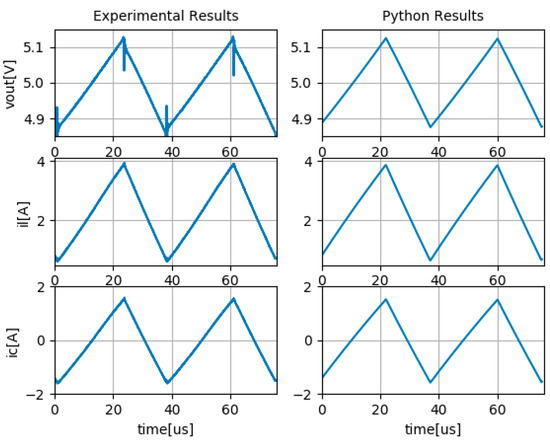

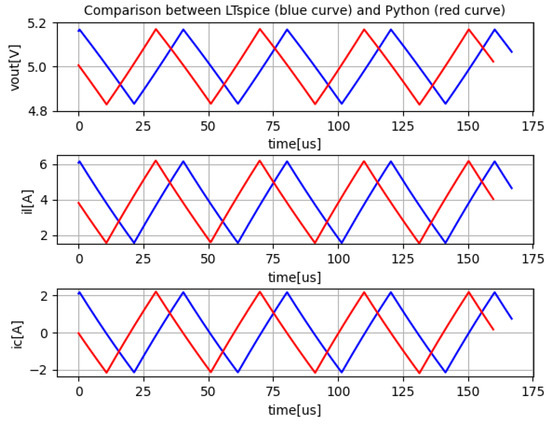

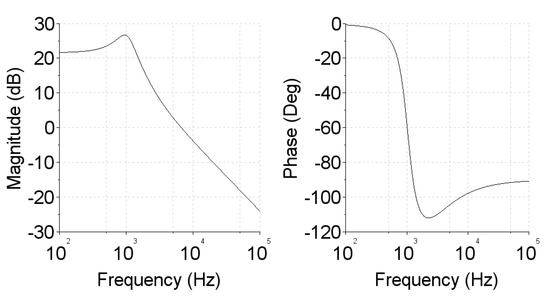

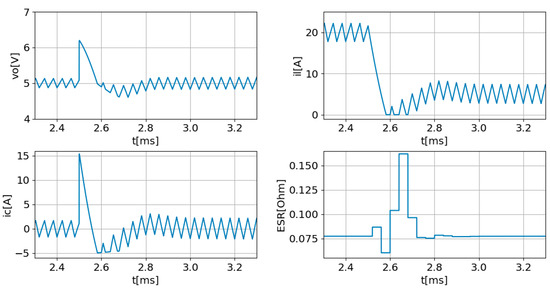

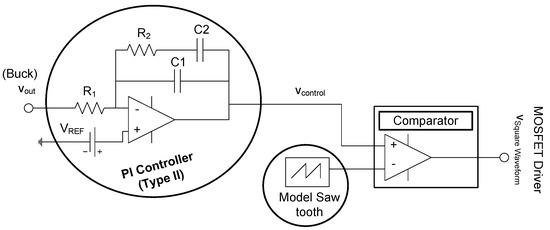

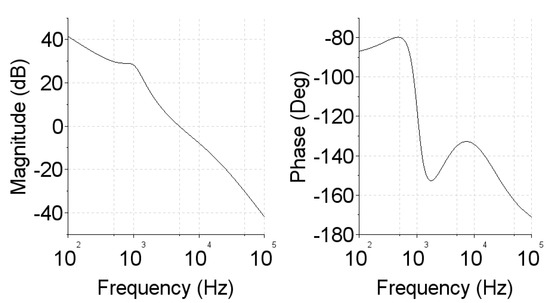

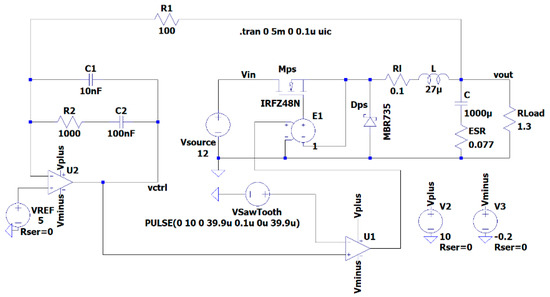

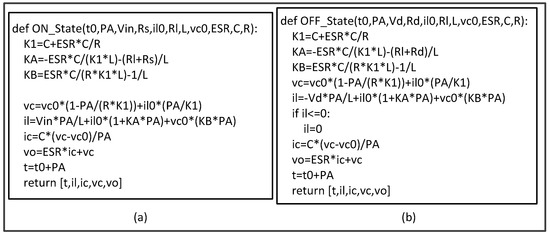

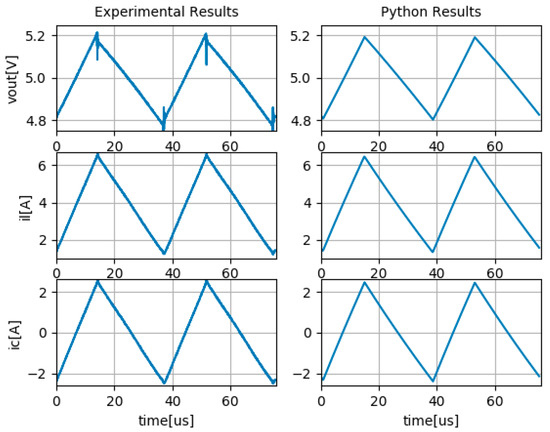

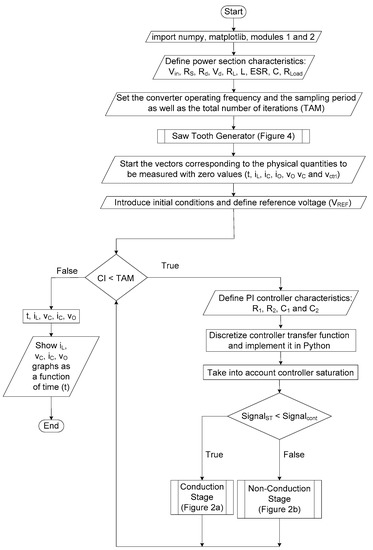

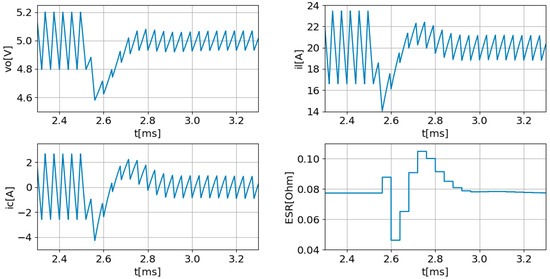

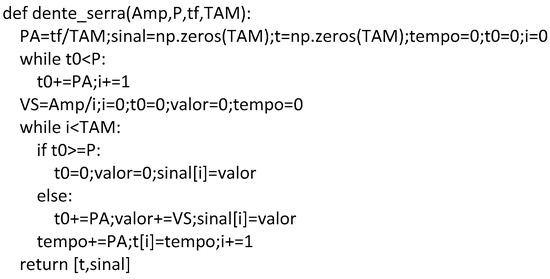

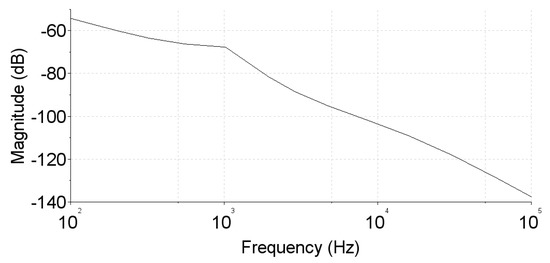

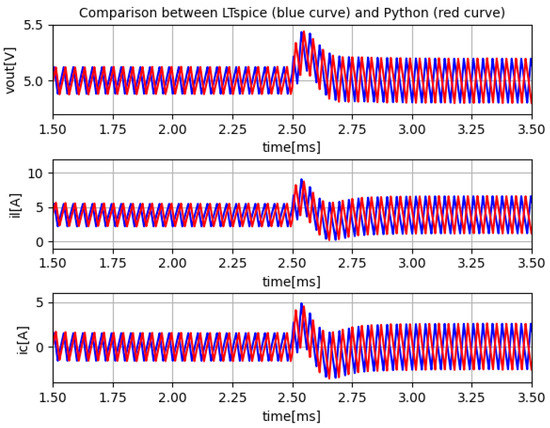

This paper presents a tool that evaluates the applicability of a fault diagnostics technique (FDT) for Switch-Mode Non-Isolated DC-DC converters (SMNI DC-DC). The proposed tool simulates the operation of a Type II controller for a buck converter under different operating conditions and, simultaneously, implements the FDT. In this way, it is possible to evaluate the applicability of the FDT in real-time. The proposed tool is implemented in Python, and requires the partitioning of the code into different modules. The first module is responsible for modeling the different states of the converter. The second module contributes to the production of the PWM signal. The concepts of symmetry and asymmetry are implicit to the signal processing methods used in the design of the FDTs that compose the third module. Finally, all of the modules are properly included in the main function, which represents the fourth module. The validation of the proposed tool is carried out by comparing the results with the LTspice simulator and with an experimental prototype built for this purpose. Different operating conditions are considered. In addition to the proposed tool, an algorithm for the design of both the power section and the converter compensator is presented. Full article

The service life of aluminium electrolytic capacitors is becoming a critical design factor in power supplies. Despite rising power density demands, electrolytic capacitors and switching devices are the two most common parts of the power supply that age (deteriorate) under normal and diverse working conditions. This study presents a fault diagnostics framework integrated with long-term frequency for a switched-mode power supply aluminium electrolytic capacitor (SMPS-AEC). Long-term frequency condition monitoring (CM) was achieved using the advanced HIOKI LCR meter at 8 MHz. The data acquired during the experimental study can help to achieve the needed paradigm from various measured characteristics of the SMPS/power converter component to detect anomalies between the capacitors selected for analysis. The CM procedure in this study was bound by the electrical parameters—capacitance (Cs), equivalent series resistance (ESR), dissipation factor (DF), and impedance (Z)—-acting as degradation techniques during physical and chemical changes of the capacitors. Furthermore, the proposed methodology was carried out using statistical feature extraction and filter-based correlation for feature selection, followed by training, testing and validation using the selected supervised learning algorithms. The resulting assessment revealed that with increased data capacity, an improved performance was achieved across the chosen algorithms out of which the k-nearest neighbors (KNN) had the best average accuracy (98.40%) and lowest computational cost (0.31 s) across all the electrical parameters. Further assessment was carried out using the fault visualization aided by principal component analysis (PCA) to validate and decide on the best electrical parameters for the CM technique. Full article

Recent research has seen an interest in the condition monitoring (CM) approach for aluminium electrolytic capacitors (AEC), which are present in switched-mode power supplies and other power electronics equipment. From various literature reviews conducted and from a failure mode effect analysis (FMEA) standpoint, the most critical and prone to fault component with the highest percentage is mostly capacitors. Due to its long-lasting ability (endurance), CM offers a better paradigm for AEC due to its application. However, owing to severe conditions (over-voltage, mechanical stress, high temperature) that could occur during use, they (capacitors) could be exposed to early breakdown and overall shutdown of the SMPS. This study considered accelerated life testing (electrical stress and long-term frequency testing) for the component due to its endurance in thousands of hours. We have set up the experiment test bench to monitor the critical electrical parameters: dissipation factor (D), equivalent series resistance (ESR), quality factor (Q), and impedance (Z), which would serve as a health indicator (HI) for the evaluation of the AECs. Time-domain features were extracted from the measured data, and the best features were selected using the correlation-based technique. Full article

As technology advances, the utilization of lighting systems based on light-emitting diode (LED) technology is becoming increasingly essential, given its benefits in terms of efficiency, reliability, and lifespan. Unfortunately, the power electronic components required to drive LEDs are unable to compete with LED devices in terms of lifetime. Aluminum electrolytic capacitor (AEC) failures represent the root cause of power electronic equipment breakdown, mainly through both aging and temperature effects. This highlights the importance of designing robust power converter architectures and control methods that allow the evaluation of the condition of electrolytic capacitors while maintaining the performance of converter controllers, even in the presence of capacitor failure. On this basis, this work proposes a novel condition-monitoring system for the diagnosis of capacitor faults on a fault-tolerant LED driver, which is able to deal with the specific architecture and low ratings of the most recent LED lighting systems. The fault-detection task applies the short time least square Prony’s (STLSP) approach to perform an online estimation of the ESR and C parameters, allowing the continuous evaluation of the electrolytic capacitor’s condition and, as a result, the prevention of total system failure. With regard to capacitor failure, the experimental results suggest that the condition-monitoring task is extremely effective, even when considering a limited number of data samples. Full article

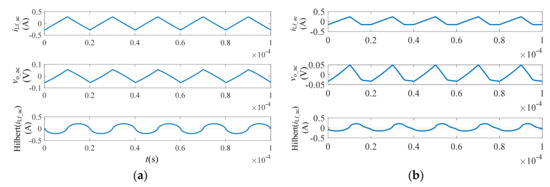

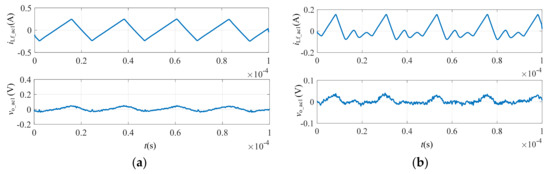

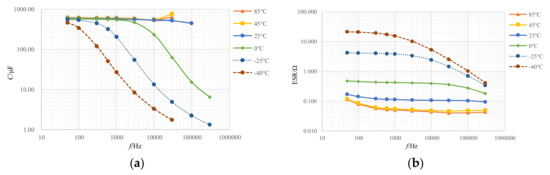

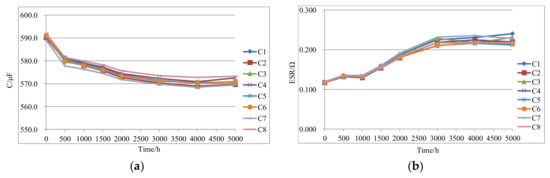

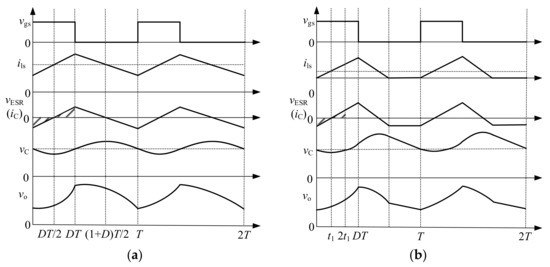

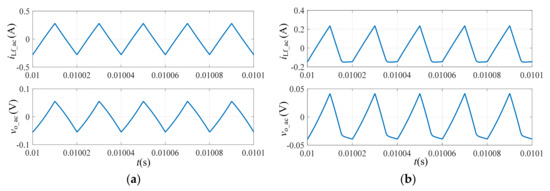

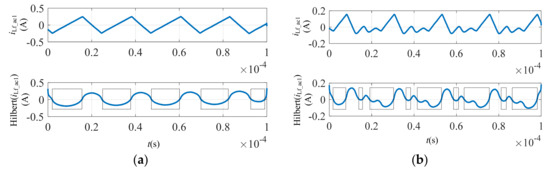

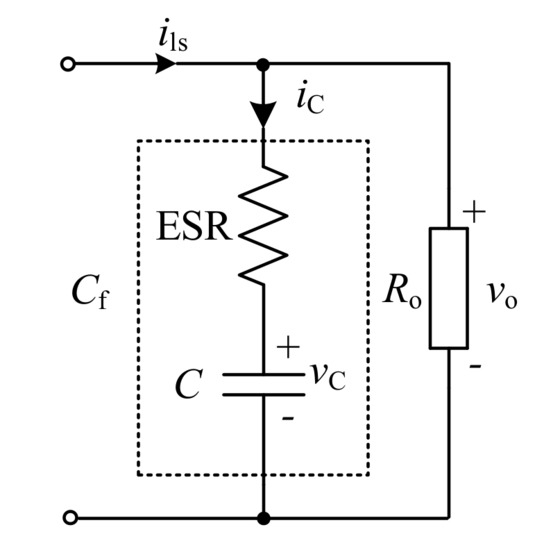

The aluminum electrolytic capacitor (AEC) is one of the most vulnerable parts in power electronic converters and its reliability is crucial to the whole system. With the growth of service time, the equivalent series resistance (ESR) increases and the capacitance (C) decreases due to the loss of electrolytes, which will result in extra power loss and even damage to transistors. To prevent significant damages, the AEC must be replaced at an optimal period and online health monitoring is indispensable. Through the analysis of degradation parameters (ESR and C), ESR is proved to be a better health indicator and therefore is determined as the monitoring parameter for AEC. From the capacitor perspective, ESR estimation schemes of output capacitors for a Buck converter are studied. Based on the voltage–current characteristics, two ESR calculation models are proposed, which are applicable for both continuous conduction mode (CCM) and discontinuous conduction mode (DCM). From the point of implementation view, the advantages and disadvantages of the two estimation schemes are pointed out, respectively. A Buck prototype is built and tested, and simulation and experimental results are provided to validate the proposed ESR estimation schemes. Full article
