Search Results (7)

This work studies the Voce–Chaboche (V–C) material model parameter optimization for high-strength steel welded joints subjected to cyclic loading. The model parameters of each material zone in a S690 steel butt-welded joint were determined using an optimization algorithm based on the Newton trust region (NTR) method and an accumulated true strain parameter. The model parameters were fitted to stress–strain histories from uniaxial strain-controlled cyclic tests. To validate the model, fully-reversed variable amplitude fatigue experiments were performed under load control. The experimental results were then compared to numerical results from a finite element analysis. When the elastic modulus is optimized as a V–C parameter, the results indicate that the V–C model slightly underestimates the strain range, leading to conservative fatigue life estimates. However, the results can be improved by using an elastic modulus obtained experimentally. In this case, the resulting material model slightly overestimates the strain range, leading to a non-conservative, but more accurate, fatigue life estimation. It can be concluded that the NTR-based accumulated true strain approach successfully determined the V–C model parameters for different material zones in the welded joint, and closely estimated the strain range and the fatigue life for a variable amplitude load history. Full article

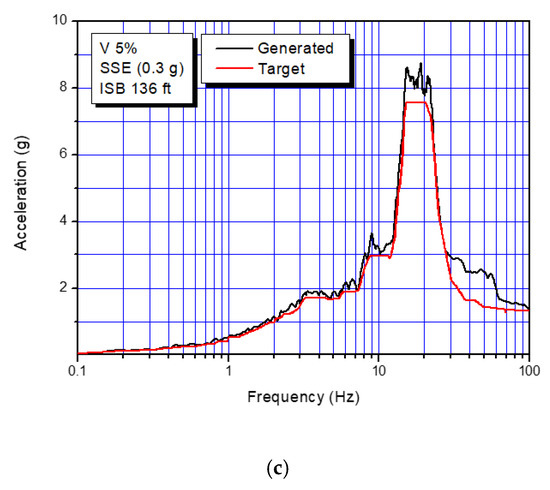

The main purpose of this study is to perform shaking table tests to validate the inelastic seismic analysis method applicable to pressure-retaining metal components in nuclear power plants (NPPs). To do this, the test mockup was designed and fabricated to be able to describe the hot leg surge line nozzle with a piping system, which is known to be one of the seismically fragile components in nuclear steam supply systems (NSSS). The used input motions are the displacement time histories corresponding to the design floor response spectrum at an elevation of 136 ft in the in-structure building in NPPs. Two earthquake levels are used in this study. One is the design-basis safe shutdown earthquake level (SSE, PGA = 0.3 g) and the other is the beyond-design-basis earthquake level (BDBE, PGA = 0.6 g), which is linearly scaled from the SSE level. To measure the inelastic strain responses, five strain gauges were attached at the expected critical locations in the target nozzle, and three accelerometers were installed at the shaking table and piping system to measure the dynamic responses. From the results of the shaking table tests, it was found that the plastic strain response at the target nozzle and the acceleration response at the piping system were not amplified by as much as two times the input earthquake level because the plastic behavior in the piping system significantly contributed to energy dissipation during the seismic events. To simulate the test results, elastoplastic seismic analyses with the well-known Chaboche kinematic hardening model and the Voce isotropic hardening model for Type 316 stainless steel were carried out, and the results of the principal strain and the acceleration responses were compared with the test results. From the comparison, it was found that the inelastic seismic analysis method can give very reasonable results when the earthquake level is large enough to invoke plastic behavior in nuclear metal components. Full article

AISI 316L stainless steels are widely employed in applications where durability is crucial. For this reason, an accurate prediction of its behaviour is of paramount importance. In this work, the spotlight is on the cyclic response and low-cycle fatigue performance of this material, at room temperature. Particularly, the first aim of this work is to experimentally test this material and use the results as input to calibrate the parameters involved in a kinematic and isotropic nonlinear plasticity model (Chaboche and Voce). This procedure is conducted through a newly developed calibration procedure to minimise the parameter estimates errors. Experimental data are eventually used also to estimate the strain–life curve, namely the Manson–Coffin curve representing the 50% failure probability and, afterwards, the design strain–life curves (at 5% failure probability) obtained by four statistical methods (i.e., deterministic, “Equivalent Prediction Interval”, univariate tolerance interval, Owen’s tolerance interval for regression). Besides the characterisation of the AISI 316L stainless steel, the statistical methodology presented in this work appears to be an efficient tool for engineers dealing with durability problems as it allows one to select fatigue strength curves at various failure probabilities depending on the sought safety level. Full article

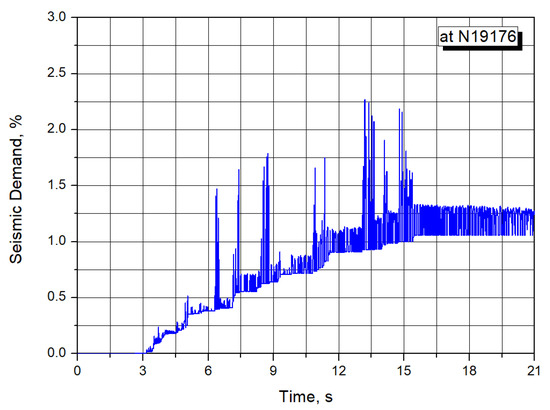

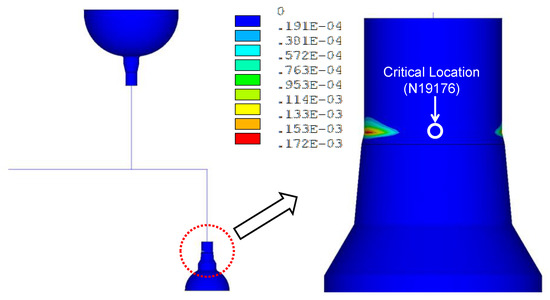

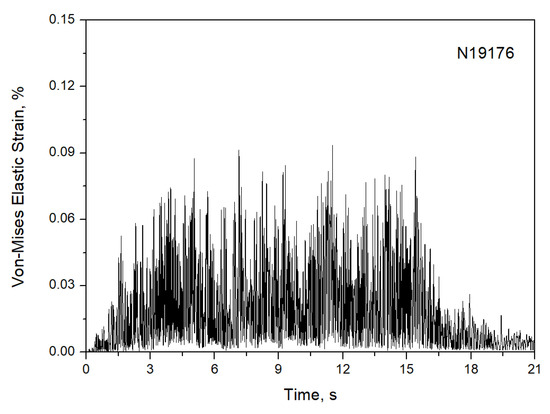

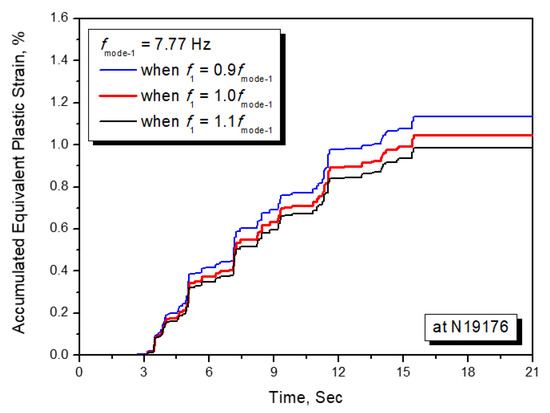

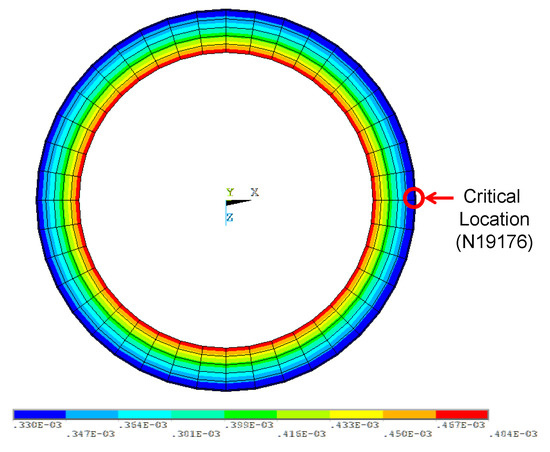

The main purpose of this study is to investigate the feasibility of the seismic fragility analysis (FA) with the strain-based failure modes for the nuclear metal components retaining pressure boundary. Through this study, it is expected that we can find analytical ways to enhance the high confidence of low probability of failure (HCLPF) capacity potentially contained in the conservative seismic design criteria required for the nuclear metal components. Another goal is to investigate the feasibility of the seismic FA to be used as an alternative seismic design rule for beyond-design-basis earthquakes. To do this, the general procedures of the seismic FA using the inelastic seismic analysis for the nuclear metal components are investigated. Their procedures are described in detail by the exampled calculations for the surge line nozzles connecting hot leg piping and the pressurizer, known as one of the seismic fragile components in NSSS (Nuclear Steam Supply System). To define the seismic failure modes for the seismic FA, the seismic strain-based design criteria, with two seismic acceptance criteria against the ductile fracture failure mode and fatigue-induced failure mode, are used in order to reduce the conservatism contained in the conventional stress-based seismic design criteria. In the exampled calculation of the inelastic seismic strain response beyond an elastic regime, precise inelastic seismic analyses with Chaboche’s kinematic and Voce isotropic hardening material models are used. From the results of the seismic FA by the probabilistic approach for the exampled target component, it is confirmed that the approach of the strain-based seismic FA can extract the maximum seismic capacity of the nuclear metal components with more accurate inelastic seismic analysis minimizing the number of variables for the components. Full article

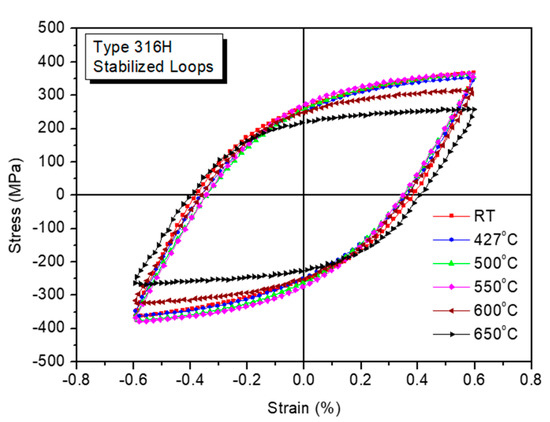

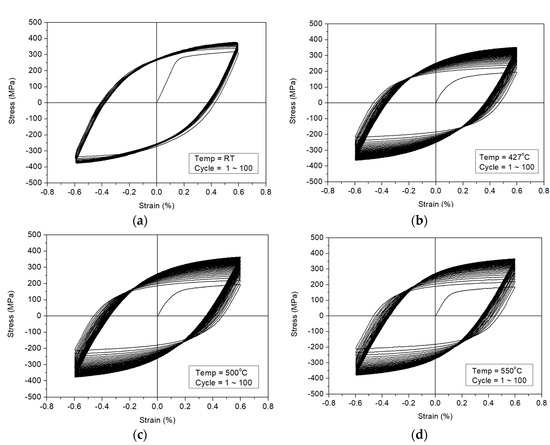

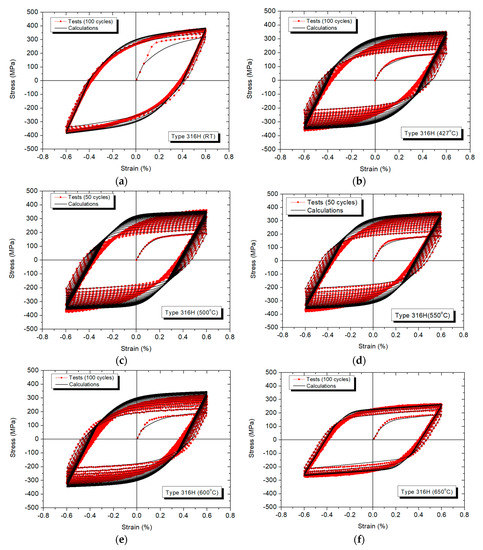

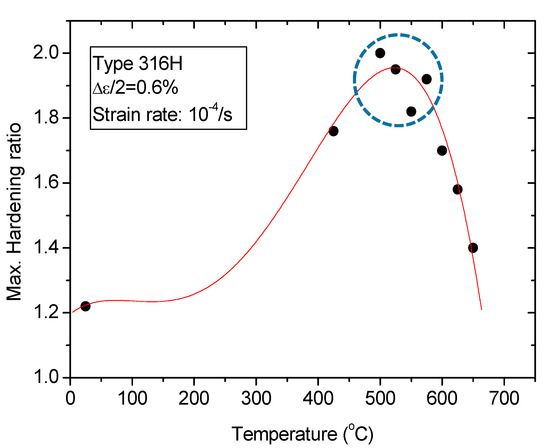

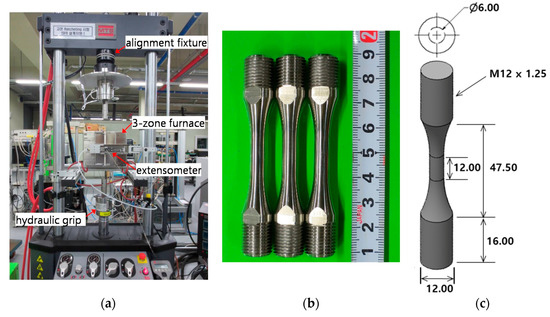

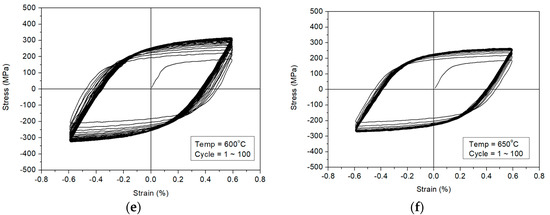

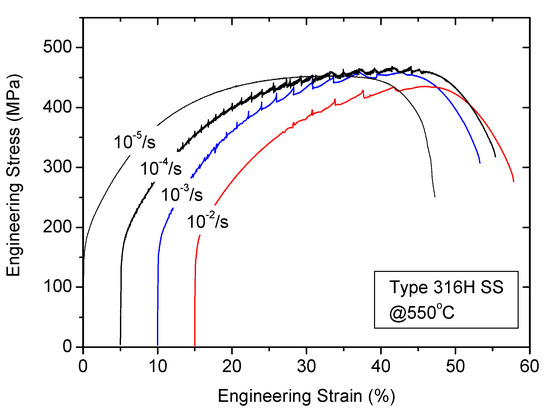

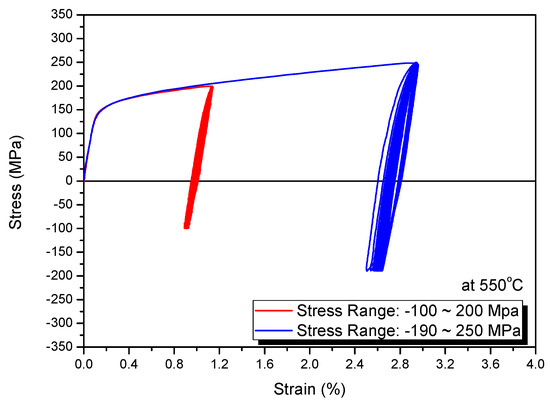

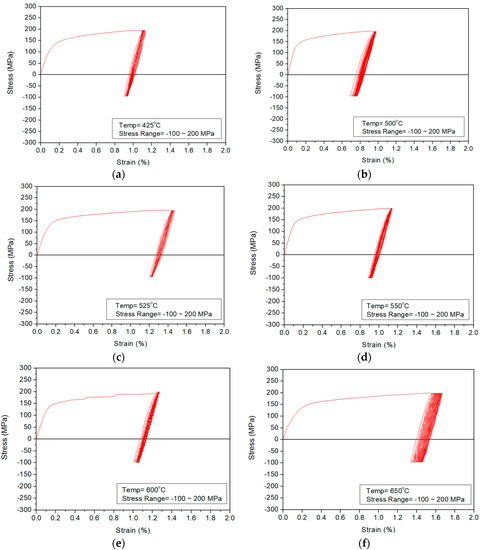

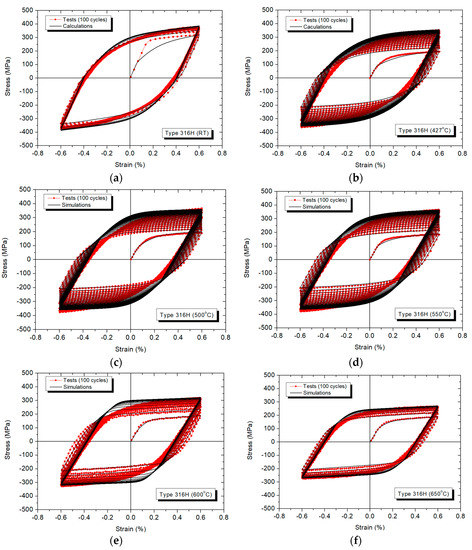

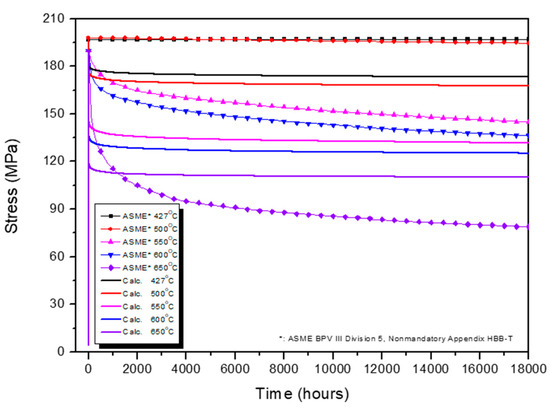

In this paper, the inelastic material models for Type 316H stainless steel, which is one of the principal candidate materials for elevated temperature design of the advanced high temperature reactors (HTRs) pressure retained components, are investigated and the required material parameters are identified to be used for both elasto-plastic models and unified viscoplastic models. In the constitutive equations of the inelastic material models, the kinematic hardening behavior is expressed with the Chaboche model with three backstresses, and the isotropic hardening behavior is expressed by the Voce model. The required number of material parameters is minimized to be ten in total. For the unified viscoplastic model, which can express both the time-independent plastic behavior and the time-dependent viscous behavior, the constitutive equations have the same kinematic and isotropic hardening parameters of the elasto-plastic material model with two additional viscous parameters. To identify the material parameters required for these constitutive equations, various uniaxial tests were carried out at isothermal conditions at room temperature and an elevated temperature range of 425–650 °C. The identified inelastic material parameters were validated through the comparison between tests and calculations. Full article

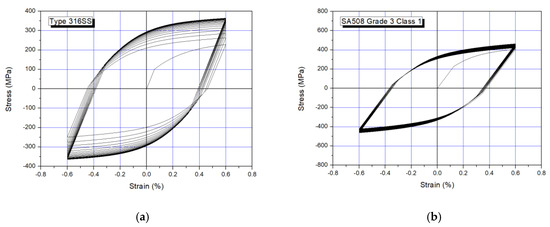

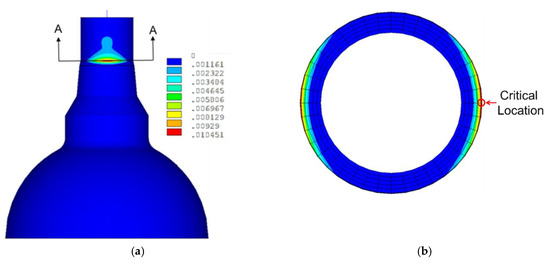

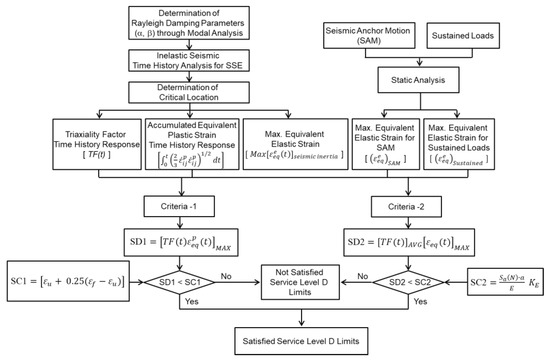

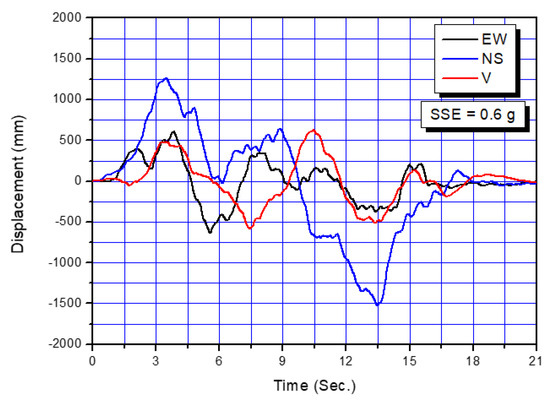

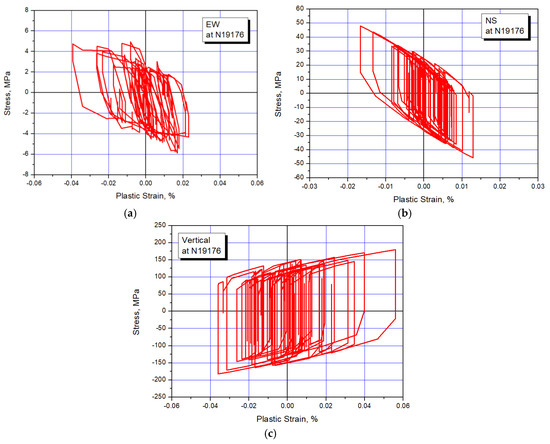

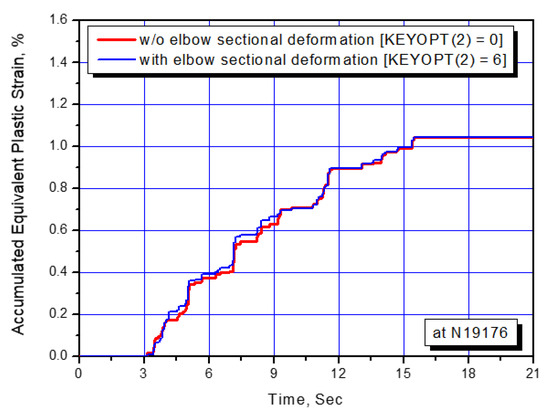

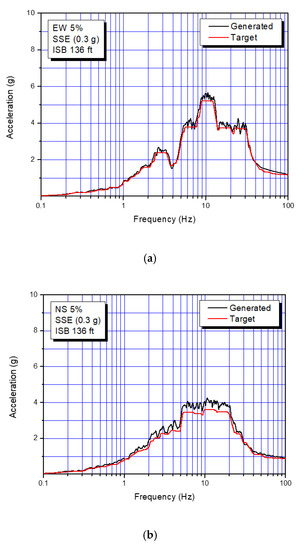

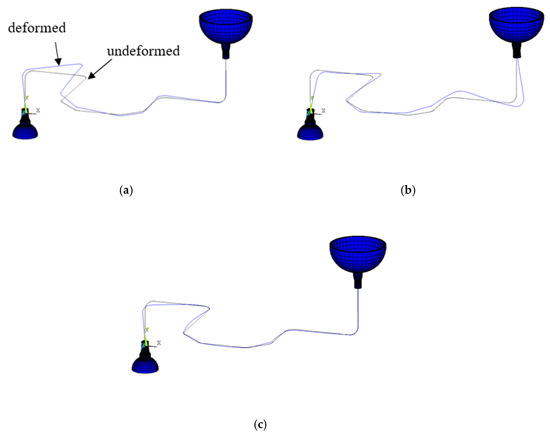

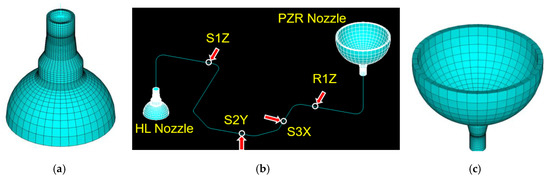

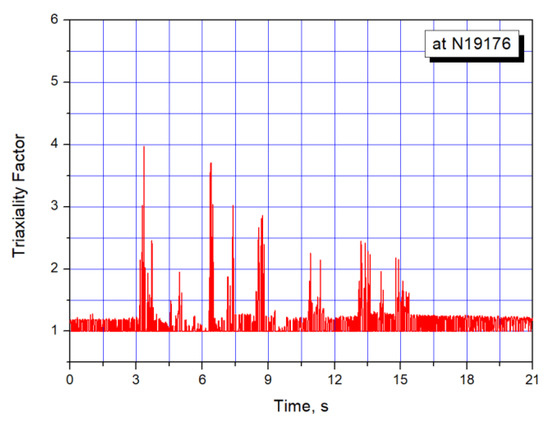

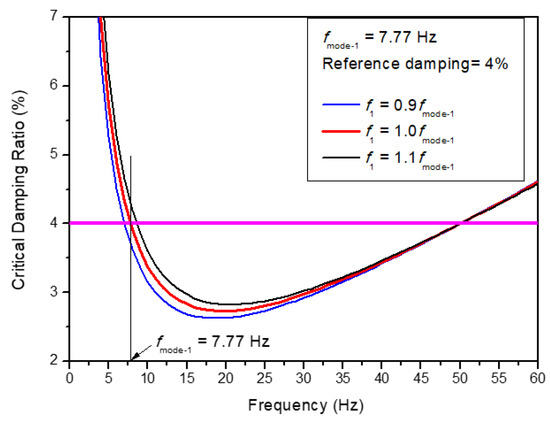

In this paper, the feasibility study to develop strain-based seismic design criteria applicable for the components of nuclear power plants are carried out as an alternative rule to the current stress-based criteria. To do this, two acceptance criteria are investigated through the detailed example of an application for the surge line nozzles in a nuclear steam supply system, which are known as one of the seismic fragile components in nuclear power plants. These strain-based seismic design criteria are primarily to prevent two types of failure modes, such as a ductile fracture and a cyclic fatigue-induced damage due to continuous large amplitude cyclic loads during seismic event. Through the example problem, the required procedures are described step-by-step with calculations of an accumulated plastic strain, triaxiality factor by the elasto-plastic seismic analysis using the finite element method. For a precise inelastic seismic analysis, the Chaboche kinematic and Voce isotropic hardening material parameters are identified by the test data and used for an inelastic material model. The results by the strain-based criteria are compared with those by the ASME (American Society of Mechanical Engineers) stress-based design criteria for a service level D limits. From the study, it is expected that the strain-based seismic design method investigated in this paper will be beneficial for the nuclear components, especially when the design basis earthquakes are large enough to cause severe plastic strains at a critical location. Full article

This work presents a new isotropic model to describe the cyclic hardening/softening plasticity behavior of metals. The model requires three parameters to be evaluated experimentally. The physical behavior of each parameter is explained by sensitivity analysis. Compared to the Voce model, the proposed isotropic model has one more parameter, which may provide a better fit to the experimental data. For the new model, the incremental plasticity equation is also derived; this allows the model to be implemented in finite element codes, and in combination with kinematic models (Armstrong and Frederick, Chaboche), if the material cyclic hardening/softening evolution needs to be described numerically. As an example, the proposed model is applied to the case of a cyclically loaded copper alloy. An error analysis confirms a significant improvement with respect to the usual Voce formulation. Finally, a numerical algorithm is developed to implement the proposed isotropic model, currently not available in finite element codes, and to make a comparison with other cyclic plasticity models in the case of uniaxial stress and strain-controlled loading. Full article
