Search Results (8)

The microstructure of polyurethane (PU) grouting material is the key determinant of its macroscopic dielectric properties. In this study, based on its microscopic fractal characteristics and combined with effective medium theory and the Menger sponge structure, an n-stage fractal dielectric model was constructed. This model correlates the material’s dielectric response with its fractal dimension and porosity. The fractal dimensions of PU specimens with densities ranging from 0.29734 g/cm³ to 0.41817 g/cm³ were calculated using the box-counting method. Within this density range, the fractal dimension of the PU specimens showed no significant variation, with a calculated value of approximately 2.7355. By approximating the microscopic unit as an n-stage fractal cube based on the Menger sponge structure and incorporating series-parallel dielectric models, an analytical expression for the dielectric constant was derived. A comparison with experimental data shows that the model’s predictions are in good agreement with the measured values, with a mean relative error (MRE) of only 4%. Full article

Polyurethane (PU) grouting materials are widely used in underground engineering rehabilitation, particularly in reinforcement and waterproofing engineering in deep-water environments. The long-term effect of complex underground environments can lead to nanochannel formation within PU, weakening its repair remediation effect. However, the permeation behavior and microscopic mechanisms of water molecules within PU nanochannels remain unclear. In this paper, a model combining PU nanochannels and water molecules was constructed, and the molecular dynamics simulations method was used to study the effects of water pressure and channel width on permeation behavior and microstructural changes. The results reveal a multi-stage, layered permeation process, with significant acceleration observed at water pressures above 3.08 MPa. Initially, water molecules accelerate but are then blocked by the energy barrier of PU nanochannels. After about 20 ps, water molecules overcome the potential barrier and enter the nanochannel, displaying a secondary acceleration effect, with the maximum permeation depth rises from 1.8 nm to 11.8 nm. As the channel width increases, the maximum permeation depth increases from 7.5 nm to 11.6 nm, with the rate of increase diminishing at larger widths. Moreover, higher water pressure and wider channels enhance the stratification effect. After permeation, a hydrophobic layer of approximately 0.5 nm thickness forms near the channel wall, with a density lower than that of the external water. The middle layer shows a density slightly higher than the external water, and the formation of hydrogen bonds between water molecules increases toward the channel center. Full article

This study examined the impact properties of ultra-high-performance concrete (UHPC) mixtures with steel fiber (SF) and retrofitted with polyurethane (PU) grouting using repeated drop-weight tests. Micro-steel fiber was added to UHPC mixes from 0 to 3% Vf, and PU grouting overlays of 5 mm, 10 mm, and 15 mm were applied. Digital image correlation (DIC) was used to analyze failure modes. The results showed significant impact durability and energy absorption improvements with increased SF content and thicker PU overlays. UHPC-15PU exhibited 363% and 449% higher first crack and failure strengths than UHPC-5PU. DIC analysis confirmed the failure patterns of the U-shaped UHPC specimen under impact load conditions. Full article

When it comes to grouting in coal mines, polyurethane (PU) is often utilized. However, it is of vital importance to consistently improve the mineral PU, considering the significant amount of environmental deterioration to which it is prone. Laboratory experiments were used to model various coal mine conditions. Additionally, a workable technique for PU strengthening using ultrasonic waves was proposed. Compression tests and scanning electron microscopy (SEM) were used to describe the PU–gangue material’s induration characteristics. The results showed that ultrasound has a positive impact on PU’s mechanical strength. The final strength of the PU was significantly impacted by the size of the coal gangue particles, the amount of dust, and the amount of water. The induration made of gangue and PU with the same mass but differing particle sizes was noticeably different in its compressive strength. The strengthening mechanism showed that the average size of the rigid foam after the ultrasound treatment was smaller, and the ‘honeycomb’-structured space in the inner section was more compact, resulting in the rigid PU foam having a higher compressive strength after ultrasound treatment. Furthermore, the dust content and water content of coal mines need to be controlled within a specific range to ensure the effective use of PU grouting materials. Full article

Polyurethane (PU) composite is increasingly used as a repair material for civil engineering infrastructure, including runway, road pavement, and buildings. Evaluation of polyurethane grouting (PUG) material is critical to achieve a desirable maintenance effect. This study aims to evaluate the flexural behavior of normal concrete repaired with polyurethane grout (NC-PUG) under a three-point bending test. A finite element (FE) model was developed to simulate the flexural response of the NC-PUG specimens. The equivalent principle response of the NC-PUG was analyzed through a three-dimensional finite element model (3D FEM). The NC and PUG properties were simulated using stress–strain relations acquired from compressive and tensile tests. The overlaid PUG material was prepared by mixing PU and quartz sand and overlayed on the either top or bottom surface of the concrete beam. Two different overlaid thicknesses were adopted, including 5 mm and 10 mm. The composite NC-PUG specimens were formed by casting a PUG material using different overlaid thicknesses and configurations. The reference specimen showed the highest average ultimate flexural stress of 5.56 MPa ± 2.57% at a 95% confidence interval with a corresponding midspan deflection of 0.49 mm ± 13.60%. However, due to the strengthened effect of the PUG layer, the deflection of the composite specimen was significantly improved. The concrete specimens retrofitted at the top surface demonstrated a typical linear pattern from the initial loading stage until the complete failure of the specimen. Moreover, the concrete specimens retrofitted at the bottom surface exhibit two deformation regions before the complete failure. The FE analysis showed good agreement between the numerical model and the experimental test result. The numerical model accurately predicted the flexural strength of the NC-PUG beam, slightly underestimating Ke by 4% and overestimating the ultimate flexural stress by 3%. Full article

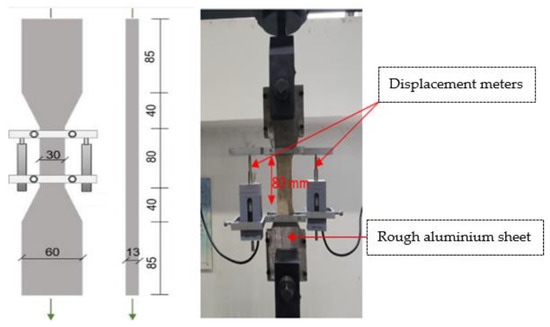

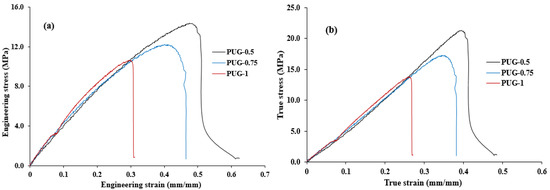

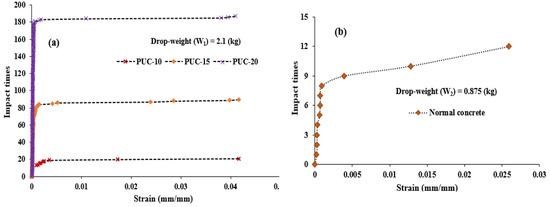

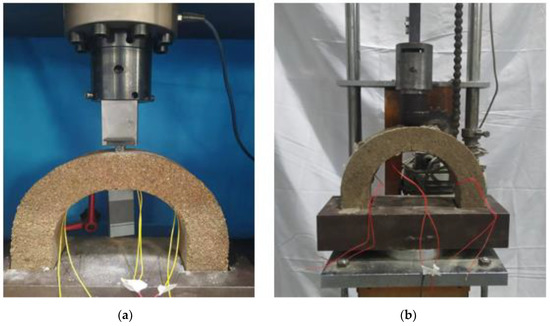

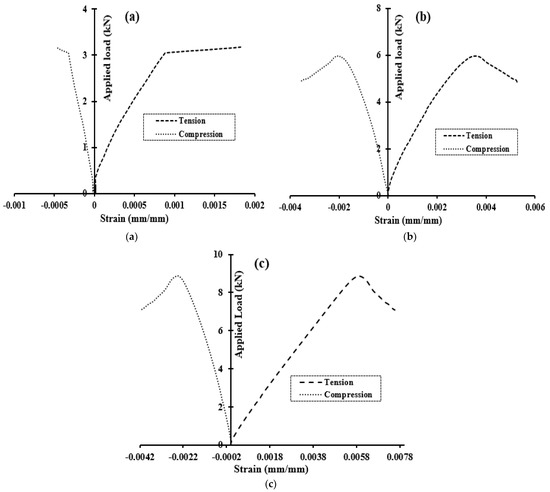

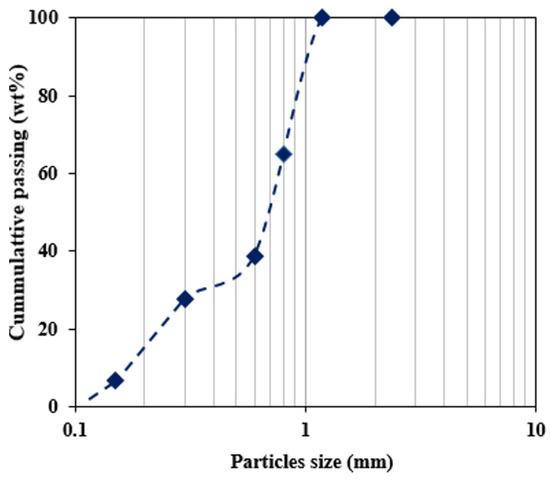

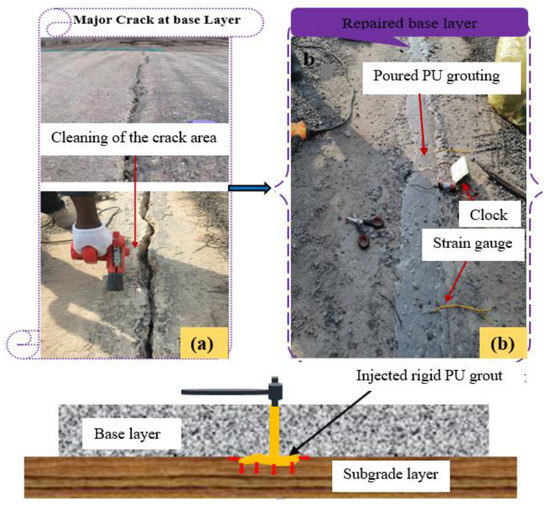

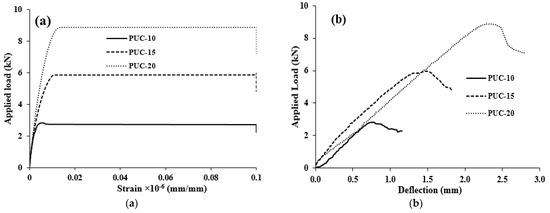

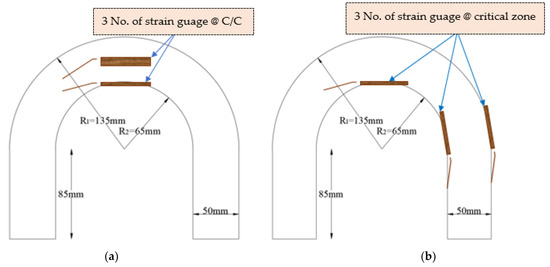

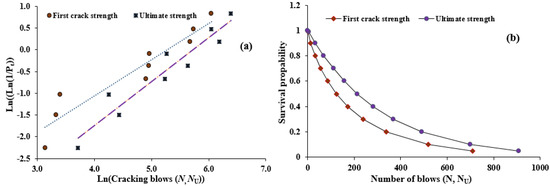

The prolonged service life of civil engineering structures, such as buildings and highway pavement, means that they deteriorate with time, requiring frequent repair work. Polyurethane (PU) materials can effectively maintain engineering structures such as road pavement, runways, and buildings. Thus, the mechanical properties and dynamic performance of these materials for repair are essential to guarantee the safe usage of the facilities. This study investigated the strain–stress behavior and impact strength of polyurethane-based polymer concrete (PUPC) mixtures. Moreover, the tensile stress–strain behavior of rigid PU grout (PUGC) materials was evaluated. The result indicated that the U-shaped PUPC with 20% PU by weight experienced a maximum failure strain of 0.9% and 4.2% under static and dynamic loads, respectively. The average impact energy of PUPC was 3825% higher than that of normal concrete. According to PUGC’s mixing ratios, the average elastic modulus revealed an increasing trend, whereas ultimate strength, yield strain, yield stress, and failure stress showed a decreasing trend. Weibull distribution results showed that the probabilistic distribution of the impact strength followed the two-parameter Weibull distribution. Full article

Polyurethane (PU) grouting materials possess excellent fluidity and strong injectability. However, the high heat release during the reaction process restricts its application. In this study, with the addition of water glass (WG), a prepolymer was prepared by epoxy resin reacted with isocyanate to form modified polyurethane. The effects of epoxy resin and water glass on the compressive properties, expansion rate, structure of the cell, and maximum reaction temperature of the grouting materials were also investigated. The results showed that the cell size of modified PU was smaller and more regular, the maximum reaction temperature of the modified PU was reduced to 89 °C, and the compressive strength and expansion rate went up to 0.27 MPa and 57, respectively. This investigation will expand the application of PU grouting materials in underground engineering. Full article

Polyurethane (PU) grouting material has been widely utilized to control water inrush in mining fields. However, the application has been limited by its high cost and poor flame retardancy. Here, we use the fly ash (FA), a waste from coal of the iron-making industry and power plants, as a partial replacement of conventional filler in PU grouting materials to reduce the production cost and the environmental pollution of FA. The surface-modified FA-filled PU (PU/FA) composites were prepared by room-temperature curing. The effects of FA contents (φ) on the structure, foaming behavior, thermal stability, mechanical properties, hydrophobic properties, and flammability of PU grouting materials were examined. Results showed that the higher the φ, the more porous the PU/FA composites are, resulting in a lower density and lower mechanical properties. The relationship between the compression modulus E and the density ρ of the PU/FA composites was E ∝ ρ^1.3. In addition, the surface-modified FA improved the compatibility between the hard and soft segment of PU in the PU/FA composite, giving the composites enhanced thermal stability, high hydrophobicity, and flammability resistance. Full article
