Background: Quantitative thresholds are helpful to define an abnormal DaT SPECT in patients with suspected nigrostriatal degenerative diseases (NSDD). The optimal DaTQUANT threshold for diagnostic accuracy of DaT SPECT across combined movement and cognitive disorder populations has been previously described. Methods: We established optimal DaTQUANT thresholds that enhance the discrimination between dementia with Lewy bodies (DLB) and non-DLB dementia types, as well as between Parkinsonian syndromes (PS) and conditions not characterized by nigrostriatal degeneration (non-PS). Results: Data from a total of 303 patients were used in this retrospective analysis. Posterior putamen of the more affected hemisphere (MAH) was shown to be an accurate single-variable predictor for both DLB and PS and was comparable to the most accurate multi-variable models. Conclusions: Automated quantification with DaTQUANT can accurately aid in the differentiation of DLB from non-DLB dementias and PS from non-PS. Optimal thresholds for assisting a diagnosis of DLB are striatal binding ratio (SBR) ≤ 0.65, z-score ≤ −2.36, and a percent deviation ≤ −0.54 for the posterior putamen of the MAH. Optimal posterior putamen thresholds for assisting a diagnosis of PS are SBR ≤ 0.92, z-score ≤ −1.53, and a percent deviation ≤ −0.33, which are similar to our previously reported posterior putamen threshold values using a blended patient pool from multiple study populations. Full article

Background: Multiple system atrophy (MSA) is a neurodegenerative disease. It has a fast progression, so early diagnosis is decisive. Two functional imaging tests can be involved in its diagnosis: [¹²³I]Ioflupane SPECT and [¹²³I]MIBG scintigraphy. Our aim is to comparatively analyze the diagnostic performance of both techniques. Methods: 46 patients (24 males and 22 females) with MSA underwent [¹²³I]Ioflupane SPECT and [¹²³I]MIBG scintigraphy. In each of these techniques, qualitative assessment was compared with quantitative assessment. Results: SPECT visual assessment was positive in 93.5% of subjects (S = 95.24%; PPV = 93.02%). A cut-off of 1.363 was established for overall S/O index (S = 85.7%, E = 100%). Visual assessment of scintigraphy was positive in 73.1% (S = 78.57%, PPV = 94.29%). For the delayed heart/medistinum ratio (HMR) a cut-off of 1.43 (S = 85.3, E = 100%) was obtained. For each unit increase in delayed HMR, the suspicion of MSA increased by 1.58 (OR = 1.58, p < 0.05). The quantitative assessment showed an association with the visual assessment for each technique (p < 0.05). Conclusions: Both tests are useful in MSA diagnosis. Comparatively, we did not observe a clear superiority of either. Striatal and myocardial deterioration do not evolve in parallel. Qualitative assessment is crucial in both techniques, together with the support of quantitative analysis. Delayed HMR shows a direct relationship with the risk of MSA. Full article

Background: Multiple system atrophy (MSA) is subdivided into two types: MSA-P (parkinsonian) and MSA-C (cerebellar). Brain SPECT allows for the detection of nigrostriatal involvement, even in the early stages. To date, the scientific literature does not show a consensus on how to follow-up MSA, especially MSA-C. Our aim was to analyze the diagnostic effectiveness of repeat [¹²³I]Ioflupane SPECT for the follow-up of MSA. Methods: A longitudinal observational study on 22 MSA patients (11 males and 11 females). Results: Significant changes were obtained in the quantitative SPECT assessments in the three Striatum/Occipital indices. The qualitative SPECT diagnosis did not show differences between the initial and evolving SPECT, but the neurologist’s clinical suspicion did. Our results showed a brain deterioration of around 31% at 12 months, this being the optimal cut-off for differentiating a diseased subject (capable of solving diagnostic error rate). Previous imaging tests were inconclusive, as they showed less deterioration in the SPECT and quantitative assessments with respect to the group of confirmed patients. Repeated SPECT increased the diagnostic sensitivity (50% vs. 75%) and positive predictive value (72.73% vs. 77%). In addition, repeated SPECT proved decisive in the diagnosis of initial inconclusive cases. Conclusion: Repeat SPECT at 12 months proves useful in the diagnosis and follow-up of MSA. Full article

Background: Multiple system atrophy (MSA) is a rapidly progressive neurodegenerative disorder that has no curative treatment. Diagnosis is based on a set of criteria established by Gilman (1998 and 2008) and recently updated by Wenning (2022). We aim to determine the effectiveness of [¹²³I]Ioflupane SPECT in MSA, especially at the initial clinical suspicion. Methods: A cross-sectional study of patients at the initial clinical suspicion of MSA, referred for [¹²³I]Ioflupane SPECT. Results: Overall, 139 patients (68 men, 71 women) were included, 104 being MSA-probable and 35 MSA-possible. MRI was normal in 89.2%, while SPECT was positive in 78.45%. SPECT showed high sensitivity (82.46%) and positive predictive value (86.24), reaching maximum sensitivity in MSA-P (97.26%). Significant differences were found when relating both SPECT assessments in the healthy–sick and inconclusive–sick groups. We also found an association when relating SPECT to the subtype (MSA-C or MSA-P), as well as to the presence of parkinsonian symptoms. Lateralization of striatal involvement was detected (left side). Conclusions: [¹²³I]Ioflupane SPECT is a useful and reliable tool for diagnosing MSA, with good effectiveness and accuracy. Qualitative assessment shows a clear superiority when distinguishing between the healthy–sick categories, as well as between the parkinsonian (MSA-P) and cerebellar (MSA-C) subtypes at initial clinical suspicion. Full article

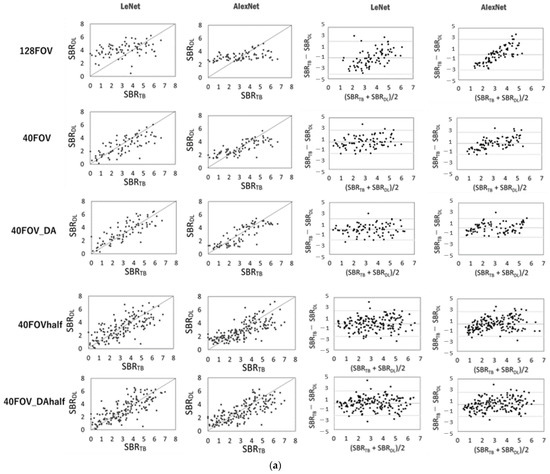

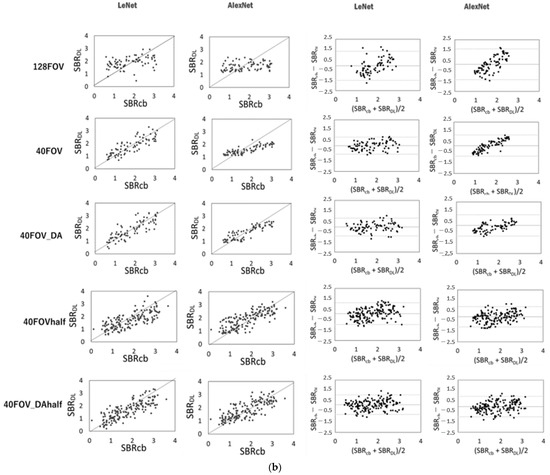

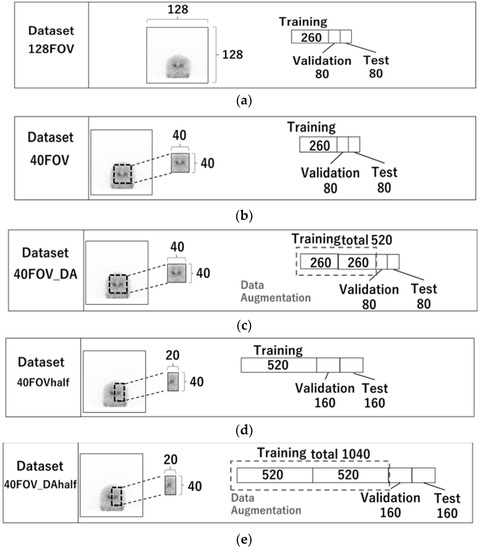

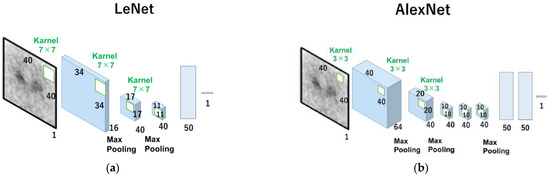

This study aimed to develop a new convolutional neural network (CNN) method for estimating the specific binding ratio (SBR) from only frontal projection images in single-photon emission-computed tomography using [¹²³I]ioflupane. We created five datasets to train two CNNs, LeNet and AlexNet: (1) 128FOV used a 0° projection image without preprocessing, (2) 40FOV used 0° projection images cropped to 40 × 40 pixels centered on the striatum, (3) 40FOV training data doubled by data augmentation (40FOV_DA, left-right reversal only), (4) 40FOVhalf, and (5) 40FOV_DAhalf, split into left and right (20 × 40) images of 40FOV and 40FOV_DA to separately evaluate the left and right SBR. The accuracy of the SBR estimation was assessed using the mean absolute error, root mean squared error, correlation coefficient, and slope. The 128FOV dataset had significantly larger absolute errors compared to all other datasets (p < 0. 05). The best correlation coefficient between the SBRs using SPECT images and those estimated from frontal projection images alone was 0.87. Clinical use of the new CNN method in this study was feasible for estimating the SBR with a small error rate using only the frontal projection images collected in a short time. Full article

Background: Parkinsonian syndrome (PS) is a broad category of neurodegenerative movement disorders that includes Parkinson disease, multiple system atrophy (MSA), progressive supranuclear palsy, and corticobasal degeneration. Parkinson disease (PD) is the second most common neurodegenerative disorder with loss of dopaminergic neurons of the substantia nigra and, thus, dysfunction of the nigrostriatal pathway. In addition to the motor symptoms of bradykinesia, rigidity, tremors, and postural instability, nonmotor symptoms such as autonomic dysregulation (AutD) can also occur. Heart rate variability (HRV) has been used as a measure of AutD and has shown to be prognostic in diseases such as diabetes mellitus and cirrhosis, as well as PD. I-123 ioflupane, a gamma ray-emitting radiopharmaceutical used in single-photon emission computed tomography (SPECT), is used to measure the loss of dopaminergic neurons in PD. Through the combination of SPECT and HRV, we tested the hypothesis that asymmetrically worse left-sided neuronal loss would cause greater AutD. Methods: 51 patients were enrolled on the day of their standard of care I-123 ioflupane scan for the work-up of possible Parkinsonian syndrome. Demographic information, medical and medication history, and ECG data were collected. HRV metrics were extracted from the ECG data. I-123 ioflupane scans were interpreted by a board-certified nuclear radiologist and quantified by automated software to generate striatal binding ratios (SBRs). Statistical analyses were performed to find correlations between the HRV and SPECT parameters. Results: 32 patients were excluded from the final analysis because of normal scans, prior strokes, cardiac disorders and procedures, or cancer. Abnormal I-123 ioflupane scans were clustered using T-SNE, and one-way ANOVA was performed to compare HRV and SBR parameters. The analysis was repeated after the exclusion of patients taking angiotensin-converting enzyme inhibitors, given the known mechanism on autonomic function. Subsequent analysis showed a significant difference between the high-frequency domains of heart rate variability, asymmetry of the caudate SBR, and putamen-to-caudate SBR. Conclusion: Our results support the hypothesis that more imbalanced (specifically worse left-sided) neuronal loss results in greater AutD. Full article

Evaluation of Parkinsonian Syndromes (PS) with Ioflupane iodine-123 dopamine transporter single photon emission computed tomography (DaT-SPECT), in conjunction with history and clinical examination, aids in diagnosis. FDA-approved, semi-quantitative software, DaTQUANT^TM (GE Healthcare, Chicago, IL, USA) is available to assist in interpretation. This study aims to evaluate the optimal variables and thresholds of DaTQUANT to yield the optimal diagnostic accuracy. It is a retrospective review with three different patient populations. DaT-SPECT images from all three study groups were evaluated using DaTQUANT^TM software, and both single and multi-variable logistic regression were used to model PS status. The optimal models were chosen via accuracy, sensitivity, and specificity, then evaluated on the other study groups. Among single variable models, the posterior putamen yielded the highest accuracy (84% to 95%), while balancing sensitivity and specificity. Multi-variable models did not substantially improve the accuracy. When the optimal single variable models for each group were used to evaluate the remaining two groups, comparable results were achieved. In typical utilization of DaT-SPECT for differentiation between nigrostriatal degenerative disease (NSDD) and non-NSDD, the posterior putamen was the single variable that yielded the highest accuracy across three different patient populations. The posterior putamen’s recommended thresholds for DaTQUANT are SBR ≤ 1.0, z-score of ≤−1.8 and percent deviation ≤ −0.34. Full article

A fully automatic method for specific binding ratio (SBR) calculation in [¹²³I]ioflupane single-photon emission computed tomography (SPECT) studies was proposed by creating volumes of interest of the striatum (VOI_st) and reference region (VOI_ref) without manual handling to avoid operator-induced variability. The study involved 105 patients (72 ± 10 years) suspected of parkinsonian syndrome (PS) who underwent [¹²³I]ioflupane SPECT. The 200 images from our previous study were used for evaluation and validation of the new program. All patients were classified into PS and non-PS groups according to the results of clinical follow-up. A trapezoidal volume of interest (VOI_t) containing all striatal intensive counts was created automatically, followed by VOI_st setting using the previous method. SBR values were calculated from the mean values of VOI_st and VOI_ref determined by the whole brain outside of VOI_t. The low count voxels in the VOI_ref were excluded using an appropriate threshold. The SBR values from the new method were compared with the previous semi-automatic method and the Tossici–Bolt (TB) method. The SBRs from the semi- and fully automatic methods showed a good linear correlation (r > 0.98). The areas under the curves (AUCs) of receiver operating characteristic analysis showed no significant difference between the two methods for both our previous (AUC > 0.99) and new (AUC > 0.95) data. The diagnostic accuracy of the two methods showed similar results (>92%), and both were better than the TB method. The proposed method successfully created the automatic VOIs and calculated SBR rapidly (9 ± 1 s/patient), avoiding operator-induced variability and providing objective SBR results. Full article

Dopamine transporter (DAT) single-photon emission tomography (SPECT) with (123)Ioflupane is a widely used diagnostic tool for patients with suspected parkinsonian syndromes, as it assists with differentiating between Parkinson’s disease (PD) or atypical parkinsonisms and conditions without a presynaptic dopaminergic deficit such as essential tremor, vascular and drug-induced parkinsonisms. Recent evidence supports its utility as in vivo proof of degenerative parkinsonisms, and DAT imaging has been proposed as a potential surrogate marker for dopaminergic nigrostriatal neurons. However, the interpretation of DAT-SPECT imaging may be challenged by several factors including the loss of DAT receptor density with age and the effect of certain drugs on dopamine uptake. Furthermore, a clear, direct relationship between nigral loss and DAT decrease has been controversial so far. Striatal DAT uptake could reflect nigral neuronal loss once the loss exceeds 50%. Indeed, reduction of DAT binding seems to be already present in the prodromal stage of PD, suggesting both an early synaptic dysfunction and the activation of compensatory changes to delay the onset of symptoms. Despite a weak correlation with PD severity and progression, quantitative measurements of DAT binding at baseline could be used to predict the emergence of late-disease motor fluctuations and dyskinesias. This review addresses the possibilities and limitations of DAT-SPECT in PD and, focusing specifically on regulatory changes of DAT in surviving DA neurons, we investigate its role in diagnosis and its prognostic value for motor complications as disease progresses. Full article
