HVDC cable systems are becoming an upscaled technical option, compared to AC, because of various factors, including easier interconnections, lower losses, and longer transmission distances. In addition, renewables providing direct DC energy, electrified transportation, and aerospace where DC can be favored because of higher carried specific power all point in the direction of broad future usage of HV and MV DC links. However, contrary to AC, there is little return from on-field installation as regards long-term cable reliability and aging processes. This gap must be covered by intensive research, and contributing to this research is the purpose of this paper. The focus is on key points for HVDC (and MVDC) cable reliability and sustainability, from design modeling able to account for voltage transients and extrinsic aging (such as that caused by partial discharges) to the impact of aging on insulation conductivity (which rules the electric field distribution, thus aging rate). Also, recyclable and nanostructured materials, as well as health conditions, are considered. It is shown how cable design can account for accelerated aging due to voltage transients, as well as for aging-time dependence of conductivity, and how design can be free of extrinsic aging caused by PDs. Algorithms for health condition evaluations, which have additional value in a relatively new technology such as HVDC polymeric cables, are applied to insulation system aging under partial discharges, showing how they can provide an indication of insulation degradation globally or locally (weak spots) and of possible maintenance times. All of this can effectively contribute to reducing the risk of major cable breakdown and damage under operation, which would significantly affect the return on investment (ROI). Full article

Large and remote offshore wind farms (OWFs) usually use voltage source converter (VSC) systems to transmit electrical power to the main network. Submarine high-voltage direct current (HVDC) cables are commonly used as transmission links. As they are liable to insulation breakdown, fault location in the HVDC cables is a major issue in these systems. Exact fault location can significantly reduce the high cost of submarine HVDC cable repair in multi-terminal networks. In this paper, a novel method is presented to find the exact location of the DC faults. The fault location is calculated using extraction of new features from voltage signals of cables’ sheaths and a trained artificial neural network (ANN). The results obtained from a simulation of a three-terminal HVDC system in power systems computer-aided design (PSCAD) environment show that the maximum percentage error of the proposed method is less than 1%. Full article

The most critical positions of a prefabricated cable accessory, from the electrical point of view, are the interfaces between the stress cone and its surroundings. Accordingly, the contact pressure on those interfaces needs to be carefully designed to assure both good dielectric strength and smooth installation of the stress cone. Nevertheless, since stress cones made from rubber are under large deformation after installation, their internal stress distribution is neither practical to measure directly by planting sensors, nor feasible to compute accurately with the conventional theory of linear structural mechanics. This paper presents one sophisticated method for computing the mechanical stress distribution in rubber stress cones of cable accessories by employing hyperelastic models in a computation model based on the finite element method. This method offers accurate results for rubber bodies of complex geometries and large deformations. Based on the method, a case study of a composite prefabricated termination for extruded cables is presented, and the sensitivity analysis is given as well. Full article

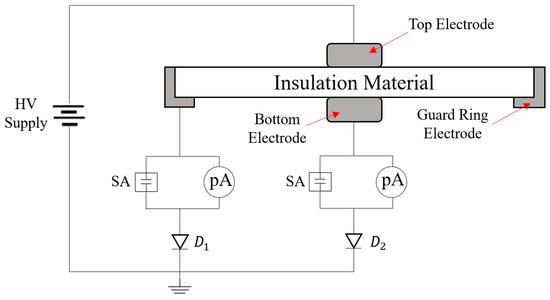

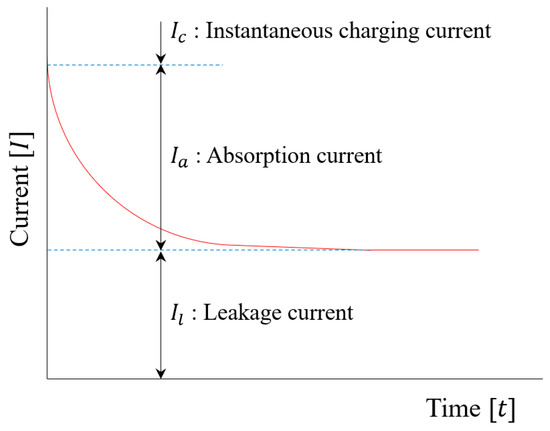

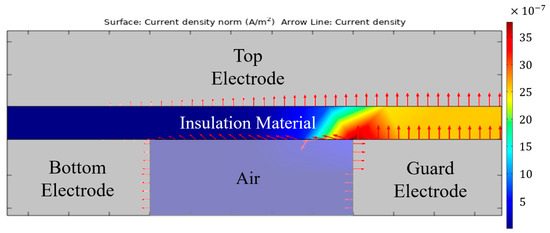

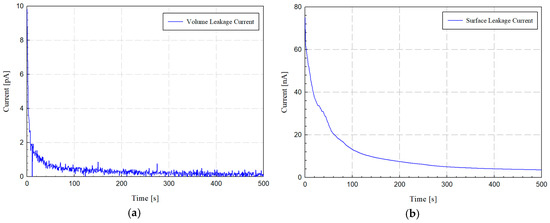

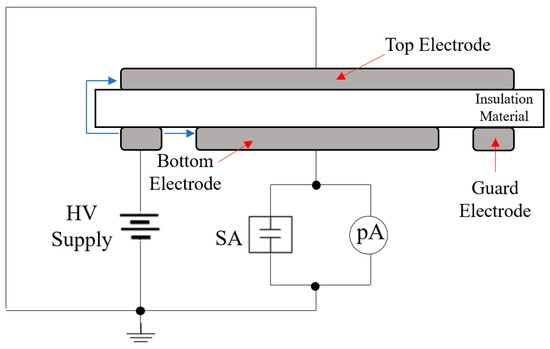

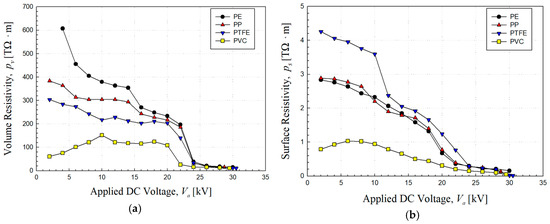

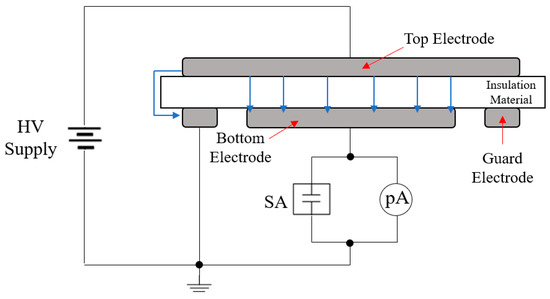

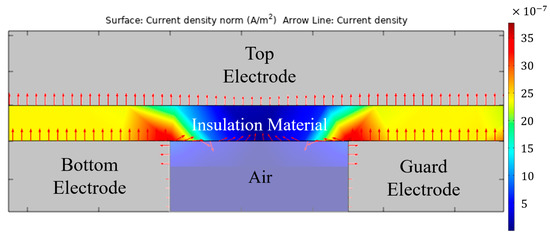

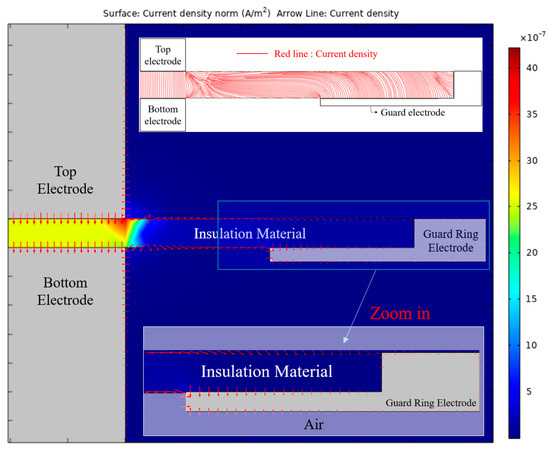

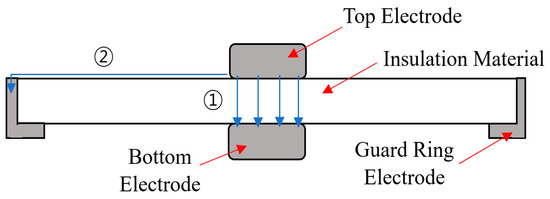

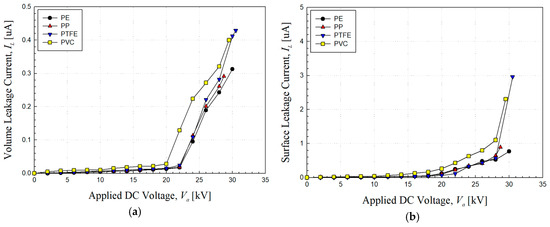

Recently, eco-friendly energy conversion policies have been being promoted through de-nuclearization and de-coal. For this purpose, a super grid should be built to optimize sustainable renewable energy resources such as solar and wind power. Accordingly, considering the various problems such as technology and cost, a system for efficient energy transmission is required. Hence, research is being actively conducted to apply it, owing to the development of the high voltage direct current (HVDC) system. Among HVDC systems, the cable system is extremely important, in addition to the measurement of the dielectric breakdown strength, space charge, and volume resistivity of insulating materials. The existing resistivity measurement method measures both the volume and surface resistivity using a three-terminal electrode that is used in the international standards of American Society for Testing and Materials (ASTM) D 257 and International Electrotechnical Commission (IEC) 60093. However, the circuit configuration differs depending on the measurement of the volume and surface resistivity; moreover, when a DC voltage is applied to the insulator, a charging current flows and there are multiple samples to be measured, which takes a considerable amount of time. Therefore, in this study, we proposed a new type of resistivity measurement system that is based on the existing three-terminal electrode system. Furthermore, we produced a system capable of simultaneously measuring the volume and surface resistivity. Finally, using this system, we compared and analyzed the volume and surface resistivity of five insulating materials. Full article

Compared with traditional insulation materials, such as cross-linked polyethylene (XLPE), polypropylene (PP) is famous for its better recyclable and thermal properties, as well as its good electrical performance. However, the problem of poor impact strength has restricted the application of pure PP in high-voltage, direct current (HVDC) cables. In this paper, styrene-ethylene-butylene-styrene block copolymer (SEBS) was used as a toughening filler, and nano-SiO₂ was expected to improve the electric properties of the nano-composite. By controlling the masterbatch system, the dispersion characteristics of nano-SiO₂ in the ternary composite system were changed. When PP/SiO₂ was used as the masterbatch and then blended with SEBS, nano-SiO₂ tended to disperse in the PP phase, and the number of nano-particles in the SEBS phase was lower. When PP/SEBS was used as the masterbatch, nano-SiO₂ was distributed in both the PP phase and the SEBS phase. When SEBS/SiO₂ was used as the masterbatch, nano-SiO₂ tended to be dispersed in the SEBS phase. The different dispersion characteristics of nano-SiO₂ changed the crystallization and mechanical properties of the ternary composite system and produced different electrical performance improvement effects. The results of our experiment revealed that the space charge suppression capability was positively correlated with the direct current (DC) breakdown strength improvement effect. Compared with the DC performance of 500 kV commercial XLPE materials, the self-made PP-based ternary composite system has better space charge suppression effects and higher DC breakdown strength. When nano-SiO₂ was more dispersed in the PP phase, the space charge improvement effect was best. When the nano-SiO₂ particles were more dispersed in the SEBS phase, the expected electrical property improvement was not obtained. Scanning electron microscopy showed that the nano-SiO₂ particles in the SEBS phase were more dispersed at the interface than in the SEBS matrix, indicating that the nano-particles were poorly dispersed, which may be a reason why the electrical properties of the composite system were not significantly improved. Full article

Space charges tend to accumulate on the surface and at the interface of ethylene–propylene–diene terpolymer (EPDM), serving as high voltage direct current (HVDC) cable accessory insulation, which likely induces electrical field distortion and dielectric breakdown. Direct fluorination is an effective method to modify the surface characteristics of the EPDM without altering the bulk properties too much. In this paper, the surface morphology, hydrophobic properties, relative permittivity, and DC conductivity of the EPDM before and after fluorination treatment were tested. Furthermore, the surface and interface charge behaviors in the HVDC cable accessory were investigated by the pulsed electroacoustic (PEA) method, and explained from the point of view of trap distribution. The results show that fluorination helps the EPDM polymer obtain lower surface energy and relative permittivity, which is beneficial to the interface match in composite insulation systems. The lowest degree of space charge accumulation occurs in EPDM with 30 min of fluorination. After analyzing the results of the 3D potentials and the density of states (DOS) behaviors in EPDM before and after fluorination, it can be found that fluorination treatment introduces shallower electron traps, and the special electrostatic potential after fluorination can significantly suppress the space charge accumulation at the interface in the HVDC cable accessory. Full article

Electrical tree is a serious threat to silicone rubber (SIR) insulation and can even cause breakdown. Electrical trees under alternating current (AC) and direct current (DC) voltage have been widely researched. While there are pulses in high-voltage direct current (HVDC) cables under operating conditions caused by lightning and operating overvoltage in the power system, little research has been reported about trees under combined DC-pulse voltage. Their inception and growth mechanism is still not clear. In this paper, electrical trees are studied under several types of combined DC-pulse voltage. The initiation and growth process was recorded by a digital microscope system. The experimental results indicate that the inception pulse voltage is different under each voltage type and is influenced by the combined DC. The initial tree has two structures, determined by the pulse polarity. With increased DC prestressing time, tree inception pulse voltage with the same polarity is clearly decreased. Moreover, a special initial bubble tree was observed after the prestressing DC. Full article
