Search Results (5)

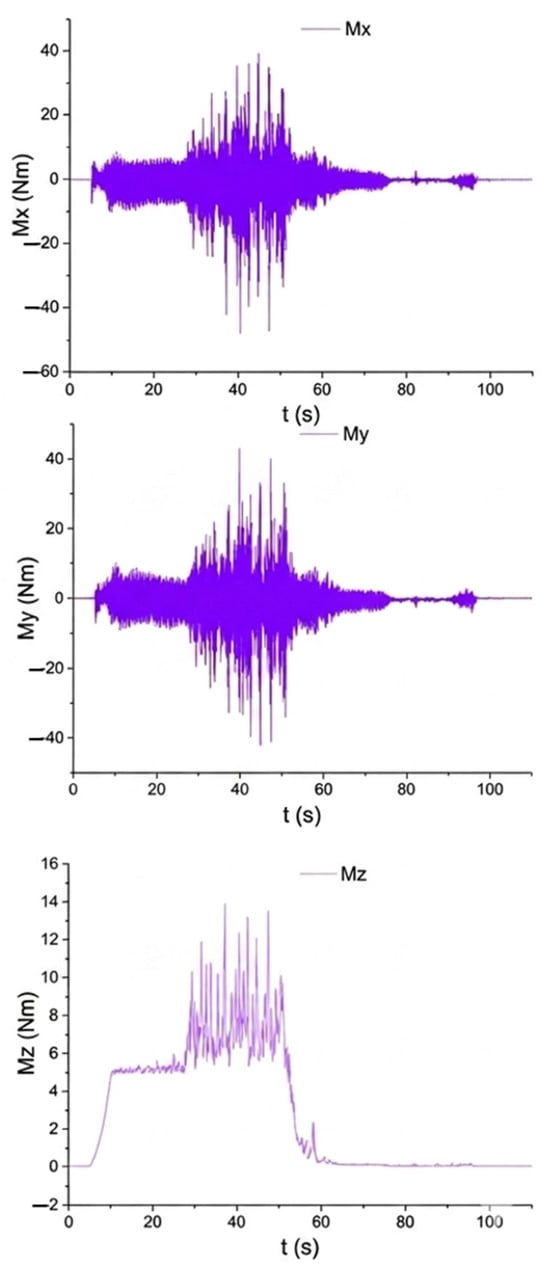

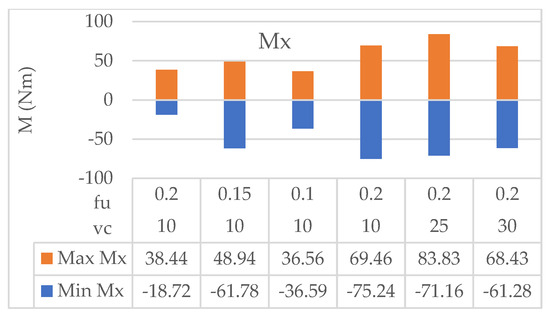

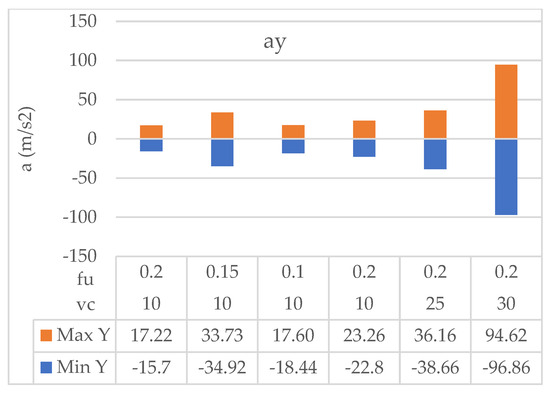

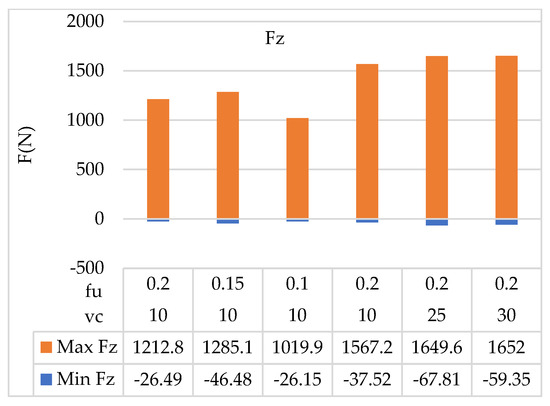

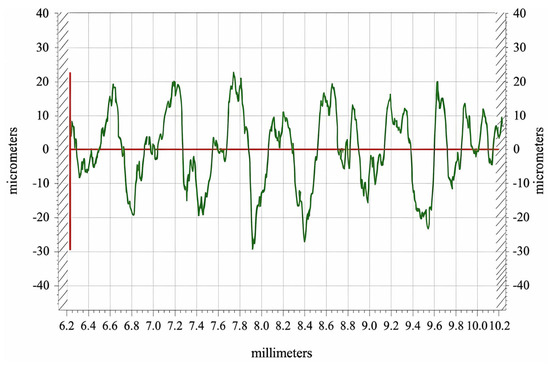

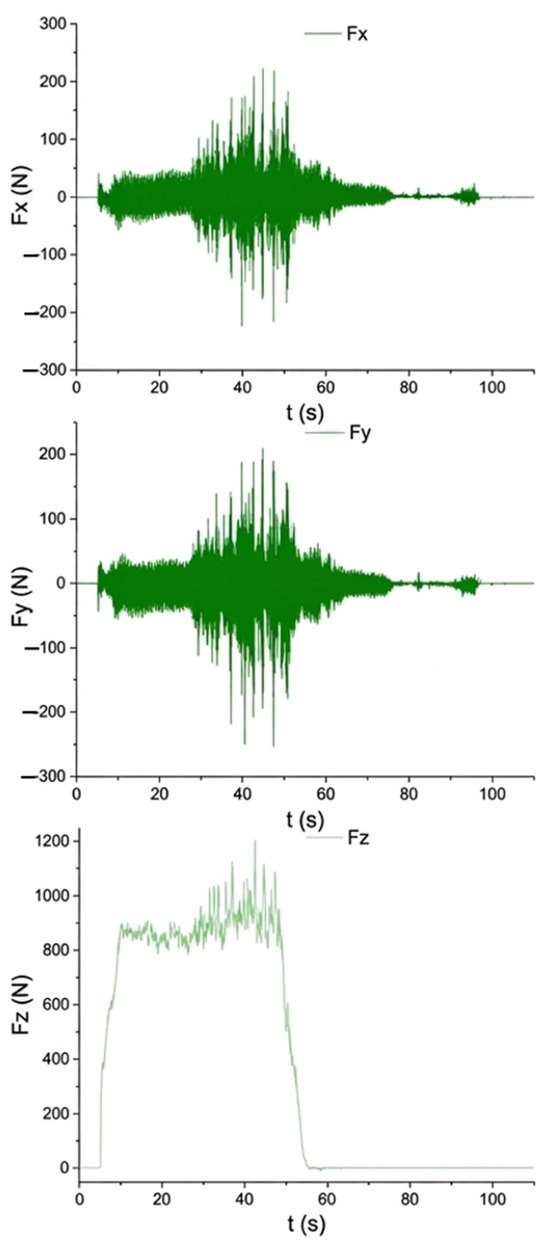

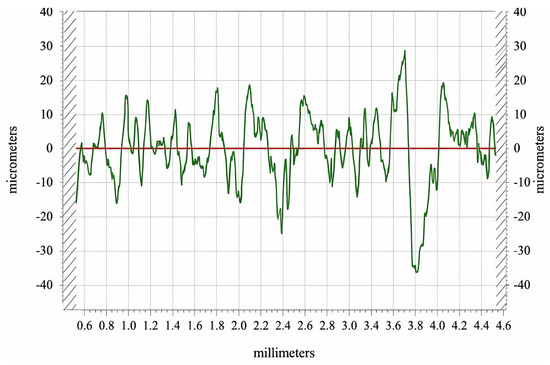

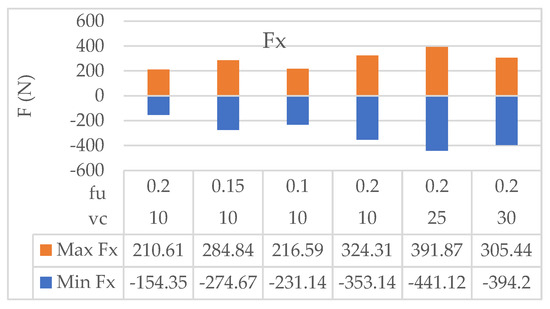

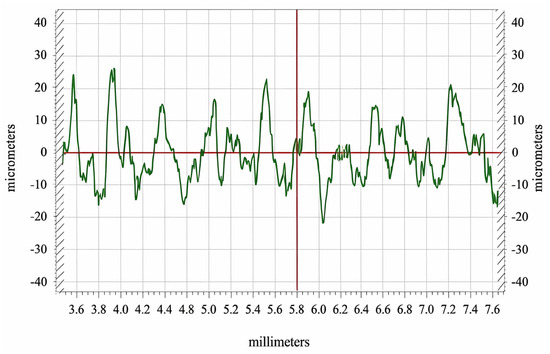

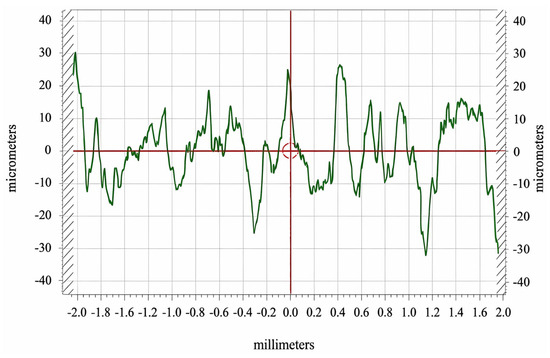

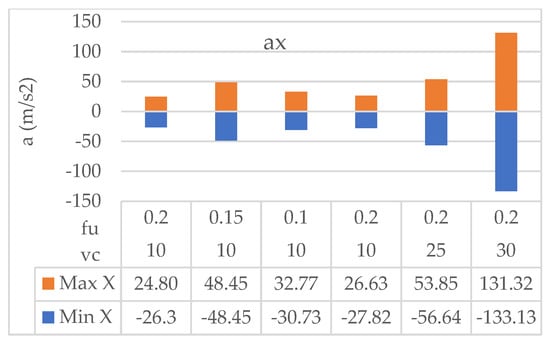

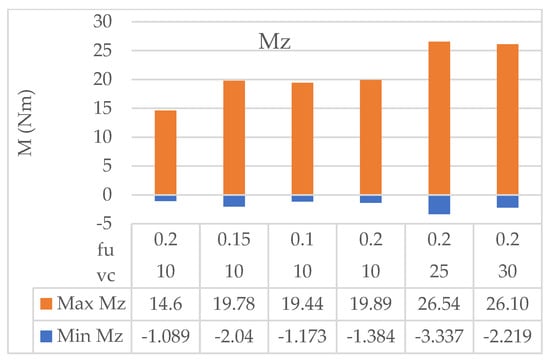

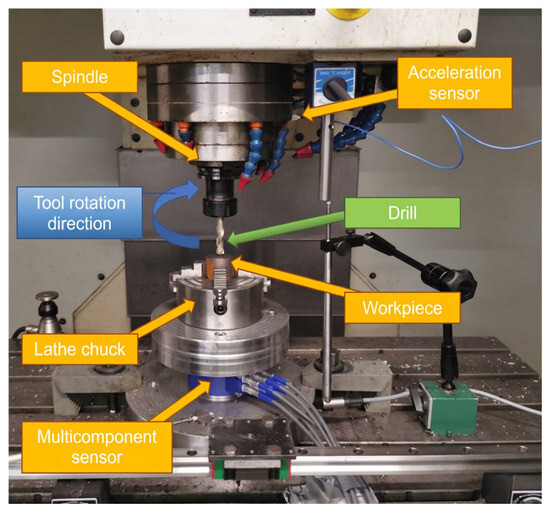

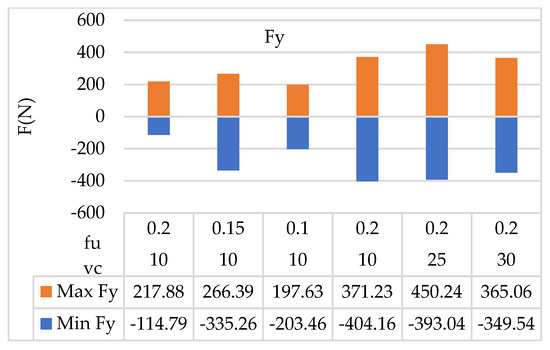

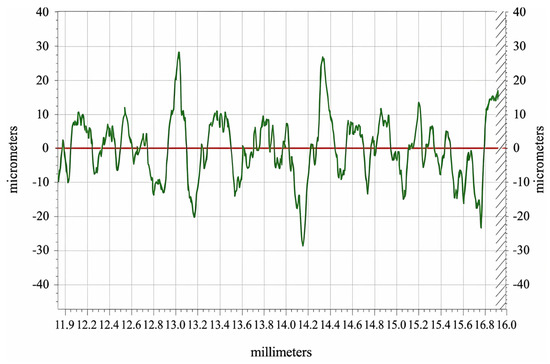

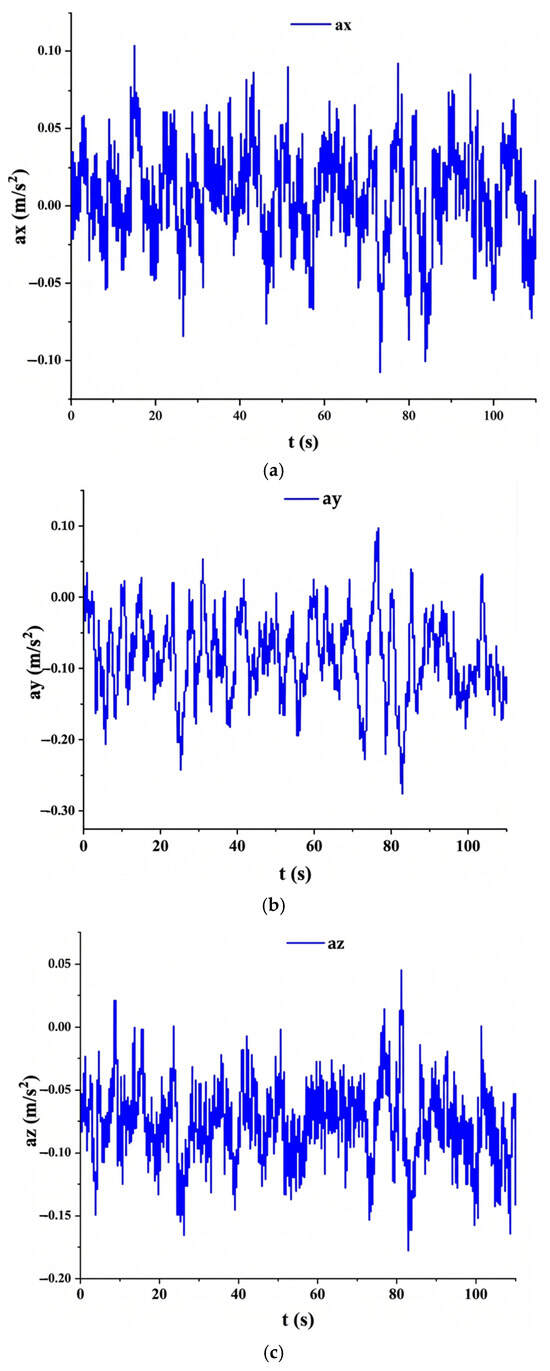

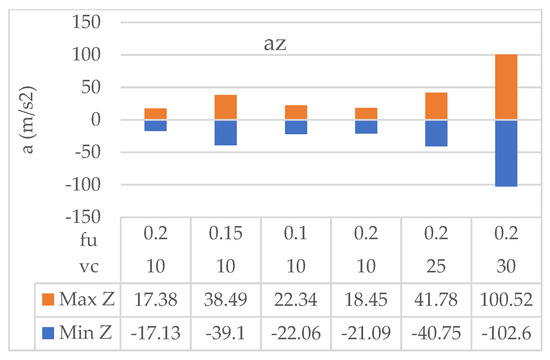

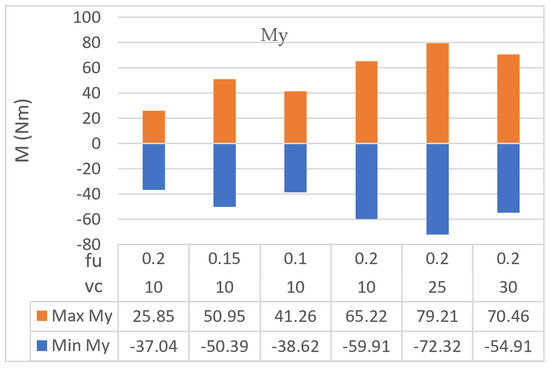

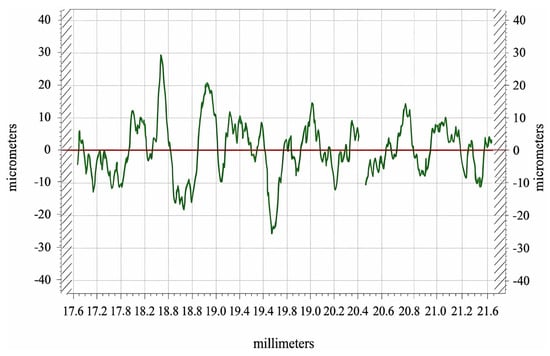

Controlling macro-geometrical errors in the dry drilling of ductile cast iron remains a critical challenge for sustainable and cost-efficient automotive component manufacturing. This paper investigates the influence of cutting speed (v_c) and feed per revolution (f_n) on the dimensional and shape accuracy of holes drilled in EN-GJS-500-7 ductile cast iron using an HSS DIN 338 helical drill (Ø 11.8 mm, Ceratizit) on an AVIA VMC800 CNC milling centre. A one-factor-at-a-time (OFAT) experimental design was applied: the feed effect was evaluated at v_c = 10 m/min with f_n ∈ {0.10, 0.15, 0.20} mm/rev, while the speed effect was evaluated at f_n = 0.20 mm/rev with v_c ∈ {10, 25, 30} m/min. Cutting forces, torques, and vibration accelerations were recorded using an HBM MSC 10 transducer and a PCB 356A01 tri-axial accelerometer. Hole geometry was assessed on a Zeiss Contura G2 coordinate-measuring machine (CMM), and surface texture was evaluated with a TOPO 01P contact profilometer. The expanded measurement uncertainty (k = 2) was estimated based on duplicate test specimens. All drilled holes fell within the IT12 dimensional tolerance (PN-EN 22768-1:1999 grade c), with diameter oversizes ranging from +0.26 mm to +0.46 mm relative to the nominal bore. Cutting speed was identified as the dominant factor affecting both diameter oversize and cylindricity, which increased by 60% (from 0.10 to 0.16 mm) as v_c rose from 10 to 30 m/min. Vibration accelerations increased nonlinearly between v_c = 25 and 30 m/min (by a factor of 2.5×), indicating an approach to a structural resonance condition. The lowest surface roughness (R_a = 6.6 µm) was obtained at v_c = 25 m/min. These findings establish clear physical baselines for tool deflection limits, demonstrating that managing dynamic process stability is vital for optimising macro-geometrical accuracy in the dry machining of cast iron alloys. Full article

Drilling-induced damage in fiber-reinforced polymer composite materials was measured excavating four laminates, basalt (B₁₄), glass (G₁₄) and their two sandwich type hybrids (B₄G₆B₄, G₄B₆G₄), with 6 mm twist drills at 1520 revolutions per minute and 0.10 mm rev⁻¹ under dry running with an uncoated high-speed steel (HSS-R), grind-coated high-speed steel (HSS-G) or physical vapor deposition-coated (high-speed steel coated with Titanium Nitride (TiN) and Titanium Aluminum Nitride (TiAlN)) drill bits. The hybrid sheets were deliberately incorporated to clarify how alternating basalt–glass architectures redistribute interlaminar stresses during drilling, while the hard, low-friction TiN and TiAlN ceramic coatings enhance cutting performance by forming a heat-resistant tribological barrier that lowers tool–workpiece adhesion, reduces interface temperature, and thereby suppresses thrust-induced delamination. Replacement of an uncoated, grind-coated, high-speed-steel drill (HSS-G) with the latter coats lowered the mechanical and thermal loads substantially: mean thrust fell from 79–94 N to 24–30 N, and peak workpiece temperatures from 112 °C to 74 °C. Accordingly, entry/exit oversize fell from 2.5–4.7% to under 0.6% and, from the surface, the SEM image displayed clean fiber severance rather than pull-out and matrix smear. By analysis of variance (ANOVA), 92.7% of the variance of thrust and 86.6% of that of temperature could be accounted for by the drill-bit factor, thus confirming that the coatings overwhelm the laminate structure and hybrid stacking simply redistribute, but cannot overcome, the former influence. Regression models and an artificial neural network optimized via meta-heuristic optimization foretold thrust, temperature and delamination with an R² value of 0.94 or higher, providing an instant-screening device with which to explore industrial application. The work reveals TiAlN- and TiN-coated drills as financially competitive alternatives with which to achieve ±1% dimensional accuracy and minimum subsurface damage during multi-material composite machining. Full article

Natural fiber composites are gaining popularity in manufacturing due to their cost-effectiveness, sustainability, reusability, and eco-friendly nature. Kenaf fiber is increasingly used as a reinforcing component in organic fiber-strengthened polymers for engineering purposes. Drilling is a crucial machining process used to create holes in composite constructions for the easier assembly of complex parts. Limited research has focused on drilling organic fiber-strengthened materials, as indicated by literature surveys. Consequently, this study investigates the drilling of weaved kenaf fiber-augmented polymeric composites. The study assesses the impact of drill bit varieties and cutting settings on delamination size and thrust force in poly (lactic acid) (PLA) composites supplemented with kenaf fibers. The investigation revealed that drill bit selection significantly influences surface finish and delamination index. Feed is the cutting variable that, when drilling kenaf fiber-reinforced materials, has the most impact on the thrust force for every drill bit. When using an HSS twisting drill with the Coro Drill-856 (CD-856), the thrust force produced is less than when using the Coro Drill (CD-854) design. Full article

Ultrahigh-molecular-weight polyethylene (UHMWPE) is used in the defence industry mainly owing to its properties, such as excellent dimensional stability, excellent ballistic performance, and light weight. Although UHMWPE laminates are generally studied under impact loads, it is crucial to understand better the optimal machining conditions for assembling auxiliary structures in combat helmets or armour. This work analyses the machinability of UHMWPE laminates by drilling. The workpiece material has been manufactured through hot-pressing technology and subjected to drilling tests. High-speed steel (HSS) twist drills with two different point angles and a brad and spur drill that is 6 mm in diameter have been used for this study. Cutting forces, failure, and main damage modes are analysed, making it possible to extract relevant information for the industry. The main conclusion is that the drill with a smaller point angle has a better cutting force performance and less delamination at the exit zone (5.4 mm at a 60 m/min cutting speed and a 0.05 mm/rev feed) in the samples. This value represents a 46% improvement over the best result obtained in terms of delamination at the exit when using the tool with the larger point angle. However, the brad and spur drill revealed a post-drilling appearance with high fuzzing and delamination. Full article

This paper presents an experimental study of the positive effects of vibration-assisted deep drilling of aluminum alloy Al-6061. The four most important evaluation criteria in drilling—machinability, workpiece temperature, torque, and material removal rate—were chosen to be investigated. Holes with a depth-to-diameter ratio of 13 were drilled by high speed steel (HSS) twist drill bits of 3 mm diameter, using both methods of conventional drilling (CD) and ultrasonic-assisted drilling (UAD). Three levels of axial force of 6 kgf, 9 kgf, and 12 kgf were kept constant for each pair of comparison experiments. It was found that workpiece temperature and torque not only changed from one drill to the other, but were also dependent on the hole depth being drilled. Comparisons were made in-pair between CD and UAD under the same axial force and at the same order of hole numbers. The result shows that the material removal rate with UAD was up to 3.5 times higher than that with CD and the average workpiece temperature and torque in UAD were reduced by 3.5 and 6 times, respectively. Moreover, tool life in UAD was observed to increase from 2.5 to 5 times, in terms of number of holes drilled, compared to that in CD. Full article
