Search Results (9)

Anodic TiO₂ nanotube arrays decorated with Ni, Cu, and NiCu alloy thin films were investigated for the first time for the photocatalytic degradation of paracetamol in water solution under UV irradiation. Metallic co-catalysts were deposited on TiO₂ nanotubes using magnetron sputtering. The influence of the metal layer composition and thickness on the photocatalytic activity was systematically studied. Photocatalytic experiments showed that only Cu-rich co-catalysts provide enhanced paracetamol degradation rates, whereas Ni-modified photocatalysts exhibit no improvement compared with unmodified TiO₂. The best-performing material was obtained by sputtering a 20 nm thick film of 1:1 atomic ratio NiCu alloy: this material exhibits a reaction rate more than doubled compared with pristine TiO₂, enabling the complete degradation of 10 mg L⁻¹ of paracetamol in 8 h. The superior performance of NiCu-modified systems over pure Cu-based ones is ascribed to a Ni and Cu synergistic effect. Kinetic tests using selective holes and radical scavengers unveiled, unlike prior findings in the literature, that paracetamol undergoes direct oxidation at the photocatalyst surface via valence band holes. Finally, Chemical Oxygen Demand (COD) tests and High-Resolution Mass Spectrometry (HR-MS) analysis were conducted to assess the degree of mineralization and identify intermediates. In contrast with the existing literature, we demonstrated that the mechanistic pathway involves direct oxidation by valence band holes. Full article

The use of heterogeneous photocatalysis in biologically contaminated water purification processes still requires the development of materials active in visible light, preferably in the form of thin films. Herein, we report nanotube structures made of TiO₂/Ag₂O/Au⁰, TiO₂/Ag₂O/PtO_x, TiO₂/Cu₂O/Au⁰, and TiO₂/Cu₂O/PtO_x obtained via one-step anodic oxidation of the titanium-based alloys (Ti₉₄Ag₅Au₁, Ti₉₄Cu₅Pt₁, Ti₉₄Cu₅Au₁, and Ti₉₄Ag₅Pt₁) possessing high visible light activity in the inactivation process of methicillin-susceptible S. aureus and other pathogenic bacteria—E. coli, Clostridium sp., and K. oxytoca. In the samples made from Ti-based alloys, metal/metal oxide nanoparticles were formed, which were located on the surface and inside the walls of the NTs. The obtained results showed that oxygen species produced at the surface of irradiated photocatalysts and the presence of copper and silver species in the photoactive layers both contributed to the inactivation of bacteria. Photocatalytic inactivation of E. coli, S. aureus, and Clostridium sp. was confirmed via TEM imaging of bacterium cell destruction and the detection of CO₂ as a result of bacteria cell mineralization for the most active sample. These results suggest that the membrane ruptures as a result of the attack of active oxygen species, and then, both the membrane and the contents are mineralized to CO₂. Full article

Here, we report a new simple and fast method of cobalt and copper ferrites film fabrication on the Ti/TiO₂ surface. The approach is based on the deposition of gelatin gel containing copper and cobalt nitrates on the surface of porous oxide-silicon coatings on titanium obtained by plasma electrolytic oxidation (PEO) followed by two-stage annealing at 300 °C and 800 °C to yield ferrite films with good adhesion to PEO layer. The presence of Co/Cu ferrite phases was confirmed by EDX analysis, XRD, and Mössbauer spectroscopy. TiO₂-CoFe₂O₄ and TiO₂-CuFe₂O₄ composite films have excellent performance in the photocatalytic degradation of indigo carmine as a model dye at pH 3 under UV and visible irradiation. The suggested approach to obtain ferrite/TiO₂ composite films is promising for the development of magnetic materials, sensors, catalysts, and photocatalysts for various applications. Full article

In the current study, we analysed the influence of metallic underlayers on carbon-doped TiO₂ films for RhB decomposition and Salmonella typhimurium inactivation under visible-light irradiation. All the experiments were divided into two parts. First, layered M/C-doped-TiO₂ film structures (M = Ni, Nb, Cu) were prepared by magnetron sputtering technique on borosilicate glass substrates in the two-step deposition process. The influence of metal underlayer on the formation of the carbon-doped TiO₂ films was characterised by X-ray diffractometer, scanning electron microscope, and atomic force microscope. The comparison between the visible-light assisted photocatalytic activity of M/C-doped TiO₂ structures was performed by the photocatalytic bleaching tests of Rhodamine B dye aqueous solution. The best photocatalytic performance was observed for Ni/C-doped-TiO₂ film combination. During the second part of the study, the Ni/C-doped-TiO₂ film combination was deposited on high-density polyethylene beads which were selected as a floating substrate. The morphology and surface chemical analyses of the floating photocatalyst were performed. The viability and membrane permeability of Salmonella typhimurium were tested in cycling experiments under UV-B and visible-light irradiation. Three consecutive photocatalytic treatments of fresh bacteria suspensions with the same set of floating photocatalyst showed promising results, as after the third 1 h-long treatment bacteria viability was still reduced by 90% and 50% for UV-B and visible-light irradiation, respectively. The membrane permeability and ethidium fluorescence results suggest that Ni underlayer might have direct and indirect effect on the bacteria inactivation process. Additionally, relatively low loss of the photocatalyst efficiency suggests that floating C-doped TiO₂ photocatalyst with the Ni underlayer might be seen as the possible solution for the used photocatalyst recovery issue. Full article

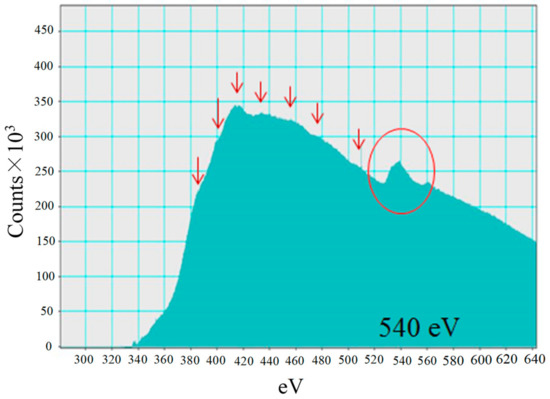

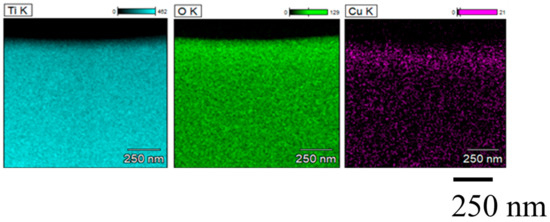

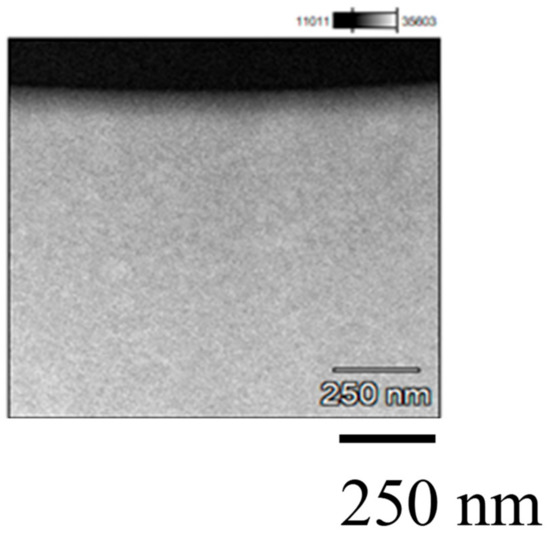

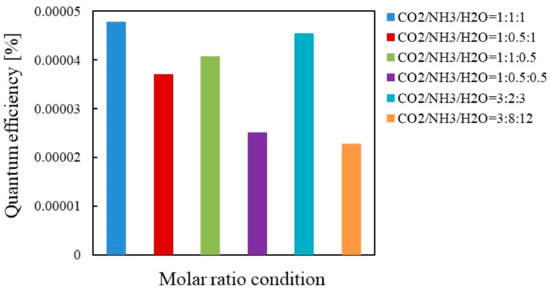

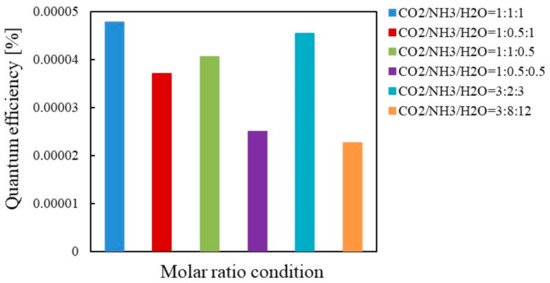

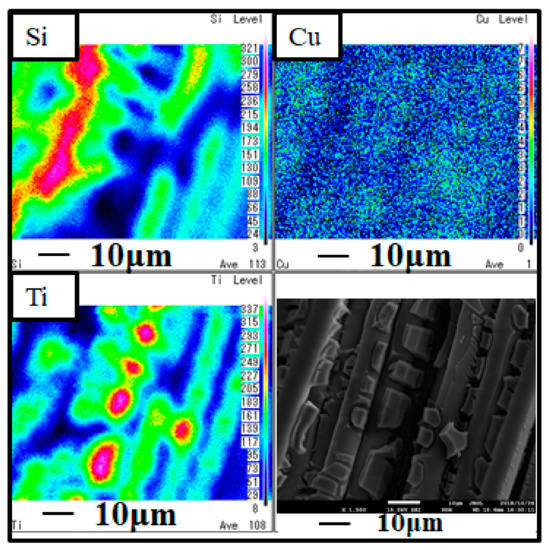

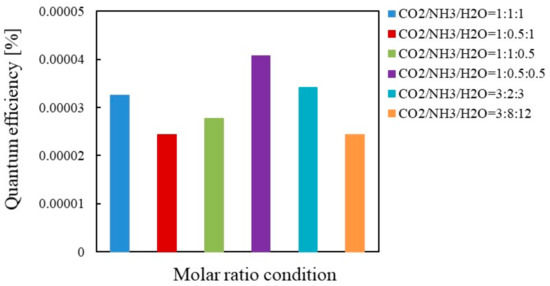

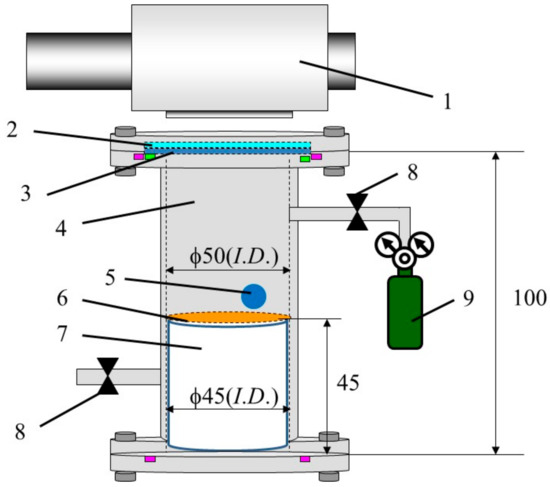

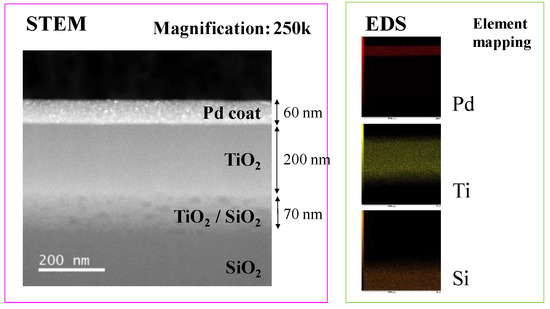

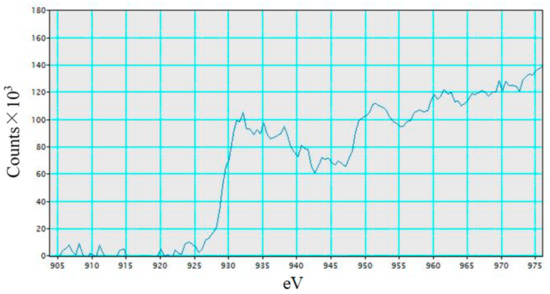

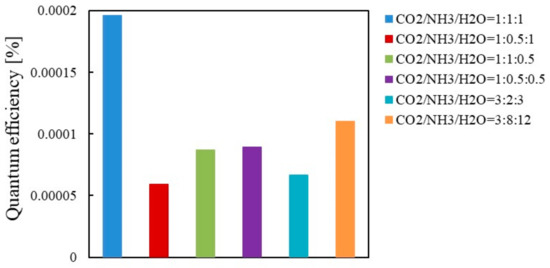

The aim of this study is to clarify the effect of doped metal type on CO₂ reduction characteristics of TiO₂ with NH₃ and H₂O. Cu and Pd have been selected as dopants for TiO₂. In addition, the impact of molar ratio of CO₂ to reductants NH₃ and H₂O has been investigated. A TiO₂ photocatalyst was prepared by a sol-gel and dip-coating process, and then doped with Cu or Pd fine particles by using the pulse arc plasma gun method. The prepared Cu/TiO₂ film and Pd/TiO₂ film were characterized by SEM, EPMA, TEM, STEM, EDX, EDS and EELS. This study also has investigated the performance of CO₂ reduction under the illumination condition of Xe lamp with or without ultraviolet (UV) light. As a result, it is revealed that the CO₂ reduction performance with Cu/TiO₂ under the illumination condition of Xe lamp with UV light is the highest when the molar ratio of CO₂/NH₃/H₂O = 1:1:1 while that without UV light is the highest when the molar ratio of CO₂/NH₃/H₂O = 1:0.5:0.5. It is revealed that the CO₂ reduction performance of Pd/TiO₂ is the highest for the molar ratio of CO₂/NH₃/H₂O = 1:1:1 no matter the used Xe lamp was with or without UV light. The molar quantity of CO per unit weight of photocatalyst for Cu/TiO₂ produced under the illumination condition of Xe lamp with UV light was 10.2 μmol/g, while that for Pd/TiO₂ was 5.5 μmol/g. Meanwhile, the molar quantity of CO per unit weight of photocatalyst for Cu/TiO₂ produced under the illumination condition of Xe lamp without UV light was 2.5 μmol/g, while that for Pd/TiO₂ was 3.5 μmol/g. This study has concluded that Cu/TiO₂ is superior to Pd/TiO₂ from the viewpoint of the molar quantity of CO per unit weight of photocatalyst as well as the quantum efficiency. Full article

This study has investigated the impact of molar ratio of CO₂ to reductants NH₃ and H₂O as well as that of Cu loading on CO₂ reduction characteristics over Cu/TiO₂. No study to optimize the reductants’ combination and Cu loading weight in order to enhance CO₂ reduction performance of TiO₂ has been investigated yet. This study prepared Cu/TiO₂ film by loading Cu particles during the pulse arc plasma gun process after coating TiO₂ film by the sol-gel and dip-coating process. As to loading weight of Cu, it was regulated by change in the pulse number. This study characterized the prepared Cu/TiO₂ film by SEM and EPMA. Additionally, the performance of CO₂ reduction has been investigated under the illumination condition of Xe lamp with or without ultraviolet (UV) light. It is revealed that the molar ratio of CO₂/NH₃/H₂O is optimized according to the pulse number. Since the amount of H⁺ which is the same as that of electron is needed to produce CO decided following the theoretical CO₂ reduction reacting with H₂O or NH₃, larger H⁺ is needed with the increase in the pulse number. It is revealed that Cu of 4.57 wt% for the pulse number of 200 is the optimum condition, whereas the molar quantity of CO per unit weight of Cu/TiO₂ with and without UV light illumination is 34.1 mol/g and 12.0 mol/g, respectively. Full article

Photocatalytic coatings of TiO₂/ZnO/CuPc were developed on stainless steel substrates by subsequent sol gel dip coating for TiO₂, spray pyrolysis for ZnO, and spin coating for copper (ii) phthalocyanine (CuPc) deposition. The latter compound was successfully prepared using a Schiff-based process. The materials and coatings developed were characterized by X-ray diffraction (XRD), Fourier transform infrared (FTIR) spectroscopy, scanning electron microscopy with attached energy dispersive spectroscopy (SEM-EDS), UV-Vis spectroscopy, room temperature photoluminescence (RTPL) spectroscopy, H1-nuclear magnetic resonance (¹H-NMR) spectroscopy, C13-nuclear magnetic resonance (¹³C-NMR) spectroscopy, and matrix-assisted laser desorption/ionization-time of flight (MALDI-TOF) mass spectrometry (MS). The as-deposited TiO₂/ZnO/CuPc on stainless steel retained in pristine state the structural and morphological/spectroscopic characteristics of its respective components. Estimated energy band gap values were 3.22 eV, 3.19 eV, 3.19 eV for TiO₂, ZnO, TiO₂/ZnO respectively and 1.60 eV, 2.44 eV, and 2.92 eV for CuPc. The photocatalytic efficiency of the fabricated TiO₂/ZnO/CuPc coatings was tested toward ibuprofen (IBF). After 4 h irradiation under 365 nm UV, an increased degradation of about 80% was achieved over an initial 5 mg/L ibuprofen (IBF). This was much higher compared to about 42% and 18% IBF degradation by TiO₂/ZnO and TiO₂ thin film, respectively. In all cases, the stability of the best-performing photocatalyst was investigated showing a small decline to 77% of IBF degradation after the 5th cycle run. The effect of pH, reactive oxygen species (ROS) probe, shed light on a possible catalytic mechanism that was suggested. Full article

This review presents an update describing binary and ternary semiconductors involving interfacial charge transfer (IFCT) in composites made up by TiO₂, CuO, Ag₂O and Fe₂O₃ used in microbial disinfection (bacteria and viruses). The disinfection mechanism, kinetics and generation of reactive oxygen species (ROS) in solution under solar/visible light are discussed. The surface properties of the photocatalysts and their active catalytic sites are described in detail. Pathogenic biofilm inactivation by photocatalytic thin films is addressed since biofilms are the most dangerous agents of spreading pathogens into the environment. Full article

Nano size Copper (Cu) incorporated TiO₂ nanotubes was successfully synthesized via the anodic oxidation technique in ethylene glycol (EG) containing 0.5 wt % NH₄F and 1.6 wt % KOH for the photocatalytic degradation of Simazine (2-chloro-4, 6-diethylamino-1,3,5-triazine) under Ultraviolet (UV) illumination. In the present study, the influence of different loading Cu concentrations on the formation of Cu-TiO₂ nanotubes film towards the photocatalytic degradation of Simazine is reported. Based on our study, it was found that the optimum Cu loading concentration was about 0.45 wt % on TiO₂ nanotubes film for approximately 64% photocatalytic degradation of Simazine after 4 h under UV illumination. This finding was mainly attributed to the uniform surface covering of the Cu loaded TiO₂NTs which acted as electron traps, preventing the recombination of electron hole pairs, eventually leading to higher photocatalytic activity of our photocatalyst in degrading the targeted organic pollutant, Simazine. Moreover, an increased kinetic rate of the degradation to 0.0135 h⁻¹ was observed in the presence of Cu in TiO₂NTs. Full article
