Comparison of CO2 Reduction Performance with NH3 and H2O between Cu/TiO2 and Pd/TiO2

by
Akira Nishimura
1,*,
Ryouga Shimada
1,
Yoshito Sakakibara
1,
Akira Koshio
2 and
Eric Hu
3
1
Division of Mechanical Engineering, Graduate School of Engineering, Mie University, 1577 Kurimamachiya-cho, Tsu, Mie 514-8507, Japan
2
Division of Chemistry for Materials, Graduate School of Engineering, Mie University, 1577 Kurimamachiya-cho, Tsu, Mie 514-8507, Japan
3
School of Mechanical Engineering, the University of Adelaide, Adelaide, SA 5005, Australia
*
Author to whom correspondence should be addressed.
Molecules 2021, 26(10), 2904; https://doi.org/10.3390/molecules26102904
Submission received: 6 April 2021 / Revised: 30 April 2021 / Accepted: 10 May 2021 / Published: 13 May 2021
(This article belongs to the Section Photochemistry)
Browse Figures
Versions Notes

Abstract

:
The aim of this study is to clarify the effect of doped metal type on CO2 reduction characteristics of TiO2 with NH3 and H2O. Cu and Pd have been selected as dopants for TiO2. In addition, the impact of molar ratio of CO2 to reductants NH3 and H2O has been investigated. A TiO2 photocatalyst was prepared by a sol-gel and dip-coating process, and then doped with Cu or Pd fine particles by using the pulse arc plasma gun method. The prepared Cu/TiO2 film and Pd/TiO2 film were characterized by SEM, EPMA, TEM, STEM, EDX, EDS and EELS. This study also has investigated the performance of CO2 reduction under the illumination condition of Xe lamp with or without ultraviolet (UV) light. As a result, it is revealed that the CO2 reduction performance with Cu/TiO2 under the illumination condition of Xe lamp with UV light is the highest when the molar ratio of CO2/NH3/H2O = 1:1:1 while that without UV light is the highest when the molar ratio of CO2/NH3/H2O = 1:0.5:0.5. It is revealed that the CO2 reduction performance of Pd/TiO2 is the highest for the molar ratio of CO2/NH3/H2O = 1:1:1 no matter the used Xe lamp was with or without UV light. The molar quantity of CO per unit weight of photocatalyst for Cu/TiO2 produced under the illumination condition of Xe lamp with UV light was 10.2 μmol/g, while that for Pd/TiO2 was 5.5 μmol/g. Meanwhile, the molar quantity of CO per unit weight of photocatalyst for Cu/TiO2 produced under the illumination condition of Xe lamp without UV light was 2.5 μmol/g, while that for Pd/TiO2 was 3.5 μmol/g. This study has concluded that Cu/TiO2 is superior to Pd/TiO2 from the viewpoint of the molar quantity of CO per unit weight of photocatalyst as well as the quantum efficiency.

1. Introduction

Because of large concerns around the world, the global warming problem is a hot area of R&D. Each country has set a goal to reduce the amount of CO2 emissions. In Japan, the prime minister has declared the intent to reduce the effective CO2 emissions to zero by 2050. However, the global mean concentration of CO2 in atmosphere had increased up to 410 ppmV in September 2019, which was 25 ppmV increase from the value in 2009 [1]. Therefore, development of technologies which can reduce the amount of CO2 in the atmosphere the is urgently required.
Solar conversion of CO2 to fuel seems a promising procedure to solve the global warming problem for sustainable development of society. Solar energy, is the form of direct solar irradiation, is widely available and it is imperious to utilize it for solar fuel production [2]. One pathway to realize solar conversion of CO2 is photochemical reactions. According to a literature survey by the authors, photocatalysts can convert CO2 into fuel species such as CO, CH4, CH3OH, etc. [3,4,5]. TiO2 is a popular photocatalyst used for CO2 reduction since it is convenient to obtain, inexpensive, and has strong resistance to chemicals and corrosion [6]. Pure TiO2 can only function under UV light illumination which represent only 4% of the energy available in solar radiation [4]. CO2 reduction performance is thus greatly improved if the TiO2 or modified TiO2 can function under visible light illumination.
Some studies have reported on the development of various modified TiO2 forms [3,4,5]. The modifications included loading TiO2 with Au, Ag, Pd, Pt, Rh, Ir or bimetals (e.g., Ag-Au and Au-Pt) [7]. A hierarchical pore network and morphology to prepare the bio-templated TiO2 catalyst [8], heteroleptic iridium complex supported on graphite carbon nitride [9], TiO2 synthesis using superficial fluid technology [10] and N-doped reduced graphene oxide promoted nano TiO2 [11] were attempted modifications to prepare TiO2 to respond to visible light. According to a review paper on the surface modification of TiO2 to enhance its CO2 reduction performance [12], there are many approaches for the surface modification of TiO2 such as impurity doping, metal deposition, alkali modification, heterojunction construction and carbon-based material loading. As an example of impurity doping, the CH3OH production of Cu/TiO2 increased with an increase in the amount of Cu doping, while the over-doping of Cu would lead to high defect density in the TiO2, resulting in degradation of the CO2 reduction performance [12]. Therefore, there is the optimum ratio of dopant to enhance the CO2 reduction performance of photocatalyst. As to an example of heterojunction construction, it was reported that the photocatalytic CO2 reduction performance over Cu/TiO2 hollow nanoparticles was much better than that of pure TiO2 and Cu2O [12]. On the other hand, another recent review paper reported that not only Cu2O but also Cu2O/TiO2 hybrid photocatalyst exhibited a higher CO2 reduction performance compared to pure TiO2 [13]. Cu2O which has a small band gap energy (2.4 V) can help the absorption efficiency in the visible range of the solar spectrum. In addition, Cu2O can promote the CO2 reduction performance by concomitantly increasing the electron-hole separation efficiency. It was also reported that Cu2O/TiO2 proceeded the photocatalytic reaction, resulting in the increase in the selective formation of CO under the illumination condition of light whose wave length was over 305 nm.
Though various metals have been used for doping, the reductant which is a partner for CO2 reduction is also important. According to the literatures survey by the authros, H2O or H2 were normally used as the reductants for CO2 reduction [2,7]. The reaction scheme to reduce CO2 with H2O can be summarized as shown below according to the previous studies [14,15,16]:
Photocatalytic reaction
TiO2 + hν → h+ + e−
Oxidation
2H2O + 4h+ → 4H+ + O2
Reduction
CO2 + 2H+ + 2e− → CO + H2O
CO2 + 8H+ + 8e− → CH4 + 2H2O
The reaction scheme to reduce CO2 with H2 can be summarized as follows [17]:
Photocatalytic reaction
TiO2 + hν → h+ + e−
Oxidation
H2 → 2H+ + 2e−
Reduction
CO2 + e− → CO2−
CO2− + H+ + e− → HCOO−
HCOO− + H+ → CO + H2O
H+ + e− → H
CO2 + 8H + 8e− → CH4 + 2H2O
In the reduction process, the same number of H+ and e− are necessary. Since the doping metal emits the electron which is contributed to prevent the recombination of h+ and e− [17], the number of H+ should be arranged. Therefore, the combination of doped metal type and reductants is important.
Though various metals have been used for doping, Cu and Pd are favorite candidates [2]. Cu can improve TiO2 photoactivity and selectivity in the CO2 photocatalytic application [2]. Cu can extend the absorption band to 400–800 nm [18,19] which covers the whole visible light range. It was reported that Cu/TiO2 was superior to pure TiO2. Cu/Cu+ fabricated Ti3+/TiO2 can produce 8 μmol/g of CH4 which is 2.6 times more than in the case of Ti3+/TiO2 [20]. Cu/TiO2 prepared by a facile solvothermal method had yields of CO and CH4 up to 4.48 μmol/g and 5.34 μmol/g, which are 10 times higher than those of TiO2 [21]. It was reported that the synthesized Cu2O/TiO2 showed a performance of 3.5 μmol/g of CO production while that of TiO2 was 0.1 μmol/g [18]. These results [18,20,21] were achieved by CO2 reduction with H2O under visible light illumination conditions. On the other hand, Pd can also extend the absorption band to 400 –800 nm [22,23], which covers the whole visible light range. Pd/TiO2 exhibited a higher reduction performance to produce hydrocarbons and H2 compared to pure TiO2 [22,23,24]. This is due to the work function of Pd, which reflects its electron donating or accepting ability. In addition, it is thought that Pd loaded on TiO2 functions to increase the efficiency of photogenerated electrons for the formation of reductive products. Pd/TiO2 nanowire produced 50.4 μmol/g of CO and 26.7 μmol/g of CH4 which were an improvement by 54% and 7%, respectively, compared to those of TiO2 nanowire [25]. The other study reported that the production of Pd/TiO2 was 3.50 μmol/g which was 2.5 times as large as that of pure TiO2 [26]. Pd/TiO2 prepared by a photochemical deposition method exhibited 0.28 μmol/g of CH4 which was 14 times as large as that of pure TiO2 (Degussa P-25) [27]. These results [25,26,27] were obtained from CO2 reduction with H2O under the visible light illumination conditions.
Though there are some reports on CO2 reduction with H2O or H2 [3,27], the effect of NH3 having 3H+, which is superior to H2O and H2, on CO2 reduction performance of photocatalyst is not investigated yet with the exception of the previous studies conducted by Nishiura et al. using Fe [28] or Cu [29]. In addition, other doped metals have not been investigated yet from the viewpoint of comparison of several metal ion types. When the combination of CO2/NH3/H2O is considered, the ion number of dopants is important to match the number of electrons emitted from the dopant with H+ as shown in the reaction scheme. The same number of electrons and H+ is necessary to produce fuel. The reaction scheme to reduce CO2 with NH3 can be summarized as shown below [15,30]:
Photocatalytic reaction
TiO2 + hν → h+ + e−
Oxidation
2NH3 → N2 + 3H2
H2 → 2H+ + 2e−
Reduction
H+ + e− → H
CO2 + e− → CO2
CO2− + H+ + e− → HCOO−
HCOO− + H+ → CO + H2O
CO2 + 8H + 8e− → CH4 + 2H2O
It is thought that the total amount of electron which is needed for photochemical reaction is large due to the combination of two H+ suppliers such as NH3 and H2O, according to the reaction scheme. Since Pd has a high reduction performance [23,24,31] which can assist the progress of reduction reaction in CO2 reduction with NH3 and H2O, this study selected Pd as a dopant as well as Cu.
The purpose of this study was to clarify the effect of doped metal type on the CO2 reduction characteristics of TiO2 with NH3 and H2O. The CO2 reduction performance with NH3 and H2O using Cu/TiO2 or Pd/TiO2 coated on netlike glass fiber as photocatalyst has been investigated under the illumination conditions of a Xe lamp with or without UV light. In the study, the ratio of CO2/NH3/H2O has been set at 1:1:1, 1:0.5:1, 1:1:0.5, 1:0.5:0.5, 3:2:3, 3:8:12, respectively, to determine the optimum molar ratio of CO2/NH3/H2O with Cu/TiO2 or Pd/TiO2 as photocatalyst. According to the reaction scheme to reduce CO2 with H2O or NH3, shown above, the theoretical molar ratio of CO2/H2O to produce CO or CH4 should be 1:1 or 1:4, respectively, while that of CO2/NH3 to produce CO or CH4 should be 3:2, 3:8, respectively. Therefore, this study assumes that the molar ratio of CO2/NH3/H2O = 3:2:3 and 3:8:12 are theoretical molar ratios to produce CO and CH4, respectively.

2. Materials and Method

2.1. Preparation of Cu/TiO2 and Pd/TiO2 Photocatalyst

TiO2 film was prepared by sol-gel and dip-coating process [29]. [(CH3)2CHO]4Ti (purity of 95 wt%, Nacalai Tesque Co., Kyoto, Japan) of 0.3 mol, anhydrous C2H5OH (purity of 99.5 wt%, Nacalai Tesque Co., Kyoto, Japan) of 2.4 mol, distilled water of 0.3 mol, and HCl (purity of 35 wt%, Nacalai Tesque Co., Kyoto, Japan) of 0.07 mol were mixed for preparing TiO2 sol solution. This study coats TiO2 film on netlike glass fiber (SILIGLASS U, Nihonmuki Co., Kyoto, Japan) by a sol-gel and dip-coating process. Glass fiber having diameter of about 10 μm weaved as a net is collected to give a diameter of approximately 1 mm. The pore diameter of the glass fiber and the specific surface area are approximately 1 nm and 400 m2/g, respectively from the specifications of the netlike glass fiber. The netlike glass fiber is composed of SiO2 (96 wt%). The opening space of the net glass is approximately 2 mm × 2 mm. Since the netlike glass fiber has porous characteristics, the netlike glass fiber can capture TiO2 film easily during the sol-gel and dip-coating process. Additionally, we can expect that CO2 is more easily absorbed by the prepared photocatalyst due to the porous characteristics of the netlike glass fiber. This study cut the netlike glass fiber into disc forms having a diameter and thickness of 50 mm and 1 mm, respectively. The netlike glass disc was dipped into a TiO2 sol solution at the speed of 1.5 mm/s and pulled up it at the fixed speed of 0.22 mm/s. After that, the net was dried out and fired under a controlled firing temperature (FT) and firing duration time (FD) to fasten TiO2 film on the base material. This study set FT and FD at 623 K and 180 s, respectively.
After the coating of TiO2, this study loaded Cu or Pd on the TiO2 coated netlike glass fiber by a pulse arc plasma gun method [29] emitting nanosized Cu or Pd particles uniformly under an applied high voltage potential difference. The pulse number can control the quantity of metal loaded on TiO2. This study set the pulse number at 100. This study applied an ARL-300pulse arc plasma gun device (ULVAC, Inc., Chigasaki, Japan) with a Cu or Pd electrode whose diameter was 10 mm for Cu or Pd loading, respectively. After the netlike glass fiber coated with TiO2 was set in the evacuated vessel of the pulse arc plasma gun device, the Cu or Pd electrode emitted nanosized Cu or Pd particles by applying a voltage potential difference of 200 V. The pulse arc plasma gun can evaporate Cu or Pd electrodes into fine particle form over the target in a concentric area whose diameter is 100 mm under the condition that the distance between Cu or Pd electrode and the target is set to be 160 mm. Due to the distance between Cu or Pd electrode and TiO2 film of 150 mm, these conditions can uniformly spread Cu or Pd particles over the TiO2 film.

2.2. Characterization of Cu/TiO2 and Pd/TiO2 Film

This study evaluated the structure and crystallization characteristics of Cu/TiO2 film and Pd/TiO2 film by SEM (JXA-8530F, produced by JEOL Ltd., Tokyo, Japan), EPMA (JXA-8530F, produced by JEOL Ltd., Tokyo, Japan) [29], TEM (JEM-2100/HK, JEOL Ltd., Tokyo, Japan), EDX (JEM-2100F/HK, JEOL Ltd., Tokyo, Japan), STEM (JEM-ARM200F, JEOL Ltd., Tokyo, Japan), EDS (JEM-ARM200F, JEOL Ltd., Tokyo, Japan) and EELS (JEM-ARM2007 Cold, produced by JEOL Ltd., Tokyo, Japan) [32].
These measuring instruments use electrons to characterize materials, meaning that the samples should conduct electricity. Because the netlike glass disc used for base material to coat Cu/TiO2 or Pd/TiO2 film can’t conduct electricity, a carbon vapor was depositied by a dedicated device (JEE-420, produced by JEOL Ltd., Tokyo, Japan) on the netlike glass discs before characterization. The thickness of the carbon deposited on samples is controlled to be approximately 20–30 nm. The electrode emits the electrons to the sample by setting the acceleration voltage of 15 kV and the current at 3.0 × 10−8 A in order to analyze the external structure of samples by SEM. After the X-ray characteristics are analyzed by EPAM, the concentration of chemical elements is clarified referring to the relationship between the characteristic X-ray energy and the atomic number. SEM and EPMA have a spatial resolution of 10 mm. The EPMA analysis can help clarify the structure of the prepared photocatalysts as well as to measure the quantity of loaded metal within TiO2 film on the netlike glass disc as base material. The electron probe emits electrons to the sample at the acceleration voltage of 200 kV, when the inner structure of the sample is analyzed by TEM and STEM. The size, thickness and structure of loaded Cu and Pu were evaluated by TEM and STEM, respectively. The X-ray characteristics of the sample is detected by EDX and EDS at the same time, so the concentration distribution of chemical element in the thickness direction of the samples is known. The size, thickness and structure of loaded Cu and Pd were evaluated by TEM and STEM, respectively. The characterization of X-ray is detected by EDX and EDS at the same time, resulting in that the concentration distribution of chemical elements in the thickness direction of the samples is analyzed. EELS is used to detect elements as well as to determine the oxidation states of transition metals. The EELS characterization was determined by a JEM-ARM200F system equipped with GIF Quantum having 2048 ch. The dispersion of 0.5 eV/ch for the full width ad half maximum of the zero loss peak was measured in this study.

2.3. CO2 Reduction Experiment

Figure 1 illustrates the experimental set-up of the reactor consisting of a stainless tube with dimensions of 100 mm (H.) × 50 mm (I.D.), Cu/TiO2 film coated on netlike glass disc having the scale of 50 mm (D.) × 1 mm (t.) positioned on a Teflon cylinder having dimensions of 50 mm (H.) × 50 mm (D.), a quartz glass disc of 84 mm (D.) × 10 mm (t.), a sharp cut filter cutting off the light whose wavelength is below 400 nm (SCF-49.5C-42L, produced by Sigma Koki Co. Ltd., Tokyo, Japan), a 150 W Xe lamp (L2175, produced by Hamamatsu Photonics K. K., Hamamatsu, Japan), mass flow controller and CO2 gas cylinder [29]. The reactor size to charge CO2 is 1.25 × 10−4 m3. The light of Xe lamp which is positioned on the top of the stainless tube illuminates Cu/TiO2 film or Pd/TiO2 coated on the netlike glass disc through the sharp cut filter and the quartz glass disc that are located on the top of the stainless tube. Xe lamp has the wavelength of light ranged from 185 nm to 2000 nm. The sharp cut filter can get rid of UV from the Xe lamp, resulting that the wavelength of light illuminating to Cu/TiO2 film or Pd/TiO2 film ranges from 401 nm to 2000 nm with the filter. In this study, the average light intensity of Xe lamp without and with the sharp cut filter is 58.7 mW/cm2 and 47.1 mW/cm2, respectively.
After filling CO2 gas of 99.995 vol% purity in the reactor which was pre-evacuated by a vacuum pump for 15 min, the valves positioned at the inlet and the outlet of reactor were closed in the CO2 reduction experiment with NH3 + H2O. After that, we confirmed that the pressure and gas temperature in the reactor at 0.1 MPa and 298 K, respectively. Then, we injected NH3 aqueous solution (NH3; 50 vol%), which was changed depending on the planed molar ratio, into the reactor via gas sampling tap, and turned on Xe lamp at a time. Due to the heat of infrared light components illuminated from Xe lamp, the injected NH3 aqueous solution vaporized completely in the reactor. The temperature in the reactor reached at 343 K within an hour and it was maintained at approximately 343 K during the experiment. We changed the molar ratio of CO2/NH3/H2O at 1:1:1, 1:0.5:1, 1:1:0.5, 1:0.5:0.5, 3:2:3, 3:8:12, respectively. The reacted gas in the reactor was extracted by gas syringe via gas sampling tap and it was analyzed by FID gas chromatography (GC353B, GL Science, Tokyo, Japan) and a methanizer (MT221, GL Science, Tokyo, Japan). The FID gas chromatograph and methanizer have a minimum resolution of 1 ppmV.

3. Results and Discussion

3.1. Characterization Analysis of Cu/TiO2 and Pd/TiO2 Film

Figure 2 and Figure 3 show SEM and EPMA images of Cu/TiO2 and Pd/TiO2 film coated on netlike glass disc, respectively. Black and white SEM images at 1500 times magnification were obtained in this study, which were also used for EPAM analysis. As to the EPMA image, the concentrations of each element in observation area are displayed by diverse colors. Light colors, e.g., white, pink, and red are used to display a large amount of an element. On the other hand, dark colors like black and blue are used to display a small amount of element. According to Figure 2 and Figure 3, it is observed that TiO2 film having teeth-like shape coated on the netlike glass fiber is formed irrespective of pulse number. Since the thermal conductivity of Ti and SiO2 at 600 K are 19.4 W/(m·K) and 1.82 W/(m·K), respectively [33], the temperature distribution of TiO2 solution adhered on the net like glass disc was not even during the firing process. Thermal expansion and shrinkage around netlike glass fibers occurred, resulting in the formation of thermal cracks within the TiO2 film. Therefore, it is believed that TiO2 film on netlike glass fiber has a teeth-like form. In addition, it was found that nanosized Cu and Pd particles were loaded on TiO2 film uniformly. The observation area which is the center of netlike glass disc having the diameter of 300 μm was analyzed by EPMA to measure the amount of loaded Cu or Pd within the TiO2 film. The ratio of Cu or Pd to Ti is calculated by averaging the data detected in this area. The weight percentage of element Cu within Cu/TiO2 film was 1.62 wt%, while the weight percentage of element Pd within Pd/TiO2 film was 1.64 wt%. The weight percentages of loaded Cu and Pd were almost the same, indicating that pulse arc plasma gun method could control the amount of metal doped on TiO2 irrespective of metal type. On the other hand, total weights of Cu/TiO2 and Pd/TiO2 which were measured by an electron balance and averaged among 10 samples are 0.05 g and 0.07 g, respectively.
Figure 4 and Figure 5 show TEM and EDX images of Cu/TiO2 film, respectively. EDX analysis was carried out using TEM images taken at 15,000 times magnification. It is observed from Figure 5 that Cu particles are distributed in the TiO2 film. Although many Cu particles are loaded on the upside of TiO2 film, it is not confirmed that a Cu layer is formed [32].
Figure 6 shows STEM and EDS results of Pd/TiO2 film coated on the netlike glass disc. A 250,000 times magnification STEM image was used in the EDS. It is observed from the STEM image that Pd is coated on the TiO2 film, which is confirmed by EDS images, too. It is also observed that the layers of Pd and Ti are separated. It is seen that the thickness of the Pd coated is approximately 60 nm. The observation area is small compared to EPMA images shown in Figure 3, suggesting that nano-sized Pd particles are loaded on TiO2 dispersedly [34].
Figure 7 shows the EELS spectra of Cu in Cu/TiO2 film. According to this figure, peaks at around 932 eV and 952 eV can be observed. Compared to a report investigating the spectral peaks of Cu2O and CuO [35], the EELS spectra of Cu2O matches Figure 7. Therefore, Cu in Cu/TiO2 prepared in this study exists as Cu+ ion in Cu2O. It was reported that Cu+ was more active than Cu2+ [36]. Consequently, it is expected that Cu+ plays a role in enhancing the CO2 reduction performance.
Figure 8 shows EELS spectra of Pd in Pd/TiO2 film which displays peaks at around 540 eV. Comparing the spectra peaks of Pd nanowire with that of Pd metal and PdO [28], it is seen that the EELS spectra of Pd metal matches that in Figure 8. Therefore, it can be thought that Pd in Pd/TiO2 prepared in this study exists as Pd metal. Since the photoreduction performance of Pd/TiO2 was higher than that of PdO/TiO2 [31,37], it is confirmed that the desirable Pd/TiO2 without oxidation was prepared in this study.

3.2. CO2 Reduction Characteristics of Cu/TiO2

Table 1 and Table 2 list the changes in molar quantity of CO per unit weight of photocatalyst for Cu/TiO2 film coated on netlike glass disc with the time under the condition of Xe lamp illumination with and without UV light, respectively. In these tables, the impact of molar ratio of CO2, NH3 and H2O is also evaluated. In addition, fuels other than CO were not detected in this study. Before this experiment, a blank test under the condition of CO2/NH3/H2O or CO2/H2O without Xe lamp illumination had been carried out as a reference, resulting that no fuel was detected as expected. As to the reproducibility of experiments, this study shows the data from averaging three experiments. Table 1 and Table 2 also list the maximum value of molar quantity of CO per unit weight of photocatalyst which is written in bold font.
It can be seen from Table 1 that the CO2 reduction performance for the molar ratio of CO2/NH3/H2O = 1:1:1 is the highest where the molar quantity of CO per unit weight of photocatalyst is 10.2 μmol/g at 6 h. According to the reaction scheme of CO2 reduction with H2O or NH3 shown above, the theoretical molar ratio of CO2/H2O to produce CO or CH4 is 1:1 or 1:4, respectively. In addition, the theoretical molar ratio of CO2/NH3 to produce CO or CH4 is 3:2, 3:8, respectively. Based on these theoretical molar ratios, the molar ratio of CO2/NH3/H2O = 3:2:3 should be the theoretical molar ratio to produce CO. However, it is revealed that the molar ratio of CO2/NH3/H2O = 1:1:1, which exhibits the highest performance of CO production as shown in Table 1, is different from the theoretical molar ratio assumed. Since the ionized Cu doped with TiO2 can provide free electrons to be used for the reduction reaction process [38,39], the theoretically required quantity of the reductant NH3 and H2O is reduced from the values according to the theoretical reaction scheme with TiO2 i.e., CO2/NH3/H2O = 3:3:3 to 3:2:3. It is also observed from Table 1 that the produced CO decreases after reaching a maximum value. It is believed that the decrease in the produced CO was caused by the reoxidation reaction with CO and O2 [40], and not caused by the deactivation of the photocatalyst.
As to the impact of NH3 on CO2 reduction characteristics using Cu/TiO2, the authors’ previous study [30] had drawn the following conclusions: Comparing the concentration change of CO along the time under the Xe lamp with UV light for the molar ratio of CO2/H2O = 1:1 to that for the molar ratios of CO2/NH3/H2O = 1:1:1, 1:0.5:1, 3:2:3, it is observed that the concentration of formed CO for the molar ratio of CO2/H2O = 1:1 shows the peak soon after the start of illumination of Xe lamp and decreases gradually. It is also observed that the concentration of formed CO for the molar ratios of CO2/NH3/H2O = 1:1:1, 1:0.5:1, 3:2:3 are larger than that for the molar ratio of CO2/H2O = 1:1. In addition, the decrease of formed CO is small after the concentration of formed CO performs the highest value compared to the molar ratio of CO2/H2O = 1:1. Therefore, it is revealed that the combination of NH3 and H2O, that is, the existence of NH3 is effective for the promotion of the CO2 reduction performance of prepared photocatalyst. On the other hand, comparing the concentration change of CO along the time under the Xe lamp with UV light for the molar ratio of CO2/H2O = 1:0.5 to that for the molar ratio of CO2/NH3/H2O = 1:1:0.5, 1:0.5:0.5, it is observed that the concentration of formed CO for the molar ratio of CO2/H2O = 1:0.5 shows the peak soon after the start of illumination of Xe lamp and decreases gradually, which displays the same tendency as the result for the molar ratio of CO2/H2O = 1:1. It is also observed that the concentration of CO for the molar ratios of CO2/NH3/H2O = 1:1:0.5 and 1:0.5:0.5 are larger than that for the molar ratio of CO2/H2O = 1:0.5. In addition, the concentration of formed CO keeps some value approximately without rapid decrease before 24 h for CO2/NH3/H2O conditions compared to the molar ratio of CO2/H2O = 1:0.5. According to the reaction scheme to reduce CO2 with NH3 as shown above, the more reaction step is needed to produce CO since NH3 should be converted into H2 at first. Consequently, it is believed that the time to produce CO is longer compared to the molar ratio of CO2/H2O = 1:0.5. Moreover, comparing the concentration change of formed CO along the time under the Xe lamp with UV light for the molar ratio of CO2/H2O = 3:12 to that for the molar ratio of CO2/NH3/H2O = 3:8:12, it is observed that the concentration of formed CO for the molar ratio of CO2/H2O = 3:12 shows the peak soon after the illumination of Xe lamp and decreases gradually. In addition, the concentration of formed CO restarts to increase gradually and decrease again. This trend is different from the other CO2/H2O condition. The ratio of H2O is larger in this condition compared to the others, which indicates larger reductants provided for reduction reaction. Therefore, it is thought to keep CO production even though the oxidization reaction with CO and O2 starts, which is the reason for the decrease in concentration of CO. Furthermore, it is also observed that the concentration of formed CO for the molar ratio of CO2/NH3/H2O = 3:8:12 is larger than that for the molar ratio of CO2/H2O = 3:12. Consequently, it is revealed that the combination of NH3 and H2O, that is, the existence of NH3, is effective for promotion of the CO2 reduction performance of prepared photocatalyst for all conditions of CO2/NH3/H2O. When comparing the highest quantity produced CO in the case of CO2/NH3/H2O = 3:8:12 to that in the case of CO2/H2O = 3:12, it is confirmed that the highest produced CO in the case of molar ratio of CO2/NH3/H2O = 3:8:12 is approximately three times as large as that in the case of molar ratio of CO2/H2O = 3:12. Consequently, it is clear that NH3 could promote CO2 reduction performance of Cu/TiO2.
It can be seen from Table 2 that the CO2 reduction performance for the molar ratio of CO2/NH3/H2O = 1:0.5:0.5 is the highest where the molar quantity of CO per unit weight of photocatalyst is 2.5 μmol/g. In addition, Table 2 also reveals that the amount of total reductants required is smaller than that in the case with UV light shown in Table 1. When the Xe lamp is illuminated without UV light, the light intensity and wavelength range of light are smaller and narrower respectively, compared to the condition with UV light as described above. According to the reaction scheme of CO2 reduction with H2O or NH3 that an electron is produced by the photochemical reaction which is influenced by the light illumination condition. Additionally, H+ whose amount is the same as that of electron is needed to produce CO. Since the number produced electrons might be smaller due to the less light input without UV, it is believed that the numbers of required H+ are small. Therefore, the CO2 reduction performance for the molar ratio of CO2/NH3/H2O = 1:0.5:0.5 was the highest, while total reductants required were smaller than that in the case with UV light.
Table 3 and Table 4 show the trends in molar quantity of CO per unit weight of photocatalyst (Pd/TiO2) under the condition of Xe lamp illumination with and without UV light, respectively. Table 3 and Table 4 also list the maximum value of molar quantity of CO per unit weight of photocatalyst which is written in bold font. It is seen from Table 3 that the highest CO2 reduction performance reached at the illumination time of Xe lamp with UV light of 12 h irrespective of molar ratio of CO2/NH3/H2O. Though it is observed from Table 3 that the molar quantity of CO per unit weight of photocatalyst for the molar ratio of CO2/NH3/H2O = 3:2:3 has the highest value at the illumination time of 12 h, the molar quantity of CO per unit weight of photocatalyst decreased rapidly after 12 h. In these figures, the impact of molar ratio of CO2, NH3 and H2O is also presented. Additionally, the other fuels except for CO were not detected in this study. Before the experiment, a blank test without Xe lamp illumination had been carried out as a reference, resulting that no fuel was detected as expected. As to the reproducibility of experiments, this study shows the data from three averaged experiments.
According to Table 3, with the UV illumination, the CO2 reduction performance for the molar ratio of CO2/NH3/H2O = 1:1:1 is the highest where the molar quantity of CO per unit weight of photocatalyst is 5.5 μmol/g. Though this study assumes that the molar ratio of CO2/NH3/H2O = 3:2:3 is the theoretical molar ratios to produce CO, it is revealed that the optimum molar ratio of CO2/NH3/H2O is 1:1:1. Additionally, the molar ratio exhibiting the highest CO2 reduction performance for Pd/TiO2 is the same as that for Cu/TiO2. As described above, since the ionized Cu doped with TiO2 can provide free electron to be used for the reduction reaction process [39], the theoretically required quantity of the reductants of NH3 and H2O is reduced from the values according to the theoretical reaction scheme i.e., CO2/NH3/H2O = 3:3:3 to 3:2:3. According to the EELS spectra analysis as shown above, it is believed that Pd in Pd/TiO2 prepared in this study was in the form of Pd metal, which is the different from Cu+ ion in Cu/TiO2 prepared in this study.
Moreover, it can be seen from Table 4 that, without UV light illumination, the CO2 reduction performance for the molar ratio of CO2/NH3/H2O = 1:1:1 is the highest where the molar quantity of CO per unit weight of photocatalyst is 3.5 μmol/g. This optimum molar ratio (1:1:1) without UV light illumination is the same as the optimum molar ratio with UV light illumination. However, it is different from the optimum molar ratio obtained with Cu/TiO2 photocatalyst. Pd acts as an electron-transfer mediator, rapidly transferring the photoexcited electrons from the conduction band of Pd/TiO2 and the photoexcited electrons are transported to the surface of Pd/TiO2 [24]. Although Cu can also act an electron-transfer mediator, Pd might conduct the higher performance compared to Cu. As a result, Pd/TiO2 exhibits better CO2 reduction performance than Cu/TiO2 under the visible light illumination condition [24]. The amount of light absorbed by Pd might be enough even the smaller light input under the illumination condition of Xe lamp without UV light. As a result, the required amount of needed H+ for CO2 reduction without UV light is not smaller than the case with UV light, which is different from the case of Cu/TiO2 without UV light. Consequently, the CO2 reduction performance with Pd/TiO2 at the molar ratio of CO2/NH3/H2O = 1:1:1 is the highest for Pd/TiO2 even the illumination condition of Xe lamp without UV light.

3.3. The Quantum Efficiency Evaluation

Quantum efficiency is a well-known criterion used to indicate the photocatalytic activity and efficiency [41]. The quantum efficiency is generally calculated by the following equations [34,42]:
η = (Noutput/Ninput) ×100
Ninput = (I × t × λ × Are)/(h × c)
Noutput = NCOMCONA
where η is the quantum efficiency [%], Ninput is the number of protons absorbed by photocatalyst [-], Noutput is the photon number used in photocatalytic reaction [-], I is the light intensity of UV light [W/cm2], t is the time illuminating UV light [s], λ is the wave length limit of light to trigger the photocatalytic reaction by photocatalyst [m], Are is the reaction surface area of photocatalyst assumed to be equal to the surface area of netlike glass disc [cm2], h is Plank’s constant (= 6.626 × 10−34) [J·s], c is light speed (= 2.998 × 109) [m/s], Nco is the electron number required to form CO of a molecular (=2) [-], Mco is the molar number of formed CO [mol], NA is Avogadro’s number (= 6.022 × 1023) [1/mol]. In this study, I averaged during all experiments where the illumination condition of Xe lamp with and without UV light were 58.7 mW/cm2 and 47.1 mW/cm2, respectively. t under both Xe lamp illumination condition with and without UV light were 345,600 s (96 h) in the case of Cu/TiO2 with UV light and without UV light as well as in the case of Pd/TiO2 without UV light, while t under both Xe lamp illumination condition with UV light was 43,200 s (12 h).
Figure 9 and Figure 10 show the comparison of quantum efficiencies among different molar ratios of CO2/NH3/H2O for Cu/TiO2 under the condition of Xe lamp illumination with and without UV light, respectively. It is revealed from Figure 9 and Figure 10 that the highest quantum efficiency under the condition of Xe lamp illumination with and without UV light is obtained for the molar ratio of CO2/NH3/H2O = 1:1:1 and 1:0.5:0.5, respectively, which agrees with the results shown in Table 1 and Table 2. Comparing the quantum efficiencies shown in Figure 9 and Figure 10, the highest quantum efficiency of 1.96 × 10−4 is obtained when the Xe lamp with UV light is illuminated. If illumination time, t for the molar ratio of CO2/NH3/H2O = 1:1:1 with UV light is 6 h when the highest molar quantity of CO per unit weight of photocatalyst is obtained, the highest quantum efficiency for Cu/TiO2 is 3.14 × 10−3.

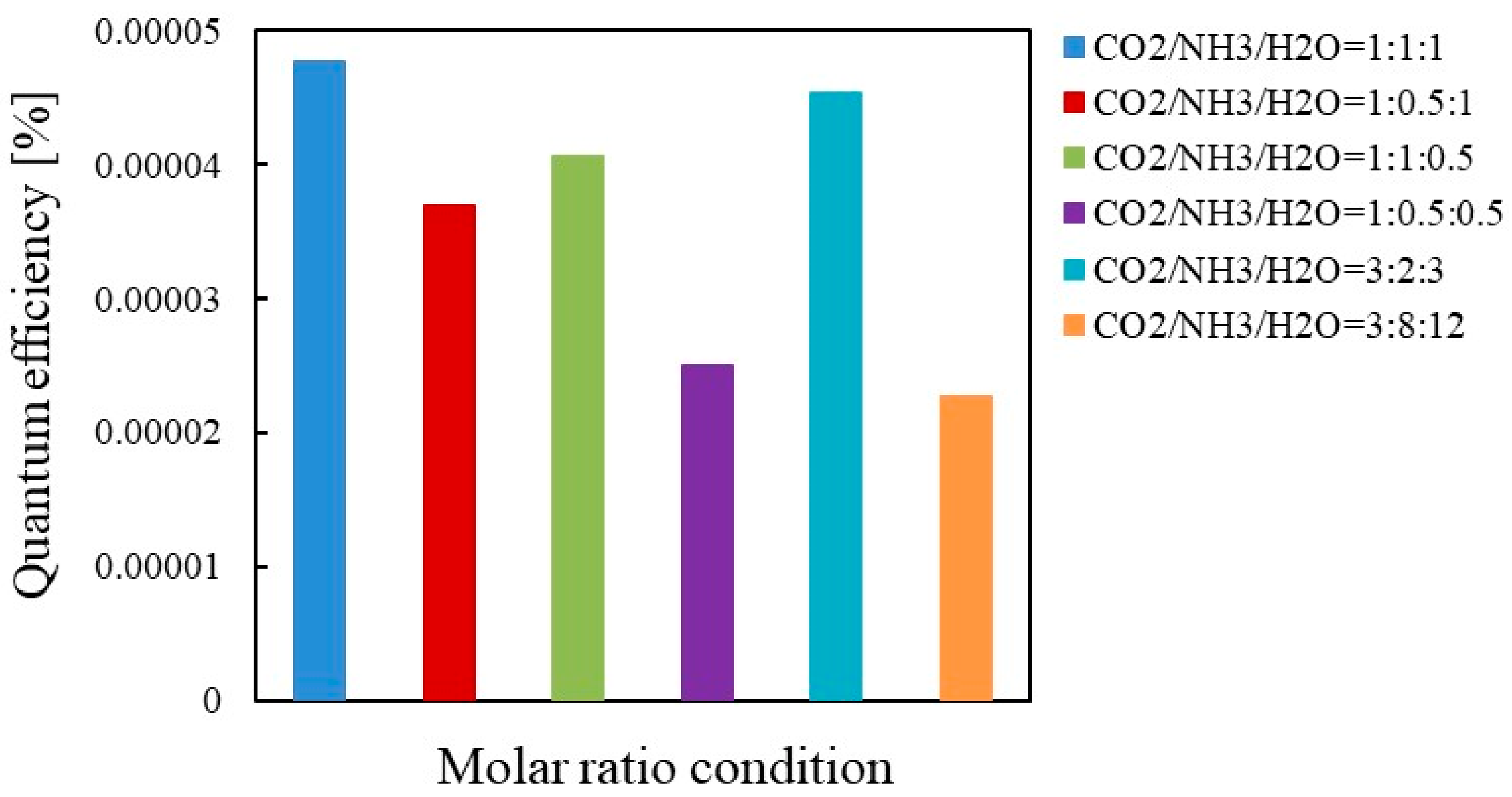

Figure 11 and Figure 12 show the comparison of quantum efficiencies among different molar ratios of CO2/NH3/H2O for Pd/TiO2 under the condition of Xe lamp illumination with and without UV light, respectively. Figure 11 and Figure 12 reveal that the highest quantum efficiency under the condition of Xe lamp illumination with and without UV light is obtained when the molar ratio of CO2/NH3/H2O is 1:1:1, which agrees the results shown in Table 3 and Table 4. Comparing the quantum efficiencies shown in Figure 11 and Figure 12, the highest quantum efficiency of 4.20×10−4 is obtained with UV light. If t is set at 96 h which is the same time as the case of Cu/TiO2, the highest quantum efficiency for Pd/TiO2 under the condition of Xe lamp illumination with UV light is 0.53 × 10−4.
According to the previous study [39], Cu/TiO2 (2 wt% of Cu) photocatalyst performed the quantum efficiency of producing CO of 1.56 × 10−2 in the case of CO2/H2O with UV light. Another study reported that Cu/TiO2 (1 wt% of Cu) performed the quantum efficiency of 1.41 × 10−2 in the case of CO2/H2O with UV light [43]. As to Pd/TiO2, there is no previous study evaluating quantum efficiency of CO production, except for the report [26] which estimated the quantum efficiency of producing CH4 of 1.49 with Pd/TiO2 (1 wt% of Pd) and NaOH solution as the reductant.
The quantum efficiency obtained in the current study is lower than that obtained in previous studies. The reason is thought to be that the total amount of electron needed in this study for photochemical reaction is too large due to the combination of two H+ supplies i.e., NH3 and H2O. It is thought that, (i) capturing the maximum visible light region, and (ii) draining the photogenerated charges on light irradiation towards Cu/TiO2 surface [44], which may be possible ways to improve the quantum efficiency.
This study has confirmed that Cu/TiO2 is superior to Pd/TiO2 from the viewpoint of the molar quantity of CO per unit weight of photocatalyst as well as the quantum efficiency. As the next step, it can be considered to improve the CO2 reduction performance of TiO2 with NH3 and H2O further. Combination of different doped metals is one way to promote the CO2 reduction performance further in the near future. According to the previous studies [42,45,46], the co-doped TiO2 such as PbS-Cu/TiO2, Cu-Fe/TiO2, Cu-Ce/TiO2, Cu-Mn/TiO2, Cu-CdS/TiO2 and Au-Pd/TiO2 were able to promote the CO2 reduction performance of TiO2 with H2O. For the combination of CO2/NH3/H2O, the ion number of the dopant had better match the number of electrons emitted from the dopant with that of H+ according to the reaction scheme shown above. The same number of electrons and H+ is necessary to produce fuel from CO2. Although this study dopes only one metal in order to promote the CO2 reduction performance using TiO2, co-doping metals, which have larger positive ions compared to Cu, can provide a positive effect to promote the CO2 reduction performance with NH3 and H2O. Therefore, it is expected that the CO2 reduction performance will be promoted by the combination of different doped metals in the case of CO2/NH3/H2O.

4. Conclusions

From the investigation in this study, the following conclusions can be drawn:
(1)
TiO2 film coated on netlike glass fiber was teeth like. Cu and Pd particles were loaded on TiO2 film uniformly. It is confirmed that the pulse arc plasma gun method can control the amount of metal doped on TiO2 irrespective of metal type.
(2)
Cu in Cu/TiO2 prepared in this study exists as Cu+ ion in Cu2O. Pd in Pd/TiO2 prepared in this study exists as Pd metal.
(3)
In the case of Cu/TiO2 under the illumination condition of Xe lamp with UV light, the CO2 reduction performance for the molar ratio of CO2/NH3/H2O = 1:1:1 was the highest where the molar quantity of CO per unit weight of photocatalyst was up to 10.2 mol/g.
(4)
In the case of Cu/TiO2 under the illumination condition of Xe lamp without UV light, the CO2 reduction performance for the molar ratio of CO2/NH3/H2O = 1:0.5:0.5 was the highest where the molar quantity of CO per unit weight of photocatalyst was 2.5 mol/g.
(5)
In the case of Pd/TiO2 under the illumination condition of Xe lamp with UV light, the CO2 reduction performance for the molar ratio of CO2/NH3/H2O = 1:1:1 was the highest where the molar quantity of CO per unit weight of photocatalyst was up to 5.5 mol/g.
(6)
In the case of Pd/TiO2 under the illumination condition of Xe lamp without UV light, the CO2 reduction performance for the molar ratio of CO2/NH3/H2O = 1:1:1 was the highest where the molar quantity of CO per unit weight of photocatalyst was up to 3.5 mol/g.
(7)
As to Cu/TiO2, the highest quantum efficiency was 1.96 × 10−4 under the illumination condition of Xe lamp with UV light. On the other hand, it was 3.14 × 10−3 if t was set at 6 h when the highest molar quantity of CO per unit weight of photocatalyst was obtained.
(8)
As to Pd/TiO2, the highest quantum efficiency was 4.20 × 10−4 under the illumination condition of Xe lamp with UV light. On the other hand, it was 0.53 × 10−4 if t was set at 96 h which was the same illumination time of Xe lamp as Cu/TiO2.

Author Contributions

Conceptualization, A.N.; data curation, R.S. and Y.S.; methodology, A.K.; writing-original draft preparation, A.N.; writing-review, E.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are openly available for all figures and tables.

Conflicts of Interest

The author declares no conflict of interest.

Sample Availability

Samples of the compounds are not available from the authors.

References

  1. Global Monitoring Laboratory. Available online: https://www/esrl/noaa.gov/gmd/ccgg/trends/global/html (accessed on 15 December 2020).
  2. Tahir, M.; Amin, N.S. Advances in Visible Light Responsive Titanium Oxide-based Photocatalyts for CO2 Conversion to Hydrocarbon Fuels. Energy Conv. Manag. 2013, 76, 192–214. [Google Scholar] [CrossRef]
  3. Matavos-Aramyan, S.; Soukhakian, S.; Jazebizadeh, H.M.; Moussavi, M.; Hojjati, M.R. On Engineering Strategies for Photoselective CO2 Reduction—A through Review. Appl. Mater. Today 2020, 18, 100499. [Google Scholar] [CrossRef]
  4. Remiro-Buenamanana, S.; Garcia, H. Photoassisted CO2 Conversion to Fuels. ChemCatChem Minirev. 2019, 11, 342–356. [Google Scholar] [CrossRef]
  5. Abdullah, H.; Khan, M.M.R.; Ong, H.R.; Yaakob, Z. Modified TiO2 Photocatalyst for CO2 Photocatalytic Reduction: An Overview. J. CO2 Utilizat. 2017, 22, 15–32. [Google Scholar] [CrossRef]
  6. Tahir, M.; Amin, N.S. Indium-doped TiO2 Nanoparticles for Photocatalytic CO2 Reduction with H2O Vapors to CH4. Appl. Catal. B Envion. 2015, 162, 98–109. [Google Scholar] [CrossRef]
  7. Sohn, Y.; Huang, W.; Taghipour, F. Recent Progress and Perspectives in the Photocatalytic CO2 Reduction of Ti-oxide-based Nanomaterials. Appl. Surface Sci. 2017, 396, 1696–1711. [Google Scholar] [CrossRef]
  8. Hashermizadeh, I.; Golovko, V.B.; Choi, J.; Tsang, D.C.W.; Yip, A.C.K. Photocatalytic Reduction of CO2 to Hydrocarbons Using Bio-templated Porous TiO2 Architectures under UV and Visible Light. Chem. Eng. J. 2018, 347, 64–73. [Google Scholar] [CrossRef]
  9. Kumar, A.; Kumar, P.; Borkar, R.; Bansiwal, A.; Labhsetwar, N.; Jain, S.L. Metal-organic Hybrid: Photoreduction of CO2 Using Graphic Carbon Nitride Supported Heteroleptic Iridium Complex under Visible Light Irradiation. Carbon 2017, 123, 371–379. [Google Scholar] [CrossRef]
  10. Camarillo, R.; Toston, S.; Martinez, F.; Jimenez, C.; Rincon, J. Preparation of TiO2-based Catalyst with Supercritical Fluid Technology: Characterization and Photocatalytic Activity in CO2 Reduction. J. Chem. Tech. Biotechnol. 2017, 92, 1710–1720. [Google Scholar] [CrossRef]
  11. Lin, L.Y.; Nie, Y.; Kavadiya, S.; Soundappan, T.; Biswas, P. N-doped Reduced Graphene Oxide Promoted Nano TiO2 as a Bifunctional Adsorbent/Photocatalyst for CO2 Photoreduction: Effect of N Species. Chem. Eng. J. 2017, 316, 449–460. [Google Scholar] [CrossRef] [Green Version]
  12. Low, J.; Cheng, B.; Yu, J. Surface Modification and Enhanced Photocatalytic CO2 Reduction Performance of TiO2: A Review. Appl. Surf. Sci. 2017, 392, 658–686. [Google Scholar] [CrossRef]
  13. Rej, S.; Bisetto, M.; Naldoni, A.; Fornasiero, P. Well-defined Cu2O Photocatalysts for Solar Fuels and Chemicals. J. Mater. Chem. A 2021, 9, 5915–5951. [Google Scholar] [CrossRef]
  14. Goren, Z.; Willner, I.; Nelson, A.J. Selective Photoreduction of CO2/HCO3− to formate by aqueous suspensions and colloids of Pd-TiO2. J. Physic. Chem. 1990, 94, 3784–3790. [Google Scholar] [CrossRef]
  15. Tseng, I.H.; Chang, W.C.; Wu, J.C.S. Photoreduction of CO2 Using Sol-gel Derived Titania and Titania-supported Copper Catalysts. Appl. Catal. B 2002, 37, 37–38. [Google Scholar] [CrossRef]
  16. Izumi, Y. Recent Advances in the Photocatalytic Conversion of Carbon Dioxide to Fuels with Water and/or Hydrogen Using Solar Energy and Beyond. Coordin. Chem. Rev. 2013, 257, 171–186. [Google Scholar] [CrossRef] [Green Version]
  17. Lo, C.C.; Hung, C.H.; Yuan, C.S.; Wu, J.F. Photoreduction of Carbon Dioxide with H2 and H2O over TiO2 and ZrO2 in a Circulated Photocatalytic Reactor. Solar Energy Mater. Sci. 2007, 91, 1765–1774. [Google Scholar] [CrossRef]
  18. Aguirre, M.E.; Zhou, R.; Eugene, A.J.; Guzman, M.I.; Grela, M.A. Cu2O/TiO2 Heterostructure for CO2 Reduction through a Direct Z-scheme: Protecting Cu2O from Photocorrosion. Appl. Catal. B Environ. 2017, 217, 485–493. [Google Scholar] [CrossRef]
  19. Kavil, Y.N.; Shaban, Y.A.; Farawati, R.K.A.; Orif, M.I.; Zobidi, M.; Khan, S.U.M. Photocatalytic Conversion of CO2 into Methanol over Cu-C/TiO2 Nanoparticles under UV Light and Natural Sunlight. J. Photochem. Photobiol. A Chem. 2017, 347, 244–253. [Google Scholar] [CrossRef]
  20. Zhu, S.; Chen, X.; Li, Z.; Ye, X.; Liu, Y.; Chen, Y.; Yang, L.; Chen, M.; Zhang, D.; Li, G.; et al. Cooperation between Inside and Outside of TiO2: Lattice Cu+ Accelerates Carrier Migration to the Surface of Metal Copper for Photocatalytic CO2 Reduction. Appl. Catal. B Environ. 2020, 264, 118515. [Google Scholar] [CrossRef]
  21. She, H.; Zhao, Z.; Bai, W.; Huang, J.; Wang, L.; Wang, Q. Enhanced Performance of Photocatalytic CO2 Reduction with Synergistic Effect between Chitosan and Cu: TiO2. Mater. Res. Bull. 2020, 124, 110758. [Google Scholar] [CrossRef]
  22. Chen, W.; Wang, Y.; Shangguan, W. Metal (oxide) modified (M = Pd, Ag, Au and Cu) H2SrTa2O7 for photocatalytic CO2 reduction with H2O: The effect of cocatalysts on promoting activity toward CO and H2 evolution. Int. J. Hydrogen Energy 2019, 44, 4123–4132. [Google Scholar] [CrossRef]
  23. Yu, Y.; Lan, Z.; Guo, L.; Wang, E.; Yao, J.; Cao, Y. Synergetic effects of Zn and Pd species in TiO2 towards efficient photo-reduction of CO2 into CH4. New J. Chem. 2018, 42, 483–488. [Google Scholar] [CrossRef]
  24. Singhal, N.; Kumar, U. Noble metal modified TiO2: Selective photoreduction of CO2 to hydrocarbons. Mol. Catal. 2017, 439, 91–99. [Google Scholar] [CrossRef]
  25. Su, K.Y.; Chen, C.Y.; Wu, R.J. Preparation of Pd/TiO2 Nanowires for the Photoreduction of CO2 into Renewable Hydrocarbon Fuels. J. Taiwan Inst. Chem. Eng. 2019, 996, 409–418. [Google Scholar] [CrossRef]
  26. Yu, Y.; Zheng, W.; Cao, Y. TiO2-Pd/C Composited Photocatalyst with Improved Photocatalytic Activity for Photoreduction of CO2 into CH4. New J. Chem. 2017, 41, 3204–3210. [Google Scholar] [CrossRef]
  27. Yui, T.; Kan, A.; Saitoh, C.; Koike, K.; Ibusuki, T.; Ishitani, O. Photochemical Reduction of CO2 Using TiO2: Effects of Organic Absorbates on TiO2 and Deposition of Pd onto TiO2. ACS Appl. Mater. Int. 2011, 3, 2594–2600. [Google Scholar] [CrossRef]
  28. Nishimura, A.; Ishida, N.; Tatematsu, D.; Hirota, M.; Koshio, A.; Kokai, F.; Hu, E. Effect of Fe Loading Condition and Reductants on CO2 Reduction Performance with Fe/TiO2 Photocatalyst. Int. J. Photoenergy 2017, 2017. [Google Scholar] [CrossRef] [Green Version]
  29. Nishimura, A.; Sakakibara, Y.; Inoue, T.; Hirota, M.; Koshio, A.; Kokai, F.; Hu, E. Impact of Molar Ratio of NH3 and H2O on CO2 Reduction Performance over Cu/TiO2 Photocatalyst. Phys. Astron. Int. J. 2019, 3, 176–182. [Google Scholar]
  30. Nemoto, J.; Goken, N.; Ueno, K. Photodecomposition of Ammonia to Dinitrogen and Dihydrogen on Platinized TiO2 Nanoparticles in an Aqueous Solution. J. Photochem. Photobiol. A Chem. 2007, 185, 295–300. [Google Scholar] [CrossRef]
  31. Kočí, K.; Matějová, L.; Reli, M.; Čapek, L.; Matějka, V.; Lacný, Z.; Kuśtrowski, P.; Obalová, L. Solgel derived Pd supported TiO2-ZrO2 and TiO2 photocatalysts; their examination in photocatalytic reduction of carbon dioxide. Catal. Today 2014, 230, 20–26. [Google Scholar] [CrossRef]
  32. Nishimura, A.; Toyoda, R.; Tatematsu, D.; Hirota, M.; Koshio, A.; Kokai, F.; Hu, E. Optimum reductants ratio for CO2 reduction by overlapped Cu/TiO2. AIMS Mater. Sci. 2019, 6, 214–233. [Google Scholar] [CrossRef]
  33. Japan Society of Mechanical Engineering. JSME Heat Transfer Handbook, 1st ed.; Maruzen: Tokyo, Japan, 1993; pp. 366–369. [Google Scholar]
  34. Nishimura, A.; Inoue, T.; Sakakibara, Y.; Hirota, M.; Koshio, A.; Kokai, F.; Hu, E. Optimum molar ratio of H2 and H2O to reduce CO2 using Pd/TiO2. AIMS Mater. Sci. 2019, 6, 464–483. [Google Scholar] [CrossRef]
  35. Yang, G.; Cheng, S.; Li, C.; Zhong, J.; Ma, C.; Wang, Z.; Xiang, W. Investigation of the oxidization states of Cu additive in colored borosilicate glasses by electron energy loss spectroscopy. J. Appl. Phys. 2014, 116, 223707. [Google Scholar] [CrossRef]
  36. Liu, L.; Gao, F.; Zhao, H.; Li, Y. Tailoring Cu valence and oxygen vacancy in Cu/TiO2 catalysts for enhanced CO2 photoreduction efficiency. Appl. Catal. B Environ. 2013, 134–135, 349–358. [Google Scholar] [CrossRef]
  37. Nishimura, A.; Inoue, T.; Sakakibara, Y.; Hirota, M.; Koshio, A.; Hu, E. Impact of Pd loading on CO2 reduction performance over Pd/TiO2 with H2 and H2O. Molecules 2020, 25, 1468. [Google Scholar] [CrossRef] [Green Version]
  38. Jensen, J.; Mikkelsen, M.; Krebs, F.C. Flexible substrates as basis for photocatalytic reduction of carbon dioxide. Sol. Energy Mater. Sol. Cells 2011, 95, 2949–2958. [Google Scholar] [CrossRef]
  39. Paulino, P.N.; Salim, V.M.M.; Resende, N.S. Zu-Cu promoted TiO2 photocatalyst for CO2 reduction with H2O under UV light. Appl. Catal. B Environ. 2016, 185, 362–370. [Google Scholar] [CrossRef]
  40. Tahir, M.; Amin, N.A.S. Photo-induced CO2 reduction by hydrogen for selective CO evolution in a dynamic monolith photoreactor loaded with Ag-modified TiO2 nanocatalyst. Int. J. Hydrogen Energy 2017, 42, 15507–15522. [Google Scholar] [CrossRef]
  41. Hoque, M.A.; Guzman, G.J. Photocatalytic activity: Experimental features to report in heterogeneous photocatalysis. Materials 2018, 11, 1990. [Google Scholar] [CrossRef] [Green Version]
  42. Nahar, S.; Zain, M.F.; Kadhum, A.A.H.; Hasan, H.A.; Hasan, M.R. Advances in photocatalytic CO2 reduction with water: A review. Materials 2017, 10, 629. [Google Scholar] [CrossRef] [Green Version]
  43. Li, Y.; Wang, W.N.; Zhan, Z.; Woo, M.H.; Wu, C.Y.; Biswas, P. Photocatalytic reduction of CO2 with H2O on Mesoporous Silica Supported Cu/TiO2 Catalysts. Appl. Catal. B Environ. 2010, 100, 386–392. [Google Scholar] [CrossRef]
  44. Razzaq, A.; Ali, S.; Asif, M.; In, S.I. Layered double hydroxide (LDH) based photocatalysts: An outstanding strategy for efficient photocatalytic CO2 conversion. Catalyst 2020, 10, 1185. [Google Scholar] [CrossRef]
  45. Olowoyo, J.O.; Kumar, M.; Dash, T.; Saran, S.; Bhandari, S.; Kumar, U. Self-organized copper impregnation and doping in TiO2 with enhanced photocatalytic conversion of H2O and CO2 to fuel. Int. J. Hydrogen Energy 2018, 43, 19468–19480. [Google Scholar] [CrossRef]
  46. Jiao, J.; Wei, Y.; Zhao, Y.; Zhao, Z.; Duan, A.; Liu, J.; Pang, Y.; Li, J.; Jiang, G.; Wang, Y. AuPd/3DOM-TiO2 catalysts for photocatalytic reduction of CO2: High efficient separation of photogenerated charge carriers. Appl. Catal. B Environ. 2017, 209, 228–239. [Google Scholar] [CrossRef]
Molecules 26 02904 g001 550

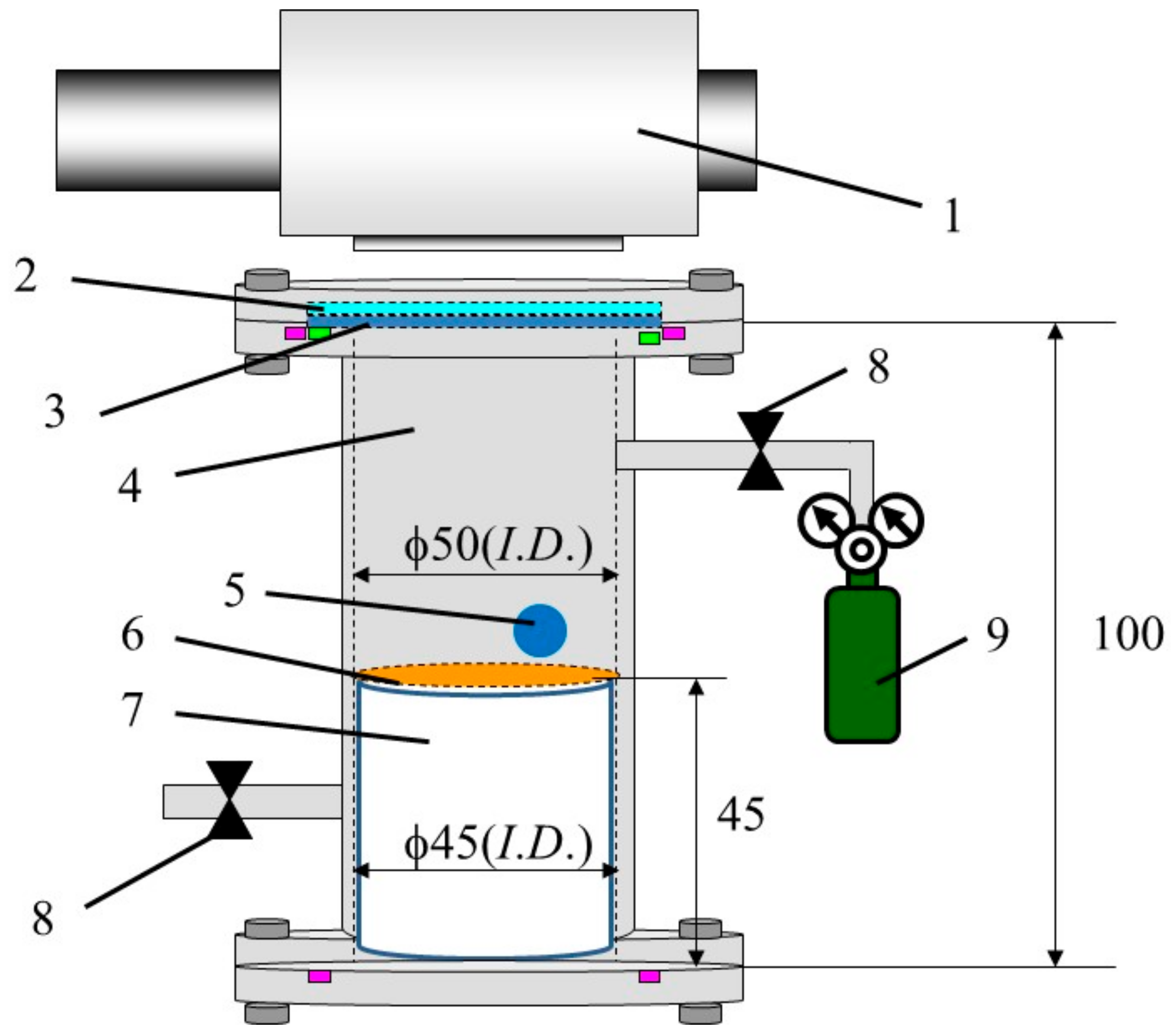

Figure 1. Experimental set-up for CO2 reduction (In this Figure, 1: Xe lamp, 2. Edge cut filter, 3. Quartz glass disc, 4. Stainless tube, 5. Gas sampling tap, 6. Photocatalyst, 7. Teflon cylinder, 8. Valve, 9. CO2 gas cylinder (99.995 vol%)).
Figure 1. Experimental set-up for CO2 reduction (In this Figure, 1: Xe lamp, 2. Edge cut filter, 3. Quartz glass disc, 4. Stainless tube, 5. Gas sampling tap, 6. Photocatalyst, 7. Teflon cylinder, 8. Valve, 9. CO2 gas cylinder (99.995 vol%)).
Molecules 26 02904 g001
Molecules 26 02904 g002 550

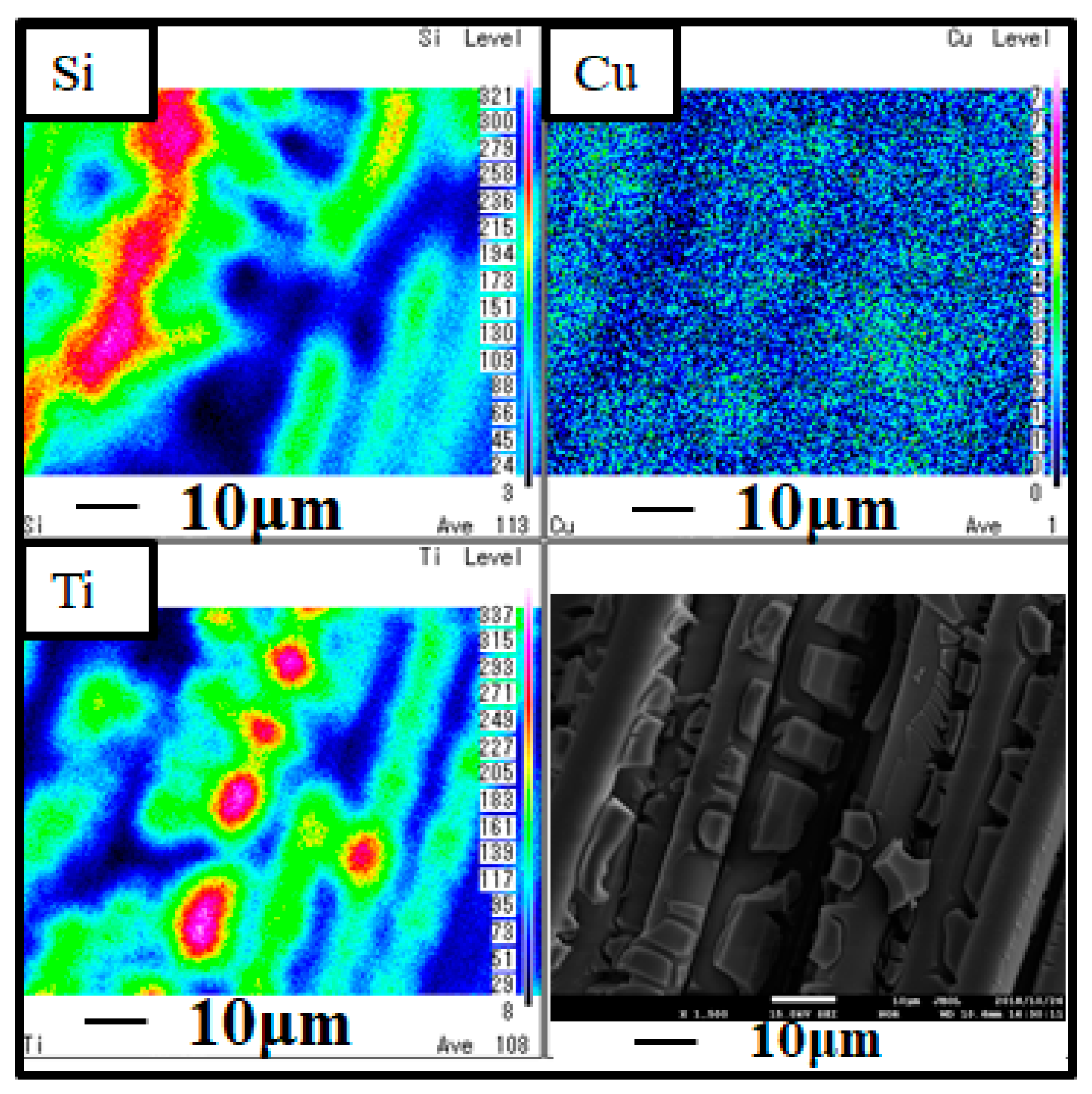

Figure 2. SEM and EPMA results of Cu/TiO2 film coated on netlike glass disc.
Figure 2. SEM and EPMA results of Cu/TiO2 film coated on netlike glass disc.
Molecules 26 02904 g002
Molecules 26 02904 g003 550
Figure 3. SEM and EPMA results of Pd/TiO2 film coated on netlike glass disc.
Figure 3. SEM and EPMA results of Pd/TiO2 film coated on netlike glass disc.
Molecules 26 02904 g003
Molecules 26 02904 g004 550
Figure 4. TEM images of Cu/TiO2 film.
Figure 4. TEM images of Cu/TiO2 film.
Molecules 26 02904 g004
Molecules 26 02904 g005 550

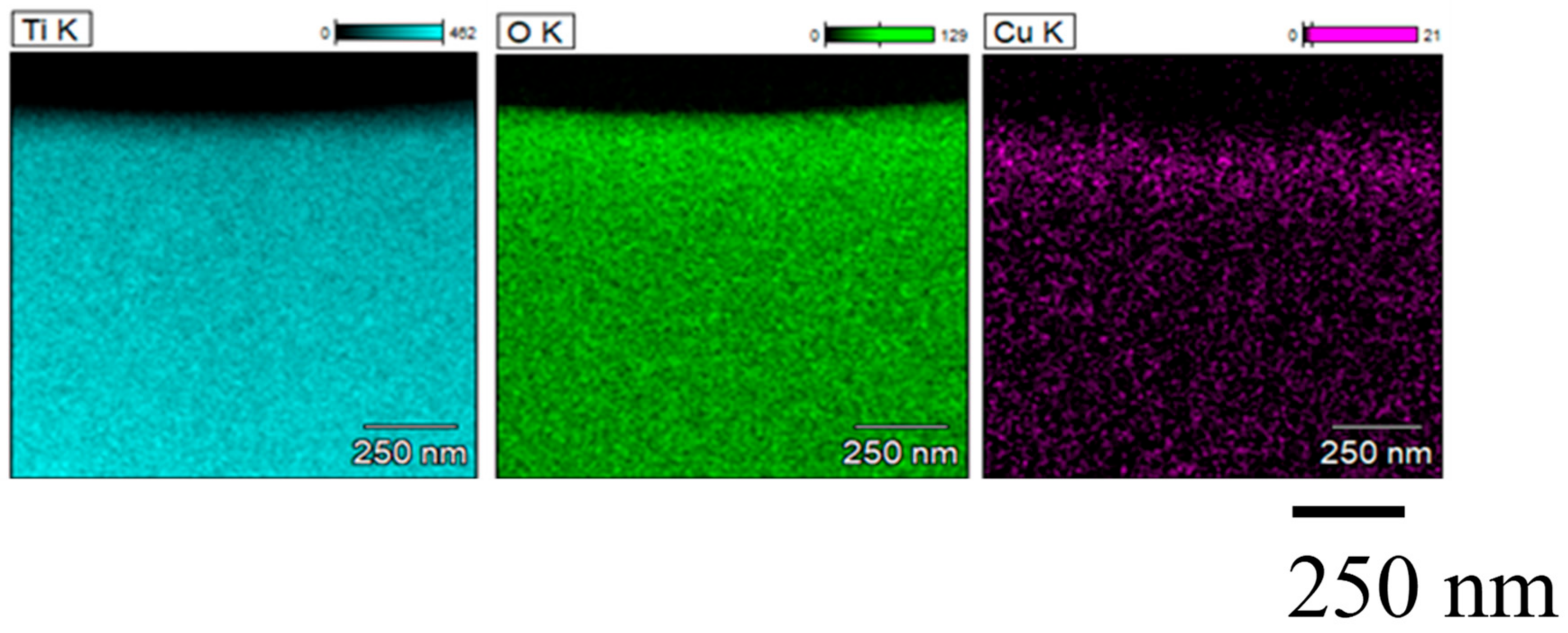

Figure 5. EDX images of Cu/TiO2 film (Left: Ti, Center: O, Right: Cu).
Figure 5. EDX images of Cu/TiO2 film (Left: Ti, Center: O, Right: Cu).
Molecules 26 02904 g005
Molecules 26 02904 g006 550

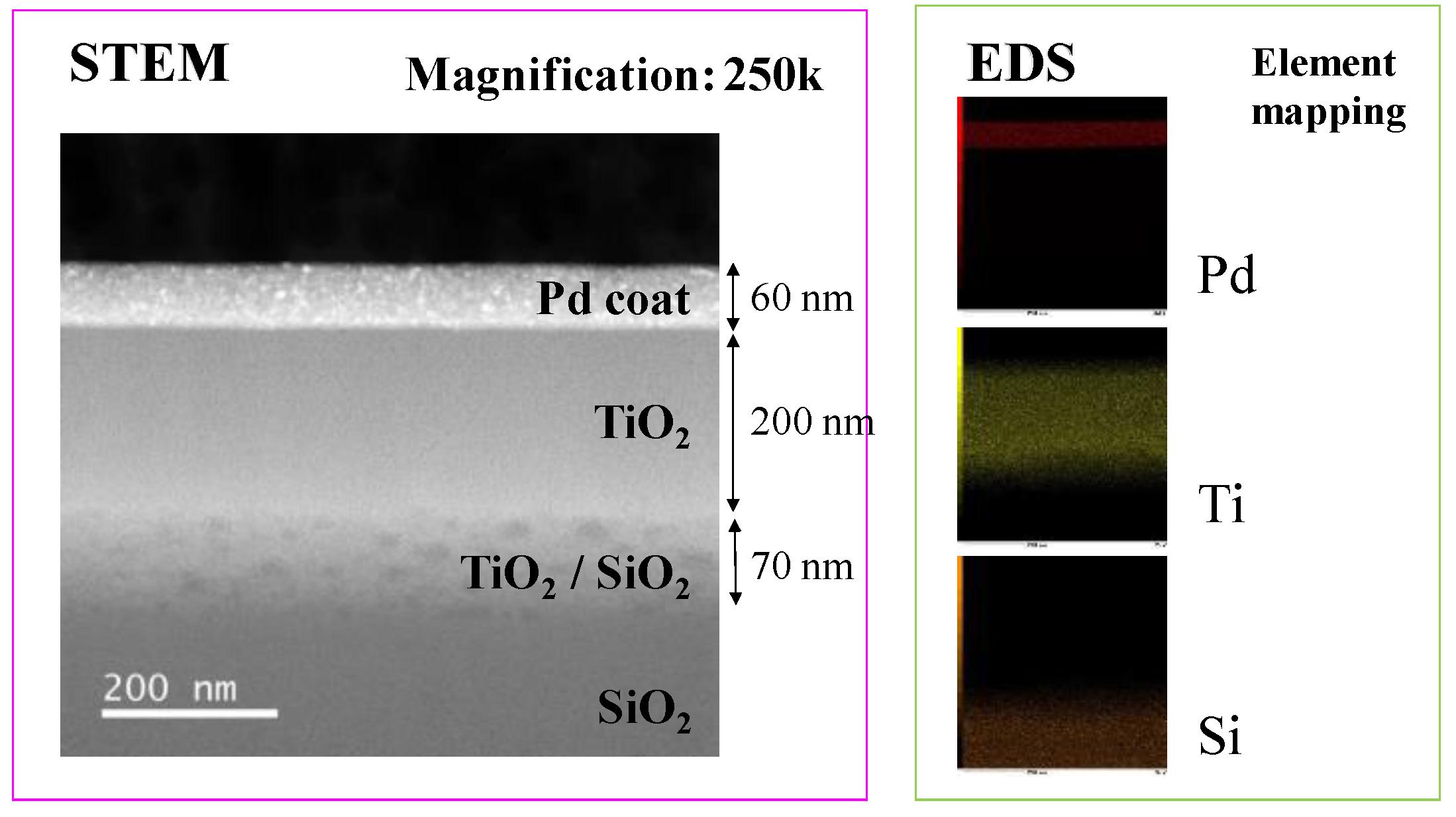

Figure 6. STEM and EDS result of Pd/TiO2 film coated on netlike glass disc.
Figure 6. STEM and EDS result of Pd/TiO2 film coated on netlike glass disc.
Molecules 26 02904 g006
Molecules 26 02904 g007 550

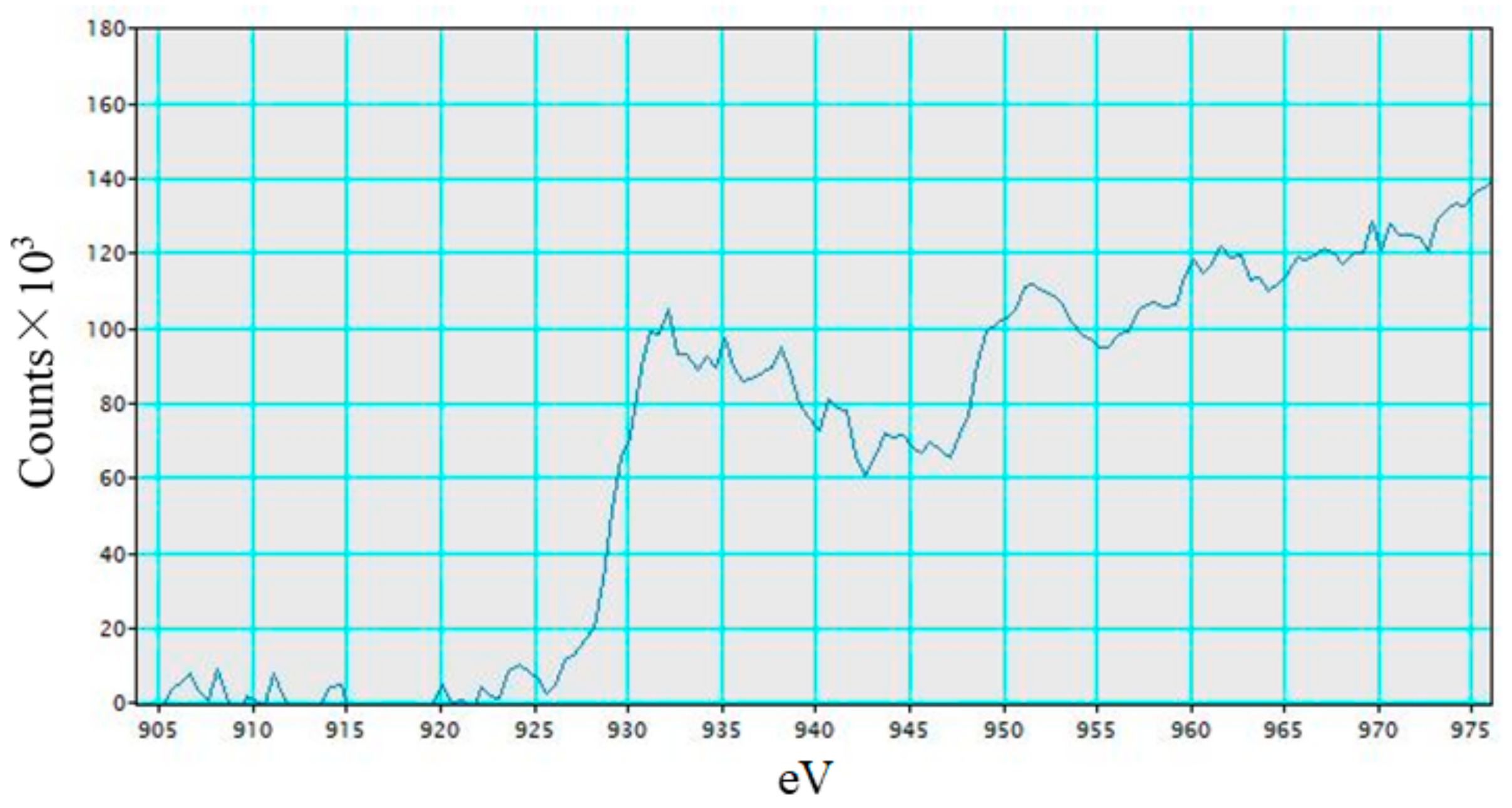

Figure 7. EELS spectra of Cu in Cu/TiO2.
Figure 7. EELS spectra of Cu in Cu/TiO2.
Molecules 26 02904 g007
Molecules 26 02904 g008 550

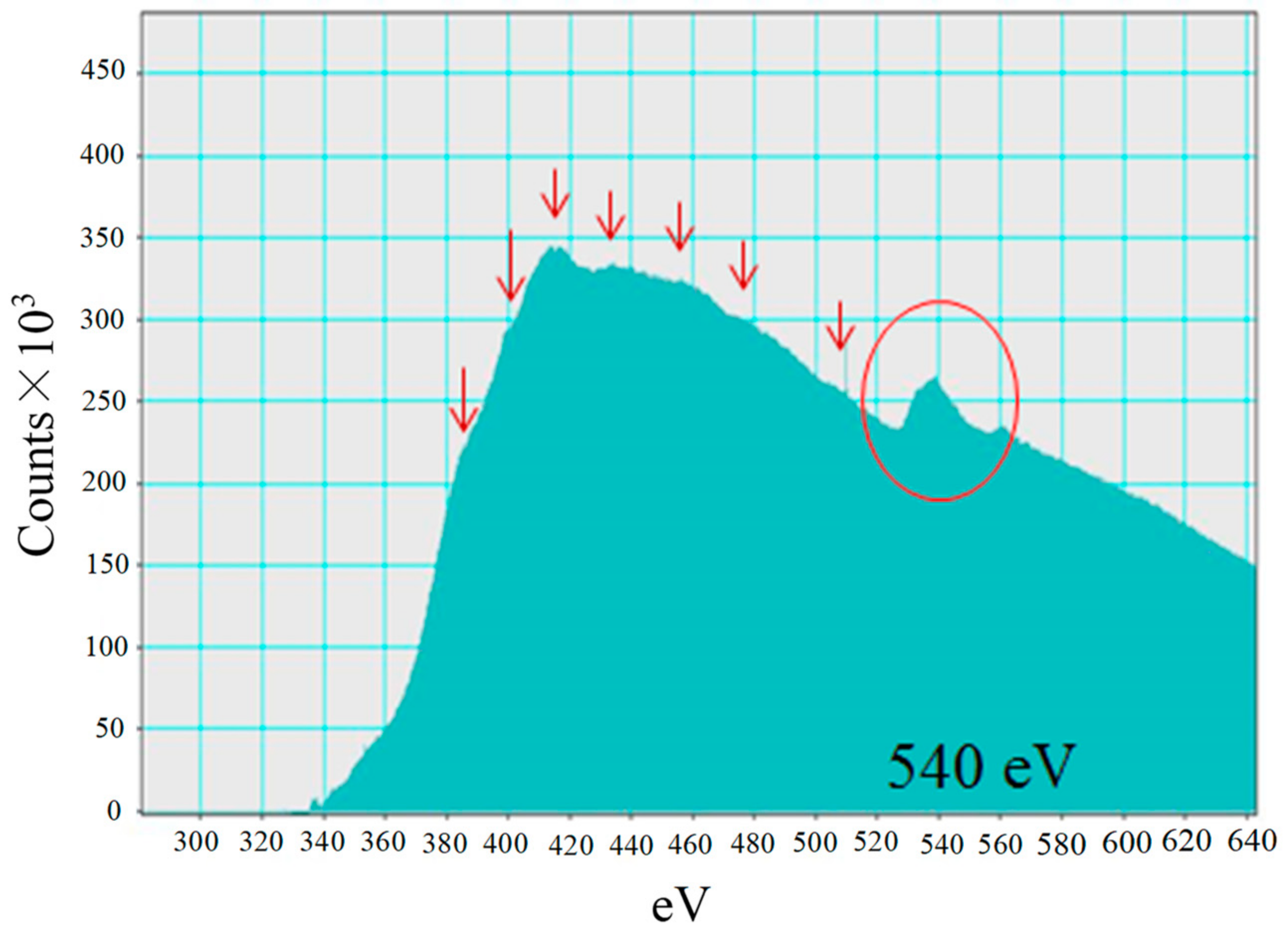

Figure 8. EELS spectra of Pd in Pd/TiO2.
Figure 8. EELS spectra of Pd in Pd/TiO2.
Molecules 26 02904 g008
Molecules 26 02904 g009 550

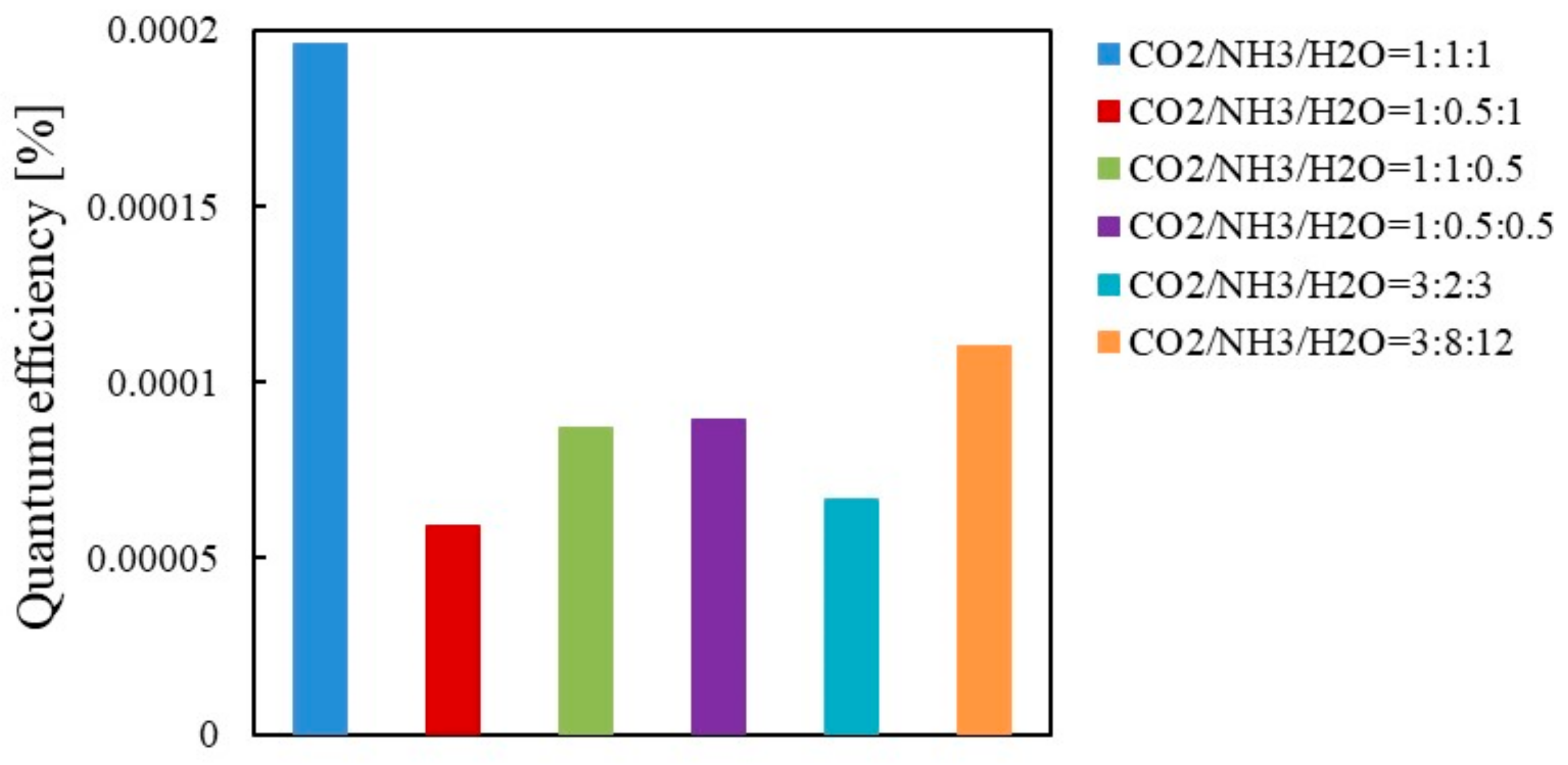

Figure 9. Comparison of quantum efficiency among different molar ratios for Cu/TiO2 under the illumination condition of Xe lamp with UV light.
Figure 9. Comparison of quantum efficiency among different molar ratios for Cu/TiO2 under the illumination condition of Xe lamp with UV light.
Molecules 26 02904 g009
Molecules 26 02904 g010 550
Figure 10. Comparison of quantum efficiency among different molar ratios for Cu/TiO2 under the illumination condition of Xe lamp without UV light.
Figure 10. Comparison of quantum efficiency among different molar ratios for Cu/TiO2 under the illumination condition of Xe lamp without UV light.
Molecules 26 02904 g010
Molecules 26 02904 g011 550
Figure 11. Comparison of quantum efficiency among different molar ratios for Pd/TiO2 under the illumination condition of Xe lamp with UV light.
Figure 11. Comparison of quantum efficiency among different molar ratios for Pd/TiO2 under the illumination condition of Xe lamp with UV light.
Molecules 26 02904 g011
Molecules 26 02904 g012 550
Figure 12. Comparison of quantum efficiency among different molar ratios for Pd/TiO2 under the illumination condition of Xe lamp without UV light.
Figure 12. Comparison of quantum efficiency among different molar ratios for Pd/TiO2 under the illumination condition of Xe lamp without UV light.
Molecules 26 02904 g012
Table
Table 1. Comparison of molar quantity of CO per unit weight of photocatalyst for Cu/TiO2 under the illumination condition of Xe lamp with UV light (unit: μmol/g).
Table 1. Comparison of molar quantity of CO per unit weight of photocatalyst for Cu/TiO2 under the illumination condition of Xe lamp with UV light (unit: μmol/g).
Time [h]03691215182124487296
CO2:NH3:H2O = 1:1:106.310.29.58.58.47.46.85.73.86.64.5
CO2:NH3:H2O = 1:0.5:103.04.45.15.04.85.35.05.03.12.62.7
CO2:NH3:H2O = 1:1:0.504.86.36.57.16.86.86.87.94.75.43.9
CO2:NH3:H2O = 1:0.5:0.505.37.05.06.47.78.06.55.13.83.64.2
CO2:NH3:H2O = 3:2:304.65.96.04.75.45.95.84.03.61.72.3
CO2:NH3:H2O = 3:8:1203.45.76.36.64.74.34.65.13.54.86.2
Table
Table 2. Comparison of molar quantity of CO per unit weight of photocatalyst for Cu/TiO2 under the illumination condition of Xe lamp without UV light (unit: μmol/g).
Table 2. Comparison of molar quantity of CO per unit weight of photocatalyst for Cu/TiO2 under the illumination condition of Xe lamp without UV light (unit: μmol/g).
Time [h]03691215182124487296
CO2:NH3:H2O = 1:1:100.60.80.90.91.01.21.42.01.91.51.2
CO2:NH3:H2O = 1:0.5:100.91.01.31.11.41.61.11.00.70.91.1
CO2:NH3:H2O = 1:1:0.500.81.41.71.61.41.21.11.01.31.01.6
CO2:NH3:H2O = 1:0.5:0.500.51.21.41.42.12.51.71.31.72.31.7
CO2:NH3:H2O = 3:2:300.51.11.61.40.91.31.52.21.41.11.3
CO2:NH3:H2O = 3:8:1200.41.11.51.00.70.60.90.91.11.51.4
Table
Table 3. Comparison of molar quantity of CO per unit weight of photocatalyst for Pd/TiO2 under the illumination condition of Xe lamp with UV light (unit: μmol/g).
Table 3. Comparison of molar quantity of CO per unit weight of photocatalyst for Pd/TiO2 under the illumination condition of Xe lamp with UV light (unit: μmol/g).
Time [h]036912
CO2:NH3:H2O = 1:1:101.65.55.02.8
CO2:NH3:H2O = 1:0.5:101.41.400.1
CO2:NH3:H2O = 1:1:0.502.11.11.11.4
CO2:NH3:H2O = 1:0.5:0.502.01.50.81.2
CO2:NH3:H2O = 3:2:301.51.61.42.4
CO2:NH3:H2O = 3:8:1201.71.21.81.1
Table
Table 4. Comparison of molar quantity of CO per unit weight of photocatalyst for Pd/TiO2 under the illumination condition of Xe lamp without UV light (unit: μmol/g).
Table 4. Comparison of molar quantity of CO per unit weight of photocatalyst for Pd/TiO2 under the illumination condition of Xe lamp without UV light (unit: μmol/g).
Time [h]024487296
CO2:NH3:H2O = 1:1:101.73.53.23.1
CO2:NH3:H2O = 1:0.5:101.82.02.12.5
CO2:NH3:H2O = 1:1:0.502.52.33.11.6
CO2:NH3:H2O = 1:0.5:0.502.51.42.02.0
CO2:NH3:H2O = 3:2:301.61.63.02.8
CO2:NH3:H2O = 3:8:1201.71.71.51.8
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Nishimura, A.; Shimada, R.; Sakakibara, Y.; Koshio, A.; Hu, E. Comparison of CO2 Reduction Performance with NH3 and H2O between Cu/TiO2 and Pd/TiO2. Molecules 2021, 26, 2904. https://doi.org/10.3390/molecules26102904

AMA Style

Nishimura A, Shimada R, Sakakibara Y, Koshio A, Hu E. Comparison of CO2 Reduction Performance with NH3 and H2O between Cu/TiO2 and Pd/TiO2. Molecules. 2021; 26(10):2904. https://doi.org/10.3390/molecules26102904

Chicago/Turabian Style

Nishimura, Akira, Ryouga Shimada, Yoshito Sakakibara, Akira Koshio, and Eric Hu. 2021. "Comparison of CO2 Reduction Performance with NH3 and H2O between Cu/TiO2 and Pd/TiO2" Molecules 26, no. 10: 2904. https://doi.org/10.3390/molecules26102904

Article Metrics

Back to TopTop
