Search Results (29)

CdTe nanocrystals (NCs) have emerged as a promising active layer for efficient thin-film solar cells due to their outstanding optical properties and simple processing techniques. However, the low hole concentration and high resistance in the CdTe NC active layer lead to high carrier recombination in the back contact. Herein, we developed a novel 2-iodothiophene as a wet etching solution to treat the surface of CdTe NC. We found that surface treatment using 2-iodothiophene leads to reduced interface defects and improves carrier mobility simultaneously. The surface properties of CdTe NC thin films after iodide salt treatment are revealed through surface element analysis, space charge limited current (SCLC) studies, and energy level investigations. The CdTe NC solar cells with 2-iodothiophene treatment achieved power conversion efficiency (PCE) of 4.31% coupled with a higher voltage than in controlled devices (with NH₄I-treated ones, 3.08% PCE). Full article

New glasses in the xCdO-(90 − x)TeO₂-10GeO₂ system were obtained by the conventional melt-quenching process at 900 °C. The glasses were transparent to the naked eye. The diffraction patterns indicate that the samples were mostly amorphous, except for the CdO-rich glasses, in which the formation of nanocrystals of CdO and Cd₃TeO₆ were identified. Raman spectroscopy analysis of the samples displayed the existence of TeO₃, TeO₃₊₁, TeO₄, and GeO₄, structural units within the glass matrix. The optical band gap of the glass samples was determined by optical absorption spectroscopy using the Tauc method. Depending on the relative content of TeO₂, their values varied in the range of 2.32–2.86 eV. The refractive index was obtained from the band gap values. The XPS measurements showed that Ge 3d, O 1s and Te 3d_3/2, Te 3d_5/2, Cd 3d_5/2, and Cd 3d_3/2 doublets shifted to higher binding energy values as the amount of TeO₂ was increased. The binding energy values of the Te 3d doublet are related to the TeO₄ and TeO₃ groups. Full article

Semiconductor nanorods (NRs) have great potential in optoelectronic devices for their unique linearly polarized luminescence which can break the external quantum efficiency limit of light-emitting diodes (LEDs) based on spherical quantum dots. Significant progress has been made for developing red, green, and blue light-emitting NRs. However, the synthesis of NRs emitting in the deep red region, which can be used for accurate red LED displays and promoting plant growth, is currently less explored. Here, we report the synthesis of deep red CdSeTe/CdZnS/ZnS dot-in-rod core/shell NRs via a seeded growth method, where the doping of Te in the CdSe core can extend the NR emission to the deep red region. The rod-shaped CdZnS shell is grown over CdSeTe seeds. By growing a ZnS passivation shell, the CdSeTe/CdZnS/ZnS NRs exhibit a photoluminescence emission peak at 670 nm, a full width at a half maximum of 61 nm and a photoluminescence quantum yield of 45%. The development of deep red NRs can greatly extend the applications of anisotropic nanocrystals. Full article

Quantum dots (QDs) are nanocrystal semiconductors that feature unique optical properties. However, they have a high density of dangling bonds on their surface, causing defects that can compromise their fluorescence. Their superficial passivation using another semiconductor is an alternative to reduce these defects. Herein, CdTe QDs stabilized with mercaptusuccinic acid (MSA) and cysteamine (CYA) were synthesized in water and coated with a ZnSe layer, forming a core–shell heterostructure. An improvement in photoluminescence greater than 300% was obtained for CdTe/ZnSe-MSA. However, for CdTe/ZnSe-CYA, the emission enhancement was around 55%. This study reinforces the importance of the experimental conditions to optimize QDs’ emission. Full article

The paper contains the results of a recognition technique based on the comparison of statistical and stochastic characteristics of the wavelet coefficients of energy density describing the emission energy of a nanocrystal with a quantum dot according to the Brus equation for traditional and perspective materials for quantum dots (CdSe, GaAs, CdTe, PbS) used in optoelectronic engineering and technology, in order to analyze their characteristics. Full article

Solution-processed cadmium telluride (CdTe) nanocrystal (NC) solar cells offer the advantages of low cost, low consumption of materials and large-scale production via a roll-to-roll manufacture process. Undecorated CdTe NC solar cells, however, tend to show inferior performance due to the abundant crystal boundaries within the active CdTe NC layer. The introduction of hole transport layer (HTL) is effective for promoting the performance of CdTe NC solar cells. Although high-performance CdTe NC solar cells have been realized by adopting organic HTLs, the contact resistance between active layer and the electrode is still a large problem due to the parasitic resistance of HTLs. Here, we developed a simple phosphine-doping technique via a solution process under ambient conditions using triphenylphosphine (TPP) as a phosphine source. This doping technique effectively promoted the power conversion efficiency (PCE) of devices to 5.41% and enabled the device to have extraordinary stability, showing a superior performance compared with the control device. Characterizations suggested that the introduction of the phosphine dopant led to higher carrier concentration, hole mobility and a longer lifetime of the carriers. Our work presents a new and simple phosphine-doping strategy for further improving the performance of CdTe NC solar cells. Full article

The parameters of the shell and interface in semiconductor core/shell nanocrystals (NCs) are determinant for their optical properties and charge transfer but are challenging to be studied. Raman spectroscopy was shown earlier to be a suitable informative probe of the core/shell structure. Here, we report the results of a spectroscopic study of CdTe NCs synthesized by a facile route in water, using thioglycolic acid (TGA) as a stabilizer. Both core-level X-ray photoelectron (XPS) and vibrational (Raman and infrared) spectra show that using thiol during the synthesis results in the formation of a CdS shell around the CdTe core NCs. Even though the spectral positions of the optical absorption and photoluminescence bands of such NCs are determined by the CdTe core, the far-infrared absorption and resonant Raman scattering spectra are dominated by the vibrations related with the shell. The physical mechanism of the observed effect is discussed and opposed to the results reported before for thiol-free CdTe Ns as well as CdSe/CdS and CdSe/ZnS core/shell NC systems, where the core phonons were clearly detected under similar experimental conditions. Full article

The power conversion efficiency (PCE) of solution-processed CdTe nanocrystals (NCs) solar cells has been significantly promoted in recent years due to the optimization of device design by advanced interface engineering techniques. However, further development of CdTe NC solar cells is still limited by the low open-circuit voltage (V_oc) (mostly in range of 0.5–0.7 V), which is mainly attributed to the charge recombination at the CdTe/electrode interface. Herein, we demonstrate a high-efficiency CdTe NCs solar cell by using organic polymer poly[bis(4–phenyl)(2,4,6–trimethylphenyl)amine] (PTAA) as the hole transport layer (HTL) to decrease the interface recombination and enhance the V_oc. The solar cell with the architecture of ITO/ZnO/CdS/CdSe/CdTe/PTAA/Au was fabricated via a layer-by-layer solution process. Experimental results show that PTAA offers better back contact for reducing interface resistance than the device without HTL. It is found that a dipole layer is produced between the CdTe NC thin film and the back contact electrode; thus the built–in electric field (V_bi) is reinforced, allowing more efficient carrier separation. By introducing the PTAA HTL in the device, the open–circuit voltage, short-circuit current density and the fill factor are simultaneously improved, leading to a high PCE of 6.95%, which is increased by 30% compared to that of the control device without HTL (5.3%). This work suggests that the widely used PTAA is preferred as the excellent HTL for achieving highly efficient CdTe NC solar cells. Full article

Solution-processed CdTe semiconductor nanocrystals (NCs) have exhibited astonishing potential in fabricating low-cost, low materials consumption and highly efficient photovoltaic devices. However, most of the conventional CdTe NCs reported are synthesized through high temperature microemulsion method with high toxic trioctylphosphine tellurite (TOP-Te) or tributylphosphine tellurite (TBP-Te) as tellurium precursor. These hazardous substances used in the fabrication process of CdTe NCs are drawing them back from further application. Herein, we report a phosphine-free method for synthesizing group II-VI semiconductor NCs with alkyl amine and alkyl acid as ligands. Based on various characterizations like UV-vis absorption (UV), transmission electron microscope (TEM), and X-ray diffraction (XRD), among others, the properties of the as-synthesized CdS, CdSe, and CdTe NCs are determined. High-quality semiconductor NCs with easily controlled size and morphology could be fabricated through this phosphine-free method. To further investigate its potential to industrial application, NCs solar cells with device configuration of ITO/ZnO/CdSe/CdTe/Au and ITO/ZnO/CdS/CdTe/Au are fabricated based on NCs synthesized by this method. By optimizing the device fabrication conditions, the champion device exhibited power conversion efficiency (PCE) of 2.28%. This research paves the way for industrial production of low-cost and environmentally friendly NCs photovoltaic devices. Full article

The temperature dependence of the excitonic photoluminescence (PL) and nonlinear absorption characteristics of CdTe nanocrystals (NCs)/polyvinyl alcohol (PVA) film are investigated using steady-state/time-resolved PL spectroscopy and Z-scan methods. The excitonic PL peaks of CdTe NCs can be observed at the wavelengths from 560 to 670 nm, with size changes from 2.1 to 3.9 nm. From the temperature-dependent PL spectra, the smaller photon energy of the PL emission peak, the rapidly decreasing PL intensity, and the wider linewidth are observed with increasing temperature from 80 to 300 K. It is revealed that the excitonic PL is composed of both trapped state and band-edge excitonic state, which presents biexponential fitting dynamics. The short-lived species is due to the surface-trapped state recombination in NCs, which has a photogenerated trapped channel and a time-resolved peak shift. The species with a long-lived lifetime is ascribed to the intrinsic excitonic recombination. Through the femtosecond Z-scan method, the nonlinear absorption coefficient becomes smaller with the increase in the size of the NCs. The optical properties of the CdTe NC/PVA film show the potential of II-VI traditional NCs as display and luminescent materials that can utilize the combination of excitonic PL and nonlinear absorption for expanded functionality. Full article

CdTe semiconductor nanocrystal (NC) solar cells have attracted much attention in recent year due to their low-cost solution fabrication process. However, there are still few reports about the fabrication of large area NC solar cells under ambient conditions. Aiming to push CdTe NC solar cells one step forward to the industry, this study used a novel blade coating technique to fabricate CdTe NC solar cells with different areas (0.16, 0.3, 0.5 cm²) under ambient conditions. By optimizing the deposition parameters of the CdTe NC’s active layer, the power conversion efficiency (PCE) of NC solar cells showed a large improvement. Compared to the conventional spin-coated device, a lower post-treatment temperature is required by blade coated NC solar cells. Under the optimal deposition conditions, the NC solar cells with 0.16, 0.3, and 0.5 cm² areas exhibited PCEs of 3.58, 2.82, and 1.93%, respectively. More importantly, the NC solar cells fabricated via the blading technique showed high stability where almost no efficiency degradation appeared after keeping the devices under ambient conditions for over 18 days. This is promising for low-cost, roll-by-roll, and large area industrial fabrication. Full article

The environment strongly affects both the fundamental physical properties of semiconductor nanocrystals (NCs) and their functionality. Embedding NCs in polymer matrices is an efficient way to create a desirable NC environment needed for tailoring the NC properties and protecting NCs from adverse environmental factors. Luminescent NCs in optically transparent polymers have been investigated due to their perspective applications in photonics and bio-imaging. Here, we report on the manifestations of photo-induced enhancement of photoluminescence (PL) of aqueous colloidal NCs embedded in water-soluble polymers. Based on the comparison of results obtained on bare and core/shell NCs, NCs of different compounds (CdSe, CdTe, ZnO) as well as different embedding polymers, we conclude on the most probable mechanism of the photoenhancement for these sorts of systems. Contrary to photoenhancement observed earlier as a result of surface photocorrosion, we do not observe any change in peak position and width of the excitonic PL. Therefore, we suggest that the saturation of trap states by accumulated photo-excited charges plays a key role in the observed enhancement of the radiative recombination. This suggestion is supported by the unique temperature dependence of the trap PL band as well as by power-dependent PL measurement. Full article

Interface engineering has led to significant progress in solution-processed CdTe nanocrystal (NC) solar cells in recent years. High performance solar cells can be fabricated by introducing a hole transfer layer (HTL) between CdTe and a back contact electrode to reduce carrier recombination by forming interfacial dipole effect at the interface. Here, we report the usage of a commercial product 2,2′,7,7′-tetrakis[N,N-di(4-methoxyphenyl)amino]-9,9′-spirobifluorene (Spiro) as a hole transfer layer to facilitate the hole collecting for CdTe nanocrystal solar cells. It is found that heat treatment on the hole transfer layer has significant influence on the NC solar cells performance. The J_sc, V_oc, and power conversion efficiency (PCE) of NC solar cells are simultaneously increased due to the decreased contact resistance and enhanced built-in electric field. We demonstrate solar cells that achieve a high PCE of 8.34% for solution-processed CdTe NC solar cells with an inverted structure by further optimizing the HTL annealing temperature, which is among the highest value in CdTe NC solar cells with the inverted structure. Full article

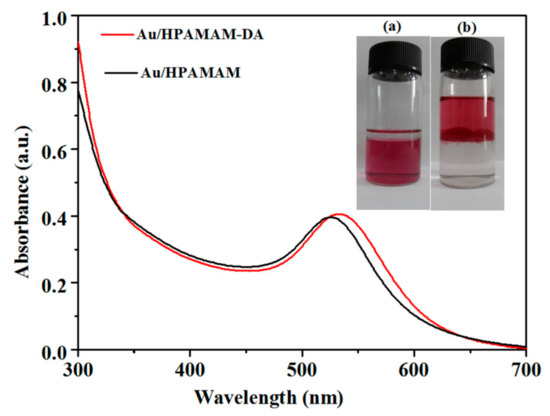

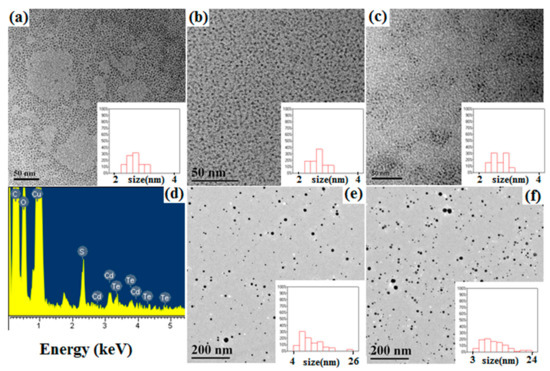

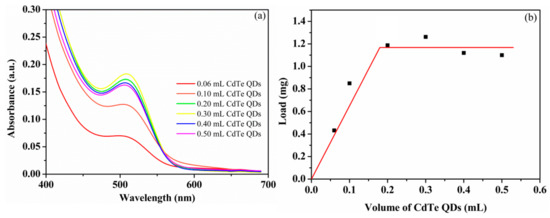

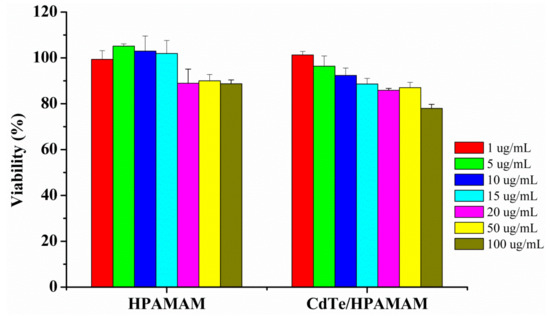

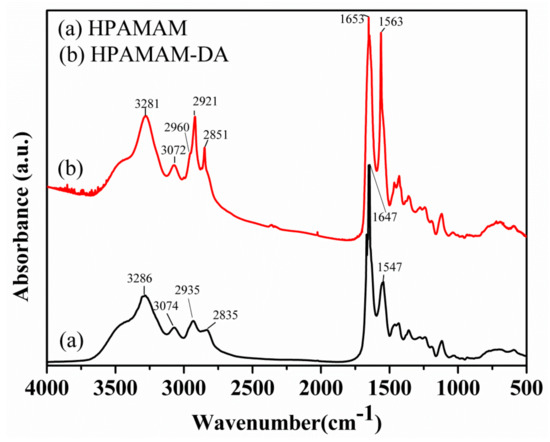

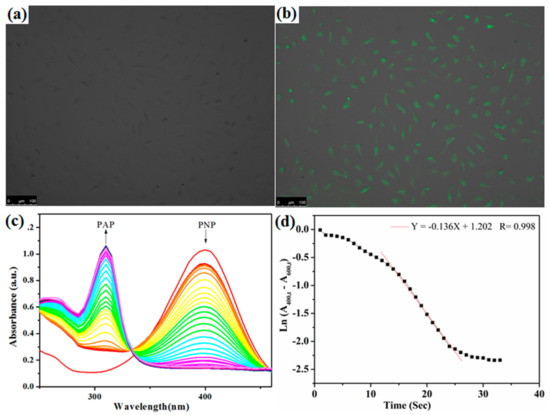

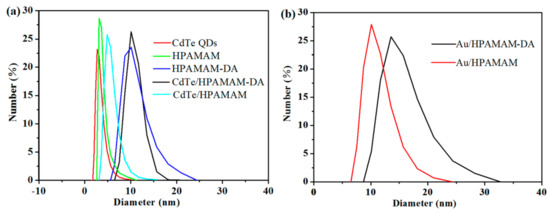

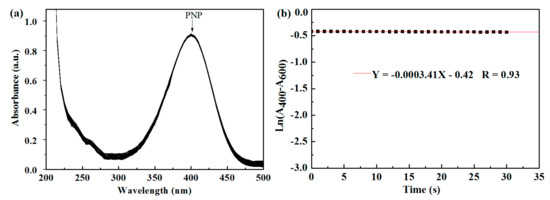

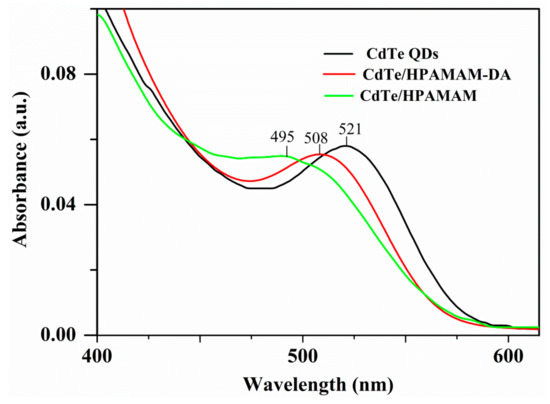

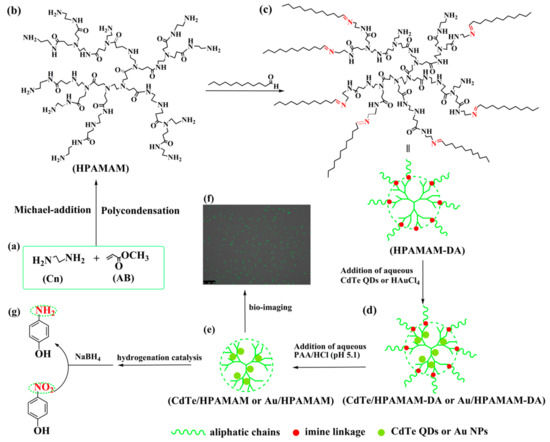

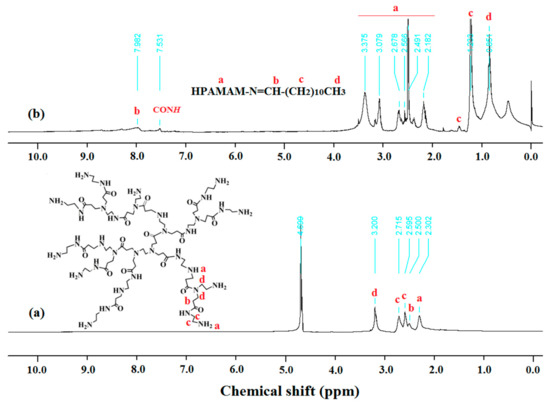

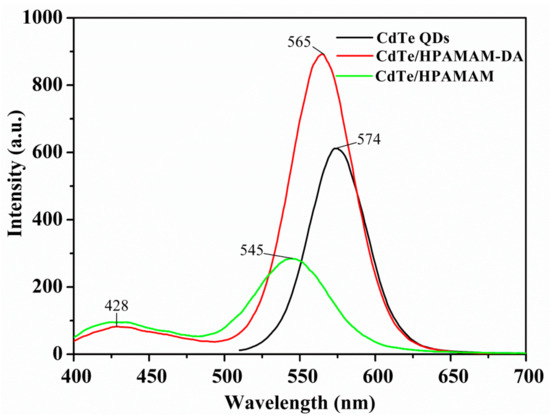

A new strategy for nanocrystal encapsulation, release and application based on pH-sensitive covalent dynamic hyperbranched polymers is described. The covalent dynamic hyperbranched polymers, with multi-arm hydrophobic chains and a hydrophilic hyperbranched poly(amidoamine) (HPAMAM) core connected with pH-sensitive imine bonds (HPAMAM–DA), could encapsulate CdTe quantum dots (QDs) and Au nanoparticles (NPs). Benefiting from its pH response property, CdTe QDs and Au NPs encapsulated by HPAMAM–DA could be released to aqueous phase after imine hydrolysis. The released CdTe/HPAMAM and Au/HPAMAM nanocomposites exhibited excellent biological imaging behavior and high catalytic activities on p-nitrophenol hydrogenation, respectively. Full article

The use of solution-processed photovoltaics is a low cost, low material-consuming way to harvest abundant solar energy. Organic semiconductors based on perovskite or colloidal quantum dot photovoltaics have been well developed in recent years; however, stability is still an important issue for these photovoltaic devices. By combining solution processing, chemical treatment, and sintering technology, compact and efficient CdTe nanocrystal (NC) solar cells can be fabricated with high stability by optimizing the architecture of devices. Here, we review the progress on solution-processed CdTe NC-based photovoltaics. We focus particularly on NC materials and the design of devices that provide a good p–n junction quality, a graded bandgap for extending the spectrum response, and interface engineering to decrease carrier recombination. We summarize the progress in this field and give some insight into device processing, including element doping, new hole transport material application, and the design of new devices. Full article
